Product Type	Wristwatch
Brand	TW Steel
Model	Canteen TW10
Movement Type	Quartz
Case Material	Stainless Steel
Case Diameter	45 mm
Case Thickness	13 mm
Strap Material	Silicone
Strap Width	22 mm
Glass Type	Mineral Crystal
Water Resistance	300 m (30 ATM)
Weight	200 g
Power Source	Battery (SR626SW)
Battery Life	Approximately 2 years
Functions	Hours, minutes, seconds, date
Crown	Screw-down crown
Clasp Type	Buckle
Warranty	2 years international
Country of Origin	Switzerland
Care Instructions	Rinse with fresh water after saltwater use; avoid harsh chemicals; clean strap with mild soap

Frequently Asked Questions - Canteen TW10 TW Steel

How do I set the time and date on my TW Steel Canteen TW10?

Pull the crown out to the first position to set the date. Turn clockwise until the correct date appears. Pull the crown to the second position to set the time. Turn the crown to adjust the hands. Push the crown back in after setting.

Is the TW Steel Canteen TW10 suitable for swimming?

Yes, the watch has a water resistance of 300 meters (30 ATM), making it suitable for swimming, snorkeling, and recreational scuba diving. Ensure the crown is screwed down tightly before water exposure.

How do I replace the battery?

Battery replacement should be done by a professional watchmaker. The watch uses a SR626SW battery. Opening the case yourself may damage the seals and void the warranty.

What is the crown for and how do I use it?

The crown is used to set the time and date. It is a screw-down crown: unscrew it counterclockwise before pulling it out. After setting, push it back in and screw it clockwise to ensure water resistance.

How should I clean my TW Steel watch?

Use a soft, lint-free cloth to clean the case and crystal. For the silicone strap, wash with mild soap and water, then rinse thoroughly. Avoid using solvents or abrasive cleaners.

What is the warranty period for the TW Steel Canteen TW10?

TW Steel offers a 2-year international warranty covering manufacturing defects. It does not cover battery, wear and tear, or damage from improper use.

Can I wear my Canteen TW10 while diving?

Yes, the 300m water resistance allows for professional diving (saturation diving excluded). Rinse with fresh water after diving to remove salt or chlorine.

The watch is running fast/slow. What should I do?

Quartz watches are highly accurate. If it runs significantly fast or slow, the battery may be low or there may be a mechanical issue. Contact an authorized service center for diagnosis.

How do I adjust the strap length?

The silicone strap may have holes for adjustment. For resizing, you may need to cut the strap (if it's one-piece) or visit a jeweler for a custom fit. Some models have a buckle with multiple holes.

What should I do if moisture appears inside the crystal?

Moisture indicates a seal failure. Immediately stop using the watch and take it to a service center. Do not attempt to dry it yourself as this may cause further damage.

USER MANUAL Canteen TW10 TW Steel

TW STEEL®

BIG IN OVERSIZED WATCHES

MANUAL

INSTRUCTIONS FOR THE USE OF THE TW STEEL MODELS/ CANTEEN STYLE

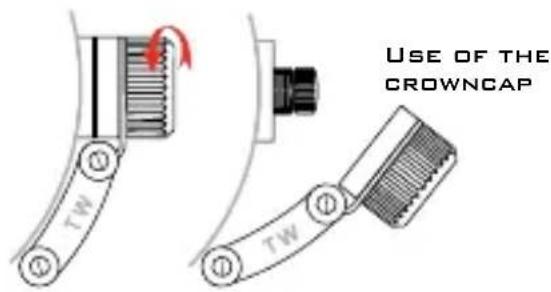

To adjust the time or set the date you first have to unscrew the crowncap anti clockwise. If you have unscrewed it, you will see the [small] crown. Follow the next instructions to adjust the time and date. After adjusting it, screw the crowncap clockwise back.

ADJUSTING THE TIME ADJUSTING THE DATE

USING THE CHRONOGRAPH

CHANGING THE TIME

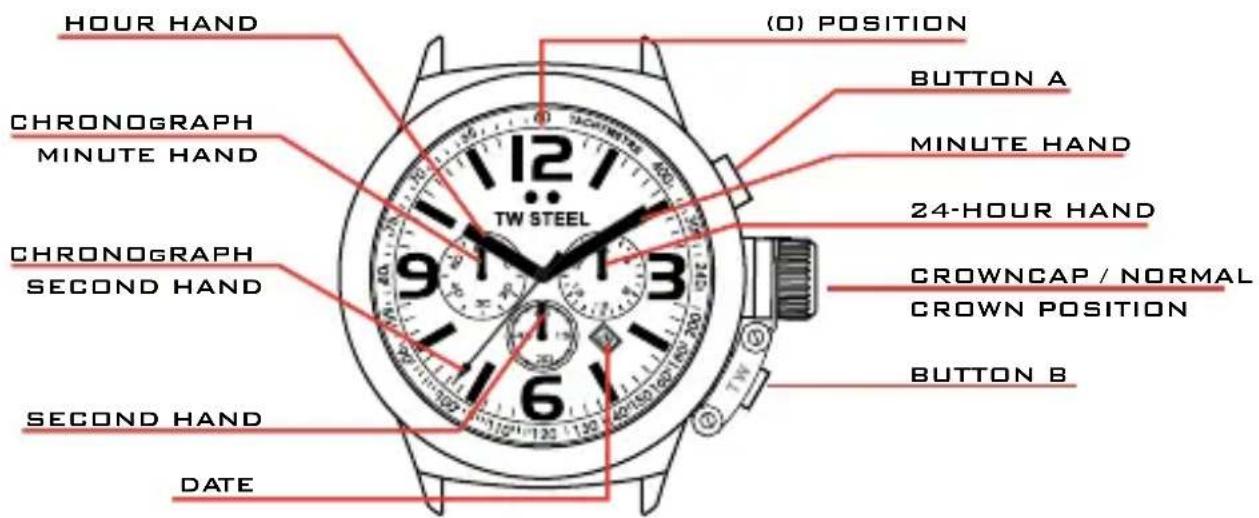

ADJUSTING THE TIME

Pull the crown out to the 2nd click position so that the second hand stops at (O) position. Turn the crown to set the hour and minute hands.

ADJUSTING THE DATE

ADJUSTING THE DATE

Pull the crown out to the 1st position. Turn the crown to the left to set the date. After the date has been set, push the crown back to the normal position.

USING THE CHRONOGRAPH

The chronograph is able to measure and display the time in 1/1 second united up to an maximum of 1 hour. The chronograph can be started and stopped each time button A is pressed. Pressing button B resets the chronograph. All hands return to their (O) position. If the chronograph second hand does not return to the (O) second position after the chronograph has been reset or after replacing the battery, you should do the following: Pull the crown out to the 2nd position. Press button A to set the chronograph second hand to the (O) position. The chronograph hands can be advanced rapidly by continuously pressing button A or B. Once the chronograph second hand has returned to the (O) position, return the crown to its normal position.

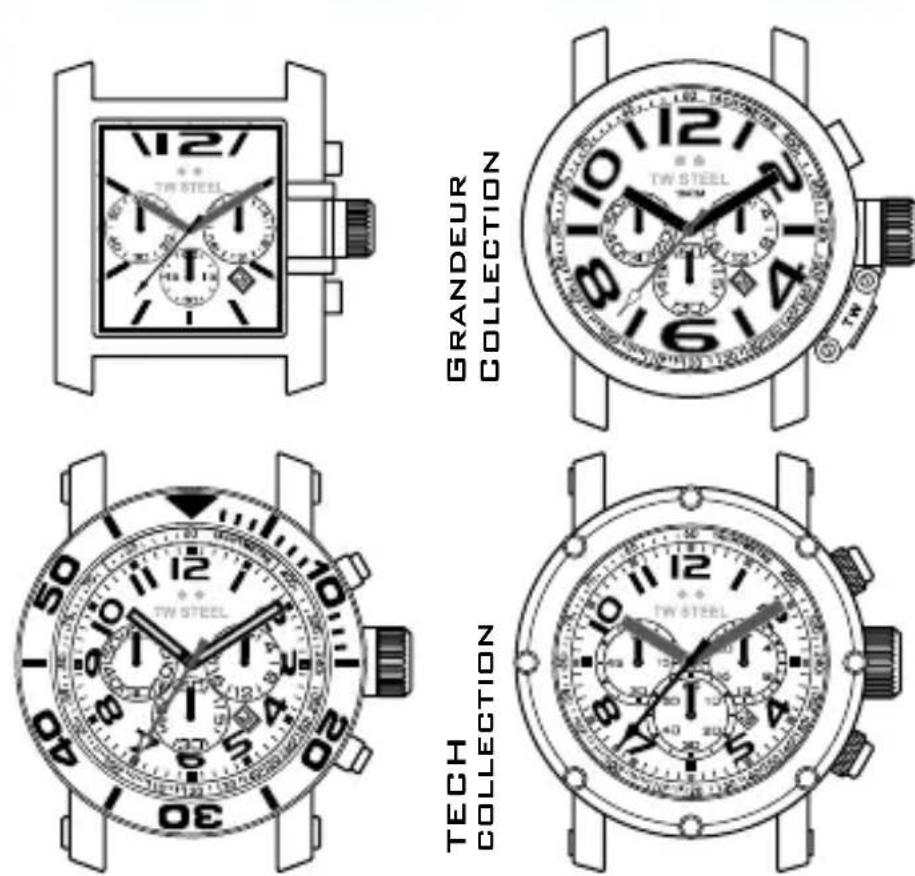

NSTRUCTIONS FOR GRANDEUR DIVER / GOLIATHGRANDEUR COLLECTION / TECH COLLECTION

GOLIATH

To set the time and date you can directly pull out the big crown its 1st or 2nd position.

GRANDEUR COLLECTION

If your model has a crowncap, please follow the instructions of the Canteen style. If your model has NO crowncap, you can directly pull out the big crown to its 1st or 2n position to set the time and date.

GRANDEUR DIVER

To set the time and date you first have to unscrew the big crown an clockwise. You can now pull out the crown to its 1st or 2nd position.

For all models follow the instructions of the Canteen Style for the use of the chronograph.

USING THE CHRONOGRAPH OF THE TECH MODELS

TECH COLLECTION

To adjust the time and date of the Tech, you first have to unscrew the big crown anti clockwise. You can now pull out the crown to its 1st or 2nd position. Check the manual of the Canteen Style for further instructions on how to set the time and date.

for 30 seconds after starting and then stops at (o) position. Press button B to change the watch to the chronograph mode. The second hand stops at the (O) position and changes to the chronograph 1/20 second hand. The chronograph can be started and stopped each time button A is pressed. Pressing button B resets the chronograph. the following: Pull the crown out to the 2nd position. Press button A to set the chronograph second hand to the (O) position. Press button B to set the chronograph 1/20 second hand to (O) position. The chronograph hands can be advanced rapidly by continuously pressing button A or B. Once the hands have returned to the (O) position, return the crown to its normal position an screw the crown clockwise back on to the case.

USE OF THE CHRONGRAPH FOR ALL TECH MODELS

The chronograph is able to measure and display the time in 1/20 second united up to a maximum of 59 min and 59 sec. The retrograde chronograph 1/20 second hand keeps running continuously

All hands return to their (O) position. If the chronograph second hand and the chronograph 1/20 second hand do not return to the (O) second position after the chronograph has been reset or after replacing the battery, you should do

CAUTION: IF THE CROWN IS NOT PRESSED IN PROPERLY, THE WATCH IS NO LONGER WATER-PROOF AND THE MOVEMENT CAN BE SERIOUSLY DAMAGED!
