Brand	Mpman
Model	MID170
Product Type	Tablet
Screen Size	7 inches
Display Resolution	1024 x 600 pixels
Processor	Quad-core 1.3 GHz
RAM	1 GB
Internal Storage	8 GB
Operating System	Android 4.4 KitKat
Battery Capacity	3000 mAh
Weight	320 g
Dimensions	191 x 108 x 11 mm
Wi-Fi	802.11 b/g/n
Bluetooth	4.0
Rear Camera	2 MP
Front Camera	0.3 MP
Ports	Micro USB, 3.5 mm headphone jack
Power Adapter	5V / 1.5A
Card Slot	microSD up to 32 GB
G-Sensor	Yes
Speaker	Single mono speaker

Frequently Asked Questions - MID170 MPMAN

How to reset the Mpman MID170 to factory settings?

Go to Settings > Backup & reset > Factory data reset. Confirm to erase all data. Alternatively, turn off the tablet, press and hold Volume Up and Power buttons simultaneously to enter recovery mode, then select 'wipe data/factory reset'.

Can I expand the storage on my MID170?

Yes, the tablet supports microSD cards up to 32 GB. Insert the card into the slot located on the side of the device.

Why is my tablet not charging?

Ensure the charger is connected securely. Try a different USB cable and power adapter. If the battery is completely drained, it may take a few minutes before the charging icon appears. If the issue persists, check the charging port for debris.

How to take a screenshot on the Mpman MID170?

Press and hold the Power button and the Volume Down button simultaneously for about 2 seconds. The screen will flash and the screenshot will be saved in the Gallery.

What should I do if the screen is unresponsive?

Try a soft reset by holding the Power button for 10 seconds until the device turns off. Turn it back on. If the touchscreen remains unresponsive, check for screen protector issues or perform a factory reset.

How to connect to Wi-Fi?

Go to Settings > Wi-Fi and toggle it on. Select your network from the list, enter the password (if required), and tap Connect.

Is the battery removable?

No, the battery is built-in and not user-replaceable. For safety, only authorized service centers should replace it.

Can I use a USB OTG drive?

Yes, the MID170 supports USB On-The-Go. Connect an OTG adapter to the Micro USB port, then attach a USB flash drive or external device. The file manager will detect it automatically.

How to clean the tablet?

Turn off the device and disconnect all cables. Use a soft, lint-free cloth slightly dampened with water (or a mild screen cleaner) to gently wipe the screen and body. Avoid getting moisture in openings.

What type of charger does the MID170 use?

The tablet uses a 5V / 1.5A charger with a Micro USB connector. Using a higher-rated charger may damage the device.

USER MANUAL MID170 MPMAN

For Model No. MID 701

Tablet displaying Google's color gradient with bokeh light effects (no readable text or symbols)

EN

User Manual

This manual contains important safety precautions and information of correct use. Please be sure to read this manual carefully before use so as to avoid any accidents.

Do not place the product in hot, wet or dusty environment, especially during summer, do not leave the product inside a car with all windows closed.

Avoid dropping, impacting or shaking the product violently, otherwise it may cause damages or malfunctions.

Select a proper volume to avoid ear problem when using earphones.

Do not cross the road or drive vehicles, using headphones to avoid traffic accidents.

Be sure to use the provided chargers and accessories in the package.

Be sure to charge the product when following situations take place.

-The battery icon shows lower or empty.
-System automatically shut down and turns off soon after restart.
-Operation keys do not respond properly.
-The devices shows 📁 on the notification bar.

Specification

Hardware

7" Capacitive Touch screen (800x480 pixel)

Capacitive multi-touch (5 touch) point function

CPU : ARM cortex A8 processor

RAM : DDR3 512MB (3D accelerator possible for 3D games)

Wi-Fi (IEEE802.11 b/g/n) for internet connection

USB host for OTG function

G-sensor

Micro SD card slot recognizing up to 32GB

Built-in speaker & Built-in MIC

5V DC power adapter

Compatible with keyboard mouse

Dimension : 121 x 181 x 11.5 mm

Software

Android 4.2

Google browser

Wi-Fi connection

e-Book function (all e-book formats supported by application)

1080P HD file playback

VOIP phone function with Wi-Fi connection

Possible to view/edit MS office files by application

Video : AVI, RM/RMVB, FLV, MPG4-1, MPEG2 etc.

Audio : MP3, WMA, AAC, WAV etc.

Photo : JPEG, BMP, GIF, PNG, TIFF

Nomenclature

Important Notice

• If the device is freezing or stuck, press the reset button(a small hole) or long press power button for 7 seconds.
• When the performance is slow after using some applications, it is recommended to close running application in setting menu.

Caution

• For charging, be sure to use the power adapter(DC5V) that is provided in the package, otherwise, the device may be damaged and does not work.
• The device is equipped with high performance processor. It may heat in case of using long or while charging.

1. Power On/Off

Long press power button to turn on/off the device. It may take a minute to boot the device. Short press power button to turn on/off the screen.(Standby mode. Refer to 3. below)

2. Desktop

After turning on the device, desktop displays with shortcut icons and notification bar

3. Standby mode(Screen off mode) / Unlock the screen

Short press the power button to turn on/off the screen (standby mode on/off). After standby mode off, slide the lock icon in order to unlock the screen.

4. System settings

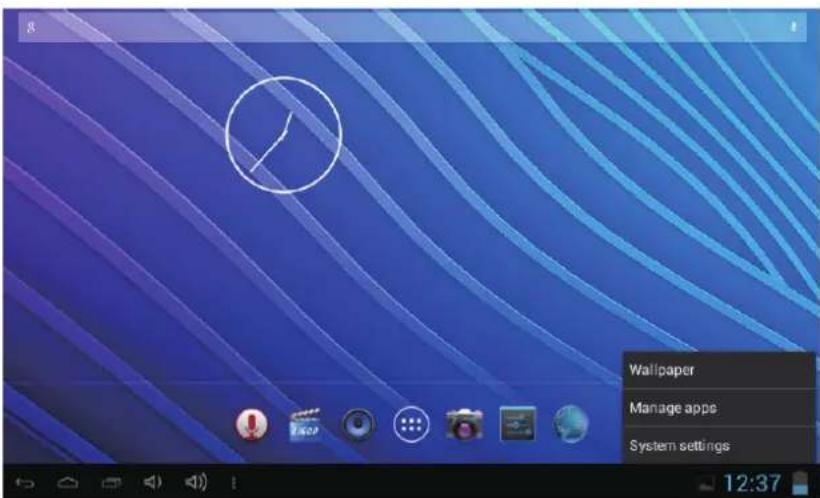

On the desktop, press menu button and select system settings.

Press system settings

1. Wireless & networks

Wi-Fi – Press Wi-Fi to turn on/off

Wi-Fi settings - Press Wi-Fi settings, then the device will automatically search the available Wi-Fi signals.

Select the network you want to connect with.

2. Sound

Set up each setting as you like.

3. Display

Set up each setting as you like.

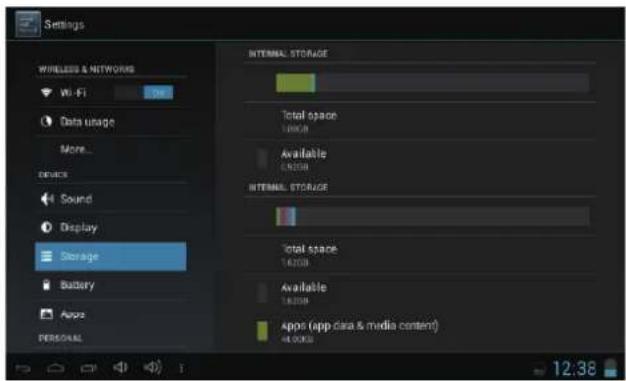

4. Storage

Check device memory and microSD card status. Unmount SD card – Unmount the SD card for safe removal.

5. Battery

Check battery usage status.

6. Apps

Manage downloaded or running applications.

Downloaded

All installed application are listing.

Keep pressing an application to manage.
Press Uninstall to uninstall the selected application.

Running services
View and control currently running services.

7. Location access

Access to my location – Let apps that have asked your permission use your location information

Wi-Fi & mobile network location – Let apps use Google's location service to estimate your location faster. Anonymous location data will be collected and sent to Google.

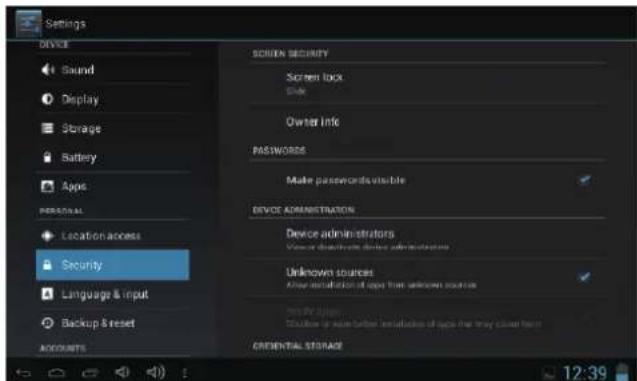

8. Security

Screen lock – Protect your device from unauthorized use by creating a personal screen unlock pattern. Make passwords visible – Show password as you type.

Unknown sources - If you want to allow installation of non-Market Applications, Press Unknown sources and presses OK.

Install from SD card – Install encrypted certificates from SD card.

9. Language & input

Language – Choose your preferable language.

Keyboard & input method – Change keyboard & keyboard settings.

On Language & input settings, if you need other languages besides English on keyboard, press the relevant keyboard and enter the chosen Keyboard settings, select Keyboards, press the language you need.

10. Date & time

Set date & time and format

11. Developer options

Set options for application development

12. About tablet

See status, legal information, ETC

How to connect/disconnect the device to/from the computer

On main desktop, connect the device with the PC, drag notification bar on the desktop

Desktop screen with abstract blue wave pattern and a white clock icon, no readable text or symbols on the main image area.

Press "USB connected", select "Turn on USB storage". The device is recognized at Explorer of the computer. Now you can use it as an external storage.

After finishing your work, Press "Turn off USB storage" to unmount it.

How to install Applications(.apk file) into the device

Method 1.

1. Connect the device with internet. See above [1.Wireless & networks] in order to connect internet.
2. Run "Opera mobile" and search the applications you want to install.
3. Follow the instruction on the screen for installation.

Method 2.

1. With your computer, search application file(.apk) that you want to install into the device.
2. Download the file(.apk) into your computer.
3. Connect the device with your computer. See above [How to connect/disconnect the device with/from the computer.]
4. Copy and paste .apk file into the device and disconnect it from your computer.
5. Run "File manager" and find .apk file that was copied into the device.
6. Press the file to install and follow the instruction on the screen.

Note

You may only download adult applications if you are at least 18 years of age, or at least the age of majority in the jurisdiction where you reside or from which you download adult applications. If you do not meet these requirements, then you do not have permission to download adult applications. In case of any problems including legal issues from the breach by end-user's own decision, the manufacturer cannot be responsible.

How to make desktop icons

Press the 📄 icon of desktop and the pop-up displays.

Desktop screen with abstract blue wave pattern and a white clock icon (no readable text or symbols)

Shortcuts

Long press your desired APK icon and put it on the desktop.

Widgets

Long press your desired wiget icon and put it on the desktop.

Wallpaper

Long press the desktop, press Wallpapers and select one of categories of wallpaper.

Select one you desire and press Set wallpaper.

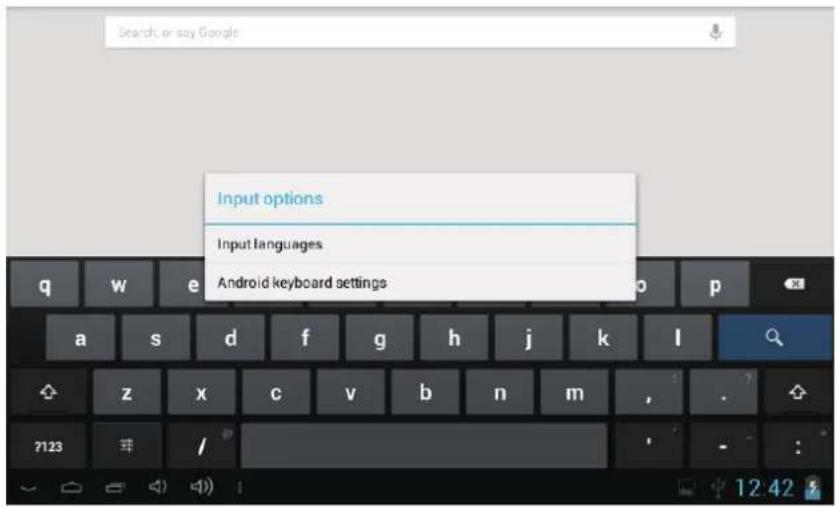

Change Input Method

If your device was installed with other more input method, long press setting icon of keyboard, and the pop-up displays.

Select the installed keyboard, then the keyboard will appear with your desired language you installed.

Specification

OS		Android 4.2
CPU		ARM cortex A8 processor
SDRAM		DDR3 512MB (3D accelerator possible for 4D games)
Display		7" 800 x 480 Capacitive touch panel
Multi-touch screen		Yes : 5 point multi-touch
Built-in flash memory		4 / 8 / 16GB
IO PORTS	Audio port	3.5ø earphones
	USB port	1 x 5pin micro USB port (support USB host and OTG)
	DC port	5V, 2A
	HDMI port	NO
	Micro SD	Micro SD card
	OTG port	Same with USB port
	Button	Power, VOL-, VOL+, Back, Reset
Speaker		1.5W, Frequency response : 20Hz – 20k Hz, N/S : >85%
G-sensor		Yes
Camera		0.3M pixel (front)
Wi-Fi		802.11b/g/n
Power		Adaptor 5V -2A
Battery		3.7V Li-Polymer
Dimension		121 x 181 x 11.5 mm
Charging time	by charger	approx. 3~4 hours

For more information please check our website www.mpmaneurope.com

CE
