Product Type	Video editing software for Panasonic HDC camcorders
Compatibility	Windows XP/Vista/7
Main Functions	Import, edit, and export AVCHD video; create discs; upload to YouTube
Input Formats	AVCHD, MPEG-2
Output Formats	AVCHD, MPEG-2, MP4
Disc Creation	Blu-ray, DVD-Video, AVCHD disc
Editing Features	Cut, split, merge, add transitions and effects
System Requirements (Minimum)	Intel Core 2 Duo 2.0 GHz, 1 GB RAM, 1 GB free HDD
System Requirements (Recommended)	Intel Core i5 2.4 GHz, 4 GB RAM, 10 GB free HDD
Supported Media	SD, SDHC, SDXC memory cards
Installation Type	CD-ROM or download
License	One-time purchase, single PC
Updates	Free updates available on Panasonic website
Safety	No special precautions; follow standard computer usage
Language Support	English, French, German, Spanish, Italian, Dutch, etc.
Warranty	Provided by Panasonic; check documentation
User Support	Manual included, online FAQ, community forums

Frequently Asked Questions - HD Writer AE 1.0 for HDC PANASONIC

How do I import video from my Panasonic HDC camcorder?

Connect your camcorder via USB and select 'Import' in HD Writer. The software detects AVCHD files and copies them to your computer.

Can I edit videos in HD Writer AE 1.0?

Yes, you can cut, split, merge, and add transitions or effects to your AVCHD videos.

What disc types can I create?

You can create Blu-ray, DVD-Video, and AVCHD discs directly from HD Writer.

Is HD Writer compatible with Windows 10?

HD Writer AE 1.0 was designed for Windows Vista/7. Compatibility with Windows 10 is not guaranteed; you may need a newer version.

How do I upload videos to YouTube?

Export your project as an MP4 file, then use the built-in YouTube upload feature or manually upload via browser.

What is the difference between AVCHD and MPEG-2 output?

AVCHD offers better compression for HD video, while MPEG-2 is used for standard DVD compatibility. Choose based on your playback device.

Can I use HD Writer with non-Panasonic camcorders?

HD Writer is optimized for Panasonic HDC models; other AVCHD camcorders may work but are not officially supported.

How to install HD Writer AE 1.0?

Insert the installation CD and follow the on-screen instructions. You can also download the setup from Panasonic's website if you have a license key.

The software crashes when importing large files. What should I do?

Ensure your system meets the recommended requirements. Close other programs and try importing smaller batches. Update the software if available.

Where can I find the user manual?

The manual is included on the installation CD or can be downloaded from the support section of the Panasonic website.

USER MANUAL HD Writer AE 1.0 for HDC PANASONIC

Operating Instructions

High definition Image Management/Easy Editing Software

HD Writer AE 1.0 for HDC

Thank you for using HD Writer AE.

Before use, please read these instructions completely.

© Panasonic Corporation 2009

Contents

Introduction

What you can do with this software (basic operations) 4 What you can do with this software (advanced features) 5 Read before starting operation 6 General precautions ...... 7 Operating environments 9 Optical discs and SD cards supported for recording 11 Recording length of optical discs and SD cards 12

Preparation

Connect the video camera to a computer ... 13 Disconnecting the video camera from the computer ..... 14

Starting the software 15

Exiting the software 15

Basic operations

Feature overview ...... 16

Importing content to a computer (Simply Import to PC) 17

Importing only content that you have not already imported (differential importing) 19

Recording on discs in standard quality (Simply Create DVD-Video Disc) 20

Recording on discs and SD cards in high definition (Simply Create BD/DVD/SD Card (AVCHD)) 22

Viewing content on a computer 24

Playing video content 25 Viewing photos 26

Contents

Advanced Features

Feature overview 27

▶ Main window .....28 Content preview area ..... 29

Importing content to a computer

(Import to PC) 30 Registering or deregistering destination folders 33

Playing content 34

Delete content 36

Editing content on your computer 37

▶ Editing video content (basic operations) .... 38 Selecting scenes to edit .... 38 Saving edited videos .... 38

Editing video content (Delete partially) .....41 Deleting selected portions of content .....41

Editing video content (Dividing scenes) .....44

▶ Assigning the playback order/ adding opening titles/adding effects ..... 45

Assigning the playback order 45

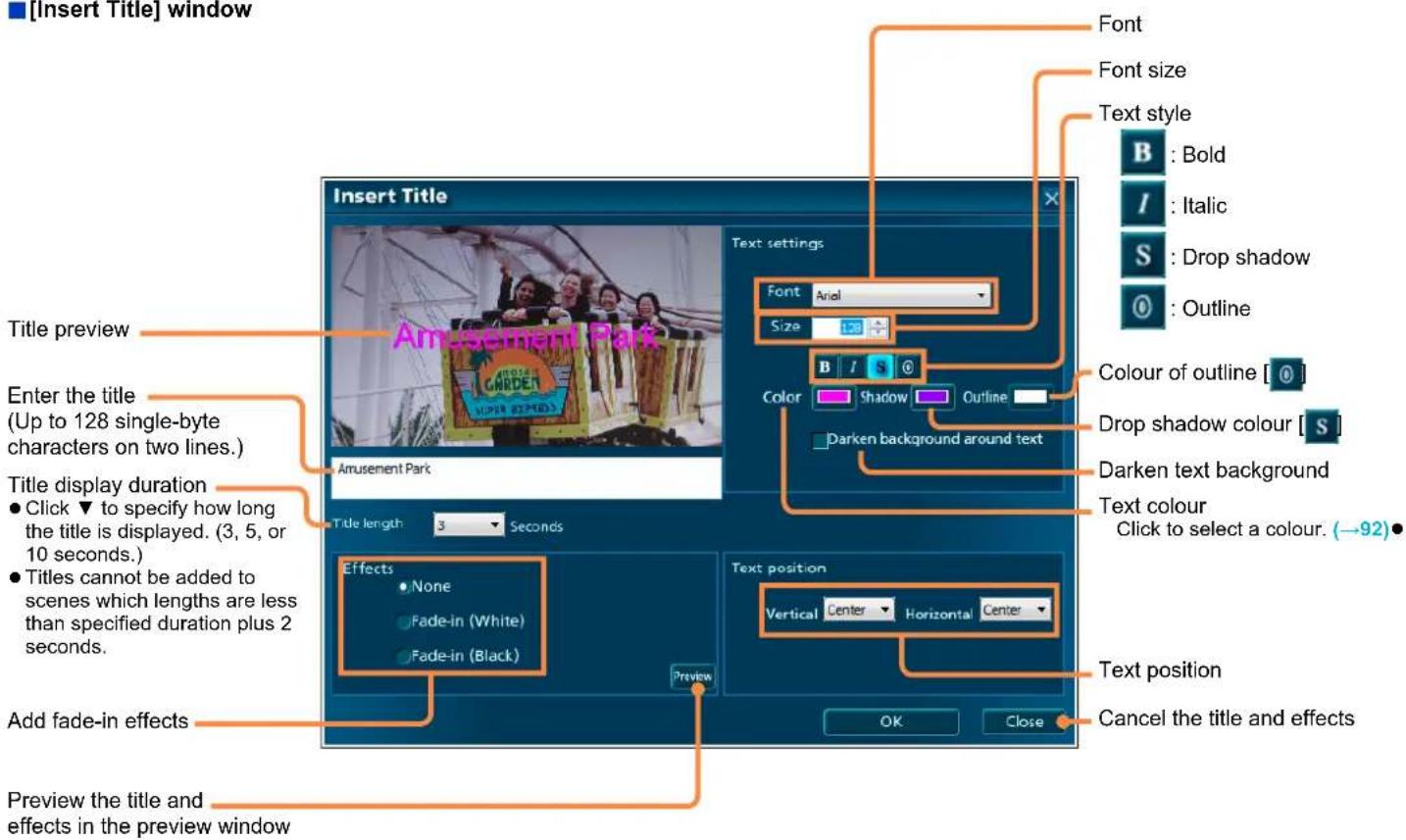

Adding opening titles 47

Adding scene transitions 49

Editing digital photos ....51

Protecting and renaming content ....52

Recording on optical discs and SD cards ... 53

Recording ....53 Recording formats ....53 Top menus ....54 Automatic multi-disc recording ....54 Additional recording on media with existing content ....55

▶ [Create Media] menu .....56

Recording video content ....57 Selecting video content to record ....58 Recording selected video content (for BD-R/RE (BDMV), DVD-RAM · DVD-R/RW · SD card (AVCHD), DVD-R/RW (DVD-Video)) ....61 Recording selected video content (DVD-RAM (DVD-VR format)) ....65

Recording photos 67

Using convenient features 70

▶ Viewing highlights of video content (Highlight Playback) 70 ▶ Viewing photos shot using high-speed burst shooting (Continuous photo playback) 71 Creating still pictures from video 72 ▶ Searching for desired content 73 ▶ Uploading content to YouTube 75

Other

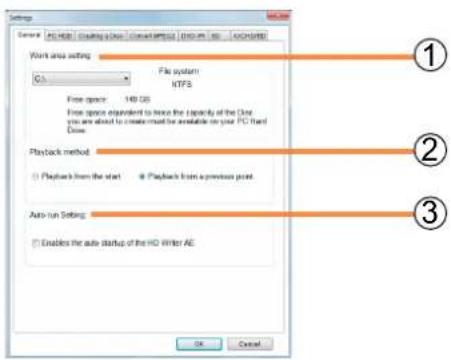

Formatting discs 78 Advanced settings 81 Windows in this software 86 Shortcut menus 95 Troubleshooting 98 Trademark and Licence Information 106

Introduction

What you can do with this software (basic operations)

Connect a video camera with recorded content to your computer

Play back content on your computer (→24–26)

Recording

Import (save) content to your computer (→17–19)

Recording on discs in standard quality (DVD-Video format) (→20–21)

Create discs that can be played on most DVD players.

Recording on discs and SD memory cards* in high definition (BDMV or AVCHD format) (→22–23)

Create discs and SD cards for high-quality playback on HD-compatible equipment. * When you record videos to SD memory cards, AVCHD format is the only format available.

Advanced features (→5, 27)

What you can do with this software (advanced features)

Connect a video camera with recorded content to your computer

Edit and Record

Importing to a Computer (→ 30)

Editing

• Deleting selected portions of a scene (→41) • Dividing scenes (→44)
• Assigning the playback order of scenes (→45)
• Adding opening titles (→47)
• Adding scene transitions (→49)

Creating Discs (→ 53)

Share on YouTube

You can upload videos to YouTube*. (→75)

Your video can be accessed and watched on the Internet.

* YouTube is a website for sharing video content on the Internet

Read before starting operation

■ Contents of these operating instructions

• The description of Windows® in these operating instructions is based on the Windows Vista® screen.
• Please note that the explanations and screen images in these operating instructions may differ from the actual explanations and screen images due to version upgrades of the software and the use environments of PCs.
• For instructions on using your computer, optical disc drive, or video camera, or instructions on the Windows operating system, refer to the respective Operating Instructions.

■ Steps to protect important image data

● To be prepared in case of accidents or technical problems, back up captured data that is important to you by importing it to your computer and creating a disc or taking other measures. ● Before deleting the original image data, confirm that it was recorded correctly to your computer, to disc or to SD memory card. - Do not modify or delete files or folders ([AVCHD], [BDMV], [DCIM], [DVD_RTAV], or others) used by this software.

Important

• Playback of discs or SD memory cards created with this software in BDMV format or AVCHD format is only possible on equipment which is compatible with each format. Do not insert these media in incompatible equipment. Not only will playback be unsupported, it may not be possible to eject the media. Additionally, valuable content may accidentally be deleted after a message is displayed requesting you to format the media. ●The recorded and/or edited content is for personal use only and may not be reproduced or exported without permission from the copyright holder.

Terms

BDMV

This is a standard for recording and playing back high-definition images on Blu-ray discs.

AVCHD

This is a standard for recording and playing back high definition images.

DVD-Video

A format that can be played on most DVD players.

Scene

This means the image recorded during one recording (after starting recording until it is stopped).

Video

In this software, "scenes" (video content with the same recording date, for example) in the same folder are collectively referred to as "videos."

Top menu

A feature for displaying an interface similar to a table of contents when a disc is played. (Top menu is not displayed on video cameras. Top menus are only displayed on devices that support this feature.)

SD cards

In these instructions, SD memory cards and SDHC memory cards are collectively referred to as SD cards.

Video Video

1st Day 2

nd Day

1st Scene Captured

nd Scene Captured 3rd Scene Captured

scScene Captured

nd Scene Captured

Scene Scene Scene Scene Scene

General precautions

■ Not compatible with the following video formats and content

● Video recorded on video cameras that are not compatible with this software - Video captured using other devices cannot be imported. To import video from a previous Panasonic high-definition video camera, use the version of HD Writer provided with that video camera.

Media containing data recorded with previous Panasonic high-definition video cameras or data recorded with other devices cannot be imported with this software.

● Video created or edited with other software ● Commercial DVD or Blu-ray video content

■ General information about using the software

• Do not execute the following operations while the software is running. Doing so may cause defects (damage to media, etc.).
• Turn off the PC or video camera, or restart the PC.
• Switch the user or log off.
• Change the screen settings.
• Use the screen saver or the power-saving functions (makes the PC enter the standby or sleep modes after a certain time has elapsed without any operation on the PC).
• Use other software (especially software for writing to DVDs or CDs, or recording/encoding software with a high CPU utilization and large memory requirements).
• Use the shared drive of another PC connected to the network. ● BD-RE Ver. 1.0 / Ver. 2.1 standard disc cannot be used. ● DVD disc in AVCREC standard is not supported.

Discs and drive

• If the drive is being used by another software (Explorer, etc.), the drive cannot be used with this software. Close the software before using the drive with this software. (If the drive is being used by this software, the drive cannot be used with other software.)
• Before using this software, ensure that the transfer mode of the drive is set to [DMA]. If it is not set to [DMA], set it to [DMA] by referring to the operating instructions of your drive. (It may be impossible to set it to [DMA] depending on your PC.)
• Use the type of discs recommended for your disc drive, and avoid soiling or scratching them. Reading and recording may not be possible with dirty or scratched discs. Discs that are incompatible with the disc drive may not be recognised, or recording may not be possible.
• The recording speeds (2x, 4x, etc.) for drives and discs indicate the maximum speed and not the actual recording speed. (Speeds may vary depending on the combination of drive and disc or the use conditions.)

■ Operations during disc recording

If the following actions are executed while the data is being recorded onto a disc, recording may not complete properly, and the disc, device, or data may be damaged.

• Operations for user switching or logging off from Windows®. ● Operation of other recording software
• Connection cables for a PC or a DVD device (an external DVD drive) are inserted or removed, or the power is turned on or off. ● Other USB devices such as SD card reader are installed or removed. ● This software is forcibly closed.

General precautions

Disc creation

●Video recorded in DVD-Video format must be at least 2 seconds long. Video recorded in DVD-VR format must be at least 3 seconds long. - Conversion may be required when recording, depending on the images. In this case, because the image has to be encoded again, recording takes longer and image quality may also be degraded. - When recorded in DVD-Video format, the end section of the image may be shortened for about 0.5 seconds.

■Playback and use of produced media

• Discs created in AVCHD standard cannot be accessed with equipment or software that does not support the AVCHD standard. (Also, because the filing system uses a UDF 2.5 format, the files on the disc cannot be checked on a PC using Windows® Explorer unless UDF 2.5 has been installed.)
• Discs created in BDMV standard cannot be accessed with equipment or software that does not support the BDMV standard. (Also, because the filing system uses a UDF 2.6 format for BD-R or UDF 2.5 format for BD-RE, the files on the disc cannot be checked on a PC using Windows® Explorer unless each format has been installed.) ● DVD-Video and DVD-VR format cannot be played back, imported, or edited. ● Pictures on a disc cannot be imported. This software is not capable of importing pictures from a disc recorded with the DVD burner and a video camera connected.
• For DVD-R discs with dual layer on single side, images may be frozen or sounds may be inaudible for a moment when shifting from the first layer to the second layer, depending on the player. ● Normal playback may not be possible (a narrow, small, or incomplete playback window may be displayed) when using some models of older equipment (even if the equipment is compatible with the disc) or with some types of recorded data ● The recording mode is not displayed when discs or SD cards created using this software are played back using the HD video camera.

SD cards

● Recording on used SD cards may require formatting (initialisation). SD cards must be formatted by using video cameras compatible with this software. - Do not insert or remove SD cards when importing data from SD cards or recording data on discs. Removing SD cards then may cause data corruption or SD card damage. - Use of SDHC memory cards requires SDHC-compatible equipment. - If the write-protect switch has been set to [LOCK], recording is not possible. - Initialising SD cards or deleting card data only modifies file management information. Data on SD cards is not completely deleted. We recommend physically destroying SD cards or thoroughly deleting all data on SD cards when disposing of SD cards or transferring ownership. Use discretion in managing data on SD cards.

■ Functions using online services

• Because YouTube™ services and specifications are subject to change, operation of online services cannot be guaranteed in the future. Available services and screens are subject to change without notice. (These services are valid as of December 1, 2008.) ● Unless you are the copyright holder or you have obtained permission from the copyright holder, do not upload videos protected under copyright.

Operating environments

System requirements

PC	IBM® PC/AT compatible personal computer with an Intel® Pentium® III.0 GHz or higher CPU (including compatible CPU)When using playback function and the MPEG2 output function, Intel® CoreTM 2 Duo 2.16 GHz or higher, Intel® Pentium® D 3.2 GHz or higher, or AMD AthlonTM 64 X2 Dual-Core 5200+ or higher is recommended.When editing content or using seamless transfer functions or continuous photo playback function, an Intel® CoreTM 2 Quad 2.6 GHz processor or higher is recommended.
OS	PreinstalledMicrosoft® Windows Vista® Home Basic or Service Pack 1Microsoft® Windows Vista® Home Premium or Service Pack 1Microsoft® Windows Vista® Ultimate or Service Pack 1Microsoft® Windows Vista® Business or Service Pack 1Microsoft® Windows XP Home Edition Service Pack 2/Service Pack 3Microsoft® Windows XP Professional Service Pack 2/Service Pack 3Microsoft® Windows 2000 Professional Service Pack 4
RAM	Windows Vista®: 1 GB or moreWindows® XP/2000: 512 MB or more (1 GB or more recommended)
Display	High Colour (16 bit) or more (32 bit or more recommended)Desktop resolution of 1024 x 768 pixels or more (1280 x 1024 pixels or more recommended)Windows Vista®: Video card complying with DirectX® 9.0c ( DirectX® 10-compatible video card is recommended)Windows® XP/2000: Video card complying with DirectX® 9.0cDirectDraw® overlay supportPCI ExpressTM x 16 is recommended
Hard disk	Ultra DMA-100 or higher450 MB or more free space for installing softwareRecording to optical discs or SD cards requires twice the amount of free space as the size of the disc or SD card to be created. When automatically splitting data over multiple discs, 17 GB of free space are required.If the compression setting is enabled, errors will occur during recording. Clear the check for [Compress this drive to save disk space] in [Properties] for the hard disk drive.
Necessary software	Windows Vista®: Microsoft® DirectX® 10 (preinstalled in Windows Vista®)Microsoft® DirectX® 10.1 (preinstalled in Windows Vista® SP1)Windows® XP/2000: Microsoft® DirectX® 9.0c (preinstalled in Windows® XP SP2/SP3)Installing the software on a computer that is not compatible with these versions DirectX® may cause the computer to stop operating normally. If you are unsure if your PC is compatible, contact the manufacturer.
Sound	DirectSound® support

Operating environments

Drive	CD-ROM drive (for installation)When writing to DVD or BD, a compatible drive and media are necessary.
Interface	USB port (Hi-Speed USB (USB2.0))
Video cameras connected via USB	Panasonic HD video cameras this software is provided with
Content	Content captured using Panasonic HD video cameras this software is provided with
Other requirements	Mouse or equivalent pointing device,an environment with Internet access (required for online functions “YouTube Uploader”)

- Depending on the performance of your personal computer, a message about playback performance may appear during installation.

- Even if the system requirements mentioned in these operating instructions are fulfilled, some personal computers cannot be used.

● Supplied CD-ROM is available for Windows only.

- This software is not compatible with Microsoft® Windows® 3.1, Windows® 95, Windows® 98, Windows® 98 SE, Windows® Me, and Windows NT®.

- Operation is not guaranteed on Microsoft® Windows Vista® Enterprise, Windows® XP Media Center Edition, Tablet PC Edition and not compatible with 64 bit operation systems.

- When 2 or more USB devices are connected to a PC, or when devices are connected through USB hubs or by using extension cables, proper operation is not guaranteed.

- Operation on an upgraded OS is not guaranteed.

- Operation on an OS other than the one pre-installed is not guaranteed.

- This software does not support multi-boot environments.

- Windows Vista®: Log on with an administrator account or a standard user account before using this software. The software will not function with a Guest account.

Windows® XP/2000: Log on with an administrator account before using this software. (Installation and uninstallation of the software requires an administrator account.)

● This software does not support multi-monitor environments.

- For fonts and screen settings, use the standard Windows® settings. Characters may not display properly depending on the settings.

- This software cannot be used simultaneously with other time-shifting image editing software or video capture products. Note that other software running background processes, timer recording in particular, may cause this software to malfunction.

- This software operates only when the built-in clock on the PC is set to a value within the following range. From 0:00 on January 1, 1970, to 23:59 on December 31, 2037. If the built-in clock is set to a value outside this range, this software may not be activated or operated properly.

- This software can only handle images recorded with this software or a Panasonic video camera that this software accompanied. Images created with other video cameras, DVD recorders, software and commercial DVD videos and BD videos are not supported.

Optical discs and SD cards supported for recording

		Blu-ray discs DVD discs SD cards					*6*7
		BD-R BD-RE DVD-RAM	*2		DVD-R DVD-RW SD	memory card		SDHCMemory card
		12 cmSingle sided/Dual layer on single side		12 cmSingle sided/Double sided	12 cmSingle sided/Dual layer onsingle side	12 cmSingle sided	512 MB - 2 GB 4	GB - 32 GB
RecordingFormat	High definition	BDMV *9		AVCHD
	Standardquality	—	—	DVD-VR	DVD-Video *4		—
Appending		○	○	○	—	—	○	○
Format Required		*1	Required*1	Required*1*3	— Required *1*5		Required*8	Required*8
Picture —		—	—	—	—		JPEG(DCF)

• +R and +RW DVD discs can be used for recording in AVCHD format.
• Playback of BDMV, AVCHD, DVD-VR, and DVD-Video content requires equipment compatible with the respective formats.
• 8 cm discs are not supported. ● Recording errors may occur, depending on the disc quality. *1 Can be formatted by using this software. *2.6 GB and 5.2 GB double-sided DVD-RAM discs are not supported. *3 The type of formatting DVD-RAM discs varies depending on whether AVCHD or DVD-VR will be used. (→79) *4 DVD-Video can be played on most DVD players.

*5 Used DVD-RW discs can be used again for recording after formatting. *6 Includes miniSD cards (up to 2 GB), microSD cards (up to 2 GB) and microSDHC cards (up to 8 GB). (As of November 2008.) *7 SD cards must have a capacity of at least 32 MB for video recording. Additionally, operation is not guaranteed when recording video to 32 MB – 256 MB SD cards. SD cards of 8 MB – 128 MB can be used to store photos. *SD cards must be formatted by using video cameras compatible with this software. *9 BD-RE disc: Compatible with Blu-ray Disc Rewritable format BD-R disc: Compatible with Blu-ray Disc Recordable format

Recording length of optical discs and SD cards

For BDMV and AVCHD format

Approximate Recording Length Per Disc/Card

		Image quality
		HA HG HX HE(Best quality) (High quality) (Standard) (Long duration)
Blu-ray discsBD-R/BD-RE	25 GB	approx. 3 h approx. 3 h	50 min approx. 5 h 30	min approx. 8 h 20 min
	50 GB	approx. 6 h approx. 7 h	40 min approx. 11 h	approx. 16 h 40 min
DVD discs 4.7 GB	approx. 35 min approx. 45 min approx. 1 h 5 min approx. 1 h 40 min
	8.5 GB	approx. 1 h 5 min approx. 1 h 15 min approx. 2 h approx. 3 h
SD cards 8 GB	approx. 1 h approx. 1 h 20 min approx. 2 h approx. 3 h
	16 GB	approx. 2 h approx. 2 h	40 min approx. 4 h	approx. 6 h
	32 GB	approx. 4 h approx. 5 h	20 min approx. 8 h	approx. 12 h

For DVD-Video and DVD-VR format

Approximate Recording Length Per Disc

		Image quality
		(High quality) (Standard)
DVD-R/RW(DVD-Video)	4.7 GB (Single sided) approx. 1 h approx. 1 h 30 min
	8.5 GB(Dual layer on single side)	approx. 1 h 50 min	approx. 2 h 40 min
DVD-RAM(DVD-VR)	4.7 GB	approx. 1 h

Preparation

Connect the video camera to a computer

By connecting a compatible video camera to your computer with the included cable, you can import content on the internal recording media of the video camera or on the SD card installed in the video camera to your computer or create discs.

Important

To avoid draining the battery of notebook computers or video cameras, use an AC adapter with these devices.

1 Start the computer. 2 Turn on the video camera. 3 Connect the video camera to a computer.

Insert the USB cable included with the video camera firmly into the USB port.

4 Set the video camera to the mode for connecting to a PC.

For details, refer to the operating instructions for the video camera.

5 Confirm that the video camera is recognised by the computer.

The video camera is correctly recognised by the computer if the video camera is added as a drive in [Computer] (or [My Computer]).

(Example of display)

Connect the video camera to a computer

Tip

• For further details, also refer to the video camera manual.
• To record to optical discs or SD cards, use a disc drive or SD card reader/writer. (Some video cameras support recording to the SD card in the video camera.)
• Do not operate the video camera or disconnect the USB cable during the transfer of video camera data. The software may malfunction, and data may be lost.
• When the computer has been connected to a video camera which is running on battery power, a warning message is displayed when the remaining battery charge is low. The level of the remaining charge indicated in the message serves solely as a general guide so connect the AC adapter as soon as possible.

SD card connection

When using an SD card slot or reader/writer, connect the device before starting this software. (For connection instructions, refer to the Operating Instructions of the computer or SD card.)

- If you connect the device after startup, select the drive on the [SD] tab of the [Settings] window, and then click [OK]. (→84)

Disconnecting the video camera from the computer

1 Confirm that the video camera is not recording or being accessed in some way. 2 Double-click or in the task tray.

3 Select [USB Mass Storage Device] and click [Stop].

If multiple USB devices are displayed, you can double-click each to check the video camera.

4 Disconnect the USB cable from the computer. 5 Turn off the video camera.

Starting the software

Important

Do the following before starting the software.

• Close other software and resident programs.
• Disable the screen saver or power-saving functions (functions that put the computer into standby or sleep mode after a specified time of inactivity).

1

Double-click on the desktop to start the program.

Startup is also possible by selecting [Start] → [All Programs] → [Panasonic] → [HD Writer AE 1.0] → [HD Writer AE].

Tip

First startup

● A window is displayed regarding the license agreement. Read the agreement carefully before continuing. - From the Start menu, select [All Programs] → [Panasonic] → [HD Writer AE 1.0] → [Read this before starting], and then read the supplemental explanations and late-breaking information.

Exiting the software

1

Click

The "Simple Menu" is closed.

2

Click

Basic operations

Feature overview

This section summarizes basic software operations. The following operations are possible using the [Simple Menu]. - If the main window (→28) is displayed instead of this one, click [Simple Menu] in the upper-right corner to display the [Simple Menu].

Simple Menu

Video content or digital photos on your video camera

Import (save) content to your computer (→17–19)

Recording on discs in standard quality (DVD-Video format) (→20–21)

Recording on discs and SD memory cards* in high definition (BDMV or AVCHD format) (→22-23)

* When you record videos to SD memory cards, AVCHD format is the only format available.

Advanced features (→27)

Preparation:

- Connect the video camera to the computer (→13) If you have used the video camera to record content on an SD card, insert that card in the video camera.

Double-click on the desktop to start the program. ● (Startup is also possible by selecting [Start]→[All Programs]→[Panasonic]→[HD Writer AE 1.0]→[HD Writer AE].) The [Simple Menu] is displayed.

Importing content to a computer (Simply Import to PC)

Video content or digital photos on your video camera can be imported to your computer, where it will be grouped by recording date. (Video captured using other devices cannot be imported. To import video from a previous Panasonic high-definition video camera, use the version of HD Writer provided with that video camera. Media containing data recorded with previous Panasonic high-definition video cameras or data recorded with other devices cannot be imported with this software.)

Simple Menu

A

Preparation:

- Connect the video camera to the computer (→13) If you have used the video camera to record content on an SD card, insert that card in the video camera.

1 Click [Import to PC].

The [Import to PC] window is displayed.

2 Click and select the video camera.

If the video camera is not listed, click [Refresh] (A).

3 Select items to import.

- To check the content, as shown below, double-click a thumbnail (small image).

Close confirmation window

● Each time you click, items are selected or cleared. - You can select content based on the recording date. For selection at a more detailed level (scenes) (→30)

Importing content to a computer (Simply Import to PC)

■ If importing is not possible

• If the information area (C) displays yellow letters, nothing is selected for importing, no media is loaded, or there is a similar problem.
• If the information area (C) displays red letters, there is not enough free space in the importing destination, or there is another similar problem. ● A “?” will appear in the thumbnail for data recorded with previous Panasonic high-definition video cameras or with other devices. This data cannot be imported.

4 Click ▼ and select an importing destination (a folder on your computer).

Subfolders for each recording date are created in the selected folder, and the content is imported there. Recording dates are used for the subfolder names.

• To import all content to a single folder, select [Specified folder] (B) and enter the name in the text box next to this option. Note that these characters are not supported: /; * ? " < > |

5 Click [Start copying].

- This button is not available unless you have selected at least one video or photo.

6 Click [OK] when the confirmation message is displayed.

- If you click [Cancel], the previous window is displayed.

Importing now begins, and the status is shown in the progress indicator. - Importing the data takes time. Do not operate the computer until importing is finished. - To cancel importing in progress, click [Cancel].

7 Click [OK] when a message is displayed indicating importing is finished.

Importing content to a computer (Simply Import to PC)

■ Storage locations of imported content

Content is imported to subfolders (named with dates) in the folder selected in step 4, or to your specified folder.

- To rename these date folders or your specified folder after importing, right-click the folder and select [Properties], and then change the name in [Title]. (Names are a maximum of 64 single-byte characters.)

Content on SD Media Storage, optical discs, or SD cards can also be imported to your computer.

In step 2, select the SD Media Storage, optical disc, or inserted SD card instead of your video camera.

- Top menus are not imported if you select only some items with a top menu for importing.

● The video recorded by other than video cameras this software provided with cannot be imported from SD Media Storage to PC.

Tip

• Register a new folder to import content to a destination other than folders displayed in step 4. ("Registering new folders" →33)
• Content captured on video cameras that support relay recording using relay recording is treated as a single video. ● For further details on methods of importing (→ 30)

Importing only content that you have not already imported (differential importing)

Each time you attempt to import content on the internal recording media of the video camera or on the SD cards* installed in the video camera, and that include content already imported, the new content is automatically detected, and only the new one will be imported. (*This feature applies only to SD card content recorded with HD video cameras this software is provided with. However, adding content from another video camera will prevent the differential content from being recognised.)

(Selected): Subject to importing

● Content that you have captured since importing the previous content - Content that you have edited on the video camera since importing the previous content

(Cleared): Not subject to importing

- Content already imported (labeled 📄) (Note that once content has been imported, it is not subject to importing again, even if you have deleted it from your computer.)

Tip

- Click the check boxes to select or clear items, as desired. To restore the previous state after any changes, click [Refresh] (D).

Recording on discs in standard quality (Simply Create DVD-Video Disc)

Video content captured with a video camera can be recorded on DVD discs in standard quality. DVD discs recorded this way can be played on most DVD players.

● For a list of supported discs (→ 11) - Content that does not fit on a single disc will be automatically split and recorded over multiple discs. However, this function may not be available if the work area file system is FAT32. ([Work area setting]→81) - Top menus (an interface for discs similar to a table of contents →54) are also created automatically. For instructions on changing the top menu design (→82)

Simple Menu

A

Preparation:

• Connect the video camera to the computer (→13). If you have used the video camera to record content to an SD card, insert that card in the video camera. ● Load the DVD-R/RW disc to record to.

1 Click [Create a DVD].

The [Create a DVD] window is displayed.

2 Click and select the video camera.

If the video camera is not listed, try clicking [Refresh] (A).

3 Select the items to record.

● Each time you click, items are selected or cleared. - You can select content based on the recording date. For selection at a more detailed level (scenes) (→30)

Recording on discs in standard quality (Simply Create DVD-Video Disc)

Content on SD cards or on your computer can also be recorded to a DVD disc (except for video content converted into the MPEG2 format)

In step 2, select an inserted SD card or a folder on your computer instead of your video camera.

● Data cannot be imported between the same kinds of media, such as from one DVD disc to another or from one SD card to another. ● Different media cannot be used to record to a single media.

Tip

● Discs created this way are for playback only. Additional content cannot be recorded on them. ● Lower-performance computers may require a significantly longer time for disc recording. - Digital photos cannot be recorded with this function. To record photos ("Recording photos" →67) - When creating media of relay recorded video content continuously recorded on different memory (e.g. hard disk or SD cards) with compliant video cameras, only video content in the memory selected at the time of connection is imported. - For further details on recording on various media (→53)

4 Click and select the DVD disc to record to. 5 Click and select the video image quality. [High quality]: Priority to video quality [Standard quality]: Priority to recording capacity 6 Click [Start writing].

● This button is not available unless you have selected at least one item.

7 Click [OK] when the confirmation message is displayed.

- If you click [Cancel], the previous window is displayed.

Recording now begins, and the status is shown in the progress indicator.

• It takes time to record all the data. Do not operate the computer until recording is finished.
• Clicking [Cancel] when changing discs or during data conversion will stop recording in progress. However, recording cannot be stopped when data is being written.
• Content that does not fit on a single disc during DVD recording will be split and recorded over multiple discs. The approximate number of discs needed is indicated (B). Follow the instructions displayed to switch to a new disc.
• During multi-disc recording, you can stop recording when it is time to load the second or subsequent disc. Information about the remaining content will be displayed then. To record the remaining content later, refer to this information and select the content again, and then resume recording.
• If a media problem causes recording to fail, follow the instructions to replace the media. The content you were recording when the failure occurred will be recorded again on the new media.

8 Click [OK] when a message is displayed indicating that recording is complete.

Recording on discs and SD cards in high definition (Simply Create BD/DVD/SD Card (AVCHD))

Video content captured with a video camera can be recorded on discs and SD cards in high definition.

Discs and SD cards recorded this way can be played on HD-compatible equipment. (This includes Blu-ray players when you record to Blu-ray discs or HD-compatible DVD recorders supporting AVCHD standard when you record to DVD discs, for example.) They can also be played using this software.

● For a list of supported discs and SD cards (→11) ● Typical DVD players do not support playback. If you prefer to use typical DVD players, record in DVD-Video format (standard quality). (→20) ● Content that does not fit on a single disc will be automatically split and recorded over multiple discs. - Top menus (an interface for discs similar to a table of contents →54) are created automatically when recording to media other than SD cards. For instructions on changing the top menu design (→82)

Simple Menu

A

Preparation:

• Connect the video camera to the computer (→13). If you have used the video camera to record content to an SD card, insert that card in the video camera.
• Load the BD-R/RE, DVD-R/RW, DVD-RAM disc or SD card to record to. When using SD cards, see "SD card connection" (→14).

1 Click [Save as BD/AVCHD].

The [Save as BD/AVCHD] window is displayed. ●

2 Click and select the video camera.

If the video camera is not listed, try clicking [Refresh] (A).

3 Select the items to record.

● Each time you click, items are selected or cleared. - You can select content based on the recording date. For selection at a more detailed level (scenes) (→30)

Recording on discs and SD cards in high definition (Simply Create BD/DVD/SD Card (AVCHD))

B

Content on storage media or on your computer can also be recorded to an optical disc or SD card

In step 2, select inserted media or a folder on your computer instead of your video camera.

● Data cannot be imported between the same kinds of media, such as from one disc to another or from one SD card to another. ● Different media cannot be used to record to a single media.

Tip

• When content is recorded to storage media, playback may be interrupted a few seconds between scenes.
• Digital photos cannot be recorded with this function. To record photos ("Recording photos" →67)
• When creating media of relay recorded video content continuously recorded on different memory (e.g. hard disk or SD cards) with compliant video cameras, only video content in the memory selected at the time of connection is imported.
• For further details on recording to various media (→53)

4 Click and select the optical disc or SD card to record on.

5 Click [Start writing].

- This button is not available unless you have selected at least one item.

6 Click [OK] when the confirmation message is displayed.

• If you click [Cancel], the previous window is displayed. Recording now begins, and the status is shown in the progress indicator.
• With media other than DVD-R/RW and BD-R discs, recording can be stopped by clicking [Cancel]. With DVD-R/RW and BD-R discs, recording can be stopped by clicking [Cancel] when changing discs or during data conversion. However, recording cannot be stopped when data is being written.
• It takes time to record all the data. Do not operate the computer until recording is finished.
• Content that does not fit on a single disc will be split and recorded over multiple discs. The approximate number of discs needed is indicated (8). Follow the instructions displayed to switch to a new disc.
• During multi-disc recording, you can stop recording when it is time to load the second or subsequent disc. Information about the remaining content will be displayed then. To record the remaining content later, refer to this information and select the content again, and then resume recording.
• If a media problem causes recording to fail, follow the instructions to replace the media. The content you were recording when the failure occurred will be recorded again on the new media.

7 Click [OK] when a message is displayed indicating that recording is complete.

Viewing content on a computer

Video content and photos you have imported to your computer can be viewed on your monitor.

Simple Menu

Main Window

Tip

- Alternatively, in step 2 you can select a connected video camera or inserted media. Content shown as thumbnails can be played. For further details on playback (→34)

1 Click [Playback on a PC].

After the assistance window is displayed, check the information and click [Close] to close it.

2 Click the folder where you imported the content to.

If the folder is not listed, try clicking [Refresh] (A).

3 Click [Video] or [Picture].

4 Click the folder or thumbnail for playback.

- Content can also be played by right-clicking and selecting [Playback] in the menu displayed, or by double-clicking thumbnails.

5 Click [Play].

The selected video or photo is now played in the preview window. (→25–26)

- For videos, selecting a folder will play all clips in the folder. Selecting a thumbnail will play all scenes in the folder after that scene, one after another.

Viewing content on a computer

Playing video content

Tip

• If no action is taken for about 3 seconds in full screen mode, the controls are hidden. Move the mouse to display them again.
• Double-click the screen to view content in full-screen mode. Double-click again to view at the original size.

Basic operations

Viewing content on a computer

Viewing photos

Previous/next photo

■ Viewing photos by recording date

You can view photos saved on your computer by recording date. In the media/folder selection area, click ▶ by [Recording date], under [PC Hard drive]. Select a desired date to display all photos captured on that date in the content viewing area.

Tip

• Double-click the screen to view content in full-screen mode. Double-click again to view at the original size.
• You cannot play back photos shot using high-speed burst shooting on this window. (→ 71)

Advanced Features

Feature overview

This section describes more advanced software operations. The following operations are possible.

Import content to your computer (→ 30–33)

Play content (→ 34–35)

Delete content (→ 36)

Edit content on your computer (→ 37–52)

• Deleting unnecessary portions of content
• Dividing scenes
• Assign the playback order
• Adding opening titles
• Adding scene transitions
• Edit digital photos
• Protect content/rename content

Record on optical discs and SD cards (→ 53–69)

Use convenient features (→ 70–77)

• Create still pictures from video • View highlights of video content • Viewing photos shot using high-speed burst shooting
• Combine scenes • Search for desired content
• Upload content to YouTube

Use the main window (→ next page) for general operations such as importing, playback, and editing. This window is displayed when you close the Simple Menu that appears immediately after the software starts up.

- If the message at right is displayed when media is loaded, the main window will also be displayed if you select [Import to PC/save to disc/playback on PC].

Tip

- To prevent the [Simple Menu] from being displayed at startup, clear the check mark by [Display this screen at startup] in the lower-left corner of the [Simple Menu].

Feature overview

▶ Main window

Control buttons

Type of content

• Video: video content

● Picture: photo or other still picture

Rearrange display order

- Click to sort in ascending (▲) or descending (▼) order. The order changes each time you click.

Change display format

● Information shown when viewing content by [Details] varies depending on the type of content.

Access the [Simple Menu] (→16)

Display the [Settings] panel (→81-85)

Update information in the areas for media or folder selection and content previewing

Content preview area

- Content of media or folders selected in the media/folder selection area is shown here.

Resize thumbnails

- By default, small thumbnails are displayed.

Media/folder selection area

[Panasonic Video Camera]: Detected video cameras

[PC Hard drive (HD)]:

High-definition content imported to the computer using this software

- Subfolders where you have imported HD content are displayed. (These folders are inside folders you have registered in this software.) To register or deregister folders for storing content (→33)

[PC Hard drive]:

Standard-definition content converted using this software

[PC Hard drive] (Displayed when the [Picture] tab is selected):

Digital photos imported to the computer using this software

[SD]: Detected SD card drives

[BD/DVD]: Detected BD/DVD drives

- Click to expand listed items.

(Click again to close the information.)

To examine media or folders:

This example illustrates how to examine video camera content.

Click directly under [Panasonic Video Camera]. (The file path, indicated here by G:\, varies depending on the computer used.)

- If nothing is listed under [Panasonic Video Camera], click ▶ which will change to .

- If [Panasonic Video Camera] is not listed, try clicking [Refresh].

Feature overview

▶ Main window

Content preview area

Content in the preview area is displayed as folders or thumbnails.

Folders

When importing to a date folder, videos with the same recording date are saved in the same folder.

Additionally, photos shot using high-speed burst shooting with a video camera are saved together in a single folder.

① Type of content Video

Photos shot using high-speed burst shooting

Tip

• Up to 9,999 scene and photo thumbnails can be displayed.
• For large amounts of content, it may take some time to display thumbnails.

Thumbnails

Thumbnails are small images representing video content or photos.

① Type of content

Video

Photo or other still picture

② Protection setting

Protected content

③ Importing status

Imported to the computer

(Shown only for content on the internal recording media of the video camera or on the SD card installed in the video camera. Not shown for SD card devices.)

Recorded on BD-R/RE or DVD-R/RW disc

Recorded on DVD-RAM disc

Recorded on SD card

● The “recorded” icons are not displayed on the [Create a DVD] (→20) and [Save as BD/AVCHD] (→22) screens.

Importing content to a computer (Import to PC)

Content (video content in AVCHD format, and photos) on the internal recording media of the video camera, an SD card installed in the video camera, an SD card which has been connected using an SD card slot or a device such as an SD card reader/writer, or content (videos in BDMV format or AVCHD format) on a disc created with this software can be imported to your computer. This content can also be edited after it is imported to the computer. (→37)

On the main window, click

Simply Import to PC

Import to PC

Simply Import to PC

(For details →17)

Import to PC

(See information starting on the next page)

Used when importing all content to the computer.

• Able to select images based on the recording dates. ● Unimported content is detected automatically (differential importing →19). Used when importing specific content. ● Individual scenes can be selected.

Important

• Only video content or photos can be imported to your computer using this software. Other data cannot be imported.
• Importing requires 1.3 times more free space than the size of the content. Top menus are not imported.
• Do not use Windows Explorer or other software to delete, modify, or move content (folders or files) imported to the computer using this software. This prevents the content from being managed by this software.
• When using the SD Media Storage drive (VW-PT2), data cannot be imported using [Import to PC]. Use the procedure in [Simply Import to PC]. (→17-19)

Preparation:

• Load the media to import from (connect the video camera and computer, for example (→13)). When using SD cards, see "SD card connection" (→14).

Tip

• Video captured using other devices cannot be imported. To import video from a previous Panasonic high-definition video camera, use the version of HD Writer provided with that video camera. Media containing data recorded with previous Panasonic high-definition video cameras or data recorded with other devices cannot be imported with this software.
• Note that content captured while using the world time function of video cameras is imported to a separate folder even if it has the same recording date.
• Content captured on video cameras that support relay recording using relay recording is treated as a single video.
• Up to 9,999 videos and photos can be stored in [PC Hard drive (HD)], [PC Hard drive] and [PC Hard drive] respectively. (The maximum capacity may be less than this, in some cases.)

Importing content to a computer (Import to PC)

1 Click the drive or folder to import from.

• If the drive or folder is not listed, try clicking [Refresh] (A). Previous Panasonic high-definition video cameras, or media containing data recorded with previous Panasonic high-definition video cameras or with other devices, cannot be connected to this software.

2 Click [Video] or [Picture].

3 Click the content to select it for importing.

Selected items are outlined in yellow.

• To select multiple items, hold the [Ctrl] key while clicking the thumbnails.
• When a drive or folder is selected, all content in it is selected for importing.

4 Click [Import to PC], and then select [Import to PC].

The importing window (→next page) is displayed.

- Importing is also possible by right-clicking items in step 3 and selecting [Import to PC].

Importing content to a computer (Import to PC)

Current item/total items

Previous/next

■ Storage locations of imported content

Content is imported to subfolders (named with dates or as specified) in the folder selected in step 5.

- To rename these date folders or your specified folder after importing, right-click the folder and select [Properties], and then change the name in [Title]. (Names are a maximum of 64 single-byte characters.)

5 Click and select an import destination (a folder on your computer).

- You can register other folders on your computer, if desired. ("Registering new folders" → next page)

Subfolders for each recording date are created in the selected folder, and the content is imported there.

Recording dates are used for the subfolder names.

• By default, folders are named with the most recent recording date of content, in the order [month-day-year].
• To import all content to a single folder, select [Specified folder] (A) and enter the name in the text box next to this option. Note that these characters are not supported: \ / : * ? " < > |

6 Click [Start].

7 Click [Yes] when the confirmation message is displayed.

- To cancel this process, click [No].

Importing now begins, and the status is shown in the progress indicator.

● To cancel importing in progress, click [Cancel]. - Importing the data takes time. Do not operate the computer until recording is finished.

8 Click [OK] when a message is displayed indicating importing is finished.

Importing content to a computer (Import to PC)

Registering or deregistering destination folders

Registering new folders

① Click [Settings] on the main window. (Otherwise, right-click [PC Hard drive (HD)] or [PC Hard drive] in the media/folder selection area and select [Set Target folder].) The settings panel is displayed.

② Click the [PC HDD] tab.

③ Click [Add]. ④ Select a folder to register and click [OK]. ⑤ Click [OK] to close the [Settings] panel. Folders you register are listed under [PC Hard drive (HD)] and [PC Hard drive] in the media/folder selection area.

Tip

Up to 10 folders can be registered.

Deregistering folders

① Select the folder in [Registration folder] and click [Delete]. ② Click [OK] when the confirmation message is displayed. ③ Click [OK] to close the [Settings] panel. Folders are only deregistered. The content itself is not deleted.

Playing content

You can play content (videos in AVCHD format and photos) on the computer, internal recording media of the video camera, an SD card installed in the video camera, an SD card which has been connected using an SD card slot or a device such as an SD card reader/writer, or content (videos in BDMV format or AVCHD format) on a disc created with this software.

- Playback is possible only for content imported to the computer using this software. Content imported using Windows Explorer or similar software cannot be played.

Preparation:

- Load the media (insert media in the video camera and connect the camera, for example (→13)) When using SD cards, see "SD card connection" (→14).

1 Click the drive or folder where content for playback is stored.

- If the drive or folder is not listed, try clicking [Refresh] (A). - Previous Panasonic high-definition video cameras, or media containing data recorded with previous Panasonic high-definition video cameras or with other devices, cannot be connected to this software.

2 Click [Video] or [Picture].

3 Click the folder or thumbnail for playback.

• For videos, selecting a folder will play all videos in the folder. Selecting a thumbnail folder will play all scenes in the folder after that scene, one after another.
• Content can also be played by right-clicking and selecting [Playback] in the menu displayed, or by double-clicking thumbnails.
• If you do not see the folder where desired content is stored, select [Settings]→[PC HDD]→[Registration folder] (→82) and switch to the drive where the desired content is.

4 Click [Play].

The content selected is now played in the preview window. Sound is played in 2-channel mode.

- For details about the preview window (→25–26)

Playing content

Tip

• Top menus are not played. To play the top menu, use equipment that supports top menu playback.
• Depending on graphics features (such as [Windows Aero] in Windows Vista®), your computer environment, and the content being played, frames may be dropped and colour loss may occur during playback, and playback may not be smooth. These problems are more likely to occur in full-screen mode. Additionally, in sections where the resolution or audio format changes, noise may be produced, and playback may not be smooth.
• If errors in reading a disc occur, playback may resume from the next item after the affected position.
• Playback of content in DVD-Video and DVD-VR format is not supported.
• Problems such as dropped frames are normal in the preview window (where image quality is reduced) and in full-screen mode. For best results during playback, use AVCHD-compatible video cameras and playback equipment. Frame rates for various computer processors are as follows. (These are guideline values.)

Processor	Frame Rate (fps)
Pentium 1.0 GHz – Pentium 4 Hyper-Threading Technology 3.0 GHz	2
Pentium 4 Hyper-Threading Technology 3.0 GHz – Pentium D 3.0 GHz	10
Pentium D 3.0 GHz – Pentium D 3.2 GHz 30
Pentium D 3.2 GHz or higher, CoreTM 2 Duo 2.16 GHz or higher	60 (fields)

• Actual frame rates may be lower, depending on the computer environment and conditions of use.

Conditions when frame rates may be lower:

• When other software is running during installation of this software
• When other software is running during video playback with this software
• When using a computer with a video card that shares memory for the main memory and video memory
• When there is minimal free space on the system drive or the drive where temporary files are created

■Intelligent Scene Selection

[INTEL. SCENE] is a video camera function, available only during playback on video cameras. It is not provided by this software. For the following content and media, undesired scenes may not be skipped using the [INTEL. SCENE] video camera function.

● Content which was, in part, imported to the computer using [Import to PC] ● Content managed in some way using the [Video editing] function ● Media created selecting some content with [Create Media] ● Media created selecting some content with [Save as BD/AVCHD]

Delete content

You can delete content imported to the computer using this software.

Important

Once content has been deleted, it cannot be restored. Always check content carefully before deletion.

• When folders are deleted, all data in the folder is deleted, including data other than the content.
• Scenes that have been protected cannot be deleted. Additionally, videos containing protected scenes cannot be deleted. First, clear the protection. (→52)

1 Click the folder where content for deletion is stored. 2 Click the folder or thumbnail for deletion.

- To select multiple thumbnails, hold the [Ctrl] key while clicking the thumbnails.

- Only one folder can be selected.

3 Click [Delete]. 4 Click [OK] when the confirmation message is displayed.

To cancel this process, click [Cancel].

Tip

• Content can also be deleted by right-clicking thumbnails and selecting [Delete] in the menu displayed.
• When you delete all content in a folder, the folder itself is also deleted.
• Deletion may take a long time, depending on the content.

Editing content on your computer

Content imported to your computer can be edited. The following operations are possible.

Edit video content (→37-52)

• Deleting selected portions of a scene (→41) ● Dividing scenes (→44)
• Assigning the playback order of scenes (→45) ● Adding opening titles (→47)
• Adding scene transitions (→49)

Edit digital photos (→51)

Protect content/rename content (→52)

Tip

• Only video content and photos you have imported to your computer can be edited. For information on importing (→17–19, 30–33)
• Although files and folders for content imported to the computer using other software may be displayed, they cannot be managed with this software. Always use this software to import content to the computer.
• New files are created after you edit content, leaving the original files in the state before editing.
• Editing requires an amount of free work space on the computer at least equivalent to the size of the content for editing.

Editing content on your computer

▶ Editing video content (basic operations)

Video editing area

Name of storage folder (Can be changed as needed)

Selecting scenes to edit

1 Click [Edit] and select [Video editing]. The video editing area is displayed. 2 Drag a scene to edit to the video editing area. Edit video content

● Deleting selected portions of a scene (→41) ● Dividing scenes (→44) - Assigning the playback order of scenes (→45) - Adding opening titles (→47) ● Adding scene transitions (→49)

Saving edited videos

1 Click [Save as AVCHD Format] or [Save as MPEG2 Format].

[Save as AVCHD Format]:

Save content in AVCHD format(→Below)

[Save as MPEG2 Format]:

Save content in MPEG2 format (→Next page)

■When select [Save as AVCHD Format]

2 Click and select a destination for saving the file.

- Edited scenes are saved in separate folders from the original data.

Editing content on your computer Editing video content (basic operations)

3 Click [OK].

Processing status is shown in the progress indicator.

• When there are multiple scenes in the video editing area
• Save each scene as an individual AVCHD file.
• Combine scenes and save as a single AVCHD file.
• To cancel editing, click [Cancel].

4 Click [OK] when a message is displayed indicating that processing is finished.

Edited content is saved as a new file. The file name is identified in the message indicating completion.

5 Click [Close] to close this window.

■ When selecting [Save as MPEG2 Format]

2 Click and select a destination where you want to save the file.

• Edited scenes are saved in separate folders from the original data.
• When the destination hard disk is in FAT or FAT32 format, MPEG2 files exceeding 4 GB cannot be produced.

3 Select the video image quality.

4 Select the number of audio channels.

• [Save as 2-channel audio] is available when converting 5.1 channel content.
• Converting 5.1 channel video content to MPEG2 format by using [Save images in original form] produces content with an aspect ratio of 16:9 and 5.1 channel sound, which may be incompatible with software that does not specifically support this format. Conversion using [Save as 2-channel audio] may improve compatibility.

Editing content on your computer Editing video content (basic operations)

5 Click [OK].

Processing status is shown in the progress indicator.

- When there are multiple scenes in the video editing area

Save each scene as an individual MPEG2 file.

Combine scenes and save as a single MPEG2 file.

- To cancel editing, click [Cancel].

6 Click [OK] when a message is displayed indicating that processing is finished.

Edited content is saved as a new file.

The file name is identified in the message indicating completion.

7 Click [Close] to close this window.

Tip

● Recording date information will correspond to information of the opening scene. - Up to approximately 12 hours of video content can be saved. - This software is only compatible with MPEG2 files with accompanying information files. - Renaming files using Windows Explorer or similar software will prevent the files from being managed by this software. - Conversion of some content may result in out-of-sync or dropped frames, or conversion may fail. - Converting content to MPEG2 format enables you to use the content in other software for working with DVD-Video content. - The resulting MPEG2 files can also be recorded on various media using this software.

• Chapter points will not be maintained when creating DVD discs from MPEG2 files produced with the [Merging into one scene] function. (→59)
• If the original content includes scenes with both 2 and 5.1 channel audio, combining them will produce a file with 5.1 channel audio. (Audio channel information can be checked in the [Properties] window.)
• If scenes with rapid motion are affected by blurry image edges or video noise after MPEG2 conversion, selecting [Settings]→[Convert MPEG2]→[Picture quality priority] may improve the image quality. (→83) ●MPEG2 files produced this way have an accompanying information file (MTV file).

Editing content on your computer

▶ Editing video content (Delete partially)

Deleting selected portions of content

Delete unneeded portions of video content or portions with shooting errors as follows.

Only video content imported to your computer can be edited. First, import the content to your computer. (→17–19, 30–33)

Video content to be edited must be at least two seconds long.

Video editing area

1 Follow the steps in "Selecting scenes to edit" (→38). 2 Click a scene.

Select only one scene.

3 Click [Edit] and select [Delete partially].

The [Delete partially] window is displayed.

4 Click to play the scene. Click to pause playback at the starting position for deletion.

Click → to fine-tune the position. (→43)

5 Click [Set start point] to identify the starting point.

Otherwise, you can drag ▼ to identify the starting point.

Editing content on your computer Editing video content (Delete partially)

For details about this window (→ next page) Cancel editing

6 Click again to resume playback. Click to pause playback at the ending position for deletion.

7 Click [Set end point] to identify the ending point.

Otherwise, you can drag ▲ to identify the ending point.

8 Click [Select] to confirm this selection.

● The portion that will be deleted is indicated in grey. ● Thumbnails of the starting and ending points are displayed. - To select multiple portions, repeat steps 3–7. - To clear the selection, click the corresponding thumbnail and click [Release].

9 Play the video content to check the portion that will remain after deletion.

10 Click [Partially delete].

Results of editing are applied to the video editing area.

To save as a video

- Follow the steps in "Saving edited videos" (→38).

Editing content on your computer Editing video content (Delete partially)

Editing content on your computer

▶ Editing video content (Dividing scenes)

Scenes can be divided at desired positions.

Only content imported to your computer can be edited. First, import the content to your computer. (→17-19, 30-33)

Video content to be divided must be at least four seconds long.

Playback slider

Skip approx. 0.5 sec.

Previous/next frame buttons

h: hours m: minutes s: seconds f: number of frames

1 Follow the steps in "Selecting scenes to edit" (→38).

2 Click a scene to edit.

Select only one scene.

3 Click [Edit] and select [Divide Scene].

The [Divide Scene] window is displayed.

4 Click to play the content.

5 Click to pause playback at the position to divide scenes.

● After pausing playback, you can adjust the position for division by using the playback slider or previous/next frame buttons.

- Content cannot be divided at a position where resulting scenes would be less than two seconds.

6 Click [Execute divide].

Results of editing are applied to the video editing area.

To save as a video

- Follow the steps in "Saving edited videos" (→38).

Editing content on your computer

▶ Assigning the playback order/adding opening titles/adding effects

You can group content imported to your computer that was recorded on various dates and assign the playback order. You can also add opening titles and scene transitions, such as fading.

Tip

- Changing the playback order of scenes/Deleting scenes in the video editing area (→next page)

Assigning the playback order

1 Click [Edit] and select [Video editing].

The video editing area is displayed.

2 Drag a scene to edit to the video editing area.

• Repeat this process to collect desired scenes.
• To add video content or scenes from another folder, select the folder and go to step 2.
• Videos are expanded into scenes when added to the video editing area.
• To cancel this process, click [Close] (A).

Editing content on your computer

▶ Assigning the playback order/adding opening titles/adding effects

■ Changing the order of scenes

① Drag scenes to the desired position.

■ Deleting scenes in the video editing area

① Click a scene to remove.

- To select multiple scenes, hold the [Ctrl] key while clicking the thumbnails.

② Click [Delete].

• Scenes are only removed from the video editing area. The content itself is not deleted.
• Deletion is also possible by right-clicking scenes and selecting [Delete] in the menu displayed.

■ To save as a video

- Follow the steps in "Saving edited videos" (→38).

Editing content on your computer

▶ Assigning the playback order/adding opening titles/adding effects

Adding opening titles

Titles can only be added to the opening scenes.

Preparation:

- Arranging scenes and videos in the video editing area (→45)

1 Click [Title].

The [Insert Title] window is displayed.

2 Enter the title and specify effects.

(For details about this window → next page)

- If not all text is displayed, or if text covers images in the content, change the font or reduce the size.

3 Click [OK].

• To cancel this process, click [Cancel].
• A new opening title scene will be added. (This is indicated by on the thumbnail.)
• To change the titles, first delete the opening title scene, and create a new title scene again.
• To delete titled scenes in the video editing area, first delete the adjacent scene labeled with an icon ( )
• Titles cannot be added to scenes labeled ( )

Advanced Features

Editing content on your computer

▶ Assigning the playback order/adding opening titles/adding effects

■ [Insert Title] window

Editing content on your computer

Effects are added here

Assigning the playback order/adding opening titles/adding effects

Adding scene transitions

Preparation:

- Arranging scenes and videos in the video editing area (→45)

1 Click the scene before the scene for effects.

2 Click [Transition].

The [Insert Transition] window is displayed.

3 Specify the desired effect.

(For details about this window → next page)

4 Click [OK].

• To cancel this process, click [Cancel].
• The effect is now added to the scene. (This is indicated by on the thumbnail.)
• To change the effect, delete the scene with the effect and create a new one.
• To delete scenes with effects in the video editing area, first delete the adjacent scene labeled with an icon (T). ● Scenes with effects cannot be rearranged.

Tip

- It may take some time to save content in AVCHD format with effects between scenes of different resolutions.

Editing content on your computer

▶ Assigning the playback order/adding opening titles/adding effects

■ [Insert Transition] window

Preview window

Effect duration

• Click to specify how long the effect is displayed. (3, 4, or 5 seconds.) ● Transitions cannot be added to scenes whose lengths are less than the specified duration plus 2 seconds.

Playback position

Move the playback slider to change the playback position.

Effect preview

Cancel the transition effects

Effect

[Fade (Black)]/[Fade (White)]

The previous scene fades out to black or white, and the next screen gradually fades in.

[Mix]

Scenes are momentarily superimposed as the next scene fades in.

[Wipe]

The next scene is revealed as if a curtain is drawn back.

[Slide]

The previous scene slides right, revealing the next scene.

[Zoom-in]

The next scene appears in the centre of the previous scene and gradually expands.

[Zoom-out]

The previous scene gradually shrinks, and the next scene appears in the background.

[Stretch]

The previous scene shrinks, transforming into the next scene.

[Corner wipe]

The next scene emerges from the upper-left corner, moving toward the other corners.

[Corner slide]

The next scene slides diagonally down and to the right from the upper-left corner.

[Corner zoom]

The next scene expands diagonally down and to the right from the upper-left corner.

Editing content on your computer

Editing digital photos

Photos can be retouched or rotated.

Tip

- Only photos imported to your computer can be edited. First, import the photos to your computer. (→17–19, 30–33)

1 Click [Picture]. 2 Click the thumbnail. 3 Click [Edit] and select [Edit Picture].

The window for photo editing is displayed.

- Editing is also possible by right-clicking the thumbnail and selecting [Edit picture].

4 Edit the photo. 5 Click [Save]. 6 Click [OK] when a message is displayed indicating that processing is finished.

When the message is displayed, click [Yes] to retain the photo before editing or [No] to delete it.

- The saved photo will be named as follows. "Edit Picture (serial number) of original file name"

Editing content on your computer

▶ Protecting and renaming content

In the properties window, content can be renamed or protected from accidental deletion.

● Video, scenes, pictures, and folders can be renamed. ● Only scenes and photos can be protected.

(Example of scene properties window)

1 In the content viewing or media/folder selection area of the main window

Right-click a thumbnail or folder and select [Properties].

The properties window is displayed.

■ To rename content

Change the name in [Title]. - Names are a maximum of 64 single-byte characters. To protect content or clear protection Click [ON] or [OFF] in [Protect Setting].

2 Click [Close].

Tip

●[Title] is the name as displayed in this software.

The file name itself cannot be changed by renaming the title.

● Thumbnails of protected scenes and photos are labeled with this icon:

Recording on optical discs and SD cards

Image captured with video cameras or imported to computers can be recorded on optical discs and SD cards in a variety of formats.

This section describes some considerations and precautions to understand before recording.

●Also refer to the description of drive settings (→7) and information on media supported for recording (→11).

Recording

Recording formats

Several recording formats are available for video content and photos, and each format has particular characteristics. Choose the optimal recording format for your needs.

Recording Format	Image Quality	Characteristics Available Media Playback Equipment
BDMV format High definition		Additional recording is possible on discs recorded with this software.Top menus can be created.	BD-R/RE(12 cm, single-sided, single-sided/dual layer)	Equipment compatible with Blu-ray discs
AVCHD format High definition		Additional recording is possible on discs recorded with this software other than DVD-R/RW discs.Top menus can be created on media other than SD cards.	DVD-R*(12 cm, single-sided, single-sided/dual layer)DVD-RW*(12 cm, single-sided)DVD-RAM(12 cm, single-sided, double-sided)SD cards	AVCHD-compatible equipmentTypical DVD players do not support playback.(Can be played with this software on a computer.)
DVD-Video format	Standard definition	Additional recording is not possible for discs recorded with this software.Top menus can be created.	DVD-R (12 cm, single-sided, single-sided/dual layer)DVD-RW (12 cm, single-sided)Recording is not possible on prerecorded discs. However, DVD-RW discs can be used for recording after being formatted. ( → 78 )	Typical DVD players
DVD-VR format	Standard definition	Additional recording is possible on discs recorded with this software.Top menus cannot be created.	DVD-RAM(12 cm, single-sided, double-sided)	DVD-VR-compatible equipment and software
DCF format(Picture)		For details playing recording photos on SD cards.		is possible with DCF-compatible equipment(digital cameras, TVs, and printers. etc.)

* +R and +RW types of DVD disc are also supported.

Recording on optical discs and SD cards Recording

Top menus

Creating media with this software will create a "top menu" interface that serves as a table of contents. To view content, select thumbnails in the top menu. Customize the design of top menus as desired when creating them.

• Top menus cannot be created when recording to SD cards or recording in DVD-VR format.
• Top menus are displayed only on equipment that supports this feature. They cannot be played on video cameras or in this software.
• Creating top menus is optional. (Content is played back in the order of recording.)
• Top menus are automatically created in the default design when you use [Simply Create BD/DVD/SD Card (AVCHD)] (→22–23) or [Simply Create DVD-Video Disc] (→20–21). To change the top menu design (→82)

Automatic multi-disc recording

Content will be automatically divided for recording over multiple discs only under these conditions.

• The content exceeds the capacity of one disc when you are using [Simply Create BD/DVD/SD Card (AVCHD)] (→22–23) or [Simply Create DVD-Video Disc] (→20–21) to create media.
• More than 99 items of content are recorded to a disc using [Simply Create DVD-Video Disc] (→20–21).

Tip

• Content is automatically divided so that the final scene fits on the disc.
• The approximate number of discs needed is displayed, but recording may require fewer or more discs.

Recording on optical discs and SD cards Recording

Additional recording on media with existing content

Formats supporting additional recording: Blu-ray discs (BDMV), DVD-RAM (AVCHD), SD cards (AVCHD), and DVD-RAM (DVD-VR).

When recording additional content, you can add content to media recorded with this software by using the same recording format as the existing content.

When you load media with existing content, a confirmation message about additional recording is displayed. Select [Yes] if you will add content. (If you select [No], content cannot be added.)

●Media with existing content is identified by this icon in top menu thumbnails: 📄 (On SD cards, thumbnails are labeled as follows:

If you will not add content, click the ▲ button or eject the media. (For information about how content on media without top menus (such as media in DVD-VR format) is displayed (→65))

Tip

• Content cannot be added to protected DVD-RAM discs. Clear protection settings with the equipment originally used to protect the disc. When recording in AVCHD format, there is no need to clear the protection setting before adding content if auto protection is enabled. (→85)
• Additional content can also be recorded to SD cards when photos have been recorded to the cards.

Recording on optical discs and SD cards

▶ [Create Media] menu

The [Create Media] menu is used when recording to optical discs and memory cards.

In the main window, click this button to access the menu:

Authoring menu

Media	Recording Format	Subject to recording	Recording Order
BD-R/RE BDMV		Content on the internal recording media of the video camera or on the SD card installed in the video cameraContent imported to the computer (except for video content converted into the MPEG2 format)	By recording date
DVD-RAM DVD-R/RW*3 SD cards	AVCHD	Content on the internal recording media of the video camera or on the SD card installed in the video cameraContent imported to the computer (except for video content converted into the MPEG2 format)
BD-R/RE BDMV		Content imported to the computer (except for video content converted into the MPEG2 format)	Any order
DVD-RAM DVD-R/RW*3 SD cards*2	AVCHD
DVD-R/RW DVD-Video		Content on the internal recording media of the video camera or on the SD card installed in the video cameraContent imported to the computer (except for video content converted into the MPEG2 format)	By recording date
DVD-R/RW DVD-Video		Content imported to the computer●	Any order
DVD-RAM*2 SD cards DCF	DVD-VR

*1 Content is automatically divided for recording over multiple discs if it does not fit on one.

*2 Top menus are not created.

*3 +R and +RW types of DVD disc are also supported.

Recording on optical discs and SD cards

▶ Recording video content

Video content and scenes can be selected from a variety of folders of content imported to the computer with this software for recording in any order on optical discs and SD cards. You can record in high or standard definition.

Video and scenes can be combined on a single disc or SD card.

• Content for recording in DVD-Video format must be at least 2 seconds long. Content for recording in DVD-VR format must be at least 3 seconds long.
• Videos converted to MPEG2 format can also be used in DVD-Video or DVD-VR recording. However, it cannot be combined with high-definition content.

Preparation:

• Import the video content to the computer
• Exit all other software
• Be sure to exit other software that may access the optical drive, such as Windows Explorer.
• Load the media for recording
• When using SD cards, see "SD card connection" (→14).
• When recording video content to SD cards, use a compatible video camera to initialise the cards.
• When adding content to DVD-RAM discs, clear any protection by using the equipment originally used to protect the disc. When recording in AVCHD format, there is no need to clear the protection setting before adding content if auto protection is enabled. (→85)
• Recording requires twice the amount of free space (for a work folder) as the capacity of the disc or SD card you are creating. To change the work folder (→81)

Important

Do not do the following during recording. These operations may prevent successful recording and damage discs or equipment.

• Disconnect cables or cords of computer or DVD equipment or turn equipment on or off
• Log off in Windows (as by switching users)
• Force this software to close
• Install or remove an SD card

Time required for recording

• Recording will take some time. The amount of time required for recording varies depending on disc specifications and optical drive performance. For details, refer to the Operating Instructions of the disc and drive. ●Recording may take several hours especially in the following cases.

- Recording videos on discs by converting from standard quality to high-definition

- Recording small video content in DVD-Video format (because specifications require that dummy data be appended even to files less than about 1 GB to make them about 1 GB)

Recording on optical discs and SD cards

Recording video content

Selecting video content to record

In the authoring area, add video content to record.

Authoring area

1 Click a folder on your computer. 2 Select [Video]. 3 Click [Create Media] and select the type of media to create.

This example illustrates the procedure when you select one of the options labeled ◆.

The media authoring area is displayed.

- For details about the [Create Media] menu (→56)

Recording on optical discs and SD cards

Recording video content

Authoring area A B

Tip

● Optical drives in use by this software cannot be used by other software. ● Content editing is not possible while the authoring area is displayed. Complete any required editing (such as dividing scenes) in advance. - The scene point information is retained as chapter points even after recording, except in the following cases. - In DVD-Video format, the scene is after the 256th scene - If selecting [Merging into one scene] when editing and saving video (→40)

4 Drag video content to the authoring area.

• You can add scenes and videos. However, photos cannot be added.
• Repeat this process to choose the video content (up to 99 items). To select multiple items, hold the [Ctrl] key while clicking the thumbnails.
• To add video content from another folder, select the folder and then perform step 4. However, current selection will be cancelled if you select content in folders not on the computer or content in different folders such as in [PC Hard drive].
• Referring to [Capacity] (A) as a guideline, select an amount of content that will fit on the disc or SD card. Note that the actual amount of data recorded may be different.
• Content will be recorded in the order you drag it to the authoring area, one thumbnail after another. However, content can be recorded as a single file when you record in DVD-VR format. (→84)
• Video content is expanded into scenes when you add video content from the [PC Hard drive (HD)] to the media creation area when you record in AVCHD format
• When video content has been registered, the scenes in that content will be automatically recorded in the order in which they were shot. • To cancel authoring, click (B).

■ Removing content from the authoring area

① Click a scene to remove.

- To select multiple items, hold the [Ctrl] key while clicking the thumbnails.

② Click [Delete].

• Thumbnails are only removed from the authoring area. The content itself is not deleted.
• Removal is also possible by right-clicking thumbnails and selecting [Delete] in the menu displayed.

Recording on optical discs and SD cards

Recording video content

■ Changing the order of content ① Drag thumbnails to the desired position.

5 Click [Save].

For BD-R/RE, DVD-R/RW, DVD-RAM (AVCHD format), or SD cards:

A window is displayed for creating the top menu. (→next page)

For DVD-RAM (DVD-VR format): A window is displayed for creating the disc. (→65)

• When you have specified [Makes seamless if the recording modes are the same] in [Seamless setting during SD, DVD or BD recording] (→85), a message is displayed if any scenes are in different recording modes (with different resolution, frame rates, or number of audio channels). In this case, select scenes recorded in the same mode.
• When recording in DVD video format, registering the video to the media creation area allows the video to be played back continuously without interruption between individual scenes.
• For continuous playback without interruption between individual scenes when recording in AVCHD/BDMV/DVD-VR format, select the scenes you wish to play continuously and combine them into a single file.

To combine scenes into single files, use the "Editing content on your computer" ([Merging into one scene]) operation (→39-40).

Recording on optical discs and SD cards

Recording video content

Recording selected video content (for BD-R/RE (BDMV), DVD-RAM · DVD-R/RW · SD card (AVCHD), DVD-R/RW (DVD-Video))

Follow these steps when recording on BD-R/RE, DVD-R/RW discs or SD cards, or on DVD-RAM discs in AVCHD format.

Example when recording in DVD-Video format

When you click [Save] in step 5 (→Previous page)

6 A window is displayed for creating the top menu.

- SD cards Because no top menu can be created, the following window is displayed.

7 Click and select the media to record on.

Video cameras cannot be selected as the destination. ●

Recording on optical discs and SD cards

Recording video content

Example when recording in DVD-Video format

8 Check the space available for recording on the media.

- Content exceeding the available space is indicated in red. In this case, click [Close] and remove video content from the authoring area.

When recording on SD card, go to step 12, because no top menu can be created.

9 Click ▼ and select the video image quality.

[High quality]: Priority to video quality [Standard quality]: Priority to recording capacity

10 Determine a top menu design.

● [No menu] is also available. No top menu is created, and content is played in the order it was recorded. ① Click [Bg/Layout]. ② Select your preferred design. - To use a particular image file as the background: Select [User's picture], specify a JPEG file on the computer, and click [Open]. (Images with an aspect ratio of 4:3 are displayed with black bars at right and left.)

③ Click to select the thumbnail layout.

- If there are many thumbnails, they will be distributed on multiple pages.

- To choose different content, click [Close] and change your selection in the authoring area.

Recording on optical discs and SD cards

Recording video content

Example when recording in DVD-Video format

11 Enter the title.

- Click the title to enable input.

① Enter the page title.

(Up to 64 single-byte characters.)

- The same page title is displayed on all pages. For a titleless top menu, leave the title information blank.

② Enter thumbnail titles.

(Up to 24 single-byte characters.)

- By default, thumbnails are labeled with the name of the video or scene.

③ Click [Font/Title] and complete the font settings.

(For details →92)

- If not all text is displayed, or if text covers other images, change the font or reduce the size.

12 Click [Record].

• If the message "Insert a new disc" is displayed, recording on the current disc is not possible. The disc may already have been recorded. Insert a blank or formatted disc.
• If the computer hard disk is compressed, a message regarding drive compression may be displayed and recording may not be possible. Clear the check for [Compress this drive to save disk space] in [Properties] for the hard disk drive.

Recording on optical discs and SD cards

13 Click [OK] when the confirmation message is displayed.

● To cancel this process, click [No].

Recording now begins, and the status is shown in the progress indicator.

● Recording will take some time. Do not operate the computer until recording is finished. - A confirmation message is displayed if you have set [Seamless setting during SD, DVD or BD recording] to [Makes seamless even if the recording modes are different] because recording may take some time. If the recording time indicated is acceptable, click [Yes] to continue with recording. (→85) - With media other than DVD-R/RW and BD-R discs, recording can be stopped by clicking [Cancel]. With DVD-R/RW and BD-R discs, recording can be stopped by clicking [Cancel] when changing discs or during data conversion. Recording cannot be stopped when data is being written.

14 Click [No] when a message is displayed indicating that recording is complete.

• Click [No] if you are finished recording. Click [Yes] to record the same content to another media. Insert a new media and click [OK].
• Some optical drives may switch to a new disc automatically before this final step in recording.

Recording video content

Tip

• If a media problem causes recording to fail, follow the instructions to replace the media. The content you were recording when failure occurred will be recorded again on the new media.
• Advanced settings for the recording speed and other details are available in the [Settings] window. (→82)
• If there is unwanted content recorded on a DVD-RAM disc, formatting the disc will delete all content (→78). Content cannot be removed individually.

Notes on recording

● Recording in BDMV format or AVCHD format - If there are gaps between content during playback, you can adjust playback in [Seamless setting during SD, DVD or BD recording] (→85).

● Recording in DVD-Video format

• If scenes with rapid motion are affected by blurry image edges or video noise, selecting [Convert MPEG2]→[Picture quality priority] may improve the image quality. (→83) ● Video content with Dolby Digital 5.1 channel audio is recorded in 5.1 channel DVD-Video format.

Recording on optical discs and SD cards

Recording video content

Recording selected video content (DVD-RAM (DVD-VR format))

Follow these steps when recording on DVD-RAM discs in DVD-VR format. ● Video recorded in DVD-VR format must be at least 3 seconds long.

Additional portion to record Recorded

When you click [Save] in step 5 (→60)

6 A window is displayed for creating the media. 7 Click and select the media to record on.

● Any existing video on the media is also displayed. - To choose different content, click [Close] and change your selection in the authoring area.

Recording on optical discs and SD cards

Recording video content

8 Check the space available on the media.

- Content exceeding the available space is indicated in red. In this case, click [Close] and remove video content from the authoring area.

9 Click [Record].

10 Click [Yes] when the confirmation message is displayed.

- To cancel this process, click [No].

Recording now begins, and the status is shown in the progress indicator.

• Recording will take some time. Do not operate the computer until recording is finished.
• Recording cannot be stopped when data is being written.

11 Click [OK] when a message is displayed indicating that recording is complete.

Tip

• If there is unwanted content recorded on a DVD-RAM disc, formatting the disc will delete all content (→78). Content cannot be removed individually. ● The audio track of content in DVD-VR format is recorded in Dolby Digital format.

Recording on optical discs and SD cards

Recording photos

Digital photos and other still pictures on your computer can be recorded on SD cards. These images are recorded in a format that can be viewed on digital cameras and similar devices (DCF format). Images in BMP or PNG format are converted to JPEG format before saving. For a list of supported SD cards (→11)

Preparation:

- Insert the SD card. (See "SD card connection" →14)

Authoring area

1 Click [Picture]. 2 Click [Create Media] and select [Create SD Card (Pictures)].

The media authoring area is displayed.

Recording on optical discs and SD cards

Recording photos

Authoring area

3 Drag photos for recording to the authoring area.

• Repeat this process to choose desired photos (up to 99 photos). To select multiple items, hold the [Ctrl] key while clicking the thumbnails.
• The current selection will be cancelled if you select content in folders not on the computer.

■ Removing photos from the authoring area

① Click a photo to remove.

- To select multiple items, hold the [Ctrl] key while clicking the thumbnails.

② Click [Delete].

① ②

• Thumbnails are only removed from the authoring area. The content itself is not deleted.
• Removal is also possible by right-clicking thumbnails and selecting [Delete] in the menu displayed.

4 Click [Save].

The window for creating DCF content for SD cards is displayed.

Tip

• DCF: Design rule for Camera File system. This recording format conforms to file system specifications of the Japan Electronics and Information Technology Industries Association (JEITA).
• Photos in DCF format cannot be converted to video content.

Recording on optical discs and SD cards

■ Folder structure and names of files created

• If there are multiple storage folders, photos are saved in the highest-numbered folder.
• If there are no storage folders, a folder named [100CDPFQ] is created.
• As the file name, the final number in the folder is assigned.

Recording photos

5 Click and select the destination SD card.

If the SD card already contains photos, the photos are displayed.

- To choose different content, click [Close] and change your selection in the authoring area.

6 Check the space available on the card.

- Content exceeding the available space on the SD card is indicated in red. In this case, click [Close] and remove thumbnails from the authoring area.

7 Click [Record].

8 Click [Yes] when the confirmation message is displayed.

- To cancel this process, click [No].

Recording now begins, and the status is shown in the progress indicator.

- Recording cannot be stopped when data is being written. - Do not operate the computer until recording is finished.

9 Click [OK] when a message is displayed indicating that recording is complete.

Using convenient features

▶ Viewing highlights of video content (Highlight Playback)

You can watch highlights of the main situations in video content.

This feature can only be used with video content captured by video cameras that come with this software. It is available for video content that has been imported to the computer or stored on the internal recording media of the video camera or on the SD card installed in the video camera (except for video content converted into the MPEG2 format). Multiple scenes captured on the same day are treated as a single video. However, in the case of content on the internal recording media of the video camera or on the SD card installed in the video camera, scenes captured in other recording modes are treated as separate video content, even if recorded on the same day.

■ Saving portions viewed during highlight playback

Click A, specify where to save the content, and click [OK].

• Edited scenes are saved in separate folders from the original data.
• Only content imported to your computer can be saved. ● Music is not saved.

1 Follow steps 1 to 4 in "Playing content" (→ 34). 2 Click [Play highlights].

Highlight settings are displayed below. ●

3 Select the playback time.

[APPROX 90 SEC.]:

Display highlights for about a one-minute and half period [APPROX 3 MIN.]:

Display highlights for about a three-minute period

[AUTO]: Display highlights for a period determined by the software (up to approx. five minutes)

● In the content timeline, highlights are indicated in orange. ● Highlights may not be detected up to content.

4 Specify the music.

You can select "POP," "CLASSICAL," "NATURAL," "DYNAMIC" or "NO MUSIC" to fit the nature of the video content. If you select "User selection," you can use the WAV (LPCM), WMA and MP3 format files inside the computer. (The filename will be displayed in the music selection field.) If "NO MUSIC" is set, the sound heard during shooting is used.

5 Play back the video content.

- The highlighted sections are played back using the settings established above.

Using convenient features

▶ Viewing photos shot using high-speed burst shooting (Continuous photo playback)

A series of consecutive photos shot using the high-speed burst function of a video camera with which this software is provided can be viewed continuously. (NTSC: Up to 180 shots, PAL: Up to 150 shots) The feature is available only with the high-speed burst photos imported to the computer or internal recording media of the video camera or SD card installed in the video camera.

1 Click the folder containing the high-speed burst photos.

2 Click [Play].

The window for previewing a series of photos is displayed. No. of current shot in the series Current photo

Slow playback (full speed, 1/2, 1/3, and 1/4 speed)

Tip

• Double-clicking the folder containing the high-speed burst photos in step 1 will display all photos. Double-clicking a photo after this will display the window for previewing series of photos.
• Ratios for slow playback are a guideline only; actual playback speed depends on the performance of your computer.

Using convenient features

▶ Creating still pictures from video

You can save individual frames of video content as still image files. These images are saved in JPEG format.

1 In the preview window (→ 25), pause the video at the position to save a still image. 2 Click [Capture]. 3 In the save dialog box displayed, specify where to save the image (①) and click [OK] (②).

Name of storage folder (Can be changed as needed)

4 Click [OK] when a message is displayed indicating that the image has been created.

Tip

This operation is also possible by using [Capture] button.

Using convenient features

▶ Searching for desired content

You can search video content and photos by name, recording date (video content only), or comments entered in the properties window (→ 94). This feature applies to content in folders you have registered as destinations for saving content on the computer. (→ 82)

1 Click a folder to search.

- When [PC Hard drive (HD)] or [PC Hard drive] has been clicked, the video content in the clicked folder is searched.

2 Click [Video] or [Picture].

3 Click [Search].

The window for entering search conditions is displayed. ●

4 Enter the search conditions.

① Clicking [Search by Keyword] enables this option. ② Enter the keyword. - Enter up to three keywords, separated by a space. - Use double quotation marks (") when searching for keywords containing spaces. ③ Select the information [Search by Keyword] applies to. • [Comments (Memo)] refers to notes entered in [Comments (Memo)] in the properties window. ④ Clicking [Search by Recording date] enables this option. (It will be activated only when [Video] has been selected.) ⑤ Specify a range of recording dates. ⑥ Click [Close] to cancel searching.

Using convenient features Searching for desired content

5 Click [Search].

6 Click [Close].

The search conditions window is closed. Search results are retained even after this window is closed.

7 Click

The search results are now discarded.

- Search results can also be cleared by clicking [Close] in the upper-right corner of the screen.

Using convenient features

▶ Uploading content to YouTube

Content imported to your computer can easily be uploaded to YouTube.

• Because YouTube™ services and specifications are subject to change, operation of online services cannot be guaranteed in the future. Available services and screens are subject to change without notice. (These services are valid as of December 1, 2008.) ● Unless you are the copyright holder or you have obtained permission from the copyright holder, do not upload videos protected under copyright.

Preparation:

- Create an account on the YouTube website in advance, and have your user name and password ready

1 Click a scene to upload.

- To select multiple scenes, hold the [Ctrl] key while clicking the thumbnails. Up to 10 scenes can be uploaded at once.

2 Click [Network].

[YouTube Uploader] is displayed.

Using convenient features

▶ Uploading content to YouTube

(For details about this window → next page)

3 Enter titles and other information shown on YouTube for each scene. 4 Enter your YouTube user name and password.

The user name is stored once you have entered them. ●

5 Click [Upload]. 6 After reading the copyright verification message, click to indicate acceptance, and then click [OK].

Tip

- Video content is uploaded after being compressed to a size suitable for uploading. Compression may take some time, depending on the performance of your computer.

Using convenient features

▶ Uploading content to YouTube

[YouTube Uploader] window

Other

Formatting discs

Format discs in the following situations. Use this software to format discs that you will use with this software.

• When recording to new BD-R/RE discs
• When recording to new DVD-RAM discs in AVCHD format
• When reusing DVD-RW discs
• When using DVD-RAM discs that you have used in other equipment (Formatting is not required when adding content to DVD-RAM discs recorded with this software.)
• When deleting all data on BD-RE, DVD-RAM or DVD-RW discs

Important

Formatting deletes all data on a disc. This data cannot be restored. Check the content carefully before formatting.

- Clear any protection by using the equipment originally used to protect the disc. Otherwise, activate the [Auto Protect] setting (→85) before formatting. (Auto protect is deactivated after formatting.)

Tip

• DVD-R discs can be used without formatting them. (Formatting is not possible for these discs.)
• Format both sides of double-sided discs, one side after another.
• When recording video content to SD cards, use a compatible video camera (→10) to format the cards.

Formatting discs

1 In the [Simple Menu], click [Format disc]. 2 Select the optical drive.

If the optical drive is not listed, click [Refresh] (A).

3 Select the type and method of initialising.

Specify the type of initialising for the following discs.

- For BD-R/RE discs

- To record in BDMV format, which enables additional recording on BD-R discs: UDF 2.6

- To record in BDMV format on BD-RE discs: UDF 2.5

- For DVD-RAM discs

- To record in AVCHD format: UDF 2.5

- To record in DVD-VR format: UDF 2.0

Simple erasure:

Simple erasure is performed.

In a brief period of about one minute, logical formatting is performed. If data is recorded on a disc, only information in the table of contents is deleted.

Complete erasure:

Complete erasure is performed.

Discs are physically formatted. Formatting may take a long time, depending on the speed of the drive and type of disc.

Any data on a disc is deleted.

4 Click [Start].

Formatting discs

5 Click [Yes] when the confirmation message is displayed.

• If you click [No], the previous window is displayed.
• A message is displayed indicating that complete erasure may take some time. Click [Yes] to continue.

6 Click [OK] when a message is displayed indicating that initialising is complete.

7 Click [Close].

Tip

- Formatting is also possible by clicking the [Initialize] button in the window for creating top menus displayed during authoring, for example.

Advanced settings

In the [Settings] window, you can complete advanced settings for various functions.

- To display all setting panels, click [Settings] in the [Simple Menu] window. To display only the setting panel for a particular operation window, click [Settings] in that window.

■ General settings panel

For general software settings.

① [Work area setting]

Click ▼ and specify where the work area is located. (This area is used temporarily during software operations.)

- Selecting a drive with a FAT32 file system may prevent you from using [Create a DVD]. Select an NTFS drive.

- Refer to [Free space] and select a drive with sufficient space. The amount of free space affects software operation in the following ways.

• Less than 17 GB: Cannot record over multiple discs
• Less than 5 GB: Some functions may not work correctly
• Less than 300 MB: Some editing functions are not available

② [Playback method]

Specify how videos are played. [Playback from the start]: Always play videos from the start [Playback from a previous point]: Resume playback from the previous position

③ [Auto run Setting]

Automatically start this software when a video camera is connected to the computer.

By default, this option is selected.

● Auto run can also be activated or deactivated by right-clicking this icon in the task tray:

Advanced settings

PC HDD panel

Settings for registration of content folders on the computer and display of file names.

① [Registration folder]

Register folders to use when importing content to the computer. Folders registered here are listed under [PC Hard drive (HD)] and [PC Hard drive] in the media/folder selection area of the main window. (→28)

● Registering folders

1. Click [Add].
2. Select a folder to register and click [OK].
3. Click [OK] to close the settings panel. Registered folders are listed under [PC Hard drive (HD)] and [PC Hard drive] in the media/folder selection area. ● Up to 10 folders can be registered. ● Removable drives and network folders cannot be registered.

● Deregistering folders

1. Select the folder in [Registration folder] and click [Delete].
2. Click [OK] when the confirmation message is displayed.
3. Click [OK] to close the settings panel.
4. Folders are only deregistered. The folder and the content itself is not deleted.

② [Display file extension]

Include file extensions such as m2ts in the file names displayed. By default, this option is [OFF].

■ Disc creation panel

For DVD-Video recording settings. (→20, 61)

① [Disc write speed setting]

Specify the disc write speed.

- By default, this option is [Max. speed]. Normally, keep the setting at [Max. speed]. If recording fails, specifying [Normal] may be effective.

② [Top menu setting]

You can change the top menu background automatically created when you use [Simply Create BD/DVD/SD Card (AVCHD)] (→22-23) or [Simply Create DVD-Video Disc] (→20-21) to create media.

Advanced settings

MPEG2 conversion panel

For conversion settings used for MPEG2 output or DVD-Video creation.

① [Motion detection settings]

Specify image quality settings applied during conversion.

[Picture quality priority]

Prevent any video noise during conversion, as much as possible.

Although conversion may take a long time with this option, we

recommend it when converting scenes with rapid motion.

[Normal] (Default setting)

Content is converted in standard quality.

[Speed priority]

Content is converted as quickly as possible. Scenes with rapid

motion are more susceptible to video noise.

Advanced settings

DVD-VR panel

For DVD-VR recording settings. (→65)

① [Settings for writing to media]

[Merge multiple videos (files) into a single video.]

Record all content dragged to the authoring area as a single file. (→59)

SD panel

For specifying the SD card drive.

[Target drive selection]

Select SD card drives shown in the media/folder selection area.

If selected drives are not recognized (as when you connect an SD card drive after this software starts up), select the drive again and click [OK].

Advanced settings

AVCHD/BD panel

For AVCHD recording settings. (→22, 61)

[Playback settings]

Change the number of frames per second (frame rate) as desired. Normally, use the default setting of [Play with optimum speed].

● The frame rate can be checked in the [Properties] window. - If playback fails, it may be improved by selecting [Specify number of frames] to use a lower frame rate than the current setting. - Selecting a higher frame rate than the current setting may cause dropped frames, and playback may not be smooth.

[Seamless setting during SD, DVD or BD recording]

Specify processing between scenes for uninterrupted playback when you collect multiple scenes for recording in BDMV format or AVCHD format.

Regardless of the settings made here, the [Simply Create BD/DVD/SD Card (AVCHD)] ([Save as BD/AVCHD]) operation will follow the setting [Makes seamless if the recording modes are the same].

[Makes seamless if the recording modes are the same]

Processing for seamless playback between scenes longer than three seconds that are recorded in the same mode (with the same resolution, frame rate, and number of audio channels).

● There will be gaps in playback between scenes of different recording modes or scenes of three seconds or less.

[Makes seamless even if the recording modes are different]

Processing for seamless playback even between scenes recorded in different modes and shorter than three seconds. However, conversion will take some time, and the image quality will be inferior. With this option, we recommend using an Intel® Core™ 2 Quad

2.6 GHz or higher processor. (As a guideline, it takes about 50 minutes to record 10 minutes of content with Intel® Core™ 2 Quad 2.6 GHz.)

- The resolution, frame rate, and number of audio channels can be checked in the [Properties] window.

③ [Auto protection settings for writing to DVD-RAM/RW] [Auto Protect ON]

Disable protection temporarily when recording in AVCHD format to DVD discs protected according to AVCHD specifications, and in similar situations. When these discs are ejected, they are protected again. Even unprotected DVD discs (such as discs immediately after initialisation or formatting) are protected when ejected, after recording or other operations.

[Auto Protect OFF]

Prevent recording or similar operations on protected DVD discs.

- DVD-RAM/RW discs recorded with [Auto Protect ON] selected are protected and it may not be possible to initialise or format them with other recording software or similar programs. In this case, you can format the discs using formatting functions of this software. (→78)

Because complete erasure may take a long time, we recommend simple erasure.

Windows in this software

■ Simple Menu ( → 16)

① [Import to PC]

Import content on the internal recording media of the video camera or on the SD card installed in the video camera or on optical discs or SD cards to your computer. (→17)

② [Create a DVD]

Record video content on the computer, or the internal recording media of the video camera, the SD card installed in the video camera, the SD card which has been connected using an SD card slot or a device such as an SD card reader/writer to DVD-R/RW discs in DVD-Video format. (→20)

③ [Save as BD/AVCHD]

Record video content on the computer, or the internal recording media of the video camera, the SD card installed in the video camera, the SD card which has been connected using an SD card slot or a device such as an SD card reader/writer to discs in BDMV or AVCHD format or to SD cards in AVCHD format. (→22)

④ [Edit images]

Editing on the main window (→37)

⑤ [Playback on a PC]

Play content on the computer, the internal recording media of the video camera, an SD card installed in the video camera, optical discs, or SD cards. (→24)

⑥ [Settings]

Display the settings window (→81)

⑦ [Display this screen at startup]

Clearing this option prevents the Simple Menu from being displayed at startup, from the next startup. (→27)

⑧ [Format disc]

Format discs (→78)

⑨ [Operating Instructions]

Display the operating instructions (this manual)

⑩ [Close Simple Menu]

Windows in this software

① Media/folder selection area ② [Video]/[Picture]

Types of content shown in the content viewing area

● [Picture] is not shown during video editing or when creating video content for recording to media.

③ [Refresh]

Update information in the media/folder selection area and content viewing area

④ [Settings]

Display the settings window (→81)

⑤ [Operating Instructions]

Display the operating instructions (this manual)

⑥ [Simple Menu]

Display the Simple Menu

⑦ [Import to PC] (→17-19, 30-33)

[Play] (→34-35)

[Edit] (→37-52)

[Create Media] (→53-69)

[Network] (→75-77)

[Capture] (→72)

[Search] (→73-74)

[Delete] (→36)

⑧ Indicates the selected media

⑨ [By Name]/[By Date recorded]/[By size]/[By Date modified] For changing the display order

⑩ [Thumbnail]/[Details]/[List]

For changing the display format

⑪ For changing the thumbnail size

⑫ [Exit]

Exit this software

⑬ Content viewing area

The content of selected discs, SD cards, or folders in the media/folder selection area

⑭ Help button/Minimize button/Maximize button/Exit button

● Video editing area (→38)

Displayed at the bottom of the window when [Video editing] is selected.

● Authoring area (→59)

Displayed at the bottom of the window when [Create Media] is selected.

Windows in this software

■ [Import to PC] (→17) / [Create a DVD] (→20) / [Save as BD/AVCHD] (→22) window

(Example of [Create a DVD] window)

① Source for importing

● Drives with loaded media are labeled with this icon: - [Import to PC] window: Shows the internal recording media of the video camera, the SD card installed in the video camera, optical discs, and SD cards. - [Save as BD/AVCHD] window: Shows video cameras, discs, SD cards, and storage folders on the computer (→82). - [Create a DVD] window: Shows video cameras, SD cards, and storage folders on the computer (→82). Disc cannot be selected as sources for importing.

② Eject media

③ Content for importing ● Thumbnails cannot be moved by dragging and dropping them. ④ [Select All] / [Clear All] Select or clear all items for importing ⑤ Information about items selected for importing, such as total size - Shown in yellow if no media is loaded, no content is selected, or there is another problem. ⑥ Destination for importing ● Drives with inserted media are labeled with this icon: ⑦ Select the video image quality ([Create a DVD] window only) ⑧ Information about the destination selected for importing ● Problems (items for which there is insufficient free space or the file system is different, for example) are shown in red. ⑨ [Refresh] Refresh the information shown - Click if a drive is not listed. ● The content selection status returns to the default status. ⑩ [Settings] Display the settings window (→81)

Other

Windows in this software

(Example of [Create a DVD] window)

14 (Example of [Import to PC] window)

⑪ [Start copying] (or [Start writing])

Start importing or writing the content. - The button displayed varies depending on the window. - Before disc recording, this button is not available if only photos are selected. - If buttons cannot be clicked, check ⑤ and ⑧.

⑫ [Format disc]

Format discs (→ 78)

⑬ [End]

Close window

⑭ [Date folder]: Import to subfolders for each recording date

[Specified folder]: Import all content to a single folder

Other

Windows in this software

■ Window for copying to the computer For details about this window (→ 32) ■ Preview window (video content) For details about this window (→25) ■ Preview window (photos) For details about this window (→ 26) ■ Editing video: window for creating titles For details about this window (→ 48) ■ Editing video: window for inserting transitions For details about this window (→ 50) ■ Editing video: partial deletion window For details about this window (→ 43)

Windows in this software

■ Window for creating top menus (→ 61–64)

(Example when recording in DVD-Video format)

① Recording destination ② During disc recording △Open/close drive tray (Some drives may not close the tray automatically.) ③ Top menu being edited ④ Change to the previous or next page ⑤ Indicates how much space is used

• The ratio of space used to recording capacity is indicated as a bar. Any portion of content exceeding the recording capacity is shown in red.
• If the disc already contains data, the total is indicated.
• If no media is loaded, the recording capacity is set at 12 cm DVD disc.

⑥ Select the video image quality ⑦ Used space/recording capacity ⑧ [Settings]

Display the settings window (→81)

⑨ [Record] Start recording ⑩ [Close] Close window

●[Bg/Layout] area (→62)

① For selecting a background design ② For selecting a thumbnail layout

- Selecting [No menu] omits top menu creation. Video content is played back in the order it was recorded. Additionally, the background design and title cannot be specified.

Windows in this software

●[Font/Title] area (→63)

① [Disc title]

Text settings for page titles

② [Video title]

Text settings for content titles

③ [Font]

For selecting the font

④ [Size]

For selecting the font size

⑤ [Style]

Click to add text styles

(Click again to remove text styles)

⑥ [Colour]

For selecting the text colour

● To create colours:

① Click [Define Custom Colors]

② Click a desired colour

③ Click [Add to Custom Colors]

The colour is added to [Custom colors].

⑦ [Shading]

When you have applied a drop shadow by clicking S in ⑤, select the drop shadow colour (see ⑥ for colour settings)

⑧ [Align]

For selecting the text position

Windows in this software

■ Authoring window for DVD-VR format (→ 65)

⑧ Open/close DVD drive tray (Some drives may not close the tray automatically.) ⑨ Content already recorded: Content to record:

① Recording destination ② [Settings] Display the settings window (→ 81) ③ Capacity in use/recording capacity ④ [Record]

Start recording

⑤ [Close]

Close the window (cancel this operation)

⑥ Indicates how much space is used

● The ratio of space used to recording capacity is indicated as a bar. Any portion of content exceeding the recording capacity is shown in red. - If the media already contains data, the total is indicated.

⑦ Recording progress

Windows in this software

■ [YouTube Uploader] window

For details about this window (→77)

■ Properties window (→52)

Right-clicking video content, a picture, a folder, or a disc or SD card and selecting [Properties] displays the [Properties] window, enabling you to check relevant details. You can also rename these items or add comments.

- Some information may not be shown, depending on the type of content or media.

Scene

●Photo

① [Title]

Title of content

- Video files, scenes, pictures and folders on the computer can be renamed. (Up to 64 single-byte characters.)

② [Protect Setting] (→52)

③ [Comments (Memo)]

Enter comments (up to 64 single-byte characters)

- This information can be used when searching for content. (→73) - If this software crashes or is forced closed, entered comments may be deleted.

④ [Close]

Apply any changes and close the window.

⑤ [Recording date and time]

Shortcut menus

Shortcut menus are displayed by right-clicking folders, media, content, and other screen elements.

■ Menu in the media/folder selection area

[Set Target folder] (When [PC Hard drive (HD)], [PC Hard drive] or a folder is selected).

(When [PC Hard drive (HD)], [PC Hard drive] or a folder is selected).

[Import to PC] (When media is selected)

Import all content on the media, or folder to the computer. (→17–19)

Import all content on the media, or folder to the computer. (→17–19)

Open the drive tray.

[Properties]

Enables you to check details about the folder or media. (→94)

Enables you to check details about the folder or media. (→94)

Shortcut menus

■ Menu in the content viewing area

[Playback] Play the content. (→25-26) [Import to PC] (When media is selected) Import the selected content to the computer. (→17-19) [Edit picture] (When a photo is selected) For editing the selected photo. (→51) [Delete Videos]/[Delete scenes][Delete Pictures] Delete the selected content. (→36) [Properties] Enables you to check details about the content. (→94)

Shortcut menus

■ Video editing area menu

[Playback]

Verify editing results. Scenes within the video editing area will be played back in order.

[Insert Title]

For adding a title to the first scene. (→47-48)

[Insert Transition]

For adding an effect as the transition between scenes. (→49–50)

[Delete partially] (When video content is selected)

Delete a portion of the selected video. (→41–43)

[Divide scene] (When video content is selected)

Divide the selected video. (→44)

[Delete]

Remove the selected content from video editing area. (→46)

[Properties]

Check details about the content, as needed. (→94)

■Authoring area menu

[Delete]

Remove the selected content from the authoring area. (→59)

[Properties]

Check details about the content, as needed. (→94)

Troubleshooting

Startup

Symptom Corrective Action
The software does not start.	Windows Vista®:Log on with an administrator account or a standard user account before using this software.The software will not function with a Guest account.Windows® XP/2000:Log on with an administrator account before using this software.Multiple users cannot start the software at the same time. Make sure another user has not started the software.It takes time for the software to start, or the software may not start, if there are any damaged or corrupted images.
The screen saver or the power-saving functions do not operate.	While this software is started, the screen saver or the power-saving functions (function to make the PC enter the standby or sleep modes after a certain time has elapsed without any operation on the PC) are disabled. Since this software may not operate properly, the screen saver and the power-saving functions must be disabled before starting this software.

Display/playback

Symptom Corrective Action
Video cannot be displayed.	You can display only videos recorded with this software or a video camera that this software accompanied. This software cannot process videos created with other devices or software.This software cannot process a video recorded with the video camera this software accompanied if it was edited with other devices or software.
Images do not play back properly.	Close any other software that is running.Update the device driver for the sound card or video card.Images played may have frame drops, colour-dulling or a jerky effect depending on the [Windows Aero] functions of Windows Vista®, the environment of the PC in use or the images themselves. Also, there may be noise in the sound or images may not be played back smoothly at the point where the resolution of the image and the sound are switched.Depending on the throughput of the PC, playback may be jerky due to a reduced frame rate.(→35)

Troubleshooting

Symptom Corrective Action
Voice is not audible.	For Windows Vista®. From the start menu, select [Control Panel] → [Hardware and Sound] → [Sound] → [Speakers], and then click [Properties]. Confirm that [Use this device (enable)] is selected in [Device usage] on the [General] tab or that [Speakers] and [Line input] are not muted on the [Levels] tab.For Windows® XP/2000: Confirm that [Volume Control] and [Line input] are not muted in [Volume Control] window of the PC.Voice will not play back while the image is paused.
Pauses of a few seconds occur when playing back produced BDMV or AVCHD standard SD card or a disc.	Breaks of a few seconds can occur between scenes when playing back media produced by [Save as BD/AVCHD].When processing has been performed so as to have more than 99 consecutive scenes play back seamlessly, a break will occur between playback of the 99th and 100th scenes. (However, if the 99th and 100th scene are from the same video, the break in playback will occur where the video starts.)If the [Seamless setting during SD, DVD or BD recording] has been set to [Makes seamless if the recording modes are the same] when recording, breaks in playback will occur between scenes which are under 3 seconds in length and of different recording modes (resolution, frame rate, or number of sound channels) (→85).
Outlines of video are out of focus, or noise occurs.	To record fast moving images in DVD-Video format, the contours may be out of focus or noise may occur when converting images. When recording fast moving images, setting the [Picture quality priority] in the [Convert MPEG2] panel window may improve the quality (→83).
Media produced in the DVD-Video format cannot be played back using Windows Media® Player.	The sound of MPEG2 files recorded on the media is in Dolby Digital format. This sound will not be played back on PCs which do not have Dolby Digital Codec installed.
Video with an aspect ratio of 16:9 is displayed at 4:3.	MPEG2 video with an aspect ratio of 16:9 may be played back at 4:3 in Windows Media Player and similar software.
Even though the data is played back on the video camera, top menu is not played back.	The top menu will be displayed on a player capable of playing back the top menu. The top menu will not display on a video camera.
When the produced disc is played back on another device, zones surrounding the image are not displayed.	Portions of the area around the image may not be displayed on some playback equipment such as televisions.

Troubleshooting

Symptom Corrective Action
The produced SD card or a disc in BDMV or AVCHD standard does not play back.	Playback of discs or SD cards created with this software in BDMV format or AVCHD format is only possible on equipment which is compatible with each format.●Some video cameras do not support playback of video on SD cards.
Cannot play discs created with this software.	Play the disc in equipment compatible with the type of disc you have created.
When the produced SD card or disc is played back with another device, audio may be heard from one side only.	Audio recorded in DolbyDigital 5.1 ch and played back through stereo (2 ch) speakers may be heard from one side only. If available on your TV receiver, we recommend turning on the surround sound function.Refer to the operating instructions of your TV receiver for instructions.
When the produced disc is played back, the end of the image is slightly truncated.	When recorded in DVD-Video format, the end of an image may be truncated by about 0.5 seconds.

Connection/Import

Symptom Corrective Action
If other software is already running, this software does not start up automatically when the video camera is connected.	● Other programs may prevent this software's automatic start-up function from operating correctly when the video camera is connected. Please change the settings of the other software or uninstall it completely.
The video camera is connected but not displayed on the window or recording fails.	● Click [Refresh] in the main window or other windows. This will update the drive information, which may enable display.● If the video camera has not been set for connection with the PC, it will not be displayed. (For details, refer to the operating instructions for the video camera.)● Some video cameras are not supported by Windows® 2000.● Video cameras cannot be used as the destination for recording video.
When an SD card is inserted, the card is not displayed in the media/folder selection area.	● SD cards are not displayed unless they are connected before this software is started. If you connect the SD device or insert an SD card after startup, select the drive on the [SD] tab of [Settings], and then click [OK]. (→84)● An SDHC memory card (4 GB to 32 GB) will not be displayed unless using a reader/writer that supports SDHC.

Troubleshooting

Symptom Corrective Action

Thumbnails are not correctly displayed on the importing window.

●Since image data produced with video cameras other than compatible video cameras (→10) or other software does not have thumbnail folders, they are not displayed.●The wrong TV system, NTSC or PAL, may have been selected when the software was originally installed. Select “About HD Writer AE 1.0” from “?” at the top right of the main window, and check the TV system. If the wrong system was selected, you will need to re-install the software.●When collecting content and recording in BDMV or AVCHD format, scenes processed for seamless playback may be displayed as a single video in the importing window. (“Seamless setting during SD, DVD or BD recording”→85)

Editing

Symptom Corrective Action
Images cannot be edited.	Only content (video or photos) stored on the computer can be edited or used in media creation. Import content stored on other media to your computer before use. (→17, 30)
Results of editing do not match the frames I selected.	With some types of video content, frames may not match the frames selected during editing.
Images output in MPEG2 format cannot be handled with DVD-Video production software.	When 5.1 channel video is exported to MPEG2 format using [Save images in original form], the aspect ratio is 16:9 and the sound is 5.1 channel. It may not be possible to use this content in software that does not specifically support this format. In this case, try exporting with [Save as 2-channel audio]. (→39)

Troubleshooting

Recording

Symptom Corrective Action
Data cannot be recorded.	Video recorded in DVD-Video format must be at least 2 seconds long.Video recorded in DVD-VR format must be at least 3 seconds long.
Cannot record – message appears saying maximum limit has been exceeded.	No further recording will be possible if the number of scenes or videos exceeds the maximum number allowed by this software or by the AVCHD standards.- Maximum number of scenes: 3630 (for Blu-ray discs or SD cards)999 (for DVD discs)- Maximum number of videos: 200 (for Blu-ray discs or SD cards)99 (for DVD discs)The number of videos that can be recorded may be reduced if individual videos contain scenes recorded in different recording modes.
Cannot record photos to an optical disc.	Photos cannot be recorded on an optical disc. Record photos to SD cards. (→67)
An error message is displayed when I select the drive to record to.	●Close any other software using the drive.●An error message may be displayed when media is replaced. Reselect the drive.●Other recording software may be interfering with operation. In this case, uninstall the other recording software.
The image is distorted during burning and is not burned properly.	Close this software and restart the PC.
Cannot record on a new DVD-RAM disc.	Commercially available DVD-RAM discs are sold in UDF 2.0 format. To record in AVCHD format with this software, format them as UDF 2.5. (→78)
Cannot record on the card or disc after formatting it using Windows® Explorer.	When using this software to record on optical discs, use this software to format the discs (→78).SD cards must be formatted by using video cameras compatible with this software (→10).Optical discs formatted by using applications other than this software (such as Windows Explorer) are not supported.
Cannot add content to a DVD-RAM disc.	If the disc is protected, recording is not possible. Clear any protection by using the equipment originally used to protect the disc. When you are recording in AVCHD format, data can be appended by enabling auto protection, even without clearing the protection. (→85)●Video recorded in DVD-Video format must be at least 2 seconds long. Video recorded in DVD-VR format must be at least 3 seconds long.

Troubleshooting

Symptom Corrective Action
Cannot stop recording midway through.	With DVD-R/RW and BD-R discs, recording can only be stopped by clicking [Cancel] when changing discs or during data conversion, not when data is being written.
A disc error message is displayed.	Recording is not possible using unsupported types of discs or discs in unsupported formats.(For a list of supported discs:→11)
Error occurs while data are being recorded.	Consider the following as factors for this problem.The media is not supported. (For a list of supported media:→11)When recording on SD cards, the cards must be formatted with a file system compatible with this software.Use compatible video cameras (→10) to format SD cards. (Recorded data will be deleted.)There may be a compatibility problem between the drive and disc.Use discs recommended for the drive. (With some discs, playback may not be possible even if recording is completed normally. Check playback after recording.)Recording may be affected by the state of the hard disk drive where the operating system is installed or the drive used for working space.Optimize the hard disk if necessary. From the Start menu, select [Computer] ([My Computer]), right-click the hard disk icon and select [Properties]→[Tools]→[Defragment Now]→[Continue]→[Defragment now] ([Properties]→[Tools]→[Defragment Now]→[Defragment]). However, do not optimize the hard disk while this software is running.Other software may be running.Exit other applications. Using other software at the same time may cause recording to fail, or it may damage discs. (In particular, do not use DVD or CD recording software or other recording or encoding software that requires a large amount of memory.)Other DVD writing software, packet writing software, or similar software that uses the optical drive may be installed, or an ASPI driver may be installed.Uninstall the other software and drivers and then reinstall this software.Other software with features for reading UDF discs may be installed.In this case, temporarily stop the software or uninstall it.

Troubleshooting

Symptom Corrective Action
Error occurs while data are being recorded. (Continued)	Multiple peripherals may be connected to the computer.Particularly if you are using an external optical drive for recording, disconnect SD card readers or other USB devices and check software operation. However, do not connect or disconnect these devices during recording.Video cameras, optical drives, hard disk drives, or SD card adapters may be connected via USB.Use a different USB port (for example, a USB port on the back of the computer).Operation may be affected by the firmware (a control program stored on the equipment) of your optical drive.Update the firmware of your computer or optical drive. (Firmware updates may be available on the manufacturer's website.)Operation may be affected by CD recording functions provided by the operating system as a standard feature.Disable these functions.Because some video cameras cannot play back video from SD cards, an error message is displayed if you attempt to use this software to record on SD cards formatted by using these video cameras. (Recording is possible, however.)
Images cannot be added.	Recording additional video content is only possible on the following media.Blu-ray discs, DVD-RAM discs and SD cards which you have recorded to using this softwareSD cards recorded on by using video camerasDVD-RAM discs recorded on by a DVD burner compatible with the video cameraBlu-ray discs recorded on by a BD burner compatible with the video camera

Recording (SD card)

Symptom Corrective Action
Cannot format an SD card.	SD cards cannot be formatted on this software. Format them on the video camera that this software supports. (→10)

Troubleshooting

Other

Symptom Corrective Action
Cannot access the optical drive using Windows Explorer or other software.	Other software cannot access an optical drive currently in use by this software. Exit this software before accessing the optical drive.
The free space displayed on this software is less than the free space displayed on Windows® Explorer.	If you record on discs in BDMV format or AVCHD format, the free space indicated by this software is the space available on discs for continuous recording, which may be less than the free space indicated by Windows Explorer.
Cannot see the produced media on Windows® Explorer.	●Since the media recorded in AVCHD standard is recorded in UDF 2.5 format, they cannot be displayed on a PC where the UDF 2.5 driver is not installed.●Since video content is recorded in UDF 2.6 on BD-R or in UDF 2.5 on BD-RE, they cannot be displayed on a PC where each UDF driver is not installed.
A message during importing or editing indicates that no additional registration is possible, and content cannot be saved.	You have exceeded the maximum capacity in [PC Hard drive (HD)] or [PC Hard drive], [PC Hard drive] (about 9,999 items, respectively). Delete unnecessary videos or photos in these destinations and try saving the content again.
DVD-RAM/RW discs recorded with this software cannot be initialised or formatted.	DVD-RAM/RW discs recorded with [Auto Protect ON] selected are protected and it may not be possible to initialise or format them with other recording software or similar programs. In this case, you can initialise the discs using formatting functions of this software ( →78 ). Because complete erasure may take a long time, we recommend simple erasure.
If recording is started on a different date than when it is finished, which date is identified in [Recording date and time]?	[Recording date and time] indicates the date a recording is started.
A message appears indicating insufficient memory.	An error message indicating insufficient memory may appear when handling large volumes of video or pictures. Please increase the amount of available memory. (In some cases, this problem may also be solved by increasing the amount of virtual memory.) For instructions on how to increase the amount of memory or virtual memory, please consult your PC's manufacturer.

Trademark and Licence Information

• Microsoft®, Windows®, Windows Vista®, DirectX®, DirectDraw® and DirectSound® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• IBM® and PC/AT are registered trademarks of International Business Machines Corporation of the U.S.
• Intel®, Core™ and Pentium® are registered trademarks or trademarks of Intel Corporation in the United States and the other countries.
• SD logo is a trademark.
• SDHC logo is a trademark.
• AMD Athlon™ is a trademark of Advanced Micro Devices, Inc. ● "AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation. ● Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation.
• LEADTOOLS

Copyright© 1991-2005 LEAD Technologies, Inc.

● Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Confidential unpublished works. Copyright 1993-2005 Dolby Laboratories. All rights reserved.

• YouTube and the YouTube logo are trademarks or registered trademarks of YouTube LLC.
• Other names of systems and products mentioned in these instructions are usually the registered trademarks or trademarks of the manufacturers who developed the system or product concerned.
• This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard ("AVC Video") and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video.

No license is granted or shall be implied for any other use.

Additional information may be obtained from MPEG LA, LLC.

See http://www.mpegla.com.
