Product Type	Car Stereo
Brand	Xomax
Model	XM-DTSB928
Dimensions (W x H x D)	approx. 178 x 50 x 100 mm (1 DIN)
Weight	approx. 0.5 kg
Power Supply	12V DC (negative ground)
Radio Bands	FM, AM
Audio Playback	USB, SD card, AUX, Bluetooth
Bluetooth Version	5.0 or later
Max Output Power	4 x 50 W (peak)
Equalizer	Preset EQ (Rock, Pop, Classic, etc.)
Remote Control	Included
Display	LCD with backlight
Supported Audio Formats	MP3, WMA, WAV, FLAC
Maintenance	Clean with soft dry cloth; avoid liquids
Safety Features	Fuse protection, ignition-off memory
Spare Parts & Repairability	Fuse replacement; professional repair recommended

Frequently Asked Questions - XM-DTSB928 Xomax

How do I install the XM-DTSB928 in my car?

Connect the wiring harness to your car's ISO connector. Secure the unit using the mounting sleeve and screws. Ensure proper grounding for optimal performance.

Can I pair my smartphone via Bluetooth?

Yes, enable Bluetooth on your phone, select XM-DTSB928 from the device list, and confirm pairing. You can then stream music and make hands-free calls.

How do I set radio presets?

Tune to the desired station, then press and hold one of the preset buttons (1-6) until you hear a beep. Repeat for other stations.

What USB and SD card sizes are supported?

The unit supports USB drives and SD cards up to 32 GB formatted in FAT32. Larger capacities may not be recognized.

Why is there no sound from the speakers?

Check if the unit is properly powered, the volume is turned up, and the speakers are correctly connected. Also verify that mute is not enabled.

How do I reset the device?

Press the reset button (located on the front panel or behind the faceplate) using a pointed object. This restores factory settings.

Can I connect an external amplifier?

Yes, the unit has preamp outputs (RCA) for front and rear channels. Connect them to your amplifier for enhanced sound.

What is the Bluetooth PIN code for pairing?

The default PIN is 0000. If prompted, enter this code to complete pairing.

How do I adjust the sound settings?

Press the MENU button to access audio settings. Use the rotary knob to adjust bass, treble, balance, and fader.

Does the unit support steering wheel controls?

Yes, if your car is compatible, connect the steering wheel control adapter (sold separately) to the wired remote input on the back of the unit.

USER MANUAL XM-DTSB928 Xomax

To ensure safety while driving

and to comply with laws,

drivers should not watch video or

operate the video device while driving.

Precaution.... 2

Safety Information.... 3

Disc Note...... 4

Installation 5

Electric Connection 8

Remote Control 9

Basic Operation 12

Main Menu Operation.... 12

Setting animation.... 12

Setting disc.... 12

Setting radio.... 13

Setting BT.... 13

Setting wallpaper.... 13

Version about.... 13

Setting time.... 13

Setting audio mode.... 14

Setting video mode.... 14

Setting OSD language.... 14

Setting illumination color.... 14

TFT display calibration. 15

Reset Factory Settings 15

Rear View Camera 15

Control Panel 16

Unit keys 16

Radio Operation.... 19

Listening to the radio 19

Storing and Listening to a memory station 19

Automatic Memory Storing & Program Scanning.... 20

RDS function.... 20

Media Operation.... 22

Basic Operation 23

Selecting Play Mode 23

On-Screen Display Function 24

Digital Video Special Function...... 25

Multi-Subtitle Language function...... 25

Multi-audio language Function...... 25

Multi-Angle Function.... 25

Title menu function 25

BT Operation.... 26

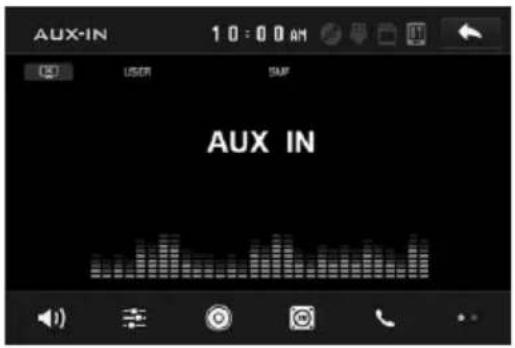

AUX Operation 29

AV Operation.... 30

USB Operation 31

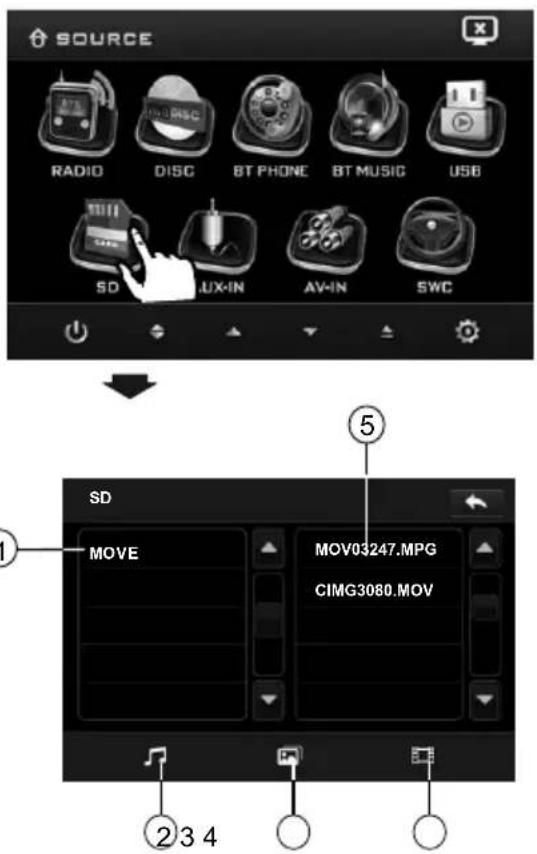

Card Operation 31

SWC Operation.... 32

Parental Control.... 33

Region Code.... 34

Specification 35

Troubleshooting.... 36

THANK YOU FOR PURCHASING PALSVERNDSTORM MULTIMEDIA

Before operating the unit, read this manual thoroughly and keep it handy for future reference.

To avoid injury or accident, read the following precautions before installing and operating the unit.

ON INSTALLATION

- DO NOT install any receiver in locations where;

- it may obstruct the steering wheel and gearshift lever operations, as this may result in a traffic accident.

- it may obstruct the operation of safety devices such as air bags, as this may result in a fatal accident.

- it may obstruct visibility.

- DO NOT operate any receiver while manipulating the steering wheel, as this may result in a traffic accident.

- The driver must not watch the monitor while driving.

- IF THE DRIVER watches the monitor while driving, it may lead to carelessness and cause an accident.

- IF YOU NEED to operate the receive while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

- IF THE PARKING BRAKE is not engaged. "ParkingBrake" flashes on the monitor, and no playback picture will be shown.

- This warning appears only when the parking brake wire is connected to the parking brake system built in the car ( refer to the electric connection)

ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL

Do not press on the LCD panel on the unit as doing so can distort the picture or cause a malfunction. The picture may become unclear, or the LCD panel may be damaged.

NOTES ON CLEANING

-Clean the LCD panel with a slightly damp soft cloth.

-Do not use solvents such as benzine, thinner, commercially available cleaners or antistatic spray.

-Do not use alcohol to clean the screen.

If your car was parked in a cold or hot place, the picture may not be clear. The monitor is not damaged. The picture will become clear the temperature in your car becomes normal.

CAUTION:

THIS DIGITAL VIDEO PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DIGITAL VIDEO PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE.

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DIGITAL VIDEO PLAYER CORRECTLY AS INSTRUCTED. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macro vision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

REGION MANAGEMENT INFORMATION:

This Digital Video Player is designed and manufactured to respond to the Region Management Information that is recorded on a Digital Video disc. If the Region number described on the Digital Video disc does not correspond to the Region number of this Digital Video Player, this Digital Video Player cannot play this disc.

Disc formats supported by this player

Digital Video	Digital Video	Audio and VideoDisc size 12 cm
VCD	VCD	Audio and VideoDisc size 12 cm
CD	CD	AudioDisc size 12 cm
MP3	MP3	AudioDisc size 12 cm

Discs which cannot be played with this player

• Digital Video-RAM
  • CDV
  CDG

Handling and Cleaning

• Dirt, dust, scratches and warping disc will cause misoperation.
• Do not place stickers or make scratches on discs.
• Do not warp discs.
• A disc should always be kept in its case when not in use to prevent from damaging.

• Do not place discs in the following places:

• Direct sunlight

• Dirty, dusty and damp areas
  3.Near car heaters
• On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become somewhat scratched (although not enough to make it

unusable) depending on your handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

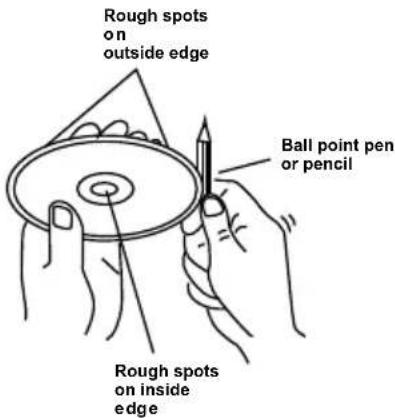

Preparing New Discs with Rough Spots

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right. To move the rough edges, press the side of the pen or pencil against the inside and outside edges of the disc.

NOTES:

Choose the mounting location where the unit will not interfere with the normal driving function of the driver.

Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.

Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.

Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.

If installation angle exceeds 30 from horizontal, the unit might not give its optimum performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

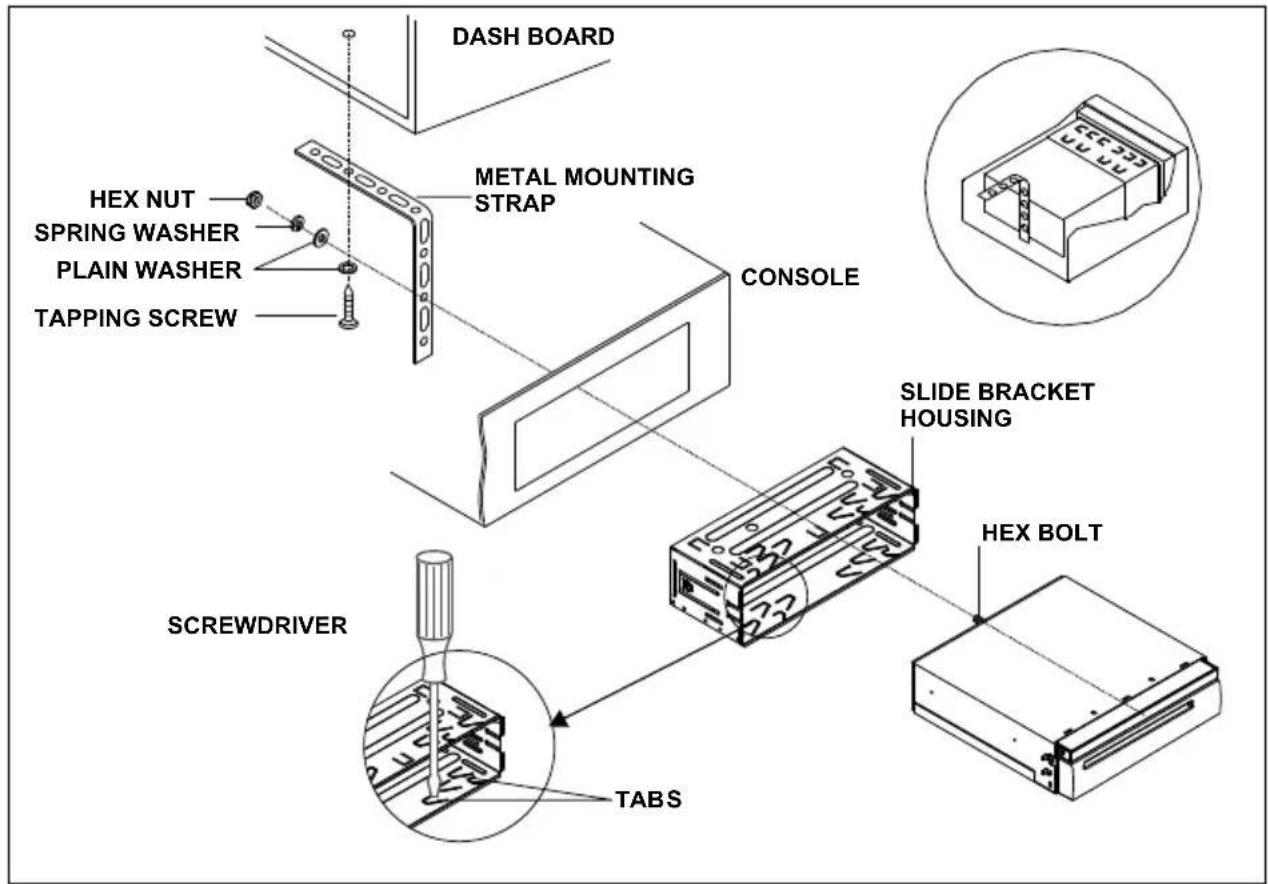

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front"(conventional DIN Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

Installing the unit

If you want to take CHASSIS out of the SLIDE BRACKET HOUSING, first remove the PLASTIC TRIM OUT of the both sides away, then insert the two KEY PLATE into left and right side of chassis as above illustration.

WIRING CONNECTION

Note:

the earth connection cable (parking brake B-) must be connected in order for pictures to be played back to the monitor. If the cable has not been correctly connected, the message "PARKING BRAKE" appears on the monitor.

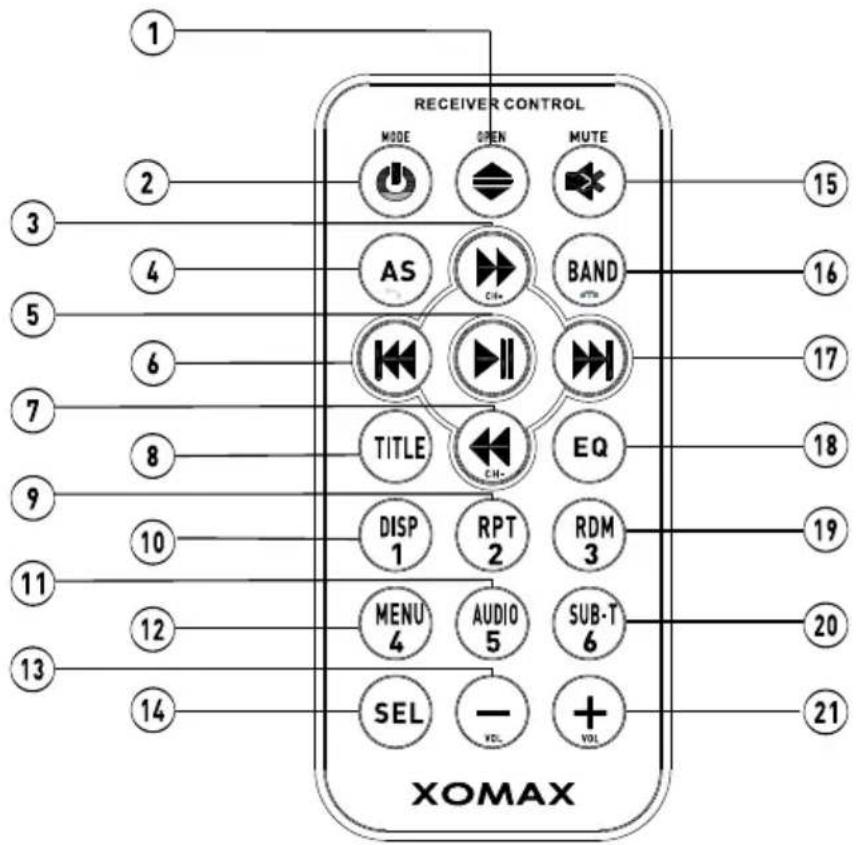

Ref #	Button	Function
1	/OPEN	Press this button to Open/Close the operate monitor .Long press it to adjust the angle of monitor Upward/Downward.
2	/MOD	Press this button to turn the unit ON , press and hold to turn the unit OFF. Press it briefly to select a desired work source .
3&7	/	In Disc Playback mode, press for fast forward or back forward playback. In Radio mode, press to scan step by step.
4	AS/	AS function see as page radio Scan operation. In BT mode, press to receive a call.
5	PLAY/ PAUSE	In Disc Playback mode, press to pause playback. Press again to start where playback stopped.
6&17	/	Press these buttons to skip ahead or back one track.
8	TITLE	When playing a Digital Video, pressing this button will open the TITLE menu which is recorded on the media. When playing a VCD disc, press this button to create a PBC (Playback Control) menu for the disc to assist in making playback selections.
9	RPT/2	Repeat function for media playing; In radio mode, press to select the store station 2.
10	DISP/1	In video playing mode, press to show OSD menu; In radio mode, press to select the store station 1.
11	AUDIO/5	Same operation as audio in page 2 4.In radio mode, press to select the store station 5.
12	MENU/4	Press this button briefly to display the root level directory of a digital video disc.In radio mode, press to select the store station 4.
13&21	VOL+/-	Use these controls to adjust the volume level.
14	SEL	Press the SEL(in radio mode,press and hold the SEL) to switch between BASS,TREBLE,BALANCE, SWF VOL, SWF FREQ.After switching on the desired mode above, rotate VOL knob to set it.
15	MUTE	Press this button to turn off the audio. Press again to restore the sound to its prior volume level.
16	BAND/	In Radio mode, press this button repeatedly to switch between the five radio bands: FM1 > FM2 > FM3 > AM1(MW1) > AM2 (MW2).In BT mode, press to reject a call.
18	EQ	Press repeatedly to cycle through the different equalizer curve presets you may wish to use for enhanced listening.
19	RDM/3	Random function for media playing;In radio mode, press to select the store station 3.
20	SUB-T/6	In Digital Video Disc Playback mode, pressing this button will allow you to change the subtitle language on discs which have this as an option.In radio mode, press to select the store station 6.

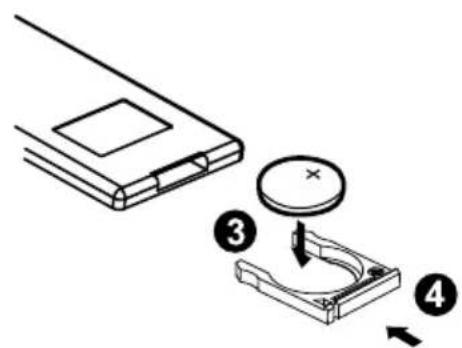

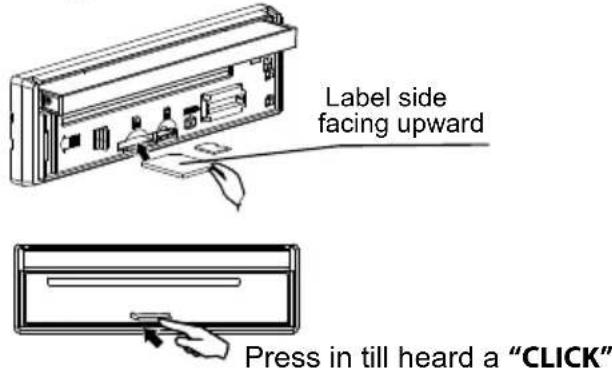

Preparing the Remote Control Inserting the Battery

1. First push to inside as the direction indicated by the arrow (See ①) And then Remove the battery holder as the direction indicated by the arrow (See ②).

2. Replace the battery Set a new battery property with (+)side up as illustrated (See ③).

3. Insert the battery holder. Push in the holder to the original position(See 4).

Using the Remote Control

Face the remote control towards the player front face IR mark (remote control signal receiver). Changing of the view angle on multi-angle Digital Video media. Operation angle: About 30 degree in each the direction of the front of the IR mark.

Note :

The lithium cell in the battery compartment of remote control has been secured for transport with a plastic initial use please remove this plastic so that the remote control is ready for operation.

POWER ON/OFF

Touch the “ 🔊” ICON on screen to turn the unit off. Press the “ 🔊 onthe front panel to turn It on, press it again to turn off.

LOADING/EJECTING A DISC

Loading a Disc

1. Press the POWER ( ↓ ) button on the front pane to turn the device on .
2. Insert the disc with printed side facing up into the disc slot (1).
3. The player starts playback the disc automatically.

Ejecting a Disc

In disc mode, Press the ▲(2) button on the front panel to eject the disc.

OPEN/CLOSE MONITOR AND ANGLE ADJUSTMENT

- Press OPEN button on front panel, the monitor will draw out automatically.

Hand inserting a button into a rectangular device with a scroll inside (no text or symbols)

OPEN/CLOSE button
FIG.1

When the monitor draws out to a certain location, it will turn upward automatically and stop at vertical position.

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

FIG.2

- Adjusting the viewing angle. When the monitor does not move, long press ◆ button on the panel to turn the monitor upward or downward at fine steps to get a desired viewing angle.

Diagram of a mechanical assembly with multiple cylindrical components and a base, no text or symbols present

FIG.3

Do not rotate the monitor forcibly to avoid mechanical damage.

Diagram showing a curved arrow inside a rectangular frame, with no text or symbols present.

FIG.4

- Return the monitor to the central viewing position, long press OPEN button on the front panel, the monitor will turn downward automatically.

Simple line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

FIG.5

- When the monitor turns downward to a certain angle, it will draw in.

Simple line drawing of a rectangular electronic device with a handle and internal components, no text or symbols present.

FIG.6

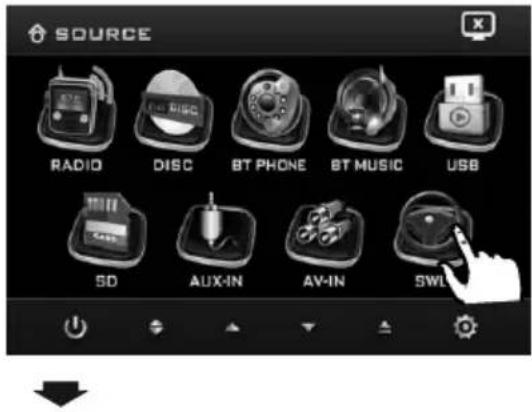

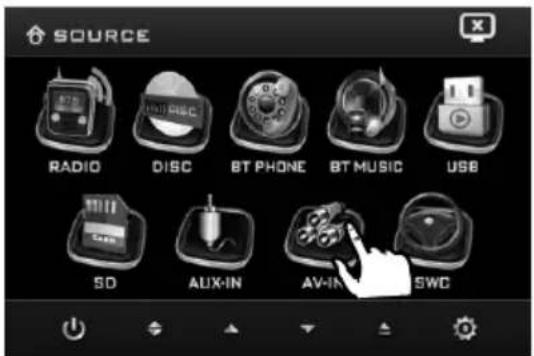

Main Menu Operation

In many modes, touch the ↻ icon or touch the ↻ range to enter the main menu, the message like following as below.

1. When the unit is power on, tap to turn off the display and the unit still work, tap anywhere of the display to turn on the display again.
2. POWER icon In any modes, touch the POWER icon to switch the unit off. The monitor will draw in automatically.
3. UP icon Touch this icon to adjust the angle of the monitor upward until your desired angle.
4. CLOSE icon Touch this icon to Close the monitor.
5. DOWN icon Touch this icon to adjust the angle of monitor downward until your desired angle.
6. EJECT icon Touch to allow for inserting or ejecting disc.
7. SETUP icon Touch to enter the SETTING mode, the message will display as follow :

Setup interface 1

Setup interface 2

Touch the “ ” section on the setting menu, touch the “ ↗ ranges to select the adjustment item, Touch the “ ↕ ” icon to return to the previous playback.

General setup interface1

General setup interface2

ADJUSTABLE ITEMS:

ANIMATION In RADIO mode, you can change the playing time of animation among of "OFF, 10S, 30S, 1M, 90S, 2M, 3M and 4M".

Disc setup as follow:

FORMAT

This player is capable of playing discs recorded in either PAL or NTSC formats. Make the selection based on whether you are connecting the unit to a PAL TV or an NTSC TV. You can also set the unit to AUTO (auto select). The disadvantage to autoselect is that each time you turn the unit on it checks to see what kind of monitor is connected, which causes a small delay and some flickering of the display image which you may find unpleasant.

TV TYPE

This is to select the appropriate TV aspect (4:3 or 16:9) according to the connected TV set.

Normal/PS (For 4:3 TV)

Played back in the PAN & SCAN style. (If connected to wide-screen TV, the left and right edges are cut off.)

Normal/LB (For 4:3 TV)

Played back in LETTER BOX style. (If connected to wide-screen TV, black bands appear at top and bottom of the screen.)

Wide (For 16:9 TV)

Select when a wide-screen TV set is connected

RATING

Select to turn Parental Control on or off. The factory default password is 1234. (The password must be used to make changes to the Parental Control menu below.)

Key in "1234" and then turn to rating then you can setting as follow:

$$ \text { KID SAFE } \rightarrow \text { G } \rightarrow \text { PG } \rightarrow \text { PG - 13 } $$

$$ - > \mathrm{PGR} - > \mathrm{R} - > \mathrm{NC-17} - > \mathrm{ADULT} $$

RADIO

ST/MONO: touch to select stereo or mono.

LOCAL: touch to select local or distant.

REGION: touch to select radio frequency.

BT

Touch to select BT function on or off.

WALLPAPER

Touch to select wallpaper.

ABOUT

Touch to show the version information.

CLOCK SETUP

Touch the CLOCK to adjust the time and time format.

clock setup interface

AUDIO SETUP

Touch the audio to turn to audio quality adjustment.

audio setup interface1

audio setup interface2

TREBLE: -7 to +7

Adjust treble level.

BASS: -7 to +7

Adjust bass level.

SUBWOOFER: touch to adjust subwoofer volume and frequency.

EQ: touch to select audio mode as follow: USER -> JAZZ -> CLASSIC -> POP -> ROCK

LOUDNESS: touch to select loudness effect as :OFF -> LOW -> MID -> HIGH

FADER/BALANCE:

BALANCE: R 0-10 to L 0-10

Adjust sound balance between left and right speakers.

FADE: F 0-10 to R 0-10

Adjust sound balance between front and rear speakers.

VIDEO SETUP

Video setup interface

COLOR: 0 to 40

Adjust the color for the picture-lighter or darker.

BRIGHTNESS: 0 to 40

Adjust if the picture is too bright or too dark.

CONTRAST: 0 to 40

Adjust the contrast of the bright and dark portion.

TINT: 0 to 40

Adjust the tint if the human skin color is unnatural.

-Adjustable when "NTSC" is selected for "NTSC/PAL".

LANGUAGE

Touch to select OSD language.

ILLUMINATION COLOR

Touch to select the backlight for all buttons. Tap auto icon the backlight change automatically.

CALIBRATION

Touch the arrow as show to calibration the display.

Reset Factory Settings

RESET button is placed on the housing and must be activated with either a ballpoint pen or thin metal object.

The RESET button is to be activated for the following reasons:

A. Initial installation of the unit when all wiring is completed.
B. All the function buttons do not operate.
C. Error symbol on the display.

Technical line drawing of a device casing with a tripod and indicator lights (no text or symbols)

RESET

NOTE:

If RESET is selected, all memory data will be deleted, please re-adjust.

Rear View Camera

When connecting the rear view camera the mirror image of the rear view is automatically displayed on the monitor when you change the gear to the back position.

(Note: additional monitor can not display the image.)

UNIT KEYS

1. OPEN BUTTON

To slide the monitor out and stand it up or into the monitor slot, press this button;

2. VOL KENSELBUTTON

The Moral mode, knob is used to increase or decrease the volume.

Press the SEL(in radio mode, press and hold the SEL) to switch between BASS, TREBLE, BALANCE, SWF VOL, SWF FREQ.

After switching on the desired mode above, rotate VOL knob or press VOL+/VOL- buttons to set it.

In radio mode, press the SEL to select MANUAL/AUTO mode, in radio manual mode to scan the frequency by rotate the VOL knob, select radio auto mode to cancel the scan function.

3. ⏻ (POWER On/Off) / MODE BUTTON

Sasstiptbongrptuthe offiit, taunthe . press

In power on mode, Press it repeatedly to select RADIO, DISC, USB, CARD, BT and AUX mode.

3. ⏻ (POWER On/Off) / MODE

Press it to turn on the unit, to press a device for 0.60 seconds In playback mode, Press it repeatedly to select RADIO, DISC, USB, CARD, AUX, and AV mode.

4/5. >>| and |<< BUTTONS

In radio mode, long pressing |<< or >>| button can automatically search down or up for an available station beginning from the current frequency; Briefly pressing |<< or >>| button can manually search down or up for a your desired station beginning from the current frequency.

In media mode, pressing |<< or >>| button can play the previous or next track; continuously and long pressing |<< or >>| button can fast backwards or forwards at the following multiple of normal speed: x2, x4, x8, x20.

6. MUTE BUTTON

Press it button to switch of the loudspeakers for a short period. The word MUTE flashes in the display. Press it again to cancel the mute function. This function can also be cancelled by rotating the VOL multifunction button.

7. USB PORT

For information about connecting a USB device, please see USB operation.

8-13. PRESET STATION MEMORY AND >II, INT, RPT, RDM BUTTON

A) In RADIO mode Go to any preset station by pressing one of the 6preset station(1-6), if one of these buttons is pressed for more than 2 seconds, the stations currently being listened to will be memorized into the selected preset button.

B) In DISC/USB/SD mode During playing, press 1/>II button to pause the current playback, press again to continue play;

During playing, press 2/RPT button to select repeat function;

During playing, press 3/RDM button to select random function;

During DVD/VCD/CD disc playing, press 4/STOP button to stop playing and turn to home mode, during MP3/USB/SD mode, press this button to turn to previous mode, press again to turn to home mode;

14 AUXILIARY INPUT JACK

Insert an external device to this AUX jack in order to have audio output of the device through the unit

15. ▲ (EJECT) BUTTON

Insert the disc, label side facing up, until the mechanism senses its presence and draws the disc in. Press it to eject the disc..

16. REL BUTTON

Press it to detachable the front panel.

17. LCD Display window

18. SD CARD SLOT

19. RESET BUTTON

Press this button to return to factory settings.

RADIO OPERATION

Listening to Radio

Touch the RADIO ICON in home menu to enter the RADIO mode. In radio mode, tap icon to adjust the brightness for the display.

Selecting The Frequency Band

Touch the screen of "BAND" section repeatedly to select the band, the message will show in turn:

When an FM stereo broadcast is hard to receive

Press ST/MO button on the remote control to select the MONO or STEREO mode.

Start Searching For a Station Manual Search

During Radio mode, briefly touch " >> " to increase frequency by one step of channel spacing.

Briefly touch “◀” to decrease frequency by one step of channel spacing.

Automatic Search

During Radio mode, touch and hold (for more than 2 seconds) either “<</>>” ICONS to start search for a radio station automatically.

To tune in strong-signal FM Station only (LO/DX function)

In radio mode, Press button on the remote control to select icon select LOC/DX mode of Local and Long-distance traffic news.

Storing and Listening to a Memory Station

Setting Memory

With this system, a total of 30 stations can be stored in the memory of six buttons. Each band stores up to six preset stations. The stations might be FM1, FM2, FM3, AM1(MW1), and AM2(MW2) band.

The operation is as below :

- Store in Memory

Select the frequency band
Select the station
Press and the station until it show the frequency band your select.

- Retrieve a preset station

Touch the 1-6 ranges briefly to retrieve a station which had been stored in the memory in advance the chose number is shown on display.

Automatic Memory Storing & Program Scanning

Automatic Preset Setup

In Radio Mode, touch and keep (for more than 2'S) the screen of "☐" range to active automatic station storage.

The radio searches within the current frequency band, e.g. FM, for the stronger signal level until the search cycle has finished. The six strongest stations are then allocated to the corresponding storage locations. Then the station of the first storage location is set.

Scan Function

In Radio mode, briefly touch the “section on the touch screen, the radio briefly plays all the preset stations of the frequency band.

RDS FUNCTION

In home menu, then touch the “ICON” to enter the set mode, the message in the display :

ADJUSTABLE ITEMS:

REGION SET

Touch to switch the region area as: EUROPE, USA, AMERICAN 1, AMERICAN 2 and OIRT.

REG FUNCTION

at certain times some stations divide up their programs into regional programs with varying content.

REG ON : the message "REG ON" will appears in the display for a few seconds. Note :

- the display capacity is limited. It is possible that in the double display mode some segments of the display are deleted. - the function REG ON prevents the radio from switching to alternative frequency which have a different regional program content.

REG OFF : the program identification(PI) of the regional program is ignored during the search for an alternative frequency (AF) or a program identification (PI).

Select RDS REGIONAL to turn RDS function on or off.

PI SET

Touch to change between PI MUTE and PI SOUND.

PI MUTE / PI SOUND

(only for radio operation)

If you are in an area where two program identifications (PI) overlap, you can select the option PI SOUND and

PI MUTE for playback of the sound.

Alternate switching of the program identification should be avoided.

PI SOUND :

If switching nevertheless occurs the sound of another station is heard for less than one second.

PI MUTE :

the sound of another station is suppressed.

TA Traffic Announcement

(Priority For Traffic Information)

In Radio mode, touch the cursor button to switch the TA function ON and OFF. When the TA function is activated, the TA symbol appears in the display. During radio operation in one FM frequency band the search for a traffic announcement station is started automatically (TA SEEK). If an FM station is being received which transmits the latest traffic announcements from time to time, the TP display lights up.

When the TA function is switched on, the FM traffic automatically interrupt CD operation (the word TRAFFIC appears in the display).

The volume level is increased to the minimum value for the transmission of traffic announcements. After the traffic announcements has finished, the program that was previously running is resumed.

Interruption of the TA Function:

If you would like to interrupt the current traffic announcement, touch the TA section on screen briefly. This does switch off the TA mode.

AF FUNCTION

(Alternative Frequencies)

In Radio mode, touch the cursor button to switch the AF function ON and OFF.

AF is a function that works with the help of RDS (Radio Data System) and can only be used with FM stations. The radio searches in the background for the best frequency reception of the station that has been tuned into.

Touch the AF section on touch screen or swing and keep the SEL knob in the TA/AF direction for about 2 seconds, the AF function is activated. The AF symbol appears in the display.

When the AF function has been switched on, the radio continuously tests the signal strength of the AF frequency. The test interval for each AF frequency depends on the signal strength of the current station and varies from a few minutes in the case of weak signals. Whenever the new AF frequency is stronger than the station that is currently tuned in, the radio switched to this frequency for a short time for a short time and the message "NEW FREQUENCY" is displayed for one or two seconds.

PTY FUNCTION

In Radio mode, touch screen of "PTY" range to select the Program type.

PTY Selection of the program type besides the stations name, some FM stations also transmit information on the type of program. This information can be displayed by your car radio.

Examples of such types of program are : SPORT NEWS POP WEATHER .....

With PTY function you can specifically select stations transmitting a particular type of program. Touch the PTY on screen repeatedly to call up the PTY selection menu. The message “PTY SEEK” then appears briefly in the display. When PTY has been selected the radio start searching for corresponding PTY information and stops when the PTY information has been found, “NO PTY” appears in the display. If the PTY information being searched for no longer exists, the PTY function automatically switches to normal mode.

Media Operation

In audio play mode, the message will display as below :

(When Parking Brake is applied.)

Mute function

To select the Equalizer mode

To search fast forward

To search fast backward

Intro Function

To decrease the volume level

To increase the volume level

Loudness Function

Subwoofer Function

Turning pre-switching for traffic announcements on and off

Switching on and off an Alternative frequency

Play/Pause the playing

To skip the next track

To skip the previous track

Repeat Function

Random Function

Previous menu

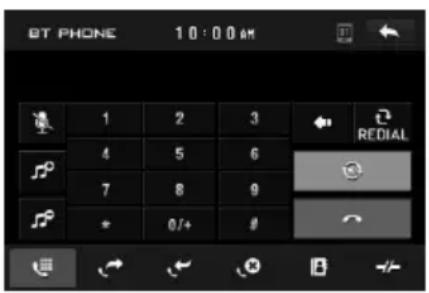

Tap to turn to BT PHONE mode. (after pairing and connecting a mobile phone with BT function).

In audio play mode, tap 📄 icon to adjust the brightness for the display.

The icons for other mode

(The same icon have the same function in each mode)

In PHOTO playing ,tap to change the photo direction.

ZOOM IN and OUT.

For page turning.

For page turning.

For page turning.

For page turning.

BASIC OPERATION

Pause (still picture)

Touch the “▶” section on touch screen during playback will stop play temporary, touch it again to return the normal playback.

Rapid Forward/Rapid Reverse

During DISC playback, touch the screen of “▶/◀” range the speed of rapid forward/reverse changes according to the disc as follow:

Digital Video/VCD/CD/MP3:

Skipping Track

During DISC playback, Touch the ▶/▲ section on the touch screen to skip to next/back one track.

Note :

For some VCD2.0 disc (PBC-playback control), above these buttons may be unavailable.

Zoom Function

Touch the button repeatedly, the displayshow as "zoom 2, zoom 3, zoom 4, zoom 12 , zoom 1/3, zoom 1/4, zoom off."

Use the keys ( ◀◀ / ▶▶ / ◀◀/ ▶▶ on remote control to move the enlarged picture.

SELECTING PLAY MODES

During the Disc playback, select the "RPT, RDM" to select your favour play mode.

1). REPEAT FUNCTION

FOR Digital Video :

Tap the 📄 icon or press the RPT button on the remote control to select REPEAT mode as follows :

FOR VCD/CD :

Tap the 📄 icon or press the RPT button on the remote control to select REPEAT mode as follows :

FOR MP3 :

Tap the 📄 icon or press the RPT button on the remote control) to select REPEAT mode as follows :

During DISC playback, touch screen of "X" section (press the RDM button on the remote control to play in random. Each play mode the order is different. (Depend on the disc used for VCD).

Touch it again to cancel this function. Note: in random mode, the button is not available.

ON-SCREEN DISPLAY FUNCTION

During playback, touch the screen or press the DISP on the remote control, it will display the following as below :

Note: touch the screen or press the DISP on the remote control again to cancel the OSD information.

1. Digital Video, when it is on, it will display the information such as:

1. Example for VCD/SVCD, when it is on, it will display the information such as:

1. Example for Movie or PHOTO. When it is on, it will display the information such as:

Nighttime black-and-white photo of a suspension bridge over a river, captured with camera interface overlay (no text or symbols on the bridge itself)

DISC Search (GOTO)

FOR Digital Video :

Touch the screen as show :

the screen will display the following message :

Touch <1> to select the adjustment item, then select the item your favour by touching the numeric buttons, then touch the OK to confirm.

FOR VCD (With PBC OFF) : Touch the screen as show:

the screen will display the following message :

Touch <1> to select the adjustment item, then select the item your favour by touching the numeric buttons, then touch the OK to confirm.

For Movie/Photo:

Touch the screen as show :

the screen will display the following message :

Touch <1> to select the adjustment item, then select the item your favour by touching the numeric buttons, then touch the OK to confirm.

Digital Video Special Function

1. Multi-subtitle Language Function (for Digital Video Only)

During Digital Video playback. Touch the OFF icon on touch screen.

Each time the button is touch, number of the subtitle language changes in sequential order.

Notes:

• The language number is different according to the disc.
• Some discs only contain one subtitle language.
• When no different subtitle language are recorded, “ INVALID KEY ” will be displayed at screen left top corner.

2. Multi-Audio Language Function

For Digital Video: During Digital Video playback, touch the 1/2 icon on touch screen (or press the AUDIO

on the remote.) Each time the button is pressed or touch, number of the audio soundtrack language changes on sequential order.

Notes:

• The language number is different according to the disc.
• Some disc only contain one language soundtrack
• When no different language soundtrack are recorded "MINVALID KEY" display at screen left top corner.

For VCD/CD:

during playback, touch the AUDIO section of the touch screen or Press AUDIO on the remote. It is possible to switch the sound between monaural and stereo sound.

3. Multi-Angle Function (for Digital Video Only)

During Digital Video playback, touch the ANG OFF icon on the touch screen.

Each time the button is pressed, the number of the angel changes in sequential order.

Notes:

• The angle number is different according to the disc.
• The function only work for disc having scenes recorded at different angles.
• When no different angle are recorded, "UNMAD displayed at screen left top corner.

4. Title Menu Function

For Digital Video:

If the Digital Video has multiple titles recorded on the disc. It can select preferred title from the title menu to start playback.

• During Digital Video playback, press TITLE button on the remote. The title menu is display.
• Select preferred title by the cursor button and confirmed by press the ENTER button.

For VCD:

Press TITLE button on the remote control while the disc is playing, you can switch between "PBC ON" and "PBC off" mode.

BT Operation

1. Pairing and Connecting

Prior to using the BT device named "XOMAX" as a hands-free system for a BT-enabled mobile phone for the first time, you must pair and

connect them as follows:

Press the BT hands-free icon or press the pair button on the remote control to turn to BT mode as right:

* During the use of the BT device named "XOMAX" as a hands-free system for a BT-enabled mobile phone; Switch on the BT mode of your mobile phone; then s B te dev the item to find a and enter it; B The dev find the of the A/V system, the name

XOMAX will be displayed select it and enter it; then will pair and connect with the BT device "XOMAX" of the car A/V system, Confirm it, then the frame of the BT logo will light all the time.

* Whishing pairing and ing connect , the audio of the mobile phone transfers to the camobile system whenever a call is made or received plays music .

2. BT PHONE

In power off mode, a incoming call or call out to wake up this unit and turn to BT hands-free mode, when the phone call ended the unit back to power off mode.

1) Make a call
(1) Dial with mobile phone directly;
(2) Dial with BT Phone or on touch screen;

a. Touch the BT PHONE icon in home menu or touch the 📊 icon during playing to turn to BT PHONE interface, the icons function as follows:

: Tap to mute the sound that the subscriber you dialed can't hear your vioce, tap again to return normal.

& : Same as VOL+ and VOL- or VOL knob.

: Tap to turn to dial interface.

: Tap to check the outgoing call.

: Tap to check the incoming call.

: Tap to check the missed call.

: Tap to turn to the contacts.

: During talk, tap to change the sound from the phone to the unit.

- : Tap to do disconnection.

Tap a icon such as 📁 to show as follow:

: Tap to download the contacts from your phone.

: Tap for phone number search.

& For page turning.

b. Use the number icons to input your desired phone number;

* When inputting a wrong digit, use ← icon or < button to delete it.

c. After finishing inputting, touch 📊 icon or press ↗ button on control panel to dial out.

2) Redial last dialed phone number Touch 📄 icon to dial out the last dialed phone number.

3) Answer a call During an incoming call, the incoming telephone number displays in the the BT PHONE interface. If you want to receive it, touch 🔔 icon or press 🔔 button on remote control; if you want to reject it, touch 🔔 icon or press 🔔 button on remote control.

4) Ending a call When ending a call, touch 🔒 icon or use 🔒 button.

5) Switch the audio between the unit and your device During phone talking using the BT hands-free system of the car A/V system, touch 🔔 icon or press ↗ button on remote control to switch the audio between the unit and your device.

6) Adjusting the volume during a call Dtalking phase/OL knob or VOL-a and VOLcon or buton the adjust bottom develte sound

* * / # icons and buttons they perform as * / # buttons on mobile phone.

Touch Screen Operation

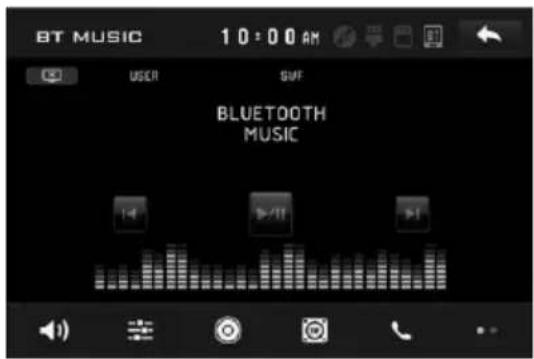

3. BT MUSIC

1) Touch BT MUSIC in home menu or pressing MODE button can pop up BT MUSIC interface as follows:

Mute function

To select the Equalizer mode

To decrease the volume level

To increase the volume level

Loudness Function

Subwoofer Function

Play/Pause the playing

To skip the next track

To skip the previous track

Tap to turn to BT PHONE mode. (After pairing and connecting a phone with BT function).

In BT music mode, tap icon to adjust the brightness for the display.

2) Using your mobile phone with BT function to audio if it play, is paired at the condition of the mobile phone will change into the car A/V system

The BT device of the car A/V system support A2DP, which enables the user to stream audio from their device.

3) The device A of system so these icons support the AVRCP, BT Music interface except BT Music and their button responding panel or on remote control are available for audio/video playback of your mobile phone during playback. But no fast forward/backward functions for 📄 / 📋 icon, and the function of resume playback after pausing or stopping is available only for some mobile phone.

AUX Operation

On the front panel of this unit, there is an AUX IN jack, follow the diagram below to connect analogue replay devices(only for the Audio connect, if you want to connect the Video, please plug the

1). Please connect the external device with stereo jack (3.5mm) plug the Aux in socket.

AUX IN JACK FRONT PANEL

2). In radio mode, touch the screen of “◀” ICON to enter the main menu, touch the “AUX” ICON to enter the AUX IN mode.

In AUX mode, tap 📄 icon to adjust the brightness for the display.

AUX INTERFACE 1

AUX INTERFACE 2

3). You now hear the sound from the external device played back through the loudspeakers.

The function of the icons as follow:

Tap to mute the sound.

Tap to select EQ as the same on the remote control.

Loudness Function.

Subwoofer Function.

Tap to adjust audio volume.

TA Turning pre-switching for traffic announcements on and off.

AF Switching on and off an Alternative frequency.

Tap to turn to BT PHONE mode. (after pairing and connecting a mobile phone with BT function).

AV Operation

Please plug the

Touch the AV IN icon to enter the AV IN mode.

In AV mode, tap 📄 icon to adjust the brightness for the display.

AV INTERFACE 1

AV INTERFACE 2

As the interface show, here is only the audio output, now tap the ▶ icon, the picture of the auxiliary input video show on the display and tap the display again to turn to audio mode.

Now you can watch the video from your External video equipment such as Digital Video players, computers, etc.

The function of the icons as follow:

Tap to mute the sound.

Tap to select EQ as the same on the remote control.

Loudness Function.

Subwoofer Function.

Tap to adjust audio volume.

Turning pre-switching for traffic announcements on and off.

Switching on and off an Alternative frequency.

Tap to turn to BT PHONE mode. (After pairing and connecting a mobile phone with BT function).

Note: To ensure safety while driving and to comply with lows, drivers should not watch video or operate the video device while driving.

Touch Screen Operation

USB OPERATION

Following the diagram below, connect your USB device to the front panel USB port. If it is properly connected, the device will be mounted and start playing automatically.

Diagram showing a device being inserted into a device labeled 'USB' (no text or symbols on the device itself)

1 Current type (highlighted bar).
2 Audio play mode select.
3 Picture play mode select.
4 Movie play mode select,
5 Current play track .

Card OPERATION

The unit can support playback MP3/WMA/JPEG/MP4 format which are stored on SD memory cards. Please read the following instructions before you start using a memory card. Inserting the card as follow:

1 Current type (highlighted bar).
2 Audio play mode select.
3 Picture play mode select.
4 Movie play mode select,
5 Current play track .

STEERING WHEEL CONTROL

Touch the SWC icon as follow to turn to steering wheel control.

During setting, touch the turn to home menu.

Before operation, press the ✗ icon to cancel the original input that to set your favour.

There are 2 KEY for no more than 12 buttons to select.

For first time use this function, input a key (such as 0.38, 0.38 is a magnitude of voltage, according to your car) through the steering remote and show in button 1 position.

Then tap Assign and tap the button 1 and then select the icon as the picture show, the icon show in button 1 position. After selection tap confirm and back to home menu that means select finish.

The function of the icons as follow:

Touch to begin function save.

After selection touch to confirm operation.

Touch this icon to cancel the input and resume load.

High-z means high-impedance. Tap to reduce the magnitude of voltage. This key for avoid that voltage is too high that the car system can not differentiate the input key set for some car.

Low-z means low-impedance. Tap to increase the magnitude of voltage. This key for avoid that voltage is too low that the car system can not differentiate the input key set for some car.

\* Parental Control

Q: After inserting a Digital Video disc into the disc slot, if a dialogue box pops up and asks you to input a password, what should you do

A: The playing disc is locked by a rating level of parental control. If the current rating level of parental control of the Digital Video player is lower than the one of current disc, you must input the correct password of parental control to unlock the parental control and enter a rating level one equal to or higher than of the current disc in order to play the disc.

* For factory preset password of parental control of Digital Video player, please sparthof Media Setup Menu

Appendix: Parental Control

Parental Control function of a Digital Video player can control playback of movie ratings on a disc. You can set the Digital Video player to be a certain rating level of parental control using the Media Setup Menu. If the rating level of parental control of a disc is higher than the one of the Digital Video player, the Digital Video player cannot play the disc.

The Digital Video movie can be designed so that the Digital Video player can play different versions of content of a particular movie according to the different rating levels of parental control. Depending on the Digital video, the scenes that are not suitable for children will be cleared or replaced by suitable scenes automatically.

The rating levels of Parental Control are as follows:

	Unlock
1	Kid Safe
2	G
3	PG
4	PG 13
5	PG R
6	R
7	NC 17
8	Adult

General

Power Supply Requirement......DC 12V

Current consumption....10A MAX.

Audio

Signal Output....2ch&4ch line out

Frequency Response....20 Hz - 20 KHz

S/N Ratio....90 dB (JIS)

Wow and Flutter......Below measurable limits

TFT Monitor

Monitor Screen Size....7 Inch Wide

Color System....NTSC/PAL

Disc/USB/Card

Compatible Format....Digital Video/MPEG4/VCD/IMAGE/MP3/WMA/CD

Radio

FM

Frequency range......EUR (87.5 MHz - 108 MHz)

USA (87.5 MHz - 107.9MHz)

American 1 (87.5 MHz - 108MHz)

American 2 (87.5 MHz - 108MHz)

OIRT(88.1 MHz - 107.9MHz)

Usable sensitivity....15dBu

I.F Frequency....10.7 MHz

AM(MW)

Frequency.....EUR (522 KHz - 1620 KHz)

USA (530 KHz - 1710 KHz)

American 1(530 KHz - 1710 KHz)

American 2(520 KHz - 1600 KHz)

OITR (531 KHz - 1602 KHz)

Usable sensitivity....40dBu

I.F Frequency....450 Khz

TV

TV System....NTSC/PAL/SECAM

TV Sensitivity......45dB uV@CH25 in average

BT

BT specification.... V1.2 Class 2

BT profile supported.....Headset, Handsfree and A2DP & AVRCP profiles

Range of frequency.... 2.4GHz Spectrum

NOTE:

Specification and design are subject to modification, without notice, due to improvements in technology.

Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer.

SYMPTOM	CAUSE	SOLUTION
No power	The car ignition switch is not on	If the power supply is properly connected to the car accessory terminal,switch the ignition key to "ACC"
	The fuse is blown	Replace the fuse
Disc can not be loaded or ejected	Presence of disc inside the player.	Remove the disc in the player, then put a new one
	Inserting the disc in reverse direction	Insert the compact disc with the label facing upward
	The disc is extremely dirty or defective	Clean the disc or try to play a new one
	Temperature inside the car is too high	Cool off or until the ambient temperature return to normal
Video/image appears black-white	The color system is set incorrectly	Please switch to correct color system from menu
No video/image appears	The unit is not connected to the parking brake detection switch	Make proper connection according to wire connection “”
	The parking brake is not engaged	For safety reasons no video/images are displayed while the vehicle is moving. Engaging the parking brake will cause images to be displayed.
No color in picture	The disc format is not according to the TV-set used (PAL/NTSC)	Please choose a proper color system.
JPEG disc can not be played back	No JPEG files are recorded on the disc.	Change the disc
	JPEG files are not recorded in a compliant format	Change the disc Record JPEG files using a compliant application
The operation keys do not work	The built-in microcomputer is not operating properly due to noise	Press the RESET button. Front panel is not properly fixed into its place
The radio does not work	The antenna cable is not connected	Insert the antenna cable firmly
	The signals are too weak	Select a station manually
