Product Type	Handheld Megaphone
Brand	Pyle
Model	PMP57LIA
Power Output	15 Watts
Range	Up to 500 yards (457 meters)
Power Source	8 x C batteries (not included)
Dimensions (L x W x H)	12.2 x 9.8 x 4.5 inches (31 x 25 x 11.5 cm)
Weight	1.5 lbs (0.68 kg)
Functions	Voice amplification, built-in siren, push-to-talk microphone
Controls	Power on/off, volume control, siren button
Microphone Type	Built-in dynamic microphone with grip
Carrying Options	Detachable shoulder strap included
Housing Material	Durable ABS plastic
Color	Black with red accents
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquids or abrasives.
Battery Safety	Remove batteries during long storage. Do not mix old and new batteries.
Spare Parts Availability	Contact Pyle customer service for replacement parts
Warranty	1 year limited warranty

Frequently Asked Questions - PMP57LIA Pyle

How do I install the batteries in the Pyle PMP57LIA megaphone?

Turn the megaphone over and open the battery compartment cover. Insert 8 C-size batteries according to the polarity markings (+/-) inside the compartment. Close the cover securely. The unit is ready to use.

How do I use the siren function?

Press and hold the siren button located on the handle. The siren will sound continuously until released. Release the button to stop the siren.

What is the maximum range of the PMP57LIA megaphone?

The PMP57LIA can project your voice up to 500 yards (457 meters) under optimal conditions, such as open outdoor areas with minimal background noise.

How do I clean and maintain the megaphone?

Wipe the exterior with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners. Store in a cool, dry place when not in use. Remove batteries if storing for extended periods.

What type of batteries does the PMP57LIA require?

It requires 8 C-size (LR14) batteries. These are not included. Do not mix alkaline, standard, or rechargeable batteries.

Can I use the megaphone while it is charging?

No, this model runs exclusively on batteries and does not have a charging port. Always use fresh batteries for best performance.

Is there a warranty on the Pyle PMP57LIA?

Yes, it comes with a 1-year limited warranty against defects in materials and workmanship. Keep your proof of purchase for service.

What should I do if there is no sound from the megaphone?

First, check that batteries are installed correctly and have power. Ensure the volume knob is turned up. If still no sound, inspect the microphone for obstructions. If the problem persists, contact Pyle support.

How do I attach the shoulder strap?

Clip the strap's hooks into the two D-rings located on the sides of the megaphone. Adjust the strap length to your comfort.

Can I use the megaphone indoors?

Yes, but be aware that indoor use may cause echoes or reduced clarity. For best results, use in open spaces. Avoid pointing the horn directly at people's ears.

USER MANUAL PMP57LIA Pyle

Red Pyle USA 10 megaphone with white sound cone and control panel (no visible text or symbols on device body)

Five stylized star and geometric symbols (no text or labels)

Collection of various geometric and symbolic icons in various colors, no text or labels present.

Megaphone Speaker with Built-in Rechargeable Battery, MP3/USB/SD Readers, Aux (3.5mm) Jack, Siren Alarm Mode

PMP57LIA

Portable Megaphone with USB/SD Readers

Megaphone Speaker with Built-in Rechargeable Battery, MP3/USB/SD Readers, Aux (3.5mm) Jack, Siren Alarm Mode

This user manual contains important information for safe operation and optimal megaphone performance. Please carefully read and follow safety notes and instructions. Save this manual for future reference. Make sure that it is available to all persons using this device.

*Important Note*: Before operating the megaphone, ensure you hit the correct switch to the proper position when CHARGING/OPERATING Mode.

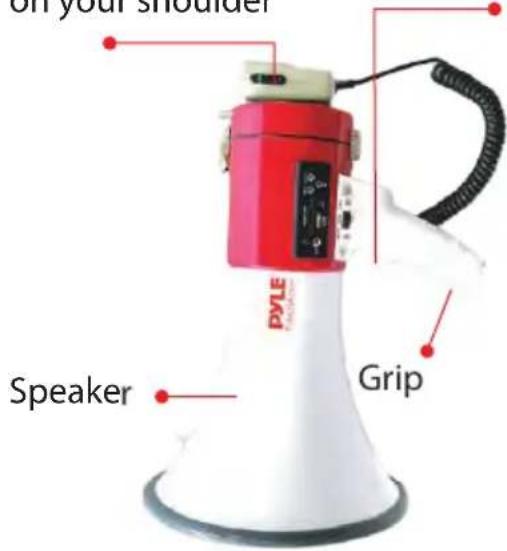

(1) Press-to-talk switch

Press this switch to talk while carrying the megaphone on your shoulder

(2) Press-to-talk switch

Press this switch to talk while holding the grip

MUSIC button

LED Light Indicator

USB port

SD/MMC CARD port

Previous Track / Volume -

Next Track / Volume +

Play / Pause

AUX IN

Slide to select USB/SD, SPEAK, or SIREN MODE

Megaphone for handheld or shoulder-slung use (strap supplied). Detachable anti-how/ microphone on coiled lead with on-off switch and volume control. Metal and ABS construction.

SAFETY

This megaphone is intended to be used only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or device

damage. Please use the megaphone as described and under supervision if used by children or minors.

• Ensure that plastic bags, packaging, etc.
• Never let children unattended use electrical devices.

OPERATING INSTRUCTIONS

1. When carrying the megaphone on the shoulder, press the (1) press- to-talk power ON-OFF switch, on the left side of the microphone.
2. When holding the megaphone at the grip, fix the microphone hanger inlet in the microphone fixing hanger, then press the (2) press-to-talk power ON-OFF switch back with your index finger.
3. Position the speaker opening mouth towards the object, and speak through the microphone mouthpiece. Bring the microphone mouthpiece close to your lips and speak normally.
4. Turn the sound volume control, on the right hand side of the microphone and adjust the sound level to max without causing howling.

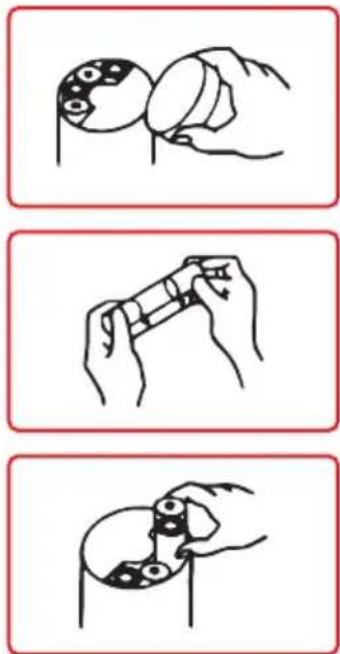

TO REPLACE BATTERIES

1. Loosen the locking screw of the battery compartment cover on the back of the body.
   The battery compartment cover comes off.

2. Insert 8 x type-C

"C" batteries in the battery case observing correct polarity.

1. Insert the battery case with batteries into the battery compartment of the megaphone, paying attention to polarity.

BATTERY CHARGING

1. The megaphone features a removable rechargeable battery, that plugs-in directly into the USB wall power outlet for charging. Once connected to the wall power outlet, the battery will begin charging automatically, after you set the battery to "Charge Mode" (average time for full-charge: 8.5 hours). A Red light will be lit while charging and turns Green when fully charged.

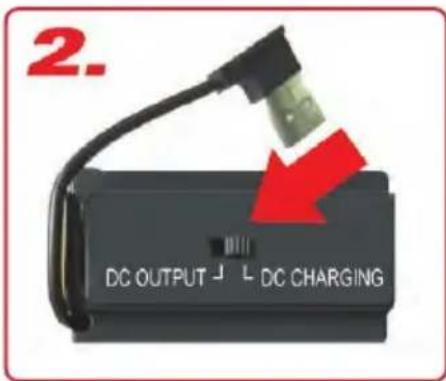

2. *Important Note*: Before charging the battery, ensure you hit the switch to "DC CHARGING" -- as located on the battery, to enable Charge Mode.
3. Once fully charged, insert the battery into the megaphone by opening the end cap in the rear of the megaphone. Be sure to slide the battery into the compartment properly, ensuring the power connection cable is exposed.

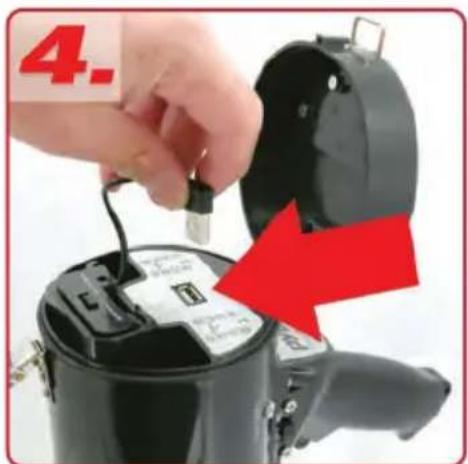

4. Once the battery is inserted, connect the battery power cable connector into the megaphone power input -- ensure you set the battery to "Power Output" Mode.

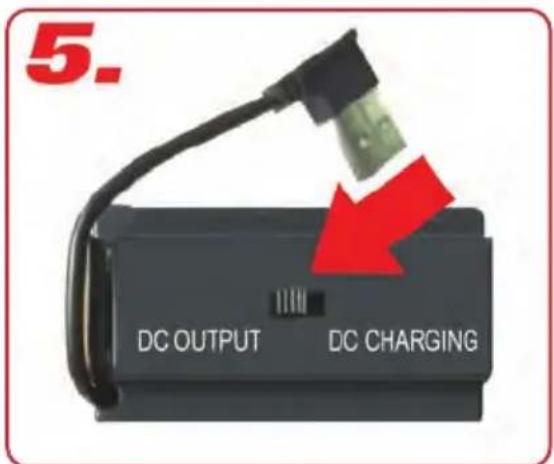

5. *Important Note*: Before operating the megaphone, ensure you hit the switch to "DC OUTPUT" -- as located on the battery, to enable Power Output Mode.

Two black battery packs with attached cables, one with a label and the other with a USB port (no visible text or symbols on the devices themselves)

PMP57LIA

Portable Megaphone with USB/SD Readers

Megaphone Speaker with Built-in Rechargeable Battery, MP3/USB/SD Readers, Aux (3.5mm) Jack, Siren Alarm Mode

Features:

• (3) Audio Function Modes: Talk, Siren, USB/SD Memory Playback
• Built-in USB Flash & SD Memory Card Readers
• MP3 Digital Audio File Playback
- Convenient Wired Handheld Microphone
- Ergonomic Pistol Grip and Light-Weight Chassis
- Rechargeable Battery for Wireless PA Speaker Portability
- Battery Charges via Included USB Wall Power Adapter
• *or Battery Powered by (8) x "C" Type Batteries, Not Included
• Aux (3.5mm) Input Connector Jack
- Connect & Stream Audio from External Devices (Works with MP3 Players, Smartphones, Tablets, etc.)
• Used by U.S. Armed Forces
- For Indoor/Outdoor Use

What's in the Box:

• Megaphone Speaker
• Rechargeable Battery
• USB Wall Adapter

Technical Specs:

• Power Output: 50 Watt MAX
- Projection Distance: Up to 1,200 Square Yards
- Rechargeable Battery: 11.1V Lithium-iOn, 1500mAh (16.6Wh, 166g)
- Megaphone Dimensions (Diameter x Length): 9.5" x 13.8"-inches
