DF 460-161 - Dishwasher GAGGENAU - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	Gaggenau
Model	DF 460-161
Dimensions (H x W x D)	86.5 cm x 59.8 cm x 57.3 cm
Weight	48 kg
Power Supply	220-240 V, 50 Hz, 2.2 kW
Energy Efficiency Class	A+++
Water Consumption	10 L per cycle (Eco program)
Noise Level	44 dB(A) re 1 pW
Place Settings	14
Number of Programs	6 (Auto, Intensive, Eco, Glass, Quick, Rinse)
Main Features	AquaStop, HygienePlus, Flexible Rack System, Cutlery Tray, Delay Start, Half Load
Interior Lighting	LED
Display	Digital display with time remaining indicator
Salt and Rinse Aid Indicator	Yes
Filter System	Self-cleaning microfilter
Drying System	Zeolith drying (Heat pump)
Spare Parts Availability	Minimum 10 years after discontinuation
Reparability Index	8.2/10 (based on French index for similar models)
Safety Features	Child lock, overflow protection, anti-flood system
Energy Consumption per Year	220 kWh (based on 280 cycles)

Frequently Asked Questions - DF 460-161 GAGGENAU

What are the dimensions of the Gaggenau DF 460-161 dishwasher?

The Gaggenau DF 460-161 has dimensions of 86.5 cm height, 59.8 cm width, and 57.3 cm depth. It is designed for built-in installation.

How do I select the right program for different loads?

The dishwasher offers six programs: Auto (sensors adjust water and temperature), Intensive (for heavily soiled pots), Eco (energy-saving), Glass (gentle for delicate items), Quick (light soiling), and Rinse (pre-rinse). Choose based on soil level and dish type.

How often should I clean the filters?

Clean the self-cleaning microfilter after every 5-10 cycles or when the filter indicator lights up. Rinse under running water and remove any debris. Deep clean the filter assembly every 3 months.

What should I do if the dishwasher displays an error code?

Refer to the manual's error code table. Common codes: E09 (water intake issue) – check water supply; E10 (drainage problem) – clean pump filter; E14 (heating fault) – contact service. Reset by unplugging for 30 seconds.

How do I refill salt and rinse aid?

Open the salt compartment cap and fill with dishwasher salt until full (capacity ~1.3 kg). For rinse aid, open the dispenser lid and fill to the 'max' line. Adjust the rinse aid setting (1-6) based on water hardness.

Can I use regular dish soap in this dishwasher?

No, use only dishwasher detergent (powder, gel, or tablets). Regular dish soap can cause excessive suds and damage the machine. Also use separate salt and rinse aid for optimal results.

How can I reduce energy consumption?

Use the Eco program for normal loads; it uses less energy by running at lower temperatures over a longer time. Also, run the dishwasher only when full, use the half-load option for small loads, and avoid pre-rinsing dishes.

What is the noise level of this dishwasher?

The noise level is 44 dB(A), which is very quiet. It is suitable for open-plan kitchens and night operation without disturbing.

How do I properly load dishes for best cleaning results?

Place plates facing the spray arms, bowls and cups upside down, and utensils with handles down in the cutlery rack. Do not overload; ensure water jets can reach all surfaces. Use the flexible rack system for tall items.

Where can I buy spare parts for the DF 460-161?

Genuine spare parts are available through Gaggenau authorized dealers and online spare parts stores. Common parts like filters, racks, and pumps are stocked. The appliance is designed to be repairable for at least 10 years after model discontinuation.

USER MANUAL DF 460-161 GAGGENAU

Safety instructions 4

Before you switch ON the appliance 4

Delivery 4

Installation 4

In daily use 4

Children in the household 5

Door lock 5

Damage 5

Disposal 5

Getting to know your appliance 6

Control panel 6

Appliance interior 6

Overview of menu 6

Water softening system 7

Setting 7

Water hardness table 7

Special salt S 8

Using special salt 8

Detergents with salt component 8

Switching off water softening system 8

Rinse aid ✱ 9

Setting amount of rinse aid 9

Switching off rinse aid refill indicator 9

Utensils 10

Not suitable 10

Glass and utensil damage 10

Loading the dishwasher 10

Unloading the dishwasher 10

Cups and glasses 10

Pans 11

Cutlery basket 11

Etagere 11

Folding spikes 12

Small accessories holder 12

Knife shelf 12

Adjusting the height of the basket 12

Detergent 13

Adding detergent 14

Combination detergent 14

Overview of programmes 15

Programme selection 15

Information for test institutes 15

Additional options 16

Turbo 16

Half load 16

Hygiene 16

Intensive zone 16

Extra drying 16

Energy Save 16

Washing the dishes 16

Programme data 16

Aqua sensor 16

Zeolith drying 16

Switching on the appliance 17

Optical display while the programme is running 17

Remaining running time display 17

Timer programming 17

End of programme 18

Automatic switch off / interior light 18

Switching off the appliance 19

Interrupting the programme 19

Terminating the programme 19

Changing the programme 19

Intensive drying 19

Maintenance and care 20

Overall condition of the machine 20

Special salt and rinse aid 20

Filters 20

Spray arms 21

Troubleshooting 21

Waste water pump 22

... when the appliance is switched on 22

... changing settings 22

... on the appliance 22

... during the wash cycle 23

... on the utensils 23

Customer service 24

Installation 25

Safety instructions 25

Delivery 25

Technical specifications 25

Installation 26

Waste-water connection 26

Fresh water connection 26

Warm water connection 26

Electrical connection 27

Removing the appliance 27

Transportation 27

Protection against frost (Emptying the appliance) 27

Waste disposal 28

Packaging 28

Old appliances 28

Before you switch ON the appliance

Please read the operating and installation instructions carefully. They contain important information on how to install, use and maintain the appliance.

Retain all documents for subsequent use or for the next owner.

Delivery

1 Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
2 Please dispose of the packaging material in an environmentally friendly manner.
3 Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.

Installation

Read the "Installation" chapter to learn how to install and connect the appliance correctly.

In daily use

• This appliance is intended for use in the home and the home environment.
• Use the dishwasher only in the household and only for its designed purpose: for washing domestic dishes.
  ● Children or people whose physical, sensory or mental abilities prevent them from using the appliance safely must not use this appliance without supervision or instruction by a responsible person.
• Do not lean or sit on the open door. The appliance could tip.
• Please note that free-standing appliances may tip over if the baskets are overloaded.
• Do not add any solvents to the washing chamber. Danger of explosion!
• Open the door carefully when the programme is still running. There is a risk of hot water spraying out of the appliance.
• To prevent injuries, e.g. caused by stumbling, open the dishwasher only briefly in order to load and unload the dishwasher.
• Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents.

Warning

Knives and other utensils with sharp points must be placed in the cutlery basket with the points downwards or horizontally on the knife shelf *.

* depending on model

Children in the household

• If fitted, use the childproof lock. An exact description can be found in the back of the envelope.
• Do not allow children to play with or operate the appliance.
• Keep children away from detergents and rinse aid. These may cause chemical burns in the mouth, throat and eyes or asphyxiation.
• Keep children away from open dishwasher. The water in the rinsing compartment is not drinking water and could contain detergent residue. Ensure that children do not place fingers in the tablet collecting tray [24]. Small fingers could become caught in the slots.
• If the appliance is installed at eye-level, ensure when opening and closing the door that children are not caught or crushed between the appliance door and the cupboard door situated below.

Childproof lock (door lock) \*

The description of the childproof lock is at the back in the envelope.

* depending on model

Damage

● The appliance may be repaired and opened up by a technician only. To do this, disconnect the appliance from the power supply. Pull out the mains plug or switch off the fuse. Turn off the tap.

Disposal

1 Make redundant appliances unusable to prevent subsequent accidents.
2 Dispose of the appliance in an environmentally friendly manner.

Warning

Children could become locked in the appliance (risk of suffocation) or find themselves in other dangerous situations.

Therefore: Pull out the mains plug, sever and dispose of the power cord. Destroy the door lock so that the door can no longer be closed.

Getting to know your appliance

Diagrams of the control panel and the interior of the appliance can be found in the envelope at the front.

Individual positions are referred to in the text.

Control panel

1 ON/OFF switch
2 Programme buttons **
3 Digital display
4 Display "Check water supply"
5 Salt refill indicator
6 Rinse aid refill indicator
7 Timer programming display
8 Timer programming
9 Additional options **
10 START button
11 Door opener

** Number depending on model

Appliance interior

20 Interior light *
21 Top basket
22 Knife shelf *
23 Top spray arm
24 Tablet collecting tray
25 Intake opening
26 Blow opening (Zeolith container)
27 Bottom spray arm
28 Dispenser for special salt
29 Filters
30 Cutlery basket
31 Bottom basket
32 Dispenser for rinse aid
33 Detergent dispenser
34 Lock for detergent dispenser
35 Rating plate

* depending on model

Overview of menu

The settings can be found in the individual chapters.

H Water Hardness H:00 - H:07
d Intensive drying d:00 - d:01
r Rinse aid r:00 - r:05
R Hot water R:00 - R:01
b End of programme buzzing sound 6:00 - 6:03
P Automatic disconnection P:00 - P:02
Optical display while the
programme is running 1:00 - 1:01

Water softening system

To ensure good washing results, the dishwasher requires soft water, i.e. containing low amounts of lime, otherwise white limescale will be deposited on the utensils and inner container.

Tap water above 9° Clarke must be softened. The water is softened with salt (regeneration salt) in the water softening system of the dishwasher.

The setting and therefore the required amount of salt depends on the degree of hardness of your tap water (see table).

Setting

The amount of salt dispensed can be set from H:00 to H:07.

Salt is not required at the set value H:00.

1 Find out about the hardness value of your tap water. Your water utility company will help you with this.
2 Set value can be found in the water hardness table.
3 Open the door.
4 Switch on ON/OFF switch 1.
5 Hold down programme button A and press START button 10 until H:0.... is indicated on the digital display.
6 Release both buttons.

The LED for button A flashes and the digital display 3 displays the factory setting H:04.

To change the setting:

1 Press programme button C.

Each time the button is pressed, the set value increases by one level; when the value of H:07 has been reached, the display jumps back to H:00 (off).

2 Press START button 10.

The chosen setting has now been stored.

3 Close the door.

Water hardness table

Water hardness value °Clarke	Hardness range	mmol/l	Set value on the machine
0-8	soft	0-1.1	H:00
9-10	soft	1.2-1.4	H:01
11-12	medium	1.5-1.8	H:02
13-15	medium	1.9-2.1	H:03
16-20	medium	2.2-2.9	H:04
21-26	hard	3.0-3.7	H:05
27-38	hard	3.8-5.4	H:06
39-62	hard	5.5-8.9	H:07

Using special salt

Always refill with special salt immediately before switching on the appliance. This ensures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank.

1 Open the screw-type cap of the compartment 28.
2 Fill the tank with water (only required when switching on the appliance for the first time).
3 Then add dishwasher salt (not table salt or tablets).

The water is displaced and runs out.

As soon as the salt refill indicator 5 on the fascia is lit, top up the salt.

Illustration of a funnel pouring granular material into a conical container with a lid and arrow symbol (no text or labels)

* depending on model

Using detergents with salt component

If combined detergents with a salt component are used, salt can usually be omitted up to a water hardness of 21^irc dH ( 37^irc fH, 26^irc Clarke, 3.7 mmol/l). If the water hardness is over 21^irc dH, special salt must be used.

Switching off salt refill indicator/water softening system

If the salt refill indicator 5 is impaired (e.g. when using combined detergents containing salt component), it can be switched off.

- Proceed as described under "Adjusting the water softening system" and set the value to H:00 .

The water softening system and salt refill indicator are now switched off.

⚠️ Warnings

• Never fill the salt dispenser with detergent. You will destroy the water softening system.
• To prevent corrosion, always refill with salt immediately before switching on the appliance.

Rinse aid

As soon as the rinse-aid refill indicator 6 is lit on the fascia, there is still a rinse-aid reserve of 1 - 2 rinsing processes. Refill with rinse aid.

The rinse aid is required for stain-free utensils and clear glasses. Use only rinse aid for domestic dishwashers.

Combined detergents with rinse-aid component may be used up to a water hardness of 21^irc dH ( 37^irc fH, 26^irc Clarke, 3.7 mmol/l) only. If the water hardness is over 21^irc dH, rinse aid must be used.

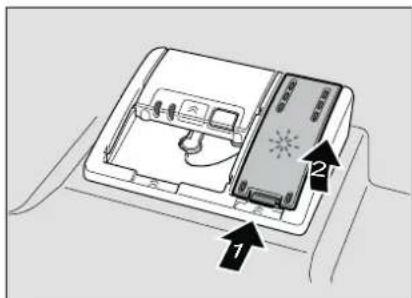

1 Open the dispenser 32 by pressing and lifting the plate on the cover.

2 Carefully pour rinse aid up to the max. mark in the filler opening.

3 Close cover until it clicks shut.

4 To prevent excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth.

Setting amount of rinse aid

The amount of rinse aid can be set from r:00 to r:06. Please set rinse aid on r:05 to obtain very good drying results (r:05 is already set in factory).

Change this setting, only if streaks (select lower setting) or water stains (select higher setting) are left on the utensils.

1 Open the door.

2 Switch on ON/OFF switch 1.

3 Hold down programme button A and press START button 10 until H:Q.... is indicated on the digital display.

4 Release both buttons.

The LED for button A flashes and the digital display 3 displays the factory setting H:04.

5 Press programme button A until the factory set value r:05 is indicated on the digital display 3.

To change the setting:

1 Press programme button C.

Each time the button is pressed, the set value increases by one level; when the value of r:06 has been reached, the display jumps back to r:00 (off).

2 Press START button 10.

The set value is saved.

3 Close the door.

Switching off rinse aid refill indicator

If the rinse-aid refill indicator 6 is impaired (e.g. when using combined detergents containing rinse aid component), it can be switched off.

- Proceed as described under "Setting amount of rinse aid" and set the value to r:00 .

The rinse aid refill indicator 6 is now switched off.

Utensils

Not suitable

• Cutlery and utensils made of wood.
- Delicate decorative glasses, craft and antique utensils. These decors are not dishwasher-proof.
- Plastic parts not resistant to heat.
• Copper and tin utensils.
- Utensils which are soiled with ash, wax, lubricating grease or ink.

Aluminium and silver parts have a tendency to discolour and fade during the wash cycle. Even some types of glass (e.g. crystal glass objects) may turn cloudy after many wash cycles.

Glass and utensil damage

Causes:

● Glass type and glass production process.
• Chemical composition of the detergent.
● Water temperature of the wash programme.

Recommendation:

• Use only glasses and porcelain which the manufacturer designates as dishwasher-proof.
• Use a detergent which protects utensils.
  ● Take glass and cutlery out of the dishwasher as soon as possible after the programme ends.

Loading the dishwasher

1 Remove large food remnants. It is not necessary to prerinse utensils under running water.

2 Place the utensils so that

• they are secure and cannot tip over.
• all utensils with their openings face down.
• parts with curves or indentations are at an angle, thereby allowing water to drain.
• does not obstruct rotation of the two spray arms 23 and 27.

Very small utensils should not be washed in the machine, as they may fall out of the baskets.

Unloading the dishwasher

To prevent water from dripping off the upper basket onto the utensils in the lower basket, it is recommended to empty the appliance from the bottom up.

Hot utensils are sensitive to shock! Therefore, when the programme ends, leave the utensils to cool down in the dishwasher until they can be handled.

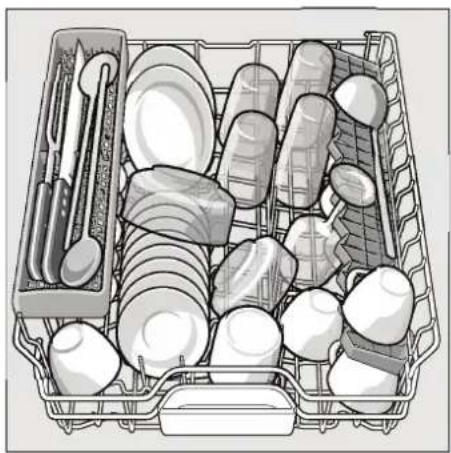

Cups and glasses

Top basket 21

Illustration of a multi-box grocery drawer containing various kitchen utensils and containers (no text or labels visible)

Pans

Bottom basket 31

Line drawing of a basket containing various food items including eggs, sausages, and utensils (no text or symbols)

Tip

Heavily soiled utensils (pans) should be placed in the bottom basket. The more powerful spray jet provides a better dishwashing result.

Tip

Other examples, such as the best way of loading your dishwasher, can be found on our homepage as a free download. The corresponding Internet address can be found on the back page of these instructions for use.

Gastronorm insert \*

* depending on model

Helps you stack several Gastronorm drawers, trays or similar large flat utensils at an angle in the bottom basket.

You can remove the insert if required.

3D wireframe model of a multi-compartment appliance or storage unit with wheels and internal components (no text or symbols visible)

Cutlery basket

You should always place cutlery unsorted with the points downwards.

To prevent injuries, place long, pointed implements and knives on the knife shelf.

Illustration of a plastic crate filled with cutlery and spoons (no text or symbols)

Etagere \*

The etagere and the space underneath can be used for small cups and glasses or for larger items of cutlery, such as wooden spoons or serving cutlery. The etagere can be folded up if not required.

* Depending on the model, a 3-fold height adjustment is possible. To do this, first place the etagere vertically and pull up, then place at a slight angle, push down to the required height (1, 2, or 3) and snap into place.

Folding spikes \*

* depending on model

The spikes can be folded down to improve arrangement of pans, bowls and glasses.

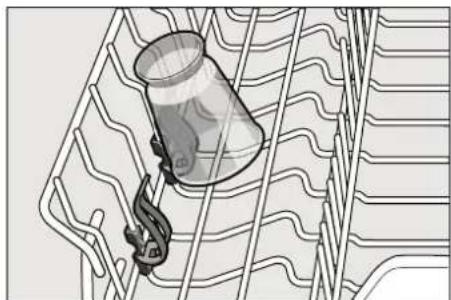

Small accessories holder \*

* depending on model

Light-weight plastic accessories, e.g. cups, lids, etc. can be held securely in the small accessories holder.

Diagram of a container with a handle inserted into a wavy surface, no text or symbols present

Knife shelf \*

* depending on model

Long knives and other utensils can be arranged horizontally.

You can remove the knife shelf to wash taller utensils. Re-insert the knife shelf in the correct position.

Adjusting the height of the basket

The height of the upper utensils basket 21 can be adjusted in 3 stages to create more space either in the upper or lower basket.

Appliance height 81.5 cm

	Top basket Bottom basket
Setting 1 max. ø 22	cm 30 cm
Setting 2 max. ø 24.5	cm 27.5 cm
Setting 3 max. ø 27	cm 25 cm

Appliance height 86.5 cm

	Top basket Bottom basket
Setting 1 max. ø 24	cm 33 cm
Setting 2 max. ø 26.	5 cm 30.5 cm
Setting 3 max. ø 29	cm 28 cm

1 Pull out the top basket 21 out.

2 To lower the basket, press in the left and then the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevent it from suddenly dropping.

3 To raise the basket, hold the basket on the sides of the upper edge and lift it up.

4 Before re-inserting the basket again, ensure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.

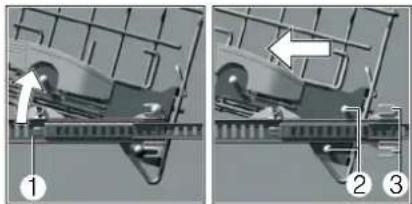

Removing the upper basket

1 Pull out the top basket 21 all the way.

2 Lift the basket at the front and pull it over the front catch (1) on the rails.

3 Lower the basket again and pull it out forwards.

Mechanical assembly diagram showing three stages of a vehicle or conveyor system with no visible text or symbols

Installing the upper basket

1 Pull the rails all the way out.

2 Install the basket by inserting the rails between the two metal nubs (2) situated opposite each other on the left and right sides of the basket.

3 Lift the basket over the front catch (1) on the rails.

4 Then lower the basket and push it into the rear catch (3) on the rails.

5 Snap the basket into the front catch (1) and push in the basket all the way.

Detergent

You can use tablets as well as powder or liquid detergents for dishwashers, but never use washing up liquid. The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling. Tablets contain an adequately large amount of active ingredients for all cleaning tasks. Modern, powerful detergents predominantly use a low-alkaline formulation with phosphate and enzymes. Phosphates bond the lime in the water. Enzymes break down starch and remove protein. Phosphate-free detergents are less frequent. These have a slightly weaker lime bonding capacity and require a higher dosage. To remove coloured stains (e.g. tea, tomato sauce), oxygen-based bleaching agents are usually used.

Note

To ensure a good washing result, always follow the instructions on the detergent packaging!

If you have further questions, we recommend that you contact the detergent manufacturers' helpline.

Warning

Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents.

Adding detergent

1 If the detergent dispenser 33 is still closed, press the lock 34 to open the detergent dispenser.

Pour detergent into the dry detergent dispenser 33 only (insert tablet flat, not on its edge). Dosage: see manufacturer's instructions on the packaging.

The graduated detergent dispenser 33 helps you add the correct amount of powder or liquid detergent.

Usually 20 ml-25 ml are adequate for normal soiling. If using tablets, one tablet is adequate.

2 Close the cover on the detergent dispenser by sliding it up until the lock engages without difficulty.

The detergent dispenser opens automatically at the optimum time depending on the programme. The powder or liquid detergent is distributed in the appliance and is dissolved, the tablet falls into the tablet collecting tray where it dissolves in doses.

Tip

If the utensils are only lightly soiled, slightly less than the indicated amount of detergent is usually adequate.

Suitable detergents and care products can be purchased online via our website or via customer service (see back page).

Combination detergent

Apart from conventional detergents (Solo), a number of products are offered with additional functions. These products contain not only the detergent but also rinse-aid and salt replacement substances (3in1) and, depending on the combination (4in1, 5in1, etc.), additional components such as glass protection or stainless steel cleaner. Combination detergents function only up to a specific degree of hardness (usually 26° Clarke). Over this limit salt and rinse-aid must be added.

As soon as combined detergents are used, the rinse programme is adjusted automatically to ensure the best possible rinsing and drying result.

⚠️Warnings

- Do not place small parts for washing in the tablet collecting tray 24; this prevents the tablet from dissolving evenly.

- If you want to add more utensils after the programme has started, do not use the tablet collecting tray 24 as a handle for the upper basket. The tablet could already be there and you will touch the partially dissolved tablet.

Notes

- You will obtain optimum rinsing and drying results by using solo detergents and applying salt and rinse aid separately.

- If programmes are short, tablets may not have full cleaning effect due to different dissolving properties and there may even be undissolved detergent residue. It is recommended to use washing powder for these programmes.

- The Intensive programme (on some models) requires one tab only. When using washing powder, you can apply some of this cleaning agent to the inside of the appliance's door.

- Even if the rinse-aid and/or salt refill indicator is lit, the rinse programme will run correctly with combined detergents.

- If using detergents in a water-soluble protective cover: Take hold of the cover with dry hands only and put the detergent into an absolutely dry detergent dispenser only, otherwise the detergent may stick.

- If you switch from combined detergents to solo detergents, ensure that the water softening system and amount of rinse aid have been set to the correct value.

The max. possible number of programmes is illustrated in this overview. The corresponding programmes for your appliance can be found on the fascia.

Type of utensils Type of soiling Programme Possible additional options				Programme sequence
pots and pans, non-sensitive utensils and cutlery	very adhesive burned-in or dried-on food remnants containing starch or protein	autoAuto 65° - 75°	all Is optimised according to the soiling with the aid of sensors.
		autoAuto 45° - 65°
mixed utensils and cutlery part	dried, common household food remnants
		/ecoEco 50°
sensitive utensils, cutlery, temperature-sensitive plastic and glasses	slightly adhesive, fresh food remnants	autoAuto 35° - 45°	Intensive zoneTurboEnergy SaveHalf loadExtra drying	Is optimised according to the soiling with the aid of sensors.
		/Quick 45°		Intermediate rinseFinal rinse 55°
all cold rinsing, inter-	mediate cleaning	/Prerinse	none Prerinse

Programme selection

You can select a suitable programme according to the type of utensils and degree of soiling.

Information for test institutes

Test institutes can request the conditions for running comparison tests by sending an e-mail to

[e-mail].

Quote the appliance number (E-Nr.) and the production date (FD) which you can find on the rating plate 35 on the appliance door.

* depending on model

Additional options can be set with the buttons 9.

>> Turbo \*

The Turbo programme significantly reduces the programme running time. The energy consumption is increased by up to 30% due to more intensive heating. The time reduction affects the following programmes:

Auto: Time reduction up to 25%

Eco: Time reduction up to 58%

12 Half load \*

If you have only a few items to wash (e.g. glasses, cups, plates), you can switch to "half load". This will save water, energy and time. It is recommended to put a little less detergent in the detergent dispenser than for a full load.

Hygiene \*

The temperature is increased during the cleaning process. This increases the hygiene status. This additional option is ideal for cleaning e.g. chopping boards and baby bottles.

Intensive zone \*

Perfect for a mixed load. You can wash very soiled pots and pans in the lower basket together with normally soiled utensils in the upper basket. The spray pressure in the lower basket is intensified, the rinsing temperature is increased slightly.

Extra drying \*

An increased temperature during the final rinse and an extended drying phase ensure that even plastic parts dry better. There is a slight increase in the energy consumption.

e save Energy Save \*

Water and energy consumption can be reduced with the "Energy Save" function. The running time is extended for optimum cleaning and drying results.

Programme data

The programme data (consumption values) can be found in the summary of instructions. They refer to normal conditions and the water hardness set value H:04. Different influencing factors such as e.g. water temperature or line pressure may result in deviations.

Aqua sensor \*

* depending on model

The Aqua sensor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water.

The Aqua sensor is used according to the programme. If the Aqua sensor is active, "clean" rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 3–6 litres. If the turbidity is greater, the water is drained and is replaced with fresh water. In the automatic programmes the temperature and running time can also be adjusted to the degree of soiling.

Zeolith drying

The appliance features a Zeolith container Zeolith is a mineral which can store moisture and heat energy and release them again.

During the washing step this heat energy is used to dry the mineral and heat up the rinsing water.

During the drying phase moisture from the washing compartment is stored in the mineral and heat energy is released. This released heat energy is blown into the washing compartment with dry air. This accelerates and improves drying.

These processes therefore save a great deal of energy.

⚠️ Warnings

- Please ensure that the intake opening 25 is not obstructed and do not place any temperature-sensitive utensils in the lower basket at the rear right side above the blow opening 26.

- Do not touch the blow opening 26. The blow opening becomes hot and, furthermore, any damage will result in a chargeable callout by customer service.

Switching on the appliance

1 Turn on the tap fully.
2 Open the door.
3 Switch on ON/OFF switch 1.

The display of the last selected programme flashes. This programme remains selected if no other programme button 2 is pressed. The expected programme duration flashes on the digital display 3.

4 Press the START button 10.
5 Close the door.

The programme starts running.

Optical display while the programme is running \*

* depending on model

While the programme is running, a light spot shines on the floor under the appliance door. Do not open the dishwasher door until the light point is no longer visible on the floor.

If the appliance is installed at eye-level, with flush furniture front, the light point is not visible.

This function can be changed as follows:

1 Open the door.
2 Switch on ON/OFF switch 1.
3 Hold down programme button A and press START button 10 until H:Q.... is indicated on the digital display.
4 Release both buttons.

The LED for button A flashes and the digital display 3 displays the factory setting H:04.

5 Press programme button A until the factory set value 1:0 is indicated on the digital display 3.

To change the setting:

1 By pressing the button C, you can switch the function off 1:00 or on 1:01.
2 Press START button 10.

The set value is saved.

3 Close the door.

Remaining running time display

When the programme is selected, the remaining running time of the programme is indicated on the digital display 3.

The running time is determined during the programme by the water temperature, the number of utensils as well as the degree of soiling and may vary (depending on the selected programme).

Timer programming

You can delay the start of the programme in 1 hour steps up to 24 hours.

1 Open the door.

2 Switch on ON/OFF switch 1.
3 Press the button 8 + until 01 is flaching in the timer programming display 7.
4 Press + or - button until the 8 displayed time corresponds with your requirements.
5 Press START button 10, timer programming is activated.
6 To delete timer programming 8, press the + or - button until 00 is indicated on the digital display 7.

You can change your programme selection at any time until the programme starts.

7 Close the door.

End of programme

The programme has ended when the value 0:00 is indicated on the numerical display 3.

The end of the programme is also indicated by an acoustic signal. This function can be changed as follows:

1 Open the door.

2 Switch on ON/OFF switch 1.

3 Hold down programme button A and press START button 10 until H:O.... is indicated on the digital display.

4 Release both buttons.

The LED for button A flashes and the digital display 3 displays the factory setting H:04.

5 Press programme button A until the factory set value 6:02 is indicated on the digital display 3.

To change the setting,

1 Press programme button C. Each time the button is pressed, the set value increases by one level; when the value of b:03 has been reached, the display jumps back to b:00 (off).

2 Press START button 10, the set value is saved.

3 Close the door.

Automatic switch off after end of programme or interior light\*

* depending on model

To save energy, the dishwasher can be automatically switched off 1 min or 120 min after the programme ends.

The setting can be selected from P:00 to P:02.

P:00 Appliance does not switch off automatically.

The interior light 20 comes on when the door is opened irrespective of whether the ON/OFF switch 1 is switched on or off. When the door is closed the light is off. If the door is open for longer than 60 min., the light switches off automatically. The interior light 20 is lit only when the set value P:00 is selected.

P:01 Appliance switches off after 1 min.

P:02 Appliance switches off after 120 min.

1 Open the door.

2 Switch on ON/OFF switch 1.

3 Hold down programme button A and press START button 10 until H:0... is indicated on the digital display.

4 Release both buttons.

The LED for button A flashes and the digital display 3 displays the factory setting H:04.

5 Keep pressing programme button A until the value P:0... is indicated on the numerical display 3.

To change the setting:

1 Press programme button C.

Each time the button is pressed, the set value increases by one level; when the value of P:02 has been reached, the display jumps back to P:00.

2 Press START button 10.

The set value is saved.

3 Close the door.

Switching off the appliance

Short time after the end of the programme:

1 Open the door.
2 Switch off ON/OFF switch 1.
3 Turn off the tap (not applicable if Aqua-Stop fitted).
4 Remove the utensils when they have cooled down.

Warning

At the end of the programme please open the door fully and not partially when emptying the dishwasher. Any escaping water vapour could damage sensitive worktops.

Interrupting the programme

1 Open the door.
2 Switch off ON/OFF switch 1.

The LEDs go out. The programme is saved.

If the door was opened on an appliance which has a warm water connection or is heated, first leave the door ajar for several minutes and then close. Otherwise, expansion (pressure) may cause the appliance door to spring open or water to run out of the appliance.

3 To continue the programme, switch on the ON/OFF switch 1 again.
4 Close the door.

Terminating the programme (Reset)

1 Open the door.
2 Press START button 10 for approx. 3 sec. The numerical display 3 indicates 0:0 1.
3 Close the door. The programme sequence lasts approx. 1 min. On the digital display 3 is indicated 0:00.
4 Open the door.
5 Switch off ON/OFF switch 1.
6 Close the door.

Changing the programme

When the START button 10 has been pressed, the programme cannot be changed.

The only way a programme can be changed is by Cancel programme (Reset).

Intensive drying

The final rinse uses a higher temperature which improves the drying result. The running time may increase slightly. (Caution if utensils are delicate!)

1 Open the door.
2 Switch on ON/OFF switch 1.
3 Hold down programme button A and press START button 10 until H:Q.... is indicated on the digital display.
4 Release both buttons.

The LED for button A flashes and the digital display 3 displays the factory setting H:04.

5 Press programme button A until the factory set value d:00 is indicated on the digital display 3.

To change the setting,

1 Press the button C to switch the Intensive drying on d:0 for off d:00.
2 Press START button 10.

The set value is saved.

3 Close the door.

Maintenance and care

A regular inspection and maintenance of your machine will help to prevent faults. This saves time and prevents problems.

Overall condition of the machine

- Check spray arm for grease and limescale deposits.

If you find such deposits:

- Fill detergent dispenser with detergent. Start the appliance without utensils in the programme with the highest rinsing temperature.

Clean the appliance with detergents/appliance cleaners which are particularly suitable for use with dishwashers.

● Regularly clean door seal with a damp cloth.

Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any consequential damage.

Regularly wipe the front of the appliance and fascia with a damp cloth; water and a little washing up liquid are adequate. Do not use sponges with a rough surface or abrasive detergents, as these could scratch the surfaces.

Stainless steel appliances: To prevent corrosion, avoid using sponge cloths or wash them out thoroughly several times before using for the first time.

Warning

Never use other chlorinated household detergents! Health hazard!

Special salt and rinse aid

- Check the refill indicators 5 and 6. If required, refill salt and/or rinse aid.

Filters

The filters 29 keep large foreign objects in the rinsing water away from the pump. These foreign objects may occasionally block the filters.

The filter system consists of a coarse filter, a flat fine filter and a microfilter.

1 After each washing cycle check the filters for residue.
2 Unscrew filter cylinder as illustrated and take out filter system.

Mechanical component diagram showing a rotating knob with directional arrow (no text or symbols)

Mechanical assembly diagram showing a bolted joint with a downward arrow indicating force or motion (no text or symbols present)

3 Remove any residue and clean filters under running water.

4 Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.

Spray arms

Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms 23 and 27.

1 Check outlet nozzles on the spray arms for blockages.

2 Unscrew the upper spray arm 23.

3 Remove the lower spray arm 27 upwards.

4 Clean spray arms under running water.

5 Re-engage or screw on spray arms.

Troubleshooting

The majority of faults which could occur in daily operation can be rectified by the user. This ensures that the appliance is quickly available for use again. The following overview will help you locating the causes and gives helpful advise to eliminate them.

Note

If the appliance stops during dishwashing or does not start for no obvious reason, first run the Abort programme function (Reset).

(See chapter entitled "Dishwashing")

Warning

If on the digital display 3 an error code (E:01 to E:30), always disconnect the appliance from the power supply and then turn off the tap.

You can rectify certain faults yourself (see following fault description), for all other faults please contact customer service and state the indicated fault E:XX.

Warning

Don't forget: Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used. Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.

Waste water pump

Large food remnants or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.

In this case:

1 First always disconnect the appliance from the power supply.

2 Take out top basket 21 and bottom basket 31.

3 Remove the filters 29.

4 Scoop out water, use a sponge if required.

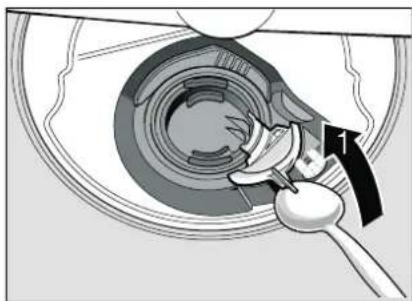

5 Prise out the white pump cover (as illustrated) using a spoon. Grip the cover on the crosspiece and lift diagonally inwards. Remove cover completely.

Mechanical assembly diagram showing a gear or cam mechanism with a tool interacting with a component (no text or symbols visible)

6 Check impeller wheel and remove any foreign objects.

7 Place cover in the original position and press down until it engages (click).

8 Install filters.

9 Re-insert baskets.

... when the appliance is switched on

The appliance does not start.

● The mains fuse has tripped.
● The appliance plug has not been inserted.
● The appliance door has not been shut properly.

... changing settings

A setting cannot be changed, a programme starts.

- Wrong programme button pressed. Terminate the programme (see chapter entitled "Terminating the programme (Reset)") and start all over again.

- You did not wait until programme ended.

... on the appliance

Lower spray arm rotates sluggishly.

- Spray arm blocked.

The door is difficult to open. *

- Child-proof lock is activated. The deactivation instructions are at the back in the envelope. * depending on model

Door cannot be closed.

- Door lock has been activated. To reset, close the door with greater force.

Cover on the detergent dispenser cannot be closed.

- Detergent dispenser overfilled or mechanism blocked by sticky detergent residue.

Detergent residue in the detergent dispenser.

- Dispenser was damp when filled.

"Check water supply" display 4 lights up.

- Tap turned off.

● Water supply interrupted.

• Supply hose kinked.

- Filter in the water supply blocked.

1 Switch off the appliance and pull out the mains plug.
2 Turn off the tap.
3 Clean filter in the supply hose.

Two mechanical components with upward arrows indicating assembly or installation (no text or symbols)

4 Reconnect power supply.
5 Turn on the tap.
6 Switch on the appliance.

- Water is left in the appliance at the end of the programme.

- (E:24) Waste water hose

is blocked or kinked.

Filters blocked.

- (E:25) Waste water pump blocked, cover on the waste water pump is not locked in position

(see Waste water pump).

• Filters blocked.
• The programme has not yet ended. Wait until programme ends (digital display indicates 0:00) or implement the "Reset" function.

Error code E:22

- Filters 29 are soiled or blocked.

Refill indicator for salt 5 and/or rinse-aid 6 is not lit.

• Refill indicator/s switched off.
• Adequate salt/rinse-aid available.

Refill indicator for special salt 5 is lit.

- No salt.

Refill with special salt.

- Sensor does not detect salt tablets.

Use different special salt.

... during the wash cycle

Unusual foam formation.

- Handwash liquid in the rinse aid dispenser. Spilled rinse aid causes excessive frothing, therefore please remove with a cloth.

Appliance stops during the wash cycle.

● Power supply interrupted.
● Water supply interrupted.

Filling valves making striking noises

- Caused by the installation of the water line and has no effect on the function of the machine. Remedial action is not possible.

Knocking/rattling noise during rinsing

• Spray arm is striking utensils.
• Utensils not arranged correctly.

... on the utensils

Food residue on the utensils.

• Utensils placed too closely together, utensils basket overfilled.
• Too little detergent.
• Rinse programme too weak.
• Spray arm rotation obstructed.
• Spray arm nozzles blocked.
• Filters blocked.
• Filters incorrectly inserted.
• Waste water pump blocked.
• Top basket on right and left not set to same height.

Tea or lipstick residue is not completely removed.

● The detergent has an inadequate bleaching effect.
● Too low rinsing temperature.
● Too little/unsuitable detergent.

White stains on the utensils/glasses remain milky.

If phosphate-free detergents are used with hard tap water, white deposits may be deposited more easily on utensils and the container walls.

• Too little/unsuitable detergent.
• Too weak programme selected.
• No/too little rinse aid.
• No/too little special salt.
  ● Water softening system set to the wrong value.
• Salt dispenser lock not fastened.

Contact the detergent manufacturer, in particular if:

• the utensils are very wet at the end of the programme.
• limescale forms.

Dull, discoloured glasses, film cannot be washed off.

● Unsuitable detergent.
● Glasses not dishwasher-proof.

Streaks on glasses and cutlery, glasses have metallic appearance.

- Too much rinse aid.

Plastic parts discoloured.

• Too little/unsuitable detergent.
• Too weak programme selected.

Rust spots on the cutlery.

● Cutlery not rust-resistant.
- Salt content in the rinsing water too high, as salt dispenser lock not fastened firmly or salt was spilled while being refilled.

Utensils not dry.

● Appliance door opened too early and utensils taken out too early.
- Programme selected without drying.
● Too little/unsuitable rinse aid.
● Activate intensive drying.
- The combined detergent used has a poor drying performance. Use rinse aid (see Rinse aid chapter for setting).

Customer service

If the advice given does not resolve your problem, please contact your customer service. Contact details can be found on the back cover of this instruction manual or in the enclosed customer service list. When calling, please quote the appliance number (1) and the production date (FD = 2) which can be found on the rating plate 35 on the appliance door.

Rely on the expertise of the manufacturer. Call us to ensure that the repair will be carried out by fully-trained service engineers, who are equipped with original spare parts for your appliance.

Installation

The dishwasher must be connected correctly, otherwise it will not function properly. The specifications for the inlet and outlet as well as the electrical connected loads must correspond with the required criteria as specified in the following paragraphs or in the installation instructions.

Install the appliance in the correct sequence:

1 Checking appliance on delivery
2 Installing the appliance
3 Waste water connection
4 Fresh water connection
5 Electrical connection

Safety instructions

• Install and connect the appliance according to the installation and assembly instructions.
• Prior to installation, disconnect the dishwasher from the power supply.
• Ensure that the protective conductor system of the domestic supply has been correctly installed.
• The electrical connection conditions must correspond with the specifications on the dishwasher rating plate 35.
• If the power cord of this appliance is damaged, it must be replaced with a particular power cord. To prevent injury, the power cord may be replaced by customer service only.
• If the dishwasher is installed in a high-sided unit, the unit must be secured properly.
• Install built-under or integratable appliances only under continuous worktops which have been screwed to adjacent cupboards to ensure stability.

• Do not install the appliance near heat sources (radiators, heat storage tanks, cookers or other appliances which generate heat) and do not install under a hob.

• After installing the appliance, ensure that the plug is easily accessible.

• Some models:

The plastic housing on the water connection contains an electric valve, the connecting cables are in the supply hose. Do not cut through this hose, do not immerse the plastic housing in water.

Warning

If the appliance is not in a cavity and a side panel is accessible, the door hinge area must be covered at the side for reasons of safety (risk of injury). The covers are available as optional accessories from customer service or specialist outlets.

Delivery

Your dishwasher has been checked thoroughly in the factory to ensure that it is in working order. This may cause small water stains. These will disappear after the first wash cycle.

Technical specifications

Weight:

max. 60 kg

Voltage:

220-240 V, 50 Hz or 60 Hz

Connected load:

2.0-2.4 kW

Fuse:

10/16 A

Water pressure:

at least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.

Inlet rate:

minimum 10 litres/minute

Water temperature:

cold water; hot water max. temperature 60 °C.

Installation

The required installation dimensions can be found in the installation instructions. Level the appliance with the aid of the height-adjustable feet. Ensure that the appliance is situated securely on the floor.

• A built-under or integrated appliance which is installed subsequently as a free-standing appliance must be secured to prevent it from overturning, e.g. by screwing it to the wall or by installing it under a continuous worktop which is screwed to adjacent cupboards.
• The appliance can easily be installed in a fitted kitchen between wooden and plastic walls. If the plug is not freely accessible, an allpole disconnector with a contact opening of at least 3 mm must be fitted on the installation side to satisfy the relevant safety instructions.

Waste-water connection

1 The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
2 Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts. Ensure that the drainage hose is not kinked, crushed or twisted and that there is no cover plate in the drainage to prevent the waste water from flowing out!

Fresh water connection

1 Connect the fresh-water connection to the tap according to the installation instructions with the enclosed parts.

Ensure that the fresh-water connection is not kinked, crushed or twisted.

2 When replacing the appliance, always use a new water supply hose.

Water pressure:

at least 0.05 MPa (0.5 bar), maximum 1 MPa (10 bar).

At a higher water pressure: connect pressure-

reducing valve ahead.

Inlet rate:

minimum 10 litres/minute

Water temperature:

cold water preferred; hot water max. temperature 60^irc C.

Warm water connection \*

* depending on model

The dishwasher can be connected to cold or hot water up to max. 60 °C.

Connection to hot water is recommended if the hot water can be supplied by energetically favourable means and from a suitable installation, e.g. solar heating system with circulation line.

This will save energy and time.

The hot water setting R:01 allows you to adjust your appliance optimally to operation with hot water.

It is recommended to have a water temperature (temperature of the incoming water) of at least 40\ °C and no more than 60\ °C .

It is not recommended to connect the appliance to hot water if the water is supplied from an electric boiler.

Setting hot water:

1 Open the door.

2 Switch on ON/OFF switch 1.

3 Hold down programme button A and press START button 10 until H:0... is indicated on the digital display.
4 Release both buttons.

The LED for button A flashes and the digital display 3 displays the factory setting H:04.

5 Press programme button A until the factory set value R:00 is indicated on the digital display 3.

To change the setting:

1 By pressing the C button, you can switch the hot water setting off R:00 or on R:01.
2 Press START button 10.

The set value is saved.

3 Close the door.

Electrical connection

• Connect the appliance to an alternating current only, ranging from 220 V to 240 V and 50 Hz or 60 Hz via a correctly installed socket with protective earth conductor. See rating plate for required fusing [35].
• The socket must be near the appliance and freely accessible following installation.
• The connection may be modified by technicians only.
• A power cord extension may be purchased from customer service only.
• Use only a residual current operated circuit-breaker which features the symbol 📄. Only this extension guarantees compliance with the currently valid regulations.
• The appliance features a water damage protection system. Please note the system will not function unless the power supply is connected.

Removing the appliance

Also observe the sequence of worksteps here.

1 Disconnect the appliance from the power supply.
2 Turn off the water supply.
3 Disconnect the waste water and fresh water connections.
4 Loosen the fastening screws under the worktop.
5 If fitted, remove the base panel.
6 Pull out the appliance, carefully pulling the hose behind.

Transportation

Empty the dishwasher and secure loose parts.

Drain the appliance according to the following steps:

1 Turn on the tap.

2 Open the door.

3 Switch on ON/OFF switch 1. The displays of the last selected programme light up.

4 Select programme with the highest temperature. The expected programme duration is indicated on the numerical display 3.

5 Press START button 10.

6 Close the door. Programme sequence starts.

7 Open door after approx. 4 minutes.

8 Press START button 10 until 0:01 is indicated on the digital display.

9 Close the door.

10 Open door after approx. 1 minute. The numerical display indicates 0:00.

11 Switch the appliance off 1 and turn the tap off. Transport appliance upright only.

(This prevents residual water from running into the machine control and damaging the programme sequence.)

Protection against frost

If the appliance is in a room where there is a risk of frost (e.g. holiday home), empty the appliance completely (see Transportation).

- Turn off the tap, disconnect supply hose and drain water.

Waste disposal

Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials.

Please dispose of the individual parts separated according to type.

Please ask your dealer or inquire at your local authority about current means of disposal.

Packaging

All plastic parts of the appliance are identified with internationally standardised abbreviations (e.g. >PS< polystyrene). Therefore, plastic waste can be sorted out when the appliance is being disposed of.

Please follow the safety instructions under "Delivery".

Old appliances

Please follow the safety instructions under "Disposal of your appliance".

This appliance is identified according to the European guideline 2002/96/EC on waste electrical and electronic equipment - WEEE. The guideline specifies the framework for an EU-wide valid return and re-use of old appliances.

Subject to changes.

Childproof lock (door lock) \*

40

41

42

40 Activate the childproof lock.
41 Open the door with activated childproof lock.
42 Deactivate childproof lock.

Always close the appliance door completely when you leave the appliance.

This is the only way you can protect your children from potential dangers.

Baking sheet spray head \*

Interior view of a kitchen appliance with open drawer and metal rack (no text or symbols visible)

Large sheets or grilles and plates which have a diameter greater than 30 cm (gourmet plates, pasta plates, dinner plates) can be cleaned with the aid of the spray head. To do this, remove the top basket and insert the spray head as illustrated in the diagram.

To ensure that the spray jet can reach all parts, arrange the baking sheets as illustrated (max. 4 baking sheets and 2 grilles).

Never operate the dishwasher without the top basket or baking sheet spray head!

AQUA-STOP guarantee

en

(does not apply to appliances without Aqua-Stop)

In addition to warranty claims against the seller based on the purchase contract

and in addition to our appliance warranty we will pay damages under the following conditions:

1. If our Aqua-Stop system is defective and causes water damage, we will make good the damage for private users.
   To ensure water damage protection, the appliance must be connected to the power supply.
2. This liability guarantee is valid for the service life of the appliance.
3. A prerequisite for the warranty claim is that the appliance has been correctly installed and connected with Aqua-Stop according to our instructions. This also includes the correct installation of the Aqua-Stop extension (original accessory).
   Our warranty does not extend to defective feed lines or fittings up to the Aqua-Stop connection on the tap.
4. If your appliance is fitted with Aqua-Stop, you can leave your appliance unattended during operation and leave the tap turned on afterwards. The tap should only be turned off if you are absent from home for a prolonged period, e.g. several weeks holiday.

To book an engineer visit and product advice

GB 0844 / 892 8988

Calls from a BT landline will be charged at up to 3 pence per minute.

A call set-up free of up to 6 pence may apply.

IE 01450 2655

Please find the contact data of all countries in the enclosed customer service list.

Internet: www.gaggenau.com
