| Product Type | Car Stereo / Multimedia Receiver |
| Chassis Size | 2-DIN (approx. 178 x 100 x 160 mm) |
| Weight | Approx. 1.2 kg |
| Power Supply | 12V DC, negative ground |
| Max Power Output | 4 x 50 Watts |
| RMS Power Output | 4 x 20 Watts |
| Display | 7-inch TFT LCD touchscreen |
| Bluetooth | Yes, for hands-free calling and audio streaming |
| USB Port | Front USB for media playback (up to 32GB) |
| SD Card Slot | Yes, for media playback |
| Radio Tuner | AM/FM with RDS |
| Audio Outputs | 4-channel preamp (front, rear, subwoofer) |
| Video Input | Backup camera input (RCA) |
| Steering Wheel Control | Compatible (requires external adapter) |
| Supported Media | MP3, WMA, WAV, FLAC, JPEG, MP4 |
| Cleaning | Use a soft dry cloth; avoid solvents |
| Safety | Use appropriate fuses; professional installation recommended |
| Spare Parts Availability | Contact Xomax support for replacement parts |
| General Information | Brand: Xomax, Model: XM-VRSU713BT |
Frequently Asked Questions - XM-VRSU713BT Xomax
User questions about XM-VRSU713BT Xomax
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Car radio in PDF format for free! Find your manual XM-VRSU713BT - Xomax and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. XM-VRSU713BT by Xomax.
USER MANUAL XM-VRSU713BT Xomax
and to comply with laws,
drivers should not watch video or
operate the video device while driving.
THANK YOU FOR PURCHASING PALSVERNDSTORM MULTIMEDIA
Before operating the unit, read this manual thoroughly and keep it handy for future reference.
To avoid injury or accident, read the following precautions before installing and operating the unit.
ON INSTALLATION
- DO NOT install any receiver in locations where;
- it may obstruct the steering wheel and gearshift lever operations, as this may result in a traffic accident.
- it may obstruct the operation of safety devices such as air bags, as this may result in a fatal accident.
- it may obstruct visibility.
- DO NOT operate any receiver while manipulating the steering wheel, as this may result in a traffic accident.
- The driver must not watch the monitor while driving.
- IF THE DRIVER watches the monitor while driving, it may lead to carelessness and cause an accident.
- IF YOU NEED to operate the receive while driving, be sure to look ahead carefully or you may be involved in a traffic accident.
- IF THE PARKING BRAKE is not engaged. "ParkingBrake" flashes on the monitor, and no playback picture will be shown.
- This warning appears only when the parking brake wire is connected to the parking brake system built in the car ( refer to the electric connection)
ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL
Do not press on the LCD panel on the unit as doing so can distort the picture or cause a malfunction. The picture may become unclear, or the LCD panel may be damaged.
NOTES ON CLEANING
-Clean the LCD panel with a slightly damp soft cloth.
-Do not use solvents such as benzine, thinner, commercially available cleaners or antistatic spray.
- Do not use alcohol to clean the screen.
If your car was parked in a cold or hot place, the picture may not be clear. The monitor is not damaged. The picture will become clear the temperature in your car becomes normal.
NOTES:
Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.
Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
If installation angle exceeds 30 from horizontal, the unit might not give its optimum performance.
Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either from "Front"(conventional DIN Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.
Installation diagram

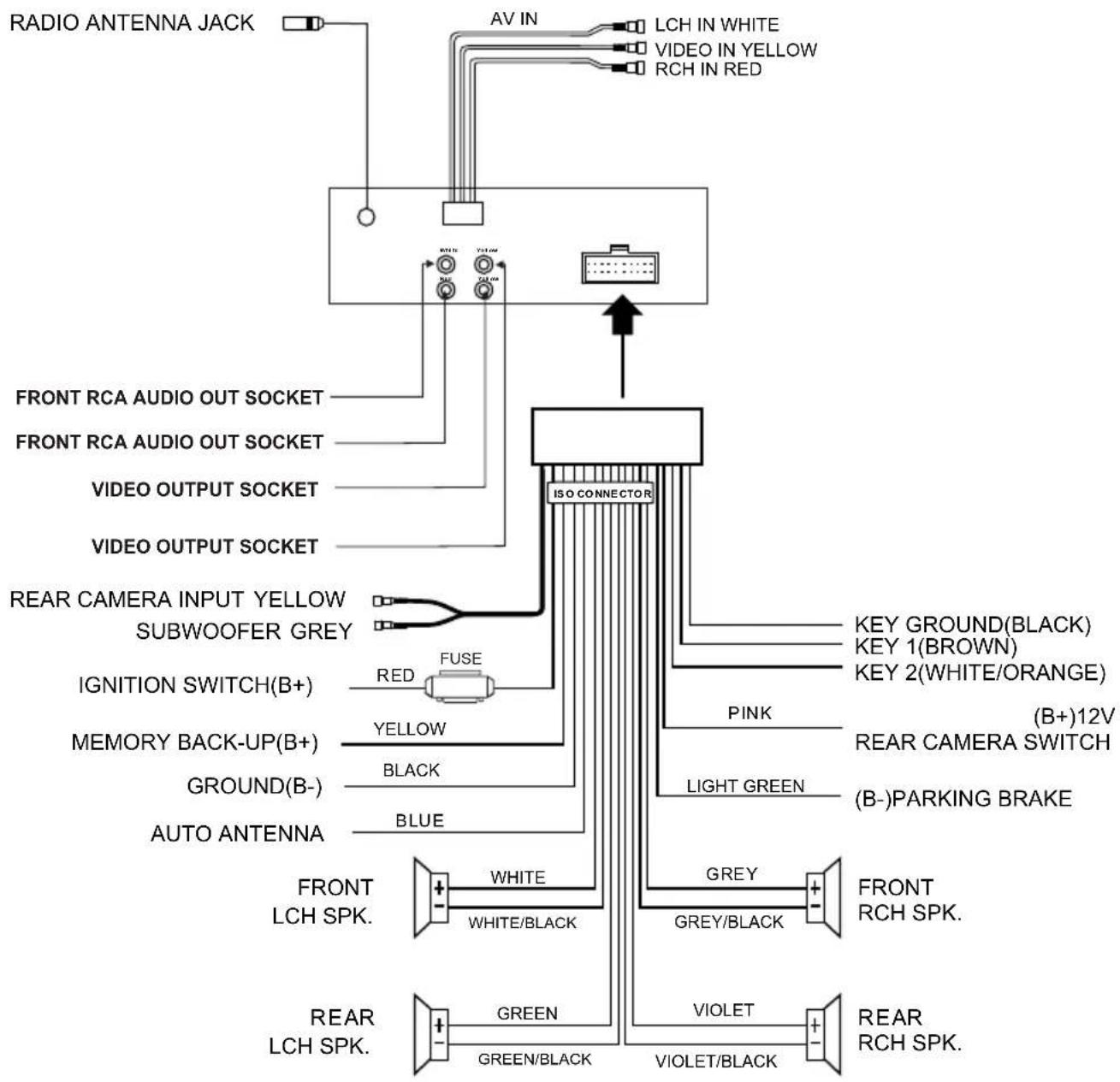

WIRING CONNECTION
Note:
the ground connection cable (parking brake B-) must be connected in order for pictures to be played back to the monitor. If the cable has not been correctly connected, the message "PARKING BRAKE" appears on the monitor.

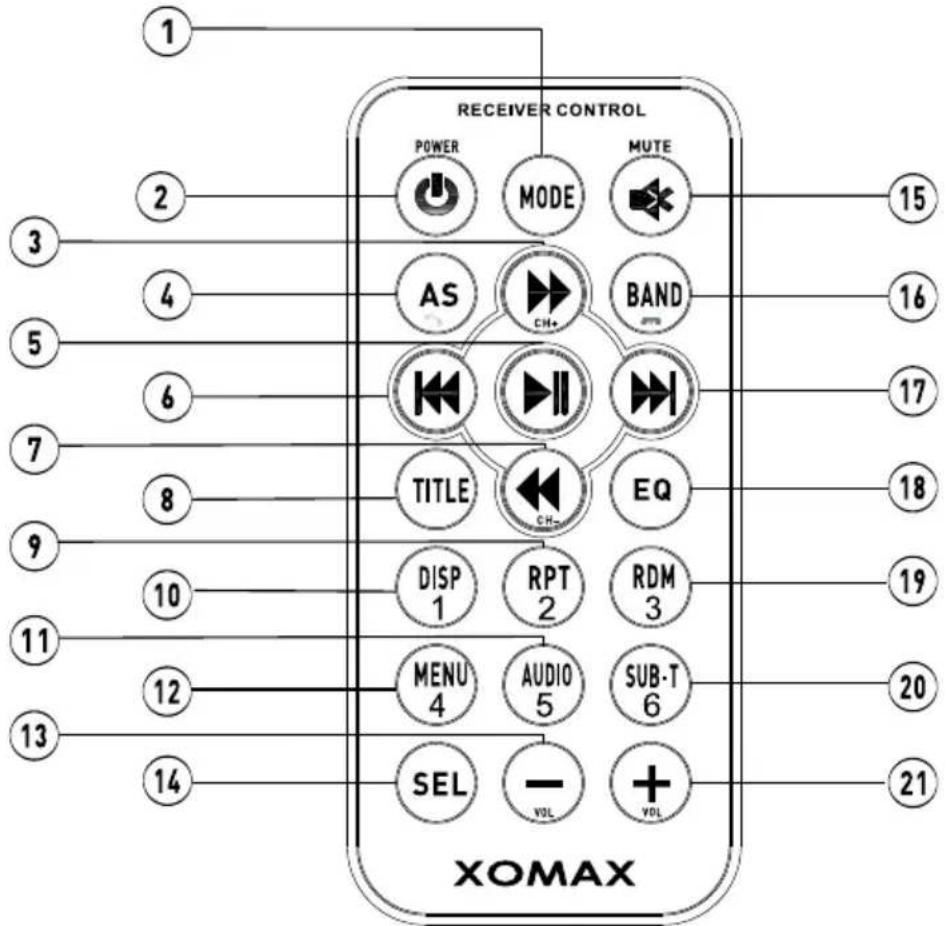

| Ref # | Button | Function |
| 1 | MODE | Press it briefly to select a desired work source. |
| 2 | /POW | Press this button to turn the unit ON, press and hold to turn the unit OFF. |
| 3&7 | / | In Disc Playback mode, press for fast forward or back forward playback.In Radio mode, press to scan step by step. |
| 4 | AS/ | AS function see as page radio Scan operation.In BT mode, press to receive a call. |
| 5 | PLAY/PAUSE | In Disc Playback mode, press to pause playback. Press again to start where playback stopped. |
| 6&17 | / | Press these buttons to skip ahead or back one track. |
| 8 | TITLE | When playing a Digital Video, pressing this button will open the TITLE menu which is recorded on the media. When playing a VCD disc, press this button to create a PBC (Playback Control) menu for the disc to assist in making playback selections. |
| 9 | RPT/2 | Repeat function for media playing;In radio mode, press to select the store station 2. |
| 10 | DISP/1 | In video playing mode, press to show OSD menu;In radio mode, press to select the store station 1. |
| 11 | AUDIO/5 | Same operation as audio in page 26.In radio mode, press to select the store station 5. |
| 12 | MENU/4 | Press this button briefly to display the root level directory of a digital video disc.In radio mode, press to select the store station 4. |
| 13&21 | VOL+/- | Use these controls to adjust the volume level. |
| 14 | SEL | Press the SEL(in radio mode, press and hold the SEL) to switch between BASS, TREBLE, BALANCE, SWF VOL, SWF FREQ.After switching on the desired mode above, rotate VOL knob to set it. |
| 15 | MUTE | Press this button to turn off the audio. Press again to restore the sound to its prior volume level. |
| 16 | BAND/¬ | In Radio mode, press this button repeatedly to switch between the five radio bands: FM1 > FM2 > FM3 > AM1(MW1) > AM2 (MW2). In BT mode, press to reject a call. |
| 18 | EQ | Press repeatedly to cycle through the different equalizer curve presets you may wish to use for enhanced listening. |
| 19 | RDM/3 | Random function for media playing;In radio mode, press to select the store station 3. |
| 20 | SUB-T/6 | In Digital Video Disc Playback mode, pressing this button will allow you to change the subtitle language on discs which have this as an option.In radio mode, press to select the store station 6. |
Preparing the Remote Control Inserting the Battery
-
First push to inside as the direction indicated by the arrow (See ①) And then Remove the battery holder as the direction indicated by the arrow (See ②).
-
Replace the battery Set a new battery property with (+)side up as illustrated (See ③).
-
Insert the battery holder. Push in the holder to the original position(See 4).
Using the Remote Control
Face the remote control towards the player front face IR mark (remote control signal receiver). Changing of the view angle on multi-angle Digital Video media. Operation angle: About 30 degree in each the direction of the front of the IR mark.
Note :
The lithium cell in the battery compartment of remote control has been secured for transport with a plastic initial use please remove this plastic so that the remote control is ready for operation.

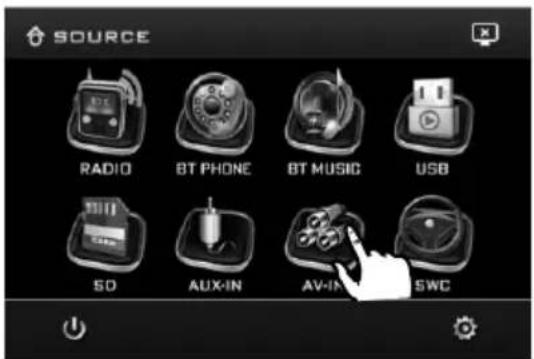

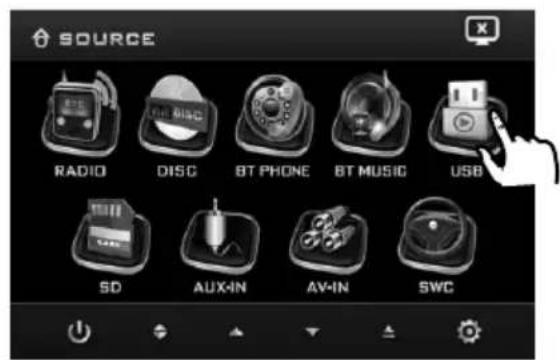

Main Menu Operation

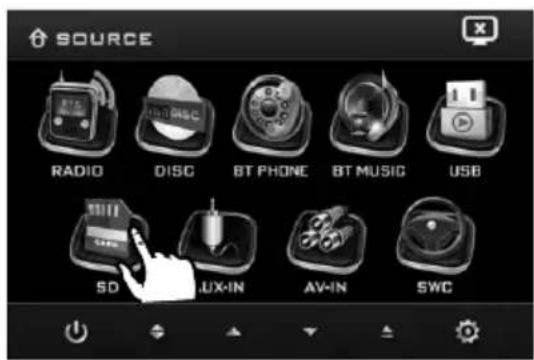

In many modes, touch the ↩ icon or touch the 🔒 range to enter the main menu, the message like following as below.
- POWER icon
In any modes, touch the POWER icon to switch the unit off. - When the unit is power on, tap to turn off the display and the unit still work, tap anywhere of the display to turn on the display again.
- SETUP icon
Touch to enter the SETTING mode, the message will display as follow :
Touch the “ 🔍 ” section on the setting menu, touch the “ ↗ ↗ ranges to select the adjustment item, Touch the “ ← ” icon to return to the previous playback.
Setup interface 1
Setup interface 2
ADJUSTABLE ITEMS:
General setup interface1
General setup interface2
ANIMATION
In RADIO mode, you can change the playing time of animation among of "OFF, 10S, 30S, 1M, 90S, 2M, 3M and 4M".
Note:
Please set the playing time of the animation to "10S" for the first, when you turn the unit on.
KEY BEEP : ON or OFF.
Disc setup as follow:
FORMAT
This player is capable of playing discs recorded in either PAL or NTSC formats. Make the selection based on whether you are connecting the unit to a PAL TV or an NTSC TV. You can also set the unit to AUTO (auto select). The disadvantage to auto select is that each time you turn the unit on it checks to see what kind of monitor is connected, which causes a
small delay and some flickering of the display image which you may find unpleasant.
TV TYPE
This is to select the appropriate TV aspect (4:3 or 16:9) according to the connected TV set.
Normal/PS (For 4:3 TV)
Played back in the PAN & SCAN style. (If connected to wide-screen TV, the left and right edges are cut off.)
Normal/LB (For 4:3 TV)
Played back in LETTER BOX style. (If connected to wide-screen TV, black bands appear at top and bottom of the screen.)
Wide (For 16:9 TV)
Select when a wide-screen TV set is connected
RATING
Select to turn Parental Control on or off. The factory default password is 1234. (The password must be used to make changes to the Parental Control menu below.)
Key in "1234" and then turn to rating then you can setting as follow:
KID SAFE → G → PG → PG - 13 - gt; PGR - gt; R - gt; NC-17 - gt; ADULT
RADIO
ST/MONO: touch to select stereo or mono.
LOCAL: touch to select local or distant.
REGION: touch to select radio frequency.
BT
Touch to select BT function on or off.
WALLPAPER
Touch to select wallpaper.
ABOUT
Touch to show the version information.
CLOCK SETUP
Touch the CLOCK to adjust the time and time format.
clock setup interface
AUDIO SETUP
Touch the audio to turn to audio quality adjustment.
audio setup interface1
audio setup interface2
TREBLE: -7 to +7
Adjust treble level.
BASS: -7 to +7
Adjust bass level.
SUBWOOFER: touch to adjust subwoofer on or off.
EQ: touch to select audio mode as follow: USER -> JAZZ -> CLASSIC -> POP -> ROCK
LOUDNESS: touch to select loudness on or off.
FADER/BALANCE:
BALANCE: R 0-10 to L 0-10
Adjust sound balance between left and right speakers.
FADE: F 0-10 to R 0-10
Adjust sound balance between front and rear speakers.
VIDEO SETUP
Video setup interface
COLOR: 0 to 40
Adjust the color for the picture-lighter or darker.
BRIGHTNESS: 0 to 40
Adjust if the picture is too bright or too dark.
CONTRAST: 0 to 40
Adjust the contrast of the bright and dark portion.
TINT: 0 to 40
Adjust the tint if the human skin color is unnatural.
-Adjustable when "NTSC" is selected for "NTSC/PAL".
LANGUAGE
Touch to select OSD language.
ILLUMINATION COLOR
Touch to select the color for the display. Tap auto icon to change automatically.
CALIBRATION
Touch the arrow as show to calibration the display.
Reset Factory Settings
RESET button is placed on the housing and must be activated with either a ballpoint pen or thin metal object. The RESET button is to be activated for the following reasons:
A. Initial installation of the unit when all wiring is completed.
B. All the function buttons do not operate.
C. Error symbol on the display.
NOTE:
If RESET is selected, all memory data will be deleted, please re-adjust.
Rear View Camera
When connecting the rear view camera the mirror image of the rear view is automatically displayed on the monitor when you change the gear to the back position.
(Note: additional monitor can not display the image.)
Control Panel
- POWER or MODE BUTTON
-
|| or CH1\~6 BUTTON
- RESET BUTTON
- SEL BUTTON and VOL KNOB
- OPEN BUTTON
- USB PORT and COVER
-
AUX IN JACK
-
MU/PTY BUTTON
- TA/AF BUTTON
- BAND BUTTON
- MICROPHONE
- REL BUTTON
- IR SENSOR WINDOW
- CARD SLOT

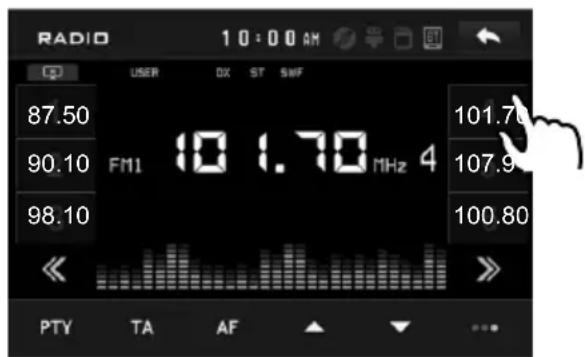

RADIO OPERATION
Listening to Radio

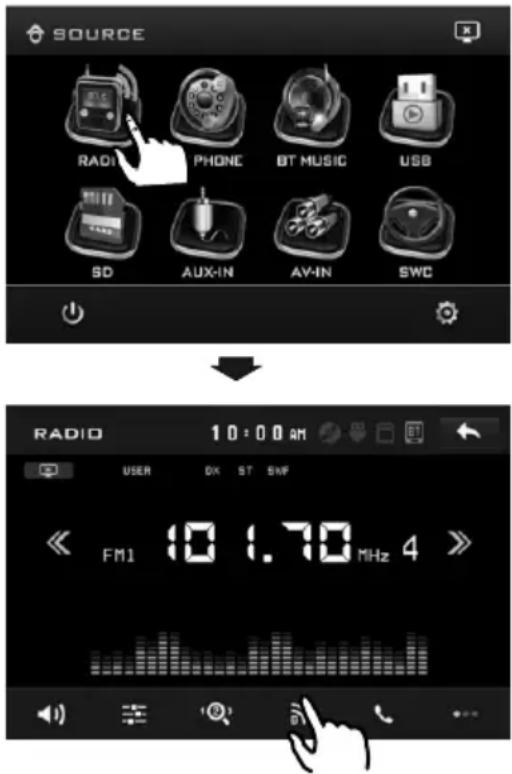

Touch the RADIO ICON in home menu to enter the RADIO mode. In radio mode, tap 📄 icon to adjust the brightness for the display.
Selecting The Frequency Band
Touch the screen of “BAND” section repeatedly to select the band, the message will show in turn:
When an FM stereo broadcast is hard to receive
Press ST/MO button on the remote control to select the MONO or STEREO mode.
Start Searching For a Station Manual Search
During Radio mode, briefly touch “ >> ” to increase frequency by one step of channel spacing.
Briefly touch “◀” to decrease frequency by one step of channel spacing.
Automatic Search
During Radio mode, touch and hold (for more than 2 seconds) either “<</>>” ICONS to start search for a radio station automatically.
To tune in strong-signal FM Station only (LO/DX function)
In radio mode, Press button on the remote control to select icon select LOC/DX mode of Local and Long-distance traffic news.
Storing and Listening to a Memory Station
Setting Memory
With this system, a total of 30 stations can be stored in the memory of six buttons. Each band stores up to six preset stations. The stations might be FM1, FM2, FM3, AM1(MW1), and AM2(MW2) band.
The operation is as below :
- Store in Memory
Select the frequency band
Select the station
Press and the station until it show the frequency band your select.
- Retrieve a preset station
Touch the 1-6 ranges briefly to retrieve a station which had been stored in the memory in advance the chose number is shown on display.
Automatic Memory Storing & Program Scanning
Automatic Preset Setup
In Radio Mode, touch and keep (for more than 2'S) the screen of " 🔒 " range to active automatic station storage.
The radio searches within the current frequency band, e.g. FM, for the stronger signal level until the search cycle has finished. The six strongest stations are then allocated to the corresponding storage locations. Then the station of the first storage location is set.
Scan Function
In Radio mode, briefly touch the “section on the touch screen, the radio briefly plays all the preset stations of the frequency band.
RDS FUNCTION
In home menu, then touch the “ICON” to enter the set mode, the message in the display :
ADJUSTABLE ITEMS:
REGION SET
Touch to switch the region area as: EUROPE, USA, AMERICAN 1, AMERICAN 2 and OIRT.
REG FUNCTION
at certain times some stations divide up their programs into regional programs with varying content.
REG ON : the message "REG ON" will appears in the display for a few seconds. Note :
- the display capacity is limited. It is possible that in the double display mode some segments of the display are deleted. - the function REG ON prevents the radio from switching to alternative frequency which have a different regional program content.
REG OFF : the program identification(PI) of the regional program is ignored during the search for an alternative frequency (AF) or a program identification (PI).
Select RDS REGIONAL to turn RDS function on or off.
PI SET
Touch to change between PI MUTE and PI SOUND.
PI MUTE / PI SOUND
(only for radio operation)
If you are in an area where two program identifications (PI) overlap, you can select the option PI SOUND and
PI MUTE for playback of the sound.
Alternate switching of the program identification should be avoided.
PI SOUND :
If switching nevertheless occurs the sound of another station is heard for less than one second.
PI MUTE :
the sound of another station is suppressed.
TA Traffic Announcement
(Priority For Traffic Information)
In Radio mode, touch the cursor button to switch the TA function ON and OFF. When the TA function is activated, the TA symbol appears in the display. During radio operation in one FM frequency band the search for a traffic announcement station is started automatically (TA SEEK). If an FM station is being received which transmits the latest traffic announcements from time to time, the TP display lights up.
When the TA function is switched on, the FM traffic automatically interrupt CD operation (the word TRAFFIC appears in the display).
The volume level is increased to the minimum value for the transmission of traffic announcements. After the traffic announcements has finished, the program that was previously running is resumed.
Interruption of the TA Function:
If you would like to interrupt the current traffic announcement, touch the TA section on screen briefly. This does switch off the TA mode.
AF FUNCTION
(Alternative Frequencies)
In Radio mode, touch the cursor button to switch the AF function ON and OFF.
AF is a function that works with the help of RDS (Radio Data System) and can only be used with FM stations. The radio searches in the background for the best frequency reception of the station that has been tuned into.
Touch the AF section on touch screen or swing and keep the SEL knob in the TA/AF direction for about 2 seconds, the AF function is activated. The AF symbol appears in the display.
When the AF function has been switched on, the radio continuously tests the signal strength of the AF frequency. The test interval for each AF frequency depends on the signal strength of the current station and varies from a few minutes in the case of weak signals. Whenever the new AF frequency is stronger than the station that is currently tuned in, the radio switched to this frequency for a short time for a short time and the message "NEW FREQUENCY" is displayed for one or two seconds.
PTY FUNCTION
In Radio mode, touch screen of "PTY" range to select the Program type.
PTY Selection of the program type besides the stations name, some FM stations also transmit information on the type of program. This information can be displayed by your car radio.
Examples of such types of program are : SPORT NEWS POP WEATHER .....
With PTY function you can specifically select stations transmitting a particular type of program. Touch the PTY on screen repeatedly to call up the PTY selection menu. The message “PTY SEEK” then appears briefly in the display. When PTY has been selected the radio start searching for corresponding PTY information and stops when the PTY information has been found, “NO PTY” appears in the display. If the PTY information being searched for no longer exists, the PTY function automatically switches to normal mode.
BASIC OPERATION
Pause (still picture)
Touch the “▶” section on touch screen during playback will stop play temporary, touch it again to return the normal playback.
Rapid Forward/Rapid Reverse
During media playback, touch the screen of “▶/◀” range the speed of rapid forward/reverse changes according to the disc as follow:
Skipping Track
During media playback, Touch the ▶/▲ section on the touch screen to skip to next/back one track.
Zoom Function
Touch the button repeatedly, the displayshow as "zoom 2, zoom 3, zoom 4, zoom 12 , zoom 1/3, zoom 1/4, zoom off."
Use the keys ( ◀◀ / ▶▶ / ◀◀/ ▶▶ on remote control to move the enlarged picture.
SELECTING PLAY MODES
During the media playback, select the "RPT, RDM" to select your favour play mode.
1). REPEAT FUNCTION
FOR MP3 :
Tap the 📄 icon or press the RPT button on the remote control) to select REPEAT mode as follows :
During media playback, touch screen of "×" section (press the RDM button
on on the remote control to play in random. Each play mode the order is different. Touch it again to cancel this function. Note: in random mode, the button is not available.
ON-SCREEN DISPLAY FUNCTION
During playback, touch the screen or press the DISP on the remote control, it will display the following as below :
Note: touch the screen or press the DISP on the remote control again to cancel the OSD information.
Example for Movie or PHOTO. When it is on, it will display the information such as:
For Movie/Photo:
Touch the screen as show or press the GOTO button on remote control;
the screen will display the following message :
Touch the < I > to select the your adjustment item, then select the item your favour by touching the numeric buttons, then touch the OK button to confirm.
BT Operation
1. Pairing and Connecting
Prior to using the BT device named XOMAX as a hands-free system for a BT-enabled mobile phone for the first time, you must pair and
connect them as follows:
Press the BT hands-free icon or press the pair button on the remote control to turn to BT mode as right:
* During the use of the BT device named "XOMAX" as a hands-free system for a BT- enabled mobile phone; Switch on the BT mode of your mobile phone; then s BTeldevithe item to find a and enter it; BThedevicfindarthe of the A/V system, the name
XOMAX will be displayed, select it and enter it; then it will pair and connect with the BT device XOMAX of the car A/V system, Confirm it, then the frame of the BT logo will light all the time.
* Whishing pairing and ing connect , the audio of the mobile phone transfers to the camobile system whenever a call is made or received plays music .
2. BT PHONE
In power off mode, a incoming call or call out to wake up this unit and turn to BT hands-free mode, when the phone call ended the unit back to power off mode.
1) Make a call
(1) Dial with mobile phone directly;
(2) Dial with BT Phone or on touch screen;

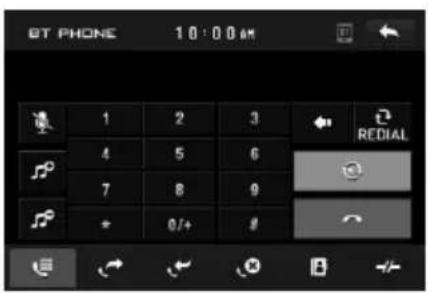

a. Touch the BT PHONE icon in home menu or touch the 📊 icon during playing to turn to BT PHONE interface, the icons function as follows:
: Tap to mute the sound that the subscriber you dialed can't hear your vioce, tap again to return normal.
& : Same as VOL+ and VOL- or VOL knob.
: Tap to turn to dial interface.
: Tap to check the outgoing call.
: Tap to check the incoming call.
: Tap to check the missed call.
: Tap to turn to the contacts.
: During talk, tap to change the sound from the phone to the unit.
: Tap to do disconnection.
Tap a icon such as 📁 to show as follow:
: Tap to download the contacts from your phone.
: Tap for phone number search.
& For page turning.
b. Use the number icons to input your desired phone number;
* When inputting a wrong digit, use ← icon or < button to delete it.
c. After finishing inputting, touch 📊 icon or press ↗ button on control panel to dial out.
2) Redial last dialed phone number
Touch 📄 icon to dial out the last dialed phone number.
3) Answer a call
During an incoming call, the incoming telephone number displays in the BT PHONE interface. If you want to receive it, touch 🔔 icon or press ↗ button on remote control; if you want to reject it, touch ↗ icon or press ↙ button on remote control.
4) Ending a call
When ending a call, touch 🔒 icon or use 🔒 button.
5) Switch the audio between the unit and your device
During phone talking using the BT hands-free system of the car A/V system, touch 🔔 icon or press ↗ button on remote control to switch the audio between the unit and your device.
6) Adjusting the volume during a call
Dtalking phase/OL knob or VOL-a and MOLcon or butten the adjusting bottom devalte sound
* * / # icons and buttons
they perform as * / # buttons on mobile phone.
3. BT MUSIC

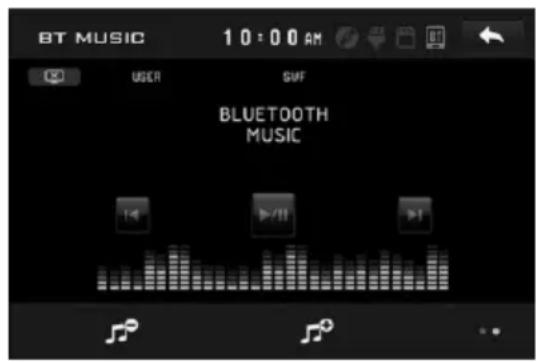

1) Touch BT MUSIC in home menu or pressing MODE button can pop up BT MUSIC interface as follows:
Mute function
To select the Equalizer mode
To decrease the volume level
To increase the volume level
Loudness Function
Subwoofer Function
Play/Pause the playing
To skip the next track
To skip the previous track
Tap to turn to BT PHONE mode. (After pairing and connecting a phone with BT function).
In BT music mode, tap icon to adjust the brightness for the display.
2) Using your mobile phone with BT function to audio if it play, is paired at the condition of the mobile phone will change into the car A/V system
The BT device of the car A/V system support A2DP, which enables the user to stream audio from their device.
3) The device A of system so these icons support the AVRCP, BT Music interface except BT Music and their button responding panel or on remote control are available for audio/video playback of your mobile phone during playback. But no fast forward/backward functions for / icon, and the function of resume playback after pausing or stopping is available only for some mobile phone.
AUX Operation
On the front panel of this unit, there is an AUX IN jack, follow the diagram below to connect analogue replay devices(only for the Audio connect, if you want to connect the Video, please plug the
1). Please connect the external device with stereo jack (3.5mm) plug the Aux in socket.
AUX IN JACK FRONT PANEL
2). In radio mode, touch the screen of “◀” ICON to enter the main menu, touch the “AUX” ICON to enter the AUX IN mode.
In AUX mode, tap icon to adjust the brightness for the display.

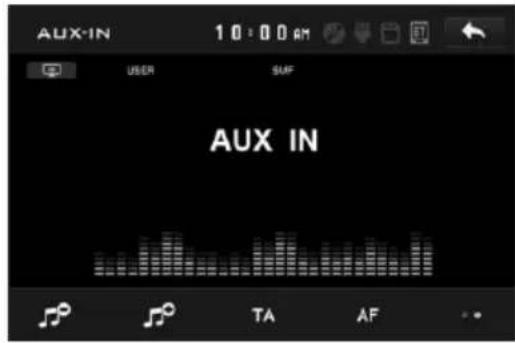

AUX INTERFACE 1
AUX INTERFACE 2
3). You now hear the sound from the external device played back through the loudspeakers.
The function of the icons as follow:
Tap to mute the sound.
Tap to select EQ as the same on the remote control.
Loudness Function.
Subwoofer Function.
Tap to adjust audio volume.
TA Turning pre-switching for traffic announcements on and off.
AF Switching on and off an Alternative frequency.
Tap to turn to BT PHONE mode. (after pairing and connecting a mobile phone with BT function).
AV Operation
Please plug the
Touch the AV IN icon to enter the AV IN mode.
In AV mode, tap icon to adjust the brightness for the display.

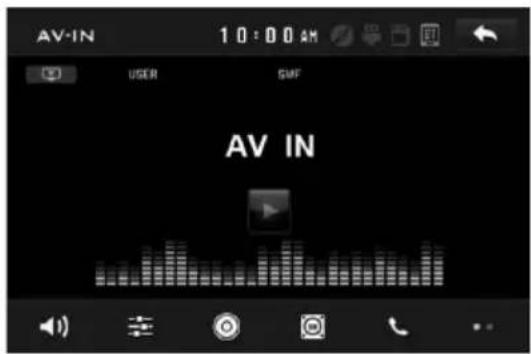

AV INTERFACE 1
AV INTERFACE 2
As the interface show, here is only the audio output, now tap the ▶ icon, the picture of the auxiliary input video show on the display and tap the display again to turn to audio mode.
Now you can watch the video from your External video equipment such as Digital Video players, computers, etc.
The function of the icons as follow:
Tap to mute the sound.
Tap to select EQ as the same on the remote control.
Loudness Function.
Subwoofer Function.
Tap to adjust audio volume.
Turning pre-switching for traffic announcements on and off.
Switching on and off an Alternative frequency.
Tap to turn to BT PHONE mode. (After pairing and connecting a mobile phone with BT function).
Note: To ensure safety while driving and to comply with lows, drivers should not watch video or operate the video device while driving.
Touch Screen Operation
USB OPERATION
Following the diagram below, connect your USB device to the front panel USB port. If it is properly connected, the device will be mounted and start playing automatically.
Card OPERATION
The unit can support playback MP3/WMA/JPEG/MP4 format which are stored on SD memory cards. Please read the following instructions before you start using a memory card. Inserting the card as follow:

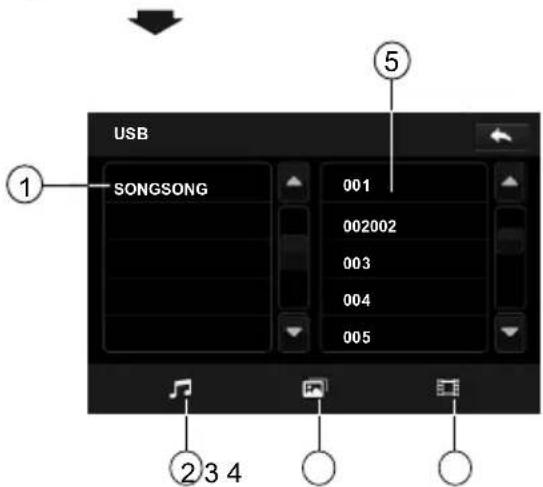

1 Current type (highlighted bar).
2 Audio play mode select.
3 Picture play mode select.
4 Movie play mode select,
5 Current play track .
1 Current type (highlighted bar).
2 Audio play mode select.
3 Picture play mode select.
4 Movie play mode select,
5 Current play track .
STEERING WHEEL CONTROL
Touch the SWC icon as follow to turn to steering wheel control.
During setting, touch the turn to home menu.
Before operation, press the ✗ icon to cancel the original input that to set your favour.
There are 2 KEY for no more than 12 buttons to select.
For first time use this function, input a key (such as 0.38, 0.38 is a magnitude of voltage, according to your car) through the steering remote and show in button 1 position.
Then tap Assign and tap the button 1 and then select the icon as the picture show, the icon show in button 1 position. After selection tap confirm and back to home menu that means select finish.
The function of the icons as follow:
Touch to begin function save.
After selection touch to confirm operation.
Touch this icon to cancel the input and resume load.
High-z means high-impedance. Tap to reduce the magnitude of voltage. This key for avoid that voltage is too high that the car system can not differentiate the input key set for some car.
Low-z means low-impedance. Tap to increase the magnitude of voltage. This key for avoid that voltage is too low that the car system can not differentiate the input key set for some car.
General
Power Supply Requirement......DC 12V
Current consumption....10A MAX.
Audio
Signal Output....2ch&4ch line out
Frequency Response....20 Hz - 20 KHz
S/N Ratio....90 dB (JIS)
Wow and Flutter......Below measurable limits
TFT Monitor
Monitor Screen Size....7 Inch Wide
Color System....NTSC/PAL
USB/Card
Compatible Format......MPEG4/IMAGE/MP3/WMA
Radio
FM
Frequency range......EUR (87.5 MHz - 108 MHz)
USA (87.5 MHz - 107.9MHz)
American 1 (87.5 MHz - 108MHz)
American 2 (87.5 MHz - 108MHz)
OIRT(88.1 MHz - 107.9MHz)
Usable sensitivity....15dBu
I.F Frequency....10.7 MHz
AM(MW)
Frequency......EUR (522 KHz - 1620 KHz)
USA (530 KHz - 1710 KHz)
American 1(530 KHz - 1710 KHz)
American 2(520 KHz - 1600 KHz)
OITR (531 KHz - 1602 KHz)
Usable sensitivity....40dBu
I.F Frequency....450 Khz
BT
BT specification.... V1.2 Class 2
BT profile supported.....Headset, Handsfree and A2DP & AVRCP profiles
Range of frequency.... 2.4GHz Spectrum
NOTE:
Specification and design are subject to modification, without notice, due to improvements in technology.
Troubleshooting
Please read the user manual carefully before using the car A/V system. If you have any difficulty using this car A/V system, . If refer to the troubleshooting guide are unable using available suggestions, please select contact or an authorised service centre.
NO PICTURE, SOUND
* Ensure that the power switch is on.
* Ensure that the power cord is not damaged or the fuse is not blown.
NO SOUND BUT HAVE PICTURE
* Ensure that the player's audio output speaker is also connected to the input.
* Check whether the audio connector is damaged.
* Check whether you have turned down the volume.
* Ensure that the audio is not in MUTE mode.
BLACK AND WHITE PICTURE OR SCREEN ROLLING
* Ensure that you have set right mode of video system (e.g. PAL, NTSC).
FLAWS OF PICTURE OR SOUND
* Check whether AV connector and output terminal is stained.
* Check whether there is condensation inside the lens. If so, power on the player and do not work for an hour or so, then try again.
SOME FUNCTION BUTTONS DO NOT WORK
* Turn off ACC power, then turn on again.
* Reset unit to zero, then turn on again.
* Remove control panel from chassis, reattach it onto the chassis and then turn it on again.
RADIO DOES NOT WORK
* Check whether antenna cable is connected firmly.
* Manually tune for a station.
Made for STEL Multimedia
- THANK YOU FOR PURCHASING PALSVERNDSTORM MULTIMEDIA
- ON INSTALLATION
- ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL
- NOTES ON CLEANING
- NOTES:
- DIN FRONT/REAR-MOUNT
- Installation diagram
- WIRING CONNECTION
- Note:
- Preparing the Remote Control Inserting the Battery
- Using the Remote Control
- Note :
- Main Menu Operation
- ADJUSTABLE ITEMS:
- ANIMATION
- Disc setup as follow:
- FORMAT
- Normal/PS (For 4:3 TV)
- Normal/LB (For 4:3 TV)
- Wide (For 16:9 TV)
- RATING
- RADIO
- BT
- WALLPAPER
- ABOUT
- CLOCK SETUP
- AUDIO SETUP
- TREBLE: -7 to +7
- BASS: -7 to +7
- FADER/BALANCE:
- FADE: F 0-10 to R 0-10
- COLOR: 0 to 40
- BRIGHTNESS: 0 to 40
- CONTRAST: 0 to 40
- TINT: 0 to 40
- LANGUAGE
- ILLUMINATION COLOR
- CALIBRATION
- Reset Factory Settings
- Rear View Camera
- Front View Drawing after Removing Control Panel
- RADIO OPERATION
- Listening to Radio
- Selecting The Frequency Band
- When an FM stereo broadcast is hard to receive
- Start Searching For a Station Manual Search
- Automatic Search
- To tune in strong-signal FM Station only (LO/DX function)
- Storing and Listening to a Memory Station
- - Store in Memory
- - Retrieve a preset station
- Automatic Memory Storing & Program Scanning
- Automatic Preset Setup
- Scan Function
- RDS FUNCTION
- REGION SET
- REG FUNCTION
- PI SET
- PI MUTE / PI SOUND
- (only for radio operation)
- PI SOUND :
- PI MUTE :
- TA Traffic Announcement
- Interruption of the TA Function:
- AF FUNCTION
- PTY FUNCTION
- BASIC OPERATION
- Pause (still picture)
- Rapid Forward/Rapid Reverse
- Skipping Track
- Zoom Function
- SELECTING PLAY MODES
- 1). REPEAT FUNCTION
- FOR MP3 :
- ON-SCREEN DISPLAY FUNCTION
- Search (GOTO)
- For Movie/Photo:
- BT Operation
- Pairing and Connecting
- BT PHONE
- BT MUSIC
- AUX Operation
- AV Operation
- Touch Screen Operation
- USB OPERATION
- Card OPERATION
- STEERING WHEEL CONTROL
- General
- Audio
- TFT Monitor
- USB/Card
- FM
- AM(MW)
- Troubleshooting
- NO PICTURE, SOUND
- NO SOUND BUT HAVE PICTURE
- BLACK AND WHITE PICTURE OR SCREEN ROLLING
- FLAWS OF PICTURE OR SOUND
- SOME FUNCTION BUTTONS DO NOT WORK
- RADIO DOES NOT WORK
- Made for STEL Multimedia
Brand : Xomax
Model : XM-VRSU713BT
Category : Car radio
