Product Type	Soundbar
Brand	Philips
Model	HTL2193B
Soundbar Dimensions (W x H x D)	650 x 75 x 95 mm
Subwoofer Dimensions (W x H x D)	150 x 300 x 200 mm
Soundbar Weight	1.5 kg
Subwoofer Weight	3.0 kg
Power Supply	100-240V AC, 50/60Hz
Power Consumption	30 W
Total Output Power	80 W (2 x 20 W + 40 W subwoofer)
Bluetooth	Yes
USB Playback	Yes
HDMI ARC	Yes
Optical Input	Yes
Audio Return Channel (ARC)	Supported
Cleaning	Wipe with a soft dry cloth
Safety	Do not expose to moisture or liquids
Spare Parts	Contact Philips support
Repairability Index	5.5 / 10 (estimated)

Frequently Asked Questions - HTL2193B PHILIPS

How do I connect the soundbar to my TV?

Use an HDMI cable and connect to the HDMI ARC port on both devices. Alternatively, use an optical cable or Bluetooth.

Can I play music via Bluetooth?

Yes, pair your smartphone or tablet with the soundbar via Bluetooth. Select the Bluetooth source on the remote.

How do I adjust the bass level?

Press the Bass button on the remote control repeatedly to cycle through preset levels.

What is the maximum USB drive size supported?

The USB port supports drives up to 32 GB formatted in FAT32.

How do I reset the soundbar to factory settings?

Press and hold the Source button on the soundbar for 10 seconds until the LED flashes rapidly.

Does the soundbar support Dolby Atmos?

No, this model supports Dolby Digital and DTS, but not Dolby Atmos.

Can I wall-mount the soundbar?

Yes, the soundbar has mounting holes for wall brackets. Use the included bracket or a compatible one.

Why is there no sound from the subwoofer?

Ensure the subwoofer is paired by pressing the Pair button on the subwoofer and soundbar simultaneously, or check the wireless connection.

How do I control the soundbar with my TV remote?

Enable HDMI CEC (EasyLink) on your TV and the soundbar. This allows volume control via the TV remote.

What is the warranty period?

The standard warranty is 1 year from the date of purchase.

USER MANUAL HTL2193B PHILIPS

Always there to help you

Register your product and get support at

www.philips.com/support

HTL2193B

User manual

PHILIPS

Contents

1 Important 2

Safety 2

Care for your product 3

Care of the environment 3

Help and support 3

2 Your product 4

Main unit 4

Remote control 4

Connectors 5

3 Connect 6

Placement 6

Connect audio from TV 7

Connect audio from other devices 8

4 Use your product 9

Adjust the volume 9

Choose your sound 9

Play audio through Bluetooth 10

MP3 player 11

USB storage devices 11

Auto standby 11

Set display brightness 11

Apply factory settings 11

Radio 12

5 Update software 13

Check software version 13

Update software via USB 13

6 Wall mount 14

7 Product specifications 14

8 Troubleshooting 15

1 Important

Read and understand all instructions before you use your product. If damage is caused by failure to follow instructions, the warranty does not apply.

Safety

Risk of electric shock or fire!

• Before you make or change any connections, make sure that all devices are disconnected from the power outlet.
• Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Consumer Care to have the product checked before use.
• Never place the product and accessories near naked flames or other heat sources, including direct sunlight.
• Never insert objects into the ventilation slots or other openings on the product.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
• Disconnect the product from the power outlet before lightning storms.
• When you disconnect the power cord, always pull the plug, never the cable.

Risk of short circuit or fire!

- For identification and supply ratings, see the type plate at the back or bottom of the product.

- Before you connect the product to the power outlet, ensure that the power voltage matches the value printed on the back or bottom of the product. Never connect the product to the power outlet if the voltage is different.

Risk of injury or damage to this product!

• For wall mounting, this product must be securely attached to the wall in accordance with the installation instructions. Use only the supplied wall mount bracket (if available). Improper wall mounting may result in accident, injury or damage. If you have any query, contact Consumer Care in your country.
• Never place the product or any objects on power cords or on other electrical equipment.
• If the product is transported in temperatures below 5°C, unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet.
• Parts of this product can be made of glass. Handle with care to avoid injury and damage.

Risk of overheating!

- Never install this product in a confined space. Always leave a space of at least four inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.

Risk of contamination!

• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Danger of explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type.
• Remove batteries if they are exhausted or if the remote control is not to be used for a long time.
• Batteries contain chemical substances, they should be disposed of properly.

Risk of swallowing batteries!

• The product/remote control may contain a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death. Severe internal burns can occur within two hours of ingestion.
• If you suspect that a battery has been swallowed or placed inside any part of the body, seek immediate medical attention.
• When you change the batteries, always keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery.
• If the battery compartment cannot be completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer.

This is CLASS II apparatus with double insulation, and no protective earth provided.

Use only the power supplies listed in the user manual.

Care for your product

Use only microfiber cloth to clean the product.

Care of the environment

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Do not throw away the product with the normal household waste at the end of its life, but hand it in at an official collection point or recycling. By doing this, you help to preserve the environment.

Help and support

For extensive online support, visit www.philips.com/support to:

• download the user manual and the quick start guide
• watch video tutorials (available only for selected models)
  • find answers to frequently answered questions (FAQs)
• email us a question
• chat with our support representative.

Follow the instructions on the website to select your language, and then enter your product model number.

Alternatively, you can contact Consumer Care in your country. Before you contact, note down the model number and serial number of your product. You can find this information on the back or bottom of your product.

2 Your product

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers(e.g. notification of product software upgrade), register your product at www.philips.com/welcome.

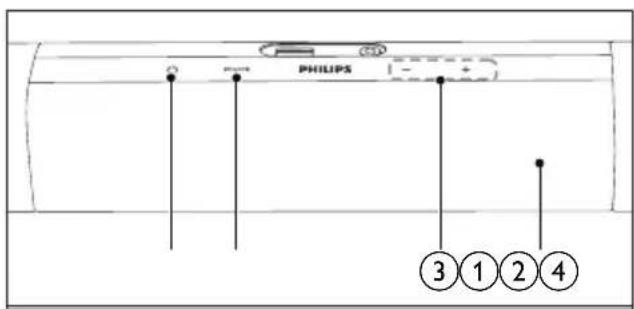

Main unit

This section includes an overview of the main unit.

① Switch this product on or to standby.
② SOURCE Select an input source for this product.
③ Volume +/- Increase or decrease volume.
④ Display panel

Remote control

This section includes an overview of the remote control.

① ⏻(Standby-On) Switch this product on or to standby.
② Source buttons COAX / OPT: Switch your audio source to the coaxial connection, or to the optical connection. HDMI ARC: Switch your source to HDMI ARC connection.

AUX: Switch your audio source to the AUX connection.

AUDIO IN: Switch your audio source to the MP3 connection (3.5mm jack).

USB: Switch to USB mode.

: Switch to Bluetooth mode.

RADIO: Switch to radio mode.

③ ◀/▶(Previous/Next)

• Skip to the previous or next track in USB mode.
• In radio mode, when the preset number is displayed, press to select a preset radio station.
• In radio mode, when the radio frequency is displayed, press and hold to search a radio station, or press briefly to fine tune a radio frequency.

④ ▶ II (Play/Pause)

• Start, pause or resume play in USB mode.
• In radio mode, toggle display between the current preset number and frequency.

⑤ BASS +/-

Increase or decrease bass.

⑥ Volume control

• +/-: Increase or decrease volume.
• Mute or restore volume.

⑦ MUSIC

Select stereo sound mode for the best music experience.

⑧ AUDIO SYNC +/-

Increase or decrease audio delay.

⑨ DIM

Set the brightness of the display panel for this product.

⑩ NIGHT / PROGRAM

• Turn night mode on or off.
- In radio mode, press and hold for three seconds to reinstall the radio stations.

⑪ SURR (MOVIE)

Select surround sound mode for the best movie experience.

⑫ VOICE

Select voice sound mode to enhance voice clarity.

⑬ TREBLE +/-

Increase or decrease treble.

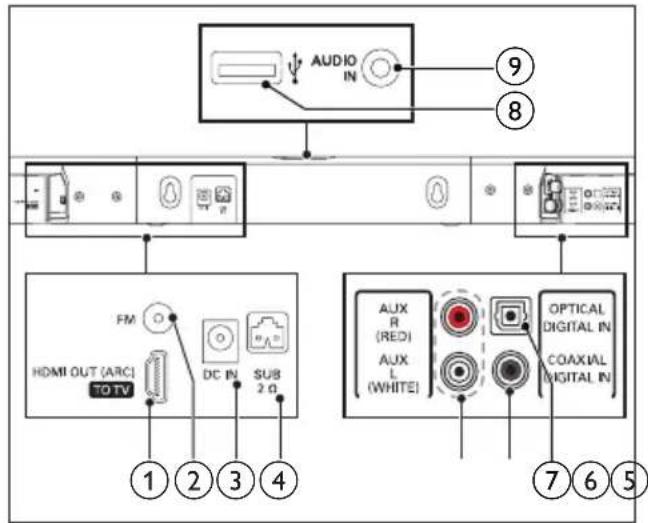

Connectors

This section includes an overview of the connectors available on this product.

① HDMI OUT (ARC) - TO TV

Connect to the HDMI (ARC) input on the TV.

② FM antenna

Connect the supplied FM antenna. Extend the FM antenna for better reception.

③ DC IN

Connect to the power supply.

④ SUBWOOFER

Connect to the supplied subwoofer.

⑤ DIGITAL IN-COAXIAL

Connect to a coaxial audio output on the TV or a digital device.

⑥ AUX IN (L/R)

Connect to an analog audio output on the TV or an analog device.

⑦ DIGITAL IN-OPTICAL

Connect to an optical audio output on the TV or a digital device.

⑧ ⇌ (USB)

• Connect to a USB storage device for audio media play.
• Upgrade software of this product.
• Charge a USB device.

⑨ AUDIO IN

Audio input from, for example, an MP3 player (3.5mm jack).

3 Connect

This section helps you connect this product to a TV and other devices.

For information about the basic connections of this product and accessories, see the quick start guide.

Note

• For identification and supply ratings, see the type plate at the back or bottom of the product.
• Before you make or change any connections, make sure that all devices are disconnected from the power outlet.

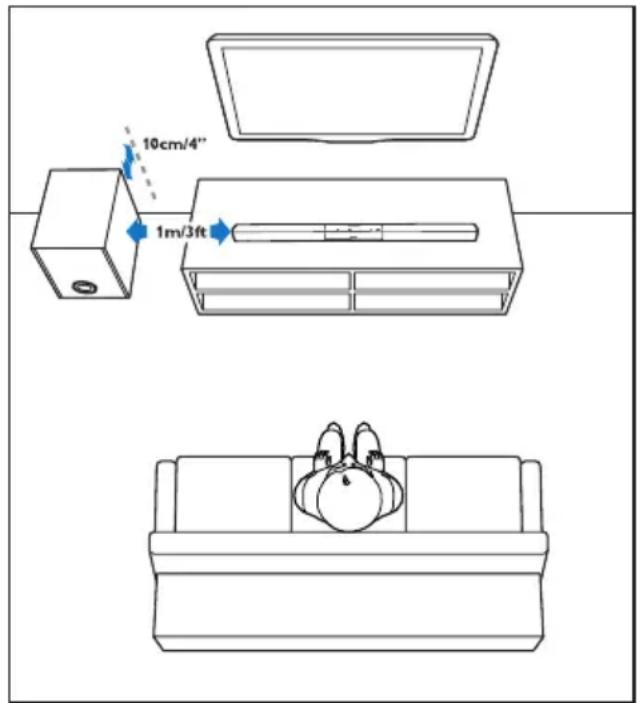

Placement

Place the subwoofer at least 1 meter (3 feet) away from the main unit, and 10 centimeters (4 inches) away from the wall.

For best results, place your subwoofer as shown below.

Connect audio from TV

Connect this product to a TV. You can listen to audio from TV programs through the speakers of this product.

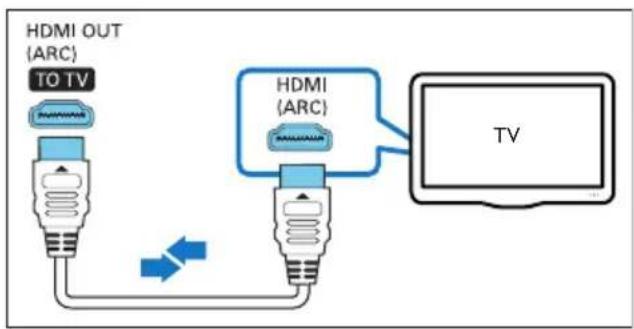

Option 1: Connect to TV through HDMI (ARC)

Best quality audio

This product supports HDMI with Audio Return Channel (ARC). With the ARC feature, you can hear the TV audio through this product by using a single HDMI cable.

What you need

• A High Speed HDMI Cable.
- Your TV supports both HDMI ARC and HDMI-CEC (see the TV user manual for details).
- For some TV models, enable the external speaker output from the TV setting menu (see the TV user manual for details).

1 Using a High Speed HDMI cable, connect the HDMI OUT (ARC) connector on this product to the HDMI ARC connector on the TV.

- The HDMI ARC connector on the TV might be labeled differently. For details, see the TV user manual.

2 On your TV, turn on HDMI-CEC operations.

- For HDMI-CEC issues on your TV, see the TV user manual to make sure that the HDMI-CEC setup is correct, or contact the TV manufacturer if needed.

3 Press HDMI ARC on the remote control of this product to enable the HDMI ARC connection.

Note

• 100% interoperability with all HDMI-CEC devices is not guaranteed.
• If your TV is not HDMI ARC compliant, connect an audio cable to hear the TV audio through this product.

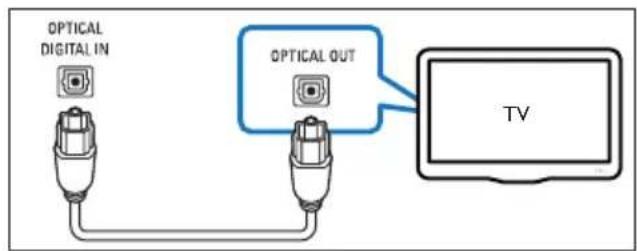

Option 2: Connect to TV through optical cable

Best quality audio

1 Using an optical cable, connect the OPTICAL connector on this product to the optical output on the TV.

- The digital optical output on the TV might be labeled OPTICAL OUT, SPDIF or SPDIF OUT.

2 Press OPT on the remote control of this product to enable the optical connection.

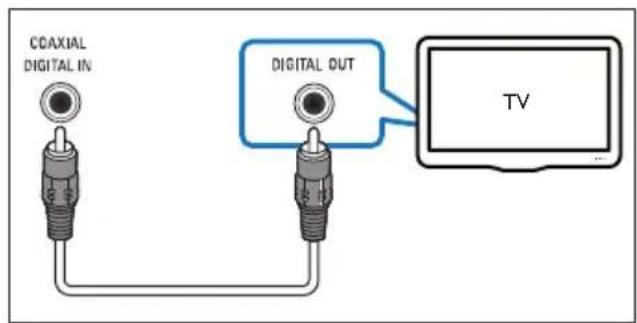

Option 3: Connect to TV through coaxial cable

Best quality audio

1 Using a coaxial cable, connect the COAXIAL connector on this product to the coaxial output on the TV. • The digital coaxial output on the TV might be labeled COAXIAL/DIGITAL OUT or DIGITAL AUDIO OUT.

2 Press COAX on the remote control of this product to enable the coaxial connection.

Option 4: Connect to TV through analog audio cables

Basic quality audio

1 Using an analog audio cable, connect the AUX connectors on this product to the analog audio output on the TV.

• The analog audio output on the TV might be labeled AUDIO OUT.

2 Press AUX on the remote control of this product to enable the analog audio connection.

Connect audio from other devices

You may also play audio from other devices through the speakers of this product.

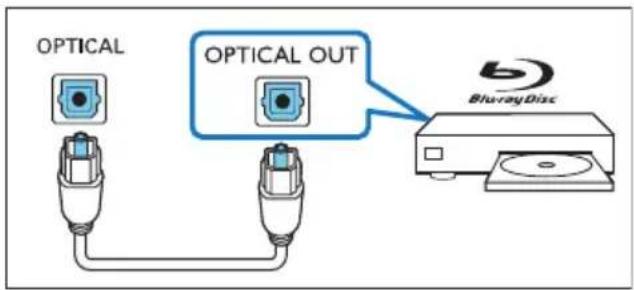

Option 1: Connect to other device through optical cable

Best quality audio

1 Using an optical cable, connect the OPTICAL connector on this product to the optical output on the external device.

- The digital optical output on the external device might be labeled OPTICAL OUT, SPDIF or SPDIF OUT.

2 Press OPT on the remote control of this product to enable the optical connection.

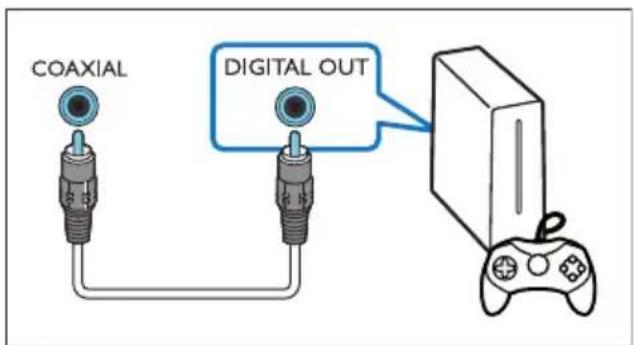

Option 2: Connect to other device through coaxial cable

Best quality audio

1 Using a coaxial cable, connect the COAXIAL connector on this product to the coaxial output on the external device.

- The digital coaxial output on the external device might be labeled COAXIAL/DIGITAL OUT or DIGITAL AUDIO OUT.

2 Press COAX on the remote control of this product to enable the coaxial connection.

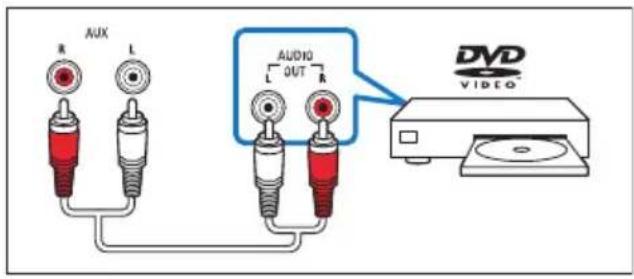

Option 3: Connect to other device through analog audio cables

Basic quality audio

1 Using an analog audio cable, connect the AUX connector on this product to the analog audio output on the external device.

- The analog audio output on the external device might be labeled AUDIO OUT.

2 Press AUX on the remote control of this product to enable the analog audio connection.

4 Use your product

This section helps you use this product to play media from a wide range of sources.

Before you start

• Make the necessary connections described in the quick start guide or download the user manual from www.philips.com/support.

- Switch this product to the correct source for other devices.

Adjust the volume

1 Press Volume +/- to increase or decrease a volume level.

• To mute sound, press

- To restore the sound, press ⁴ again on press Volume +/-.

Choose your sound

This section helps you choose the ideal sound for your video or music.

Sound mode

Select predefined sound modes to suit your video or music.

- Press SURR (MOVIE) to create a surround listening experience. Ideal for watching movie.

- Press MUSIC to create stereo sound. Ideal for listening to music.

- Press VOICE to create sound effect which makes human voice more clear and outstanding for listening.

Equalizer

Change the high frequency (treble) and low frequency (bass) settings of this product.

1 Press TREBLE +/- or BASS +/- to change the frequency.

Synchronize video and sound

If the audio and video are not synchronized, delay the audio to match the video.

1 Press AUDIO SYNC +/- to synchronize the audio with the video.

- AUDIO SYNC + increases the sound delay, and AUDIO SYNC - decreases the sound delay.

Night mode

For quiet listening, night mode decreases the volume of loud sounds when audio is played. Night mode is only available for Dolby Digital soundtracks.

1 Press NIGHT to turn night mode on or off.

When night mode is turned on, ON NIGHT scrolls twice on the display panel.

When night mode is turned off, OFF NIGHT scrolls twice on the display panel.

Play audio through Bluetooth

Through Bluetooth, connect this product with your Bluetooth device (such as an iPad, iPhone, iPod touch, Android phone, or laptop), and then you can listen to the audio files stored on the device through the speakers of this product.

What you need

- A Bluetooth device which supports Bluetooth profile A2DP, AVRCP and with Bluetooth version as 4.0 + EDR.

- The maximum operational range between the main unit and a Bluetooth device is approximately 10 meters (30 feet).

1 Press on the remote control to switch this product to Bluetooth mode.

→ BT is displayed on the display panel, blinking.

2 On the Bluetooth device, switch on Bluetooth, search for Philips HTL2193 and select to start connection (see the user manual of the Bluetooth device on how to enable Bluetooth).

→ During connection, BT on the display panel blinks.

3 Wait until this product beeps.

When the Bluetooth connection succeeds, BT is displayed on the display panel.

→ If the connection fails, BT on the display panel blinks continuously.

4 Select and play audio files or music on your Bluetooth device.

• During play, if a call is coming, music play is paused. Play resumes when the call ends (this feature is dependent on the connected mobile phone).
• If your Bluetooth device supports AVRCP profile, on the remote control you can press ◄/▶to skip to a track, or press ▶II to pause/resume play.

5 To exit Bluetooth, select other source.

- When your switch back to Bluetooth mode, Bluetooth connection remains active.

Note

- The music streaming may be interrupted by obstacles between the device and this product, such as wall, metallic casing that covers the device, or other devices nearby that operate in the same frequency.

- If you want to connect this product with another Bluetooth device, press and hold 📄 on the remote control to disconnect the currently connected Bluetooth device.

MP3 player

Connect your MP3 player to play your audio files or music.

What you need

• An MP3 player.
  • A 3.5mm stereo audio cable.

1 Using the 3.5mm stereo audio cable, connect the MP3 player to the AUDIO IN connector on this product.
2 Press AUDIO IN on the remote control.
3 Press the buttons on the MP3 player to select and play audio files or music.

USB storage devices

Enjoy audio on a USB storage device, such as an MP3 player and USB flash memory, etc.

What you need

• A USB storage device that is formatted for FAT or NTFS file systems, and complies with the Mass Storage Class.
  • An MP3 file on a USB storage device

1 Connect a USB storage device to this product.

2 Press USB on the remote control.

3 Use the remote control to control play.

• Press ▶II to start, pause or resume play.
• Press ◄/▶to skip to the previous or next track.

- During USB play, press and hold USB to enter repeat mode, then press USB to select one of the following play modes.

• ONE RPT: repeat the current track.
- ALL RPT: repeat all the tracks in one folder.
- SHUFFLE: play randomly in one folder.
- OFF RPT: exit repeat or shuffle play mode.

Note

• This product may not be compatible with certain types of USB storage device.
• If you use a USB extension cable, USB HUB, or USB multi-reader, the USB storage device may not be recognized.
• Digital camera PTP and MTP protocols are not supported.
• Do not remove the USB storage device while it is being read.
• DRM-protected music files (MP3) are not supported.
  • Support a USB port: 5V, 1A.

Auto standby

When playing media from a connected device, this product automatically switches to standby after 15 minutes of button inactivity and no audio/video play from a connected device.

Set display brightness

You can press DIM repeatedly to select a different brightness level of the display panel on this product.

If you select AUTO OFF, LED message is switched off after 10 seconds of button inactivity.

Apply factory settings

You can reset this product to the default settings programmed at the factory.

1 In any source mode, on the remote control press Volume -, BASS -, and TREBLE - in sequence within three seconds.

When the factory settings restore is complete, the product automatically switches off and restarts.

Radio

Listen to FM radio on this product, and store up to 40 radio stations.

Note

• Position the antenna as far as possible from TV or other sources of radiation.
• For optimal reception, fully extend and adjust the position of the antenna.
  • AM and digital radio are not supported.
• If no stereo signal is detected, you are prompted to install the radio stations again.

Auto install radio stations

1 Press RADIO to switch to radio source.
If you have not installed any radio stations, the message AUTO INSTALL (auto install) scrolls on the display panel.

2 Press ▶to install radio stations.

→ RADIO INSTALL (radio install) scrolls on the display panel.

→ This product automatically stores radio stations with sufficient signal strength.

- To clear all the existing radio stations, press and hold PROGRAM for 3 seconds to reinstall the radio stations.

Select a preset radio station

1 In radio mode, display a preset number (press ▶II).

2 Press ▶ ▶ select a preset number.

- Press RADIO to toggle between the stereo and mono sound.

Tune to a radio station

1 In radio mode, display a radio frequency (press ▶II).

2 Press and hold ◄ for more than 2 seconds.

→ The radio tunes to a station with strong reception reception automatically.

3 Repeat step 2 to tune to more stations.

- To fine tune a radio frequency, press briefly ◀/▶.

Program radio stations manually

1 Tune to a radio station.
2 Display the current radio frequency (press ▶II).
3 Press briefly PROGRAM. → a number blinks on the display panel.
4 Press 🔍 to allocate a number to this ration station.
5 Press ▶to confirm.
6 Repeat the above steps to program other stations.

Delete a preset station

1 In radio mode, display a preset number (press ▶III).
2 Press PROGRAM.
3 Press ◀ to select a preset number.
4 Press ▶to delete the radio station. → When the radio station is deleted, DEL is displayed briefly.

Tuning grid

In some countries, you can toggle the FM tuning grid between 50 kHz and 100 kHz.

1 Press RADIO to switch to radio source.
2 Press and hold RADIO to toggle between 50 kHz or 100 kHz.

5 Update software

To get the best features and support, update your product with the latest software.

Check software version

In any source mode, on the remote control press TREBLE -, BASS -, and Volume -in sequence.

Update software via USB

1 Check the latest software version on www.philips.com/support.

- Search for your model and click on "Software and drivers".

2 Download the software into a USB storage device.

① Unzip the download if zipped, and make sure that the unzipped file is named "HTL2193B.bin".
② Put the "HTL2193B.bin" file in the root directory.

3 Connect the USB storage device to the

(USB) connector on this product.

4 Press HDMI ARC to switch this product to the HDMI ARC source.

5 On the remote control, within six seconds press twice then Volume + once, and then hold down SURR (MOVIE).

On the display panel, "UPG" (upgrade) blinks slowly, then blinks quickly.

6 When "UPG" blinks fast, press to start the update.

→ Then "UPG" (upgrade) is displayed on the display panel.

7 Wait until the update is completed.

If the update is complete, this product automatically turns off and on again.

Caution

- Do not turn off the power or remove the USB storage device when the software update is in progress because you might damage this product.

6 Wall mount

Note

• Before wall mounting, make sure the wall can support the weight of this product.
• For wall mounting, this product must be securely attached to the wall in accordance with the installation instructions. Improper wall mounting may result in accident, injury or damage. If you have any query, contact Consumer Care in your country.

Screw length/diameter

Depending on the type of wall mounting this product, make sure that you use screws of a suitable length and diameter.

See the illustration in the quick start guide on how to wall mount this product.

1) Drill two holes on the wall.
2) Secure the dowels and screws in the holes.
3) Hang this product on the fastening screws.

7 Product specifications

Note

- Specifications and design are subject to change without notice.

Amplifier

• Total output power: 150W RMS (+/- 0.5 dB, 10% THD)
• Frequency response: 20 Hz-20 kHz / +/- 3 dB
• Signal-to-noise ratio:

65 dB (CCIR) / (A-weighted)
- Input sensitivity:
- AUX: 2V
- AUDIO IN: 1 V

Audio

• S/PDIF Digital audio input:
• Coaxial: IEC 60958-3
• Optical: TOSLINK

Radio

• Tuning range: FM 87.5-108 MHz (50/100 kHz)
• Tuning grid: 50/100 kHz
- Sensitivity - Mono, 26dB S/N Ratio: ≤ 22 dBf - Stereo, 46dB S/N Ratio: ≥ 48 dBf
• Search Selectivity: ≤ 32 dBf
• Total Harmonic Distortion: < 3%
• Signal to Noise Ratio: ≥ 45 dB

USB

• Compatibility: Hi-Speed USB (2.0)
• Class support: USB Mass Storage Class (MSC)
• File system: FAT16, FAT32, NTFS
• Supports MP3 file formats

Bluetooth

• Bluetooth profiles: A2DP, AVRCP
• Bluetooth version: 4.0 + EDR

Main unit

• Power supply:

• Model (Philips branded AC power adapter): TNUA3202003
• Input: 100-240 V\~, 50/60 Hz 1.65 A
• Output: 32V =, 2.0 A

- Standby power consumption: ≤ 0.5 W

- Dimensions (W × H × D): 950 × 51 × 69 mm

- Weight: 1.6 kg

• Built-in speakers:

• Drivers: 3 x full range (90mm/3.5" x 34mm/1.3")
• Impedance: 4 ohm

- Operating temperature and humidity: 0°C to 45°C, 5% to 90% humidity for all climates

• Storage temperature and humidity: -40°C to 70°C, 5% to 95%

Subwoofer

• Impedance: 2 ohm
• Speaker driver: 1 x 134 mm (5.25") woofer
  • Dimensions (W × H × D): 165 × 240 × 296 mm
• Weight: 2.8 kg

Remote control batteries

- 1 × AAA-R03-1.5 V

8 Troubleshooting

Warning

- Risk of electric shock. Never remove the casing of the product.

To keep the warranty valid, never try to repair the product yourself.

If you have problems using this product, check the following points before you request service. If you still have a problem, get support at www.philips.com/support.

Main unit

The buttons on this proudct do not work.

- Disconnect this product from the power supply for a few minutes, then reconnect.

Sound

No sound from the speakers of this product.

• Connect the audio cable from this product to your TV or other devices.
• Make sure that you connect the audio input on this product to the audio output on your TV or other devices.
• Reset this product to its factory settings.
• On the remote control, select the correct audio input.
  • Make sure that this product is not muted.

Distorted sound or echo.

- If you play audio from the TV through this product, make sure that the TV is muted.

Audio and video are not synchronized.

- Press AUDIO SYNC +/- to synchronize the audio with the video.

Error message is displayed on the display panel.

- When "ERROR" is displayed, it indicates that an input audio format is not supported.

- When "ARC" blinks, it indicates that the connected TV is not HDMI ARC compliant or an unsupported audio format is detected.

Bluetooth

A device cannot connect with this product.

• The device does not support the compatible profiles required for this product.
• You have not enabled the Bluetooth function of the device. See the user manual of the device on how to enable the function.
• The device is not correctly connected. Connect the device correctly (see 'Play audio through Bluetooth' on page 10).
• This product is already connected with another Bluetooth device. Disconnect the connected device, then try again.

Quality of audio play from a connected Bluetooth device is poor.

- The Bluetooth reception is poor. Move the device closer to this product, or remove any obstacle between the device and this product.

The connected Bluetooth device connects and disconnects constantly.

• The Bluetooth reception is poor. Move the device closer to this product, or remove any obstacle between the device and this product.
• Turn off Wi-Fi function on the Bluetooth device to avoid interference.
• For some Bluetooth, the Bluetooth connection can be deactivated automatically to save power. This does not indicate any malfunction of this product.

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

HDMI ^TM

TRANSMETERN MULTIMEDIA INTERIANCE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Gibson Innovations Limited is under license. Other trademarks and trade names are those of their respective owners.

Specifications are subject to change without notice

2015 © Gibson Innovations Limited. All rights reserved.

This product has been manufactured by, and is sold under the responsibility of Gibson Innovations Ltd., and Gibson Innovations Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V.
