POWX0057 - Drill PowerPlus - Free user manual and instructions

Product Type	Corded Drill
Model	POWX0057
Brand	PowerPlus
Power Supply	AC 230V, 50Hz
Rated Power	600 W
No-Load Speed	0 - 3000 rpm
Chuck Type	Keyless, 13 mm
Drilling Capacity	Steel: 13 mm, Wood: 25 mm
Weight	1.5 kg
Dimensions (LxWxH)	250 x 70 x 180 mm
Main Functions	Drilling, screwdriving, hammer action (optional)
Variable Speed Trigger	Yes
Forward/Reverse	Yes
Depth Stop	Yes
Auxiliary Handle	Yes, included
Belt Clip	No
Protection Class	II (Double insulated)
Maintenance & Cleaning	Keep ventilation slots clean, wipe with damp cloth, no solvents.
Safety Features	Lock-on button, safety switch, dust protection
Spare Parts & Repairability	Carbon brushes replaceable, chuck, switch available.
General Information	Designed for DIY and light professional use.

Frequently Asked Questions - POWX0057 PowerPlus

What drill bits should I use with the POWX0057?

Use standard 13 mm shank bits for drilling into wood, metal, and plastic. For masonry, use carbide-tipped bits if hammer function is available.

Is this drill corded or cordless?

The POWERPLUS POWX0057 is a corded drill powered by AC 230V. It offers consistent power without battery concerns.

Can I use the drill for screwdriving?

Yes, with the variable speed trigger and forward/reverse function, you can drive screws. Use screwdriver bits and set the torque clutch if available.

How do I change the chuck?

The drill has a keyless chuck. To change bits, rotate the chuck sleeve counterclockwise to open and clockwise to tighten. For chuck removal, consult the manual.

What safety precautions should I take?

Always wear safety goggles, ear protection. Secure workpiece. Do not force the drill. Disconnect power when changing accessories. Keep ventilation slots clear.

How do I maintain the drill?

Clean after use with a dry cloth. Check carbon brushes periodically and replace when worn. Store in a dry place. Lubricate chuck sparingly if needed.

What is the maximum drilling depth?

With the depth stop, you can set precise depths up to the length of the bit. Typically up to 50 mm or more depending on material and bit.

Why is the drill not starting?

Check power cord and plug. Ensure trigger is pressed. If using extension cord, verify it's rated for the drill's current. Check carbon brushes if motor fails.

Can I use the drill in hammer mode?

If your model includes hammer action, yes, select hammer mode for masonry drilling. Not all POWX0057 variants have this feature - confirm in your manual.

Where can I find spare parts?

Spare parts such as carbon brushes, chuck, and switches are available from PowerPlus service centers or authorized dealers. Use original parts for safety.

USER MANUAL POWX0057 PowerPlus

5.2 Electrical safety 4

5.3 Personal safety 5

5.4 Power tool use and care....5

5.5 Battery tool use and care....5

5.6 Service....6

6 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS 6

6.1 Batteries....6

6.2 Charger....6

7 OPERATION....7

7.1 Charging the battery pack (fig 2)....7

7.2 Installing and Removing a Bit and a Drill (fig 3)....8

7.3 Removal / insertion of battery (Fig. 4)....8

7.4 Switch (Fig. 5 & Fig. 6)....9

7.4.1 Rotation (right/left/lock)....9

7.4.2 Variable speed....9

7.5 Adjusting the torque....9

7.6 Speed selector (Fig. 7)....10

7.7 LED light....10

7.8 Magnetic Drill/Bit Holder and Bit Holder 11

7.9 To recharge the battery pack....11

7.10 Drilling....11

7.10.1 Drilling in wood 12

7.10.2 drilling in metal....12

8 CLEANING AND MAINTENANCE 12

POWERPLUS® HIGH QUALITY TOOLS

POWX0057 EN

9 TECHNICAL DETAILS....12

10 NOISE....12

11 WARRANTY....13

12 ENVIRONMENT 13

12.1 Battery pack....13

13 DECLARATION OF CONFORMITY 14

DRILL/SCREWDRIVER 18V 3 BATT POWX0057

1 APPLICATION

Your rechargeable drill/screwdriver has been designed for drilling in wood, metal and plastics and for screw driving applications. It is not designed for commercial use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG A)

1 Keyless chuck
2 Torque setting ring
3 Two-speed selector
4 LCD battery level display
5 Button of LCD battery level display
6 Direction of rotation selector
7 ON/OFF switch trigger
8 Soft grip
9 Hand strap
10 Release latch for battery pack
11 Battery pack
12 Magnetic drill/bit holder
13 LED work-light

3 PACKAGE CONTENT LIST

• Remove all packaging materials.
• Remove remaining packing and package inserts (if included).
• Check that the package contents are complete.
• Check the appliance, the power cord, the power plug and all accessories for transportation damage.
• Keep the packing materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING: Packaging materials are not toys! Children must not play with plastic bags! Danger of suffocation!

1x cordless drill 18V

1x 3-5h charger

3x batteries

1x Manual

6x bits

6x drills

1x magnetic bit holder

If any parts are missing or damaged, please contact your dealer.

4 SYMBOLS

	Denotes risk of personal injury or damage to the tool.		In accordance with essential requirements of the European directive(s)
	Read manual before use		"Class II - The machine is double insulated; Earthing wire is therefore not necessary (only for charger)
	Ambient temperature 40°C max. (only for battery)		Do not expose charger and battery pack to water
	Use battery and charger only in closed rooms		Do not incinerate battery pack or charger

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of an electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of an electric shock if your body is earthed.
• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of an electric shock.
• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.
• When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of an electric shock.
• If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of an electric shock.

5.3 Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.
• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.
• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.
• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.
• If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

• Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.
• Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

5.5 Battery tool use and care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  ■ Under abusive conditions, liquid may be ejected from the battery: avoid contact.

- If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

5.6 Service

- Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

6 ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS

6.1 Batteries

• Never attempt to open for any reason.
• Do not store in locations where the temperature may exceed 40 °C.
• Charge only at ambient temperatures between 4 °C and 40 °C.
• Charge only using the charger provided with the tool.

- When disposing of batteries, follow the instructions given in the section "Protecting the environment".

- Do not cause short circuits. If connection is made between the positive (+) and negative (-) terminal directly or via accidental contact with metallic objects, the battery is short circuited and an intense current will flow causing heat generation which may lead to casing rupture or fire.

- Do not heat. If batteries are heated to above 100 °C, sealing and insulating separators and other polymer components may be damaged resulting in electrolyte leakage and/or internal short circuiting leading to heat generation causing rupture or file. Moreover do not dispose of the batteries in fire, explosion and/or intense burning may result.

■ Under extreme conditions, battery leakage may occur. When you notice liquid on the battery, proceed as follows:

- Carefully wipe the liquid off using a cloth. Avoid skin contact.

- In case of skin or eye contact, follow the instructions below:

- Carefully wipe the liquid off using a cloth. Avoid skin contact. - In case of skin or eye contact, follow the instructions below:

- Immediately rinse with water. Neutralize with a mild acid such as lemon juice or vinegar.

- In case of eye contact, rinse abundantly with clean water for at least 10 minutes. Consult a physician.

Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery.

6.2 Charger

• Use the charger provided with the tool only to charge the battery
• Never attempt to charge non-rechargeable batteries.
• Have defective cords replaced immediately.
• Do not expose to water.
• Do not open the charger.
• Do not probe the charger.
  ■ The charger is intended for indoor use only.

7 OPERATION

7.1 Charging the battery pack (fig 2)

Fig. 2

The battery pack has been shipped in a low charge condition to prevent possible problem. You should charge them prior to use.

Note: Batteries will not reach full charge the first time they are charged. Allow several cycles (drilling followed by recharging) for the item to fully charge. The battery should only be used indoors.

The battery as supplied is not fully charged. Therefore, let the tool charge initially for 7 hours. After the initial Charge, under normal usage, your tool should be fully charged in 3 to 5 hours. The battery pack will become slightly warm to the touch while charging, this is normal and does not indicate a problem.

Do not place the charger in an area of extreme heat or cold, it will best at normal room temperature.

Charging indication:

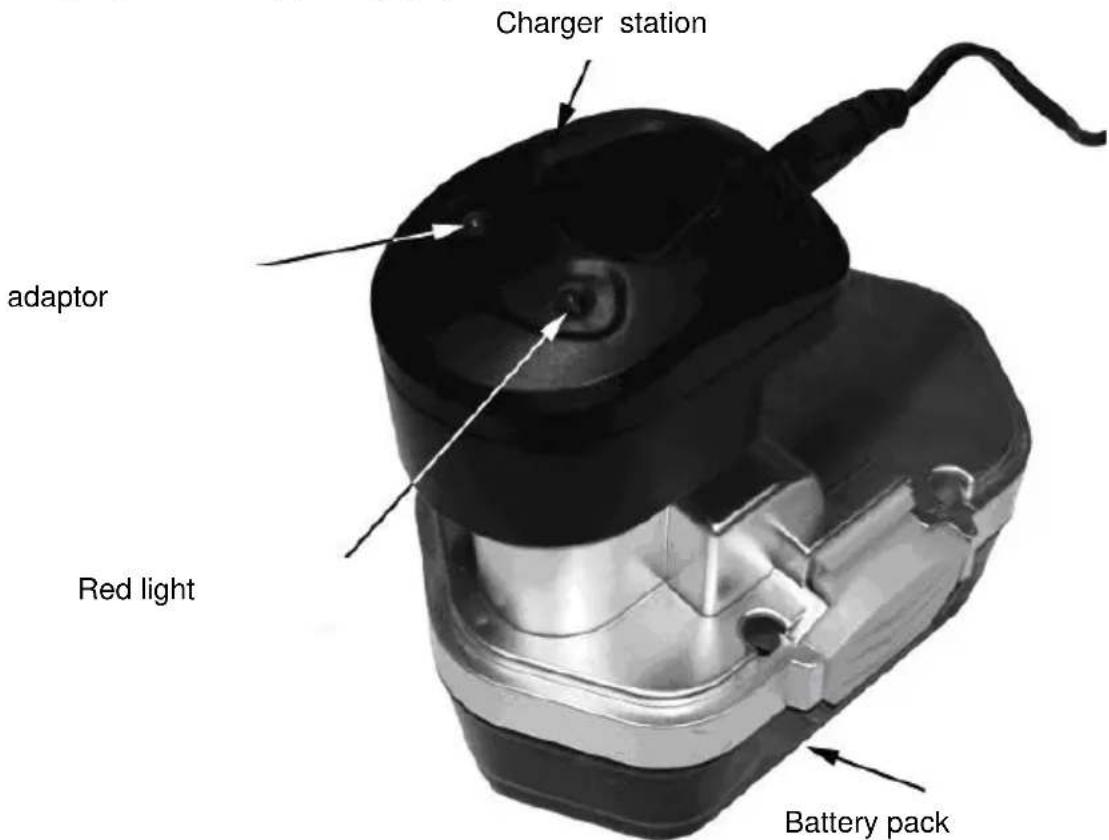

• When the charger station is plugged in the red LED turns on
• When the charger station is pushed on to the battery the green LED will also light.

7.2 Installing and Removing a Bit and a Drill (fig 3)

Fig. 3

This drill has a keyless chuck (1) to prevent the bit or drill from loosening.

1 Hold ring A of the drill chuck tight with one hand.
2 Turn upper ring B anticlockwise with the other hand until the drill chuck opening is large enough to accept the tool.
3 3 Insert the drill or the screwdriver bit into the drill chuck.
4 Turn ring B clockwise until the tool is clamped tightly.

Remove the tool in the opposite way.

7.3 Removal / insertion of battery (Fig. 4)

Mechanical assembly showing a foot pressing down on a device with a cable, no visible text or symbols

Fig. 4

WARNING: Before making any adjustments ensure the drill is switched off with the direction of rotation selector (6) in the center position.

1 Hold the drill with one hand and the battery pack (11) with the other.
2 To install: pull and slide battery pack into battery port, make sure the latch (10) on the both side of the battery snap into place and battery is secure before begging operation.
3 To remove: use your thumb and fingers, press the battery release latches in and pull the battery pack off at the same time.

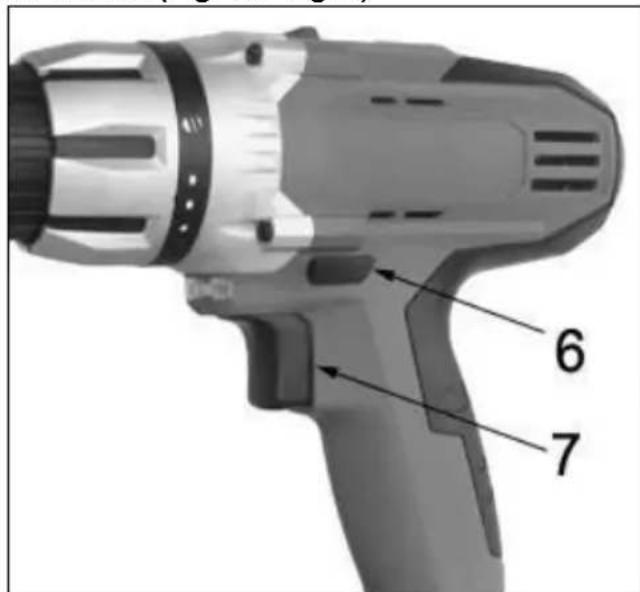

7.4 Switch (Fig. 5 & Fig. 6)

Fig. 5
Fig. 6

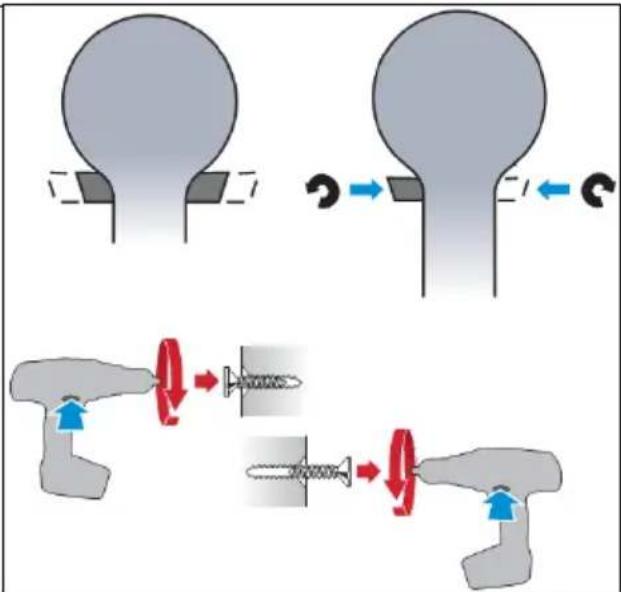

The drill is started and stopped by depressing and releasing the ON/OFF switch trigger (7). This cordless drill is equipped with an electric brake, when the ON/OFF switch trigger is released completely the chuck stops immediately.

7.4.1 Rotation (right/left/lock)

Direction of rotation is controlled by the direction of rotation selector (6) located above the switch trigger.

Right : To select forward rotation, release the on/off switch and push the forward/reverse lever to the left side of the tool.

Left: To select reverse rotation, push the lever to the right side of the tool.

Lock: When the selector is in the center position, the switch trigger is locked. (See Fig. 6)

This helps to reduce the possibility of accidental starting when not in use

7.4.2 Variable speed

This tool has a variable speed switch that delivers higher speed and torque with increased trigger pressure. The rotational speed is controlled by the amount of switch trigger depression.

7.5 Adjusting the torque

The torque is adjusted by rotating the torque setting ring (2); the torque is greater when the torque setting is set on a higher position. The torque is less when the torque setting ring is set on a low position. Position“1” denotes the lowest and “3” denote the highest.

The torque force is set by means of a torque setting according to the size of screw and the kind of material. Select the suitable torque for the job to be performed .. long screws and/or hard material require a higher torque setting.

7.6 Speed selector (Fig. 7)

Fig. 7

NOTE: the -mark is the "Low speed" position, the -mark is the "High speed" position (marks moulded in the button of two speed selector (3).)

The drill has a two-speed gear box designed for drilling at (LOW) or (HIGH) speed. The gear selector is located on top of the drill to select either low or high speed. When you push the button (5) forward and select low speed range, the speed will decrease but will provide more power and torque. When using the drill in the high speed range, the speed will increase but will provide less power and torque. Use the low speed for high power and torque applications and the high speed for fast drilling applications.

Important: NEVER adjust this two speed selector (3) while the drill is running. Always let it come to a complete stop.

7.7 LED light

Exterior view of a handheld electric drill with black handle and attached strap (no text or symbols visible)

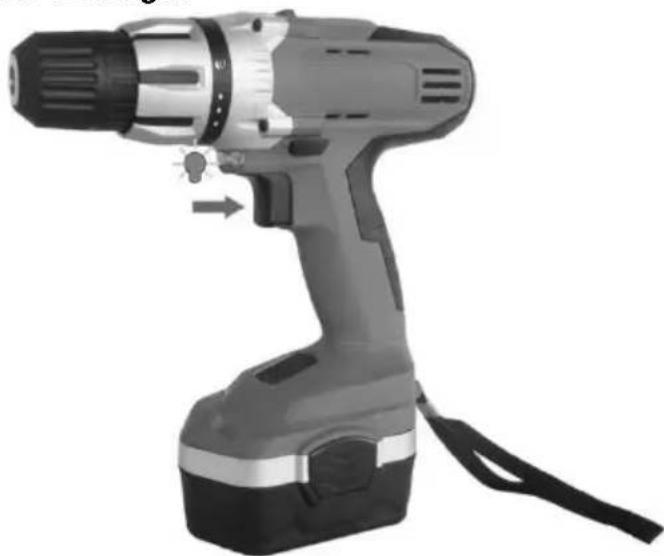

The LED work-light (13) can be lit prior to motor running. Press the on/off switch lightly, to keep the work area lighted. it also lights during operation.

WARNING:

Do not stare directly at the light beam. Never aim the beam at any person or an object other than the work piece. Do not deliberately aim the beam at personsl

Fig. 8

7.8 Magnetic Drill/Bit Holder and Bit Holder

Fig. 9

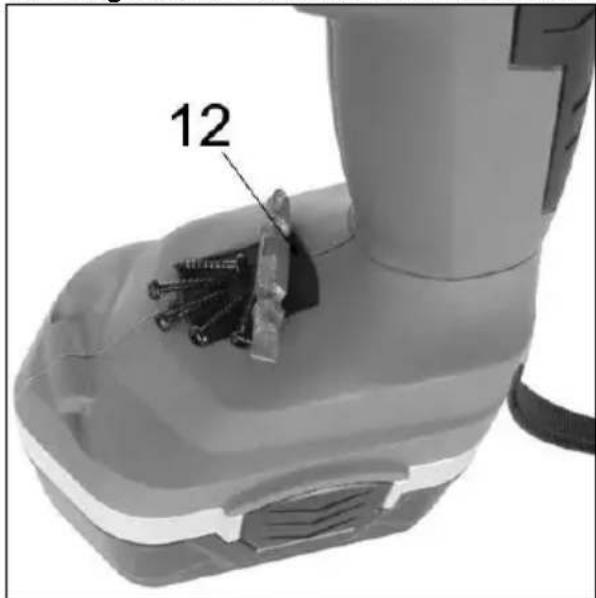

At the base of the cordless drill there is a magnetic drill/bit holder (12). It can be used to hold various drill/bits while completing a job.

7.9 To recharge the battery pack

Fig. 10

If you press the button for LCD battery capacity indicator (5) on the cordless drill, you can check the capacity status of the battery. Before use the machine, please press the button to check if the battery is full enough for properly working. The battery status display shows the capacity level of the battery. (%)

NOTE: Please charge the battery after each use, it is necessary to charge the battery once per month if the machine is not used. NI-CD : (POWX0057)

NOTE : before recharging, always make sure the battery is exhausted, just topping upthe charge affects the capacity of your Ni-Cd battery negatively (it will diminish).

7.10 Drilling

Before drilling, the torque setting should be set on the drill position "3".

When drilling hard smooth surface, use a center punch to mark the desired hole location. This will prevent the drill bit from slipping off center as the hole is started. Hold the tool firmly and place the tip of the drill or bit into the work piece, applying only enough pressure to keep the bit cutting. Do not force or apply side pressure to elongate a hole.

7.10.1 Drilling in wood

For maximum performance, use high speed steel (HSS° drills for wood drilling, turn the torque setting on the drill position). Begin drilling at a very low speed to prevent the bit from slipping off the starting point. Increase the speed as the drill bit bites into the material. When drilling through holes, place a block of wood behind the work piece to prevent ragged or edges on the back side of the hole.

7.10.2 drilling in metal

For maximum performance, use high speed steel (HSS) drill bits for metal or steel drilling.

Turn the torque setting on the drill position". Begin drilling at a very low speed to prevent the bit from slipping off the starting point. Maintain a speed and pressure which allows cutting without overheating the bit. Applying too much pressure will overheat the drill, wear the bearings, bend or burn bits, produce off-center or irregular shaped holes.

When drilling large holes in metal, it is recommended that you drill with a small bit at first, then finish with a large bit, also lubricate the bit with oil to improve drilling action and increase bit life.

8 CLEANING AND MAINTENANCE

Attention! Always remove the battery before cleaning.

- Remove dust and dirt with a cloth slightly dampened with detergent solution. In doing so, ensure that no water gets into the machine.

- Clean drillings and dust out of the chuck regularly.

- The cordless drill is permanently lubricated and does not require oiling.

9 TECHNICAL DETAILS

Model nr.	POWX0057
No-load speed	0-400 / 0-1100 min-1
Drill chuck capacity:	0.8 - 10mm
Torque setting:	20+1 positions
Left /right (clockwise/ counter-clockwise rotation)	yes
Battery	NI-CD
Voltage	18V
capacity	1200 mAh
charger	ERP
Charge time	3-5h

10 NOISE

Noise emission values measured according to relevant standard. (K=3)

Acoustic pressure level LpA	67 dB(A)
Acoustic power level LwA	78 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

aw (Vibration)

2.6 m/s²

K = 1,5 ~m / s^2

11 WARRANTY

- This product is warranted for a 36-month period effective from the date of purchase by the first user.

- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

- We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

- Repairs may only be carried out by an authorized customer service center for Powerplus tools.

- You can always obtain more information at the number 00 32 3 292 92 90.

- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

- Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

- Your purchase receipt must be kept as proof of date of purchase.

- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

- Your tool must be charged at least 1x per month to ensure optimal operation of this tool.

12 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way.

Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

12.1 Battery pack

This product contains nickel-cadmium. To preserve natural resources, please recycle or dispose of batteries properly. Local, state or federal laws may prohibit disposal of nickel-cadmium batteries in ordinary trash. Consult you local waste authority for information regarding available recycling and/or disposal options.

13 DECLARATION OF CONFORMITY

VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

Product: Cordless drill/screwdriver 18V

Trade mark: POWERplus

Model: POWX0057

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2004/108/EC

2006/42/EC

2011/65/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60745-1 : 2009

EN60745-2-1:2010

EN60745-2-2:2010

EN55014-1:2006

EN55014-2:1997

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Hugo Cuypers

Regulatory Affairs – Compliance Manager

15/10/2014
