Product type	Camcorder
Brand	T'nB
Model	SPCAMWIFI
Dimensions (L x H x D)	Approximately 12 x 6 x 4 cm
Weight	Approximately 200 g
Power supply	Rechargeable lithium-ion battery via USB
Video resolution	Full HD 1080p
Connectivity	Built-in WiFi for transfer and remote control
Storage	microSD card (up to 64 GB, not included)
Night vision	Yes, with infrared LED
Viewing angle	120 degrees
Main functions	Video recording, photo, motion detection, loop recording
Maintenance and cleaning	Clean with a soft, dry cloth. Avoid solvents.
Safety	Do not expose to humidity or extreme temperatures.
Spare parts and repairability	Battery and mounting bracket available online.
General information	User manual available for free download at notice-facile.com.

Frequently Asked Questions - SPCAMWIFI T'nB

How to charge the battery of the SPCAMWIFI camcorder?

Use the provided USB cable and plug it into a wall charger (5V/1A) or a computer. The LED indicator shows charging.

How to insert the SD memory card?

Open the side cover and insert the microSD card with the contacts facing up. Push until you hear a click.

How to connect the camcorder to WiFi?

Turn on the device, enable WiFi in the menu. Connect your smartphone to the camcorder's WiFi network, then open the dedicated app.

How to record a video?

Press the record button (usually marked with a red circle). A second press stops recording.

How to take a photo?

Press the dedicated photo button (often marked with a camera icon). The photo is saved on the SD card.

How to format the microSD card?

Go to the settings menu, select 'Format' and confirm. Warning: this erases all data.

What to do if the image is blurry?

Check that the lens is clean. Adjust focus by turning the lens ring if available.

How to reset the camcorder to factory settings?

In the menu, select 'Reset' or 'Default settings'. Confirm with the OK button.

What is the battery life?

Approximately 1 to 2 hours of continuous recording in Full HD. Use an external battery to extend battery life.

How to transfer files to a computer?

Remove the microSD card and insert it into a card reader, or connect the camcorder to the computer via USB in storage mode.

USER MANUAL SPCAMWIFI T'nB

Color palette bar with grayscale gradient from black to yellow (no text or symbols)

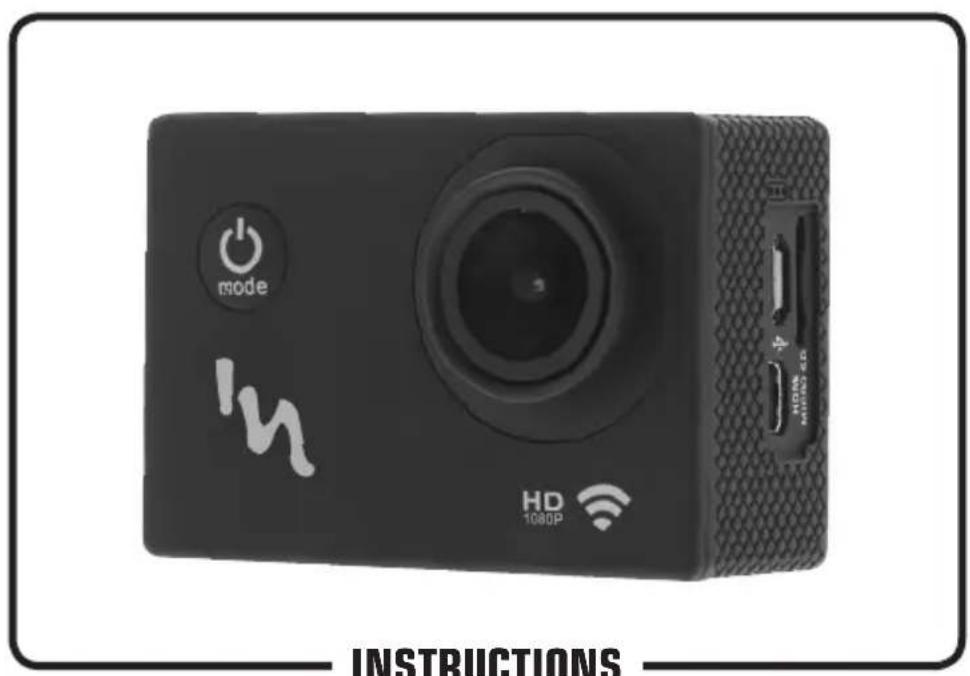

CAMERA SPORT WIFI

MODE D'EMPLOI

SPCAMWIFI

EN

Congratulations on your purchase and thank you for the confidence you have shown in T'nB. Our products comply with the regulations and standards currently in force. Before using this device we recommend that you read the instructions and safety advice carefully and retain this manual.

FR

• The power supply used with your device must correspond to its original requirements.
- Never use your device in the rain, in a wet environment or close to sources of water without its waterproof ca. - Never place an inflammable object, explosive substance or dangerous object close to your device.
- Only use the accessories and connectors supplied. The use of any other type of accessory not specifically designed for the purpose may cause irreparable damage to your device.
- Only use and keep your device in an environment where the temperature is between 0°C and 35°C.
- Keep your device out of the reach of children.
- Do not dismantle your device or try to repair it yourself - Do not use your device if it has been subject to impact or damage.
• To avoid any risk of electrification, unplug your device from the main power supply.

FR - CONSIGNES DE SÉCURITÉ IMPORTANTES

SR - (RS BA HR ME) - VAŽNE MERE BEZBEDNOSTI

- Napajanje aparata mora ogovarati originalnim predviđenim karakteristikama.

- Nikad ne korislite aparat na kiši, u vlažnim prostorima ili u blizini izvora vode bez vodonepropusne navlake.

- Ne ostavljajte zapaljive predmete, eksplozivne supstance ni opasne predmete u blizini aparata.

Color palette bar with grayscale gradient from black to white (no text or symbols)

FR

Diagram showing mechanical components and a camera body assembly (no text or labels)

7

Color palette bar with grayscale gradient from black to white (no text or symbols)

Color palette bar with grayscale gradient from black to white (no text or symbols)

Color palette bar with grayscale gradient from black to white (no text or symbols)

Color palette bar with grayscale gradient from black to white (no text or symbols)

FR

MODE LECTURE

Color palette bar with grayscale gradient from black to white (no text or symbols)

Principes de base

FR

MARCHE ET ARRÊT

Color palette bar with grayscale gradient from black to white (no text or symbols)

Principes de base

VUE D'ENSEMBLE

Color palette bar with grayscale gradient from black to white (no text or symbols)

Mode VIDEO

VIDÉO

Computer monitor interface with icons for zoom, lock, and drive buttons (no readable text or symbols)

Color palette bar with grayscale gradient from black to white (no text or symbols)

Mode configuration (Setup)

SETUP

Activation Mode WIFI

WIFI

FR

WIFI

Activer le WIFI :

Black rectangular device with a photo of a person sitting on a bench, no visible text or symbols

Specifications

Tubular camera mount for bicycle

Vertical surface buckle mount

Buckle

Mounting frame

Tripod mount

Universal screw adapter

Flat adhesive mounts

Straps

Mounting system

Self-adhesive 3M®

Cable

Mounting system

Clamps Microfibre

cloth

USB cable

Color palette bar with grayscale gradient from black to white (no text or symbols)

EN

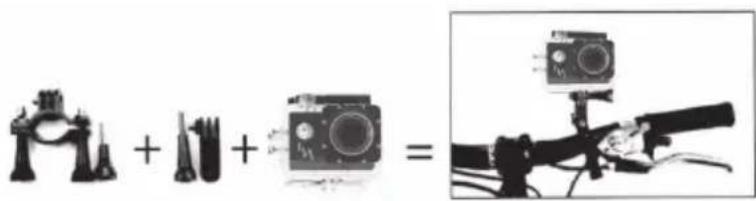

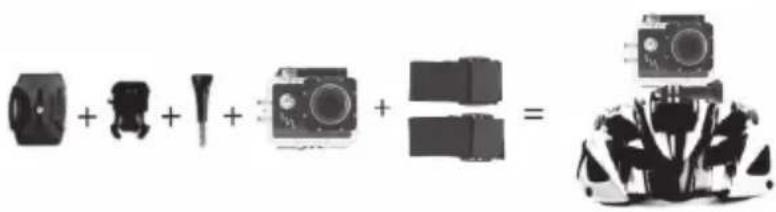

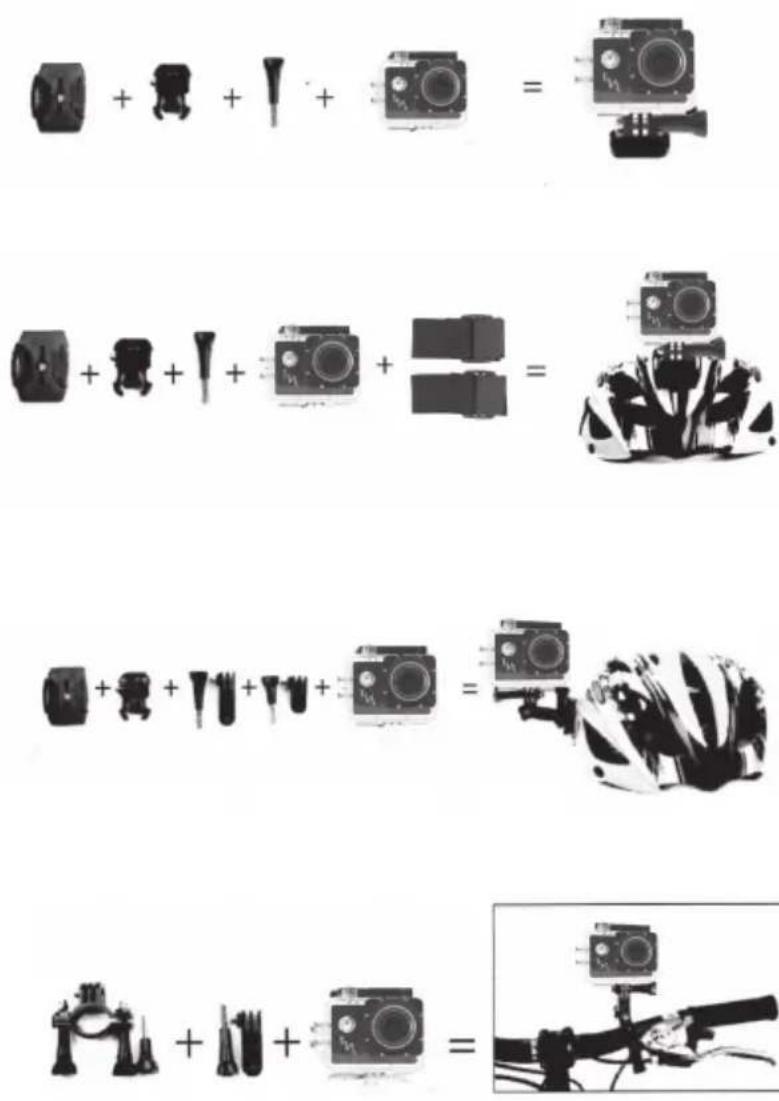

Examples

Diagram showing mechanical components and a camera body assembly (no text or labels)

25

Color palette bar with grayscale gradient from black to white (no text or symbols)

Features of the Camera (front)

1 - Record button / OK button
2 - Functioning indicator light
3 - On / off button / Mode selector dial
4 - Lens
5 - Battery

6 - Micro HDMI port
7 - Memory card slot
8 - Micro USB port
9 - Microphone

26

Color palette bar with grayscale gradient from black to white (no text or symbols)

Features of the Camera (back)

EN

10 - Battery indicator light
11 - Functioning indicator light
12 - Screen

13 - Top / Wi-Fi
14 - Loudspeaker
15 - Bottom

27

Color palette bar with grayscale gradient from black to white (no text or symbols)

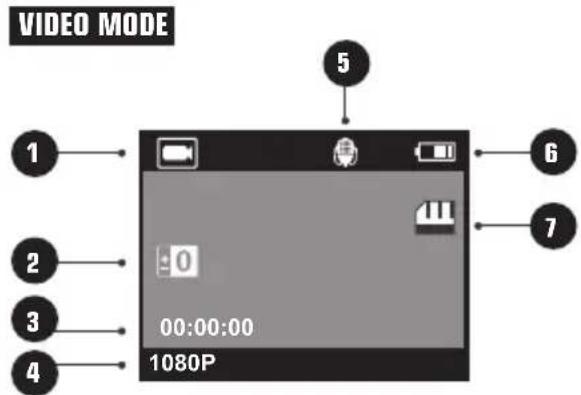

LCD status screen of the camera

The LCD displays the following information regarding the modes and settings:

1- Camera mode
2- Exposure
3- Remaining recording capacity
4- Resolution in thousands of pixels
5- Microphone
6- Battery status
7- Micro SD Card OK

PHOTO MODE

1- Photo Mode
2- Exposure
3- Remaining capacity of shot
4- Resolution in thousands of pixels
5- Stabilizer
6- White balance
7- ISO standard
8- Quality
9- Battery status
10- Micro SD Card OK

28

PLAYBACK MODE

1- Video playback mode
2- Duration of the video sequence
3- Video sequence number
4- Date of the video sequence
5- Time of the video sequence

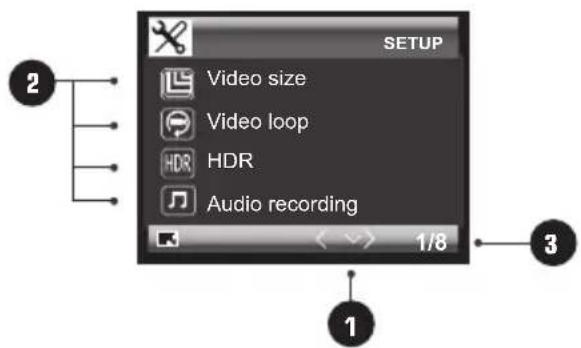

SETUP MODE

1- List of settings
2- Different settings
3- Indication of the settings page

How to scroll?

With buttons 13 and 14

How to validate?

With the «OK» button

How to return to the previous menu?

«MENU» button

29

Basic principles

TO START

Before using your Camera « Adrenalin » for the first time :

Insert a microSD, microSDHC™ or microSDKC™ card into the slot of the card with the label facing the front. We recommend using the card of Class 10 or higher speed.

Charge the battery. The lithium-ion battery comes partially charged.

To charge it, connect the USB cable that is provided for this purpose to the camera and the other end of the cable to a power supply such as a computer or a USB charger.

To maximise your battery life, operate a full charge before the first use.

To charge the battery :

1. Connect the camera to a computer or a source of USB power supply by using 1 micro USB / USB cable.
2. The red battery indicator light stays on when the battery is charging.
3. The battery indicator light turns off when the battery is fully charged.

Color palette bar with grayscale gradient from black to white (no text or symbols)

Basic principles

EN

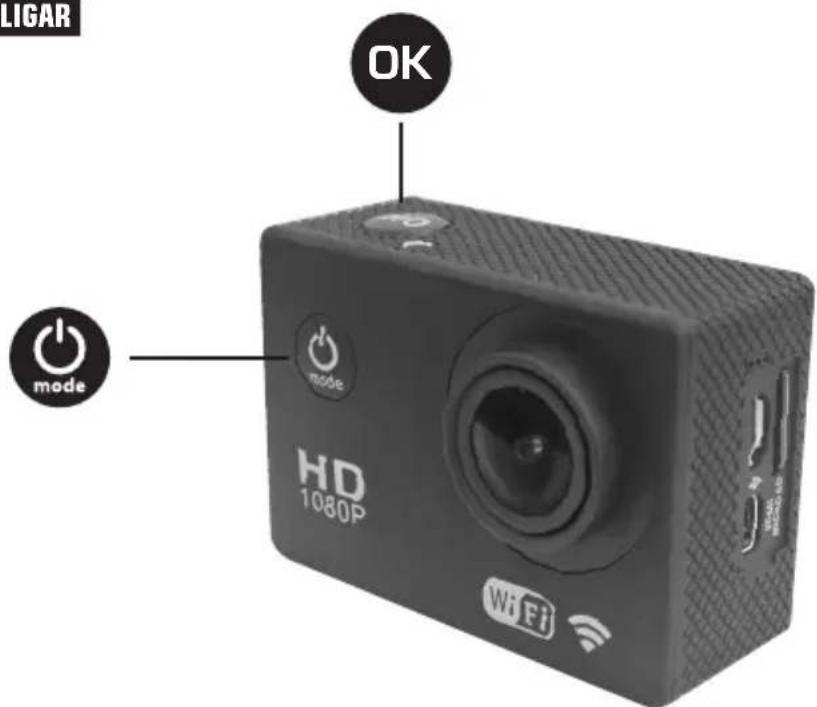

ON AND OFF

To turn on the device :

Press 🎨 and release the pressure. A home screen lights up, accompanied by an audible indicator.

To turn off the device :

Press two seconds and release the pressure. The home screen is turned off, accompanied by an audible indicator.

31

Color palette bar with grayscale gradient from black to white (no text or symbols)

Basic principles

OVERVIEW

Your camera « Adrenalin » offers several features.

To switch from one mode to another, short press on

The modes are in the following order :


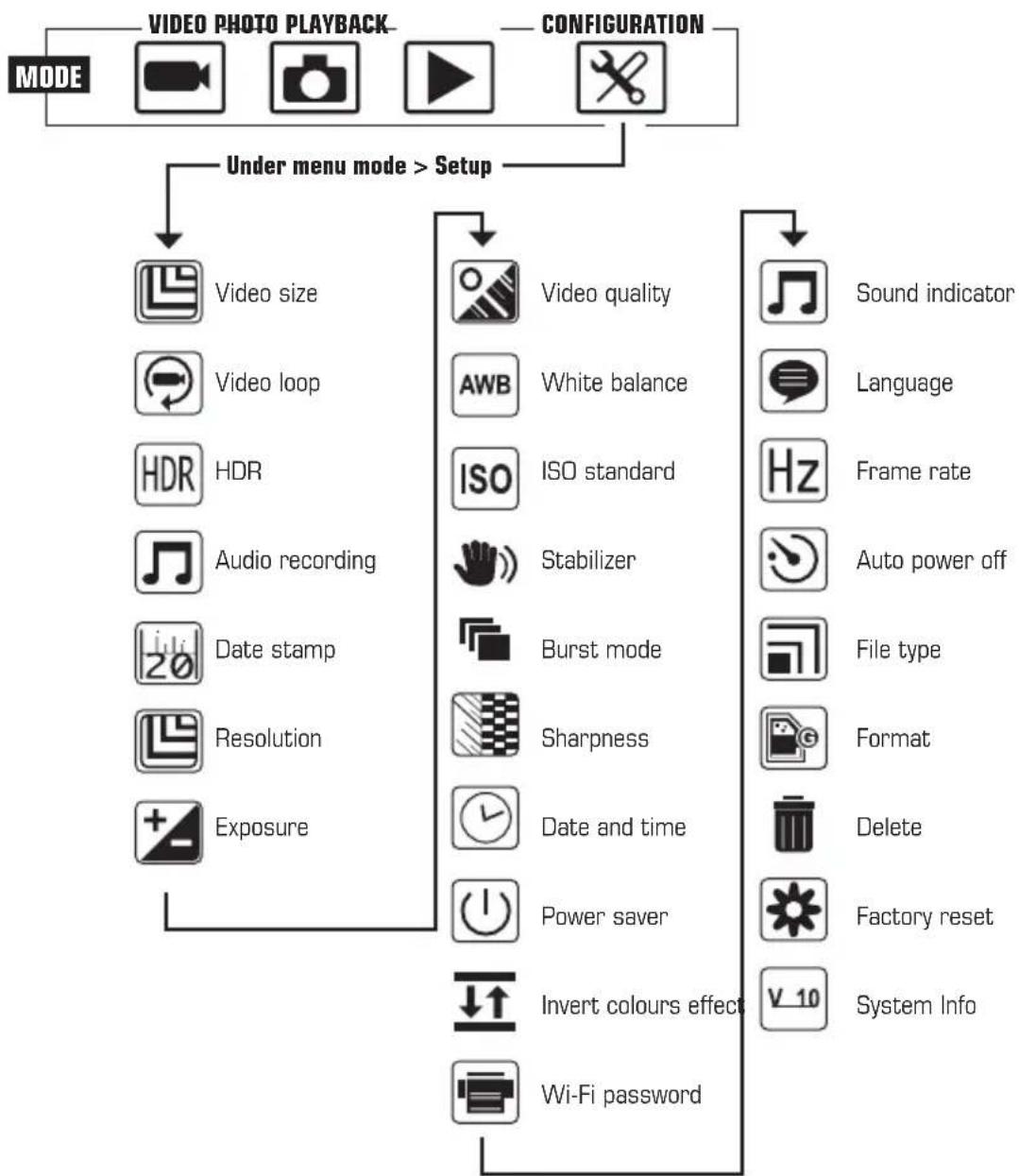

Camera user interface diagram

EN

33

Color palette bar with grayscale gradient from black to white (no text or symbols)

VIDEO mode

VIDEO

To record a video, make sure that the camera is in video mode.

If the Video icon is not displayed on the LCD screen of your camera, press multiple times until it appears.

To start recording :

Press OKd release the pressure. The camera emits a beep and the red and green status indicator lights blink during the recording, a red dot also appears on the LCD screen.

To stop recording :

Press CK'd release the pressure. The camera emits a beep and the red and green status indicator lights stay on, but do not blink, the recording is then interrupted.

VIDEO mode display
Without recording (no red dot)

VIDEO mode display
During recording
(appearance of a blinking red dot)

Gray rectangular area with icons and symbols, no readable text or labels

You can modify the size of the display format

Setup > Film size > 1080p or 720p

Film size
Full HD - 1080p

Film size
HD - 720p

Your camera is equipped with a high resolution mode «HDR»

Setup > HDR

Activated «HDR» mode

35

Color palette bar with grayscale gradient from black to white (no text or symbols)

Shot Mode (Photo)


To take a Photo, make sure that the camera is in Photo mode. If the Photo icon is not displayed on the LCD screen of your camera, press multiple times until it appears.

To take a photo :

Press 📊d release the pressure. The camera emits a beep, the red status indicator light blinks for each captured shot.

Select the resolution of your photos :

Your camera can take some shots with resolution up to 5 Megapixels. You have the choice of four possible types of resolution (Setup > Resolution).

Indicator of the chosen resolution

Take several photos at once :

In «Burst» mode, your camera takes several photos in a single click. To take a burst of photos, make sure that the camera is in «Burst» mode (Setup > Burst). You just have to select the number of shot that you want for a single click: 3, 5 or 10 photos.

Activated «Photo burst»

36

Playback mode

EN

PLAYBACK

To view the videos and photos, make sure that the camera is in Playback mode.

If the Playback icon ▶ is not displayed on the LCD screen of your camera, press multiples times until it appears.

To read a sequence :

Press OKd release the pressure. The camera will start the playback of the selected file

During the playback of a sequence, you can accelerate the reading, go back, pause or stop.

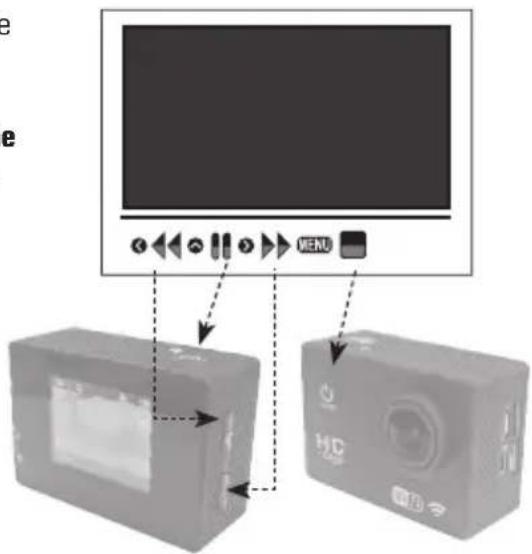

The opposite diagram shows you the connections of the buttons to be activated for the choice of your actions.

(P.S: The CkCutton has the double function «Playback» and «Pause»)

Playback on an HDMI screen

Connect the micro HDMI cable / HDMI to the screen
The camera screen turns off
The playback control of the external display will be on the camera

Color palette bar with grayscale gradient from black to white (no text or symbols)

Configuration mode (Setup)

SETUP

To access the list of the different possible configuration options, press multiple times until the settings page appears.

Scroll through the options, select, and activate the ones that you want.

Date stamp

Resolution

Exposure

If you want to exit the configuration menu, press on the 🔊 button.

38

Wi-Fi Mode Activation

WIFI

EN

Wi-Fi

Enable the Wi-Fi :

1 - Put your camera in Video mode
2 - Press the Wi-Fi button , on the side of your camera
3 - The display will show : «waiting for Wi-Fi connecting» the device is waiting for a Wi-Fi signal.
The LED status indicator light blinks blue.

Direct activation of Wi-Fi mode

Black rectangular device with a photo frame showing two people in a park setting (no visible text or symbols)

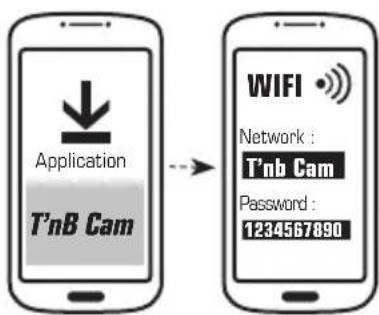

.. Then, to connect your smartphone :

4 - Enable the Wi-Fi function of your smartphone or tablet
5 - Download application «T'nB Cam» for Android or iPhone.
6 - Open the Wi-Fi preferences of your smartphone, select the signal with name : «T'nB Cam».
7 - Type the password «1234567890» to connect. When the connection is established the blue LED status indicator light stays on without blinking and the screen of the camera turns off.

Bravo, you are connected to Wi-Fi at your camera.

From the application, you can now remotely control your camera and watch live videos and photos!

Caution: the Wi-Fi function consumes more battery.

Note: It is possible to connect to the camera, only one device at a time.

Specifications

LCD Screen
Lens	ins 6 elements / Wide angle 170°
Languages	, Portuguese
Video Resolutions	080) 30FPS720P (1280*720) 30FPS
Video Format
Video compression format
Resolution of Photos
Memory	B (not included)
Photo modes	/ self-timer / burst
Frame frequency
USB interface
Power supply
Battery capacity
Recording time	r and 30 minutes
Charging time	minutes
Operating System	ta or Above/Win7/Mac OS
Dimension of the camera	59.27*41.13*29.28

Note : the specifications are subject to change as part of product improvement.

Notice to users:

The device delivers exceptional images and videos. Therefore, only the micro SD cards of minimum class 10 are accepted by the device

Prevention of damage due to the water in your camera

The rubber seal that covers the inside of the housing forms a waterproof barrier that protects your sport camera in wet conditions and under the water. Make sure that the rubber seal remains clean. A single hair or a grain of sand can cause a leak. After each use in the salt water, you must rinse the outside of the housing with some fresh water and dry it. Otherwise, the pivot may rust and the salt accumulates in the seal, which can cause some failures. To clean the seal, rinse it in the fresh water and shake it dry (wiping with a cloth may leave fluff and compromise the seal). Reinstall the seal into the slot of the back door of the housing.

CAUTION: If you do not follow these precautions whenever you use your sport camera, the leaks can damage or destroy your camera. The warranty does not cover the damage caused by user error.

Accesorios

Caja hermética Fi

tubular para bicicleta

Soporte vertical

Soporte

Cuadro de soporte

Color palette bar with grayscale gradient from black to white (no text or symbols)

ES

Ejemplos

43

Color palette bar with grayscale gradient from black to white (no text or symbols)

Color palette bar with grayscale gradient from black to white (no text or symbols)

Color palette bar with grayscale gradient from black to white (no text or symbols)

Color palette bar with grayscale gradient from black to yellow (no text or symbols)

Principios básicos

ES

ENCENDIDO Y APAGADO

Señal sonora

Idioma

Color palette bar with grayscale gradient from black to white (no text or symbols)

Modo VÍDEO

VÍDEO

Computer screen interface with icons and a numeric display (no readable text or symbols)

53

Color palette bar with grayscale gradient from black to white (no text or symbols)

Black rectangular device with a photo of a person sitting on a bench, no visible text or symbols

Especificaciones

Color palette bar with grayscale gradient from black to white (no text or symbols)

PT

Exemplos

61

Color palette bar with grayscale gradient from black to white (no text or symbols)

Color palette bar with grayscale gradient from black to white (no text or symbols)

Color palette bar with grayscale gradient from black to white (no text or symbols)

Color palette bar with grayscale gradient from black to yellow (no text or symbols)

Principios básicos

PT

LIGAR E DESLIGAR

Color palette bar with grayscale gradient from black to white (no text or symbols)

Principios básicos

VISTA DO CONJUNTO

Color palette bar with grayscale gradient from black to white (no text or symbols)

Modo de VÍDEO

VÍDEO

Gray rectangular interface with icons and a numeric display (no readable text or symbols)

Computer screen interface with icons and a numeric display (no readable text or symbols)

Color palette bar with grayscale gradient from black to white (no text or symbols)

Black rectangular device with a photo of a person sitting on a bench, no visible text or symbols

ENGLISH: This symbol indicates that this product conforms to RoHS specifications, which restricts the level of substances known to be dangerous and harmful to the environment, in all electrical and electronic devices.

Exclusive: WARNING: You should not dispose of this device with your household waste. A system of selective collection has been set up by the local authorities for this type of product and you should find out where such sites are located from your city/town hall. In effect, electric and electronic products may contain dangerous substances that have harmful effects on the environment or human health and must be recycled. The symbol oppos/e indicates that electrical and electronic equipment is subject to selective collection; it shows a waste bin on wheels with a cross through it.

Customer satisfaction is important to us. You may contact us at [e-mail]. Maintenance, repair or product information, consult our website: www.t-nb.com.

FR - BESOIN D'AIDE ?

SV - I BEHOV AV HJÄLP ?

ENGLISH - We hereby declare that this T'nB product meets the essential requirements and other relevant provisions of European Directive 1999/5/EC. The Declaration of Conformity can be found on our website: www.t-nb.com.

Color palette bar with grayscale gradient and a central crosshair symbol (no text or labels)

RoHS LSDEEE
