| Product Type | DVI KVM Extender over LAN |
| Brand | Gefen |
| Model | EXT-DVIKVM-LANTX |
| Video Input | 1x DVI-D Single Link |
| Video Output | 1x DVI-D Single Link |
| Max Video Resolution | 1920x1200 @ 60Hz |
| Max Distance over Cat6 | 330 feet (100 meters) |
| USB Extension | 2x USB 2.0 ports for keyboard/mouse |
| Transmission Medium | Cat5e/6 Ethernet cable |
| Power Supply | External 5V DC adapter (included) |
| Dimensions (each unit) | 4.3 x 2.4 x 1.0 inches (110 x 62 x 25 mm) |
| Weight (each unit) | 0.5 lbs (230 g) |
| Operating Temperature | 32-104 °F (0-40 °C) |
| Storage Temperature | -4-140 °F (-20-60 °C) |
| Humidity | 20-80% RH non-condensing |
| Compliance | CE, FCC, RoHS |
| Included Accessories | Two units (transmitter & receiver), power adapters, DVI & USB cables, manual |
| Maintenance | Wipe with dry cloth; no liquid cleaners |
| Safety | Use only supplied power adapter; keep away from water |
| Repairability | No user-serviceable parts; contact Gefen support |
Frequently Asked Questions - EXT-DVIKVM-LANTX Gefen
User questions about EXT-DVIKVM-LANTX Gefen
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Audio/video extension in PDF format for free! Find your manual EXT-DVIKVM-LANTX - Gefen and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EXT-DVIKVM-LANTX by Gefen.
USER MANUAL EXT-DVIKVM-LANTX Gefen
EXT-DVIKA-LANS-TX / EXT-DVIKA-LANS-RX
EXT-VGAKA-LANS-TX / EXT-VGAKA-LANS-RX


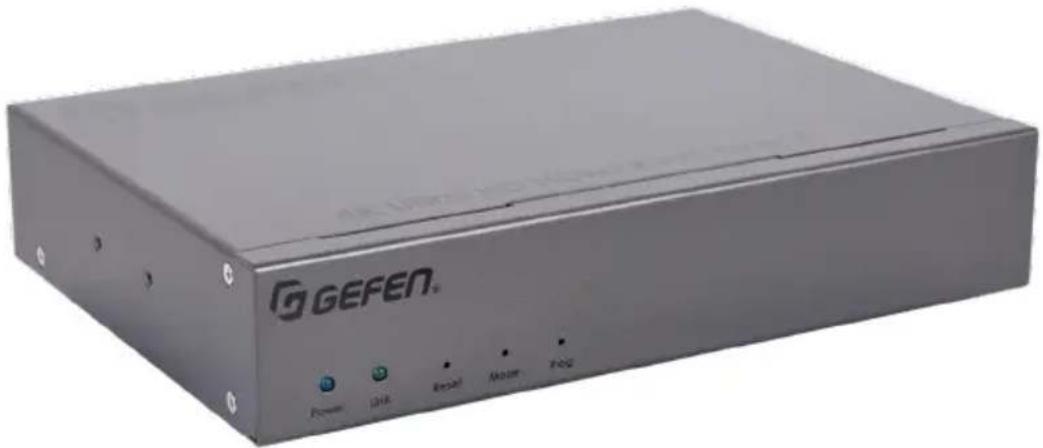

Exterior view of a GE FEN device with ports and indicator lights (no readable text beyond branding)
User Manual
Version A3
Important Safety Instructions
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this product near water.
-
Clean only with a dry cloth.
-
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
-
Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
-
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
-
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
-
Only use attachments/accessories specified by the manufacturer.
-
To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. Do not expose this product to rain or moisture.
-
Unplug this apparatus during lightning storms or when unused for long periods of time.
-
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
Batteries that may be included with this product and/or accessories should never be exposed to open flame or excessive heat. Always dispose of used batteries according to the instructions.
Warranty Information
For the latest warranty coverage information, refer to the Warranty and Return Policy under the Connect section of the Gefen website at http://www.gefen.com/connect/warranty-and-return-policy
Technical Support
1-707-283-5900
1-800-472-5555
8:00 AM to 5:00 PM Monday - Friday, Pacific Time
support@gefen.com
Web
http://www.gefen.com
Mailing Address
Gefen
Nortek Security & Control, LLC
c/o Customer Service
1800 S McDowell Blvd
Petaluma, CA 94954 USA
© 2018 Nortek Security & Control, LLC. All Rights Reserved.
All trademarks are the property of their respective owners.
Gefen and Nortek Security & Control, LLC reserve the right to make changes in the hardware, packaging, and any accompanying documentation without prior notice.
Important
- When connecting through a Local Area Network, a managed gigabit switch is required. Jumbo Frame Support (8k or greater) and IGMP Snooping must be enabled.
- A dedicated LAN is not required but highly recommended.
- Only the HDMI and DisplayPort™ Inputs and Outputs will pass content from HDCP-encoded sources such as Blu-ray players and PlayStation® console systems. Other formats do not support HDCP content. If HDCP encrypted content is being passed, the output will not be active.
- We recommend that Sender and Receiver are first connected directly and functionality/performance is fully verified before integrating them into a Local Area Network.
· Always make sure that all units within a system are running the latest - This product has been specifically designed for use with the Gefen Syner-G™ Software Suite, available for download at www.gefen.com. The Gefen Syner-G™ Discovery and Show-Me features simplify initial IP configuration.
- Gefen highly recommends the Gefen EXT-CU-LAN Matrix Controller for setting up and controlling the operation of an AV-over-IP network using these products. Alternatively, the Syner-G™ software can be used for IP configuration and firmware updates.
- Shielded CAT-5e (or better) cables used between the Sender and the Receiver unit or between each unit and the IP switch, should not exceed 330 feet (100 meters).
- By default, all Sender and Receiver units are set to channel 0.
- The HDMI inputs and outputs on these products also support Single-Link DVI and its standard VESA resolutions. Dual-Link DVI is not supported.
- By default, each device is setup in unicast mode and the source device will use the EDID from the display (or other sink device) which is connected to the Receiver unit.
If terminating network cables in the field, please adhere to the TIA/EIA568B specification. See the Network Cable Diagram (page 175) for details.
Supported USB Devices
▶ HID-class devices: keyboard, mouse, joystick, and touch panels.
▶ Bulk-only storage devices: USB flash drive, most storage devices, DVD-ROM, card readers, and printers.
- Known supported devices
▶ USB to RS-232 adapter.
▶ Mobile devices: Android, iOS mobile devices.
Connectivity devices: infrared remote controller, Bluetooth dongle.
▶ Security devices: Key dongle, security card reader.
▶ Full-speed USB audio devices.
- Known Limits:
▶ High-speed isochronous devices, such as webcams are NOT supported.
Licensing
This product uses software that is subject to open source licenses, including one or more of the General Public License Version 2 and Version 2.1, Lesser General Public License Version 2.1 and Version 3, BSD, and BSD-style licenses. Distribution and use of this product is subject to the license terms and limitations of liability provided in those licenses. Specific license terms and Copyright Notifications are provided in the source code.
For three years from date of activation of this product, any party may request, and we will supply, for software covered by an applicable license (e.g. GPL or LGPL), a complete machine-readable copy of the corresponding open source code on a medium customarily used for software interchange. The following software and libraries are included with this product and subject to their respective open source licenses:
· jQuery
- Linux
Features
- Extends video, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
- Independent video, USB, RS-232, IR, and audio routing**
- Backward-compatible with first generation Gefen AV over IP products
HDMI and DisplayPort™ products support input resolutions up to 4K 60Hz 4:2:0 and output resolutions up to 4K 30Hz 4:4:4 - DVI and VGA products support input and output resolutions up to 1080p Full HD and 1920x1200 (WUXGA)
- Video output on Sender unit for local monitoring of the source (except DisplayPort™)
- KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations
- Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
- Built-in video wall controller accommodates any number of rows and columns up to 16x16
Built-in Audio De-Embedder on HDMI and DisplayPort™ Receivers breaks out 2 channel analog, 2 channel PCM, and up to 5.1 channels of Bitstream audio from the HDMI signal, allowing the audio content to be sent to external amplifiers and music distribution systems for added impact - MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
- Enhanced API for added functionality with third-party control systems
• Built-in web interface, Telnet, and UDP - Compatible with the Gefen Keyboard Switching Controller software, available for download at www.gefen.com
• Supports 39,900 Senders and a combination of over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch - Two USB 2.0 ports with data rates up to 480 Mbps and backward-compatibility with USB 1.1
- Two USB 1.1 ports with KM Emulation, for use with Human Interface Devices (H.I.D.)
- 802.3af standard Power-over-Ethernet allows the new Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies
- Two-port Gigabit Ethernet switch built into the Receiver unit
* Features and specifications are subject to change without notice.
** Pending features to be activated via an upcoming firmware update.
* Features and specifications are subject to change without notice. ** Pending features to be activated via an upcoming firmware update.
All trademarks and registered trademarks are properties of their respective owners.
- Mode switch on Sender for sharpness or motion-optimization of image
Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface - Locking power supply connectors
- Half-rack width Sender and Receiver enclosures are rack-mountable using EXT-RACK-1U-GRY
- Sender and Receiver can also be surface-mounted using the included L-brackets
- Low profile Receiver enclosure features an IR Extender port and can be hidden away behind the display
* Features and specifications are subject to change without notice.
** Pending features to be activated via an upcoming firmware update.
All trademarks and registered trademarks are properties of their respective owners.
Packing List - Sender Unit
The following items are included in the Sender Unit package. If any of these items are not present in the box when you first open it, please contact Gefen Technical Support as soon as possible.
(1) Sender unit
(1) 5V 2.6A Power Supply
(4) Self-Adhesive Rubber-Feet
(2) L-Shaped Mounting Brackets
(4) Machine screws for L-Shaped Mounting Brackets
(2) Machine screws for EXT-RACK-1U-GRY (sold separately)
(1) Quick-Start Guide
Packing List - Receiver Unit
The following items are included in the Receiver Unit. If any of these items are not present in the box when you first open it, please contact Gefen Technical Support as soon as possible.
(1) Receiver unit
(1) 5V 4A Power Supply
(1) AC Power Cord
(4) Self-Adhesive Rubber-Feet
(2) L-Shaped Mounting Brackets
(4) Machine screws for L-Shaped Mounting Brackets
(2) Machine screws for EXT-RACK-1U-GRY (sold separately)
(1) Quick-Start Guide
Table of Contents
Introduction......11
Sender Unit....11
Receiver Unit 14
Installation....17
Local Area Network (LAN) Connection 17
Using a Direct Connection 22
Supplementary Connections....24

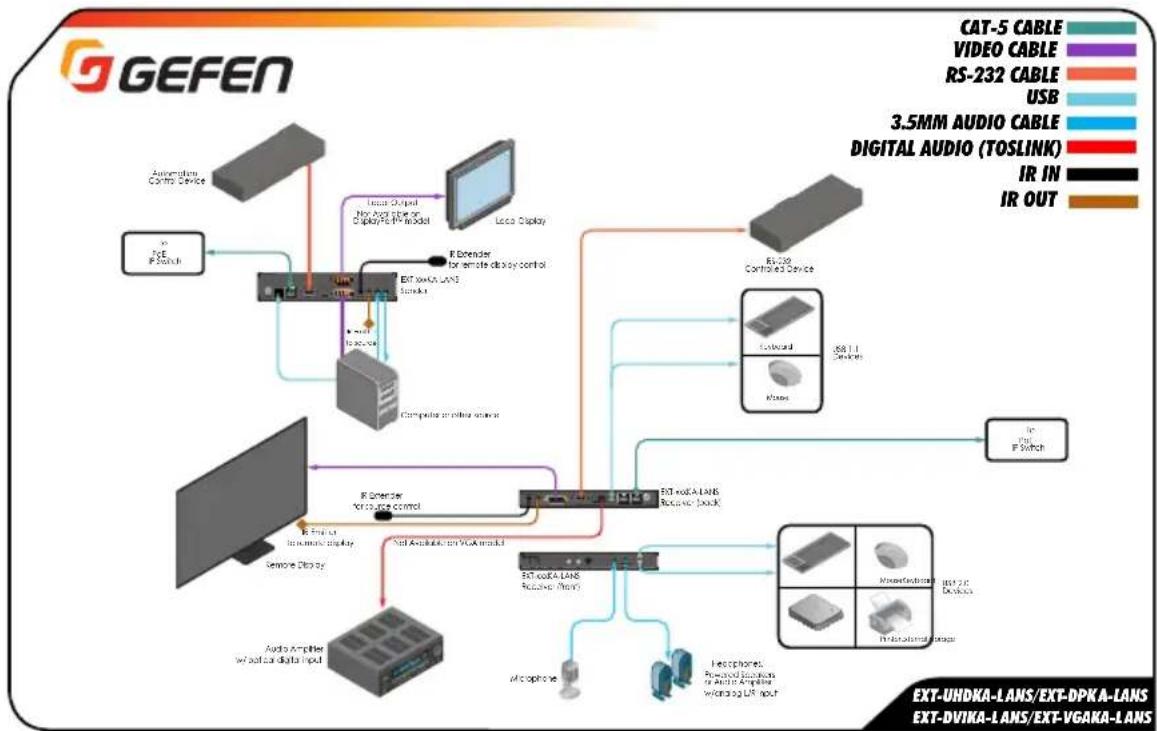

Sample Wiring Diagram....25
LED Status....26
Link....26
Power....26

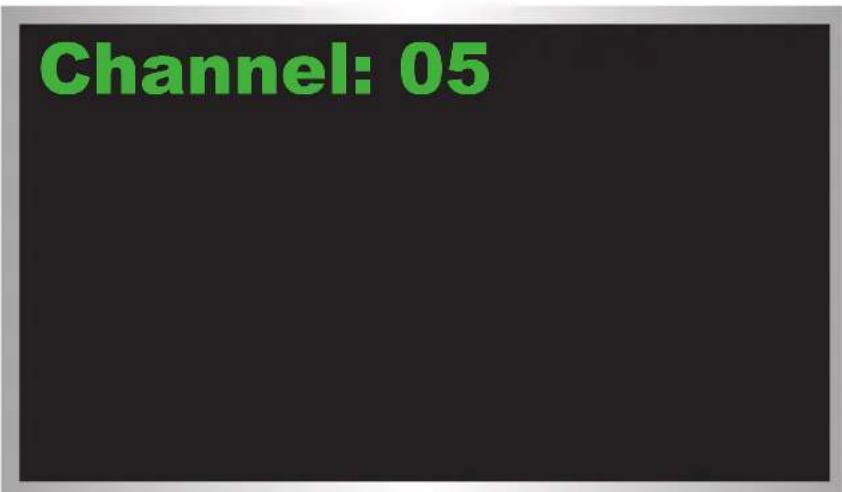

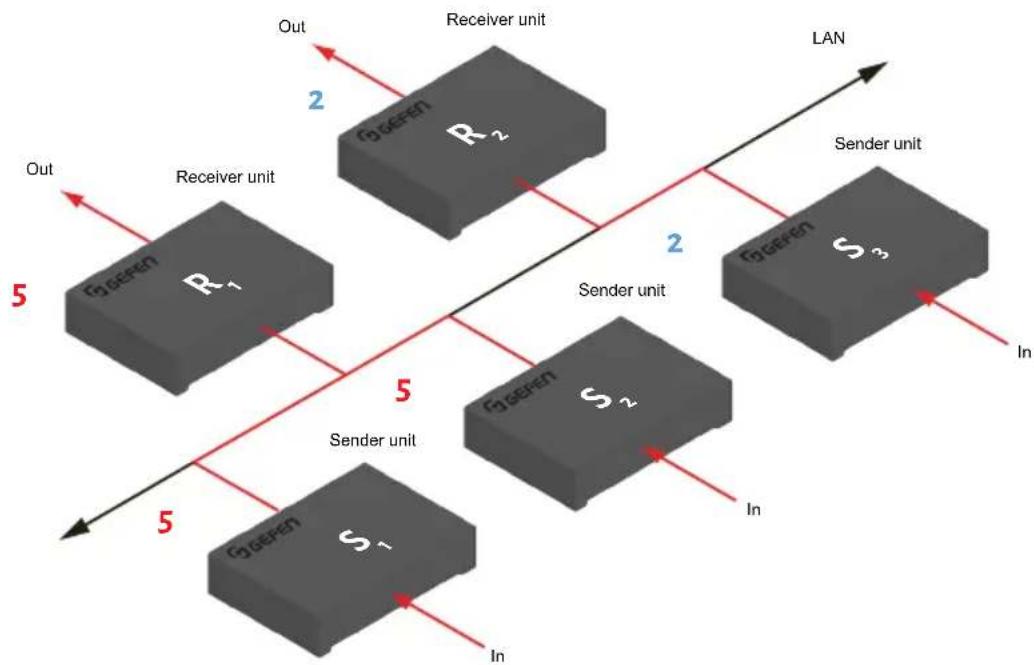

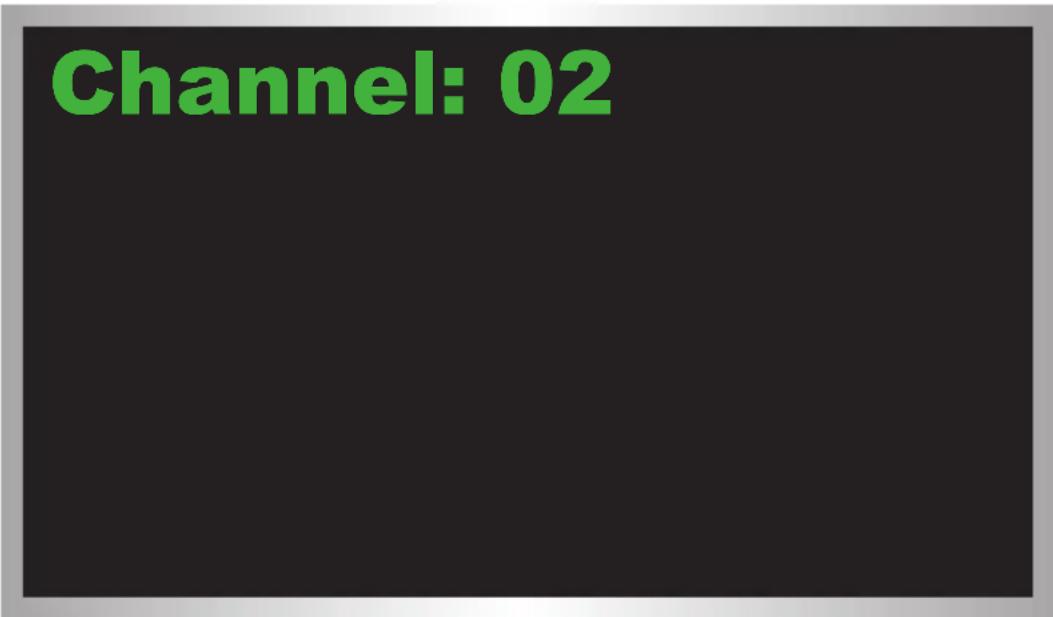

Setting the Video Channel 27

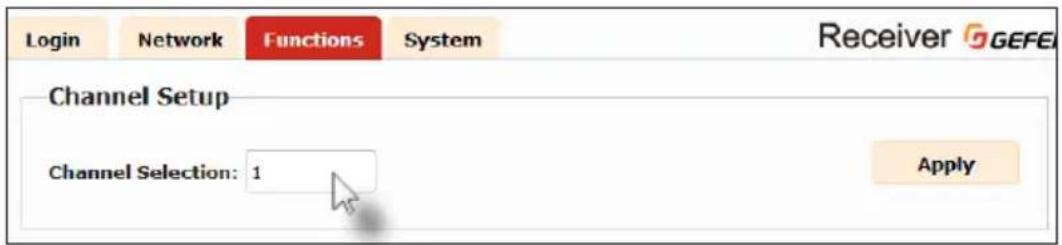

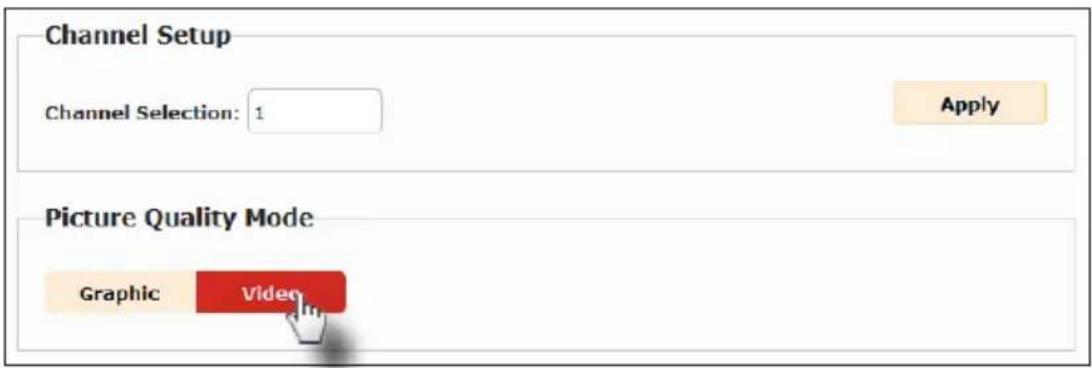

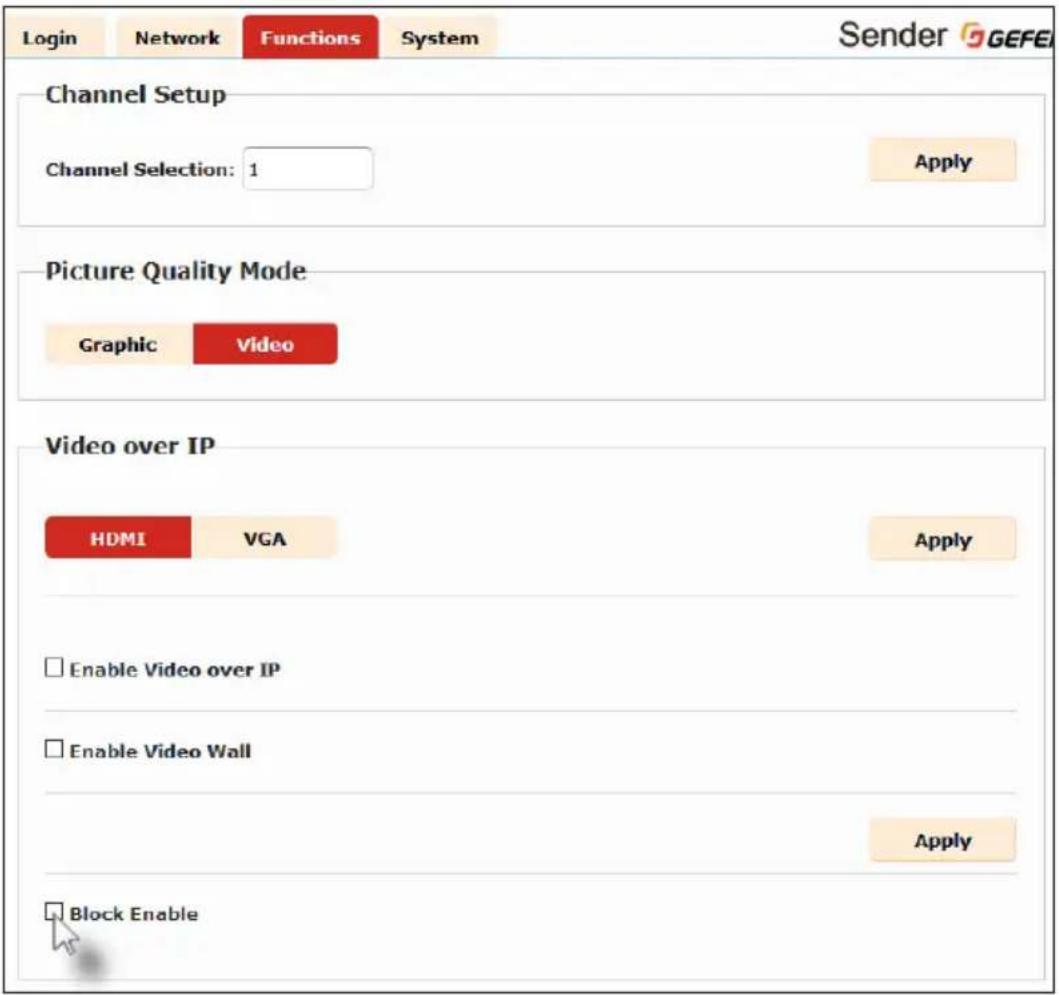

Setting the Channel using the Web Interface 27

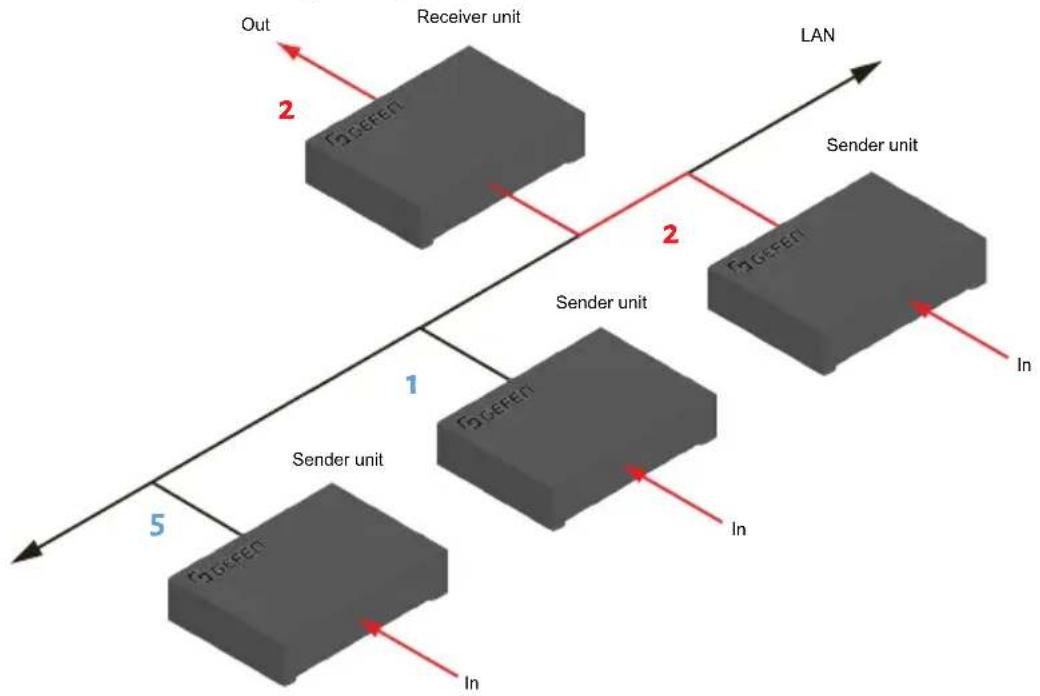

Setting the Channel using the Front Panel 28

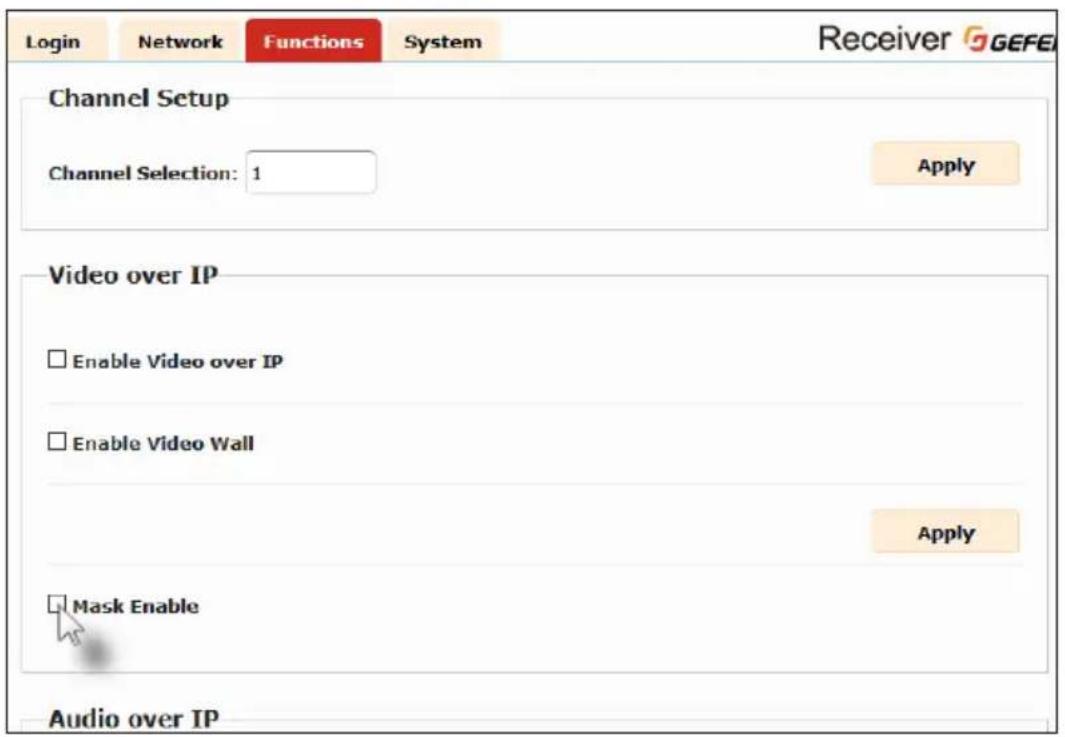

Blocking & Masking Video 31

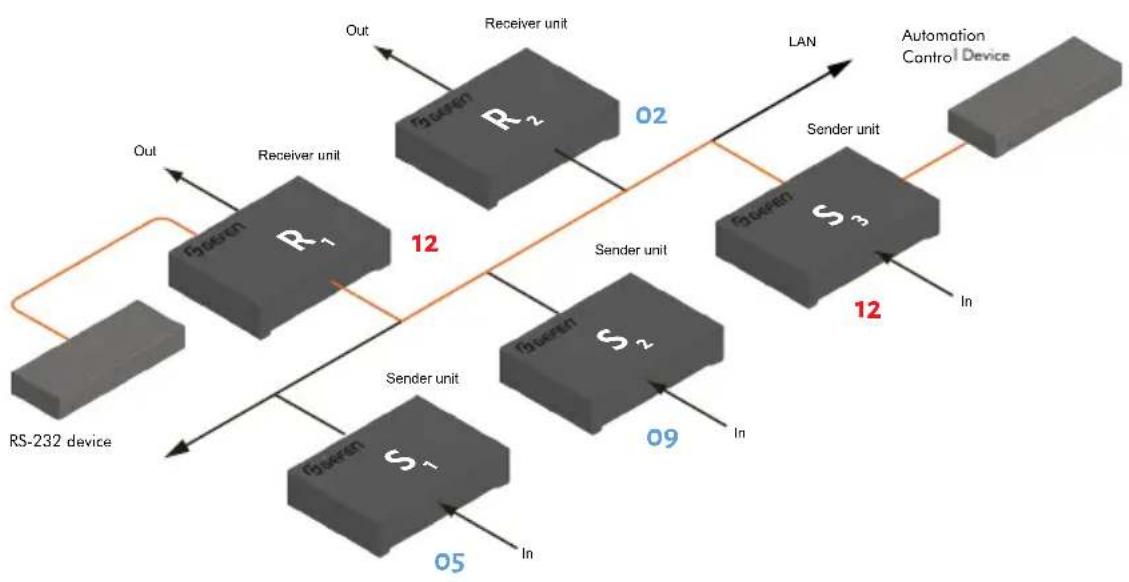

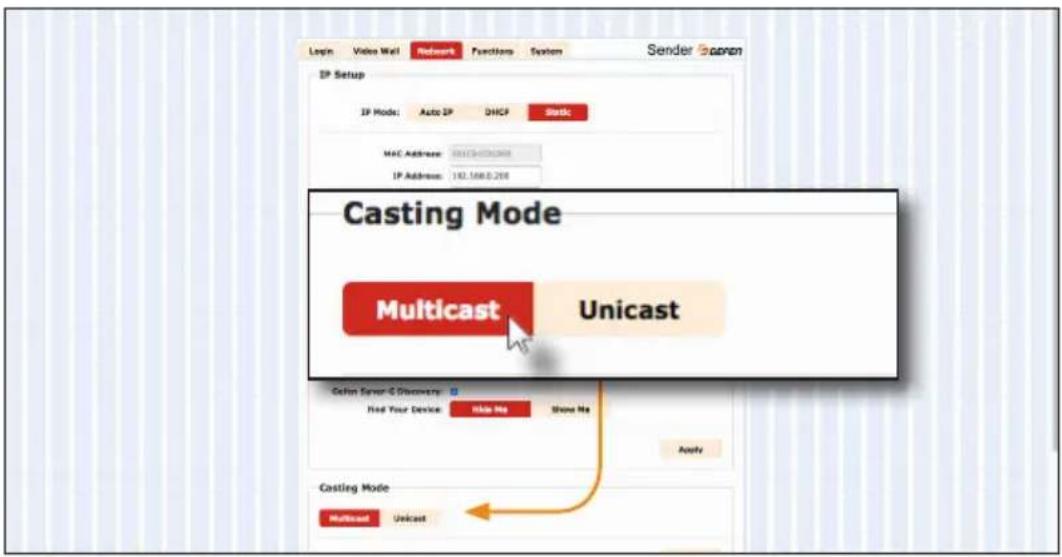

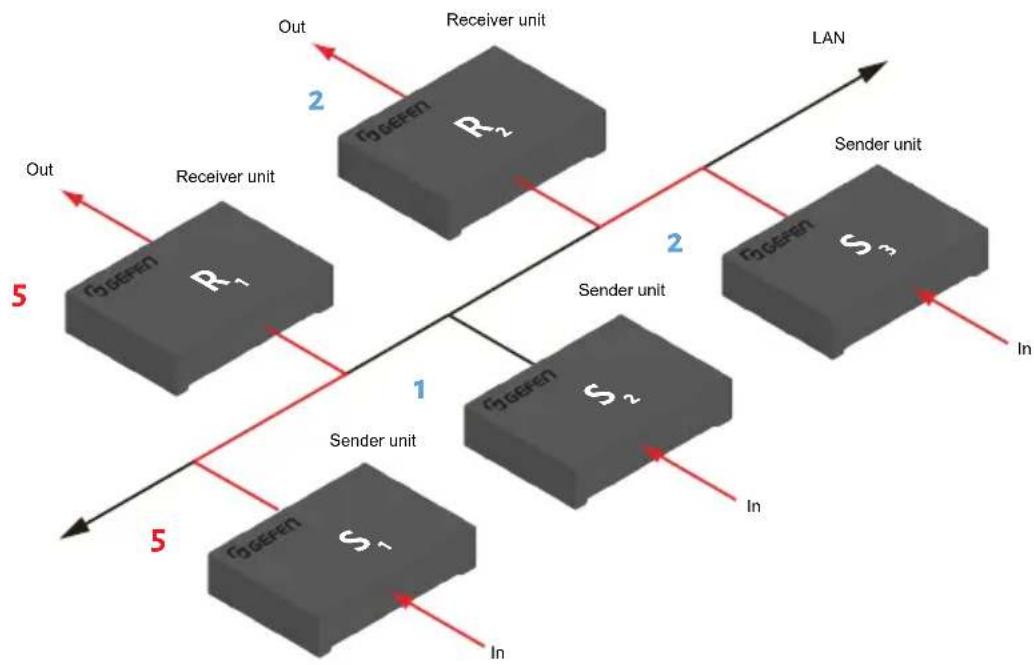

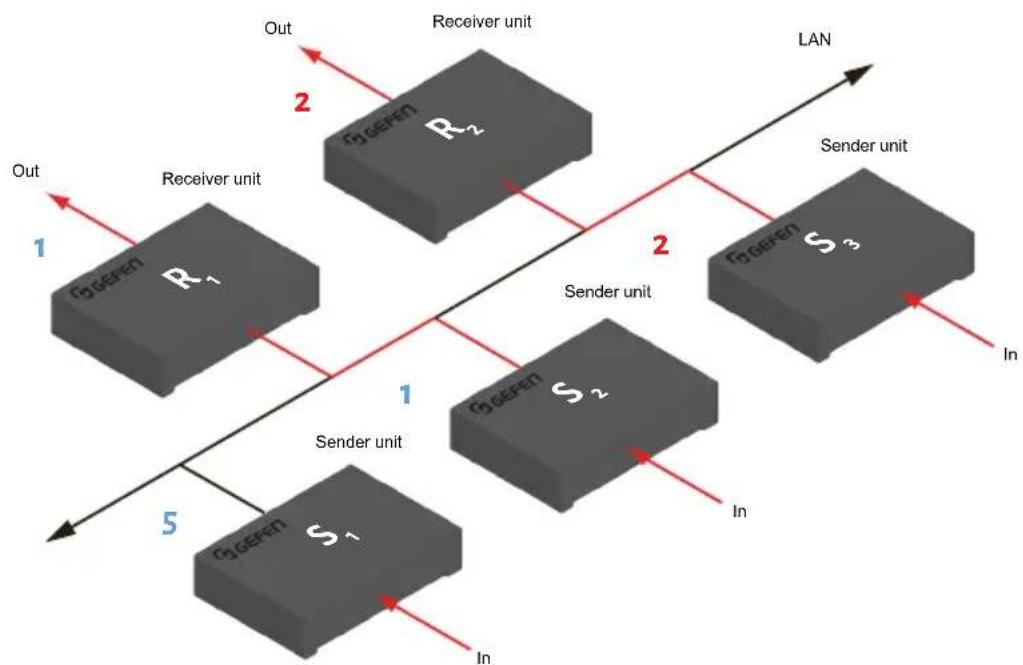

Unicast & Multicast Modes....33

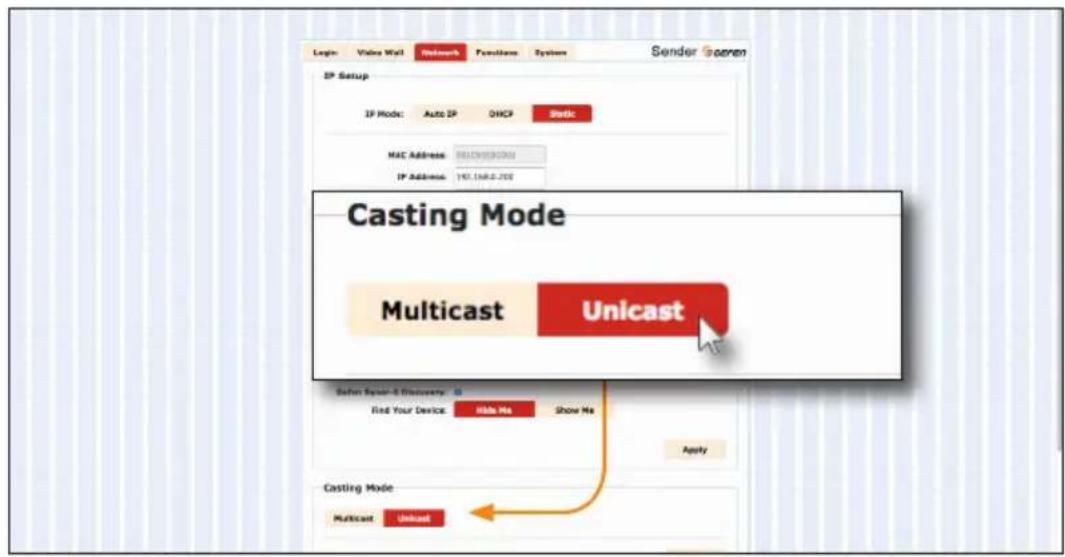

Configuring Unicast Mode....33

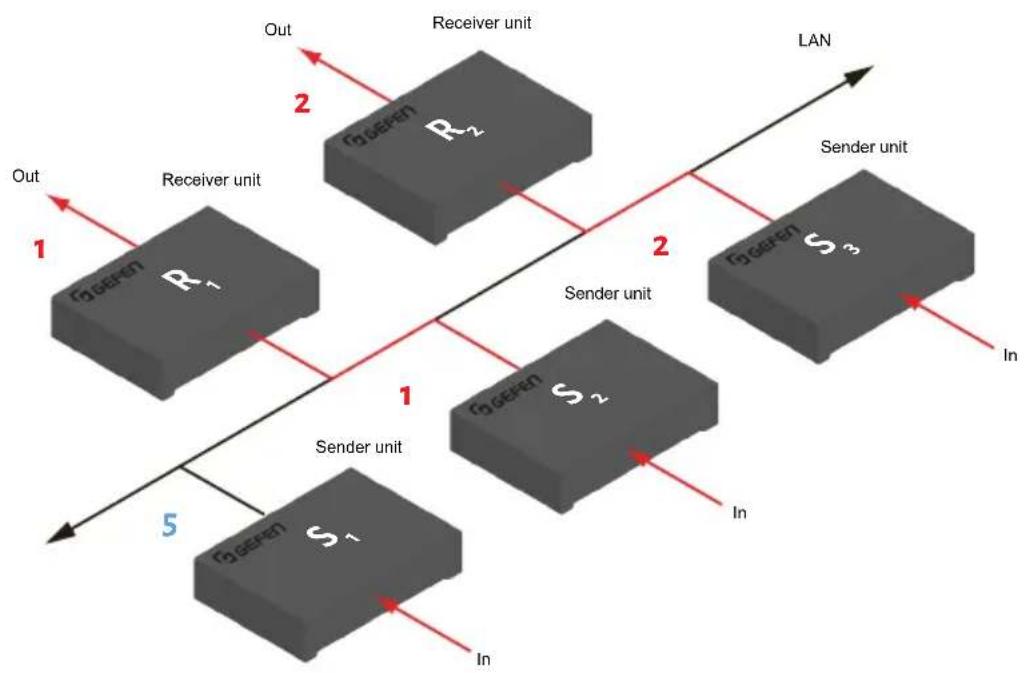

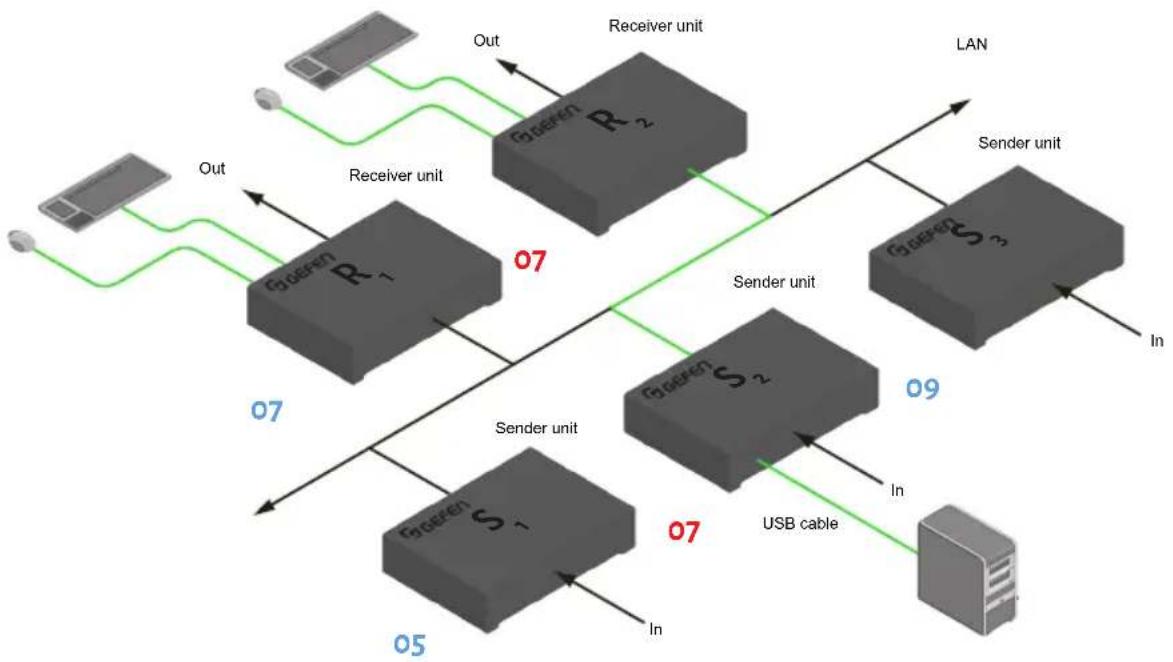

Switching between Sender units in Unicast mode....35

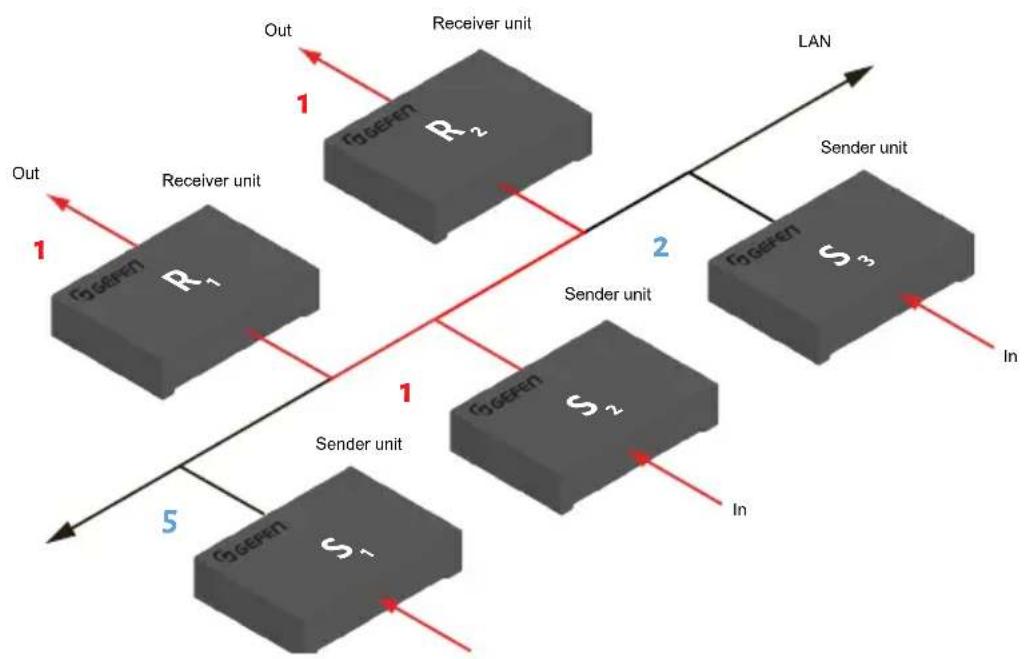

Configuring Multicast Mode ....38
Discovery Mode 40

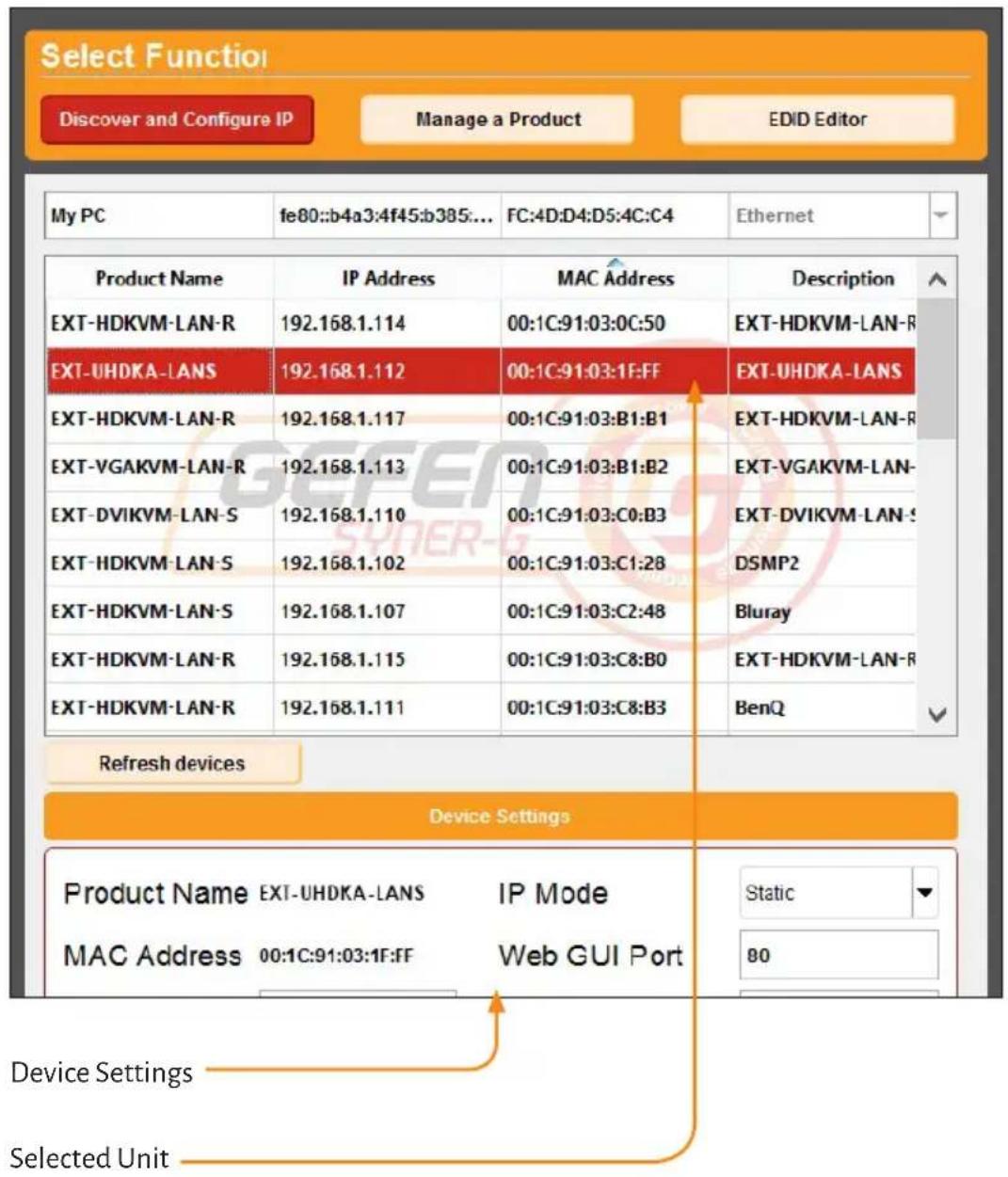

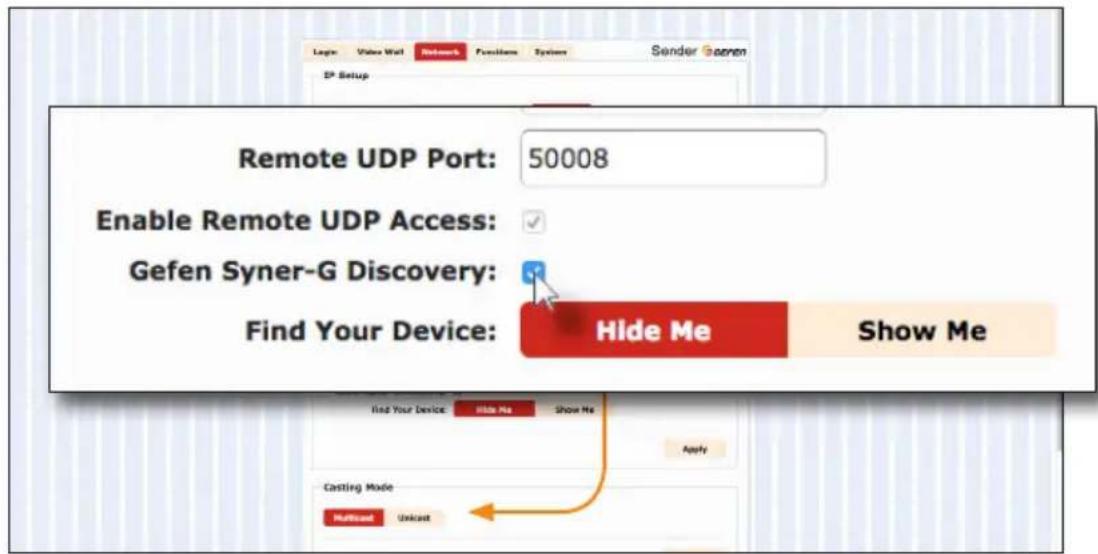

Gefen Syner-G Discovery 40

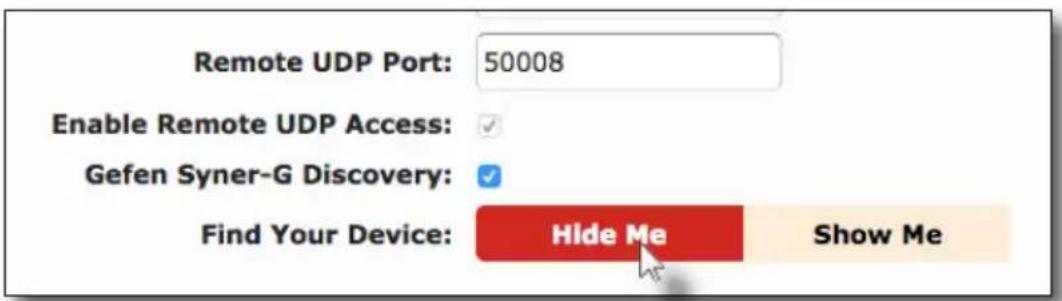

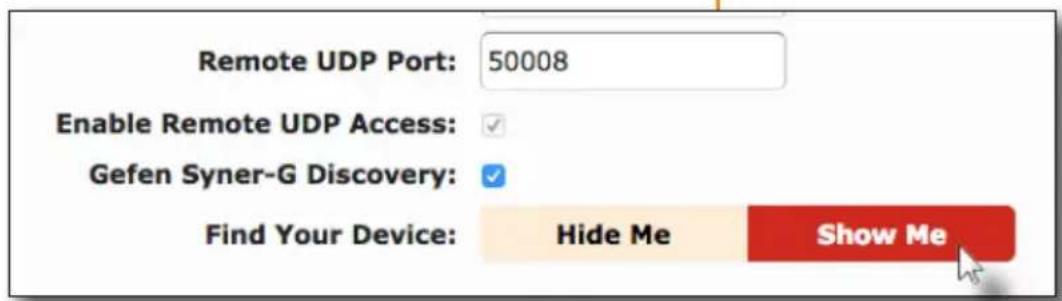

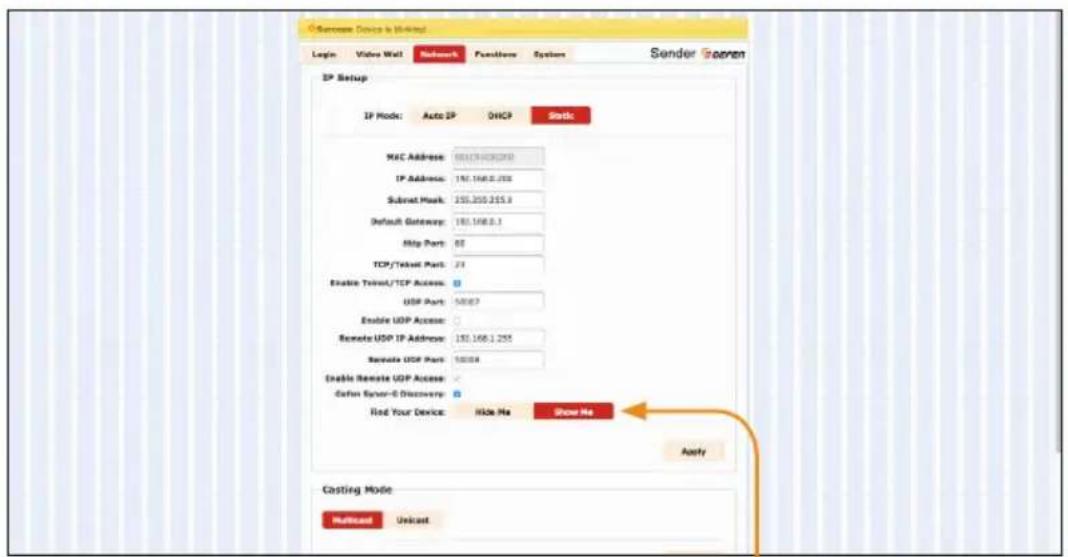

Finding Your Device 41

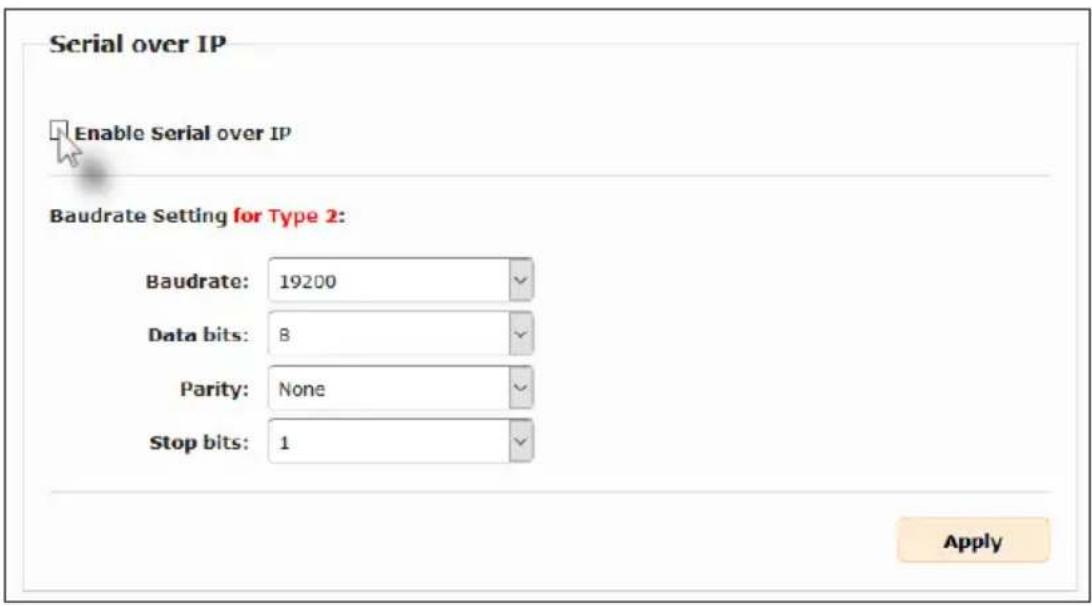

RS-232 Control 43

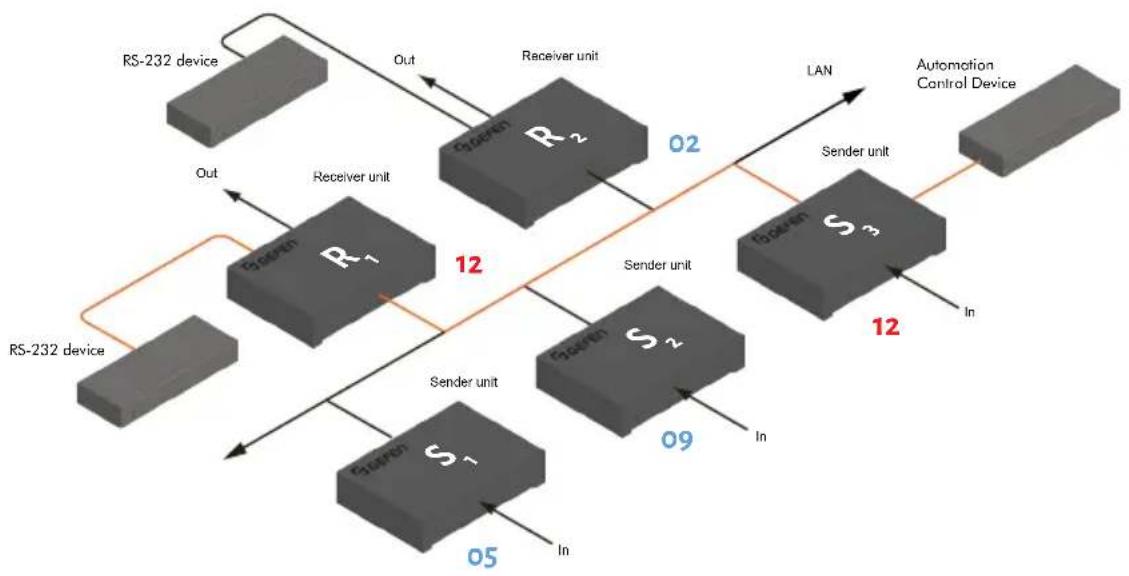

RS-232 under Unicast Mode 45

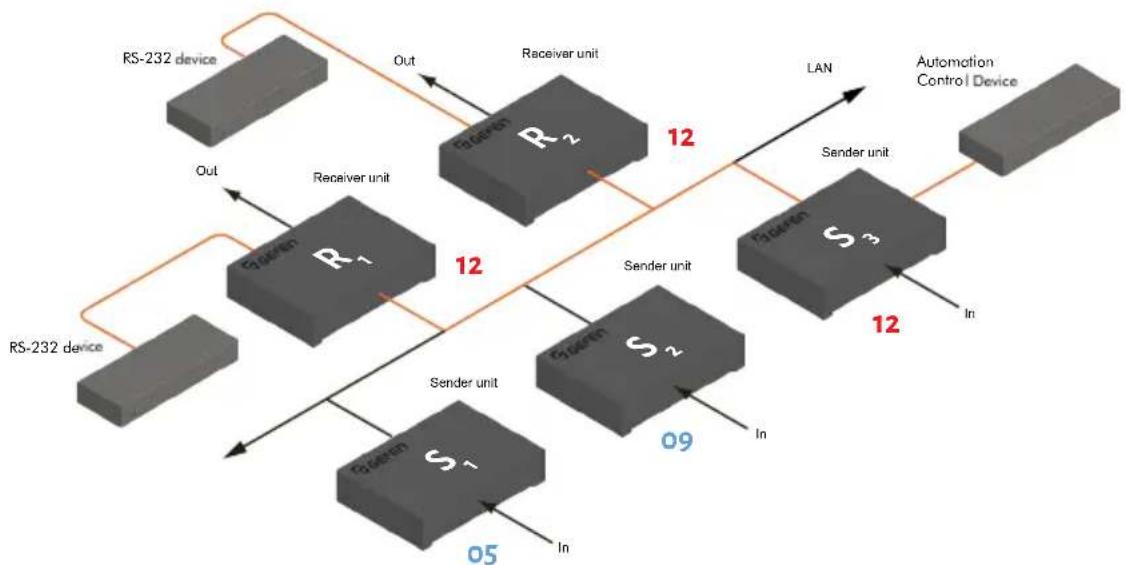

RS-232 under Multicast Mode 45

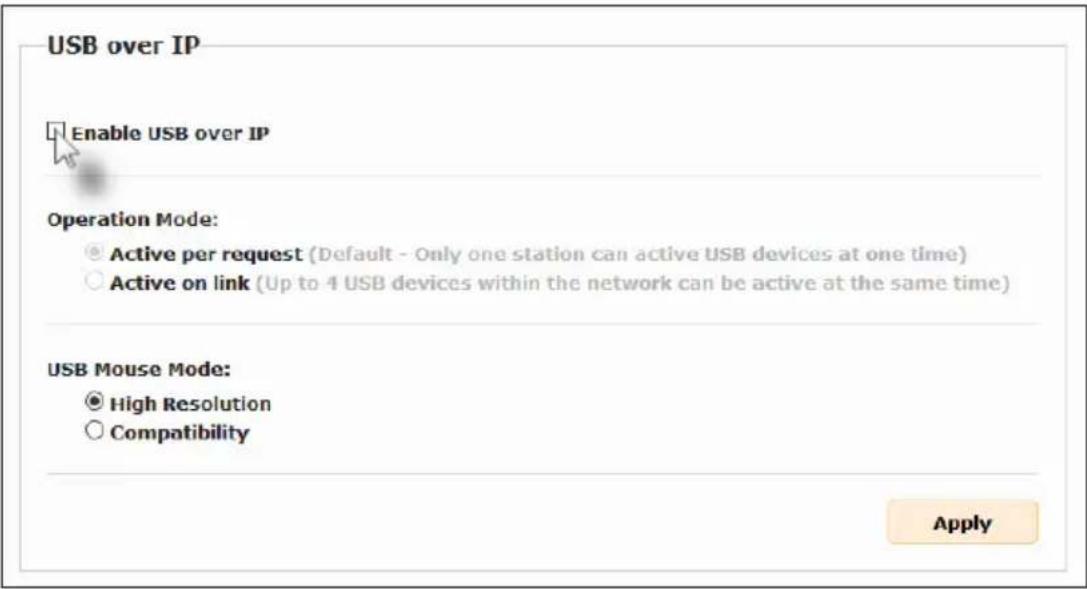

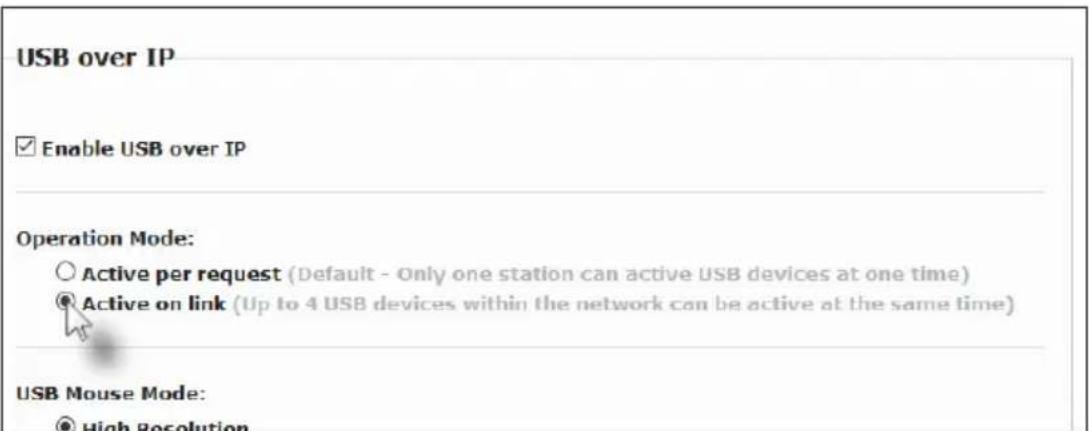

USB Control 46

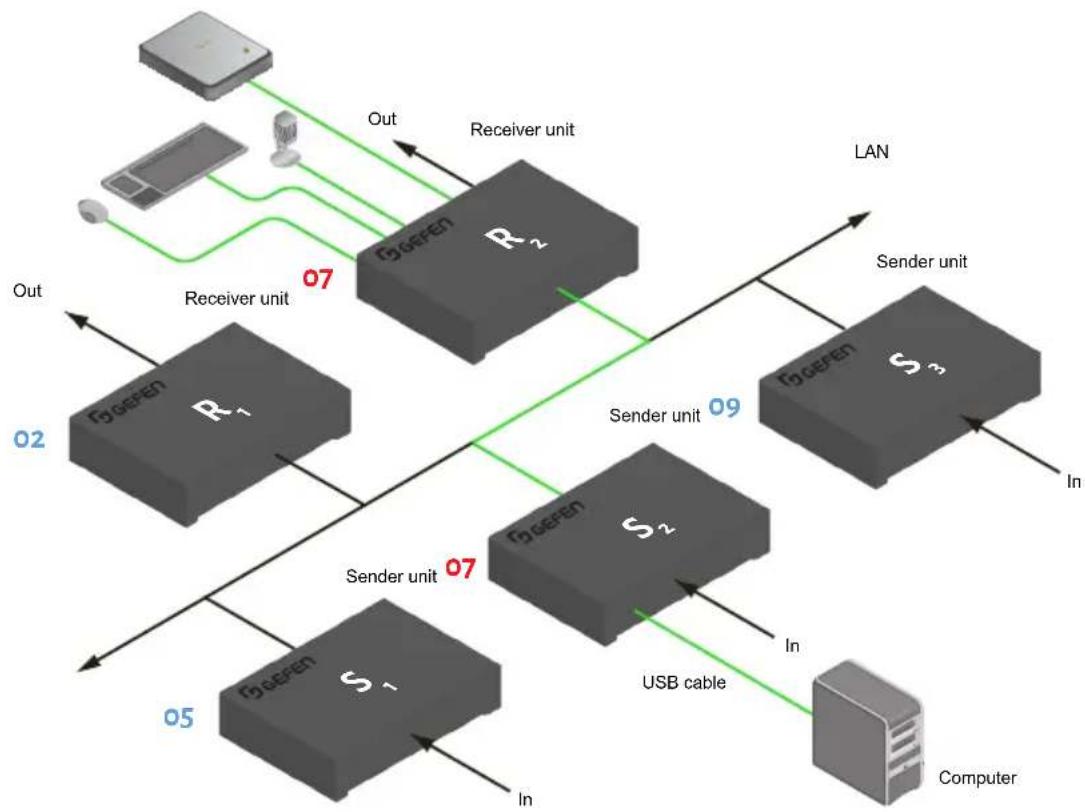

USB under Unicast Mode....46

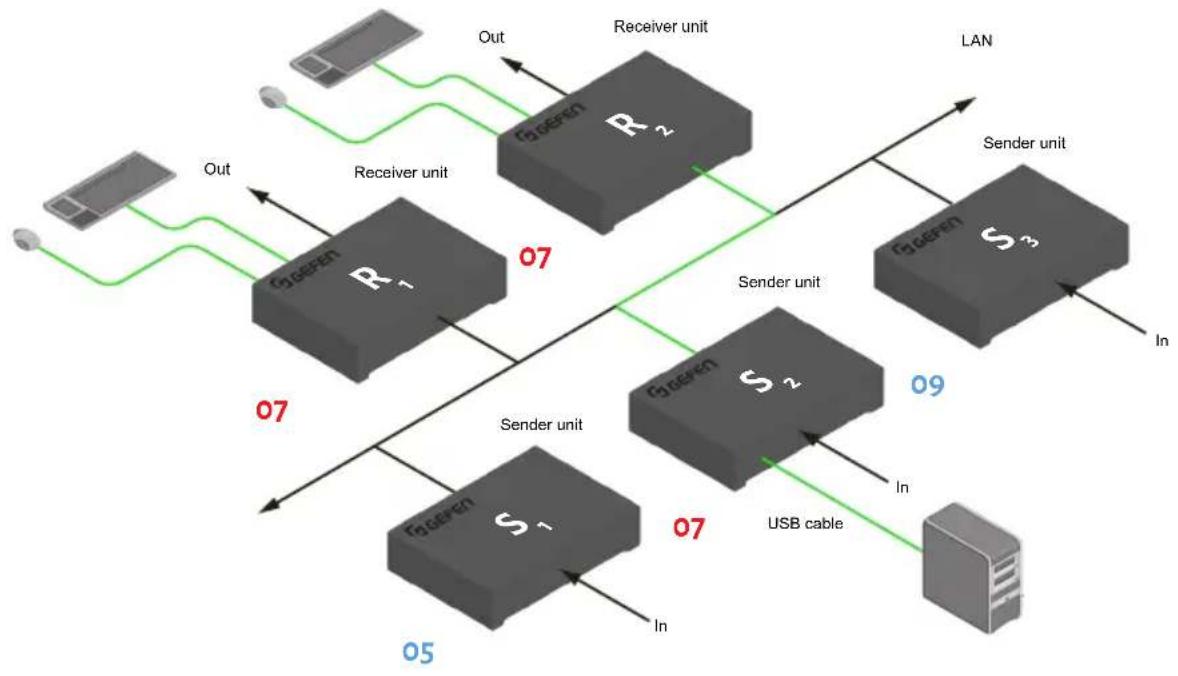

USB under Multicast Mode....48

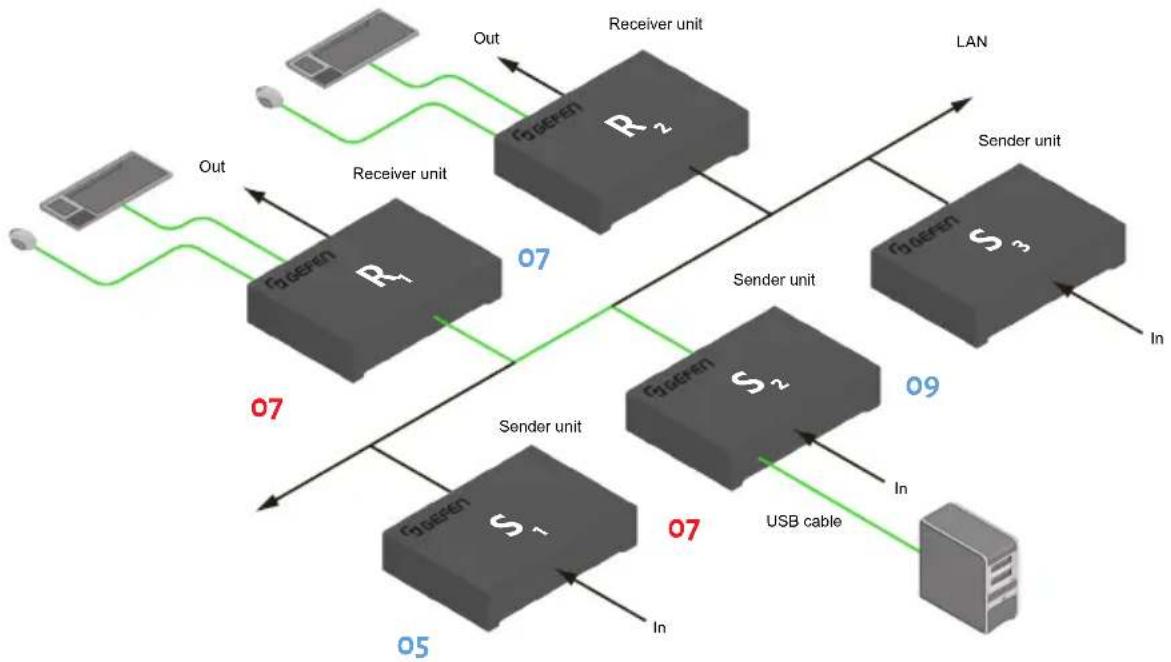

Active per request mode....51
Active on link mode....52

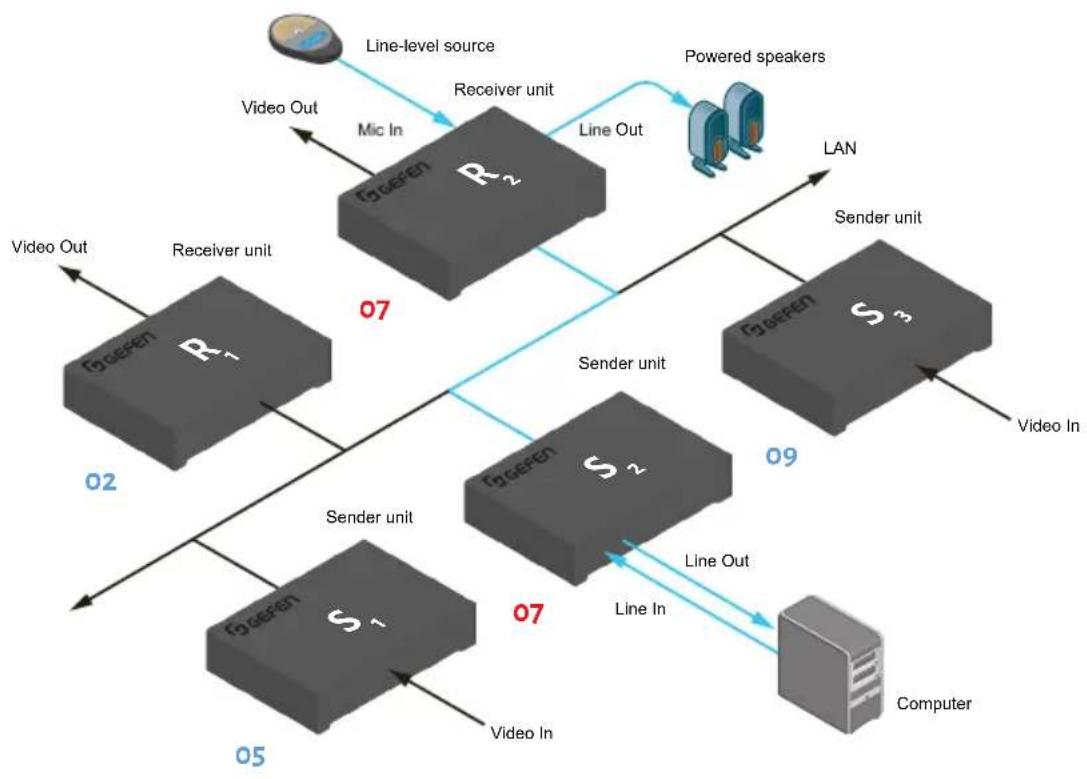

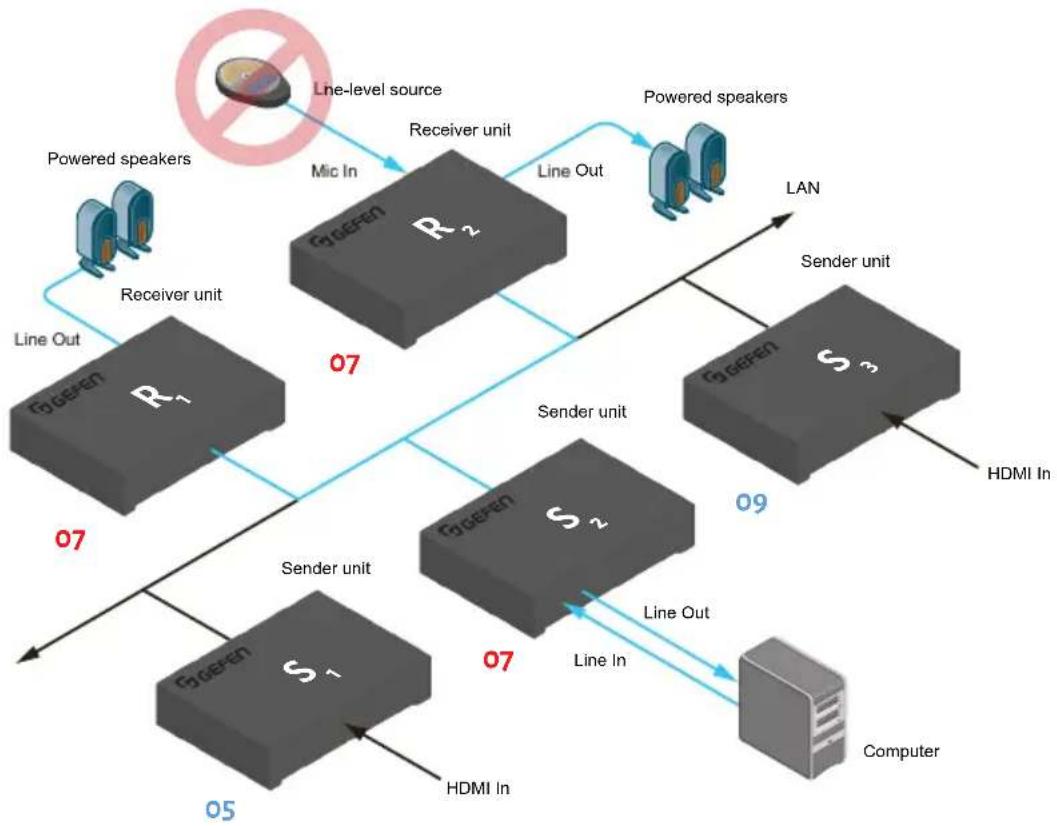

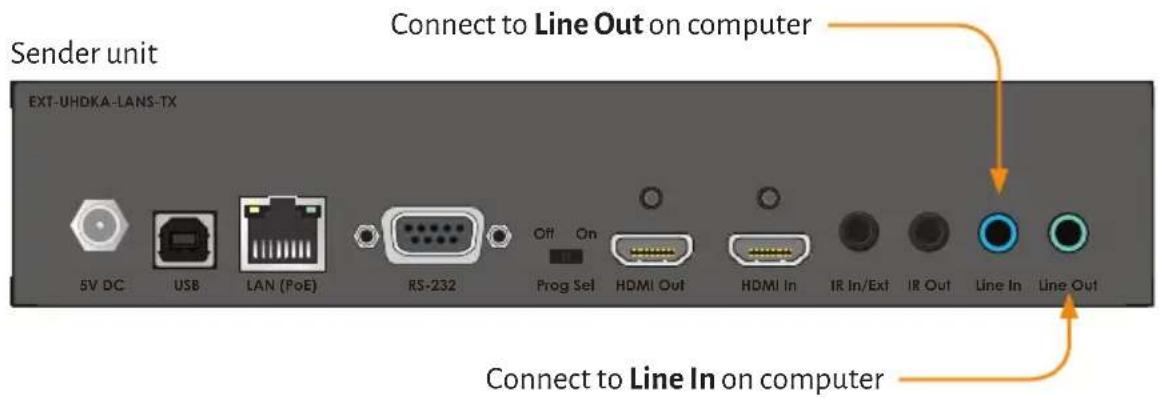

Audio Connections 53
Audio Sources and De-Embedding 55

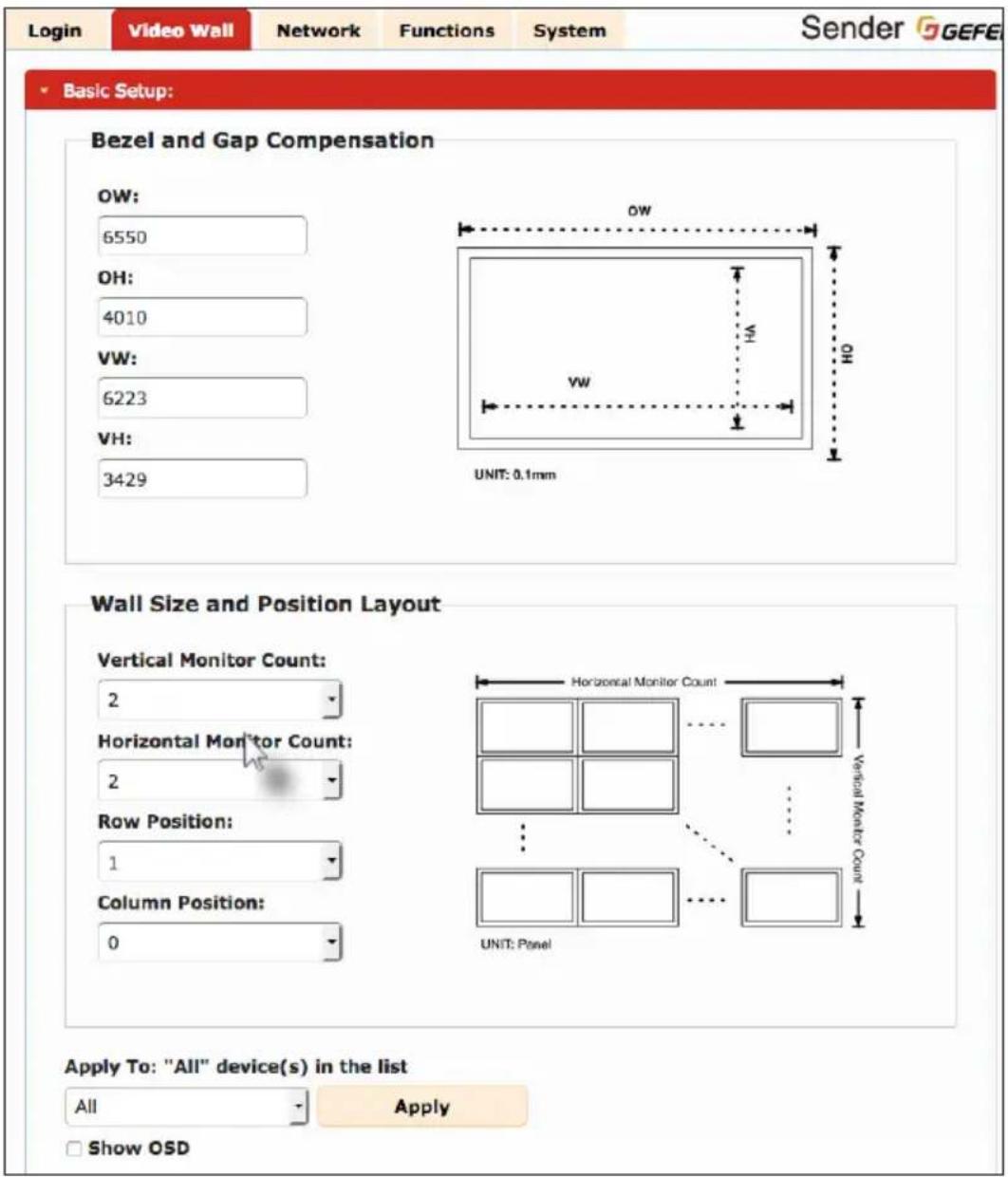

Creating Video Walls 56
Wall Size and Layout....56

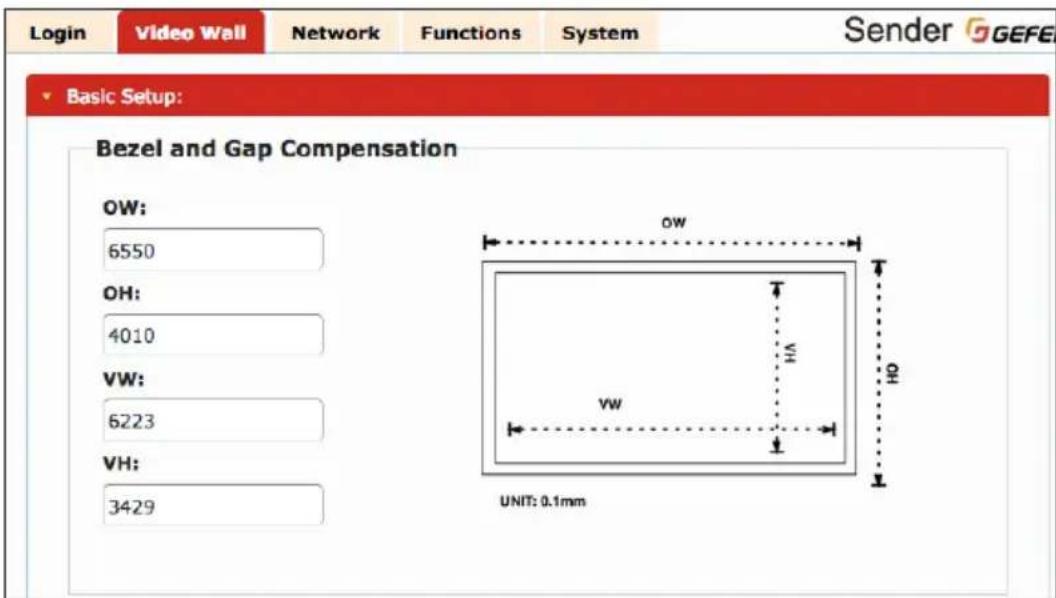

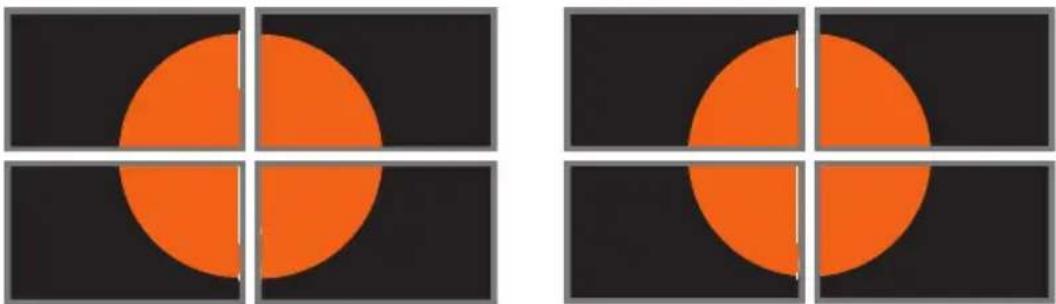

Bezel Compensation 58

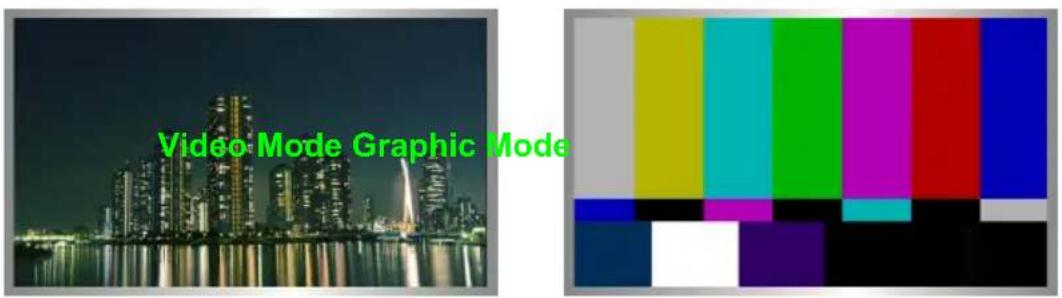

Setting the Video Mode....59

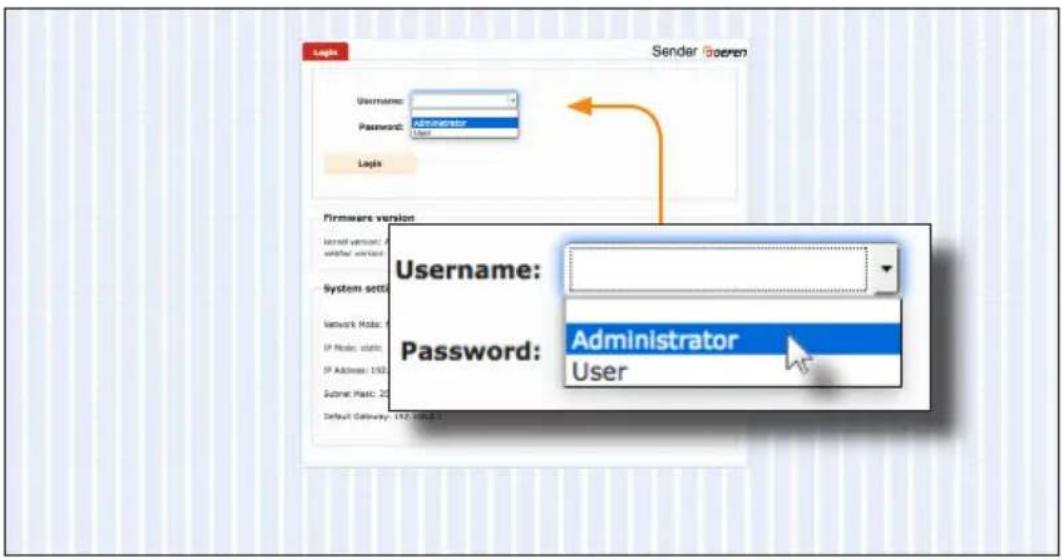

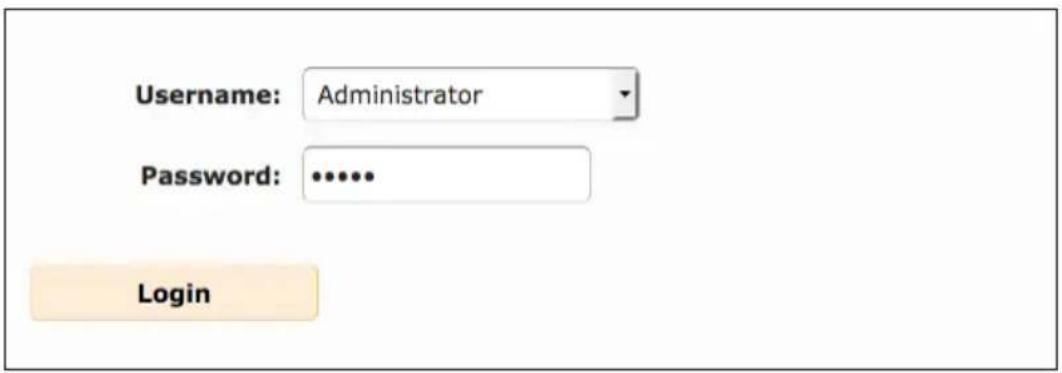

Using the Web interface 59

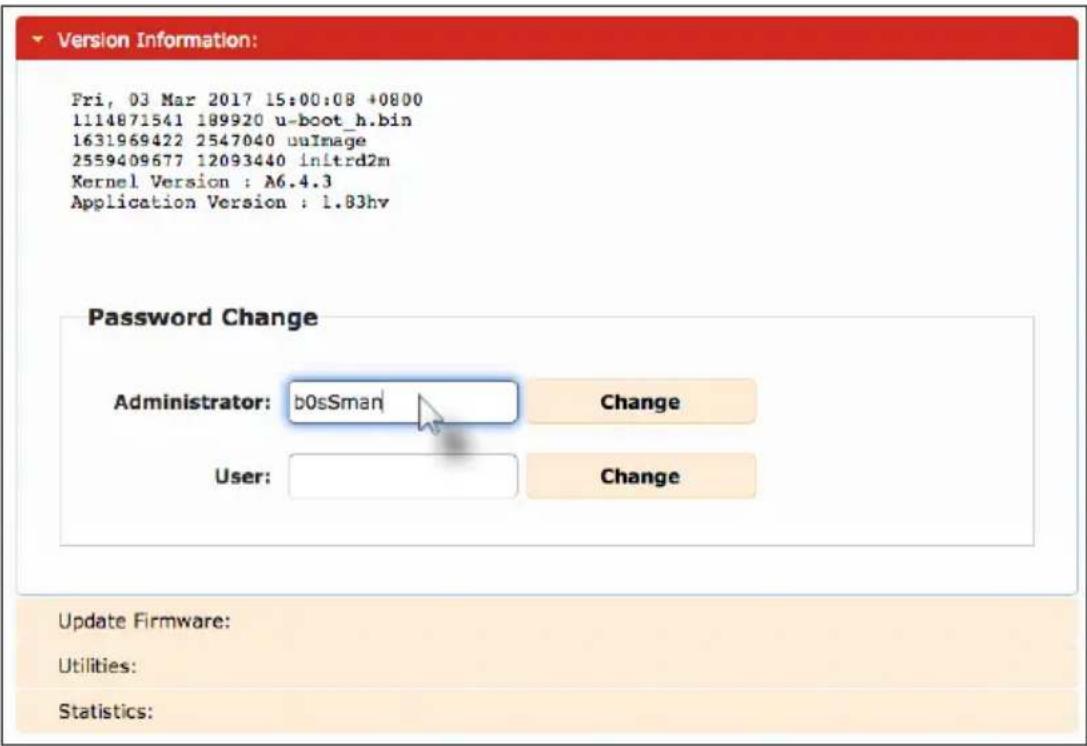

Changing the Password....60
Utilities....61

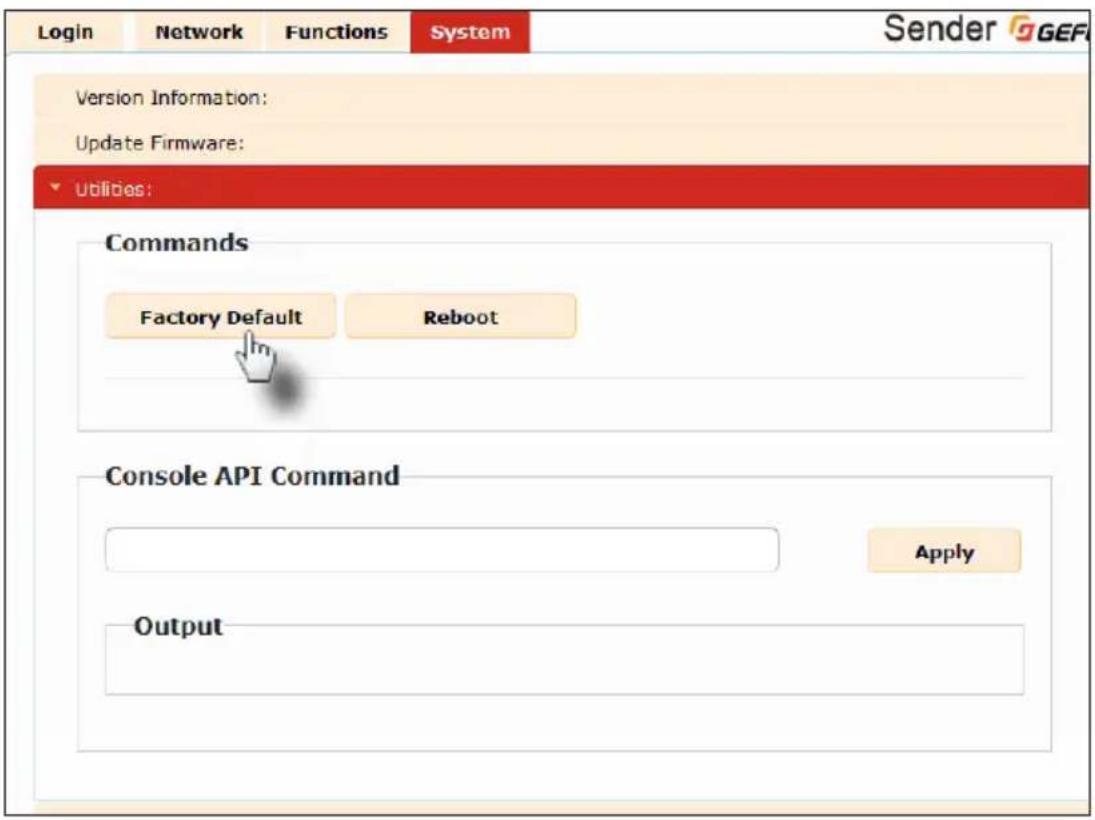

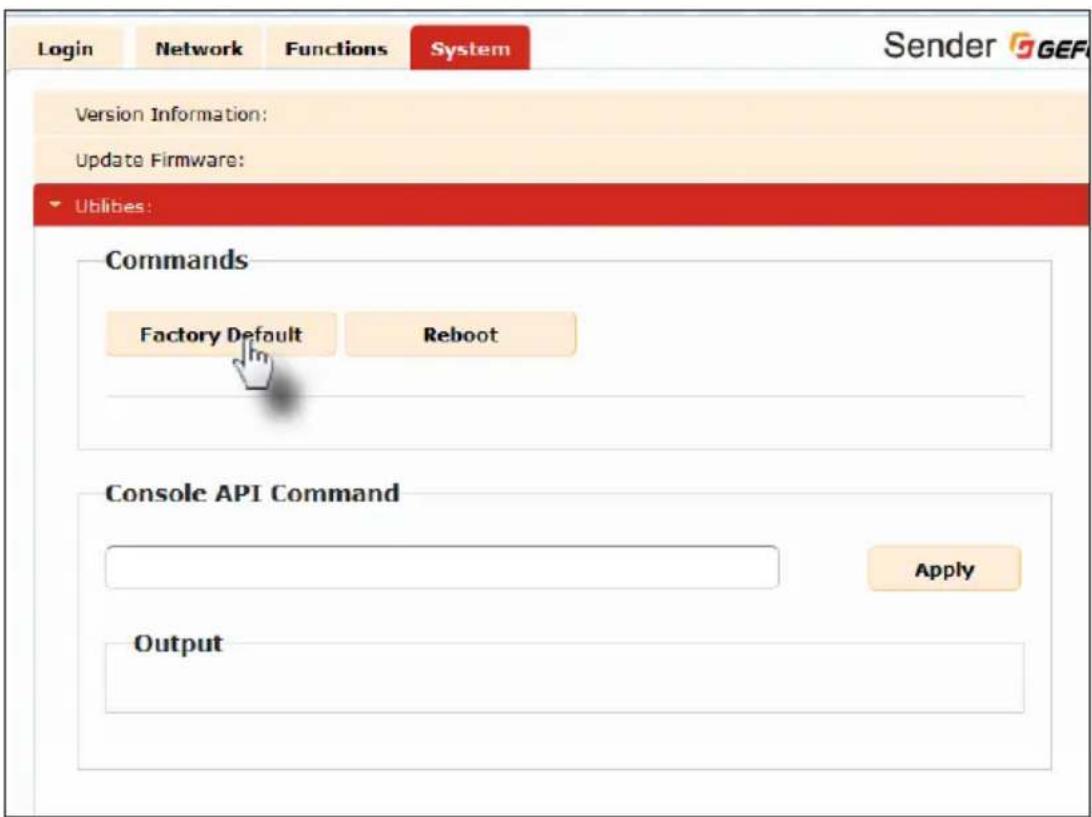

Reset using the Web Interface 61

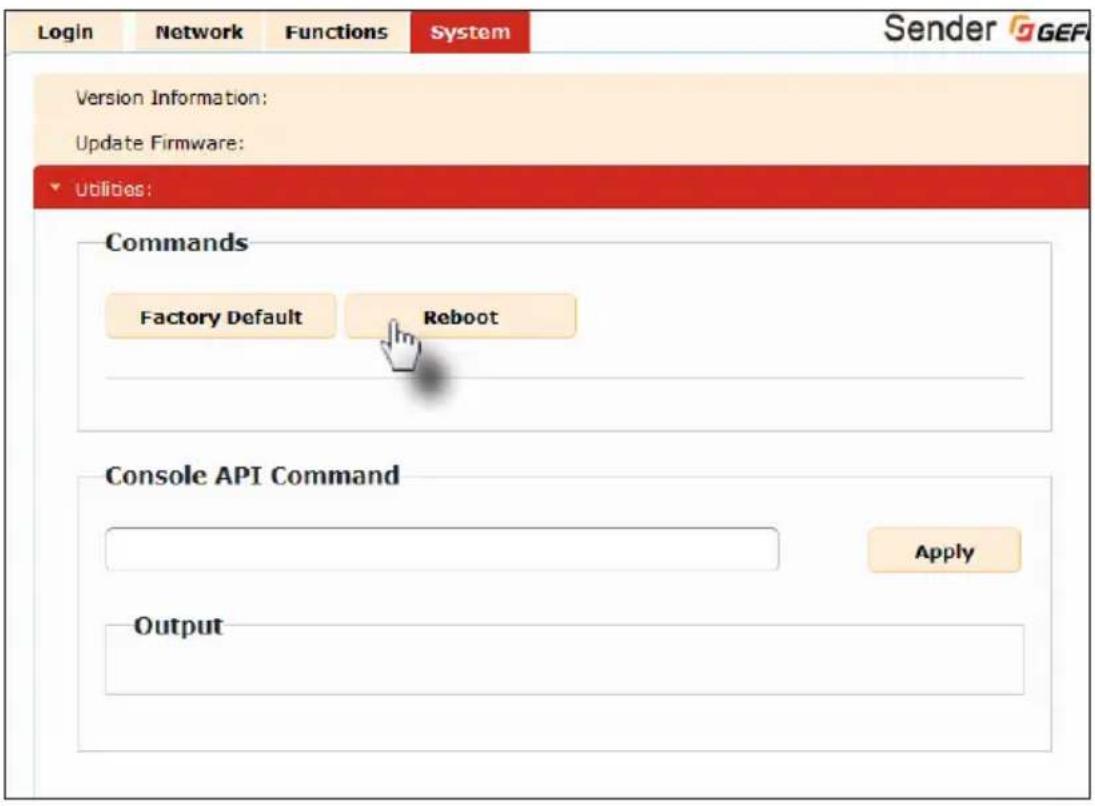

Reboot using the Web Interface 63
Reboot using the Web Interface ....64
Reboot using the Front Panel....65
Telnet Access......66
Commands....67
Discovery Service....67
Help....67

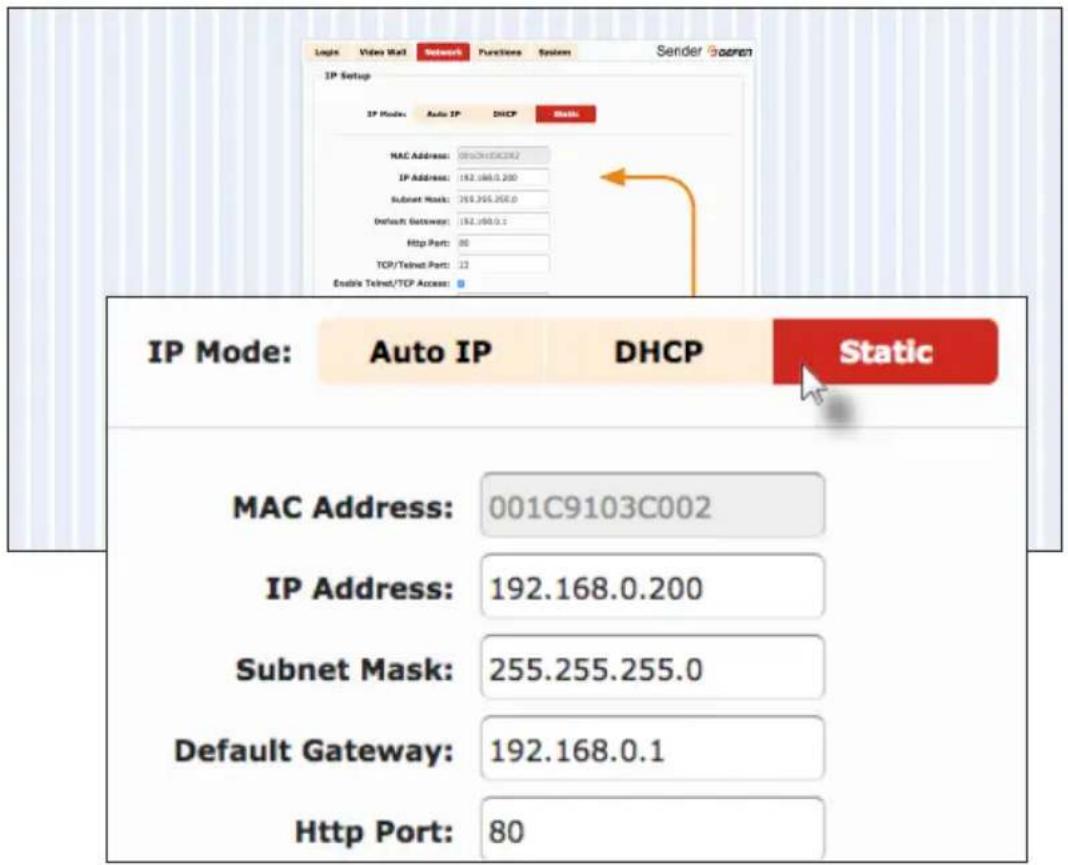

Network....67
Routing....68
RX Specific....69
Serial....70
System....70
TX Specific 70
USB....71
Video....71
Web Interface....71

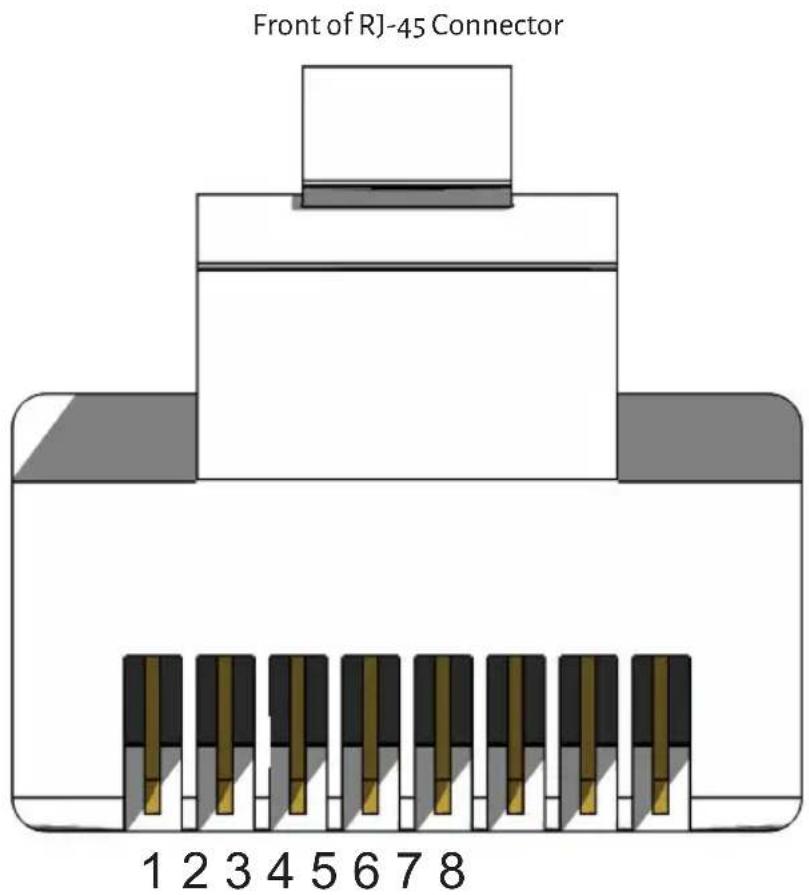

Network Cable Diagram....175

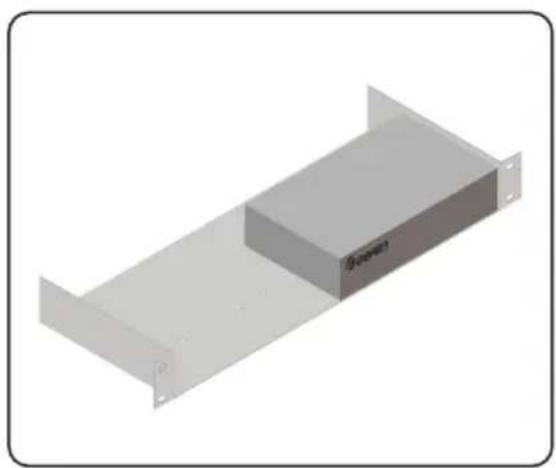

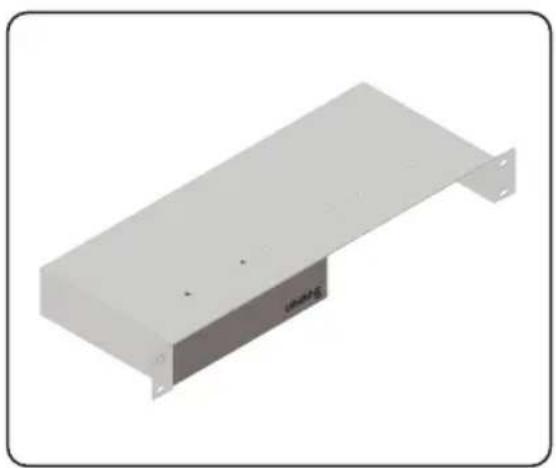

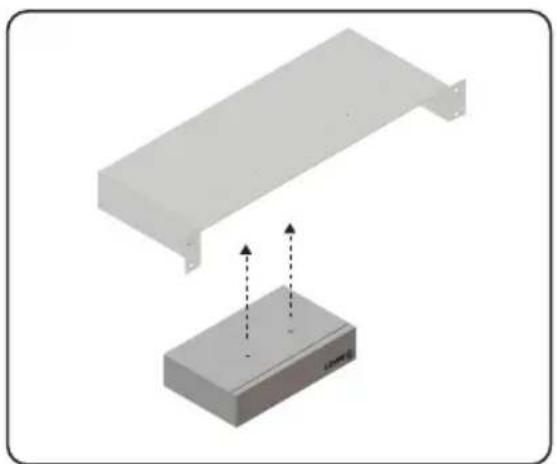

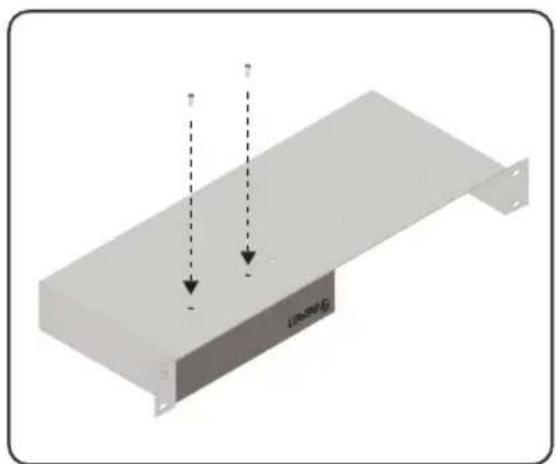

Rack Tray Installation 176
Specifications ^* 177

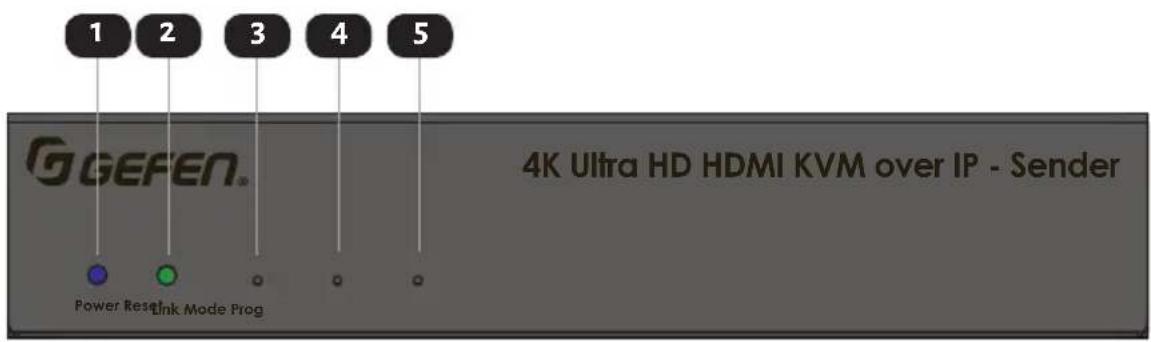

Sender Unit
| ID | Name | Description |
| 1 | Power | This LED indicator glows solid blue when the unit is powered. |
| 2 | Link | This LED glows solid green when a link is established between the Sender and Receiver. |

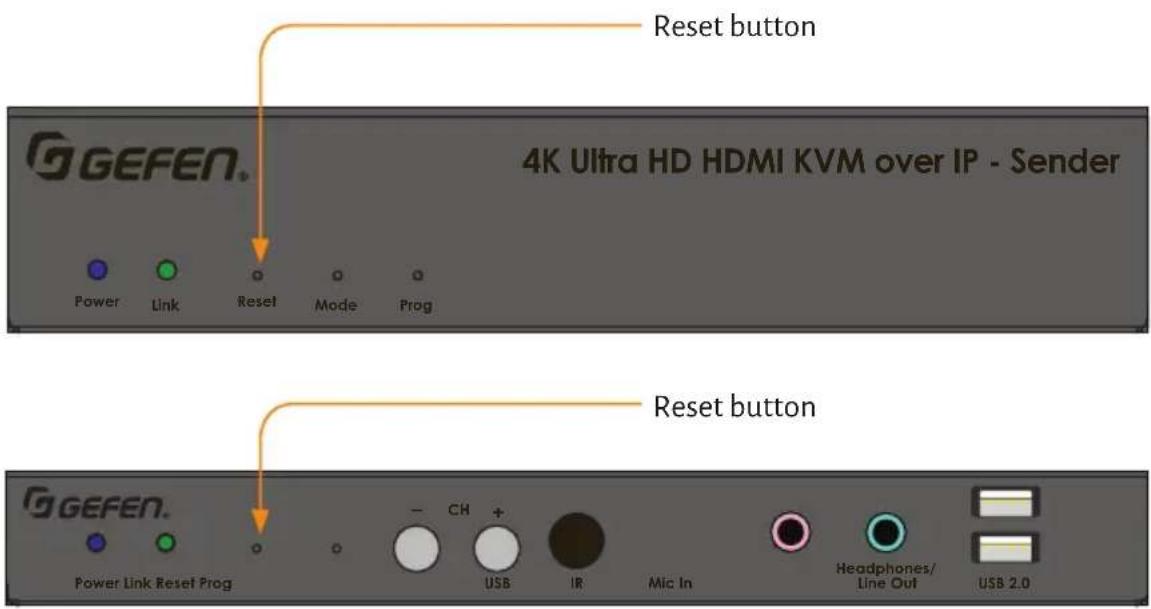

| 3 | Reset | Press this button, using the end of a paper clip or other pointed object, to perform a soft reset. |
| 4 | Mode | Press this button, using the end of a paper clip or other pointed object, to toggle between Graphic and Video modes. |
| 5 | Prog | This button is used for device recovery operations, in the event of a firmware update or other failure. |

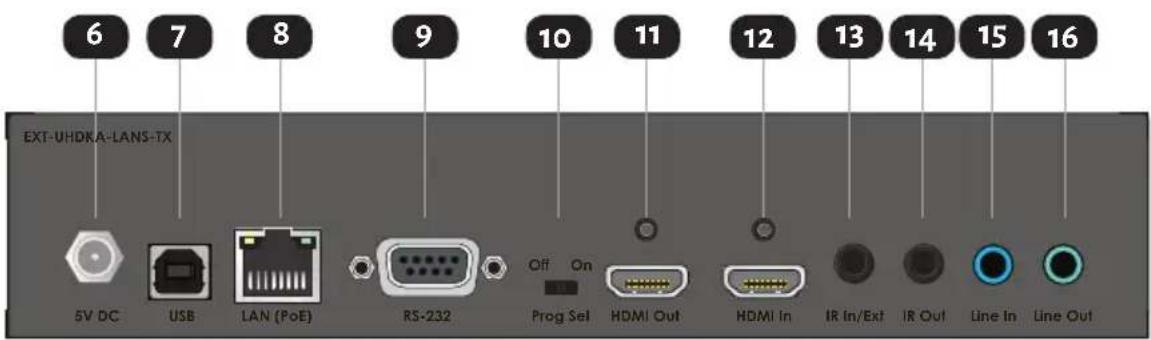

| ID Name Description | ||
| 6 5V DC This power receptacle is used to connect the included 5V DC power supply. An external power supply is not required when connecting to a PoE-enabled switch using the LAN (PoE) port. | ||
| 7 USB Connect a USB cable from the computer to this USB port. | ||

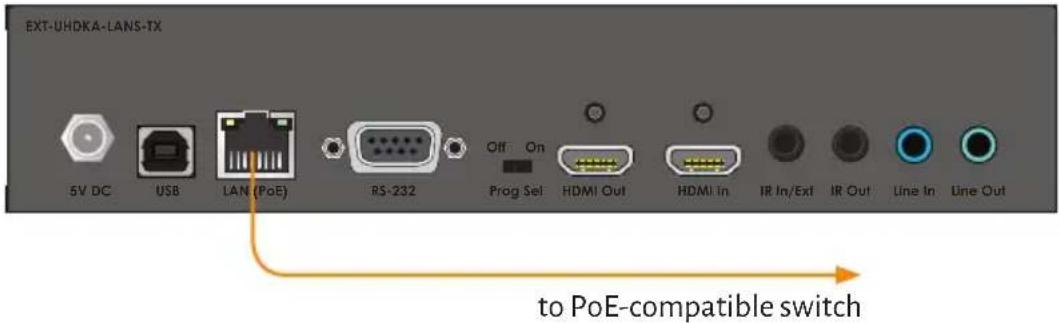

| 8 LAN (PoE) Connect a CAT-5e or better cable up to 330 feet/100 meters, from this port to a PoE-capable network switch. If a PoE switch is not available or the Sender and Receiver are connected directly, then the included 5V DC power supply must be connected to the Sender unit. | ||
| 9 RS-232 Connect an DB-9 cable from this port to a RS-232 automation control unit. SeeRS-232 Control (page 43) for more information. | ||
| 10 Prog Sel For normal operation, this switch should be in theOffposition. Setting this switch to theOnposition, places the unit in the ready-state for firmware recovery or debug operations. | ||
| 11 Video Out (except DisplayPortTM) | Use a high quality video interconnect cable to the connect an AV source to the videoOutport on the rear panel of the Sender unit.When using HDMI Senders, we recommend Gefen cables. | |
| 12 Video In Use a high quality video interconnect cable to the connect an AV source to the videoIn port on the rear panel of the Sender unit. When using HDMI and DisplayPortTMSenders, we recommend Gefen cables. | ||
| 13 IR In/Ext Connect an IR Extender (Gefen part no. | EXT-RMT-EXTIRN) to this port. Alternatively, connect a 3.5mm mini-stereo connector from this port to the electrical IR output of an automation control system. | |
| 14 IR Out Connect an IR Emitter (Gefen part no. EXT-IREMIT) from this port to the IR sensor of the device to be controlled. | ||
| 15 Line In Connect a 3.5mm mini-stereo cable from this port to the analog audio source. | ||
| 16 Line Out Connect a 3.5mm mini-stereo cable from this port to an amplifier or other audio output device. | ||

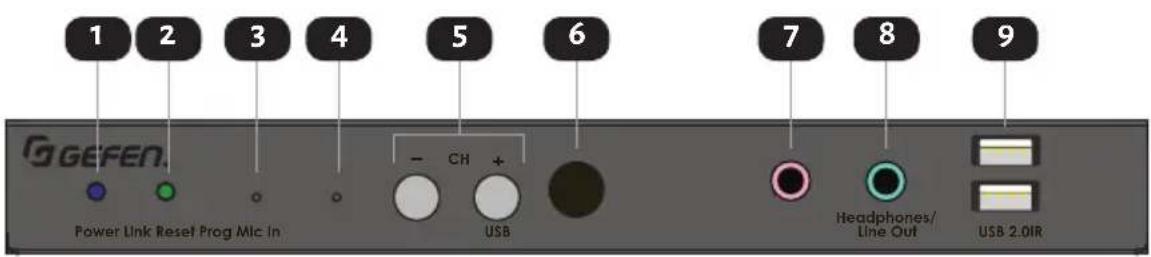

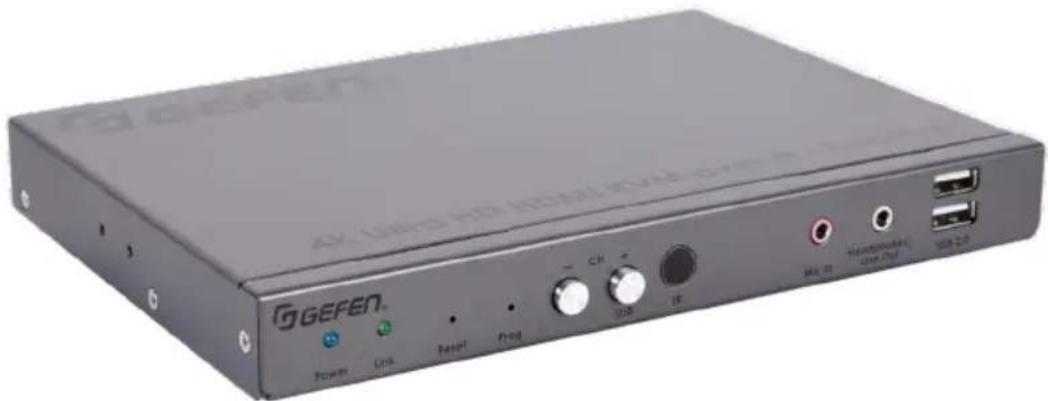

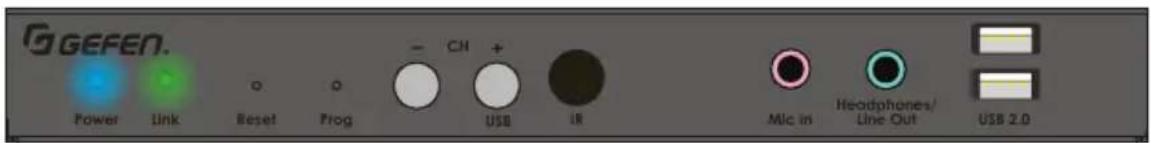

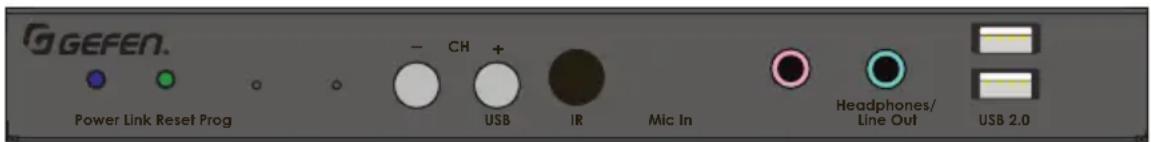

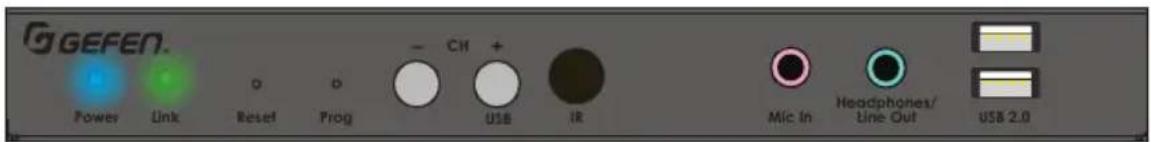

Receiver Unit

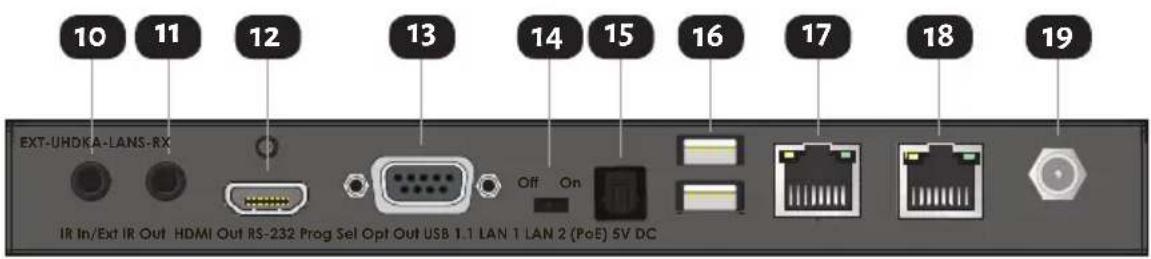

| ID | Name | Description |
| 1 | Power | This LED indicator glows solid blue when the unit is powered. |
| 2 | Link | This LED glows solid green when a link is established between the Sender and Receiver. |
| 3 | Reset | Press this button, using the end of a paper clip or other pointed object, to perform a soft reset. |
| 4 | Prog | This button is used for device recovery operations, in the event of a firmware update or other failure. |
| 5 | CH -/+ | These buttons serve two purposes.1) Press the -/+ buttons button to decrement / increment, respectively, the current channel number. See Setting the Video Channel (page 27) for more information. 2) Press and hold the + ("USB") button to gain access to the USB port of a source. See USB Control (page 46) for more information. |
| ID Name Description | ||
| 6 IR This IR sensor receives and passes signals from | an IR remote control to the selected Sender unit. | |

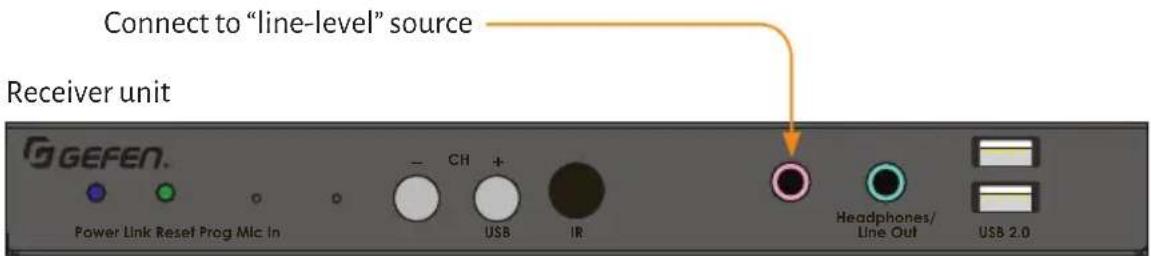

| 7 Mic In Connect a microphone to this port.. | ||

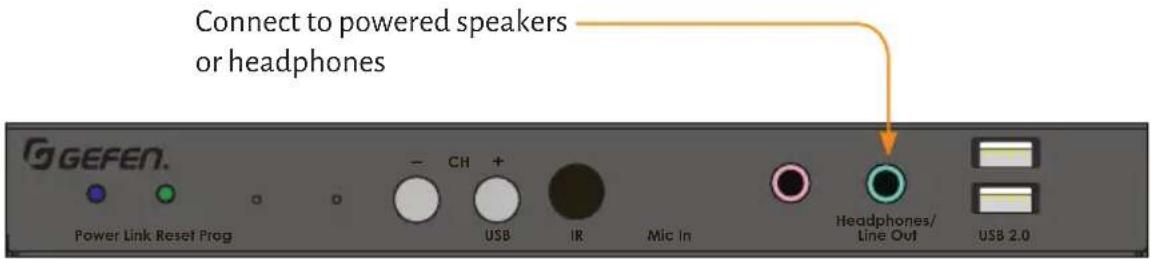

| 8 | Headphones / Line Out | Connect a pair of headphones or powered speakers to this port. |
| 9 USB 2.0 Connect up to two USB 2.0 devices to these USB ports. For USB 1.1 devices, use the USB 1.1 ports. Please note that KM Emulation feature is only available on the USB 1.1 ports on the back panel. It is not available with these two USB2.0 ports. | ||
| 10 IR In/Ext Connect an IR Extender (Gefen part no. EXT-RMT-EXTIRN) to this port. Alternatively, connect a 3.5mm mini-stereo connector from this port to the electrical IR output of an automation control system. | ||
| 11 IR Out Connect an IR Emitter (Gefen part no. EXT-IREMIT) from this port to the IR sensor of the device to be controlled. | ||
| 12 | Video Out | Use a high quality video interconnect cable to the connect a display to the video Out port on the rear panel of the Receiver unit. When using HDMI and DisplayPortTM Receivers, we recommend Gefen cables. |
| 13 RS-232 Connect a DB-9 cable from the Receiver unit to the display or another device to be controlled. SeeRS-232 Control (page 43) for more information. | ||
| 14 Prog Sel For normal operation, this switch should be in theOffposition. Setting this switch to theOn position, places the unit in the ready-state for firmware recovery or debug operations. | ||
| 15 | Opt Out (except VGA) | Connect a digital audio cable with a TOSLINK® connectors from this port to the digital audio input of an AV receiver or amplifier. |
| 16 USB 1.1 Connect up to two USB 1.1 or HID devices (such as keyboard, mouse, or touchscreen) to these USB ports. For USB 2.0 devices, use theUSB 2.0ports. Please note that the KM Emulation feature only works with these two USB 1.1 ports. It is not available with the USB2.0 ports. | ||

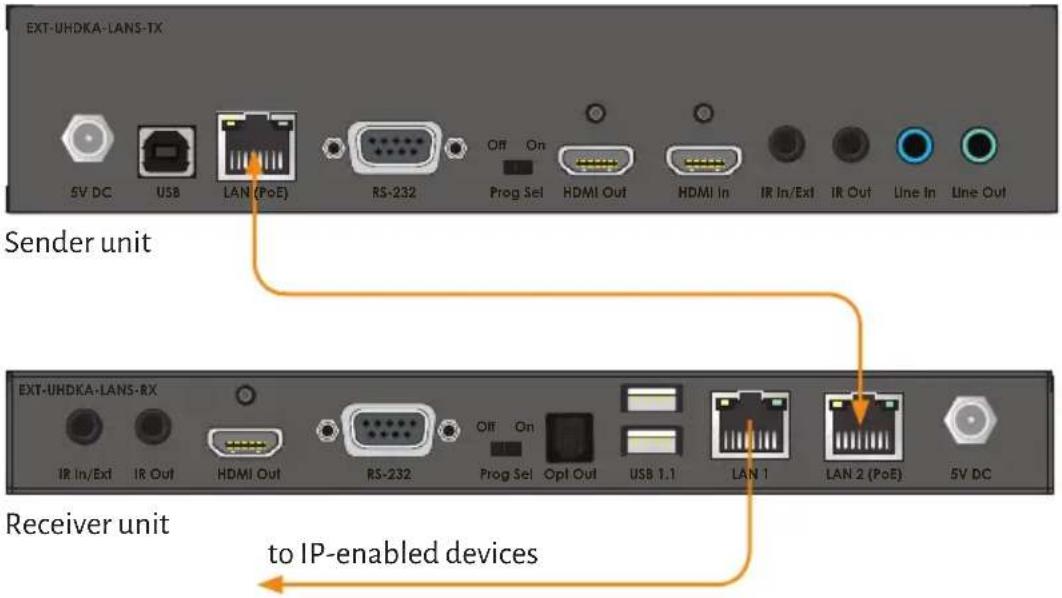

| 17 LAN 1 Use this port to connect IP-enabled devices, or to daisy-chain additional Receiver units (only when a single source is used, otherwise bandwidth may be compromised). CAT-5e or better cables up to 330 feet/100 meters. This port is NOT PoE-capable. | ||

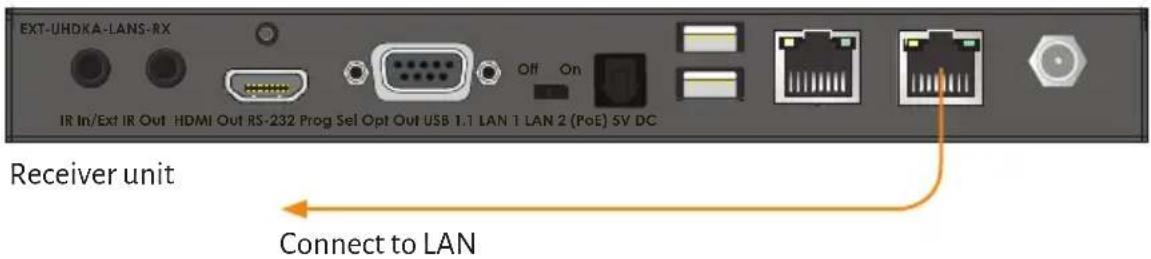

| 18 LAN 2 (PoE) Connect a CAT-5e or better cable up to 330 feet/100 meters, from this port to a PoE-capable network switch. If a PoE switch is not available or the Sender and Receiver are connected directly, then the included 5V DC power supply must be connected to the Receiver unit. | ||
| 19 5V DC This power receptacle can be used to connect the included 5V DC power supply. An external power supply is not required when connecting to a PoE-enabled switch using the LAN 2 (PoE) port. | ||
The Gen 2.0 AV and KVM over IP Sender and Receiver units can be connected directly or through a Local Area Network (LAN). Both installations will be covered.
Local Area Network (LAN) Connection
When connecting the Sender and Receiver units to a Local Area Network (LAN), DHCP, static, or APIPA (Automatic Private IP Addressing) IP modes can be used. DHCP mode will use the DHCP server to automatically assign an IP address for each Sender and Receiver unit that is connected to the network. Static IP mode will allow the IP address for each Sender and Receiver unit to be configured manually. Contact your network administrator if necessary. APIAP mode assigns a class-B IP address, in the 169.254.x.x range, to the Sender and Receiver units, if a DHCP server is not available.
-
Connect a CAT-5e (or better) cable between the LAN (PoE) port on the Sender unit and a Gigabit PoE-enabled IP switch.
-
Connect LAN 2 (PoE) on the Receiver unit to the same network switch. Each cable run can be up to 330 feet (100 meters).
Sender unit
- If NOT USING A PoE-compliant switch, then connect the included 5V DC power supplies to the Sender and Receiver units.
Important
If the IP switch is PoE-compliant and the Sender and Receiver are connected through their PoE ports, external power supplies will not be required. However, additional Receivers or other devices connected to the LAN 1 port of a Receiver will require an external power supply.
- Launch the Gefen Syner-G™ app to discover the IP address of the Sender/Receiver unit. See the Gefen Syner-G™ User Manual for more information.
- Click the desired unit from the list. The currently selected unit will be highlighted in red.
- Use the fields in the Device Settings section to change the IP settings, as necessary.
- Once all IP settings have been adjusted, click the Apply button.
- Click the Reboot button to apply changes.
- Repeat steps 4 - 7 for each Sender and Receiver unit as necessary.
Note

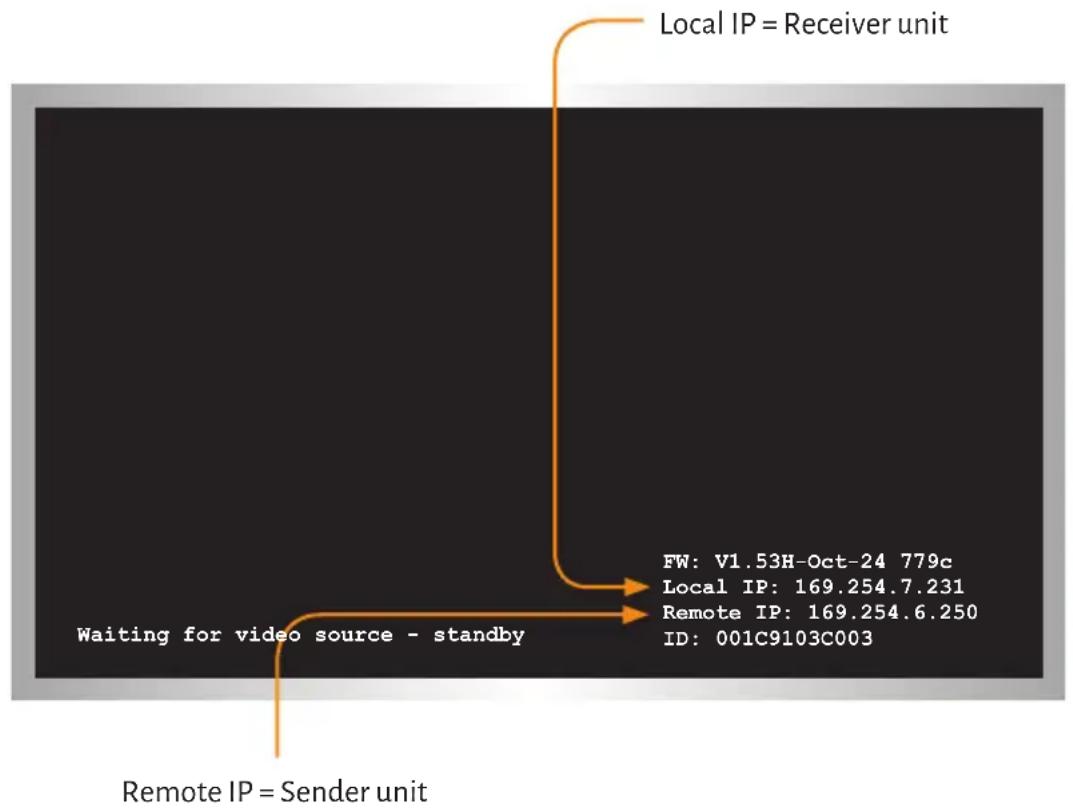

The IP address of both the Sender and Receiver unit can be viewed by disconnecting the source device. Remove the HDMI cable between the Sender unit and the source device. The IP address of the Sender and Receiver will be displayed as shown:
-
Open your Web browser and enter the IP address of the desired Sender or Receiver unit in the address bar.
-
The Login screen will be displayed.
- In order to change network settings, you must login as "Administrator". Select the "Administrator" username from the drop-down list.
- Type the password in the Password field. The default password for "Administrator" is admin. The password is case-sensitive and will be masked as it is entered.
Note
Passwords and operating features can be changed when logged in as Administrator. The User option has limited access. To change password credentials, see Changing the Password (page 60) for more information.
- Click the Login button.
- The Network will automatically be selected. The current IP Mode will be highlighted within the IP Setup window group.
- Click the desired IP Mode button.
If Static mode is selected, then enter the IP Address, Subnet Mask, and Default Gateway. Contact your system administrator if necessary.
If DHCP mode is selected, then the IP address, subnet mask, and default gateway will be specified by the DHCP server.
17. Click the Apply button to save the changes. This operation will require a reboot.
18. Click the Reboot button near the bottom of the page.
19. Repeat steps 12 - 21 for each Sender and Receiver to be configured.
20. After the desired IP settings have been applied, set the video channel for each Sender unit. See Setting the Video Channel (page 27) for more information.
Important
The use of a Managed Gigabit switch with "Jumbo Frame" and "IGMP Snooping" capability is required when connecting the Gefen AV over IP products to a network. The switch should be set to greater than 8K and IGMP Snooping must be enabled.
Using a Direct Connection
By default, all Senders and Receivers are shipped in APIPA (Auto) mode. This network mode is used for directly connecting Sender and Receiver units to one another. In APIPA mode, each Sender and Receiver unit assigns itself a unique IP address within the range of 169.254.x.x. Using a direct connection each unit can remain in Auto mode of can be assigned a static of DHCP IP address using the Gefen Syner-G software or manually through the built-in web interface.
- Connect an HDMI cable to connect the source to the HDMI In port on the Sender unit.
- Connect an HDMI cable from the display to the HDMI Out port on the Receiver unit.
- Connect a CAT-5e (or better) cable from the LAN (PoE) port on the Sender unit to the LAN 1 or LAN 2 (PoE) port on the Receiver unit. The other LAN port can then be used for connecting (daisy-chaining) an additional Receiver unit. Each cable run can be up to 330 feet (100 meters). Please note that PoE is not active in direct connection. The Sender and all connected Receivers will need to be powered using their external power supplies.
- Connect the included 5V DC locking power supplies to both the Sender unit and Receiver unit. Do not overtighten the locking connectors. Plug the power supplies to available electrical outlets.

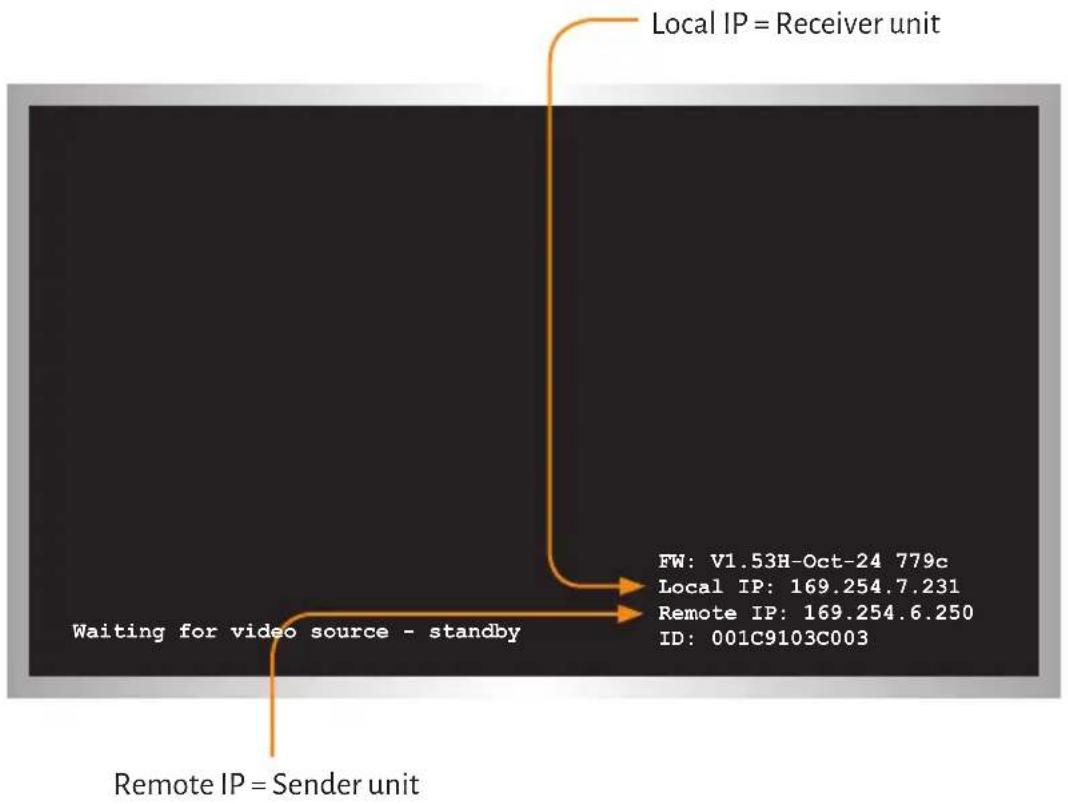

- Obtain the IP address of both the Sender and Receiver unit by disconnecting the video cable from the Sender unit (or from the source device). Information, similar to the illustration on the next page, will be displayed.
- Make note of both IP addresses. These IP addresses can be entered in a Web browser to access the built-in Web interface.
- See Local Area Network (LAN) Connection (page 17) and follow steps 4 - 20, in order to access the built-in Web interface.
- Set the video channel. By default, both the Sender and Receiver unit are set to channel o. See Setting the Video Channel (page 27) for more information.
- Once both Sender and Receiver units are configured using the built-in Web interface, the shielded CAT-5e cable, between the PC and the Receiver unit, can be disconnected.
- See Supplementary Connections (page 24) for instructions on connecting USB, IR, RS-232, and audio cables.
Supplementary Connections
USB
See USB Control (page 46) for more information on using USB devices.
- Connect a USB cable from the computer to the USB port on the Sender unit.
- Connect a maximum of two USB 2.0 devices to the USB 2.0 ports, on the front panel of the Receiver unit. For USB 1.1 devices, connect the devices to the USB 1.1 ports.
IR
-
Connect an IR Emitter (Gefen part no. EXT-IREMIT) to the Sender unit and attach it to the IR sensor on the device to be controlled.
-
Connect an IR Extender (Gefen part no. EXT-RMT-EXTIRN) to the Receiver unit if the IR sensor will not be within line-of-site for proper IR control.
▶ Audio
See Audio Connections (page 53) for more information on using audio devices.
- Connect a 3.5mm mini-stereo cable from the Line In port on the Sender unit to an audio source.
- Connect a pair of powered speakers (or another audio output device) to the Line Out port on the Receiver unit.
- Connect a USB microphone / headset to one of the USB 2.0 ports on the Receiver unit
- Connect a pair of powered speakers (or another audio output device) to the Line Out port on the Sender unit.
RS-232
- Connect an RS-232 cable from the PC or automation system to the RS-232 port on the Sender unit.
- Connect an RS-232 cable from the Receiver unit to the RS-232 device to be controlled.
Sample Wiring Diagram
Note
The wiring diagrams above show IR Emitters (Gefen part no. EXT-IREMIT), IR Extender Modules (Gefen part no. EXT-RMT-EXTIRN), and various interconnect cables that are not included with the products. These Emitters, Extender Modules, and select cables are available for purchase from your Gefen dealer or distributor.
The Power and Link LED indicators on the Sender and Receiver unit provide basic information on their current status.
The information, in the tables below, applies to both the Sender and Receiver unit.
Link
| Status Description | ||
| Off · Connection is not established. | · Check the cable between the Sender and Receiver unit. | |
| On | (DBK) | · Connection is established and video is streaming. |
| Blinking |  | · System is in a state of transition. Connection is established but streaming has not started.· No video source detected.· Check that the Receiver unit is connected to the host. |
Power
| Status Description | |
| Off · No power. [3037] | |
| On · Power is on and the system is ready. | |
Blinking  | · System is booting (not ready). |
Setting the Video Channel
In order for a Sender and Receiver unit to communicate with one another, they must both be set to the same video channel. This is similar to changing the channel on a set-top box in order to view a different program. Pressing and releasing either the CH + or CH - buttons on the front of the Receiver unit can also be used to change the video channel.
Both methods will be covered in this section. By default, all Sender and Receiver units are set to channel o (zero).
Setting the Channel using the Web Interface
-
Access the Web interface by entering the IP address of the desired Sender or Receiver unit.
-
Login as "Administrator" or "User".
-
Click the Functions tab. The current channel is displayed within the Channel Setup window group.
-
Type the desired channel number. Channel numbers can range from 0 to 39900.
-
Click the Apply button on the right-hand side of Channel Setup window group.
- The following message will be displayed, at the top of the page, indicating that the selected channel has been applied.
If the entered value is invalid, then the following message will be displayed:
-
Access the Web interface of the next unit (Sender or Receiver) by entering its IP address.
-
Repeat steps 1 - 5 for each Sender and Receiver to be changed.
Setting the Channel using the Front Panel
- Press the - or +/USB button to display the current channel number. Channel numbers range from 0 to 39900.
Receiver unit
- The current video channel of the Receiver unit will be shown on the connected display.
-
While the current video channel is being displayed, press and release the Switch button on the Receiver unit. The Receiver unit will change to the next available video channel that is being used by a Sender unit.
-
Once the current channel is displayed, do one of the following:
-
Press the - button to decrement the current channel number.
-
Press the + / USB button to increment the current channel number.
-
To set the video channel on a Sender unit, use the Web interface. See Setting the Channel using the Web Interface (page 27) for more information.
The illustration below shows one Receiver unit and three Sender units. The numbers indicate the video channel for each unit. Here, the Receiver unit is currently set to channel 2 and is receiving the signal from the Sender unit, set to channel 2.
To switch the channel, and view the source that is connected to the Sender on channel 5, press and release the +/USB button to increment the video channel until the display shows the number 5.
- The Receiver unit, on channel 5, is now receiving the signal from the Sender unit on channel 5.
Blocking & Masking Video
Use the Block Video option on a Sender unit to prevent video from being transmitted to each of the connected Receiver units (multicast mode only). Use the Mask Video option to selectively block video on the desired Receiver units.
Mask Video
- Access the Web interface of a Receiver unit by entering the IP address in the address bar of the browser.
- Login as "Administrator".
- Click the Functions tab.
- Under the Video over IP window group, check the Mask Enable box to mask the video. Deselect this check box to unmask (enable) video.
- Click the Apply button within the Video over IP group.
- Repeat steps 1 through 5 for each Receiver unit in the system.
▶ Block Video
Note
The Block Enable option is only applicable in multicast mode.
- Access the Web interface of a Sender unit by entering the IP address in the address bar of the browser.
- Login as "Administrator".
- Click the Functions tab.
- Under the Video over IP window group, check the Block Enable box to block the video. Deselect this check box to unblock (enable) video.
- Click the Apply button within the Video over IP group.
- Repeat steps 1 through 5 for each Sender unit in the system.
Configuring Unicast Mode
The term unicast is used to describe a configuration where information is sent from one point to another point. It is possible to have multiple Sender and Receiver units connected in a system. However, in unicast mode a Sender unit can communicate with only one Receiver unit at a time. In unicast mode, the Gefen AV over IP products function similar to a KVM switcher.
Note
The Gefen AV over IP Sender and Receiver units are shipped from the factory in unicast mode.
The illustration, below, shows 3 Sender units (S1, S2, and S3) and 2 Receiver units (R1 and R2) on a network, operating in unicast mode. The video channels are notated in blue.
Figure 2.1 - Unicast mode: A Sender unit can communicate with only one Receiver unit at a time.
Access the Web interface for each Sender and Receiver unit that will be using unicast mode. In this example, we will start with Receiver unit R1.
-
Login as "Administrator".
Tip
In unicast mode, the Gefen AV over IP Senders and Receivers function as a KVM switcher.
-
Click the Network tab.
-
Click the Unicast button under the Network Mode window group. When selected, the Unicast button will be highlighted in red.
-
Click the Apply button in the lower-right corner of the Network Mode group.
-
The following message will be displayed, at the top of the page, indicating that the casting mode has been applied to the Sender or Receiver unit.
i Success: New casting mode applied.
- Click the Reboot button at the bottom of the page. If the Reboot button is not clicked, the following message will be displayed, indicating that the unit must be rebooted.
⚠ Warning: Reboot for new settings to take effect.
- Repeat steps 1-7 in order to configure the Sender unit for unicast mode.
Important
When switching between unicast and multicast modes, both Sender and Receiver units must be set to the same mode.
Switching between Sender units in Unicast mode
When multiple Sender and Receiver unit are used in unicast mode, the Gefen AV over IP Sender and Receivers behave as a switcher. In unicast mode, a Sender unit can communicate with only one Receiver unit at a time.
In the example below, Receiver unit R1 will be switched to receive the source connected to Sender unit S1. To do this, simply change the video channel.
Figure 2.2 - Unicast mode: Receiver unit R1 is connected to Sender unit S2.
- Access the Web interface for Receiver unit R1.
- Login as "Administrator".
- Click the Network tab and change the video channel. Refer to Setting the Video Channel (page 27) if necessary.
- Click the Apply button.
- The following message will be displayed, at the top of the page, indicating that the new channel has been applied to the Sender or Receiver unit.
i Success: Channel Selected.
- Receiver unit R1 is now receiving the UHD/HD source connected to Sender unit S1, as shown on the next page.
Figure 2.3 - Unicast mode: Receiver unit R1 is now connected to Sender unit S1.
Now, observe the result when both Sender S1 and S2 are set to channel 5:
Figure 2.4 - Unicast mode violation: Two Sender units (S1 and S2) using the same video channel.
In this example, Receiver R1 will continue to receive audio/video data from Sender S1, even though Sender S2 is set to the same channel. The reason for this is because Receiver R1 and Sender S1 were already set to the same channel and communicating (as depicted in Figure 2.3). However, this scenario violates the unicast mode rule: A Sender unit can communicate with only one Receiver unit at a time.
When using unicast mode, each of the Sender units must be assigned a unique channel and should never be changed. Use the Receiver unit to switch (channels) between Sender units.
Note
In unicast mode, if an additional Sender unit is introduced into a system with the same channel as another Sender unit, then the Receiver unit will continue to receive audio/video data from the Sender unit which was connected first.
Configuring Multicast Mode
The term multicast is used to describe a configuration where information is sent from one or more points to a set of other points. For example, a single Sender unit can transmit data to multiple Receiver units. In addition, if multiple Sender units are used, each Sender unit can transmit data to any Receiver that is not already receiving data from another Sender unit. In multicast mode, the Senders and Receivers function similar to a KVM matrix.
The illustration, below, shows 3 Sender units (S1, S2, and S3) and 2 Receiver units (R1 and R2) on a network, operating in multicast mode. The video channels are shown in blue.
Figure 2.5 - Multicast mode: A Sender unit can communicate with multiple Receiver units.
-
Access the Web interface for each Sender and Receiver unit that will be using multicast mode. In this example, we will start with Receiver S2.
-
Login as "Administrator".
Note
In multicast mode, the Gefen AV over IP Senders and Receivers function as a KVM matrix.
-
Click the Network tab.
-
Click the Multicast button under the Network Mode window group. When selected, the Multicast button will be highlighted in red.
- Click the Apply button in the lower-right corner of the Network Mode group.
The following message will be displayed, at the top of the page, indicating that the casting mode has been applied to the Sender or Receiver unit.
Success: New casting mode applied.
If a display is connected to the Receiver unit, then the message "Starting USB" will be displayed. For more information on using USB under multicast mode, see USB under Multicast Mode (page 48).
- Click the Reboot button at the bottom of the page. If the Reboot button is not clicked, the following message will be displayed, indicating that the unit must be rebooted.
Warning: Reboot for new settings to take effect.
- Repeat the steps above in order to configure the Sender unit to multicast mode.
Important
When switching between unicast and multicast modes, both Sender and Receiver units must be set to the same mode.
Gefen Syner-G Discovery
Enabling the Gefen Syner-G Discovery feature allows the Gefen Syner-G Software Suite or Gefen Discovery Tool App to locate a Sender and/or Receiver on a network. Once the software is able to locate the unit, IP settings can be changed as desired.
-
Access the Web interface by entering the IP address of a Receiver or Sender unit.
-
Login as "Administrator".
-
Click the Network tab.
-
Under the IP Setup window group, check the Gefen Syner-G Discovery box to allow the Gefen Syner-G software to locate the unit. If you do not want the unit to be discoverable, then un-check this box.
-
Click the Apply button.
-
Click the Reboot button at the bottom of the page to restart the unit and apply the change.
Finding Your Device
If several Sender and Receiver unit pairs are connected on a network, you may need to physically identify a particular Sender and/or Receiver unit. In such a case, use the Find Your Device feature.
-
Access the Web interface by entering the IP address of a Receiver or Sender unit.
-
Login as "Administrator".
-
Click the Network tab.
-
Under the IP Setup window group, click the Show Me button. By default, the Hide Me button will be selected.
Although shown, below, it is not necessary to have the Gefen Syner-G Discovery option enabled in order to use the Find Your Device feature.
- The following message will be displayed, at the top of the page, indicating that the LED indicators on the unit are blinking.
i Success: Device is blinking!
- The Power and Link LED indicators will continue to blink until the Hide Me button is clicked.
Receiver unit (shown)
- Click the Hide Me button to stop both LED indicators from blinking.
- The Power and Link LED indicators will stop blinking and the following message will be displayed at the top of the page.
i Success: Device will stop blinking!
The Gefen AV over IP Sender and Receivers support RS-232 pass-through, allowing the control of remote RS-232 devices. The Sender and Receiver unit which are being used to pass-through the RS-232 data must be set to the same baud rate as the RS-232 host and client.
In the example below, an RS-232 device has been connected to Receiver R1. We want to control this product from Sender unit S3, using an automation control device. The channel numbers are listed in blue.
Figure 2.6 - Basic RS-232 connection
Table 2.1 - RS-232 settings for an arbitrary RS-232 device.
| Description Setting | |
| Baud rate | 19200 |
| Data bits | 8 |
| Parity | None |
| Stop bits | 1 |
| Hardware flow control | None |
Confirm that the same RS-232 settings are assigned to both the Sender and Receiver units. To do this, access the Web interface on both the required Sender unit and Receiver unit to set the proper RS-232 settings. Follow the instructions on the next page.
- Access the Web interface for the Sender unit and login as "Administrator".
- Click the Functions tab.
- Locate the Serial over IP group and change the RS-232 settings to match the settings of the RS-232 device that is being used. In this case, we need to use the settings from Table 2.1 (see previous page).
- Make sure that the Enable Serial over IP box is checked.
- Click the Apply button in the lower-right corner of the Serial over IP group.
Important
If Enable Serial over IP is not checked, then RS-232 pass-through will be disabled.
- The following message will be displayed, at the top of the page, indicating that the new Serial over IP options have been applied.
- Click the Reboot button at the bottom of the page. If the Reboot button is not clicked, the following message will be displayed, indicating that the unit must be rebooted.
① Success: New Serial over IP options applied.
⚠ Warning: Reboot for new settings to take effect.
- Repeat steps 1 - 7 for the Receiver unit.
RS-232 under Unicast Mode
In unicast mode, a Sender unit will be able to communicate with only one Receiver unit at a time.
Figure 2.7 - In unicast mode, the host can talk to only one RS-232 device at a time.
RS-232 under Multicast Mode
In multicast mode, a Sender unit can communicate with multiple Receiver units simultaneously.
Figure 2.8 - In multicast mode, the host can talk to multiple RS-232 devices.
USB under Unicast Mode
When connecting USB devices to the Gefen AV over IP Senders and Receivers, the functionality is similar to that of video and RS-232. See RS-232 under Unicast Mode (page 45) for more information.
Note
The Sender and Receiver units shipped from the factory in unicast mode.
As an example, we will start with our original diagram and connect a computer to Sender unit S2 and a keyboard, mouse, USB drive, and USB mic/headset to Receiver unit R2.
Figure 2.9 - Using USB devices under unicast mode.
- Make sure the desired Sender and Receiver units are set to unicast mode. Refer to Configuring Unicast Mode if necessary.
- Access the Web interface for the Sender unit.
- Login as "Administrator".
-
Click the Functions tab.
-
Locate the USB over IP group and make sure the Enable USB over IP box is checked. This is the default setting. Note that in unicast mode, the Operation Mode is automatically set to Active on link and cannot be changed.
- Make sure that the USB Mouse Mode is set to High Resolution. This is the default setting. Use Compatibility mode only if using additional KVM switchers or other devices within the system that causes the mouse to behave erratically.
- Click the Apply button within the USB over IP group, then click the Reboot button at the bottom of the page.
- Connect the USB host (e.g. computer) to the USB port on the Sender unit.
- Connect a USB device (keyboard and/or mouse) to a USB port on the Receiver unit. Up to four USB devices (two USB 1.1 and two USB 2.0) can be connected per network in unicast mode.
- The keyboard and mouse (or other USB device) can now be used from the Receiver unit.
Important
When enabling or disabling USB over IP, the Apply and Reboot buttons must be clicked to apply changes.
USB under Multicast Mode
When connecting USB devices to the Gefen AV over IP Senders and Receivers, the functionality is similar to that of video and RS-232. There are two USB modes available in multicast mode: Active per request mode and Active on link mode.
Using the last example, another keyboard and mouse device has been connected to Receiver R1. This will allow us to control the computer from two separate locations. For purposes of clarity, the USB drive and mic/headset have been removed.
Figure 2.9 - Using USB devices under multicast mode.
- Make sure the desired Sender and Receiver units are set to multicast mode. Refer to Configuring Multicast Mode if necessary.
- Access the Web interface for the Sender unit.
- Click the Functions tab.
- Locate the USB over IP group and make sure the Enable USB over IP box is checked. This is the default setting. See the illustration on the following page.
USB over IP
Enable USB over IP
Operation Mode:
Active per request (Default - Only one station can active USB devices at one time)
Active on link (Up to 4 USB devices within the network can be active at the same time)
USB Mouse Mode:
High Resolution
○ Compatibility
Apply
Note that in multicast mode, the Operation Mode for both Sender and Receiver units are automatically set to Active per request mode.
Under Active per request mode, multiple USB devices may be present on one or more Receiver units. However, only one Receiver unit can have USB control at a time.
By default, the first Receiver unit connected to the system will have USB control.
In the example, below, Receiver unit R2 currently has control (we arbitrarily connected Receiver unit R2 before Receiver unit R1).
See the diagram on the next page.
Figure 2.10 - Receiver unit R2 currently has USB control.
Important
If switching between Active per request mode and Active on link mode, the Apply and Reboot buttons must be clicked to apply changes.
The next example will consist of switching USB control between two Receiver units. Using the diagram, above, Receiver unit R1 will have USB control.
To assign USB control to another Receiver unit, follow the steps on the next page.
Active per request mode
-
Press and hold the CH + USB button on the desired Receiver unit, for at least two seconds.
-
The message "Starting USB" will appear on the connected display.
Figure 2.11 - Receiver unit R1 has USB control.
Important
If switching between Active per request mode and Active on link mode, the Apply and Reboot buttons must be clicked to apply changes.
- In order to assign USB control to a different Receiver unit, repeat steps 1 - 2.
Active on link mode
Under Active on link mode, a maximum of four USB devices can be used within a system. In the diagram, on the previous page, the system is already using the maximum number of USB devices (2 USB devices per Receiver). If we had two more Receiver units (making a total of four Receiver units), we would only be able to connect one USB device to each Receiver unit. To switch to Active on link mode, follow the instruction below.
-
Access the Web interface for the Sender unit.
-
Login as "Administrator".
-
Click the Functions tab.
-
Locate the USB over IP group and make sure the Enable USB over IP box is checked. This is the default setting.
-
Click the Active on link radio button within the USB over IP group.
-
Click the Apply button within the USB over IP group.
-
The following message will be displayed, at the top of the page, indicating that the new Serial over IP options have been applied.
- Click the Reboot button at the bottom of the page. If the Reboot button is not clicked, the following message will be displayed, indicating that the unit must be rebooted.
- Repeat steps 2 - 8 for the Receiver unit.
Audio Connections
Audio works in both unicast and multicast modes. The only difference between the two modes is that the Line In port is automatically disabled, on all Receiver units, in multicast mode. To illustrate how audio works with the Gefen AV over IP Senders and Receivers, we will set up a microphone and some speakers.
- Connect a 3.5mm mini-stereo cable from the Line In port on the Sender unit to the Line Out port on the computer.
Note
On HDMI and DisplayPort™ Senders, when a cable is connected to the Line In port on the Sender unit, it takes priority over and replaces the audio from the video input. The audio will be heard on the HDMI or DisplayPort™ Out, Line Out, and Opt Out ports on the Receiver unit.
- Connect another 3.5mm mini-stereo cable to from the Line Out port on the Sender unit to the Line In port on the computer.
- Connect a 3.5mm mini-stereo cable from the Mic In port on the Receiver to the output of a microphone pre-amp or other "Line Level" audio source.
Important
Some microphones may require a pre-amp connected inline to be compatible. Alternately, you can use a USB mic connected to one of the USB 2.0 ports on the Receiver.
-
Connect the Line Out port to powered speakers or a pair of headphones.
-
Connect a Gefen CAB-TLINK-6MM TOSLINK cable from the Opt Out port to the Optical Digital Input of an AV receiver or amplifier.
Receiver unit
In the diagram below, the mouse and keyboard USB devices have been removed from Sender unit S2 and Receiver unit R2, for purposes of clarity. Arrowheads indicate the audio signal path.
Figure 2.12 - Audio connections in unicast mode.
Figure 2.13 - The Line In port, on all Receiver units, is automatically disabled in multicast mode.
Audio Sources and De-Embedding
The following outlines the audio de-embedding functionality of this product.
If a 3.5mm mini-stereo cable is connected to the Line In port on the HDMI or DisplayPort™ Sender unit, then the HDMI or DisplayPort™ audio will be disabled on the Receiver unit. The Line Out port, on the Receiver unit, will output audio from the source connected to the Line In port on the Sender unit.
When a source is connected to the Line In port on the Sender unit, the audio will be heard on the HDMI Out or DisplayPort™ Out, Line Out, Opt Out, and Coax Out ports.
- The Line In port on the Receiver unit will only pass audio to the Line Out port on the Sender unit when in unicast mode.
- The Opt Out port will de-embed both 2-channel PCM and Bitstream (up to 5.1 channel) audio from the HDMI In or DisplayPort™ In port. High-resolution (lossless) audio will not be outputted.
- HDMI or DisplayPort™ source audio, from the Sender unit, will pass to the HDMI Out or DisplayPort™ Out and Opt Out ports on the Receiver unit. HDMI or DisplayPort™ audio will not be converted or down-mixed on the Line Out port on the Receiver unit.
Creating Video Walls
The web interface facilitates the creation of video walls up to 16 horizontal and 16 vertical displays. Video walls may contain any number or rows and columns and any combination of these can be enabled, as necessary.
Wall Size and Layout
- Access the Web interface for the Receiver unit.
- Login as "Administrator" or "User".
- Make sure that the Enable Video Wall option is enabled under the Functions tab of the Sender unit, then click the Video Wall tab. Click the Apply button.
- Under Bezel and Gap Compensation, specify the Outside Width (OW), Outside Height (OH), Video Width (VW), and Video Height (VH) fields.
- Under the Wall Size and Position Layout window group, click the drop-down lists for the Vertical Monitor Count and Horizontal Monitor Count and select the number of rows and columns of displays, respectively.
- Select the row and column positions using the Row Position and Column Position dropdown lists. Both row and column positions begin with a reference value of zero.
- Click the drop-down list, next to the Apply button, to select the desired host or client to which these settings will be applied.
If the All option is selected, then all parameters will be transferred to all Receiver units. For monitor count and bezel compensation in a video wall array of matching displays, this is fine, but the row and position will also be copied. There is an option for "This" unit that will apply to the current unit being interfaced with. The "This" option can be used to precisely set the proper position of each unit but would require the user to access the web interface of each unit to set. Alternatively, the drop-down will provide a list of all connected host (Sender units) and clients (Receiver units). This process allows the configuration of an entire video wall from a single unit.
Bezel Compensation
Display devices have a region where video data is not displayed. This area is called the bezel. Bezel compensation takes this area into account when a single video source is mapped across multiple displays. It is recommended, when a video wall is set up for the first time, that bezel compensation values be set to zero. Bezel compensation can be adjusted at any time.
The illustration on the left shows a 2x2 video wall without bezel compensation. Note how the circle is stretched, slightly, horizontally. On the right, bezel compensation is used to correct the “distorted” image.
- Login as "Administrator" or "User".
- Click the Video Wall tab.
- Adjust the values under the Bezel and Gap Compensation window group. Refer to the diagram, to the right of each field, to see the effect of each value. All entered values are applied to the physical displays in 0.1 millimeter increments.
Setting the Video Mode
The video mode can be changed using the Mode button or through the Web interface of the Sender unit. Consecutively pressing the Mode button on the Sender unit will switch between Graphic and Video mode.
Using the Web interface
-
Access the Web interface for the Sender unit.
-
Login as "Administrator" or "User".
-
Click the Network tab.
-
Click the desired mode within the Picture Quality Mode window group. The default setting is "Video".
▶ Video Mode
If the video signal is motion video, then click the Video button. This mode will optimize the frame rate.
▶ Graphic Mode
If the video signal is a static image, then click the Graphic button.
- The selected mode will be displayed on the screen, as shown below.
- Rebooting the Sender unit is not required for the changes to take effect.
Changing the Password
- Access the Web interface for the Sender / Receiver unit.
- Login as "Administrator".
- Click the System tab.
-
Click the Change button.
-
Under the Password Change window group, enter the new password for the desired username. Note that the new password will not be masked when it is entered.
Reset using the Web Interface
All Senders and Receivers can be reset using the web interface or using the buttons on the front panel. When using the Web interface, the Sender / Receiver units will automatically be reset to Auto IP mode. When using the front-panel buttons, the Sender / Receiver can be reset to either Auto IP or Static IP mode.
Note
Once a unit has been reset to Auto IP mode, the connection to the Web interface will be terminated. To reestablish a connection to the Web interface, from your computer, see Installation (page 17).
- Access the Web interface for the desired Sender / Receiver unit. It does not matter which unit is reset first.
- Login as "Administrator".
- Click the System tab.
- Click the Utilities rollout.
- Click the Factory Default button.
- Both the Power and Link LED indicators will begin to flash.
Receiver unit (shown)
- After both LED indicators stop flashing, the unit will be reset.
- Repeat the process for each unit.
Reboot using the Web Interface
The Sender and Receiver units can be rebooted in three different ways: Using the Web interface, the Reset button on the front panel, or simply disconnecting and reconnecting the power.
- Access the Web interface for the Sender / Receiver unit.
- Login as "Administrator".
- Click the System tab.
- Click the Utilities rollout.
- Click the Reboot button.
- After a few moments, the Power LED indicator will flash.
- Several seconds later, the Power LED indicator will glow solid blue and the Link LED indicator will begin to flash.
- After both LED indicators stop flashing, the reboot process will be complete.
Reboot using the Web Interface
The Sender and Receiver units can be rebooted in three different ways: Using the Web interface, the Reset button on the front panel, or simply disconnecting and reconnecting the power.
- Access the Web interface for the Sender / Receiver unit.
- Login as "Administrator".
- Click the System tab.
- Click the Utilities rollout.
- Click the Reboot button.
- After a few moments, the Power LED indicator will flash.
- Several seconds later, the Power LED indicator will glow solid blue and the Link LED indicator will begin to flash.
- After both LED indicators stop flashing, the reboot process will be complete.
Reboot using the Front Panel
-
Press the Reset button, on the desired Sender or Receiver unit, using the end of a paper clip or other sharp pointed object.
-
After a few moments, the Power LED indicator will flash.
-
Several seconds later, the Power LED indicator will glow solid blue and the Link LED indicator will begin to flash.
-
After both LED indicators stop flashing, the reboot process will be complete.
Note
By default, the Telnet login credentials are disabled. This setting is required when using the Matrix controller (Gefen part no. EXT-CU-LAN) but can be enabled for security purposes. Use the #use_telnet_login command to enable or disable this feature.
- Launch the desired terminal application (e.g. Windows Hyperterminal, etc).
- Within the terminal program, enter the IP address of the Sender or Receiver unit that you wish to control.
- Enter the TCP listening port. The default listening port is 23.
- After the correct settings have been used in the terminal program, information similar to the following will be displayed.
In the example, below, we are connected to the client (Receiver unit) and Telnet login has been enabled:
---- Welcome to the Gefen Telnet Server ---- ast2-client001C9103C8B3 login:
-
Login as "Administrator". The default password is "admin". To change the Telnet password, see the #set_telnet_pass command.
-
Type #help for a list of commands or refer to the tables on the following pages.
Important
Commands that are limited to a Sender or Receiver unit are marked as "Tx only" and "Rx only", respectively. Unless otherwise noted, commands can be used when connected to either a Sender or Receiver unit.
Discovery Service
| Command Description | |
| #get_device_desc | Displays the device description |
| #get_discovery | Displays the current state of the discovery service |
| #get_discovery_mode | Displays the discovery read/write mode |
| #get_showme | Displays the status of the showme state |
| #set_device_desc | Sets the device description |
| #set_discovery | Enables or disables the discovery service |
| #set_discovery_mode | Sets the discovery mode |
| #set_showme | Enables or disables the “show me” feature |
Help
| Command Description | |
| #help | Displays a list of available commands |
Network
| Command Description | |
| #get_gateway | Displays the gateway IP address |
| #get_ip_address | Displays the IP address |
| #get_ip_mode | Displays the IP mode |
| #get_ipconfig | Displays the IP configuration information |
| #get_net_mode | Displays the network casting mode |
| #get_netmask | Displays the subnet mask address |
| #get_remote_udp_access | Displays the remote UDP access state |
| #get_remote_udp_ip | Displays the remote UDP IP address |
| #get_remote_udp_port | Displays the remote UDP listening port |
| #get_telnet_access | Displays the Telnet access state |
| #get_telnet_login | Displays the status of the Telnet login |
| #get_telnet_port | Displays the Telnet listening port |
| #get_telnet_welcome | Displays the Telnet welcome message |
| #get_udp_access | Displays the UDP access state |
| #get_udp_port | Displays the UDP listening port |
| #get_web_port | Displays the HTTP listening port |
| #set_gateway | Sets the gateway address |
| #set_ip_address | Sets the IP address |
| #set_ip_mode | Sets the IP mode |
| #set_net_mode | Sets the network casting mode |
| #set_netmask | Sets the subnet mask address |
| #set_remote_udp_access | Enables or disables remote UDP access |
| #set_remote_udp_ip | Sets the remote UDP IP address |
| #set_remote_udp_port | Sets the remote UDP listening port |
| #set_telnet_access | Enables or disables Telnet access |
| #set_telnet_login | Enables or disables the Telnet login |
| #set_telnet_pass | Sets the Telnet password |
| #set_telnet_port | Sets the Telnet listening port |
| #set_telnet_welcome | Sets the Telnet welcome message |
| #set_udp_access | Enables or disables UDP access |
| #set_udp_port | Sets the UDP listening port |
| #set_web_port | Sets the HTTP listening port |
Routing
| Command Description | |
| #get_rx_channel | Displays the channel of the Receiver unit (Rx only) |
| #get_v | Displays the current video input status |
| #request_usb | Requests USB control when active per request is enabled |
| r | Routes an input to a Receiver unit (Rx only) |
RX Specific
| Command Description | |
| #get_clk_lock | Displays the audio clock lock |
| #get_edid_copy | Displays the EDID copy state (Rx only) |
| #get_mask | Displays the current video mask state |
| #get_rx_id | Displays the ID of the Receiver unit |
| #get_vw | Displays the status of the video wall |
| #get_vw_bc | Displays the video wall bezel compensation |
| #get_vw_delay | Displays the video wall display delay |
| #get_vw_hscale | Displays the video wall horizontal up-scaling |
| #get_vw_layout | Displays the video wall horizontal and vertical maximum display count |
| #get_vw_osd | Displays the status of the video wall OSD |
| #get_vw_pos | Displays the video wall display position |
| #get_vw_shift | Displays the video wall display shift |
| #get_vw_vscale | Displays the video wall vertical up-scaling |
| #set_clk_lock | Sets the audio clock lock |
| #set_edid_copy | Enables or disables EDID copy |
| #set_mask | Enables or disables video masking |
| #set_rx_id | Sets the ID of the Receiver unit |
| #set_vw | Enable / disable video wall |
| #set_vw_bc | Sets the video wall bezel compensation |
| #set_vw_delay | Sets the video wall display delay |
| #set_vw_hscale | Displays the video wall horizontal up-scaling |
| #set_vw_layout | Sets the video wall horizontal and vertical maximum display count |
| #set_vw_osd | Enable / disable the video wall OSD |
| #set_vw_pos | Sets the video wall display position |
| #set_vw_shift | Sets the video wall display shift |
| #set_vw_vscale | Displays the video wall vertical up-scaling |
Serial
| Command Description | |
| #get_serial_allow | Displays the Serial-over-IP state |
| #get_serial_baud | Displays the serial baud rate setting |
| #get_serial_bits | Displays the serial data bits setting |
| #get_serial_parity | Displays the serial parity setting |
| #get_serial_stop | Displays the serial stop bits setting |
| #set_serial_allow | Enables or disables Serial-over-IP mode |
| #set_serial_baud | Sets the baud rate for the serial port |
| #set_serial_bits | Sets the data bits for the serial port |
| #set_serial_parity | Sets the parity setting for the serial port |
| #set_serial_stop | Sets the number of stop bits for the serial port |
System
| Command Description | |
| #get_firmware_version | Displays the firmware version |
| #factory_reset | Resets the unit to factory-default settings |
| #fw_upgrade | Upgrades firmware using external file |
| #reboot | Reboots the unit |
TX Specific
| Command Description | |
| #get_block | Displays the current video blocking state |
| #get_hdcp | Displays the HDCP state |
| #get_pq_mode | Displays the picture quality mode |
| #get_tx_channel | Displays the video channel |
| #set_block | Enables or disables video blocking |
| #set_hdcp_allow | Enables or disables HDCP-detection |
| #set_pq_mode | Sets the picture quality mode |
| #set_tx_channel | Sets the video channel |
USB
| Command Description | |
| #get_usb_allow | Displays the USB-over-IP state |
| #get_usb_mode | Displays the USB operating mode |
| #get_usb_mouse | Displays the mouse operating mode |
| #set_usb_allow | Enables / disables USB over IP |
| #set_usb_mode | Sets the USB operating mode |
| #set_usb_mouse | Sets the USB mouse mode |
Video
| Command Description | |
| #get_video_allow | Displays the Video-over-IP state |
| #set_video_allow | Sets the Video-over-IP state |
Web Interface
| Command Description | |
| #set_webui_ad_pass | Sets the administrator password for the web UI |
| #set_webui_user_pass | Sets the user password for the web UI |
#help
Displays a list of available commands. The commands listed are specific to either the Sender or Receiver unit.
Syntax
help
Parameters
None
Example
help
#HELP
#FACTORY_RESET
#FW_UPGRADE
#GET_BLOCK
#GET_CLK_LOCK
#GET_DEVICE_DESC
#GET_DISCOVERY
#GET_DISCOVERY_MODE
#GET_EDID_COPY
#GET_FIRMWARE_VERSION
#GET_GATEWAY
#GET_HDCP
#GET_IP_ADDRESS
#GET_IP_MODE
#GET_IPCONFIG
#GET_MASK
#GET_NET_MODE
#GET_NETMASK
#GET_PQ_MODE
#GET_REMOTE_UDP_ACCESS
#GET_REMOTE_UDP_IP
#GET_REMOTE_UDP_PORT
#GET_RX_CHANNEL
...
#factory\_reset
Resets the unit to factory-default settings. param1 must be included and set to 1.
Syntax
factory_reset param1
Parameters
param1 Integer
1
Example
factory_reset 1
RESET TO FACTORY DEFAULTS
Related Commands
reboot
#fw\_upgrade
Upgrades the firmware from the command.
Syntax
fw_upgrade filename
Parameters
filename
String
Example
fw_upgrade firmware_file_v2.bin
#get\_block
Displays the current video blocking state. This command is only available when connected to a Sender unit. To enable or disable the video blocking state, refer to the #set_block command.
Syntax
get_block
Parameters
None
Example
get_block
BLOCK DISABLED
Related Commands
get_mask
set_block
#get\_clk\_lock
Displays the audio clock lock.
Syntax
#get_clk_lock
Parameters
None
Example
#get_clk_lock
CLK_LOCK 0
Related Commands
#set_clk_lock
#get\_device\_desc
Displays the description of the Sender / Receiver unit.
Syntax
get_device_desc
Parameters
None
Example
get device desc
DEVICE DESCRIPTION IS Genius Sender 2
Related Commands
set_device_desc
#get\_discovery
Displays the current discovery mode setting.
Syntax
get_discovery
Parameters
None
Example
get_discovery
DISCOVERY SERVICE SET TO ENABLED
Related Commands
set_discovery
set_showme
#get\_discovery\_mode
Displays the current discovery mode setting.
Syntax
get_discovery_mode
Parameters
None
Example
get_discovery_mode
DISCOVERY MODE 1
Related Commands
set_discovery
set_discovery_mode
set_showme
#get\_edid\_copy
Displays the EDID copy state. This command is only available when connected to a Receiver unit.
Syntax
#get_edid_copy
Parameters
None
Example
#get_edid_copy
COPY EDID OF CONNECTED DISPLAY IS ENABLED
Related Commands
#set_edid_copy
#get\_firmware\_version
Displays the firmware version.
Syntax
get_firmware_version
Parameters
None
Example
get_firmware_version
FIRMWARE VERSION IS 1.83hv
Related Commands
fw_upgrade
#get\_gateway
Displays the gateway address of the Sender/Receiver unit.
Syntax
get_gateway
Parameters
None
Example
get_gateway
GATEWAY: 192.168.0.1
Related Commands
get_ip_address
get_ip_mode
get_ipconfig
get_netmask
set_gateway
set_ip_address
set ip mode
set_netmask
#get\_hdcp
Displays the current HDCP state. This command is only available when connected to a Sender unit.
Syntax
get_hdcp
Parameters
None
Example
get_hdcp
HDCP ENCRYPTED SOURCE IS ENABLE
Related Commands
set_hdcp_allow
#get\_ip\_address
Displays the current IP address of the Sender or Receiver unit.
Syntax
#get_ip_address
Parameters
None
Example
get_ip_address
IP: 10.5.64.60
Related Commands
#get_gateway
#get_ip_mode
#get_ipconfig
#get_netmask
#get_web_port
#set_gateway
#set_ip_address
#set_ip_mode
#set_netmask
#set_web_port
#get\_ip\_mode
Displays the current IP mode.
Syntax
get_ip_mode
Parameters
None
Example
get_ip_mode
IP MODE IS SET TO DHCP
Related Commands
#get_gateway
#get_ip_address
#get_ipconfig
#get_netmask
#get_web_port
#set_gateway
#set_ip_address
#set_ip_mode
#set_netmask
#set_web_port
#get\_ipconfig
Displays the current IP configuration. In addition to providing the MAC address and the broadcast IP address, this command also provides the same information as executing the #get_ip_mode, #get_ip_address, #get_netmask, and #get_gateway commands.
Syntax
#get_ipconfig
Parameters
None
Example
#get_ipconfig
IP CONFIGURATION IS :
IP MODE: DHCP
IP: 10.5.64.60
NETMASK: 255.255.255.0
GATEWAY: 10.5.64.1
MAC ADDRESS: 00-1C-91-03-C8-B3
Related Commands
#get_gateway
#get_ip_address
#get_netmask
#get_web_port
#set_gateway
#set_ip_address
#set_ip_mode
#set_netmask
#set_web_port
#get\_mask
Displays the current video mask state. This command is only available when connected to a Receiver unit. To enable or disable video masking on a Receiver unit, refer to the #set_mask command.
Syntax
get_mask
Parameters
None
Example
get_mask
MASK DISABLED
Related Commands
get_block
set_mask
#get\_net\_mode
Displays the current network mode setting.
Syntax
get_net_mode
Parameters
None
Example
get_net_mode
NETWORK MODE SET TO MULTICAST
Related Commands
set_net_mode
#get\_netmask
Displays the current net mask setting.
Syntax
get_netmask
Parameters
None
Example
get netmask
NETMASK: 255.255.255.0
Related Commands
get_gateway
get_ip_address
get_ipconfig
get_web_port
set_gateway
set_ip_address
set ip mode
set_netmask
set_web_port
#get\_pq\_mode
Displays the picture quality mode. This command is only available when connected to a Sender unit.
Syntax
#get_pq_mode
Parameters
None
Example
#get_pq_mode
TRANSMITTER PICTURE QUALITY IS VIDEO
Related Commands
#set_pq_mode
#get\_remote\_udp\_access
Displays the remote UDP access state.
Syntax
get_remote_udp_access
Parameters
None
Example
get_remote_udp_access
REMOTE UDP ACCESS IS ENABLED
Related Commands
#get_remote_udp_ip
#get_remote_udp_port
#get_udp_access
#get_udp_port
#set_remote_udp_access
#set_remote_udp_ip
#set_remote_udp_port
#set_udp_access
#set_udp_port
#get\_remote\_udp\_ip
Displays the remote UDP IP address.
Syntax
get_remote_udp_ip
Parameters
None
Example
get_remote_udp_access
REMOTE UDP IP: 192.168.1.29
Related Commands
get_remote_udp_access
get_remote_udp_port
get_udp_access
get_udp_port
set_remote_udp_access
set_remote_udp_ip
set_remote_udp_port
set_udp_access
set_udp_port
#get\_remote\_udp\_port
Displays the remote UDP listening port.
Syntax
get_remote_udp_port
Parameters
None
Example
get_remote_udp_port
REMOTE UDP COMMUNICATIONS PORT: 50008
Related Commands
#get_remote_udp_access
#get_remote_udp_ip
#get_udp_access
#get_udp_port
#set_remote_udp_access
#set_remote_udp_ip
#set_remote_udp_port
#set_udp_access
#set_udp_port
#get\_rx\_channel
Displays the current channel of the Receiver unit. To set the video channel of a Receiver unit, use the r command.
Syntax
#get_rx_channel
Parameters
None
Example
#get_rx_channel
RECEIVER CHANNEL: 1
Related Commands
#get_tx_channel
#set_tx_channel
r
#get\_rx\_id
Displays the ID of the Receiver unit. This command is only available when connected to a Receiver unit.
Syntax
#get_rx_id
Parameters
None
Example
get rx id
RX ID: 8
Related Commands
#set_rx_id
#get\_serial\_allow
Displays the Serial-over-IP state. Use the #set_serial_allow command to enable or disable the Serial-over-IP feature.
Syntax
get_serial_allow
Parameters
None
Example
get_serial_allow
SERIAL OVER IP is ENABLE
Related Commands
#get_serial_baud
#get_serial_parity
#get_serial_stop
#set_serial_allow
#set_serial_baud
#set_serial_bits
#set_serial_parity
#set_serial_stop
#get\_serial\_baud
Displays the serial baud rate setting. Use the #set_serial_baud command to set the baud rate.
Syntax
get_serial_baud
Parameters
None
Example
get_serial_baud
SERIAL BAUD RATE IS 19200
Related Commands
#get_serial_allow
#get_serial_bits
#get_serial_parity
#get_serial_stop
#set_serial_allow
#set_serial_baud
#set_serial_bits
#set_serial_parity
#set_serial_stop
#get\_serial\_bits
Displays the serial data bits setting. Use the #set_serial_bits command to set the number of data bits.
Syntax
get_serial_bits
Parameters
None
Example
get_serial_bits
SERIAL DATA BITS IS 8
Related Commands
#get_serial_allow
#get_serial_baud
#get_serial_parity
#get_serial_stop
#set_serial_allow
#set_serial_baud
#set_serial_bits
#set_serial_parity
#set_serial_stop
#get\_serial\_parity
Displays the serial parity bit setting. Use the #set_serial_parity command to set the parity bit.
Syntax
get_serial_parity
Parameters
None
Example
get_serial_parity
SERIAL PARITY MODE SET TO NONE
Related Commands
#get_serial_allow
#get_serial_baud
#get_serial_bits
#get_serial_stop
#set_serial_allow
#set_serial_baud
#set_serial_bits
#set_serial_parity
#set_serial_stop
#get\_serial\_stop
Displays the serial stop bits setting. Use the #set_serial_stop command to set the number of stop bits.
Syntax
#get_serial_stop
Parameters
None
Example
#get_serial_stop
SERIAL STOP BITS IS 1
Related Commands
#get_serial_allow
#get_serial_baud
#get_serial_bits
#get_serial_parity
#set_serial_allow
#set_serial_baud
#set_serial_bits
#set_serial_parity
#set_serial_stop
#get\_showme
Displays the showme state.
Syntax
get_showme
Parameters
None
Example
get_showme
SHOW ME DISABLED
Related Commands
set_showme
#get\_telnet\_access
Displays the Telnet access state. Use the #set_telnet_access command to enable or disable Telnet access.
Syntax
#get_telnet_access
Parameters
None
Example
#get_telnet_access
TELNET ACCESS IS ENABLED
Related Commands
#get_telnet_login
#get_telnet_port
#get_telnet_welcome
#set_telnet_access
#set_telnet_pass
#set_telnet_login
#set_telnet_pass
#set_telnet_port
#set_telnet_welcome
#get\_telnet\_login
Displays the Telnet login status.
Syntax
get_telnet_login
Parameters
None
Example
get_telnet_login
TELNET LOGIN SET TO DISABLED
Related Commands
#get_telnet_access
#get_telnet_port
#get_telnet_welcome
#set_telnet_access
#set_telnet_pass
#set_telnet_login
#set_telnet_pass
#set_telnet_port
#set_telnet_welcome
#get\_telnet\_port
Displays the Telnet listening port.
Syntax
get_telnet_port
Parameters
None
Example
get_telnet_port
TELNET COMMUNICATION PORT: 23
Related Commands
#get_telnet_access
#get_telnet_login
#get_telnet_welcome
#set_telnet_access
#set_telnet_pass
#set_telnet_login
#set_telnet_pass
#set_telnet_port
#set_telnet_welcome
#get\_telnet\_welcome
Displays the Telnet welcome message. Use the #set_telnet_welcome to create a custom welcome message.
Syntax
get_telnet_welcome
Parameters
None
Example
get_telnet_welcome
TELNET WELCOME SCREEN IS DISABLED
Related Commands
#get_telnet_access
#get_telnet_login
#get_telnet_port
#set_telnet_access
#set_telnet_pass
#set_telnet_login
#set_telnet_pass
#set_telnet_port
#set_telnet_welcome
#get\_tx\_channel
Displays the video channel of the Sender unit. This command is only available when connected to a Sender unit.
Syntax
#get_tx_channel
Parameters
None
Example
#get_tx_channel
TRANSMITTER CHANNEL: 1
Related Commands
#get_rx_channel
#set_tx_channel
r
#get\_udp\_access
Displays the UDP access state. Use the #set_udp_access command to enable or disable UDP access.
Syntax
#get_udp_access
Parameters
None
Example
#get_udp_access
UDP ACCESS IS ENABLED
Related Commands
#get_remote_udp_access
#get_remote_udp_ip
#get_remote_udp_port
#get_udp_port
#set_remote_udp_access
#set_remote_udp_ip
#set_remote_udp_port
#set_udp_access
#set_udp_port
#get\_udp\_port
Displays the local UDP listening port.
Syntax
get_udp_port
Parameters
None
Example
get_udp_port
UDP PORT SET TO 50007
Related Commands
#get_remote_udp_access
#get_remote_udp_ip
#get_remote_udp_port
#get_udp_access
#set_remote_udp_access
#set_remote_udp_ip
#set_remote_udp_port
#set_udp_access
#set_udp_port
#get\_usb\_allow
Displays the USB-over-IP state.
Syntax
get_usb_allow
Parameters
None
Example
get_usb_allow
USB OVER IP is ENABLE
Related Commands
get usb mode
get_usb_mouse
set usb allow
set usb mode
set_usb_mouse
#get\_usb\_mode
Displays the USB operating mode.
Syntax
get_usb_mode
Parameters
None
Example
get_usb_mode
USB OPERATION MODE IS ACTIVE PER REQUEST
Related Commands
#get_usb_allow
#get_usb_mouse
#set_usb_allow
#set_usb_mode
#set_usb_mouse
#get\_usb\_mouse
Displays the mouse operating mode.
Syntax
get_usb_mouse
Parameters
None
Example
get_usb_mouse
USB MOUSE MODE IS HIGH RESOLUTION
Related Commands
#get_usb_allow
#get_usb_mode
#set_usb_allow
#set_usb_mode
#set_usb_mouse
This page has been intentionally left blank
#get\_video\_allow
Displays the Video-over-IP status. Use the #set_video_allow command to enable or disable video over IP.
Syntax
#get_video_allow
Parameters
None
Example
#get_video_allow
VIDEO OVER IP is ENABLE
Related Commands
#set_video_allow
#get\_vw
Displays the video wall enable/disable setting.
Syntax
#get_vw
Parameters
None
Example
#get_vw
VW 0
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw
#set_vw_bc
#set_vw_delay
#set_vw_hscale
#set_vw_layout
#set_vw_osd
#set_vw_pos
#set_vw_shift
#set_vw_vscale
#get\_vw\_bc
Displays the video wall bezel compensation setting.
Syntax
#get_vw_bc
Parameters
None
Example
#get_vw_bc
VW_BC 6223 6550 3429 4010
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw
#set_vw_bc
#set_vw_delay
#set_vw_hscale
#set_vw_layout
#set_vw_osd
#set_vw_pos
#set_vw_shift
#set_vw_vscale
#get\_vw\_delay
Displays the video wall delay setting.
Syntax
#get_vw_delay
Parameters
None
Example
#get_vw_delay
VW_DELAY 0
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw
#set_vw_bc
#set_vw_delay
#set_vw_hscale
#set_vw_layout
#set_vw_osd
#set_vw_pos
#set_vw_shift
#set_vw_vscale
#get\_vw\_hscale
Displays the video wall horizontal upscaling value.
Syntax
#get_vw_bc
Parameters
None
Example
#get_vw_bc
VW_HSCALE 0
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw
#set_vw_bc
#set_vw_delay
#set_vw_hscale
#set_vw_layout
#set_vw_osd
#set_vw_pos
#set_vw_shift
#set_vw_vscale
#get\_vw\_layout
Displays the video wall horizontal and vertical display count.
Syntax
#get_vw_layout
Parameters
None
Example
#get_vw_layout
VW_LAYOUT 2 2
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw
#set_vw_bc
#set_vw_delay
#set_vw_hscale
#set_vw_layout
#set_vw_osd
#set_vw_pos
#set_vw_shift
#set_vw_vscale
#get\_vw\_osd
Displays the enable / disable status of the video wall OSD.
Syntax
#get_vw_osd
Parameters
None
Example
#get_vw_osd
VW_OSD 0
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw
#set_vw_bc
#set_vw_delay
#set_vw_hscale
#set_vw_layout
#set_vw_osd
#set_vw_pos
#set_vw_shift
#set_vw_vscale
#get\_vw\_pos
Displays the video wall display position.
Syntax
#get_vw_pos
Parameters
None
Example
#get_vw_pos
VW_POS 0 0
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw
#set_vw_bc
#set_vw_delay
#set_vw_hscale
#set_vw_layout
#set_vw_osd
#set_vw_pos
#set_vw_shift
#set_vw_vscale
#get\_vw\_shift
Displays the video wall display shift.
Syntax
#get_vw_shift
Parameters
None
Example
#get_vw_shift
VW_SHIFT 0 0 0 0
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw
#set_vw_bc
#set_vw_delay
#set_vw_hscale
#set_vw_layout
#set_vw_osd
#set_vw_pos
#set_vw_shift
#set_vw_vscale
#get\_vw\_vscale
Displays the video wall vertical upscaling value.
Syntax
#get_vw_vscale
Parameters
None
Example
#get_vw_vscale
VW_VSCALE 0
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw
#set_vw_bc
#set_vw_delay
#set_vw_hscale
#set_vw_layout
#set_vw_osd
#set_vw_pos
#set_vw_shift
#set_vw_vscale
#get\_web\_port
Displays the HTTP listening port. Use the #set_web_port command to set the HTTP listening port.
Syntax
#get_web_port
Parameters
None
Example
#get_web_port
WEB INTERFACE PORT: 80
Related Commands
#get_gateway
#get_ip_address
#get_ipconfig
#set_gateway
#set_ip_address
#set_ip_mode
#set_netmask
#set_web_port
#reboot
Reboots the Sender / Receiver unit.
Syntax
reboot
Parameters
None
Example
reboot
UNIT WILL REBOOT SHORTLY
Related Commands
factory_reset
#request\_usb
Requests USB control when ACTIVE PER REQUEST USB mode is set.
Syntax
request_usb
Parameters
None
Example
request_usb
REQUESTING USB FROM SENDER
Related Commands
set_usb_mode
#set\_block
Enables or disables video blocking at a Sender unit.
Syntax
set_block param1
Parameters
param1 Integer
[0 ... 1]
param1 Description
| 0 | Disabled |
| 1 | Enabled |
Example
set_block 1
BLOCK ENABLED
Related Commands
get_block
set_mask
#set\_clk\_lock
Sets the audio clock lock. This command is only available on the Receiver unit. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_block param1
Parameters
param1 Integer
[0 ... 500]
Example
set clk lock 100
PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
get_clk_lock
#set\_device\_desc
Sets the description for the Sender / Receiver unit. The description string cannot exceed 30 characters in length. Spaces and underscore characters are acceptable. Avoid using symbols and special characters.
Syntax
set_description param1
Parameters
param1 String
Example
set_description Blu-ray_Panasonic
PRODUCT DESCRIPTION SET
Related Commands
get_device_desc
#set\_discovery
Enables or disables the discovery feature. The default value is On.
Syntax
set_discovery param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Off |
| 1 | On |
Example
set_discovery 0
DISCOVERY SERVICE SET TO DISABLED
Related Commands
#get_discovery
#set_showme
#get_showme
#set\_discovery\_mode
Sets the discovery read / write mode.
Syntax
set_discovery_mode param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Read only mode |
| 1 | Read / write mode |
Example
set_discovery_mode 1
DISCOVERY MODE 1
Related Commands
get_edid_copy
#set\_edid\_copy
Enables or disables the EDID copy state. When param1 = 1, the downstream EDID (connected to the Receiver unit) is copied to the Sender unit. If param1 = 0, then the internal (default) EDID is used. This command is only available when connected to a Receiver unit. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_edid_copy param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Off |
| 1 | On |
Example
set_edid_copy 1
COPY EDID OF CONNECTED DISPLAY SET TO ENABLED PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
get_edid_copy
#set\_gateway
Sets the gateway address. This command is only applicable when using Static IP mode. param1 must be specified using dot-decimal notation. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_gateway param1
Parameters
param1 IP Address
Example
set_gateway 192.168.1.1
GATEWAY ADDRESS SET TO 192.168.1.1 PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_gateway
#get_ip_address
#get_ip_mode
#get_ipconfig
#get_netmask
#get_web_port
#set_ip_address
#set_ip_mode
#set_netmask
#set_web_port
#set\_hdcp\_allow
Blocks or unblocks HDCP-encrypted sources. This command does not decrypt HDCP content and is only available when connected to a Sender unit. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_hdcp_allow param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Disabled |
| 1 | Enabled |
Example
set_hdcp_allow 1
HDCP ENCRYPTED SOURCE SET TO ENABLED PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
get_hdcp_allow
#set\_ip\_address
Sets the IP address. param1 must be specified using dot-decimal notation. After executing this command, the unit must be rebooted to apply the changes.
Syntax
#set_ip_address param1
Parameters
param1 IP Address
Example
#set_gateway 192.168.1.1
GATEWAY ADDRESS SET TO 192.168.1.1
PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_gateway
#get_ip_address
#get_ip_mode
#get_ipconfig
#get_netmask
#get_web_port
#set_gateway
#set_ip_mode
#set_netmask
#set_web_port
#set\_ip\_mode
Sets the IP mode. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_ip_mode param1
Parameters
param1 Integer
[0 ... 2]
| param1 Description | |
| 0 | Static |
| 1 | DHCP |
| 2 | Auto IP |
Example
set_ip_mode 1
IP MODE SET TO DHCP PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_gateway
#get_ip_address
#get_ip_mode
#get_ipconfig
#get_netmask
#get_web_port
#set_ip_address
#set_gateway
#set_netmask
#set_web_port
#set\_mask
Enables or disables video masking at a Receiver unit.
Syntax
set_mask param1
Parameters
param1 Integer
[0 ... 1]
param1 Description
| 0 | Disabled |
| 1 | Enabled |
Example
set mask 1
MASK ENABLED
Related Commands
get_mask
set_block
#set\_net\_mode
Sets the network casting mode.
Syntax
set_net_mode param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Unicast |
| 1 | Multicast |
Example
set_net_mode 0
NETWORK CASTING MODE SET TO UNICAST
Related Commands
get_net_mode
#set\_netmask
Sets the network mask address. param1 must be specified using dot-decimal notation. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_netmask param1
Parameters
param1 IP Address
Example
#set_netmask 255.255.255.0
NETMASK ADDRESS SET TO 255.255.255.0
PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_gateway
#get_ip_address
#get_ip_mode
#get_ipconfig
#get_netmask
#get_web_port
#set_ip_address
#set_ip_mode
#set_gateway
#set_web_port
#set\_pq\_mode
Sets the picture quality mode. This command is only available when connected to a Sender unit.
Syntax
set_pq_mode param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Graphic |
| 1 | Video |
Example
set_pq_mode 1
TRANSMITTER PICTURE QUALITY SET TO VIDEO
Related Commands
get_pq_mode
#set\_remote\_udp\_access
Enables or disables remote UDP access. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_remote_udp_access param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Disabled |
| 1 | Enabled |
Example
set_remote_udp_access 1
REMOTE UDP ACCESS SET TO ENABLED PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_remote_udp_access
#get_remote_udp_ip
#get_remote_udp_port
#get_udp_access
#get_udp_port
#set_remote_udp_access
#set_remote_udp_ip
#set_remote_udp_port
#set_udp_access
#set_udp_port
#set\_remote\_udp\_ip
Set the remote UDP IP address. param1 must be specified using dot-decimal notation. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_remote_udp_ip param1
Parameters
param1 IP address
Example
set_remote_udp_ip 192.168.1.29
REMOTE UDP IP ADDRESS SET TO 192.168.1.29 PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_remote_udp_access
#get_remote_udp_ip
#get_remote_udp_port
#get_udp_access
#get_udp_port
#set_remote_udp_access
#set_remote_udp_port
#set_udp_access
#set_udp_port
#set\_remote\_udp\_port
Set the remote UDP listening port. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_remote_udp_port param1
Parameters
param1 Integer
[0 ... 65535]
Example
set_remote_udp_port 50008
REMOTE UDP COMMUNICATIONS PORT IS SET TO PORT 50008 PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_remote_udp_access
#get_remote_udp_ip
#get_remote_udp_port
#get_udp_access
#get_udp_port
#set_remote_udp_access
#set_remote_udp_ip
#set_udp_access
#set_udp_port
#set\_rx\_id
Sets the ID of the Receiver unit. This command is only available when connected to a Receiver unit.
Syntax
set_rx_id param1
Parameters
param1 Integer
[0 ... 65535]
Example
set_rx_id 1
RX ID: 1
Related Commands
get_rx_id
#set\_serial\_allow
Enables or disables serial over IP. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_serial_allow param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Disable |
| 1 | Enable |
Example
set_serial_allow 0
SERIAL OVER IP SET TO DISABLED PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_serial_allow
#get_serial_baud
#get_serial_bits
#get_serial_parity
#get_serial_stop
#set_serial_baud
#set_serial_bits
#set_serial_parity
#set_serial_stop
#set\_serial\_baud
Sets the baud rate for the serial port. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_serial_baud param1
Parameters
param1 Integer
[0 ... 9]
| param1 Description (baud rate) | |
| 0 | 300 |
| 1 | 600 |
| 2 | 1200 |
| 3 | 2400 |
| 4 | 4800 |
| 5 | 9600 |
| 6 | 19200 |
| 7 | 38400 |
| 8 | 57600 |
| 9 | 115200 |
Example
set_serial_baud 6
SERIAL BAUD RATE SET TO 19200 PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_serial_allow
#get_serial_baud
#get_serial_bits
#get_serial_purity
#get_serial_stop
#set_serial_allow
#set_serial_bits
#set_serial_parity
#set_serial_stop
#set\_serial\_bits
Sets the data bits for the serial port. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_serial_bits param1
Parameters
param1 Integer
[0 ... 3]
| param1 Description (data bits) | |
| 0 | 5 |
| 1 | 6 |
| 2 | 7 |
| 3 | 8 |
Example
set_serial_bits 3
SERIAL DATA BITS SET TO 8 PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_serial_allow
#get_serial_baud
#get_serial_bits
#get_serial_parity
#get_serial_stop
#set_serial_allow
#set_serial_baud
#set_serial_bits
#set_serial_parity
#set_serial_stop
#set\_serial\_parity
Sets the parity bit for the serial port. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_serial_parity param1
Parameters
param1 Integer
[0 ... 2]
| param1 Description | |
| 0 | None |
| 1 | Odd |
| 2 | Even |
Example
set_serial_parity 0
SERIAL PARITY MODE SET TO NONE PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_serial_allow
#get_serial_baud
#get_serial_bits
#get_serial_parity
#get_serial_stop
#set_serial_allow
#set_serial_baud
#set_serial_bits
#set_serial_stop
#set\_serial\_stop
Sets the number of stop bits for the serial port. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_serial_stop param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description (stop bits) | |
| 0 | 1 |
| 1 | 2 |
Example
set_serial_stop 0
SERIAL STOP BITS SET TO 1 PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_serial_allow
#get_serial_baud
#get_serial_bits
#get_serial_parity
#get_serial_stop
#set_serial_allow
#set_serial_baud
#set_serial_bits
#set_serial_parity
#set\_showme
Enables or disables the “Show Me” feature. When the “Show Me” feature is enabled, then both the Power and Link LED indicators, on the front panel, will flash. This quickly identifies a unit and is useful when multiple units are being used. The default setting is disabled.
Syntax
set_showme param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Disabled |
| 1 | Enabled |
Example
set_showme 1
SHOW ME ENABLED
Related Commands
get_discovery
set_discovery
#set\_telnet\_access
Enables or disables Telnet access. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_telnet_access param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Disabled |
| 1 | Enabled |
Example
set_telnet_access 1
TELNET ACCESS SET TO ENABLED PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_telnet_access
#get_telnet_login
#get_telnet_port
#get_telnet_welcome
#set_telnet_login
#set_telnet_pass
#set_telnet_port
#set_telnet_welcome
#set\_telnet\_login
Enables or disables the Telnet login process. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_telnet_login param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Disabled |
| 1 | Enabled |
Example
set_telnet_login 1
TELNET INTERFACE LOGIN SET TO ENABLED PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_telnet_access
#get_telnet_pass
#get_telnet_port
#get_telnet_welcome
#set_telnet_access
#set_telnet_pass
#set_telnet_port
#set_telnet_welcome
#set\_telnet\_pass
Sets the Telnet password. The password cannot exceed 8 characters in length and is case-sensitive. No special characters are allowed. The default password is admin. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_telnet_pass param1
Parameters
param1 String
Example
set_telnet_pass b055man
TELNET INTERFACE PASSWORD IS SET b055man PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_telnet_access
#get_telnet_pass
#get_telnet_port
#get_telnet_welcome
#set_telnet_access
#set_telnet_login
#set_telnet_port
#set_telnet_welcome
#set\_telnet\_port
Sets the Telnet listening port. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_telnet_port param1
Parameters
param1 Integer
[0 ... 65535]
Example
set_telnet_port 23
TELNET COMMUNICATIONS PORT SET TO PORT 23 PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_telnet_access
#get_telnet_pass
#get_telnet_port
#get_telnet_welcome
#set_telnet_access
#set_telnet_login
#set_telnet_pass
#set_telnet_welcome
#set\_telnet\_welcome
Enables / disables the Telnet welcome screen. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_telnet_welcome param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Disabled |
| 1 | Enabled |
Example
set_telnet_welcome Welcome!
TELNET WELCOME SCREEN IS ENABLED PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_telnet_access
#get_telnet_pass
#get_telnet_port
#get_telnet_welcome
#set_telnet_access
#set_telnet_login
#set_telnet_pass
#set_telnet_port
#set\_tx\_channel
Sets the video channel for the Sender unit. This command is only available when connected to the Sender unit.
Syntax
#set_tx_channel param1
Parameters
param1 Integer
[0 ... 255]
Example
#set_tx_channel 1
TRANSMITTER CHANNEL SET TO 1
Related Commands
#get_tx_channel
#get_rx_channel
r
#set\_udp\_access
Enables or disables UDP access. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_udp_access param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Disabled |
| 1 | Enabled |
Example
set_udp_access 0
UDP ACCESS SET TO DISABLED PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_remote_udp_access
#get_remote_udp_ip
#get_remote_udp_port
#get_udp_access
#get_udp_port
#set_remote_udp_access
#set_remote_udp_ip
#set_remote_udp_port
#set_udp_port
#set\_udp\_port
Sets the local UDP listening port. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_udp_port param1
Parameters
param1 Integer
[0 ... 65535]
Example
set_udp_port 50007
UDP COMMUNICATION IS SET TO PORT 50007 PLEASE REBOOT THE UNIT TO APPLY CHANGES.
Related Commands
#get_remote_udp_access
#get_remote_udp_ip
#get_remote_udp_port
#get_udp_access
#get_udp_port
#set_remote_udp_access
#set_remote_udp_ip
#set_remote_udp_port
#set_udp_access
#set\_usb\_allow
Enables or disables the USB-over-IP feature. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_usb_allow param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Disabled |
| 1 | Enabled |
Example
set_usb_allow 1
USB OVER IP SET TO ENABLED PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_usb_allow
#get_usb_mode
#get_usb_mouse
#set_usb_mode
#set_usb_mouse
#set\_usb\_mode
Sets the USB operating mode. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_udp_port param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Active per request |
| 1 | Active on link |
Example
set_usb_mode 0
USB OPERATION MODE SET TO ACTIVE PER REQUEST PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
get_usb_allow
get_usb_mode
get_usb_mouse
set_usb_allow
set_usb_mouse
#set\_usb\_mouse
Sets the USB mouse mode. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_udp_port param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | High resolution |
| 1 | Compatibility |
Example
set_usb_mouse 0
USB MOUSE MODE SET TO HIGH RESOLUTION PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_usb_allow
#get_usb_mode
#get_usb_mouse
#set_usb_allow
#set_usb_mode
#set\_video\_allow
Enables or disables the Video-over-IP feature. After executing this command, the unit must be rebooted to apply the changes.
Syntax
set_video_allow param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Disabled |
| 1 | Enabled |
Example
set_video_allow 1
VIDEO OVER IP IS SET TO ENABLED PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
get_video_allow
#set\_vw
Enable / disable the video wall. After executing this command, the unit must be rebooted to apply the changes.
Syntax
#set_vw param1
Parameters
param1 Integer
[0 ... 1]
| param1 Description | |
| 0 | Disable |
| 1 | Enable |
Example
set vw 1
VW 1
PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
get_vw_bc
get_vw_delay
get_vw_hscale
get_vw_layout
get_vw_osd
get vw pos
get_vw_shift
get_vw_vscale
set_vw_bc
set_vw_delay
set vw hscale
set_vw_layout
set_vw_osd
set_vw_pos
set vw shift
set_vw_vscale
#set\_vw\_bc
Sets the video wall bezel compensation value. All arguments are expressed in 0.1 mm units:
param1 is the video width
param2 is the overall width
param3 is the video height
param4 is the overall height
Syntax
#set_vw_bc param1 param2 param3 param4
Parameters
| param1 | Integer | [o | ... | 99999] |
| param2 | Integer | [o | ... | 99999] |
| param3 | Integer | [o | ... | 99999] |
| param4 | Integer | [o | ... | 99999] |
Example
#set_vw_bc 190 200 90 100
VW_BC 190 200 90 100
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw
#set_vw_delay
#set_vw_hscale
#set_vw_layout
#set_vw_osd
#set_vw_pos
#set_vw_shift
#set_vw_vscale
#set\_vw\_delay
Sets the video wall display delay in microseconds.
Syntax
set_vw_delay param1
Parameters
param1 Integer
[0 ... 99999]
Example
set_vw_delay 16000
VW_DELAY 16000
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw_bc
#set_vw_hscale
#set_vw_layout
#set_vw_osd
#set_vw_pos
#set_vw_shift
#set_vw_vscale
#set\_vw\_hscale
Sets the video wall horizontal upscaling.
Syntax
set_vw_hscale param1
Parameters
param1 Integer
[0 ... 1]
Example
set_vw_hscale 1
VW_HSCALE 1
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw
#set_vw_delay
#set_vw_layout
#set_vw_osd
#set_vw_pos
#set_vw_shift
#set_vw_vscale
#set\_vw\_layout
Sets the maximum horizontal and vertical display count for the video wall:
param1 is the maximum horizontal display count.
param2 is the maximum vertical display count.
Syntax
set_vw_layout param1 param2
Parameters
| param1 | Integer | [o | ... | 15] |
| param2 | Integer | [o | ... | 15] |
Example
set_vw_layout 2 2
VW_LAYOUT 2 2
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw_bc
#set_vw_delay
#set_vw_hscale
#set_vw_osd
#set_vw_pos
#set_vw_shift
#set_vw_vscale
#set\_vw\_osd
Enable / disable the video wall OSD.
Syntax
set_vw_osd param1
Parameters
param1 Integer
[0 ... 1]
param1 Description
| 0 | Disable |
| 1 | Enable |
Example
set_vw_osd 1
VW_OSD 1
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw
#set_vw_delay
#set_vw_hscale
#set_vw_layout
#set_vw_pos
#set_vw_shift
#set_vw_vscale
#set\_vw\_pos
Sets the video wall position.
param1 is the row position.
param2 is the column position.
Syntax
set_vw_pos param1 param2
Parameters
| param1 | Integer | [o | ... | 15] |
| param2 | Integer | [o | ... | 15] |
Example
set_vw_pos 2 2
VW_POS 2 2
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw_bc
#set_vw_delay
#set_vw_hscale
#set_vw_layout
#set_vw_osd
#set_vw_shift
#set_vw_vscale
#set\_vw\_shift
Sets the video wall display shift. param2 must be specified in increments of eight pixels (e.g. 0, 8, 16, 24, etc.)
Syntax
set_vw_shift param1 param2
Parameters
param1 Character
| param1 Description | |
| U | Shift up |
| D | Shift down |
| L | Shift left |
| R | Shift right |
param2 Integer
[0 ... 80000]
Example
#set_vw_shift L 16
VW_SHIFT L 16
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw
#set_vw_delay
#set_vw_hscale
#set_vw_layout
#set_vw_osd
#set_vw_pos
#set_vw_vscale
#set\_vw\_vscale
Sets the video wall vertical upscaling.
Syntax
set_vw_vscale param1
Parameters
param1 Integer
[0 ... 15]
Example
set_vw_vscale 1
VW_VSCALE 1
Related Commands
#get_vw_bc
#get_vw_delay
#get_vw_hscale
#get_vw_layout
#get_vw_osd
#get_vw_pos
#get_vw_shift
#get_vw_vscale
#set_vw_bc
#set_vw_delay
#set_vw_hscale
#set_vw_layout
#set_vw_osd
#set_vw_shift
#set\_web\_port
Sets the HTTP listening port.
Syntax
set_web_port param1
Parameters
param1 Integer
[0 ... 65535]
Example
set_web_port 82
WEB INTERFACE PORT SET TO 80 PLEASE REBOOT THE UNIT TO APPLY CHANGES
Related Commands
#get_gateway
#get_ip_address
#get_ip_mode
#get_ipconfig
#get_netmask
#get_web_port
#set_gateway
#set_ip_address
#set_ip_mode
#set_netmask
#set\_webui\_ad\_pass
Sets the Administrator password for the Web interface login. The password cannot exceed eight characters in length. The default password is admin.
Syntax
set_webui_ad_pass param1
Parameters
param1 Password
Example
set_webui_ad_pass b05Sman
WEB UI ADMINISTRATOR PASSWORD IS SET
Related Commands
set_webui_user_pass
#set\_webui\_user\_pass
Sets the User password for the Web interface login. The password cannot exceed eight characters in length. The default password is user.
Syntax
set_webui_user_pass param1
Parameters
param1 Password
Example
set_webui_user_pass m1ni0n
WEB UI USER PASSWORD IS SET
Related Commands
set_webui_ad_pass
r
Changes a Receiver unit to the specified video channel. Changing the video channel allows a Receiver unit to accept the signal from a Sender unit that uses the same video channel. This command is only available when connected to a Receiver unit. Do not precede this command with the # symbol.
Syntax
r param1
Parameters
param1 Integer
[0 ... 255]
Example
r 1
TRANSMITTER 1 ROUTED TO RECEIVER
Related Commands
None
Gefen recommends the TIA/EIA-568-B wiring option. Use the table below when field-terminating cable for use with Gefen products.
| Pin Color Description | ||
| 1 Orange / White TD+ (Transmit Data, positive differential signal) | ||
| 2 Orange TD- (Transmit Data, negative differential signal) | ||
| 3 Green / White RD+ (Receive Data, positive differential signal) | ||
| 4 Blue Unused | ||
| 5 Blue / White | Unused | |
| 6 Green | RD- (Receive Data, negative differential signal) | |
| 7 Brown / White | Unused | |
| 8 Brown / White | Unused | |
Note
Shielded CAT-5e (or better) cabling should be used..
Rack Tray Installation
The following illustrations provide instructions for installing the Sender and/or Receiver unit(s) in the Gefen 1U Rack Tray (Gefen part no. EXT-RACK-1U-GRY).
Step 1 Step 2
Turn bit upside down. Remove rubber feet.
| Video In Connector (Sender) | · 1 x HDMI, DisplayPortTM, DVI, or VGA |
| Video Out Connector (Sender) | · 1 x HDMI, DVI, or VGA (not avail on DisplayPortTM) |
| Video Out Connector (Receiver) | · 1 x HDMI, DisplayPortTM, DVI, or VGA |
| Line In Connector (Sender) · 1 x 3.5mm mini-stereo, female | |
| Line Out Connector (Sender) · 1 x 3.5mm mini-stereo, female | |
| Mic In Connector (Receiver) · 1 x 3.5mm mini-stereo, female | |
| Headphones/Line Out Conn. (Receiver) | · 1 x 3.5mm mini-stereo, female |
| Opt Out Connector (Receiver) | · 1 x TOSLINK® (not available on VGA model) |
| USB Host Interface Port (Sender) · 1 x Type-B | |
| USB Device Ports (Receiver) · 2 x USB 2.0, Type-A | |
| LAN Connector (Sender) · 1 x RJ-45, shielded, with PoE | |
| LAN Connectors (Receiver) · 2 x RJ-45, shielded, 1 with PoE | |
| RS-232 Connector (Sender) · 1 x DB-9, female | |
| RS-232 Connector (Receiver) · 1 x DB-9, male | |
| IR Sensor (Receiver) | · (1) Located on front panel |
| IR Extender Type | · EXT-RMT-EXTIRN |
| IR In/Ext Connector (Sender / Receiver) | · 1 x 3.5mm mini-stereo, female |
| IR Out Connector (Sender / Receiver) | · 1 x 3.5mm mini-stereo, female |
| Power Requirement (Sender / Receiver) | · 5V DC, or PoE (802.3af standard) |
| Power Connector (Sender / Receiver) | · 1 x 5V DC, locking, 5.5mm barrel/2.1mm pin |
| Power Indicator (Sender / Receiver) | · 1 x LED, blue |
| Link Indicator (Sender / Receiver) | · 1 x LED, green |
Continued on next page
Operational
Operating Temperature · +32 to +122°F (0 to +50°C)
Operating Humidity · 5% to 90% RH, non-condensing
Storage Temperature · -4 to +185°F (-20 to +85°C)
Storage Humidity · 0% to 95% RH, non-condensing
MTBF · 50000 hours
Physical
Dimensions (W x H x D, not including connectors)
- Sender: 8.4" x 1.7" x 5.9" (214mm x 43mm x 150mm)
- Receiver: 8.4" x 1.0" x 5.9" (214mm x 25mm x 150mm)
* Features and specifications are subject to change without notice.
All trademarks and registered trademarks are properties of their respective owners.
GEFEN®
Nortek Security & Control, LLC
1800 S McDowell Blvd. Petaluma CA 94954, USA
1-707-283-5900 1-800-472-5555
Copyright© 2018 Nortek Security & Control, LLC
- User Manual
- Important Safety Instructions
- Warranty Information
- Technical Support
- Web
- Mailing Address
- Important
- Supported USB Devices
- Licensing
- Features
- Packing List - Sender Unit
- Packing List - Receiver Unit
- Table of Contents
- Introduction......11
- Installation....17
- LED Status....26
- Setting the Video Channel 27
- Blocking & Masking Video 31
- Unicast & Multicast Modes....33
- Discovery Mode 40
- RS-232 Control 43
- USB Control 46
- Audio Connections 53
- Creating Video Walls 56
- Setting the Video Mode....59
- Changing the Password....60
- Utilities....61
- Telnet Access......66
- Commands....67
- Network Cable Diagram....175
- Rack Tray Installation 176
- Specifications * 177
- Local Area Network (LAN) Connection
- Note
- Using a Direct Connection
- Supplementary Connections
- USB
- IR
- ▶ Audio
- RS-232
- Sample Wiring Diagram
- Setting the Video Channel
- Setting the Channel using the Web Interface
- Setting the Channel using the Front Panel
- Blocking & Masking Video
- Mask Video
- ▶ Block Video
- Configuring Unicast Mode
- Tip
- Switching between Sender units in Unicast mode
- i Success: Channel Selected.
- Configuring Multicast Mode
- Success: New casting mode applied.
- Warning: Reboot for new settings to take effect.
- Gefen Syner-G Discovery
- Finding Your Device
- i Success: Device is blinking!
- i Success: Device will stop blinking!
- RS-232 under Unicast Mode
- RS-232 under Multicast Mode
- USB under Unicast Mode
- USB under Multicast Mode
- USB over IP
- Operation Mode:
- USB Mouse Mode:
- Active per request mode
- Active on link mode
- Audio Connections
- Audio Sources and De-Embedding
- Creating Video Walls
- Wall Size and Layout
- Bezel Compensation
- Setting the Video Mode
- Using the Web interface
- ▶ Video Mode
- ▶ Graphic Mode
- Changing the Password
- Reset using the Web Interface
- Reboot using the Web Interface
- Reboot using the Front Panel
- #help
- Syntax
- help
- Parameters
- Example
- #factory\_reset
- factory_reset param1
- factory_reset 1
- Related Commands
- reboot
- #fw\_upgrade
- fw_upgrade filename
- fw_upgrade firmware_file_v2.bin
- #get\_block
- get_block
- get_mask
- set_block
- #get\_clk\_lock
- #get\_device\_desc
- get_device_desc
- get device desc
- set_device_desc
- #get\_discovery
- get_discovery
- set_discovery
- set_showme
- #get\_discovery\_mode
- get_discovery_mode
- set_discovery_mode
- #get\_edid\_copy
- #get\_firmware\_version
- get_firmware_version
- fw_upgrade
- #get\_gateway
- get_gateway
- get_ip_address
- get_ip_mode
- get_ipconfig
- get_netmask
- set_gateway
- set_ip_address
- set ip mode
- set_netmask
- #get\_hdcp
- get_hdcp
- set_hdcp_allow
- #get\_ip\_address
- #get\_ip\_mode
- #get\_ipconfig
- #get\_mask
- set_mask
- #get\_net\_mode
- get_net_mode
- set_net_mode
- #get\_netmask
- get netmask
- get_web_port
- set_web_port
- #get\_pq\_mode
- #get\_remote\_udp\_access
- get_remote_udp_access
- #get\_remote\_udp\_ip
- get_remote_udp_ip
- get_remote_udp_port
- get_udp_access
- get_udp_port
- set_remote_udp_access
- set_remote_udp_ip
- set_remote_udp_port
- set_udp_access
- set_udp_port
- #get\_remote\_udp\_port
- #get\_rx\_channel
- #get\_rx\_id
- get rx id
- #get\_serial\_allow
- get_serial_allow
- #get\_serial\_baud
- get_serial_baud
- #get\_serial\_bits
- get_serial_bits
- #get\_serial\_parity
- get_serial_parity
- #get\_serial\_stop
- #get\_showme
- get_showme
- #get\_telnet\_access
- #get\_telnet\_login
- get_telnet_login
- #get\_telnet\_port
- get_telnet_port
- #get\_telnet\_welcome
- get_telnet_welcome
- #get\_tx\_channel
- #get\_udp\_access
- #get\_udp\_port
- #get\_usb\_allow
- get_usb_allow
- get usb mode
- get_usb_mouse
- set usb allow
- set usb mode
- set_usb_mouse
- #get\_usb\_mode
- get_usb_mode
- #get\_usb\_mouse
- This page has been intentionally left blank
- #get\_video\_allow
- #get\_vw
- #get\_vw\_bc
- #get\_vw\_delay
- #get\_vw\_hscale
- #get\_vw\_layout
- #get\_vw\_osd
- #get\_vw\_pos
- #get\_vw\_shift
- #get\_vw\_vscale
- #get\_web\_port
- #reboot
- factory_reset
- #request\_usb
- request_usb
- set_usb_mode
- #set\_block
- set_block param1
- set_block 1
- #set\_clk\_lock
- set clk lock 100
- get_clk_lock
- #set\_device\_desc
- set_description param1
- set_description Blu-ray_Panasonic
- #set\_discovery
- set_discovery param1
- set_discovery 0
- #set\_discovery\_mode
- set_discovery_mode param1
- set_discovery_mode 1
- get_edid_copy
- #set\_edid\_copy
- set_edid_copy param1
- set_edid_copy 1
- #set\_gateway
- set_gateway param1
- set_gateway 192.168.1.1
- #set\_hdcp\_allow
- set_hdcp_allow param1
- set_hdcp_allow 1
- get_hdcp_allow
- #set\_ip\_address
- #set\_ip\_mode
- set_ip_mode param1
- set_ip_mode 1
- #set\_mask
- set_mask param1
- set mask 1
- #set\_net\_mode
- set_net_mode param1
- set_net_mode 0
- #set\_netmask
- set_netmask param1
- #set\_pq\_mode
- set_pq_mode param1
- set_pq_mode 1
- get_pq_mode
- #set\_remote\_udp\_access
- set_remote_udp_access param1
- set_remote_udp_access 1
- #set\_remote\_udp\_ip
- set_remote_udp_ip param1
- set_remote_udp_ip 192.168.1.29
- #set\_remote\_udp\_port
- set_remote_udp_port param1
- set_remote_udp_port 50008
- #set\_rx\_id
- set_rx_id param1
- set_rx_id 1
- get_rx_id
- #set\_serial\_allow
- set_serial_allow param1
- set_serial_allow 0
- #set\_serial\_baud
- set_serial_baud param1
- set_serial_baud 6
- #set\_serial\_bits
- set_serial_bits param1
- set_serial_bits 3
- #set\_serial\_parity
- set_serial_parity param1
- set_serial_parity 0
- #set\_serial\_stop
- set_serial_stop param1
- set_serial_stop 0
- #set\_showme
- set_showme param1
- set_showme 1
- #set\_telnet\_access
- set_telnet_access param1
- set_telnet_access 1
- #set\_telnet\_login
- set_telnet_login param1
- set_telnet_login 1
- #set\_telnet\_pass
- set_telnet_pass param1
- set_telnet_pass b055man
- #set\_telnet\_port
- set_telnet_port param1
- set_telnet_port 23
- #set\_telnet\_welcome
- set_telnet_welcome param1
- set_telnet_welcome Welcome!
- #set\_tx\_channel
- #set\_udp\_access
- set_udp_access param1
- set_udp_access 0
- #set\_udp\_port
- set_udp_port param1
- set_udp_port 50007
- #set\_usb\_allow
- set_usb_allow param1
- set_usb_allow 1
- #set\_usb\_mode
- set_usb_mode 0
- set_usb_allow
- #set\_usb\_mouse
- set_usb_mouse 0
- #set\_video\_allow
- set_video_allow param1
- set_video_allow 1
- get_video_allow
- #set\_vw
- set vw 1
- get_vw_bc
- get_vw_delay
- get_vw_hscale
- get_vw_layout
- get_vw_osd
- get vw pos
- get_vw_shift
- get_vw_vscale
- set_vw_bc
- set_vw_delay
- set vw hscale
- set_vw_layout
- set_vw_osd
- set_vw_pos
- set vw shift
- set_vw_vscale
- #set\_vw\_bc
- #set\_vw\_delay
- set_vw_delay param1
- set_vw_delay 16000
- #set\_vw\_hscale
- set_vw_hscale param1
- set_vw_hscale 1
- #set\_vw\_layout
- set_vw_layout param1 param2
- set_vw_layout 2 2
- #set\_vw\_osd
- set_vw_osd param1
- set_vw_osd 1
- #set\_vw\_pos
- set_vw_pos param1 param2
- set_vw_pos 2 2
- #set\_vw\_shift
- set_vw_shift param1 param2
- #set\_vw\_vscale
- set_vw_vscale param1
- set_vw_vscale 1
- #set\_web\_port
- set_web_port param1
- set_web_port 82
- #set\_webui\_ad\_pass
- set_webui_ad_pass param1
- set_webui_ad_pass b05Sman
- set_webui_user_pass
- #set\_webui\_user\_pass
- set_webui_user_pass param1
- set_webui_user_pass m1ni0n
- set_webui_ad_pass
- r
- Rack Tray Installation
- Operational
- Physical
- GEFEN®
Brand : Gefen
Model : EXT-DVIKVM-LANTX
Category : Audio/video extension
