DMR-BWT800 - Blu-ray player PANASONIC - Free user manual and instructions

Product Type	Blu-ray Disc Recorder with HDD
Model	DMR-BWT800
Brand	Panasonic
Dimensions (W x H x D)	Approx. 430 x 66 x 283 mm
Weight	Approx. 4.2 kg
Power Supply	AC 220-240V, 50/60 Hz
Power Consumption	Approx. 44 W (operating), 0.4 W (standby)
Recording Media	Built-in HDD (1 TB), BD-R/RE, DVD-R/RW, +R/+RW
Playback Discs	BD-ROM, DVD, CD, BD-RE, DVD-RAM, etc.
Video Output	HDMI (1080p upscaling), Composite, Component
Audio Output	HDMI, Optical Digital, Analog (2ch)
Network Features	Ethernet, DLNA, Internet Streaming (Netflix, YouTube, etc.)
USB Ports	1 x USB 2.0 (front), 1 x USB 2.0 (rear)
HDD Capacity	1 TB
Recording Formats	MPEG2, H.264, DR (digital broadcast recording)
Maintenance	Clean with soft, dry cloth; avoid liquids and abrasives
Safety	Do not block ventilation; place on flat, stable surface; avoid moisture
Spare Parts & Repairability	Contact Panasonic support; some parts (remote, cables) available online
Warranty	1 year (depending on region)

Frequently Asked Questions - DMR-BWT800 PANASONIC

How do I set up the DMR-BWT800 for the first time?

Connect the HDMI cable to your TV, plug in the power cord, and press POWER. Follow the on-screen Quick Start guide to select language, time setting, and network connection.

Can I record TV programs directly to the HDD?

Yes, the DMR-BWT800 has a built-in digital tuner. Press REC to record the current program or use the Timer Recording function. Recordings are stored on the 1TB HDD.

How do I connect the Blu-ray player to the internet?

Use an Ethernet cable to connect the unit's LAN port to your router. Alternatively, you can use a USB wireless LAN adapter (sold separately). Go to Network Settings in the setup menu to configure.

Why is my remote control not working?

Check if batteries are installed correctly or replace them. Make sure there are no obstructions between the remote and the unit. Point the remote directly at the remote sensor on the front panel.

Can I play 3D Blu-ray discs on this model?

Yes, the DMR-BWT800 supports Blu-ray 3D playback. You need a 3D-capable TV and compatible 3D glasses.

How do I transfer recordings from the HDD to a disc?

Use the Copy function. Insert a blank BD-R/RE or DVD-R disc. Select the recording from the Title List, choose Copy, and follow the instructions. Note that DR recordings may need conversion.

What is the maximum disc capacity for burning?

For single-layer BD-R: 25GB, dual-layer BD-R: 50GB, DVD-R: 4.7GB, DVD-R DL: 8.5GB.

Can I use this device to stream content from my PC?

Yes, via DLNA. Ensure your PC and the player are on the same network. The unit will appear as a media renderer. You can play videos, music, and photos from your PC using the Media Server function.

How do I reset the unit to factory settings?

Press HOME, go to Setup > System > System Reset > Factory Default. Confirm the reset. All settings will be deleted and the unit will restart.

What should I do if the disc does not play?

Check if the disc is clean and free of scratches. Ensure it's the correct region code. Try a different disc. Update the firmware via Network Update. If the issue persists, contact Panasonic support.

USER MANUAL DMR-BWT800 PANASONIC

Operating Instructions

Blu-ray Disc™ Recorder

Model No. DMR-BWT800

DMR-BWT700

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.

Before connecting, operating or adjusting this product, please read the instructions completely.

Please keep this manual for future reference.

This Blu-ray Disc Recorder is for viewing and recording free to view channels only. It does not receive pay TV or encrypted channels.

DVB and the DVB logos are trademarks of the DVB Project.

■ Region management information

BD- This unit plays BD-Video marked with Video: labels containing the region code "B".

DVD- This unit plays DVD-Video marked with labels Video: containing the region number "2" or "ALL".

Example: Example:

Web Site: http://www.panasonic-europe.com

Model number suffix "EB" denotes UK model.

Features

■ 3D video and 3D photo playback (⇒ 51, 66)

3D videos and 3D photos can be played back when this unit is connected to a 3D compatible TV using a High Speed HDMI Cable and 2D video can be enjoyed as 3D virtually.

■ Wireless connection (⇒ 12, 16)

This unit supports Wi-Fi technology and it is possible to make a wireless connection.

BWT800 A wireless LAN is built in.

BWT700 A wireless connection can be made with the Wireless LAN Adaptor (optional).

■ DLNA (⇒ 82, 83)

You can enjoy the video and photos saved on the HDD of this unit on DLNA (Client) compatible equipment connected via a network. Additionally, you can enjoy viewing video, photos and music saved on a DLNA Certified media server and Panasonic DLNA compatible recorders.

■ VIERA CAST (⇒ 81)

Internet services (such as YouTube, Picasa Web Albums, video communication, etc.) can be accessed easily by using the VIERA CAST button.

■ VIERA Link "HDAVI Contrôl" (⇒ 84)

Operation of this unit can be controlled by the remote control of the TV (VIERA) by connecting with the HDMI cable to the TV (VIERA).

■ DVB-T / DVB-T2 tuner built-in (⇒ 26)

This unit has two DVB (Digital Video Broadcasting) terrestrial tuners built-in.

DVB-T2 is an advanced digital terrestrial system for more efficient transmission.

It is possible to record 2 programmes being broadcast at the same time.

■ Supports Audio Description signal (⇒ 29)

Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and aids understanding and enjoyment, particularly for visually-impaired viewers.

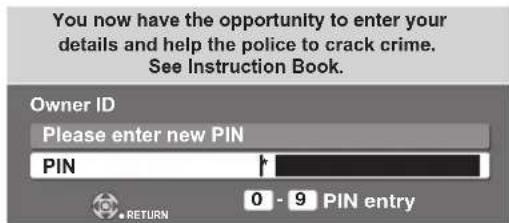

■ Owner ID (⇒ 102)

Owner ID is an anti-theft function. Entering the PIN number and owner's personal information will help the Police to determine the owner in the case of theft.

Supplied accessories Using the remote control

Please check and identify the supplied accessories. (Product numbers correct as of March 2011. These may be subject to change.)

Insert so the poles (+ and -) match those in the remote control.

1 Remote control (N2QAYB000614) 2 Batteries for remote control 1 AC mains lead (K2CT2YY00003) - Do not use AC mains lead with other equipment. 1 RF coaxial cable (K1TWACC00003)

- Use alkaline or manganese batteries. Point it at remote control signal sensor on this unit. (⇒ 9)

Safety precautions

WARNING CAUTION

Unit

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. Do not place objects filled with liquids, such as vases, on this unit. Use only the recommended accessories. Do not remove covers. Do not repair this unit by yourself. Refer servicing to qualified service personnel. Do not let metal objects fall inside this unit. Do not place heavy items on this unit.

AC mains lead

• To reduce the risk of fire, electric shock or product damage,
• Ensure that the power supply voltage corresponds to the voltage printed on this unit. Insert the mains plug fully into the socket outlet. Do not pull, bend, or place heavy items on the lead. Do not handle the plug with wet hands. Hold onto the mains plug body when disconnecting the plug. Do not use a damaged mains plug or socket outlet.
• Install this unit so that the AC mains lead can be unplugged from the socket outlet immediately if any problem occurs.

SD card

Keep the Memory Card out of reach of children to prevent swallowing.

Unit

• This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not place sources of naked flames, such as lighted candles, on this unit.
• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone. This unit is intended for use in moderate climates.

Placement

• Place this unit on an even surface.
• To reduce the risk of fire, electric shock or product damage, do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
• Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items. Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.

Batteries

• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
• Mishandling of batteries can cause electrolyte leakage and may cause a fire. -Do not mix old and new batteries or different types at the same time. -Do not heat or expose to flame. -Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed. -Do not take apart or short circuit. -Do not recharge alkaline or manganese batteries. -Do not use batteries if the covering has been peeled off. -Remove batteries if you do not intend to use the remote control for a long period of time. Store in a cool, dark place.
• When disposing the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.

Caution for AC Mains Lead

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13- AMPERE SOCKET.

If a new plug is to be fitted, please observe the wiring code as stated below.

If in any doubt, please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are colored in accordance with the following code:

Blue: Neutral, Brown: Live.

As these colors may not correspond with the colored markings identifying the terminals in your plug, proceed as follows:

The wire which is colored Blue must be connected to the terminal which is marked with the letter N or colored Black or Blue.

The wire which is colored Brown must be connected to the terminal which is marked with the letter L or colored Brown or Red.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL ⊥ OR COLORED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differs according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

1. Replace the fuse and close or attach the fuse cover.

Table of contents

■ Getting started

Features....2

Supplied accessories....3

Using the remote control .... 3

Safety precautions 4

Caution for AC Mains Lead 5

Control reference guide 8

Remote control 8

Main unit 9

Basic Connection 10

Network connection.... 12

Settings 14

Easy Setting 14

Network Easy Setting 16

HDD and media information 19

Recording mode 19

HDD and media you can use for recording and play.....20

Notes 22

Common Operations 24

Preparations 24

Basic operation 25

Menu screen 25

FUNCTION MENU screen 25

■ Watching broadcasts

Watching broadcasts 26

Using TV Guide system....26

Using Channel List 28

Channel information 28

Operations while watching broadcast ..... 29

REWIND LIVE TV/PAUSE LIVE TV 30

■ Recording

Recording TV programmes 32

Operation during recording 34

Direct TV Recording 35

Timer recording 36

Various functions with Freeview+ 38

To search the programme 39

Timer recording from channel information....39

Manually programming timer recording. 40

Timer recording options.... 40

To confirm and edit a timer programme 41

To cancel recording

when timer recording has already begun 42

Notes on timer recording 42

■ Playing back video

Playing BD-Video or DVD-Video 43

Enjoying BD-Live or picture-in-picture in BD-Video 43

Playing recorded video contents 44

Using the DIRECT NAVIGATOR (VIDEO) 46

Playback from Chapter View 48

Operation during play 49

Enjoying 3D video ....51

■ Editing video

Deleting recorded titles 52

Editing recorded titles 53

■ Copying video

Copying titles 57

Copying titles 57

Copying to HDD with DIRECT NAVIGATOR 58

Copying titles with copying list .... 59

Notes for copying 62

Copying Title Playing 64

Copying HD Video (AVCHD format) from HDD ..... 64

Copying a finalised disc 65

■ Photo

Playing photos 66

Photo play option 68

Slideshow Settings....68

Editing photos 69

Copying photos 71

Selecting and copying the photos 71

Copying automatically 72

Music

Playing music/Copying music to HDD. 73

Playing music recorded on HDD 74

Operations during music play....75

Useful functions during music play. 75

Editing music/playlist 76

■ With Other Equipment

Copying the HD Video or the SD Video ..... 77

Copying HD Video

(AVCHD format) 77

Copying SD Video

(MPEG2 format) 78

Recording from external equipment 79

Manual Recording 79

Linked timer recording (SKY Digital STB, etc.)

-EXT LINK 80

■ Convenient functions

Enjoying VIERA CAST.... 81

To enjoy video communication (ex. SkypeTM) .....81

Playing contents

from other equipment (Server).... 82

Playing contents on other equipment (Client) ... 83

VIERA Link/Q Link functions 84

Playback menu.... 86

Media management 88

Entering text. 90

Changing the unit's settings 91

Common procedures 91

Tuning 92

HDD / Disc 94

Picture 96

Sound....96

Display 98

Connection 98

Network 100

Others 101

Software (Firmware) Update 104

Other Settings 105

Switching the aspect ratio of the screen ..... 105

TV operation setting 105

HOLD function 105

Other Connections 106

Amplifier connections 106

Other TV connections 107

Troubleshooting

Messages on the unit's display 108

Troubleshooting guide 110

Power 110

Displays 110

TV screen and video 111

Sound 112

Operation 112

Recording, timer recording and copying 112

Play 113

Edit 113

Photo 113

Music 114

USB 114

TV Guide 114

Broadcast 114

VIERA Link 114

Network 115

To reset this unit. 115

■ Reference

Unit care 116

Operations that can be performed

simultaneously 118

Operations that can be performed

while recording or copying a title 118

Starting the timer recording

while executing other operation 118

Regarding DivX 119

Specifications.... 120

Audio information 122

About JPEG/MPO/MP3/DivX/MKV/MPEG2/

AVCHD files 122

Recording modes and approximate recording times . . . 124

Maximum number of titles that can be recorded ..... 125

Licenses 126

Index 128

Glossary

Refer to following site for technical terms.

http://www.panasonic.co.uk/html/en_GB/

Technology/0-9/217724/index.html

Getting started

Watching broadcasts

Recording

Playing back video

Editing video

Copying video


Music

With Other Equipment

Convenient functions

Troubleshooting

Reference

About descriptions in these operating instructions

- These operating instructions are applicable to models DMR-BWT800 and DMR-BWT700. The illustrations in these Operating Instructions show images of DMR-BWT800 unless otherwise indicated.

BWT800 :

indicates features applicable to DMR-BWT800 only.

BWT700 :

indicates features applicable to DMR-BWT700 only.

- Pages to be referred to are indicated as “⇒ ○○”.

Control reference guide

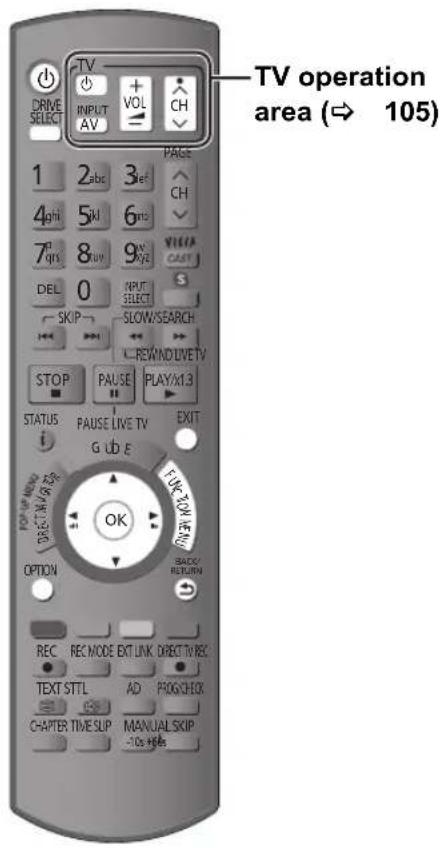

Remote control

Instructions for operations are generally described using the remote control.

Getting started ① Turn the unit on or off (⇒ 14, 24) ② Select drive (HDD, BD, SD or USB) (⇒ 24) ③ Select channels and title numbers, etc./Enter numbers or characters (The character buttons may be used when operating VIERA CAST contents.) ④ To delete unwanted recorded titles, timer programmes, photos or music (⇒ 52) ⑤ Basic operations for recording and play ⑥ Show channel information (⇒ 28)/Programme information within TV Guide screen (⇒ 26)/Show status messages (⇒ 49)/Show Information (⇒ 47) ⑦ Selection/OK (⇒ 25), Frame-by-frame (⇒ 50) ⑧ Show DIRECT NAVIGATOR, Top menu, Pop-up Menu (⇒ 43, 46) ⑨ Show OPTION menu (⇒ 53, 69, 76) ⑩ Colour buttons Use in accordance with instruction on the screen. ⑪ Recording functions (⇒ 32) ⑫ Show digital text (⇒ 29) ⑬ Show subtitles (⇒ 29) ⑭ Create chapter (⇒ 48) ⑮ Skip the specified time (⇒ 50) ⑯ Transmit the remote control signal ⑰ TV operation area (⇒ 105) ⑱ Channel select (⇒ 26)/Change pages in the DIRECT NAVIGATOR screen etc. (⇒ 46) ⑲ Show VIERA CAST (⇒ 81) ⑳ Input select (⇒ 26, 32, 79) ㉑ Start up a video communication (⇒ 81) ㉒ Exit the menu screen ㉓ Show the TV Guide screen (⇒ 26) ㉔ Show FUNCTION MENU screen (⇒ 25) ㉕ Return to previous screen ㉖ Direct TV recording (⇒ 35) ㉗ EXT LINK function (⇒ 80) ㉘ Show Timer Recording screen (⇒ 40) ㉙ Listen to Audio Description (⇒ 29) ㉚ Skip approx. 1 minute forward (⇒ 49) ㉛ Skip approx. 10 seconds backward (⇒ 49)

① Turn the unit on or off (⇒ 14, 24) ② Select drive (HDD, BD, SD or USB) (⇒ 24) ③ Select channels and title numbers, etc./Enter numbers or characters (The character buttons may be used when operating VIERA CAST contents.) ④ To delete unwanted recorded titles, timer programmes, photos or music (⇒ 52) ⑤ Basic operations for recording and play ⑥ Show channel information (⇒ 28)/Programme information within TV Guide screen (⇒ 26)/Show status messages (⇒ 49)/Show Information (⇒ 47) ⑦ Selection/OK (⇒ 25), Frame-by-frame (⇒ 50) ⑧ Show DIRECT NAVIGATOR, Top menu, Pop-up Menu (⇒ 43, 46) ⑨ Show OPTION menu (⇒ 53, 69, 76) ⑩ Colour buttons Use in accordance with instruction on the screen. ⑪ Recording functions (⇒ 32) ⑫ Show digital text (⇒ 29) ⑬ Show subtitles (⇒ 29) ⑭ Create chapter (⇒ 48) ⑮ Skip the specified time (⇒ 50) ⑯ Transmit the remote control signal ⑰ TV operation area (⇒ 105) ⑱ Channel select (⇒ 26)/Change pages in the DIRECT NAVIGATOR screen etc. (⇒ 46) ⑲ Show VIERA CAST (⇒ 81) ⑳ Input select (⇒ 26, 32, 79) ②1 Start up a video communication (⇒ 81) ②2 Exit the menu screen ②3 Show the TV Guide screen (⇒ 26) ②4 Show FUNCTION MENU screen (⇒ 25) ⑲ Return to previous screen ②6 Direct TV recording (⇒ 35) ⑳ EXT LINK function (⇒ 80) ⑳ Show Timer Recording screen (⇒ 40) ⑲ Listen to Audio Description (⇒ 29) ③0 Skip approx. 1 minute forward (⇒ 49) ③1 Skip approx. 10 seconds backward (⇒ 49)

Getting started

① Standby/on switch (⏻/⏼) (⇒ 14, 24) Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

② Disc tray (⇒ 24)

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit still consumes a small amount of power.

④ Recording indicator ● The indicator will light up while recording. ● The indicator will blink while recording is paused.

⑤ CALL LED ● The LED will light up when this unit receives incoming call etc. of the video communication. (⇒ 81)

⑥ Remote control signal sensor

④ Recording indicator

●The indicator will light up while recording.

●The indicator will blink while recording is paused.

⑤ CALL LED

●The LED will light up when this unit receives incoming call etc. of the video communication. (⇒ 81)

⑥ Remote control signal sensor

-Angle: Approx. 20° up and down, 30° left and right

-Distance: Within approx. 7 m in front of the unit

⑦ Open/close disc tray (⇒ 24)

⑧ USB port (⇒ 24)

⑨ SD card slot (⇒ 24)

⑩ Stop

⑪ Start play

⑫ BWT800 HDMI (SUB) V.OFF LED (Video off LED)

- It is possible to set the LED to turn on/off. (→ 98)

⑬ Display

1 Disc indicator

2 Copying indicator (⇒ 55)

3 USB port indicator

4 SD card slot indicator

5 EXT LINK indicator

6 Timer recording indicator This indicator lights up when the timer recording standby is activated.

7 Remote control signal indicator

8 Drive (HDD, BD or SD) indicator

9 Main display section indicator Current time/playback counter, various messages

10 Playback indicator

➢ Rear panel terminals (⇒ 10-12, 106, 107)

Basic Connection

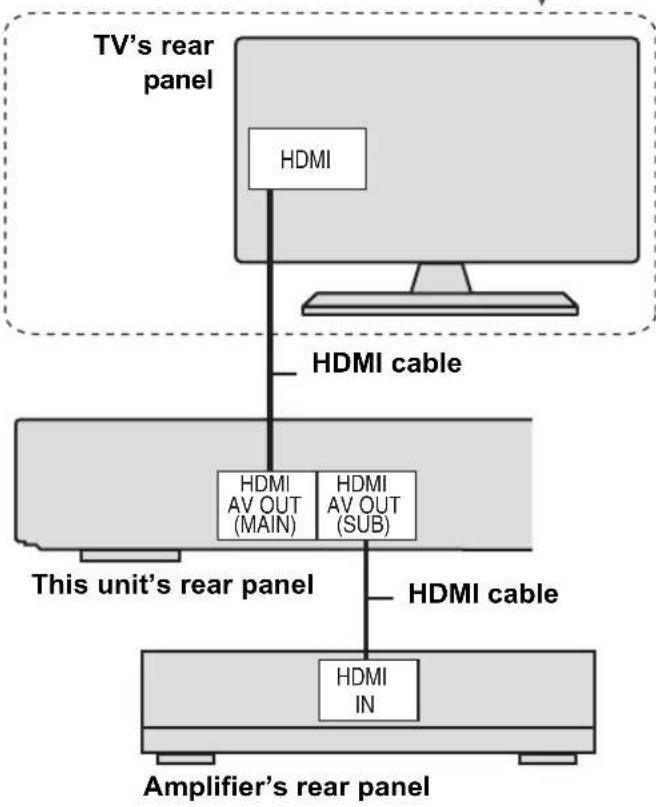

When connected to an HDMI compatible unit, you can enjoy high quality, digital video and audio.

3D programmes can be played back when this unit is connected to a 3D compatible TV using an HDMI cable.

• Before connection, turn off all equipment and read the appropriate operating instructions. ● Other TV and amplifier connections (→ 106)

BE SURE TO READ THE CAUTION FOR AC MAINS LEAD ON PAGE 5

Set "HDMI Audio Output" to "On" (⇒ 99).

(The default setting is "On".)

After completing the connections, proceed to Easy Setting (⇒ 14).

• You can view only with the 21-pin Scart cable connection, without connecting an HDMI cable. Set according to the connected TV. (⇒ 99, AV1 Output)
• The 21-pin Scart cable connection with the Q Link compatible TV supports "Q Link" (→ 84).
• Keep the RF coaxial cables as far away as possible from other cables.
• Do not roll up the RF coaxial cables.

About HDMI cable

• Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover).
• When outputting 1080p signal, please use HDMI Cables 5.0 meters or less.
• Recommended Panasonic HDMI cable part number:

RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m),

RP-CDHS50 (5.0 m), etc.

• The HDMI connection supports VIERA Link "HDAVI Control" (⇒ 84). However, to perform PAUSE LIVE TV (⇒ 30) and Direct TV Recording (⇒ 35) for programmes that cannot be received by this unit, you need to connect a 21-pin Scart cable. (BWT800 VIERA Link "HDAVI Control" can only be used on the connection from the HDMI (MAIN) terminal.)
• You cannot connect this unit to DVI devices that are incompatible with HDCP.

Depending on the device, images may not display properly or at all when connecting with a DVI/HDMI switching cable. (Audio cannot be output.)

- If you are connecting to a TV that is only compatible with 2 channel audio output, audio with 3 channels or more will be down mixed and output as 2 channels, even if connecting with an HDMI cable. (Some discs cannot be down mixed.)

When the unit is not to be used for a long time To save power, unplug it from the household mains socket. This unit consumes a small amount of power, even when it is turned off

[approx. 0.2 W (“Power Save in Standby” is activated and “RF OUT (Aerial Signal)” is set to “Off”)]

When connecting the Set Top Box or video equipment

Set Top Box or video equipment (Satellite receiver, CATV, VCR, etc.)

* A 21-pin Adaptor is required for AUDIO/VIDEO terminal.

DO NOT TV VCR This unit

Connect the unit directly to the TVIf you connect the unit through an AV selector or VCR to the TV, video signal will be affected by copy protection systems and the picture may not be shown correctly.●When connecting to a TV with a built-in VCRConnect to the input terminals on the TV side if there are both TV and VCR input terminals.

Network connection

Following functions will be available when this unit is connected to the network.

• DLNA functions (⇒ 82, 83) ●Network Service functions (⇒ 81) ●BD-Live functions with Internet (⇒ 43) ●Automatically acquiring the title of the CD (⇒ 73)
• Updating the software (firmware) of this unit from Internet (⇒ 104)

For details about connection method, refer to the instructions supplied with the connected equipment.

LAN (ethernet) cable connection

This unit's rear panel

• Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices.
• Inserting any cable other than a LAN cable in the LAN terminal can damage the unit.

Wireless LAN connection

• BWT800 Wireless LAN is built in. (There is no need to connect a Wireless LAN Adaptor.)
• BWT700 Connect the Wireless LAN Adaptor DY-WL10 (optional).

• BWT700 | Only the Wireless LAN Adaptor DY-WL10 (optional) can be used. Read the operating instructions for the Wireless LAN Adaptor DY-WL10 (optional) thoroughly when using it. Connect/disconnect the Wireless LAN adaptor DY-WL10 (optional) when the unit is turned off and not using functions that use the network, such as downloading a programme, etc.
• For up to date compatibility information on your Wireless router refer to http://panasonic.jp/support/global/cs/ (This site is in English only.)
• The unit is not compatible with public wireless LAN services provided in airports, stations, cafes etc.

■ Precautions of Wireless LAN connection

The following limits are in place regarding the usage of this unit. You must be aware of these limits before using this unit.

Panasonic will in no way be responsible for any incidental damage which may arise due to a failure to obey these limits, or to any condition of use or disuse of this unit.

●Data transmitted and received over radio waves may be intercepted and monitored. - This unit contains delicate electronic components.

Please use this unit in the manner in which it was intended and follow the following points:

-Do not expose this unit to high temperatures or direct sunlight. -Do not bend, or subject this unit to strong impacts. -Keep this unit away from moisture. -Do not disassemble or alter this unit in any way.

Easy Setting

1 Turn on the TV, then select the appropriate AV input to suit the connections to this unit.

2 Press [⏻]. DVB Auto Setup starts. DVB Auto Setup takes about 3 minutes.

- After DVB Auto Setup has been completed, clock will be set automatically. If the clock setting menu appears, set the time manually ( ⇒ 102, Clock)

3 Enter the PIN.

This PIN will be used only for the Owner ID-Data Entry screen.

① Press the number button to enter the 4-digit PIN. ② Repeat step ① to confirm. ● Make a note of the PIN in case you forget it.

4 Set the Owner ID - Data Entry ("NAME", "HOUSE NO" and "POSTCODE").

① Select the item, then press [OK].

② Select the character, then press [OK]. ③ Repeat step ②. ④ Press [BACK/RETURN].

5 Press [BACK/RETURN].

6 Enter the new PIN.

● The default PIN is "0000".

① Select the number, then press [▶] (right). ② Repeat step ①. ● Make a note of the PIN in case you forget it. ③ Press [OK] twice.

7 Set "Power Save" to "On", "On Timer" or "Off", then press [OK].

On It will go into the Power Save in Standby mode.
On Timer	Set the start and stop time and then press [OK].●Power Save in Standby mode is activated at the set time period.
Off It is possible to start quickly from the standby mode. (Quick Start mode)●If you use Home Network (DLNA) Server function (→ 101), select “Off”. This function is not available with other settings.

• Power consumption is lowered additionally when "RF OUT (Aerial Signal)" is set to "Off". (⇒ 102)
• Video from AV2 input cannot be viewed with this unit in standby mode when Power Save in Standby mode is activated.

When the following screen appears, Easy Setting is complete.

• Select "Yes" to proceed to "Network Easy Setting". (⇒ 16)
• Select "No" to finish the Easy Setting.

To stop partway

Press [BACK/RETURN]

To restart setup

1. While stopped, press [FUNCTION MENU]. 2. Select "Setup" in "Others", then press [OK]. 3. Select "Auto Setup" in "Tuning", then press [OK].

To display the Owner ID information on TV

1. While the unit is on, press and hold [OK], the yellow button, and the blue button on the remote control at the same time for more than 5 seconds. - "00 RET" is displayed on the unit's display. 2. Repeatedly press [▶] (right) on the remote control or [⏻/I] on the main unit until "01 OID" is displayed on the unit's display. 3. Press [OK] on the remote control or [▲ OPEN/CLOSE] on the main unit. The PIN is not displayed.

To edit the Channel List (⇒ 92, Channel List) To check the signal condition (⇒ 93, Signal Condition) To change PIN (⇒ 102, PIN Entry) To sort the Channel List by region (⇒ 92, Channel Sorting by Region)

Network Easy Setting

After completing "Easy Setting", you can continue with "Network Easy Setting".

Select "Wired" or "Wireless", then press [OK].

e.g., BWT800

"Wired" connection

Follow the on-screen instructions and make the following settings.

● Network Easy Setting (Home Network Connection Check) ● Home Network (DLNA) Server function ● Network Easy Setting (Internet Connection Test)

This screen appears, Setup is complete. Press [OK].

When you experience problems with settings (⇒ 17)

"Wireless" connection

Before beginning wireless connection setup - Obtain your Network name (SSID ^*1 ).

• If your wireless connection is encrypted, please be sure that you know your encryption key.
• BWT700: If "Wireless LAN Adaptor is not connected." is displayed, check that the Wireless LAN Adaptor is fully inserted. Alternatively, disconnect and reconnect it. If there is still no change in the display, consult your dealer for advice.

Select "Search for wireless network" or "WPS (PUSH button)" and then follow the on-screen instructions and make the settings.

■ Search for wireless network:

• When you select "Search for wireless network", the available wireless networks will be displayed. Select your network name and press [OK]. - If your Network name is not displayed, search again by pressing the "Red" button on the remote control.
• Stealth SSID will not be displayed when you select "Search for wireless network". Enter it manually by using "Wireless Settings". (⇒ 100)

- If your wireless network is encrypted, the Encryption Key Input Screen will be displayed. Input the encryption key of your network.

■ WPS (PUSH button):

If your Wireless router supports WPS (PUSH button), you can easily perform the settings by pressing the WPS button on it. WPS (Wi-Fi Protected Setup) is a standard that facilitates settings relating to the connection and security of wireless LAN devices.

e.g.,

① Press the WPS button or corresponding button of the Wireless router until the lamp starts flashing.

- For details, refer to the operating instruction of the Wireless router.

② Press [OK].

*1 An SSID (Service Set IDentification) is a name used by wireless LAN to identify a particular network. Transmission is possible if the SSID matches for both devices. *2 Wi-Fi Protected Setup-compatible Wireless router may have the mark.

When you experience problems with settings

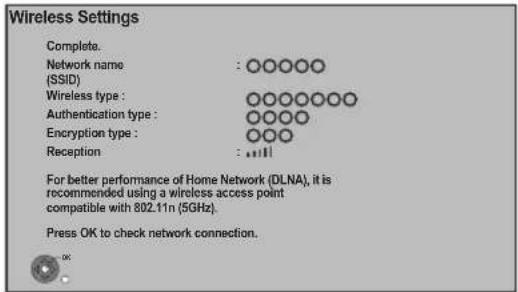

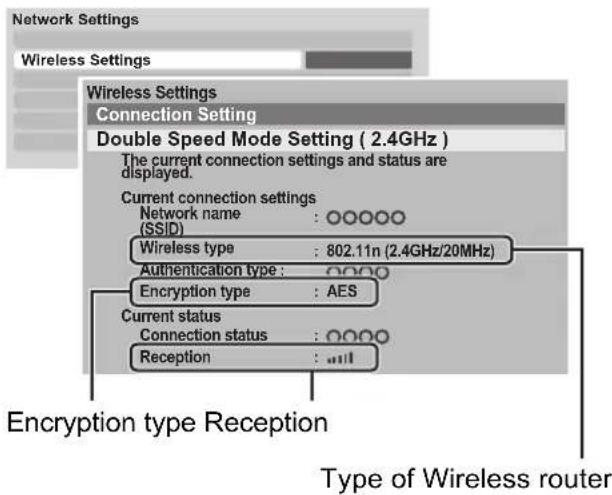

■ Wireless Settings

- If there is no problem, the following screen is displayed.

- If there is any problem, the following message is displayed on the screen.

Display Check the following
A conflict with other devices occurred.	●Please wait a few moments, and then try again.
A time out error occurred.	●Setting of the Wireless router for MAC Address etc.●The signal may be weak.BWT700 Using the USB extension cable supplied with the Wireless LAN Adaptor, adjust the position of the Wireless LAN Adaptor.●The SSID and the encryption key of the Wireless router.●Please wait a few moments, and then try again.
An authentication error or a time out error occurred.
A device error occurred.	●BWT700 Connection of Wireless LAN Adaptor●If there is no improvement in symptom, contact your dealer.

Network Easy Setting (Home Network Connection Check)

- If there is no problem, the following screen is displayed.

e.g., "Wireless" connection

- If there is any problem, the following message is displayed on the screen.

Display		Check the following
1. LAN cable connection or “Fail” Wireless setting:2. IP address setting: “Fail”3. Connection to gateway: “Fail”		●Connection of the LAN cables (⇒ 12●Settings of the hub and router
1. LAN cable connection or “Pass” Wireless setting:2. IP address setting: “Fail”3. Connection to gateway: “Fail”		●Connection and settings of the hub and router●Settings of “IP Address / DNS Settings” (⇒ 100)
1. LAN cable connection or “Pass” Wireless setting:2. IP address setting: “Pass”3. Connection to gateway: “Fail”
1. LAN cable connection or “Pass” Wireless setting:2. IP address setting: “Home network available”3. Connection to gateway: “Fail”

■ Network Easy Setting ( Internet Connection Test )

- If there is no problem, the following screen is displayed.

- If there is any problem, the following message is displayed on the screen.

Display Check the following
Cannot find the server. (B019)	●“Primary DNS” and “Secondary DNS” settings of “IP Address / DNS Settings” (⇒ 100)
No connection could be made to the server. (B020)	●The server may be busy or the service may have been suspended. Please wait a few moments, and then try again.●Settings of “Proxy Server Settings” (⇒ 100) and the router

To restart Network Easy Setting

1 Press [FUNCTION MENU]. 2 Select "Setup" in "Others", then press [OK]. 3 Select "Network Easy Setting" in "Network", then press [OK].

To redo settings individually

1 Press [FUNCTION MENU]. 2 Select "Setup" in "Others", then press [OK]. 3 Select "Network Settings" in "Network", then press [OK]. 4 Select "IP Address / DNS Settings" (⇒ 100) or "Proxy Server Settings" (⇒ 100), then press [OK].

Check security before using Home Network (DLNA) Server function

If you set "Home Network (DLNA) Server function" to "On", all connected devices on the same network can access this unit. Ensure that the router for your home network has adequate security system to prevent unauthorized access.

• Refer to the operating instructions of the hub or router.
• Home Network (DLNA) Server function setting can be set only when you selected "Off" for "Power Save in Standby" in "Easy Setting". (⇒ 15, step 7)
• Even if you set "Home Network (DLNA) Server function" to "Off", it is possible to set to "On" later. (→ 101)
• You can perform this setup anytime by selecting "Network Easy Setting" in the Setup menu. (⇒ 100)
• You can redo these settings individually using "Network Settings". (⇒ 100)
• Do not use this unit to connect to any wireless network for which you do not have usage rights. During automatic searches in a wireless network environment, wireless networks (SSID) for which you do not have usage rights may be displayed; however, using these networks may be regarded as illegal access.
• After performing network settings on this unit, the settings (encryption level, etc.) of the Wireless router might change. When you have trouble getting online on your PC, perform the network settings on your PC in accordance with the settings of Wireless router.
• Please be aware that connecting to a network without encryption may result in the content of the communication being illegitimately viewed by a third party, or the leaking of data such as personal or secret information.

Recording mode

Recording Mode	DR	HG/HX/HE/HL/HM	XP/SP/LP/EP, FR (⇒ below)
Feature Program	mmes can be recorded in a nearly perfect broadcasted state.	Recording can be done with reduced recording volume in HD quality.	Recording can be done with reduced recording volume in SD quality.
Quality Quality	as the broadcast	High Definition*1	Standard Definition
Recordable media
Multiple audio (audio language)	Record all multiple audio Record only one audio
Subtitles Can be recorded		Can be recorded (only one subtitle)*2
Audio Description	Can be recorded	Can be recorded*3
Surround audio	Surround audio as the broadcast	Depends on the settings (⇒ 97, Audio for HG / HX / HE / HL / HM Recording)	Stereo audio

*1 The SD quality programme cannot be converted to HD quality.

*2 You cannot select during play whether it appears or disappears.

*3 You cannot select during play whether it activates or deactivates.

➢ Recording modes and approximate recording times (⇒ 124)

■ FR (Flexible Recording Mode)

The unit automatically selects a recording rate between XP and EP (8 hours) that will enable the recordings to fit in the remaining disc space with the best possible recording quality.

HDD and media you can use for recording and play (−: Impossible) Getting started

Media	Standard symbol		Recordable contents	Playable contents
Hard disk drive (HDD)*1		HDD	VideoAVCHDJPEGMPOMusic copied from music CDMP3
BD-VideoBlu-rayDisc		BD-V	-	Movie and music
BD-RE*1Blu-rayDisc		BD-RE	VideoAVCHDJPEGMPO
BD-RBlu-rayDisc		BD-R	VideoAVCHD*2
			-	DivX®MKV
DVD-Video*3		DVD-V -		Movie and musicVideo in finalised disc
DVD-RAM*1DVRAMRAM4.7		RAM	VideoJPEGMPO
			-	AVCHD*2
DVD-RDVD-R DL R DL		DVD-R	Video
			AVCHD*2
			-	DivX®MKVJPEGMPOMP3
DVD-RW*1		DVD-RW	Video
			-	AVCHD*2
			Video
			-	AVCHD*2
		+RW	Video
			-	AVCHD*2
Audio CD (CD-DA)		CD	-	Music
CD(including CD-R/RW)			-	DivX®MKVJPEGMPOMP3
SD Cards※1	[4ZY]	SD	JPEGMPO	AVCHDMPEG2※4JPEGMPO
USB memories	[K02X]	USB	-	AVCHD※2,4MPEG2※4DivX®MKVJPEGMPOMP3

¹ Rewritable media ² This unit can playback media recorded with AVCHD compatible devices (Panasonic video camera, etc.). However, it may not be able to playback, add, or edit depending on the device that was used to record. ※3 Includes finalised DVD-R, DVD-R DL, DVD-RW, +R and +R DL. ※4 It cannot be played back directly from the media. Playback is possible by copying to the HDD.

• BD-R LTH type is also supported. - RAM Take the disc out from the cartridge to use the DVD-RAM with a cartridge. (TYPE1 cannot be used) • +RW 8X Speed +RW disc is not supported. - USB Video images of the copyright-protected DivX contents stored on USB device can be output only through the HDMI output terminal. - With certain recording states and folder structures, the play order may differ or playback may not be possible.

Notes

The manufacturer accepts no responsibility and offers no compensation for loss of recorded or edited material due to a problem with the unit or recordable media, and accepts no responsibility and offers no compensation for any subsequent damage caused by such loss.

Examples of causes of such losses are

• A disc recorded and edited with this unit is played in a Blu-ray Disc Recorder or computer disc drive manufactured by another company.
• A disc used as described above and then played again in this unit.
• A disc recorded and edited with a Blu-ray Disc Recorder or computer disc drive manufactured by another company is played in this unit.

Notes for the disc

■ Disc recorded on another device

• DVD-RW recorded in DVD Video Recording (DVD-VR) format -This unit can playback and copy to HDD. —This unit does not support editing or recording.
• It is possible to record and edit with DVD-Video format by formatting discs with this unit.

- It may be necessary to finalize the disc or close the session on the equipment used for recording to play on this unit.

- Discs recorded on equipment other than this unit may not be used for recording on this unit.

■ Play on other players

BD-RE BD-R

It can be played on the players compatible with BD-RE (Ver. 2.1) and BD-R.

- When BD-RE and BD-R cannot be played back on other Blu-ray Disc players, etc. (e.g., title recorded with HE-AAC audio format), convert the recording mode to play them back. (⇒ 55, File Conversion)

DVD-R DVD-RW +R +RW

Finalisation is needed. (⇒ 89)

+RW

If the disc failed to play on other equipment, we recommend you create a Top Menu (⇒ 89).

■ Regarding 8 cm Disc

This unit cannot record or edit the 8 cm disc. Only playback or copy to the HDD is possible.

■ Discs that cannot be played

• DVD-RAM that cannot be removed from their cartridges ●2.6 and 5.2 GB DVD-RAM, 12 cm •DVD-Audio
• HD DVD, WMA discs, DivX Plus HD discs, Super Video CD, Super Audio CD, Video CD, +R (8 cm), CD-ROM, Photo CD, PD, etc.

• The producer of the disc can control how discs are played. So you may not always be able to control play as described in these operating instructions. Read the disc's instructions carefully.
• Operation and sound quality of CDs that do not conform to CD-DA specifications (copy control CDs, etc.) cannot be guaranteed.

Notes for the SD cards

Compatible SD card

- SD Memory Card (from 8 MB to 2 GB) - SDHC Memory Card (from 4 GB to 32 GB) - SDXC Memory Card (48 GB, 64 GB)

- This unit is compatible with SD Memory Cards that meet SD Card Specifications FAT12 and FAT16 formats, as well as SDHC Memory Cards in FAT32 format and SDXC Memory Cards in exFAT format.

Setting the protection

Switch the write-protect switch to the "LOCK" position.

Using miniSD card or microSD card

Mini-type and micro-type cards can also be used, but must be used with adaptor cards. These are usually supplied with such cards, or otherwise customer provided.

e.g.,

• Useable memory is slightly less than the card capacity.
• If the SD card is formatted on other equipment, the time necessary for recording may be longer. Also, if the SD card is formatted on a PC, you may not be able to use it on this unit. In these cases, format the card on this unit (see page 88).
• SDHC Memory Cards and SDXC Memory Cards can be used in equipment that is compatible with the appropriate cards. (SDHC Memory Cards can also be used in equipment compatible with SDXC Memory Cards) Using either of these cards in a non-compatible PC or non-compatible equipment may result in formatting etc. and the loss of recorded content.

Notes for the USB memories

■ Compatible USB memories

• USB memories that support USB 1.0/1.1 and USB 2.0 Full Speed/High Speed. ●FAT16 and FAT32 file systems are supported.

• This unit's USB port does not support bus-powered USB device.
• Despite meeting the conditions mentioned above, there may be USB memories that cannot be used for this unit.

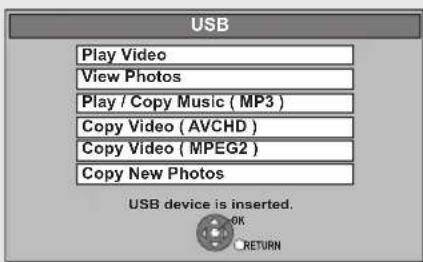

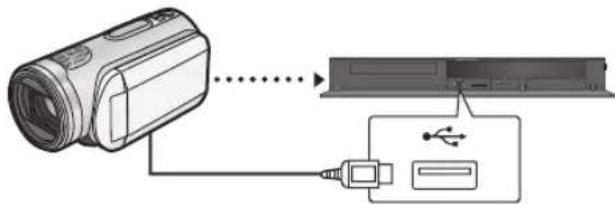

• This unit supports connecting a USB memory, digital camera and video camera produced by Panasonic, etc. It is not warranted that all USB devices will meet this unit.
• USB memories support DivX and MKV files less than 4 GB.
• BWT800 USB port at the rear of this unit is dedicated for optional Communication Camera (TY-CC10W or compatible equipment).
• BWT700 When using Communication Camera TY-CC10W or Wireless LAN Adaptor DY-WL10, connect it to the rear terminal of this unit. (⇒ 12, 81)

Common Operations

Preparations

Turning on this unit

① Turn on the TV, then select the appropriate AV input to suit the connections to this unit. ②Press [⏻] on the remote control or [⏻/l] on this unit.

Inserting or removing a media

• When the indicator on this unit's display blinks, do not turn off the unit or remove the media. Such action may result in loss of the media contents.
• When inserting the media, ensure that it is facing the right way up.
• Wipe off the dust or fingerprints from the discs before use. (→ 117)
• Return discs to their cases or cartridges after use; this helps to protect the discs against scratches and dust.
• When removing the SD card, press on the centre of the card and pull it straight out.
• If you connect a Panasonic product with a USB connection cable, setup screen may be displayed on the connected equipment. For details, refer to the instructions for the connected equipment.

■ To select a drive

Press [DRIVE SELECT] to select the media drive that you operate.

■ Release disc protection

BD-RE BD-R RAM

If the disc is protected when writing to the disc, release the protection (⇒ 88, Setting the protection).

Basic operation

This unit is basically operated via the following method by using the remote control.

Select Enter

To return to the previous screen	Press	BACKRETURN
To exit the screen	Press	EXIT

Display Navigation

Operating method can also be confirmed on the screen.

Available functions and buttons used are displayed on each screen.

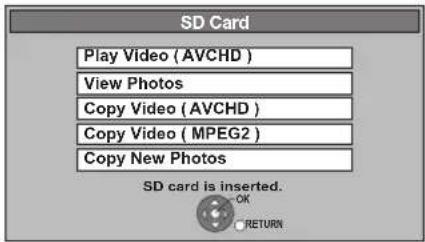

Menu screen

Menu screen for selecting each operation is displayed when the media is inserted, and you can access the operation screen easily.

e.g., USB

- Display items differ depending on what is recorded in each media.

If the menu screen is not displayed, display it by performing the following operation.

1 While stopped Press [OPTION].

2 Select "Drive Select", then press [OK]. 3 Select the media, then press [OK].

- Menu screen for each media appears.

FUNCTION MENU screen

You can easily access the desired functions via the FUNCTION MENU.

1 Press [FUNCTION MENU].

2 Select the item, then press [OK].

- Repeat step 2 if necessary.

Playback Contents

Selectable items will change depending on the type and status of the media.

Watching broadcasts

1 Press and select "TV", then press OK.

2 Press to select the channel.

Every time you change the channel, channel information appears automatically.

Unit's display:

- You can also select the channel with the number buttons.

- You can set the time to display the channel information. (→ 98, On-Screen Information)

Using TV Guide system

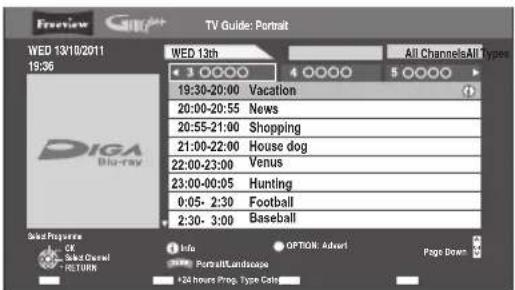

1 Press [GUIDE]. 2 Select the programme, then press [OK].

3 Select "View", then press [OK].

Page up/down

Press [∧ ∨ CH].

To view a programme list for another day Press the "Red" button (Previous) or the "Green" button (Next).

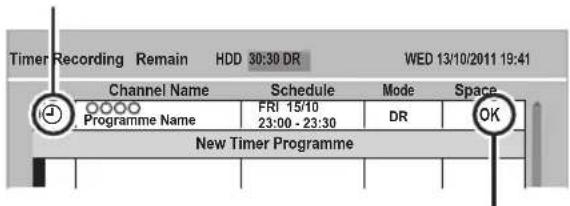

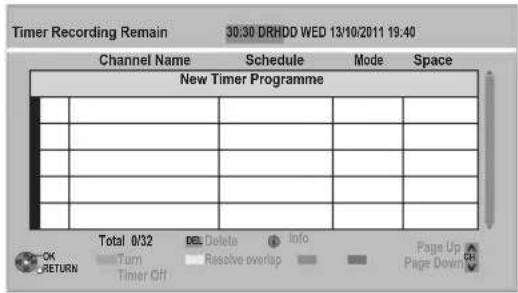

Timer Recording using the TV Guide System (=> 36)

Some broadcasts may not send programme information.

To see programme information

(Programmes with the i symbol)

Press [STATUS]

Additional information is available for these programmes.

To show other pages

Press [CH ∧] (Previous) or [∨ CH] (Next).

To exit the screen

Press [STATUS]i

To see advertisement

Press [OPTION].

To show other advertisement

Press [▲, ▼].

To exit the screen

Press [BACK/RETURN]

Switch the appearance

While displaying TV Guide screen

Press [GUIDE].

Landscape view

Portrait view

Using Channel List

You can select from the list of channel names.

After performing step (→ 26)

1 Press [OK]. 2 Select the channel, then press [OK].

To edit the Channel List (→ 92)

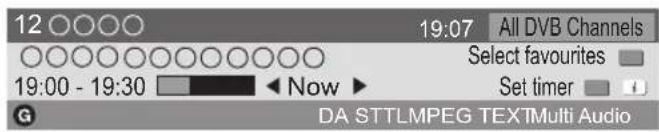

Channel information

Press [STATUS]i

① Current Category ② Title with Guidance information ③ Audio Description ④ Subtitle ⑤ Digital text ⑥ Multiple audio ⑦ Set timer (→ 39)

To show detailed information

Press [STATUS] again.

To hide the information screen

Press [EXIT].

To change Favourites

Press the "Blue" button.

- Register your favourite channels

1 Press [OPTION]. 2 Select "Digital TV Menu", then press [OK]. 3 Select "Favourites Edit", then press [OK]. 4 Refer to page 92 (Favourites Edit).

To switch between the current programme and the next programme

Press [◀, ▶].

To check the programmes currently broadcasting on other channels

Press [▲, ▼].

- You can switch to another channel displayed on the channel information by pressing [OK].

Operations while watching broadcast

To show subtitle

When "STTL" appears in channel information (→ 28)

Press [STTL]

To hide subtitle

Press [STTL]

To change subtitle language

① Press [OPTION]. ② Select "Subtitle Language" in "Digital TV Menu", then press [OK]. ③ Select the desired language. - Press [EXIT] to exit the screen.

To select Multi Audio

When "Multi Audio" appears in channel information (⇒ 28)

① Press [OPTION]. ② Select "Multi Audio" in "Digital TV Menu", then press [OK]. ③ Select the desired audio.

To exit the screen

Press [EXIT].

To listen to the Audio Description

Audio Description adds an additional soundtrack to describe events on screen (narration) and aids understanding and enjoyment, particularly for visually-impaired viewers.

When "AD" appears in channel information (⇒ 28)

① Press [AD]. ② Select "Audio Description" and set to "Automatic". ③ Select "Volume", then adjust the volume with [◀, ▶].

• Audio Description may not be available depending on the type of audio format.
• When "Dolby D / Dolby D + / Dolby TrueHD", "MPEG" or "HE-AAC" is set to "Bitstream", the Audio Description may not work. Set them to "PCM" (→ 97, Digital Audio Output).
• You can also set "Audio Description" active in the Setup menu. (→ 93)

To view Digital text (MHEG)

When "TEXT" appears in channel information (→ 28)

Press [TEXT]

To select the page or access to certain topic areas and navigation

Use [▲, ▼, ◀, ▶], number buttons or colour buttons, etc. according to on-screen instructions.

- Some functions of Digital text are deactivated during recording.

Aspect

You can switch the screen mode. (→ 105)

To show 3D programme

3D programmes can be played back when this unit is connected to a 3D compatible TV using an HDMI cable.

- Change the setting if you cannot view 3D compatible programmes in 3D.

e.g.,

Side by side programme 1 Press [OPTION].

2 Select "3D Settings", then press [OK]. 3 Select "Side by side" in "Signal Format", then press [OK].

Enjoying 3D video (see page 51)

REWIND LIVE TV/PAUSE LIVE TV

This unit temporarily saves a live TV programme you are watching with this unit's tuner on HDD and you can use the following functions.

■ REWIND LIVE TV

You can rewind live TV programme up to 2 hours before as long as temporary save has not been stopped.

■ PAUSE LIVE TV

You can pause live TV programme and restart watching from the paused position.

- PAUSE LIVE TV also works when watching a programme via external input.

- Select the HDD drive to perform these functions correctly.

1 While watching TV

REWIND LIVE TV

Press [SLOW/SEARCH ◀◀] to rewind.

- "REWIND LIVE TV" appears on the unit's display.

PAUSE LIVE TV

Press [PAUSE II] to pause.

- "PAUSE LIVE TV" appears on the unit's display.

2 When you want to resume

Press [PLAY/×1.3 ▶].

• You can perform search or Quick View, etc.
• If temporary save stops (> 31), playback will be performed by that point.

Display information

■ While pausing or rewinding a broadcast: Press [STATUS].

- Press [STATUS] again.

■ While pausing a programme via external input: Press [STATUS]

① The time that you can rewind the live programme ② The amount of time temporarily saved on HDD (maximum: 2 hours). ③ The time of the current playback position ④ The time which is 2 hours after PAUSE LIVE TV or REWIND LIVE TV started ●After 2 hours from PAUSE LIVE TV or REWIND LIVE TV started, current time is displayed

To stop REWIND LIVE TV or PAUSE LIVE TV

1 Press [STOP ■].

2 Select "Yes", then press [OK].

To hide the display information

Press [EXIT].

• Temporary save stops in the following cases:
• When switching to other channels or other screen
• When recording of the watching programme is started
• When 2 programmes simultaneous recording is started
• When performing PAUSE LIVE TV or REWIND LIVE TV for more than 8 hours (This may vary depending on the HDD free space.)

• These functions do not work in the following cases:

- When the clock is not set

– While recording 2 programmes simultaneously

- While copying

- While watching a programme being recorded

- When a radio programme is selected

- REWIND LIVE TV When "REWIND LIVE TV" is set to "Off" (⇒ 95)

- PAUSE LIVE TV When a timer recording via external input is started while watching a programme via external input

- PAUSE LIVE TV You can operate this unit with the TV remote control by using VIERA Link (⇒ 84). Refer to the TV operating instructions for operation.

- PAUSE LIVE TV When you connect the TV with a HDMI cable and a 21-pin Scart cable, it is possible to pause programmes that cannot be received with the tuner of this unit.

Recording TV programmes

This operation will only record to HDD.

1 Press and select "TV", then press OK

2 Press to select the channel.

You can also select the channel with the number buttons.

3 Press and select the conversion mode, then

press OK.

- This unit will record the programmes in DR mode once, and then automatically convert to the selected recording mode while this unit is in standby. (⇒ 19, Recording mode)

• The recorded title will be kept in DR mode without any conversion when "Off (DR)" is selected.
• The conversion mode set here is inherited as an initial value for the next recording or timer recording.
• If the confirmation message appears Press [OK].

4 Press REC

Recording starts.

"REC1" or "REC2" will light

Select “Automatic Stop”, then press OK.

● One touch recording (OTR)

Recording stops automatically when the programme ends.

- You can also select "Recording Time" or "Continuous recording". (⇒ below)

To set the recording time

1. Select "Recording Time" or "Continuous recording" in step 5.

Recording Time	You can set the length of recording time from 30 minutes to 4 hours.Select the recording time.●You can also set the time with [● REC].
Continuous recording	The recording is continued until you press [STOP ■].

2. Press [OK].

• One recording will terminate when simultaneous recording is being done and timer recording starts.
• When “Automatic Standby after OTR” is set to “On” (⇒ 101), this unit is turned to standby mode if this unit is not operated for approximately 5 minutes after completing “Automatic Stop” or “Recording Time” (⇒ above).
• The SD quality programme cannot be converted to HD quality.

To convert the recording mode after recording in DR mode (⇒ 55) ➢ Recording modes and approximate recording times (⇒ 19, 124)

■ Recording mode conversion

Conversion will be performed after the unit is turned off in a time slot for which no timer recording is set. It will take about the same time as the recorded duration.

• The title before conversion (the title recorded in DR mode) will be deleted once the conversion is completed.
• When the HDD does not have enough remaining time, conversion will not start.
• This function is stopped when this unit is turned on. Conversion will start from the beginning again once the unit is turned off.
• When converted, audio language, Audio Description, audio track, multi channel audio and subtitle will be converted with the same settings as at the start of recording.

To confirm whether the conversion is completed (→ 55) To cancel a conversion (→ 55, To cancel a "During standby" conversion)

Operation during recording

To check the recording programme

Press [STATUS].

e.g., While recording 2 programmes simultaneously

To switch the Channel

Press [∧ ∨ CH].

To switch the Input

Press [INPUT SELECT].

To display the recording programme on the TV

It is necessary to display the recording programme onto the TV screen to perform operations such as pause.

Press [^ ∨ CH] or [INPUT SELECT] to select the recording channel.

Simultaneous rec and play

You can play the recording title from the beginning or the titles previously recorded to the HDD.

① While recording

Press [DIRECT NAVIGATOR].

“●” is displayed on the recording programme.

② Select the title, then press [OK].

To stop recording

Press [STOP ■].

■ When recording 1 programme If the following screen appears

Select "Yes", then press [OK].

■ When recording 2 programmes If the following screen appears

1 Select the programme, then press [OK]. 2 Select "Yes", then press [OK].

To pause recording

It is necessary to display the programme you want to pause on the TV. ( ⇒ left, To display the recording programme on the TV)

Press [PAUSE II].

• Press [PAUSE III] again to restart recording. (A title is not split into separate titles.)
• If paused while recording, the paused part may become a still picture for a moment during playback of that programme.

To perform 2 programme simultaneous recording

While recording

Record other programme with steps 4 5 on page 32-33.

"REC1" and "REC2" will light

Unit's display

• Either of programmes is necessary to be recorded from this unit's tuner.
• 2 programme simultaneous recording is not possible in the following conditions:
• While executing "Flexible Recording via AV input" – While high speed copying
• Channel or input cannot be switched except to the recording programmes.

Direct TV Recording

You can immediately start recording the watching programme on the TV without switching the channels on this unit by using VIERA Link or Q Link function (⇒ 84).

- Recording mode will be the mode that was selected for the previous recording. (⇒ 32, step3)

Press [● DIRECT TV REC] and hold for about 1 second.

To stop recording partway

Press [STOP ■].

• You can also operate this unit with the TV remote control. Refer to the TV operating instructions for operation.
• When you connect the TV with a 21-pin Scart cable, it is possible to record programmes that cannot be received with the tuner of this unit. (Recording mode: XP, SP, LP, EP)
• If you switch TV channels while recording broadcasting using the TV's tuner, Direct TV Recording stops.
• Q Link During Ext Link Standby mode or recording, Direct TV Recording is unavailable.

Timer recording

This operation will only record to HDD.

- When timer recording from the external equipment, use manually programming timer recording. (⇒ 40)

Press

GUIDE

Select the programme, then press OK

Select "Single Timer Rec." or "Series Timer Rec.",

then press

- This screen may not appear depending on the programme.

Single Timer Rec.:

Timer programme is set for selected programme.

Series Timer Rec.:

Timer programme is set for all the episodes of a series programme.

Recommended

(Recommendation Booking):

Refer to page 38.

If "Programme Selection" screen appears Depending on the signal sent from the broadcaster, both High Definition picture programme and Standard Definition picture programme exist.

Select the programme, then press [OK].

4 Press OK.

- You cannot change "Channel", "Day/Date", etc. (→ 40, Timer recording options) You can adjust "Start" and "Stop" up to 10 minutes in case of Series Timer Rec.

The timer programme is stored and the timer icon (red) is displayed.

To cancel a timer recording on the TV Guide screen

1 Select "Delete", then press [OK] in step. ③

2 Select "Yes", then press [OK].

("☐" in the TV Guide disappears)

If "Overlapped Timer Recording" screen appears

You can eliminate the overlapping or may change with repeat event for the duplicated programme by following the on-screen instructions.

1 Select "Change", then press [OK].

2 Follow the on-screen instructions.

Red Delete programme

Green Record Repeat programme

Yellow Exit(Overlapping is not resolved)

To check the schedule of the series

Press the "Blue" button in step 3

Programme for which you set the timer recording

s The episode to be recorded

R Repeat programme

HD High definition programme

▶ Using TV Guide system (=> 26)

• You can enter up to 32 programmes up to a month in advance. (Each daily, weekly or series programme is counted as one programme.)
• The receipt of the TV Guide system data is only possible via the aerial input of this unit. The receipt of the TV Guide data via Set Top Box is not possible.
• Some broadcasters may not send programme information. Set the timer recording manually (=> 40).
• If the same episode has already been set for series timer recording at a different time or on another channel (Repeat programmes), "Series Timer Rec." will not be selectable.
• Titles recorded using "Series Timer Rec." are bundled and displayed as a "group" in the DIRECT NAVIGATOR screen (⇒ 46).
• If the unit cannot record the selected programme, the unit will record the repeat programme if it is available. However, this unit will not record the repeat programme, if any part of the selected programme is recorded.
• The series recording will be cancelled if there has been no episode of the series for 13 weeks.
• BWT800 When "Pure Sound mode" is set to "On", timer recording does not start during playback BD-Video, DVD-Video or music CD. (⇒ 94)

Timer recording

Various functions with Freeview+

This unit has several functions that enable timer recordings to be controlled by the signal sent from the broadcaster.

If the signal is not sent correctly, the recording may lack the beginning or the ending part of the programmes.

Guide Link

The recording's start and stop times can be controlled by the broadcaster, e.g. delayed start.

In order to make the timer recording work successfully, we recommend you set the start time earlier and the end time later by some minutes, up to a maximum of 10 minutes.

●This is indicated by "Guide Link" in the Timer

Recording screen in step (4) 37).

- The "Guide Link" function may not work if you manually change the start time or the stop time over 10 minutes.

Series Timer Recording

You can record all the episodes of a series by setting just one timer recording. (=> 36)

Split Programme

You can record a programme separated into 2 or more parts by some other programmes, e.g., news.

When setting timer from the 1st split programme, other parts of the programme will be automatically set and indicated by the timer icon on the TV Guide.

- This is indicated by "Split" in the Timer Recording screen in step (37).

Recording recommended programme (Recommendation Booking)

You can record a programme that the broadcaster recommends.

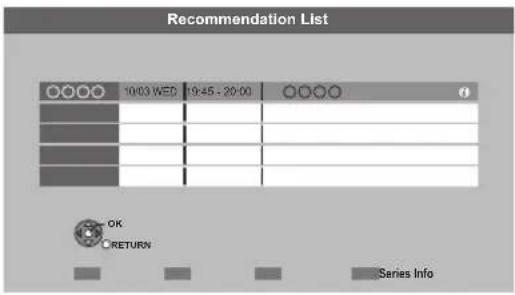

1. After performing steps 1-2 (=> 36) Select "Recommended", then press [OK]. "Recommendation List" is displayed.

2. Select the programme, then press [OK]. If "Programme Selection" appears (=> 36, step 3)

3. Go to step 4 on page 37.

- "Recommended" cannot be selected if there is no recommended programme.

To search the programme

You can search the programme from programme type and category.

1. While displaying TV Guide screen Press the "Yellow" button (Prog. Type) or the "Blue" button (Category).

2. Select the item, then press [OK].

Landscape view	The programmes belonging to the selected type or category are highlighted.
Portrait view	Only the programmes belonging to the selected type or category are displayed.

- If you select "Highlights", the recommended programme list is displayed.

To return to the previous TV Guide list

Select "All Types" in the "Prog. Type" or "All Channels" in the "Category" in step 2.

• Category and programme type may not be assigned correctly depending on the programme information.
• Some broadcast may not send programme information.

Timer recording from channel information

You can make timer recording of the current or next programme.

1 While watching a programme Press [STATUS]i

e.g.,

2 Display the channel information of a programme to record.

• Switch the programme with [◀, ▶].
• Switch the channel with [▲, ▼].

3 Press the "Yellow" button. 4 Go to step on page 37.

- You cannot change "Channel", "Day/Date", etc.

Manually programming timer recording

1 Press [PROG/CHECK].

2 Select "New Timer Programme", then press [OK]. 3 Select the items and change the items.

(⇒ right, Timer recording options)

4 Press [OK].

The timer programme is stored and the timer icon (red) is displayed.

Timer icon (red)

Check for available space on HDD, when "!" is displayed. (→ 41)

• You can enter up to 32 programmes up to a month in advance. (Each daily or weekly programme is counted as one programme.)
• When recording from the external equipment, "Mode (recording mode)" is XP, SP, LP, EP or FR.

Timer recording options

Select the items and change the items.

e.g.,

Channel	Press [▲, ▼].●You can select Category/AV with the “Red” button to switch Favourites, AV input, etc.
Day/Date	Press [▲, ▼].You can select “Date” or “Weekly” by pressing the “Green” button.●Auto Renewal RecordingThe unit will record the new programme over the old one.(Only daily/weekly/series timer recording)Press the “Yellow” button.“Renew : ON” is displayed.
Start/Stop	Press [▲, ▼].●Press and hold [▲, ▼] to alter in 15-minute increments.
Mode/Conv.	Press [▲, ▼].
Subtitles	(Only when item other than “OFF” is selected in “Conv.”)Press [▲, ▼].
Title Name	Select “Title Name”, then press [OK].(⇒ 90, Entering text)

To confirm and edit a timer programme

Press [PROG/CHECK].

To deactivate a timer programme

Select the programme, then press the "Red" button.

• The timer icon “💡” (⇒ right) will change from red to grey.
• Press the "Red" button again to activate timer recording standby. (The timer icon "⊕" will change to red.)

To delete a timer programme

Select the programme, then press [DEL].

To edit a timer programme

1 Select the programme, then press [OK]. 2 Change the timer recording options. (→ 40, Timer recording options)

To resolve overlapping

1 Select the programme with , then press the "Green" button. 2 Follow the on-screen instructions. - Programme overlapping can be resolved with repeat programme if available. - This function is not available for the timer programmes that were set manually.

To show programme information

Press [STATUS]

To exit the timer recording list

Press [EXIT].

• Failed programmes are deleted from the timer recording list at 4 a.m. two days later.
• "No Data" is displayed on a series recording item if there will be no episode of the series for the next 8 days. We recommend you delete the "No Data" item after you confirm the last episode of the series is recorded.

Screen icons

Red: Timer recording standby is activated. Grey: Timer recording standby is deactivated.

● Currently recording programme

Part or all of the programme will not be recorded since the programme is overlapping. Press the "Green" button to resolve overlapping. (→ left)

The HDD is full.

Copy-protected programme It was not recorded.

The programme did not complete recording because of some reason.

Auto Renewal Recording is set ( ⇒ 40).

Guide Link ( ⇒ 38)

S/P Split Programme ( ⇒ 38)

Series Timer Recording ( ⇒ 38)

OK Displayed if the recording can fit in the remaining space

→ Daily or weekly timer programme is set. (up to a maximum of one month from the present time)

! It may not be possible to record because: – there is not enough space left. – the number of possible titles has reached its maximum. ( ⇒ 125) – programmes are deactivated, etc.

Timer recording

To cancel recording when timer recording has already begun

Press [STOP ■].

■ When recording 1 programme

Select "Yes", then press [OK].

■ When recording 2 programmes

1 Select the programme, then press [OK].

2 Select "Yes", then press [OK].

- If you have already set a daily/weekly/series timer recording, the recording will start at the next scheduled time.

Notes on timer recording

• When recording except in DR mode, the audio content will be selected according to the following settings:
• "Multi Audio" and "Audio Description" of "Preferred Multi Audio" (⇒ 93) - "Preferred Subtitles" (⇒ 93)
• "Audio for HG / HX / HE / HL / HM Recording" (⇒ 97) ● (Only when recording broadcast) This unit will record in the DR mode once, and then convert to the selected mode automatically during standby. (⇒ 32)
• Depending on the state of the unit, playback may stop when recording begins.
• Even if you turn the unit off during the timer recording, the recording is continued.
• When you programme successive timer recordings to start, about last 1 minute of earlier programmes will not be recorded.

About 2 programme simultaneous recording (=> 35) Starting the timer recording while executing other operation (=> 118)

Playing BD-Video or DVD-Video

BD-Video

DVD-Video

Insert a disc.

●Play starts from the point specified by the disc.

Select the item, then press

OK

- Some items can also be selected using the number buttons.

Playback starts.

To display Pop-up Menu

Press [DIRECT NAVIGATOR].

- Press again to exit.

To display Top Menu

1 Press [OPTION].

2 Select "Playback Menu", then press [OK].

3 Select "Top Menu", then press [OK].

- If the Top menu is not displayed, press [DIRECT NAVIGATOR].

Enjoying 3D Video (⇒ 51)

- BD-V: You cannot playback while recording from external equipment. Also, playback stops when the timer recording starts from external equipment.

Enjoying BD-Live or picture-in-picture in BD-Video

BD-V

Enjoying BD-Live discs with Internet

BD-Live allows you to enjoy more functions such as subtitles, exclusive images and online games by connecting this unit to the Internet. Since most of the BD-Live compatible discs are played back using the BD-Live function, additional contents are required to be downloaded into the HDD.

Preparation

① Perform network connection and settings. (⇒ 12, 16, 100) ② Insert a disc.

For the playback method, refer to the instructions for the disc.

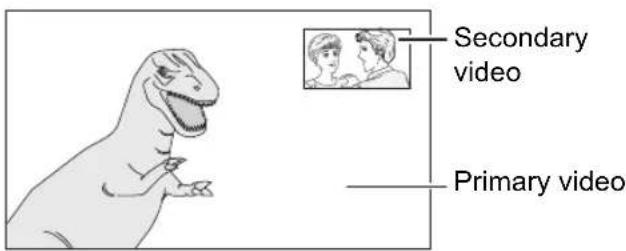

Playing picture-in-picture

For the playback method, refer to the instructions for the disc.

e.g.,

When the secondary video does not display

Turn the "Video" and "Soundtrack" to "On" in the "Secondary Video" in the "Signal Type" in the Disc menu. (⇒ 86)

• The usable functions and the operating method may vary with each disc, please refer to the instructions on the disc and/or visit their website.
• When the BD-Live data cannot be downloaded due to a lack of storage capacity, it is necessary to delete existing download data. (⇒ 89, Delete BD-Video data)
• Some BD-Live content available on the Blu-ray discs may require an Internet account to be created in order to access the BD-Live content. Follow the screen display or instruction manual of the disc for information on acquiring an account.
• "BD-Live" may need to be changed for certain discs (⇒ 94, BD-Live).
• When discs supporting BD-Live are played back, the player or disc IDs may be sent to the content provider via the Internet.
• During search, quick view, slow-motion or frame-by-frame, only the primary video is displayed.
• When "BD-Video Secondary Audio" is set to "Off", secondary audio will not be played (⇒ 97).

Playing recorded video contents

* DivX and MKV file only

HDD:

■ Except HDD:

① Insert the media. ② Select the item in the menu

screen, then press

- It will go to step automatically depending on the disc.

Select the title, then press

- Resume play function

If the following screen appears, select the point to start playback.

■ AVCHD: If the menu screen is not displayed

Press [PLAY/×1.3 ▶].

To playback of the playlist created on other equipment

1 Press [FUNCTION MENU]. 2 Select "Playlists" in "Others", then press [OK]. 3 Select the playlist, then press [OK].

To display the menu screen (⇒ 25) ▶ About DivX VOD content (⇒ 119)

• Multiple titles may not playback continuously depending on the disc. Press [DIRECT NAVIGATOR], and playback by selecting the title.
• Playback of DivX and MKV is not possible during recording.
• Some DivX and MKV file may not be played back, depending on the video resolution and frame rate condition.

Using the tree screen to find a folder

DivX and MKV

① While the file list is displayed Press [OPTION]. ② Select "Select Folder", then press [OK].

F: Selected folder no./Total folder no. including DivX and MKV title. You cannot select folders that contain no compatible files.

③ Select the folder, then press [OK].

The file list for the folder appears.

Using the DIRECT NAVIGATOR (VIDEO)

Press [DIRECT NAVIGATOR].

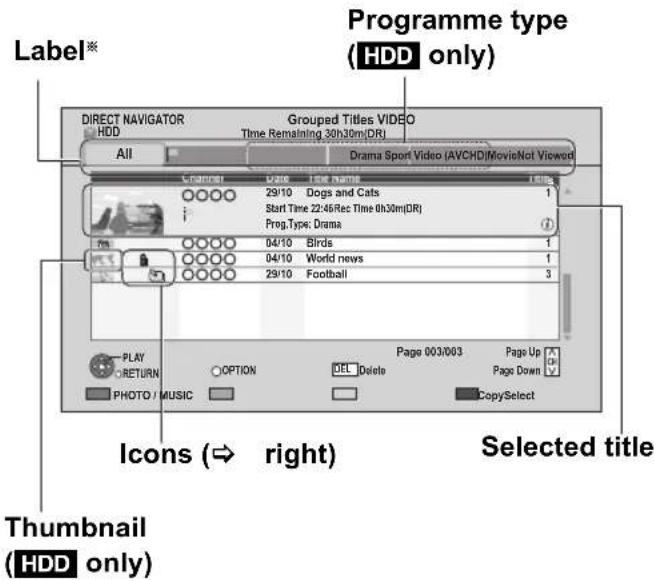

e.g., HDD

* Only "All" will be displayed in "Label" when using the media other than HDD.

Label

HDD

Titles recorded to HDD will be categorized automatically.

You can quickly find the recorded titles by selecting the label.

Select the label with [◀, ▶].

To sort a selected title from the "All" label into the programme type labels, set "Prog.Type" of the title. (⇒ 54, Changing programme type of title)

- To change the displayed label, go to "Changing the programme type" on page 47.

- High Definition video (AVCHD) acquired from the disc, SD card or USB device is sorted to "Video (AVCHD)" automatically.

Screen icons

●	Currently recording programme
	Protected title
	Title was not recorded due to recording protection
×	Title cannot be played(When copying a title to the HDD, or when data is damaged etc.)
	Grouped titles
	Title has not yet been played
NTSCPAL	Title is recorded using a different encoding system from that of the TV system on the unit. Alter the “TV System” setting on this unit to suit (⇒ 98).
	Radio programme
3D	3D contents●This icon will not display even with 3D programmes when a broadcast programme is recorded.
108050p	Recorded in 1080/50p contents
108060p	Recorded in 1080/60p contents
	Title with Guidance information or title restricted by Child Lock (⇒ 93, Child Lock).
S	Title has been recorded in Series timer recording. (⇒ 38)
	Title has been recorded in Series timer recording and has not yet been played.
0	Titles that cannot be copied in high definition quality mode (DR, HG, HX, HE, HL, HM) any more.
1	Titles that can be copied in high definition quality mode (DR, HG, HX, HE, HL, HM) once.
	Recording did not complete as the second timer recording has started.

Switching to the PHOTO or MUSIC screen

HDD

① Press the "Red" button. ② Select "PHOTO" or "MUSIC", then press [OK].

BD-RE RAM

Press the "Red" button.

The screen switches from "VIDEO" to "PHOTO".

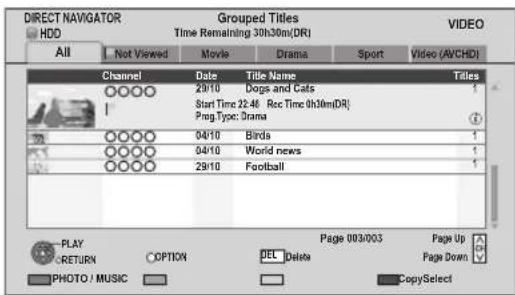

Switching the appearance

HDD

① Press [OPTION]. ② Select "Grouped Titles" or "All Titles", then press [OK].

Grouped Titles	Two or more titles recorded in the daily/weekly/series timer recording mode are bundled and displayed as one item.
All Titles	Displays all titles.

To view the individual titles in grouped titles

HDD

While displaying Grouped Titles screen:

Select the item marked with 📋 then press [OK].

Changing the programme type

HDD

Programme type displayed in the label can be changed.

① Select the programme type, then press the "Green" button. ② Select the item, then press [OK].

- “All”, “Not Viewed” and “Video (AVCHD)” cannot be changed.

Showing Information

Select the title, then press [STATUS]

• Information of a recording title cannot be displayed.

Playback Grouped Titles

HDD

The titles will be played continuously.

Select the group, then press [PLAY/×1.3 ▶].

Editing the grouped titles

HDD

① Select the title or the group, then press the "Yellow" button.

A check mark is displayed. Repeat this step.

• Press the "Yellow" button again to cancel.
• If you perform "Remove", select the title in the group.

② Press [OPTION]. ③ Select the item, then press [OK].

Create Group	Selected titles are bundled to form a group. Select “Create”, then press [OK].
Release Grouping	All the titles in the group are released. Select “Release”, then press [OK].
Remove	Selected titles are removed from the group. Select “Remove”, then press [OK].

Changing the group name

HDD

① Select the group, then press [OPTION]. ② Select "Edit", then press [OK]. ③ Select "Enter Title Name", then press [OK].

(⇒ 90, Entering text)

- Even if the group name is changed, the title names in the group will not be changed.

Playback from Chapter View

HDD BD-RE BD-R RAM DVD-R DVD-RW +R +RW

1 Press [DIRECT NAVIGATOR].

2 Select the title, then press [OPTION]. 3 Select the "Chapter View", then press [OK].

Chapter View screen

e.g., HDD

4 Select the chapter, then press [OK].

Editing chapters in Chapter View (=> 56)

To create Chapter Marks

HDD BD-RE BD-R RAM

Regarding chapters

You can divide a title into multiple chapters. Each section between the division points (Chapter Marks) becomes a chapter.

- Chapter Creation

HDD

This unit can create chapters automatically while recording broadcasting. (=> 95)

During playback or pause, press [CHAPTER].

To delete the Chapter Mark

1 While paused

Press [SKIP ◀◀◀] or [SKIP ▶▶▶] and skip to the location you want to delete.

2 Press [CHAPTER]. 3 Select "Yes", then press [OK].

- The maximum number of chapters: (Depends on the state of recording.)

HDD: Approx. 1000 per title

BD-RE, BD-R, RAM: Approx. 1000 per disc

- HDD: When the title has the maximum number of chapters, you cannot perform the Resume play function (=> 44) or the "Change Thumbnail" (=> 54) with the title.

Operation during play

* DivX and MKV file only

• Depending on the media and the type of file, some operations may not be possible.
• Depending on the media, it may take time for the menu screen, pictures, sound, etc. to start.
• Discs continue to rotate while menus are displayed. Press [STOP ■] when you have finished playback to protect the unit's motor, your TV screen, etc.

Showing status messages

Press [STATUS] twice.

e.g.,

Title number and elapsed time during play and recording mode

Stop

Press [STOP ■].

The stopped position is memorized.

Resume play function

Press [PLAY/×1.3 ▶] to restart from this position.

- The resume play function does not work depending on the disc.

Stopped position

HDD: Stopped position for each title is memorized.

Discs: Only previous stopped position is memorized.

The position is cleared if the tray is opened or the unit is turned off.

Search

Press [SLOW/SEARCH ◀◀] or [SLOW/SEARCH ▶▶].

●The speed increases up to 5 steps. (+R +RW Up to 3 steps) - Press [PLAY/×1.3 ▶] to restart play. - Audio is heard during first level search forward. DivX and MKV: Audio is not heard during all levels search.

Manual Skip

■ Skip forward 1 minute Press [MANUAL SKIP +60s]. ■ Skip backward 10 seconds Press [MANUAL SKIP -10s].

●Each time you press, play skips forward or backward.

●DivX and MKV: This function is not effective.

Quick View

Press and hold [PLAY/×1.3 ▶].

Play speed is quicker than normal.

• Press again to return to normal speed.
• DivX and MKV: This function is not effective.
• DVD-RW: This function is not effective even if it is finalised.

Pause

Press [PAUSE II].

Press [PAUSE ▪] again or [PLAY/×1.3 ▶] to restart play.

Slow-motion

While paused, press [SLOW/SEARCH ◀◀] or [SLOW/SEARCH ▶▶].

The speed increases up to 5 steps.

• Press [PLAY/×1.3 ▶] to restart play. ●DivX and MKV: This function is not effective.
• BD-V and AVCHD: Forward direction [SLOW/SEARCH ▶▶] only.

Operation during play

Frame-by-frame

While paused, press [◀] (◀II) or [▶] (III▶).

Each press shows the next frame.

• Press and hold to change in succession forward or backward.
• Press [PLAY/×1.3 ▶] to restart play. ●DivX and MKV: This function is not effective.
• BD-V and AVCHD: Forward direction [▶] (▶) only.

Skipping the title or chapter

During play or while paused, press [SKIP ◀◀◀] or [SKIP ▶▶▶].

Skip to the title or chapter you want to play.

• It will skip to the beginning of chapters (⇒ 48) if the title contains chapters.
• HDD: It will not skip the title. But the title in the grouped titles during the “Playback Grouped Titles” (⇒ 47) will be skipped.

Skipping the specified time (Time Slip)

① Press [TIME SLIP]. ② Select the time with [▲, ▼], then press [OK]. Play skips the specified time.

- Press and hold [▲, ▼] to change the time by 10-minute increments.

This automatically disappears after approximately 5 seconds. To show the screen again, press [TIME SLIP] again.

- BD-V, DVD-V, DivX, MKV, and AVCHD: This function is not effective.

Changing audio

① Press [OPTION]. ② Select "Playback Settings" in "Playback Menu". ③ Select "Multi Audio" in the Disc menu, then select the desired audio.

Switching the subtitles

HDD BD-RE BD-R

① Press [STTL]. ② Select "On" or "Off".

To change subtitle language

① Press [OPTION]. ② Select "Playback Settings" in "Playback Menu". ③ Select "Subtitle Language" in the Disc menu, then select the desired language.

■ BD-V DVD-V DivX, MKV and AVCHD

① Press [OPTION]. ② Select "Playback Settings" in "Playback Menu". ③ Select "Subtitles" in the Disc menu. - You can switch on/off and change the language.

Listening to the Audio Description

HDD BD-RE BD-R

① Press [AD]. ② Select "Audio Description" and set to "Automatic". ③ Select "Volume", then adjust the volume with [◀, ▶].

• When "Dolby D / Dolby D + / Dolby TrueHD", "MPEG" or "HE-AAC" is set to "Bitstream", the Audio Description may not work. Set them to "PCM" ( ⇒ 97, Digital Audio Output).
• You can also set "Audio Description" active in the Setup menu. ( ⇒ 93)

Aspect

You can switch the screen mode. (See page 105)

Enjoying 3D video

You can enjoy powerful 3D videos with realistic sensations by connecting this unit with a High Speed HDMI Cable to a 3D compatible TV.

Preparation

Connect a 3D compatible TV to an HDMI AV OUT terminal of this unit using a High Speed HDMI Cable. (See page 11)

Perform the necessary preparations for the TV.

Playback following the instructions displayed on the screen.

3D settings

Perform the following settings as necessary.

3D BD-VideoPlaybackBD-V	It is also possible to play back 3D discs in 2D (conventional video). (⇒ 94)
3D Type	If 3D video cannot be played back in 3D, change the settings as required by the connected TV format. (⇒ 98)
HDMI (SUB)Output ModeBWT800	If the amplifier is connected to the HDMI AV OUT (SUB) terminal (⇒ 107), set to “HDMI (SUB) Output Mode” (⇒ 99).●HDMI (SUB) V.OFF LED on this unit will light.
3D PlaybackMessage	Hide the 3D viewing warning screen. (⇒ 98)
Graphic Display LevelBD-V	Adjust the pop-up position for the playback menu or message screen etc. (⇒ 86)

Convenient functions while viewing the 3D video

Change this setting when the screen such as playback settings, etc., is not correctly displayed for 3D compatible programmes.

① Press [OPTION]. ② Select "3D Settings", then press [OK]. ③ Select the item, then press [OK].

Signal Format	Original Keep original picture format.
	Side by side	3D picture format comprising of left and right screens.Check the “3D Type” (⇒ 98) and the 3D setting of the TV if it does not display correctly even if changed.
	2D to 3D*	Converts 2D pictures to 3D effect while playing.
3D Picture Mode*	Normal	Playback pictures with normal 3D effects.
	Soft	You can enjoy 3D pictures with a feeling of broadness, holding back the depth perception.This function cannot be enabled when “Signal Format” is set to “2D to 3D”.
	Manual Settings	Set 3D effect manually.DistanceSet the amount of depth perception.Screen TypeSelects how the screen appears during 3D playback (flat or round).Frame WidthSet the amount of feathering at the edge of screen.Frame ColourSet the colour of feathering at the edge of screen.

※ This function is not effective while watching broadcast.

• Depending on the contents, displayed items are different.
• Subtitles and TV Guide, etc., may not display correctly depending on the settings.
• This unit does not guarantee the playback of 3D programme types other than the Frame Packing type or the Side-by-Side (Half) type.
• Please refrain from viewing 3D images if you do not feel well or are experiencing visual fatigue.

In the event that you experience dizziness, nausea, or other discomfort while viewing 3D images, discontinue use and rest your eyes.

• When "3D Type" ( ⇒ 98) is "Side by side" change the 3D setting on the TV too.
• Depending on the connected TV, the video being played back might switch to 2D video due to changes in resolution etc. Check the 3D setting on the TV.
• 3D video might not output as settings of "HDMI Video Format" ( ⇒ 99) and "24p Output" ( ⇒ 99).
• It may display as Side-by-Side (2 screen structure) when playback of the 3D video is started.
• Depending on the operation, the setting of the "Signal Format" may return to "Original" and the setting of the "3D Picture Mode" may return to "Normal" when the content is switched or some other operation is performed while viewing.

Deleting recorded titles

Once deleted, recorded content cannot be restored to its original state. Make certain before proceeding.

- You cannot delete items on finalised discs.

While stopped

then

select

"HDD" or "BD".

Press

Select the title, then press

A check mark is displayed. Repeat this step.

- Press the "Yellow" button again to cancel.

Press DEL.

Select "Delete", then press

Deleting during play

① While playing, press [DEL]. ② Select "Delete", then press [OK].

■ Available disc space after deleting

• HDD BD-RE RAM The space deleted becomes available for recording.
• DVD-RW +RW Available recording space increases only when the last recorded title is deleted.

This space becomes available for recording after all the later recorded titles are deleted.

- BD-R DVD-R +R Available space does not increase even after the contents are deleted.

Editing recorded titles

Once deleted, divided or partially deleted, recorded content cannot be restored to its original state. Make certain before proceeding.

- You cannot edit finalised discs.

- Depending on the media and the type of file, some operations may not be possible.

1 Press [DIRECT NAVIGATOR].

2 Select the title.

●Multiple editing

Press the "Yellow" button.

A check mark is displayed. Repeat this step.

- Press the "Yellow" button again to cancel.

3 Press [OPTION].

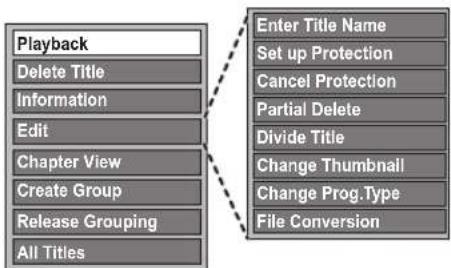

4 Select the item, then press [OK].

- "Edit" has several functions (e.g., File Conversion).

Deleting

① Select "Delete Title", then press [OK]. ② Select "Delete", then press [OK].

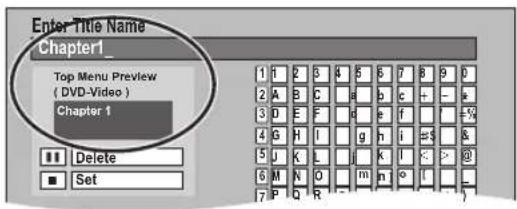

Entering title name

Select "Enter Title Name" in "Edit", then press [OK].

(→ 90, Entering text)

Setting protection

HDD BD-RE BD-R RAM +R +RW

Protection setting prevents the title from accidental deletion.

① Select "Set up Protection" or "Cancel Protection" in "Edit", then press [OK]. ② Select "Yes", then press [OK].

appears when setting the protection.

Partial deleting

HDD BD-RE BD-R RAM

① Select "Partial Delete" in "Edit", then press [OK]. ② Press [OK] at the start point and end point to delete.

- Press [PLAY/×1.3 ▶] to start the playback when the title is paused.

③ Select "Continue", then press [OK].

- Select "Next", then press [OK] to delete other sections. Up to 20 sections can be set. (⇒ go to step ②)

④ Select "Delete", then press [OK].

●Chapter Mark is generated in the scene that was partially deleted.

⑤ Press [BACK/RETURN].

• You can find the desired point by using search or Time slip function, etc.
• You cannot set points if they are too close to each other. You cannot set an end point before a start point.

Dividing title

HDD BD-RE BD-R RAM

① Select "Divide Title" in "Edit", then press [OK]. ② Press [OK] at the point to divide the title. ③ Select "Continue", then press [OK]. ④ Select "Divide", then press [OK].

●To confirm the division point

Select "Preview", then press [OK]. (The unit plays 10 seconds before and after the division point.)

●To change the division point

Restart play and select "Divide", then press [OK] at the division point.

• Video and audio just before and after the division point may momentarily cut out. • HDD Divided titles form a grouped titles.
• You can find the desired point by using search or Time slip function, etc.

Changing thumbnail

HDD RAM DVD-R DVD-RW +R +RW

① Select "Change Thumbnail" in "Edit", then press [OK]. ② Press [PLAY/×1.3 ▶] to start playback. ③ Press [OK] at the point to use as a thumbnail.

•To change the point

Restart playback and select "Change", then press [OK] at the point to change.

④ Select "Finish", then press [OK].

• DVD-R DVD-RW +R +RW It is possible to change the image displayed on the Top Menu after finalising or creating Top Menu.
• You can find the desired point by using search or Time Slip function, etc.

Changing programme type of title

HDD

Programme type information in the title can be edited.

① Select "Change Prog.Type" in "Edit", then press [OK]. ② Select the item to change a programme type, then press [OK]. ③ Select the programme type, then press [OK]. ④ Select "Set", then press [OK].

File Conversion

HDD

File Conversion is a function to convert the recording mode of the title in DR mode and AVCHD contents. The size of the converted title will be small regularly. It will take about the same time as the recorded duration.

① Select "File Conversion" in "Edit", then press [OK].

② Select the recording mode (⇒ 19, 124), then press [▼]. ③ Select whether to record the subtitle or not, then press [▼].

Automatic Subtitles will be recorded for titles with subtitles.You cannot switch the subtitle on or off during the playback.

Off Subtitle will not be recorded.

④ Select whether to record the Audio Description or not, then press [▼].

Automatic Audio Description will be recorded for titles with Audio Description. You cannot switch the Audio Description on or off during the playback.

Off Audio Description will not be recorded.

⑤ Select when to start the conversion, then press [OK].

Now Conversion begins immediately after step 7. Recording and playback are impossible during conversion. Timer recording will not be performed during conversion.
During standby	Conversion will be performed after the unit is turned off in a time slot for which no timer recording is set.

⑥ Select whether to delete the original title or not, then press [OK].

Convert & Delete	The original title will be deleted to save HDD capacity after conversion.
Convert Only	The original title remains after conversion.

- The original titles with copy restriction (⇒ 63) will be deleted after converting them to HG, HX, HE, HL or HM mode regardless of setting.

⑦ ■ “Now” conversion: Select “Start”, then press [OK].

■ "During standby" conversion: Press [OK]. - Conversion is performed when the unit is turned off.

"COPY" on the unit's display remains lighted during conversion.

To cancel a "Now" conversion

Press and hold [BACK/RETURN] for more than 3 seconds.

To confirm whether the conversion is completed Press [DIRECT NAVIGATOR].

e.g.,

When “○○ → ○○ (Recording mode for conversion)” is displayed, the conversion has not finished.

To cancel a "During standby" conversion

After performing steps 1–3 (⇒ 53)

1 Select "File Conversion" in "Edit", then press [OK]. 2 Select "Yes", then press [OK].

• To use "File Conversion", the HDD needs enough storage capacity.
• The size of converted title might increase depending on the title (such as radio programmes).
• File Conversion is stopped when this unit is turned on during performing "During standby" conversion. Conversion will start from the beginning again once the unit is turned off.
• When converted, the audio content and subtitle language will be selected according to the following settings:
• "Multi Audio" of "Preferred Multi Audio" (→ 93)
• "Preferred Subtitles" (⇒ 93)
• "Audio for HG / HX / HE / HL / HM Recording" (⇒ 97)
• When converted, 3D information may not be retained.
• In titles with the Auto Renewal Recording function (⇒ 40) set, a programme may be unintentionally converted while in "During standby".

Editing chapters

HDD BD-RE BD-R RAM

Select "Chapter View", then press [OK].

Chapter View screen

■ Edit Chapter Mark

Select the point where you want to start a new chapter while viewing the title.

① Press the "Green" button. ② Press [OK] at the point you want to divide.

- Repeat this step.

③ Press [BACK/RETURN] to go to Chapter View screen.

■ To delete the chapter:

① Select the chapter, then press [DEL].

- Multiple editing

Select the chapter, then press the "Yellow" button.

A check mark is displayed. Repeat this step until you select the chapters to be deleted.

- Press the "Yellow" button again to cancel.

② Select "Delete", then press [OK].

■ To combine chapters (Delete chapter mark):

① Select the chapter, then press [OPTION]. ② Select "Combine Chapters", then press [OK]. ③ Select "Combine", then press [OK].

The selected chapter is combined to the next chapter.

▶ Playback from Chapter View (⇒ 48)

Copying titles

1 Insert a disc.

■ If the DIRECT NAVIGATOR screen appears: Press [EXIT].

2 Press to select "HDD",

then press

3 Select the title, then press

(Yellow)

A check mark is displayed. Repeat this step.

- Press the "Yellow" button again to cancel.

4 Press (Blue).

5 To start copying the selected title, select "Yes", then press OK.

- To change the selection (see below)

6 Set other settings, then press OK.

e.g.,

(see 58, Setting the copying options)

7 Select "Yes", then press OK to start copying.

To change the selection

① Select "No", then press [OK] in step 5

e.g., HDD → BD-RE

Remaining space You can check if there is enough disc volume at the copy destination.

The order of copying

② ■ To change the selected titles Select the title, then press the "Yellow" button.

A check mark is displayed. Repeat this step.

- Press the "Yellow" button again to cancel.

■ To change the picture quality

1 Select the title, then press [OPTION]. 2 Select "Conversion Select", then press [OK]. 3 Select the picture quality, then press [OK].

Repeat steps 1 to 3 if you want to select the picture quality for other titles.

③ Go to step 4

Copying titles

• If you wish to choose the audio language, select the language from "Multi Audio" of "Preferred Multi Audio" before copying (⇒ 93).
• DVD-R: Use "Copy Video (AVCHD) to Disc" when copying HD Video (AVCHD format) in high definition. (→ 64)

Screen icons

Titles that will be copied to the disc in normal speed

Screen icons on the DIRECT NAVIGATOR (⇒ 46)

Setting the copying options

Select the item in step 6 (→ 57).

① Select the item. ② Press [◀, ▶] to change the settings.

Automatic Standby after Copy	Select “On” or “Off”.If “On” is selected, this unit is turned to standby mode when it is not operated for approximately 5 minutes after completing copy.
Subtitles*	Select “Automatic” or “Off”.If you wish to choose the subtitle, select the language from “Subtitles” of “Preferred Subtitles” before copying (⇒ 93).
Finalise(HDD → DVD-R DVD-RW +R only)Create Top Menu(HDD → +RW only)	Select “On” or “Off”.If “On” is selected in “Finalise”, the discs become play-only and you can also play them on other DVD equipment. However, you can no longer record or edit.If “Off” is selected, it is possible to perform “Finalise” or “Create Top Menu” later. (⇒ 89)
Audio Description*	Select “Automatic” or “Off”.

* Only when titles are recorded in DR mode and the recording mode other than high speed is selected

Copying to HDD with DIRECT NAVIGATOR

BD-RE BD-R RAM +RW → HDD

1 Insert a disc.

The menu screen appears.

2 Select "Play Video", then press [OK].

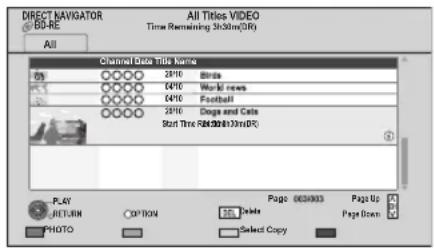

e.g., BD-RE

3 Select the title, then press the "Yellow" button.

A check mark is displayed. Repeat this step.

- Press the "Yellow" button again to cancel.

4 Press the "Blue" button.

- To change the detailed settings for copy, refer to page 59.

5 Select "Start Copying", then press [OK]. 6 Select "Yes", then press [OK] to start copying.

Copying titles with copying list

HDD → BD-RE BD-R RAM DVD-R DVD-RW +R +RW

BD-RE BD-R RAM +RW → HDD

1 Insert a disc.

The menu screen appears.

2 Select "Copy", then press [OK].

3 Set the copy direction.

① Select "Copy Direction", then press [▶] (right). ② Set "Source" and "Destination". ③ Press [◀] to confirm.

4 Set the recording mode (⇒ 19, 124).

① Select "Copy Mode", then press [▶] (right). ② Set "Recording Mode". ③ Press [◀] to confirm.

5 Register titles for copy.

① Select "Create List", then press [▶] (right). ② Select "New item", then press [OK]. ③ Select the titles, then press [OK].

e.g., HDD

(→ 60, Selecting the titles for the copying list)

④ Press [◀] to confirm.

6 Set other settings.

① Select "Other Settings", then press [▶] (right).

e.g.,

- This screen does not appear depending on the copying mode. (→ go to step 7)

② Select the copying option, then press [OK]. (⇒ 58, Setting the copying options) ③ Press [◀] to confirm.

7 Select "Start Copying", then press [OK].

8 Select "Yes", then press [OK] to start copying.

To cancel all registered copying settings and lists

After performing steps 1–2

1 Select "Cancel All", then press [OK]. 2 Select "Yes", then press [OK].

To display the menu screen (→ 25)

- Titles in the grouped titles and other titles cannot be registered simultaneously.

Selecting the titles for the copying list

Select the title in step 5-③ (→ 59)

Press the "Yellow" button.

A check mark is displayed. Repeat this step until you select all necessary items.

- Press the "Yellow" button again to cancel.

The title will be copied in the order of the copying list. If you want to specify the order, edit the copying list after the items are selected. (→ 61)

• Other operation

1	Press [OPTION].
2	Select the item, then press [OK].

Information	Information is shown.
Sort(All Titles screen only)	Titles are sorted according to the selected item.
Grouped Titles All Titles	Switch to Grouped Titles screen or All Titles screen

Copying list icons and functions

Copying list indicators

	Titles that cannot be copied in high speed mode to the inserted disc
	Title contains photos●Photos cannot be copied.
N (NTSC)P (PAL)	Title recorded using a different encoding system from that of the TV system currently selected on the unit.●Titles displaying these marks cannot be selected.
	Title with Guidance information or title restricted by Child Lock (→ 93, Child Lock).
	Titles that cannot be copied in high definition quality mode (DR, HG, HX, HE, HL, HM) any more.
	Titles that can be copied in high definition quality mode (DR, HG, HX, HE, HL, HM) once.

Data size of each registered item

Size:

Data size recorded to the copy destination

• When copying at normal speed, the total data size will change according to the recording mode.
• The total data size shown may be larger than the sum of the data sizes for each registered item, because of data management information being written to the copy destination, etc.

Editing the copying list

Select the title after step 5—③ (⇒ 59)

① Press [OPTION]. ② Select the item, then press [OK].

Delete All All titles that you registered to copy are deleted.Select “Yes”, then press [OK].

Add Add new items to the copying list.1 Select the title, then press the “Yellow” button.A check mark is displayed.Repeat this step until you select all necessary items.Press the “Yellow” button again to cancel.2 Press [OK].

Delete Select “Yes”, then press [OK].

Move Move selected items or change the order of items on the copying list.Select the destination, then press [OK].

Notes for copying

Copyable media and copy speed

HDD → Disc

(-: Impossible)

Original title's recording mode	Destination		Copy speed
	Media	Picture quality
DR	BD-REBD-R	Original Picture Quality	High speed
		High Definition	Normal speed*1,2
		Standard Definition	Normal speed*1
	RAMDVD-RDVD-RW+R+RW	Original Picture Quality	-
		High Definition	-
		Standard Definition	Normal speed*1
HG/HX/HE/HL/HM	BD-REBD-R	Original Picture Quality	High speed
		High Definition	Normal speed
		Standard Definition	Normal speed
	RAMDVD-RDVD-RW+R+RW	Original Picture Quality	-
		High Definition	-
		Standard Definition	Normal speed
XP/SP/LP/EP/FR	BD-REBD-R	Original Picture Quality	Normal speed
		High Definition	-
		Standard Definition	Normal speed
	RAM	Original Picture Quality	High speed
		High Definition	-
		Standard Definition	Normal speed
	DVD-RDVD-RW+R+RW	Original Picture Quality	High speed*3
		High Definition	-
		Standard Definition	Normal speed

Disc → HDD

(-: Impossible)

Original		Destinationpicture quality	Copy speed
Recording mode	Media
DR	BD-REBD-R	Original Picture Quality	High speed
		High Definition	Normal speed *1,2
		Standard Definition	Normal speed *1
HG/HX/HE/HL/HM	BD-REBD-R	Original Picture Quality	High speed
		High Definition	Normal speed
		Standard Definition	Normal speed
XP/SP/LP/EP/FR	BD-REBD-R	Original Picture Quality	-
		High Definition	-
		Standard Definition	Normal speed
	RAM	Original Picture Quality	High speed
	+RW	Standard Definition	Normal speed
	DVD-RDVD-RW+R	Original Picture Quality	-
		High Definition	-
		Standard Definition	-

^*1 Subtitles and Audio Description are optional. (⇒ 58, Setting the copying options) ※2 If the programme has multi channel audio, priority is given to what you select. (⇒ 97, Audio for HG / HX / HE / HL / HM Recording) ※3 It is impossible to copy at high speed in the following cases:

• Copy including a title that was recorded to HDD with "Recording Format for DVD" set to "VR format" (95) –Titles that contain many deleted segments –Titles that have been copied to the HDD from an SD card or a Panasonic video camera, etc. with HDD (SD Video) (⇒ 78)
• +R +RW Titles recorded in "EP" mode and "FR (recordings 5 hours or longer)" mode
• +R +RW Titles recorded in 16:9 aspect
• DVD-R DVD-RW Titles recorded in 16:9 aspect using "EP" mode or "FR (recordings 5 hours or longer)" mode

■ When copying to the disc in normal speed mode

DVD-R DVD-RW +R +RW

You cannot copy to the disc in the following cases.

- When there is not enough free space on the HDD. - When the total number of titles recorded on the HDD and the number of titles to be copied to the disc exceeds 999.

■ When stopping the normal speed copy during copy

Copying will be up to the point cancelled.

• DVD-R DVD-RW +R +RW If copy is cancelled during the step while temporarily copying to the HDD, then nothing will be copied.
• BD-R DVD-R DVD-RW +R +RW Even if the title was not copied to the disc, the amount of remaining writable disc space becomes less.

■ When copying to the DVD-RAM

RAM

When copying to DVD-RAM using "8 hours" mode, play may not be possible on DVD players that are compatible with DVD-RAM. Use "6 hours" mode if playback may be on other equipment. (→ 95, Recording time in EP mode)

■ About maintaining the chapter mark

● The position of the chapter might shift slightly. - It will not maintain the exceeded amount if it exceeds the maximum chapter numbers on a disc.

— BD-RE BD-R RAM DVD-R DVD-RW: Approx. 1000 - +R +RW: Approx. 254

(Depends on the state of recording.)

About copy-restricted programmes

Some programmes on the digital broadcast are copy-restricted.

The recorded titles are indicated with the “ ” icon and can be copied in high definition quality mode (Original Picture Quality, HG, HX, HE, HL or HM) once.

After completing copy, the titles cannot be copied anymore in high definition quality mode and the icon is changed to “”

Notes for copying title recorded in 1080/50p or 1080/60p

It will copy in normal speed, and it cannot copy in progressive.

Notes for copying 3D programmes

• It may not display correctly in 3D when a copied 3D programme is played back. In such a case, change the "3D Settings" during the playback of the title. (⇒ 51, Convenient functions while viewing the 3D video)
• 3D information may not be copied.

Copying Title Playing

HDD → BD-RE BD-R RAM DVD-R DVD-RW +R +RW

1 Playback the title to copy.

• Multiple audio and subtitle displayed during playback will be copied. -Select the multiple audio with "Multi Audio" in the Disc menu (⇒ 86) -Select the subtitle with "Subtitle Language" in the Disc menu (⇒ 86)

2 Press [OPTION].

3 Select "Copy Title Playing", then press [OK].

4 Select "Start", then press [OK].

- Copying will start from the beginning of the title regardless of the playing position.

To stop copying

Press and hold [BACK/RETURN] for 3 seconds.

• You can record to or play HDD while high speed copying. Press [OK] to exit the screen display.
• Press [STATUS] to confirm the current progress.
• DVD-R DVD-RW +R To play on other players, it is necessary to finalise them after copy (⇒ 89).
• +RW To play on other players, we recommend you create Top Menu (⇒ 89), but they may not play on all DVD players.

■ Speed and recording mode when copying

The high speed copy is performed if available.

▶ Copyable media and copy speed (⇒ 62)

• BD-RE BD-R When copying the titles in DR, HG, HX, HE, HL or HM modes and the copy destination (disc) does not have enough space, one from HG, HX, HE, HL or HM modes will be selected to match the available space, and it will be copied with normal speed.
• RAM DVD-R DVD-RW +R +RW When copying the titles in DR, HG, HX, HE, HL or HM modes, copy will be performed at normal speed in FR mode.
• When copying titles in XP, SP, LP, EP, or FR modes and the copy destination (disc) does not have enough space, copying will be performed at normal speed in FR mode.

Copying HD Video (AVCHD format) from HDD

You can copy HD Video (AVCHD format) recorded on the HDD by a Panasonic video camera, etc., to a disc.

■ HDD → BD-RE BD-R (High Definition)

Go to step 1 on page 59, "Copying titles with copying list".

- Select "Original Picture Quality" or HG, HX, HE, HL, or HM mode in step 4—②.

■ HDD → DVD-R (High Definition)

1 Insert a new disc. The menu screen appears.

2 Select "Copy Video (AVCHD) to Disc", then press [OK].

3 Go to step 5 on page 59, "Copying titles with copying list".

To display the menu screen (⇒ 25)

• This function can only be used for unformatted discs.
• Discs will be automatically finalized after copying, making recording no longer possible.
• You can choose the thumbnail image of the Top Menu before using this function. (⇒ 54, Changing thumbnail)
• The following HD Video (AVCHD format) cannot be copied to the disc in high definition: – Exceeding 18 Mbps
• 1080/50p or 1080/60p
• Without the AVCHD information (video recorded with certain non-Panasonic equipment, video copied to the HDD after copying it to BD-R or BD-RE once, etc.)
• Recording mode was changed (→ 55, File Conversion)

■ HDD → BD-RE, BD-R, RAM, DVD-R, DVD-RW, +R, +RW (Standard Definition)

Go to step 1 on page 59, "Copying titles with copying list".

- Select XP, SP, LP, EP, or FR mode in step 4-②.

➢ Copying HD Video (AVCHD format) from other equipment (→ 77)

Copying a finalised disc

DVD-V → HDD

While playing a disc, the content being played is copied to the HDD according to the set time.

1 Press [FUNCTION MENU].

2 Select "Copy Video" in "Copy", then press [OK].

3 Set "Copy Mode".

① Select "Copy Mode", then press [▶] (right). ● “Recording Mode” is selected. ② Press [OK], then select the recording mode. - You can only select XP/SP/LP/EP. ③ Press [◀] to confirm.

4 Set "Copy Time".

① Select "Copy Time", then press [▶] (right). ② Select "Time Setting", then press [OK]. ③ Select "On" or "Off". - When copying all the content on the disc, select "Off". - When you select "On", set the copying time.

- Set a few minutes longer than the source title, in order to include the operation time before play begins.

④ Press [◀] to confirm.

⑤ Select "Start Copying", then press [OK]. ⑥ Select "Yes", then press [OK] to start copying. ⑦ When the Top Menu is displayed, select the title you want to start copying, then press [OK].

After the last title on the disc has finished playing, the Top Menu is recorded until the set time is reached.

To stop copying

Press [STOP ■].

You can also press and hold [BACK/RETURN] for 3 seconds.

- If stopped partway, copying will be up to that point.

• Operations and on-screen displays during copy are also recorded.
• Almost all DVD-Video on sale have been treated to prevent illegal copying, and cannot be copied.
• The content is recorded as 1 title from the start of copy to the end.
• If play does not begin automatically, press [PLAY/×1.3 ▶] to start.

Playing photos

② Select the event, then press OK.

e.g., HDD

Label

e.g., SD

- To select the label

Press [◀, ▶].

- Start Slideshow

1 Select a date or folder, then press the "Green" button.

2 Select "Start Slideshow" then press [OK].

- Switching the Calendar screen (HDD) Press [PAUSE Ⅲ].

3 Select the photo, then press OK.

- Press [◀, ▶] to display the previous or next photo.

To stop the Slideshow

Press [BACK/RETURN]

To pause the Slideshow

Press [PAUSE III].

- Press [PAUSE III] again to restart.

To exit the Calendar screen

Press [PAUSE Ⅲ].

▶ Slideshow Settings (⇒ 68)

• You cannot play photos while recording or copying.
• It may take a few moments for photos to display.
• When there are many files and/or folders, some files may not be displayed or be playable.

■ DIRECT NAVIGATOR (PHOTO) screen

e.g., HDD

Event

It is displayed for each recording date.

- It is displayed for each folder for media other than HDD.

Screen icons:

(Label)	Album (HDD)Placing photos in albums of your choice makes it easier to find them. (⇒ 70)
3D (Label)	3D photos (MPO) are automatically sorted. Select from this label to playback in 3D. (It will playback in 2D when selected from other labels)
	Photo protected
	HDDNew photo which is stored and not viewed

Photo play option

① While displaying a photo Press [OPTION]. ② Select the item, then press [OK].

Photo Menu

• Start Slideshow: You can start a slideshow.

- Rotate RIGHT, Rotate LEFT

- Rotation information will not be stored depending on the media.

• Information: Information (shooting date etc.) is shown.

Aspect

You can switch the screen mode. (⇒ 105)

Graphic Display Level

You can change the pop-up level of the screen display, etc., during the 3D photo playback.

Slideshow Settings

You can set the items for slideshow.

While displaying DIRECT NAVIGATOR (PHOTO), press the "Green" button.

Start Slideshow

You can start a slideshow.

Interval

You can set the time until the next photo is displayed.

Transition Effect

The effect for the next photo to be displayed can be set.

- This function is not available during 3D photo playback.

Repeat Play

You can set up repeated playback.

Music Selection

You can select background music (either from HDD or USB) or turn it off.

- This function is not available during 3D photo playback.

Background Music

You can select background music from HDD (My Favourites or Playlists) or USB (Folder).

- This function is not available during 3D photo playback.

Random BGM

You can play the BGM in random order.

- This function is not available during 3D photo playback.

Editing photos

※1

※2

※1 BD-RE only

※2 RAM only

1. HDD

① Press [FUNCTION MENU]. ② Select "Photo" in "Playback Contents", then press [OK].

BD-RE RAM SD

① Insert the disc or the SD card.

e.g., SD

② Select "View Photos", then press [OK].

2 ■ Editing the event:

Select the event, then press [OPTION].

e.g., HDD

■ Editing the photo:

① Select the event, then press [OK]. ② Select the photos to edit, then press [OPTION].

- Multiple editing

Select the item, then press the "Yellow" button. (Repeat this step.)

A check mark is displayed.

- Press the "Yellow" button again to cancel.

3 Select the item, then press [OK].

e.g., HDD

• You cannot edit 3D photos.

Editing photos

Add to Album

HDD

① While selecting "All" label: Select "Add to Album" in "Edit", then press [OK]. ② Select the destination album, then press [OK]. ③ Press [OK].

Combine Events

HDD

① While selecting album label and select multiple events: Select "Combine Events" in "Edit", then press [OK]. ② Select "Yes", then press [OK].

Remove from Album

HDD

① While selecting album label: Select "Remove from Album" in "Edit", then press [OK]. ② Select "Yes", then press [OK].

Enter Album name

HDD

While selecting album label: Select "Enter Album Name" in "Edit", then press [OK].

(⇒ 90, Entering text)

Enter Event Name

Select "Enter Event Name" in "Edit", then press [OK].

(→ 90, Entering text)

Changing protection

BD-RE RAM SD

① While selecting photo: Select "Set up Protection" or "Cancel Protection", then press [OK]. ② Select "Yes", then press [OK].

appears when the protection is set.

- Even if the protection is set, the photo may be deleted by another unit.

① While selecting "All" or "2D" label: Select "Delete Photos", then press [OK]. ② Select "Yes", then press [OK].

Copying photos

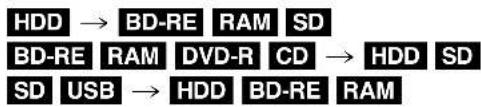

Selecting and copying the photos

1 HDD

① Press [FUNCTION MENU]. ② Select "Photo" in "Playback Contents", then press [OK].

BD-RE RAM DVD-R CD SD USB

① Insert a disc, the SD card or USB memory.

e.g., SD

② Select "View Photos", then press [OK].

2 Select the event or the photo, then press the "Yellow" button.

A check mark is displayed. Repeat this step.

e.g., SD

- Press the "Yellow" button again to cancel.

3 Press the "Blue" button. 4 Select the copying destination, then press [OK].

5 When copy to HDD:

Select "Yes" or "No", then press [OK].

• If you select "Yes": Select the album, then press [OK].
• You can categorise and manage the events and photos on the HDD by copying to the album. (⇒ 67)

6 Select "Yes", then press [OK].

Copying starts.

To stop copying

Press and hold [BACK/RETURN] for 3 seconds.

• The name of the copied photos will be changed.
• If the number of files/folders to be copied exceeds the maximum (⇒ 122), copying will stop partway through.

Copying automatically

BD-RE RAM DVD-R CD SD USB → HDD

Newly added photos will automatically be copied to the HDD.

1 While stopped

Insert a disc, an SD card or a USB memory.

e.g., SD

2 Select "Copy New Photos", then press [OK].

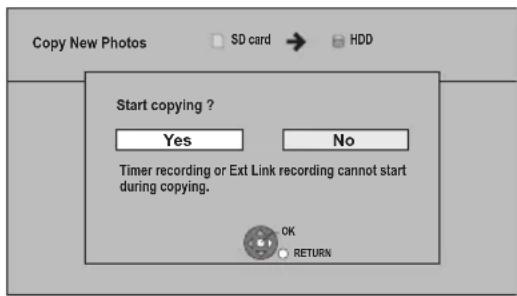

3 Select "Yes", then press [OK].

Copying starts.

4 Once the copy is completed, select "Yes" or "No", then press [OK].

To stop copying

Press and hold [BACK/RETURN] for 3 seconds.

• Photos without shooting date will be categorised using the creation date.
• If the space on the destination drive runs out or the number of files/folders to be copied exceeds the maximum (=> 122), copying will stop partway through.
• The name of the copied photos will be changed.

Playing music/Copying music to HDD

※ DVD-R only

●Music CD: All tracks in the CD will be recorded. - MP3: All tracks in the folder will be recorded. (Cannot record track-by-track.) - It will be recorded as 1 album to the HDD in 1 recording.

1

While stopped

Music CD

Insert a disc.

The unit starts accessing the Gracenote® Database and searches for the title information.

If search results indicate that multiple titles were found

Select the appropriate title, then press [OK].

Playback will automatically start.

MP3

① Insert a disc or USB memory.

e.g., USB

DVD-R CD Playback will automatically start if only MP3 is recorded.

② Select "Play / Copy Music

( MP3 )", then press

Playback will start.

2

To copy music to HDD

Press (Blue)

Select "Copy", then press OK

Copying starts.

To play other music (track)

Select the item, then press [OK].

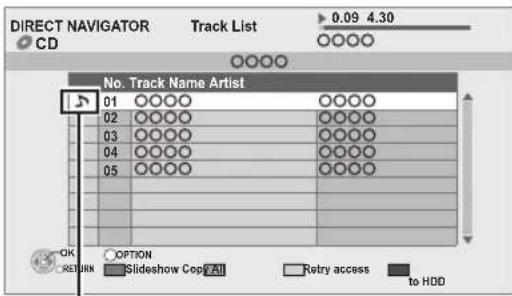

e.g., CD

Playing track

To stop copying

Press and hold [BACK/RETURN] for 3 seconds.

• The track/artist name will be displayed if the information is contained in ID3 tag of the MP3 file.
• If there is a large amount of photo data etc. within a MP3 file, play may not be possible.
• While copying, no other operations can be performed. Timer recordings will not proceed.
• The maximum number of tracks on HDD: 40000 (Depends on the remaining capacity.)
• BWT800 When "Pure Sound mode" is set to "On", some functions (Gracenote® Database, Copy music to HDD, etc.) are unusable during playback music CD. (→ 94)

■ About the Gracenote® Database

• If the title is not in the built-in database, it is possible to acquire the title automatically by connecting to the network via the Internet. (⇒ 12, 16)
• If there are music CDs with very similar title information, then the incorrect title information may be obtained. If no title suggestions are found, enter the music CD title information manually after recording to the HDD has completed.

Playing music/Copying music to HDD

Using the tree screen to find a folder

MP3

① While the Track List is displayed, press [OPTION].

② Select "Select Folder", then press [OK].

Selected folder No. /Total folder. If the folder has no track, "-" is displayed as folder number.

③ Select the folder, then press [OK].

Playing music recorded on HDD

1 When the HDD is selected, press [FUNCTION MENU].

2 Select "Music" in "Playback Contents", then press [OK].

3 Select the item, then press [OK].

① Categorised by artist ② Categorised by album ③ Tracks registered in "My Favourites" ④ Tracks registered in "Playlists" ⑤ Tracks most often played recently (up to 30 tracks) ⑥ Random playback of all tracks

■ When "Artists" is selected

① Select the initial of the artist. ② Select the name of the artist, then press [OK]. ③ Select the album, then press [OK].

■ When "Albums" is selected

① Select the initial of the album. ② Select the album, then press [OK].

■ When "Playlists" is selected: Select the playlist, then press [OK].

④ Select the track, then press [OK].

Playing track

Switching to the VIDEO or PHOTO screens

① While the DIRECT NAVIGATOR (Music Menu) screen is displayed

Press the "Red" button.

② Select "VIDEO" or "PHOTO", then press [OK].

Operations during music play

HDD DVD-R CD USB

Stop Press [STOP ■].
Pause Press [PAUSE ▪].●Press [PAUSE ▪] again or[PLAY/×1.3 ▶] to restart play.
Search	Press [SLOW/SEARCH ◀◀] or [SLOW/SEARCH ▶▶].●Press [PLAY/×1.3 ▶] to restart play.
Skip During play or while paused, press[SKIP ◀◀] or [SKIP ▶▶].

Useful functions during music play

HDD DVD-R CD USB

Registering a track to the "My Favourites"

HDD

While the Track List screen is displayed Select the track, then press the "Green" button.

- Up to 99 tracks can be registered.

Information

HDD

While the Track List screen is displayed

① Select the track. ② Press [OPTION]. ③ Select "Information", then press [OK].

Repeat Play Random

Refer to "Repeat Play" or "Random" in "Play menu" (=> 86).

Sound Effects

Refer to "Sound Effects" in "Sound menu" (=> 87).

Displaying photos (Slideshow)

Photos stored on the "Album" of the HDD can be played back as slideshow during playback of the music.

While playing the music

Press the "Red" button.

To change the photos to display

① While slideshow is playing, press [OPTION]. ② Select "Select Photo Album", then press [OK]. ③ Select the album, then press [OK]. e.g.,

To end the slideshow

Press [BACK/RETURN]

➢ How to create the photo album (⇒ 70, Add to Album) To play music continuously even if the Power off link works (⇒ 84)

Editing music/playlist

1 Press [FUNCTION MENU]. 2 Select "Music" in "Playback Contents", then press [OK].

- When doing "Delete All Tracks", "Clear My Favourites" or "Clear Frequently Played" (→ go to step 4).

3 Select the item, then press [OK]. 4 Press [OPTION]. 5 Select the item, then press [OK]. e.g., while selecting "Albums"

Deleting all tracks

■ While displaying the “Music Menu” screen

① Select "Delete All Tracks", then press [OK]. ② Select "Yes", then press [OK]. ③ Select "Delete", then press [OK].

■ While displaying the “Artists” screen

① Select "Delete All Tracks", then press [OK]. ② Select "Delete", then press [OK].

Deleting albums

While displaying the "Album View" or "Albums" screen

1. Select "Delete Album", then press [OK]. 2. Select "Delete", then press [OK].

Deleting

While displaying the "Track List" screen

1. Select "Delete", then press [OK]. 2. Select "Delete", then press [OK].

Editing the name

Select "Edit Album Name", "Edit Track Name", "Edit Artist Name" or "Edit Playlist Name", then press [OK].

(see page 90, Entering text)

Removing all tracks

Tracks themselves are not deleted from the HDD.

While displaying the "Playlists" screen

1. Select "Remove All Tracks", then press [OK]. 2. Select "Remove", then press [OK].

While displaying the "Music Menu" screen

1. Select "Clear My Favourites" or "Clear Frequently Played", then press [OK]. 2. Select "Clear", then press [OK].

Removing tracks

While displaying the “My Favourites”, “Track List” of “Playlists” or “Frequently Played” screen

① Select "Remove", then press [OK]. ② Select "Remove", then press [OK].

The selected track is removed.

Add to Playlist

You can register your favourite albums and tracks into 10 preset playlists.

① Select "Add to Playlist", then press [OK]. ② Select the playlist, then press [OK].

- New playlist cannot be added.

- Up to 999 tracks can be registered to each playlist.

Copying the HD Video or the SD Video

e.g., Connecting to the Panasonic video camera

USB connection cable

(specified cable such as accessories of the USB equipment)

Copying HD Video (AVCHD format)

It is possible to copy the HD video (AVCHD format) recorded on the Panasonic video camera, etc. to the HDD or disc.

1 ■ From video equipment Connect the video camera.

● Make the video camera ready for data transfer on the video camera.

■ From a disc or an SD card Insert a disc or SD card.

e.g., SD

2 Select "Copy Video (AVCHD)", then press [OK].

3 When copying from an SD card or video equipment Select "Copy to HDD" or "Copy to Blu-ray Disc", then press [OK].

4 Select the title, then press the "Yellow" button.

A check mark is displayed. Repeat this step.

- Press the "Yellow" button again to cancel. (All the recordings on the same date become a title.)

5 Press [OK].

6 Select "Start", then press [OK].

It will automatically format the unformatted disc, such as a new disc.

- It may take time for the copying to start.

To stop copying

Press and hold [BACK/RETURN] for 3 seconds.

➢ Copying HD Video (AVCHD format) from HDD (⇒ 64)

• Copy cannot be executed while recording or playback.
• An AVCHD title with 100 or more scenes will be divided into titles every 99th scene and copied.

Copying the HD Video or the SD Video

Copying SD Video (MPEG2 format)

It is possible to copy the SD video (MPEG2 format) recorded on the Panasonic video camera, etc. to the HDD or disc.

SD USB, Panasonic video camera → HDD RAM

1 ■ From video equipment Connect the video camera.

- Select the appropriate mode that makes the video camera ready for data transfer on the video camera.

■ From an SD card Insert an SD card.

e.g.,

2 Select "Copy Video (MPEG2)", then press [OK].

3 Select "Start Copying", then press [OK].

- To change the copy destination and the titles to copy (⇒ 59)

4 Select "Yes", then press [OK] to start copying.

To stop copying

Press and hold [BACK/RETURN] for 3 seconds.

• You cannot playback SD Video on an SD card or in the HDD of the Panasonic video camera, etc. with this unit. You must copy the files to the HDD or a DVD-RAM.
• You cannot playback or record while copying SD Video.

Recording from external equipment

- It will be recorded in Standard Definition quality even if the programme is in High Definition quality.

Manual Recording

Recording media: HDD

Recording mode: XP, SP, LP, EP

- Connect the Set Top Box or the video equipment (see page 11).

1 While stopped

Press [INPUT SELECT] and select the input channel, then press [OK]. e.g., If you have connected to AV2 input terminals, select "AV2".

2 Press [REC MODE] to select the recording mode.

3 If recording broadcasts from Set Top Box: Select the channel on the Set Top Box. If recording from other video equipment: Start play on the video equipment.

4 Press [● REC].

Recording starts.

5 Set the time to record (=> 33).

To skip unwanted parts

Press [PAUSE ■] to pause recording.

- Press [PAUSE III] again to restart recording.

To stop recording

Press [STOP ■].

Flexible Recording via AV input

Recording media:

HDD BD-RE BD-R RAM

※ This function is not available with DVD-R DL and +R DL.

① While stopped Press [INPUT SELECT] and select the input channel, then press [OK]. e.g., If you have connected to AV2 input terminals, select "AV2".

② Press [FUNCTION MENU]. ③ Select “Flexible Recording via AV input” in “Others”, then press [OK].

④ Select "Hour" and "Min." and set the recording time. ⑤ Start play on the other equipment. ⑥ Select "Start", then press [OK].

To stop recording partway

Press [STOP ■].

To show the remaining time

Press [STATUS].

Recording from external equipment

Linked timer recording (SKY Digital STB, etc.)—EXT LINK

Recording media: HDD

Recording mode: XP, SP, LP, EP

• Connect the equipment to the AV2 input terminal (⇒ 11).
• Set "AV2 Input" and "Ext Link" (⇒ 99).
• Make timer programming on the external equipment.

Press [EXT LINK].

- "EXT-L" lights on the unit's display.

To cancel the External link

1. Turn on this unit. 2. Press [EXT LINK] to stop recording or to cancel linked timer recording standby. ("EXT-L" disappears.)

• It will be recorded in standard definition quality even if the programme is in high definition.
• During Ext Link Standby mode or recording, you cannot select external input other than AV2.
• This function does not work when "TV System" is set to "NTSC" (=> 98).
• This function does not work while recording 2 programmes simultaneously with timer recording.
• The beginnings of recordings may not be recorded correctly in some cases.
• Programmes are recorded as one title on this unit when the end time of the earlier timer recording and the start time of the later timer recording are close to each other. To divide the titles, go to "Dividing Title" (=> 54).

Enjoying VIERA CAST

You can access a selection of Internet services from the Home screen with VIERA CAST, such as YouTube, Picasa Web Albums. (Current as of March 2011)

Preparation

●Network connection (=> 12) ●Network Easy Setting (=> 16, 100)

■ To enjoy video communication (ex. Skype™)

- Connect this unit with optional Communication Camera (TY-CC10W or compatible equipment). Depending on the area, this optional camera may not be available. Please consult your local Panasonic dealer for advice.

e.g., This unit's rear panel

-BWT700 When this unit is connected by wireless LAN connection, connect the Communication Camera via the USB port on the front of this unit.

• For operating method refer to the following website. http://panasonic.jp/support/global/cs/ (This site is in English only.)
• Cannot be used while recording, copying or playing BD-Video.

1 Press [VIERA CAST].

• The video communication service can be accessed directly by pressing [Button].
• The message is displayed. Please read these instructions carefully and then press [OK].

2 Select the item, then press [OK].

- Operable buttons:

[▲, ▼, ◀, ▶], [OK], [BACK/RETURN ↗], coloured buttons and number buttons

VIERA CAST Home screen;

e.g.,

Images are for illustration purpose, contents may change without notice.

To exit from VIERA CAST

Press [EXIT].

• When playing content from a disc, SD card or USB device VIERA CAST cannot be accessed.
• In the following cases, settings are possible using "Internet Content Settings" ( ⇒ 100)

- When restricting the use of VIERA CAST.

- When the audio is distorted.

• If using slow Internet connection, the video may not be displayed correctly. A high-speed Internet service with a speed of at least 6 Mbps is recommended.
• Be sure to update the software (firmware) when a software (firmware) update notice is displayed on the screen. If the software (firmware) is not updated, you will not be able to use the VIERA CAST function.
• VIERA CAST home screen is subject to change without notice.
• The services through VIERA CAST are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.
• All features of websites or content of the service may not be available.
• Some content may be inappropriate for some viewers.
• Some contents of VIERA CAST may only be available for specific countries and may be presented in specific languages.
• If timer recording starts, VIERA CAST will stop.

Playing contents from other equipment (Server)

You can enjoy the video and photos saved on the HDD of this unit on DLNA (Client) compatible equipment connected via a network.

- You cannot playback music from the playback equipment (Client).

e.g.,

For details regarding the connection and operation of equipment connected via a network, refer to their respective operating instructions.

Preparation

●Network connection (⇒ 12) ●Network Easy Setting (⇒ 16, 100) - When DLNA (Server) Function is deactivated, make the settings. (⇒ 101, Home Network (DLNA) Server Settings)

1 Operate the playback equipment (Client) to display the list of titles on this unit.

- Refer to their respective operating instructions.

2 Select the item to playback (folder), then press [OK].

• Ensure that the router for your home network has adequate security system to prevent unauthorized access.
• The DLNA compatible device that is to be connected to the unit should be connected to the same hub or broadband router as the unit.
• Files not on the HDD cannot be played back.
• Playing back 3D video recorded on this unit may not work properly.
• Editing is not possible. (Only deletion can be performed from Panasonic equipment)
• Following titles can not be played back: – A title with remote access restriction – A title currently being recorded on this unit – A title with audio only format – A title with incompatible format
• Playback via DLNA compatible equipment may not be performed when this unit is in the following conditions:
• While simultaneously recording 2 programmes – While playing back a BD-Video
• While simultaneously performing High speed copy and recording
• While displaying the Setup menu
• While executing functions using a network, such as "VIERA CAST"
• There may be some video that cannot be played back on DLNA compatible equipment depending on the equipment.
• You cannot playback simultaneously from 2 or more items of DLNA compatible equipment.
• If the DLNA compatible equipment is not capable of outputting HE-AAC audio format, etc., sound may not be played back.

Playing contents on other equipment (Client)

You can enjoy viewing video, photos and music saved on a DLNA Certified media server (such as a PC with Windows 7 installed etc.) connected via a network with this unit. You also can enjoy viewing them with Panasonic DLNA compatible recorders (DIGA).

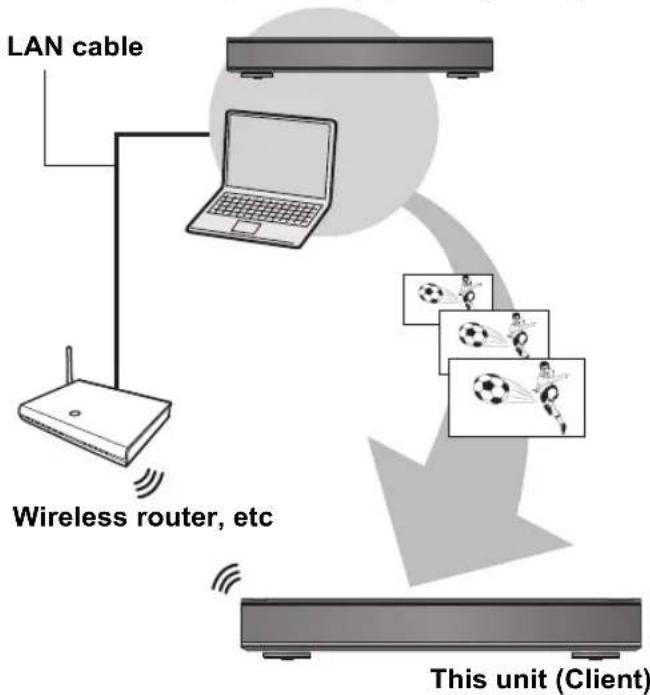

e.g.,

DLNA compatible equipment (Server)

Preparation

●Network connection (⇒ 12)

●Network Easy Setting (⇒ 16, 100)

●Perform Home Network settings of the DLNA compatible equipment (Server).

- When connected to a PC with Windows 7 installed

Add the contents and folder to the Windows Media® Player library.

Playlist of Windows Media® Player can play back only the contents that are stored in the libraries. Regarding setting method of Windows 7 refer to its instructions or help.

- When connected to a Panasonic DLNA compatible recorder (DIGA)

When a message requesting operation of the equipment to be registered is displayed, perform steps 1-4.

- The countries where DIGA is available are limited. Refer to following site for availability. http://panasonic.jp/support/global/cs/

For details about the setting and operation method of connected equipment, and compatible equipment, refer to the following Website and the operating instructions for each item of equipment. http://panasonic.jp/support/global/cs/ (This site is in English only.)

1 Press [FUNCTION MENU].

2 Select "Home Network (DLNA)" in "Network", then press [OK].

●A list of equipment connected via the network is displayed.

- This list can be updated by pressing the "Red" button.

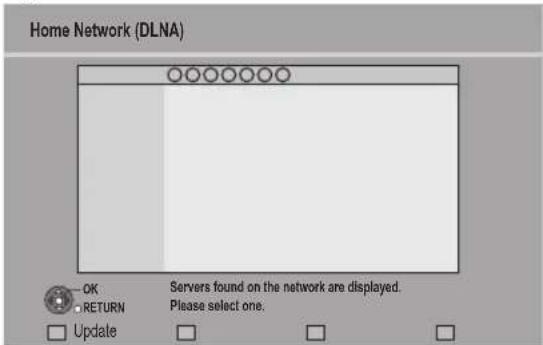

e.g.

3 Select the equipment to playback the contents, then press [OK].

4 Select the item to playback (folder), then press [OK].

• Menu structure will be different depending on the equipment connected to this unit. Select the contents by repeating the operation.
• Convenient functions can be used by pressing [OPTION] depending on the contents.

- Control Panel

Control Panel is displayed once the playback starts. Operation can be performed with

[▲, ▼, ◀, ▶], [OK] and [EXIT].

- Press [OK] if the Control Panel is not displayed.

- Press [BACK/RETURN] to hide the Control Panel.

e.g.

• You may not be able to use the Control Panel even if you use Panasonic DLNA compatible equipment.
• Depending on the contents and the connected equipment, playback may not be possible.
• While playing back a 3D programme, you cannot set "3D Settings". (⇒ 51)
• Items displayed in grey on the display cannot be played back by this unit.
• Depending on the performance of the connected PC, video frames may be dropped during playback, or video may not play back at all. (⇒ 115)

VIERA Link/Q Link functions

What is VIERA Link "HDAVI Control"?

VIERA Link "HDAVI Control" is a convenient function that offers linked operations of this unit, and a Panasonic TV (VIERA) or receiver under "HDAVI Control". You can use this function by connecting the equipment with the HDMI cable. See the operating instructions for connected equipment for operational details.

Preparation

1 Connect this unit to your TV or receiver using an HDMI cable. (⇒ 10) 2 Set "VIERA Link" to "On" (⇒ 99). (The default setting is "On".) 3 Set the "HDAVI Control" operations on the connected equipment (e.g., TV). - Set the input channel on the VIERA to suit the terminal to be used as "HDAVI Control". 4 Turn on all "HDAVI Control" compatible equipment, then select this unit's input channel on the connected TV so that the "HDAVI Control" function works properly. Also when the connection or settings are changed, repeat this procedure.

What is Q Link?

Q Link is a convenient function that offers linked operations of this unit and a Panasonic TV. You can use this function by connecting the equipment with a fully wired 21-pin Scart cable.

Preparation

Connect this unit to your TV with a fully wired 21-pin Scart cable.

For your reference

The following systems from other manufacturers have similar functions to Q Link from Panasonic.

For details, refer to your TV's operating instructions or consult your dealer.

●Q Link (registered trademark of Panasonic) ●DATA LOGIC (registered trademark of Metz) ●Easy Link (registered trademark of Philips) ●Megalogic (registered trademark of Grundig) ●SMARTLINK (registered trademark of Sony)

Automatic input switching Power on link

VIERA Link Q Link

When the following operations are performed, the TV will automatically switch the input channel and display the corresponding action. Additionally, when the TV is off, the TV will automatically turn on.

-When play starts on the unit -When an action that uses Direct Navigator or FUNCTION MENU etc., is performed

Power off link

VIERA Link Q Link

When you set the TV to standby mode, the unit is also automatically set to standby mode.

●Power off link function does not work when recording, copying, etc.

Playing music continuously even after turning off power to the TV※2

VIERA Link

The following operations make it possible to keep the power of the unit on and to play music continuously.

When the unit is directly connected to an amplifier/receiver.

① While playing music, press [OPTION]. ② Select "TV Power Off", then press [OK].

- Sound may be discontinued for several seconds when the power to the TV is turned off.

PAUSE LIVE TV ※1

VIERA Link

You can operate this unit with the TV remote control. Refer to "PAUSE LIVE TV" on page 30.

Direct TV Recording ^*1

VIERA Link Q Link

This function allows you to immediately start recording the programme that you are viewing on the TV.

Refer to the TV operating instructions for operation.

- This unit will record the programmes in DR mode once, and then automatically convert to the selected recording mode while this unit is in standby. (→ 32)

Easy control only with VIERA remote control ^※2

VIERA Link

You can operate this unit using the TV remote control. Refer to the operating instructions of the TV about the buttons that you can use.

Using the OPTION menu

① Press [OPTION] on the TV remote control. ② Select the item, then press [OK].

e.g.,

Control Panel

Using the Control Panel, you can operate with the TV remote control.

Select "Control Panel" from the OPTION menu.

• BWT800 VIERA Link "HDAVI Control" can only be used on the connection from the HDMI (MAIN) terminal.
• This unit supports "HDAVI Control 5" function. "HDAVI Control 5" is the newest standard (current as of December, 2010) for Panasonic HDAVI Control compatible equipment. This standard is compatible with Panasonic's conventional HDAVI equipment.

Please refer to individual manuals for other manufacturers' equipment supporting VIERA Link function.

• VIERA Link "HDAVI Control", based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers' equipment that supports HDMI CEC cannot be guaranteed.
• These functions may not work normally depending on the equipment condition.

About "HDAVI Control" function, read the manual of the connected equipment (e.g., TV) too.

• Use the remote control supplied with this unit if you cannot operate this unit using buttons on the TV remote control.
• The operation of this unit may be interrupted when you press incompatible buttons on the TV remote control.

Playback menu

Common procedures

1 Press [OPTION].

2 Select "Playback Settings" in "Playback Menu" or select "Playback Settings", then press [OK].

e.g.,

Menu Item Setting

- The menu is not displayed when playing photos.

3 Select the menu, then press [▶] (right).

4 Select the item, then press [▶] (right).

5 Select the setting.

- Some items can be changed by pressing [OK].

To clear the Playback menu

Press [EXIT].

Depending on the condition of the unit (playing, stopped, etc.) and media contents, there may be some items that you cannot select or change.

Disc menu—Setting the disc content

Video

The original video recording method (MPEG-4 AVC etc.) appears.

Signal Type

- Primary Video

Video: The original video recording method appears.

Soundtrack: Select the type of audio or language.

- Secondary Video

Video: Select on/off of images. The original video recording method appears.

Soundtrack: Select on/off of audio and the language.

Soundtrack*

Show or change the soundtrack.

Subtitles*

Turn the subtitle on/off, and change the language depending on the media.

Multi Audio

Switch in the case of multiple audio.

Subtitle Language

Select the subtitle language in the case of multiple languages.

Subtitle Style

Select the subtitle style recorded on the disc.

Angle*

Change the number to select an angle.

Audio Channel

Change audio (LR/L/R) during playback.

* With some discs, you may only be able to make changes using the menus ( ⇒ 43) on the disc.

Audio attribute

LPCM/ Digital/ Digital+/

TrueHD/DTS/DTS-HD/MPEG: Signal type

k (kHz): Sampling frequency

b (bit): Number of bits

ch (channel): Number of channels

Language

ENG: English DAN: Danish THA: Thai

FRA: French POR: Portuguese POL: Polish

DEU: German RUS: Russian CES: Czech

ITA: Italian JPN: Japanese SLK: Slovak

ESP: Spanish CHI: Chinese HUN: Hungarian

NLD: Dutch KOR: Korean FIN: Finnish

SVE: Swedish MAL: Malay *: Others

NOR: Norwegian VIE: Vietnamese

Play menu—Change the play sequence

Repeat Play

(Only when the elapsed time is being displayed on the unit's display.)

Select the item which you want to repeat. The items displayed differ depending on the type of media.

Select "Off" to cancel.

Random

(Only when playing music)

Select whether to play random or not.

Graphic Display Level

You can change the pop-up level of the playback settings display, etc., during 3D playback.

- This function is not available when "3D Type" is set to "Side by side". (⇒ 98)

Picture menu—Change the picture quality

Mode

Select the picture quality mode during playback.

Normal Default setting

Soft Soft picture with fewer video artifacts

Fine Details are sharper

Cinema Mellows movies, enhances detail in dark scenes.

Cartoon A mode suitable for viewing animations.

Advanced Settings

HD optimizer	It will compensate the mosaic noise in the video and haze around the characters precisely.
Chroma Process	You can enjoy high definition and full texture video by processing the HDMI colour signals in high precision during playback.
Detail Clarity	The picture becomes sharp and detailed.
Super Resolution	Standard picture quality video is corrected to sharp and crisp picture quality when it is output as 1080i/1080p from the HDMI terminal.

Progressive

Select the method of conversion for progressive output to suit the type of title being played.

Auto Automatically detects the film and video content, and appropriately converts it.

Video Select when using “Auto”, and the content is distorted.

Film

Select this if the edges of the film content appear jagged or rough when "Auto" is

selected. However, if the video content is distorted as shown in the illustration to the right, then select "Auto".

Sound menu—Change the sound effect

Sound Effects

- This function is effective when "Digital Audio Output" is set to "PCM". (⇒ 97)

Digital Tube Sound

BWT800You can enjoy a warm sound as though connected to a vacuum tube amplifier.

Re-master 1 (Discs recorded at 48 kHz or less)

Re-master 2

Sound becomes more natural by adding higher frequency signals not recorded on the track.

Dialogue Enhancer

The volume of the centre channel is raised to make dialogue easier to hear.

Other menu—Change the display position

Position

Change where this menu screen appears on your TV.

Media management

1 Press [FUNCTION MENU]. 2 Select "Others", then press [OK]. 3 Select the item, then press [OK].

Blu-ray Disc Management	BD-RE BD-R
DVD Management	RAM DVD-R DVD-RW+R +RW
Card Management SD
BD-Video Data Management	HDD

Providing a name for a disc

BD-RE BD-R RAM DVD-R DVD-RW +R +RW

Select "Disc Name", then press [OK].

(→ 90, Entering text)

• The disc name is displayed in the Blu-ray Disc Management/DVD Management window.
• DVD-R DVD-RW +R With a finalised disc, the name is displayed on the Top Menu.
• +RW The disc name is displayed only if you play the disc on other equipment after creating Top Menu.

- Do not perform this operation before copying HD Video (AVCHD format) to DVD-R or DVD-R DL. (⇒ 64)

Setting the protection

BD-RE BD-R RAM

① Select “Disc Protection”, then press [OK]. ② Select "Yes", then press [OK].

e.g., when the disc is write-protected

To release the protection

Repeat steps ① and ②.

- The screen icon will be switched to "Off".

Delete all titles

BD-RE BD-R RAM

① Select "Delete all titles", then press [OK]. ② Select "Yes", then press [OK]. ③ Select "Start", then press [OK]. A message appears when finished. ④ Press [OK].

- Photo data (JPEG/MPO) or computer data cannot be deleted.

Format

BD-RE, RAM, DVD-RW, +RW

BD-R, +R (New disc only)

SD

Formatting deletes all contents (including computer data), and they cannot be restored. Check carefully before proceeding.

The contents are deleted when you format a disc or card even if you have set protection.

① Select "Format Disc" or "Format Card", then press [OK]. ② Select "Yes", then press [OK]. ③ Select "Start", then press [OK]. ④ Press [OK].

RAM To stop formatting

Press [BACK/RETURN]

- You can cancel formatting if it takes more than 2 minutes. The disc must be reformatted if you do this.

• RAM Formatting normally takes a few minutes; however, it may take up to a maximum of 70 minutes.
• Do not disconnect the AC mains lead while formatting. This can render the disc or the card unusable.
• When a disc or card has been formatted using this unit, it may not be possible to use it on any other equipment.
• It will become DVD Video format when a DVD-RW recorded in DVD Video Recording format is formatted with this unit.

Top Menu

DVD-R DVD-RW +R +RW

You can select the background for DVD-Video Top Menu.

① Select "Top Menu", then press [OK]. ② Select the background, then press [OK].

- You can change thumbnails displayed in Top Menu. (⇒ 54, Changing thumbnail)

Auto-Play Select

DVD-R DVD-RW +R +RW

You can select whether to show Top Menu after finalising or creating Top Menu (+RW).

① Select "Auto-Play Select", then press [OK]. ② Select "Top Menu" or "Title 1", then press [OK].

Top Menu The Top Menu appears first.

Title 1 The disc content is played without displaying the Top Menu.

Finalise

DVD-R DVD-RW +R

You can play the disc on compatible DVD players by finalising it on the unit.

BD-R

Finalising BD-R prevents accidental recording or editing.

① Select "Finalise", then press [OK]. ② Select "Yes", then press [OK]. ③ Select "Start", then press [OK]. ④ Press [OK].

After finalising

• BD-R DVD-R +R The disc becomes play-only and you can no longer record or edit.
• DVD-RW You can record and edit the disc after formatting (⇒ 88).

• You cannot cancel finalising.
• Finalising takes up to 15 minutes. (60 minutes in case of DVD-R DL and +R DL)
• Do not disconnect the AC mains lead while finalising. This can render the disc unusable.
• When finalising a high-speed recording compatible disc, it may take longer than displayed on the confirmation screen (approximately four times longer).
• You cannot finalise discs recorded on other manufacturer's equipment.
• DVD-R DVD-RW +R If you finalise discs recorded on Panasonic equipment other than this unit, the background selected as "Top Menu" may not be displayed.
• Discs finalised on this unit may not be playable on other players due to the condition of the recording.

Create Top Menu

+RW

You can create Top Menu for displaying on other equipment.

Make selections from "Top Menu" and "Auto-Play Select" (see left) before creating the Top Menu.

1. Select "Create Top Menu", then press [OK]. 2. Select "Yes", then press [OK]. 3. Select "Start", then press [OK].

- Creating the Top Menu starts. You cannot cancel the creation.

- Creating the Top Menu can take a few minutes.

4. Press [OK].

• You cannot use the Top Menu for playback on this unit.
• The created menu is deleted when you record or edit the disc.

Delete BD-Video data

HDD

If you no longer need BD-Live data recorded on the HDD, you can delete the data with the following operation.

1. Select "Delete BD-Video data", then press [OK]. 2. Select "Yes", then press [OK]. 3. Select "Start", then press [OK]. 4. Press [OK].

Entering text

Preparation

● Show the Enter Title Name screen.

1. Select a character, then press [OK].

Repeat this step to enter other characters.

• To delete a character Select the character in the name field, then press [PAUSE III].
• To enter characters with number buttons e.g., entering the letter "R"

① Press [7] to move to the 7th row. ② Press [7] twice to highlight "R". ③ Press [OK].

2 Press [STOP ■] (Set).

"Writing..." appears then the screen returns to the DIRECT NAVIGATOR screen and so on.

To end partway

Press [BACK/RETURN]

Text is not added.

For your reference

The name of the DVD-Video that will be displayed in the Top Menu after finalisation is previewed.

• The maximum number of characters depends on the media.
• If a name is long, parts of it may not be shown in some screens.

Changing the unit's settings

You can change the unit's settings using the Setup menu.

- The settings remain intact even if you switch the unit to standby.

Common procedures

1 While stopped

Press [FUNCTION MENU].

2 Select "Setup" in "Others", then press [OK].

3 Select the menu, then press [OK].

4 Select the item, then press [OK].

5 Select the option, then press [OK].

• Follow the instruction on the screen if the operation method is different.
• Depending on the connection or the status of this unit some items cannot be selected or changed.

■ About the PIN

PIN is required to change the following settings. Enter the 4-digit PIN following the on-screen instructions.

●The PIN is common for the following items.

-Child Lock

-BD-Video Parental Control

-DVD-Video Parental Control

-Lock (Internet Content Settings)

PIN can be changed via the "PIN Entry" in "Others". ( ⇒ 102)

① Select the number, then press [▶] (right).

- You can also use the number buttons.

② Repeat step ① to enter 4-digit PIN.

③ Press [OK] to confirm.

e.g., PIN Entry

●Make a note of PIN in case you forget it.

Changing the unit's settings

Tuning

Setup

Tuning

Tuning

Favourites Edit

Channel List

Auto Setup

Channel Sorting by Region

Manual Tuning

Update Channel List

Signal Condition

New Channel Message

Child Lock

Preferred Multi Audio

Preferred Subtitles

∫ Favourites Edit

You can create Favourites of channels for making viewing and recording easier.

DVB Favourites Editor

1

2

Select channel

Aoc

RETURN

Channel names

Page up

Page down

Add/Select favourites

After editing as follows, save the Favourites. Press [BACK/RETURN], then press [OK].

To select the other Favourites list, press the “Green” button.

To add channels to the Favourites list:

1. Select the channel in the "All DVB Channels" column, then press [OK]. Repeat this step.

≥“Yellow”: Add all the available channels to the Favourites. (This function is available only when there are no channels in the “Favourites”.)

≥To change the order of the channels list

1 Select the channel in the “Favourites” column to move, then press the “Green” button. 2 Select the new position, then press the "Green" button.

≥To delete channels

1 Select the channel in the “Favourites” column, then press [OK].

≥“Yellow”: Delete all the channels.

≥To change the name of the Favourites list

1 Press the "Red" button in the "Favourites" column. 2 Press [3, 4, 2, 1] to select a character, then press [OK].

Repeat this step to enter other characters.

≥“Red”: Delete a character. ≥“Blue”: Delete all characters.

3 Press [BACK/RETURN].

∫ Channel List

You can edit the Channel List.

All DVB Channels

HD 1

HD 2

3

HD 4

5

HD 6

HD 7

S

Hide

RETURN

Channel

names

Page up

Page down

To skip unwanted channels

1 Select the channel. 2 Press [OK].

The check mark is removed. “Yellow”: Clear the all skip setting.

To change the channel number assignment

1 Select the channel, then press the "Green" button. 2 Enter the channel number to reassign with the number buttons.

3 Press [OK].

If another channel is already assigned to the channel number, the two channels will be switched.

To set the channel manually

Press the "Red" button.

The “DVB Manual Tuning” screen appears. (> 93, Manual Tuning)

∫ Auto Setup

You can restart the Auto Setup.

Select "Yes", then press [OK].

If you perform “Channel Sorting by Region” (> below), you can sort the channel list best suited to your region after Auto tuning is finished.

∫ Channel Sorting by Region

If you want to sort the channel list best suited to your region, follow the on-screen instructions to select the region you live in.

■ Manual Tuning

You can set each channel manually.

① Select the frequency with [▲, ▼].

- Adjust the frequency by checking the signal strength and signal quality displays.

② Press [OK] to start scan.

The set channel is displayed in the table.

■ Update Channel List

You can update the channels to the latest one.

●This takes about 3 minutes.

"Finished" is displayed when the search is finished. Press [BACK/RETURN]

■ Signal Condition

You can check the quality and strength of signals.

Press [∧ ∨ CH] to select the channel.

Signal Quality

Red bar: The signal quality is bad.

Yellow bar: The signal quality is poor.

Green bar: The signal quality is good.

Signal Strength

0: Signal strength is 0%.

10: Signal strength is 100%.

- When the signal is too strong (red bar), reduce the signal amplification at your aerial.

New Channel Message

Set whether to obtain the information automatically when a new digital channel is added.

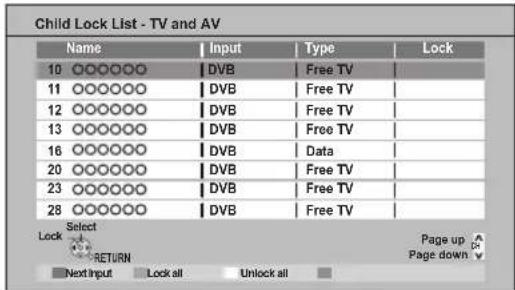

Child Lock

You can restrict the viewing and recording of channels unsuitable for children.

You can lock each channel or AV input.

PIN is required to change. (→ 91)

1. Select the channel or AV input to lock.

2. Press [OK].

G is displayed.

• Press [OK] again to cancel.
• "Red": Change the input. ●"Green": Lock all channel and AV input.
• "Yellow": Unlock all channel and AV input.

■ Preferred Multi Audio

Multi Audio

Choose the audio language for broadcast. If the selected language is not available, then the original language will be selected.

Audio Description

Select whether the Audio Description is set to be active or not.

- When "Dolby D / Dolby D + / Dolby TrueHD", "MPEG" or "HE-AAC" is set to "Bitstream", the Audio Description may not work. Set them to "PCM" (⇒ 97, Digital Audio Output).

■ Preferred Subtitles

Choose the subtitle language for broadcast. If the selected language is not available, then the original language will be selected.

- After performing "Update Channel List" or "Manual Tuning" if the channel number has already been assigned, channel number for the newly tuned channel will be assigned from 800ch onward.

Changing the unit's settings

HDD / Disc

Setup

HDD / Disc

HDD / Disc

Settings for Playback

Settings for Recording

HDD Management

Settings for Playback

HDD / Disc

Settings for Playback

Settings for Playback

3D BD-Video Playback

Soundtrack

Subtitles

Menu

Play Video (AVCHD) on BD-RE /BD-R

BD-Live

BD-Video Parental Control

DVD-Video Parental Control

Child Lock

Pure Sound mode

3D BD-Video Playback

Select the playback method of 3D compatible video software.

Soundtrack

Select the audio language.

• If "Original" is selected, the original language of each disc will be selected.
• Enter a code with the number buttons when you select "Other *****". (⇒ 103, Language code list)

Subtitles

Select the language for subtitle.

• If "Automatic" is selected and the language selected for "Soundtrack" is not available, subtitles of that language will automatically appear if available on that disc.
• Enter a code with the number buttons when you select "Other *****". (⇒ 103, Language code list)

Menu

Select the language for disc menus.

- Enter a code with the number buttons when you select "Other *****". (⇒ 103, Language code list)

➢ Play Video (AVCHD) on BD-RE / BD-R

Set when you are playing a disc that has High Definition video (AVCHD) recorded by the Panasonic video camera, etc. and High Definition quality title that was recorded on this unit.

On Playback High Definition video (AVCHD)

Off Playback High Definition quality title

BD-Live

You can restrict Internet access when BD-Live functions are used.

- If "On (Limit)" is selected, internet access is permitted only for BD-Live contents which have content owner certificates.

BD-Video Parental Control

Set an age limit of BD-Video play.

• Follow the on-screen instructions. ●PIN is required to change. (⇒ 91)

DVD-Video Parental Control

Set a rating level to limit DVD-Video play.

• Follow the on-screen instructions. ●PIN is required to change. (→ 91)

Child Lock

You can restrict playback of the following titles:

—Titles that are recorded with guidance information at night (21:00–05:30) —Titles restricted by Child Lock (⇒ 93)

(Titles with icon in DIRECT NAVIGATOR, etc.)

●PIN is required to change. (⇒ 91)

Pure Sound mode

BWT800

You can enjoy movies or music in an environment more suitable for viewing by stopping the rotation of the HDD when playing back commercial BD-Videos, DVD-Videos or music CDs.

- If "On" is selected, timer recording does not start during playback BD-Video, DVD-Video or music CD. (→ 36)

■ Settings for Recording

REWIND LIVE TV

Turn on/off the REWIND LIVE TV function.

- When "Automatic Standby" is set to "Off" (⇒ 101), "On" cannot be selected.

▶ Aspect for Recording

Sets the aspect ratio when recording or copying except in DR mode.

- If “Automatic” is selected, the title will be recorded with the original aspect ratio at the time when recording started (including when recording started at a commercial, etc.). - In the following cases, the programme will be recorded with the original aspect ratio.

- BD-RE BD-R When the recording mode is set to "XP", "SP", "LP", "EP" or "FR"

- HDD RAM When the recording mode is set to "XP", "SP", "LP", "EP" or "FR" with the "Recording Format for DVD" set to "VR format"

- In the following cases, aspect is fixed to 4:3.

- DVD-R DVD-RW When the recording mode is set to "EP" or "FR (recordings 5 hours or longer)" mode. - When recording to a +R, +R DL and +RW.

Chapter Creation

HDD

Set the Chapter Creation method.

- Even if "Automatic" is selected, depending on the programme to be recorded, the chapter may not be created correctly.

Recording Format for DVD

You can copy titles to DVD in high speed mode, if you set to "Video format" before recording a programme.

• This setting is valid for the following cases:
• Recording from external equipment
• Copying from a finalised DVD-Video disc
• If high speed copy is not necessary we recommend setting to "VR format" as the following restrictions are applied to recorded titles in case of "Video format".

–The settings in “Aspect for Recording” ( ⇒ left) and in “Bilingual Audio Selection” ( ⇒ 96) are applied to titles.

- You cannot switch the audio when watching a programme via AV input.

BD / DVD Speed for High Speed Copy

Select the speed of high-speed copying. If "Normal (Silent)" is selected, the time required for copying will double (approximately).

Recording time in EP mode

Select the maximum number of hours for recording in EP mode ( ⇒ 124, Recording modes and approximate recording times).

- When recording to DVD-RAM using "8 hours" mode, it may not be possible to play on DVD players.

■ HDD Management

Press and hold [OK] for 3 seconds to show the following settings.

Delete all titles

Delete all titles (video) on the HDD.

- Delete does not work if one or more titles are protected.

Delete all photos

Delete all photos on the HDD.

Format HDD

Formatting deletes all contents, and they cannot be restored. Check carefully before proceeding.

Changing the unit's settings


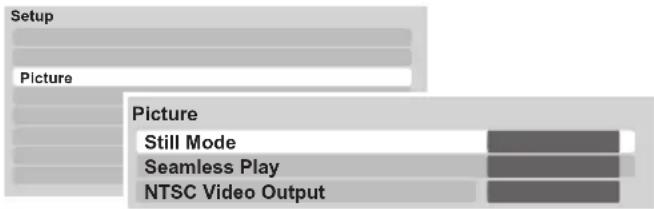

Still Mode

Select the type of picture shown when you pause play.

Automatic
Field Select if jittering occurs when “Automatic” is selected. (The picture is coarser.)
Frame Select if small text or fine patterns cannot be seen clearly when “Automatic” is selected. (The picture is clearer and finer.)

Seamless Play

Select the play mode between playlist chapter segments and partially deleted titles.

- If you set "On", the chapters in playlists are played seamlessly. This does not work when there are several audio types included on the playlist and when using Quick View (PLAY×1.3).

■ NTSC Video Output

Select how to output the NTSC image.

Sound

■ Dynamic Range Compression

BD-V DVD-V

Change the dynamic range for late night viewing.

Downmix

Select the downmix system of multi-channel to 2-channels sound.

• Select "Surround encoded" when the connected equipment supports the virtual surround function.
• There is no effect on "Bitstream" via HDMI AV OUT and DIGITAL AUDIO OUT terminal.

- The audio will be output in "Stereo" in the following cases.

- AVCHD playback - BD-V: Playback of clicking sound on the menu and audio with secondary video in picture-in-picture mode

■ Bilingual Audio Selection

Select whether to record the main or secondary audio type when:

- File Conversion (⇒ 55) — Copying to a DVD-R, DVD-RW, +R and +RW. - "Recording Format for DVD" is set to "Video format". (⇒ 95)

■ Digital Audio Output

▶ PCM Down Conversion

Select how to output audio with a sampling frequency of 96 kHz.

• It will be converted to 48 kHz regardless of the setting in the following cases: – The signals have a sampling frequency of over 96 kHz. – The disc has copy protection.
• "BD-Video Secondary Audio" is set to "On".

(BD-V)

- If "Off" is selected, signals are output as 96 kHz.

- If "On" is selected, signals are converted to 48 kHz.

(Choose when the connected equipment cannot process signals with a sampling frequency of 96 kHz.)

Dolby D / Dolby D+ / Dolby TrueHD

DTS / DTS-HD

MPEG

HE-AAC

Select the audio signal to output.

• Select "PCM" when the connected equipment cannot decode the respective audio format.
• Not making the proper settings may result in noise.

BD-Video Secondary Audio

(BD-V with secondary audio)

Turn on/off the clicking sound on the menu and audio with secondary video.

If "Off" is selected, the primary audio only is output.

Audio Delay

Mis-sync between the video and audio is corrected by delaying the audio output.

Audio for HG / HX / HE / HL / HM Recording

If the programme has multi channel audio, priority is given to what you select.

●This setting will take effect in the following cases.

-File Conversion ( ⇒ 55)

-Normal speed copy in HG, HX, HE, HL or HM mode from a title recorded in DR mode. ( ⇒ 59, 62)

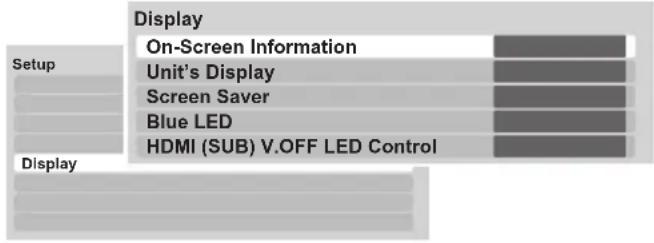

Display

■ On-Screen Information

Select the approximate time until the channel information screen ( ⇒ 28) disappears automatically.

Unit's Display

Changes the brightness of the unit's display.

- If "Dim" is selected the display turns dark during play and disappears when the unit is turned off. It reappears momentarily if a button is pressed. While using this mode, the standby power consumption can be reduced.

Screen Saver

This is to prevent burn-in on the screen.

- If "On" is selected, the masked-off area on the screen becomes grey.

Depending on the condition of the unit (Connection, Setting) the masked-off area on the screen becomes grey.

Blue LED

Set the lighting method for the lamp on the SD card slot.

- If "SD inserted" is selected, when this unit is turned on and SD card is inserted, the lamp is lighted.

■ HDMI (SUB) V.OFF LED Control

BWT800

Set to light the HDMI (SUB) V.OFF LED or not.

This will light when "HDMI (SUB) Output Mode"

(→ 99) is set to "V.OFF (Video Off)", and the power of the connected equipment to the HDMI AV OUT (SUB) is on.

Connection

■ 3D Settings

3D Type

If 3D video cannot be played back in 3D, change the settings as required by the connected TV format.

- Change the settings for 3D on the TV also when "Side by side" is selected.

3D Playback Message

Set to display or hide the 3D viewing warning screen when playing back the 3D compatible video software.

TV Aspect

Set to match the type of TV connected.

•16:9

When connected to a 16:9 widescreen TV.

•4:3

When connected to a 4:3 aspect TV, side picture is trimmed for 16:9 picture. The pictures may be shown in the letterbox style depending on the content.

- Letterbox

When connected to a 4:3 aspect TV, black bands appear for 16:9 picture.

■ Aspect for 4:3 Video

To play a 4:3 title, set how to show pictures on a 16:9 widescreen TV.

TV System

Set in accordance with the TV System for the connected TV.

■ HDMI Connection

HDMI (SUB) Output Mode

BWT800

Set to output the video from the HDMI AV OUT (SUB) terminal or not.

HDMI Video Format

You can only select items compatible with the connected equipment.

• If "Automatic" is selected, the output resolution best suited to the connected TV (1080p, 1080i, 720p or 576p/480p) is automatically selected.
• To enjoy High Quality Video up-converted to 1080p, you need to connect the unit directly to a 1080p compatible HDTV. If this unit is connected to an HDTV through other equipment, it must also be 1080p compatible.

24p Output

When playing BD-Video recorded in 24 frames, this unit displays each frame at 1/24 second intervals—the same interval originally shot with the film movie.

• This item is effective only when this unit is connected to a TV supporting 1080/24p output using an HDMI cable and "HDMI Video Format" is set to "Automatic" or "1080p".
• When BD-Video images other than 24p are played, images are output at 60p.

Deep Colour Output

This setting is for selecting whether to use Deep Colour output when a TV that supports Deep Colour is connected.

HDMI Audio Output

Select "Off" when connected to a TV with an HDMI cable, and connected to an amplifier not compatible with HDMI with a DIGITAL AUDIO OUT terminal.

7.1ch Audio Reformatting

BD-V

Surround sound with 6.1 ch or less is automatically expanded and played back at 7.1 ch.

• If "Off" is selected, sound is played over the original number of channels. (Note that in the case of 6.1 ch audio, playback will be at 5.1 ch) Audio reformatting is enabled in the following cases: -When you have selected "PCM" in "Digital Audio Output". -When the audio is Dolby Digital, Dolby Digital Plus, Dolby TrueHD or LPCM.

Contents Type Flag

Depending on the playback content, the TV will output adjusting to the optimal method when a TV that supports Contents Type Flag is connected.

VIERA Link

Set to use "HDAVI Control" function when connected with an HDMI cable to a device that supports "HDAVI Control".

- Select "Off" when you do not want to use "HDAVI Control".

AV1 Output

Set according to the terminal of the connected TV.

- If this unit is connected with an HDMI cable, you cannot select "RGB 1" or "RGB 2".

AV2 Settings

AV2 Input

Set according to the output from the external equipment.

Ext Link

Set "Ext Link 1" when a Set Top Box which transmits a control signal via the 21-pin Scart cable is connected.

- This setting cannot be made when "TV System" is set to "NTSC" (=> 98).

Changing the unit's settings

Network

■ Network Easy Setting

Press [OK] to start Network Easy Setting. (→ 16)

■ Network Settings

▶ LAN Connection Mode

Select connection method.

- BWT700 "Wireless" is enabled only when the Wireless LAN adaptor DY-WL10 (optional) is connected.

Wireless Settings

This allows the Wireless router and connection settings to be set and the current connection settings and connection state to be checked when a wireless connection is used.

▶ Connection Setting

The Wireless router connection wizard will be displayed.

Double Speed Mode Setting (2.4GHz)

When a 2.4 GHz wireless format is used, this setting sets the connection speed.

- If you connect using the "Double Speed Mode (40MHz)", 2 channels use the same frequency band, and there is consequently a greater risk of reception interference. This can cause the connection speed to drop or the connection to become unstable.

IP Address / DNS Settings

Check the connection of the network or set the IP address and DNS.

- Press [OK] to show the respective setting.

- "Connection Speed Setting" is enabled only when "Connection Speed Auto-configure" is turned "Off".

Proxy Server Settings

Check and set the connection to the Proxy server.

- Press [OK] to show the respective setting.

Internet Content Settings

Lock

You can restrict using VIERA CAST.

●Follow the on-screen instructions.

●PIN is required to change. (→ 91)

▶ Automatic Volume Control

Volume that is different depending on the contents is adjusted automatically to the standard volume while using the VIERA CAST.

- Depending on contents, this function will not work.

- Select "Off" when the audio is warped.

Home Network (DLNA) Server Settings

You can set the DLNA (Server) function (⇒ 82)

Home Network (DLNA) Server function

You can switch between enable/disable of the DLNA (Server) function.

• If "On" is selected, "Power Save in Standby" is fixed to "Off". (⇒ right)
• This cannot be set to "On" if the connection with the wireless broadband router is not encrypted in the wireless connection.

Setting device name

It is also possible to change the name of this unit on the network.

• Select from a preset list Select the preset name, then press [OK].
• Create name Enter the name. (⇒ 90, Entering text)

Registration type for remote devices

Automatic All connected devices on the same network can access this unit.

Manual Only registered devices can access this unit.

Remote device list

- This function cannot be enabled when "Manual" is selected in "Registration type for remote devices". (→ above)

- To register equipment manually

1 Select the device name or the MAC Address for the device you want to register, then press [OK]. 2 Select "Yes", then press [OK].

- To deregister equipment

1 Select the registered equipment, then press [OK]. 2 Select "Yes", then press [OK].

- The maximum number of equipment that can be registered is 16.

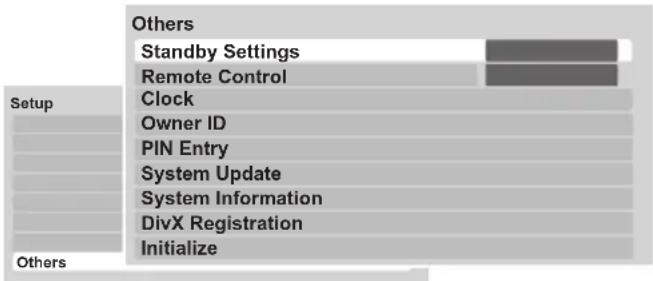

Others

■ Standby Settings

Power Save in Standby

On It will go into the “Power Save in Standby” mode.
On Timer	“Power Save in Standby” is activated when the set time comes.●If the clock has not been set, “Power Save in Standby” is activated at all hours.
Off It is possible to start quickly from the standby mode. (Quick Start mode)

• This function cannot be enabled when the DLNA function is enabled in "Home Network (DLNA) Server Settings". (⇒ left)
• The setting may be changed to "Off" automatically when the setting for video communication is changed. (⇒ 81)

▶ Automatic Standby

Set the time to turn the unit to standby mode automatically.

After the unit has finished operating, the unit will be turned to standby mode once the set time has passed.

- When "REWIND LIVE TV" is set to "On" (⇒ 95), "Off" cannot be selected.

▶ Automatic Standby after OTR

If "On" is selected, this unit is turned to standby mode when it is not operated for approximately 5 minutes after completing "Automatic Stop" or "Recording Time" (⇒ 33).

Changing the unit's settings

▶ Automatic Standby after Copy

If "On" is selected, this unit is turned to standby mode when it is not operated for approximately 5 minutes after completing copy (⇒ 58, 59).

RF OUT (Aerial Signal)

Set whether to output the aerial signal or not from RF OUT while in standby mode (when "Power Save in Standby" is activated).

- If "On" is selected, the aerial signal is output from this unit.

Remote Control

Change the remote control code on the main unit and the remote control if you place other Panasonic products close together.

- Use "BD 1", the factory set code, under normal circumstances.

① Select the code, then press [OK]. ② While pressing [OK], press and hold the number button ([1] to [6]) for more than 5 seconds. ③ Press and hold [OK] for more than 5 seconds. ④ Press [OK].

- Operation is possible only with Panasonic remote controls with "IR6" printed at the bottom when the remote control code of this unit is set to "BD 4", "BD 5" or "BD 6".

Clock

If the time is not set correctly, use the settings listed in the method below.

•Automatic

This unit usually obtains time and date information from digital broadcasts.

But, if the time is not set correctly, set it to "Off" and perform "Manual Setting".

- Manual Setting

① Select "Off" of "Automatic", then press [OK]. ② Select the item you want to change. ③ Change the setting. ④ Press [OK] when you have finished the settings.

- Time Zone

Adjust the time data automatically or from GMT -6 to +6.

Owner ID

In order to prevent another person from using this unit if it is stolen, you can set a PIN and input your personal information (NAME, HOUSE NO, POSTCODE).

Once the PIN has been set, you cannot return to the factory preset. Make sure not to forget this.

PIN Entry

You can set/change the PIN. (⇒ 91)

■ System Update

Software Update in Standby

When you set this unit to standby mode, software (firmware) updates (⇒ 104) are downloaded automatically.

Software Update Now (Broadcast)

Software of this unit will be updated from broadcasts if update information is detected. (⇒ 104)

Software Update Now (Internet)

Software of this unit will be updated from the Internet if update information is detected. (=> 104)

Software Licence

Information about the software licence is displayed.

Post Code

Input the postal code which is necessary to download area specific information of the GUIDE Plus+ system.

▶ Guide Plus+ System Information

You can check the condition of the GUIDE Plus+ system of this unit.

■ System Information

Display software (firmware), HDAVI Control version and Wireless Module version (When using wireless connection only) of this unit.

DivX Registration

You need this registration code to purchase and play DivX Video-on-Demand (VOD) content (=> 119).

■ Initialize

Shipping Condition

All the settings except for basic settings return to the factory preset. The timer recording programmes are also cancelled.

Default Settings

All the settings other than the tuning settings, clock settings, disc language settings, Parental Control settings, rating PIN, remote control code, network settings, etc. return to the factory presets.

Language code list

Enter the code with the number buttons.

Abkhazian: 6566	Gujarati: 7185	Rhaeto-Romance:
Afar: 6565	Hausa: 7265	Romanian: 8279
Afrikaans: 6570	Hebrew: 7387	Russian: 8285
Albanian: 8381	Hindi: 7273	Samoan: 8377
Amharic: 6577	Hungarian: 7285	Sanskrit: 8365
Arabic: 6582	Icelandic: 7383	Scots Gaelic: 7168
Armenian: 7289	Indonesian: 7378	Serbian: 8382
Assamese: 6583	Interlingua: 7365	Serbo-Croatian: 8372
Aymara: 6589	Irish: 7165	Shona: 8378
Azerbaijani: 6590	Italian: 7384	Sindhi: 8368
Bashkir: 6665	Japanese: 7465	Singhalese: 8373
Basque: 6985	Javanese: 7487	Slovak: 8375
Bengali; Bangla: 6678	Kannada: 7578	Slovenian: 8376
Bhutani: 6890	Kashmiri: 7583	Somali: 8379
Bihari: 6672	Kazakh: 7575	Spanish: 6983
Breton: 6682	Kirghiz: 7589	Sundanese: 8385
Bulgarian: 6671	Korean: 7579	Swahili: 8387
Burmese: 7789	Kurdish: 7585	Swedish: 8386
Byelorussian: 6669	Laotian: 7679	Tagalog: 8476
Cambodian: 7577	Latin: 7665	Tajik: 8471
Catalan: 6765	Latvian, Lettish: 7686	Tamil: 8465
Chinese: 9072	Lingala: 7678	Tatar: 8484
Corsican: 6779	Lithuanian: 7684	Telugu: 8469
Croatian: 7282	Macedonian: 7775	Thai: 8472
Czech: 6783	Malay: 7783	Tibetan: 6679
Danish: 6865	Malayalam: 7776	Tigrinya: 8473
Dutch: 7876	Maltese: 7784	Tonga: 8479
English: 6978	Maori: 7773	Turkish: 8482
Esperanto: 6979	Marathi: 7782	Turkmen: 8475
Estonian: 6984	Moldavian: 7779	Twi: 8487
Faroese: 7079	Mongolian: 7778	Ukrainian: 8575
Fiji: 7074	Nauru: 7865	Urdu: 8582
Finnish: 7073	Nepali: 7869	Uzbek: 8590
French: 7082	Norwegian: 7879	Vietnamese: 8673
Frisian: 7089	Oriya: 7982	Volapük: 8679
Galician: 7176	Pashto, Pushto: 8083	Welsh: 6789
Georgian: 7565	Persian: 7065	Wolof: 8779
German: 6869	Polish: 8076	Xhosa: 8872
Greek: 6976	Portuguese: 8084	Yiddish: 7473
Greenlandic: 7576	Punjabi: 8065	Yoruba: 8979
Guarani: 7178	Quechua: 8185	Zulu: 9085

Software (Firmware) Update

Software of this unit can be updated automatically by the following methods when this unit is in the standby mode or when it is 3 a.m.

(⇒ 103, Software Update in Standby)

-From broadcasts

-From Internet*

- To update the Software (Firmware) immediately, use the following function:

-Software Update Now (Broadcast) (⇒ 103)

Software of this unit will be updated from broadcasts if update information is detected.

-Software Update Now (Internet) * (⇒ 103)

Software of this unit will be updated from Internet if update information is detected.

* Network connection and setting are required. (⇒ 12, 16)

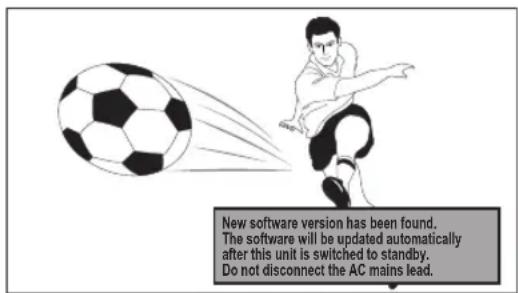

If a software (firmware) update is available, a notification is displayed.

- Update of the software (firmware) will start when the unit is turned to standby mode.

■ The unit's display during the update e.g.,

- When "FINISH" is displayed, update of the software (firmware) has completed.

You cannot operate the unit until the update is complete. Removing the AC mains lead while the update is in progress may damage the unit. Don't remove the AC mains lead during the update.

• It may take up to a few hours until the update is completed depending on the network or broadcast environment.
• If the timer recording is scheduled within the following time at the start of the download, the download will not be executed.

– From broadcast: Within 5 hours

– From Internet: Within 1 hour

• You can also download the latest software (firmware) from the following website and burn it to a CD-R to update the software (firmware). http://panasonic.jp/support/global/cs/
• If you do not want to perform the software (firmware) update, set the "Software Update in Standby" to "Off". (⇒ 103)

Other Settings

Switching the aspect ratio of the screen

When black bars are shown at the top, bottom, left, and right sides of the screen, you can enlarge the image to fill the screen.

1 Press [OPTION].

2 Select "Aspect", then press [OK].

3 Select the item, then press [OK].

Normal Normal output
Side cut	The black bars on the right and left sides of the 16:9 image disappear and the image is enlarged.
Zoom	The black bars on the top and bottom sides of the 4:3 image disappear and the image is enlarged.

• This function does not work when watching 3D programme or playing back 3D title or 3D photo.
• It may also be adjusted using the screen mode of the TV etc.
• The screen mode is switched to "Normal" in the following situations:
• when you change the channel
• when you start or end the playback of a title
• when the unit is turned off or on
• BD-V DVD-V "Side cut" does not have any effect.
• When "TV Aspect" (=> 98) is set to "4:3" or "Letterbox", the "Zoom" effect is disabled.

TV operation setting

The TV can be operated from the TV operation area of the remote control.

Perform the setting if you cannot operate the TV with the buttons in the TV operation area.

TV operation area

1 While pressing [☐ TV], enter the code (⇒ right) with the number buttons. 2 Point the remote control at the TV. Test by turning on the TV and changing channels.

• Repeat the procedure until you find the code that allows correct operation.
• If the brand of your TV is not listed or the code number is invalid for the TV, this remote control is not compatible with your TV.

- If your TV brand has more than one code listed, select the one that allows correct operation.

Manufacturer and Code No.

Brand	Code	Brand	Code
Panasonic	01/02/03/04	NEC	36
AIWA	35	NOBLEX	33
AKAI	27/30	NOKIA	25/26/27/60/61
BEKO	05/71/72/73/74	NORDMENDE	10
BENQ	58/59	OLEVIA	45
BRANDT	10/15	ONWA	30/39/70
BUSH	05	ORION	05
CENTREX	66	PEONY	49/69
CURTIS	05	PHILCO	41/48/64
DAEWOO	64/65	PHILIPS	05/06/46
DESMET	05	PHONOLA	05
DUAL	05	PIONEER	37/38
ELEMIS	05	PROVIEW	52
FERGUSON	10/34	PYE	05
FINLUX	61	RADIOLA	05
FISHER	21	SABA	10
FUJITSU	53	SALORA	26
FUNAI	63/67	SAMSUNG	32/42/43/65/68
GOLDSTAR	05/50/51	SANSUI	05
GOODMANS	05	SANYO	21/54/55/56
GRADIENTE	36	SCHNEIDER	05/29/30
GRUNDIG	09	SEG	05/69/75/76/77/78
HITACHI	05/22/23/40/41	SELECO	05/25
IRRADIO	30	SHARP	18
ITT	25	SIEMENS	09
JVC	17/30/39/70	SINUDYNE	05
KDS	52	SONY	08
KOLIN	45	TCL	31/33/66/67/69
KONKA	62	TELEFUNKEN	10/11/12/13/14
LG	05/50/51	TEVION	52
LOEWE	07/46	THOMSON	10/15/44
MAG	52	TOSHIBA	16/57
METZ	05/28/79	WHITE	05
MITSUBISHI	05/19/20/47	WESTINGHOUSE
MIVAR	24	YAMAHA	18/41

HOLD function

The HOLD function deactivates all buttons on the unit and remote control.

Press and hold [OK] and [BACK/RETURN] simultaneously until "X HOLD" appears on the unit's display.

Unit's display

To cancel the HOLD function

Press and hold [OK] and [BACK/RETURN] simultaneously until "X HOLD" disappears.

Other Connections

Amplifier connections

3D programmes can be played back when this unit is connected to a 3D compatible amplifier and a 3D compatible TV using an HDMI cable.

- You will not be able to view 3D programmes with this connection if your amplifier is not 3D compatible.

* BWT700 HDMI AV OUT

• Linked operation is possible by connecting to a TV or amplifier compatible with VIERA Link.
• When using a TV or an amplifier that does not display "ARC compatible" on the HDMI terminal (not compatible with ARC), it is necessary to connect the TV and the amplifier with a digital audio cable to enjoy the TV audio on the amplifier.

When connecting an amplifier not compatible with 3D

3D programmes can be played back when this unit is connected to a 3D compatible TV using an HDMI cable. ●The audio can only be up to 5.1ch.

Amplifier's rear panel

* BWT700 HDMI AV OUT

• Linked operation is possible by connecting to a TV or amplifier compatible with VIERA Link.
• When using a TV or an amplifier that does not display "ARC compatible" on the HDMI terminal (not compatible with ARC), it is necessary to connect the TV and the amplifier with a digital audio cable to enjoy the TV audio on the amplifier.

Via an HDMI AV OUT (MAIN) and HDMI AV OUT (SUB) terminal

BWT800

You can enjoy richer sound by using the HDMI AV OUT (SUB) terminal.

3D programmes can be played back when this unit is connected to a 3D compatible TV using an HDMI cable.

- Connect the TV and the amplifier with the following cables to enjoy the audio from the TV with the amplifier. - ARC compatible: HDMI cable - ARC not compatible: HDMI cable and optical digital cable

• The VIERA Link function does not work with equipment connected to the HDMI (SUB) terminal.
• Set the "HDMI (SUB) Output Mode" to "V. OFF (Video Off)". If it is set to "Normal" when the amplifier not compatible with 3D is connected to the HDMI (SUB) terminal, playback of 3D video is not possible with the power of the amplifier set to "ON". (⇒ 99, HDMI (SUB) Output Mode)

When using DIGITAL AUDIO OUT terminal

• When connecting a TV with an HDMI cable, set "HDMI Audio Output" to "Off" (⇒ 99).
• When you use the optical digital audio cable, insert the tip correctly into the terminal.

Other TV connections

- Connect to terminals of the same colour.

TV's rear panel

This unit's rear panel

Messages on the unit's display

The following messages or service numbers appear on the unit's display when something unusual is detected during startup and use.

BD □

("□" stands for a number.)

The remote control and main unit are using different codes. Change the code on the remote control.

Unit's display

Press and hold [OK] and the indicated number button at the same time for more than 5 seconds. (⇒ 102)

GUIDE

▶ TV Guide data is being downloaded. (⇒ 26)

FINISH

The software (firmware) update is complete. (⇒ 104)

HARD ERR

If there is no change after turning the unit on and off, consult the dealer where the unit was purchased.

NoERAS

You cannot delete items on this disc. The disc may be damaged. Use a new disc.

NoREAD

The disc is dirty or badly scratched. The unit cannot record, play, or edit. (⇒ 117) This message may appear when the lens cleaner has finished cleaning. Press [▲ OPEN/CLOSE] on the main unit to eject the disc. (⇒ 24)

NoWRIT

➢ You cannot write to this disc. The disc may be damaged. Use a new disc.

PLEASE WAIT

Displayed when the unit is started and turned off. There was a power failure or the AC plug was disconnected while the unit was on. The unit is carrying out its recovery process. This process restores the unit to normal operation. The unit is not broken. Wait until the message disappears.

PROG FULL

There are already 32 timer programmes. Delete unnecessary timer programmes. (See 41)

REMOVE

The USB device is drawing too much power. Remove the USB device.

START

Update of the software (firmware) is started. You cannot operate the unit until the update is complete. (See 104)

SW-DL

Software (firmware) is downloading. Download will stop when the unit is turned on, or the timer recording starts. (See 104)

UNSUPPORT

You have inserted a disc the unit cannot play or record on. (See 20) You tried to operate with a non-compatible USB memory.

UPD □ /□

("□" stands for a number.)

The software (firmware) is being updated. You cannot operate the unit until the update is complete. (See 104)

U59

The unit is hot. The unit switches to standby for safety reasons. Wait for about 30 minutes until the message disappears. Select a position with good ventilation when installing the unit. Do not block the cooling fan on the rear of the unit.

U61

(When a disc is not inserted) Displays when a malfunction has occurred. This is displayed when the unit is in the recovery process to return to normal operation. Once the display clears you can use the unit again. If it remains displayed, consult the dealer where the unit was purchased.

U76

HDMI cannot be output because it is connected to a model that does not support copyright protection.

U77

Due to the current disc not having authorised copyright information, video output is not performed.

U88

(When a disc is inserted) Displays when there was something unusual detected with the disc while recording, playback or copy. This is displayed when the unit is in the recovery process to return to normal operation. Once the display clears you can use the unit again. If it remains displayed, consult the dealer where the unit was purchased.

U99

The unit fails to operate properly. Press [∅/I] on the main unit to switch the unit to standby mode. Now press [∅/I] on the main unit again to turn the unit on.

H□□ or F□□

("□" stands for a number.)

There is something unusual. (The service number displayed after H and F depends on the unit's condition.) ➢ Check the unit using the troubleshooting guide (⇒ 110–115). If the service number does not disappear, do the following. 1. Disconnect the plug from the household mains socket, wait a few seconds, then reconnect it. 2. Press [∅/l] to turn the power on. (The unit may be fixed.) If the service number does not disappear despite after doing the above, request service from the dealer. Inform the dealer of the service number when requesting service.

XHOLD

The HOLD function is activated.

Press and hold [OK] and [BACK/RETURN] at the same time until "X HOLD" disappears. (→ 105)

Troubleshooting guide

Before requesting service, make the following checks. If the problem still persists, consult your dealer for instructions.

Updating to the latest software (firmware) may solve the problem. (→ 104)

The following do not indicate a problem with this unit:

• Regular disc rotating sounds or louder rotating sounds when recording or high speed copying. ● Poor reception due to atmospheric conditions.
• Image disturbance during search.
• Image disturbance when replacing 3D discs.
• Interruptions in reception due to periodic terrestrial broadcasting breaks.
• When the unit is turned on or off, there may be an unexpected sound. This does not indicate a problem with this unit.

■ The unit doesn't work.

One of the unit's safety devices may have been activated.

Reset the unit as follows:

① Press [⏻/l] on the main unit to switch the unit to standby. - If the unit doesn't switch to standby, press [⏻/l] on the main unit for about 3 seconds. The unit is forcibly switched to standby. Alternatively, disconnect the AC mains lead, wait one minute, then reconnect it. ② Press [⏻/l] on the main unit to switch it on. If the unit still cannot be operated, consult the dealer.

■ Cannot eject a disc.

The unit may have a problem.

① While the unit is off, press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds. - “00 RET” is displayed on the unit's display. ② Repeatedly press [▶] (right) on the remote control or [⏻/l] on the main unit until “06 FTO” is displayed on the unit’s display. ③ Press [OK] on the remote control or [▲ OPEN/CLOSE] on the main unit.

Power

The unit is turned off automatically.

If you connected this unit to a "HDAVI Control" compatible TV with an HDMI cable, or connected this unit to a Q Link-compatible TV with a fully wired 21-pin Scart cable, this unit will be automatically set to standby mode when the TV is set to standby mode.

The unit does not turn on when pressing [⏻].

Linked timer recordings with external equipment is in recording standby ("EXT-L" on the unit's display blinks when [⏻] is pressed). Press [EXT LINK] to cancel the recording standby.

Displays

The display is dim.

➢ Change "Unit's Display". (⇒ 98)

"0:00" is flashing on the unit's display.

➢ Set the clock. (⇒ 102)

The time recorded on the disc and the available time shown do not add up.

DVD-R/+R: If you record or edit about 200 times or more, the remaining capacity of the disc is reduced and then recording or editing may be disabled (for the second layer on DVD-R DL and +R DL, this happens after about 60 times). ➢ Available disc space display may be different from actual. Variation may be large especially when recorded in DR mode.

The clock does not display on the unit when switched to standby.

The clock does not display when "Power Save in Standby" is activated. Ensure "Power Save in Standby" is set to "Off". (⇒ 101)

TV screen and video

Screen size is wrong.

➢ Check the "TV Aspect" or "Aspect for 4:3 Video". (→ 98) Adjust the aspect ratio setting on TV. Refer to your TV's operating instructions. If the 16:9 aspect ratio image is output to a 4:3 TV and the image will be stretched vertically, set "TV Aspect" to "4:3". (⇒ 98) ➢ Check "Aspect for Recording" before recording or file conversion. (⇒ 95) If you connect to a 4:3 TV, set "HDMI Video Format" to "576p/480p". (→ 99)

Pictures do not appear with the HD quality although HD setting was made.

The pictures are output with 576p/480p depending on the programme.

The screen changes automatically.

If there is no operation for 5 minutes or more, the displayed screen switches to the other states automatically (only when the "Screen Saver" is set to "On"). (⇒ 98)

There is a lot of image lag when playing video.

➢ Set "HD optimizer" in the Picture menu to "Off". (→ 87)

➢ Set "Audio Delay". (⇒ 97)

The images from this unit do not appear on the TV.

The picture is distorted during play, or video will not play correctly.

➢ Check the connection and the TV's input settings.

An incorrect resolution is selected in "HDMI Video Format". Reset the setting as follows:

① While the unit is on, press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds. - “00 RET” is displayed on the unit’s display.

② Repeatedly press [▶] (right) on the remote control or [☐/I] on the main unit until "04 PRG" is displayed on the unit's display.

③ Press and hold [OK] on the remote control or [▲ OPEN/CLOSE] on the main unit for at least 3 seconds.

Set the item again. (⇒ 99)

- When Dolby Digital Plus, Dolby TrueHD, and DTS-HD audio are not output in bitstream, select "Yes" in "Default Settings" and make proper settings. (⇒ 103)

The unit's "TV System" setting differs from the TV system used by the disc now playing. While stopped, keep pressing [■] (STOP) and [▲ OPEN/CLOSE] on the main unit for 5 or more seconds. The system switches from PAL to NTSC or vice versa. (→ 98) Picture may not be seen when more than 4 devices are connected with HDMI cables. Reduce the number of connected devices. The picture may be distorted or a black screen may appear between scenes recorded with different aspect ratios. DVD-R DL and +R DL discs have two writable layers on one side. Video and audio may momentarily cut out when the unit is switching layers. Set "Deep Colour Output" or "Contents Type Flag" to "Off". (⇒ 99)

3D video is not output correctly.

➢ Check the settings on this unit and the TV. (⇒ 51) When a non-3D compatible amplifier/receiver is connected between this unit and a TV, 3D video is not output. (⇒ 106) When the amplifier/receiver which is connected between this unit and a TV is off, 3D video is not output. (⇒ 106) ➢ Discs that have recorded titles with Side by side (2 screen structure) and that can be enjoyed in 3D are played back in accordance with the settings of the TV. When "HDMI Audio Output" is set to "Off", 3D video may not be output correctly. (⇒ 99)

TV reception is not displayed.

Broadcast signals are output from this unit's RF OUT terminal. Select "On" in "RF OUT (Aerial Signal)". (⇒ 102)

Sound

No sound. Distorted sound.

Check the connections or amplifier's settings. (⇔ 10, 106) Select the audio with "Multi Audio". (→ 29, 50) To output audio from a device connected with an HDMI cable, set "HDMI Audio Output" to "On". (⇒ 99)

Cannot switch audio.

You cannot switch the audio if “Digital Audio Output” is set to “Bitstream” (⇒ 97).

Operation

The remote control doesn't work.

The remote control and main unit are using different codes. Change the code on the remote control.

Unit's display

Press and hold [OK] and the indicated number button at the same time for more than 5 seconds. (⇒ 102)

Software (firmware) is updating when "UPD □/□" is displaying on the unit's display. Wait until the update is completed. (⇒ 104) The HOLD function is activated. (⇒ 105)

The unit is on but cannot be operated.

- Drive has not been selected properly.

Cannot tune channels.

▶ Check the connections.

Startup is slow.

• Startup takes time in the following situations: -A disc is inserted. -The clock is not set. -Immediately after a power failure or the AC mains lead is connected. -When the unit is connected with an HDMI cable. -When the BD-J application is executing. -When the "Power Save in Standby" is activated. (⇒ 101)

Recording, timer recording and copying

Cannot record. Cannot copy.

Some broadcasts are copyright protected. ➢ You cannot record to the disc by pressing the [● REC] on the remote control or timer recording. The disc is protected with "DVD Management" or "Blu-ray Disc Management". (→ 88) Some programmes on digital broadcast channels are copy-restricted and the number of times you can copy in DR, HG, HX, HE, HL, HM mode is assigned by the broadcaster.

DVD-R, DVD-RW, +R, +RW: Since it will copy to HDD temporarily, copying is not possible if there is insufficient available capacity on the HDD. Delete unnecessary titles on the HDD (→ 52).

- You cannot copy on finalised discs. - DVD-R, DVD-RW, +R, +RW: Copying or editing may not be possible on these discs after ejecting and loading the disc or turning the unit on/off for approximately 30 times after being copied to.

➢ Discs recorded on equipment other than this unit may not be able to be recorded to.

This unit cannot copy NTSC signals to discs that already have PAL signal recordings. Play of discs recorded with both PAL and NTSC on another unit is not guaranteed.

Cannot record from external equipment.

➢ Check that the connection and input channel is correct. (→ 11)

Timer recording does not work properly.

➢ Refer to “Notes on timer recording” (→ 42).

A part or whole of a recorded title has been lost.

If there is a power failure or the AC mains lead is disconnected from the household mains socket while recording or editing, the title may be lost or the HDD/disc may become unusable. We cannot offer any guarantee regarding lost programmes or discs.

An unusually loud sound is coming from the rotating disc.

If you want copy to perform more quietly, select "Normal (Silent)" in "BD / DVD Speed for High Speed Copy". (→ 95)

Play

Cannot playback.

The disc is dirty, scratched or marked. (⇒ 117) You tried to play a +RW that needs to have a Top Menu on the equipment used for recording. You cannot playback while executing the "Flexible Recording via AV input".

BD-R BD-RE Set "Play Video (AVCHD) on BD-RE / BD-R" to "On" and the playback may be possible (⇒ 94). The disc that is recorded by using other equipment and not finalised may not be able to playback.

Audio and video momentarily pause.

(DVD-R DL and +R DL only) When playing a title recorded on both layers, the unit automatically switches between layers and plays the title in the same way as a normal programme. However, video and audio may momentarily cut out when the unit is switching layers.

BD-Video or DVD-Video is not played.

You have set a rating level. (⇒ 94, BD-Video Parental Control, DVD-Video Parental Control) ➢ Ensure the disc is for the correct BD-Video region code or DVD-Video region number, and is not defective. BD-V You cannot playback while recording from external equipment.

You have forgotten your rating PIN. You want to cancel the rating level.

➢ Refer to "To reset the rating level settings". (→ 115)

Image for the Quick View is not smooth.

Image may not be played back smoothly in case of DR, HG, HX, HE, HL, HM mode titles, AVCHD format titles or BD-Video. This function does not work when recording is in XP or FR mode.

The resume play function does not work.

➢ Memorized positions are cancelled when –open the disc tray. - CD SD USB turn off the unit. (HDD will not be cancelled) This function does not work for some BD-Video disc that contains BD-J.

Cannot play the disc on other players.

BD-RE BD-R Titles may not playback on other Blu-ray Disc player. DVD-R DVD-RW +R +RW The disc must be finalised or have a Top Menu created after recording or copying (⇒ 89). DVD-R The disc created in AVCHD format can only be played back on AVCHD compatible equipment.

Edit

The available recording time doesn't increase even after deleting titles on the disc.

BD-R DVD-R +R Available space on the disc does not increase even after deleting titles. DVD-RW +RW Available space on the disc increases when you delete the last title.

Cannot edit.

You may not be able to edit on the HDD if there is no available space. Delete any unwanted titles to create empty space. (⇒ 52)

Cannot create a playlist.

Creation or editing of playlists cannot be done on this unit.


The contents of the SD card cannot be read.

Remove the card from the slot and then insert again. If this does not solve the problem, turn off and turn on the unit again.

Copying, deleting and setting protection takes a long time.

When there are a lot of folders and files, it may sometimes take a few hours.

Photos (JPEG/MPO) do not playback normally.

The images that were edited on the PC, such as Progressive JPEG, etc., may not play back. (⇒ 122)

Music

Tracks could not be copied to the HDD.

If there are copyright protected tracks such as SCMS restrictions, they will not be copied. Recording from CDs that do not conform to CD-DA specifications (copy control CDs, etc.) cannot be guaranteed.

USB

This unit does not recognize the USB connection correctly.

If a USB device is connected to this unit while using video communication, the connection will not be recognized. Press [EXIT] and reconnect the USB device. If inserted during playback, the USB device may not be recognized by this unit. Disconnect and reconnect the USB device. If it still does not recognize the connection, turn this unit off and on again. USB devices connected using a USB extension cable other than the one supplied with the Wireless LAN Adaptor DY-WL10 (optional) or a USB hub may not be recognized by this unit.

TV Guide

The TV Guide System does not receive any data.

If signal quality is bad (ghost images or limited reception), the TV Guide system may not be able to receive any data.

The empty field is displayed for some or all channels.

Some channels are not supported by the TV Guide system.

The TV Guide information is not displayed properly.

➢ Set the clock correctly. (⇒ 102) There was a programme change, or TV Guide information from a broadcast station was possibly not correctly transmitted. Check the current programme, e.g. on the Web site for the TV Guide system provider or station provider.

The TV Guide data transfer was interrupted.

The TV Guide system shows the data that was received up to the interruption. The programme information may be incomplete.

Broadcast

Picture regularly breaks up on some channels.

Adjust the aerial reception with "Manual Tuning". (→ 93)

Picture very infrequently breaks up on some or all channels.

Electrical atmospheric interference caused by local or distant lightning storms or heavy rain with wind in "leafy" locations may cause pictures to break up and audio to mute or distort momentarily.

After the Auto Setup, there are channels that cannot be seen.

The Auto-setup was started and interrupted. Do an Auto-setup again. (→ 92)

VIERA Link

VIERA Link doesn't work.

Some functions may not work depending on the version of "HDAVI Control" of the connected equipment. This unit supports "HDAVI Control 5" functions. If the connection for the equipment connected with HDMI was changed, or if there was a power failure or the plug was removed from the household mains socket, "HDAVI Control" may not work. In this case, change TV (VIERA) setting for "HDAVI Control" again.

Network To reset this unit

You cannot access this unit from DLNA compatible equipment on the network.

➢ Check the network connection and the network settings. (⇒ 12, 16, 82, 83, 100) It may not be possible to connect depending on the types of the equipment or the status of the equipment.

When using Wireless LAN connection, video from the DLNA Certified media server is not played back or video frames are dropped during playback.

Use 802.11n (2.4 GHz or 5 GHz) Wireless router. Set the encryption type to "AES" (⇒ 100, Wireless Settings). Simultaneous use with a microwave, cordless telephone etc. at 2.4 GHz may result in connection interruptions or other problems. On the "Wireless Settings" screen (⇒ 100), the continuous lighting of at least 4 "Reception" indicators is the target for a stable connection. If 3 or fewer indicators are lit or the connection is being interrupted, change the position or angle of your Wireless router and see if the connection state improves. If there is no improvement, connect to a wired network and perform the "Network Easy Setting" (⇒ 16) again.

To return all the settings to the factory preset

➢ Perform "Shipping Condition" or "Default Settings". (⇒ 103)

To reset the rating level settings

The rating level returns to the factory preset.

① While the unit is on, press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds. - “00 RET” is displayed on the unit's display. ② Repeatedly press [▶] (right) on the remote control or [⏻/l] on the main unit until "03 VL" is displayed on the unit's display. ③ Press [OK] on the remote control or [▲ OPEN/CLOSE] on the main unit. - “INTI” is displayed on the unit's display.

To reset the Owner ID settings

Reset the Owner ID as follows:

① While the unit is off, press and hold [OK], the yellow button and the blue button on the remote control at the same time for more than 5 seconds. - “00 RET” is displayed on the unit's display. ② Repeatedly press [▶] (right) on the remote control or [⏻/l] on the main unit until "03 VL" is displayed on the unit's display. ③ Press and hold [STOP ■] on the remote control for more than 3 seconds. - “02 OII” is displayed on the unit's display. ④ Press [OK] on the remote control or [▲ OPEN/CLOSE] on the main unit.

■ Indemnity concerning recorded content

Panasonic does not accept any responsibility for damages directly or indirectly due to any type of problems that result in loss of recording or edited content (data), and does not guarantee any content if recording or editing does not work properly. Likewise, the above also applies in a case where any type of repair is made to the unit (including any other non-HDD related component).

Cleaning

This unit

●Wipe with a soft, dry cloth. - Never use alcohol, paint thinner or benzine to clean this unit. - Before using chemically treated cloth, carefully read the instructions that came with the cloth.

This unit's lens

Use the Lens cleaner (not supplied) to clean the unit's lens

Lens cleaner: RP-CL720AE

● This lens cleaner may not be available for sale in all countries, e.g. not available in Germany, please consult your Panasonic dealer for advice.

Setup precautions

• Place the unit on a surface that is flat and not subject to vibration or impact.
• Do not place on anything that generates heat like a VCR, etc.
• Place in an area where condensation does not occur. Conditions where condensation may occur

- When there is an extreme change in temperature (moving from a very hot location to a very cold location, or vice versa, or when subjected to an air conditioner or when cooled air directly impacts the unit).

- When there is high humidity or a lot of steam in the room. - During the rainy season.

In the above situation, without turning the unit on, let the unit adjust to the room temperature and wait 2–3 hours until condensation is gone.

■ Cigarette smoke etc. causes malfunction or breakdown

The unit may breakdown if cigarette smoke or bug spray/vapour, etc. gets inside the unit.

When moving the unit

Before moving the unit, ensure the disc tray is empty. ① Turn the unit off. (Wait until "BYE" disappears from the display.) ② Remove the AC mains lead from the household mains socket. ③ Move only after the unit has come to a complete stop (approx. 3 minutes) in order to avoid subjecting to vibration and shock. (Even after turning the unit off, the HDD continues operating for a short time.)

HDD (Hard disk drive) handling care

The HDD is a high precision recording instrument and because of its long recording capability and high speed operation it is a very special device that is easily susceptible to damage.

As a basic rule, save important content to a disc as backup.

■ The HDD is a device that is not built to withstand vibration/shock or dust

Depending on the setup environment and handling of the HDD, some content may become damaged and playback and recording may no longer be possible.

Especially during operation, do not subject the unit to any vibration, shock, or remove the AC mains lead from the household mains socket. In the event of a power failure during recording or playback, the content may be damaged.

■ The HDD is a temporary storage device

The HDD is not an everlasting storage device for recorded content. Use the HDD as a temporary storage place for one-off viewing, editing, or copying. It is recommended to save the recorded content on a disc or to keep the original data or CDs that they were copied from.

■ Immediately save (backup) all content as soon as you feel there may be a problem with the HDD

If there is an irregularity within the HDD, repetitive strange sounds or problems with picture (block noise, etc.) may result. Using the HDD in this condition may worsen the problem and in the worst case the HDD may no longer be usable. As soon as you notice this type of problem, copy all content to disc and request service. Recorded content (data) on a HDD that has become unusable is unrecoverable.

Media handling

■ How to hold a disc or SD card

Do not touch the recorded surface or the terminal surface.

DO

DO NOT

■ If there is dirt or condensation on the disc

Wipe with a damp cloth and then wipe dry.

DO DO NOT

Handling precautions

• Do not attach labels or stickers to discs.
• Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids, or any other solvent.
• Do not use ballpoint pens or other hard writing implements when writing on the label side of the disc.
• Do not expose the terminals of the SD card to water, garbage, or other foreign substances.
• Do not drop, stack, or impact discs. Do not place objects on them.
• Do not use the following discs: –Discs with exposed adhesive from removed stickers or labels (rental discs, etc.).
• Discs that are badly warped or cracked.

-Irregularly shaped discs, such as heart shapes.

• Do not place in the following areas: -In direct sunlight. -In very dusty or humid areas. -Near a heater.
• Locations susceptible to significant temperature differences (condensation can occur). -Where static electricity or electromagnetic waves occur.

Operations that can be performed simultaneously

Operations that can be performed while recording or copying a title

(○: Possible, -: Impossible)

	Playback of HDD	Playback of discs	Playback of SD Card	Playback of photo	Playback of music recorded on HDD
While recording programme	*1	*1,2	*1	- ○
While recording from external equipment	*1	*1,2,3,4	*1,3	- ○
While copying in normal speed mode	- - - -
While copying in high speed mode [With finalising or creating Top Menu (+RW)]	-	-	-	-	-
While copying in high speed mode [Without finalising or creating Top Menu (+RW)]	○ -	-	-	-

※1 Titles recorded in 1080/60p cannot be played back. ※2 DivX and MKV video cannot be played back. ※3 AVCHD format titles cannot be played back. *4 BD-Video cannot be played back. - Simultaneous operation is not possible while executing "Flexible Recording via AV input".

Starting the timer recording while executing other operation

Executing operation	Starting of the timer recording	Executing operation	Starting of the timer recording
Recording the title*1	○ Executing “Flexible Recording via AV input”*4	○
Playing the title*2, 3	○ Executing PAUSE LIVE TV/ REWIND LIVE TV*1	○
Editing the title ○ Editing photo or music –
Copying a title in high speed mode (without finalising or creating Top Menu)	○ Copying photos –
Copying a title in high speed mode (with finalising or creating Top Menu)	– Copying music –
Copying a title in normal speed mode	– Formatting –
Converting a title in “File Conversion” (Only when “Now” is selected)	– Finalising/Creating Top Menu –
Copying HD Video (AVCHD format)	–

*1 The operation will terminate when simultaneous recording is being done and timer recording starts.

*2 Playback of BD-Video will terminate when the timer recording starts from external equipment.

*3 [BWT800] When "Pure Sound mode" is set to "On", timer recording does not start during playback of BD-Video, DVD-Video, or music CD. (See page 94)

*4 The executing operation will be terminated.

Regarding DivX

ABOUT DIVX VIDEO:

DivX® is a digital video format created by DivX, Inc.

This is an official DivX Certified® device that plays DivX video.

Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND:

This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies.

To obtain your registration code, locate the DivX VOD section in your device setup menu.

Go to vod.divx.com for more information on how to complete your registration.

BD-R DVD-R CD USB

- Video images of the copyright-protected DivX VOD contents stored on USB device can be output only through the HDMI output terminal.

■ Display the unit's registration code.

1 Press [FUNCTION MENU]. 2 Select "Setup" in "Others", then press [OK]. 3 Select "DivX Registration" in "Others", then press [OK].

DivX Registration screen before registration

-10 alphanumeric characters

• After playing DivX VOD content for the first time, the registration code is not displayed.
• If you purchase DivX VOD content using a registration code different from this unit's code, you will not be able to play this content.

To cancel the unit's registration

Select "Yes" in "DivX Registration".

Use the deregistration code to cancel the registration in www.divx.com.

Regarding DivX VOD content that can only be played a set number of times

Some DivX VOD contents can only be played a set number of times. When you play this content, the number of times already played and initially playable number of times is displayed.

- The remaining number of plays decreases each time a programme is played. However, when playing from the point where play was previously stopped, the remaining number of plays does not decrease due to the resume play function.

Specifications

Specifications are subject to change without notice.

General

Dimensions (W×H×D):

BWT800 430 mm×66 mm×238 mm

BWT700 430 mm×59 mm×238 mm

(excluding the projecting parts)

BWT800 430 mm×66 mm×249 mm

BWT700 430 mm×59 mm×249 mm

(including the projecting parts)

Mass:

BWT800 Approx. 3.2 kg

BWT700 Approx. 3.1 kg

Power supply: AC 220 to 240 V, 50 Hz

Power consumption: BWT800 Approx. 36 W

BWT700 Approx. 34 W

"Power Save in Standby" is activated and "RF

OUT (Aerial Signal) is set to "Off"

Approx. 0.2 W

"Power Save in Standby" is not activated

Approx. 6.0 W

Operating temperature:

5°C to 40°C

Operating humidity range: 10 % to 80 % RH

(no condensation)

TV system

Tuner System: DVB-T, T2

Country: UK

Channel Coverage: UHF 21~68

RF converter output: Not provided

Video

Video system: PAL/NTSC

Recording system:

MPEG2 (Hybrid VBR)

MPEG-4 AVC/H.264

Video in (PAL/NTSC):

AV1/AV2 (21 pin)

1 Vp-p (75 Ω)

S-Video in (PAL/NTSC):

RGB in (PAL) BWT800:

AV2 (21 pin) 1 Vp-p (75 Ω)

Video out (PAL/NTSC): AV1/AV2 (21 pin),

Video Out (pin jack) 1 Vp-p (75 Ω)

S-Video out (PAL/NTSC):

AV1 (21 pin) 1 Vp-p (75 Ω)

RGB out (PAL):

AV1 (21 pin) 0.7 Vp-p (75 Ω)

Audio

Recording system:

Dolby Digital (2ch) (XP, SP, LP, EP mode)

Dolby Digital (Max 5.1ch)

(DR, HG, HX, HE, HL, HM mode)

Dolby Digital Plus (Max 5.1ch) (DR mode)

MPEG (2ch) (DR mode)

HE-AAC (5.1ch (DVB-T/T2)) (DR mode)

Audio in: AV1/AV2 (21 pin)

Input level: Standard: 0.5 Vrms,

Full scale: 2.0 Vrms at 1 kHz

Input impedance: More than 10 kΩ

Audio out: AV1/AV2 (21 pin),

Audio Out L/R (pin jack)

Output level: Standard: 0.5 Vrms,

Full scale: 2.0 Vrms at 1 kHz

Output impedance: Less than 1 kΩ

Digital audio out:

Optical terminal

(PCM, Dolby Digital, DTS, MPEG)

Coaxial terminal

(PCM, Dolby Digital, DTS, MPEG)

HDMI terminal

(PCM, Dolby Digital, DTS, MPEG,

Dolby Digital Plus, Dolby TrueHD,

DTS-HD Master Audio,

DTS-HD High Resolution Audio)

■ HDMI Output

BWT800 19 pin type A: 2 pcs

BWT700 19 pin type A: 1 pc

●This unit supports "HDAVI Control 5" function.

■ Other terminals

USB Port

Type A: 2 pcs

SD Card Slot

1 pc

LAN (Ethernet) Port

10BASE-T/100BASE-TX

■ Internal HDD capacity

BWT800 500 GB

BWT700 320 GB

WLAN BWT800

Antenna:

Tx 1, Rx 2

Standard compliance:

IEEE802.11n/IEEE802.11a/

IEEE802.11g/IEEE802.11b

Transmission system: MISO-OFDM system/

OFDM system/DSSS system

Frequency Range:

IEEE802.11n / IEEE802.11a

5.15 GHz-5.35 GHz, 5.47 GHz-5.725 GHz

IEEE802.11g / IEEE802.11b / IEEE802.11n

2.4 GHz-2.4835 GHz

Transfer rate (standard) ¹ :

IEEE802.11n

Tx Max 150 Mbps/

Rx Max 300 Mbps

IEEE802.11g / IEEE802.11a Max 54 Mbps

IEEE802.11b

Max 11 Mbps

Access mode:

Infrastructure mode

Security *2:

WPA2-PSK (TKIP/AES)/

WPA-PSK (TKIP/AES)/

WEP (64 bit/128 bit)

*1 Transfer rates are theoretical values; however, actual communication rate will vary according to communication environment or connected equipment.

*2 This unit supports WPA and WPA2 encryption.

■ Recordable discs

BD-RE (SL/DL): 1-2X SPEED (Ver. 2.1)

BD-R (SL/DL): 1-2X SPEED (Ver. 1.1),

1-4X SPEED (Ver. 1.2),

1-6X SPEED (Ver. 1.3),

1-2X SPEED LTH type (Ver. 1.2),

1-6X SPEED LTH type (Ver. 1.3)

DVD-RAM: 2X SPEED (Ver. 2.0),

2-3X SPEED (Ver. 2.1),

2-5X SPEED (Ver. 2.2)

DVD-R (SL): 1X SPEED (Ver. 2.0),

1-4X SPEED (Ver. 2.0),

1-8X SPEED (Ver. 2.0),

1-16X SPEED (Ver. 2.1)

DVD-R (DL): 2-4X SPEED (Ver. 3.0),

2-8X SPEED (Ver. 3.0)

DVD-RW: 1X SPEED (Ver. 1.1),

1-2X SPEED (Ver. 1.1),

2-4X SPEED (Ver. 1.2),

2-6X SPEED (Ver. 1.2)

+R (SL): 2.4X SPEED (Ver. 1.0),

2.4-4X SPEED (Ver. 1.1),

2.4-8X SPEED (Ver. 1.2),

2.4-16X SPEED (Ver. 1.3)

+R (DL): 2.4X SPEED (Ver. 1.0),

2.4-8X SPEED (Ver. 1.1)

+RW: 2.4X SPEED (Ver. 1.1),

2.4-4X SPEED (Ver. 1.2)

■ Optical pick-up

System with 2 lens, 3 integration units

(405 nm wavelength for BDs,

661 nm wavelength for DVDs,

783 nm wavelength for CDs)

■ LASER specification

Class 1 LASER Product

Wave length:

405 nm (BDs)

661 nm (DVDs)

783 nm (CDs)

Laser power:

No hazardous radiation is emitted with the safety protection

■ Recording system

BD-RE (SL/DL): Blu-ray Disc Rewritable Format

BD-R (SL/DL): Blu-ray Disc Recordable Format

DVD-RAM: DVD Video Recording format

DVD-R (SL/DL): DVD-Video format

DVD-RW: DVD-Video format

+R (SL/DL), +RW

■ Copying speed from HDD to BD-R in High Speed Copy

Approx.

HDD
Recording Mode	Recorded Programme
HM	1 hour

6X Speed BD-R (DL, 50 GB/SL, 25 GB)
Required time	Speed
1 min.	60x

- The above rate in the list indicates the shortest time and fastest speed required for copying one-hour title from HDD to the disc by High-Speed copying.

- The required amount of time and speed may vary depending on the conditions such as the area where information is written or unique feature on the disc.

■ Region code

DVD: #2

BD: Region B

■ Playable discs

BD-Video (Blu-ray 3D, BD-Live)

BD-ROM Version 2.4

BD-RE: Ver. 2.1, JPEG, MPO

BD-RE DL: Ver. 2.1, JPEG, MPO

BD-R: Ver. 1.3, LTH type Ver 1.3, DivX⁴, MKV⁴

BD-R DL: Ver 1.3, DivX⁴, MKV⁴

DVD-RAM: DVD Video Recording format,

AVCHD format, JPEG, MPO

DVD-R: DVD-Video format¹,

DVD-Video Recording format^*1,

AVCHD format¹, JPEG², MPO², MP3²,

DivX²,³, MKV²,³

DVD-R DL: DVD-Video format¹.

DVD-Video Recording format¹,

AVCHD format¹, JPEG², MPO², MP3²,

DivX²,³, MKV²,³

DVD-RW: DVD-Video format⁴,

DVD Video Recording format¹,

AVCHD format¹

+R: Video¹, AVCHD format¹

+R DL: Video¹, AVCHD format¹

+RW: Video¹, AVCHD format¹

DVD-Video: DVD-Video format

CD-Audio: CD-DA

CD-R/CD-RW: CD-DA, JPEG², MPO², MP3²,

DivX 2, MKV 2

Note 1: Finalising is necessary.

Note 2: ISO9660 level 1 or 2 (except for extended

formats), Joliet

This unit is compatible with multi-session.

This unit is not compatible with packet writing.

Note 3: UDF1.02 without ISO9660, UDF1.5 with

ISO9660

Note 4: UDF2.5

Specifications

SD Card

Compatible media: SD Memory Card *1

Format: FAT12, FAT16, FAT32 2, exFAT 3

Data that can be played: JPEG, MPO, AVCHD format, MPEG-2

Note 1: Includes SDHC, SDXC card. Includes miniSD™ cards (need a miniSD™ adaptor). Includes microSD™/microSDHC™/microSDXC™ cards (need a microSD™ adaptor). Note 2: Not support long file name. Note 3: SDXC only

USB device

USB standard: USB 2.0 High Speed Format: FAT12, FAT16, FAT32 Data that can be played: MP3, JPEG, MPO, DivX, MKV

Audio information

The audio output differs depending on which terminals are connected to the amplifier/receiver, and the setting on this unit. (=> 97, Digital Audio Output)

- The number of channels listed is the maximum possible number of output channels when connected to amplifier/receiver compatible with the respective audio format.

Terminal	“Digital Audio Output”
	“Bitstream”	“PCM”
HDMI AV OUT	Output using original audio*1	BD-Video: 7.1ch PCM *1,2 DVD-Video: 5.1ch PCM
DIGITAL AUDIO OUT	Dolby Digital/ DTS Digital Surround	Down-mixed 2ch PCM

*1 When "BD-Video Secondary Audio" is set to "On", the audio will be output as Dolby Digital, DTS Digital Surround or 5.1ch PCM. *2 The audio output is amplified from 5.1ch or 6.1ch to 7.1ch depending on the DTS, Inc. specifications.

About JPEG/MPO/MP3/DivX/MKV/MPEG2/AVCHD files

JPEG/MPO

playable media: HDD, BD-RE (SL/DL), DVD-RAM, DVD-R, DVD-R DL, CD-R, CD-RW, SD Card, USB device

Compatible pixels:

Between 34×34 and 8192×8192 pixels (Sub sampling is 4:2:2 or 4:2:0)

Files: JPEG conforming DCF (Design rule for Camera File system) MPO conforming MPF (Multi Picture Format)

Maximum numbers of folders and files:

Media	Maximum folders	Maximum files
HDD	500	20000
BD-RE	500	10000
DVD-RAM	500	10000
DVD-R	500	10000
CD-R, CD-RW	500	10000
SD Card	500	10000
USB device	500	10000

• JPEG files must have the extension ".jpg" or ".JPG".
• MPO files must have the extension ".mpo" or ".MPO".
• This unit is not compatible with MOTION JPEG or PROGRESSIVE JPEG.

MP3

Playable media: HDD, DVD-R, DVD-R DL, CD-R, CD-RW, USB device

Compression rate: 32 kbps to 320 kbps Sampling rate: 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz

Maximum numbers of folders and files:

Media	Maximum folders	Maximum files
HDD	-	40000
DVD-R	300	3000
CD-R, CD-RW	300	3000
USB device	300	3000

- MP3 files must have the extension ".mp3" or ".MP3".

DivX

Playable media: BD-R (SL/DL), DVD-R, DVD-R DL, CD-R, CD-RW, USB device

Official DivX Certified® product DivX Certified to play DivX video up to HD 1080p, including premium content. GMC (Global Motion Compensation) is not supported.

Maximum number of folders: 300 folders (including the root folder) Maximum number of files: 200 files

- Support version

Extension

Files must have the extension ".DIVX", ".divx", ".AVI" or ".avi".

Picture resolution

Up to 1920×1080 pixels

Video

– Number of streams: Up to 1 - Codec: DIV3, DIV4, DIVX, DV50, DIV6 – FPS (Frames Per Second): Up to 60 fps

Audio

– Number of streams: Up to 8 - Format: MP3, MPEG, Dolby Digital - Multi-channel: Dolby Digital is possible. MPEG multi is 2-channel conversion.

- DVD-R and DVD-R DL must conform to UDF 1.02 without ISO9660 and UDF 1.5 with ISO9660.

MKV

Playable media: BD-R (SL/DL), DVD-R, DVD-R DL, CD-R, CD-RW, USB device

MPEG-4 AVC (H.264) profile is up to High Profile, Level 4. AAC-LC, MP3, Dolby Digital audio, DTS and PCM can be decoded.

Maximum number of folders: 300 folders (including the root folder) Maximum number of files: 200 files

- MKV files must have the extension ".MKV" or ".mkv".

■ SD-Video (Standard Definition)

Playable media: SD Card ¹ , USB device ² Codec: MPEG2 File Format:

SD-Video format ^※3 used on Standard Definition Camera (Panasonic and some other's)

※1 Video Recording conversion and transfer is possible from SD card to HDD or DVD-RAM disc. After Video Recording conversion and transfer to HDD or DVD-RAM disc is completed, the playback becomes possible.

*2 Video Recording conversion and transfer is possible from USB device to HDD or DVD-RAM disc. After Video Recording conversion and transfer to HDD or DVD-RAM disc is completed, the playback becomes possible. *3 SD-Video Entertainment Video Profile

■ HD-Video (High Definition)

* Playable media: SD Card, USB device Codec: MPEG-4 AVC/H.264 File Format: AVCHD format conforming * Video Recording conversion and transfer is possible from USB device to HDD, BD-RE (SL/DL) or BD-R (SL/DL) disc. After Video Recording conversion and transfer to HDD, BD-RE (SL/DL) or BD-R (SL/DL) disc is completed, the playback becomes possible.

Recording modes and approximate recording times

Depending on the content being recorded, the recording time may become shorter than indicated.

DR mode

Recording Mode HDD	BD-RE/BD-R
	BWT800(500 GB)	BWT700(320 GB)	Single Layer(25 GB)	Dual Layer(50 GB)
DR (HD quality)	129 hours	79 hours	6 hours 30 min.	13 hours
DR (SD quality)	258 hours	154 hours	13 hours	26 hours

- Recording time of DR mode may vary depending on bit rate of broadcasting:

●High Definition (HD) quality: estimated bit rate is 8 Mbps - Standard Definition (SD) quality: estimated bit rate is 4 Mbps

- Regarding recording time remaining:

Remaining time in the DR mode is calculated with a bit rate of approx. 8 Mbps. But the bit rate differs depending on the broadcast, so the displayed remaining time might be different from the actual remaining time.

■ Other recording modes

Recording Mode	HDD		BD-RE/BD-R		DVD-RAM		DVD-R DVD-RW +R +RW (4.7 GB)	DVD-R DL +R DL (8.5 GB)
	BWT800(500 GB)	BWT700(320 GB)	Single Layer (25 GB)	Dual Layer (50 GB)	Single-sided (4.7 GB)	Double-sided (9.4 GB)
HG	78 hours	48 hours	4 hours	8 hours	-	-	-	-
HX	117 hours	73 hours	6 hours	12 hours	-	-	-	-
HE	176 hours	110 hours	9 hours	18 hours	-	-	-	-
HL	235 hours	147 hours	12 hours	24 hours	-	-	-	-
HM	341 hours	214 hours	17 hours 30 min.	35 hours	-	-	-	-
XP	107 hours	66 hours	5 hours 15 min.	10 hours 30 min.	1 hour	2 hours	1 hour	1 hour 45 min.
SP	215 hours	134 hours	10 hours 30 min.	21 hours	2 hours	4 hours	2 hours	3 hours 35 min.
LP	430 hours	269 hours	21 hours	42 hours	4 hours	8 hours	4 hours	7 hours 10 min.
EP (6 hours)*	645 hours	404 hours	31 hours 30 min.	63 hours	6 hours	12 hours	6 hours	10 hours 45 min.
EP (8 hours)	860 hours	538 hours	42 hours	84 hours	8 hours	16 hours	8 hours	14 hours 20 min.

※ When “Recording time in EP mode” is set to “6 hours” ( ⇒ 95)

●Regarding recording time remaining:

This unit records using a VBR (Variable bit rate) data compression system to vary recorded data segments to match video data segments which may cause differences in the displayed amount of time and space remaining for recording.

Maximum number of titles that can be recorded

HDD 999 titles	(When continuously recording for long durations, titles are automatically divided every 8 hours.)
BD-RE/BD-R 200 titles on one disc.
DVD-RAM/DVD-R/DVD-R DL/ DVD-RW	99 titles on one disc.
+R/+R DL/+RW 49 titles on one disc.

Licenses

Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries.

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio | Essential and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

SDXC Logo is a trademark of SD-3C, LLC.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

"DVD Logo" is a trademark of DVD Format/Logo Licensing Corporation.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

Skype, associated trade marks and logos and the "S" logo are trade marks of Skype Limited.

The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries.

DivX ®, DivX Certified ® and associated logos are trademarks of DivX, Inc. and are used under license.

This product incorporates the following software or technology:

(1) the software developed independently by or for Panasonic Corporation,

(2) the software owned by third party and licensed to Panasonic Corporation,

(3) the software developed by the Independent JPEG Group,

(4) the software developed by the Freetype Project,

(5) the software licensed under the GNU LESSER General Public License (LGPL) and/or,

(6) open sourced software other than the software licensed under the LGPL.

(7) Windows Media digital right management technology (WM-DRM) licensed by Microsoft Corporation or its affiliates

For the software categorized as (5), please refer to the terms and conditions of LGPL, as the case may be at http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html In addition, the software categorized as (5) are copyrighted by several individuals. Please refer to the copyright notice of those individuals at http://www.am-linux.jp/dl/FCRCP11/

The LGPL software is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

At least three (3) years from delivery of products, Panasonic will give to any third party who contact us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under LGPL.

Contact Information [e-mail]

Source code covered under LGPL is also freely available to you and any other member of the public via our website below. http://www.am-linux.jp/dl/FCRCP11/

For the software categorized as (5) and (6), please refer to the applicable license terms included in the "Software Licence" menu on product.

Further, for WM-DRM categorized as (7), please be aware of the following.

(a) This product is protected by certain intellectual property rights of Microsoft.

Use or distribution of this technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

(b) Content providers are using the digital rights management technology for Windows Media contained in this device ("WM-DRM") to protect the integrity of their content ("Secure Content") so that their intellectual property, including copyright, in such content is not misappropriated. This device uses WM-DRM software to play Secure Content ("WM-DRM Software"). If the security of the WM-DRM Software in this device has been compromised, owners of Secure Content ("Secure Content Owners") may request that Microsoft revoke the WM-DRM Software's right to acquire new licenses to copy, display and/or play Secure Content.

Revocation does not alter the WM-DRM Software's ability to play unprotected content. A list of revoked WM-DRM Software is sent to your device whenever you download a license for Secure Content from the Internet or from a PC. Microsoft may, in conjunction with such license, also download revocation lists onto your device on behalf of Secure Content Owners.

This product is licensed under the AVC patent portfolio license and VC-1 patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard and VC-1 Standard ("AVC/VC-1 Video") and/or (ii) decode AVC/VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC/VC-1 Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

"AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation.

HDAVI Control™ is a trademark of Panasonic Corporation.

VIERA CAST is a trademark of Panasonic Corporation.

YouTube and Picasa are trademarks of Google, Inc.

The FREEVIEW service is subject to coverage. An aerial upgrade may be required. The FREEVIEW, FREEVIEW+, FREEVIEW HD and FREEVIEW+ HD words and logos are trade marks of DTV Services LTD. DTV Services Ltd 2002, 2008.

GUIDE Plus+, SHOWVIEW are (1) registered trademarks or trademarks of, (2) manufactured under license from and (3) subject of various international patents and patent applications owned by, or licensed to, Rovi Corporation and/or its related affiliates.

ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.

http://www.europe.guideplus.com/

Gracenote® Corporate Description

Music and video recognition technology and related data are provided by Gracenote®. Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.

Gracenote® Proprietary Legends

CD, DVD, Blu-ray Disc, and music and video-related data from Gracenote, Inc., copyright © 2000 to present Gracenote. Gracenote Software, copyright © 2000 to present Gracenote. One or more patents owned by Gracenote apply to this product and service. See the Gracenote website for a non-exhaustive list of applicable Gracenote patents. Gracenote, CDDB, MusicID, MediaVOCS, the Gracenote logo and logotype, and the "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

Gracenote® End User License Agreement

This application or device contains software from Gracenote, Inc. of Emeryville, California ("Gracenote"). The software from Gracenote (the "Gracenote Software") enables this application to perform disc and/or file identification and obtain music-related information, including name, artist, track, and title information ("Gracenote Data") from online servers or embedded databases (collectively, "Gracenote Servers") and to perform other functions. You may use Gracenote Data only by means of the intended End-User functions of this application or device.

You agree that you will use Gracenote Data, the Gracenote Software, and Gracenote Servers for your own personal non-commercial use only. You agree not to assign, copy, transfer or transmit the Gracenote Software or any Gracenote Data to any third party. YOU AGREE NOT TO USE OR EXPLOIT GRACENOTE DATA, THE GRACENOTE SOFTWARE, OR GRACENOTE SERVERS, EXCEPT AS EXPRESSLY PERMITTED HEREIN.

You agree that your non-exclusive license to use the Gracenote Data, the Gracenote Software, and Gracenote Servers will terminate if you violate these restrictions. If your license terminates, you agree to cease any and all use of the Gracenote Data, the Gracenote Software, and Gracenote Servers. Gracenote reserves all rights in Gracenote Data, the Gracenote Software, and the Gracenote Servers, including all ownership rights. Under no circumstances will Gracenote become liable for any payment to you for any information that you provide. You agree that Gracenote, Inc. may enforce its rights under this Agreement against you directly in its own name.

The Gracenote service uses a unique identifier to track queries for statistical purposes. The purpose of a randomly assigned numeric identifier is to allow the Gracenote service to count queries without knowing anything about who you are. For more information, see the web page for the Gracenote Privacy Policy for the Gracenote service.

The Gracenote Software and each item of Gracenote Data are licensed to you "AS IS." Gracenote makes no representations or warranties, express or implied, regarding the accuracy of any Gracenote Data from in the Gracenote Servers. Gracenote reserves the right to delete data from the Gracenote Servers or to change data categories for any cause that Gracenote deems sufficient. No warranty is made that the Gracenote Software or Gracenote Servers are error-free or that functioning of Gracenote Software or Gracenote Servers will be uninterrupted. Gracenote is not obligated to provide you with new enhanced or additional data types or categories that Gracenote may provide in the future and is free to discontinue its services at any time.

GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. GRACENOTE DOES NOT WARRANT THE RESULTS THAT WILL BE OBTAINED BY YOUR USE OF THE GRACENOTE SOFTWARE OR ANY GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY LOST PROFITS OR LOST REVENUES.

Index

A

Amplifier (Connection)

DIGITAL AUDIO OUT terminal 107

HDMI AV OUT terminal 106, 107

Aspect 98,105

Audio

Broadcasts 29

Digital Audio 122

Playback 50

Audio Description 29, 50, 93

Auto Setup 14,92

AVCHD 44,64,77,123

B

Batteries 3

BD-Live 43, 94

BD-Video

BD-Live 43, 94

Picture-in-picture 43

Playback 43

3D 51

BD-Video Parental Control 94

C

Change Thumbnail 54

Channel information 28

Channel List 28

Edit 92

Chapter 48, 56

Chapter Creation 95

Child Lock 93, 94

Clock 102

Connection 10

Amplifier 106

Audio/Video terminals 107

Basic connection 10

HDMI cable 10, 106, 107

Network 12

Set Top Box 11

Copy (Music) 73

Copy (Photo) 71

Copy (Video) 57

Copy title playing 64

Finalised disc 65

HD Video (AVCHD) 64,77

SD Video (MPEG2) 78

Create Top Menu 89

D

Delete

Delete BD-Video data 89

Music 76

Photo 70

Video 52

Delete all photos

HDD 95

Delete all titles

Disc 88

HDD 95

Delete BD-Video data

Digital text 29

DIRECT NAVIGATOR

Music 74

Photo 67

Video 46

Disc

Create Top Menu 89

Delete all titles 88

Finalise 89

Format 88

Media information 20

Playback menu 86

Protection 88

Top menu 89

Display Navigation

Divide Title 54

DivX 119, 123

Play 44

DLNA

Client 83

Server 82,101

DVD-Video

Playback 43

DVD-Video Parental Control 94

E

Easy setting 14

Edit (Music) 76

Edit (Photo) 69

Edit (Video) 53

Chapter 48,56

Delete 52,53

File Conversion 55

Protection 53

Entering text 90

F

Favourites 92

File Conversion 55

Finalise 89

Format

Disc 88

HDD 95

SD Card 88

Freeview 38

FUNCTION MENU 25

G

Gracenote® Database 73

H

HD Video (AVCHD) 123

Copy 64,77

Play 44

HDAVI Control 84,99

HDD

Delete all photos 95

Delete all titles 95

Format 95

Media information 20

HDMI cable 11

HOLD function 105

|

Information

Music 75

Video 47

J

JPEG 66,122

L

Language code list 103

Lens cleaner 116

Linked Timer Recording 80

M

Manual Tuning 93

Media

Disc 20-22

HDD 20

SD Card 21,23

USB memories 21, 23

Menu screen 25

MKV 123

Play 44

MPEG2 78,123

MPO 66,122

MP3 73,122

Music

Copy 73

Delete 76

DIRECT NAVIGATOR 74

Edit 76

Gracenote® Database 73

Playback 73

N

Network

BD-Live 43

Connection 12

DLNA (Client) 83

Software (Firmware) Update .....104

VIERA CAST 81

Network easy setting 16, 100

P

Partial Delete ....53

PAUSE LIVE TV 30


Copy 71

Delete 70

DIRECT NAVIGATOR 67

Edit 69

Playback .66

Protection 70

Slideshow 66,75


Playback menu .87

Picture-in-picture 43

PIN 91

Play

Playback menu 86

Playback (Music)

Audio CD 73

MP3 73

Recorded on HDD 74

Playback (Photo) 66

Slideshow 66,75

Playback (Video)

BD-Video 43

BD-Video Parental Control .....94

Changing audio .50

Chapter 48

Child Lock 94

DivX 44

DVD-Video 43

DVD-Video Parental Control .94

Playlist created on other equipment .....44

Recorded video contents 44

Status message 49

Subtitles 50

3D 51

Index

Playback menu

Disc 86

Other 87

Picture 87

Play 86

Sound 87

Power Save in Standby 101

Protection

Disc 88

HOLD function 105

Photo 70

SD card 23

Video 53

Pure Sound Mode 94

R

Recording 32

Aspect 95

Direct TV Recording 35

From external equipment 79

Recording Format for DVD 95

Recording mode 19, 124

Recording time 124

Timer recording 36

2 programmes simultaneous recording ..... 35

Recording mode 19, 124

Remote control 8

HOLD function 105

Manufacturer and Code No. 105

Remote control code 102

TV operation 105

Reset 103, 115

REWIND LIVE TV 30, 95

S

Screen saver 98

SD Card

Format 88

Media information 21, 23

miniSD / microSD 23

Protection 23

SD Video (MPEG2) 123

Copy 78

Setting

Auto Setup 92

Easy setting 14

Network easy setting 16, 100

Setup menu 91

Setup menu 91

Connection 98

Display 98

HDD / Disc 94

Network 100

Others 101

Picture 96

Sound 96

Tuning 92

Signal condition 93

Skype™ 81

Slideshow 66,75

Software (Firmware) Update 104

Sound

Playback menu 87

Specifications 120

Subtitles

Broadcasts 29

Playback 50

T

Timer recording 36

Auto Renewal Recording 40

Confirm and edit 41

Guide Link 38

Manually programming timer recording 40

Recommendation Booking 38

Series Timer Recording 38

Split Programme 38

Top menu 89

Tuning

Channel List 92

Channel Sorting by Region 92

Child Lock 93

Manual Tuning 93

Signal condition 93

Turning on 24

TV Guide

Operation 26

Timer recording 36

TV system 98

U

Unit's display 98

Message 108

USB memories

Media information 21, 23

V

Video

Copy 57

Delete 52

DIRECT NAVIGATOR 46

Edit 53

Playback 43,44

Protection 53

Recording 32

VIERA CAST 81

VIERA Link 84,99

3D 51

The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights in the content you wish to record or playback.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

(Back of product)

DANGER - VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM.FDA 21 CFR/Class IIb

CAUTION - CLASS 38 VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.AVOID EXPOSURE TO THE BEAM.IEC60825-1 +A2/Class 38

ATTENTION - RAYONNEMENT LASER VISIBLE ET INVISIBLE. CLASSE 38, EN CAS D'OUVERTURE. EVITER UNE EXPOSTION AU FAISCEAU.

FORSIGTIG - SYNJLG OG USYNJLG LASERSTRALING KLASSE 38, NÄR LÄGET ER ÅBENT. UNDGÅ AT BLWE UDSAT FOR STRÄLEN.

VARO - AWATÄSSA OLET ALTIINA LUCKAN 39 NÄKYVÄÄ JA NÄKYMÄTÖNTÄ LASERSATELYÄ. VARO ALTISTUMISTA SATEELLE.

VARNING - KLAS 38 SYNJLG OCH OSYNJLG LASERSTRALNING NÄR DENNA DEL AR ÖPPNAD. UNVIK EXPONERING FOR STRÄLEN.

VORSICHT - SICHTBARE UND UNSICHTBARE LASERSTRALUNG KLASSE 39, WENN AIDECKUNG GEÖFFNE. NICHT DEM STRAHL. AUSSEITZEN.

注意 - 打开时有可见及不可见激光辐射。避免光束照射。

注意 - ここを聞くと可視及び不可視レーグ光が出来ます。ビームを見たり、触れたりしないでください。VQL1J70

(Inside of product)

BWT800

CE0560①

Declaration of Conformity (DoC)

Hereby, "Panasonic Corporation" declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Customers can download a copy of the original DoC for our R&TTE products from our DoC server:

http://www.doc.panasonic.de

Contact the Authorised Representative: Panasonic Marketing Europe GmbH,

Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany

This product is intended to be used in the following countries.

Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Iceland, Liechtenstein, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom, Switzerland

This product is intended for general consumer use. (Category 3)

The WLAN feature of this product shall exclusively be used inside buildings.

This product is intended to connect to access points of 2.4 GHz or 5 GHz WLAN.

Sales and Support Information

Customer Care Centre

●For customers within the UK: 0844 844 3852 ●For customers within Ireland: 01 289 8333 - Visit our website for product information www.panasonic.co.uk ●E-mail: [e-mail]

Direct Sales at Panasonic UK

●For customers: 0844 844 3856 - Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre Monday–Thursday 9:00 a.m.–5:30 p.m., Friday 9:30 a.m.–5:30 p.m. (Excluding public holidays). - Or go online through our Internet Accessory ordering application at www.pas-europe.com. - Most major credit and debit cards accepted. ●All enquiries, transactions, and distribution facilities are provided directly by Panasonic UK Ltd. - It couldn't be simpler! - Also available through our Internet is direct shopping for a wide range of finished products; take a browse on our website for further details.

Digital Switchover for Terrestrial broadcasts

Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region. If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk. Digital Switchover will cover a period of several weeks.

When it starts, you will lose all Analogue TV channels and some Digital TV channels will be missing. You will need to retune this unit each time this happens to recover your digital channels.

Pursuant to Directive 2004/108/EC, Article 9(2)

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

EU

Panasonic Corporation

Web Site: http://panasonic.net

En

VQT3C13

F0311SR0
