Product Type	Powerline Adapter Kit
Model	TPL-408E2K
Data Rate	Up to 500 Mbps
Standard	HomePlug AV
Interface	Ethernet 10/100/1000 (1 port per adapter)
Number of Adapters	2
Frequency	2-28 MHz
Modulation	OFDM
Encryption	128-bit AES
Range	Up to 300 meters over house wiring
Power Consumption	Typical: 3 W; Standby: <1 W
Input Voltage	100-240 V AC, 50/60 Hz
Dimensions (Each)	89 x 56 x 33 mm (3.5 x 2.2 x 1.3 in)
Weight (Each)	Approx. 85 g (0.19 lb)
Operating Temperature	0 to 40 °C (32 to 104 °F)
Storage Temperature	-20 to 70 °C (-4 to 158 °F)
Humidity	10% to 90% non-condensing
Security Button	Yes (Pair button for encryption)
LED Indicators	Power, Link/Activity
Plug Type	US (Type B) or EU depending on region
Package Contents	2 adapters, 2 Ethernet cables, quick installation guide
Compliance	FCC, CE, RoHS

Frequently Asked Questions - Powerline 500 TPL-408E2K TRENDNET

How do I set up the TRENDnet Powerline 500 TPL-408E2K?

Plug one adapter into a wall outlet near your router and connect it via Ethernet cable. Plug the second adapter into an outlet in the room where you need internet. Press the Pair button on each adapter (within 2 minutes) to establish a secure connection. The LEDs will turn solid when connected.

What is the maximum data speed of this Powerline adapter?

The TRENDnet TPL-408E2K supports up to 500 Mbps data rate over your home's electrical wiring, ideal for HD streaming, gaming, and browsing.

Can I use these adapters on power strips or surge protectors?

For best performance, plug the adapters directly into a wall outlet. Power strips may filter noise and reduce speed or cause disconnections.

How do I secure my Powerline network?

Press the Pair button on each adapter (within 2 minutes) to activate 128-bit AES encryption. This creates a private network and prevents unauthorized access.

Can I add more adapters to this network?

Yes, you can expand the network by adding other TRENDnet Powerline 500 adapters. Simply press the Pair button on an existing adapter and then on the new one to sync.

What do the LEDs on the adapter indicate?

The Power LED indicates power supply; the Link/Activity LED shows connection status. A solid light means connected with good signal; blinking indicates traffic.

Why is my Powerline connection slow?

Connection speed can be affected by distance, wiring quality, electrical noise from appliances, and using power strips. Try moving the adapters closer together and plugging directly into wall outlets.

Does the Powerline adapter consume electricity when not in use?

Yes, but it has a standby mode consuming less than 1 watt. When connected devices are turned off, the adapter automatically enters low-power mode.

Is this Powerline adapter compatible with other brands?

It is compatible with other HomePlug AV certified devices, but for best performance and security, TRENDnet recommends using adapters from the same family.

How do I reset the adapter to factory defaults?

Press and hold the Pair button for about 10 seconds until the LEDs blink rapidly. This clears all pairing and encryption settings.

USER MANUAL Powerline 500 TPL-408E2K TRENDNET

Two white wireless network devices with ventilation grilles and ports, no visible text or symbols

• Powerline 500 AV2 Adapter
• Powerline 500 AV2 Adapter Kit

TPL-408E/TPL-408E2K

• Quick Installation Guide (1)

TPL-408E_TPL-408E2K (V1) / 09.19.2013

1. Before You Start

Package Contents

• TPL-408E/TPL-408E2K
• CD-ROM (Utility and User's Guide)
• Multi-Language Quick Installation Guide
• Network cable (1.5 m / 5 ft.)

System Requirements

• A Desktop or Laptop PC with wired network adapter installed
• Additional HomePlug AV or IEEE 1901 compliant powerline adapter

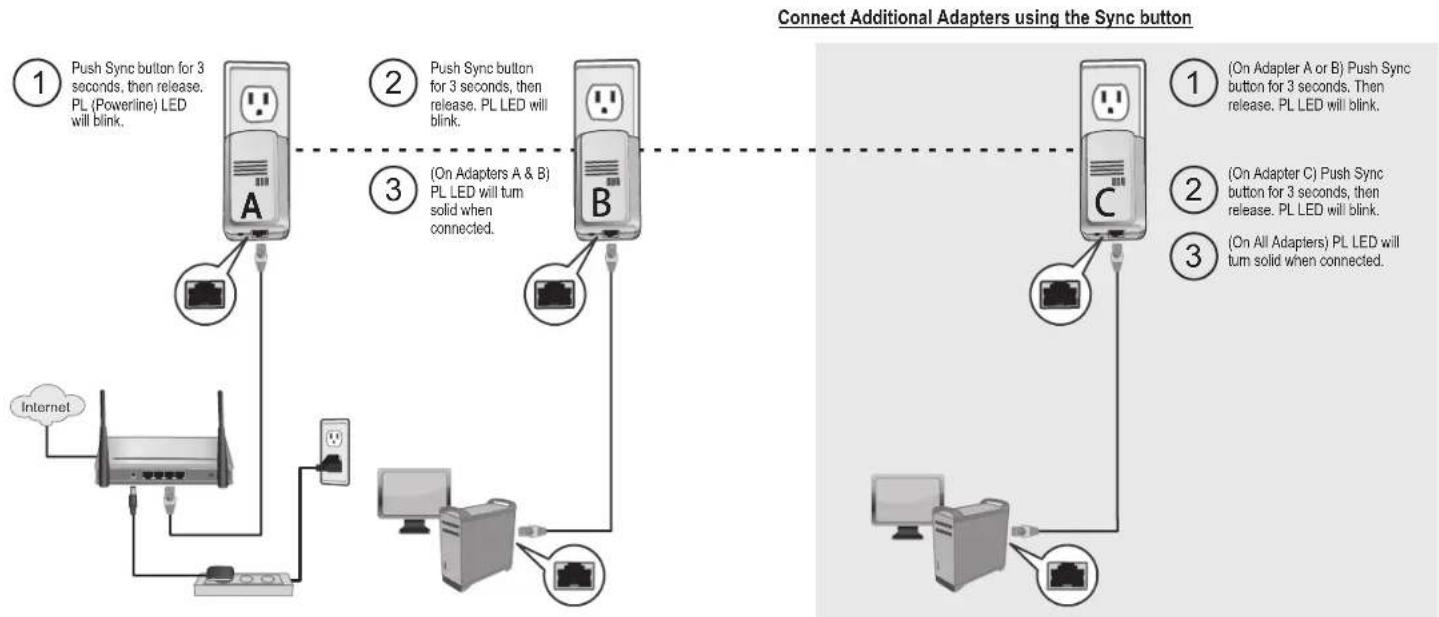

2. Sync Button Procedure

Note: It is recommended to plug the adapters into nearby outlets before installing the devices to the desired locations.

Declaration of Conformity

TRENDNET

Company Informa on:

Company Name:

TRENDnet, Inc.

Company Address:

20675 Manha an Place

Torrance, CA 90501

USA

Product Informa on:

Product Descrip on:

Powerline 500 AV2 Adapter

Powerline 500 AV2 Adapter Kit

Model Number:

TPL-408E

TPL-408E2K

Brand Name:

TRENDnet

Technical Standards:

EN 55022: 2010 Class B

EN 55024:2010

EN 61000-3-2:2006+A1:2009+A2:2009

EN 61000-3-3:2008

EN 50412-2-1: 2005: Class 1 Type 2

EN 60950-1:2006+A11:2009+A1:2010+A12:2011

Regula on (EC) No. 1275/2008

Declara on:

This product is herewith con rmed to comply with the Direc ve of 2004/108/EC, 2006/95/EC and 2009/125/EC.

I hereby declare that the products and devices men oned above are consistent with the standards and provisions of the guidelines.

Sonny Su

Name

September 5, 2013

Date

Director of Technology

Title

TRENDNET®

TPL-408E

TPL-408E2K

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the following length of time from the date of purchase. Warranty: 3 year limited warranty (When Applicable: 1 year warranty for power adapter, power supply, and cooling fan components.) Visit TRENDnet.com to review the full warranty policy, rights, and restrictions for this product.

Garantie Limitée

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received.

Including interference that may cause undesired operation.

FC CE EAC

Waste electrical an electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or Retailer for recycling advice.

Note

The Manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

Advertencia

If you have any questions regarding the product

installation, please contact our Technical Support.

Toll free US/Canada: 1-866-845-3673

Regional phone numbers available

at www.trendnet.com/support

Product Warranty Registration

Please take a moment to register your

product online. Go to TRENDnet's website at: http://www.trendnet.com/register

TRENDnet

20675 Manhattan Place, Torrance, CA 90501. USA

Copyright ©2013. All Rights Reserved. TRENDnet.
