USER MANUAL BT7384 B-Tech

TWIN FULL MOTION DESK MOUNT

WITH ARTICULATING ARMS

INSTALLATION GUIDE & PARTS LIST

This Pack Contains 1 Desk Mount

PLEASE KEEP THIS FOR FUTURE REFERENCE

Black adjustable arm device with two articulated arms and a star-shaped head (no text or symbols visible)

FEATURES

• Designed for screens up to 24" (61cm) / 9kg (20lbs)
• Fits screens with VESA mounting patterns: 75 x 75mm and 100 x 100mm
• Optional desk clamp and grommet included
  • Suitable for 2 flat screens
  • Maximum extension is 560mm (22")

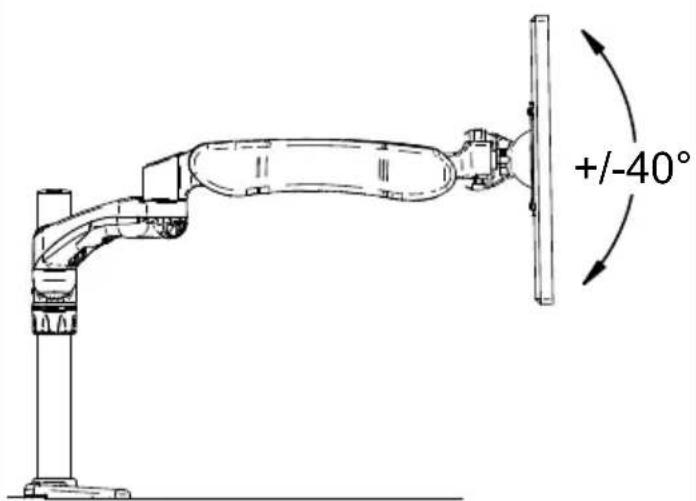

• Easy tilt adjustment +/-40° tilt
• Features three swivel points: 360° at pole, 360° at pivot and 180° at interface
• Simple installation with all mounting hardware included

CONTENTS

Installation Safety Notes....2

Parts List....4

Installation Instructions....6

Product Dimensions....15

B-Tech Contact Details....16

INSTALLATION TOOLS REQUIRED

Crosshead screwdriver

2.5mm Hex Key (Supplied)

4mm Hex Key (Supplied)

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This mount is intended for use only with the maximum weights indicated. Use with flat screens heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Some locations are not suitable for installation.

If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.

Fixing hardware

It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

The articulating arm may spring upward and may cause injury or damage to the equipment when the monitor is removed. Secure the arm by lifting the arm to highest position, to remove monitor safely.

CS

REF PART NAME QTY
1	INTERFACE ASSEMBLY 2
2	ARTICULATING ARM 2
3	ARM 2
4 HEIGHT ADJUSTMENT COLLAR 1
5	POLE ASSEMBLY 1
6	TOP CLAMP 1
7	CLAMP PLATE 2
8	BOTTOM CLAMP 1
9	SHORT HANDWHEEL 1
10	M6 x 15mm HEX SCREW	6
11	M5 x 5mm GRUB SCREW	5
12	M6 x 8mm HEX SCREW	5
13	M10 E-RING	1
14	M10 METAL WASHER	2
15	M10 NUT	1
16	GROMMET PLATE	1
17	LONG HANDWHEEL	1
18	CABLE CLIP	1
19	CIRCULAR FOAM PAD	2
20	DOUBLE COLLAR ADAPTOR	1
21	RECTANGULAR FOAM PAD	2
22	POLE END CAP	1
23	ANGLED PLASTIC CAP	4
24	M6 x 10mm SCREW	4
25	M6 METAL WASHER	4
26	CABLE TIE	10

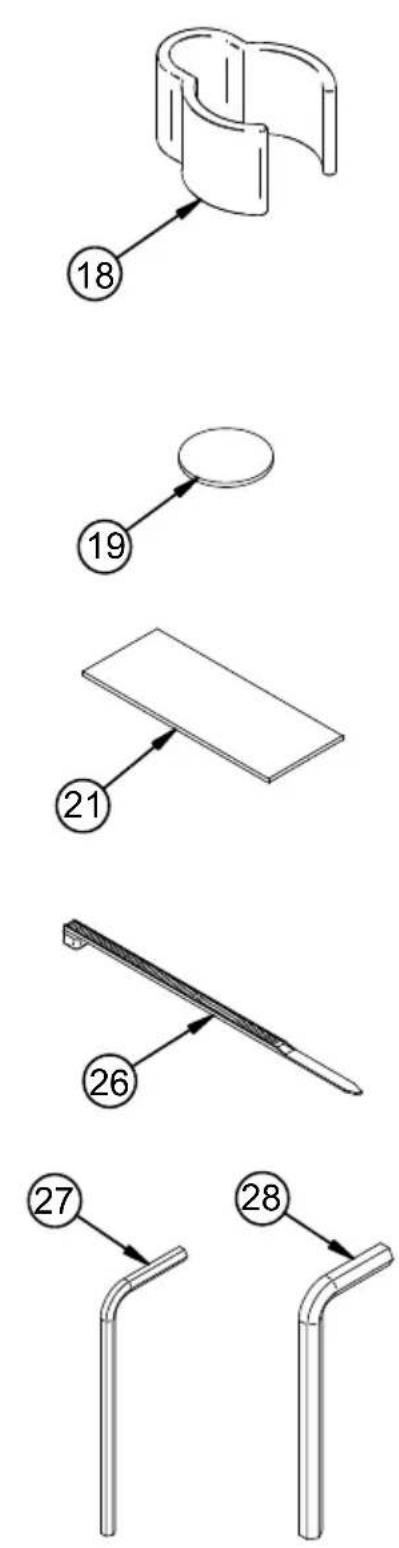

27	2.5mm HEX KEY (FOR PART11)	1
28	4mm HEX KEY (FOR PARTS 10 & 12)	1
INTERFACE KIT
A	M4 x 12mm SCREW	8
B	M4 x 30mm SCREW	8
C	M5 x 12mm SCREW	8
D	M5 x 30mm SCREW	8
E	M5 x 20mm SPACER	8

INSTALLATION INSTRUCTIONS

Choose a preferred mounting method.

i. Clamp (page 6)
ii. Grommet (page 8)

1

i. Desk clamp option.

6

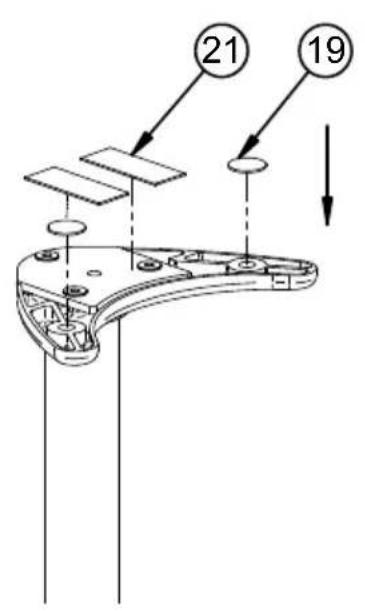

Attach the foam pads to the underside of the clamp base.

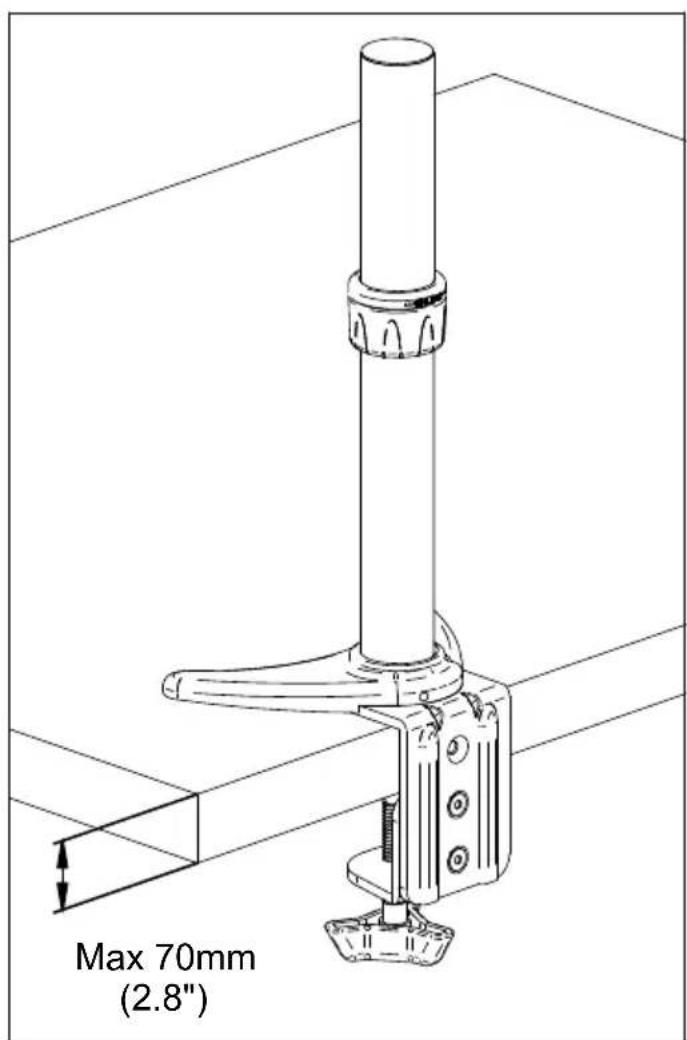

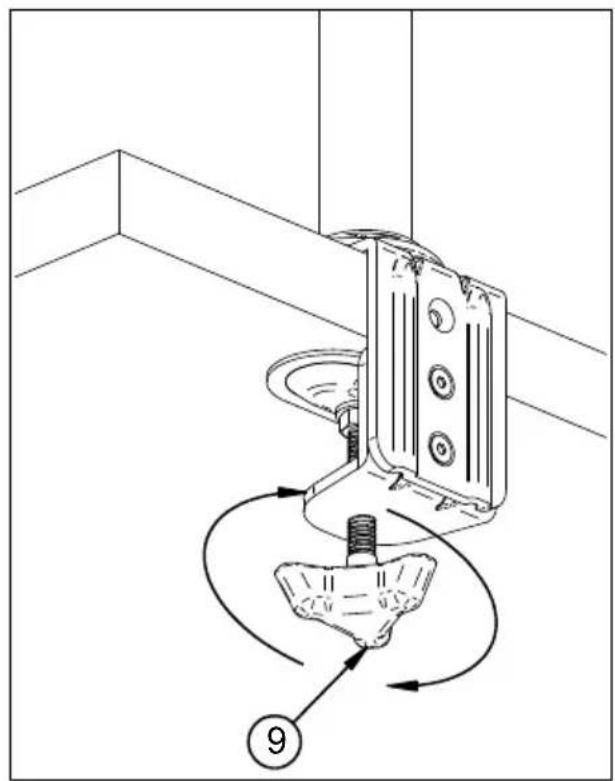

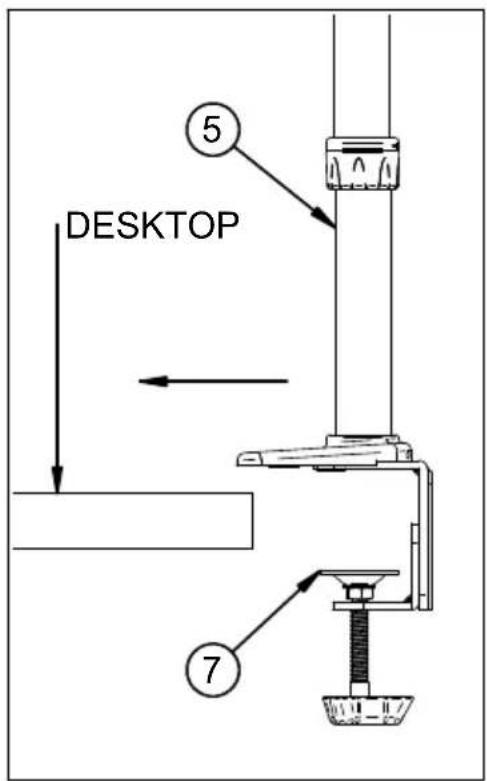

Place the mount over edge of the desk and tighten the short handwheel.

ii. Grommet Clamp

Close-up of a wooden plank with a circular hole on top (no text or symbols visible)

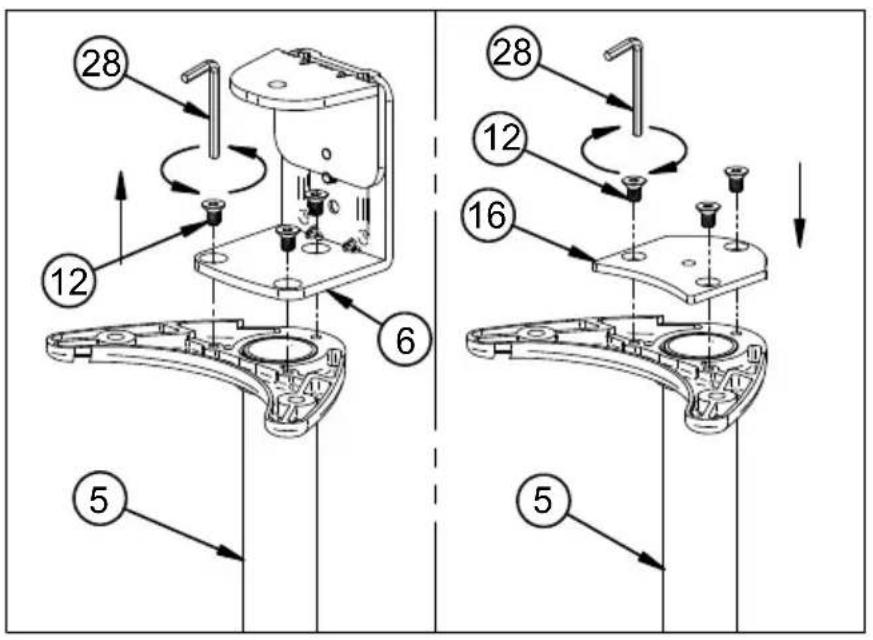

Remove the desk clamp and attach the grommet plate. Then attach the foam pads onto the grommet plate.

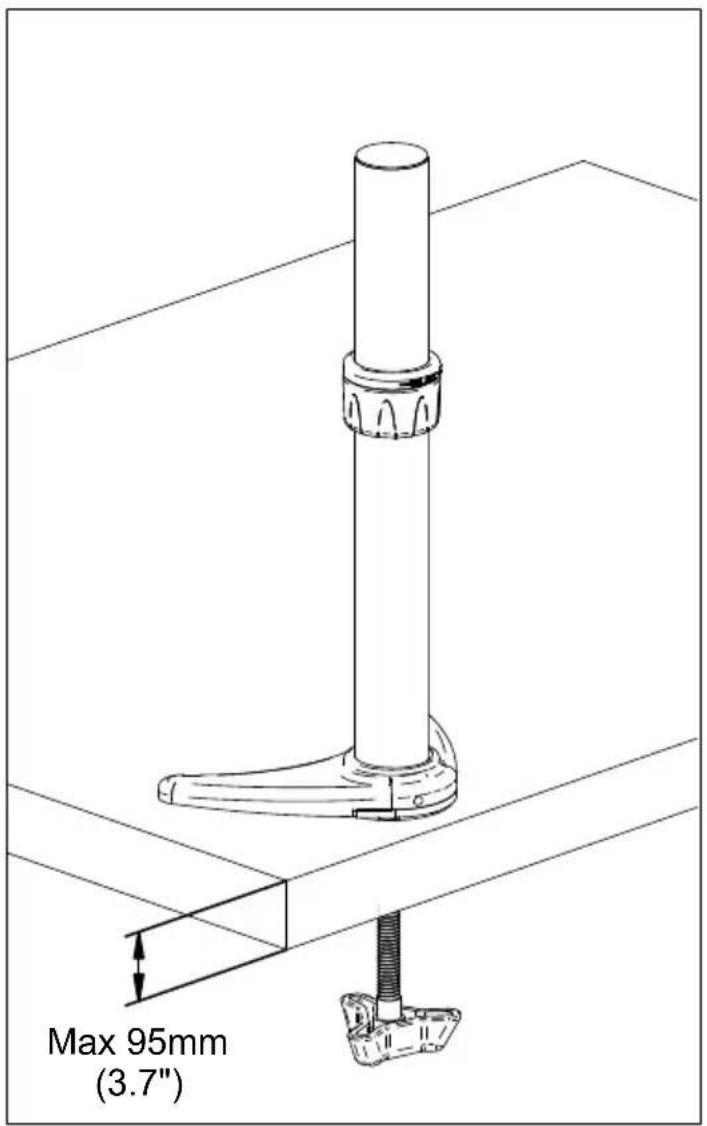

Place the mount over the cable management hole and screw the handwheel into the grommet plate, then tighten the nut to clamp the desk.

2

Attach the interface plate to the flat screen.

REPEAT STEP 2 FOR OTHER FLAT SCREEN

Technical line drawing of a robotic arm with labeled component E (no text or symbols beyond label)

3

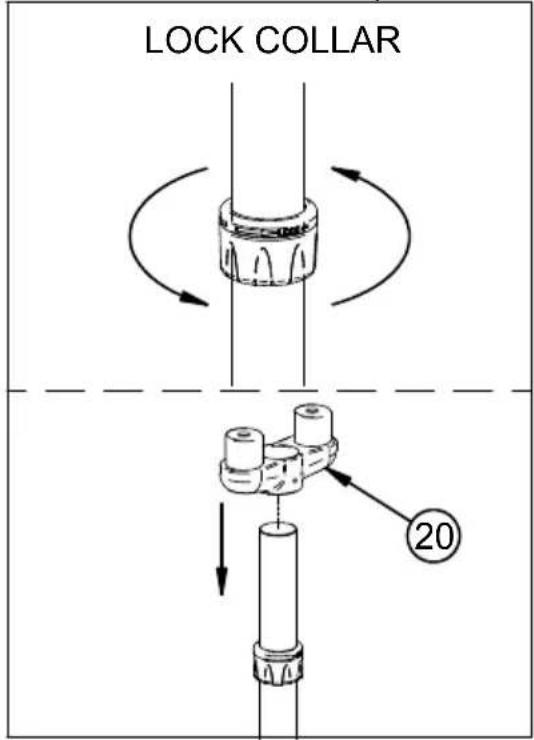

To lock the adjustment collar, hold the top of the collar and rotate the lower part of the adjustment collar. Then slide on the double collar adaptor.

10

4

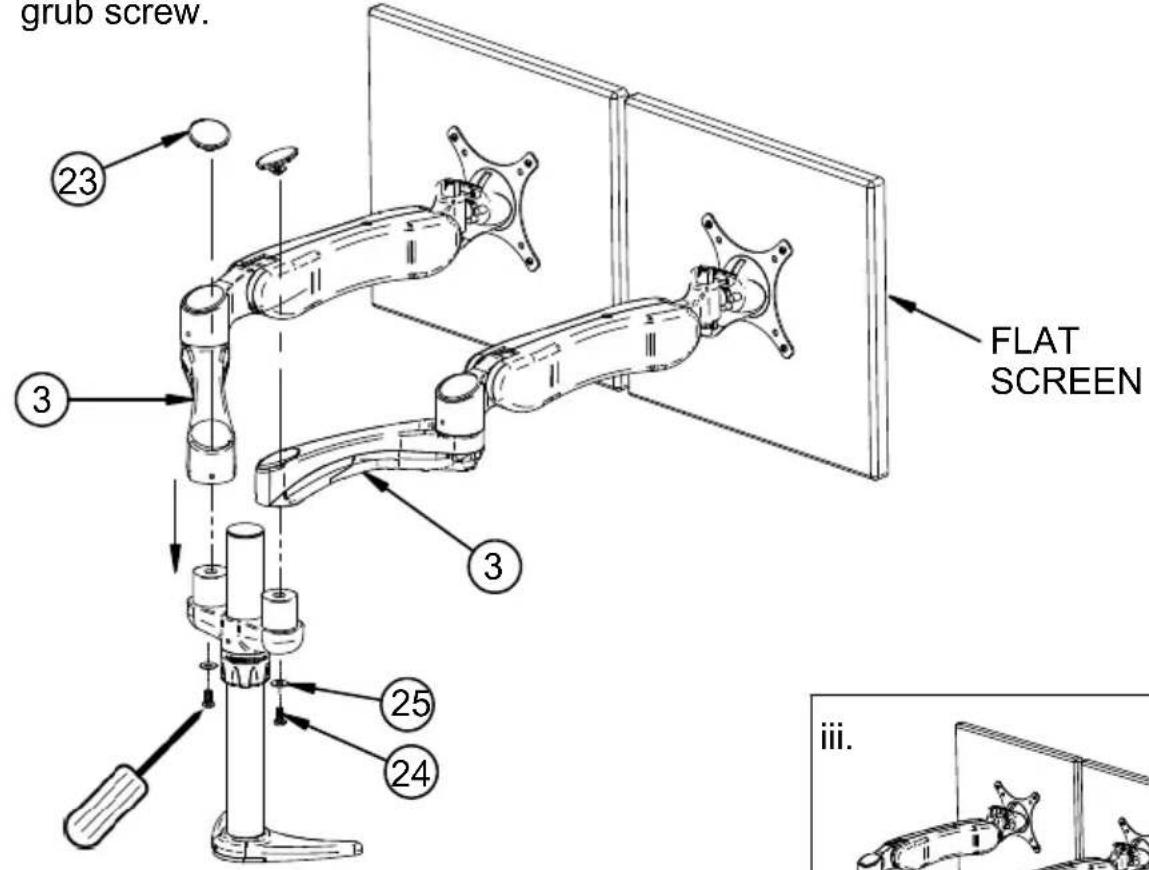

Slide the flat screen and arms onto the double collar adaptor and fix in place using the angled plastic caps. Then adjust height and tighten the grub screw.

i.

Technical line drawing of a robotic arm mounted on a stand, with no visible text or symbols

5

OPTIONAL : Cable Management.

Insert the cable into the cable management slots on the underside of the arms.

12

CAUTION: Ensure there is adequate cable slack for movement of the screen, and that cables will not be pinched when the mount is closed.

6
Tighten/loosen the allen screw on the articulating arm to adjust the resistance for tilt.

7
Tilt and swivel.

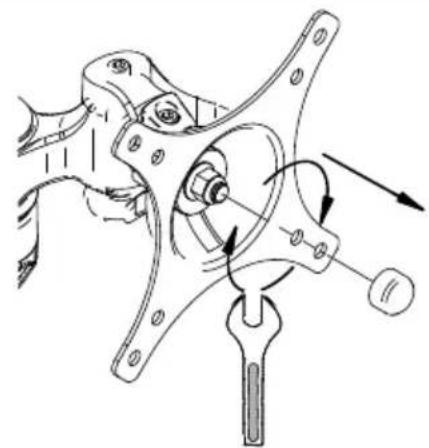

If this does not hold the screen at the required tilt, remove the flat screen from the interface.

Then remove plastic nut cover and tighten the M8 nyloc nut.

Mechanical assembly diagram showing a turning mechanism with arrows indicating motion (no text or labels)

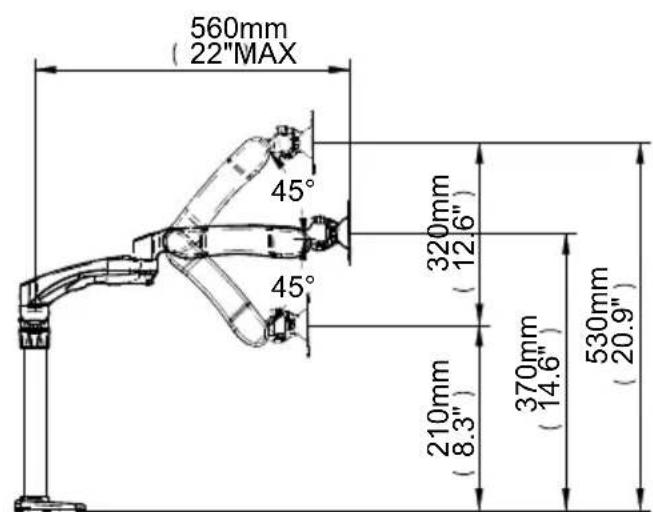

BT7384 PRODUCT DIMENSIONS

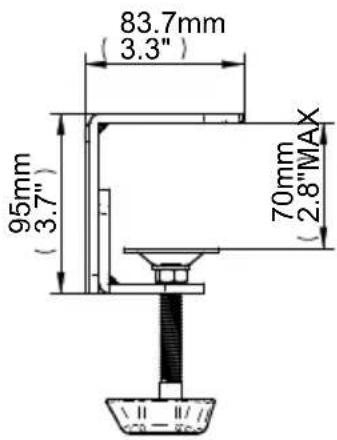

DESK CLAMP, GROMMET & BASE

INTERFACE PLATE

BETTER BY DESIGN

www.btechavmounts.com
