TE 30-C-AVR - Drill HILTI - Free user manual and instructions

Product Type	Rotary Hammer Drill
Brand	Hilti
Model	TE 30-C-AVR
Power Input	800 W
Impact Energy	3.2 J (according to EPTA procedure 05/2009)
Rated Speed	0 – 900 rpm
Max Drilling Diameter (Concrete)	30 mm
Max Drilling Diameter (Steel)	13 mm
Max Drilling Diameter (Wood)	40 mm
Chuck Type	Quick-release chuck (SDS Plus)
Weight	3.1 kg
Dimensions (L x H)	340 mm x 210 mm
Vibration Control	AVR (Active Vibration Reduction)
Power Supply	Corded electric (230 V / 50 Hz)
Cable Length	4 m
Protection Class	II (Double insulated)
Operating Modes	Drilling, hammer drilling, chiseling with rotation stop
Safety Clutch	Yes
Maintenance	Regularly lubricate the chuck; replace carbon brushes when worn
Accessories Included	Depth gauge, carry case, auxiliary handle

Frequently Asked Questions - TE 30-C-AVR HILTI

How do I change the chisel position on the TE 30-C-AVR?

To adjust the chisel, turn the mode selector to the chiseling position (hammer with arrow). Rotate the chisel to the desired angle, then turn the selector back to lock.

What is the AVR feature and how does it help?

AVR (Active Vibration Reduction) is a system that minimizes vibration transmitted to the user, reducing fatigue and improving comfort during prolonged use.

Can I use this drill for mixing mortar?

No, the TE 30-C-AVR is a rotary hammer designed for drilling and chiseling. Using it for mixing may overload the motor and damage the tool.

How often should I replace the carbon brushes?

Carbon brushes should be inspected every 50–100 hours of use. Replace them when the length is less than 6 mm to prevent damage to the commutator.

What type of lubricant should I use for the SDS chuck?

Use Hilti SDS lubricant or a high-quality lithium grease. Apply a small amount to the chuck shank every few months to ensure smooth operation.

Why does the drill stop suddenly during operation?

The tool is equipped with a safety clutch. If the bit jams, the clutch disengages to prevent injury. Release the trigger, remove the obstruction, and restart.

How do I clean the dust extraction system?

Remove the dust attachment and tap it gently to empty debris. Clean the filter and vents with a soft brush. Never use water or solvents.

Is this drill suitable for overhead drilling?

Yes, but use the auxiliary handle and wear protective gear. The AVR system helps reduce fatigue when working overhead.

What is the maximum bit diameter for concrete?

The maximum recommended drilling diameter in concrete is 30 mm with a solid bit. For larger diameters, use a core bit with a dedicated adapter.

Can I use the drill in hammer mode without rotation?

Yes, set the mode selector to the chisel symbol (hammer only). This locks the rotation and enables chiseling or light demolition work.

USER MANUAL TE 30-C-AVR HILTI

10

TE 30 / TE 30-AVR / TE 30-C-AVR / TE 30-M-AVR rot

en

It is essential that the operating instruct are read before the power tool is open the first time.

Always keep these operating instructions get her with the power tool.

Ensure that the operating instructions a with the power tool when it is given persons.

Contents Page

1	General information 14
2	Description 15
3	Insert tools, accessories 17
4	Technical data 18
5	Safety instructions 19
6	Before use 22
7	Operation	22
8	Care and maintenance
9	Troubleshooting	25
10	Disposal	25
11	Manufacturer's warranty - tools
12	EC declaration of conformity (original)

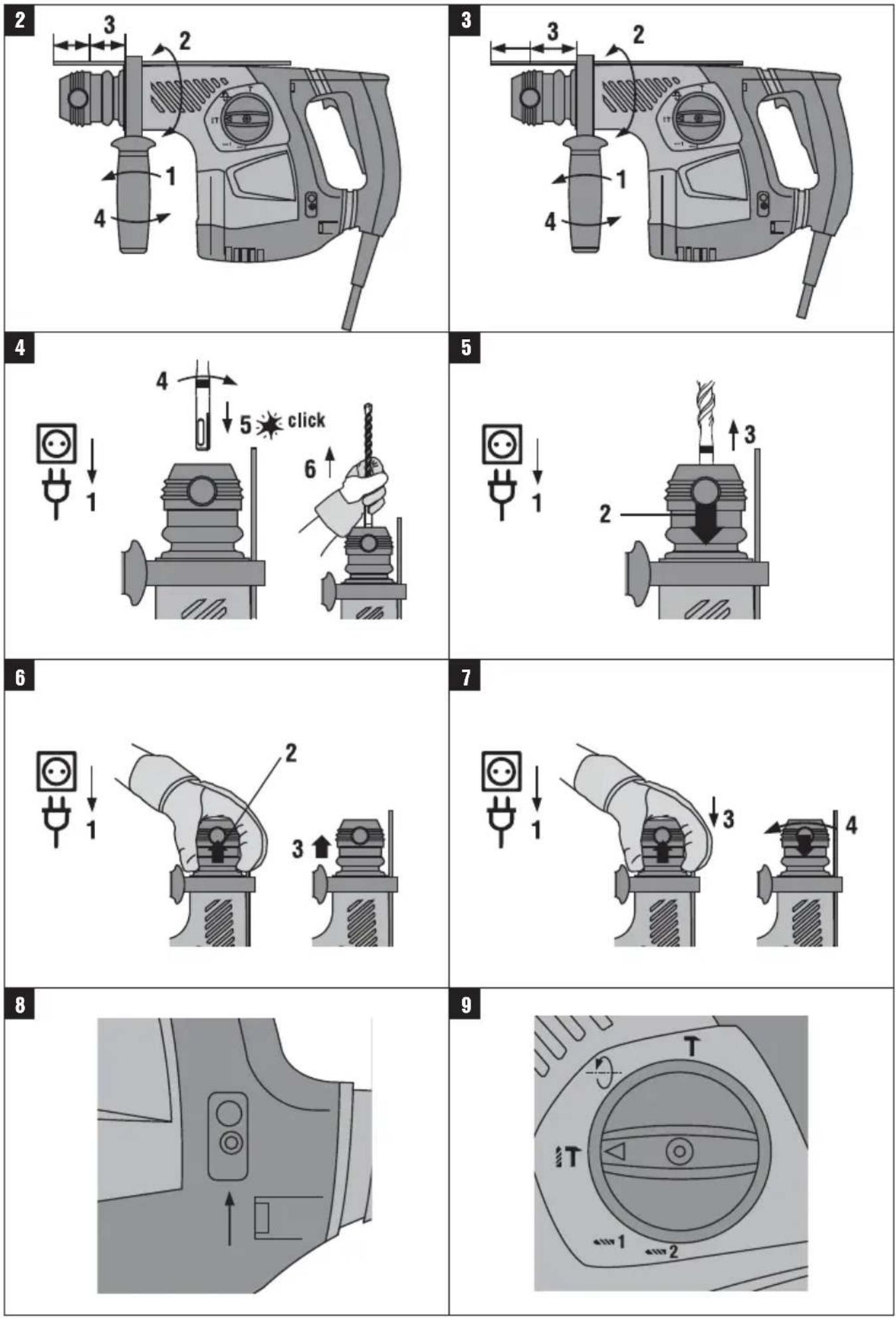

These numbers refer to the corresponding illustrations. The illustrations can be found on the fold-out cover pages. Keep these pages open while studying the operating instructions. In these operating instructions, the designation “the power tool” always refers to the TE 30, TE 30-AVR, TE 30-C-AVR or TE 30-M-AVR rotary hammer.

Components, operating controls and indicators 1 to other

① Chuck
② Function selector switch
③ Control switch
④ Forward / reverse switch
⑤ Side handle with depth gauge
⑥ TPS indicator (TE 30-M-AVR)
⑦ Signal receiving area for the TPS key
⑧ AVR Active Vibration Reduction (optional)

24

26

26

1 General information

1.1 Safety notices and their meaning

DANGER

Draws attention to imminent danger that will lead to serious bodily injury or fatality.

WARNING

Draws attention to a potentially dangerous situat could lead to serious personal injury or fatality.

CAUTION

Draws attention to a potentially dangerous situation that could lead to slight personal injury or damage to the equipment or other property.

NOTE

Draws attention to an instruction or other useful information.

1.2 Explanation of the pictograms and other information

Warning signs

General warning

Warning: electricity

Obligation signs

Wear eye protection

Wear a hard hat

Wear ear protection

Wear protective gloves

Wear breathing protection

Symbols

Read the operating instructions before use

Equipped with theft protection system

Lock symbol

Returning materials for recycling

Double insulated

Drilling without hammering

Drilling without hammering, 1st gear

Drilling without hammering, 2nd gear

Hammer drilling

Chiseling

position adjustment

Revolutions per minute

Location of identification data on the power tool

The type designation can be found on the type ide tion plate and the serial number on the side of the housing. Make a note of this data in your operating structions and always refer to it when making an en to your Hilti representative or service department.

Type:

Generation: 01

Serial no.:

2 Description

2.1 Use of the product as directed

The power tool is an electrically-powered rotary hammer with pneumatic hammering mechanism. The power tools are designed for drilling in concrete and masonry. The power tool can also be used for light chiseling work on masonry and surface finishing on concrete.

Working on materials hazardous to the health (e.g. asbestos) is not permissible.

Observe national health and safety requirements.

The working environment may be as follows: construction site, workshop, renovation, conversion or new construction. The power tool may be operated only when connected to a power supply providing a voltage and frequency in compliance with the information given on its type identification plate.

The power tool is designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any special hazards that may be encountered. The power tool and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed.

To avoid the risk of injury, use only genuine Hilti accessories and insert tools.

Observe the information printed in the operating instructions concerning operation, care and maintenance. Modification of the power tool or tampering with its parts is not permissible.

2.2 Chuck

TE-C (SDS plus) chuck

TE-T (SDS top) chuck

2.3 TPS TE 30-M-AVR theft protection system (optional)

The power tool may be equipped with the optional theft protection system. If the power tool is equi feature, it can be unlocked and made ready for operation only through use of the corresponding TPS key.

2.4 TE 30 / TE 30-AVR switch

Speed control switch for smooth starting. Forward / reverse switch Function selector switch: Drilling without hammering Hammer drilling

2.5 TE 30-C-AVR switch

Speed control switch for smooth starting. Forward / reverse switch Function selector switch: Drilling without hammering Hammer drilling Chisel adjustment (12 positions) Chiseling

2.6 TE 30-M-AVR switch

Speed control switch for smooth starting. Forward / reverse switch Function selector switch: Drilling without hammering 2 Drilling without hammering 1 Hammer drilling Chisel adjustment (12 positions) Chiseling

2.7 Grips

Pivotable side handle with depth gauge Vibration-absorbing grip

2.8 Protective feature

Mechanical slip clutch

2.9 Lubrication

Oil lubrication

2.10 Active vibration reduction (TE 30-AVR, TE 30-C-AVR, TE 30-M-AVR)

The power tool is equipped with an AVR active vibration reduction system which reduces vibration sign compared to power tools without AVR.

2.11 Items supplied as standard

1 Power tool
1 TE-C or TE-T chuck
1 Side handle with depth gauge

1 Operating instructions
1 Hilti toolbox
1 Cleaning cloth
1 Grease

2.12 Using extension cords

Use only extension cords of a type approved for the application and with conductors of adequacy power tool may otherwise loose performance and the extension cord may overheat. Check the extension cord for damage at regular intervals. Replace damaged extension cords.

Recommended minimum conductor cross section and max. cable lengths

Conductor cross section		1.5 mm2 2.0 mm2 2.5 mm2 3.5 mm2
Mains voltage	100V 30 m	50 m
Mains voltage	110-120 V	20 m	30 m	40 m
Mains voltage	220-240 V	50 m	100 m

Do not use extension cords with 1.25 mm ⁴ conductor cross section.

2.13 Using extension cords outdoors

When working outdoors, use only extension cords that are approved and correspondingly marked for this application.

2.14 Using a generator or transformer

This tool may be powered by a generator or transformer when the following conditions are fulfilled: AC voltage and power output of at least 2,600 W, operating voltage must be within +5% and -15% of the rated voltage at all times, frequency must be in the 50 – 60 Hz range and never above 65 Hz, and the unit must be equipped with automatic voltage regulation and starting boost.

Never operate other power tools or appliances from the generator or transformer at the same time. Switching other power tools or appliances on and off may cause undervoltage and / or overvoltage peaks, resulting in damage to the power tool.

3 Insert tools, accessories

Insert tools and accessories for the TE 30, TE 30-AVR, TE 30-C and TE 30-M

Designation	Description
Chuck TE-C (SDS Plus)
Chuck TE-T (SDS Top)
Hammer drill bits φ 5...25 mm
TE-C percussion core bits	φ 66...90 mm
TE-T percussion core bits	φ 50...90 mm
TE-C forming and installation drill bits	φ 10...35 mm
Anchor-setting tools	TE-C or TE-T connection end
Quick-release chuck for wood and metal drill bits	For smooth or hex. shank
Wood drill bits	φ 5...25 mm
Metal drill bits	φ Max. 13 mm

Insert tools for the TE 30-C-AVR and TE 30-M-AVR

Designation Description
Pointed chisels	TE-C or TE-T connection end
Flat chisel	TE-C or TE-T connection end
Shaped chisels	TE-C or TE-T connection end

Insert tools and accessories for the TE 30-M-AVR

Designation Description

TE-C lightweight percussion core bits 25...68 mm

Multipurpose hole saws 35...105 mm, Hex. connection end

Metal drill bits / stepped drill bits 3...8 mm, (2nd gear) hex. connection end

Metal drill bits / stepped drill bits 8...13 mm, (1st gear) hex. connection end

Mixing paddles with smooth shank 80...150 mm, (for mixing non-flammable materials)

Designation	Short designation	Item number, description
TPS Theft Protection System with Company Card, Company Remote and TPS-K key		206999, optional
Dust removal system TE DRS-S

4 Technical data

Right of technical changes reserved.

NOTE

The power tool is available in various voltage ratings. Please refer to the power tool's type identification plate for details of its rated voltage and rated input power.

Power tool		TE 30 / TE 30-AVR / TE 30-TE-AVR-M-AVR
Rated power input 850 W 900		W
Rated current input Rated voltage		100 V: 9.2 A	Rated voltage 100 V: 10.4 A
		Rated voltage 110 V: 8.3 A	Rated voltage 110 V: 9.6 A
		Rated voltage 110...127 V: 8.3	Rated voltage 110...127 V: 9.6
		Rated voltage 220 V: 4.2 A	Rated voltage 220 V: 5.4 A
		Rated voltage 230 V: 4.0 A	Rated voltage 230 V: 5.3 A
		Rated voltage 240 V: 3.8 A	Rated voltage 240 V: 5.1 A
Mains frequency 50...60 Hz 50		...60 Hz

Power tool TE 30	TE	30-AVR	TE 30-C-AVR	TE 30-M-AVR
Weight in accordance with EPTA procedure 01/2003	4.0 kg	4.2 kg	4.2 kg	4.4 kg
Dimensions (L x W)	W350 mm x 93 mm213 mm	379 mm x 93 mm213 mm	679 mm x 93 mm213 mm	379 mm x 93 mm213 mm
Drilling speed without hammering 2				1,100/min
Drilling speed without hammering 1	750/min	750/min	750/min	750/min
Hammer drilling speed	750/min	750/min	750/min	750/min
Single impact energy in accordance with EPTA procedure 05/2009	3.3 J	3.3 J	3.3 J	3.3 J

NOTE

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment

of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Noise and vibration information (measured in accordance with EN 60745):

Typical A-weighted sound power level 101 dB (A)

Typical A-weighted emission sound pressure level 90 dB (A)

Uncertainty for the given sound level as per EN 60745 3 dB (A)

Additional information in accordance with EN 60745

Triaxial vibration value for the TE 30 (vibration measured in accordance with EN 60745-2-6 sum)
Hammer drilling in concrete HD a	16.5 m/s 2
Triaxial vibration value for the TE 30-AVR (vibration measured in accordance with EN 60745-2-6 tor sum)
Hammer drilling in concrete HD a	12 m/s 2
Triaxial vibration value TE 30-C-AVR / TE 30-M-AVRSured in accordance with EN 60745-2-6 (vibration vector sum)
Hammer drilling in concrete HD a	12 m/s 2
Chiseling, H , HD	11 m/s 2
Uncertainty (K) 1.5 m/s 2

Other information about the power tool

Chuck TE-C (SDS-plus) / TE-T (SDS Top)

Drilling dia. range in concrete/masonry (hammer 5...28 mm drilling)

Percussion core bits 66...90 mm

Drilling dia. range in wood: solid bits 5...20 mm

Drilling dia. range in metal Max. 13 mm

Drilling performance in medium-hard concrete φ 16 mm: 75 cm 3 /min

Protection class as per EN Protection class II (double insulated) as perEN 60745-1

5 Safety instructions

5.1 General Power Tool Safety Warnings

a)

WARNING

Read all safety warnings and all instruction to follow the warnings and instructions may result in electric shock, fire and/or serious injury. warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or operated (cordless) power tool.

5.1.1 Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable

liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operat- s. a power tool. Distractions can cause you to control.

Save all

5.1.2 Electrical safety

a) Power tool plugs must match the outlet. Never battery modify the plug in any way. Do not use any an apter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
a) Power tool plugs must match the outlet. Never atter modify the plug in any way. Do not use any a apter plugs with earthed (grounded) power tools Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet tions. Water entering a power tool will increase risk of electric shock.
d) Do not abuse the cord. Never use the cord carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges moving parts. Damaged orentangled cords increase theriskofelectricshock.
e) When operating a power tool outdoors, use extension cord suitable for outdoor use. Use a cord suitable for outdoor use reduces the electric shock.
f) If operating a power tool in a damp loc unavoidable, use a residual current device protected supply. Use of an RCD reduces of electric shock.

5.1.3 Personal safety

a) Stay alert, watch what you are doing and common sense when operating a power to not use a power tool while you are tired the influence of drugs, alcohol or medicat moment of inattention while operating power may result in serious personal injury.
b) Use personal protective equipment. Always eye protection. Protective equipment such as mask, non-skid safety shoes, hard hat, or protection used for appropriate conditions will personal injuries.
c) Prevent unintentional starting. Ensure the s is in the off-position before connecting to source and/or battery pack, picking up or the tool. Carrying power tools with your fin switch or energising power tools that have on invites accidents.
d) Remove any adjusting key or wrench befoing the power tool on. A wrench or a key left attached to a rotating part of the power too in personal injury.
e) Do not overreach. Keep proper footing an ance at all times. This enables better cont power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing jewellery. Keep your hair, clothing and glow away from moving parts. Loose clothes, jev or long hair can be caught in moving part
g) If devices are provided for the connection extraction and collection facilities, ensure t are connected and properly used. Use of collection can reduce dust-related hazards.

5.1.4 Power tool use and care

a) Do not force the power tool. Use the co-power tool for your application. The correct tool will do the job better and safer at the which it was designed.
b) Do not use the power tool if the switch turn it on and off. Any power tool that controlled with the switch is dangerous and repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool

let before making any adjustments, changing ase accessories, or storing power tools. Such preventive safety measures reduce the risk of cord starting the power tool accidentally.
tool. Store idle power tools out of the reach of changes dren and do not allow persons unfamiliar with lease power tool or these instructions to operate the power tool. Power tools are dangerous in the base and untrained users.
(see) Maintain power tools. Check for misalignment of the risk binding of moving parts, breakage of parts and any other condition that may affect the power operation tool's operation. If damaged, have the power to (RCD) repaired before use. Many accidents are caused the poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are likely to bind and are easier to control.
Use the power tool, accessories and tool bits tool. Do accordance with these instructions, taking int or account the working conditions and the work tion. be performed. Use of the power tool for operations different from those intended could result in hazardous situation.

wear

5.1.5 Service dust

hearing have yourpowertool serviced by a qualified repa reduperson using only identical replacement parts.

This will ensure that the safety of the power toc witchmaintained.

power

carrying Hammer safety warnings

ger on the a) Wear ear protectors. Exposure to noise can cause the switch hearing loss.

b) Use auxiliary handles, if supplied with the tool. pre turn- Loss of control can cause personal injury.
c) Hold power tool by insulated gripping surfaces, may result when performing an operation where the cutting accessory may contact hidden wiring or its ow cord. Cutting accessory contacting a "live" wire m make exposed metal parts of the power tool "liv and could give the operator an electric shock.

5.3 Additional safety precautions

S. 5.3.1 Personal safety

of dust a) Always hold the power tool securely with both these hands on the grips provided. Keep the grips of dust clean and free from oil and grease.

b) Breathing protection must be worn if the power tool is used without a dust removal system for work that creates dust.

Correct Improve the blood circulation in your fingers by it power relaxing your hands and exercising your fingers rate during breaks between working.

d) Avoid touching rotating parts. Switch the power does not work on only after bringing it into position at a not workpiece. Touching rotating parts, especially rotating must be insert tools, may lead to injury.
e) Always lead the supply cord and extension cord away from the power tool to the rear while v

ing. This helps to avoid tripping over the working.

f) Children must be instructed not to play v power tool.
g) The power tool is not intended for use by debilitated persons or those who have no instruction or training.
h) Dust from material such as paint containing some wood species, minerals and metal may harmful. Contact with or inhalation of the cause allergic reactions and/or respiratory dist to the operator or bystanders. Certain kinds are classified as carcinogenic such as oak a dust especially in conjunction with additives conditioning (chromate, wood preservative). Ma containing asbestos must only be treated by ists. Where the use of a dust extraction possible it shall be used. To achieve a of dust collection, use a suitable vacuum of the type recommended by Hilti for wo and/or mineral dust together withthistool.Ens that the workplace is well ventilated. The dust mask of filter class P2 is recommer low national requirements for the materials want to work with.

5.3.2 Power tool use and care

a) Secure the workpiece. Use clamps or a secure the workpiece. The workpiece is the more securely than by hand and both hand free to operate the power tool.
b) Check that the insert tools used are con with the chuck system and that they are in the chuck correctly.
c) Switch the power tool off and unplug the cord in the event of a power failure or in the electric supply. This will prevent ac restarting when the electric power returns.

5.3.3 Electrical safety

a) Before beginning work, check the working (e.g. using a metal detector) to ensure the concealed electric cables or gas and water are present. External metal parts of the po may become live, for example, when an ele is damaged accidentally. This present of electric shock.
b) Check the power tool's supply cord at re intervals and have it replaced by a qualif cialist if found to be damaged. If the m

cord supply cord is damaged it must be replaced v a specially-prepared and approved supply cord with theilable from Hilti Customer Service. Check extension cords at regular intervals and replace by children if found to be damaged. Do not touch received supply cord or extension cord if it is damaged while working. Disconnect the mains plug from

lead, the power outlet. Damaged supply cords or exter y be sion cords present a risk of electric shock. en (ust) Dirty or dusty power tools which have been a

eases frequently for work on conductive materials of should be checked at regular intervals at a Hi and Service Center. Under unfavorable circumstances, for woodiness or dust adhering to the surface of material the power tool, especially dust from conductive materials, may present a risk of electric shock.

Device When working outdoors with an electric tool high check to ensure that the tool is connected to clean electric supply by way of a ground fault circuit and interrupter (RCD) with a rating of max. 30 mA sure (tripping current). Use of a ground fault circuit use interrupter reduces the risk of electric shock.

nded. UBel- of a ground fault circuit interrupter (RCD youresidual current device) with a maximum tripping current of 30 mA is recommended.

5.3.4 Work area safety

vice Ensure that the workplace is well lit. usb) held Ensure that the workplace is well ventilated. Ex- s remaiture to dust at a poorly ventilated workplace n result in damage to the health.

compatible the work involves breaking right through, take secreted appropriate safety measures at the opposite side. Parts breaking away could fall out and / o supplyn and injure other persons.

interruption

5.3.5 Personal protective equipment

regular user and any other persons in the vicinity made we apesuitable eye protection, a hard hat, ear protaching's protective gloves and breathing protection while the tool is in use.

6 Beforeuse

6.1 Fitting the side handle 2

CAUTION

Removethe depth gauge from the side handle to avoid injury.

1. Disconnect the supply cord plug from the outlet.

2. Release the side handle clamping band by the handle counterclockwise.

3. Slide the side handle clamping band over the ch and onto the cylindrical section at the front end the power tool.

4. Pivot the side handle into the desired position.
5. Securethesidehandlebyturningthegripclock
6. Check that the clamping band is correctly located in the groove provided.

in order

6.2 Use of extension cords and generators or transformers

powerase refer to section 2 "Description".

turning

6.3 Dust removal (TE DRS-S)

A DRS dust removal head can be fitted to the dep gauge of the side handle. Drilling dust and fragments then be removed by a vacuum cleaner. For further ation on operation and use of the dust removal sys please refer to the separate operating instructions for TE DRS-S.

7 Operation

CAUTION

In the event of the drill bit sticking, the power pivot about its own axis. Always use the power the side handle fitted and hold it securely with hands so that the resulting opposing force of the slip clutch to release in the event of the sticking. Use clamps or a vice to hold the securely.

7.1 Preparing for use

7.1.1 Adjusting the depth gauge 3

1. Release the side handle clamping band by the handle counterclockwise.
2. Pivot the side handle into the desired posit
3. Adjust the depth gauge to the desired drill "X".
4. Tighten the side handle securely by turning wise.

7.1.2 Fitting the insert tool 4

1. Disconnect the supply cord plug from the outlet.
2. Check that the connection end of the insert clean and lightly greased. Clean it and gre necessary.

3. Check that the sealing lip of the dust shield is clean and in good condition. Clean the dust shield if necessary or replace it if the sealing lip is damaged.

4. Push the insert tool into the chuck and rotate it applying slight pressure until it engages in the grooves.

5. Push the insert tool further into the chuck until heard to engage.
6. Check that the insert tool has engaged correctly toopulling it.

er tool with

with 7.1 Got Removing the insert tool 5

caustation

the drill bit Wear protective gloves when changing insert tools work insert tools get hot during use.

1. Disconnect the supply cord plug from the power outlet.
2. Open the chuck by pulling back the chuck release sleeve.
3. Pull the insert tool out of the chuck.

n.7.1.4 Removing the chuck 6

depth CAUTION

Remove the depth gauge from the side handle in to avoid injury.

1. Disconnect the supply cord plug from the power outlet.
   power2.Pull the chuck sleeve forward and hold it securely
2. Remove the chuck by pulling it away from the tool is tool.

7.1.5 Fitting the chuck 7

CAUTION

Removethe depth gauge from the side handle to avoid injury.

1. Disconnect the supply cord plug from the outlet.
2. Grip the chuck sleeve, pull it forward and securely in this position.
3. Slide the chuck onto the guide tube from and then release the sleeve.
4. Rotate the chuck until it is heard to engage

7.2 Operation

CAUTION

Working on the material may cause it to splir eye protection and protective gloves. Wear by protection if no dust removal system is used tering material presents a risk of injury to the body.

CAUTION

The work generates noise. Wear ear protectors are to noise can cause hearing loss.

NOTE

The TE 30-M is equipped with a protective el motor cut-out that is active in 1st gear (rotary and hammer drilling). This cut-out switches the automatically when motor speed drops below a speed for a long time. After the tool has swi off it can be restarted by briefly releasing the then pressing it again.

7.2.1 Unlocking the tool (theft protection system not available for all versions) 8

NOTE

Further detailed information on activation and use theft protection system can be found in the instructions for the theft protection system.

NOTE

If, for example, the electric supply is briefly in due to a power failure or disconnected when a different workplace, the power tool remains re operation for approx. 20 minutes. In the event interruption, the TPS key must be used to un power tool.

1. Plug the supply cord into the power outlet. The yellow theft protection indicator LED blinks. The power tool is now ready to receive the signal from the TPS key.
2. Hold the TPS key against the lock symbol. The power power tool is unlocked as soon as the eye protection indicator LED no longer lights.

hold it

7.2.2 ¹ Drilling without hammering 9

en

the CAUTION

Do not operate the function selector switch while motor is running.

1. Turn the function selector switch until it engages in the "Drilling without hammering" position (TE 30-M-AVR 1st and 2nd gear).
2. Bring the side handle into the desired position at check that it is fitted correctly and secured.
3. Plug the supply cord into the power outlet.
4. Position the power tool and drill bit at the point where the hole is to be drilled.
   tes. Wear the control switch slowly (drill at a low sp weathing until the drill bit centers itself in the hole).
5. Press the control switch fully to continue drilling eyes and power.
6. Do not apply excessive pressure. This will not increase the power tool's drilling performance. Lower pressure extends the life of the insert tool. Expos-

7.2.3 Hammer drilling 9

NOTE

Working at low temperatures: The hammering mechanism works only when the power tool has reached only drilling minimum operating temperature. Bring the tip of the tool off bit or chisel into contact with the workpiece and also specified the power tool to run under no load until it reaches the minimum operating temperature. If necessary, repeat switch and this procedure until the hammering mechanism begins operate.

lem CAUTION

Do not operate the function selector switch while motor is running.

of the

Operating the function selector switch until it engages the "Hammer drilling" position.

1. Bring the side handle into the desired position at check that it is fitted correctly and secured.

2. Plug the supply cord into the power outlet.

3. Position the power tool and drill bit at the point where the hole is to be drilled.

4. Press the control switch slowly (drill at a low sp until the drill bit centers itself in the hole).

errupted 6. Press the control switch fully to continue drilling moving full power.

ready for not apply excessive pressure. This will not in- of a crease the power tool's hammering performance.

ock the Lower pressure extends the life of the insert too

1. Reduce drilling speed shortly before breaking through in order to avoid damage to the rear side.

7.2.4 Chiseling (TE 30-C-AVR, TE 30-M-AVR)

NOTE

The chisel can be adjusted to 12 different pos (in 30° increments). This ensures that flat chisel shaped chisels can always be set to the optim position.

7.2.4.1 Positioning the chisel (TE 30-C-AVR, TE 30-M-AVR)

CAUTION

Do not operate the power tool with the sw this position.

1. Turn the function selector switch until it engages in

the "Chisel adjustment" position. Do not of function selector switch while the motor is

1. Bring the side handle into the desired position at surfacecheck that it is fitted correctly and secured. (The power tool can also be held securely at the gr section of the chuck.)
2. Rotate the chisel to the desired position.

7.2.4.2 Locking the chisel (TE 30-C-AVR, and TE 30-M-AVR)

huth Working the function selector switch until it engages the "Chiseling" position. Do not operate the funct selector switch while the motor is running.

7.2.4.3 Chiseling 9

1. Plug the supply cord into the power outlet.
   toh Position the tip of the chisel at the point where chiseling is to begin.
2. Press the control switch fully.

erate the Forward / reverse 10

ruOJAUTION

Do not operate the forward / reverse switch while motor is running.

1. Turn the forward / reverse switch to the forwards or reverse (L) position.

8 Care and maintenance

CAUTION

Disconnect the mains plug from the power

8.1 Careofinserttools

Clean off dirt and dust deposits adhering to the tools and protect them from corrosion by wiping insert tools from time to time with an oil-soaked

8.2 Care of the power tool

CAUTION

Keep the power tool, especially its grip surf clean and free from oil and grease. Do not ing agents which contain silicone.

Never operate the power tool when the ventilation slots

are blocked. Clean the ventilation slots carefully a dry brush. Do not permit foreign objects to interior of the power tool. Clean the outside of tool at regular intervals with a slightly damp c not use a spray, steam pressure cleaning equi

running water for cleaning. This may negatively affect electrical safety of the power tool.

8.3 Maintenance

e WARNING

g Repairs to the electrical section of the power tool may be carried out only by trained electrical specialists.

Check all external parts of the power tool for damage at regular intervals and check that all controls operate faultlessly. Do not operate the power tool if parts are damaged or when the controls do not function faultlessly. Use clean- If necessary, the power tool should be repaired by Service.

8.4 Checking the power tool after care and enter maintenance

After carrying out care and maintenance work on the other power tool, check that all protective and safety device must be rated and that they function faultlessly.

9 Troubleshooting

Fault Possible cause Remedy
The power tool doesn't start.	Interruption in the electric supply.	Plug in another electric appliance and check whether it works.
	The supply cord or plug is defective. Have it checked by a trained ele specialist and replaced if necessary.
	The carbon brushes are worn. Have it checked by a trained ele specialist and replaced if necessary.
	The control switch is defective. Have it checked by a trained electrical specialist and replaced if necessary.
The tool cuts out while running.	Drilling for too long at low speed.	Release the switch and then press it again.
The power tool doesn't start and the indicator lamp yellow.	The power tool has not been unUse the TPS key to unlock the power locked (power tools with optional toft protection system).
No hammering action.	The power tool is too cold.	Allow the power tool to warm up to the minimum operating temperature. See section: 7.2.3 Hammer drilling
	The function selector switch is set to the function selector switch to “Drilling without hammering”.	“Hammer drilling”.
The power tool doesn't achieve full power.	The extension cord's conductor cross section is inadequate.	Use an extension cord with an adequate conductor cross section. See section: 6.2 Use of extension cords and generators or transformers
	The control switch is not pressed fully.	Press the control switch as far as it will go.
The drill bit doesn't rotate.	The function selector switch engaged or is in the “Chiseling” “Chisel adjustment” position.	Move the function selector switch to the “Hammer drilling” position when the motor has stopped.
The drill bit can't be released.	The chuck is not pulled back fully.	Pull the chuck back as far as and remove the insert tool.
The drill bit makes no progress.	The forward/reverse switch reverse rotation.	Set the forward/reverse switch to forward rotation.

10 Disposal

Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling. Please ask your Hilti customer service department or Hilti representative for further information.

For EC countries only

Disposal of electric tools together with household waste is not permissible.

In observance of the European Directive on waste electrical and electronic equipment and its implementation in accordance with national law, electrical appliances that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

11 Manufacturer's warranty - tools

Please contact your local Hilti representative if you have questions about the warranty conditions.

12 EC declaration of conformity (original)

Designation: Rotary hammer

Type: TE 30 / TE 30-AVR /

TE 30-C-AVR

TE 30-M-AVR

Generation: 01

Year of design: 2008

We declare, on our sole responsibility, that this complies with the following directives and stands 2004/108/EC, 2006/42/EC, 2011/65/EU, EN ISO 1 EN 60745-1, EN 60745-2-6.

Hilti Corporation, Feldkircherstrasse 100, FL-9494 Schaan

Paolo Luccini Jan Doongaji

Product BA Quality and Process Man-

Executive Vice President

agement

Business Area Electric Tools & Ac-

Business Unit Power

2100 cessories

01/2012 01/2012

Tools & Accessories

Technical documentation filed at:
