Product Type	PTZ Color Video Camera
Model	EVI-D70PW
Brand	Sony
Image Sensor	1/4-type CCD
Effective Pixels	768 x 494 (NTSC) / 752 x 582 (PAL)
Horizontal Resolution	460 TV lines
Lens	18x optical zoom, f=4.1 to 73.8 mm (F1.4 to 3.0)

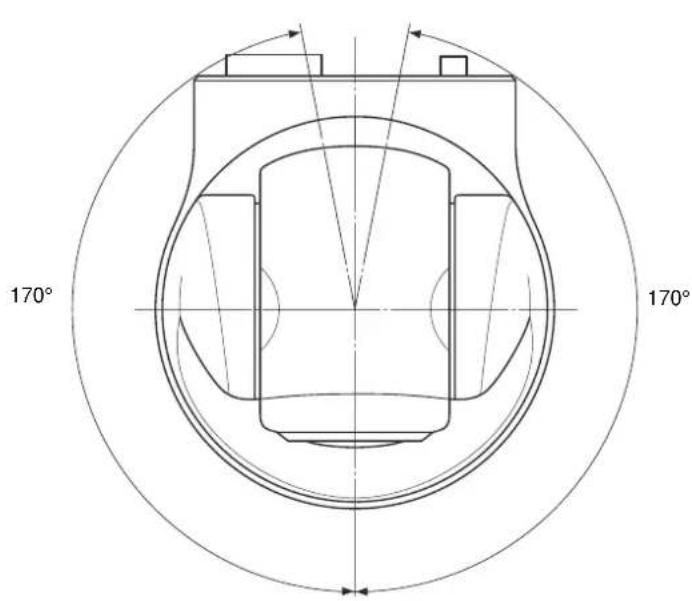

Pan/Tilt Range	Pan: ±170°, Tilt: -30° to +90°
Video Output	Composite video (BNC), S-Video (Mini DIN 4-pin)
Control Interface	RS-232C (8-pin mini DIN), RS-422/485 (optional)
Dimensions (W x H x D)	Approx. 145 x 146 x 157 mm
Weight	Approx. 1.5 kg
Power Supply	DC 10.8-13.2 V (using supplied AC adapter)
Power Consumption	Approx. 12 W
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Cleaning Instructions	Wipe with a dry soft cloth; avoid alcohol or solvents
Safety Precautions	Use only specified power supply; do not expose to rain or moisture
Spare Parts Availability	Contact Sony support for replacement parts
Repairability	Professional service recommended for internal components

Frequently Asked Questions - EVI-D70PW SONY

What is the maximum resolution of the Sony EVI-D70PW?

The camera outputs standard definition video with an effective pixel count of 768 x 494 (NTSC) or 752 x 582 (PAL), providing approximately 460 TV lines of horizontal resolution.

How do I connect the EVI-D70PW to a computer?

The camera outputs composite or S-Video, so you'll need a video capture card or USB converter. Control is via RS-232C; you may need a serial-to-USB adapter.

What is the zoom range of this camera?

It features an 18x optical zoom lens with a focal length range of 4.1 mm to 73.8 mm (F1.4 to F3.0).

Can I pan and tilt the camera remotely?

Yes, the camera supports pan (up to ±170°) and tilt (-30° to +90°) via RS-232C or optional RS-422/485 control.

What power supply does the EVI-D70PW require?

It operates on DC 10.8-13.2 V using the supplied AC adapter. Power consumption is approximately 12 W.

Is the camera compatible with PTZ control protocols?

Yes, it supports Sony VISCA protocol over RS-232C, and can be used with many third-party controllers.

How do I clean the lens or housing?

Use a dry, soft cloth to wipe the exterior. For the lens, use a lens cleaning tissue. Avoid alcohol, solvents, or abrasive cleaners.

What are the dimensions and weight of the camera?

Dimensions are approximately 145 x 146 x 157 mm (W x H x D), and weight is about 1.5 kg (3.3 lbs).

Can I use this camera outdoors?

The camera is designed for indoor use only. Operating temperature is 0°C to 40°C (32°F to 104°F). Do not expose to rain or moisture.

Where can I find spare parts or repair service?

Contact Sony support or an authorized service center. For minor repairs, refer to the service manual available online.

USER MANUAL EVI-D70PW SONY

Black industrial camera with a lens and control base (no visible text or symbols)

EVI-D70/D70P

Table of Contents

Features 3

Connection.... 4

Locations of Controls 5

Basic Functions.... 7

Initial Settings, Position Preset.... 25

Mode Condition 27

Command List 31

VISCA RS-232C/RS-422 Commands 31

EVI-D70/P Commands 39

D30/D31 Mode 52

Overview 52

Switching the Mode 52

Accepting or Sending Back Commands.... 53

Translating Parameters 54

Specifications 59

Precautions 61

Features

• An EXview HAD CCD provides 380,000 (EVI-D70)/410,000 (EVI-D70P) effective picture elements (pixels) enabling high-resolution imaging with this camera.
• The use of VISCA commands allows you to control the camera from a computer.
• High-speed, wide angle PAN and TILT functions and Image Flip (turning the displayed image upside down) allow the unit to be mounted on the ceiling, broadening the range of uses for this versatile camera.
• With the addition of external RS-232C communication, RS-422 and VISCA commands provide the ability to remotely control this camera from greater distances.
  •The lens offers an18x optical zoom feature.
• Use of a newly developed digital signal processor (DSP) improves the image quality of the digital zoom feature.
• A n IR (infrared) cut filter can be physically removed. In addition, it can be switched on and off automatically, providing the optimum image quality for your subjects, whether they require high resolution or are poorly lit.
• Up to six combinations of camera position and settings can be retained in memory and called up when needed.
• A multi-function Remote Commander is also provided.

Connection


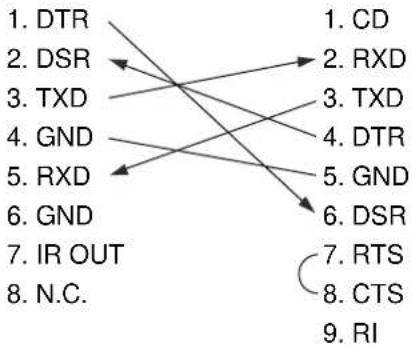

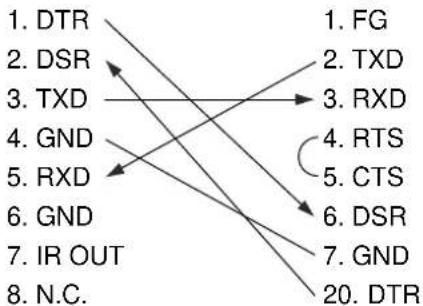

1) When the camera is connected to a computer with a VISCA cable (cross type, RS-232C), you can operate the camera with the computer. To obtain a cable, consult the dealer where you bought your camera.
2) For more detail on the VISCA RS-422 connection, see page 36.

Notes

• You cannot connect your Color Video Camera to a computer that is not equipped with either video input or an S-Video input connector. You might not be able to use your existing computer with your Color Video Camera unless you provide the computer with a video capture board and/or software. Consult your computer dealer or manufacturer for details.
• Use only the AC power adaptor (MPAAC1) supplied with the unit. Do not use any other AC power adaptor.

Polarity of the plug

- Do not make VISCA RS-232C and RS-422 connections at the same time, as this may cause malfunctions.

Locations of Controls

Main Unit

Front

Rear Bottom

① Lens

A wide conversion lens can be attached.

②Sensor for the Remote Commander

③ POWER lamp

④STANDBY lamp

⑤Sensor for the Remote Commander

⑥IMAGE FLIP switch

Flips the image upside down and executes Pan/Tilt movement according to the camera installation.

Normally set this to OFF when you use the camera.

When the camera is attached to the ceiling, set this to ON.

To change the mode, move the switch while the power

is off (including standby mode). Then turn on the power using DC power, VISCA command, or the Remote Commander.

After the mode has been changed, the pre-set setting saved by the Position Preset is returned to the initial setting.

It takes about 7 seconds for the image to be displayed after Pan/Tilt initialization motion has stopped.

Do not turn off DC power until the image has been displayed.

When the power is on, you cannot flip the image using this switch.

(Continued)

⑦IR SELECT switch

⑧VISCA RS-422 connector

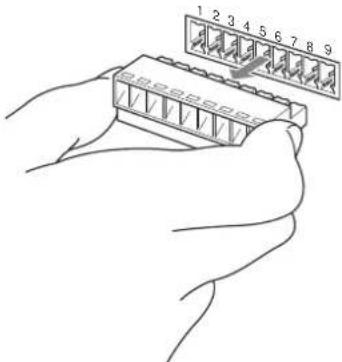

A VISCA RS-422 connector plug is attached to the unit at the factory.

⑨VIDEO (output) connector

⑩S VIDEO (output) connector

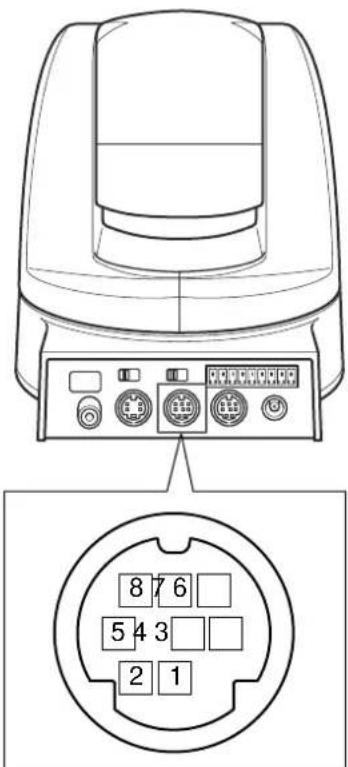

⑪ VISCA RS-232C IN connector

⑫VISCA RS-232C OUT connector

⑬DC IN 12V connector

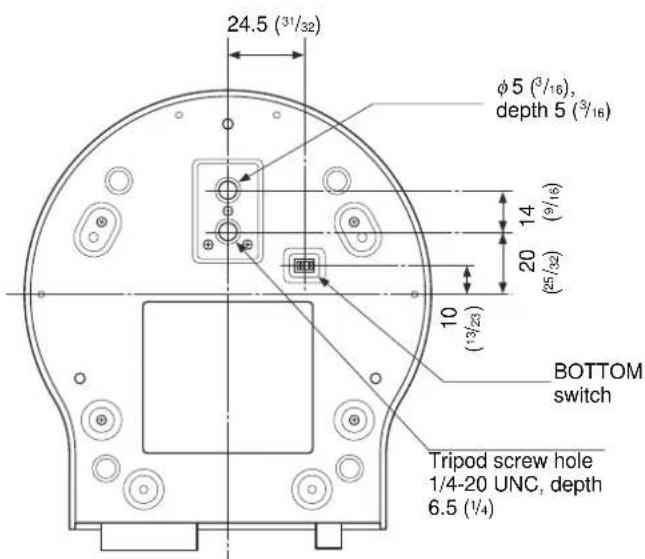

⑭Tripod screw hole

⑮BOTTOM switch

1 D30/D31 mode switch

Set this switch to ON to operate the Color Video Camera using the VISCA commands for the EVI-D30/D31. (See page 52.)

2 IR SELECT switch

Set this switch to ON to allow the camera output signals transmitted from the Remote Commander to the Color Video Camera via VISCA OUT jack. (See page 35.)

3 RS-232C/RS-422 SELECT

switch

Set this switch to RS422 to operate the Color Video Camera using the VISCA commands via the RS-422 interface.

To switch modes, make sure that the power is turned off (excluding standby mode), move the BOTTOM switch, and then turn the DC power on.

The unit will not switch modes after the power is turned on.

4 BAUD RATE SELECT switch

Set this switch to 38400 bps to operate the camera with the baud rate of 38400 bps.

To switch modes, make sure that the power is turned off (excluding standby mode), move the BOTTOM switch, and then turn the DC power on.

The unit will not switch modes after the power is turned on.

⑯Ceiling bracket mounting screw holes

Remote Commander

①CAMERA SELECT buttons

②FOCUS buttons

AUTO button

FAR button

NEAR button

MANUAL button

③DATA SCREEN button

When the DATA SCREEN button is pushed, the camera status is displayed when you are using the Zoom or Manual Focus functions.

DATA SCREEN can be set to ON or OFF, and memorized, only with POSITION 1.

When POSITION 1 is recalled, the memorized DATA SCREEN status is used.

④PAN-TILT button

Arrow buttons

HOME button

⑤L/R DIRECTION SET button

⑥ POWER switch

⑦ BACK LIGHT button

⑧ POSITION buttons

Numeric buttons (Button 1 also works as the STD button. Button 2 also works as the REV button.)

PRESET button

RESET button

⑨PAN-TILT RESET button

⑩ZOOM buttons

SLOW T button

SLOW W button

FAST T button

FAST W button

Basic Functions

Zoom

The camera employs an 18× optical zoom lens combined with a digital zoom function allowing you to zoom up to 216×.

Lens specifications: Optical 18×, f = 4.1 to 73.8 mm (F1.4 to F3.0)

The horizontal angle of view is approximately 48 degrees (wide end) to 2.7 degrees (tele end). Digital Zoom enlarges the center of the subject by expanding each image in both the vertical and horizontal directions. When 12 × digital zoom is used, the number of effective picture elements in each direction reduces to ^1/12 and the overall resolution deteriorates.

You can activate the zoom in the following two ways:

• By pressing the TELE or WIDE buttons on the Remote Commander.
  • Using a VISCA Command

Using Standard Mode Using Variable Mode

There are eight levels of zoom speed.

Direct Mode

Setting the zoom position enables quick movement to the designated position.

Digital Zoom ON/OFF

In these standard and variable Speed Modes, it is necessary to send a "Stop Command" to stop the zoom operation.

- The Zoom Mode supports a Combined Mode and a Separate Mode.

Combined Mode

This is the previously existing zoom method. After the optical zoom has reached its maximum level, the camera switches to Digital Zoom Mode.

Separate Mode

In this mode, Optical Zoom and Digital Zoom can be operated separately. You can use digital zoom magnification at any time from within any level of optical magnification.

Focus

Focus has the following modes, all of which can be set using VISCA Commands.

- Auto Focus Mode

The minimum focus distance is 10 mm at the optical wide end (extreme close-up settings with VISCA control) and 800 mm at the optical tele end (distance from the front end of the lens), and is independent of the digital zoom.

The AutoFocus (AF) function automatically adjusts the focus position to maximize the high frequency content of the picture in a center measurement area, taking into consideration the high luminance and strong contrast components.

• Normal AF Mode
  This is the normal mode for AF operations.
• Interval AF Mode

The mode used for AF movements carried out at defined intervals. The time intervals for AF movements and for the timing of the stops can be set in one-second increments using the Set Time Command. The initial value for both is set to five seconds.

- Zoom Trigger Mode

When the zoom is changed with the TELE or the WIDE buttons, the pre-set value (initially set at 5 seconds) becomes that for AF Mode. Then, it returns to Manual Focus mode.

AF sensitivity can be set to either NORMAL or LOW.

- NORMAL

Reaches the highest focus speed quickly. Use this when shooting a subject that moves frequently. Usually, this is the most appropriate mode.

- LOW

Improves the stability of the focus. When the lighting level is low, the AF function does not take effect, even though the brightness varies, contributing to a stable image.

To avoid AF error from continuous 24 hour AF mode usage, daily initialization of lens system using the CAM\_Initialize command is recommended.

The CAM_Initialize command takes less than 3 seconds to initialize the focus and zoom.

- Manual Focus Mode

MF (Manual Focus) has both a Standard Speed Mode and a Variable Speed Mode. Standard Speed Mode focuses at a fixed rate of speed. Variable Speed Mode has eight speed levels that can be set using a VISCA Command.

Will not stop by this command itself in Standard Speed Mode and Variable Speed Mode. To stop, a Stop command must be sent.

- One Push Trigger Mode

When a Trigger Command is received, the lens moves to adjust the focus for the subject. The focus lens then holds the same position until the next Trigger Command is input.

- Infinity Mode

The lens is forcibly moved to a position suitable for an unlimited distance.

- Near Limit Mode

Can be set in a range from 1000 ( ) to C000 (10 mm). The focus range is narrowed by excluding the unnecessary range.

White Balance

White Balance has the following modes, all of which can be set using VISCA Commands.

• Auto White Balance

This mode computes the white balance value output using color information from the entire screen. It outputs the proper value using the color temperature radiating from a black subject based on a range of values from 3000 to 7500K. This mode is the default setting.

• ATW

Auto Tracing White balance (2000 to 10000 K)

- Indoor

3200 K Base Mode

- Outdoor

5800 K Base Mode

- One Push WB

The One Push White Balance mode is a fixed white balance mode that may be automatically readjusted only at the request of the user (One Push Trigger), assuming that a white subject, in correct lighting conditions and occupying more than 12 of the image, is submitted to the camera.

One Push White Balance data is lost when the power is turned off. If the power is turned off, reset the One Push White Balance.

- Manual WB

Manual control of R and B gain, 256 steps each

Automatic Exposure Mode

The variety of AE functions, which allow video signal to output the optimum image for subjects from low light conditions to bright light conditions, are available.

• Full Auto

Auto Iris and Gain, Fixed Shutter Speed (NTSC: ^1/60 s, PAL: ^1/50 s)

- Shutter Priority ^1)

Variable Shutter Speed, Auto Iris and Gain ( ^1/1 to ^1/10,000 s, 22 steps, std. shutter: 16 steps, slow shutter: 6 steps)

- Iris Priority

Variable Iris (F1.4 to Close, 18 steps), Auto Gain and Shutter speed.

- Manual

Variable Shutter, Iris and Gain.

- Bright

Variable Iris and Gain (Close to F1.6, 17 steps at 0 dB: F1.4, 15 steps from 0 to 28 dB)

AE – Shutter Priority

The shutter speed can be set freely by the user to a total of 22 steps – 16 high speeds and 6 low speeds. When the slow shutter is set, the speed can be 130 , 115 , 18 , or 14 s. The picture output is read at a normal rate from the memory. The memory is updated at a low rate from the CCD. AF capability is low.

In high speed mode, the shutter speed can be set up to 110,000 s. The iris and gain are set automatically, according to the brightness of the subject.

Data NTSC PAL
15 10000	10000
14 6000	6000
13 4000	3500
12 3000	2500
11 2000	1750
10 1500	1250
0F 1000	1000
0E 725	600
0D 500	425
0C 350	300
0B 250	215
0A 180	150
09 125	120
08 100	100
07 90	75
06 60	50
05 30	25
04 15	12
03 8	6
02 4	3
01^a)	2	2
00^a)	1	1

a) For AE-Manual only.

Note

When the shutter speed 1/1 s or 1/2 s is used, Auto Focus and White Balance may not function fully.

AE – Iris Priority

The iris can be set freely by the user to 18 steps between F1.4 and Close.

The gain and shutter speed are set automatically according to the brightness of the subject.

Data	Setting value	Data	Setting value
11 F1.4 08 F6.8
10 F1.6 07 F8.0
0F F2.0 06 F9.6
0E F2.4 05 F11
0D F2.8 04 F14
0C F3.4 03 F16
0B F4.0 02 F19
0A F4.8 01 F22
09 F5.6 00 CLOSE

AE - Manual

The shutter speed (22 steps), iris (18 steps) and gain (16 steps) can be set freely by the user.

AE - Bright

The bright control function adjusts both the gain and iris using an internal algorithm according to a brightness level freely set by the user. Exposure is controlled by gain when dark and by iris when bright. As both gain and iris are fixed, this mode is used when exposing at a fixed camera sensitivity. When switching from Full Auto or Shutter Priority Mode to Bright Mode, the current status will be retained for a short period of time.

Only when the AE mode is set to "Full Auto" or "Shutter Priority," the user can switch it to "Bright."

Data	Iris	Gain	Data	Iris	Gain
1F	F1.4	28 dB	0F	F2.0	0 dB
1E	F1.4	26 dB	0E	F2.4	0 dB
1D	F1.4	24 dB	0D	F2.8	0 dB
1C	F1.4	22 dB	0C	F3.4	0 dB
1B	F1.4	20 dB	0B	F4.0	0 dB
1A	F1.4	18 dB	0A	F4.8	0 dB
19	F1.4	16 dB	09	F5.6	0 dB
18	F1.4	14 dB	08	F6.8	0 dB
17	F1.4	12 dB	07	F8.0	0 dB
16	F1.4	10 dB	06	F9.6	0 dB
15	F1.4	8 dB	05	F11	0 dB
14	F1.4	6 dB	04	F14	0 dB
13	F1.4	4 dB	03	F16	0 dB
12	F1.4	2 dB	02	F19	0 dB
11	F1.4	0 dB	01	F22	0 dB
10	F1.6	0 dB	00	CLOSE	0 dB

When switching from the Shutter Priority mode to the Bright mode, the shutter speed set in the Shutter Priority mode is maintained.

Spot Exposure Mode

In Full Auto AE, the level for the entire screen is computed and the optimum Auto Iris and Gain levels are determined. In Spot AE, a particular section of the subject can be designated, and then that portion of the image can be weighted and a value computed so that Iris and Gain can be optimized to obtain an image. For example, in an image with a lot of movement and with varying levels of brightness, portions without much change can be designated as such a “spot,” and changes to the screen can be minimized in that area. As shown in the diagram below, a range of 16 blocks vertically and 16 blocks horizontally can be designated.

In the case where the center is designated (shown in black), the level is computed along with a weighted value for the surrounding block (shaded), including the specified portions; and then the Gain and Iris are set. The value of the designated portions and the surrounding areas should be calculated as 90% and the rest should be set to 10%.

Exposure Compensation

Exposure compensation is a function which offsets the internal reference brightness level used in the AE mode by steps of 1.5 dB.

Data Step		Setting value
0E 7 10.5 dB
0D 6 9 dB
0C 5 7.5 dB
0B 4 6 dB
0A 3 4.5 dB
09 2 3 dB
08 1 1.5 dB
07 0 0 dB
06 -1 -1.5 dB
05 -2 -3 dB
04 -3 -4.5 dB
03 -4 -6 dB
02 -5 -7.5 dB
01 -6 -9 dB
00 -7	-10.5 dB

Aperture Control

Aperture control is a function which adjusts the enhancement of the edges of objects in the picture. There are 16 levels of adjustment, starting from “no enhancement.” When shooting text, this control may help by making the text sharper.

Back Light Compensation

When the background of the subject is too bright, or when the subject is too dark due to shooting in the AE mode, back light compensation will make the subject appear clearer.

Slow Shutter – Auto/Manual

When the Slow Shutter is set to “Auto,” this ensures that the slow shutter is engaged automatically when the brightness drops. This occurs only when the AE mode is set to “Full Auto.”

“Slow Shutter Manual” is the factory setting.

ICR (IR Cut-Removable) Mode

An infrared (IR) Cut-Filter can be disengaged from the image path for increased sensitivity in low light environments. The ICR will automatically engage depending on the ambient light, allowing the camera to be effective in day/night environments. If you normally set the IR Cut-Filter to OFF, the image will be black and white (monochrome).

Auto ICR Mode

Auto ICR Mode automatically switches the settings needed for attaching or removing the IR Cut Filter. With a set level of darkness, the IR Cut Filter is automatically disabled (ICR ON), and the infrared sensitivity is increased. With a set level of brightness, the IR Cut Filter is automatically enabled (ICR OFF). Also on systems equipped with an IR light, the internal data of the camera is used to make the proper decisions to avoid malfunctions.

When Auto Slow Shutter is OFF (PRESLOW mode ON (default) or OFF)

When Auto Slow Shutter is ON (PRESLOW mode OFF)

When Auto Slow Shutter is ON (PRESLOW mode ON (default))

Note

When in Auto_ICR_OFF state and WB data is added (default), a malfunction may occur when the subjects largely consisting of blue and green colors are taken. Auto ICR is available in AE-full-auto state only.

Camera ID

The ID can be set up to 65,536 (0000 to FFFF). As this will be memorized in the nonvolatile memory inside the camera, data will be saved, regardless of the “position preset.”

Effect

It consists of the following functions.

• Neg. Art: Negative/Positive Reversal
- Black White: Monochrome Image

Others

IMAGE FLIP

The image output by the camera is flipped upside down, and the direction of Pan/Tilt movements are reversed using the IMAGE FLIP switch on the back of the unit.

Mirror Image

This function reverses the video output from the camera horizontally.

Freeze

This function captures an image in the field memory of the camera so that this image can be output continuously.

Because communication inside the camera is based on V cycle, the captured image is always the one 3V to 4Vs after the sending of a Command. Thus, you can not specify a time period after sending EVEN, ODD or a Command.

Power On/Off

Powers the camera on and off. When the power is off, the camera is able to accept only the lowest level of VISCA Commands and POWER of the Remote Commander; the display and other features are turned off.

I/F clear

Clears the Command buffer of the camera. Clearing the buffer can also be carried out from the control application software when the power is on.

Address set

VISCA is a protocol, which normally can support a daisy chain of up to seven attached devices. Therefore, whenever a camera is connected for the first time, be sure to use the address set to confirm the address.

Mute

Blanks the screen and sends out a synchronizing signal.

Lens Initialization

Initializes the zoom and focus of the lens. Even when power is already on, it initializes the zoom and the focus.

AutoPowerOff

If an operation is not attempted via either a VISCA command or the remote controller during a pre-set time period (from 1 to 65,535 minutes), the power will automatically turn off (Standby). To disable this function, set the time period to 0 minutes.

NightPowerOff

When the Alarm function operates in DayNight mode, and the unit judges that it is night, if an operation is not attempted via either a VISCA command or the remote controller during a pre-set time period (from 1 to 65,535 minutes), the power will automatically turn off (Standby). To disable this function, set the time period to 0 minutes.

When the DayNight level is set correctly (the Day level > the Night level), the Alarm function can only be set when the unit is operated in DayNight mode.

For information on DayNight mode settings, see pages 13, 14, and 24.

AutoPowerOff and NightPowerOff can be used at the same time.

However, if the criteria for both are fulfilled at the same time, the shorter of the two time periods until shut down will be used to turn the power off (Standby).

Memory (Position Preset)

Using the position preset function, 6 sets of camera shooting conditions can be stored and recalled.

This function allows you to achieve the desired status instantly even without adjusting the following items each time:

• Pan-Tilt position
• Zoom Position
  •Digital Zoom On/Off
  • Focus Auto/Manual
  • Focus Position
  •AE Mode
• Shutter control parameters
  •Bright Control
  •Iris control parameters
  •Gain control parameters
  •Exposure Compensation On/Off

• Exposure Level
  •Backlight Compensation On/Off

• Slow Shutter Auto/Manual

• White Balance Mode
  •R/B Gain
  •Aperture
• ICR Shoot On/Off

The settings are recalled when the power is turned on.

For setting items, see the "Initial Settings, Position Preset" section on page 25.

Alarm

For details, see page 13.

Title Display

The camera can be given a title containing up to 20 characters such as “ENTRANCE” or “LOBBY”. The position of the first character (horizontal, vertical) of the title, blinking state, and color can also be changed.

Vposition 00 to 0A
Hposition 00 to 17
Blink	00: Does not blink
	01: Blinks
Color 03 Red	00 White
	01 Yellow
	02 Violet
	04 Cyan
	05 Green
	06 Blue

00 01 02 03 04 05 06 07
A	B	C	D	E	F	G
08 09 0a 0b 0c 0d 0e 0f
I	J	K	L	M	N	O	P
10 11 12 13 14 15 16 17
Q	R	S	T	U	V	W	X
18 19 1a 1b 1c 1d 1e 1f
Y	Z	&		?	!	1	2
20 21 22 23 24 25 26 27
3	4	5	6	7	8		9
28 29 2a 2b 2c 2d 2e 2f
À	È	Î		Ò	Ù	Á
30 31 32 33 34 35 36 37
Ó	Ú	Â	Ê	Ô	Æ	Œ	Ã
38 39 3a 3b 3c 3d 3e 3f
Õ	Ñ		Ç	ß	Ä	Ï	Ö
40 41 42 43 44 45 46 47
À	$	F	¥	DM	£	¿	¡
48 49 4a 4b 4c 4d 4e 4f
ø	“	:	‘	.	,	/	-

Alarm Function

This function instructs the camera to detect movement within the monitoring area and then send an alarm signal automatically.

A High level signal is output when camera detects movement inside the monitoring area. A Low level signal is output when object stops moving.

However, when the mode is set to “DAY/NIGHT”, the High level signal is output for dark and the Low level signal is output for bright.

The Detect signal goes out through the serial command (VISCA) communication line.

Example

1. A door is motionless, so the Detect Level is Low.

2. At the moment when the door is opened by someone, the Detect Level goes to High.

3. The Detect Level is High while the shooting object is moving.

4!When the door is closed, Detect Level goes to Low again, or signals are output only once at the time of switching between High Level and Low Level.

í

ALARM Setting Command List

Command Set Com	Command Command Packet Comments
CAM_Alarm On 8x	01 04 6B 02 FF MD start
	Off 8x 01 04 6B 03 FF MD stop
	Set Mode 8x 01 04 6C pp FF Mode Setting		*Select one from 13 modes
	Set Day Night Level 8x 01 04 6D 0p 0p 0p ppp: Day distinction AE level0q 0q 0q FF qqq: Night distinction AE level.

90 07 04 6B 01 FF High signal output	(Low → High edge)
90 07 04 6B 00 FF Low signal output	(High → Low edge)

VISCA Mode Code (pp)	Details of Mode
00 Set the internal focus position. When focus movement is detected, the detect signal is High. When focus goes back to the previous position, the detect signal is Low.
01 Set a fixed period of time. When focus does not move during the time, the focus position is memorized as a rest position and the detect signal is Low.When focus moves, the detect signal is High. Afterwards when focus does not move for the fixed period of time, the focus position is memorized and the detect signal becomes Low.
02 Set the internal AE Level. When AE movement is detected, the detect signal is High. When AE Level goes back to the previous level, the detect signal is Low.
03 Set a fixed period of time. When AE Level does not change during this time, the AE value is memorized as a rest value and the detect signal is Low.When AE value changes, the detect signal is High.Afterwards when AE value does not change for the fixed period of time, the AE value is memorized and the detect signal becomes Low.
04 mode “00” and mode “02”
05 mode “00” and mode “03”
06 mode “01” and mode “02”
07 mode “01” and mode “03”
08 mode “00” or mode “02”
09 mode “00” or mode “03”
0A mode “01” or mode “02”
0B mode “01” or mode “03”
0C Day-Night Mode

ALARM Inquiry Command List

Inquiry Command Command Packet	Inquiry Packet	Comments
CAM_Alarm Inq	8x 09 04 6B FF	y0 50 02 FF On
		y0 50 03 FF Off
CAM_Alarm Mode Inq	8x 09 04 6C FF	y0 50 pp FF pp: Alarm Mode
CAM_AlarmDayNightLevel Inq	8x 09 04 6D FF	y0 50 0p 0p 0p0q 0q 0q 0r 0r 0r FF	ppp: Day setting AE Levelqqq: Night setting AE Levelrrr: Now AE Level
CAM_AlarmDetLevelInq	8x 09 04 6E FF	y0 50 01 FFy0 50 00 FF Detect Level is Low.	Detect Level is High.

Flowchart of 12 Modes Function

Mode "00"

Mode "01"

Mode "02"

Mode "03"

Details of Mode "01" to "03"

T1: Reset interval timer (5sec)
T2: Detect timer (2sec)
T3: High level signal count timer (2sec)


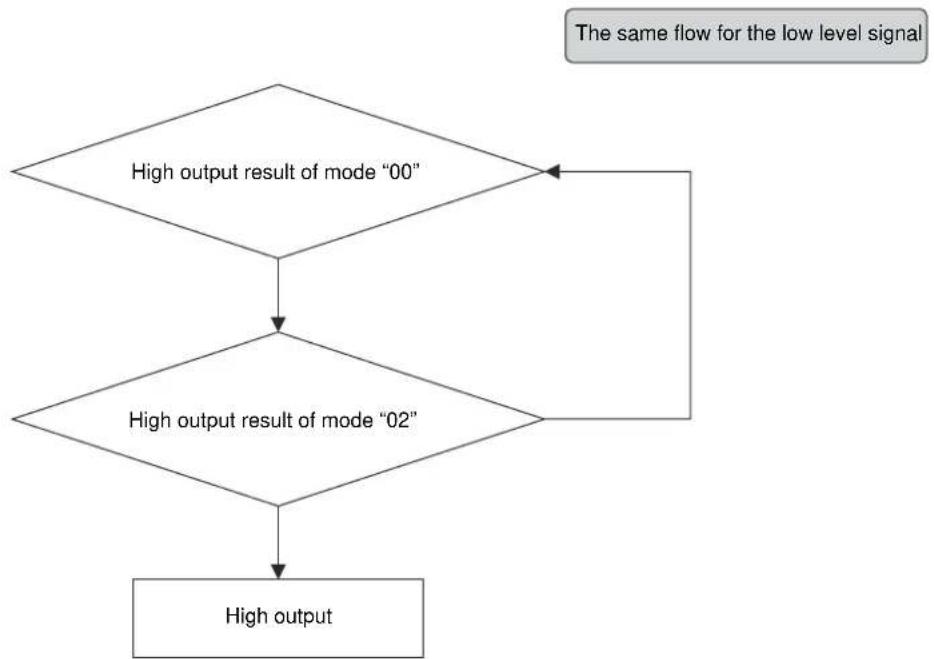

Mode "04"

Mode "05"


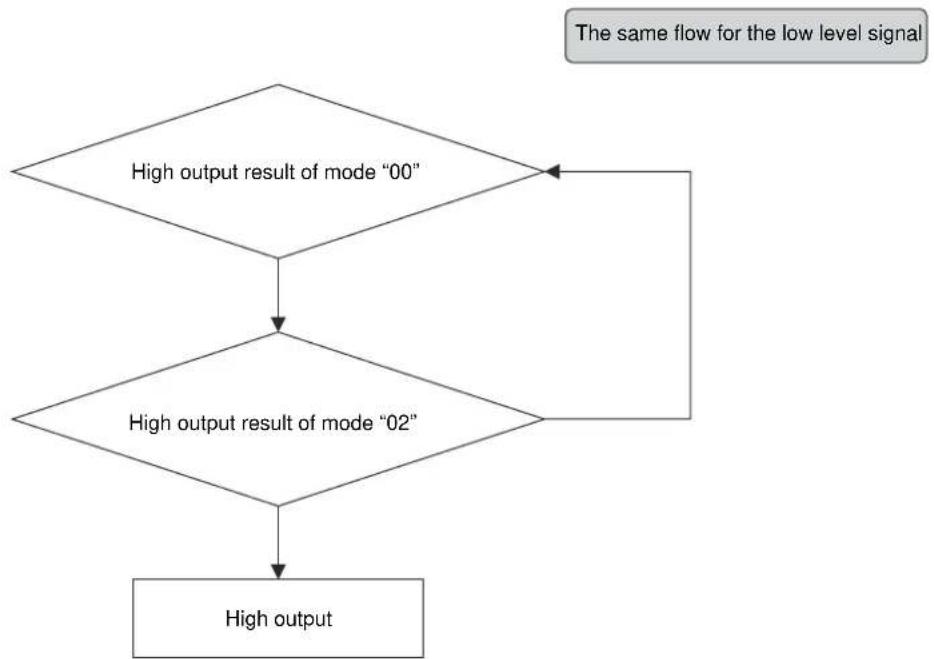

Mode "06"


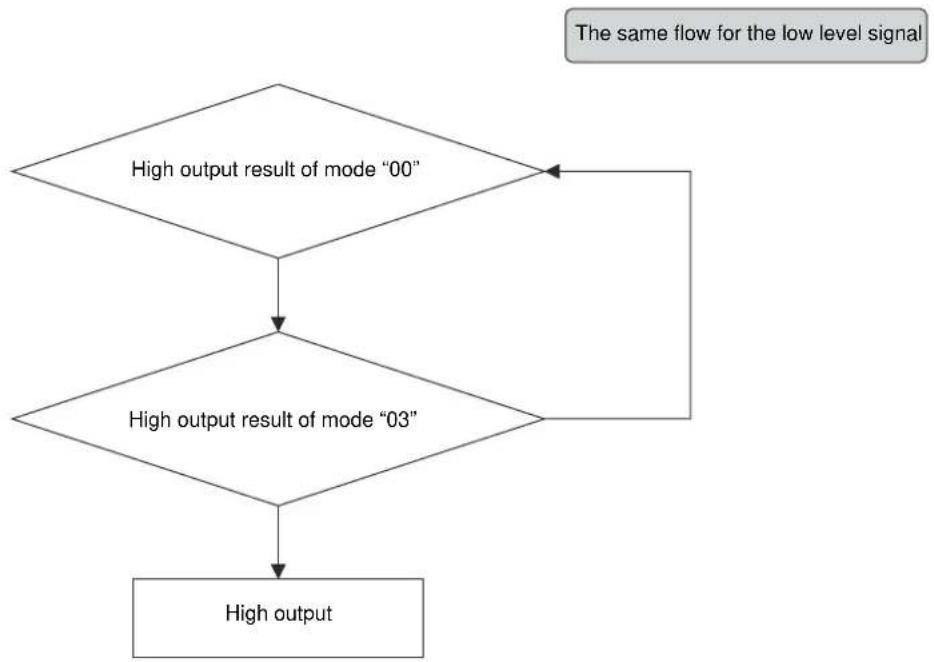

Mode "07"

Mode "08"

Mode "09"

Mode "0A"


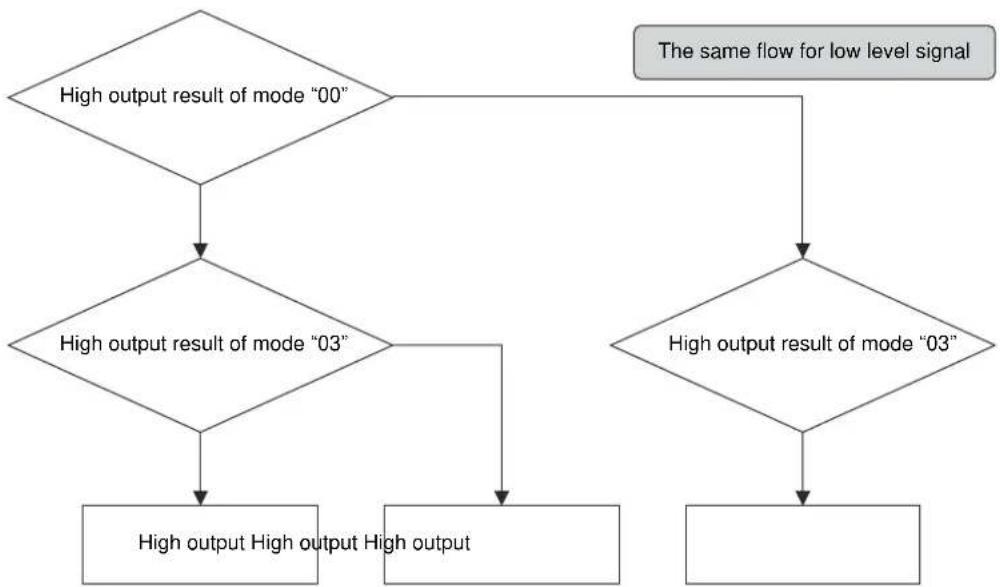

Mode "0B"


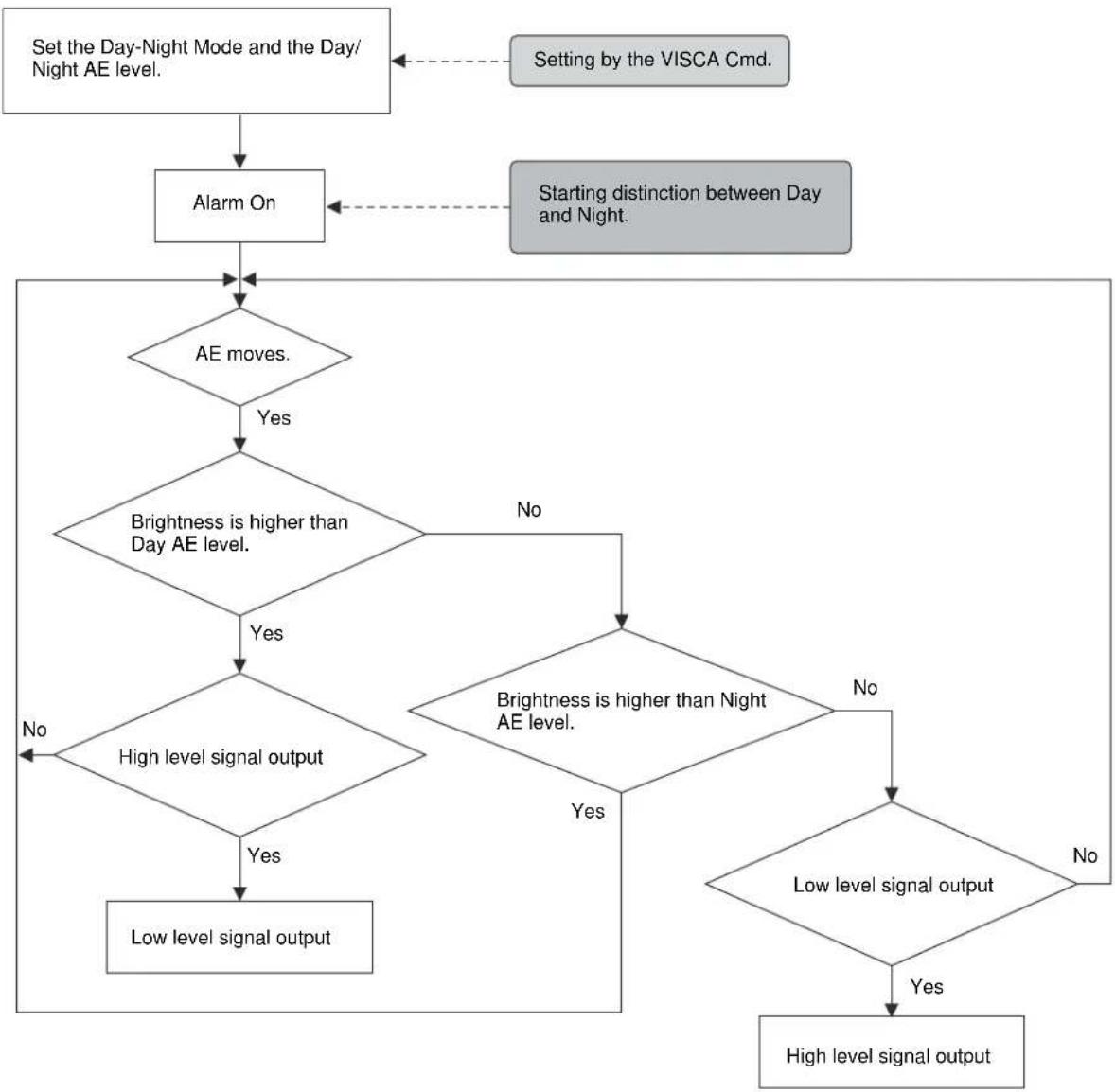

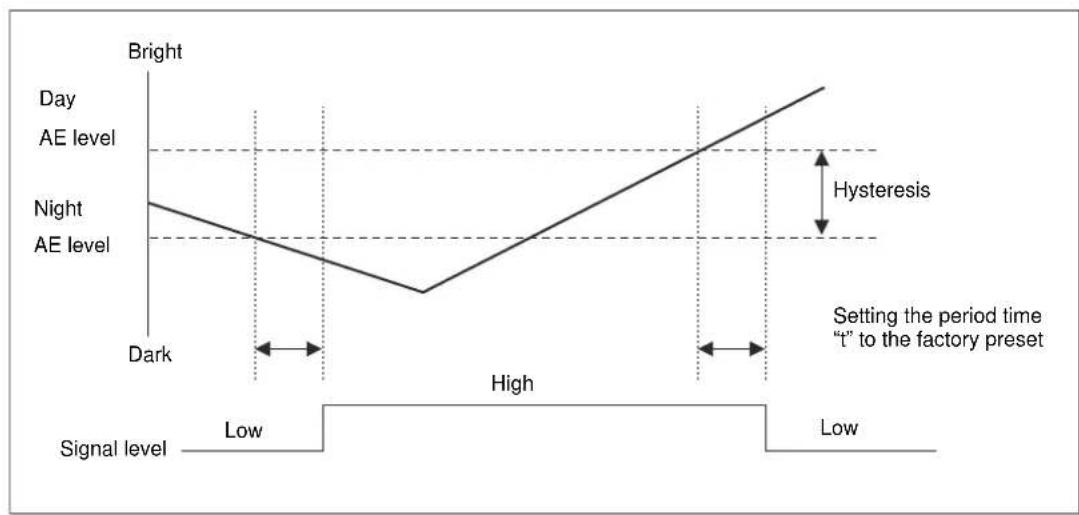

Day-Night Mode (Mode "0C")

Initial Settings, Position Preset

The initial values are those set at the factory. Settings for items in Position presets 1 to 6 that will be retained even when the power to the camera is turned off are indicated by a “O,” those that will be lost are indicated by an “X.”

• When the power is turned on, the settings retained in POSITION 1 will be called up as the initial settings.
• When a CAM_Memory Reset command is sent, or a

choice is made from POSITION 1 to 6 while the RESET button on the remote control is being pressed, the settings selected will be used as the initial settings.

- Position preset 1 becomes VISCA command CAM_Memory memory number 0. Position presets 2 through 6 become VISCA command CAM_Memory memory numbers 1 through 5.

Mode/Position Initial settings		Position Position preset 1 preset 2 to 6
Pan/Tilt Position Home position ○	○
Pan/Tilt Limit Position movable-range maximum ○×
Zoom Position Wide end ○	○
D-Zoom On/Off On ○	○
D-Zoom Separate/Combine Combine ○×
D-Zoom Position 00h ○	○
Focus Position — ○	○
Focus Auto/Manual	Auto ○	○
Near Limit Setting	8000h (29 cm) ○	○
AF Sensitivity	Normal	○	×
AF Mode	Normal	○	×
AF Run Time	5 sec ○×
AF Interval	5 sec ○×
WB Mode	Auto ○	○
WB Data (Rgain, Bgain)	— ○	○
One Push WB Data	— ○×
AE Mode	Full Auto ○	○
Slow Shutter Mode	Manual	○	○
Shutter Position	1/60sec (NTSC), 1/50sec (PAL)	○	○
Iris Position	— ○	○
Gain Position	— ○	○
Bright Position	— ○	○
Exposure Compensation On/Off	Off	○	○
Exposure Compensation Amount ±0	○	○
Backlight On/Off Off	○	○
Spot AE On/Off	Off	○	×
Spot AE Position Setting	X=8, Y=8	○	×
Aperture Level	5	○	○
IR_Receive On/Off	On ○×
IR_ReceiveReturn On/Off	Off	○	×
Auto Power Off Timer	0	○	×
Night Power Off Timer	0	○	×
LR Reverse On/Off	Off	○	×
Freeze On/Off	Off	×	×
Picture Effect	Off	○	×
ICR On/Off	Off	○	○
Auto ICR On/Off	Off	○	×
Preset Memory	Same as the initial value setting	○	○
Display On/Off	Off	○	○
Mute On/Off	Off ×	×
Title Display On/Off	Off	○	×

(Continued)

Mode/Position Initial settings		Position Position preset 1 preset 2 to 6
Title Setting — ×
Alarm On/Off Off ×
Alarm Mode — ×
Alarm Detect Level — ×

Notes

• The number of times data can be written to the EEPROM (by executing Position Preset) is limited.
• If you want the camera status and Pan/Tilt positions in effect before the camera is turned off to be retained when the power is turned OFF, then turned ON again, have the camera memorize those positions in POSITION 1.
• It takes approximately 2 seconds longer to memorize or erase settings in POSITION 1 than it does to memorize or erase settings in any other channel.
• Camera ID data will be saved regardless of the position preset.
• If Image Flip or D30/D31 mode has been switched, all of the Position Presets are reset to their initial values.
• In D30/D31 mode, the functions of the EVI-D30/D31 are the functions that are memorized.

Mode Condition

Basic settings

1.) Initializing: The period from the time DC power is turned on until the video signal is output. Or, the period from the time the CAM_PowerOn command is sent until Completion is returned.
2.) IFC: The period from the time IF_Clear is sent until the Reply Packet is returned.

Lens

Mode Power Off Initializing Power On Freeze On					Memory Recall	Zoom Direct	Focus Direct ZmFo Direct Focus Auto
Zoom Tele/Wide/Stop	×	×	○	×	×	×	○	×	○
Zoom Direct	×	×	○	×	×	○	○	×	○
Zoom Focus Direct	×	×	○	×	×	×	×	○	×
D-Zoom On/Off	×	×	○	×	×	×	○	×	○
D-Zoom Separate/Combine	×	×	○	×	×	×	○	×	○
D-Zoom Tele/Wide/Stop	×	×	○	×	×	○	○	○	○
D-Zoom ×1/Max	×	×	○	×	×	○	○	○	○
D-Zoom Direct	×	×	○	×	×	○	○	○	○
Focus Far/Near/Stop	×	×	○	×	×	○	×	×	×
Focus Direct	×	×	○	×	×	○	○	×	×
Focus Auto/Manual	×	×	○	×	×	○	×	×	○
One Push AF	×	×	○	×	×	○	×	×	×
Focus Infinity	×	×	○	×	×	○	×	×	○
Focus Near Limit	×	×	○	×	×	○	×	×	○
AF Sensitivity Normal/Low	×	×	○	×	×	○	○	○	○
AF Mode Norm/Interval/Zoom	×	×	○	×	×	○	○	○	○
AF Activation Time/Interval Setting	×	×	○	×	×	○	○	○	○
Lens Initialization	×	×	○	○	×	×	×	×	○

White Balance

Mode Power Off Initializing Power On Freeze On					Memory Recall	WB AUTO Indoor Outdoor	OnePush ATW Manual
WB Mode Switchover	×	×	○	×	×	○	○	○	○	○
One Push WB	×	×	○	×	×	×	×	×	○	×
RGain Setting	×	×	○	×	×	×	×	×	×	○
BGain Setting	×	×	○	×	×	×	×	×	×	○

Exposure

Mode Power Off Initializing Power On Freeze On					Memory Recall	AE Full Auto	AE Manual	ShutterPriority	Iris Priority	Bright
AE Full Auto	×	×	○	×	×	○	○	○	○	○
AE Manual	×	×	○	×	×	○	○	○	○	○
Shutter Priority	×	×	○	×	×	○	○	○	○	○
Iris Priority	×	×	○	×	×	○	○	○	○	○
Bright	×	×	○	×	×	○	×	○	×	○
Shutter Setting	×	×	○	×	×	×	○	○	×	×
Iris Setting	×	×	○	×	×	×	○	×	○	×
Gain Setting	×	×	○	×	×	×	○	×	×	×
Bright Setting	×	×	○	×	×	×	×	×	×	○
Slow Shutter Auto/Manual	×	×	○	×	×	○	○	○	○	○
Exposure Compensation On/Off	×	×	○	×	×	○	○	○	○	○
Exposure Compensation Setting	×	×	○	×	×	○	○	○	○	○
BackLight On/Off	×	×	○	×	×	○	×	×	×	×
SpotAE On/Off	×	×	○	×	×	○	○	○	○	○
SpotAE Setting	×	×	○	×	×	○	○	○	○	○

Effect settings, ICR

Mode Power Off Initializing Power On		Freeze On				Memory Recall
Aperture Setting ×	×	○×	×
LR_Reverse On/Off ×	×	○×	×
Freeze On/Off ×	×	○	○		×
Picture Effect Setting ×	×	○×	×
ICR On/Off ×	×	○×	×
Auto ICR On/Off ×	×	○×	×
Display On/Off ×	×	○	○	○
Mute On/Off ×	×	○	○	○
Title Setting ×	×	○	○	○

Pan/Tilt, Memory Function

Command

Mode

Power OFF

Initia-lizing

IFC

Freeze On

Zoom

Focus (manual) adjustment

Pan/Tilt movement

Memory Recall execution

During Memory Reset

During Memory Set

Posi-tion detec-tion error

Up/Down/Left/Right/UpLeft/UpRight/DownLeft/DownRight

Absolute Position

Relative Position

Home

Reset

Transmit device

Common

Common

VISCA

RC VISCA

VISCA

VISCA

RC VISCA

RC VISCA

RC VISCA

Shared Shared

Pan-tiltDrive Up/Down/Left/ VISCA

×

×

×

○

○

○

○

○

×

×

×

×

×

×

×

×

×

×

×

O^51

Right/UpLeft/UpRight/DownLeft/DownRight RC

×

×

×

○

○

○

×

×

×

×

×

×

×

×

×

×

×

×

×

O^51

Pan-tiltDrive Stop VISCA

×

×

×

○

○

○

○

×

×

×

×

×

×

×

×

×

×

×

×

○

Pan-tiltDrive AbsolutePosition VISCA

×

×

×

○

○

○

○

○

×

×

×

×

×

×

×

×

×

×

×

×

Pan-tiltDrive RelativePosition VISCA

×

×

×

○

○

○

×

×

×

×

×

×

×

×

×

×

×

×

×

○

Pan-tiltDrive Home

VISCA

×

×

×

○

○

○

×

×

×

×

○

×

×

×

×

×

×

×

×

×

RC

×

×

×

○

○

○

×

×

×

×

×

○

×

×

×

×

×

×

×

×

Pan-tiltDrive Reset

VISCA

×

×

×

○

○

○

×

×

×

×

×

×

×

×

×

×

×

×

×

○

RC

×

×

×

○

○

○

×

×

×

×

×

×

×

×

×

×

×

×

×

○

Pan-tiltDrive LimitSet VISCA

×

×

×

○

○

○

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Pan-tiltDrive LimitClear VISCA

×

×

×

○

○

○

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Memory Set

Common

×

×

×

O^3)

××

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Memory Reset

Common

×

×

×

○

××

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Memory Recall

VISCA

×

×

×

O^4)

X^1)

X^2)

○

○

×

×

×

×

×

×

×

○

○

×

×

×

RC

×

×

×

O^4)

X^1)

X^2)

○

×

×

×

×

×

×

×

×

○

○

×

×

×

1): O while the camera operates in the Tele/Wide zoom mode
2): O while the camera operates in the Far/Near focus mode
3): Freeze is set as off, and the setting is Memory Set.
4): Freeze is set as off, and the setting is Memory Recall.
5): ○ only for movements away from the direction where a position detection error has been recognized.

Command List

VISCA ^1) RS-232C/RS-422 Commands

Use of RS-232C/RS-422 control software which has been developed based upon this command list may cause malfunction or damage to hardware and software. Sony Corporation is not liable for any such damage.

Overview of VISCA

In VISCA, the side outputting commands, for example, a computer, is called the controller, while the side receiving the commands, such as an EVI-D70/P, is called the peripheral device. The EVI-D70/P serves as a peripheral device in VISCA. In VISCA, up to seven peripheral devices like the EVI-D70/P can be connected to one controller using communication conforming to the RS-232C/RS-422 standard. The parameters of RS-232C/422 are as follows.

• Communication speed: 9600 bps/38400 bps
• Data bits : 8
• Start bit : 1
• Stop bit : 1
• Non parity

Flow control using XON/XOFF and RTS/CTS, etc., is not supported.

Peripheral devices are connected in a daisy chain. As shown in Fig. 1, the actual internal connection is a one-direction ring, so that messages return to the controller via the peripheral devices. The devices on the network are assigned addresses.

The address of the controller is fixed at 0. The addresses of the peripheral devices are 1, 2, 3 ... in order, starting from the one nearest the controller. The address of the peripheral device is set by sending address commands during the initialization of the network.

The VISCA devices each have a VISCA IN and VISCA OUT connector.

Set the DTR input (the S output of the controller) of VISCA IN to H when controlling VISCA equipment from the controller.

Fig. 1 VISCA network configuration

VISCA Communication Specifications

VISCA packet structure

The basic unit of VISCA communication is called a packet (Fig. 2). The first byte of the packet is called the header and comprises the sender's and receiver's addresses. For example, the header of the packet sent to the EVI-D70/P assigned address 1 from the controller (address 0) is hexadecimal 81H. The packet sent to the EVI-D70/P assigned address 2 is 82H. In the command list, as the header is 8X, input the address of the EVI-D70/P at X. The header of the reply packet from the EVI-D70/P assigned address 1 is 90H. The packet from the EVI-D70/P assigned address 2 is A0H.

Some of the commands for setting EVI-D70/P units can be sent to all devices at one time (broadcast). In the case of broadcast, the header should be hexadecimal 88H.

When the terminator is FFH, it signifies the end of the packet.

Fig. 2 Packet structure

Note

Fig. 2 shows the packet structure, while Fig. 3 shows the actual waveform. Data flow will take place with the LSB first.

Fig. 3 Actual waveform for 1 byte.

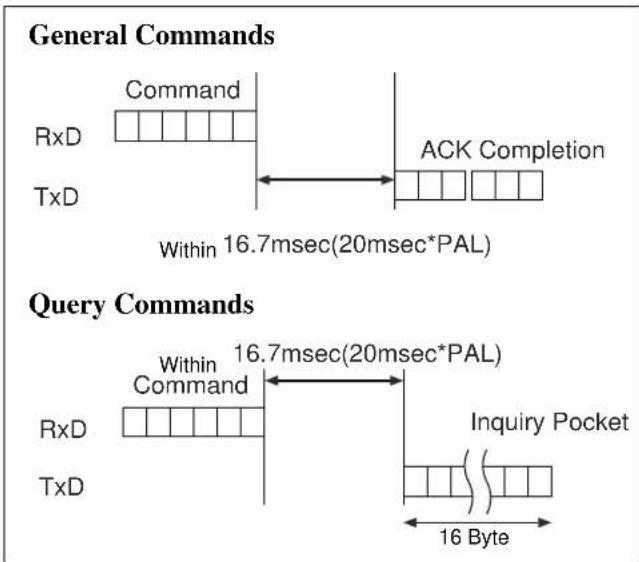

Timing Chart

As VISCA Command processing can only be carried out one time in a Vertical cycle, it takes the maximum 1V cycle time for an ACK/Completion to be returned. If the Command ACK/Completion communication time can be cut shorter than the 1V cycle time, then every 1V cycle can receive a Command.

From this point, if 2 or more commands in a row are to be sent, wait for the first command (for normal commands, an ACK or an error message, for query commands, an Inquiry Packet) to be carried out before sending the next one.

Command and inquiry

- Command

Sends operational commands to the EVI-D70/P.

- Inquiry

Used for inquiring about the current state of the EVI-D70/P.

Command Packet Note

Inquiry 8X QQ RR ... FF QQ

^1) = Command/Inquiry,

RR^2) = category code

^1) QQ = 01 (Command), 09 (Inquiry)

2) RR = 00 (Interface), 04 (camera 1), 06 (Pan/Tilter)

X = 1 to 7: EVI-D70/P address

Responses for commands and inquiries

- ACK message

Returned by the EVI-D70/P when it receives a command. No ACK message is returned for inquiries.

- Completion message

Returned by the EVI-D70/P when execution of commands or inquiries is completed. In the case of inquiry commands, it will contain reply data for the inquiry after the 3rd byte of the packet. If the ACK message is omitted, the socket number will contain a 0.

Reply Packet Note

Ack X0 4Y FF Y = socket number

Completion (commands) X0 5Y FF Y = socket number

Completion (Inquiries) X0 5Y ... FF Y = socket number

X = 9 to F: EVI-D70/P address + 8

- Error message

When a command or inquiry command could not be executed or failed, an error message is returned instead of the completion message.

Error Packet Description

X0 6Y 01 FF Message length error (>14 bytes)

X0 6Y 02 FF Syntax Error

X0 6Y 03 FF Command buffer full

X0 6Y 04 FF Command cancelled

X0 6Y 05 FF No socket (to be cancelled)

X0 6Y 41 FF Command not executable

X = 9 to F: EVI-D70/P address + 8, Y = socket number

Socket number

When command messages are sent to the EVI-D70/P, it is normal to send the next command message after waiting for the completion message or error message to return. However to deal with advanced uses, the EVI-D70/P has two buffers (memories) for commands, so that up to two commands including the commands currently being executed can be received. When the EVI-D70/P receives commands, it notifies the sender which command buffer was used using the socket number of the ACK message.

As the completion message or error message also has a socket number, it indicates which command has ended. Even when two command buffers are being used at any one time, an EVI-D70/P management command and some inquiry messages can be executed.

The ACK message is not returned for these commands and inquiries, and only the completion message of socket number 0 is returned.

Command execution cancel

To cancel a command which has already been sent, send the Cancel command as the next command. To cancel one of any two commands which have been sent, use the cancel message.

Cancel Packet Note

Cancel 8X 2Y FF Y = socket number

X = 1 to 7: EVI-D70/P address, Y = socket number

The Command canceled error message will be returned for this command, but this is not a fault. It indicates that the command has been canceled.

VISCA Device Setting Command

Before starting control of the EVI-D70/P, be sure to send the Address command and the IF_Clear command using the broadcast function.

For VISCA network administration

- Address

Sets an address of a peripheral device. Use when initializing the network, and receiving the following network change message.

- Network Change

Sent from the peripheral device to the controller when a device is removed from or added to the network. The address must be re-set when this message is received.

Packet Note

Address 88 30 01 FF Always broadcasted.

Network Change X0 38 FF

X = 9 to F: EVI-D70/P address + 8

VISCA interface command

- IF\_Clear

Clears the command buffers in the EVI-D70/P and cancels the command currently being executed.

Command Packet Reply Packet Note

IF_Clear 8X 01 00 01FF X0 50 FF

IF_Clear (broadcast) 88 01 00 01 FF 88 01 00 01 FF

X = 1 to 7: EVI-D70/P address (For inquiry packet)

X = 9 to F: EVI-D70/P address +8 (For reply packet)

VISCA interface and inquiry

- CAM\_VersionInq

Returns information on the VISCA interface.

Inquiry Inquiry Packet Reply Packet Description

CAM_VersionInq 8X 09 00 02 FF Y0 50 GG GG HH HH JJ JJ KK FF GGGG = Vender ID

(0020: Sony)

HHHH = Model ID

040E: EVI-D70/P

0402: EVI-D30/D31

(When the D30/D31 mode

is set to ON)

JJJJ = ROM revision

KK = Maximum socket # (02)

X = 1 to 7: EVI-D70/P address (For inquiry packet)

X = 9 to F: EVI-D70/P address +8 (For reply packet)

Pin assignment

VISCA RS-232C IN

No Pins Signals
1 DTR DataTransmission Ready (OUTPUT)
2 DSR Data Set Ready (INPUT)
3 TXD Transmit Data (OUTPUT)
4 GND Ground
5 RXD Receive Data (INPUT)
6 GND Ground
7 IR OUT IR Commander Signal (OUTPUT)
8 N.C No Connection

IR OUT outputs the signals of the Remote Commander at 0 to 5 V when the IR OUT switch is set to ON.

• EVI-D70/P Windows D-sub 9 pin

• EVI-D70/P EVI Camera or Mini

DIN 8 pin serial

• EVI-D70/P Windows D-sub 25 pin

Using the VISCA RS-422 connector pin assignments

The VISCA RS-422 connector pin assignments

Pin No. Function
1	T	XD IN+
2	T	XD IN-
3 RXD IN+
4 RXD IN-
5 GND
6	T	XD OUT+
7	T	XD OUT-
8 RXD OUT+
9 RXD OUT-

Using the VISCA RS-422 connector plug

1 Grasp both ends of the VISCA RS-422 connector plug and pull it away from the rear panel of the camera, as shown in the illustration.

2 Insert a wire (AW G Nos. 28 to 18) into the desired wire opening on the plug, and tighten the screw for that wire using a flat-head screwdriver.

3 Insert the VISCA RS-422 connector plug into the VISCA RS-422 connector on the back of the camera.

Notes

• In order to stabilize the voltage level of the signal, connect both ends to GND.

- Do not make a VISCA RS-232C connection when there is already an existing VISCA RS-422 connection.

VISCA Command/ACK Protocol

Command Command	Message Reply Message		Comments
General Command 81 01	04 38 02 FF 90 41 FF (ACK)(Example) (Completion)	+90 51 FF90 42 FF 90 52 FF	Returns ACK when a command has been accepted, and Completion when a command has been executed.
	81 01 04 38 FF 90 60 02 FF(Example)	(Syntax Error)	Accepted a command which is not supported or a command lacking parameters.
	81 01 04 38 02 FF 90 60 03(Example) (Command Buffer Full)	FFor Full	There are two commands currently being executed, and the command could not be accepted.
	81 01 04 08 02 FF 90 61 41(Example) (Command Not Executable)	FFExecutable)90 62 41FF	Could not execute the command in the current mode.
Inquiry Command 81 09	04 38 FF 90 50 02 FF (Completion)		ACK is not returned for the inquiry command.
	81 09 05 38 FF 90 60 02 FF(Example)	(Syntax Error)	Accepted an incompatible command.
Address Set 88 30 01 FF	88 30 02 FF		Returned the device address to +1.
IF_Clear(Broadcast) 88 01	00 01 FF 88 01 00 01 FF		Returned the same command.
IF_Clear (For x) 8x 01 00	01 FF z0 50 FF (Completion)		ACK is not returned for this command.
Command Cancel 8x 2y	FF z0 6y 04 FF	(Command Canceled)	Returned when the command of the socket specified is canceled.Completion for the command canceled is not returned.
		z0 6y 05 FF (No Socket)	Returned when the command of the specified socket has already been completed or when the socket number specified is wrong.

VISCA Camera-Issued Messages

ACK/Completion Messages

	Command Messages	Comments
ACK z0 4y FF	(y:Socket No.)	Returned when the command is accepted.
Completion z0 5y FF	(y:Socket No.)	Returned when the command has been executed.

z = Device address + 8

Error Messages

	Command Messages	Comments
Syntax Error z0 60 02 FF		Returned when the command format is different or when a command with illegal command parameters is accepted.
Command Buffer Full z0 60 03 FF		Indicates that two sockets are already being used (executing two commands) and the command could not be accepted when received.
Command Canceled z0 6y 04 FF	(y:Socket No.)	Returned when a command which is being executed in a socket specified by the cancel command is canceled. The completion message for the command is not returned.
No Socket z0 6y 05 FF	(y:Socket No.)	Returned when no command is executed in a socket specified by the cancel command, or when an invalid socket number is specified.
Command Not Executable z0 6y 41 FF(y:Socket No.)		Returned when a command cannot be executed due to current conditions. For example, when commands controlling the focus manually are received during auto focus.

Network Change Message

	Command Message	Comments
Network Change z0 38 FF		Issued when power is being routed to the camera, or when the VISCA device is connected to or disconnected from the VISCA RS-232C/RS-422 OUT connector used for communication.

EVI-D70/P Commands

EVI-D70/P Command List (1/4)

Command Set Command	Command Packet Comments
AddressSet Broadcast 88 30	0 01 FF Address setting
IF_Clear Broadcast 88 01 00	00 01 FF I/F Clear
CommandCancel 8x 2p FF	p: Socket No.(=1or2)
CAM_Power On 8x 01 04	00 02 FF Power ON/OFF
	Off 8x 01 04 00 03 FF
CAM_AutoPowerOff Direct	8x 01 04 40 0p 0q 0r 0s FF	Auto Power Off	pqrs: Power Off Timer 0000 (Timer Off) to FFFF(65535min)Initial value: 0000The power automatically turns off if the camera does not receive any VISCA commands or any signals from the Remote Commander for the duration you set in the timer.
CAM_NightPoweroff	Direct	8x 01 04 41 0p 0q 0r 0s FF	Pqrs: Power Off Timer 0000~FFFF (Units: Min.)A setting of 0 (zero min.) is equivalent to OFF, and the smallest value that can be set is 1 min.When the Day/Night function is in effect and the Night setting has been made, if an operation is not attempted via either a VISCA command or the remote controller, the unit will continue to operate for the time set in the timer, and will then shut off automatically.
CAM_Zoom	Stop 8x 01 04 07 00 FF
	Tele(Standard)	8x 01 04 07 02 FF
	Wide(Standard)	8x 01 04 07 03 FF
	Tele(Variable)	8x 01 04 07 2p FF p=0 (Low) to 7	(High)
	Wide(Variable)	8x 01 04 07 3p FF
	Direct 8x 01 04 47 0p 0q 0r 0s FF pqrs: Zoom Position
CAM_DZoom On 8x 01 04	06 02 FF Digital zoom ON/OFF
	Off 8x 01 04 06 03 FF
	Combine Mode	8x 01 04 36 00 FF Optical/Digital	Zoom Combined
	Separate Mode 8x 01 04 36 01 FF Optical/Digital Zoom Separate
	Stop 8x 01 04 06 00 FF
	Tele(Variable)	8x 01 04 06 2p FF p=0 (Low) to 7	(High)
	Wide(Variable)	8x 01 04 06 3p FF
	x1/Max 8x 01 04 06 10 FF x1/MAX Magnification Switchover
	Direct 8x 01 04 46 00 00 0p 0q FF pq: D-Zoom Position
CAM_Focus	Stop 8x 01 04 08 00 FF
	Far(Standard)	8x 01 04 08 02 FF
	Near(Standard)	8x 01 04 08 03 FF
	Far(Variable)	8x 01 04 08 2p FF p=0 (Low) to 7	(High)
	Near(Variable) 8x 01 04 08 3p FF
	Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position
	Auto Focus	8x 01 04 38 02 FF AF ON/OFF
	Manual Focus	8x 01 04 38 03 FF
	Auto/Manual	8x 01 04 38 10 FF
	One Push Trigger	8x 01 04 18 01 FF Onc Push AF Trigger
	Infinity	8x 01 04 18 02 FF Forced infinity
	Near Limit	8x 01 04 28 0p 0q 0r 0s FF	pqrs: Focus Near Limit Position

EVI-D70/P Command List (2/4)

Command Set Command Command Packet Comments
AF Sensitivity Normal 8x	01 04 58 02 FF AF Sensitivity	Normal/Low
	Low 8x 01 04 58 03 FF
CAM_AFMode Normal AF	8x 01 04 57 00 FF AF Movement Mode
	Interval AF 8x 01 04 57 01 FF
	Zoom Trigger AF 8x 01 04 57 02 FF
	Active/Interval Time 8x 01 04 27 0p 0q 0r 0s FF pq: Movement Time, rs: Interval
CAM_ZoomFocus Direct	8x 01 04 47 0p 0q 0r 0s pqrs: Zoom Position
CAM_Initialize	Lens	8x 01 04 19 01 FF Lens Initialization Start
	Comp Scan 8x 01 04 19 02 FF Correction of CCD pixel blemishes
CAM_WB	Auto	8x 01 04 35 00 FF Normal Auto
	Indoor	8x 01 04 35 01 FF Indoor mode
	Outdoor	8x 01 04 35 02 FF Outdoor mode
	One Push WB	8x 01 04 35 03 FF One Push WB mode
	ATW	8x 01 04 35 04 FF Auto Tracing White Balance
	Manual 8x 01 04 35 05 FF Manual Control mode
	One Push Trigger 8x 01 04 10 05 FF One Push WB Trigger
CAM_RGain	Reset	8x 01 04 03 00 FF Manual Control of R Gain
	Up	8x 01 04 03 02 FF
	Down	8x 01 04 03 03 FF
	Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain
CAM_BGain	Reset	8x 01 04 04 00 FF Manual Control of B Gain
	Up	8x 01 04 04 02 FF
	Down	8x 01 04 04 03 FF
	Direct 8x 01 04 44 00 00 0p 0q FF pq: B Gain
CAM_AE	Full Auto	8x 01 04 39 00 FF Automatic Exposure mode
	Manual 8x 01 04 39 03 FF Manual Control mode
	Shutter Priority	8x 01 04 39 0A FF	Shutter Priority Automatic Exposure mode
	Iris Priority 8x 01 04 39 0B FF Iris Priority Automatic Exposure mode
	Bright	8x 01 04 39 0D FF	Bright Mode (Manual control)
CAM_SlowShutter Auto	8x 01 04 5A 02 FF Auto Slow Shutter ON/OFF
	Manual 8x 01 04 5A 03 FF
CAM_Shutter	Reset	8x 01 04 0A 00 FF	Shutter Setting
	Up	8x 01 04 0A 02 FF
	Down	8x 01 04 0A 03 FF
	Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position
CAM_Iris	Reset	8x 01 04 0B 00 FF	Iris Setting
	Up	8x 01 04 0B 02 FF
	Down	8x 01 04 0B 03 FF
	Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position
CAM_Gain	Reset	8x 01 04 0C 00 FF	Gain Setting
	Up	8x 01 04 0C 02 FF
	Down	8x 01 04 0C 03 FF
	Direct 8x 01 04 4C 00 00 0p 0q FF pq: Gain Position
CAM_Bright	Reset	8x 01 04 0D 00 FF	Bright Setting
	Up	8x 01 04 0D 02 FF
	Down	8x 01 04 0D 03 FF
	Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright Position

EVI-D70/P Command List (3/4)

Command Set Command	Command Packet Comments
CAM_ExpComp On 8x 01	04 3E 02 FF Exposure Compensation ON/OFF
	Off 8x 01 04 3E 03 FF
	Reset 8x 01 04 0E 00 FF Exposure Compensation Amount Setting
	Up 8x 01 04 0E 02 FF
	Down 8x 01 04 0E 03 FF
	Direct 8x 01 04 4E 00 00 0p 0q FF pq: ExpComp Position
CAM_Backlight On 8x 01	04 33 02 FF Back Light Compensation ON/OFF
	Off 8x 01 04 33 03 FF
CAM_SpotAE On 8x 01 04	59 02 FF Spot Automatic Exposure Setting
	Off 8x 01 04 59 03 FF
	Position 8x 01 04 29 0p 0q 0r 0s FF pq: X (0 to F), rs: Y (0 to F)
CAM_Aperture Reset 8x 01	04 02 00 FF Aperture Control
	Up 8x 01 04 02 02 FF
	Down 8x 01 04 02 03 FF
	Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain
CAM_LR_Reverse	On 8x 01 04 61 02 FF Mirror Image ON/OFF
	Off 8x 01 04 61 03 FF
CAM_Freeze	On 8x 01 04 62 02 FF Still Image ON/OFF
	Off 8x 01 04 62 03 FF
CAM_PictureEffect	Off 8x 01 04 63 00 FF Picture Effect Setting
	Neg.Art 8x 01 04 63 02 FF
	B&W	8x 01 04 63 04 FF
CAM_ICR	On 8x 01 04 01 02 FF Infrared Mode ON/OFF
	Off 8x 01 04 01 03 FF
CAM_AutoICR	On 8x 01 04 51 02 FF Auto Infrared Mode ON/OFF
	Off 8x 01 04 51 03 FF
CAM_Memory	Reset	8x 01 04 3F 00 0p FF	p: Memory Number (=0 to 5)Corresponds to 1 to 6 on the Remote Commander.
	Set	8x 01 04 3F 01 0p FF
	Recall	8x 01 04 3F 02 0p FF
CAM_Display On 8x 01 04	15 02 FF Display ON/OFF	(8x 01 06 06 02 FF)
	Off 8x 01 04 15 03 FF	(8x 01 06 06 03 FF)
	On/Off	8x 01 04 15 10 FF(8x 01 06 06 10 FF)
CAM_Title	Title Set1	8x 01 04 73 00 mm nn ppqq 00 00 00 00 00 00 FF	mm: Vposition, nn: Hpositionpp: Color, qq: Blink
	Title Set2	8x 01 04 73 01 mm nn ppqq rr ss tt uu vv ww FF	mnpqrstuvw: Setting of Display Characters(1st to 10th Character)
	Title Set3	8x 01 04 73 02 mm nn ppqq rr ss tt uu vv ww FF	mnpqrstuvw: Setting of Display Characters(11th to 20th Character)
	Title Clear	8x 01 04 74 00 FF Title Setting Clear
	On 8x 01 04 74 02 FF Title Display ON/OFF
	Off 8x 01 04 74 03 FF
CAM_Mute On 8x 01 04 75	02 FF Mute ON/OFF
	Off 8x 01 04 75 03 FF
	On/Off	8x 01 04 75 10 FF

EVI-D70/P Command List (4/4)

Command Set Command	Command Packet Comments
CAM_KeyLock Off 8x 01	04 17 00 FF Camera Control Enable/Disable
	On 8x 01 04 17 02 FF
CAM_IDWrite 8x 01 04 22	0p 0q 0r 0s FF pqs: Camera ID (=0000 to FFFF)
CAM_Alarm On 8x 01 04	6B 02 FF Alarm ON/OFF
	Off 8x 01 04 6B 03 FF
	SetMode 8x 01 04 6C pp FF	PP: Mode Settings	00 Focus Move Detection (The rest position is fixed.)01 Focus Move Detection (The rest position is reset.)02 AE Move Detection (The rest value is fixed.)01 AE Move Detection (The rest value is reset.)
	SetDayNightLevel	8x 01 04 6D 0p 0p 0p 0q 0q 0q FF	ppp: Day distinction AE levelqqq: Night distinction AE level.
	Alarm (Reply) y0 07 04 6B 01 FF Detect Level “Low” → “High”
				y0 07 04 6B 00 FF Detect Level “High” → “Low”
IR_Receive On 8x 01 06 08	02 FF IR(remote commander) receive ON/OFF
	Off 8x 01 06 08 03 FF
	On/Off 8x 01 06 08 10 FF
IR_ReceiveReturn On 8x 01	7D 01 03 00 00 FF	IR(remote commander) receive message ON/OFF
	Off 8x 01 7D 01 13 00 00 FF
Pan-tiltDrive	Up 8x 01 06 01 VV WW 03	01 FF VV: Pan speed 01 to 18	WW: Tilt Speed 01 to 17YYYY: Pan Position F725 to 08DB (center 0000)ZZZZ: Tilt Position FE70 to 04B0 (Image Flip: OFF)Tilt Position FB50 to 0190 (Image Flip: ON) (center 0000)See page 51.
	Down	8x 01 06 01 VV WW 03 02 FF
	Left	8x 01 06 01 VV WW 01 03 FF
	Right	8x 01 06 01 VV WW 02 03 FF
	UpLeft 8x 01 06 01 VV WW	01 01 FF (center 0000)
	UpRight	8x 01 06 01 VV WW 02 01 FF
	DownLeft	8x 01 06 01 VV WW 01 02 FF
	DownRight	8x 01 06 01 VV WW 02 02 FF
	Stop	8x 01 06 01 VV WW 03 03 FF
	AbsolutePosition	8x 01 06 02 VV WW0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
	RelativePosition 8x 01 06 03	VV WW0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
	Home	8x 01 06 04 FF
	Reset	8x 01 06 05 FF
Pan-tiltLimitSet	LimitSet	8x 01 06 07 00 0W0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF	W: 1 UpRightYYYY: Pan Limit Position 0001~08DBZZZZ: Tilt Limit Position 0001~04B0 (Image Flip: OFF)Tilt Limit Position 0001~0190 (Image Flip: ON)W: 0 DownLeftYYYY: Pan Limit Position F725~FFFFZZZZ: Tilt Limit Position FE70~FFFF (Image Flip: OFF)Tilt Limit Position FB50~FFFF (Image Flip: ON)
	LimitClear	8x 01 06 07 01 0W07 0F 0F 0F 07 0F 0F 0F FF

EVI-D70/P Inquiry Command List (1/2)

Inquiry Command Command Packet Inquiry Packet Comments
CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF On
		y0 50 03 FF Off
CAM_AutoPowerOffInq 8x 09 04 40 FF y0 50 0p 0q 0r 0s FF pqrs: PowerOff Timer
CAM_NightPowerOff Inq 8x 09 04 41 FF y0 50 0p 0q 0r 0s FF pqrs: NightPowerOff Timer
CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position
CAM_DZoomModelInq 8x 09 04 06 FF y0 50 02 FF D-Zoom On
		y0 50 03 FF D-Zoom Off
CAM_DZoomC/SModelInq 8x 09 04 36 FF y0 50 00 FF Combine Mode
		y0 50 01 FF Separate Mode
CAM_DZoomPosInq 8x 09 04 46 FF y0 50 00 00 0p 0q FF pq: D-Zoom Position
CAM_FocusModelInq 8x 09 04 38 FF y0 50 02 FF Auto Focus
		y0 50 03 FF Manual Focus
CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position
CAM_FocusNearLimitInq 8x 09 04 28 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Near Limit Position
CAM_AFSensitivityInq 8x 09 04 58 FF y0 50 02 FF AF Sensitivity	Normal
		y0 50 03 FF AF Sensitivity Low
CAM_AFModeInq	8x 09 04 57 FF y0 50 00 FF Normal AF
		y0 50 01 FF Interval AF
		y0 50 02 FF Zoom Trigger AF
CAM_AFTimeSettingInq	8x 09 04 27 FF y0 50 0p 0q 0r 0s FF pq: Movement Time, rs: Interval
CAM_WBModeInq	8x 09 04 35 FF y0 50 00 FF Auto
		y0 50 01 FF In Door
		y0 50 02 FF Out Door
		y0 50 03 FF One Push WB
		y0 50 04 FF ATW
		y0 50 05 FF Manual
CAM_RGainInq	8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain
CAM_BGainInq	8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain
CAM_AEModeInq	8x 09 04 39 FF y0 50 00 FF Full Auto
		y0 50 03 FF Manual
		y0 50 0A FF	Shutter Priority
		y0 50 0B FF	Iris Priority
		y0 50 0D FF	Bright
CAM_SlowShutterModeInq	8x 09 04 5A FF y0 50 02 FF Auto
		y0 50 03 FF Manual
CAM_ShutterPosInq	8x 09 04 4A FF y0 50 00 00 0p 0q FF pq: Shutter Position
CAM_IrisPosInq	8x 09 04 4B FF	y0 50 00 00 0p 0q FF	pq: Iris Position
CAM_GainPosInq	8x 09 04 4C FF	y0 50 00 00 0p 0q FF	pq: Gain Position
CAM_BrightPosInq	8x 09 04 4D FF y0 50 00 00 0p 0q FF pq: Bright Position
CAM_ExpCompModeInq	8x 09 04 3E FF	y0 50 02 FF On
		y0 50 03 FF Off
CAM_ExpCompPosInq	8x 09 04 4E FF	y0 50 00 00 0p 0q FF	pq: ExpComp Position
CAM_BacklightModeInq	8x 09 04 33 FF y0 50 02 FF On
		y0 50 03 FF Off
CAM_SpotAEModeInq	8x 09 04 59 FF y0 50 02 FF On
		y0 50 03 FF Off
CAM_SpotAEPosInq	8x 09 04 29 FF y0 50 0p 0q 0r 0s FF pq: X position, rs: Y position
CAM_ApertureInq	8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain

EVI-D70/P Inquiry Command List (2/2)

Inquiry Command Command Packet Comments
CAM_LR_ReverseModeInq 8x 09 04 61 FF y0 50 02 FF On
	y0 50 03 FF Off
CAM_FreezeModeInq 8x 09 04 62 FF y0 50 02 FF On
	y0 50 03 FF Off
CAM_PictureEffectModeInq 8x 09 04 63 FF y0 50 00 FF Off
	y0 50 02 FF Neg.Art
	y0 50 04 FF B&W
CAM_ICRModeInq 8x 09 04 01 FF y0 50 02 FF On
	y0 50 03 FF Off
CAM_AutoICRModeInq 8x 09 04 51 FF y0 50 02 FF On
	y0 50 03 FF Off
CAM_MemoryInq 8x 09 04 3F FF y0 50 pp FF pp: Last Recall Memory No.
CAM_DisplayModeInq 8x 09 04 15 FF y0 50 02 FF On(8x 09 06 06 FF) y0 50 03 FF Off
CAM_TitleDisplayModeInq 8x 09 04 74 FF y0 50 02 FF On
	y0 50 03 FF Off
CAM_MuteModeInq 8x 09 04 75 FF y0 50 02 FF On
	y0 50 03 FF Off
CAM_KeyLockInq 8x 09 04 17 FF y0 50 00 FF Off
	y0 50 02 FF On
CAM_IDInq	8x 09 04 22 FF y0 50 0p 0q Or 0s FF pqr: Camera ID
CAM_VersionInq	8x 09 00 02 FF y0 50 00 01	mnpq: Modemn pq rs tu vw FF	Code (04xx)rstu: ROM versionvw: Socket Number (=02)See page 34.
CAM_AlarmInq	8x 09 04 6B FF	y0 50 02 FF On
		y0 50 03 FF Off
CAM_AlarmModeInq	8x 09 04 6C FF	y0 50 pp FF pp: Alarm Mode
CAM_AlarmDayNightLevelInq	8x 09 04 6D FF	y0 50 0p 0p 0p0q 0q 0q 0r 0r 0r FF	ppp: Day setting AE Levelqqq: Night setting AE Levelrrr: Now AE Level
CAM_PictureFlipModeInq	8x 09 04 66 FF y0 50 02 FF On
		y0 50 03 FF Off
CAM_AlarmDetectLevelInq 8x 09 04 6E FF y0 50 01 FF Detect Level “High”
			y0 50 00 FF Detect Level “Low”
Pan-tiltModeInq	8x 09 06 10 FF	y0 50 pq rs FF	pqrs: Pan/Tilter Status See page 51.
Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF	ww = Pan Max Speed		zz = Tilt Max Speed
Pan-tiltPosInq	8x 09 06 12 FF	y0 50 0w 0w 0w 0w0z 0z 0z 0z FF	www = Pan Positionzzzz = Tilt Position See page 51.
IR_ReceiveReturn		y0 07 7D 01 04 00 FF Power ON/OFF
		y0 07 7D 01 04 07 FF Zoom tele/wide
		y0 07 7D 01 04 38 FF AF On/Off
		y0 07 7D 01 04 33 FF CAM_Backlight
		y0 07 7D 01 04 3F FF CAM_Memory
		y0 07 7D 01 06 01 FF Pan_tiltDrive

EVI-D70/P Block Inquiry Command List

Lens control system inquiry commands .....Command Packet 8x 09 7E 7E 00 FF

Byte	Bit	Comments
0	7	Destination Address
	6
	5
	4
	3	Source Address
	2
	1
	0
1	7	0 Completion Message (50h)
	6	1
	5	0
	4	1
	3	0
	2	0
	1	0
	0	0
2	7	0
	6	0
	5	0
	4	0
	3	Zoom Position (HH)
	2
	1
	0
3	7	0
	6	0
	5	0
	4	0
	3	Zoom Position (HL)
	2
	1
	0
4	7	0
	6	0
	5	0
	4	0
	3	Zoom Position (LH)
	2
	1
	0
5	7	0
	6	0
	5	0
	4	0
	3	Zoom Position (LL)
	2
	1
	0

Byte	Bit C	Comments
6	7	0
	6	0
	5	0
	4	0
	3	Focus Near Limit (H)
	2
	1
	0
7	7	0
	6	0
	5	0
	4	0
	3	Focus Near Limit (L)
	2
	1
	0
8	7	0
	6	0
	5	0
	4	0
	3	Focus Position (HH)
	2
	1
	0
9	7	0
	6	0
	5	0
	4	0
	3	Focus Position (HL)
	2
	1
	0
10	7	0
	6	0
	5	0
	4	0
	3	Focus Position (LH)
	2
	1
	0
11	7	0
	6	0
	5	0
	4	0
	3	Focus Position (LL)
	2
	1
	0

Byte	Bit	Comments
12	7	0
	6	0
	5	0
	4	0
	3	0
	2	0
	1	0
	0	0
13 4	7	0
	6	0
	5	DZoomMode 1: Separate0: Combine
	0: 0:	1: Normal Interval Zoom0: 1: 0: Trigger
	3
	2 AF Sensitivity 1: Normal 0: Slow
	1 Digital Zoom 1:On 0:Off
	0 Focus Mode 1:Auto 0:Manual
14	7	0
	6	0
	5	0
	4	0
	3	Low Contrast Detection1: Yes 0: No
	2	Camera Memory Recall1: Executing 0: Stopped
	1	Focus Command1: Executing 0: Stopped
	0	Zoom Command1: Executing 0: Stopped
15	7	1 Terminator (FFh)
	6	1
	5	1
	4	1
	3	1
	2	1
	1	1
	0	1

Camera control system inquiry commands ..Command Packet 8x 09 7E 7E 01 FF

Byte	Bit	Comments
0	7	Destination Address
	6
	5
	4
	3	Source Address
	2
	1
	0
1	7	0 Completion Message (50h)
	6	1
	5	0
	4	1
	3	0
	2	0
	1	0
	0	0
2	7	0
	6	0
	5	0
	4	0
	3	R Gain (H)
	2
	1
	0
3	7	0
	6	0
	5	0
	4	0
	3	R Gain (L)
	2
	1
	0
4	7	0
	6	0
	5	0
	4	0
	3	B Gain (H)
	2
	1
	0
5	7	0
	6	0
	5	0
	4	0
	3	B Gain (L)
	2
	1
	0

Byte	Bit	Comments
6	7	0
	6	0
	5	0
	4	0
	3	0
	2	WB Mode
	1
	0
7	7	0
	6	0
	5	0
	4	0
	3	Aperture Gain
	2
	1
	0
8	7	0
	6	0
	5	0
	4	Exposure Mode
	3
	2
	1
	0
9	7	0
	6	0
	5	0
	4	0
	3 Spot AE 1: On 0: Off
	2 Back Light 1:On 0:Off
	1 Exposure Comp. 1:On 0:Off
	0 Slow Shutter 1:Auto 0:Manual
10	7	0
	6	0
	5	0
	4	Shutter Position
	3
	2
	1
	0
11	7	0
	6	0
	5	0
	4	Iris Position
	3
	2
	1
	0

Byte	Bit	Comments
12	7	0
	6	0
	5	0
	4	0
	3	Gain Position
	2
	1
	0
13	7	0
	6	0
	5	0
	4	Bright Position
	3
	2
	1
	0
14	7	0
	6	0
	5	0
	4	0
	3	Exposure Comp. Position
	2
	1
	0
15	7	1 Terminator (FFh)
	6	1
	5	1
	4	1
	3	1
	2	1
	1	1
	0	1

Other inquiry commands......Command Packet 8x 09 7E 7E 02 FF

Byte	Bit	Comments
0	7	Destination Address
	6
	5
	4
	3	Source Address
	2
	1
	0
1	7	0 Completion Message (50h)
	6	1
	5	0
	4	1
	3	0
	2	0
	1	0
	0	0
2	7	0
	6	0
	5	0
	4	0
	3	0
	2 Auto ICR 1: On 0: Off
	1	0
	0 Power 1: On 0: Off
3	7	0
	6	0
	5	0
	4 ICR 1: On 0: Off
	3 Freeze 1:On 0:Off
	2 LR Reverse 1:On 0:Off
	1	0
	0	0
4	7	0
	6	0
	5	0
	4 Mute 1: On 0: Off
	3 Title Display 1: On 0: Off
	2 Display 1: On 0: Off
	1	0
	0	0
5	7	0
	6	0
	5	0
	4	0
	3	Picture Effect Mode
	2
	1
	0

Byte	Bit C	Comments
6	7	0
	6	0
	5	0
	4	0
	3	0
	2	0
	1	0
	0	0
7	7	0
	6	0
	5	0
	4	0
	3	0
	2	0
	1	0
	0	0
8	7	0
	6	0
	5	0
	4	0
	3	Camera ID (HH)
	2
	1
	0
9	7	0
	6	0
	5	0
	4	0
	3	Camera ID (HL)
	2
	1
	0
10	7	0
	6	0
	5	0
	4	0
	3	Camera ID (LH)
	2
	1
	0
11	7	0
	6	0
	5	0
	4	0
	3	Camera ID (LL)
	2
	1
	0

Byte	Bit	Comments
12	7	0
	6	0
	5	0
	4	1
	3	0
	2	1
	1	0
	0 System 1:PAL 0:NTSC
13	7	0
	6	0
	5	0
	4	0
	3	0
	2	0
	1	0
	0	0
14	7	0
	6	0
	5	0
	4	0
	3	0
	2	0
	1	0
	0	0
15	7	1 Terminator (FFh)
	6	1
	5	1
	4	1
	3	1
	2	1
	1	1
	0	1

Enlargement Function Query Command ....Command Packet 8x 09 7E 7E 03 FF

Byte	Bit	Comments
0	7	Destination Address
	6
	5
	4
	3	Source Address
	2
	1
	0
1	7	0 Completion Message (50h)
	6	1
	5	0
	4	1
	3	0
	2	0
	1	0
	0	0
2	7	0
	6	0
	5	0
	4	0
	3	Digital Zoom Position (H)
	2
	1
	0
3	7	0
	6	0
	5	0
	4	0
	3	Digital Zoom Position (L)
	2
	1
	0
4	7	0
	6	0
	5	0
	4	0
	3	AF Activation Time (H)
	2
	1
	0
5	7	0
	6	0
	5	0
	4	0
	3	AF Activation Time (L)
	2
	1
	0

Byte	Bit C	Comments
6	7	0
	6	0
	5	0
	4	0
	3	AF Interval Time (H)
	2
	1
	0
7	7	0
	6	0
	5	0
	4	0
	3	AF Interval Time (L)
	2
	1
	0
8	7	0
	6	0
	5	0
	4	0
	3	SpotAE Position (X)
	2
	1
	0
9	7	0
	6	0
	5	0
	4	0
	3	SpotAE Position (Y)
	2
	1
	0
10	7	0
	6	0
	5	0
	4	0
	3	0
	2	0
	1 Alarm (1: On, 0: Off)
	0 Image flip (1: On, 0: Off)
11	7	0
	6	0
	5	0
	4	0
	3	0
	2	0
	1	1
	0	1

Byte	Bit	Comments
12	7	0
	6	0
	5	0
	4	0
	3	0
	2	0
	1	0
	0	0
13	7	0
	6	0
	5	0
	4	0
	3	0
	2	0
	1	0
	0	0
14	7	0
	6	0
	5	0
	4	0
	3	0
	2	0
	1	0
	0	0
15	7	1 Terminator (FFh)
	6	1
	5	1
	4	1
	3	1
	2	1
	1	1
	0	1

VISCA Command Setting Values

Exposure Control (1/2)

Shutter Speed 15	10000 10000
	14 6000 6000
	13 4000 3500
	12 3000 2500
	11 2000 1750
	10 1500 1250
	0F 1000 1000
	0E 725 600
	0D 500 425
	0C 350 300
	0B 250 215
	0A 180 150
	09 125 120
	08 100 100
	07 90 75
	06 60 50
	05 30 25
	04 15 12
	03 8 6
	02 4 3
	01 2 2
	00 1 1
Iris 11 F1.4
	10 F1.6
	0F F2.0
	0E F2.4
	0D F2.8
	0C F3.4
	0B F4.0
	0A F4.8
	09 F5.6
	08 F6.8
	07 F8.0
	06 F9.6
	05 F11
	04 F14
	03 F16
	02 F19
	01 F22
	00 CLOSE

Gain 0F 28 dB
	0E 26 dB
	0D 24 dB
	0C 22 dB
	0B 20 dB
	0A 18 dB
	09 16 dB
	08 14 dB
	07 12 dB
	06 10 dB
	05 8 dB
	04 6 dB
	03 4 dB
	02 +2 dB
	01	0
	00 -3 dB

Exposure Control (2/2)
IRIS GAIN

Bright 1F F1.4 28	dB
	1E F1.4 26	dB
	1D F1.4 24	dB
	1C F1.4 22	dB
	1B F1.4 20	dB
	1A F1.4 18	dB
	19 F1.4 16	dB
	18 F1.4 14	dB
	17 F1.4 12	dB
	16 F1.4 10	dB
	15 F1.4 8	dB
	14 F1.4 6	dB
	13 F1.4 4	dB
	12 F1.4 2	dB
	11 F1.4 0
	10 F1.6 0
	0F F2.0 0
	0E F2.4 0
	0D F2.8 0
	0C F3.4 0
	0B F4.0 0
	0A F4.8 0
	09 F5.6 0
	08 F6.8 0
	07 F8.0 0
	06 F9.6 0
	05 F11 0
	04 F14 0
	03 F16 0
	02 F19 0
	01 F22 0
	00 CLOSE	0
Exposure Comp.	OE 7 10.5 dB
	0D 6 9 dB
	0C 5 7.5 dB
	0B 4 6 dB
	0A 3 4.5 dB
	09 2 3 dB
	08 1 1.5 dB
	07 0 0 dB
	06 -1 -1.5 dB
	05 -2 -3 dB
	04 -3 -4.5 dB
	03 -4 -6 dB
	02 -5 -7.5 dB
	01 -6 -9 dB
	00 -7 -10.5 dB

Zoom Ratio and Zoom Position (for reference)

Zoom Ratio Optical Zoom ×18 Lens Position Data
×1 0000
×2 1606
×3 2151
×4 2860
×5 2CB5
×6 3060
×7 32D3
×8 3545
×9 3727
×10	38A9
×11	3A42
×12	3B4B
×13	3C85
×14	3D75
×15	3E4E
×16	3EF7
×17	3FA0
×18	4000

When using Combine Mode (CAM_ZoomPos Inq)

Digital Zoom Ratio	Digital Zoom Position Data
×1 4000
×2 6000
×3 6A80
×4 7000
×5 7340
×6 7540
×7 76C0
×8 7800
×9 7900
×10	7980
×11	7A40
×12	7AC0

When using Digital Zoom Separate Mode (CAM_DZoomPos Inq)

Magnification Position Data
×1	0
×2	8
×3	A
×4	C
×5	C
×6	D
×7	D
×8	E
×9	E
×10 E6
×11 E8
×12 EB

Lens Control

Zoom Position	0000 to 4000 to 7AC0Wide end Optical Tele end Digital Tele end
Focus Position	1000 to C000Far end Near end
Focus Near Limit	1000: Over Inf2000: 8.0 m3000: 3.5 m4000: 2.0 m5000: 1.4 m6000: 1 m7000: 80 cm8000: 29 cm9000: 10 cmA000: 4.7 cmB000: 2.3 cmC000: 1.0 cm	As the distance on the left will differ due to temperature characteristics, etc., use as approximate values.* The lower 1 byte is fixed at 00.

Pan/Tilt Position (Reference values)

		Pan Position Data	Tilt Position Data (Image Flip: OFF)	Tilt Position Data (Image Flip: ON)
Angle	+170°	08DB	-	-
	+150°	07DB	-	-
	+90°	04B0	04B0	-
	+30°	0190	0190	0190
	+10°	0085	0085	0085
	+0.075°	0001	0001	0001
	0°	0000	0000	0000
	-0.075°	FFFF	FFFF	FFFF
	-10°	FF7B	FF7B	FF7B
	-30°	FE70	FE70	FE70
	-90°	FB50	-	FB50
	-150°	F830	-	-
	-170°	F725	-	-

A + indicates a pan to the right and a tilt upward on the monitor screen.
A - indicates a pan to the left and a tilt downward on the monitor screen.

Others

R,B gain	00~FF
Aperture	00~0F

Title Setting

Vposition 00 to 0A
Hposition 00 to 17
Blink	00: Does not blink
	01: Blinks
Color 03 Red	00 White
	01 Yellow
	02 Violet
	04 Cyan
	05 Green
	06 Blue

Pan/Tilt Status Code List

P	Q	R	S
0---	----	0---	---1	A Pan movement all the way to the left
0---	----	0---	--1-	A Pan movement all the way to the right
0---	----	0---	-1--	A Tilt movement all the way up
0---	----	0---	1---	A Tilt movement all the way down
0---	----	--00	----	Pan movement is correct
0---	----	--01	----	Pan position cannot be detected
0---	----	--10	----	The Pan mechanism is abnormal
0---	--00	0---	----	The Tilt movement is correct
0---	--01	0---	----	The Tilt position cannot be detected
0---	--10	0---	----	The Tilt mechanism is abnormal
0---	00--	0---	----	No movement instructions
0---	01--	0---	----	In the midst of a Pan/Tilt
0---	10--	0---	----	Pan/Tilt completed
0---	11--	0---	----	Pan/Tilt failed
0-00	----	0---	----	Not initialized
0-01	----	0---	----	Initializing
0-10	----	0---	----	Initialization completed
0-11	----	0---	----	Initialization failed

(- : optional)

D30/D31 Mode

Overview

The D30/D31 mode allows you to control the EVI-D70/P using VISCA commands for the EVI-D30/D31. Most of the VISCA commands for the EVI-D70/P correspond to one for the EVI-D30/D31. However, some of the VISCA commands for the EVI-D70/P are different from those for the EVI-D30/D31 in definitions of parameters.

When you send those commands to an EVI-D70/P whose D30/D31 mode is set to ON, the camera translates the parameters for the EVI-D30/D31 to those for the EVI-D70/P and executes the command. The following parameters are subject to translation.

• Zoom speed
• Zoom position
  • Focus position
• Shutter speed
• Pan-tilt speed
• Pan-tilt position
  •Iris
  •Gain

Notes

• Even if you set the D30/D31 mode to ON, the EVI-D70/P may not emulate the EVI-D30/D31 perfectly. This is caused by differences in hardware between the two models.
  •The functions that are provided with the EVI-D30/D31 but not with the EVI-D70/P cannot be executed.

Switching the Mode

You can switch the D30/D31 mode ON or OFF by switching the BOTTOM switch at the bottom of the EVI-D70/P. To change the D30/D31 mode setting, move the BOTTOM switch to ON or OFF while the camera's power is off or the camera is in standby mode. Then, turn the power on by connecting the camera to an AC outlet or by using the VISCA commands or the Remote Commander.

It takes about 7 seconds for the image to be displayed after Pan/Tilt initialization motion has stopped.

Do not turn off DC power until the image has been displayed.

The mode will not change if you change the switch setting of the BOTTOM switch after the power has been turned on.

After you change the mode, previously saved position preset data will be lost. (Zoom, Pan/Tilt positions, etc. will be reset to their initial settings.)

Accepting or Sending Back Commands

When accepting commands

Type of command D30/D31 mode on D30/D31 mode off
Common to both the D30/D31 and D70/P	Common parameters Accepts as is
	Different parameters Translates the D30/D31's parameters to Accepts as is those of the D70/P
	CAM_Memory Reset Memorized data items are erased and Memorized data items are erased camera settings return to initial values
Only for the D70/P Refuses and sends back the Accepts as is		NotExecutable message
Only for the D30/D31 Refuses and sends back the Refuses and sends back the NotExecutable message SyntaxError message

When accepting inquiry commands

Type of command D30/D31 mode on D30/D31 mode off
Common to both the D30/D31 and D70/P	Common parameters Sends back parameters common to both the D30/D31 and D70/P
	Different parameters Sends back the D30/D31's parameters Sends back the D70/P translated from those of the D70/P
Only for the D70/P Refuses and sends back the Sends back the D70/P's parametersNotExecutable message
Only for the D30/D31 Refuses and sends back the Refuses and sends back theNotExecutable message SyntaxError message

Translating Parameters

Zoom speed

Cameras Parameters

EVI-D30/D31 02h (Min. speed) to 07h (Max. speed)

EVI-D70/P 00h (Min. speed) to 07h (Max. speed)

Translation of commands

Accepted parameters Translation

00h, 01h Translates to 02h

Values greater than 02h Accepts as is

Zoom position

Cameras Parameters

EVI-D30/D31 0000h (WIDE) to 03FFh (TELE)

EVI-D70/P 0000h (WIDE) to 7AC0h (TELE, digital 12×)

Translation of commands

Accepted parameters Translation

0000h to 03FFh Translates within a rage of 08D0h to 5700h

The EVI-D70/P translates the parameters to let the camera obtain the same zoom position that is defined by the D30/D31's parameter.

(The values given below are calculated values.)

Viewing angle

The D70/P parameters that correspond to the Wide and the Tele end of the D30/D31 are approximately 0000h and 3B4Bh. However, at the Wide end, the horizontal viewing angles are 48.8^ for the D30/D31, and 48.0^ for the D70/P.

Received parameters (0000h \~ 03FFh) will be converted within a range of 0000h to 3B4Bh. For D30/D31 mode, the setting will normally be Digital Zoom OFF

However, for CAM Zoom Tele/Wide commands and operations from the remote control, movement within the over all limits of the D70/P Zoom (0000h \~ 7AC0/77C0h) is possible.

Translation when answering inquiry commands

Parameters Translation

0000h to 4000h Translates within a rage of 0000h to 03FFh

The D70/P's parameters are translated to those of the D30/D31.

However, even if the zoom position value is less than 08D0h (closer to the wide side), the camera sends back 0000h to the controller. On the other hand, even if that value is greater than 3B4Bh (closer to the telephoto side), the camera sends back 03FFh.

Focus position

Cameras Parameters

EVI-D30/D31 1000h (FAR) to 9FFFh (NEAR, 1 cm)

EVI-D70/P 1000h (FAR) to C000h (NEAR, 10 cm)

Translation of commands

Accepted parameters Translation

Values less than 8400h Accepts as is

Values greater than 8400h Translates to 8400h

Because the range of the D70/P is narrower than that of the D30/D31, emulation is not carried out to match the actual focus position (focal point) to that of the D30/D31.

The EVI-D70/P operational range of (1000h (FAR) \~ C000h (NEAR, 1cm)) is emulated within the operational range of the EVI-D30/D31 (1000h (FAR) \~ 9FFFh (NEAR, 1cm)).

(Reference: Y = {(0xC000 - 0x1000)/(0x9FFF - 0x1000)}*(X - 0x1000) + 0x1000)

Translation when answering inquiry commands

Parameters Translation

1000h to 8400h Sends back parameters as is

The D70/P returns D70/P parameters as-is.

Reverse conversion is emulated as above.

(Reference: X = {(0x9FFF- 0x1000)/(0xC000 - 0x1000)}*(Y - 0x1000) + 0x1000)

Shutter speed

Translation of commands

The EVI-D70/P translates the D30/D31's parameters to D70/P parameters in accordance with the table below.

NTSC

EVI-D30 EVI-D70
Parameters	Shutter speed	Parameters	Shutter speed
0000h (1/60)	0006h (1/60)
0001h (1/60)	0006h (1/60)
0002h (1/75)	0006h (1/60)
0003h (1/90)	0007h (1/90)
0004h (1/100)	0008h (1/100)
0005h (1/125)	0009h (1/125)
0006h (1/150)	0009h (1/125)
0007h (1/180)	000Ah (1/180)
0008h (1/215)	000Ah (1/180)
0009h (1/250)	000Bh (1/250)
000Ah (1/300)	000Bh (1/250)
000Bh (1/350)	000Ch (1/350)
000Ch (1/425)	000Ch (1/350)
000Dh (1/500)	000Dh (1/500)
000Eh (1/600)	000Dh (1/500)
000Fh (1/725)	000Eh (1/725)
0010h (1/850)	000Eh (1/725)
0011h (1/1000)	000Fh (1/1000)
0012h (1/1250)	000Fh (1/1000)
0013h (1/1500)	0010h (1/1500)
0014h (1/1750)	0010h (1/1500)
0015h (1/2000)	0011h (1/2000)
0016h (1/2500)	0011h (1/2000)
0017h (1/3000)	0012h (1/3000)
0018h (1/3500)	0012h (1/3000)
0019h (1/4000)	0013h (1/4000)
001Ah	(1/6000) 0014h	(1/6000)
001Bh	(1/10000)		0015h	(1/10000)

PAL

EVI-D31			EVI-D70P
Parameters	Shutter speed	Parameters	Shutter speed
0000h (1/50)	0006h	(1/50)
0001h (1/60)	0006h	(1/50)
0002h (1/75)	0007h	(1/75)
0003h (1/90)	0008h (1/100)
0004h (1/100)	0008h (1/100)
0005h (1/120)	0009h (1/120)
0006h (1/150)	000Ah (1/150)
0007h (1/180)	000Ah (1/150)
0008h (1/215)	000Bh (1/215)
0009h (1/250)	000Bh (1/215)
000Ah (1/300)	000Ch (1/300)
000Bh (1/350)	000Ch (1/300)
000Ch (1/425)	000Dh (1/425)
000Dh (1/500)	000Dh (1/425)
000Eh (1/600)	000En (1/600)
000Fh (1/725)	000Eh (1/600)
0010h (1/850)	000Fh (1/1000)
0011h (1/1000)	000Fh (1/1000)
0012h (1/1250)	0010h (1/1250)
0013h (1/1500)	0010h (1/1250)
0014h (1/1750)	0011h (1/1750)
0015h (1/2000)	0011h (1/1750)
0016h (1/2500)	0012h (1/2500)
0017h (1/3000)	0012h (1/2500)
0018h (1/3500)	0013h (1/3500)
0019h (1/4000)	0013h (1/3500)
001Ah	(1/6000) 0014h	(1/6000)
001Bh	(1/10000)		0015h	(1/10000)

Translation when answering inquiry commands

The EVI-D70/P translates its parameters to the D30/D31's parameters and sends them back. However, during the period from the instant the camera accepts the CAM_Shutter Direct command to the instant the camera accepts another CAM_Shutter or CAM_AE command, it sends back the current D30/D31 parameters.

Gain conversion

- Parameter conversion when a command is received D30/D31 parameters are converted to D70/P parameters according to the table below.

EVI-D30/D31 EVI-D70/P
Parameters G	Gain (dB) Parameters	Gain (dB)
0000h -3 ➔	0000h -3
0001h 0 ➔	0001h 0
0002h 3 ➔	0003h 4
0003h 6 ➔	0004h 6
0004h 9 ➔	0006h 10
0005h 12 ➔	0007h 12
0006h 15 ➔	0009h 16
0007h 18 ➔	000Ah 18

- Parameter conversion when query commands are received D70/P parameters are converted to D30/D31 parameters and sent back.

Iris conversion

- Parameter conversion when a command is received D30/D31 parameters are converted to D70/P parameters according to the table below.

EVI-D30/D31 EVI-D70/P
Parameters Iris Parameters Iris
0000h CLOSE → 0000h CLOSE
0001h	F28	→	0001h	F22
0002h	F22	→	0001h	F22
0003h	F19	→	0002h	F19
0004h	F16	→	0003h	F16
0005h	F14	→	0004h	F14
0006h	F11	→	0005h	F11
0007h	F9.6	→	0006h	F9.6
0008h	F8 → 0007h		F8
0009h	F6.8	→	0008h	F6.8
000Ah	F5.6	→	0009h	F5.6
000Bh	F4.8	→	000Ah	F4.8
000Ch F4 → 000Bh F4
000Dh	F3.4	→	000Ch	F3.4
000Eh	F2.8	→	000Dh	F2.8
000Fh	F2.4	→	000Eh	F2.4
0010h	F2	→	000Fh	F2
0011h	F1.8	→	0010h	F1.6

- Parameter conversion when query commands are received D70/P parameters are converted to D30/D31 parameters and sent back.

Pan/tilt speed

The actual speed that is defined by the parameters corresponds to that of the EVI-D30/D31.

When the camera receives commands such as Pan-tiltDrive Home, Reset, or CAM_Memory Recall, that do not include speed indications, these operations are carried out at the same speed as they would be when the D30/D31 mode is set to OFF.

Pan Tilt

	Speed (deg/sec)
Parameters D	70/P D30/D31
01h 1.7 ➔	3.3
02h 4.3 ➔	6.7
03h 7.4 ➔	10
04h 9.8 ➔	13.3
05h 13.2 ➔	16.7
06h 18.0 ➔	20
07h 21.8 ➔	23.3
08h 25.0 ➔	26.7
09h 28.8 ➔	30
0Ah 31.5 ➔	33.3
0Bh 34.5 ➔	36.7
0Ch 39.3 ➔	40
0Dh 47.0 ➔	43.3
0Eh 49.0 ➔	46.7
0Fh 54.1 ➔	50
10h 56.6 ➔	53.3
11h 61.8 ➔	56.7
12h 64.7 ➔	60
13h 69.3 ➔	63.3
14h 72.2 ➔	66.7
15h 79.5 ➔	70
16h 84.0 ➔	73.3
17h 90.9 ➔	76.7
18h 100.0 ➔	80

	Speed (deg/sec)
Parameters D70/P D30/D31
01h 1.7 ➔	2.5
02h 4.3 ➔	5
03h 7.4 ➔	7.5
04h 9.8 ➔	10
05h 13.2 ➔	12.5
06h 18.0 ➔	15
07h 21.8 ➔	17.5
08h 25.0 ➔	20
09h 28.8 ➔	22.5
0Ah 31.5 ➔	25
0Bh 34.5 ➔	27.5
0Ch 39.3 ➔	30
0Dh 47.0 ➔	32.5
0Eh 49.0 ➔	35
0Fh 54.1 ➔	37.5
10h 56.6 ➔	40
11h 61.8 ➔	42.5
12h 64.7 ➔	45
13h 69.3 ➔	47.5
14h 72.2 ➔	50

Pan/tilt position

Pan position

Cameras	Parameters
EV1-D30/D31	FC90h (-100 degrees) to 0370h (+100 degrees)
EV1-D70/P	FACBh (-100 degrees) to 0535h (+100 degrees)

Tilt position

Cameras	Parameters
EVI-D30/D31	FED4h (-25 degrees) to 012Ch (+25 degrees)
EVI-D70/P	FEB3h (-25 degrees) to 014Dh (+25 degrees)

Translation of commands

Accepting parameters	Translation
Pan position	Multiplies received parameters by 50/33
Tilt position	Multiplies received parameters by 50/45

D30 D70
Pan/Tilt Pan Tilt
FC90h ➔ FACBh –
...		...	–
FED4h ➔ FE3Ah FEB3h
...		...	...
FFFDh ➔ FFFCh FFFDh
FFFEh ➔ FFFDh FFFEh
FFFFh ➔ FFFFh FFFFh
0000h ➔ 0000h 0000h
0001h ➔ 0001h 0001h
0002h ➔ 0003h 0002h
0003h ➔ 0004h 0003h
0004h ➔ 0006h 0004h
0005h ➔ 0007h 0005h
0006h ➔ 0009h 0006h
0007h ➔ 000Ah 0007h
0008h ➔ 000Ch 0008h
0009h ➔ 000Dh 000Ah
000Ah ➔ 000Fh 000Bh
000Bh ➔ 0010h 000Ch
...		...	...
012Ch ➔ 01C6h 014Dh
...		...	–
0370h ➔ 0535h –

Translation when answering inquiry commands

The camera sends back values that are calculated by inverse conversion performed when the camera accepts commands.

Note

Repetitive use of the Absolute position command may increase the variance that is accumulated from translation.

Example

When you execute the Relative position command 88 times, one step after another to turn the camera to the right side:

Cameras	Results
EVI-D30/D31	Turns to the right side by 10 degrees.
EVI-D70/P whose D30/D31 mode is ON	Turns to the right side by 6.6 degrees.

For Absolute Position commands, the permissible range for drive settings are the same as those for the EVI-D30/D31.

Pan direction: -100 degrees to + 100 degrees.

Tilt direction: -25 degrees to + 25 degrees.

Specifications

System

Video signal EVI-D70: NTSC Color, JEITA standards EVI-D70P: PAL Color, CCIR standards

Picture element 1/4 inch color CCD (Total picture elements: EVI-D70: Approx. 410,000 EVI-D70P: Approx. 470,000) (Effective picture elements: EVI-D70: Approx. 380,000 EVI-D70P: Approx. 440,000)

Lens 18× (Optical), 12× (Digital) f=4.1 to 73.8 mm, F1.4 to F3.0 Horizontal angle: 2.7 degrees to 48.0 degrees

Minimum object distance (WIDE end, extreme close-up settings with VISCA control) : 10 mm ( ^13/_32 inch)

Minimum illumination 1 lx (F1.4)/with 50 IRE

Shutter speed EVI-D70: 1/1 to 1/10,000 s (VISCA control) EVI-D70P: 1/1 to 1/10,000 s (VISCA control)

Horizontal resolution NTSC : 470 TV (WIDE end) PAL : 460 TV (WIDE end)

Video S/N 50 dB Pan/tilt action Horizontal: ±170 degrees Maximum speed: 100 degrees/s ^ , Vertical: +90 degrees, -30° degrees Maximum speed: 90 degrees/s ^ (0.075 degree increments)

Input/output terminals

Video output RCA phone jack (1), 1Vpp, 75 ohm unbalanced Synchronization: negative

Input voltage DC 12 V (DC 10.8 to 13 V)

Current consumption 1.0 A (at 12 V DC)

Operating temperature 0^ to +40^ (32°F to 104°F)

Storage temperature - 20 °C to +60 °C (-4 °F to 140 °F)

Dimensions Video camera: 132 × 144 × 144 mm (5^1/5 × 5^2/3 × 5^2/3 in.) (w/h/d) Remote Commander: 56 × 26 × 210 mm (2^1/4 × 1^1/16 × 8^3/8 in.) (w/h/d) (excluding protruding parts)

Mass Video camera: 950 g (2 lb 2 oz.) Remote Commander: 190 g (3.8 oz.)

Installation angle ± 15 degrees to a horizontal surface

Supplied accessories

AC power adaptor (1) AC Power cord (1) Remote Commander (1) Ceiling bracket (A) (1) Ceiling bracket (B) (1) Wire rope (1) Screw ⊕M3 × 6 (6) Operating Instructions (1)

Design and specifications are subject to change without notice.

Dimensions

Front Right side

Top Bottom

Unit: mm (inches)

Precautions

Software

Use of the demonstration software developed by Sony Corporation or use of the software with customer developed application software may damage hardware, the application program or the camera. Sony Corporation is not liable for any damages under these conditions.

Operation

Start the camera control software on your computer after you turn on the camera and the image is displayed.

Operation and storage locations

Do not shoot images that are extremely bright (e.g., light sources, the sun, etc.) for long periods of time. Do not use or store the camera in the following extreme conditions:

• Extremely hot or cold places (operating temperature 0^ to +40^ (32 °F to 104 °F))
• Close to generators of powerful electromagnetic radiation such as radio or TV transmitters
• Where it is subject to fluorescent light reflections
• Where it is subject to unstable (flickering, etc.) lighting conditions
• Where it is subject to strong vibration

Care of the unit

Remove dust or dirt on the surface of the lens with a blower (commercially available).

Other

Do not apply excessive voltage. (Use only the specified voltage.) Otherwise, you may get an electric shock or a fire may occur.

In case of abnormal operation, contact your authorized Sony dealer or the store where you purchased the product.
