Product Type	110 Induction Range Cooker
Brand	Rangemaster
Model	Professional + 110 Induction
Dimensions (H x W x D)	905-930 mm x 1100 mm x 596 mm (excl. handles) / 642 mm (incl. handles)
Weight	128 kg
Power Supply	230/400 V ~ 50 Hz 3N
Hob Type	Induction
Number of Cooking Zones	5
Hob Power (per zone)	Max 1.85 kW (zones 1,3,4), 1.15 kW (zone 2), with Boost up to 3.0 kW
Oven Type Left	Conventional or Multifunction (depending on model)
Oven Type Right	Fan oven (programmable on some models)
Oven Capacity Left	80 L (conventional) / 73 L (multifunction)
Oven Capacity Right	73 L
Grill Type	Separate grill or glide-out grill
Programmable Timer	Yes (minute minder, cook time, stop time)
Child Lock	Hob and oven key lock
Residual Heat Indicator	Yes (symbol H)
Automatic Heat-up	Yes (symbol R)
Power Boost	Yes, up to 10 minutes
Low Temperature Settings	L1 (approx. 40°C) and L2 (approx. 90°C)
Cleaning	'Cook & Clean' oven panels; ceramic hob scraper recommended
Safety Features	Overheat protection, cooling fan, thermal cut-out
Accessories Included	Oven shelves, grill pan, trivet, handyrack (some models), roasting tin

Frequently Asked Questions - Professional + 110 Induction RANGEMASTER

What types of pans can I use on the induction hob?

Use only pans suitable for induction hobs, such as stainless steel, enamelled steel, or cast iron with enamelled bases. The base must attract a magnet. Avoid copper, aluminium, or ceramic pans.

How do I activate the child lock on the hob?

To lock the hob, simultaneously turn the two left-hand controls counter-clockwise until the symbol appears in the centre of the hob control display. To unlock, repeat the same action. The child lock only works when all cooking zones are off.

What is the best way to clean the ceramic hob?

For daily cleaning, use a ceramic cleaning cream and a damp paper towel. For burned-on spills, use a single-edged razor scraper at a 30° angle. For sugary spills, scrape immediately while hot. Always let the hob cool before cleaning.

How does the Automatic Heat-up function work?

Turn the control knob to the 'A' position until the symbol [R] appears, then set the desired power level (1-9). The zone heats at 100% power for a specific time (see table in manual) then reduces to the selected level. The display flashes [R] and the power level during heat-up.

What is the Power Boost function and how long does it last?

Power Boost provides extra power to a cooking zone for rapid heating, e.g., boiling water quickly. Activate by turning the knob clockwise to [P]. It operates for a maximum of 10 minutes, after which the power automatically reduces to setting 9.

What are the different oven functions available on the multifunction oven?

The multifunction oven offers: Defrost (fan only), Fan oven (even heat), Fanned grilling, Fan assisted, Conventional oven, Browning element, and Base heat. Refer to the cooking table in the manual for recommended uses.

How do I use the glide-out grill?

Open the door and pull the grill pan carriage forward. To heat the whole grill, turn the knob clockwise; for the right-hand half, turn counter-clockwise. Preheat for 2 minutes with the pan in place. Never close the grill door when the grill is on.

What should I do if an error code (e.g., E2 or Er) appears on the hob display?

Error code E2 indicates overheating – check ventilation and ensure pans haven't boiled dry. Error U400 means incorrect connection. Er followed by a number indicates an internal fault. In all cases, contact a qualified engineer. Disconnect the cooker if the hob surface cracks.

How do I set the timer for automatic cooking?

For the 2-knob clock: turn the Timer knob to Cook Time (F), set duration with Adjusting knob, then turn to Stop Time (G) to set end time, finally turn to Auto (H). For the 6-button clock: press and hold the Cook Period button, set time with +/-, then set Stop Time with the same method. Refer to the manual for details.

What are the minimum clearances required for installation?

A gap of at least 75 mm must be left between the sides of the cooker above the hotplate and adjacent vertical surfaces (25 mm for non-combustible surfaces). The minimum space above the hob to a horizontal combustible surface is 650 mm. A clearance of 130 mm is needed near corners for door opening.

USER MANUAL Professional + 110 Induction RANGEMASTER

Britain's No.1 Range Cooker

Close-up of stir-fried shrimp and red peppers on a black grater with steam rising (no text or symbols visible)

Close-up of peaches cooking in a pan on an induction cooktop, with red and green leaves visible (no text or symbols)

Close-up of a layered strawberry tart with red topping and cream filling, served on a dark plate (no text or symbols visible)

Exterior view of a modern kitchen oven with multiple pizza slices on metal grilles (no signage or text visible)

USER GUIDE & INSTALLATION INSTRUCTIONS

110 Induction G5

Exterior view of a modern kitchen with a large rectangular dish on a gas stove, surrounded by pears and herbs (no visible text or symbols)

RANGEMASTER COOKWARE

Our range cookers are well known for providing the best possible cooking performance and years of faithful service. However, a great cooker alone cannot guarantee perfect results every time. The other vital ingredients are of course enthusiasm and quality cookware.

We offer cookware to work perfectly with all fuel types manufactured by Rangemaster, including induction hobs. You can be assured of functionality with style, as well as the quality and meticulous attention to detail you expect from the pioneers of range cooking.

Visit: www.rangemastercookshop.co.uk

FRUITY BAKED PUDDING

Serves 4–6

Ingredients

• Oil for greasing
  • 100 g strawberries
  • 100 g raspberries
  • 100 g redcurrants
  • 100 g blackberries
  • or a 400 g mixture of any soft fruits
  • 2 medium eggs
  • 30 g caster sugar
• 80 ml skimmed milk
  • 2 tsp vanilla extract
  • 60 g plain flour (sifted)
  • 1 tsp baking powder
• Icing sugar to dust

Method

1. Preheat the oven to 200 °C (for a conventional oven), 180 °C (for a fan oven) or gas mark 6.
2. Lightly grease a dish 26 cm wide x 4 cm deep.
3. Thickly slice any large strawberries and place them with the other fruits into an ovenproof dish, deep enough so the berries are about 2 deep.
4. Whisk the eggs and caster sugar until pale and fluffy. Beat the milk and vanilla extract into the mixture and then fold in the sifted flour and baking powder.
5. Pour the cake mix over the fruit and bake on the centre shelf of the oven for 15-20 minutes, or until the mixture is cooked through and golden on the top.
6. Dust with icing sugar and serve immediately with cream or crème fraîche.

Close-up of a colorful, layered dessert with strawberries, peaches, and berries served in a white scalloped bowl (no text or symbols visible)

Close-up of a cut, sliced meat dish with green leaf garnish (no visible text or symbols)

ROAST LOIN OF PORK WITH PROSCIUTTO & BAY LEAVES

Ingredients

• 3 kg (6½ lb) skinned and boned loin of pork
• 2 x 70 g packs prosciutto
• Grated zest of 2 lemons
- Bay leaves
- Salt and freshly ground black pepper

For the sauce:

• 1 tablespoons plain flour
• 4 tablespoons lemon juice
- Chicken stock/water

Method

1. Preheat the oven to 220 °C (for a conventional oven), 200 °C (for a fan oven) or gas mark 7.
2. Spread one of the packs of prosciutto over a chopping board; place the pork on top with the outer (fat) part of the pork resting on the prosciutto.
3. Sprinkle the lemon zest onto the inside of the meat and season well. Lay the remaining prosciutto on top of the zest and roll up.
4. Secure the pork with string or silicone bands and thread bay leaves under the string, covering the whole piece of pork. Put the meat on to a trivet over a large roasting tin containing enough water to cover the base.
5. Place into the oven and cook for 30 minutes. Reduce the heat to 180^ conventional oven/160 °C fan oven/gas 4 and continue roasting for a further 25 minutes per 500 g. Should the prosciutto start becoming too brown, cover with some foil.
6. When the pork is cooked, place onto a warm plate, cover with foil and allow to rest for at least 20 minutes.
7. Spoon off most of the fat from the roasting tin and stir the flour into the remaining. Gradually add the stock and lemon juice, adding more stock until the desired consistency is reached and simmer for 5 minutes. Check the seasoning, adding more pepper or lemon juice as necessary.
8. Remove the string or bands from the pork and carve into slices, serve with the sauce.

Contents

1. Before You Start... 1

Installation and Maintenance 1

Peculiar Smells 1

Ventilation 1

Personal Safety 1

Hob Care 3

Cooker Care 3

2. Cooker Overview 4

The Hob 4

The Grill / Glide-out Grill 8

The Ovens 9

Main Oven Light 11

Fascia Illumination 11

The Clock 12

Accessories 17

Storage 18

3. Cooking Tips 19

Hints on Using Your Induction Cooker 19

Tips on Cooking with the Timer 19

General Oven Tips 19

4. Cooking Table 20

5. Cleaning Your Cooker 21

Hob 21

Grills 22

Control Panel and Doors 23

Ovens 23

Cleaning Table 24

6. Troubleshooting 25

7. Installation 28

Dear Installer 28

Safety Requirements and Regulations 28

Provision of Ventilation 28

Location of Cooker 28

Positioning the Cooker 29

Moving the Cooker 29

Repositioning the Cooker Following

Connection 30

Levelling the Cooker 30

Electrical Connection 31

Final Checks 31

Final Fitting 32

Customer Care 32

8. Circuit Diagrams 33

Hob 33

Multifunction Oven 34

Conventional Oven 36

9. Technical Data 38

Connection 38

Dimensions 38

Ratings 38

Hotplate Efficiency Data 39

Oven Data 40

1. Before You Start...

Your cooker should give you many years of trouble-free cooking if installed and operated correctly. It is important that you read this section before you start, particularly if you have not used an induction cooker before.

CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating. Using it for any other purpose could invalidate any warranty or liability claim. Besides invalidating claims this wastes fuel and may overheat the control knobs.

Installation and Maintenance

All installations must be in accordance with the relevant instructions in this booklet, with the relevant national and local regulations, and with the local electricity supply companies' requirements.

Make sure that the cooker is correctly wired and switched on.

The hob control display will flash for about 2 seconds during first power setting – this is normal.

Set the clock to make sure that the ovens are functional – see the relevant section in this manual.

It is recommended that this appliance is serviced annually.

Only a qualified service engineer should service the cooker, and only approved spare parts should be used.

Always allow the cooker to cool and then switch it off at the mains before cleaning or carrying out any maintenance work, unless specified otherwise in this guide.

Peculiar Smells

When you first use your cooker it may give off an odour. This should stop after use.

Before using your cooker for the first time, make sure that all packing materials have been removed and then, to dispel manufacturing odours, turn all the ovens to 200 °C and run for at least an hour.

Before using the grill for the first time you should also turn on the grill and run for 30 minutes with the grill pan in position, pushed fully back, and the grill door open.

Make sure the room is well ventilated to the outside air (see 'Ventilation' below). People with respiratory or allergy problems should vacate the area for this brief period.

Ventilation

CAUTION: The use of a cooking appliance results in the production of heat and moisture in the room in which it is installed. Therefore, make sure that the kitchen is well ventilated: keep natural ventilation holes open or install a powered cookerhood that vents outside. If you have several hotplates on, or use the cooker for a long time, open a window or turn on an extractor fan.

Personal Safety

Important information for pacemaker and implanted insulin pump users: The functions of this hob comply with the applicable European standards on electromagnetic interference. If you are fitted with a pacemaker or implanted insulin pump and are concerned please consult your doctor for medical advice.

DO NOT modify this appliance.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
WARNING: The appliance and its accessible parts become hot during use and will retain heat even after you have stopped cooking. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
When the hob is in use keep magnetic items, such as credit and debit cards, floppy disk, calculators, etc. away.
CAUTION: A long term cooking process has to be supervised from time to time. A short term cooking process has to be supervised continuously.
Danger of fire: DO NOT store items on the cooking surfaces.
To avoid overheating, DO NOT install the cooker behind a decorative door.
Accessible parts will become hot during use and will retain heat even after you have stopped cooking. Keep babies and children away from the cooker and never wear loose-fitting or hanging clothes when using the appliance.
DO NOT use a steam cleaner on your cooker.

Always be certain that the controls are in the OFF position when the oven is not in use, and before attempting to clean the cooker.

Fig. 1.1

Technical line drawing of a mechanical assembly with no visible text or symbols

Take care when touching the marked cooking areas of the hob.
When the ovens are on, DO NOT open doors for longer than necessary to insert and remove contents. The control knobs will become hot and this may cause cosmetic failure.
When using the grill, make sure that the grill pan is in position and pushed fully in, otherwise the control knobs may become very hot.

Always keep combustible materials, e.g. curtains, and flammable liquids a safe distance away from your cooker.

DO NOT spray aerosols in the vicinity of the cooker while it is on.

Cooking high moisture content foods can create a 'steam burst' when an oven door is opened ("Fig. 1.1"). When opening an oven stand well back and allow any steam to disperse.

Use dry oven gloves when applicable – using damp gloves might result in steam burns when you touch a hot surface. Do not use a towel or other bulky cloth in place of a glove – it might catch fire if brought into contact with a hot surface.

! NEVER operate the cooker with wet hands.

DO NOT use aluminium foil to cover shelves, linings or the oven roof.

NEVER heat unopened food containers. Pressure build up may make the containers burst and cause injury.

DO NOT use unstable saucepans. Always make sure that you position the handles away from the edge of the hotplate.

Never leave the hotplate unattended at high heat settings. Pans boiling over can cause smoking, and greasy spills may catch on fire. Use a deep fat thermometer whenever possible to prevent fat overheating beyond the smoking point.

WARNING! Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

NEVER leave a chip pan unattended. Always heat fat slowly, and watch as it heats. Deep fry pans should be only one third full of fat. Filling the pan too full of fat can cause spill over when food is added. If you use a combination of oils or fats in frying, stir them together before heating, or as the fats melt.

Foods for frying should be as dry as possible. Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan. Carefully watch for spills or overheating of foods when frying at high or medium high temperatures. Never try to move a pan of hot fat, especially a deep fat fryer. Wait until the fat is cool.

Do not use the top of the flue (the slot along the back of the cooker) for warming plates, dishes, drying tea towels or softening butter.

DO NOT use water on grease fires and never pick up a flaming pan. Turn off the controls and then smother a flaming pan on a surface unit by covering the pan completely with a well fitting lid or baking tray. If available, use a multi-purpose dry chemical or foam-type fire extinguisher.

Take care that no water seeps into the appliance.

This appliance is heavy so take care when moving it.

Hob Care

A NEVER allow anyone to climb or stand on the hob.
NEVER cook directly on the hob surface ("Fig. 1.2").
DO NOT use the hob surface as a cutting board.

DO NOT leave utensils, foodstuffs or combustible items on the hob when it is not in use (e.g. tea towels, frying pans containing oil).

DO NOT place plastic or aluminium foil, or plastic containers, on the hob.
DO NOT leave the hob zones switched on unless being used for cooking.

DO NOT stand or rest heavy objects on the hob. Although the ceramic surface is very strong, a sharp blow or sharp falling object (e.g. a salt cellar) might cause the surface to crack or break ("Fig. 1.3").

Should a crack appear in the surface, disconnect the appliance immediately from the supply and arrange for its repair.

Always LIFT pans off the hob. Sliding pans may cause marks and scratches ("Fig. 1.4"). Always turn the control to the OFF position before removing a pan.

Take care when placing hot lids onto the hob surface. Lids that have been covering boiling or steaming foods can 'stick' to the ceramic glass. Should this occur, DO NOT attempt to lift the lid off the hotplate: this may damage the hob surface. Instead, carefully slide the lid to the edge of the hob surface and remove.

DO NOT place anything between the base of the pan and the hob surface (e.g. asbestos mats, aluminium foil, wok stand).

Take care NOT to place metallic objects such as knives, forks, spoons and lids on the hob surface since they can get hot.

The appliance is not intended to be operated by means of external timer or separated remote-control system.

Cooker Care

As steam can condense to water droplets on the cool outer trim of the oven, it may be necessary during cooking to wipe away any moisture with a soft cloth. This will also help to prevent soiling and discolouration of the oven exterior by cooking vapours ("Fig. 1.5").

Diagram showing a spray bottle spraying particles into a surface with circular obstacles (no text or symbols)

Line drawing of a stove interior with six circular ovens and a heat exchanger (no text or symbols)

2. Cooker Overview

Fig. 2.1

Fig. 2.2

Fig. 2.3

Simple line drawing of a U-shaped object placed above a ruler (no text or symbols)

Your 110 induction cooker (Fig. 2.1) has the following features:

A. 5 induction cooking zones

B. Control panel

C. A separate grill or glide-out grill (depending on model)

D. A conventional or multifunction oven (programmable, depending on model see Table 2-1)

E. Fan oven (programmable on some models)

F. Storage drawer

The Hob

Use only pans that are suitable for induction hobs. We recommend stainless steel, enamelled steel pans or cast iron pans with enamelled bases. Note that some stainless steel pans are not suitable for use with an induction hob so please check carefully before purchasing any cookware.

Pans made of copper, aluminium or ceramic are not suitable for use on an induction hob. The kind of pan you use and the quantity of food affects the setting required. Higher settings are required for larger quantities of food.

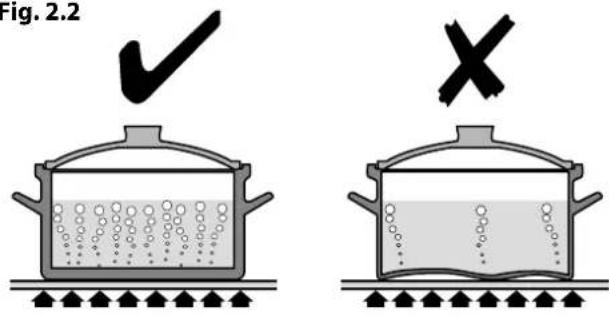

Pots and pans should have thick, smooth, flat bottoms (Fig. 2.2). This allows the maximum heat transfer from the hob to the pan, making cooking quick and energy efficient. Never use a round-bottomed wok, even with a stand.

The very best pans have bases that are very slightly curved up when cold (Fig. 2.3). If you hold a ruler across the bottom you will see a small gap in the middle. When they heat up the metal expands and lies flat on the cooking surface.

Make sure that the base of the pan is clean and dry to prevent any residue burning onto the hob panel. This also helps prevent scratches and deposits.

Take care when placing hot lids onto the hob surface. Lids that have been covering boiling or steaming foods can 'stick' to the ceramic glass. Should this occur, DO NOT attempt to lift the lid off the hotplate: this may damage the hob surface. Instead, carefully slide the lid to the edge of the hob surface and remove.

Always use pans that are the same size as (or slightly larger than) the areas marked on the hob. Using a lid will help the contents boil more quickly.

Always take care before touching the surface, even when the hob is turned off. It may be hotter than you think!

The induction hob comprises of five cooking zones containing induction elements with different ratings and diameters (Fig. 2.4) each with a pan detector and residual heat indicator, and a hob control display.

The hob control display (Fig. 2.5) informs you of the following induction hob functions:

Pan Detector

H Residual Heat Indicator

R Automatic Heat-up

Child Lock

L1/L2 Low Temperature Setting

P Power Boost Setting

Pan Detector,

IMPORTANT: After use, switch off the hob element by its control and DO NOT RELY on the pan detector.

If a cooking area is switched on and there is no pan in place or if the pan is too small for the cooking area, then no heat will be generated. The symbol [U] will appear on the hob control display; this is the “pan-missing symbol”. Place a pan of the correct size on the cooking area and the [U] symbol will disappear and cooking can begin. After 10 minutes without detecting a pan the cooking zone will switch off automatically.

Table 2.2 shows the minimum pan sizes recommended for each cooking zone.

Note: Using pans with a base diameter smaller than those recommended will result in a power reduction.

Model Programmable Oven
Classic right-hand oven
Professional+ right-hand oven
Toledo right-hand oven
Hi-LITE right-hand oven
Classic Deluxe	left-hand oven
Professional Deluxe	left-hand oven
Elan	left-hand oven

Table 2.1

Cooking Zone	Minimum Pan Diameter (Pan Base) mm
Front left	140
Rear left	180
Centre	180
Rear right	180
Front right	140
Power Level	Auomatic Heat-up Time at 100% (min:sec)
1 0:48
2 2:24
3 3:50
4 5:12
5 6:48
6 2:00
7 2:48
8 3:36
9

Table 2.2

Table 2.3

Residual Heat Indicator, H

After use, a cooking zone will remain hot for a while as heat dissipates. When a cooking zone is switched off the residual heat indicator symbol [H], will appear in the display. This shows that the cooking zone temperature is above 60 °C and may still cause burns. Once the temperature has dropped to below 60 °C the [H] will go out.

Automatic Heat-up, R

This function is available on all of the cooking zones. It allows rapid heating up of the element to bring the selected cooking zone up to temperature. Once the zone is at the required cooking temperature the power level will reduce automatically to the preset level.

The function is selected by turning the control knob to the 'A' position. Turn the control knob momentarily counterclockwise from the zero position until the symbol [R] is shown on the hob control display.

Once the [R] is displayed, turn the control knob to the level of your choice (1 to 9). The pan will heat up at 100% power for a specified time before the power is reduced to the level selected.

When the Automatic Heat-up function is activated, the hob control display will flash alternately between the [R] setting and the chosen power level.

Once the Automatic Heat-up time has ended the hob display will stop flashing and will show the chosen power level.

The Automatic Heat-up function can be stopped by either turning the control knob back to the "0" power setting or turning the control knob to the "9" power setting.

For your guidance Table 2.3 shows the time available at 100% power depending on the power level selected in the Automatic Heat-up mode.

Child Lock, =0

IMPORTANT: The child lock can only be activated when all the cooking zones are switched off.

To prevent the unwanted use by children, the hob can be locked.

To lock the hob, simultaneously turn the two left-hand controls counter-clockwise (Fig. 2.6) and hold until the symbol appears in the centre of the hob control display (Fig. 2.7).

Note: [R] will flash when locking the hob – this is normal.

Locking the hob will NOT affect the ovens; they can still be used.

To unlock the hob, simultaneously turn the two left-hand controls counter-clockwise and hold until the ☐ symbol disappears from the centre of the hob control display.

Low Temperature Setting, L7/L2

Each cooking area is equipped with 2 low temperature settings:

• L1 will maintain a temperature of about 40 °C – ideal for gently melting butter or chocolate.
• L2 will maintain a temperature of about 90 °C – ideal for simmering (bring the pan to the boil and then select L2 to keep soups, sauces, stews, etc at an optimal simmer).

The maximum time these settings can be used is 2 hours, after which the hob will switch off automatically. If required, you can immediately restart the Low Temperature function by reactivating L1 or L2. To increase the heat, just turn the control knob to the required level.

The maximum times for all other power levels are shown in Table 2.4.

Power Boost Setting, P

All of the induction cooking zones have Power Boost available, activated by turning the control knob clockwise until [P] is shown on the hob control display.

Power Boost allows additional power to be made available for each of the cooking zones. This is useful to bring a large pan of water to the boil quickly.

The Power Boost function operates for a maximum of 10 minutes on each zone, after which the power is automatically reduced to setting 9.

When using the Power Boost function, the cooking zones are linked.

Fig. 2.8 shows the hob layout. Zones A and B are linked together as are zones C, D and E.

This means that when using zone A on Power Boost and then switching zone B to Power Boost, the power to zone A will reduce slightly. The last zone switched to Power Boost always takes priority. Zones C, D and E work in the same way.

This is a built-in safety device.

Deactivate the Power Boost function by turning the control knob to a lower setting.

Overheat Function

This function identifies when the temperature of the pan rises rapidly and works to maintain a safe level of pan temperature. It should not interfere with normal cooking.

Cookware with bases that become distorted (Fig.2-2) when heated may interfere with the operation of the Overheat Function. This may result in damage to your cookware or Induction Glass Hob.

Please remember not to leave the hob unattended. Care should be taken to not allow your cookware to boil dry. Damage to your cookware and Induction Glass Hob may result.

Please read and follow the manufacturers' instructions carefully before using cookware on your induction hob.

Power Level	Maximum Operating Time
L1 and L2	2 hours
1	6 hours
2	6 hours
3	5 hours
4	5 hours
5	4 hours
6	1.5 hours
7	1.5 hours
8	1.5 hours
9	1.5 hours
Power Boost	10 minutes

Table 2.4
    note right of D Induction
    note right of C, D & E linked

Diagram of a grater rack with an arrow indicating a component, labeled Fig. 2.10 (no text or symbols on the diagram itself)

Two identical diagrams of a container with a flat top and a rectangular side, labeled Fig. 2.12 (no text or symbols on the diagrams themselves)

The Grill / Glide-out Grill

CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away.

Open the door and pull the grill pan carriage forward using the handle (Fig. 2.9 and Fig. 2.10).

The grill has two elements that allow either the whole area of the pan to be heated or just the right-hand half.

Adjust the heat to suit by turning the knob. To heat the whole grill, turn the knob clockwise (Fig. 2.11).

To heat the right-hand half, turn the knob counter-clockwise. The neon indicator light by the grill control will come on.

For best results, slide the carriage back into the grill chamber and preheat the appropriate part(s) of the grill for two minutes. The grill trivet can be removed and the food placed on it while you are waiting for the grill to preheat.

DO NOT leave the grill on for more than a few moments, without the grill pan underneath it, otherwise the knobs may become hot.

Once the grill has preheated, slide the carriage out again. With the trivet back in place with the food on it, slide the carriage back into the grill chamber. Make sure that it is pushed right in.

The grill pan trivet can be turned over to give two grilling positions (Fig. 2.12).

NEVER close the grill door when the grill is on.

The Ovens

The clock must be set to the time of day before the programmable oven will work. See the following section on 'The Clock' for instructions on setting the time of day.

References to 'left-hand' and 'right-hand' ovens apply as viewed from the front of the appliance.

The left-hand oven is either a programmable multifunction or conventional oven, while the right-hand oven is a fan oven (programmable on some models).

Conventional Zoned Ovens

A conventional oven has two heating elements – one visible in the top of the oven and the other under the oven base.

Note: Be careful to avoid touching the top element and element deflector when placing or removing items from the oven.

The exposed top element may cook some foods too quickly, so we recommend that the food be positioned in the lower half of the oven to cook. The oven temperature may also need to be lowered.

Similar items being cooked will need to be swapped around for even cooking.

The Multifunction Oven

Multifunction ovens have an oven fan and oven fan element, as well as two extra heating elements. One element is in the top of the oven and the second is under the oven base.

Note: Take care to avoid touching the top element and element deflector when placing or removing items from the oven.

The multifunction oven has 3 main cooking functions: fan, fan assisted and conventional cooking. These functions should be used to complete most of your cooking.

The browning element and base heat can be used in the latter part of the cooking process to fine tune the results to your particular requirements.

Use fanned grilling for all your grilling needs and defrost to safely thaw small items of frozen food.

Table 2.5 gives a summary of the multifunction modes.

The multifunction oven has many varied uses. We suggest you keep a careful eye on your cooking until you are familiar with each function. Remember, not all functions will be suitable for all food types.

Function Use
Defrost	To thaw small items in the oven without heat
Fan oven	A full cooking function, even heat throughout, great for baking
Fanned grilling	Grilling meat and fish with the door closed
Fan assisted	A full cooking function good for roasting and baking
Conventional oven	A full cooking function for roasting and baking in the lower half of the oven
Browning element	To brown and crisp cheese topped dishes
Base heat	To crisp up the bases of quiche, pizza or pastry

Table 2.5

Multifunction Oven Functions

Rapid Response (Classic Deluxe & Professional Deluxe)

The Rapid Response setting enables you to preheat the oven faster than normal. It uses the fan oven element with additional heat from one of the

elements in the top of the oven. Fan ovens heat up quickly; but the Rapid Response feature speeds this process up enabling you to start cooking sooner.

To use the Rapid Response feature, turn the function control knob to R and set the temperature required. The light on the control panel next to the function control will come on.

When the required temperature is reached the top element will switch off and the light will go out.

The oven temperature is then maintained by the fan oven element and fan.

Should you choose to place food into the cold oven prior to cooking while using the Rapid Response function, make sure that cakes, etc. are not positioned too near the top of the oven.

Fan Oven

This function operates the fan and the heating element around it. An even heat is produced throughout the oven, allowing you to cook large

amounts quickly.

Fan oven cooking is particularly suitable for baking on several shelves at one time and is a good 'all-round' function. It may be necessary to reduce the temperature by approximately 10 °C for recipes previously cooked in a conventional oven.

If you wish to preheat the oven, wait until the indicator light has gone out before inserting the food.

Fanned Grilling

This function operates the fan while the top element is on. It produces a more even, less fierce heat than a conventional grill. For best results, place the food to

be grilled, on a trivet over a roasting tin, which should be smaller than a conventional grill pan. This allows greater air circulation. Thick pieces of meat or fish are ideal for grilling in this way, as the circulated air reduces the fierceness of the heat from the grill.

The oven door should be kept closed while grilling is in progress, so saving energy.

You will also find that the food needs to be watched and turned less than for normal grilling. Preheat this function before cooking.

For best results we recommend that the grill pan is not located on the top shelf.

Fan Assisted Oven

This function operates the fan, circulating air heated by the elements at the top and the base of the oven. The combination of fan and conventional cooking

(top and base heat) makes this function ideal for cooking large items that need thorough cooking, such as a large meat roast.

It is also possible to bake on two shelves at one time, although they will need to be swapped over during the

cooking time, as the heat at the top of the oven is greater than at the base, when using this function.

This is a fast intensive form of cooking; keep an eye on the food cooking until you have become accustomed to this function.

Conventional Oven (Top and Base Heat)

This function combines the heat from the top and base elements. It is particularly suitable for roasting and baking pastry, cakes and biscuits.

Food cooked on the top shelf will brown and crisp faster than on the lower shelf, because the heat is greater at the top of the oven than at the base, as in 'Fan Assisted Oven' function. Similar items being cooked will need to be swapped around for even cooking. This means that foods requiring different temperatures can be cooked together, using the cooler zone in the lower half of the oven and hotter area to the top.

The exposed top element may cook some foods too quickly, so we recommend that the food be positioned in the lower half of the oven to cook. The oven temperature may also need to be lowered.

Similar items being cooked will need to be swapped around for even cooking.

Browning Element

This function uses the element in the top of the oven only. It is a useful function for the browning or finishing of pasta dishes, vegetables in sauce,

shepherds pie and lasagne, the item to be browned being already hot before switching to the top element.

Base Heat

This function uses the base element only. It will crisp up your pizza or quiche base or finish off cooking the base of a pastry case on a lower shelf. It is also a

gentle heat, good for slow cooking of casseroles in the middle of the oven or for plate warming.

The Browning and Base Heat functions are useful additions to your oven, giving you flexibility to finish off items to perfection.

Defrost

This function operates the fan to circulate cold air only. Make sure the temperature control is at 0^ C and that no heat is applied. This enables small items such

as desserts, cream cakes and pieces of meat, fish and poultry to be defrosted.

Defrosting in this way speeds up the process and protects the food from flies. Pieces of meat, fish and poultry should be placed on a shelf, over a tray to catch any drips. Be sure to wash the shelf and tray after defrosting.

Defrost with the oven door closed.

Large items, such as whole chickens and joints should not be defrosted in this way. We recommend this be carried out in a refrigerator.

Defrosting should not be carried out in a warm oven or when an adjoining oven is in use or still warm.

Make sure that dairy foods, meat and poultry are completely defrosted before cooking.

The Fan Oven

Fan ovens circulate hot air continuously, which means faster, more even cooking. The recommended cooking temperatures for a fan oven are generally lower than those for a non-fan oven.

Note: Please remember that all cookers vary so temperatures in your new ovens may differ to those in your previous cooker.

Operating the Ovens

Multifunction Ovens

The multifunction oven has two controls: a function selector and a temperature setting knob (Fig. 2.13).

Turn the function selector control to a cooking function. Turn the oven temperature knob to the temperature required (Fig. 2.14).

The oven indicator light will glow until the oven has reached the temperature you selected (Fig. 2.15). It will then cycle on and off during cooking.

Conventional and Fan Ovens

Turn the oven knob to the desired temperature (Fig. 2.14).

The oven indicator light will glow until the oven has reached the temperature selected (Fig. 2.15). It will then cycle on and off during cooking.

The Browning Element

The Browning Element is positioned in the top of the left-hand oven.

It can be used at the end of a normal cooking period to give extra browning to au gratin dishes or give a crisper finish to meat.

After the normal cooking has finished, turn the left hand oven thermostat knob clockwise to the browning position, indicated by ( ) on the control knob.

Only the Browning Element will operate when the thermostat is turned to this position.

The top and base cooking elements will automatically switch off.

Main Oven Light

Press the button to turn the light on (Fig. 2.16). If the oven light fails, turn off the power supply before changing the bulb. See the 'Troubleshooting' section for details on how to change the bulb.

Fascia Illumination (Hi-LITE only)

To turn on the fascia illumination panel simply push the button in (Fig. 2.17). To turn this feature off, push the button once more.

Simple line drawing of a light bulb above a circular ring, labeled Fig. 2.16 (no text or symbols on the diagram itself)

Simple line drawing of two concentric circles with a dashed rectangle above, labeled Fig. 2.17 (no text or symbols on the circles)

Fig. 2.18

Fig. 2.21

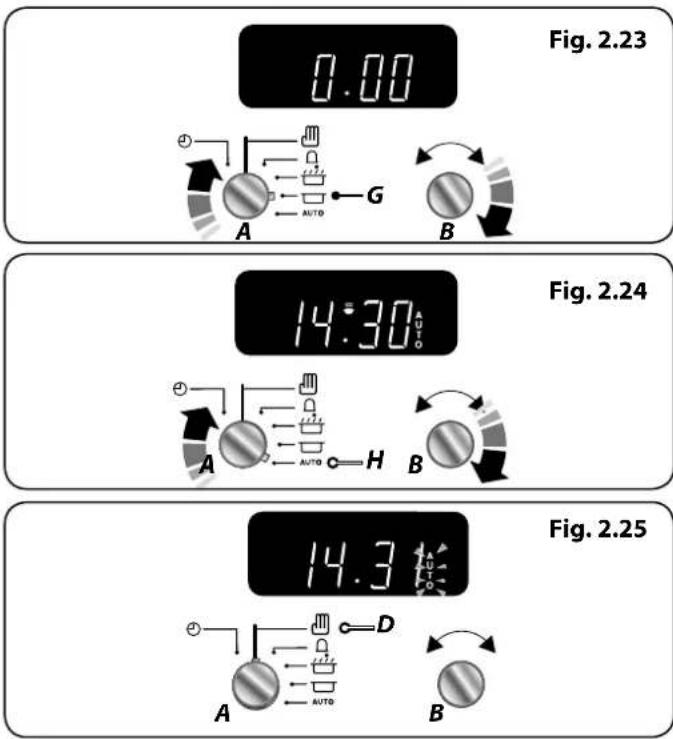

The clock must be set to the time of day before the oven will work.

1. Once the cooker is connected and switched on, the display will start to flash.
2. To set the time, turn and hold the Timer (A) knob to the Clock (C) setting and at the same time turn the Adjusting (B) knob either clockwise or counter-clockwise (Fig. 2.18).
3. Once you have set the time release the Timer (A) knob.

Setting the Minute Minder

A Minute Minder (E) is a feature that can be set for a number of minutes and sounds an alarm once the specified amount of time has elapsed.

1. Turn the Timer (A) knob to the Minute Minder (E) setting (Fig. 2.19).
2. Turn the Adjusting (B) knob to set the amount of time required. e.g. 20 seconds (Fig. 2.20).
3. Turn the Timer (A) knob to the Manual (D) setting to see the current time and the 'Bell' symbol on the display (Fig. 2.21).

Cancel the Timer Alarm

Once the specified time has elapsed it will emit an alarm. There are two ways to cancel the alarm:

1. Turn the Adjusting (B) knob counter-clockwise or clockwise (Fig. 2.22).
2. Turn either the Timer (A) knob to the Clock (C) or to the Minute Minder (E) setting. Return to Manual (D) for normal cooking mode (Fig. 2.22).

NOTE

If the alarm is not manually switched off it will stop after approximately 2 minutes.

To Stop the Multifunction Oven at a Specific Time of Day

You have set the required temperature and function mode for the Multifunction Oven and you would like the Multifunction Oven to automatically stop.

TOP TIP

Make a note of the current time so you do not forget.

1. Turn the Timer (A) knob to the Stop Time (G) setting (Fig. 2.23).
2. Turn the Adjusting (B) knob clockwise, the display will show the current time of day (Fig. 2.23).
3. Continue to turn the Adjusting (B) knob to the amount of time required e.g. 1 minute. The display will show the current time plus the required length of time you have set (Fig. 2.24).
4. Turn the Timer (A) knob to the Auto (H) setting. The display will show the current time, the Cooking symbol and the word 'AUTO' (Fig. 2.24).
5. Once the specified time has elapsed it will emit an alarm and the Multifunction Oven will stop working. The 'Cooking' symbol on the display will disappear and the word 'AUTO' will flash (Fig. 2.25).
6. When you return, turn the Timer (A) knob to the Manual (D) setting to return to manual cooking and reset the Multifunction Oven modes once cooking is complete (Fig. 2.25).
7. Once the specified time has elapsed it will emit an alarm. There are two ways to cancel the alarm refer to "Cancel the Timer Alarm" on page 12:

To Start and Stop the Multifunction Oven

The Multifunction Oven allows you to automatically start and stop by a combination of the length of the cooking time and the stop time. Giving you the flexibility to cook casseroles etc while you are out. You cannot set the actual start time.

1. Turn the Timer (A) knob to the Cook Time (F) setting. Turn the Adjusting (B) knob clockwise to set the length of the cooking time required e.g. 50 seconds (Fig. 2.26).
2. Turn the Timer (A) knob to the Stop Time (G) setting (Fig. 2.27). The display will show the current time of day plus the 'cook time' you just set.
3. Continue to turn the Adjusting (B) knob to the amount of time required e.g. 1 minute (Fig. 2.28).
4. Set the Multifunction Oven to the required cooking temperature and function mode.
5. Turn the Timer (A) knob to the Auto (H) setting (Fig. 2.28). If the display shows the current time and the word 'AUTO' the Multifunction Oven is set to turn on and off.
6. When the program starts the Multifunction Oven, the 'Cooking' symbol will appear on the display. Once the specified time has elapsed it will emit an alarm and the Multifunction Oven will stop working. The 'Cooking' symbol on the display will disappear and the word 'AUTO' will flash (Fig. 2.29).
7. Once the specified time has elapsed it will emit an alarm. There are two ways to cancel the alarm refer to "Cancel the Timer Alarm" on page 12

Reset to Manual Cooking

To cancel any automatic settings turn the Timer (A) knob to the Clock (C) setting and release (Fig. 2.30).

Key Lock

The Key Lock will activate and deactivate the left-hand oven.

1. Cancel any active programs. Refer to "Reset to Manual Cooking" on page 14.
2. Turn the Timer (A) knob to the Clock (C) setting and hold for approx 8 seconds. The display will show 'ON' (Fig. 2.31).
3. Continue to hold the Timer (A) knob onto the Clock (C) setting, turn the Adjusting (B) knob clockwise, the 'OF' and the 'Key' symbol will display (Fig. 2.32). The oven is now locked.
4. To activate repeat steps 1 to 2 and continue to hold the Timer (A) knob onto the Clock (C) setting, turn the Adjusting (B) knob clockwise to 'ON', the 'Key' symbol will disappear and the oven is enabled.

The 6-button Clock

Setting the Time of Day

The 6-button LCD clock is shown in Fig. 2.33. When the clock is first connected the display flashes (0.00) and (1) alternately.

Press and hold both the [☐] and [☐] buttons down (Fig. 2.34). Now press the [+] button (or the [-] button) until the correct time shows.

Do not forget that it is a 24-hour clock.

If you need to reset the cooker, turn off the power supply and wait for a couple of minutes and start again.

Setting the Minute Minder

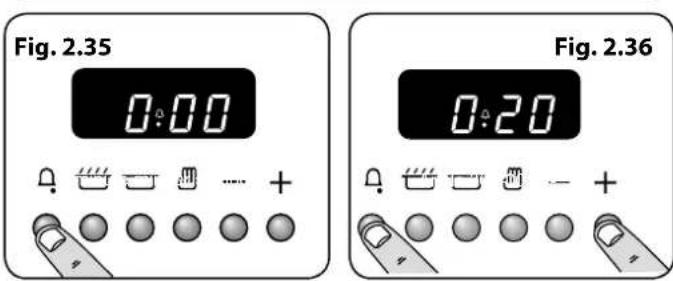

Press and hold the [☐] button (Fig. 2.35), and then press the [+] button until the length of time you want to cook for is shown (Fig. 2.36).

You can check the time remaining by pressing [☐]. When the beeper sounds cancel it by pressing [☐].

• The 'cook period', is the length of time you want the oven to cook for.
• The 'stop time', is the time of day you want the oven to stop cooking.

To Stop the Oven Automatically

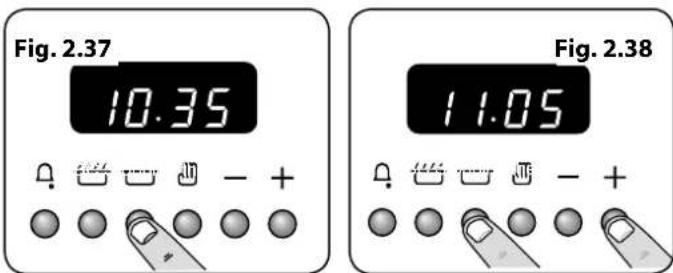

Press and hold the 'stop time' [=] button (Fig. 2.37) and then press the [+] button (or [-] button) until the required 'stop time' shows (Fig. 2.38). AUTO will show in the display.

Once the 'stop time' is reached, the beeper sounds. To stop the beep turn the oven control knob to 0 first and then press [☐] once; press [☐] again to return to manual cooking.

To Start and Stop the Oven Automatically

Before you set the clock you must have two numbers clearly in mind – the 'cook period' and the 'stop time'.

Note: You cannot set a start time directly – this is set automatically by setting the 'cook period' and the 'stop time'.

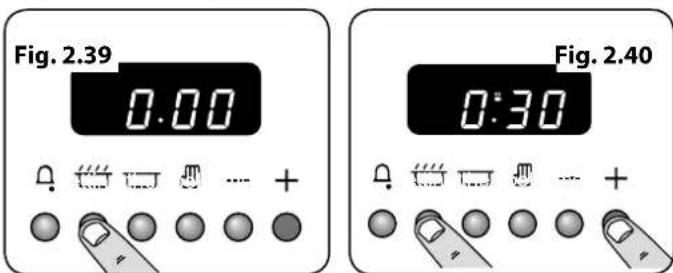

Press and hold the [☐] button (Fig. 2.39) and then press the [+] button (or [-] button) until the required 'cook period' shows (Fig. 2.40).

Now press and hold the [=] button (Fig. 2.41) and then press the [+] button (or [-] button) until the required 'stop time' shows (Fig. 2.42). Release the buttons.

AUTO will now show in the display.

Set the oven to the required temperature. When cooking is finished the beeper will sound. Turn the oven knob to the OFF position first, and then press the [☐] button once to stop the beep; press it again to return to manual cooking.

If you are out, do not worry about the beeper going off, it stops after a while. When you return, turn the oven knob to 0 first, and then press [☐] twice to return to manual cooking.

AUTO is Showing, You Want to Reset to Manual Cooking

To return to manual cooking from any automatic setting, the 'cook period' must be cancelled. Press and hold the [—] button and then press the [-] button until the display reads (0.00).

Press the [☐] button to return to manual cooking.

Key Lock

Activating the key lock will lock the programmable oven and it will not come on.

The non-programmable oven can be operated as usual.

To Activate the Key Lock

Make sure that the clock is in manual mode and cancel any active programs.

Hold the Minute Minder [☐] and Cook Period [☐] buttons. When 'On' appears on the display (Fig. 2.43) press the [+] button once. The key symbol [☐] and 'OF' will now show on the display (Fig. 2.44). Release the buttons.

The programmable oven is now locked, as confirmed by the display showing the time of day alongside the key symbol (Fig. 2.45).

To Turn Off the Key Lock

Hold the Minute Minder [☐] and Cook Period [☐] buttons. When 'OF' appears on the display (Fig. 2.46) press the [+] button once. The key symbol [☐] will go out and 'On' will show on the display (Fig. 2.47). Release the buttons.

After a few seconds the display will revert to show the time of day.

The oven can now be used normally.

Accessories

Oven Shelves

The oven shelves (Fig. 2.48) are retained when pulled forward but can be easily removed and refitted.

Pull the shelf forward until the back of the shelf is stopped by the shelf stop bumps in the oven sides (Fig. 2.49).

Lift up the front of the shelf so the back of the shelf will pass under the shelf stop and then pull the shelf forward (Fig. 2.50).

To refit the shelf, line up the shelf with a groove in the oven side and push the shelf back until the ends hit the shelf stop. Lift up the front so the shelf ends clear the shelf stops, and then lower the front so that the shelf is level and push it fully back (Fig. 2.51).

The Handyrack (Elan, Classic Deluxe, Hi-LITE and Professional Deluxe)

The Handyrack (Fig. 2.52) fits to the left-hand oven door only. Food cooking on it is easy to attend to, because it is accessible when the door is open.

The maximum weight that can be held by the Handyrack is 5.5 kg (12 lb). It should only be used with the supplied roasting tin, which is designed to fit the Handyrack. Any other vessel could be unstable.

It can be fitted at two different heights. One of the oven shelves must be removed and the other positioned to suit.

When the Handyrack is used in its highest position, other dishes can be cooked on the bottom shelf position or base of the oven.

When the Handyrack is used in its lowest position, other dishes can be cooked on the second shelf position or base of the oven.

To fit the Handyrack, locate one side of it on the door bracket (Fig. 2.53).

Then spring the other side out to clip it onto the other bracket (Fig. 2.54).

Diagram showing a mechanical or electrical component with arrows indicating direction (no text or symbols)

Line drawing of a train interior with a gridded tray and two standing figures (no text or symbols)

Line drawing of a hand holding a metal clip with circular buttons (no text or symbols)

Storage

The bottom drawer is for storing oven trays and other cooking utensils.

It can get very warm, so do not store anything in it that may melt or catch fire. Never store flammable materials in the drawer. This includes paper, plastic and cloth items, such as cookbooks, plastic ware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the appliance.

Flammable materials may explode and result in fire or property damage.

The drawer can be removed completely for cleaning, etc.

Removing the Drawer

Pull the drawer right out (Fig. 2.55).

Elan only: Push the ends of the plastic clips – down on the left-hand side, up on the right-hand side – to release the catches holding the drawer to the side rails (Fig. 2.56). At the same time pull the drawer forwards and away from the side rails.

For safety's sake push the drawer rails back out of the way.

To Fit the Storage Drawer

Carefully slide the drawer back into the cavity.

Elan only: Slide the inner side rails out until fully extended (Fig. 2.57).

Lift the drawer at its sides and locate one of the drawer rails (approximately 15 mm) onto an inner side rail (Fig. 2.58).

Rotate the drawer to locate the remaining drawer rail onto the opposite inner side rail.

Carefully slide the drawer back into the cavity. Some resistance will be felt as the drawer rails locate fully onto the inner side rails.

WARNING! Refer to Before You Start... chapter.

Hints on Using Your Induction Cooker

If you have not used an induction cooker before please be aware of the following:

• Make sure that the pans you have or buy are suitable for use on the induction hob. Stainless steel, enamelled steel or cast iron is ideal. Double check before you buy pans – they must have bases that would attract a magnet.
• Allow time to get used to induction cooking; it is fast and powerful as well as being gentle. When simmering, you may notice that liquids appear to stop bubbling and then start again almost immediately. This is perfectly normal.
• You may notice a faint vibrating sound coming from the pans when using the induction hob. Again, this is perfectly normal and will depend upon the type and style of pans you are using.
• The induction heating elements will phase on and off when cooking. Although an active cooking zone may appear to switch on and off, a constant heat is still being supplied to the base of the pan – this is completely normal.

Tips on Cooking with the Timer

If you want to cook more than one dish, choose dishes that require approximately the same cooking time. However, dishes can be 'slowed down' slightly by using small containers and covering them with aluminium foil, or 'speeded up' slightly by cooking smaller quantities or placing them in larger containers.

Very perishable foods such as pork or fish should be avoided if a long delay period is planned, especially in hot weather.

Whole poultry must be thoroughly defrosted before being placed in the oven. Check that meat and poultry are fully cooked before serving.

General Oven Tips

The wire shelves should always be pushed firmly to the back of the oven.

Baking trays with food cooking on them should be placed level with the front edge of the oven's wire shelves. Other containers should be placed centrally. Keep all trays and containers away from the back of the oven, as overbrowning of the food may occur.

For even browning, the maximum recommended size of a baking tray is 340 mm (13 12 ) by 340 mm (13 12 ).

When the oven is on, do not leave the door open for longer than necessary, otherwise the knobs may get very hot.

• Always leave a "finger's width" between dishes on the same shelf. This allows the heat to circulate freely around them.
• To reduce fat splashing when you add vegetables to hot fat around a roast, dry them thoroughly or brush lightly with cooking oil.
• Where dishes may boil and spill over during cooking, place them on a baking tray.
• The 'Cook & Clean' oven liners (see 'Cleaning Your Cooker') work better when fat splashes are avoided. Cover meat when cooking.
• Sufficient heat rises out of the oven while cooking to warm plates in the grill compartment.
• If you want to brown the base of a pastry dish, preheat the baking tray for 15 minutes before placing the dish in the centre of the tray.

4. Cooking Table

The oven control settings and cooking times given in the table below are intended to be used AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a preferred result.

Food is cooked at lower temperature in a fan oven than in a conventional oven. When using recipes, reduce the fan oven temperature by 10 °C and the cooking time by 5-10 minutes. The temperature in the fan oven does not vary with height in the oven so you can use any shelf.

Top (T)

Centre (C)

Base (B)

Oven Shelf Positions

Conventional Oven Fan Oven

Food	Temperature °C(Shelf Position)	Temperature°C	Approximate Cooking Time
Meat
Beef (no bone)	160 (C)	150	30-35 minutes per 500g +30-35 minutes.	Thoroughly thaw frozen joints before cooking. Meat may be roasted at 220°C (210°C for fan oven) and the cooking time adjusted accordingly.For stuffed and rolled meats, add approximately 10 minutes per 500g, or cook at 200°C (190°C) for 20 minutes then 160°C (150°C) for the remainder.
	200 (C)	190	20-25 minutes per 500g +20-25 minutes.
Lamb	160 (C)	150	30-35 minutes per 500g +30-35 minutes.
	200 (C)	190	25-30 minutes per 500g +25-30 minutes.
Pork	160 (C)	150	35-40 minutes per 500g +35-40 minutes.
	200 (C)	190	25-30 minutes per 500g +25-30 minutes.
Poultry
Chicken	160 (C)	150	20-25 minutes per 500g +20-25 minutes.	For stuffed poultry, you could cook at 200°C (190°C) for 20 minutes then 160°C (150°C) for remainder.Do not forget to include the weight of the stuffing.
	200 (C)	190	15-20 minutes per 500g +15-20 minutes.
Turkey	160 (C)	150	20 minutes per 500g +20 minutes.
	200 (C)	190	15 minutes per 500g +15 minutes.
Duck	160 (C)	150	25-30 minutes per 500g.	For fresh or frozen prepacked poultry, follow instructions on the pack. Thoroughly thaw frozen poultry before cooking.
	200 (C)	190	20 minutes per 500g.
Casserole	140-150 (C)	130-140	2-4 hours according to recipe.
Yorkshire Pudding	220 (C)	210	Large tins 30-35 minutes; individual 10-20 minutes.
Cake
Very rich fruit - Christmas, wedding, etc.	140 (C/B)	130	45-50 minutes per 500g of mixture.	Using the conventional oven: when two tier cooking leave at least one runner space between shelves.Position the baking tray with the front edge along the front of the oven shelf.
Fruit 180 mm tin	150 (C/B)	140	2-2 12 hours.
Fruit 230 mm tin	150 (C/B)	140	Up to 3 12 hours.
Madeira 180 mm	160 (C/B)	150	80-90 minutes.
Small cakes	170 (C/B)	160	15-25 minutes.
Scones	200 (C/B)	190	10-15 minutes.
Victoria sandwich
180 mm tin	170 (C/B)	160	20-30 minutes.
210 mm tin	170 (C/B)	160	30-40 minutes.	Up to three tiers can be cooked in a fan oven at the same time but make sure to leave at least one runner space between each shelf being cooked on.
Desserts
Shortcrust tarts	200 (C/B)	190	20-30 minutes on a preheated tray.
Fruit pies	180 (C/B)	170	35-45 minutes.
Tartlets	180 (C/B)	170	10-20 minutes according to size.
Puff pastry	210 (C/B)	200	20-40 minutes according to size.
Meringues	100 (C/B)	90	2-3 hours.	Using the conventional oven: for even browning the maximum size of baking tray recommended is 340 mm x 340 mm. This ensures free heat circulation.If cooking a two tier load, the trays should be interchanged approximately halfway though the cooking time.
Baked egg custard	160 (C/B)	150	45-60 minutes.
Baked sponge pudding	180 (C/B)	170	40-45 minutes.
Milk pudding	140-150 (C/B)	130-140	2 to 3 hours.
Bread	210 (C)	200	20-30 minutes.
Fish	Fanned Grilling
Fillet	190 (C/B)	190 (C/B)	15-20 minutes.
Whole	190 (C/B)	190 (C/B)	15-20 minutes per 500g.
Steak	190 (C/B)	190 (C/B)	Steaks according to thickness.

5. Cleaning Your Cooker

Isolate the electricity supply before carrying out any major cleaning. Allow the cooker to cool.

All parts of the cooker can be cleaned with hot soapy water. Take care that no surplus water seeps into the appliance.

Remember to switch the electricity supply back on and reset the clock before reusing the cooker.

Hob

Daily Care

First of all make sure that all heat indicator lights are off and that the cooking surface is cool. Apply a small dab of ceramic cleaning cream in the centre of each area to be cleaned. Dampen a clean paper towel and work the cream onto the cooking surface. As a final step, wipe the cooking surface with a clean, dry paper towel.

Cleaning Spills

For spills and boil-overs that occur while cooking, turn the unit off and wipe the area surrounding the hot zone with a clean paper towel. If a spill (other than a sugary substance) is on the hot zone, do not clean until the unit has completely cooled down, and then follow the instructions below ('Cleaning Burned-on Spills').

If you accidentally melt anything on the surface, or if you spill foods with a high sugar content (preserves, tomato sauce, fruit juice, etc.), remove the spill IMMEDIATELY with a razor scraper, while the unit is still hot.

IMPORTANT: Use an oven glove to protect your hand from potential burns.

Scrape the major spill or melted material from the cooking zone and push into a cold area. Then, turn the unit OFF and allow it to cool before cleaning further. After the cooking surface cools down and the heat indicator lights go off, follow the 'Daily Care' procedure outlined above.

Cleaning Burned-on Spills

Make sure that the heat indicator lights are off and that the hob is cool. Remove the excess burned-on substance with a single-edged razor scraper. Hold the scraper at an angle of about 30° to the surface and then scrape off the burned-on matter (Fig. 5.1).

Once you have removed as much as possible with the scraper, follow the 'Daily Care' procedure outlined above.

Illustration of a hand holding a tool with a circular background, labeled 'Fig. 5.1' (no text or symbols on the diagram itself)

Diagram of a grater rack with an arrow indicating a component, labeled 'Fig. 5.2' (no text or symbols on the diagram itself)

Line drawing of a hand holding a small object with an arrow indicating direction, labeled 'Fig. 5.5' (no text or symbols on the diagram itself)

Diagram of a rectangular panel with vertical slots and an arrow pointing to it, labeled 'Fig. 5.6' (no text or symbols on the panel itself)

Grills

The grill pan and trivet should be washed in hot soapy water. Alternatively, the grill pan can be washed in a dishwasher.

After grilling meats or any foods that soil, leave to soak for a few minutes immediately after use. Stubborn particles may be removed from the trivet using a nylon brush.

Removing the Glide-out Grill Pan

The glide-out grill pan can be easily removed for cleaning as follows:

Remove the grill pan support frame by pulling the grill pan forward (Fig. 5.2).

Lift the grill pan clear of the support frame. The support frame is held to the side rails by two clips on each side (Fig. 5.3).

For each side, support the side rail with one hand and with the other hand lift the frame up and out of the side clips (Fig. 5.4).

For safety, push the side rails back into the grill chamber.

If you need to remove the side rails to allow cleaning of the grill chamber, you can unhook them from the grill chamber sides (Fig. 5.5) and wipe the sides clean with a soft cloth and mild detergent.

Once you have finished, hook the side rails back onto the sides of the chamber. To refit the frame, pull the side rails forward and, for each side in turn, support the side rail and press the frame down into the side rails.

Replace the grill pan. When refitting the grill pan, make sure that the wide rim is at the front (Fig. 5.6).

Control Panel and Doors

Avoid using any abrasive cleaners, including cream cleaners. For best results, use a liquid detergent.

The same cleaner can also be used on the doors. Alternatively, use a soft cloth wrung out in clean hot soapy water. You can use the same method for cleaning the control panel and knobs. After cleaning, polish with a dry cloth.

Glass Fronted Door Panels (some models)

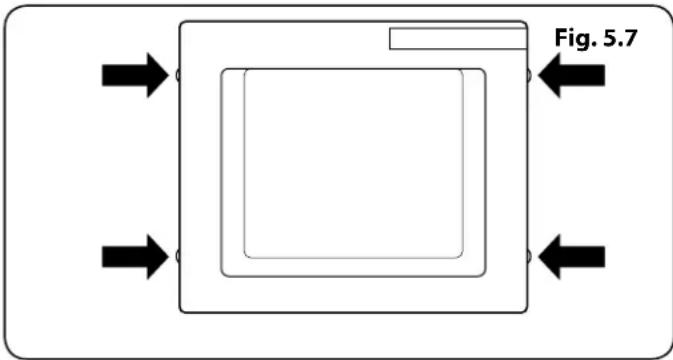

The oven door front panels can be taken off so that the glass panels can be cleaned. Move the cooker forward to gain access to the sides (see the 'Moving the Cooker' section under 'Installation').

Open the oven door slightly and remove the front panel fixing screws from the door sides, two each side (Fig. 5.7). Carefully lift off the outer door panel. The inside face of the glass panels can now be cleaned – take care not to disturb or wet the door insulation.

Note: If the door is triple glazed then the inner two panels are fixed together and should not be separated. After cleaning, carefully refit the outer door panel and replace the side fixing screws.

Ovens

'Cook & Clean' Panels

The ovens have side 'Cook & Clean' panels which have been coated with a special enamel that partly cleans itself. This does not stop all marks on the lining, but helps to reduce the amount of manual cleaning needed.

These panels work better above 200 °C . If you do most of your cooking below this temperature, occasionally remove the panels and wipe with a lint free cloth and hot soapy water. The panels should then be dried and replaced and the oven heated at 200 °C for about one hour. This will make sure that the panels are working effectively.

Removing the Panels to Clean the Enamel Interior

Some of the lining panels can be removed for cleaning.

If you wish to clean the enamel interior of the oven, you will need to remove the shelves before removing the 'Cook & Clean' panels. To remove the side panels, simply lift the panel and slide forwards. (Fig. 5.8).

Once the panels have been removed, the oven enamel interior can be cleaned.

Refit in the reverse order.

Diagram of a device with a screen and lever mechanism, labeled Fig. 5.8 (no text or symbols on the diagram itself)

Cleaning Table

Cleaners listed (Table 5-1) are available from supermarkets or electrical retailers as stated.

For enamelled surfaces use a cleaner that is approved for use on vitreous enamel.

Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately.

Hotplate
Part Finish Recommended Cleaning	Method
Hob top Enamel or stainless steel		Hot soapy water, soft cloth. Any stubborn stains remove gently with a nylon scourer.
Ceramic/induction hob Toughened glass Hot soapy water; cream cleaner/scourer if necessary.
Griddle plate (some models only) Non-stick surface		Allow to cool. Wash in hot soapy water. Do not use abrasive cleaners/scourers. Dishwasher.
Warming zone (some models only) Toughened glass Hot soapy water, cream cleaner/scourer if necessary.
Outside of Cooker
Part Finish Recommended Cleaning	Method
Door, door surround and storage drawer exterior	Enamel or paint	Hot soapy water, soft cloth.Any stubborn stains, remove gently with a liquid detergent.
	Stainless steel	E-cloth (electrical retailers) or microfibre all-purpose cloth (supermarket).
Sides and plinth Painted surface Hot soapy water, soft cloth.
Splashback/rear grille Enamel or stainless steel Hot soapy water, soft cloth. Cream cleaner, with care, if necessary.
Control panel	Paint, enamel, stainless steel or glass	Warm soapy water. Do not use proprietary cleaners other than washing-up liquid, as this may cause cosmetic damage.
Control knobs/handles & trims	Plastic/chrome, copper or lacquered brass	Warm soapy water, soft cloth.
	Brass	Brass polish.
Oven door glass/glass lid (some models only)	Toughened glass Hot soapy water, cream cleaner/scourer if necessary.
Oven and Grill
Part Finish Recommended Cleaning	Method
Sides, floor & roof of oven NOT‘COOK & CLEAN’ OVEN PANELS (see below)	Enamel	Any proprietary oven cleaner that is suitable for enamel.CAUTION: CORROSIVE/CAUSTIC OVEN CLEANERS: FOLLOW MANUFACTURER’S INSTRUCTIONS.Do not allow contact with the oven elements.
‘Cook & Clean’ oven panels (some models only)	Special enamel that partly cleans itself	This surface cleans itself at 200°C and above, or the panels can be removed and washed with hot soapy water and a nylon brush.
Oven shelves, Handyrack, grill trivet	Chrome	An oven interior cleaner that is suitable for chrome. Soap filled pad. Dishwasher.
Grill pan/meat tin (some models only)	Enamel	Hot soapy water. Soap filled pad. Dishwasher.

Table 5-1

6. Troubleshooting

Interference with and repairs to the hob MUST NOT be carried out by unqualified persons. Do not try to repair the hob as this may result in injury and damage to the hob. Please arrange for repair by a suitably competent person.

Note: The induction hob is able to self-diagnose a number of problems and can show this information to the user via the hob control display. Error codes may be displayed if your hob has developed a fault.

If you appliance reports an error or is not working, you may be able to correct the fault by consulting the following.

Error code E2 is displayed

The electronic unit is too hot. Please check the installation of the cooker, making sure that there is sufficient ventilation. In extreme cases, if a cooking utensil has been allowed to boil dry this error code may also be displayed. If in doubt please contact your installer or a qualified repair engineer.

No display operation

Over voltage or loss of supply voltage to the cooker. If in doubt please contact your installer or a qualified repair engineer.

Error code U400 is displayed

The cooker has been incorrectly connected. The control will switch off after approximately 1 second and the error code will be permanently displayed.

Consult your installer or a qualified repair engineer.

Error code Er followed by a number is displayed

The appliance has developed an internal technical fault that cannot be rectified by the user.

Consult your installer or a qualified repair engineer.

The fuse blows or the RCD trips regularly

Please contact your installer or a qualified repair engineer.

The cooker will not switch on

Has the wiring system in the house blown a fuse or tripped an RCD?

Has the cooker been correctly connected to the mains supply?

Has the child lock been activated? Please refer to the child lock section for details of this function.

The induction hob is noisy

When using the induction hob there may be some 'noise' emitted from the pan. This is normal and may be most noticeable when cooking on high power settings or if 5 pans are used simultaneously. The type of pan may also contribute to induction 'noise'.

The cooling fan

The induction hob incorporates a cooling fan. This cooling fan is active when either the grill or ovens are on. Under certain conditions, the cooling fan may remain active when the grill or ovens are switched off. This is normal and the fan will switch off automatically.

The fascia gets hot when I use the oven

If the fascia becomes excessively hot when the cooker is in use then the cooling fan may have failed. Should this occur please contact your installer, a qualified repair engineer or Customer Service to arrange for its repair.

A crack has appeared in the hob surface

Disconnect the cooker immediately from the power supply and arrange for its repair. Do not use the cooker until after the repair.

My hob is scratched

Always use the cleaning methods recommended in this guide, and make sure that the pan bottoms are smooth and clean.

Marks from mineral deposits from water or food can be removed with a cleaning cream. However, tiny scratches are not removable but will become less visible in time as a result of cleaning.

The oven fan is noisy

The note of the oven fan may change as the oven heats up – this is perfectly normal.

Grill not cooking properly

Are you using the pan and trivet supplied with the cooker? Is the pan being used on the runners, not the floor of the compartment? Is the grill tray pushed back fully to the 'back stop' position?

The knobs get hot when I use the oven or grill. Can I avoid this?

Yes, this is caused by heat rising from the oven or the grill, and heating them up. Do not leave the oven door open. Make sure that the grill pan is pushed right back to the 'back stop' when grilling.

Always grill with the grill compartment door open.

If there is an installation problem and I don't get my original installer to come back to fix it, who pays?

You do. Service organisations will charge for their call-outs if they are correcting work carried out by your original installer. Therefore, it's in your own interest to keep track of this installer so that you can contact them as required.

Power failure

In the event of a failure in the electrical supply, remember to reset the clock so that the timed oven continues to operate.

Fascia illumination is not coming on (Hi-LITE only)

Is the power on?

The appliance has developed a fault that cannot be rectified by the user. Please contact your installer or a qualified repair engineer.

Food is cooking too slowly, too quickly, or burning

Cooking times may differ from your previous oven. Check that you are using the recommended temperatures and shelf positions – see the oven cooking guide. Then adjust the settings according to your own individual tastes.

The oven is not cooking evenly

Do not use a baking tray with dimensions larger than those specified in the section on 'General Oven Tips'.

If you are cooking a large item, be prepared to turn it round during cooking.

If two shelves are used, check that space has been left for the heat to circulate. When a baking tray is put into the oven, make sure that it is placed centrally on the shelf.

Check that the door seal is not damaged and that the door catch is adjusted so that the door is held firmly against the seal.

A dish of water when placed on the shelf should be the same depth all over. (For example, if it is deeper at the back, then the back of the cooker should be raised up or the front lowered.) If the cooker is not level, arrange for your supplier to level it for you.

The timed oven is not coming on when turned on manually

Is the power on? Is the clock illuminated? If not, there may be something wrong with the power supply. Is the cooker supply on at the isolator switch?

Has the time of day been set?

Is the key symbol [?] showing in the display to signify that the oven is locked? See the 'Clock' section of the instructions for more information on the key lock feature.

The timed oven is not coming on when automatic cooking

Has the oven knob been left in the OFF position by mistake? Is the oven locked (see above)?

Oven temperature getting hotter as the cooker gets older

If turning the temperature down using the oven control knob has not worked, or has only worked for a short time, then you may need a new thermostat. This should be fitted by a service person.

The oven light is not working

The bulb has probably blown. You can buy a replacement bulb (which is not covered under the guarantee) from most electrical stores. Ask for an Edison screw fitting 15 W 230 V lamp, FOR OVENS (Fig. 6.1). It must be a special bulb, heat resistant to 300 °C.

Before removing the existing bulb, turn off the power supply and make sure that the oven is cool. Open the oven door and remove the oven shelves.

Locate the bulb cover and unscrew it by turning it counter-clockwise – it may be very stiff (Fig. 6.2).

Taking care to protect your fingers with a glove in case the bulb should shatter, unscrew the old bulb.

Screw in the new bulb clockwise and then screw the bulb cover back on. Turn on the electricity supply and check that the bulb now lights.

The oven door is misaligned

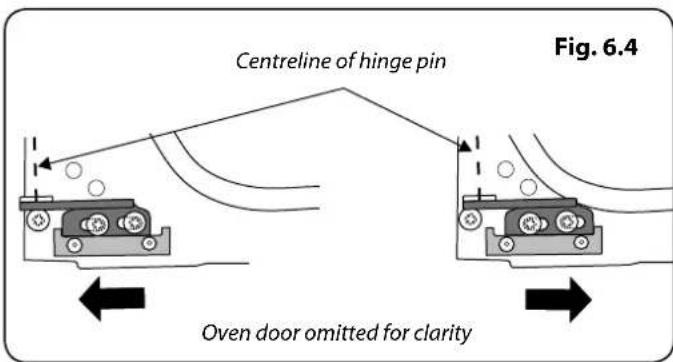

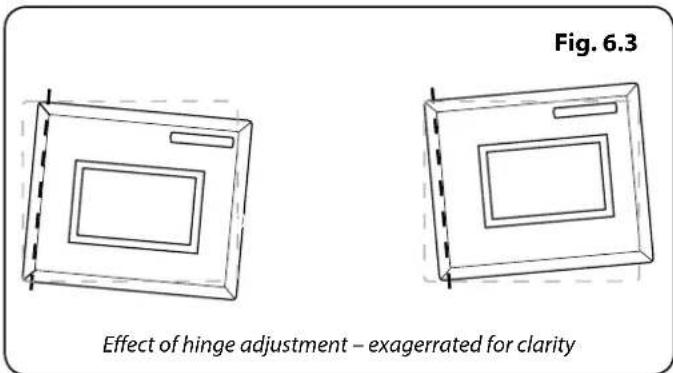

The bottom hinge of either oven door can be adjusted to alter the angle of the door (Fig. 6.3). Loosen the bottom hinge fixing screws and use the notch and a flat bladed screwdriver to move the position of the hinge to set the hinge position (Fig. 6.4).

Retighten the hinge screws.

Line drawing of a light bulb with internal circuit lines, labeled Fig. 6.1 (no text or symbols on the bulb itself)

Illustration of a hand holding a cylindrical device with a black arrow indicating rotation (no text or symbols)

INSTALLATION

Check the appliance is electrically safe when you have finished.

7. Installation

Dear Installer

Before you start your installation, please complete the details below, so that, if your customer has a problem relating to your installation, they will be able to contact you easily.

Installer's Name

Installer's Company

Installer's Telephone Number

Appliance Serial Number

Safety Requirements and Regulations

This cooker must be installed in accordance with the relevant instructions in this booklet, with the relevant national and local regulations, and with the local electricity supply companies' requirements.
The appliance must be installed in accordance with the regulations in force and only in a well ventilated space.
Read the instructions before installing or using this appliance.

Provision of Ventilation

This appliance is not connected to a combustion products evacuation device. Therefore, particular attention must be given to the relevant requirements regarding ventilation.

All rooms require a window that can be opened, or equivalent, while some rooms require a permanent vent in addition to the window.

Location of Cooker

The cooker may be installed in a kitchen/kitchen diner but NOT in a room containing a bath or shower.

This appliance is designed for domestic cooking only. Use for any other purpose could invalidate any warranty or liability claim.

You will need the following equipment to complete the cooker installation satisfactorily:

- Multimeter (for electrical checks).

You will also need the following tools:

1. Steel tape measure
2. Cross-head screwdriver
3. Flat-bladed screwdriver
4. Spirit level
5. Pencil
6. Adjustable spanner
7. 3 mm and 4 mm Allen keys
8. 13 mm spanner or socket wrench

Checking the parts:

Grill pan and trivet(standard model shown)	Flat oven shelves
Handyrack (some models) Roasting tin
Plinth (standard model shown)	Splashback (Classic, Classic Deluxeand Elan models)
Allen keys

INSTALLATION

Check the appliance is electrically safe when you have finished.

Positioning the Cooker

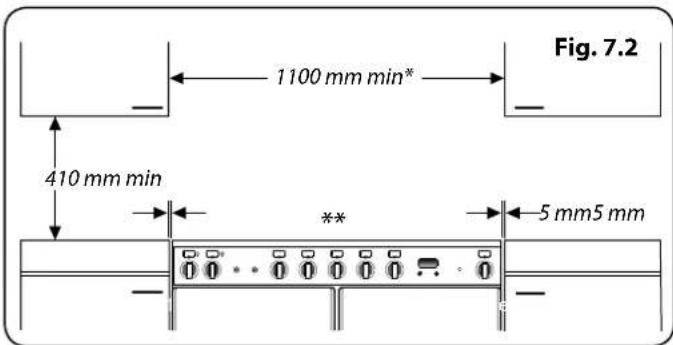

Fig. 7.1 and Fig. 7.2 show the minimum recommended distance from the cooker to nearby surfaces.

The cooker should not be placed on a base.

The induction hob surround should be level with, or above, any adjacent work surface. A gap of 75 mm should be left between each side of the cooker ABOVE the hotplate level and any adjacent vertical surface.

For non-combustible surfaces (such as unpainted metal or ceramic tiles), this can be reduced to 25 mm.

A minimum space of 650 mm is required between the top of the hob and a horizontal combustible surface.

*Any cookerhood should be installed in accordance with the hood manufacturer's instructions.

**Any splashback must be fitted in accordance with the manufacturers instructions. Allowance should be made for the additional height of the flue trim, which is fitted to the cooker hob.

Surfaces of furniture and walls at the sides and rear of the appliance should be heat, splash and steam resistant. Certain types of vinyl or laminate kitchen furniture are particularly prone to heat damage and discolouration. We cannot accept responsibility for damage caused by normal use of the cooker to any material that de-laminates or discolours at temperatures less than 65 °C above room temperature.

We recommend a gap of 1110 mm between units to allow for moving the cooker. Do not box the cooker in – it must be possible to move the cooker in and out for cleaning and servicing.

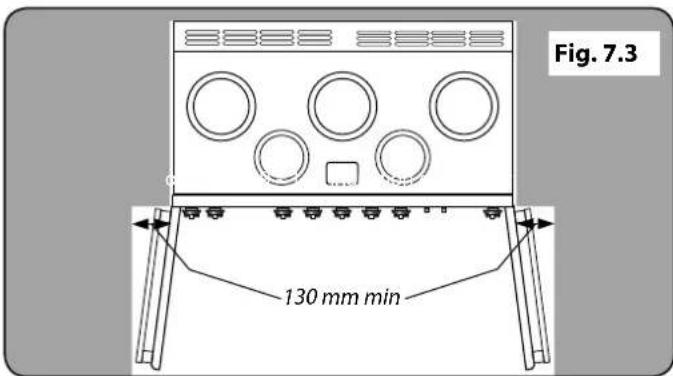

If the cooker is near a corner of the kitchen, a clearance of 130 mm is required to allow the oven doors to open (Fig. 7.3). The actual opening of the doors is slightly less, but this allows for some protection of your hand as you open the door.

Moving the Cooker

On no account try and move the cooker while it is plugged into the electricity supply.

The cooker is very heavy, so take great care.

We recommend two people manoeuvre the cooker. Make sure that the floor covering is firmly fixed, or removed to prevent it being disturbed when moving the cooker around. To help you, there are two levelling rollers at the back and two screw-down levelling feet at the front.

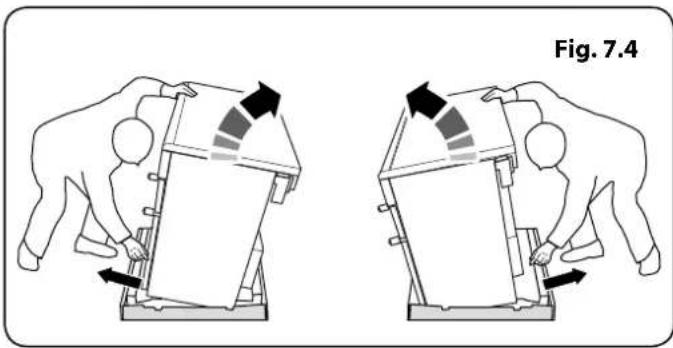

Remove the polystyrene base pack. From the front, tilt the cooker backwards and remove the front half of the polystyrene base (Fig. 7.4). Repeat from the back and remove the rear half of the polystyrene base.

Two diagrams showing a person performing a mechanical or architectural operation, with arrows indicating direction of movement (no text or symbols present)

INSTALLATION

Check the appliance is electrically safe when you have finished.

Lowering the Two Rear Rollers

To adjust the height of the rear of the cooker, first fit a 13 mm spanner or socket wrench onto the hexagonal adjusting nut (Fig. 7.5).

Rotate the nut – clockwise to raise – counter-clockwise to lower. Make 10 complete (360°) turns clockwise.

Make sure you lower BOTH REAR ROLLERS.

Completing the Move

Unfold the rear edge of the cardboard base tray. Open the grill door and right-hand oven door so that you can get a good grip on the bottom of the fascia panel as you move the oven (Fig. 7.6).

Carefully push the cooker backwards off the base tray. Remove the base tray.

Position the cooker close to its final position, leaving just enough space to get behind it Fig. 7.7).

DO NOT use the door handles or control knobs to manoeuvre the cooker.

Repositioning the Cooker Following Connection

If you need to move the cooker once it has been connected, make sure it is switched off at the supply switch before gripping under the fascia panel and lifting the front of the cooker slightly (Fig. 7.6). Check behind the cooker to make sure that the electricity cable is not caught. As you progress, always make sure that the cable has sufficient slack to allow the cooker to move.

When you replace the cooker, check behind it again once more to make sure that the electricity cable is not caught or trapped.

Levelling the Cooker

Place the cooker in its intended position. Take care not to twist it within the gap between the kitchen units, as otherwise, damage may occur to the cooker or units.

There are two screw-down feet at the front and two levelling rollers at the rear, which can be used to adjust the height and level of the cooker.

It is recommended that you use a spirit level on a shelf in one of the ovens to check for level.

INSTALLATION

Check the appliance is electrically safe when you have finished.

Electrical Connection

The cooker must be installed by a qualified electrician, in accordance with all relevant British Standards/Codes of Practice (in particular BS 7671), or with the relevant national and local regulations.

WARNING: THE APPLIANCE MUST BE EARTHED.

Note: The cooker must be connected to the correct electrical supply as stated on the voltage label on the cooker, through a suitable cooker control unit incorporating a double-pole switch, having a contact separation of at least 3 mm in all poles.

The cooker MUST NOT be connected to an ordinary domestic power point.

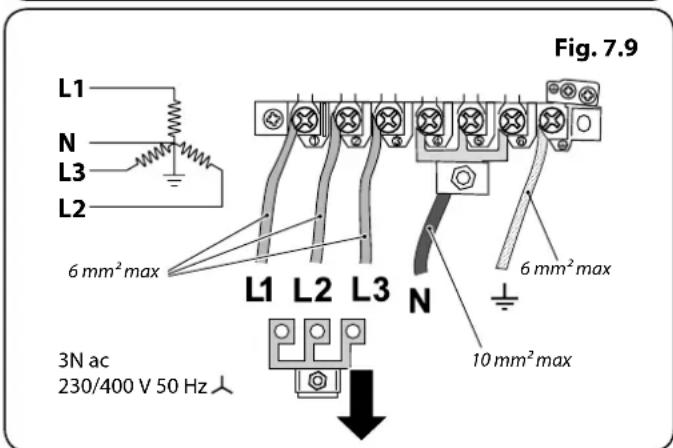

Access to the mains terminal is gained by removing the electrical terminal cover box on the back panel. Connect the mains cable to the correct terminals for your electrical supply type (Fig. 7.8 and Fig. 7.9). Check that the links are correctly fitted and that the terminal screws are tight.

Secure the mains cable using the cable clamp.

Final Checks

Hob Check

Check each cooking zone in turn. Be sure to use pans of the correct size and material.

Grill Check

Turn on the grill control and check that the grill heats up.

Oven Check

Set the clock as described earlier, and then turn on the ovens. Check the oven fans start to turn and that the ovens heat up.

Current Operated Earth Leakage Breakers

The combined use of your induction cooker and other domestic appliances may cause nuisance tripping, so we recommend that the cooker is protected on an individual RCD (Residual Current Device) or RCBO (Residual Current Breaker with Overload).

IF IN DOUBT, PLEASE CONSULT A SUITABLY QUALIFIED ELECTRICIAN.

INSTALLATION

Check the appliance is electrically safe when you have finished.

Final Fitting

Fitting the Handles and Handrail

(depending on model)

Remove the 4 mm Allen screws from the doors (Fig. 7.10). Fit the door handles and secure using the 4 mm screws.

The handles should be above the fixings.

Elan only: Fit the plastic blanking plugs to the fixing holes (Fig. 7.11).

Remove the 4 mm Allen screws from the top corners of the fascia (Fig. 7.12). Fit the front handrail in position and secure using the 4 mm screws.

Fitting the 1-piece Plinth

Loosen the three screws along the front bottom edge of the cooker. Hook the central keyhole over the central screw. Twist and fit each end keyhole over their respective screws. Tighten the fixing screws (Fig. 7.13).

Fitting the 2-piece Plinth

(Classic Deluxe and Professional Deluxe)

Fit the inner plinth to the bottom front of the cooker using the 4 screws provided (Fig. 7.14).

Fit the outer plinth (2 screws, 1 each end) to the inner plinth. The height of the outer plinth can be adjusted by sliding it up or down via the slotted hole (Fig. 7.15).

Fitting the Plinth

(Hi-LITE)

Offer the keyhole slots on the outer plinth to the location points on the inner plinth (Fig. 7.16).

When released the outer plinth should automatically adjust to the floor height (Fig. 7.16).

WARNING: When moving the cooker ensure that the outer plinth is removed. Failure to do so may result in damage to plinth and floor.

Fitting the Splashback

(Classic, Classic Deluxe & Elan)

Position the splashback on the rear of the hotplate and secure with the screws supplied.

Customer Care

Installer: Please complete your details in this guide, inform the user how to operate the cooker and hand over the instructions.

Thank you.

8. Circuit Diagrams

Hob

Key

The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz.

Code	Description
1	Left-hand front element
2	Left-hand rear element
3	Right-hand rear element
4	Right-hand front element
5	Centre element

Code Colour

w/br White/brown

Multifunction Oven

Elan

Electrical circuit diagram with labeled components including transistors, relays, and logic gates for power or signal processing.

Key

The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz.

Code	Description
A1	Grill front switch
A2	Grill energy regulator
A3	Grill elements
B1	Multi-function oven thermostat front switch
B2	Multi-function oven thermostat
B3	Multi-function oven top element (outer pr.)
B4	Multi-function oven top element (inner pr.)
B5	Multi-function fan element
B6	Multi-function oven fan
B7	Multi-function base element
B8	Multi-function oven function select switch

Code	Description
C	Clock
D1	Right-hand oven front switch
D2	Right-hand oven thermostat
D3	Right-hand fan oven element
D4	Right-hand oven fan
F1	Cooling fan
F2	Oven light switch
G	Oven light(s)
H	Thermal cut-out
I	Neon

Code	Colour
b	Blue
br	Brown
bk	Black
or	Orange
r	Red
v	Violet
w	White
y	Yellow
g/y	Green/yellow
gr	Grey

Multifunction Oven

Classic Deluxe & Professional Deluxe

Key

The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz.

Code	Description
A1	Grill front switch
A2	Grill energy regulator
A3	Grill elements
B1	Multi-function oven thermostat (Rapid Heat)
B2	Multi-function oven switch
B2a	Multi-function oven thermostat front switch
B3	Multi-function base element
B4	Multi-function oven top element (outer pr.)
B5	Multi-function oven top element (inner pr.)
B6	Multi-function fan element
B7	Multi-function oven fan

Code	Description
C	Clock
D1	Right-hand oven front switch
D2	Right-hand oven thermostat
D3	Right-hand fan oven element
D4	Right-hand oven fan
F1	Cooling fan
F2	Oven light switch
G	Oven light(s)
H	Thermal cut-out
I	Neon

Code	Colour
b	Blue
br	Brown
bk	Black
or	Orange
r	Red
v	Violet
w	White
y	Yellow
g/y	Green/yellow
gr	Grey

Conventional Oven

Classic, Toledo & Professional+
Key

The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz.

Code	Description
A1	Grill front switch
A2	Grill energy regulator
A3	Grill elements
B1	Zoned oven front switch
B2	Zoned oven thermostat
B3	Zoned oven browning element (inner pair)
B4	Zoned oven top element (outer pair)
B5	Zoned oven base element
C	Clock
D1	Right-hand oven front switch
D2	Right-hand oven thermostat

Code	Description
D3	Right-hand fan oven element
D4	Right-hand oven element
F	Oven light switch
G1	Left-hand oven light
G2	Right-hand oven light
H	Thermal cut-out
J	Neon
K	Cooling fan

Code	Colour
b	Blue
br	Brown
bk	Black
or	Orange
r	Red
v	Violet
w	White
y	Yellow
g/y	Green/yellow
gr	Grey

Conventional Oven

Hi-LITE

Key

The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz.

Code	Description
A	Illumination board - left-hand side
A1	Grill front switch
A2	Grill energy regulator
A3	Left-hand grill element
A4	Right-hand grill element
B	Illumination board - right-hand side
B1	Left-hand oven thermostat
B2	Left-hand front switch
B3	Left-hand oven top inner element
B4	Left-hand oven top outer element
B5	Left-hand oven bottom element
F1	Left-hand oven thermal preset
C	Clock
D1	Right-hand oven thermostat
D2	Right-hand oven front switch
D3	Right-hand oven element

Code	Description
D4	Right-hand oven fan
F2	Right-hand oven thermal preset
G1	Left- hand oven light
G2	Right- hand oven light
H	Cooling fan
J	Illumination switch
K	Oven light switch
M1	Grill heat indicator
M2	Left-hand oven heat indicator
M3	Right-hand oven heat indicator

Code	Colour
b	Blue
br	Brown
bk	Black
or	Orange
r	Red
v	Violet
w	White
y	Yellow
g/y	Green/yellow
gr	Grey

9. Technical Data

INSTALLER: Please leave these instructions with the user.

DATA BADGE LOCATION: Cooker back, serial number repeater badge below the oven door opening.

COUNTRY OF DESTINATION: GB, IE, FR, NL, DE, SE, BE, AT, CH, LU.

Connection

Electric 230 / 400 V ~ 50 Hz 3N

Dimensions

Total height Min 905 mm Max 930 mm
Total width 1100 mm
Total depth: Elan 597 mm excluding handles, 679 mm including handles
Total depth: Classic Deluxe 597 mm excluding handles, 666 mm including handles
Total depth: Professional Deluxe 595 mm excluding handles, 642 mm including handles
Total depth: Toledo 596 mm excluding handles, 654mm including handles
Total depth: Classic 596 mm excluding handles, 657mm including handles
Total depth: Professional+ 596 mm excluding handles, 642mm including handles
Total depth: HI-LITE 596 mm excluding handles, 650mm including handles
Minimum space above hotplate	650 mm

See "Positioning the Cooker".

Ratings

Hotplate energy saving tips

Use cookware with a flat base.

Use the correct size cookware.

Use cookware with a lid.

Minimise the amount of liquid or fat.

When liquid starts boiling, reduce the setting.

Oven energy saving tips

Cook meals together, if possible.

Keep the pre-heating time short.

Do not lengthen cooking time.

Do not open the oven door during the cooking period.

Do not forget to turn the appliance off at the end of cooking.

Hotplate Efficiency Data

Brand Rangemaster
Model Identification	Professional Deluxe
	Professional+
	Classic
	Classic Deluxe
	Elan
	Toledo
	Hi-LITE
Size 110
Type Induction
Type of Hob Induction
Number of electric zones 5
Zone 1 - ∅ cm 18.5
Heating Technology
Energy Consumption (ECElectric cooking) - Wh/kg 180
Zone 2 - ∅ cm 15.5
Heating Technology
Energy Consumption (ECElectric cooking) - Wh/kg 172
Zone 3 - ∅ cm 18.5
Heating Technology
Energy Consumption (ECElectric cooking) - Wh/kg 180
Zone 4 - ∅ cm 15.5
Heating Technology
Energy Consumption (ECElectric cooking) - Wh/kg 172
Zone 5 - ∅ cm 18.5
Heating Technology
Energy Consumption (ECElectric cooking) - Wh/kg -
Zone 6 - ∅ cm -
Heating Technology
Energy Consumption (ECElectric cooking) - Wh/kg
Energy Consumption (ECElectric hob) - Wh/kg (*) 175

Information marked thus (*) is not required with mixed fuel hobs

Oven Data
Classic, HI-LITE, Professional+ and Toledo

Brand Rangemaster
Model identification Classic
Mass kg 131
Model identification HI-LITE
Mass kg 133
Model identification Professional+ and Toledo
Mass kg 128
Type of oven Electric
Number of cavities 2
Left-hand Efficiency
Fuel type Electric
Cavity type Convection
Power - conventional 2.2
Power - forced air convection -
Volume Litres 80
Energy consumption (electricity) - conventional	kWh / cycle	1.03
Energy consumption (electricity) - forced air convection	kWh / cycle	-
Energy efficiency index - conventional		116.3
Energy efficiency index - forced air convection		-
Energy class B
Right-hand Efficiency
Fuel type Electric
Cavity type		Fanned
Power - conventional		-
Power - forced air convection		2.5
Volume Litres 73
Energy consumption (electricity) - conventional	kWh / cycle	-
Energy consumption (electricity) - forced air convection	kWh / cycle	0.88
Energy efficiency index - conventional -
Energy efficiency index - forced air convection		102.7
Energy class		A

Additional Information
The oven complies with EN 60350-1
Maximum output @ 230V 50Hz
Conventional	2.2 kW
Multifunction	2.5 kW
Multifunction (with Rapid Response)	-
Forced Air Convection	2.5 kW
Grill	2.3 kW
Slow Oven	-
Bread Proving Drawer	-

Maximum total electrical load at 230 V (approximate total including hob, oven lights, oven fan, etc.):

14.82 kW

Oven Data
Classic Deluxe, Elan and Professional Deluxe

Brand Rangemaster
Model identification Classic Deluxe and Elan
Mass kg 136
Model identification Professional Deluxe
Mass kg 128
Type of oven Electric
Number of cavities 2
Left-hand Efficiency
Fuel type Electric
Cavity type Multifunction
Power - conventional 2.2
Power - forced air convection 2.5
Volume Litres 73
Energy consumption (electricity) - conventional kWh / cycle 1.08
Energy consumption (electricity) - forced air convection	kWh / cycle 0.91
Energy efficiency index - conventional		126.1
Energy efficiency index - forced air convection		106.2
Energy class		A
Right-hand Efficiency
Fuel type Electric
Cavity type		Fanned
Power - conventional		-
Power - forced air convection 2.5
Volume Litres 73
Energy consumption (electricity) - conventional kWh / cycle	-
Energy consumption (electricity) - forced air convection	kWh / cycle 0.88
Energy efficiency index - conventional -
Energy efficiency index - forced air convection		102.7
Energy class		A

Additional Information
The oven complies with EN 60350-1
Maximum output @ 230V 50Hz
Conventional	2.2 kW
Multifunction 2.5 kW
Multifunction (with Rapid Response)	3.7 kW
Forced Air Convection	2.5 kW
Grill	2.3 kW
Slow Oven	-
Bread Proving Drawer	-

Maximum total electrical load at 230 V (approximate total including hob, oven lights, oven fan, etc.):
Calssic Deluxe and Professional Deluxe (Rapid Response)	16.01 kW
Elan	14.82 kW

Notes

Name of Appliance & Colour*

Appliance Serial Number*

Natural Gas LP GasFuel Type*Dual Fuel Electric

Retailer's Name & Address

Date of Purchase

Installer's Name & Address

Installer's Telephone Number

Date of Installation

* This information is on the appliance data badge - look in the appliance instructions to find out where the data badge is located.

CONSUMER SERVICE

If you have any product enquiries, or in the event of a problem with your appliance once it has been installed, please telephone: [phone] or depending on your mobile network tariff you can call free on 0370 789 5107.

CONSUMER SERVICE LINES OPEN:

Monday to Thursday 8am–6pm

Friday

Saturday

8am–5pm

9am–1pm

WARRANTY

Your manufacturer warranty covers goods of our own brand for defective workmanship and materials for a period of 1 year from the date of purchase. This warranty covers mechanical breakdown and proven cosmetic and manufacturing defects.

You will receive an additional FREE full 12 months guarantee by registering your purchase using the FREEPOST form provided. Alternatively, call free on 0800 587 5747, quoting reference RMGX57A, or register online at www.rangemaster.co.uk.

Any damage, blemishes or chips identified upon receipt of the product must be reported within 90 days. Proof of purchase may be required to establish validity. Scratches on the surface of ceramic

hobs must be reported within 14 days. Scratches caused by usage are not covered. Accidental damage is not covered by the manufacturer's warranty.

For warranty compliance, the requirements for the appliance are:

• Has been correctly installed in accordance with current legislation, relevant British and European Standards and Codes of Practice, by a suitably competent person registered with Gas Safe or equivalent body and where applicable a qualified electrician.
  • Has been used solely for domestic cooking purposes.
• If in use in the UK*, has not been taken abroad as a personal export. In the Republic of Ireland, conditions may vary, so consult your retailer.
• Is not second-hand or a refurbished appliance. The manufacturer's warranty is not transferable.
• Has not been subject to misuse, accidental damage or modification, and has not deteriorated due to normal domestic wear and tear, and the manufacturer's recommendations concerning cleaning materials have been followed.
• Has not been repaired by persons or organisations other than those authorised to act on behalf of AGA Rangemaster.

Exceptions:

• Items not included under the free 1 year warranty include pan supports, griddles, wok rings, baking trays, grill pans, trivets, filters, light bulbs and other consumable accessories.
  • Any damage caused other than through normal use.
  • Breakdowns associated with cooking spillage.
  • Cosmetic deterioration deemed to be normal wear and tear.
• Please note that we reserve the right to charge additional payments for engineer's expenses, at our discretion, up to the value of £300 per home visit.
• The terms of this warranty are in addition to your legal rights and do not affect your legal rights in relation to defective products. Please contact Citizen's Advice for more information relating to your legal rights.
  * Only certain models can be adapted for use with Mains Gas supplied in the Channel Islands and Isle of Man.

OUT OF WARRANTY

Service work should only be carried out by technically competent and suitably qualified personnel.

For your own safety, always make sure that work is carried out by a Gas Safe registered engineer for gas appliances or an approved electrician for electrical models.

For a competitive quote and to arrange for a Rangemaster approved engineer to attend, call Consumer Services on: 0800 804 6261 or depending on your mobile network tariff you can call free on 0370 789 5107.

SPARE PARTS

To maintain optimum and safe performance, we recommend that only genuine Rangemaster spare parts are used. These are available from most major spares stockists, including ourselves.

STANDARDS

Rangemaster cookers are designed and manufactured to a recognised international quality standard, which meets the requirements of BS EN ISO 9001, BS EN ISO 14001 and OHSAS 18001 for continually improving environmental procedures.

Rangemaster cookers comply with the essential requirements of the appropriate European Directives, and carry the CE mark.

ALSO PART OF THE RANGEMASTER COLLECTION...

Close-up of a stainless steel oven control panel with digital display and rotary buttons (no readable text or symbols)

Clarence Street

Royal Leamington Spa

Warwickshire

CV31 2AD

England

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

Consumer Services Tel: [phone]

www.rangemaster.co.uk

For ROI Enquiries Tel: [phone]

Search Rangemaster UK

Registered in England and Wales. Registration No. 354715 Registered Office: Juno Drive, Leamington Spa, Warwickshire, CV31 3RG

Rangemaster continuously seeks improvements in specification, design and production of products and thus, alterations take place periodically. Whilst every effort is made to produce up-to-date literature, this booklet should not be regarded as an infallible guide to current specification, nor does it constitute an offer for the sale of any particular appliance.

Britain's No.1 Range Cooker
