M84UWH - Projection screen Elite Screens - Free user manual and instructions

Product Type	Manual Pull-Down Projection Screen
Brand	Elite Screens
Model	M84UWH
Diagonal Size	84 inches (213 cm)
Aspect Ratio	16:9
Screen Surface	Matte White
Gain	1.1
Viewing Angle	160°
Visible Screen Size (W x H)	73.5" x 41.3" (186.7 cm x 104.9 cm)
Overall Dimensions (with casing)	Approx. 78.5" x 46.3" (199.4 cm x 117.6 cm)
Net Weight	12 lbs (5.4 kg)
Power Supply	None (manual operation)
Operation	Manual pull-down with auto-lock at any height
Mounting	Wall or ceiling mountable (hardware included)
Housing Color	Vivid White
Borders	Black masking borders for improved contrast
Material	Fiberglass-reinforced PVC
Resolution Support	Up to 4K (3840 x 2160)
Compatible Projectors	All standard throw and short throw projectors
Cleaning Instructions	Wipe with a dry, soft cloth; avoid liquids and chemicals
Safety Warnings	Secure installation required; keep away from children
Spare Parts Availability	Replacement screen material available via customer support
Warranty	Limited 2-year warranty

Frequently Asked Questions - M84UWH Elite Screens

How do I install the Elite Screens M84UWH?

The screen mounts to a wall or ceiling using the included brackets. Ensure the mounting surface is sturdy and use appropriate anchors. The screen should be level and at a height where the fully extended screen is at eye level.

What type of projector is compatible with this screen?

The M84UWH is compatible with all standard throw and short throw projectors. The matte white surface works well with most projectors, including those with up to 4K resolution.

How do I clean the screen surface?

Use a dry, soft microfiber cloth to gently wipe away dust. Do not use any liquids, solvents, or abrasive cleaners, as they may damage the screen material.

What is the throw distance for a 84-inch screen?

Throw distance depends on your projector's lens. For a typical projector with a 1.2:1 throw ratio, the distance to fill an 84-inch diagonal 16:9 screen is about 6.3 feet (1.9 meters). Consult your projector manual for exact specs.

Can this screen be used outdoors?

The Elite Screens M84UWH is designed for indoor use. Outdoor exposure to moisture, wind, or direct sunlight can damage the screen and is not recommended.

How do I adjust the screen height?

Gently pull the handle downward to extend the screen to your desired height. The auto-lock mechanism holds it in place. To retract, release the lock by pulling the screen slightly downward and then guiding it up slowly.

What is the screen gain and why does it matter?

The M84UWH has a gain of 1.1, meaning it reflects slightly more light than a standard matte surface. This improves brightness in rooms with moderate ambient light, but narrows the viewing angle slightly. It’s ideal for home theaters.

Does the screen come with a warranty?

Yes, Elite Screens offers a limited 2-year warranty covering defects in materials and workmanship. Register your product on their website for full warranty details.

Can I replace the screen material if it gets damaged?

Replacement screen material is available through Elite Screens customer support. However, replacement is complex and typically recommended to be done by a professional.

What are the dimensions of the screen casing?

The overall casing dimensions are approximately 78.5 inches wide, 46.3 inches high, and 2.5 inches deep. The visible screen area is 73.5 x 41.3 inches for a 84-inch diagonal.

USER MANUAL M84UWH Elite Screens

ELITE SCREENS

Manual Pull-Down Projection Screen

Elite Manual Series

USER'S GUIDE

Pre-installation

1. Carefully unpack the screen.
2. Always handle the screen in a leveled position on a clean surface.

INSTALLATION

Flush Wall Mounting

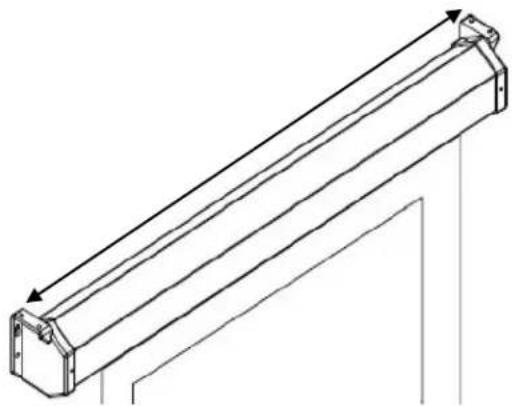

1. Measure the distance between the keyholes located on the back of the end cap
2. Mark the location of where the screen is to be installed for the pre-drilled hole.
3. After marking the area and drilling the hole, insert the proper screw into the drilled hole and leave about 1/8" of an inch from the wall to mount the screen.
4. Mount your screen from the keyhole located on back of screen's left and right end cap.

Flush Ceiling Mounting

1. Measure the distance between the top screw holes located on the top of the end caps.
2. Mark the location of where the screen is to be installed for the pre-drilled hole.
3. Drill your hole, use a hollow wall anchor if needed
4. Insert the proper screw into the drilled hole and secure the screen to the ceiling.

Ceiling Suspended Mounting (additional hardware required) Optional installation using a chain to hang the screen from the ceiling.

1. You can also hang the screen on a ceiling by using a chain and hang it by the two loops (models 71-120) located on each end of the case or by the end cap's ears (models 135-170).

Note: Chain and U bolt/D ring not included.

SCREEN OPERATION

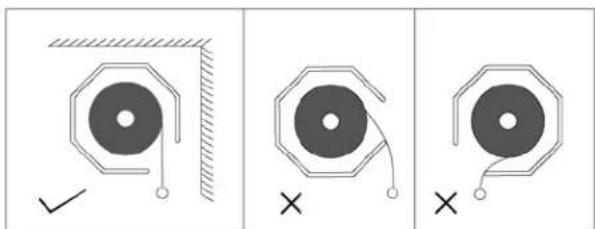

Note: Always pull the screen down or let it up in a 90-degree vertical angle. Do not allow the screen to touch the screen case when the screen goes up or comes down to avoid damaging the screen material.

1. Pull the screen down from the lanyard or from the handle only in a 90-degree angle. Do not attempt to pull the screen down by the surface or touch the screen, as it will damage the screen and void the warranty.

Note: An internal auto-lock mechanism system will cause the screen to stop and lock on the position at intervals.

1. If you want to the screen to retract back, simply pull the screen down more than 2 inches and retract the screen back by quickly and smoothly releasing it up gently.

Note: Always release at a 90-degree angle and do not let go until the screen is entirely inside the case. If ever the screen feels stuck, keep in mind that the screen's mechanism is new and needs to be run up/down a few times to loosen up. If this happens, carefully with a little force yank the screen straight down to unlock the screen.

Note: Improperly bringing the screen up/down will damage the screen material or rolling system.

RETRACTION TIP: If you are not able to pull the screen down two inches when attempting to retract it, give the screen a quick yank downwards with a little bit of force. Please be sure to not stand directly under the housing of the unit when yanking down on the screen.

MAINTENANCE

Clean matte white screen material with a soft cloth and mild soap with water.

When not in use, retract screen in its housing to keep the screen material surface clean.

NOTE:

Regardless of mounting method, the screen should be securely supported so that vibration or even abusive pulling on the viewing surface will not cause the case to work loose or fall. The installer must insure that the fasteners used are of adequate strength and suitable for the mounting surface chosen.
