DSC-HDMI-SVIDEO - Audio/video converter EnerGenie - Free user manual and instructions

Product Type	Audio/Video Converter
Brand	EnerGenie
Model	DSC-HDMI-SVIDEO
Input Interface	HDMI (Type A, female)
Output Interfaces	1x S-Video (mini-DIN 4-pin), 1x Composite Video (RCA), 2x Audio L/R (RCA)
Supported Input Resolutions	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Output Video Resolution	480i (NTSC) / 576i (PAL)
Video Format Support	NTSC, PAL (auto-detection)
Audio Output	Stereo L/R via RCA, supports PCM
Power Supply	5V DC via Micro-USB port (cable included, power adapter not included)
Dimensions (approx.)	85 x 52 x 20 mm (3.4 x 2.0 x 0.8 in)
Weight (approx.)	55 g (1.9 oz)
Cable Length (HDMI to Micro-USB)	0.5 m (1.6 ft)
Casing Material	Plastic (ABS)
LED Indicators	Power (green)
Operating Temperature	0 °C to 45 °C (32 °F to 113 °F)
Certifications	CE, RoHS
Package Contents	Converter unit, HDMI to Micro-USB power cable, user manual
Compatibility	HDMI sources (Blu-ray, game consoles, PC, etc.) to TVs/projectors with S-Video/Composite input
HDCP Support	Yes (HDCP compliant)
Functions	Converts HDMI digital signal to analog S-Video & Composite plus stereo audio; plug-and-play, no driver needed
Maintenance & Cleaning	Wipe with a soft, dry cloth; avoid liquids and abrasive cleaners

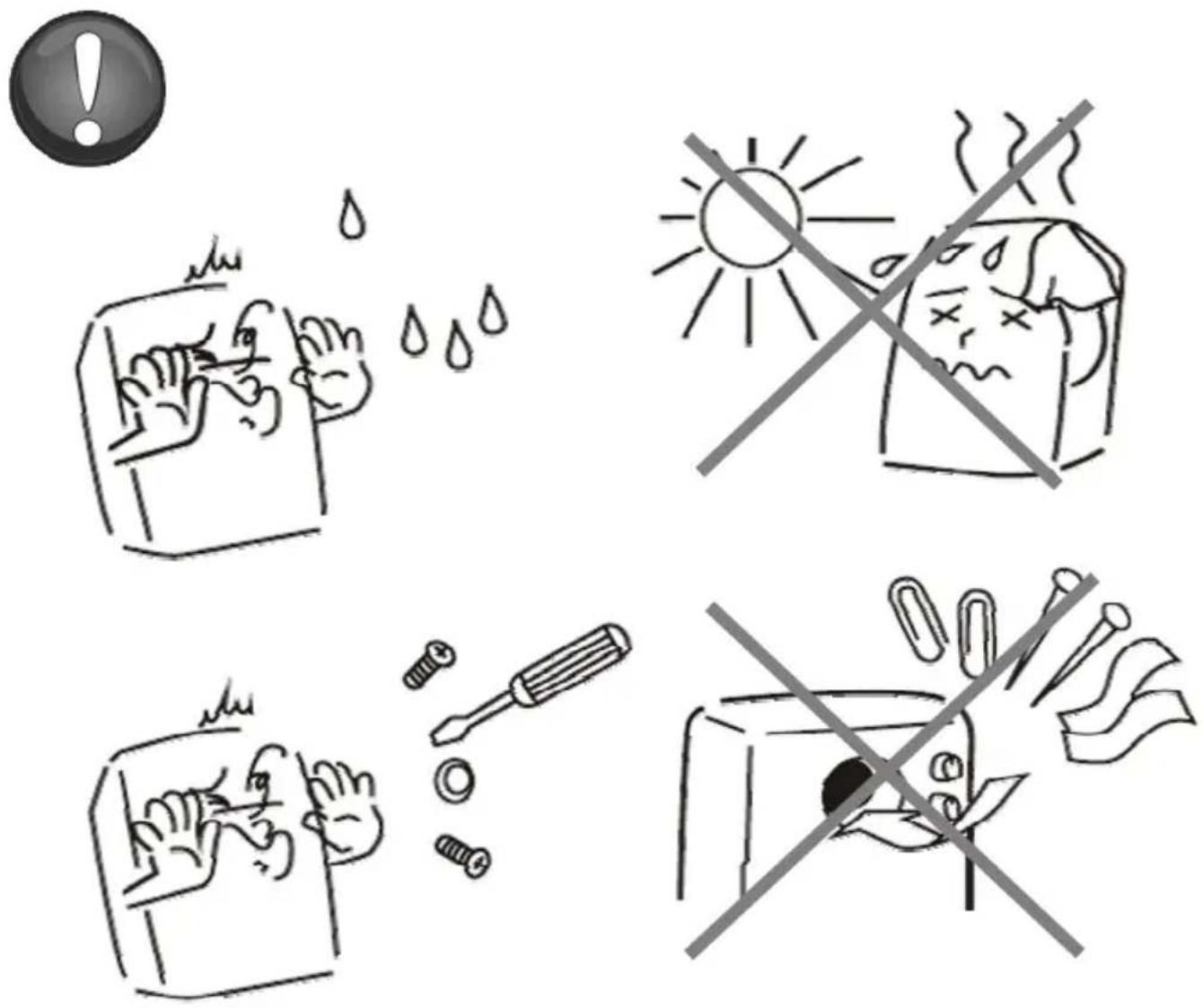

Safety & Precautions	Do not expose to moisture or extreme temperatures; unplug when not in use
Spare Parts & Repairability	No user-serviceable parts; contact EnerGenie support for repairs

Frequently Asked Questions - DSC-HDMI-SVIDEO EnerGenie

What is the EnerGenie DSC-HDMI-SVIDEO used for?

The DSC-HDMI-SVIDEO is an audio/video converter that converts digital HDMI signals into analog S-Video and Composite video plus stereo audio, allowing you to connect modern HDMI devices to older TVs or projectors.

Does it require external power?

Yes, it is powered via a Micro-USB port (5V DC). A USB cable is included, but a power adapter is not. You can plug it into a USB port on your TV, computer, or any standard USB charger.

What cables are included?

The package includes the converter unit, a HDMI to Micro-USB power cable, and a user manual. You need to provide your own HDMI cable (input) and S-Video/Composite cables (output).

What output resolutions are supported?

The converter outputs 480i (NTSC) or 576i (PAL) depending on the input signal. It automatically detects the video format.

Does it support audio?

Yes, it extracts stereo audio from the HDMI signal and outputs it via two RCA jacks (left and right). Supported audio formats include PCM.

Is HDCP supported?

Yes, the converter is HDCP compliant, so it can work with protected content from Blu-ray players, game consoles, etc.

Can I use this with a computer?

Yes, you can connect a computer with an HDMI output. The converter will work as a plug-and-play device without additional drivers. Note that the output resolution will be limited to standard definition.

How to connect the converter?

1. Connect an HDMI cable from your source to the converter’s HDMI input. 2. Connect S-Video and/or Composite cables from the converter to your display. 3. Connect the Micro-USB power cable. 4. Turn on your devices. The converter should work automatically.

What should I do if there is no picture?

Check all cable connections, ensure the converter is powered (LED should be green), and verify that your display is set to the correct input (S-Video or Composite). Also, confirm the HDMI source is outputting a compatible resolution (e.g., 1080p or lower).

Can I use this to convert from S-Video to HDMI?

No, this converter is unidirectional—it only converts from HDMI to S-Video/Composite, not the other way around.

USER MANUAL DSC-HDMI-SVIDEO EnerGenie

Features

• Allows using new HDMI devices with old TV's
• Converts digital HDMI input to analog S-Video/composite video and audio (L/R)
• Selection switch for output video type (S-Video/CVBS) and video standard (PAL/NTSC)

Specifications

• Output: 1x S-Video, 1x Composite video, 2x audio (L/R)
- Input: 1x HDMI
• Power supply, 5 V DC up to 1 A
• Dimensions: 156 x 84 x 28 mm
• Net weight: 203 g

energenie

DSC-HDMI-SVIDEO HDMI TO S-VIDEO CONVERTER

All brands and logos are registered trademarks of their respective owners

energenie

DSC-HDMI-SVIDEO HDMI TO S-VIDEO CONVERTER

All brands and logos are registered trademarks of their respective owners

EC Declaration of Conformity

We hereby certify that the following product complies with all the relevant

Safety Requirements of § 4 EMVG and of the Directives 2006/95/EC; 93/68/EEC and 2004/108/EC.

Applicant :

Gembird Europe BV

Wittevrouwen 56,

1358CD, Almere, The Netherlands

Equipment :

Computer parts

Model Nos. :

DSC-HDMI-SVIDEO

Product description :

DSC-HDMI-SVIDEO HDMI to S-VIDEO Converter

European standards:

EN55022:1998+A1:2000+A2:2003; EN55024:1998+A1:2001+A2:2003;

EN61000-3-2:2000; EN61000-3-3:1995+A1:2001; EN60950-1:2001

The following manufacturer/WITHIN Europe is responsible for this declaration:

Gembird Europe BV

Wittevrouwen 56, 1358CD, Almere, The Netherlands

Tel: [phone]. Fax: [phone]

Director

The Netherlands / Jan. 27, 2011

Place and Date

Authorized signature

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
