| Product Type | LED TV |
| Screen Size | 24 inches (61 cm) |
| Display Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Dimensions (W x H x D) with stand | 550 x 400 x 150 mm |
| Dimensions (W x H x D) without stand | 550 x 350 x 50 mm |
| Weight with stand | 4.0 kg |
| Weight without stand | 3.5 kg |
| Power Consumption (typical) | 30 W |
| Power Supply | 100-240V AC, 50/60 Hz |
| Inputs | HDMI, VGA, USB, Composite, Audio In |
| Built-in Speakers | 2 x 3W |
| Remote Control | Included |
| VESA Mount Compatible | Yes, 100 x 100 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Cleaning Instructions | Wipe with a soft, dry cloth. Do not use liquid cleaners. |
| Safety Features | Over-voltage protection, auto power-off, Kensington lock support |
| Repairability | User-replaceable power cord; other repairs by qualified service personnel |
Frequently Asked Questions - L-W24 AG Neovo
User questions about L-W24 AG Neovo
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Television in PDF format for free! Find your manual L-W24 - AG Neovo and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. L-W24 by AG Neovo.
USER MANUAL L-W24 AG Neovo
SAFETY PRECAUTIONS 2-4
SPECIAL NOTES ON LCD MONITOR ---- 4
CONNECTOR PIN ASSIGNMENT 19-20
FOR YOUR SAFETY
Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference.
SAFETY PRECAUTIONS
FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
NOTICE:
- The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
- The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.
WARNING:
To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.
PRECAUTIONS
- Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
- Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
- Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided.
- The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
- The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or ground the appliance safely. Do not defeat the safety purpose of the grounded plug.
- Unplug the unit during a lightening storm or when it will not be used for long period of time. This will protect the monitor from damage due to power surges.
- Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
- Never push any object into the slot on the monitor cabinet. It could short circuit parts causing a fire or electric shock. Never spill liquids on the monitor.
- Do not attempt to service the monitor by yourself; opening or removing covers can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel.
- To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V AC, Min. 5A.
- The wall socket shall be installed near the equipment and shall be easily accessible.
WEEE DECLARATION
Disposal of Waste Equipment by Users in Private Household in the European Union.

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
SPECIAL NOTES ON LCD MONITOR
The following symptoms are normal with LCD monitor and do not indicate a problem.
NOTES
- Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.
- You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
- The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the time.
- Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.
- To declare the product is the Information Technical Equipment intended primarily for use in the domestic environment.
- The monitor is for computer use and not marketed and intended for displaying any television broadcast signals.
• 54.69cm(21.53 inches) TFT Color LCD Monitor
- 60.97cm(24 inches) TFT Color LCD Monitor
• 68.6cm (27 inches) TFT Color LCD Monitor
- Crisp, Clear Display for Windows
- Recommended Resolutions: 1920x1080@60Hz.
- Ergonomic Design
• Space Saving, Compact Case Design
CHECKING THE CONTENTS OF THE PACKAGE
The product package should include the following items:
- LCD Monitor
- Owner's Manual (including CD-ROM & Warranty Card)
- Power Cord
- 15-pin D-Sub Cable
- Audio Cable
- Stand (only for L-W22 & L-W24)
- Base
INSTALLATION INSTRUCTIONS

L-W22 & L-W24


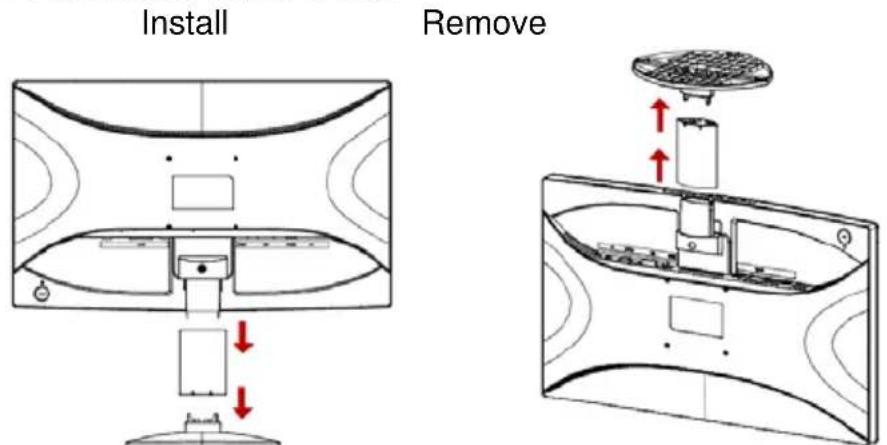

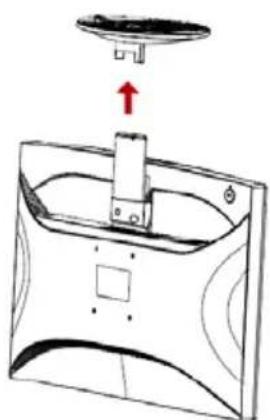

Figure 1 Installing and Removing the Base
Power Source:
- Make sure that the power cord is the correct type required in your area.
- This LCD monitor has an External universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.)
- Connect the AC-power cord into your LCD monitor's AC-power-input. The AC-power cord may be connected to either a wall power outlet or the power outlet socket on your PC, depending on the type of power cord supplied with your LCD monitor.
CONTROLS AND CONNECTORS
SIGNAL CABLE
Connecting the Signal Cable: Plug the Signal Cable one end to LCD monitor's "D-SUB" socket, the other end to the computer's VGA port and tighten the two screws on the cable connector.
Connecting the DVI Cable: Plug the DVI Cable one end to LCD monitor's "DVI" socket, the other end to the computer's DVI port and tighten the two screws on the cable connector.
Connecting the HDMI Cable: Plug the HDMI Cable one end to the output port of HDMI video equipment, the other end to LCD monitor's "HDMI" socket.
Connecting the Power Cord: Connect the AC-power cord into your LCD monitor's "AC-IN". The AC-power cord may be connected to either a wall power outlet or the power outlet socket on your PC, depending on the type of power cord supplied with your LCD monitor.
Connecting the Audio Cable: Connect the audio cable between the monitor's "AUDIO-IN" socket and the PC's audio output (green port).

| 1. AC-IN socket |
| 2. HDMI input socket |
| 3. DVI input socket |
| 4. D-SUB input socket |
| 5. AUDIO-IN socket |
Figure 2 Connecting Cables

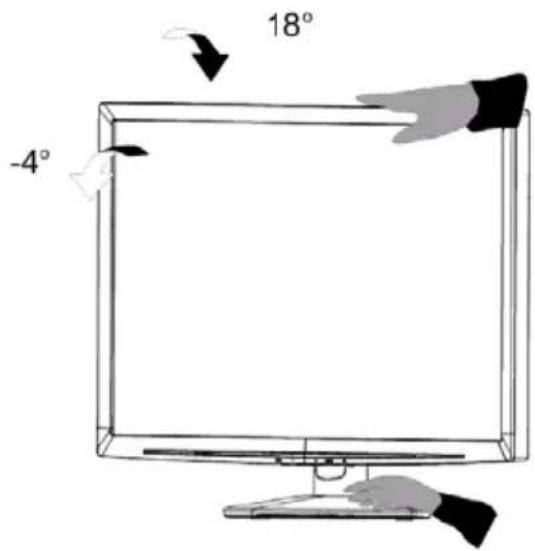

ADJUSTING THE VIEWING ANGLE
- For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.
- Hold the stand so you do not topple the monitor when you change the monitor's angle.
- You are able to adjust the monitor's angle from -4° to 18°.

Figure 3
NOTES
- Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
- Careful attention is required not to catch your fingers or hands when you change the angle.
OPERATING INSTRUCTIONS
GENERAL INSTRUCTIONS
Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences.
- The power cord should be connected.
- Connect the video cable from the monitor to the video card.
- Press the power button to turn on the monitor position. The power indicator will light up.

Figure 4 External Control Button
EXTERNAL CONTROLS
| 1. | AUTO / Source / Exit |
| 2. | - / ECO hotkey |
| 3. | + / Volume+ |
| 4. | MENU / Enter |
| 5. | Power button |
FRONT PANEL CONTROL
• /Power Button:
Press this button to turn the monitor ON or OFF, and display the monitor's state.
• Power Indicator:
Blue — Power On mode.
Orange — Standby mode.
- MENU / ENTER:
Activate OSD menu when OSD is OFF or activate/de-activate adjustment function when OSD is ON or Exit OSD menu when in Volume Adjust OSD status.
- / ECO hotkey:
Activates ECO control when the OSD is off or adjust a function when function is activated.
- + / Volume+:
Activates the volume control when the OSD is off or adjust a function when function is activated.
• Auto/ Source / Exit:
- When OSD menu is in active status, this button will act as EXIT-KEY (EXIT OSD menu).
- When OSD menu is in off status, press this button to select input Source: D-Sub/DVI/HDMI.
- When OSD menu is in off status, press this button for 2 seconds to activate the Auto Adjustment function. The Auto Adjustment function is used to set the HPos, VPos, Clock and Focus.
OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off and then press power button to turn the monitor on.
NOTES
- Do not install the monitor in a location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock.
- Save the original shipping carton and packing materials, as they will come in handy if you ever have to ship your monitor.
- For maximum protection, repackage your monitor as it was originally packed at the factory.
- To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it.
- Do not scratch the screen with hard things, it may cause permanent damage.
- Don't leak liquid into monitor which will result in the damage of component.
HOW TO ADJUST A SETTING
- Press the MENU-button to activate the OSD window.
- Press - or + to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it. If the function selected has a sub-menu, press- or + again to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.
- Press - or + to change the settings of the selected function.
- To exit and save, select the exit function. If you want to adjust any other function, repeat steps 2-3.

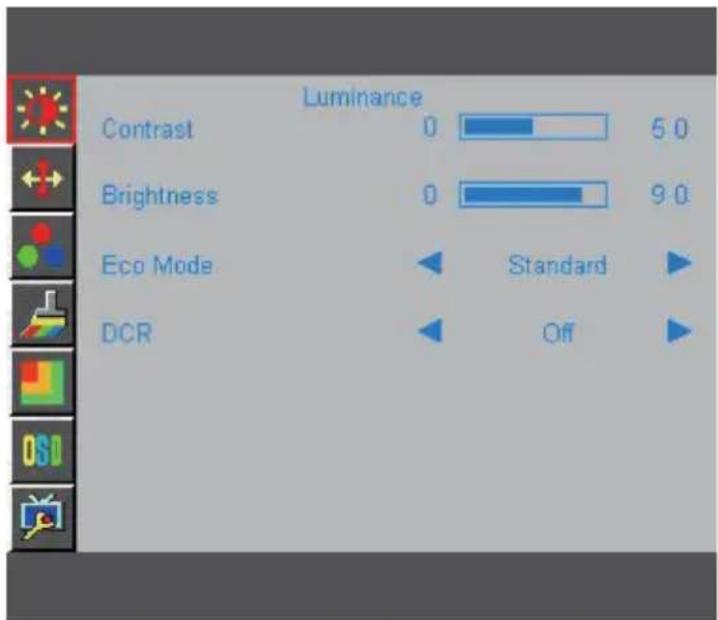

Figure 5 The OSD Message
ADJUSTING THE PICTURE
The descriptions for function control LEDS
| Main Menu Item | Main Menu Icon | Sub Menu Item | Sub Menu | Description |
| Luminance | ![]() | Brightness | Backlight Adjustment | |
| Contrast | Contrast from Digital-register | |||
| Eco | Standard | Standard Mode | ||
| Text | Text Mode | |||
| Internet | Internet Mode | |||
| Game | Game Mode | |||
| Movie | Movie Mode | |||
| Sports | Sports Mode | |||
| DCR | Off | Disable dynamic contrast ratio | ||
| On | Enable dynamic contrast ratio | |||
| Image Setup | ![]() | Clock | Adjust Picture Clock to reduce Vertical-Line noise | |
| Focus | Adjust Picture Phase to reduce Horizontal-Line noise | |||
| H.Position | Adjust the horizontal position of the picture | |||
| V.Position | Adjust the vertical position of the picture | |||
| Color Temp. | ![]() | Warm | Recall Warm Color Temperature from EEPROM | |
| Normal | Recall Normal Color Temperature from EEPROM | |||
| Cool | Recall Cool Color Temperature from EEPROM | |||
| sRGB | Recall SRGB Color Temperature from EEPROM | |||
| User | User-B Blue Gain from Digital-register | |||
| User-G Green Gain Digital-register | ||||
| User-R Red Gain from Digital-register | ||||
| Color Boost | ![]() | Full Enhance | on or off | Disable or Enable Full Enhance Mode |
| Nature Skin | on or off | Disable or Enable Nature Skin Mode | ||
| Green Field | on or off | Disable or Enable Green Field Mode | ||
| Sky-blue on or off Disable or Enable Sky-blue Mode | ||||
| AutoDetect on or off Disable or Enable AutoDetect Mode | ||||
| Demo on or off Disable or Enable Demo | ||||
| Picture Boost | ![]() | Frame Size | Adjust Frame | Frame Size |
| Brightness | Adjust Frame Brightness | |||
| Contrast | Adjust Frame Contrast | |||
| H.Position | Adjust the horizontal position of Frame | |||
| V.Position | Adjust the vertical position of Frame | |||
| Bright Frame on or off | Disable or Enable Bright Frame | |||
| OSD Setup | ![]() | H.Position | Adjust the horizontal position of OSD | |
| V.Position | Adjust the vertical position of OSD | |||
| Timeout Adjust the OSD Timeout | ||||
| Language Select the OSD language | ||||
| Extra | ![]() | Input Select | D-Sub | Select analog input source |
| DVI | Select digital input source | |||
| HDMI | Select HDMI input source | |||
| DDC/CI Turn ON/OFF DDC/CI Support | ||||
| Reset Reset the menu to default | ||||
| Information | Show the information of the main image and sub-image source | |||
PLUG AND PLAY
Plug & Play DDC1/2B Feature
This monitor is equipped with VESA DDC1/2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The communication channel is defined in two levels, DDC1 and DDC2B.
The DDC1 is a unidirectional data channel from the display to the host that continuously transmits EDID information. The DDC2B is a bidirectional data channel based on the I²C protocol. The host can request EDID information over the DDC2B channel.
THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS NO VIDEO INPUT SIGNAL. IN ORDER FOR THIS MONITOR TO OPERATE PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL.
This monitor meets the Green monitor standards as set by the Video Electronics Standards Association (VESA) and The Swedish Confederation Employees (NUTEK). This feature is designed to conserve electrical energy by reducing power consumption when there is no video-input signal present. When there is no video input signal this monitor, following a time-out period, will automatically switch to an OFF mode. This reduces the monitor's internal power supply consumption. After the video input signal is restored, full power is restored and the display is automatically redrawn. The appearance is similar to a "Screen Saver" feature except the display is completely off. The display is restored by pressing a key on the keyboard, or clicking the mouse.
TECHNICAL SUPPORT (FAQ)
| Problem & Question Possible Solution | |
| Power LED is not on *Check if the Power Switch is in the ON position*Power Cord should be connected | |
| No Plug & Play *Check if the PC system is Plug & Play compatible*Check if the Video Card is Plug & Play compatible*Check if the D-15 plug pin of Video Cable is bent | |
| Picture is fuzzy *Adjust the Contrast and Brightness Controls. | |
| Picture bounces or a wave pattern is present in the picture | *Move electrical devices that may cause electrical interference. |
| The power LED is ON but there's no video or no picture. | *Computer Power Switch should be in the ON position.*Computer Video Card should be snugly seated in its slot*Make sure monitor's video cable is properly connected to the computer.*Inspect monitor's video cable and make sure none of the pins are bent.*Make sure computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key. |
| Missing one of the primary colors (RED, GREEN, or BLUE) | *Inspect the monitor's video cable and make sure that none of the pins are bent. |
| Screen image is not centered or sized properly. | *Adjust pixel frequency (CLOCK) and FOCUS or press hot-key (AUTO) |
| Picture has color defects (white does not look white) | *Adjust RGB color or select color temperature |
| Horizontal or vertical disturbances on the screen | *Use Win95/98/2000/ME/XP shut-down mode Adjust CLOCK and FOCUS or perform hot-key (AUTO-key). |
CLOCK (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the picture has not correct width.
FOCUS adjusts the phase of the pixel clock signal. With a wrong phase adjustment the picture has horizontal disturbances in light picture.
For FOCUS and CLOCK adjustment use “dot-pattern” or Win95/98/2000/ME/XP shut-down mode pattern.
ERROR MESSAGE & POSSIBLE SOLUTION
CABLE NOT CONNECTED :
- Check that the signal-cable is properly connected, If the connector is loose, tighten the connector's screws.
- Check the signal -cable connection pins for damage.
INPUT NOT SUPPORT :
Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table.(page18)
APPENDIX
SPECIFICATIONS
| LCD Panel $Pixel pitch | Driving system | 21.5” TFT Color LCD, With LED Backlight | 24” TFT Color LCD, With LED Backlight | 27” TFT Color LCD, With LED Backlight |
| Size 54.69cm | 60.97cm 68.6 cm | |||
| 0.248mm( H )x0.248mm( V ) | 0.27675mm( H )x0.27675mm( V ) | 0.3114mm(H)x0.3114(V) | ||
| Input Video | R,G,B Analog Interface | |||
| TMDS signal | ||||
| H-Frequency | 30KHz - 83KHz | |||
| V-Frequency | 55-75Hz | |||
| Display Colors 16.7M Colors | ||||
| Dot Clock 170MHz | ||||
| Max. Resolution 1920x1080 @60Hz | ||||
| Plug & Play VESA DDC1/2B TM | ||||
| Input Connector D-Sub 15pin/ DVI pin24/HDMI pin19 | ||||
| Input Video Signal Analog:0.7Vp-p(standard),75OHM, Positive | ||||
| Maximum Screen Size Horizontal :476.64mmVertical : 268.11mm | Horizontal :531mmVertical : 298mm | Horizontal :597.89mmVertical :336.31mm | ||
| Power Source 100~240V,50~60Hz,1.5A | ||||
| Environmental Considerations | Operating Temp: 0° to 40°CStorage Temp.: -25° to 55°COperating Humidity: 10% to 85% | |||
| Weight (N. W.) 3.5 kg Unit 4.3 kg Unit 5.9 kg Unit | ||||
| Dimension (with Base) | 505.6*365.8*180.0mm(W*H*D) | 566.0*395.1*190.0mm(W*H*D) | 642*439*209 mm(W*H*D) | |
| Power Consumption ( Maximum ) | 40 Watts | 40 Watts | 50 Watts | |
| External Controls: | Switch | Auto/ Source / Exit- /ECO hotkey+ /Volume+Menu / EnterPower Button | ||
| Functions | LuminanceImage SetupColor Temp.Color BoostPicture BoostOSD SetupExtra | |||
| Audio Output | 2.0W rms (per channel) | |||
| Regulatory Compliance | FCC、CE | |||
Preset Display Modes
| STANDARD | RESOLUTION | HORIZONTAL Frequency(KHz) | VERTICAL Frequency (Hz) |
| VGA | 640×480 @60Hz 31.469 59.940 | ||
| 640×480 @67Hz 35.000 66.667 | |||
| 640×480 @72Hz 37.861 72.809 | |||
| 640×480 @75Hz 37.500 75.000 | |||
| Dos-mode | 720×400 @70Hz | 31.469 | 70.087 |
| SVGA | 800×600 @56Hz 35.156 56.250 | ||
| 800×600 @60Hz 37.879 60.317 | |||
| 800×600 @72Hz 48.077 72.188 | |||
| 800×600 @75Hz 46.875 75.000 | |||
| Mac-Mode | 832×624 @75Hz | 49.725 | 74.550 |
| XGA | 1024×768 @60Hz 48.363 60.004 | ||
| 1024×768 @70Hz 56.476 70.069 | |||
| 1024×768 @75Hz 60.023 75.029 | |||
| SXGA | 1280×1024@60Hz | 63.981 | 60.020 |
| 1280×1024@75Hz | 79.976 | 75.025 | |
| WSXGA | 1440×900@60Hz | 55.935 | 59.887 |
| 1440×900@75Hz | 70.635 | 74.984 | |
| WSXGA+ | 1680×1050@60Hz | 64.674 | 59.883 |
| 1680×1050@60Hz | 65.290 | 59.954 | |
| 1680×1050@75Hz | 82.306 | 74.892 | |
| FULL HD 1920x1080@60Hz 67.500 | 60.000 | ||

15 - Pin Color Display Signal Cable
| PIN NO. | DESCRIPTION PIN NO. | DESCRIPTION | |
| 1. Red | 9. +5V/Sense(+5V) | ||
| 2. | Green | 10. | Monitor Gnd |
| 3. | Blue | 11. | Logic Gnd |
| 4. Logic | Gnd 12. DDC serial data | ||
| 5. Detect cable | 13. H sync | ||
| 6. Red | Gnd 14. V sync | ||
| 7. Green | Gnd 15. DDC serial Clk. | ||
| 8. | Blue Gnd | ||

24 - Pin Color Display Signal Cable
| PIN NO. | DESCRIPTION PIN NO. | DESCRIPTION | |
| 1. | TMDS Data 2- | 13. | TMDS Data 3+ |
| 2. | TMDS Data 2+ | 14. | +5V Power |
| 3. | TMDS Data 2/4 Shield | 15. | Ground(for+5V) |
| 4. | TMDS Data 4- | 16. | Hot Plug Detect |
| 5. | TMDS Data 4+ | 17. | TMDS Data 0- |
| 6. | DDC Clock | 18. | TMDS Data 0+ |
| 7. | DDC Data | 19. | TMDS Data 0/5 Shield |
| 8. | N.C. | 20. | TMDS Data 5- |
| 9. | TMDS Data 1- | 21. | TMDS Data 5+ |
| 10. | TMDS Data 1+ | 22. | TMDS Clock Shield |
| 11. | TMDS Data 1/3 Shield | 23. | TMDS Clock + |
| 12. | TMDS Data 3- | 24. | TMDS Clock - |

HDMI Signal Cable
| PIN NO. | SIGNAL NAME | PIN NO. | SIGNAL NAME | PIN NO. | SIGNAL NAME |
| 1 TMDS Data 2+ 8 | TMDS Data 0 Shield | 15 | SCL | ||
| 2 | TMDS Data 2 Shield | 9 TMDS Data 0 16 SDA | |||
| 3 | TMDS Data 2 | 10 TMDS Clock + 17 | DDC/CEC Ground | ||
| 4 TMDS Data 1+ 11 | TMDS Clock Shield | 18 | +5V Power | ||
| 5 | TMDS Data 1Shield | 12 | TMDS Clock | 19 Hot Plug Detect | |
| 6 | TMDS Data 1 | 13 | CEC | ||
| 7 TMDS Data 0+ 14 | Reserved (N.C. on device) |
