Brand	Zotac
Model	ZBOXHD-ID40-PLUS-U
Product Type	Mini PC / Desktop Computer
Processor	Intel® Atom™ D5 series
Chipset	Intel® NM10 Express Family
System Memory	Up to 4GB DDR2-800/667 (two 200-pin SO-DIMM slots)
Storage	Supports one 2.5-inch SATA HDD or SSD
Graphics	NVIDIA® GeForce GT218 ION GPU with up to 512MB GDDR3, DirectX 10.1, Shader Model 4.1, 16 CUDA cores
Video Output	DVI (up to 2560x1600 @ 60Hz) and HDMI (dual output), VGA via included DVI-to-VGA adapter
Audio	2-channel High-Definition audio with headphone and microphone jacks, optical S/PDIF out
Networking	Gigabit LAN (10/100/1000Mbps), WiFi 802.11b/g/n, Bluetooth (not specified but likely present)
USB Ports	6 USB 2.0 ports (2 front, 4 rear), supports hot plug
Other Ports	1 eSATA, 1 HDMI, 1 DVI, 1 RJ-45 LAN, 1 optical S/PDIF out, 1 DC power input
Memory Card Reader	Built-in reader for MMC, SD, SDHC, MS, MS Pro, XD cards
Dimensions	188mm x 188mm x 44mm
Power Supply	External AC adapter (DC19V)
Operating System Support	Windows XP (32/64-bit), Windows Vista (32/64-bit), Windows 7 (32/64-bit), Linux distributions
Package Contents	ZOTAC ZBOX, stand, VESA mount, AC adapter, power cord, user manual, support CD, DVI-to-VGA adapter
Safety	Use on stable surface with stand; do not block ventilation; keep away from water; unplug before cleaning; ambient temperature 0-35°C
Care	Do not walk on power cord; avoid liquid spills; do not install on monitor exceeding 7kg; use UL listed extension cord if needed

Frequently Asked Questions - ZBOXHD-ID40-PLUS-U Zotac

How do I install a memory module?

Remove the bottom cover by unscrewing two screws. Insert the SO-DIMM module at a 45-degree angle into the slot, then press down until it locks. For two modules, install the lower slot first.

How do I install a 2.5-inch hard disk?

Remove the cover, unscrew the hard disk bracket, lift the lid, insert the SATA HDD at a 45-degree angle, press down to seat, then close and screw the lid.

How do I connect the ZBOX to a monitor?

Use the DVI or HDMI port on the rear panel. If using VGA, attach the included DVI-to-VGA adapter. Connect the other end to your monitor.

How do I install the stand?

Locate the screw hole on the bottom of the ZBOX, align the stand screw, and secure the stand using a coin. Do not use the system without the stand.

Can I mount the ZBOX on the back of a monitor?

Yes, use the included VESA mount. Secure the mount to the monitor with four screws (HNM/M4x8) for VESA75 or VESA100 compliant monitors, then attach the ZBOX.

Which operating systems are supported?

The ZOTAC ZBOX supports Windows XP (32/64-bit), Windows Vista (32/64-bit), Windows 7 (32/64-bit), and several Linux distributions.

How do I install system drivers?

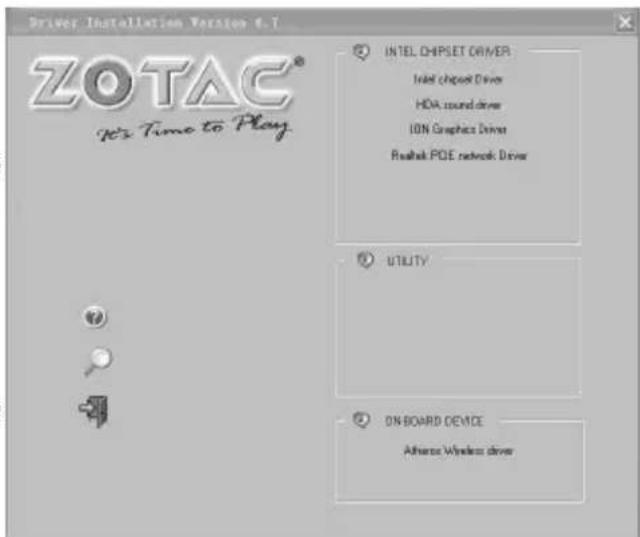

Insert the support CD. If autorun is disabled, run install.exe. Install each driver individually: Intel chipset, HDA sound, ION Graphics, Realtek PCIe network, and Atheros wireless. Restart after installation.

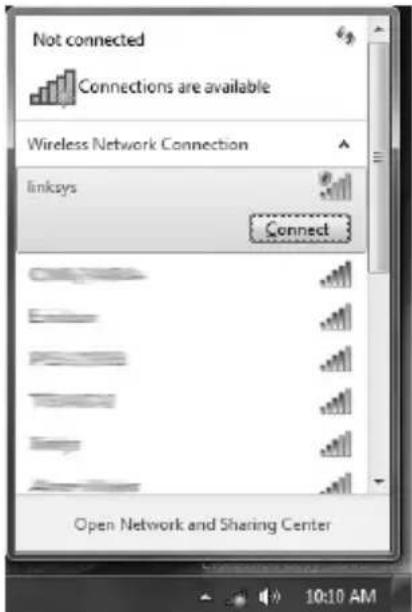

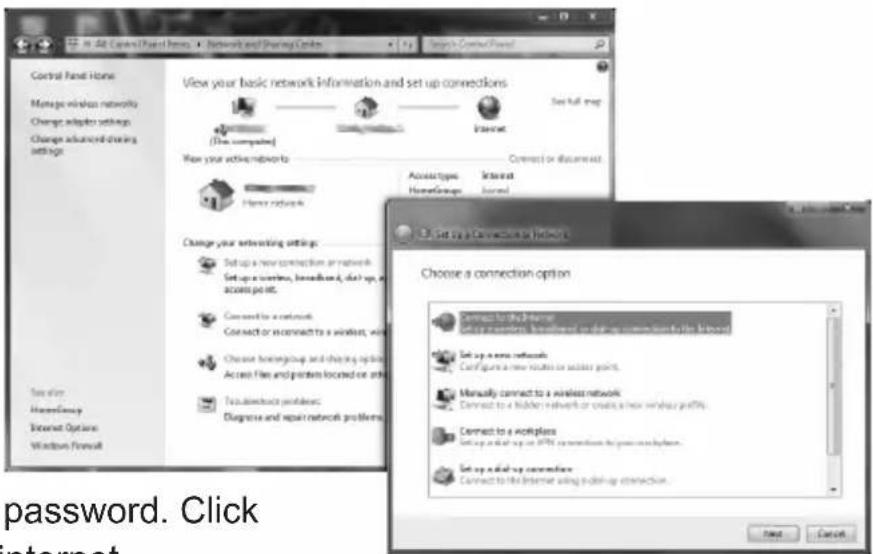

How do I connect to a wireless network?

Double-click the wireless network icon in the notification area, select your network from the list, click Connect, and enter the security key if required.

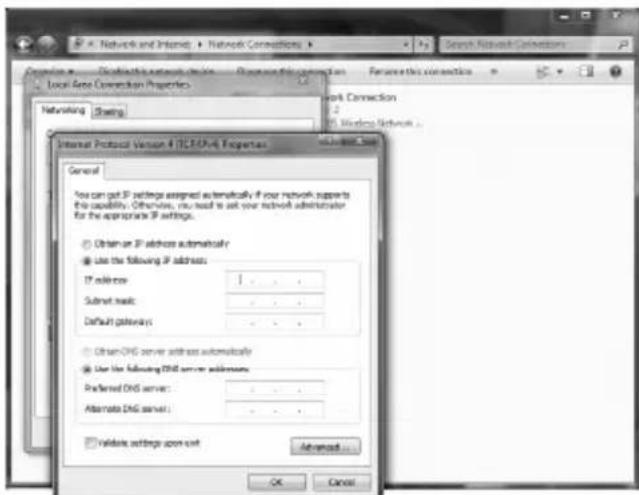

How do I configure a static IP address?

Right-click the network icon, open Network Connections, select Local Area Connection > Properties, highlight Internet Protocol (TCP/IP) > Properties, choose 'Use the following IP address', and enter the IP, subnet mask, default gateway, and DNS.

What safety precautions should I follow?

Place the system on a stable surface with the stand. Keep ventilation openings clear. Avoid water or heat sources. Unplug before cleaning. Use only the supplied AC adapter. Ambient temperature should be between 0°C and 35°C.

USER MANUAL ZBOXHD-ID40-PLUS-U Zotac

ZOTAC ZBOX User's Manual

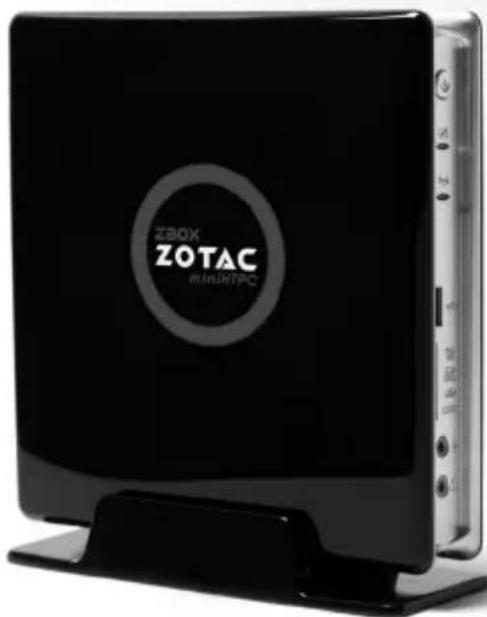

Black and white photo of a ZBOX ZOTAC miniHIPC device on a stand (no visible text or symbols beyond branding)

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ZOTAC.

Products and corporate names mentioned in this manual may not be registered trademarks or copyrights of their respective companies, and are used for identification purposes only. All trademarks are the property of their respective owners.

Every effort has been made to ensure that the contents of this manual are correct and up to date. However, the manufacturer makes no guarantee regarding the accuracy of its contents, and reserves the right to make changes without prior notice.

Images in this manual are for reference only. Actual product may carry with different detail. Should there be any inconsistency between the product and image, the actual product shall prevail.

Table of Contents

Product Specifications 3

Safety information 4

Setting up your system 4

Care during use 4

Welcome 5

Package contents 5

Getting to know your ZOTAC ZBOX 6

Front view 6

Rear view----7

Customizing the ZOTAC ZBOX 8

Installing a memory module 8

Removing the memory module 9

Installing a hard disk 10

Removing a hard disk---- 11

Positioning your ZOTAC ZBOX 12

Installing the stand---- 12

Installing your ZOTAC ZBOX to a monitor 12

Setting up your ZOTAC ZBOX 13

Installing drivers and software 14

Installing an operating system 14

Installing system drivers---- 14

Using your ZOTAC ZBOX----15

Configuring wireless connection 15

Configuring wired connection 15

Using a static IP 15

Using a dynamic IP (PPPoE connection) 16

Product Specifications

Chipset

Intel® NM10 Express Family Chipset

Product Size

◆ 188mm x 188mm x 44mm

□ Microprocessor support

◆ Integrated with Intel® Atom™ processor D5 series

☐ Operating systems:

✿ Supports Windows XP 32 bit/64 bit, Windows Vista 32 bit/64 bit and Windows 7 32bit/64bit

□ System Memory support

◆ Two 200-pin SO-DIMMs DDR2-800/667

◆ Up to 4GB of memory

USB 2.0 Ports

◆ Supports hot plug and play

◆ Six USB 2.0 ports (two front panel ports, four rear panel ports)

◆ Supports USB 2.0 protocol up to 480 Mbps transmission rate

Onboard Serial ATA

❖ Independent DMA operation on one port, data transfer rates of 3 Gb/s

◆ Support one ESATA port

◆ Support one 2.5 inch SATA HDD or SSD

□ Network support

◆ Gigabit (10/100/1000Mbps) LAN

◆ IEEE 802.3 compatible

WiFi

◆ 802.11b/g/n compatible

◆ Enhanced wireless security compatible

Onboard Audio

◆ 2-channel High-Definition audio

◆ Supports Jack-Sensing function

Green Function

◆ Supports ACPI (Advanced Configuration and Power Interface)

Onboard Graphics support

NIVIDA® GeForce GT218 ION GPU, Direct x10.1, Shader Model 4.1, CUDA cores up to 16

◆ Supports GDDR3 memory up to 512 MB

✿ Supports Dual_Link DVI & VGA display feature and max resolutions up to 2560x1600 at 60 Hz (DVI) & 2048x1536 at 85 Hz (VGA)

◆ DVI and HDMI dual output support

Safety information

Your ZOTAC ZBOX is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

Read and follow all instructions in the documentation before you operate your system.
Do not use this product near water or a heat source such as a radiator.
- Set up the system on a stable surface with the provided stand. Never use the system alone without the stand.
Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.
Use this product in environments with ambient temperatures between 0°C and 35°C.
If you use an extension cord, please use the UL listed cord and make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.

Care during use

Do not walk on the power cord or allow anything to rest on it.
Do not spill water or any other liquids on your system.

Please do not install onto display with exceed 7kg weight totally. A drop or fall could cause injury.
When the system is turned off, a small amount of electrical current still flows. Always unplug all power, modem, and network cables from the power outlets before cleaning the system.
If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.

The power cord or plug is damaged.
Liquid has been spilled into the system.

The system does not function properly even if you follow the operating instructions.

The system was dropped or the cabinet is damaged.
The system performance changes.

Welcome

Congratulations on your purchase of the ZOTAC ZBOX. The following illustration displays the package contents of your new ZOTAC ZBOX. If any of the below items is damaged or missed, contact your retailer.

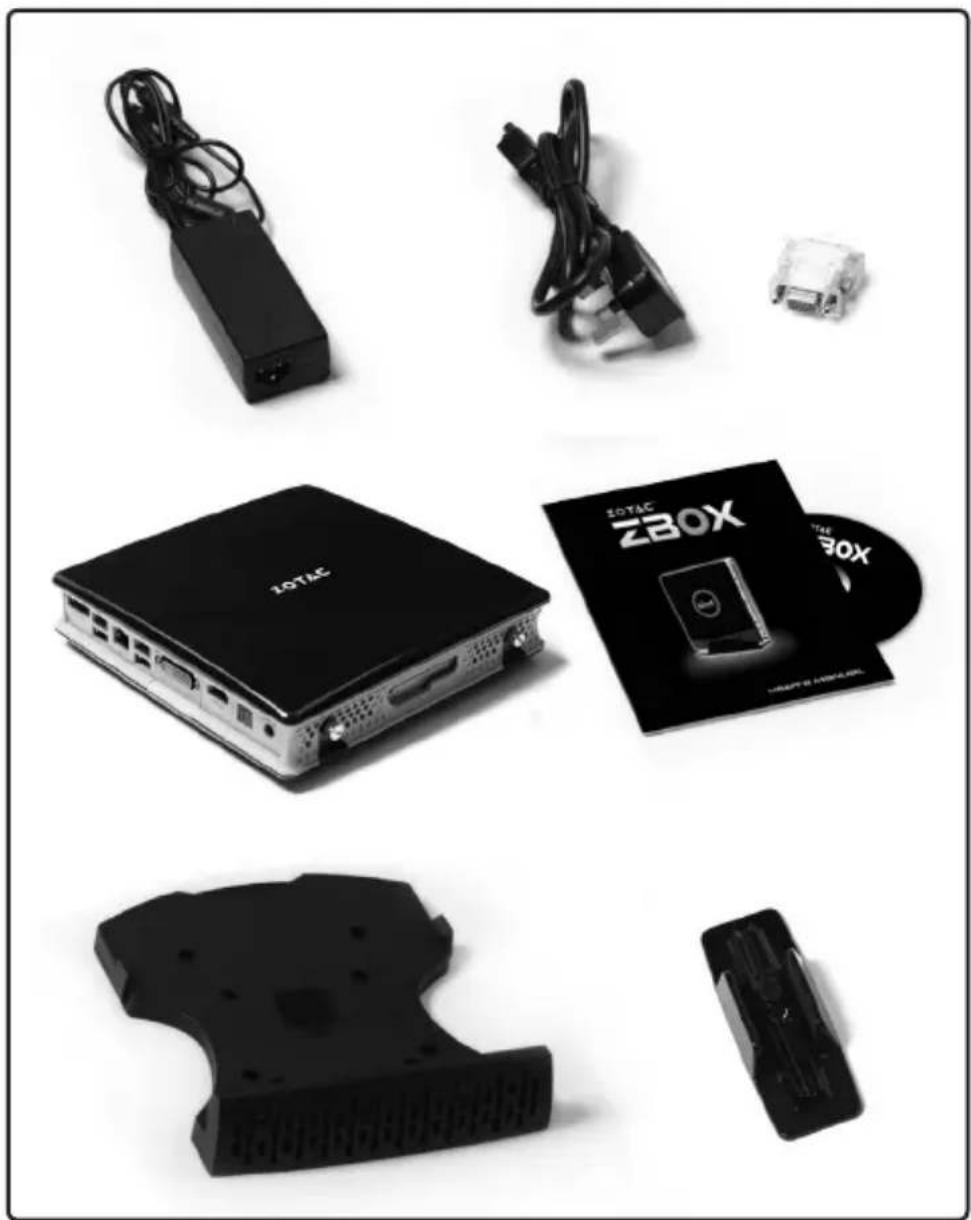

Package contents

• 1 x ZOTAC ZBOX
• 1 x Stand
• 1 x VESA mount
• 1 x AC Adapter
• 1 x Power Cord
  • 1 x User's Manual
• 1 x Support CD
  • 1 x DVI-to-VGA adapter

Product display image showing various electronic devices including a TOTAC, ZBOX, and USB drive (no visible text or symbols)

Getting to know your ZOTAC ZBOX

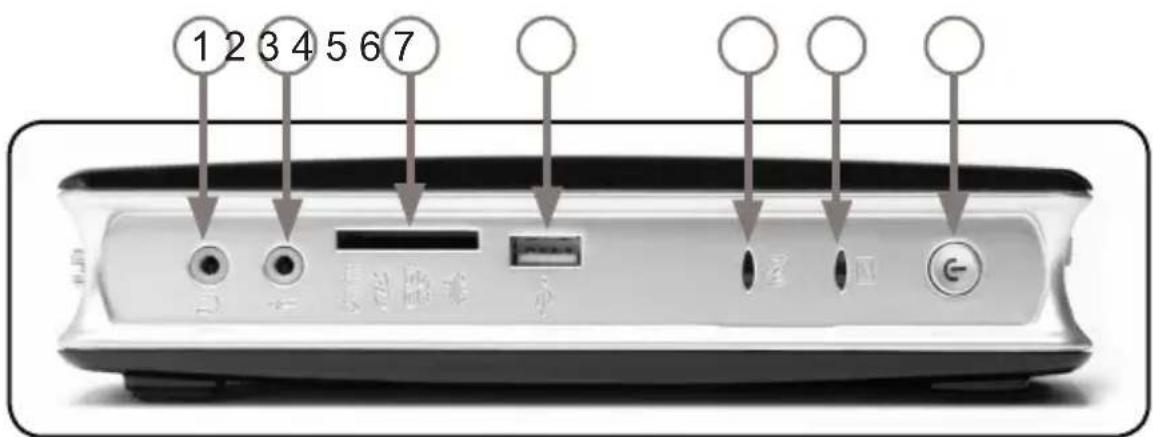

Front view

Refer to the diagram below to identify the components on this side of the system

1. Headphone/Audio Out jack

The stereo headphone jack (3.5mm) is used to connect the system's audio out signal to amplified speakers or headphones.

2. Microphone jack

The microphone jack is designed to connect the microphone used for video conferencing, voice narrations or simple audio recordings.

3. Memory card slot

The built-in memory card reader reads MMC/SD/SDHC/MS/MS Pro/XD cards used in devices like digital cameras, MP3 players, mobile phones and PDAs.

4. USB port

The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs.

5. WiFi LED

The WiFi LED blinks when data is being transferred over WiFi.

6. Hard disk LED

The hard disk LED blinks when data is being written into or read from the hard disk drive.

7. Power switch

The power switch allows powering ON and OFF the system

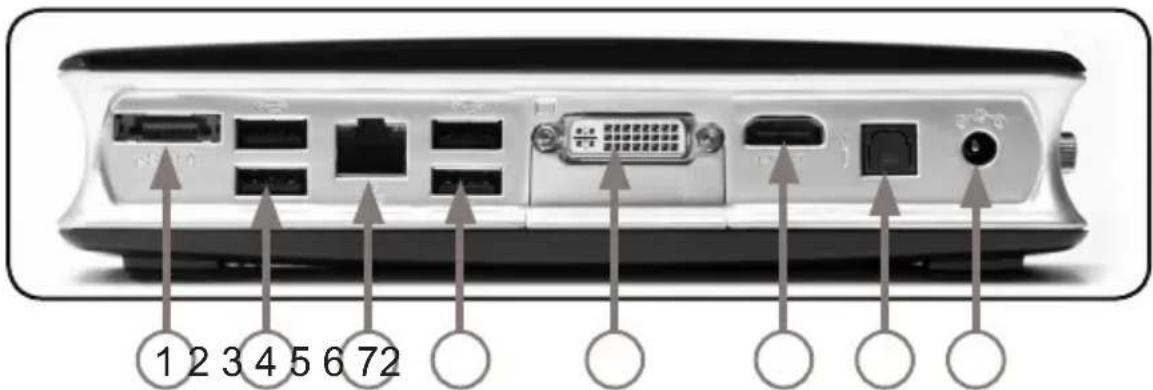

Rear view

Refer to the diagram below to identify the components on this side of the system.

1. eSATA port

The external SATA port is compatible with e.SATA devices such as external hard drives and Blu-ray drives.

2. USB ports

The USB (Universal Serial Bus) ports are compatible with USB devices such as keyboards, mouse devices, cameras and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs.

Note:The two USB ports beside eSATA port do not support wake up function.

3. LAN port

The eight-pin RJ-45 LAN port supports standard Ethernet cable for connection to a local network.

4. DVI port

The DVI port supports connection to analog monitors and displays.

5. HDMI port

The HDMI (High Definition Multimedia Interface) port supports a Full-HD device such as an LCD TV or monitor to allow viewing on a larger external display.

6. Optical (S/PDIF OUT) jack

Plug an optical cable into this jack for digital audio transfer.

7. Power input (DC19V)

The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter.

Note: The power adapter may become warm to hot when in use. Do not cover the adapter and keep it away from your body.

Customizing the ZOTAC ZBOX

Before installing hardware, please follow the instructions below to remove the cover of your ZOTAC ZBOX.

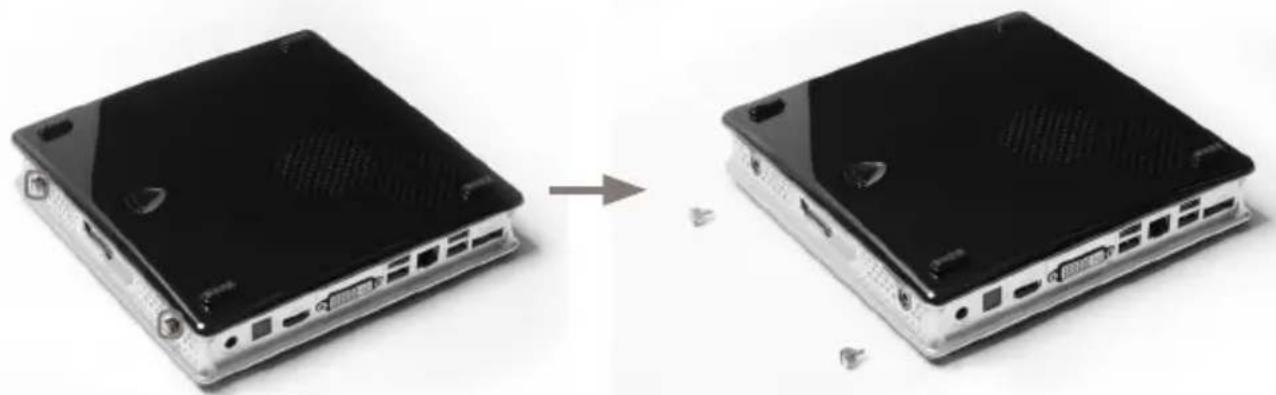

1. Remove the two screws securing the bottom cover into place.

Two views of a black computer RAM module being processed, showing internal components and ports (no text or symbols visible)

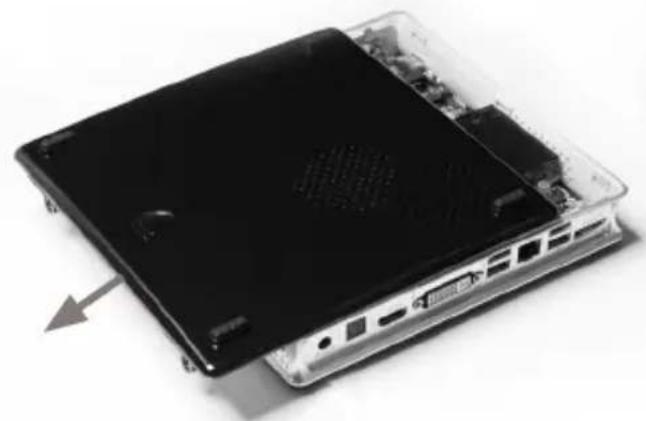

1. Gently remove the cover as the shown in the image below.

Laptop with exposed circuit board and ventilation slots, showing internal components (no text or symbols visible)

Installing a memory module

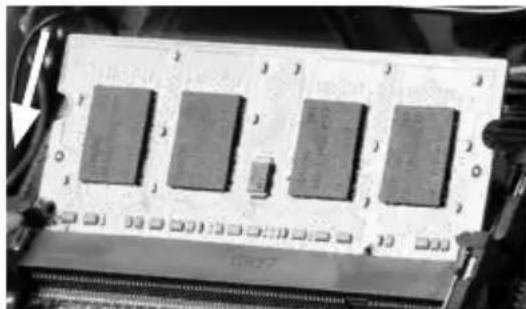

1. Locate the SO-DIMM memory slots and insert a SO-DIMM memory module into the slot at a 45 degree angle.

Close-up of a computer RAM module with four integrated circuits and a central connector (no visible text or labels)

Note: When installing two SO-DIMM memory modules, please insert a module into the lower slot first.

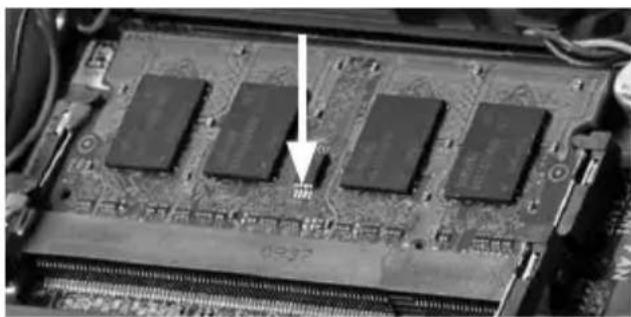

1. Gently press down on the memory module until it locks into place by the arms of the memory slot.

Close-up of a computer RAM module with four integrated circuits and an arrow pointing to a specific chip (no visible text or symbols)

Note:This ZOTAC ZBOX accommodates two DDR2 SO-DIMM memory modules. You must install at least one module in one of the two slots.

Removing the memory module

1. Remove the cover of your ZOTAC ZBOX.

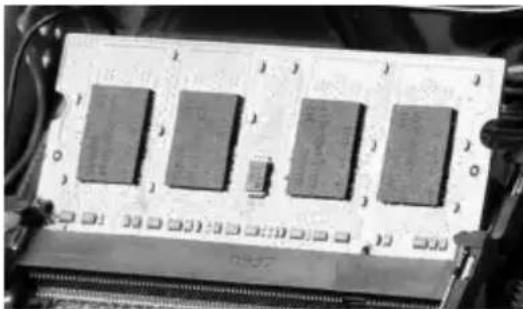

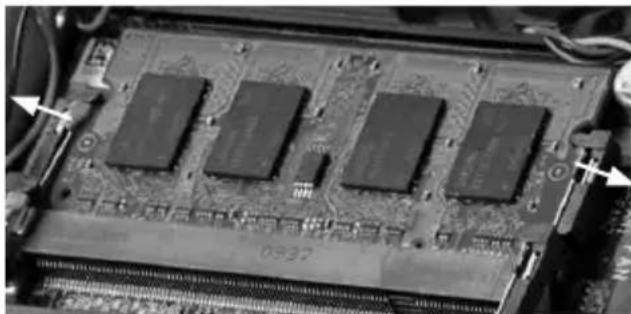

2. Gently press the two arms securing the memory in the socket as shown in the image below to release the memory module.

Close-up of a computer RAM module with multiple integrated circuits and visible traces (no text or symbols)

1. The memory module can be easily taken out.

Close-up of a computer RAM module with four drive bays and indicator lights (no visible text or labels)

Installing a hard disk

1. Remove the cover of your ZOTAC ZBOX.

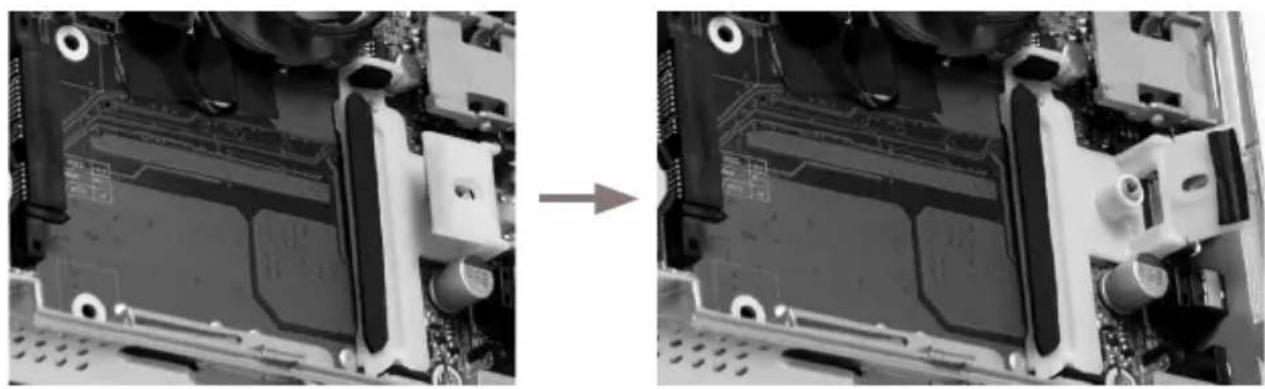

2. Unscrew and remove the screw from the hard disk bracket, and raise the lid as shown in the image below.

Close-up of a computer motherboard showing internal components before and after assembly (no text or symbols visible)

1. Insert a 2.5-inch SATA hard disk into the socket at a 45 degree angle.

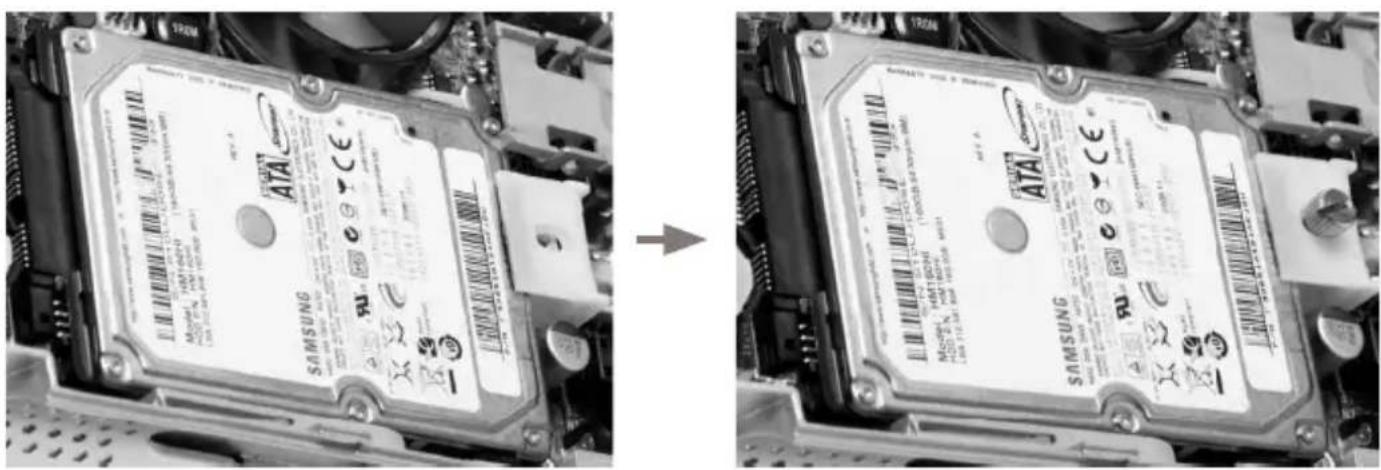

1. Gently press down on the hard disk until it is seated, shut and screw the lid.

Removing a hard disk

1. Remove the cover of your ZOTAC ZBOX.

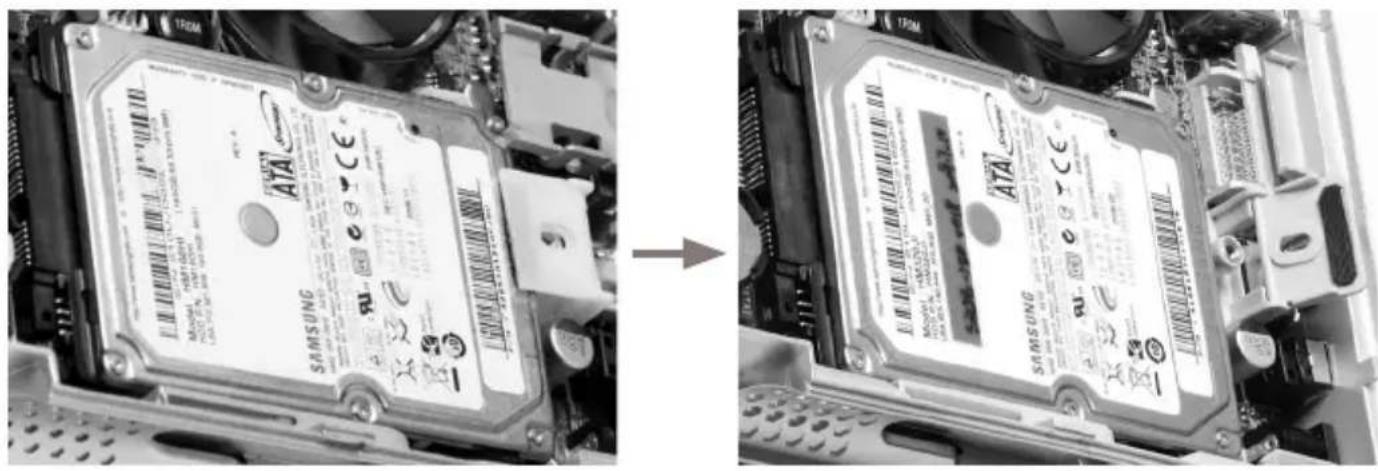

2. Unscrew and remove the screw from the hard disk bracket, and raise the lid as shown in the image below.

Close-up of a computer hard disk showing front and side views, no visible text or symbols on the device itself.

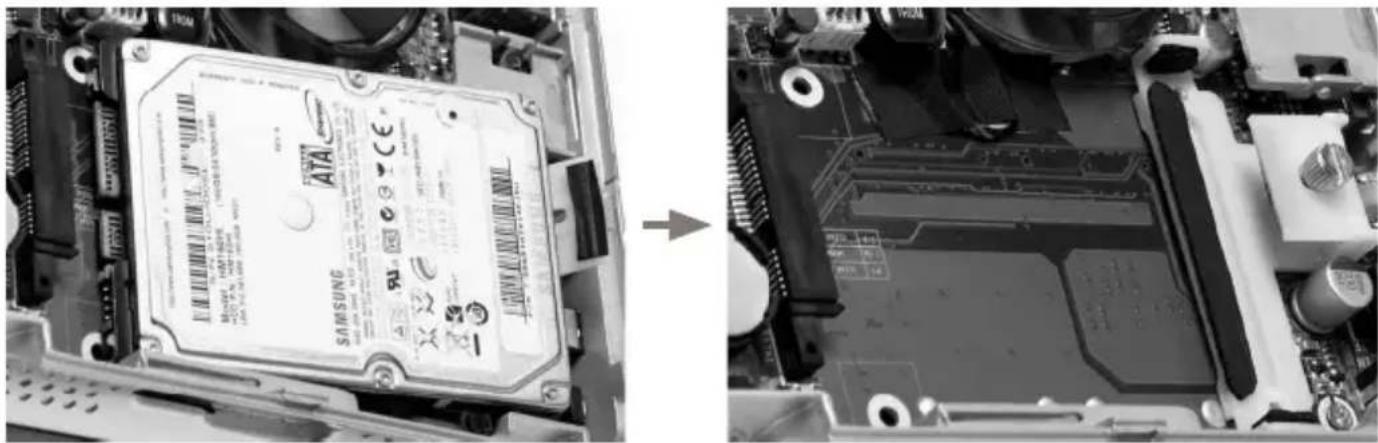

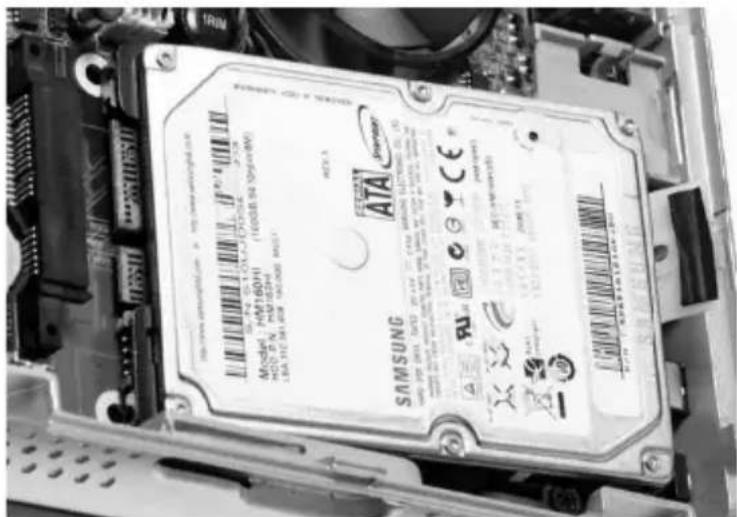

1. Gently remove the hard disk from the socket, close and screw the lid.

Close-up of a Samsung hard disk drive showing internal components and circuit board (no readable text or symbols)

Positioning your ZOTAC ZBOX

Do not position the ZOTAC ZBOX where the ventilation holes are covered. To guarantee proper use, leave 4 inches (10 cm) spacing in front of the ventilation holes.

ZOTAC mini-PC system provide ample connectivities in tiny space, please choose connectors and cables in appropriate size to avoid interference.

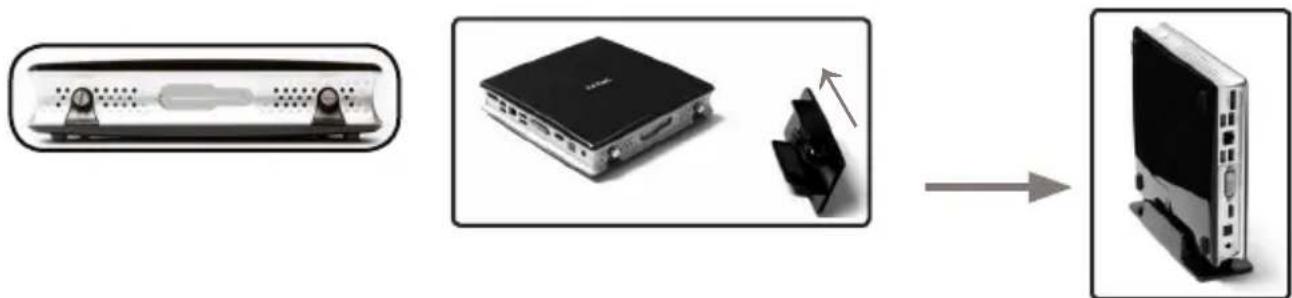

Installing the stand

Erect your ZOTAC ZBOX with the supplied stand. To do so :

1. Locate the screw hole on the bottom of the ZOTAC ZBOX.
2. Align the stand screw to the PC screw hole and then secure the Stand to the PC with a coin.

Do not place your ZOTAC ZBOX on the desktop without the stand.


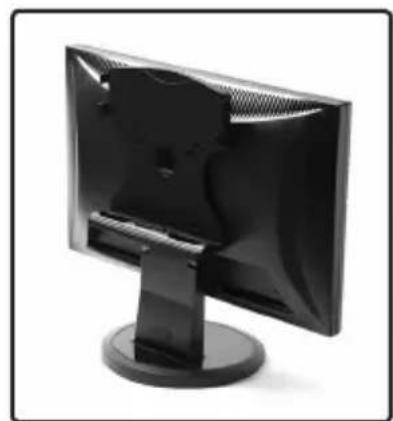

Installing your ZOTAC ZBOX to a monitor

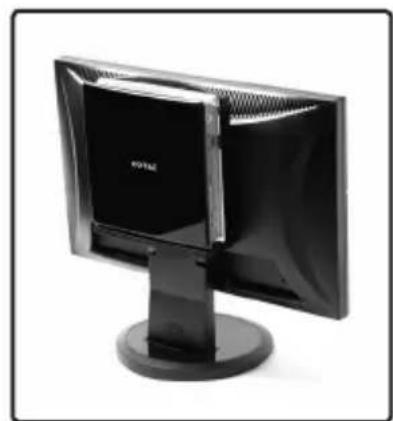

You can also install your ZOTAC ZBOX to the back of a monitor. To do so:

1. Secure the VESA mount to your monitor with four screws (HNM/M4x8).
2. Place your ZOTAC ZBOX on the VESA mount noting the correct alignment and then secure the PC to the VESA mount with a coin.

To fasten the VESA mount, your monitor must comply with VESA75 Or VESA100 standard.

Mechanical Loading Stability -- Mounting of the equipment on the backside of the monitor should be lay this equipment on a reliable surface when install. A drop or fall could cause injury.

Black computer monitor with a stand, shown against a white background (no text or symbols visible)

Black-and-white photo of a computer monitor with a circular base and front screen (no visible text or symbols)

Setting up your ZOTAC ZBOX

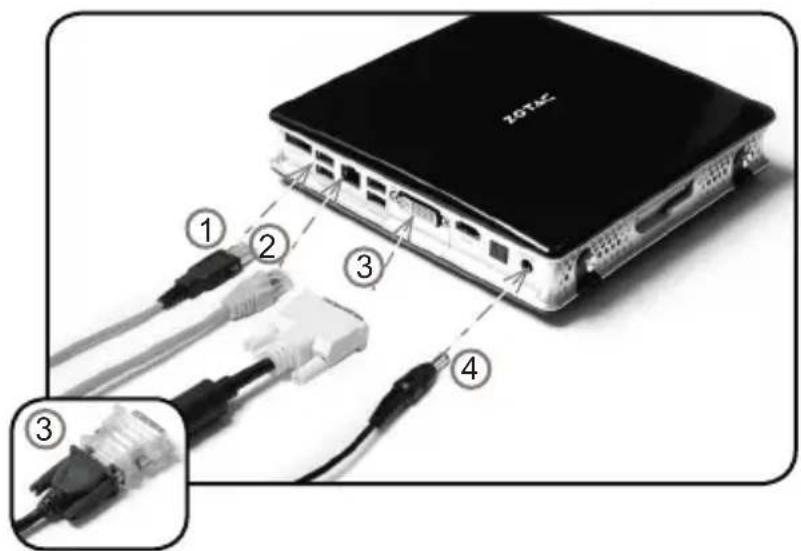

You need to connect peripherals before using your ZOTAC ZBOX.

1. Connecting to USB devices

Connect USB devices like wired/wireless keyboards (varying with areas), mouse devices and printers to the USB ports on the system rear panel.

2. Connecting to a network device

Connect one end of a network cable to the LAN port on the system rear panel and the other End to a hub or switch.

3. Connecting to a DVI or VGA display

Connect one end of a DVI/VGA cable to an HDTV or monitor, and the other end to the DVI port on the system rear panel. If using a VGA connection, please use included DVI-to-VGA adapter.

4. Turning on the system

Connect the supplied AC adapter to the DC IN jack on the system rear panel and then press the power switch on the front panel to turn on the system.

Note: When your ZOTAC ZBOX is not in use, unplug the power adapter or switch off the AC outlet to save on power consumption.

Installing drivers and software

Installing an operating system

The ZOTAC ZBOX does not ship with an operating system preinstalled. The user must install the operating system before the ZOTAC ZBOX can be used. The following operating systems are supported:

• Windows® XP
• Windows® Vista
• Windows® 7
  • Several Linux distributions

Follow the instructions below to install an operating system:

1. Attach external CD/DVD drive via USB or eSATA
2. Insert disk for operating system (Windows or Linux).
3. Wait for the ZOTAC ZBOX to boot from the disk.
4. Follow the onscreen directions to install the operating system.
5. Install system drivers to gain full functionality of the ZOTAC ZBOX hardware and features.

Installing system drivers

Before you can use the full features of the ZOTAC ZBOX, the system drivers must be installed. The following types of operating systems are supported by the ZOTAC ZBOX driver CD:

• Windows® XP
• Windows® Vista
• Windows® 7

Follow the instructions below to install the system drivers:

1. Insert the ZOTAC ZBOX driver CD. If autorun is enabled, the driver installation main menu will show up automatically. If autorun is disabled, you may click the file install.exe to bring up the driver installation main menu. Windows Vista may ask for further confirmation, please click "Allow" or "OK" to proceed.

2. The following drivers are available on the CD:

3. Intel chipset Driver
   • HDA sound driver
   • ION Graphics Driver

• Realtek PCIE network Driver
• Atheros Wireless driver

Each driver must be installed individually to ensure proper operation of the ZOTAC ZBOX.

1. Select the driver you want to install. The driver installer should launch.
2. Follow the onscreen instructions to install the drivers.
3. Restart the system.

Using your ZOTAC ZBOX

Configuring wireless connection

To connect to a wireless network, follow the instructions below:

1. Double-click the crossed wireless network icon (pic) on the notification area.
2. Select the wireless network you want to connect to from the list and click Connect.
3. After connection was established, you will see Connected.
   For security concerns, Do NOT connect to an unsecured network, otherwise, the transmitted information without encryption might be visible to others.
   Enter the network security key if necessary.

Configuring wired connection Using a static IP

1. Right-click the network icon on the notification area and select Open Network Connections.
2. Right-click Local Area Connection and select Properties.
3. Highlight Internet protocol (TCP/IP) and click Properties.
4. Select Use the following IP address.
5. Enter your IP address, subnet mask and Default gateway.
6. If needed, enter the preferred DNS server address.
7. After entering all of the related values, click OK to finish the configuration.

Using a dynamic IP (PPPoE connection)

1. Repeat Step 1-3 in the previous section.
2. Select Obtain an IP address automatically and click OK.
3. Click Create a new connection to start the NEW Connection Wizard.
4. Click Next.

5. Select Connect to the Internet and click Next.

6. Select Set up my connection manually.

7. Select your connection type and click Next.

8. Enter your ISP Name and click Next.

9. Enter your User name and Password. Click Next.

10. Click Finish to finish the configuration.

11. Enter your user name and password. Click Connect to connect to the internet.

Contact your internet Service Provider (ISP) if you have problems connecting to the network.

ZOTAC®

It's Time to Play

WWW.ZOTAC.COM
