USER MANUAL BT7523 B-Tech

FLAT SCREEN WALL MOUNT WITH TILT

INSTALLATION GUIDE & PARTS LIST

This Pack Contains 1 Mount

PLEASE KEEP THIS FOR FUTURE REFERENCE

mountlogic® range

COMPATIBLE

Black metal bracket with mounting holes and a central oval cutout (no text or symbols visible)

Community Design Nos.
001713280-0012
001713280-0017

FEATURES

• Designed for flat screens up to 42" (107cm) / 25kg (55lbs)
• Fits 75 x 75mm, 100 x 100mm, 200 x 100mm and 200 x 200mm VESA mounting patterns
• Mounts screen only 52mm (2") from wall
• Tilts +/-15°
• Simple hook-on installation with all mounting hardware included
• Supplied with pin hex security screws for added security
• Compatible with B-Tech accessory collars

CONTENTS

Installation Safety Notes....2

Parts List....4

Disassembly Instructions....6

Installation Instructions....7

Additional Mounting Options....13

Product Dimensions....14

B-Tech Contact Details....16

INSTALLATION TOOLS REQUIRED

13mm (1/2") spanner or socket

Crosshead screwdriver

Drill

10mm (7/16") masonry bit or 6mm (1/4") wood bit

Pencil

Stud finder (optional)

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This wall mount is intended for use only with the maximum weights indicated. Use with flat screen heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech International Ltd recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Some walls are not suitable for installation.

If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling.

If you install this product on drywall it must be securely fixed to a wooden stud, concrete block or other permanent structure behind the drywall board. Installing on drywall boards alone will not support the weight of most AV equipment.

When drilling holes in walls it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

CS

Suitable for loads up to 25kg (55lbs)

REF PART NAME QTY
1	WALL PLATE 1
2	INTERFACE PLATE 1
3	ADAPTOR ARM 2
4 M8 x 12mm PIN HEX SECURITY SCREW 2
5	M8 METAL WASHER 2
6 M8 x 12mm PIN HEX SECURITY SCREW 2
7 M4 x 8mm PIN HEX SECURITY SCREW 4
8 2.5mm PIN HEX SECURITY KEY (FOR PART A) 1
9 3mm PIN HEX SECURITY KEY (FOR PART B & C) 1
10 4mm PIN HEX SECURITY KEY (FOR PART D & E) 1
11 5mm PIN HEX SECURITY KEY (FOR PART 4 & 6) 1

INTERFACE KIT

A M4	x 12mm PIN HEX SECURITY SCREW 4
B M5	x 16mm PIN HEX SECURITY SCREW 4
C M5	x 25mm PIN HEX SECURITY SCREW 4
D M6	x 16mm PIN HEX SECURITY SCREW 4
E M6	x 25mm PIN HEX SECURITY SCREW 4
F M6	x 12mm SPACER (FOR PARTS C & E) 4
G	M4 METAL WASHER	4
H M8	TO M4 ADAPTOR 4

FIXINGS KIT

A1	M8 x 50mm COACH SCREW	4
A2	M8 METAL WASHER (FOR PART A1)	4
A3	No. 10 WALL PLUG (FOR PART A1)	4

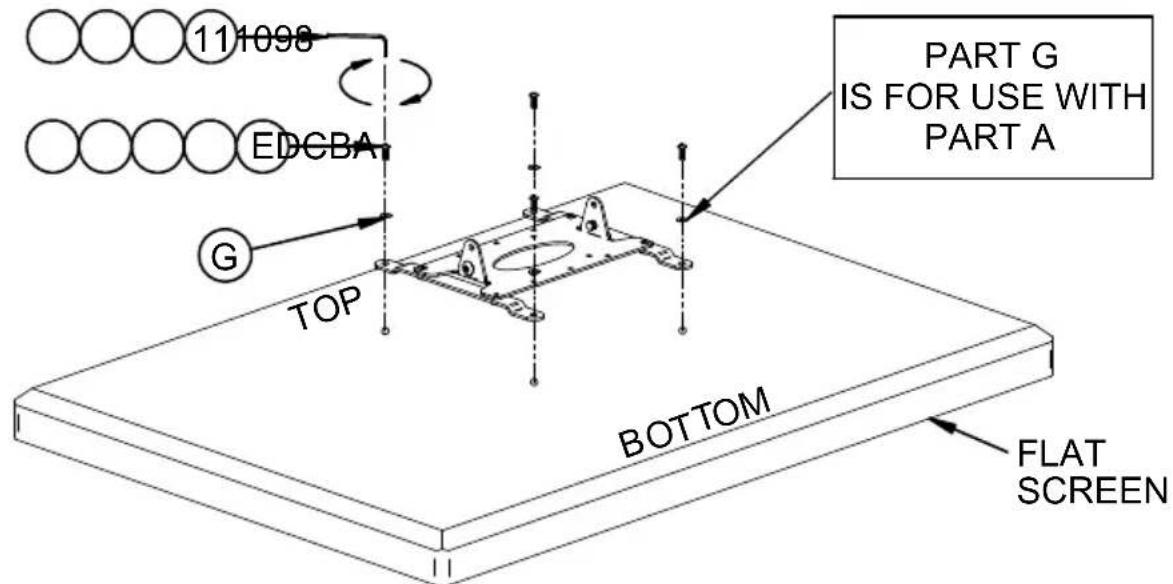

FLAT SCREEN INTERFACE KIT

(FOR ATTACHING MOUNT TO BACK OF FLAT SCREEN)

DISASSEMBLY INSTRUCTIONS

i. Remove parts 4 and 5 from the sides of the mount.

ii. Loosen part 6 then lift off the interface plate.

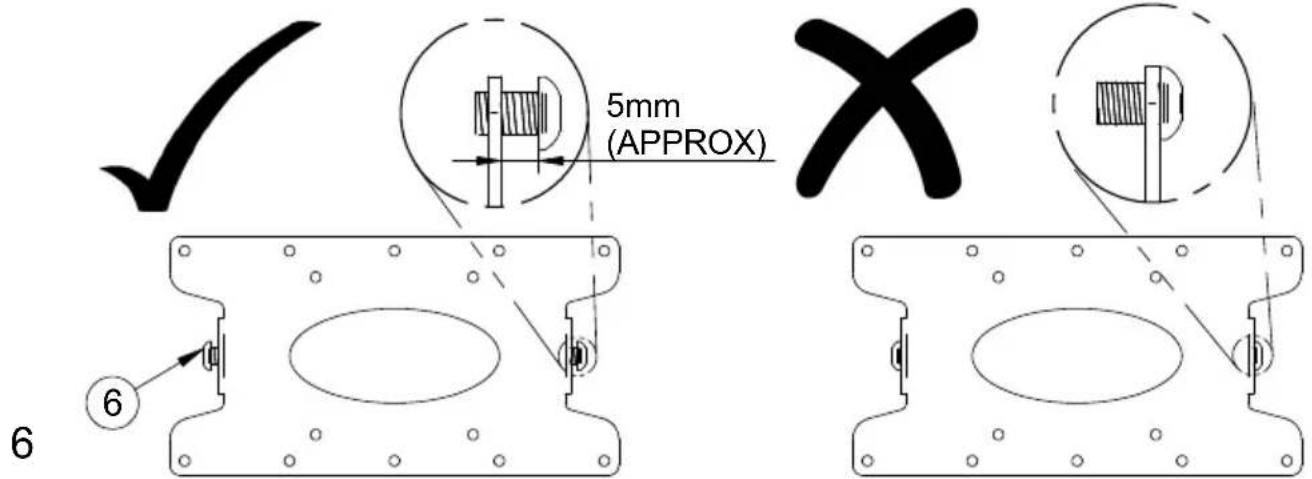

iii. Position remaining screws (part 6) as shown.

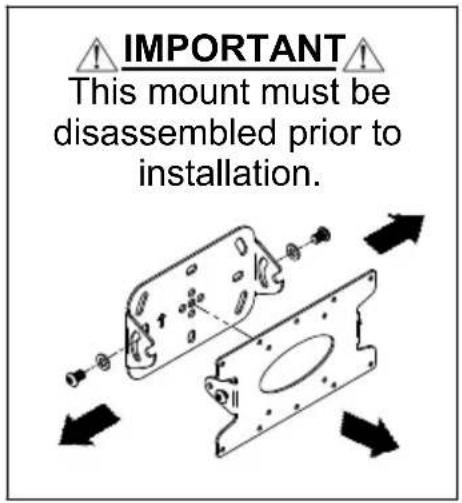

THIS MOUNT MUST BE DISASSEMBLED PRIOR TO INSTALLATION

INSTALLATION INSTRUCTIONS

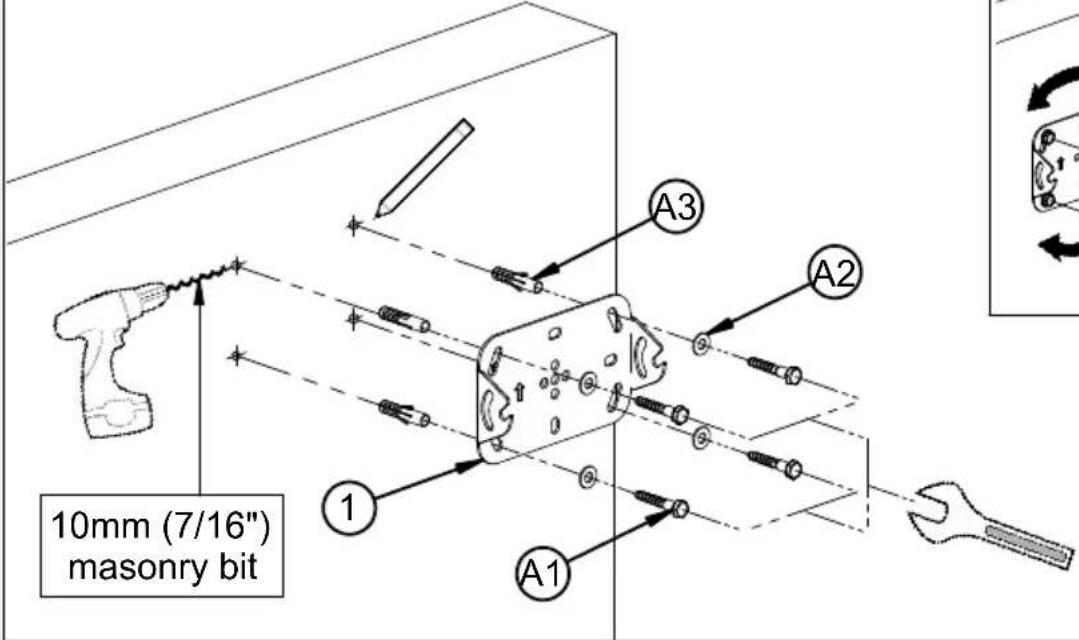

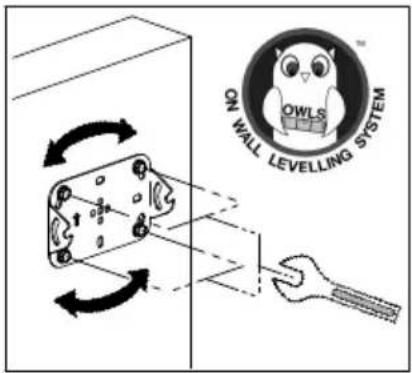

1 Fix wall plate to the wall using one of the following methods.

i. Brick / concrete walls.

ii. Wood / stud walls.

STUD FINDER (Optional)

7

SCREEN WITH M8 FIXINGS
	Screw parts H into the flat screen fixing holes.Continue with screen mounting steps 2 and 3.
z	There are two methods of attaching the mount to the screen, depending on the screen fixing pattern.
A) VESA Fixings: 75 x 75mm, 100 x 100mm or 200 x 100mm (page 8)B) VESA Fixings: 200 x 200mm (page 9)
A	VESA Fixings: 75 x 75mm, 100 x 100mm, 200 x 100mmi. Attach interface plate to back of the screen.

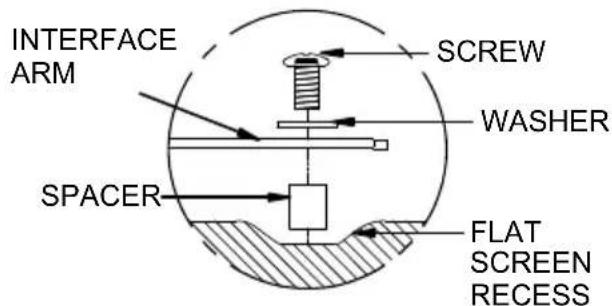

FOR SCREENS WITH RECESS FIXINGS 8

B

VESA Fixing: 200 x 200mm

i. Fix the adaptor arms to the interface.

ii. Attach interface to back of the screen.

FOR SCREENS WITH RECESS FIXINGS

3
Hook screen onto wall plate.

Technical line drawing of a mechanical bracket assembly with diagonal hatching (no text or symbols)

4

Secure in position with parts 4 and 5.

5

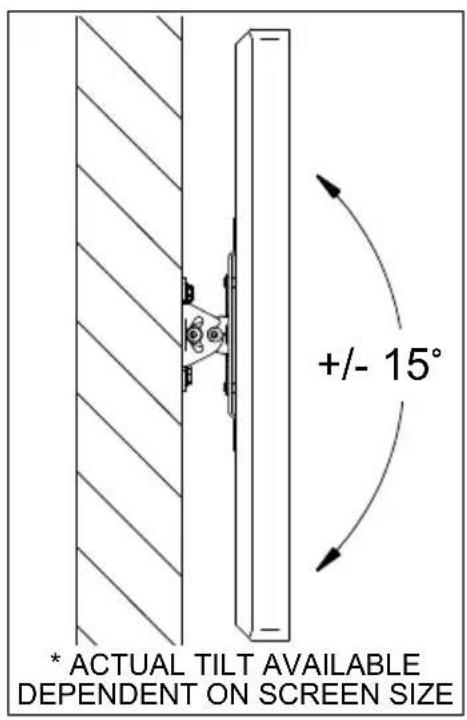

Adjust tilt and fix in position using parts 4 and 6.

12

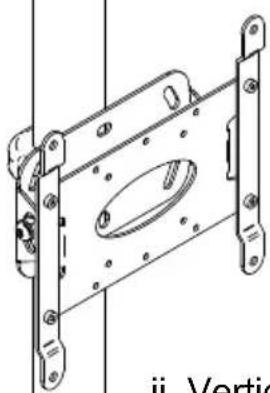

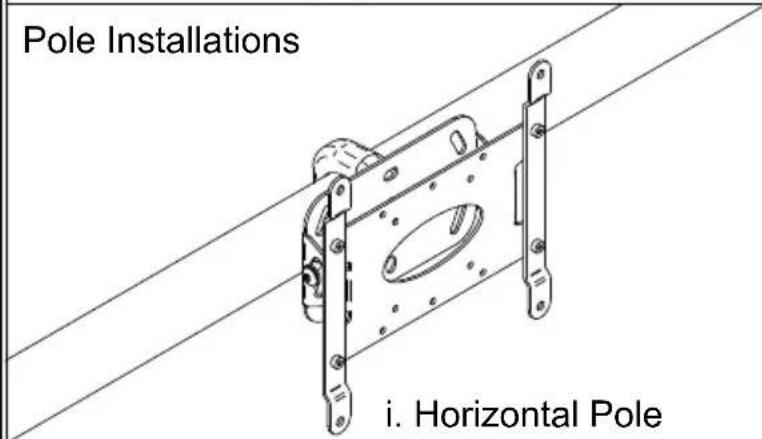

ADDITIONAL MOUNTING OPTIONS

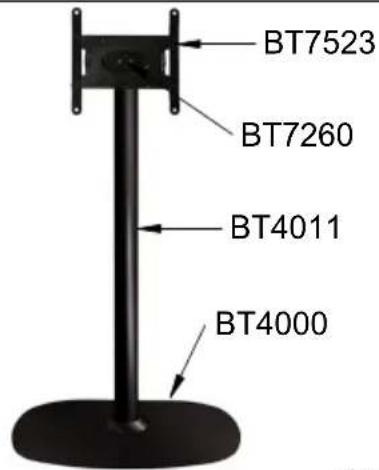

This product is compatible with the System 2 range of professional install products from B-Tech

Technical line drawing of a mechanical bracket assembly (no text or symbols)

SAMPLE INSTALLATIONS

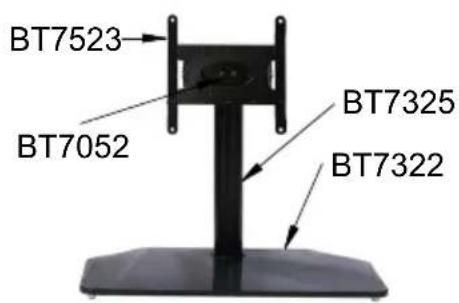

Desk Mounting

Ceiling Mounting

Floor Mounting

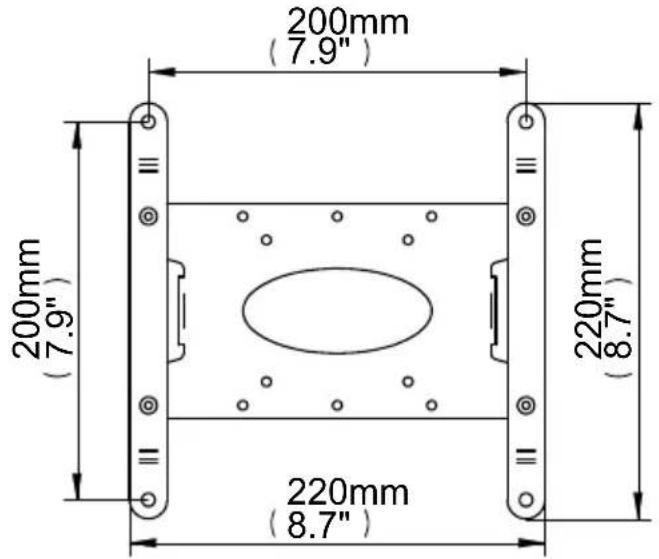

BT7523 PRODUCT DIMENSIONS

MOUNT WITH ADAPTOR ARMS

* For professional applications, tilt of +/-40° is possible depending on installation

MOUNT WITHOUT ADAPTOR ARMS

INTERFACE WITH ADAPTORS

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

BT7523 PRODUCT DIMENSIONS

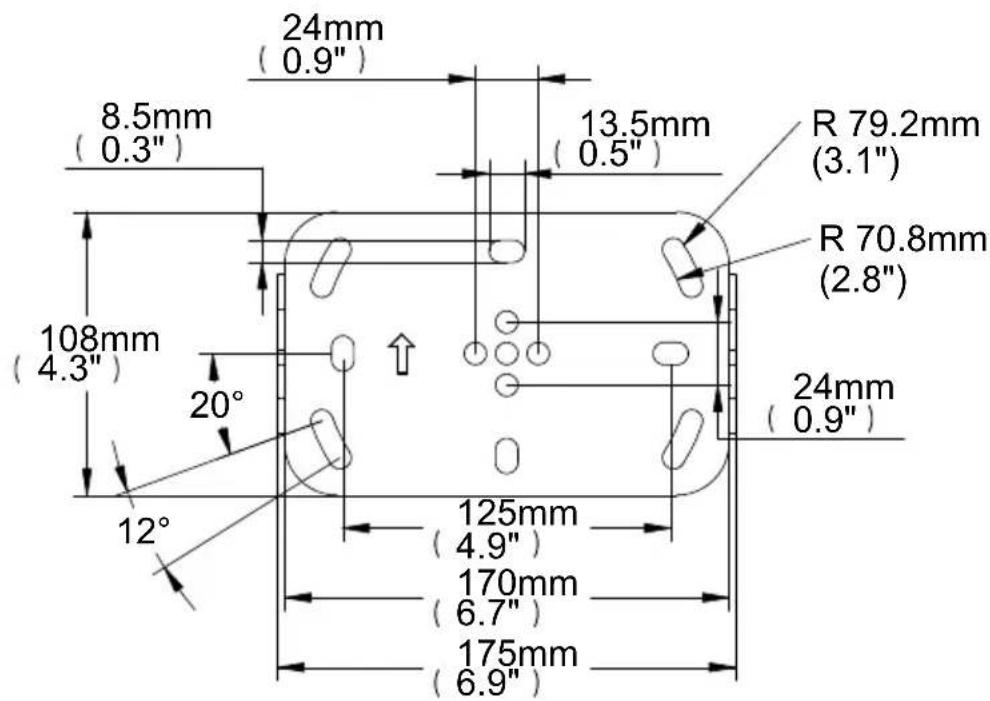

INTERFACE PLATE

WALL PLATE

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

BETTER BY DESIGN

www.btechavmounts.com

B-TECH AUDIO VIDEO MOUNTS

HEAD OFFICE

Bennett House, Long March, Daventry, Northants NN11 4NR, UK

Email: [e-mail]

EUROPE

Brixtonlaan 32, Zaventem 1930,

Brussels, Belgium

Email: [e-mail]

NORTH AMERICA

203 Eggert Road,

Buffalo, NY 14215, USA

Email: [e-mail]

SINGAPORE

Ruby Industrial Complex,

Singapore 347740

Email: [e-mail]

ASIA PACIFIC

1503 Prosperity Millennia Plaza,

Quarry Bay, Hong Kong

Email: [e-mail]

©2010 Bennett Technologies Limited. All rights reserved.

B-Tech Audio Video Mounts is a division of Bennett Technologies Limited.

B-Tech, Better By Design, System 2 and Mountlogic are registered trademarks of Bennett Technologies Limited.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.

IP-BT7523-V1-OR2BX-190810-03 MADE IN CHINA
