Product Type	LED Television
Brand	Cello
Model	C22EFF
Screen Size	22 inches (diagonal)
Resolution	1366 x 768 (HD Ready)
Aspect Ratio	16:9
Dimensions (without stand)	Approx. 51 x 33 x 7 cm (20 x 13 x 2.8 in)
Dimensions (with stand)	Approx. 51 x 36 x 17 cm (20 x 14 x 6.7 in)
Weight (without stand)	Approx. 3.5 kg (7.7 lb)
Weight (with stand)	Approx. 4.0 kg (8.8 lb)
Power Supply	100-240V AC, 50/60Hz
Power Consumption (typical)	30 W (standby < 1 W)
Connectivity	HDMI (1), USB (1), VGA, RCA AV input, Coaxial RF, Headphone jack
Built-in Tuner	DVB-T/T2/C (Freeview HD ready)
Sound Output	2 x 5W speakers
Remote Control	Yes, included
Supported Wall Mount	VESA 100 x 100 mm
Cleaning	Wipe screen and body with a soft dry cloth; avoid liquid cleaners
Safety	Keep away from water and direct sunlight; ensure proper ventilation
Spare Parts Availability	Remote control, power cord, stand (contact Cello support)

Frequently Asked Questions - C22EFF Cello

How do I connect my streaming device to the Cello C22EFF TV?

Use any of the available HDMI inputs. Plug your device (e.g., Fire Stick, Chromecast) into the HDMI port, then select the corresponding input source using the Source button on your remote.

How can I reset the TV to factory settings?

Press the Menu button on the remote, navigate to Settings > System > Reset to Factory Defaults. Confirm with OK. This will erase all custom settings.

What should I do if the remote control stops working?

First, replace the batteries with fresh AA ones. Ensure you are pointing it directly at the TV’s IR sensor within 5 meters. If still not working, try resetting the remote by removing batteries and pressing any button for 10 seconds, then reinsert batteries.

Can I mount the TV on a wall?

Yes, the C22EFF supports VESA 100x100 mm wall mounting. Use a compatible wall bracket and follow the installation guide. Ensure the wall can support the TV’s weight (approx. 4 kg).

How do I scan for digital TV channels?

Press the Menu button, go to Channel Setup > Auto Tuning. Choose your antenna type (usually DVB-T/T2). The TV will automatically search and store available channels. Tuning may take a few minutes.

Why is there no sound from the TV?

Check that the volume is not muted (press Mute button) and the volume level is turned up. If using external speakers, ensure they are connected properly. Go to Menu > Sound and verify settings. A reset of the TV may also help.

How do I clean the TV screen safely?

Turn off and unplug the TV. Wait for it to cool down. Use a soft, dry microfiber cloth to gently wipe the screen in a circular motion. Do not use any liquids, abrasive cleaners, or paper towels.

What is the warranty period and where can I find support?

Cello typically offers a 1-year warranty from the date of purchase. For support, consult the user manual for contact details or visit the official Cello website. Keep your receipt as proof of purchase.

Can I use the TV as a computer monitor?

Yes, connect your computer via the VGA port or an HDMI to HDMI cable. Use the Source button to select the corresponding input. You may need to adjust the screen resolution on your computer to 1366x768 for best results.

How do I update the TV software?

The C22EFF may not support over-the-air updates. Check in Menu > Settings > Software Update. If available, ensure you have an internet connection via Ethernet (no Wi-Fi built-in). Otherwise, updates might be available from Cello support.

USER MANUAL C22EFF Cello

LED digital colour TV

C19EFF-LED

C22EFF-LED

C24EFF-LED

Line drawing of a flat-screen computer monitor with blank screen and base (no text or symbols)

User Guide

Contents

Unpacking the TV / Accessory's....3

Installing / Removing the Base Stand 4

Front / Right Side View and Controls....5

Rear View and Sockets....6

Remote Control 7-8

Installing Batteries in the Remote Control 9

Remote Control Operation Range 9

Making Video and Audio Connections....10

Connecting an AV Device with an HDMI Cable 10

Connecting a Computer with a VGA Cable 11

Connecting an AV Device with a Component (YPbPr) Cable 11

Connecting an AV Device with a SCART Cable 12

Connecting an AV Device with Composite Cable....12

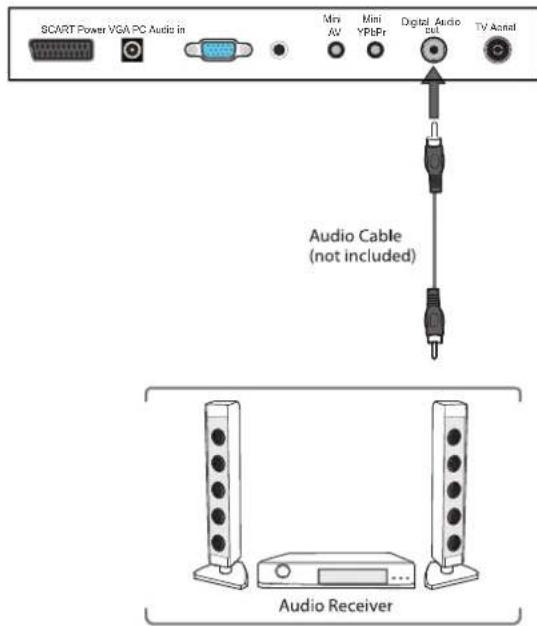

Connecting a Digital Audio Receiver 13

Connecting Headphones....14

Turning the TV on for the First Time....14-15

- Target Region Descriptor....15

- Selecting the Input Source....16

- Channel Selection ....16

- Display Channel Information 16

- Volume Adjustment....16

Channel Setting (TV, DTV or Radio Mode)....16

- Auto Tuning (ATV / DTV mode)....16-17

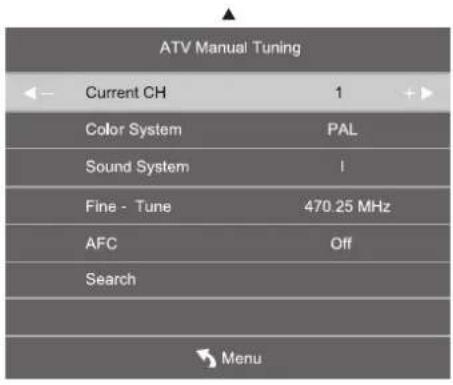

- ATV Manual Tuning (ATV mode) 18

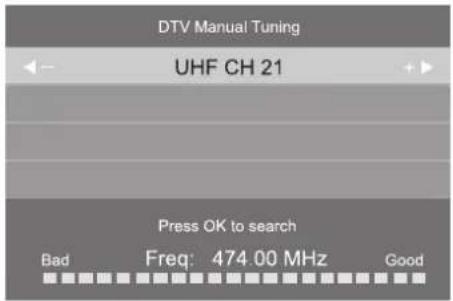

- DTV Manual Tuning (DTV mode) 18-19

- Channel Edit (ATV Mode) 19

- Channel Edit (DTV Mode) 20

– Signal Information (DTV Mode)....20-21

- CI (Common Interface) (DTV Mode) 21-22

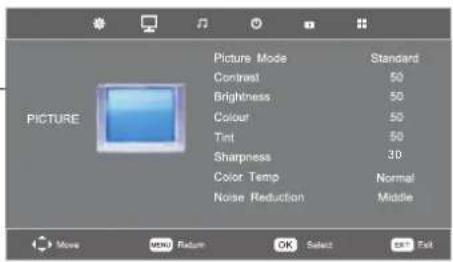

Picture Setting 22

Sound Setting 23

– Stereo / Dual Sound Reception (ATV Mode)....23

- Speaker Sound Output Selection (DTV Mode) 23

Time Setting 24

Lock Setting 25

- Lock System 25

- Set Password 25

- Block Program 26

- Parental Guidance 26-27

- Key Lock 27

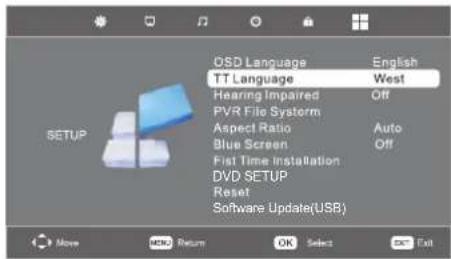

Option Setting 28

- OSD Language 28

- TT Language 28

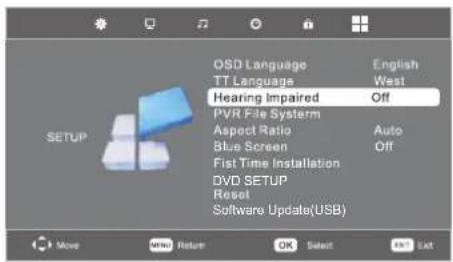

- Hearing Impaired....29

- PVR File System (DTV Mode)....29

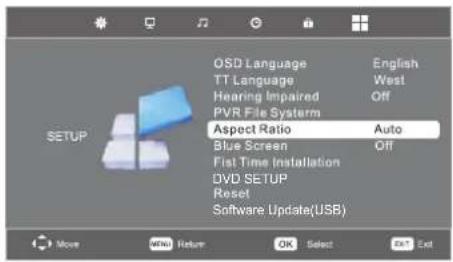

- Aspect Ratio 30

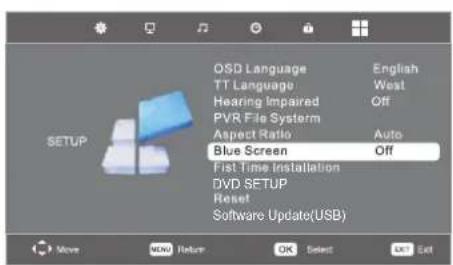

- Blue Screen 30

- Restore Factory Default....31

EPG (Electronic Programme Guide) (DTV Mode) 32

• Switch On / Off EPG....32
• Select a Programme 32

Teletext (ATV Mode) 33

- To Turn on Teletext Function....33

Digital Teletext (DTV Mode)....33

- Teletext within Digital Service....33

Connecting a USB Storage Device....34

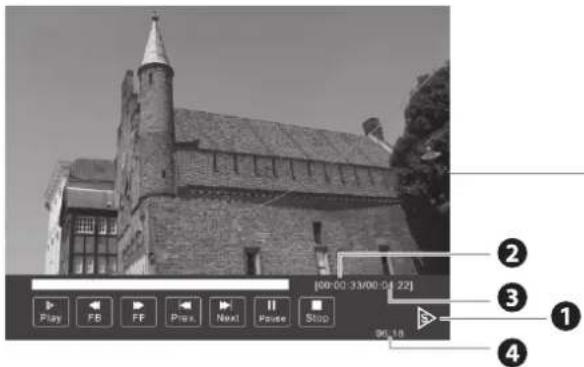

Viewing Photos....35

Listening to Music....35-36

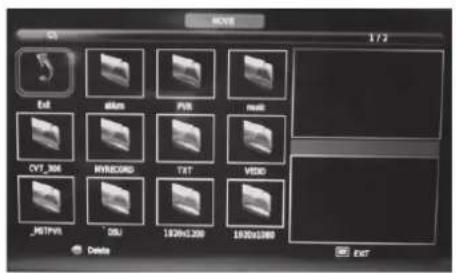

Watching Movies....36-37

Viewing Texts 37

Time Shift Function (DTV Mode) 38

Recording DTV Programme onto a USB Storage Device 39

Timer Programming 39-40

Play Recorded Programme 40

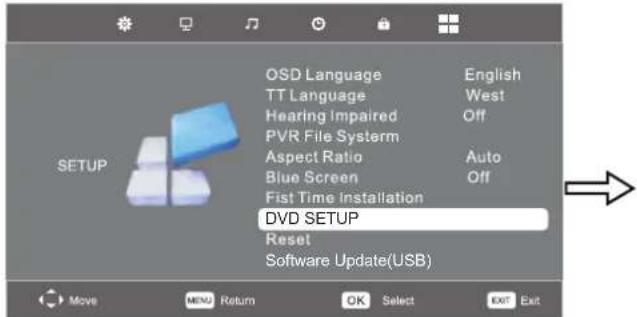

DVD Operation 41

General Setup 41

Audio Setup 42

Dolby Setup 42

Preference Setup 43

Disc Care 44

Maintenance....45

Hints and Tips 45-46

Display Modes....46

YPbPr Mode 46

PC Mode 46

HDMI Mode 46

Specifications 47

Safety Warnings 48-49

Waste Electrical Recycling....50

Thank you for purchasing your new 19"/ 2 / 4 HD Ready LED TV.2 " 2"

Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual in order that you fully understand these features. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking the TV / Accessory's

Simple line drawing of a blank computer monitor frame (no text or symbols)

TV set

Stand

Stand fixing screws (4pcs: BB4 x 12)

Power CableBatteriesRemote Control

Mains adapter

Goldcare PlanUser Guide

Quick Start Guide

Warranty Card

The LED display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LED display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.

1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface with the back side facing up. Please make sure to place a soft cushioned material (such as a pillow or thick piece of foam) beneath the screen.
3. To install the base stand first make sure you position the front of the base stand facing towards the front of the TV and then use the 4 supplied screws to fix the base stand to the TV.

The screw holes will only align if the front of the base stand is facing towards the front of the TV

Technical line drawing of a mechanical housing with internal components and a grid-patterned panel (no text or symbols)

Technical diagram showing two 3D views of a device with grid patterns and screw alignment indicators (no text or symbols)

Remove the stand base before wall mounting the TV.

1. To remove the stand assembly, lay the TV down on a flat surface with the back side facing up. Please make sure to place a soft cushioned material (such as a pillow or thick piece of foam) beneath the screen. Remove the 4 screws that secure the stand base to the TV. Remove the stand base by sliding it out.

Keep all the screws in a safe place, should you want to attach the stand base at a later date.

This unit is VESA-Compliant and designed to be wall mounted with a VESA-Compliant 100mmx100mm mounting kit. Mount this unit according to the instructions of the wall bracket (not supplied)

Line drawing of a flat-screen monitor with labeled components (no text or symbols on the screen)

Item		Description
1	IR (Infrared Receiver)	Receives IR signals from the remote control.Do not put anything near the sensor, as its function may be affected.
2	POWER LED	Illuminates green when the TV is turned on. Illuminates red when the TV is in standby mode. The LED will alternate between red and green when the PVR timer programming has started in the standby mode.
3	EJECT	Eject
4	PLAY	Play
5	CH + / -	Press to select a channel or select a sub-menu from the OSD menu.
6	VOL + / -	Adjusts the volume.Press to select and adjust a setting in the OSD menu.
7	MENU	Displays the OSD (on screen display) menu.
8	SOURCE	Press to select among different input signal sources:ATV,DTV,USB,AV,PC,YPbPr,DVD,SCART,HDMI1,HDMI2.Confirmed the selection on OSD menu.
9	STANDBY	Switches the TV on from standby mode.Switches the TV back to standby mode.

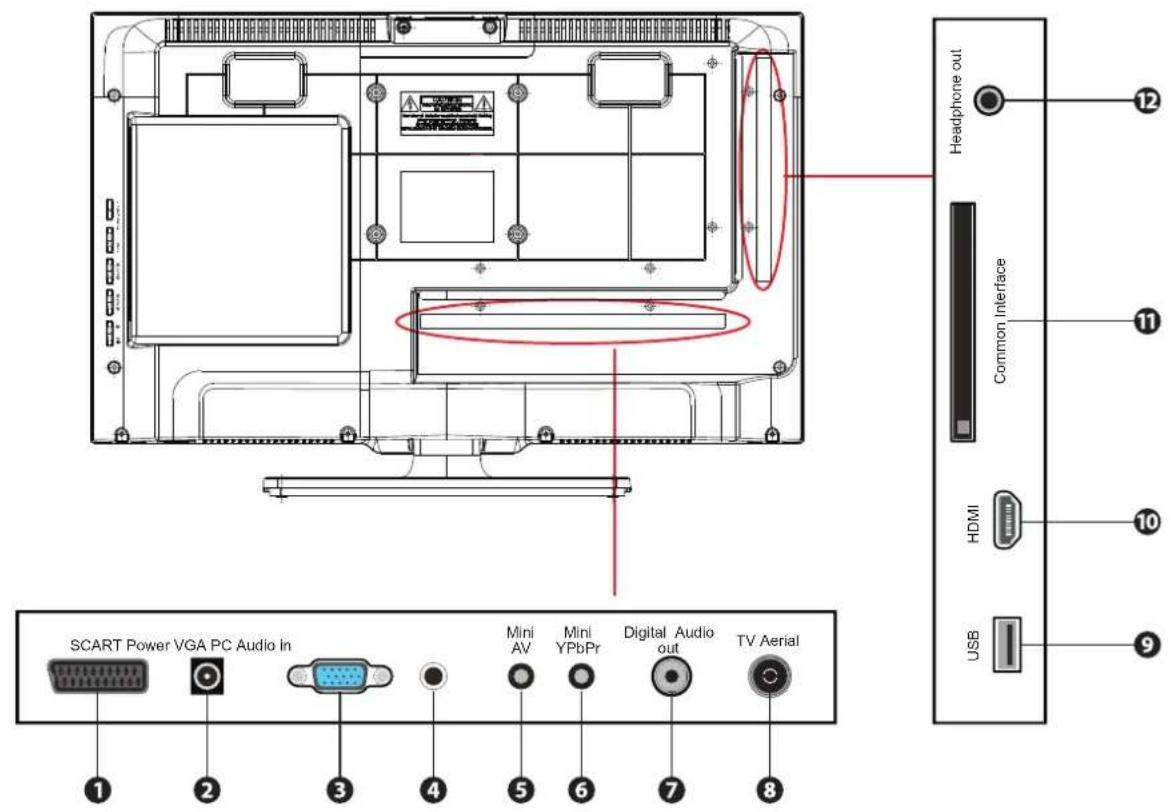

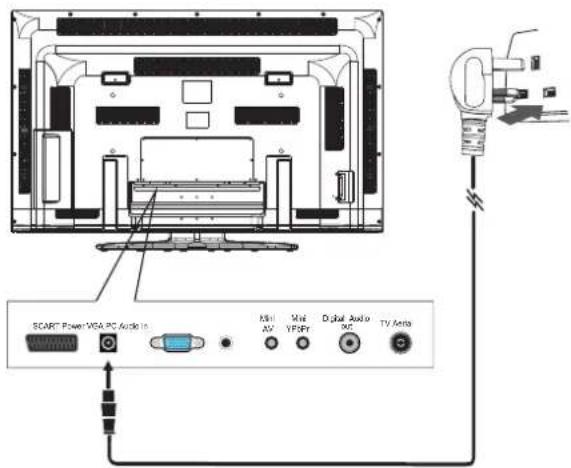

Socket		Description
1	SCART	To connect to a VCR, DVD Player, or other AV device with a SCART output socket.
2	Power	Connect to power supply.
3	VGA	Connect to the PC VGA output to display PC graphics.
4	PC AUDIO IN	To connect to a computer or other devices with a VGA interface.
5	Mini AV	To connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video devices.
6	Mini YPbPr	To connect to a DVD player, Digital Set-Top-Box, or other AV devices with component (YPbPr) video and audio output sockets.
7	DIGITAL AUDIO OUT (COAXIAL)	To connect to the audio socket on the digital/standard 5.1 audio system.

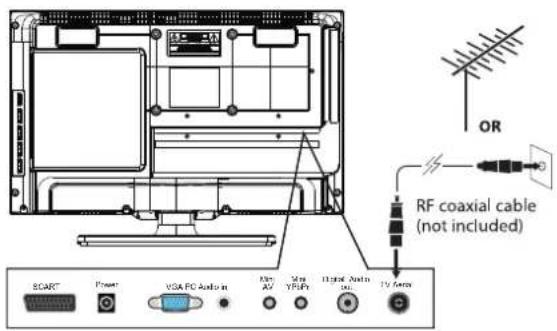

8	TV Aerial	To connect to the aerial socket on the wall with the RF coaxial cable.
9	USB	Allows the insertion of a USB storage device to play video, audio, photo and text files (Media mode) and record DTV programmes on to a USB storage device.
10	HDMI IN	To connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray disc player or AV receiver.

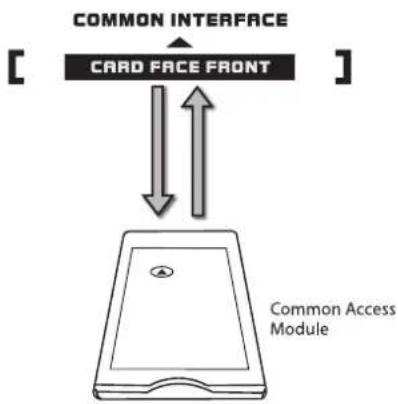

11	CI (Common Interface) Slot	Allows the insertion of a Common Access Module.
12	Headphone out	To connect to the earphones.

Dependant on the Model of the TV some keys will have no function

*Dependant on Model

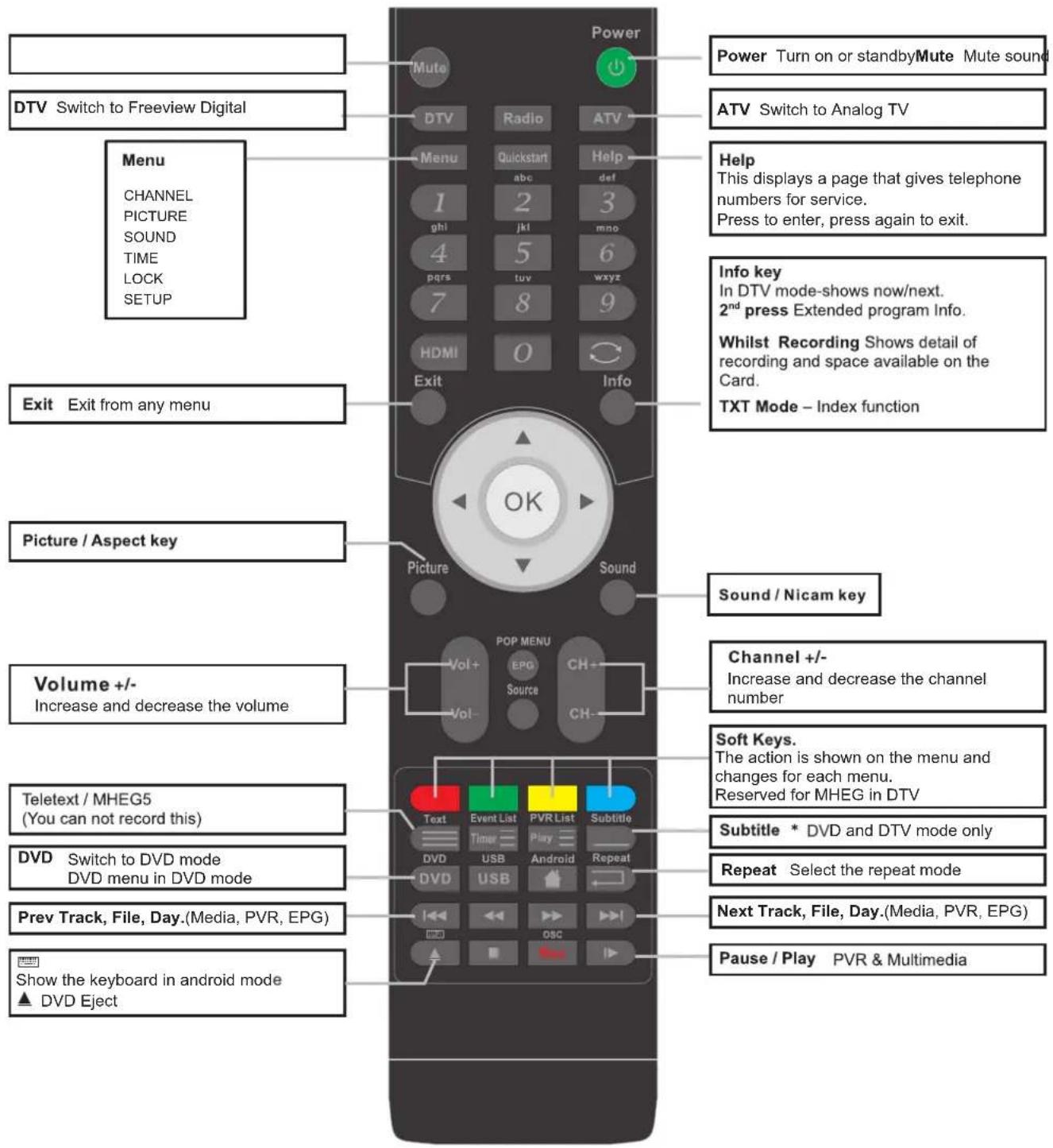

■ Functions of remote control buttons

Dependant on the model of theTV some keys will have no function

*Dependant on Model

1. Press and lift the back cover to open the battery compartment of the remote control.
2. Insert two 1.5V AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment.
3. Close the battery compartment cover.

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will not function. Replace both batteries at the same time with new ones.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.

Handling the Remote Control

• Take care of your fingernails when you press and hold the battery release tab.
- Do not drop or cause impact to the remote control.
- Do not spill water or any liquid on the remote control.
- Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as it could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.

Remote Control Operation Range

Point the remote control at the TV no more than 5 metres from the remote control sensor on the TV and within 60° in front of the TV. The operating distance may vary depending on the brightness of the room.

Remote Code:0156

To use your sky remote control with this TV follow the instructions given with the sky remote to programme different codes.

Making Video and Audio Connections

Not all AV devices have the ability to connect to a TV, please refer to the owner's manual of your AV device for compatibility and connection procedures.

When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete.

Best Video Performance		Signal Type	Separate Audio Connection Required
	HDMI	HDMI(480i/480p/576i/576p/720p/1080i/1080p)	No
	VGA	PC	YesPC AUDIO
	Mini YPbPr	Component Video(480i/480p/576i/576p/720p/1080i/1080p)	YesL R
	SCART	SCART (RGB Input)	No
	[BABW]Mini AV	Composite Video	YesL R

Connecting an AV Device with an HDMI Cable

• This TV can accept High-Definition Multimedia Interface (HDMI) and supports HDCP (High-Bandwidth Digital Content Protection) Protocol.
• The TV has a total of HDMI input sockets, please make sure the correct input source is selected corresponding to your connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to the HDMI function and the TV will automatically detect the resolution used by the HDMI source.

• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x 1080p.

• Use an HDMI cable to connect the TV's HDMI input socket to the external AV device's HDMI output socket.

• Plug the connected devices into the mains socket
• Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
• Press the SOURCE button at the front right side of the TV or the SOURCE button on the remote control to display the Source List. Use the ▲▼ buttons to select HDMI and then press the OK button to confirm.

Although this TV is able to connect to an HDMI device, it is possible that some devices may not operate correctly.

Game Console

Set-top Box

Blu-ray Player / DVD Player / Recorder

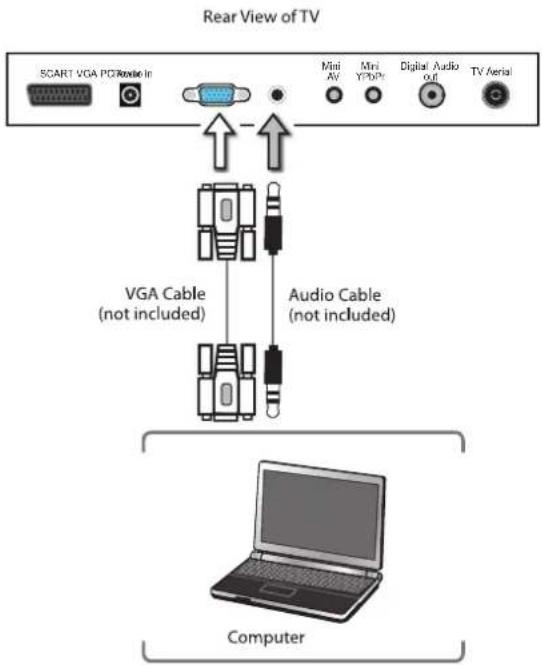

Connecting a Computer with a VGA Cable

1. Use a VGA cable to connect the TV's PC input socket to a computer's VGA output socket. Use an audio cable to connect the TV's PC AUDIO input socket to the computer's audio output socket.
2. Plug the connected devices into the mains socket
3. Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
4. Press the SOURCE button at the front right side of the TV or the SOURCE button on the remote control to display the Source List. Use the ▲▼ buttons to select PC and then press the OK button to confirm.

• The best resolution is 19"(1366 x 768) 22"/24"(1920 x 1080).
• If your computer is set to shut down after a few minutes of idle mode, the TV will also switch to standby due to no signal being received, this is to save energy. Press the STANDBY button at the right side of the TV when viewed from the front or the ⏻ button on the remote control to restart the TV.

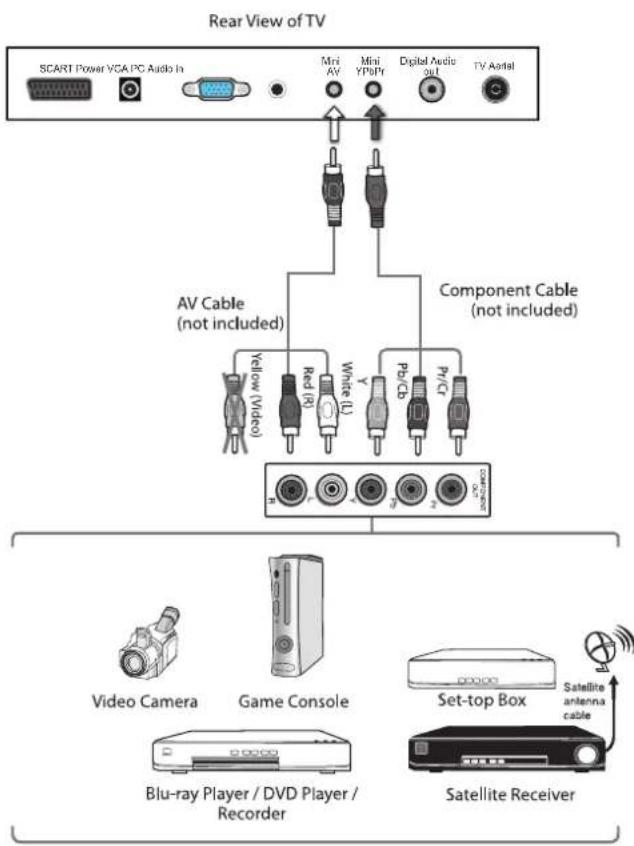

Connecting an AV Device with a Component (YPbPr) Cable

1. Use a component cable to connect the TV's Mini YPbPr input sockets to an external AV device's component output sockets.
2. Use an AV cable to connect the TV's Mini AV input sockets to the external AV device's component audio output sockets. (Audio Left = white, and Audio Right = red)

Component port on the TV

Mini YPbPr

Video output ports on DVD player	Y	Pb	Pr
	Y	Cb	Cr

1. Plug the connected devices into the mains socket
2. Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
3. Press the SOURCE button at the front right side of the TV or the SOURCE button on the remote control to display the Source List. Use the ▲▼ buttons to select YPbPr and then press the OK button to confirm.

Connecting an AV Device with a SCART Cable

1. Use a SCART cable to connect the TV's SCART input socket to an external AV device's SCART output socket.
2. Plug the connected devices into the mains socket
3. Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
4. The TV will change the input source to SCART automatically once the AV device is switched on.

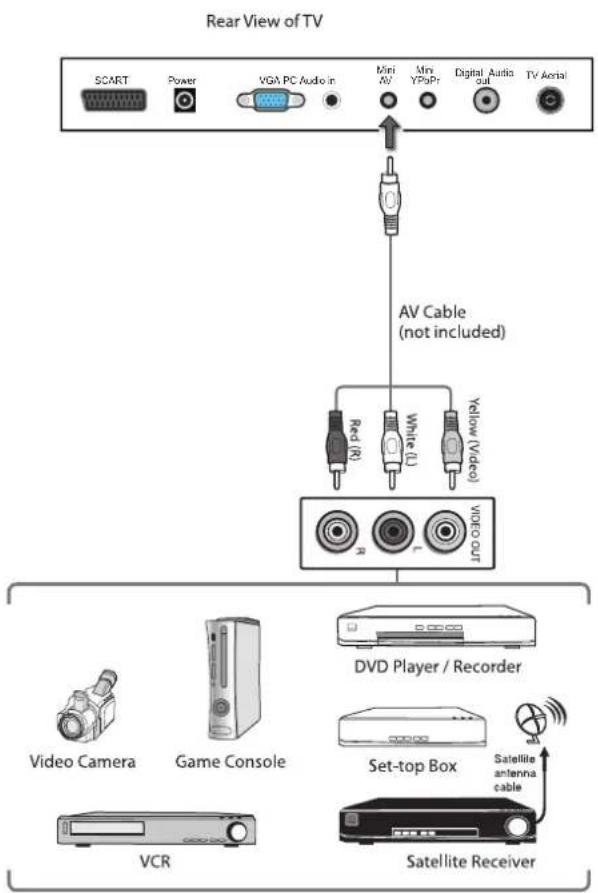

Connecting an AV Device with Composite Cable

1. Use an AV cable to connect the TV's Mini AV input sockets to an external AV device's composite audio/video sockets. (Video = yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket
3. Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
4. Press the SOURCE button at the front right side of the TV or the SOURCE button on the remote control to display the Source List. Use the ▲▼ buttons to select AV and then press the OK button to confirm.

For better sound quality, you may want to play the audio through your multi-channel audio receiver.

1. Use an audio cable to connect the TV's Digital Audio out socket to an external audio receiver's audio coaxial input socket.
2. Plug the connected devices into the mains socket
3. Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
4. Press the SOURCE button at the front right side of the TV or the SOURCE button on the remote control to display the Source List. Use the ▲▼ buttons to select any desired input source and then press the OK button to confirm.

The TV's volume control will have no effect. You may control the audio level via the Audio Receiver.

Rear View of TV

Connect your headphones to the TV's Headphone out socket.

Before putting on headphones, turn the volume down then put the headphones on and slowly increase the volume until you reach a comfortable listening level.

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods.

Turning the TV on for the First Time

1. Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the Aerial socket at the rear bottom of your TV.

Do not connect the TV to the mains supply until you have completed all the connections.

1. Connect the mains cable to the mains socket after you have completed all the connections.
2. At this stage, the TV switches to standby mode. The red LED indicator will illuminate on the front panel of the TV.
3. In standby mode, press the STANDBY button on the TV or the ⏻ button on the remote control to turn the TV on. The LED indicator will change from red to green.

The STANDBY button is located on the front right side of the TV.

• Always disconnect the TV from the mains socket when not in use for a long period of time.
- The STANDBY button at the front right side of the TV or the ⏻ button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the mains power. To completely disconnect the mains power, please remove the mains cable from the mains socket.

1. The first time you turn the TV on, it will go straight into the First Time Installation menu.

2. Press the ▲◀▶▼ buttons to navigate the menu and change the settings. Press the OK button to confirm.

Country

Select the country where you will operate the TV. The default country is set as UK.

1. Channel tuning will commence. This operation may take up to 10 minutes. The display will show the progress of the tuning and the number of channels found.
2. If you want to skip the ATV tuning, press the Menu button to interrupt the tuning half way. A pop-up screen will be displayed, press the ◀ button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
3. After tuning is complete, the channels are arranged and stored in the broadcaster's preset order.

Target Region Descriptor

During tuning your TV may have received signals from more than one transmitter. If this has occurred the Target Region Descriptor screen will be displayed. This will enable you to select the correct regional transmission for the local news service that you require.

Press the ◀▶ buttons to adjust each option's setting and then press the OK button to confirm.

Country Code	This will be shown as GBR for the UK.
Primary Region	This will show the regional country (England, Wales, Scotland, NI).
Secondary Region	This will allow you to set the region for your local news service on BBC and ITV (London, Beds and Cambs etc).
Tertiary Region	You may receive signals from more than one transmitter within the Secondary Region, (e.g Beds and Cambs may have Luton or Sandy Heath).

Target Region Setting
Country Code	GBR
Primary Region	England
Secondary Region	London
Tertiary Region

Selecting the Input Source

1. Press the Source button at the front right side of the TV or the Source button on the remote control to display the Input source list.
2. Press the ▲▼ buttons to select the input source that you want: ATV, DTV, USB, AV, PC, YPbPr, DVD, SCART, HDMI.
3. Press the OK button to confirm your selection. If you do not press the OK button to confirm, the TV will automatically confirm the selected input source within 4 seconds.

In DTV mode, press the Radio button to switch to TV / digital radio channels directly.

Input Source

ATV

DTV

USB

AV

PC

YPbPr

DVD

SCART

HDMI

OK

Channel Selection

- Press the CH+ / - buttons at the front right side of the TV or on the remote control repeatedly or the 0-9 buttons on the remote control to select the channel.

Alternative

Press the OK button to enter the Channel List. Then use the ▲▼ buttons to highlight and select the channel. Press the OK button to view the selected channel.

• If a blocked channel is selected, the password screen will be displayed. Press the 0-9 buttons to enter the password, the channel will then be unlocked (refer to page 26 for details on Block Program).
• Press the ⬇ button to return to the previously viewed channel.

Display Channel Information

- Press the i Info button to view the current information.

Volume Adjustment

• Press the VOL+ or – button at the front right side of the TV or on the remote control to adjust the volume.
• If you wish to switch the sound off, press the Mute Muton. Press the button again or the VOL+ or - button to resume audio listening.

Channel Setting (TV, DTV or Radio Mode)

Auto Tuning (DTV / ATV mode)

Use this to automatically find and store all available channels. This is normally recommended if some channels have been added or removed by the broadcaster or if you have moved house.

1. Press the Menu button to select the CHANNEL menu.

1. Press the ▲▼ buttons to select Auto Tuning and then press the OK button.

1. In the Tune Type menu, press the ◀▶ buttons to select ATV / DTV / ATV +DTV. Press the ▼ button and then press the ▲◀▶▼ buttons to select the country where you will operate the TV. Press the OK button to confirm.

1. Channel tuning will commence. This operation may take up to 10 minutes. The display will show the progress of the tuning and the number of channels found.

2. If you want to skip the DTV tuning, press the Menu button to interrupt the tuning half way. A pop-up screen will be displayed, press the ◀ button to select YES to confirm. You will then go straight to ATV tuning. You may repeat the above step if you also want to skip the ATV tuning. An installation reminder will appear the next time you turn on the TV.

3. After tuning is complete, the channels are stored and arranged in a preset order.

ATV Manual Tuning (ATV mode)

Allows you to make manual fine tuning adjustments if the channel reception is poor under ATV mode.

1. Press the Menu button to select the CHANNEL menu..

1. Press the ▲▼ buttons to select ATV Manual Tuning and then press the OK button.

1. The ATV Manual Tuning screen will pop up. Use the ▲▼ buttons to select the following options and the ◀▶ buttons to adjust the setting.

Current CH	Displays the current channel number.
Color System	Selects the color system: Auto / SECAM / PAL.
Sound System	Selects the sound system: DK / | / BG.
Fine-Tune	Press the ◀▶ buttons to make manual fine tuning adjustments.
AFC (Auto Frequency Control)	Select AFC On to lock the desired frequency.
Search	Press the ◀▶ buttons to start the manual tuning.

1. After finishing the manual tuning adjustment of a channel, press the Menu button to save your channel before tuning the next channel.

2. Press the Exit button to exit the menu.

DTV Manual Tuning (DTV mode)

Allows you to make manual fine tuning adjustments of the channel under DTV mode.

1. Press the Menu button to select the CHANNEL menu.

1. Press the ▲▼ buttons to select DTV Manual Tuning and then press the OK button.

1. The DTV Manual Tuning screen will pop up. Press the ◀▶ buttons to select the desired UHF channel and then press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.

1. Press the Menu button to return back to the main menu.

2. Press the Exit button to exit the menu.

Programme Edit (ATV Mode)

Allows you to edit TV programmes in the Channel List.

1. Press the Menu button to select the CHANNEL menu.

1. Press the ▲▼ buttons to select Programme Edit and then press the OK button.

1. A Programme Edit screen will pop up. Press the ▲▼ buttons to select the programme you want to edit.

a. Delete

Press the RED button to delete the selected channel.

b. Rename

Press the GREEN button to rename the selected channel. Press the ▲▼ buttons to select the characters to represent the station name. Press the ◀▶ buttons to move to the next character and then press the OK button to confirm the new name.

c. Move

Press the YELLOW button and then press the ▲▼ buttons to move to the selected channel. Press the YELLOW button or the OK button to confirm.

d. Skip

Press the BLUE button to select the channels that you want to skip when you are selecting channels. Press the BLUE button again to undo it.

1. Press the Menu button to return back to the main menu.
2. Press the Exit button to exit the menu.

Prgramme Edit (DTV Mode)

Allows you to edit TV programmes in the Channel List.

1. Press the Menu button to select the CHANNEL menu.

1. Press the ▲▼ buttons to select Programme Edit and then press the OK button.

1. A Programme Edit screen will pop up. Press the ▲▼ buttons to select the programme you want to edit.

a. Delete

Press the RED button to delete the selected channel.

b. Skip

Press the BLUE button to select the channels that you want to skip when you are selecting channels. Press the BLUE button again to undo it.

1. Press the Menu button to return back to the main menu.
2. Press the Exit button to exit the menu.

Signal Information (DTV Mode)

Allows you to view the signal information.

1. Press the Menu button to select the CHANNEL menu.

1. Press the ▲▼ buttons to select Signal Information and then press the OK button to view the signal information.

1. Press the Menu button to return to the previous menu.

2. Press the Exit button to exit the menu.

CI (Common Interface) (DTV Mode)

The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider.

Do not repeatedly insert or remove the Common Access Module as this may damage the interface and cause a malfunction.

This feature is not available in all countries.

CI (Common Interface)

Allows the Common Access Module to be inserted and access the content that has been encrypted.

To insert the Common Access Module

1. Before you insert the Common Access Module, ensure that the TV is switched off and the viewing card is inserted in accordance with the Service Provider's instructions.
2. Insert the Common Access Module into the slot. Flip the Common Access Module to another side and try again if you feel resistance.
3. Switch the TV on.

To remove the Common Access Module

1. Before you remove the Common Access Module, ensure that the TV is switched off.
2. Pull the Common Access Module from the slot.
3. Switch the TV on.

To view the module information

1. Press the Menu button to select the CHANNEL menu.

2. Press the ▲▼ buttons to select CI Information and then press the OK button.

1. A CI Information Main menu will pop up. Press the ▲▼ buttons to display the module information, smart card information, language, software download. Press the OK button to confirm.
2. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

This screen is for illustration only.

Picture Setting

Allows you to set your preferred picture mode.

1. Press the Menu button and then press the ◀▶ buttons to select the PICTURE menu.
2. Press the ▲▼ buttons to select the following picture options and then press the OK button.

Picture Mode	Press the ▲▼ buttons to cycle among picture mode: Dynamic / Standard / Mild / Personal and then press the OK button to confirm. Alternative You may press the P button once and then press the ◀▶ buttons to select the picture mode directly.
Contrast	Press the ◀▶ buttons to adjust the difference between light and dark levels in the picture. (for Personal mode)
Brightness	Press the ◀▶ buttons to increase or decreases the amount of white in the picture. (for Personal mode)
Colour	Press the ◀▶ buttons to control the colour intensity. (for Personal mode)
Tint (For NTSC format)	Press the ◀▶ buttons to adjust the balance between red and green levels. (Tint is only available for NTSC signal input via the SCART or AV IN.)
Sharpness	Press the ◀▶ buttons to adjust the level of crispness in the edges between light and dark areas of the picture. (for Personal mode)
Colour Temperature	Press the ▲▼ buttons to cycle among colour temperature: Cold / Normal / Warm and then press the OK button to confirm. Adjusts the colour components independently to achieve a warm or cool. (for Personal mode)Cold: Increases blue tintNormalWarm: Increases red tint
Noise Reduction	Press the ▲▼ buttons to select to reduce the noise level of the connected device: Off / Low / Middle / High / Default and then press the OK button to confirm.

Allows you to select an audio-enhancement technique.

1. Press the Menu button and then press the ◀▶ buttons to select the SOUND menu.

2. Press the ▲▼ buttons to select the following sound options and then press the OK button.

Sound Mode	Press the ▲▼ buttons to select an audio-enhancement technique: Standard / Music / Movie / Sports / Personal and then press the OK button to confirm.
Treble	Press the ◀► buttons to control the relative intensity of higher pitched sounds. (for Personal mode)
Bass	Press the ◀► buttons to control the relative intensity of lower-pitched sounds. (for Personal mode)
Balance	Press the ◀► buttons to adjust the relative volume of the speakers in a multiple speaker system.
Auto Volume	Press the ◀► buttons to turn on / off the auto volume. Select On to automatically control the volume. (e.g. advertisements tend to be louder than the programmes)
SPDIF Mode	Press the ◀► buttons to select the digital audio output mode.
AD Switch(For DTV mode)	Audio Description is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the main audio from the broadcaster. Set to "Off" for normal broadcasting sound coming out from speakers. Set to "On" to activate the description sound track if available. The availability of Audio Description sound track is indicated by the visually impaired icon "V.I." in the information banner.

1. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

Stereo / Dual Sound Reception (ATV Mode)

When a programme is selected, press the S button twice and then press the ◀▶ buttons to select Mono / Nicam Stereo for the selected station.

Broadcast	On Screen Display
Mono	MONO
Stereo	NICAM STEREO

Mono sound selection

If the stereo signal is weak in stereo reception, you can switch to mono by pressing the S button twice and then press the ◀▶ buttons to select Mono / Nicam Stereo. In mono reception, the clarity of sound is improved. To switch back to stereo, press the Sound button twice and then press the ◀▶ buttons to select Mono / Nicam Stereo again.

Speaker Sound Output Selection (DTV Mode)

While watching a DTV programme, you can press the Sound button to display the audio language list (only applicable when the TV programme has this feature).

Press the ▲▼ buttons to select an audio language or audio format if available and then press the ◀▶ buttons to select sound track between L/R (Stereo), L/L (Mono Left) and R/R (Mono Right). Press the OK button to confirm and exit.

Time Setting

Allows you to adjust timer zone, sleep timer, auto standby, OSD timer and summer time.

1. Press the Menu button and then press the ◀▶ buttons to select the TIME menu.

2. Press the ▲▼ buttons to select the following time options and then press the OK button.

Clock	The clock is set automatically when receiving a digital signal. (DTV mode)
Time Zone	When you select a Time Zone city, the TV time is set by the time offset information based on Time Zone and GMT (Greenwich Mean Time) which is received with the broadcast signal and the time is set automatically by a digital signal.Press the ◀▲▼► buttons to select the desired time zone city and then press the OK button to confirm. (DTV mode)
Sleep Timer	The sleep timer automatically switches the TV to standby after the preset time has elapsed. The clock will be set automatically when receiving a digital signal. Time must be set before using Sleep Timer function.Press the ▲▼ buttons to select a period of time after which the TV automatically switches to standby mode: OFF / 10 / 20 / ... / 180 / 240 min and then press the OK button to confirm. The timer begins to count down from the number of minutes selected.⚠️ If you turn the TV off after setting the sleep timer, the sleep timer setting will be erased
Auto Standby	The unit will automatically switch to standby mode 4 hours after the last time the remote control was used. A reminder screen will pop up and count down before the unit switches to standby mode.If you want to operate the TV for a long period of time, turn off the auto standby function. Press the Menu button to display the main menu. Press the ▲▼ buttons to select the Time option and then press the OK button. Press the ▲▼ buttons to select the Auto Standby option and then press the OK button to select "Off". Press the Exit button to exit the main menu. To save energy you should always turn the auto standby function back to "4H".
OSD Timer	Press the ▲▼ buttons to select the display time of the on-screen menu: 5s / 10s / 15s / 20s / 25s / 30s and then press the OK button to confirm.

1. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

To access the LOCK menu, you must enter the password. Enter the default password "0000" for first time use. To change the password, please refer to "Set Password".

Lock System

The Lock System is designed to prevent accidental retuning of the TV / losing channels and prevent children watching unsuitable programmes.

The Lock System must be set to On for this function to operate. If the Lock System is set to On, a valid password must be entered when you access Auto Tuning / Manual Tuning / Restore Factory Default.

1. Press the Menu button then press the ◀▶ buttons to select the LOCK menu.

2. Press the ▲▼ buttons to select Lock System and then press the OK button.

3. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

• The default password is "0000".
- If you change the password, be sure to remember the new password! If you forget the new password, press the master password"4711".

1. Press the ▲▼ buttons to select Lock System and then the OK buttons to select On / Off.

If the Lock System is set to On, a valid password must be entered when you access Auto Tuning / Manual Tuning / Channel Edit / First Time Installation / Restore Factory Default.

1. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

Set Password

1. Press the Menu button and then press the ▲▼ buttons to select the LOCK menu and then press the OK button.

2. Press the ▲▼ buttons to select Set Password and then press the OK button.

3. Use the 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter new password for confirmation.

• The default password is "0000".
- If you change the password, be sure to remember the new password! If you forget the new password, press the master password"4711".

1. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

Block Program

Block Channel is designed to prevent children watching unsuitable programmes.

1. Press the Menu button then press the ◀▶ buttons to select the LOCK menu.

2. Press the ▲▼ buttons to select Lock System and then press the OK button.

3. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu.

• The default password is "0000".

• If you change the password, be sure to remember the new password! If you forget the new password, press the master password"4711".

• Press the ▲▼ buttons to select Block Program and then press the OK button.

• A Block Channel screen will pop up. Press the ▲▼ buttons to select a channel. Press the GREEN button on the remote control to lock or unlock the channel. Press the GREEN button again to unblock.
• Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

When a channel is blocked, a valid password must be entered.

Parental Guidance

This function allows you to set up blocking schemes to block specific programmes and ratings. It operates according to information from the broadcasting station, therefore if the signal has incorrect information, this function will not operate.

This TV is programmed to remember which option it was last set to even if you switch the TV off.

1. Press the Menu button then press the ◀▶ buttons to select the LOCK menu.
2. Press the ▲▼ buttons to select Lock System and then press the OK button.
3. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu and then press the OK button to turn the Lock System On.

• The default password is "0000".
- If you change the password, be sure to remember the new password! If you forget the new password, press th

1. Press the ▲▼ buttons to select Parental Guidance and then press the OK button.

1. Press the ▲▼ buttons to select an age rating: Off, 4-18. Then press the OK button to confirm to return to the previous menu.

2. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

When a programme is rated above the selected age rating, the programme will be blocked, a valid password must be entered.

Key Lock

Key Locked is designed to prevent children from pressing the buttons on the TV. The Lock System must be set to On for this function to operate. If the Key Locked is set to On, all buttons on the TV will be locked. All TV operations can be controlled by the remote control only.

1. Press the Menu button then press the ◀▶ buttons to select the LOCK menu.

1. Press the ▲▼ buttons to select Lock System and then press the OK button.

2. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu and then press the OK button to turn the Lock System On.

• The default password is "0000".

- If you change the password, be sure to remember the new password! If you forget the new password, press the master password"4711"

1. Press the ▲▼ buttons to select Key Lock and then press the OK button to select On / Off.

2. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

OSD Language

Allows you to select your desired on screen menu language.

1. Press the Menu button then press the ◀▶ buttons to select the SETUP menu.
2. Press the ▲▼ buttons to select the following setup options and then press the OK button.
3. Press the ▲◀▶▼ buttons to navigate the menu and change the settings. Press the OK button to confirm and return to the previous menu.
4. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

TT Language

Allows you to select your preferred Teletext language.

1. Press the Menu button then press the ◀▶ buttons to select the SETUP menu.
2. Press the ▲▼ buttons to select TT Language and then press the OK button.
3. Press the ▲▼ buttons to select your desired TT Language. Press the OK button to confirm and return to the previous menu.
4. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

Hearing Impaired

Allows you to show more information in subtitles for the hearing-impaired in some programmes (for DTV channels only if available).

1. Press the Menu button then press the ◀▶ buttons to select the SETUP menu.
2. Press the ▲▼buttons to select Hearing Impaired and then press the OK button to select On / Off and return to the previous menu.
3. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

PVR File System (DTV Mode)

Allows you to select your preferences in the PVR File System.

1. Press the Menu button then press the ◀▶ buttons to select the SETUP menu.
2. Press the ▲▼ buttons to select PVR File System and then press the OK button.

Select Disk	Select the disk where you want to store your recorded content.
Check PVR File System	Press the OK button, the system will now check your USB device's suitability for PVR. The system will show "Checking". Upon the completion the system will show either "SUCCESS" or "FAIL".

USB Disk

If no USB storage device is connected, it will show "No USB Device". If the Check PVR File System has a "SUCCESS" it will show "Pass".

Format

Press the OK button, a File System Size menu will pop-up. Press the ◀▶ buttons to select your preferred file type between FAT32 and Hi Speed FS. If you select Hi Speed FS, press the ▼ button and then press the ◀▶ buttons to select your preferred file size. Press the OK button to confirm and then press the ◀ button to start formatting. This may take awhile depending on the size of your USB storage device.

Time Shift Size

After formatting the Time Shift Size menu will appear if you have selected Hi Speed FS in PVR File System Type. Press the ◀▶ buttons to select your preferred file size. Press the OK button to confirm.This option cannot be chosen if you have selected FAT32 in PVR File System Type.

Speed	This shows you the transfer rate of your USB storage device.
Free Record Limit	Press the ◀▶ buttons to set the recording time limit from 1-4 hours.

1. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

Aspect Ratio

Allows you to watch the screen in various picture formats: 4:3 / 16:9 / Zoom1 / Zoom2.

1. Press the Menu button then press the ◀▶ buttons to select the SETUP menu.
2. Press the ▲▼ buttons to select Aspect Ratio and then press the OK button.
3. Press the ▲▼ buttons to change the following settings and then press the OK button to confirm to return to previous menu.

Alternative

You may press the P button twice and then press the ◀▶ buttons to select the aspect ratio directly.

	Input Signal 4:3		Input Signal 16:9
4:3	This selection will allow you to view a picture with an original 4:3 aspect ratio. Black bars will appear on both the left and right of the screen.		This selection will allow you to adjust the picture horizontally, in linear proportion. Black bars will appear on both the left and right of the screen.
16:9	This selection will allow you to adjust the picture horizontally, in linear proportion, to fill the entire screen.		This selection will allow you to view a picture with an original 16:9 aspect ratio.
Zoom1	This selection will allow you to zoom in the picture without any alteration, while filling the entire screen. However, the top and bottom of the picture will be cropped.		This selection will allow you to zoom in the picture without any alteration, while the 4 sides of the picture will be cropped.
Zoom2	This selection is similar to 16:9 mode, but the picture slightly stretches vertically and clips off a little from the top and bottom.		This selection is similar to 16:9 mode, but the picture slightly stretches vertically and clips off a little from the top and bottom.
Just scan (in HDMI mode only)	This selection will detect the resolution of the HDMI signal and display an image. with the same number of pixels		This selection will detect the resolution of the HDMI signal and display an image. with the same number of pixels

1. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

Blue Screen

Allows the blue background to turn On or Off during weak or no signal conditions.

1. Press the Menu button then press the ◀▶ buttons to select the SETUP menu.
2. Press the ▲▼ buttons to select Blue Screen and then press the OK button to select On / Off.
3. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

Fist Time Installation

Restores all settings to the factory defaults.

1. Press the Menu button then press the ◀▶ buttons to select the SETUP menu.

2. Press the ▲▼ buttons to select First Time Installation and then press the OK button.

3. Press the ▲◀▶▼ buttons to navigate the menu and change the settings. Press the OK button to confirm.

Country

Select the country where you will operate the TV. The default country is set as UK.

1. Channel tuning will commence. This operation may take up to 10 minutes. The display will show the progress of the tuning and the number of channels found.

2. After tuning is complete, the channels are arranged and stored in the broadcaster's preset order.

DVD SETUP

Setup the DVD menu.

Reset Factory Default

Restores all settings to the factory defaults.

1. Press the Menu button then press the ◀▶ buttons to select the SETUP menu.

2. Press the ▲▼ buttons to select Reset and then press the OK button.

3. Press the ◀ button to select "Yes". The TV will return to the first time installation menu. Press the ▶ button to select "No" to cancel and return to the main menu.

All channel and user settings will be lost and the TV will revert to "First Time Installation".

Software Update (USB)

This function is only for servicing purposes.

Any update information for this TV (if any) will be available at our UK Call Centre on 0845 6040105.

EPG (Electronic Programme Guide) (DTV Mode)

This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options.

The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster).

This function can be used only when the EPG information is broadcast by broadcasting companies.

The EPG displays the programme details for the next 7 days.

Switch On / Off EPG

1. Press the GUIDE button to switch on EPG.
2. Press the GUIDE button or the — Exit button again to switch off EPG and return to normal TV viewing.

Select a Programme

Press the ▲▼ buttons to select the desired channel. Press the OK button to confirm.

Button Functions in a 7 Days Guide

Remote Control Button	Function
RED (Record)	Timer ProgrammingSee page 39-40 for details on Timer Programming.Press the RED button in the Schedule List to delete the selected preset reminder.
GREEN (Display)	Press to display detailed information of the selected programme (if available).
YELLOW (Schedule)	Press the YELLOW button to view the preset reminders or scheduled recordings in the Schedule List.
BLUE (Remind)	Press the BLUE button while on the selected programme, the Reminder setting menu will be displayed.Press the ▲◀▶▼ buttons to adjust the settings and then press the OK button to confirm the settings. After confirmation, the Schedule list will then be displayed with your preset reminders shown. Press the GREEN button to return to the EPG. The TV will automatically tune to the selected programme when it starts.
▲ or ▼	Press to select a channel.
◀◀ or ▶◀	Press to view the schedule of the previous / next day.
OK	Press to confirm and view the selected channel.
←→ Exit	Press to switch off the EPG.

Teletext (ATV Mode)

Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index.

To Turn on Teletext Function

Make sure the TV channel you are watching transmits teletext.

"No Teletext" sign will show on the screen if teletext is not available.

In ATV mode, press the TEXT button to enter Teletext mode.

Press the TEXT button three times to exit and the TV will return to the channel you were watching.

To select a page of text

Find the number of the page in the index and enter it using the 0-9 buttons. The number of the page will appear on the top left corner of the screen.

The page counter will search for your page. When it finds it, the page will be displayed.

To move to the next page of text, press the ▲ button.

To move to the previous page, press the ▼ button.

Mix

To view a page of text while watching a TV programme, press the TEXT button twice. The text will be superimposed over the TV programme.

Fasttext

At the bottom of the teletext screen is a row of subject headings in red, green, yellow and blue.

The remote control has a row of colour buttons corresponding to the row of coloured subjects on the screen.

Pressing one of the colour buttons will take you directly to the page corresponding to the subject heading.

Digital Teletext (DTV Mode)

Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. You will need to turn off Subtitle Function before using teletext.

Teletext within Digital Service

1. Press the TEXT button to display the teletext page. If no Teletext service is available, a "No Teletext" message will be displayed.
2. Press the 0-9 buttons to select a page number.
3. Follow the instructions on digital teletext and move onto the next step by pressing OK, ▲◀▶▼, RED, GREEN, YELLOW, BLUE or 0-9 buttons etc.
4. To change digital teletext service, select a different service by pressing the 0-9 buttons or the ▲▼ buttons.

Alternative

You may press the RED button to the TEXT button to display the teletext information when you see a ● red logo displayed on the screen (e.g. BBC).

1. Press the TEXT button to exit.

2. Switch off the TV before connecting any USB storage device.

3. Connect your USB storage device to the USB port of your TV.
4. Plug the connected devices into the mains socket
5. Press the STANDBY button at the front right side of the TV or the ⏻ button on the remote control to turn on your TV.
6. Press the SOURCE button at the front right side of the TV or the SOURCE button on the remote control to display the Source List. Use the ▲▼ buttons to select USB and then press the OK button to confirm.

• If a hard disk is used, make sure its mains adapter is connected to the mains supply.
• If a USB hub is used, make sure its mains adapter is connected to the mains supply as the total current consumption may exceed 500mA.
  • The maximum supported storage space of the hard disk is 1 TB.
  • The file system only supports HiSpeed FS, FAT16, FAT32, NTFS formats (NTFS Compressed files are not supported).
• If you want to store the video streaming of a DTV programme, the transfer rate of the USB storage device must not be less than 5MB/s, otherwise the picture and sound of the programme will be affected and a warning statement will be shown on the screen. If this happens, please upgrade your USB storage device.
• The TV screen will be blank temporarily as it will take time to start up and stabilise the connected hard disk. This is normal and the starting time may vary depending on the brand and the memory size of the connected hard disk.
• Disconnect the USB storage device if it is not in use.

• USB output: DC 5V = \$500mA

Viewing Photos

1. Press the SOURCE button at the front right side of the TV or the SOURCE button on the remote control and then press the ▲▼ buttons to select the USB mode and then press the OK button to display the root menu.
2. Press the ◀▶ buttons to select PHOTO and then press the OK button.
3. Press the ◀▶ buttons to select your storage device and then press the OK button.

File format supported: JPG / JPEG / BMP / PNG.

1. Press the ▲◀▶▼ buttons to navigate in the picture folder and then press the OK button. Select the picture file and then press the OK button to view. If you need to delete the file, press the RED button and then press the ◀ button to confirm.

1. Press the Info button or the OK button to display the function bar. Press the ◀▶ buttons and then press the OK button to select the function: Play / Prev. / Next / Stop / Repeat All / Music / Playlist / Info / Rotate clockwise / Rotate anti-clockwise / Zoom In / Zoom Out / Move View.

Exterior view of a historic domed building with arched colonnades and columns, surrounded by trees (no visible text or signage)

If this folder also contains music files. You can select a music track to play at the same time while viewing your photo.

1. Press the Exit button to return back to the previous menu and to select another file to play. Press the Exit button repeatedly to return to the root menu.

Listening to Music

1. Press the SOURCE button at the front right side of the TV or the SOURCE button on the remote control and then press the ▲▼ buttons to select the USB mode and then press the OK button to display the functions bar.
2. Press the ◀▶ buttons to select MUSIC and then press the OK button.

1. Press the ◀▶ buttons to select your storage device and then press the OK button.

1. Press the ▲◀▶▼ buttons to navigate in the music folder and then press the OK button. Select the music you want to play and then press the OK button to play it. If you need to delete the file, press the RED button and then press the ◀ button to confirm.

• Some audio file formats will not be supported.
  • Supported file formats: MP3 / WMA / AAC / AC3.

• Select the music you want to play, it will show the music information (Album / Title / Bit Rate / Artist / Sampling / Year / Size).

• Press the ◀▶ buttons and then press the OK button to select the function: Pause / FB / FF / Prev / Next / Stop / Repeat All / MUTE/ Playlist / Info. / Goto Time.
• Press the Exit button to return back to the previous menu and to select another file to play. Press the Exit button repeatedly to return to the root menu.

Watching Movies

1. Press the SOURCE button at the front right side of the TV or the Source button on the remote control and then press the ▲▼ buttons to select the USB mode and then press the OK button to display the root menu.
2. Press the ◀▶ buttons to select MOVIE and then press the OK button.

1. Press the ◀▶ buttons to select your storage device and then press the OK button.

1. Press the ▲◀▶▼ buttons to navigate in the movie folder. Select the movie file and then press the OK button to view. If you need to delete the file, press the RED button and then press the ◀ button to confirm.

• Some audio file formats will not be supported.
  • Supported file formats: MPEG1/2 / MPEG4 / DivX / H.264.

• Press the Info button or the OK button to display the function bar. Press the ◀▶ buttons and then press the OK button to select the function: Pause / FB / FF / Prev. / Next / Stop / Repeat All / Set A / Playlist / Slow Forward / Step Forward / Goto Time / Zoom in / Zoom out / Aspect Ration.

• Press the Exit button to return back to the previous menu and to select another file to play. Press the Exit button repeatedly to return to the root menu.

Viewing Texts

1. Press the SOURCE button at the front right side of the TV or the Source button on the remote control and then press the ▲▼ buttons to select the USB mode and then press the OK button to display the root menu.
2. Press the ◀▶ buttons to select TEXT and then press the OK button.
3. Press the ◀▶ buttons to select your storage device and then press the OK button.
4. Press the ▲◀▶▼ buttons to navigate in the text folder. Select the text file and then press the OK button to view. If you need to delete the file, press the RED button and then press the ◀ button to confirm.
5. Press the Info button or the OK button to display the function bar. Press the◀▶buttons and then press the OK button to select the function: Prev. page / Next page / Prev. / Next / Stop / Music / Playlist / Info.
6. Press the Exit button to return back to the previous menu and to select another file to play. Press the Exit button repeatedly to return to the root menu.

If this folder also contains music files. You can select a music track to play at the same time while viewing your text.

This function allows the TV to virtually record the live viewing broadcast programme.

• Time Shift Mode and Recording functions may not work if the signal strength is weak.
- Stop the time-shift function before switching to another input source.

If the transfer rate of the USB storage device is too slow for recording or time shift function, a warning statement will be shown on the screen. If this happens, please upgrade your USB storage device.

During normal TV viewing, you may press the ▶ button to virtually pause the live viewing broadcast programme if you want to go out for a while (e.g. going to the bathroom / kitchen). "II" will show on the screen.

Alternative

Press the OK button to display the PVR Time Shift progress bar and then press the ◀▶ buttons to select "▶ Play" on the bar. Press the OK button to confirm.

When you have returned, press the ▶ button to play the missed broadcast programme. "s" will show on the screen.

There may be a few seconds delay in video and sound when the unit starts to playback the missed broadcast programme. It will return to normal.

The 'PVR Time Shift Progress Bar'

1 Indicates the status of the currently displayed video (▶ / II / ◀◀/▶▶)
2 Indicates the time lagging behind the live broadcast (DVR reviewing)
3 Indicates the available recording time on your USB storage device
4 Indicates the current time

Using the Remote Control

You can shift playback to any point of the virtually recorded programme. The PVR Time Shift progress bar will be displayed on the screen for 15 seconds. Press the OK button to display the PVR Time Shift progress bar again.

▶	·During playback, press the ▶ button to display a still screen and then press the ▶ button again to resume playback.·During fast forward / fast backward state, press the ▶ button to return to normal playback.
◀◀ or ▶◀	When playing,·Press the ◀◀ button repeatedly to speed up ◀◀ x 2 / x 4 / x 8 / x 16.·Press the ▶◀ button repeatedly to speed up ▶◀ x 2 / x 4 / x 8 / x 16.·During fast forward / fast backward state, press the ▶ button to return to normal playback.
◀◀ or ▶◀	·Press the ▶◀ button to jump about 10% forward.·Press the ◀◀ button to jump about 10% back.
OK	During playback, press the OK button to display a still screen and then press the ▶ button again to resume playback.
■	If you want to exit the PVR Time Shift progress bar and return to the current live broadcast, press the ■ button and then press the ◀ button to confirm.

Recording DTV Programme onto a USB Storage Device

Use this function to record the DTV programme you are watching on the main screen and save them for future viewing.

Make sure that your connected USB storage device has enough available memory space.

1. Press the Rec button to record the programme that you are currently watching.

The recording progress bar will disappear after 15 seconds. To display the recording progress bar again, press the OK button or the Rec button

1. Press the ■ Stop button to stop recording.

Recording will stop automatically when the disk is full.

Exterior view of a historic stone church with a conical spire, captured in black and white (no visible text or symbols)

Timer Programming

This function is used to perform scheduled recording.

1. Press the EPG button on the remote control. The PROGRAMME GUIDE menu will appear.

1. Press the Rec button or the RED button on the remote control while on the selected programme, the RECORDER menu will be displayed. Press the ▲◀▶▼ buttons to select the settings in the RECORDER menu for the Channel, Start time, End time and Mode.

Start time(for Mode Once, Every Day, Weekly)	Press the ▲▼ buttons to select the Minutes / Hour / Month / Date and then press the ◀▶ buttons to adjust the start time.
End time(for Mode Once, Every Day, Weekly)	Press the ▲▼ buttons to select the Minutes / Hour / Month / Date and then press the ◀▶ buttons to adjust the end time.
Mode	Press the ◀▶ buttons to select the Once / Every Day / Weekly.

1. After finishing all the recorder adjustments, press the OK button to confirm your settings. A Timer Save Success screen will display.

1. The Schedule List will then be displayed with your preset reminders shown.
2. Press the YELLOW button to return to the EPG.
3. Press the Exit button to exit EPG.

• When the preset time is reached, the TV will start recording automatically.
• If a programme recording starts when the TV is in standby mode, the LED indicator will alternately flash red and green.

Schedule List 15:20-19th Mar Delete Back
	Time	Date	Programme Title	ChannelItems

Play Recorded Programme

You can play a recorded programme from the recorded programme list or from a USB Storage Device.

1. Press the SOURCE button at the front right side of the TV or the SOURCE button on the remote control and then press the ▲▼ buttons to select the USB mode and then press the OK button.
2. Press the ◀▶ buttons to select MOVIE and then press the OK button.

1. Press the ◀▶ buttons to select your storage device and then press the OK button.

1. Press the ▲◀▶▼ buttons to select the "MY PVR" folder and then press the OK button. Press the ▲◀▶▼ buttons to navigate in the "MY PVR" folder. Select your recorded programme and then press the OK button to view.

Basic Operation

Press the Power button on the TV or the remote control, and select "DVD" source by the TV/AV(SOURCE).

If there is no disc in the DVD player the screen will show "NO DISC".

Insert Disc according to picture next to disc slot.

Do not touch the playing surface.

Hold the disc around the outside with your fingers and place the disc into the slot. The player will automatically draw the disc into the player.

To "Eject" the disc, press the "▲" button.

DVD Setup Menu

• Setup Mode provides the menu for the configuration of General Setup Page, Audio Setup Page, Dolby Digital, Setup, Preference Page.
• Item selection in the Setup Menu is done by using the Navigation Arrows, SETUP button and the OK button.

Enter the DVD Setup menu

Press MENU button on the remote control and select OPTIONS menu as below, then select DVD Setup, press the OK button to enter the DVD main menu as below.

Exit the DVD Setup menu

Select the "Exit Setup" item in the General Setup menu of DVD setup menu, and press OK button twice to exit the DVD Setup menu.

General Setup

TV Display

• 4:3 Pan Scan

This is selected when the DVD player is connected to a normal TV. Wide-screen images are shown on the screen, but with some parts cut automatically.

• 4:3 Letter Box

This is selected when the player is connected to a normal TV. Wide-screen images are shown on the screen, with black belt on the top and bottom.

- Wide

This is selected when the player is connected to a wide-screen TV.

OSD Language

This is used to select the OSD language.

Screen Saver

Start the screen saver, the screen saver image will appear when the player stops or the picture is paused for a few minutes. This saver can keep the screen from being damaged.

• ON (start the screen saver)
- Off (Turn off the screen saver)

Last Memory

This setting enables you to watch the DVD from the last point it was turn off, (for example changing the source to watch TV)

ON (Activate the lastmemory function)

Off (Deactivate the lastmemory function)

Audio Setup

- Speaker Setup

In the Audio Setup page press the (▼) button to select the Speaker Setup option, then press OK on the remote control to see the Speaker Setup options.

Downmix

• LT/RT A disc recorded multi channel soundtrack, the output signal will be incorporated to left and right channel.
• Stereo A disc recorded multi channel soundtrack, the output signal will be incorporated to stereo.

Dolby Digital Setup

Dynamic

This option is used to set the compression ratio in order to control the sound (Volume) contrast.

Preference Setup

You must press STOP twice to enter the Preference settings.

TV Type

• PAL This is selected when the player is connected to a PAL System TV.
• Multi The player will set the TV system according to the disc in the tray.
• NTSC This is selected when the player is connected to a NTSC System TV.

Audio

If a language listed below is recorded on the disc, you can play the sound in that language. If not, the language recorded will be used.

Subtitle

If a language listed below is recorded on the disc, you can set the subtitle to be displayed in that language. If not, the language recorded will be used.

Disc Menu

If a language listed below is recorded on the disc, you can set the Menu to be displayed in that language. If not, the language recorded will be used.

Parental

When playing disc with parental lock function, you may select an Age Conrtol Grade according to grade of disc and your own preference. For example, if PG is selected, DVD Video disc rated higher than the PG grade cannot be played.

The user can change the password that is required when the user wants to change the Age Control Guide in the Parental Lock function.

Note: Default password is 123456.

Default

The user can load the original factory setting by choose Reset and press OK button.

Disc Care

About Disc Terms

Title

Generally, pictures or music compressed on a DVD are divided into several sections, "title".

Chapter

The smaller section unit of picture or music in a DVD under the title, usually one title is comprised of one or more chapters and each of them is numbered for easy searching, but some discs may not have a recording chapter.

Track

A segment of picture or music on a CD, each track is numbered for searching.

Care of Disc

Video disc contains high-density compressed data that needs proper handling.

1. Hold the disc with fingers by outer edge and/or the center spindle hole. Do not touch the discs surface.

2. Do not bend or press the disc.

1. Do not expose the disc to direct sunlight or heating sources, stere discs in cabinet vertically, and in dry condition.

Prevent exposure to:

Direct sunlight

Heat or exhaust from a heating device

Extreme humidity

Clean the disc surface with a soft, dry cleaning cloth, wipe the disc surface gently and radically from center toward the outer edge.

Do not apply thinner, alcohol, chemical solvent, or sprays when cleaning. such cleaning fluids will permanently damage the disc surface.

DVD-Signal: NTSC, PAL (Regionalcode 2)

Caution:

This unit is a class 1 laser product. However this unit uses a visible laser beam which could cause hazardous radiation exposure if directed. Be sure to operate the player correctly as instructed.

The audio function does not work.
Picture OK but no sound	Press the VOL + / - buttons.Sound muted? Press the Mute button.Try another channel. The problem may be caused by the broadcaster.
No output from one of the speakers	Adjust the Balance settings in the SOUND menu.
Unusual sound from Inside the TV	A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV.
No sound when connecting HDMI	Check if the input source is HDMI.
Audio noise	Keep the RF coaxial cable away from the other connected cables.
Password
Lost password	Select the Set Password setting in the LOCK menu, then enter the following master password "4711". The master password clears your previous password and allows you to enter a new password.
There is a problem in PC mode.
The signal is out of range (Invalid format)	Adjust the resolution, horizontal frequency, or vertical frequency.
Vertical bar or stripe on background & Horizontal Noise & Incorrect position	Use Auto configure or adjust clock, phase, or H/V position.
Screen colour is unstable or single colour	Check the signal cable.Reinstall the PC video card.
FAQs (Frequently Asked Questions)
Why have I lost some / all of my channels?	It happens sometimes, if you have a weak signal. Usually it just means you'll need to rescan your digital box or TV. Don't worry, it easy to do. And once you've done it, you should get all the Freeview channels available to you. If problems persist you may need to get your aerial checked. Talk to your retailer or contact your local aerial installer.
Why do I get 'blocking' on my digital picture?	In most cases, blocking is caused by a reception problem – either the signal is too weak or there is some kind of interference. Talk to your retailer or contact your local aerial installer.Blocking can also be caused by a digital signal that is too strong. If you are still experiencing blocking and the signal is strong, consult your local aerial installer for advice.
Can I watch Freeview using a portable set-top aerial?	Some, but only a few, homes may be able to use a set top aerial. However, for a much better reception, we strongly recommend that you use a rooftop aerial.If you do not have access to a rooftop aerial – for example, if you rent a flat and the aerial is the responsibility of your landlord, or if you're using a second TV in the bedroom and don't want the hassle and expense of using extension cables, a set – top aerial may be your only option.
What type of aerial do I need?	If you are installing a new aerial, we recommend a wideband rooftop aerial rather than a loft aerial. Loft aerials generally receive a weaker digital signal and are more likely to get interference from other electrical devices in the home. We suggest you have an aerial survey done before getting an aerial upgrade.Talk to your retailer or contact your local aerial installer.

The screen resolution has been optimised during production for the display modes listed below.

YPbPr Mode

Resolution	Vertical Frequency (Hz)	Aspect Ratio
480i: 720 x 480	60	4:3 / 16:9 / Zoom1 / Zoom2
480P: 720 x 480
576i: 720 x 576	50
576P: 720 x 576
720P: 1280 x 720	50
	60
1080i : 1920 x 1080	50
	60
1080P: 1920 x 1080	50
	60

PC Mode

Please check the display settings of your computer before connecting to the TV. If the display setting of your computer does not match the TV, there may be no video.

Resolution	Vertical Frequency (Hz)	Aspect Ratio
640 x 480	60	4:3 / 16:9
	72
	75
800 x 600	60
	72
	75
1024 x 768	60
	70
	75
1440 x 900	60
1920 x 1080	60

HDMI Mode

Resolution	Vertical Frequency (Hz)	Aspect Ratio
480i: 720 x 480	60	4:3 / 16:9 / Zoom1 / Zoom2 /Just Scan
480P: 720 x 480
576i: 720 x 576	50
576P: 720 x 576
720P: 1280 x 720	50
	60
1080i : 1920 x 1080	50
	60
1080P: 1920 x 1080	50
	60

Specifications

Model	C19EFF-LED	C22EFF-LED	C24EFF-LED
Panel System	18.5 inch LED Panel	21.5 inch LED Panel	23.6 inch LED Panel
Display Resolution	1366 (H) x 768(V) pixels 1920 (H) x 1080(V) pixels 1920 (H) x 1080(V) pixels
Television System	PAL I / BG / DK / SECAMBG / DK	PAL I / BG / DK / SECAMBG / DK	PAL I / BG / DK / SECAMBG / DK
Brightness	200 cd/m2	200 230m2	cd/m2
Contrast Ratio 1000:1		600:1 1000:1
Power Source	100-240V~50/60Hz	100-240V~50/60Hz	100-240V~50/60Hz
Energy Efficiency Class	B B B
Screen Size (measured diagonally)	Approx. 47 (18.5 inch)	Approx. 55 (21.5 inch) 60 (23.6inch) x. cm
Power Consumption	32 W	38 W	44 W
Average Annual Energy Consumption	35.04 kWh	43.8 kWh	51.1 kWh
Standby Power Consumption	0.5 W	0.5 W 0.5 W
Operating Temperature	0°C - 40°C	0°C - 40°C	0°C - 40°C
Vesa Wall mounting size / Screw size	100 x 100mm / M4 x 12	100 x 100mm / M4x 12	100 x 100mm / M4 x 12
Speaker Power	3W + 3W 3W + 3W 3W + 3W
Dimension (W x D x H)without base	438 x 50 x 275 mm	503 x 50 x 312 mm	552 x 50 x 340 mm
Dimension (W x D x H) with base	438 x 165 x 310 mm	503 x 165 x 342 mm	552 x 165 x 370 mm
Weight (Net)	2.9 kg	3.2 kg	4.0 kg
Inputs / Output
SCART	1
HDMI	1
PC	1
PC AUDIO	1
YPbPr	1
Common Interface (AUDIO IN)	1
AV	1
USB	1
DIGITAL (Coaxial)	1
RF (75 Ω)	1
Earphone (3.5mm)	1

Features and specifications are subject to change without prior notice.

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
  • This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

- To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.

- If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

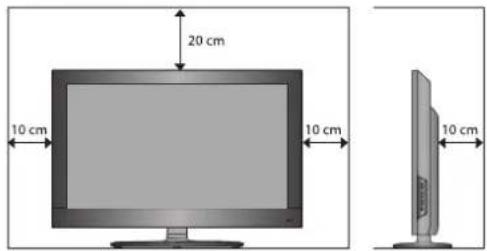

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
- Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.
• Make sure that there is a gap of at least 10 cm on both sides and a gap of 20 cm at the top.

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
- Unplug the unit from the mains socket during a lightning storm.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Optimum viewing

- View the unit in moderate light to prevent eye strain. It is recommended to watch the unit from a distance 3-7 times that of the screen height.

LED screen

- The LED screen is manufactured using high-precision technology. However, some tiny black points and / or bright points (red, blue or green in colour) may constantly appear on the LED screen. These points are generated in the manufacturing process and are normal.

Screen Burn

• A characteristic of Plasma and LED TV Panels is that displaying the same image for a long time may cause a permanent after-image to remain on the screen. This is called screen burn. Most pictures shown on the unit will be constantly moving and fill the screen.
  • Examples of images that you need to watch out for are as follows (this is not an all-inclusive list):

• Black Bars: If black bars appear at the left / right or top / bottom of the screen, it is recommended to change the format so that the picture fills the entire screen.

• TV Channel Logos: e.g. Shopping channel logos and pricing displays - especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.

3. Time Displays

1. Teletext: Do not view a stationary page for long periods of time.

5. TV Menus

1. Pause Mode: Do not leave the screen in pause mode for long periods of time, e.g. when watching videos.

- To prevent screen burn if viewing any of the above for long periods of time, reduce contrast and brightness when viewing. Once burn-in occurs it will never disappear completely.

Headphones

• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
• Before putting on headphones, turn the volume down then put the headphones on and slowly increase the volume until you reach a comfortable listening level.

Standby

- The ⏻ button on the remote control does not switch off the unit completely. The unit will continue to draw electricity from the mains supply while in standby. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit in standby while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

Important Note

This TV is fitted with the latest ECO friendly power saving technology. If whilst viewing the TV remote control is not used for a period of 4 hours, the Auto Standby feature will operate and power down the TV. A warning message will be displayed to inform you that the TV is about to power down.

Packaging materials are not toys. Please keep away from children. Plastic bags can cause suffocation when pulled over the head.

Waste Electrical Recycling

Correct disposal of Product

This sign indicates that this product may not be disposed of with your regular household waste. The recycling and separate collection of such products is your responsibility. Please drop off the above mentioned waste at a designated place for recycling waste electrical and electronic equipment. If you do not know where to drop off your waste equipment for recycling, please contact your local city office or household waste collection service.

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemicals symbols for lead(Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased this product.

This appliance complies with European Safety and Electrical directives.

It fullfils the following EU regulations:

EN 55022:2006+A1:2007
EN 55013:2001+A1:2003+A2:2006
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN 55024:1998+A1:2001+A2:2003
EN 55020:2007
