XD95U - Projector MITSUBISHI - Free user manual and instructions

Product Type	DLP Data Projector
Model	Mitsubishi XD95U
Display Technology	1-Chip DMD
Native Resolution	1024 x 768 (XGA)
Lamp Type	200 W Lamp
Lamp Life (Normal Mode)	Up to 3000 hours
Brightness	Not specified (typical 2000-3000 ANSI lumens for this class)
Contrast Ratio	Not specified
Lens	F/2.56-2.67, f=21.36-23.45 mm
Keystone Correction	Manual vertical keystone adjustment via OSD or remote
Zoom Ratio	1.1x (manual zoom ring)
Projection Distance (100-inch screen)	3.8 m (Wide) to 4.2 m (Tele)
Input Terminals	1x VGA (D-Sub 15-pin), 1x S-Video (Mini DIN), 1x Composite Video (RCA), 1x RS-232 control port, 1x Component Video (via VGA adapter)
Power Supply	AC 100-240V, 50/60 Hz, 2.9A
Power Consumption	285 W (Max)

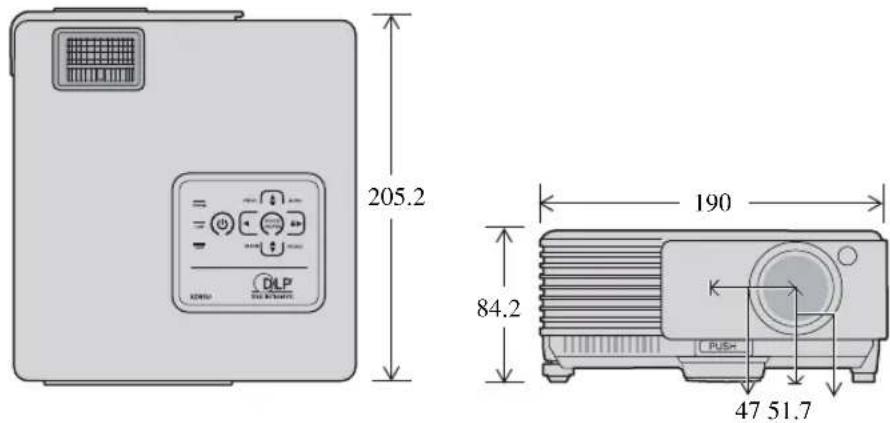

Dimensions (W x H x D)	190 x 84.2 x 205.2 mm
Weight	1.5 kg (3.3 lbs)
Operating Temperature	0°C to 35°C at sea level
Operating Humidity	10% to 90% (non-condensing)
Included Accessories	AC power cord, remote control with battery, VGA cable, soft carry case, CD-ROM, safety manual/quick start guide
Replacement Lamp	VLT-XD95LP
Cleaning Lens	Use lens-cleaning paper or soft cloth with lens cleaner
Cleaning Case	Soft, lint-free cloth with water and neutral detergent; avoid solvents
Safety Features	Automatic shutdown if overheated; password protection; panel key lock; Kensington security slot

Frequently Asked Questions - XD95U MITSUBISHI

How do I turn on the Mitsubishi XD95U projector?

Plug in the power cord, remove the lens cap, and press the Power button on the projector or remote control. The POWER indicator will flash green and then stay green when the projector is on. The startup takes about 30 seconds.

How do I clean the lens?

Use a can of compressed air to remove dust. For smears, moisten lens-cleaning paper or a soft cloth with lens cleaner and wipe gently. Never use abrasive materials.

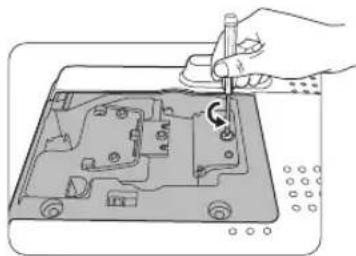

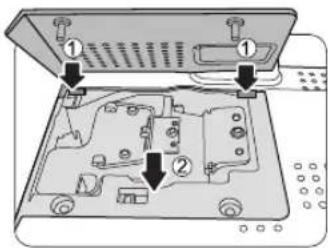

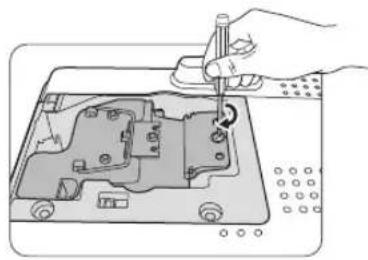

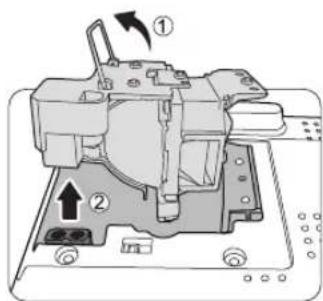

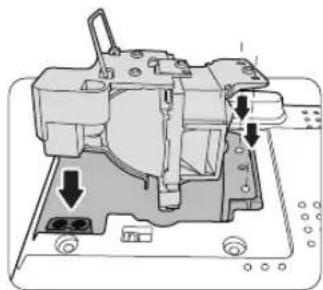

How do I replace the lamp?

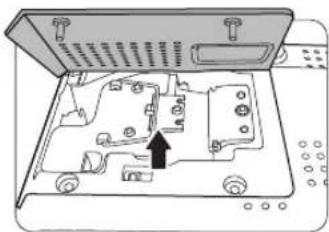

Turn off the projector, unplug it, and wait at least 45 minutes for the lamp to cool. Remove the lamp cover, loosen the lamp screw, pull out the old lamp using the handle, insert the new lamp (VLT-XD95LP), tighten the screw, replace the cover, and reset the lamp timer in the OSD menu.

How do I adjust keystone correction?

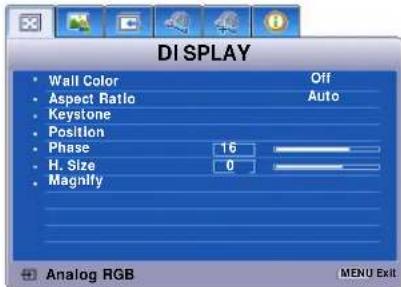

Press the Keystone button on the remote or navigate to DISPLAY > Keystone in the OSD menu. Use the arrow keys to correct the trapezoidal distortion. The value can be adjusted from 0 to ± some range.

How do I connect my computer to the projector?

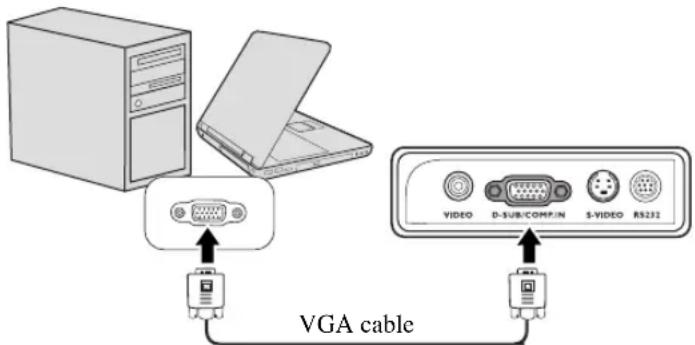

Use the supplied VGA cable. Connect one end to your computer's VGA output and the other end to the D-SUB/COMP. IN port on the projector. If the computer does not output video, press the appropriate function key (e.g., FN+F3 or CRT/LCD) on your laptop.

Why is there no picture?

Check that the video source is turned on and connected correctly. Ensure the lens cap is removed. Press the SOURCE button to select the correct input. If using a computer, make sure the external output is activated. Also check the power cord and wall outlet.

How do I set a password to prevent unauthorized use?

Go to SYSTEM SETUP: Advanced > Security Settings > Power on lock. Turn it on and enter a six-digit password using the arrow keys (1,2,3,4 correspond to up/down/left/right). Confirm the password. The projector will then require this password at startup.

How do I reset the lamp timer after replacement?

After replacing the lamp, go to SYSTEM SETUP: Advanced > Lamp Settings > Reset lamp timer. Press MODE/ENTER and confirm. This resets the hour counter to zero. Do not reset unless the lamp is new.

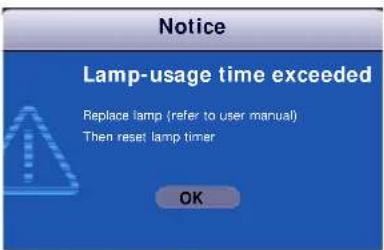

What does the LAMP indicator light mean?

If the LAMP indicator lights red, it may indicate the lamp is at the end of its life, or there is a lamp error. Check the lamp hours in the INFORMATION menu. If over 3000 hours, replace the lamp. If the lamp is hot, the projector may have shut down; wait for it to cool.

How do I clean the projector case?

First, turn off the projector and unplug it. Use a soft, lint-free cloth dampened with water and a neutral pH detergent to wipe the case. Never use alcohol, benzene, thinner, or abrasive cleaners.

USER MANUAL XD95U MITSUBISHI

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOITURE.

CAUTION:

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

NOTE:

SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.

WARNING

Use the attached specified power supply cord. If you use another power supply cord, it may cause interference with radio and television reception.

Use the attached RGB cable with this equipment so as to keep interference within the limits of an FCC Class B device.

This apparatus must be grounded.

DO NOT LOOK DIRECTLY INTO THE LENS WHEN THE PROJECTOR IS IN THE POWER ON MODE.

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

The attached power cord is to be used exclusively for this product. Never use it for other products.

When using the projector in Europe: COMPLIANCE NOTICE

This Projector complies with the requirements of the EC Directive 2004/108/EC "EMC Directive" and 2006/95/EC "Low Voltage Directive".

The electro-magnetic susceptibility has been chosen at a level that gains proper operation in residential areas, on business and light industrial premises and on small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterized by their connection to the public low voltage power supply system.

WARNING

Use the attached RGB cable with this equipment so as to keep interference within the limits of an EN55022 Class B device.

Please follow WARNING instructions.

Note: This symbol mark is for EU countries only.

This symbol mark is according to the directive 2002/96/EC Article 10 Information for users and Annex IV, and/or to the directive 2006/66/EC Article 20 Information for end-users and Annex II.

Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be recycled and/or reused.

This symbol means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste. If a chemical symbol is printed beneath the symbol shown above, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows:

Hg: mercury (0,0005%), Cd: cadmium (0,002%), Pb: lead (0,004%)

In the European Union there are separate collection systems for used electrical and electronic products, batteries and accumulators.

Please, dispose of this equipment, batteries and accumulators correctly at your local community waste collection/recycling centre.

Please, help us to conserve the environment we live in!

WARNING

• The lens cap is for protecting the lens. If you leave the lens cap on the lens with the projector turned on, it may be deformed because of heat build-up. Remove the lens cap when you turn on the projector.
• One of power cords for the U.S., Europe and U.K. is provided appropriately.
• This projector uses the power plug of three-pin grounding type. Do not remove the grounding pin from the power plug. If the power plug doesn't fit your wall outlet, ask an electrician to change the wall outlet.
• In case that the power cord for the U.S. is provided with this projector, never connect this cord to any outlet or power supply using other voltages or frequencies than rated. If you want to use a power supply using other voltage than rated, prepare an appropriate power cord separately.

• Use 100-240 V AC 50/60 Hz to prevent fire or electric shock.

• Do not place any objects on the power cord or do not place the projector near heat sources to prevent damage to the power cord. If the power cord should be damaged, contact your dealer for replacement because it may cause fire or electric shock.

• Do not modify or alter the power cord. If the power cord is modified or altered, it may cause fire or electric shock.

Important safeguards .... 5

Projector exterior view 7

Controls and functions 8

Positioning your projector 11

Connection....14

Operation 17

Adjusting the projected image 21

Optimizing the image 24

Menu operation....30

Maintenance....35

Lamp information 36

Indicators 40

Troubleshooting....41

Specifications....42

Declaration of Conformity

Model Number : XD95U

Trade Name : MITSUBISHI ELECTRIC

Responsible party : Mitsubishi Digital Electronics America, Inc.

9351 Jeronimo Road, Irvine, CA 92618 U.S.A

Telephone number : [phone]

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Trademark, Registered trademark

Macintosh is registered trademark of Apple Computer Inc.

DLP™, Digital Micromirror Device, DMD, and BrilliantColor™ are all trademarks of Texas Instruments.

Microsoft or Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Other brand or product names are trademarks or registered trademarks of their respective holders.

Please read all these instructions regarding your projector and retain them for future reference. Follow all warnings and instructions marked on the projector.

1. Read instructions

All the safety and operating instructions should be read before the appliance is operated.

1. Retain instructions

The safety and operating instructions should be retained for future reference.

1. Warnings

All warnings on the appliance and in the operating instructions should be adhered to.

1. Instructions

All operating instructions must be followed.

1. Cleaning

Unplug this projector from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.

1. Attachments and equipment

Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.

1. Water and moisture

Do not use this projector near water or in contact with water.

1. Accessories

Do not place this projector on an unstable cart, stand, tripod, bracket or table. Use only with a cart, stand, tripod bracket, or table recommended by the manufacturer or sold with the projector. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

Symbolic illustration of a person pushing a large cart through a ring, enclosed in a circle (no text or symbols)

An appliance and cart combination should be moved with care.

Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn.

1. Ventilation

Slots and openings in the cabinet are provided for ventilation, ensuring reliable operation of the projector and to protect it from overheating. Do not block these openings or allow them to be blocked by placing the projector on a bed, sofa, rug, or bookcase. Ensure that there is adequate ventilation and that the manufacturer's instructions have been adhered to.

1. Power sources

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power, please consult your appliance dealer or local power company.

1. Power-cord protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles, and points where they exit from the appliance. Do not put the power cord under a carpet.

1. Overloading

Do not overload wall outlets and extension cords as this can result in a fire or electric shock.

1. Objects and liquids

Never push objects of any kind through openings of this projector as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

1. Servicing

Do not attempt to service this projector yourself. Refer all servicing to qualified service personnel.

1. Damage requiring service

Unplug this projector from the wall outlet and refer servicing to qualified service personnel under the following conditions:

(a) If the power-supply cord or plug is damaged.

(b) If liquid has been spilled, or objects have fallen into the projector.

(c) If the projector does not operate normally after you follow the operating instructions. Adjust only those controls that are covered by the operating instructions. An improper adjustment of other controls may result in damage and may often require extensive work by a qualified technician to restore the projector to its normal operation.

(d) If the projector has been exposed to rain or water.

(e) If the projector has been dropped or the cabinet has been damaged.

(f) If the projector exhibits a distinct change in performance - this indicates a need for service.

1. Replacement parts

When replacement parts are required, be sure that the service technician has used replacement parts specified by the manufacturer or parts having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

1. Safety check

Upon completion of any service or repair to this projector, ask the service technician to perform safety checks determining that the projector is in a safe operating condition.

WARNING:

Unplug immediately if there is something wrong with your projector.

Do not operate if smoke, strange noise or odor comes out of your projector. It may cause fire or electric shock. In this case, unplug immediately and contact your dealer.

Never remove the cabinet.

This projector contains high voltage circuitry. An inadvertent contact may result in an electric shock. Except as specifically explained in User Manual, do not attempt to service this product by yourself. Please contact your dealer when you want to fix, adjust, or inspect the projector.

Do not modify the projector.

It can lead to fire or electric shock.

Do not keep using the damaged projector.

If the projector is dropped and the cabinet is damaged, unplug the projector and contact your dealer for inspection. It may lead to fire if you keep using the damaged projector.

Do not face the projection lens to the sun.

It can lead to fire.

Use correct voltage.

If you use incorrect voltage, it can lead to fire.

Do not place the projector on uneven surface.

Place the projector on a level and stable surface only.

Do not look into the lens when the projector is operating.

It may hurt your eyes. Never let children look into the lens when the projector is on.

Do not unplug the power cord during operation.

It can lead to lamp breakage, fire, electric shock or other trouble. Wait for the fan to stop before unplugging the power cord.

Do not touch the air outlet grilles and bottom plate.

Do not touch them or put other equipment close to the air outlet grilles because they become hot during operation. The heated air outlet grilles and bottom plate may cause injury or damage to other equipment. Also, do not put the projector on a desk that is easily affected by heat.

Do not look into the air outlet grilles when projector is operating.

Heat, dust, etc. may blow out of them and hurt your eyes.

Do not block the air inlet and outlet grilles.

If they are blocked, heat may be generated inside the projector, causing deterioration in the projector quality and fire.

Do not use flammable solvents (benzene, thinner, etc.) and flammable aerosols near the projector.

Flammable substances may ignite causing fire or breakdown because the temperature inside the projector rises very high while the lamp is illuminating.

Do not use the projector with condensation on it.

It can lead to breakdown or other failure.

Place of installation

For safety's sake, do not use the projector at any place subjected to high temperature and high humidity. Please maintain an operating temperature, humidity, and altitude as specified below.

- Operating temperature: between +41°F (+5°C) and +95°F (+35°C)

- Operating humidity: between 30% and 90%

- Never put any heat-producing device under the projector to prevent the projector from being overheated.

- Do not install the projector at a place that is unstable or subject to vibration.

- Do not install the projector near any equipment that produces a strong magnetic field. Also refrain from installing the projector near any cable carrying a large amount of current.

- Place the projector on a solid, vibration-free surface. Otherwise it may fall, causing serious injury or damage.

- Do not stand the projector on its end. It may fall, causing serious injury or damage.

- Slanting the projector more than ± 10^ (right and left) or ± 15^ (front and rear) may cause trouble or explosion of the lamp.

- Do not place the projector near air-conditioning unit, heater, or humidifier to avoid hot or moist air to the exhaust and ventilation hole of the projector.

COMPLIANCE NOTICE OF FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced Radio / TV technician for help.

Changes or modifications not expressly approved by Mitsubishi could void the user's authority to operate this equipment.

COMPLIANCE NOTICE OF INDUSTRY CANADA

This Class B digital apparatus complies with Canadian ICES-003.

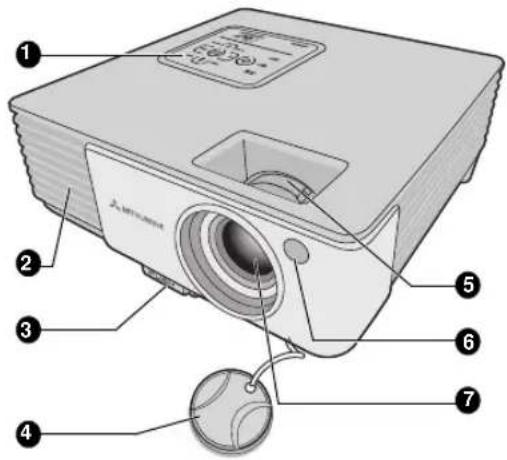

Front/upper side

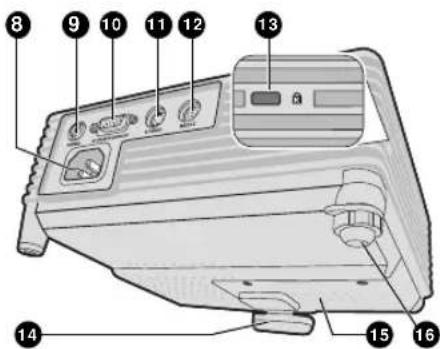

Rear/lower side

1. External control panel (See "Projector" on page 8 for details.)
2. Vent (heated air exhaust)
3. Quick-release button
4. Lens cover
5. Focus ring and Zoom ring
6. Front IR remote sensor

7. Projection lens

8. AC power cord inlet

9. Video input socket
10. RGB (PC)/Component Video (YPbPr/ YCbCr) signal input socket
11. S-Video input socket
12. RS-232 control port
13. Kensington Lock
14. Quick-release foot
15. Lamp cover
16. Rear adjuster foot

Kensington Lock

This projector has a Kensington Security Standard connector for use with Kensington MicroSaver Security System. Refer to the information that came with the Kensington System for instructions on how to use it to secure the projector. Please contact Kensington Technology Group below. Kensington Technology Group 2855 Campus Drive San Mateo, CA 94403, U.S.A. Phone: +1- [phone] Fax: +1- [phone]

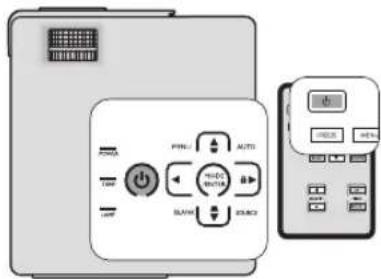

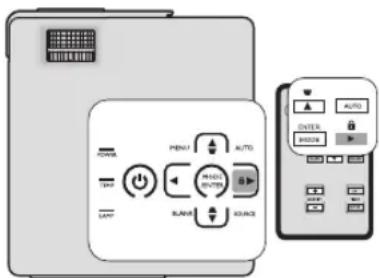

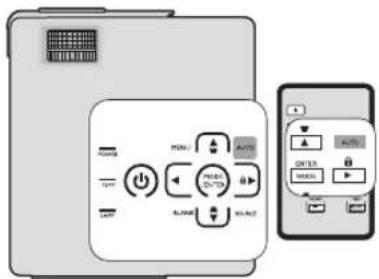

Projector

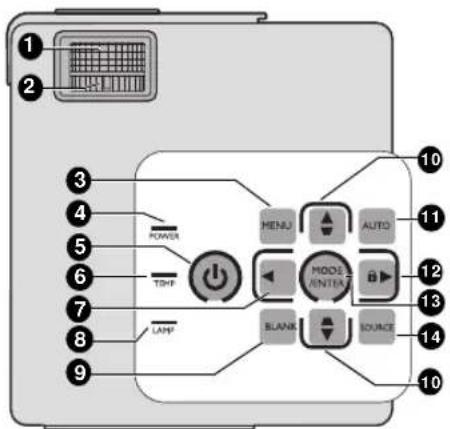

1. Focus ring

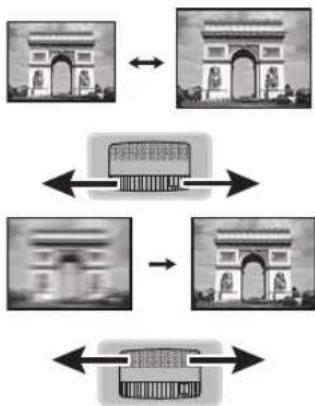

Adjusts the focus of the projected image. See "Fine-tuning the image size and clarity" on page 21 for details.

2. Zoom ring

Adjusts the size of the image. See "Fine-tuning the image size and clarity" on page 21 for details.

3. MENU

Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings. See "Using the menus" on page 18 for details.

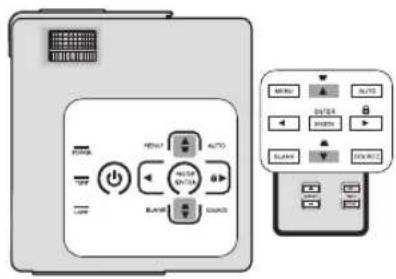

4. POWER indicator light

Lights up or flashes when the projector is under operation. See "Indicators" on page 40 for details.

5. Power

Toggles the projector between standby mode and on. See "Starting up the projector" on page 17 and "Shutting down the projector" on page 29 for details.

6. TEMPerature indicator light

Lights up red if the projector's temperature becomes too high. See "Indicators" on page 40 for details.

7. Left

Selects the desired menu items and makes adjustments. See "Using the menus" on page 18 for details.

8. LAMP indicator light

Indicates the status of the lamp. Lights up or flashes when the lamp has developed a problem. See "Indicators" on page 40 for details.

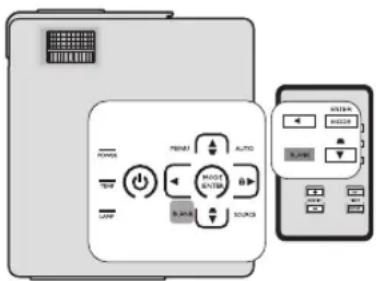

9. BLANK

Used to hide the screen picture. See "Hiding the image" on page 28 for details.

10. Keystone/Arrow keys (/Up, ▲Down) ▼

Manually corrects distorted images resulting from an angled projection. See "Correcting keystone" on page 22 for details.

11. AUTO

Automatically determines the best picture timings for the displayed image. See "Auto-adjusting the image" on page 21 for details.

12. Right/

Activates panel key lock. See "Locking control keys" on page 28 for details.

When the On-Screen Display (OSD) menu is activated, the #7, #10, and #12 keys are used as directional arrows to select the desired menu items and to make adjustments. See "Using the menus" on page 18 for details.

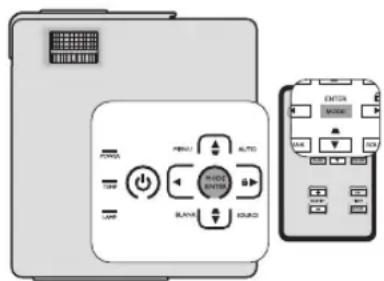

13. MODE/ENTER

Selects an available picture setup mode. See "Selecting a picture mode" on page 24 for details.

Enacts the selected On-Screen Display (OSD) menu item.

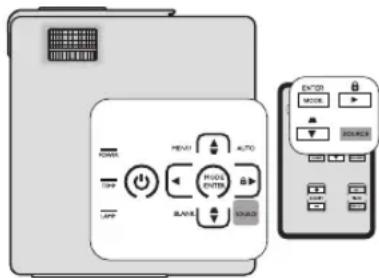

14. SOURCE

Displays the source selection bar. See "Switching input signal" on page 20 for details.

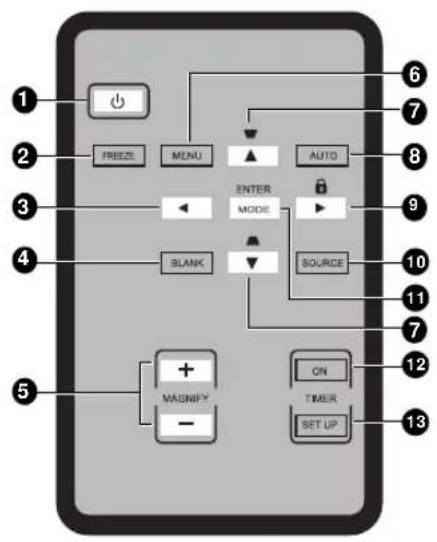

Remote control

1. Power

Toggles the projector between standby mode and on. See "Starting up the projector" on page 17 and "Shutting down the projector" on page 29 for details.

2. FREEZE

Freezes the projected image. See "Freezing the image" on page 28 for details.

3. Left

Selects the desired menu items and makes adjustments. See "Using the menus" on page 18 for details.

4. BLANK

Used to hide the screen picture. See "Hiding the image" on page 28 for details.

5. MAGNIFY keys (+, -)

Magnifies or reduces the projected picture size. See "Magnifying and searching for details" on page 22 for details.

6. MENU

Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings. See "Using the menus" on page 18 for details.

7. Keystone/Arrow keys (/Up /Down) ▼

Manually corrects distorted images resulting from an angled projection. See "Correcting keystone" on page 22 for details.

8. AUTO

Automatically determines the best picture timings for the displayed image. See "Auto-adjusting the image" on page 21 for details.

9. Right/

Activates panel key lock. See "Locking control keys" on page 28 for details.

When the On-Screen Display (OSD) menu is activated, the #3, #7 and #9 keys are used as directional arrows to select the desired menu items and to make adjustments. See "Using the menus" on page 18 for details.

10. SOURCE

Displays the source selection bar. See "Switching input signal" on page 20 for details.

11. MODE/ENTER

Depending upon which input signal is selected, selects an available picture setup mode. See "Selecting a picture mode" on page 24 for details.

Enacts the selected On-Screen Display (OSD) menu item.

12. TIMER ON

Activates or displays an on-screen timer based on your own timer setting. See "Setting the presentation timer" on page 27 for details.

13. TIMER SET UP

Enters presentation timer setting directly. See "Setting the presentation timer" on page 27 for details.

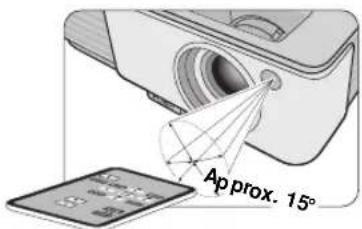

Remote control effective range

Infra-Red (IR) remote control sensor is located on the front of the projector. The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not exceed 8 meters (\~ 26 feet).

Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.

Replacing the remote control battery

1. Pull out the battery holder.

Please follow the illustrated instructions. Push and hold the locking arm while pulling out the battery holder.

1. Insert the new battery in the holder. Note the positive polarity should face outward.
2. Push the holder into the remote control.

- Use of a battery of wrong type may cause explosion. Use Sony battery, type CR2025 only.

• Dispose of used batteries according to your local regulations. Discard used battery promptly. Batteries may explode if mistreated. Do not recharge, disassemble, or dispose of in fire.

• Be careful in handling the battery according to the instructions.

• Load the battery with its positive (+) and negative (-) sides correctly oriented as indicated on the remote control.

• Keep batteries out of reach of children and pets.
• Remove the battery if the remote control is not used for a long time.
• Keep battery in original package until ready to use. Keep out reach of children.
• Never put battery in mouth for any reason as it can easily be accidentally swallowed. If battery is accidentally swallowed, contact your physician or your poison control center.

Choosing a location

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

Your projector is designed to be installed in one of the possible installation locations:

1. Front Table

Select this location with the projector placed near the floor in front of the screen. This is the most common way to position the projector for quick setup and portability.

Simple line drawing of a simple pendulum setup with a person silhouette and a table (no text or symbols)

2. Rear Table

Select this location with the projector placed near the floor behind the screen.

Note that a special rear projection screen is required.

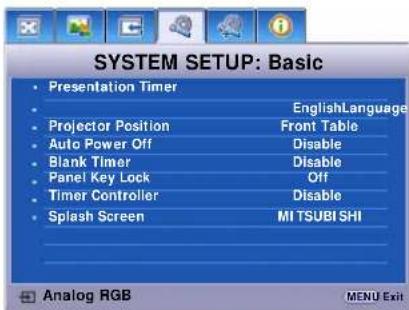

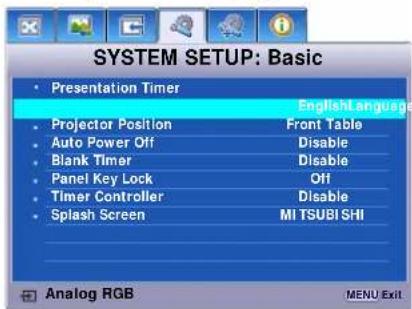

Set Rear Table in the SYSTEM SETUP: Basic > Projector Position menu after you turn the projector on.

Simple line drawing of a person observing a simple pendulum setup with a bench and tower (no text or symbols)

Obtaining a preferred projected image size

The distance from the projector lens to the screen, the zoom setting (if available), and the video format each factors in the projected image size.

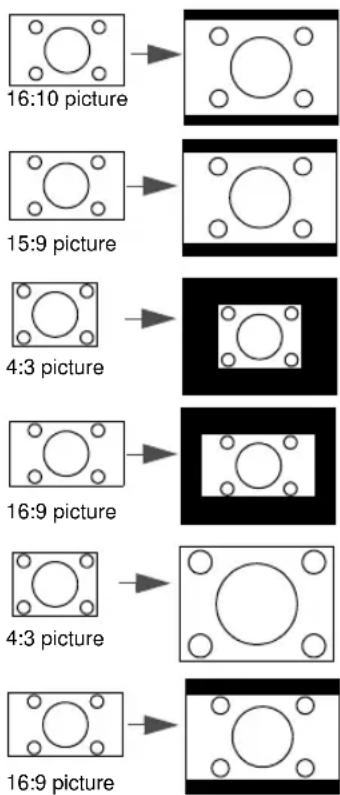

4:3 is the native aspect ratio of this projector. To be able to project a complete 16:9 (widescreen) aspect ratio image, the projector can resize and scale a widescreen image to the projector's native aspect width. This will result in a proportionally smaller height equivalent to 75% of the projector's native aspect height.

4:3 aspect image in a 4:3 aspect display area

16:9 aspect image scaled to a 4:3 aspect display area

Thus, a 16:9 aspect image will not utilize 25% of the height of a 4:3 aspect image displayed by this projector. This will be seen as darkened (unlit) bars along the top and bottom (vertical 12.5% height respectively) of the 4:3 projection display area whenever displaying a scaled 16:9 aspect image in the vertical center of the 4:3 projection display area.

The projector should always be placed horizontally level (like flat on a table), and positioned directly perpendicular (90° right-angle square) to the horizontal center of the screen. This prevents image distortion caused by angled projections (or projecting onto angled surfaces).

The modern digital projector does not project directly forward (like older style reel-to-reel film projectors did). Instead, digital projectors are designed to project at a slightly upward angle above the horizontal plane of the projector. This is so that they can be readily placed on a table and will project forward and upwards onto a screen positioned so that the bottom edge of the screen is above the level of the table (and everyone in the room can see the screen).

You can see from the diagram on page 13, that this type of projection causes the bottom edge of the projected image to be vertically offset from the horizontal plane of the projector.

If the projector is positioned further away from the screen, the projected image size increases, and the vertical offset also increases proportionately.

When determining the position of the screen and projector, you will need to account for both the projected image size and the vertical offset dimension, which are directly proportional to the projection distance.

Mitsubishi has provided a table of 4:3-aspect-ratio screen sizes to assist you in determining the ideal location for your projector. There are two dimensions to consider, the perpendicular horizontal distance from the center of the screen (projection distance), and the vertical offset height of the projector from the horizontal edge of the screen (offset).

How to determine the position of the projector for a given screen size

1. Select your screen size.
2. Refer to the table and find the closest match to your screen size in the left columns labeled "Screen". Using this value, look across this row to the right to find the corresponding average distance from screen value in the column labeled "Distance from the screen". This is the projection distance.
3. On that same row, look across to the right column and make note of the "Hd" value. This will determine the final vertical offset placement of the projector in relation to the edge of the screen.
4. The recommended position for the projector is aligned perpendicular to the horizontal center of the screen, at the distance from the screen determined in step 2 above, and offset by the value determined in step 3 above.

For example, if you are using a 100-inch screen, distance from the screen is 3.8 m and with a vertical offset of 19 cm at Zoom position wide.

If you place the projector in a different position (to that recommended), you will have to tilt it down or up to center the image on the screen. In these situations, some image distortion will occur. Use the Keystone function to correct the distortion. See "Correcting keystone" on page 22 for details.

How to determine the recommended screen size for a given distance

This method can be used for situations where you have purchased this projector and would like to know what screen size will fit in your room.

The maximum screen size is limited by the physical space available in your room.

1. Measure the distance between the projector and where you want to position the screen. This is the projection distance.
2. Refer to the table and find the closest match to your measurement in the distance from the screen column. If the min and max values are available on the table, check that your measured distance is between the min and max distances listed on either side of the average distance value.
3. Using this value, look across that row to the left to find the corresponding "Screen". That is the projected image size of the projector at that projection distance.
4. On that same row, look across to the right column and make note of the "Hd" value. This will determine the final placement of the screen in relation to the horizontal plane of the projector.

For example, if your measured projection distance was 4.0 m, the closest match in the "Distance from the screen" column is from 3.8m to 4.2m. Looking across this row shows that a 100-inch screen is required.

Layout of the projector

Image size varies depending on the distance between the screen and the projector.

Front projection

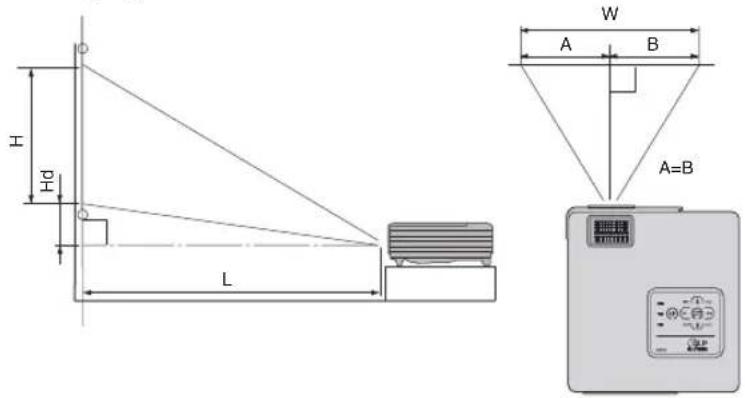

L : Between the screen and the front edge of the projector Hd : Height of the projected image

(Standard)

Screen Distance from the screen : L										Hd
Diagonal Size W Width : W Height : H Shortest (WIDE) Longest (TELE)
inch cm	inch cm	inch cm	inch m inch	m inch	cm
40 102	32 81 24	61 61 1.5 67	1.7 3 8
60 152	48 122 36	91 91 2.3	100	2.5	5	11
80	203	64	163	48	122	121	3.1	133	3.4	6	15
100	254	80	203	60	152	151	3.8	167	4.2	8	19
150	381	120	305	90	229	227	5.8	250	6.3	11	29
200	508	160	406	120	305	303	7.7	-	-	15	38

(16:9)

Screen Distance from the screen : L										Hd
Diagonal Size W Width : W Height : H Shortest (WIDE) Longest (TELE)
inch cm	inch cm	inch cm	inch m inch	inch m inch	cm
40 102	35 89 20	50 66 1.7 73	1.9 7	18
60 152	52 133 29	75 99 2.5	109	2.8	11 27
80	203	70	177	39	100	132	3.4	146	3.7	14	36
100	254	87	221	49	125	166	4.2	182	4.6	18	45
150	381	131	332	74	187	248	6.3	273	6.9	26	67
200	508	174	443	98	249	331	8.4	-	-	35	90

There is 3% tolerance among these numbers due to optical component variations. Mitsubishi recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in suit before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

When connecting a signal source to the projector, be sure to:

1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.

In the connections shown below, some cables may not be included with the projector. They are commercially available from electronics stores.

Connecting a computer

The projector provides a VGA input socket that allows you to connect it to both IBM® compatibles and Macintosh® computers. A Mac adapter is needed if you are connecting legacy version Macintosh computers.

To connect the projector to a notebook or desktop computer:

1. Take the supplied VGA cable and connect one end to the D-Sub output socket of the computer.
2. Connect the other end of the VGA cable to the D-SUB/COMP. IN signal input socket on the projector.

The final connection path should be like that shown in the following diagram:

Notebook or desktop computer

Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.

Connecting Video source devices

You can connect your projector to various Video source devices that provide any one of the following output sockets:

• Component Video
  • S - V i d e o
• Video (composite)

You need only connect the projector to a Video source device using just one of the above connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the Video source device as described below:

Best video quality

The best available video connection method is Component Video (not to be confused with composite Video). Digital TV tuner and DVD players output Component Video natively, so if available on your devices, this should be your connection method of choice in preference to (composite) Video.

See "Connecting a Component Video source device" on page 15 for how to connect the projector to a component video device.

Better video quality

The S-Video method provides a better quality analog video than standard composite Video. If you have both composite Video and S-Video output terminals on your Video source device, you should elect to use the S-Video option.

See "Connecting an S-Video source device" on page 15 for how to connect the projector to an S-Video device.

Least video quality

Composite Video is an analog video and will result in a perfectly acceptable, but less than optimal result from your projector, being the least video quality of the available methods described here.

See "Connecting a composite Video source device" on page 16 for how to connect the projector to a composite Video device.

Connecting a Component Video source device

Examine your Video source device to determine if it has a set of unused Component Video output sockets available:

• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a Component Video source device:

1. Take a Component Video to VGA (D-Sub) adaptor cable and connect the end with 3 RCA type connectors to the Component Video output sockets of the Video source device. Match the color of the plugs to the color of the sockets; green to green, blue to blue, and red to red.
2. Connect the other end of the Component Video to VGA (D-Sub) adaptor cable (with a D-Sub type connector) to the D-SUB/COMP. IN socket on the projector.

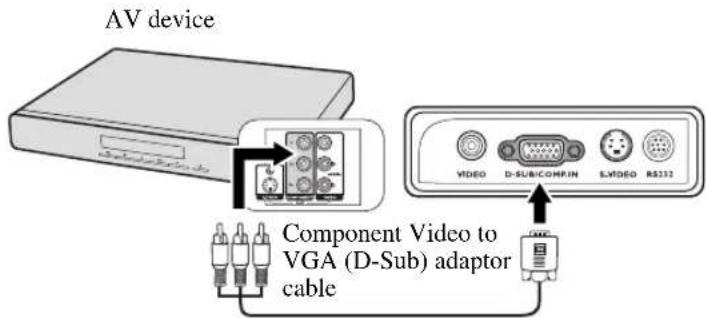

The final connection path should be like that shown in the following diagram:

If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

Connecting an S-Video source device

Examine your Video source device to determine if it has an unused S-Video output socket available:

• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to an S-Video source device:

1. Take an S-Video cable and connect one end to the S-Video output socket of the Video source device.
2. Connect the other end of the S-Video cable to the S-VIDEO socket on the projector.

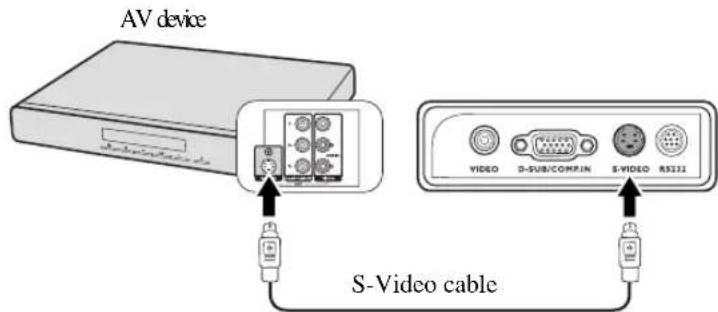

The final connection path should be like that shown in the following diagram:

- If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

- If you have already made a Component Video connection between the projector and this S-Video source device, you need not connect to this device using an S-Video connection as this makes an unnecessary second connection of poorer picture quality. See "Connecting Video source devices" on page 14 for details.

Connecting a composite Video source device

Examine your Video source device to determine if it has a set of unused composite Video output sockets available:

• If so, you can continue with this procedure.
  • If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a composite Video source device:

1. Take a Video cable and connect one end to the composite Video output socket of the Video source device.
2. Connect the other end of the Video cable to the VIDEO socket on the projector.

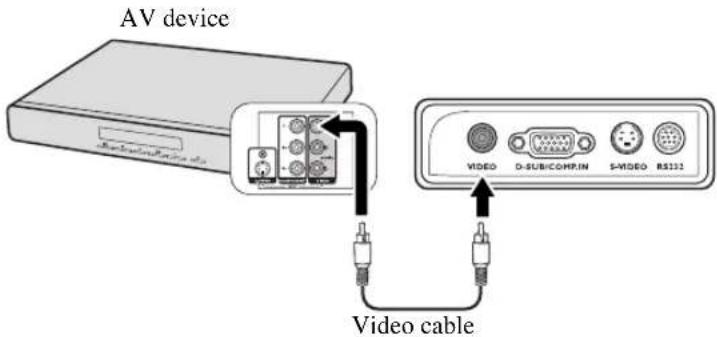

The final connection path should be like that shown in the following diagram:

• If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.
• You need only connect to this device using a composite Video connection if Component Video and S-Video inputs are unavailable for use. See "Connecting Video source devices" on page 14 for details.

Starting up the projector

1. Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted). Check that the POWER indicator light on the projector lights orange after power has been applied.

- Ask your installation specialist to provide an Earth leakage breaker. When you do not use the projector, be sure to shut down the main power by the breaker.

1. Remove the lens cap. If it is closed, it could become deformed due to the heat produced by the projection lamp.

2. Press ⏻ Power on the projector or remote control to start the projector. The POWER indicator light flashes green and stays green when the projector is on.

The start up procedure takes about 30 seconds. In the later stage of start up, a startup logo is projected.

(If necessary) Rotate the focus ring to adjust the image clearness.

- If the projector is still hot from previous activity, it will run the cooling fans for approximately 90 seconds before energizing the lamp.

• To maintain the lamp life, once you turn the projector on, wait at least 5 minutes before turning it off.

Diagram showing a cable being inserted into an electronic device (no text or symbols visible)

Close-up of hands holding a circular knob with a lens, no visible text or symbols

1. If you are prompted for a password, press the arrow keys to enter a six-digit password. See "Utilizing the password function" on page 19 for details.

2. Switch all of the connected equipment on.

3. The projector will start to search for input signals. The current input signal being scanned displays in the upper left corner of the screen. If the projector doesn't detect a valid signal, the message 'No Signal' will continue displaying until an input signal is found.

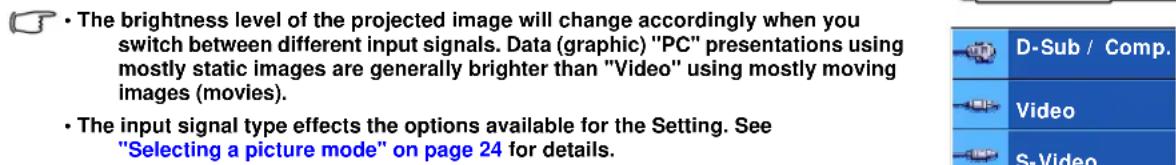

You can also press SOURCE on the projector or remote control to select your desired input signal. See "Switching input signal" on page 20 for details.

If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the message 'Out of Range' displayed on a blank screen. Please change to an input signal which is compatible with the projector's resolution or set the input signal to a lower setting. See "Timing chart" on page 43 for details.

Using the menus

The projector is equipped with On-Screen Display (OSD) menus for making various adjustments and settings.

Below is the overview of the OSD menu.

To use the OSD menus, please set them to your familiar language first.

1. Press MENU on the projector or remote control to turn the OSD menu on.

1. Use / to highlight the SYSTEM SETUP: Basic menu.

1. Press to highlight Language and press / to select a preferred language.

1. Press MENU twice* on the projector or remote control to leave and save the settings.

*The first press leads you back to the main menu and the second press closes the OSD menu.

Utilizing the password function

For security purposes and to help prevent unauthorized use, the projector includes an option for setting up password security. The password can be set through the On-Screen Display (OSD) menu. For details of the OSD menu operation, please refer to "Using the menus" on page 18.

You will be inconvenienced if you activate the power-on lock functionality and subsequently forget the password. Print out this manual (if necessary) and write the password you used in this manual, and keep the manual in a safe place for later recall.

Setting a password

Once a password has been set, the projector cannot be used unless the correct password is entered every time the projector is started.

1. Highlight Power on lock and select On by pressing ◀/▶.
2. As pictured to the right, the four arrow keys ( , ,▲ ) respectively represent 4 digits (1, 2, 3, 4). According to the password you desire to set, press the arrow keys to enter six digits for the password.

3. Confirm the new password by re-entering the new password. Once the password is set, the OSD menu returns to the Security Settings page.

4. Open the OSD menu and go to the SYSTEM SETUP: Advanced > Security Settings menu. Press MODE/ENTER. The Security Settings page displays.

The digits being input will display as asterisks on-screen. Write your selected password down here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it.

Password: ____

Keep this manual in a safe place.

1. To leave the OSD menu, press MENU.

If you forget the password

If the password function is activated, you will be asked to enter the six-digit password every time you turn on the projector. If you enter the wrong password, the password error message as pictured to the right displays lasting for three seconds, and the message 'INPUT PASSWORD' follows. You can retry by entering another six-digit password, or if you did not record the password in this manual, and you absolutely do not remember it, you can use the password recall procedure. See "Entering the password recall procedure" on page 19 for details.

If you enter an incorrect password 5 times in succession, the projector will automatically shut down in a short time.

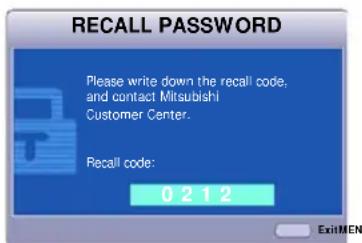

Entering the password recall procedure

1. Press and hold AUTO on the projector or remote control for 3 seconds. The projector will display a coded number on the screen.
2. Write down the number and turn off your projector.
3. Please obtain a password using the Mitsubishi Password Decoder Software Operation Manual included in this CD.

Changing the password

1. Open the OSD menu and go to the SYSTEM SETUP: Advanced > Security Settings > Change password menu.
2. Press MODE/ENTER. The message 'INPUT CURRENT PASSWORD' displays.
3. Enter the old password.

• If the password is correct, another message 'INPUT NEW PASSWORD' displays.
- If the password is incorrect, the password error message displays lasting for three seconds, and the message 'INPUT CURRENT PASSWORD' displays for your retry. You can press MENU to cancel the change or try another password.

1. Enter a new password.

The digits being input will display as asterisks on-screen. Write your selected password down here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it.

Password: ____ ____ ____

Keep this manual in a safe place.

1. Confirm the new password by re-entering the new password.
2. You have successfully assigned a new password to the projector. Remember to enter the new password next time the projector is started.
3. To leave the OSD menu, press MENU.

Disabling the password function

To disable password protection, go back to the SYSTEM SETUP: Advanced > Security Settings > Power on lock menu after opening the OSD menu system. Select Off by pressing ◀ /▶ . The message 'INPUT PASSWORD' displays. Enter the current password.

• If the password is correct, the OSD menu returns to the Security Settings page with 'Off' shown in the row of Power on lock. You will not have to enter the password next time you turn on the projector.
• If the password is incorrect, the password error message displays lasting for three seconds, and the message 'INPUT PASSWORD' displays for your retry. You can press MENU to cancel the change or try another password.

Though the password function is disabled, you need to keep the old password in hand should you ever need to re-activate the password function by entering the old password.

Switching input signal

The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

Be sure the Quick Auto Search function in the SOURCE menu is On (which is the default of this projector) if you want the projector to automatically search for the signals.

You can also manually cycle through the available input signals.

1. Press SOURCE on the projector or remote control. A source selection bar displays.
2. Press ▲ /▼ until your desired signal is selected and press MODE/ENTER.

Once detected, the selected source information will display on the screen for seconds. If there is multiple equipment connected to the projector, repeat steps 1-2 to search for another signal.

- The brightness level of the projected image will change accordingly when you switch between different input signals. Data (graphic) "PC" presentations using mostly static images are generally brighter than "Video" using mostly moving images (movies).

• The input signal type effects the options available for the Setting. See "Selecting a picture mode" on page 24 for details.
• The native display resolution of this projector is in a 4:3 aspect ratio. For best display picture results, you should select and use an input signal which

outputs at this resolution. Any other resolutions will be scaled by the projector depending upon the 'aspect ratio' setting, which may cause some image distortion or loss of picture clarity. See "Selecting the aspect ratio" on page 23 for details.

Adjusting the projection angle

The projector is equipped with 1 quick-release adjuster foot and 1 rear adjuster foot. These adjusters change the image height and projection angle. To adjust the projector:

1. Press the quick-release button and lift the front of the projector. Once the image is positioned where you want it, release the quick-release button to lock the foot in position.

2. Screw the rear adjuster foot to fine tune the horizontal angle.

To retract the foot, hold up the projector while pressing the quick-release button, then slowly lower the projector. Screw the rear adjuster foot in a reverse direction.

If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image becomes trapezoidal. To correct this situation, see "Correcting keystone" on page 22 for details.

Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyes.

- Be careful when you press the adjuster button as it is close to the exhaust vent where hot air comes from.

Auto-adjusting the image

In some cases, you may need to optimize the picture quality. To do this, press AUTO on the projector or remote control. Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust the values of Frequency and Clock to provide the best picture quality.

The current source information will be displayed in the upper left corner of the screen for 3 seconds.

- The screen will be blank while AUTO is functioning.

- This function is only available when a PC signal (analog RGB) is selected.

Fine-tuning the image size and clarity

1. Adjust the projected image to the size that you need using the zoom ring.

1. Then sharpen the image by rotating the focus ring.

Correcting keystone

Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. It occurs when the projector is not perpendicular to the screen.

To correct this, besides adjusting the height of the projector, you will need to manually correct it following one of these steps.

• Using the remote control

Press □ on the projector or remote control to display the Keystone correction page. Press □ to correct keystoning at the top of the image. Press □ to correct keystoning at the bottom of the image.

• Using the OSD menu

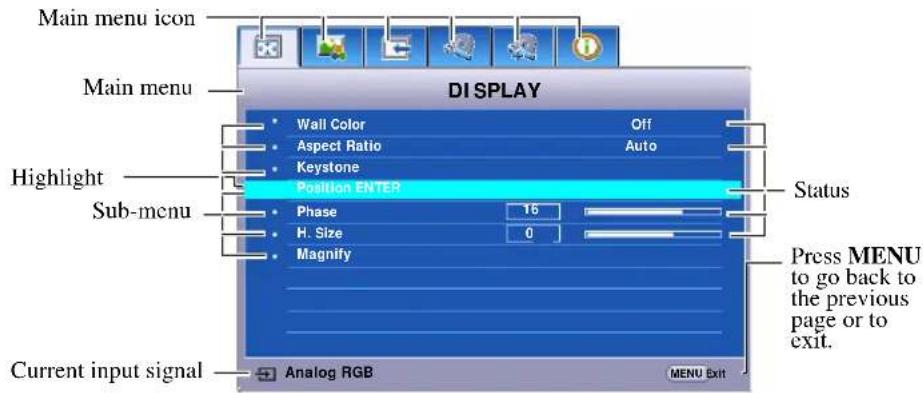

1. Press MENU and then press ◀/▶ until the DISPLAY menu is highlighted.

2. Press ▼ to highlight Keystone and press MODE/ENTER. The Keystone correction page displays.

3. Press to correct keystoning at the top of the image or press to correct keystoning at the bottom of the image.

Magnifying and searching for details

If you need to find the details on the projected picture, magnify the picture. Use the direction arrow keys for navigating the picture.

• Using the remote control

1. Press MAGNIFY +/- to display the Zoom bar.

2. Press MAGNIFY + to magnify the center of the picture. Press the key repeatedly until the picture size is suitable for your need.

3. Use the directional arrows ( , ,▲ ) on the projector or remote control to navigate the picture.

4. To restore the picture to its original size, press AUTO. You can also press MAGNIFY -. When the key is pressed again, the picture is further reduced until it is restored to the original size.

• Using the OSD menu

1. Press MENU and then press ◀ /▶ until the DISPLAY menu is highlighted.
2. Press ▼ to highlight Magnify and press MODE/ENTER. The Zoom bar displays.
3. Repeat steps 2-4 in the section of "Using the remote control" above. Or if you are using the projector control panel, continue to the following steps.
4. Press on the projector repeatedly to magnify the picture to a desired size.
5. To navigate the picture, press MODE/ENTER to switch to the panning mode and press the directional arrows (▲, ▼) to navigate the picture.
6. Use the directional arrows (▲, ▼, ◀, ▶) on the projector or remote control to navigate the picture.
7. To reduce size of the picture, press MODE/ENTER to switch back to the zoom in/out functionality, and press AUTO to restore the picture to its original size. You can also press ▼ repeatedly until it is restored to the original size.

The picture can only be navigated after the picture is magnified. You can further magnify the picture while searching for details.

Selecting the aspect ratio

The 'aspect ratio' is the ratio of the image width to the image height. Most analog TV and computers are in 4:3 ratio, which is the default for this projector, and digital TV and DVDs are usually in 16:9 ratio.

With the advent of digital signal processing, digital display devices like this projector can dynamically stretch and scale the image output to a different aspect than that of the image input signal.

To change the projected image ratio (no matter what aspect the source is):

1. Press MENU and then press ◀/▶ until the DISPLAY menu is highlighted.
2. Press ▼ to highlight Aspect Ratio.
3. Press ◀/▶ to select an aspect ratio to suit the format of the video signal and your display requirements.

About the aspect ratio

In the pictures below, the black portions are inactive areas and the white portions are active areas. OSD menus can be displayed on those unused black areas.

1. Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal width. This is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image's aspect ratio.
2. Real: The image is projected as its original resolution, and resized to fit within the display area. For input signals with lower resolutions, the projected image will display smaller than if resized to full screen. You could adjust the zoom setting or move the projector towards the screen to increase the image size if necessary. You may also need to refocus the projector after making these adjustments.
3. 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV and 4:3 aspect DVD movies, as it displays them without aspect alteration.
4. 16:9: Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration.

Selecting a picture mode

The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal picture type.

To select a operation mode that suits your need, you can follow one of the following steps.

• Press MODE/ENTER on the remote control or projector repeatedly until your desired mode is selected.
• Go to the PICTURE > Setting menu and press ◀/▶ to select a desired mode.

Picture modes for different types of signals

The picture modes available for different types of signals are listed below.

PC input signals: D-Sub / Comp. (analog RGB)

1. Brightest mode: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.
2. Presentation mode: Is designed for presentations. The brightness is emphasized in this mode to match PC and notebook coloring.
3. Photo mode (Default): Maximizes the purity of RGB colors to provide true-to-life images regardless of brightness setting. It is most suitable for viewing photos and for viewing PC graphic and drawing applications such as AutoCAD.
4. Theater mode: Is appropriate for playing colorful movies, video clips from digital cameras or DVs through the PC input for best viewing in a blackened (little light) environment.
5. User 1/User 2 mode: Recalls the settings customized based on the current available picture modes. See "Setting the User 1/User 2 mode" on page 24 for details.

Video input signals: S-Video, Video, D-Sub / Comp. (YPbPr)

1. Dynamic mode: Is suitable for playing gamebox-based video games in a normal living room lighting level environment.
2. Standard mode (Default): Is appropriate for viewing colorful movies, video clips from digital cameras or DVs.
3. Theater mode: Is suitable for enjoying dark movies or DVD movies best viewed in a blackened (little light) home cinema or lounge room environment.
4. User 1/User 2 mode: Recalls the settings customized based on the current available picture modes. See "Setting the User 1/User 2 mode" on page 24 for details.

Setting the User 1/User 2 mode

There are two user-definable modes if the current available picture modes are not suitable for your need. You can use one of the picture modes (except the User 1/User 2) as a starting point and customize the settings.

1. Press MENU to open the On-Screen Display (OSD) menu.
2. Go to the PICTURE > Setting menu.
3. Press ◀/▶ to select User 1 to User 2.
4. Press ▼ to highlight Color.

This function is only available when User 1, or User 2 mode is selected up in the Setting sub-menu item.

1. Press / to select a picture mode that is closest to your need.
2. Press ▼ to select a sub-menu item to be changed and adjust the value with ◀/▶. See "Fine-tuning the image quality in user modes" below for details.
3. When all settings have been done, highlight Save Settings and press MODE/ENTER to store the settings.
4. The confirmation message 'Setting Saved' displays.

Fine-tuning the image quality in user modes

According to the detected signal type, there are some user-definable functions available when User 1 or User 2 mode is selected. You can make adjustments to these functions based on your needs.

Adjusting Brightness

Highlight Brightness in the PICTURE menu and adjust the values by pressing ◀/▶ on the projector or remote control.

The higher the value, the brighter the image. And lower the setting, darker the image. Adjust this control so the black areas of the image appear just as black and that detail in the dark areas is visible.

Adjusting Contrast

Highlight Contrast in the PICTURE menu and adjust the values by pressing ◀/▶ on the projector or remote control.

The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.

Adjusting Color

Highlight Color in the PICTURE menu and adjust the values by pressing ◀/▶ on the projector or remote control.

Lower setting produces less saturated colors. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic.

Adjusting Tint

Highlight Tint in the PICTURE menu and adjust the values by pressing ◀/▶ on the projector or remote control.

The higher the value, the more reddish the picture becomes. The lower the value, the more greenish the picture becomes.

Adjusting Sharpness

Highlight Sharpness in the PICTURE menu and adjust the values by pressing ◀/▶ on the projector or remote control.

The higher the value, the sharper the picture becomes. The lower the value, the softer the picture becomes.

Adjusting BrilliantColor™

Highlight BrilliantColor™ in the PICTURE menu and select by pressing ◀/▶ on the projector or remote control.

This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture. It enables a greater than 50% brightness increase in mid-tone images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors. If you prefer images with that quality, select On. If you don't need it, select Off.

On is the default and recommended selection for this projector. When Off is selected, the Color Temperature function is not available.

Selecting a Color Temperature

Highlight Color Temperature in the PICTURE menu and adjust the values by pressing ◀/▶ on the projector or remote control.

The options available for color temperature* settings vary according to the signal type selected.

1. T1: With the highest color temperature, T1 makes the image appear the most bluish white than other settings.

2. T2: Makes images appear bluish white.

3. T3: Maintains normal colorings for white.

4. T4: Makes images appear reddish white.

\*About color temperatures:

There are many different shades that are considered to be "white" for various purposes. One of the common methods of representing white color is known as the "color temperature". A white color with a low color temperature appears to be reddish white. A white color with a high color temperature appears to have more blue in it.

3D Color Management

In most installation situations, color management will not be necessary, such as in classroom, meeting room, or lounge room situations where lights remain on, or where building external windows allow daylight into the room.

Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered. Color management provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

Proper color management can only be achieved under controlled and reproducible viewing conditions. You will need to use a colorimeter (color light meter), and provide a set of suitable source images to measure color reproduction. These tools are not provided with the projector, however, your projector supplier should be able to provide you with suitable guidance, or even an experienced professional installer.

The Color Management provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can independently adjust its range and saturation according to your preference.

If you have purchased a test disc which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc. You can project any image from the disc on the screen and enter the 3D Color Management menu to make adjustments.

To adjust the settings:

1. Go to the PICTURE menu and highlight 3D Color Management.
2. Press MODE/ENTER and the 3D Color Management page displays.
3. Highlight Primary Color and press ◀/▶ to select a color from among Red, Green, Blue, Cyan, Magenta, or Yellow.
4. Press ▼ to highlight Hue and press ◀/▶ to select its range. Increase in the range will include colors consisted of more proportions of its two adjacent colors.

Please refer to the illustration to the right for how the colors relate to each other.

For example, if you select Red and set its range at 0, only pure red in the projected picture will be selected. Increasing its range will include red close to yellow and red close to magenta.

1. Press ▼ to highlight Saturation and adjust its values to your preference by pressing ⚠. Every adjustment made will reflect to the image immediately.

For example, if you select Red and set its value at 0, only the saturation of pure red will be affected.

1. Press ▼ to highlight Gain and adjust its values to your preference by pressing ◀/▶. The contrast level of the primary color you select will be affected. Every adjustment made will reflect to the image immediately.

2. Repeat steps 3 to 6 for other color adjustments.

3. Make sure you have made all of the desired adjustments.
4. Press MENU to exit and save the settings.

Saturation is the amount of that color in a video picture. Lower settings produce less saturated colors; a setting of "0" removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.

Using Wall Color

In the situation where you are projecting onto a colored surface such as a painted wall which may not be white, the Wall Color feature can help correct the projected picture's color to prevent possible color difference between the source and projected pictures.

To use this function, go to the DISPLAY > Wall Color menu and press ◀/▶ to select a color which is the closest to the color of the projection surface. There are several recalibrated colors to choose from: Light Yellow, Pink, Light Green, Blue, and Blackboard.

Setting the presentation timer

The presentation timer can indicate the presentation time on the screen to help you achieve better time management when giving presentations. Follow these steps to utilize this function:

1. Press TIMER SET UP on the remote control or go to the SYSTEM SETUP: Basic > Presentation Timer menu and press MODE/ENTER to display the Presentation Timer page.
2. Press ▼ to highlight Timer period and decide the timer period by pressing ▲ The length of time can be set from 1 to 5 minutes in 1-minute increments and 5 to 240 minutes in 5-minute increments.

If the timer is already on, the timer will restart whenever the Timer period is reset.

1. Press to highlight Timer display and choose if you want the timer to show up on the screen by pressing ◄ ▶

Selection Description

Always Displays the timer on screen throughout the presentation time.

1 min/2 min/3 min Displays the timer on screen in the last 1/2/3 minute(s).

Never Hides the timer throughout the presentation time.

1. Press ▼ to highlight Timer position and set the timer position by pressing ◀/▶.

Top-Left Bottom-Left Top-Right Bottom-Right

1. Press ▼ to highlight Timer counting direction and select your desired counting direction by pressing ◀ ▶.

Selection Description

Count Up Increases from 0 to the preset time.

Count Down Decrease from the preset time to 0.

1. To activate the presentation timer, press ▼ and press ◀/▶ to select On and press MODE/ENTER.
2. A confirmation message displays. Highlight Yes and press MODE/ENTER to confirm. You will see the message "Timer is On" displaying on the screen. The timer starts counting once the timer is turned on.

To cancel the timer, perform the following steps.

1. Go back to the Presentation Timer page.
2. Press ▼ and press ◀/▶ to highlight Off and press MODE/ENTER. A confirmation message displays.
3. Highlight Yes and press MODE/ENTER to confirm. You will see the message “Timer is Off” displaying on the screen.

How to use the TIMER On key?

TIMER ON is a multi-functional key.

• If the presentation timer is off, pressing this key displays a confirmation message. You can decide whether to activate the timer or not by following the on-screen instruction.
• If the timer is already on, pressing this key displays a confirmation message. You can decide whether to restart, continue or turn off the timer by following the on-screen instruction.

Hiding the image

In order to draw the audience's full attention to the presenter, you can use BLANK on the projector or remote control to hide the screen image. Press any key on the projector or remote control to restore the image. The word 'BLANK' appears at the lower right corner of the screen while the image is hidden.

You can set the blank time in the SYSTEM SETUP: Basic > Blank Timer menu to let the projector return the image automatically after a period of time when there is no action taken on the blank screen.

Once BLANK is pressed, the projector enters Low mode automatically.

Do not block the projection lens from projecting as this could cause the blocking object to become heated and deformed or even cause a fire.

Locking control keys

With the control keys on the projector locked, you can prevent your projector settings from being changed accidentally (by children, for example). When the Panel Key Lock is on, no control keys on the projector will operate except Power.

1. Press ▶ / 🔒 on the projector or remote control or go to the SYSTEM SETUP: Basic > Panel Key Lock menu, and select On by pressing ◀ / ▶ on the projector or remote control.

2. A confirmation message displays. Select Yes to confirm.

To release panel key lock, press and hold ▶ / 🔒 for 3 seconds on the projector or remote control.

You can also use the remote control to enter the SYSTEM SETUP: Basic > Panel Key Lock and press ◀/▶ to select Off.

- Keys on the remote control are still in use when panel key lock is enabled.

- If you press Power to turn off the projector without disabling panel key lock, the projector will still be in locked status the next time it is turned on.

Freezing the image

Press FREEZE on the remote control to freeze the image. The word 'FREEZE' will display in the upper left corner of the screen. To release the function, press any key on the projector or remote control.

Even if an image is frozen on the screen, the pictures are running on the video or other device. If the connected devices have active audio output, you will still hear the audio even though the image is frozen on screen.

Operating in a high altitude environment

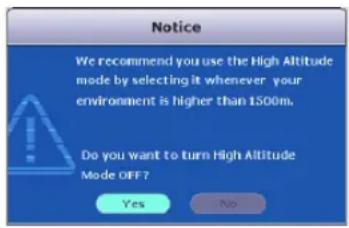

We recommend you use the High Altitude Mode when your environment is between 1500 m –3000 m above sea level, and temperature is between 0°C–35°C.

Do not use the High Altitude Mode if your altitude is between 0 m and 1500 m and temperature is between 0°C and 35°C. The projector will be over cooled, if you turn the mode on under such condition.

To activate the High Altitude Mode:

1. Press MENU and then press ◀/▶ until the SYSTEM SETUP: Advanced menu is highlighted.
2. Press ▼ to highlight High Altitude Mode and press ◀/▶ to select On. A confirmation message displays.
3. Highlight Yes and press MODE/ENTER.

Operation under "High Altitude Mode" may cause a higher decibel operating noise level because of increased fan speed necessary to improve overall system cooling and performance.

If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.

Personalizing the projector menu display

The On-Screen Display (OSD) menus can be set according to your preferences. The following settings do not affect the projection settings, operation, or performance.

• Menu display time in the SYSTEM SETUP: Advanced >Menu Settings menu sets the length of time the OSD will remain active after your last key press. The time length ranges from 5 to 30 seconds in 5-second increments. Use ⚠️ to select a suitable time frame.
• Menu position in the SYSTEM SETUP: Advanced > Menu Settings menu sets the OSD position in five locations. Use to select a preferred position.
• Language in the SYSTEM SETUP: Basic menu sets your familiar language for the OSD menus. Use ◀/▶ to select your language.
• Splash Screen in the SYSTEM SETUP: Basic menu sets a preferred logo screen to be displayed during projector start-up. Use ▲to select a screen.

Shutting down the projector

1. Press ⏻ Power and a confirmation message displays prompting you. If you don't respond in a few seconds, the message will disappear.
2. Press ⏻ Power a second time. The POWER indicator light flashes orange, the projection lamp shuts down, and the fans will continue to run for approximately 90 seconds to cool down the projector.
3. Once the cooling process finishes, the POWER indicator light is a steady orange and fans stop.
4. Disconnect the power cord from the wall socket if the projector will not be used in an extended period of time.

• To protect the lamp, the projector will not respond to any commands during the cooling process.
• To shorten the cooling time, you can also activate the Quick Cooling function. See "Quick Cooling" on page 33 for details.
• Do not unplug the power cord before the projector shutdown sequence is complete or during the 90-second cooling down process.
• If the projector is not properly shut down, to protect the lamp, when you attempt to re-start the projector, the fans will run for a few minutes to cool down. Press ⚙Power again to start the projector after the fans stop and the POWER indicator light turns orange.

Illustration of a cable being inserted into an electronic device (no text or symbols visible)

Menu system
Please note that the on-screen display (OSD) menus vary according to the signal type selected.

Main menu Sub-menu Options
1. DISPLAY	Wall Color	Off/Light Yellow/Pink/Light Green/Blue/Blackboard
	Aspect Ratio	Auto/Real/4:3/16:9
	Keystone
	Position
	Phase
	H. Size
	Magnify
2. PICTURE	Setting	PC source: Brightest/Presentation/Photo/Theater/User 1/User 2Video source: Standard/Theater/User 1/User 2/Dynamic
	Color Mode	PC source: Brightest/Presentation/Photo/TheaterVideo source: Dynamic/Standard/Theater
	Brightness
	Contrast
	Color
	Tint
	Sharpness
	BrilliantColorTM On/Off
	Color Temperature T1/T2/T3/T4
	3D Color Management	Primary Color R/G/B/C/M/Y
		Hue
		Saturation
		Gain
	Save Settings
3. SOURCE	Quick Auto Search On/Off
4. SYSTEM SETUP: Basic	Presentation Timer	Timer period 1~240 minutes
		Timer display Always/1 min/2 min/3 min/Never
		Timer position Top-Left/Bottom-Left/Top-Right/Bottom-Right
		Timer counting direction Count Down/Count Up
		On/Off
	Language	ENGLISH/ FRANÇAIS/DEUTSCH/ITALIANO/ESPAÑOL/РУССКИЙ/繁體中文/简体中文/日本語/한국어/Svenska/ Nederlands/ Türkçe/Čeština/ Português/ İlsqinn/ Polski
	Projector Position Front Table/Rear Table
	Auto Power Off	Disable/5 min/10 min/15 min/20 min/25 min/30 min
	Blank Timer	Disable/5 min/10 min/15 min/20 min/25 min/30 min
	Panel Key Lock On/Off
	Timer Controller Disable/30 min/1 hr/2 hr/3 hr/4 hr/8 hr/12 hr
	Splash Screen MITSUBISHI/Black/Blue
5. SYSTEM SETUP: Advanced	Quick Cooling On/Off
	High Altitude Mode On/Off
	Menu Settings	Menu display time 5 sec/10 sec/15 sec/20 sec/25 sec/30 sec
		Menu position	Center/Top-Left/Top-Right/Bottom-Left/Bottom-Right
	Lamp Settings	Lamp mode Standard/Low
		Reset lamp timer
		Equivalent lamp hour
	Security Settings	Change password
		Power on lock On/Off
	Reset All Settings
6. INFORMATION	Current System Status		• Source• Setting• Resolution• Color System• Equivalent Lamp Hour

Note that the menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.

Description of each menu

	FUNCTION (default setting/value)	DESCRIPTION (default setting/value)
1. DISPLAY menu	Wall Color (Off)	Corrects the projected picture's color when the projection surface is not white. See "Using Wall Color" on page 26 for details.
	Aspect Ratio (Auto)	There are four options to set the image's aspect ratio depending on your input signal source. See "Selecting the aspect ratio" on page 23 for details.
	Keystone (0)	Corrects any keystoning of the image. See "Correcting keystone" on page 22 for details.
	Position (0)	Displays the position adjustment page. To move the projected image, use the directional arrow keys. The values shown on the lower position of the page change with every key press you made until they reach their maximum or minimum.
	Phase (depends on the selected input signal)	Adjusts the clock phase to reduce image distortion.
	H. Size (0)	Adjusts the horizontal width of the image.
	Magnify (1.0X)	Magnifies or reduces the projected image. See "Magnifying and searching for details" on page 22 for details.
2. PICTURE menu	Setting (PC Source: Photo; Video source: Standard)	Pre-defined picture modes are provided so you can optimize your projector image set-up to suit your program type. See "Selecting a picture mode" on page 24 for details.
	Color Mode (Photo)	Selects a picture mode that most suits your need for the image quality and further fine-tune the image based on the selections listed on the same page below. See "Setting the User 1/User 2 mode" on page 24 for details.
	Brightness (50)	Adjusts the brightness of the image. See "Adjusting Brightness" on page 25 for details.
	Contrast (0)	Adjusts the degree of difference between dark and light in the image. See "Adjusting Contrast" on page 25 for details.
	Color (0)	Adjusts the color saturation level -- the amount of each color in a video image. See "Adjusting Color" on page 25 for details.
	Tint (0)	Adjusts the red and green color tones of the image. See "Adjusting Tint" on page 25 for details. The function is only available when Video or S-Video with NTSC system is selected.
	Sharpness (15)	Adjusts the image to make it look sharper or softer. See "Adjusting Sharpness" on page 25 for details.
	BrilliantColorTM (On)	Adjusts white peaking while maintaining correct color presentation. See "Adjusting BrilliantColorTM" on page 25 for details.
	Color Temperature (T1)	See "Selecting a Color Temperature" on page 25 for details.
	3D Color Management	See "3D Color Management" on page 26 for details.
	Save Settings	Saves the settings made for User 1 or User 2 mode.
FUNCTION (default setting/value)		DESCRIPTION (default setting/value)
3. SOURCE menu	Quick Auto Search (On)	See "Switching input signal" on page 20 for details.
4. SYSTEM SETUP: Basic menu	Presentation Timer (Off)	Reminds the presenter to finish the presentation within a certain time frame. See "Setting the presentation timer" on page 27 for details.
	Language (English)	Sets the language for the On-Screen Display (OSD) menus. See "Using the menus" on page 18 for details.
	Projector Position (Front Table)	See "Choosing a location" on page 11 for details.
	Auto Power Off (Disable)	Allows the projector to turn off automatically if no input signal is detected after a set period of time. See "Setting Auto Power Off" on page 36 for details.
	Blank Timer (Disable)	Sets the image blank time when the Blank feature is activated, once elapsed the image will return to the screen. See "Hiding the image" on page 28 for details.
	Panel Key Lock (Off)	Disables or enables all panel key functions except Power on the projector and keys on the remote control. See "Locking control keys" on page 28 for details.
	Timer Controller (Disable)	Sets the auto-shutdown timer. The timer can be set to a value between 30 minutes and 12 hours.
	Splash Screen (MITSUBISHI logo)	Allows you to select which logo screen will display during projector start-up. Three options are available: MITSUBISHI logo, Black screen, or Blue screen.
5. SYSTEM SETUP: Advanced menu	Quick Cooling (Off)	Selecting On enables the function and the projector cooling time will be shortened to a few seconds.If you attempt to restart the projector right after the quick cooling process, it may not be turned on successfully and will rerun its cooling fans.
	High Altitude Mode (Off)	A mode for operation in high altitude areas. See "Operating in a high altitude environment" on page 29 for details.
	Menu Settings	Menu display time (15 sec)Sets the length of time the OSD will remain active after your last key press. The range is from 5 to 30 seconds in 5-second increments.Menu position (Center)Sets the On-Screen Display (OSD) menu position.
	Lamp Settings	Lamp mode (Standard)See "Setting Lamp mode as Low" on page 36 for details.Reset lamp timerSee "Resetting the lamp timer" on page 39 for details.Equivalent lamp hourSee "Getting to know the lamp hour" on page 36 for details on how the total lamp hour is calculated.
5. SYSTEM SETUP: Advanced menu	Security Settings	Change passwordYou will be asked to enter the current password before changing to a new one.Power on lock (Off)See "Utilizing the password function" on page 19 for details.
	Reset All Settings	Returns all settings to the factory preset values.The following settings will still remain: Position, Phase, H. Size, User 1, User 2, Language, Projector Position, High Altitude Mode, Security Settings.
6. INFORMATION menu	Current System Status	SourceShows the current signal source.SettingShows the selected mode in the PICTURE menu.ResolutionShows the native resolution of the input signal.Color SystemShows input system format, NTSC, PAL, SECAM, or RGB.Equivalent Lamp HourDisplays the number of hours the lamp has been used.

Care of the projector

Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean.

Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing.

Cleaning the lens

Clean the lens whenever you notice dirt or dust on the surface.

• Use a canister of compressed air to remove dust.
• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the lens surface.

Never rub the lens with abrasive materials.

Cleaning the projector case

Before you clean the case, turn the projector off using the proper shutdown procedure as described in "Shutting down the projector" on page 29 and unplug the power cord.

• To remove dirt or dust, wipe the case with a soft, lint-free cloth.
  • To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then wipe the case.

Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

Storing the projector

If you need to store the projector for an extended time, please follow the instructions below:

• Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to "Specifications" on page 42 or consult your dealer about the range.
• Retract the adjuster feet.
• Remove the battery from the remote control.
• Pack the projector in its original packing or equivalent.

Transporting the projector

It is recommended that you ship the projector with its original packing or equivalent.

Getting to know the lamp hour

When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. The method of calculating the equivalent lamp hour is as follows:

Total (equivalent) lamp hour

= 1 (hours used in Low mode) + 3/2 (hours used in Standard mode)

See "Setting Lamp mode as Low" below for more information on Low mode.

The lamp hour in Low mode is calculated as 2/3 of that in Standard mode. That is, using the projector in Low mode helps to extend the lamp hour by 1/2.

To obtain the lamp hour information:

1. Press MENU/EXIT and then press ◀/▶ until the SYSTEM SETUP: Advanced menu is highlighted.
2. Press ▼ to highlight Lamp Settings and press MODE/ENTER. The Lamp Settings page displays.
3. You will see the Equivalent lamp hour information displaying on the menu.
4. To leave the menu, press MENU/EXIT.
   You can also get the lamp hour information on the INFORMATION menu.

Extending lamp life

The projection lamp is a consumable item that normally can last up to 2000-3000 hours with proper usage. To keep the lamp life as long as possible, you can do the following settings via the OSD menu.

Setting Lamp mode as Low

Using Low mode reduces system noise and power consumption by 20%. If the Low mode is selected, the light output will be reduced and result in darker projected pictures.

Setting the projector in Low mode also extends the lamp operation life. To set Low mode, go into the SYSTEM SETUP: Advanced > Lamp Settings > Lamp mode menu and press ◀/▶.

Setting Auto Power Off

This function allows the projector to turn off automatically if no input source is detected after a set period of time to prevent unnecessary waste of lamp life.

To set Auto Power Off, go into the SYSTEM SETUP: Basic > Auto Power Off menu and press ◀/▶. The time period can be set from 5 to 30 minutes in 5-minute increments. If the preset time lengths are not suitable for your presentation, select Disable. The projector will not automatically shut down in a certain time period.

Timing of replacing the lamp

When the lamp indicator lights up red or a message appears suggesting it is time to replace the lamp, please install a new lamp or consult your dealer. An old lamp may cause a malfunction in the projector and in some instances the lamp may explode.

The LAMP indicator light and TEMperature indicator light will light up if the lamp becomes too hot. Turn the power off and let the projector cool for 45 minutes. If the Lamp or LAMP indicator light still lights up after turning the power back on, please contact your dealer. See "Indicators" on page 40 for details.

The following lamp warning displays will remind you to change the lamp.

Status Message
The lamp has been in operation for 2000 hours. Install a new lamp for optimal performance. If the projector is normally run with Low selected (See "Setting Lamp mode as Low" on page 36), you may continue to operate the projector until the 2950 hour lamp warning appears.
The lamp has been in operation for 2950 hours. A new lamp should be fitted to avoid the inconvenience when the projector runs out of lamp time.
The lamp has been in operation for 3000 hours.It is strongly recommended that you replace the lamp at this age. The lamp is a consumable item. The lamp brightness diminishes with use. This is normal lamp behavior. You can replace the lamp whenever you notice that the brightness level has significantly diminished. If the lamp is not replaced beforehand, it must be replaced after 3000 hours usage.
The lamp MUST be replaced before the projector will operate normally.

Replacing the lamp Spare lamp for XD95U: VLT-XD95LP

To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp.

• To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.
• To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces.
• To reduce the risk of injuries to fingers and/or compromising image quality by touching the lens, do not touch the empty lamp compartment when the lamp is removed.
• This lamp contains mercury. Consult your local hazardous waste regulations to dispose of this lamp in a proper manner.
- To assure optimal performance from the projector, it is recommended that you purchase a Mitsubishi projector lamp for lamp replacement.

1. Turn the power off and disconnect the projector from the wall socket. If the lamp is hot, avoid burns by waiting for approximately 45 minutes until the lamp has cooled.

2. Turn the projector over. Then loosen the screws on the lamp cover.

3. Remove the lamp cover from the projector.

- Do not turn the power on with the lamp cover removed.

- Do not insert your fingers between the lamp and the projector. The sharp edges inside the projector may cause injuries.

1. Loosen the screw that secures the lamp.

2. Lift the handle so that it stands up. Use the handle to slowly pull the lamp out of the projector.

lling it too quickly may cause the lamp to break and scatter broken glass in the projector.
- Do not place the lamp in locations where water might splash on it, children can reach it, or near flammable materials.
- Do not insert your hands into the projector after the lamp is removed. If you touch the optical components inside, it could cause color unevenness and distortion of the projected images.
6. As shown in the figure, lower the new lamp into the lamp compartment while aligning the lamp with the holes in the lamp compartment. Make sure it fits in the projector.

Illustration of a hand using a pen to interact with a digital device (no text or symbols visible)

Diagram of an open electronic device with internal components and a black arrow pointing to a component (no text or symbols present)

Illustration of a hand using a tool to adjust or install electronic components on a device (no text or symbols visible)

Mechanical assembly diagram showing internal components with arrows indicating motion (no text or labels)

1. Tighten the screw that secures the lamp.

- Loose screw may cause a bad connection, which could result in malfunction.

- Do not over tighten the screw.

1. Ensure the handle is fully laid flat and locked in place.

2. As shown in the figure, replace the lamp cover on the projector.

3. Tighten the screws that secure the lamp cover.

- Loose screw may cause a bad connection, which could result in malfunction.

- Do not over tighten the screws.

1. Restart the projector.

Do not turn the power on with the lamp cover removed.

Resetting the lamp timer

1. After the startup logo, open the On-Screen Display (OSD) menu. Go to the SYSTEM SETUP: Advanced > Lamp Settings menu. Press MODE/ENTER. The Lamp Settings page displays. Press ▼ to highlight Reset lamp timer and press MODE/ENTER. A warning message displays asking if you want to reset the lamp timer. Highlight Reset and press MODE/ENTER. The lamp time will be reset to '0'.

Illustration of a hand using a tool to adjust or install electronic components on a device (no text or symbols visible)

Illustration of a hand using a tool to press or install a component on a surface, with no visible text or symbols.

- Do not reset if the lamp is not new or replaced as this could cause damage.

This projector uses a lamp that contains mercury. Disposal of the lamp or the projector with the lamp may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org. (For US only).

Light Status & Description
Power Temp Lamp
Power events
Orange Off	Off		Stand-by mode
Green Flashing	Off Off		Powering up
Green Off	Off		Normal operation
Orange Flashing	Off Red		The projector needs 90 seconds to cool down as it was abnormally shut down without the normal cooling down process.The projector needs to cool for 90 seconds after the power is turned off.
Orange Flashing	Off Off		The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.
Lamp events
Orange Flashing	Off Red		The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.
Off Off Red			The projector needs 90 seconds to cool down.Please contact your dealer for assistance.
Thermal events
Off Red Off			The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.
Off Red Red
Off Red Green
Red Red Red
Red Red Green
Green Red Red
Green Red Green
Orange Red Red
Orange Red Green
Off Green Red
Off Green Green

⑦ The projector does not turn on.

Cause Remedy
There is no power from the power cable.	Plug the power cord into the AC inlet on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on.
Attempting to turn the projector on again during the cooling process.	Wait until the cooling down process has completed.

⑦ No picture

Cause Remedy
The video source is not turned on or connected correctly.	Turn the video source on and check that the signal cable is connected correctly.
The projector is not correctly connected to the input signal device.	Check the connection.
The input signal has not been correctly selected.	Select the correct input signal with the SOURCE key on the projector or remote control.
The lens cover is still closed. Open the lens cover.

⑦ Blurred image

Cause Remedy
The projection lens is not correctly focused.	Adjust the focus of the lens using the focus ring.
The projector and the screen are not aligned properly.	Adjust the projection angle and direction as well as the height of the unit if necessary.
The lens cover is still closed. Open the lens cover.

⑦ Remote control does not work

Cause Remedy
The battery is out of power. Replace the battery with a new one.
There is an obstacle between the remote control and the projector.	Remove the obstacle.
You are too far away from the projector. Stand within 8 meters (26 feet) of the projector.

⑦ The password is incorrect

Cause Remedy
You do not remember the password.	Please see "Entering the password recall procedure" on page 19 for details.

Projector specifications

All specifications are subject to change without notice.

General
Product name DLP	TM DATA Projector
Model name XD95U
Optical
Resolution 1024 x 768 XGA
Display system 1-CHIP DMD
Lens F/Number F = 2.56 to 2.67, f =	21.36 to 23.45 mm
Lamp 200 W lamp
Electrical
Power supply AC100–240V, 2.9 A,	50/60 Hz (Automatic)
Power consumption 285 W (Max)
Mechanical
Dimensions	190 mm (W) x 84.2 mm (H) x 205.2 mm (D)
Weight 3.3 lbs (1.5 Kg)
Input terminal
Computer input
RGB input D-Sub 15-pin (female) x 1
Video signal input
S-VIDEO Mini DIN 4-pin port x	1
VIDEO RCA jack x 1
SD/HDTV signal input	Analog – D-Sub <-> Component RCA jack x 3(through RGB input)
Control terminal
RS-232 serial control	8 pin x 1
Environmental requirements
Operating temperature	0°C–35°C at sea level
Operating relative humidity	10%–90% (without condensation)
Operating altitude	0–1499 m at 0°C–35°C1500–3000 m at 0°C–30°C (with High Altitude Mode on)

Dimensions

190 mm (W) × 84.2 mm (H) × 205.2 mm (D)

Timing chart

Supported timing for PC input

Resolution Mode	Refresh rate (Hz)		Horizontal frequency (kHz)	Clock (MHz)
720 x 400 720 x 400	0_70 70.087 31.469 28	3221
640 x 480	VGA_60 59.940	31.469 25.175
	VGA_72 72.809	37.861 31.500
	VGA_75 75.000	37.500 31.500
	VGA_85 85.008	43.269 36.000
800 x 600	SVGA_60 60.317	37.879 40.000
	SVGA_72 72.188	48.077 50.000
	SVGA_75 75.000	46.875 49.500
	SVGA_85 85.061	53.674 56.250
1024 x 768	XGA_60 60.004	48.363 65.000
	XGA_70 70.069	56.476 75.000
	XGA_75 75.029	60.023 78.750
	XGA_85 84.997	68.667 94.500
1280 x 1024 SXGA3	60 60.020 63.981 108	.00
1280 x 800 WXGA	60 59.810 49.702 83.500
1280 x 960 1280 x	960_60 60.000 60.000	108.00
640 x 480@67Hz MAC	13 66.667 35.000 30.240
832 x 624@75Hz MAC	16 74.546 49.722 57.280
1024 x 768@75Hz	MAC19 75.020	60.241 80.000
1152 x 870@75Hz	MAC21	75.06	68.68	100.00

Supported timing for Component-YPbPr input

Signal Format Horizontal Frequency (kHz) Vertical Frequency (Hz)
480i(525i)@60Hz 15.73 59.94
480p(525p)@60Hz 31.47 59.94
576i(625i)@50Hz 15.63 50.00
576p(625p)@50Hz 31.25 50.00
720p(750p)@60Hz 45.00 60.00
720p(750p)@50Hz 37.50 50.00
1080i(1125i)@60Hz 33.75 60.00
1080i(1125i)@50Hz 28.13 50.00

Displaying a 1080i(1125i)@60Hz or 1080i(1125i)@50Hz signal may result in slight image vibration.

Supported timing for Video and S-Video inputs

Video mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Color sub-carrier Frequency (MHz)
NTSC 15.73 60 3.58
PAL 15.63 50 4.43
SECAM 15.63 50 4.25 or 4.41
PAL-M 15.73 60 3.58
PAL-N	15.63 50 3.58
PAL-60	15.73 60 4.43
NTSC4.43	15.73 60 4.43

What's included in the box

AC power cord	for US 2G.01112.001	1 Remote control with battery
	for EU 2G.00922.001	1 Safety manual/Quick start up
	for UK 2G.03132.001	1 CD-ROM
1 VGA cable	5K.J0V05.501	1 Soft carry case

Replacement part

(Option / Not included in the box)

Spare lamp: VLT-XD95LP

Mitsubishi Projector Warranty, Sales Support and Service Information

North America

MDEA (Mitsubishi Digital Electronics America, Inc.)

Presentation Products Division

9351 Jeronimo Road, Irvine, CA 92618, USA

For Warranty Registration, visit:

http://www.mitsubishi-presentations.com under Customer Care

Sales Inquiries

Phone :Toll Free [phone]

E-mail :[e-mail]

Technical Inquiries

Phone :Toll Free [phone]

E-mail :[e-mail]

MESCA (Mitsubishi Electric Sales Canada Inc.)

http://www.mitsubishielectric.ca

Information Technologies Group, 4299 14th Avenue,

Markham, Ontario L3R 0J2, Canada

Sales & Technical Inquiries

Phone :[phone]

Fax :[phone]

E-mail

Customer Care

E-mail

Europe

MEU-FRA (Mitsubishi Electric Europe B.V French Branch)

Phone :[phone]

Fax :[phone]

MEU-GER (Mitsubishi Electric Europe B.V. German Branch)

http://www.mitsubishi-evs.de/

Gothaer Strasse 8, 40880 Ratingen, Germany

Sales Inquiries

Phone :0049 - 2102 - 486 9250

Fax :0049 - 2102 - 486 7320

Technical Inquiries

Phone :0049 - 2102 - 486 1330

Fax :0049 - 2102 - 486 1340

MEU-IR (Mitsubishi Electric Europe B.V, Irish Branch)

http://www.mitsubishi.ie/

Westgate Business Park, Ballymount, Dublin 24, Ireland

Sales Inquiries

Phone :[phone]

Fax :[phone]

Technical Inquiries

Phone :[phone]

Fax :[phone]

MEU-IT (Mitsubishi Electric Europe B.V. Italian Branch)

20041 Agrate Brianza, Italy

Sales & Technical Inquiries

Phone :[phone]

Fax :[phone]

E-mail

MEU-NL (Mitsubishi Electric Europe B.V. Benelux Branch)

http://www.mitsubishi.nl/LCD/ProdFrame.html

Phone :[phone]

Fax [phone]

E-mail :[e-mail]

Technical Inquiries

Phone :[phone]

Fax :[phone]

E-mail :[e-mail]

Russia (Mitsubishi Electric Europe B.V Moscow

Representative Office)

http://www.mitsubishi-projector.ru/

Moscow Representative Office, 52/5 Kosmodamlanskaya

Nab., 115054, Moscow, Russia

Sales & Technical Inquiries

Phone :[phone]

Fax :[phone]

MEU-SP (Mitsubishi Electric Europe B.V. Spanish Branch)

http://www.mitsubishielectric.es/

Ctra. de Rubi, 76-80, 08173 Sant Cugat del Valles,

Barcelona, Spain

Sales Inquiries

Phone :[phone]

Fax :[phone]

E-mail :

Technical Inquiries

Phone :[phone]

Fax :[phone]

E-mail :

[Non-Text]

+34-93.586.27.51

.

mitsubishi.profesi

MEU-SWE (Mitsubishi Electric Europe B.V Scandinavian

Branchì

Hammarbacken 14, Box 750, S-19127, Sollentuna, Sweden

Sales Inquiries

Phone :[phone]

Fax :[phone]

Technical Inquiries

Phone :[phone]

Fax :[phone]

MEU-UK (Mitsubishi Electric Europe)

http://www.mitsubishi.co.uk/evs/

Visual Information Systems Division, Travelers Lane,

Hatfield, Hertfordshire, AL10 8XB U.K.

Sales Inquiries

Phone :[phone]

Fax :[phone]

E-mail

Technical Inquiries

Phone :[phone]

Fax :[phone]

E-mail

Asia

CHINA (Mitsubishi Electric Air-Conditioning & Visual Information Systems (Shanghai) Ltd.)

12/F., Hong Kong New World Tower, 300 Hualhai Middle

Road, Shanghai, 200021, China

Sales Inquiries

Phone :[phone] (Ext.3007)

Fax :[phone]

Technical Inquiries

Phone :[phone] (Ext.3021)

Fax :[phone]

HONG KONG (Mitsubishi Electric Ryoden Air-Conditioning

& Visual Information Systems (HongKong) Ltd.)

7th Floor, Manulife Tower, 169 Electric Road, North Point,

Hong Kong

Sales Inquiries

Phone :[phone]

Fax :[phone]

Technical Inquiries

Phone :[phone]

Fax :[phone]

SINGAPORE (Mitsubishi Electric Asia Pte, Ltd.)

http://www.mitsubishielectric.com.sg

307, Alexandra Road, #05-01/02 Mitsubishi Electric

Building, Singapore 159943

Sales Inquiries

Phone :[phone]

Fax :[phone]

E-mail

Technical Inquiries

Phone :[phone]

Fax :[phone]

INDIA (Mitsubishi Electric Asia Pte. Ltd.)

307, Alexandra Road, #05-01/02 Mitsubishi Electric

Building, Singapore 159943

Sales Inquiries

Phone :[phone]

Fax :[phone]

E-mail

Technical Inquiries

Phone :[phone]

Fax :[phone]

INDONESIA (Mitsubishi Electric Asia Pte. Ltd.)

307, Alexandra Road, #05-01/02 Mitsubishi Electric

Building, Singapore 159943

Sales Inquiries

Phone :[phone]

Fax :[phone]

E-mail :[e-mail]

Inquiries

Phone :[phone]

Fax :[phone]

PHILLIPINES (Mitsubishi Electric Asia Pte. Ltd.)

http://www.mitsubishielectric.com.sg

307, Alexandra Road, #05-01/02 Mitsubishi Electric

Building, Singapore 159943

Sales Inquiries

Phone :[phone]

Fax :[phone]

E-mail :[e-mail]

Technical Inquiries

Phone :[phone]

Fax :[phone]

VIETNAM (Mitsubishi Electric Asia Pte. Ltd.)

307, Alexandra Road, #05-01/02 Mitsubishi Electric

Building, Singapore 159943

Sales Inquiries

Phone :[phone]

Fax :[phone]

E-mail :[e-mail]

. Technical Inquiries

Phone :[phone]

Fax :[phone]

STC (Setsuyo Astec Corporation Seoul Branch)

4F.Dongseo Game Channel Bldg.660-11 Deungchon-Dong.

Kangseo-Ku, Seoul, Korea

Sales & Technical Inquiries

Phone :[phone]

Sales & Technical Inquiries

Phone :[phone] (Ext. 203)

Fax :[phone]

Technical & Service Inquiries

Phone :[phone] (Ext. 106)

Fax :[phone]

ME-TWN (Mitsubishi Electric Taiwan Co., Ltd.)

http://www.MitsubishiElectric.com.tw

11TH FL., 90 SEC. 6, CHUNG SHAN N. RD., TAIPEI, 111

R.O.C.

Sales & Technical Inquiries

Phone :[phone]

Fax -981686-2-2833

MKY (Mitsubishi Electric Kang Yong Watana Co., Ltd.)

http://www.mitsubishi-kyw.co.th/

Road, Huamark Bangkapi, Bangkok 10240, Thailand

Sales & Technical Inquiries

Phone :[phone]

Fax :[phone]

Oceania

ME-AUST (Mitsubishi Electric Australia)

http://www.mitsubishi-electric.com.au/prod.asp?prod=proj

348 Victoria Road, Rydalmere, N.S.W. 2116, Australia

Sales & Technical Inquiries

Phone :+(612)9684-7777

Fax :+(612)9684-7208

E-mail: [e-mail]

Technical Inquiries

Phone :+(612)9684-7694

Fax :+(612)9684-7684

E-mail :[e-mail]

BDT (Black Diamond Technologies Ltd.)

(Warranty Registration) http://www.bdt.co.nz/projectors/

warranty.asp

1 Parliament St, Lower Hutt, Wellington, New Zealand

Sales Inquiries

Phone :[phone]

E-mail :[e-mail]

MITSUBISHI ELECTRIC CORPORATION

1 Zusho Baba, Nagaokakyo-City, Kyoto Japan
