Product Type	Corded Electric Blower
Brand	Black & Decker
Model	GW370
Power Source	120V AC, 60Hz
Motor Power	12 Amps
Air Speed	250 mph (402 km/h)
Air Volume	400 CFM (cubic feet per minute)
Weight	4.5 lbs (2.04 kg)
Dimensions (L x W x H)	18 x 8 x 8 inches (45.7 x 20.3 x 20.3 cm)
Cord Length	10 feet (3 meters)
Variable Speed Trigger	Yes
Blower Tube Type	Ergonomic, easy to attach
Noise Level	Approximately 90 dB
Double Insulated	Yes
Safety Lock Switch	Yes
Maintenance	Clean air vents regularly; no lubrication required
Warranty	2-year limited warranty
Included Accessories	Blower tube, user manual
Reparability	Replacement parts available through authorized service centers

Frequently Asked Questions - GW370 BLACK & DECKER

What type of power cord does the GW370 require?

The Black & Decker GW370 requires a standard 120V AC outlet and uses a 10-foot power cord. For longer reach, use a heavy-duty extension cord of at least 14 AWG wire gauge.

How do I change the air speed?

The GW370 features a variable speed trigger. Press the trigger gently for lower speed, and squeeze harder for maximum speed. Release to stop.

Can I use this blower for vacuuming leaves?

No, the GW370 is a dedicated blower only. It does not have a vacuum or mulching function. For vacuum capabilities, consider Black & Decker's 2-in-1 models.

How do I clean or maintain the blower?

Disconnect the blower from power. Clean the air intake vents with a soft brush or cloth to remove dust. Do not use water or solvents. The motor bearings are sealed and require no lubrication.

What is the warranty coverage?

The Black & Decker GW370 comes with a 2-year limited warranty covering defects in materials or workmanship. Keep your purchase receipt for service.

Why is the blower not starting?

Check that the power cord is securely plugged into a working outlet. Ensure the trigger switch is not jammed. If still not starting, inspect the cord for damage or contact customer service.

Can I use an extension cord?

Yes, use a heavy-duty extension cord rated for outdoor use, at least 14 AWG gauge and no longer than 50 feet to avoid voltage drop. Always ensure the cord has a proper ground connection.

How do I attach the blower tube?

Align the tube's grooves with the blower housing, then twist clockwise until it locks into place. To remove, twist counterclockwise and pull.

What is the noise level?

The GW370 operates at approximately 90 dB. Always wear hearing protection when using the blower for extended periods.

Where can I get replacement parts?

Replacement parts such as the blower tube or switch assembly can be ordered through Black & Decker authorized service centers or their official website. Use part numbers from the user manual.

USER MANUAL GW370 BLACK & DECKER

Line drawing of a robotic arm with attached prosthetic head and articulated arm (no text or symbols)

GW350

GW370

A

Line drawing of a medical device with attached cable and bulb (no text or symbols)

Diagram of a mechanical device with internal components and labeled H1 (no text or symbols on the diagram itself)

Diagram of a mechanical device with internal components and a downward arrow, labeled H2 (no text or symbols on the diagram itself)

Diagram of a mechanical device with internal components and a central component, labeled H3 (no text or symbols on the diagram itself)

Illustration of a person using a handheld power tool to generate leafy leaves, with arrows indicating direction (no text or symbols)

Line drawing of a person using a power tool to clean or brush it, with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a rotating component and a directional arrow (no text or symbols)

User manual

Congratulations!

On purchasing the Black & Decker system which will assure you of problem free leaf clearing.

GW350 & GW370 - Blower Vac

2-speed Vacuuming √ Shredding √ 2-speed Blowing √

Your product has many features designed for your benefit, including:

• Powerful motor that blows air and will vacuum/mulch.
• Unique 5 blade fan that will shred leaves into small debris in a 10 to 1 ratio.
• 2-speed switch for maximum convenience.
• Ergonomic design improves comfort and ease of use.
• Large aperture vacuuming tube to maximise the intake of leaves.
  • 35 litre easy empty collection bag.

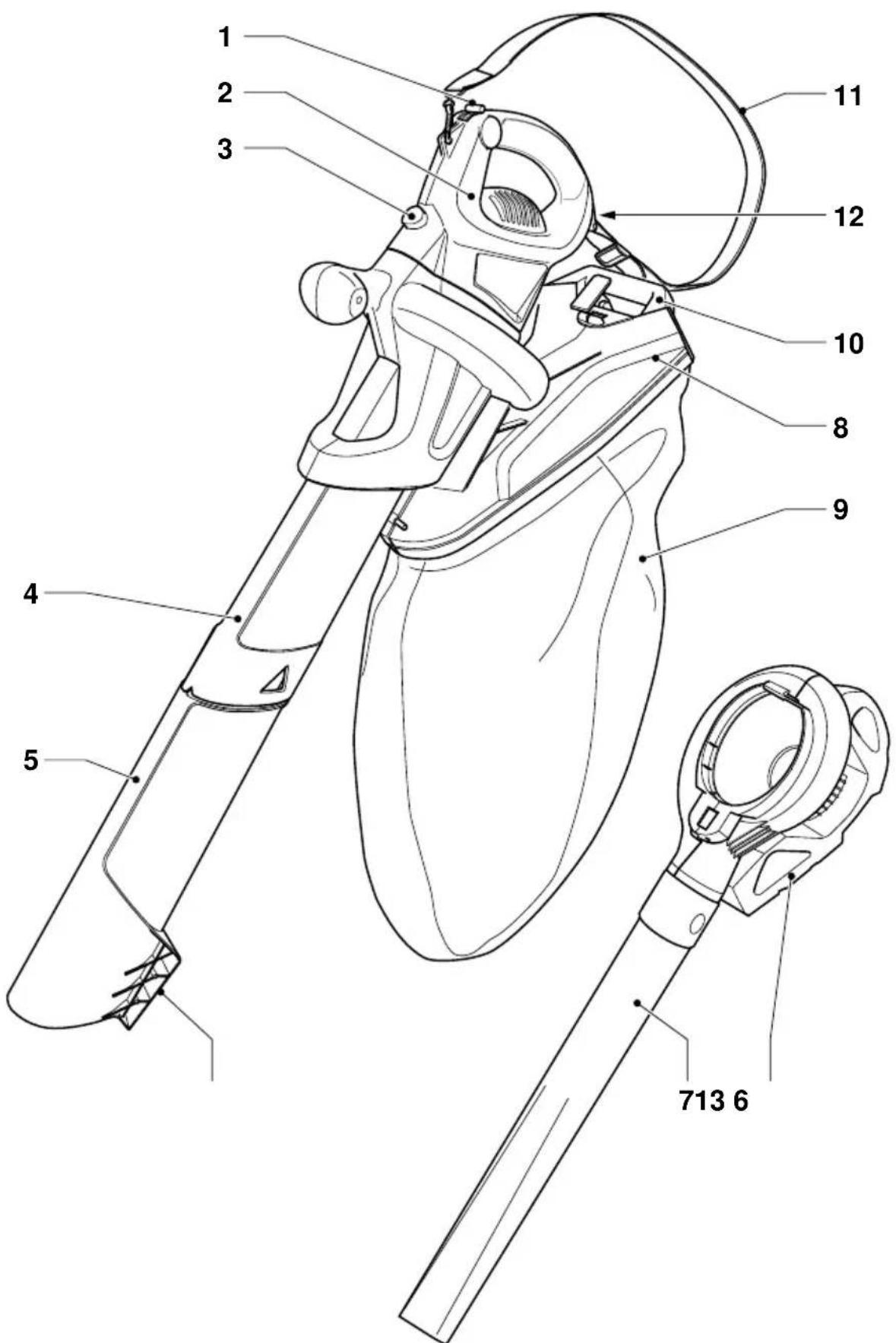

Description (Fig. A)

A Following is a list of parts that will be mentioned in this user manual and are shown in the diagrams:

1. Two-speed on/off switch
2. Powerhead
3. Release button
4. Vacuum tube - upper
5. Vacuum tube - lower
6. Blow clamshell
7. Blow tube
8. Bag top
9. Collection bag
10. Collection bag handle
11. Carrying strap
12. Cable restraint
    13.Scraper

Know your product

Read this manual carefully, observing all recommended safety precautions before, during and after using your product.

Maintain your product in good working order.

Familiarise yourself with the controls on your product before attempting to operate it, but above all, be sure you know how to stop the product in an emergency.

Retain this manual and all other literature supplied for future reference.

Safety instructions

Training

• Do not allow the unit to be used by persons under the age of 16 or other persons who have not read this user manual. You are responsible if there is an accident.
• Remember that the operator/user is responsible for accidents or hazards occurring to other people or their property.
• Do not allow children, animals or other persons near your product when in use - always keep them at least 6m (20ft) away from the working area.
• Never carry your product by the cable or jerk the cable. Keep the cable away from heat sources, oils or sharp edges. Check the condition of your cable before use and do not use if damaged.

Preparation

• Do not operate your product barefoot or in open sandals.
• To protect your feet and legs, always wear stout shoes or boots and long trousers - freshly cut grass is damp and slippery. Rubber or man made footwear will enhance your safety.
• Use protective equipment. Wear safety spectacles or goggles whilst operating your product in blow mode.
• To prevent dust irritation the wearing of a suitable face mask is recommended.
• Use ear protection if the sound level seems uncomfortable when using your product.

Warning! Secure long hair so it is above shoulder length. Keep loose clothing, ties, tassels and hanging straps away from openings and moving parts.

• The power supply cable should be regularly inspected for signs of damage or ageing, and only used if in good condition.
• Always be sure your product is in a safe operating condition and all parts are secure before use.
• Do not operate the product if any parts are defective or worn.
• Do not pick up burning materials such as lit cigarette butts.
• Do not operate the blower/vacuum in a gaseous or explosive atmosphere as motors in these tools normally spark and this may ignite fumes.

Operation

- Do not use in vacuum mode without the vacuum tubes and collection bag in place.

Always switch off your product, allow the fan to stop and remove the plug from the socket when:

• Changing from blower to vacuum.
• The supply cable has become damaged or entangled.
• You leave your product unattended.
• Clearing a blockage.
• Checking, adjusting, cleaning or working on your product.
• If the appliance starts to vibrate abnormally.

- Do not place the inlet or outlet of the vacuum near eyes or ears when operating. Never blow debris in the direction of bystanders.

- Do not use your product in the rain and do not allow it to get wet. Avoid using the product in wet conditions.

- Use your product only in daylight or good artificial light.

- Do not cross gravel paths or roads whilst your product is switched on during blow/vac mode. Walk, never run.

- Do not place your unit down on gravel whilst it is switched on.

• Always be sure of your footing, particularly on slopes. Do not overreach and keep your balance at all times.

• Do not pick up matter that may be contaminated with flammable or combustible liquids such as gasoline, or use in areas where they might be present.
• Do not place any objects into the openings. Never use if the openings are blocked - keep free of hair, lint, dust and anything that may reduce the airflow.

Warning! Always use your product in the manner outlined in this manual. Your product is designed to be used in an upright mode and if it is used in any other way it may result in injury. Never run your product whilst lying on it's side or upside down.

• Do not carry the appliance by the cable.
  • Always direct the cable to the rear away from the appliance.

- If a cord becomes damaged during use, disconnect the supply cord from the mains immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.

Maintenance and storage

• Store your product in a dry place when not in use, out of the reach of children.
• Do not use solvents or cleaning fluids to clean your product - use a blunt scraper to remove grass and dirt.
• Before use, carefully check the appliance and mains cable for damage. Check for misalignment and seizure of moving parts, breakage of parts, damage to guards and switches and any other conditions that may affect its operation. Ensure that the appliance will operate properly and perform its intended function. Do not use the appliance if any part is damaged or defective. Do not use the appliance if the switch does not turn it on and off.

- Have any damaged or defective parts repaired or replaced by an authorised repair agent. Never attempt any repairs yourself.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Replace damaged or unreadable labels.

- Check the Debris collector frequently for wear or deterioration.

- Replacement fans are available from a Black & Decker service agent. Only use genuine replacement parts and accessories.

Double insulation

This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

Guard against electric shock.

• Electric safety can be further improved by using a high-sensitivity (30 mA / 30 mS) residual current device (RCD).
• Your appliance is designed for use on AC (mains) electrical supplies only. Do not attempt to use it on any other supply.

Plug replacement (UK only)

Mains plug replacement (U.K. & Ireland only)

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
• Connect the brown lead to the live terminal in the new plug.
• Connect the blue lead to the neutral terminal.
• Connect the green/yellow lead to the earth terminal.

Warning! Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 13 A.

Extension cables

When using the appliance outdoors, only use extension cables intended for outdoor use. Up to 25 m of Black & Decker 1.5 mm HO5VVF 3-core extension cable can be used without loss of power.

Assembly prior to use (Fig. B & C)

Vacuum tube assembly (Fig. B)

B

• Vacuum tubes must be assembled together before use.
- To ease assembly apply soapy water solution to joint area.
- Align the notches (15) and the triangles (14) on upper (4) and lower (5) tubes.
- Push the lower tube (5) firmly into the upper tube (4), until the triangles click into place. (Never operate apart).
- In the interests of safety, it is not intended for the tubes to be separated once assembled.

C

Blow tube assembly (Fig. C)

• Blow tube must be assembled to the blow clamshell before use.
• Align the circles (16) on the clamshell (6) and the tube (7).

ENGLISH

• Push the tube (7) firmly onto the clamshell (6) until the circles click into place.
• For storage the blow tube can be detached from the blow clamshell by depressing the circles on either side and gently sliding off the tube.

Carrying strap assembly (Fig. D - G)

- Fit the carrying strap to the powerhead, if required, and adjust to suit the user. For your comfort, the shoulder strap is designed to be fitted in two ways:

Single Point Attachment (Fig. D)

• Clip the hook (17) through the eyelet (18) on the powerhead.
• Adjust the length of the loop with the buckle.

Double point attachment (Fig. D, E, F & G)

• Clip the hook (17) through the eyelet (18) on the powerhead.
• Remove the loose end of the strap from the buckle.

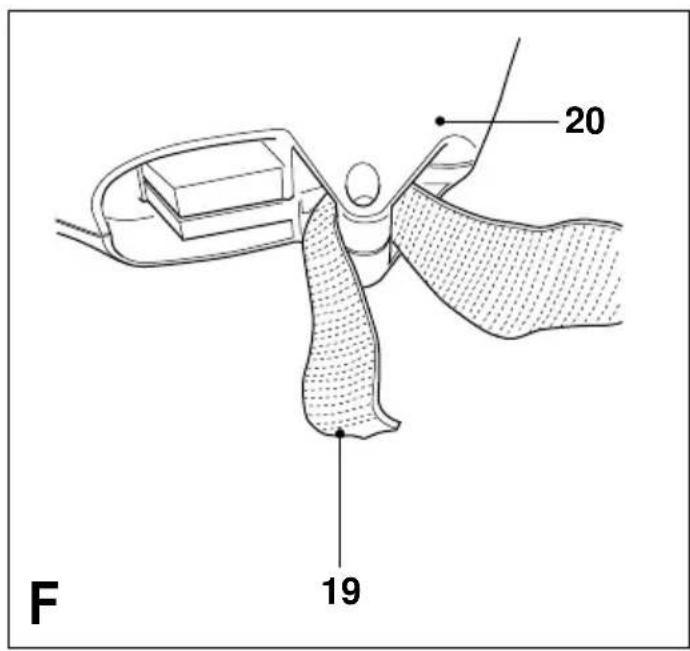

  • Pass the loose (19) end under the boss (20), and thread it back through the buckle (21).
• Adjust the length of the loop with the buckle (Fig. G).

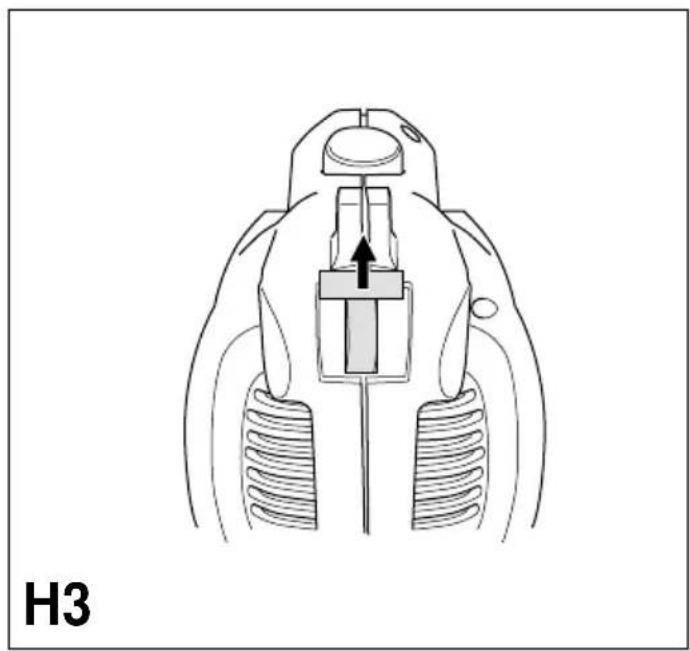

On/off switch (Fig. H1, H2, H3)

!

Warning! Use both hands to grip the product firmly when switching on.

• For extra control, your blowvac is fitted with a two speed switch located on the handle of the powerhead.
• The switch has a central off. Position 0 (Fig. H1).
• To use in low speed, move the switch fully to the rear. Position I (Fig. H2).
• To change to high speed push the switch back to the off position and then fully forward. Position II (Fig. H3).

Cable restraint (Fig. I)

• A cable restraint is incorporated into the rear of the powerhead.
• Loop the cable (22) through the cable restraint (12).

Using your product (Fig. J)

When using as a blower or vacuum, always wear safety glasses. If using in dusty conditions, wear a filter mask as well.

Switch off your product, allow the fan to stop and remove the plug from the socket before carrying out any adjustment, servicing or maintenance.

Blow mode

J

- Attach the blow clamshell and tube (6 & 7) to the powerhead (2) (Fig. J) by locating the blower as indicated by arrow 23, then pivot about this point until the locking/release catch (24) is fully engaged.

- Hold the blow tube approximately 180mm (7") above the ground, switch your product on and using a sweeping motion from side to side, advance slowly keeping the accumulated debris/leaves in front of you (Fig. K).

- Once you have blown the debris/leaves into a pile, you can convert to vacuum mode to collect the debris.

Removing blow/vacuum tube (Fig. J)

J

- To disconnect the blow clamshell or vacuum tube from the powerhead, depress the release button (3), ensuring the tube does not fall to the ground.

- The release button will not depress if the switch is in the "on" position.

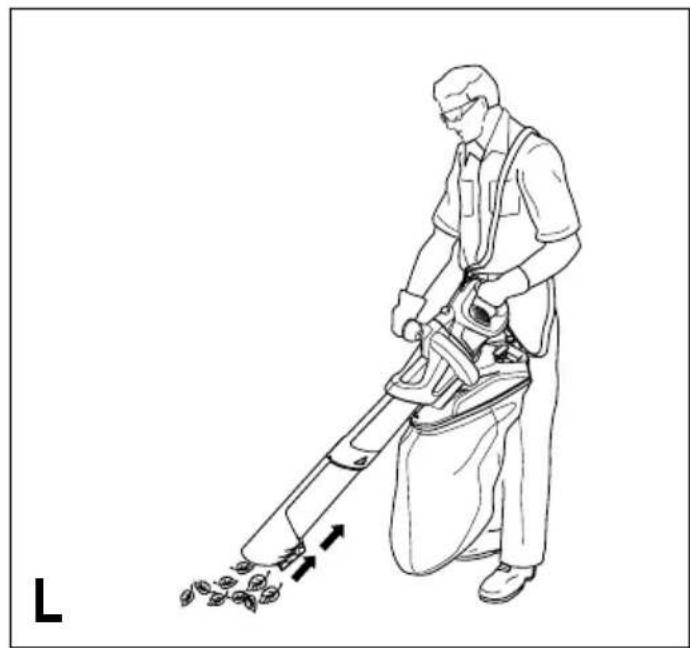

Vacuum mode (Fig. L - P)

To fit the bag assembly to your product: (Fig. M, N, O)

- For vacuuming/shredding, the collection bag (9) must be fitted to the bag holder (8).

- Fig. M: Locate the bag rim (25) into the bag holder channel (26) ensuring that the front of the bag is placed over the vacuum outlet (27).

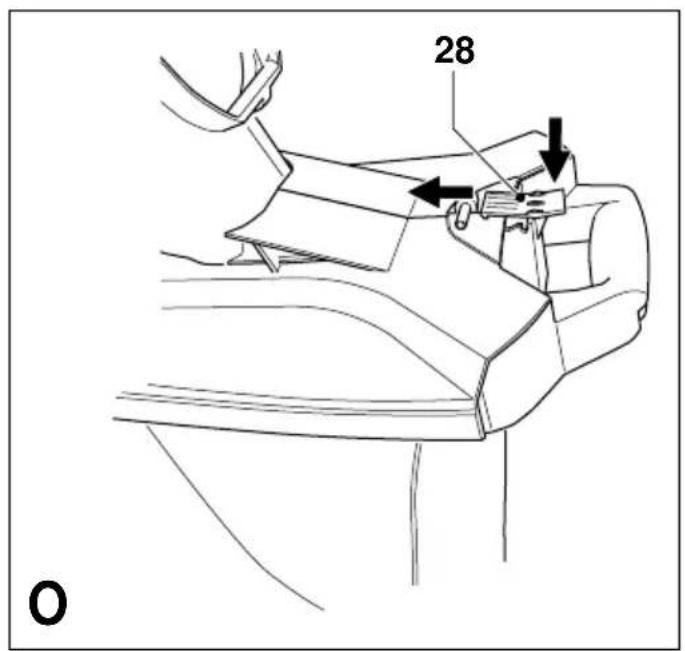

- Slide the bag fully into the channel and depress the latch (28) to lock the handle into the bag top (Fig. N & O).

- Position the tube slightly above the debris/leaves. Switch your product on, then using a sweeping motion the debris/leaves will be sucked up the tube, shredded and thrown into the collection bag (Fig. L).

- For stubborn debris/leaves your vacuum tube is incorporated with a scraper (13). Use this scraper to loosen the debris and continue to vacuum as normal.

- As the bag fills the power of the suction will decrease, switch off your product and unplug from the mains power supply.

- To remove the bag, depress the latch (28) to disengage from the bag holder and slide the bag out.

- To empty, hold the plastic handle (10) and grab the nylon handle (29) on the underside of the bag. Turn the bag upside down and shake out any debris and leaves.

Fault finding

Failure to operate

(1) Check the connection to the power supply.
(2) Check the fuse in the plug, if blown, replace (UK only).
(3) Check that the blow/vacuum tube assembly is correctly fitted to the powerhead.
(4) If the fuse continues to blow - immediately disconnect from the mains power supply and consult your local Black & Decker authorised repair agent.

Poor vacuum/ (1) Switch off - disconnect from high pitched whine the mains power supply, debris should fall clear of the tube.

(2) Remove and empty the collection bag.
(3) Check that both the inlet and exit ports on the vacuum tube are clear.
(4) Remove any debris from the fan area.
(5) If poor vacuuming continues - immediately disconnect from the mains power supply and consult your local Black & Decker authorised repair agent.

Poor shredding (1)

Switch off - disconnect from the mains power supply and remove the collection bag.

(2) Remove the vacuum tube and inspect the fan.
(3) Clean any debris from the fan blades.

(4) If the fan is cracked or damaged, do not use - consult your local Black & Decker authorised repair agent.

Cleaning your product

Keep your product dry.

Under no circumstances spray with water.

• Clean your product regularly.
• Remove any leaves stuck to the inside of the vacuum tube.
• Plastic parts may be cleaned using a mild soap and a cloth dampened with hot water.

Do not use any type of detergent, cleaner or solvent which may contain chemicals that could seriously damage the plastic.

- Self lubricating bearings are used in your product, therefore lubrication is not required.

Protecting the environment

Black & Decker provides a facility for recycling Black & Decker products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

EC Declaration of conformity GW350/370

Black & Decker declares that these products conform to:

98/37/EC, 89/336/EEC, 73/23/EEC, EN 55014, EN 55104, EN 60335,

2000/14/EC, Leaf blower/collector = 11 m ^3 /min, Annex V

Level of sound pressure, measured according to 2000/14/EC:

L_pA (sound pressure) dB(A) 92

L_WA (acoustic power) dB(A) 105

L_WA (guaranteed) dB(A) 107

Hand/arm weighted vibration value according to EN ISO 5329: < 2.5 m/s ^4

Kevin Hewitt

Director of Consumer Engineering Spennymoor, County Durham DL16 6JG, United Kingdom 01-06-2003 (Date of 1st manufacture)

UK patent application nos. 0229517.8; 0300442.1; 0302170.6

UK design application no. 3 010 507 European patent nos. 0 723 758 B1; 0 723 759 B1 US patent nos. 5 673 457; 5 604 954

ENGLISH

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

• The product has been used for trade, professional or hire purposes;
• The product has been subjected to misuse or neglect;
• The product has sustained damage through foreign objects, substances or accidents;
• Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Other outdoor tools

Black & Decker has a full range of outdoor power tools that make life in the garden easy. If you would like further information on the following products, please contact our Service and Information Centre (see the address page towards the end of this manual) or your local Black & Decker retailer.

String trimmers

Chainsaws

Cordless shear

Hedgetrimmers

Lawnmowers

Lawnrakers

Leafbusters

Shredders

Not all products are available in all countries.

Australia	DEWALT Industrial Power Tool Company7 Clarice Road Fax [phone]Box Hill, Victoria 3128	Tel. [phone]
New Zealand Black & Decker Tel. [phone] Hugo Johnson Drive Fax [phone]Penrose, Auckland, New Zealand
United Kingdom Black & Decker Tel. [phone] Bath Road Fax [phone]Slough, Berkshire SL1 3YD Helpline 01753 574277
