Product Type	Camera Slider / Rail
Brand	Proaim
Model	TRK-16-32
Length	32 inches (81 cm)
Weight	4.5 kg (9.9 lbs)
Maximum Load Capacity	15 kg (33 lbs)
Material	Aluminum alloy
Bearing Type	Stainless steel sealed ball bearings
Leveling Legs	Adjustable rubber feet
Mounting Compatibility	Arca-Swiss quick release plates
Included Accessories	Carrying case, hex tools, user manual
Color	Black anodized
Folded / Storage Dimensions	85 x 12 x 10 cm
Rail Type	Dual rail with center drive
Carriage Type	Slider carriage with fluid drag knob
Maintenance	Clean with dry cloth; lubricate bearings periodically
Safety	Secure rail to tripod or surface; do not exceed load capacity
Spare Parts & Repairability	Replacement bearings and hardware available from Proaim
General Information	Designed for smooth camera movements in professional video production
Warranty	1 year limited warranty

Frequently Asked Questions - TRK-16-32 Proaim

How do I set up the Proaim TRK-16-32 rail?

Place the rail on a flat surface or mount it on a tripod using the 3/8" screw holes. Adjust the leveling feet to ensure stability. Attach your camera to the carriage via an Arca-Swiss plate. Slide the carriage to test smoothness.

What is the maximum weight the rail can support?

The Proaim TRK-16-32 can handle a maximum load of 15 kg (33 lbs), suitable for most DSLR and mirrorless rigs with a fluid head.

Can I use the rail with a gimbal?

Yes, you can mount a gimbal on the carriage as long as the total weight does not exceed the 15 kg capacity. Ensure the gimbal is securely attached via the Arca-Swiss plate.

How do I clean and maintain the rail?

Wipe the rails with a dry, lint-free cloth to remove dust. Apply a thin layer of light lubricant to the bearings every few months. Do not use oil on the rails themselves.

What type of tripod head is compatible?

The rail has 1/4" and 3/8" threaded holes, compatible with most video tripod heads. A fluid head is recommended for smooth panning.

Does the rail come with a carrying case?

Yes, the Proaim TRK-16-32 includes a padded carrying case with a shoulder strap for transport and storage.

Can I use the rail on uneven ground?

Yes, the rail has adjustable rubber leveling feet that can be turned to compensate for uneven surfaces, ensuring smooth shots.

How do I attach the rail to a tripod?

Use the 3/8" threaded hole at the center of the rail to mount it directly on a tripod head. Tighten with a hex key (included).

What is the length of the rail?

The rail measures 32 inches (81 cm) in total travel length, providing ample space for sliding shots.

Where can I find spare parts?

Spare parts such as bearings, carriage screws, and leveling feet can be ordered directly from Proaim's website or authorized retailers.

USER MANUAL TRK-16-32 Proaim

16ft Heavy Duty Camera Dolly Track (TRK-16-32)

Assembly Manual

Pure structural ladder diagram without any text, numbers, or symbols

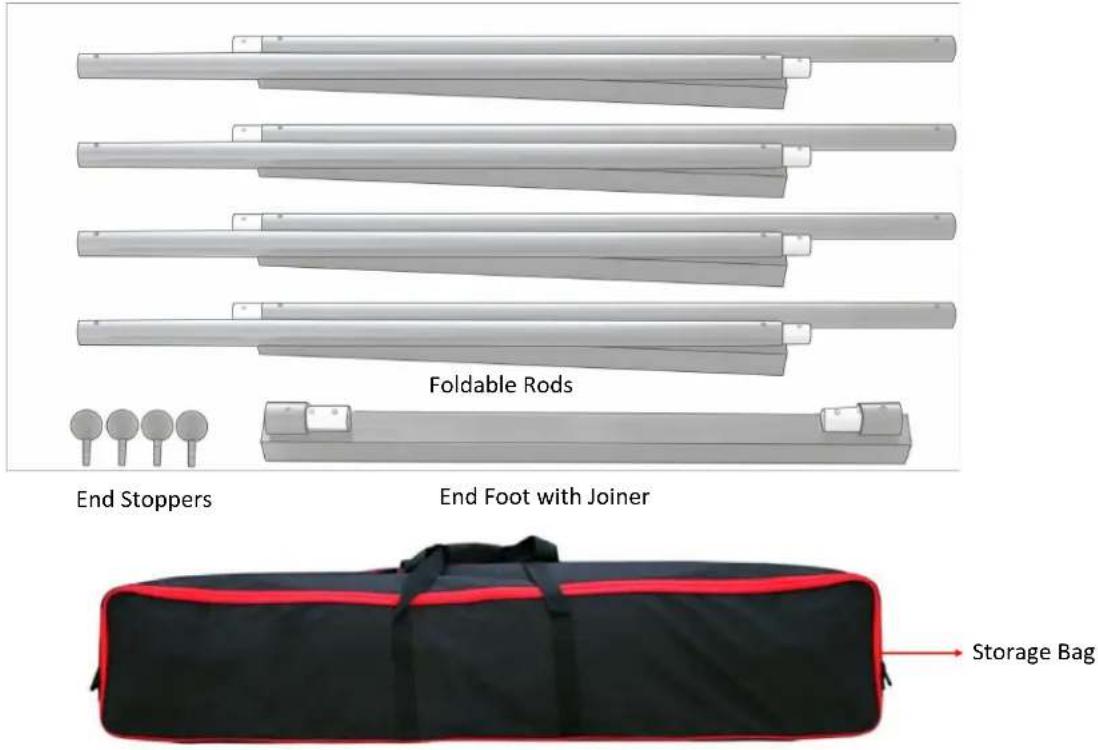

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

All rights reserved.

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.

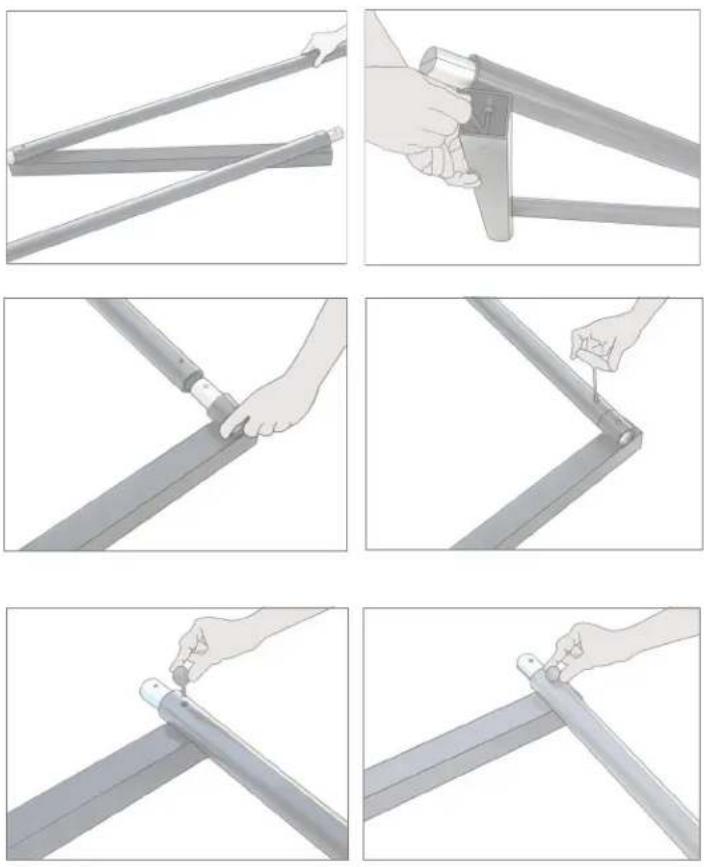

Dolly Track Setup

- Unfold the track from its stored position. Open the foldable rods of track set and tighten the screw to secure it.

- Attach the track set to the joiners of the end foot and tighten the screw properly with an allen key so that there is a minimum gap at the joiner.

NOTE: Repeat the above steps to attach all the sections.

- Attach the end stoppers to prevent falling of your dolly from the track.

YOUR PROAIM 16FT HEAVY DUTY CAMERA DOLLY TRACK ALL DRESSED UP AND READY TO GO!

Person operating a long industrial machine with a yellow bucket, no visible text or symbols

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn't cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

Contact Us: In case of any kind of dissatisfaction, please Contact us immediately and we promise our utmost support and care until you use our product.
