Brand	Tisira
Model	ARU75BX-L
Product Type	Slide-out Undermount Rangehood
Width	750 mm
Installation	Undermount, ducted or recirculating (carbon filter required)
Minimum Distance from Hob	600 mm (electric), 650 mm (gas)
Number of Fan Speeds	3 (low, medium, high)
Control Type	Mechanical switches (fan speed left, light right)
Lighting	2 x 3W LED GU10
Fan Motor Type	Single motor (assumed)
Filter Type	Aluminum mesh (dishwasher safe)
Filter Cleaning Frequency	Monthly minimum
Ducting Diameter	Not specified, typical 150 mm
Electrical Supply	220-240V, 50Hz (assumed Australian standard)
Power Cord Length	Not specified
Material	Stainless steel
Warranty	Refer to proof of purchase
Suitable for Indoor Use Only	Yes
Safety Feature	Automatic shut-off?
Weight	Not specified
Accessories Included	Ducting adaptor

Frequently Asked Questions - ARU75BX-L Tisira

What is the minimum distance between the hob and the rangehood?

For electric hobs, the minimum distance is 600 mm. For gas hobs, it is 650 mm. Always check the hob manufacturer's instructions; if they specify a greater distance, that must be observed.

How do I clean the filters?

The aluminum mesh filters should be cleaned at least monthly. They are dishwasher safe or can be washed in hot soapy water. Ensure they are thoroughly dry before reinstalling.

Can I use the rangehood without ducting?

Yes, the rangehood can be used in recirculating mode with a carbon filter (not included). This is suitable when ducting to the outside is not possible.

What type of light bulbs does the rangehood use?

The ARU75BX-L uses 2 x 3W LED GU10 bulbs. To replace, twist the lamp anti-clockwise while ensuring the unit is off and the bulbs have cooled.

How do I operate the fan speeds?

The left switch controls the fan: 0 (off), single line (low), double lines (medium), triple lines (high). The right switch controls the light On/Off.

Is it safe to flambé under the rangehood?

No, do not flambé under the rangehood. There is a fire risk if cleaning is not carried out according to instructions.

What should I do if the power cord is damaged?

The supply cord must be replaced only by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

Can children use this rangehood?

This appliance is not intended for use by persons (including children) with reduced capabilities unless supervised. Young children should be supervised to ensure they do not play with the appliance.

How do I install the rangehood?

Installation should be done by two people. Remove filters and light globes, detach the fascia, run ductwork, cut cabinetry according to the diagram, screw the hood into place, attach ducting adaptor, and reconnect fascia. Do not penetrate screws into the hood as this may cause electrical hazards.

Is the rangehood suitable for outdoor use?

No, this appliance is designed for indoor domestic use only.

USER MANUAL ARU75BX-L Tisira

ARU52AX-L | ARU75AX-L | ARU90AX-L

ARU52BX-L | ARU75BX-L | ARU90BX-L

IMPORTANT // Please ensure that you read through this user manual prior to installation and use. This manual contains important information to ensure optimal performance and keep you safe. Please retain your proof of purchase, as this will be required in the event that you require warranty service. Remember to retain this manual for future reference.

HELLO

CONGRATULATIONS ON THE SELECTION OF THIS SLIDEOUT RANGEHOOD. OUR APPLIANCES HAVE BEEN SPECIFICALLY DESIGNED FOR AUSTRALIAN AND NEW ZEALAND KITCHENS.

Please read through this user manual carefully as it contains information that will ensure that your appliance is installed correctly, important operating & care instructions and also some advice of what you need to do if this appliance is not performing as intended.

CONTENTS

HELLO 2

CONTENTS 3

WARNING & SAFETY INFORMATION 4

INSTALLATION & DUCTING 5

OPERATING INSTRUCTIONS 7

MAINTAINING YOUR RANGEHOOD 8

PROOF OF PURCHASE 9

NOTES 10-11

CONTACT DETAILS 12

WARNING & SAFETY INFORMATION

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Young children should be supervised to ensure that they do not play with the appliance.
There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.
You must read the details concerning the method and frequency of cleaning.
There is a fire risk if cleaning is not carried out in accordance with the instructions.
Do not flambé under the rangehood.
Exhaust air must not be discharged into an existing flue which is used for exhausting fumes from appliances burning gas or other fuels.

The minimum distance between the hob surface and the lowest part of the rangehood is 600mm. This distance shall be at least 650mm, if the rangehood is installed over a gas hob. If the instructions for the gas hob specify a greater distance, this has to be taken into account.
Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air is fulfilled.
If the supply cord of this equipment is damaged, it must only be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
This appliance has been designed for indoor domestic use only.
Do not remove or inspect the filters whilst the hood is in operation.

INSTALLATION & DUCTING

IMPORTANT Before handling the rangehood during installation, it is recommended that you remove the filter to prevent damage.

Fig 1.2 illustrates the minimum height from the hob surface to the underside of the rangehood.

FIG 1.2

Electric hob - 600mm

Gas hob - 650mm

NOTICE: IF THE INSTRUCTIONS FOR THE GAS HOB SPECIFY A GREATER DISTANCE, THIS HAS TO BE OBSERVED. ANY INSTALLATION ABOVE 750MM WILL COMPROMISE PERFORMANCE.

520, 750 & 900 // UNDERMOUNT HOOD

INSTALLATION & DUCTING

Pure mechanical diagram showing a lever and shaft assembly without any text, numbers, or symbols

TOP DUCTING SIDE DUCTING

Pure technical line drawing of a structural frame with no text, numbers, or symbols

Pure architectural line drawing of a roof structure without any text, numbers, or symbols

RE-CIRCULATING (Carbon filter required)

DUCTED OPTION

NOTICE // ALL DUCTING MATERIAL MUST BE COMPLIANT WITH THE LOCAL LAWS IN FORCE.

INSTALLATION

1. Remove the filter and light globes. (If installed)

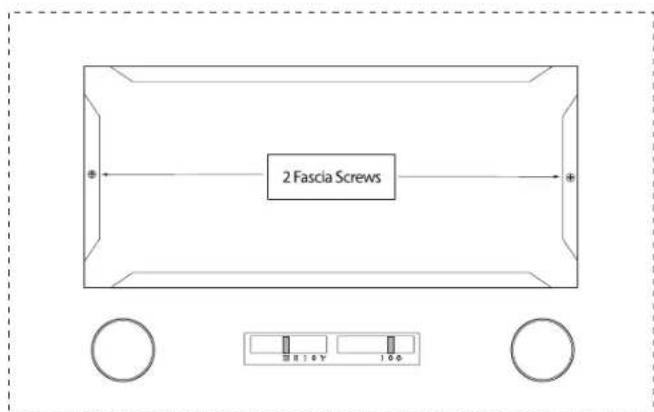

2. Remove the stainless steel fascia (4 screws) – take care not to damage the fascia.
3. Determine the most efficient path for the ductwork, minimise bends and keep the length of the ductwork to a minimum.
4. It is important to run and finish (install roof / wall caps) prior to installation of the hood.
5. Cut out the cabinetry as per the installation diagram. Ensure that access has been allowed for the power cable.
6. Hold the hood up to the underside of the cabinet (2 people required); Screw the hood to the cabinetry.
7. Attach the ducting adaptor to the ducting.
8. Re-install the stainless steel fascia.
9. Re-install filter.
10. Plug in the power to the unit, turn on and test.

WARNING // Do not penetrate any screws into the rangehood as this may result in electrical hazards. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

OPERATING INSTRUCTIONS

Simple diagram of a rectangular room with diagonal hatching and two circular controls, no text or symbols present.

FAN SPEED

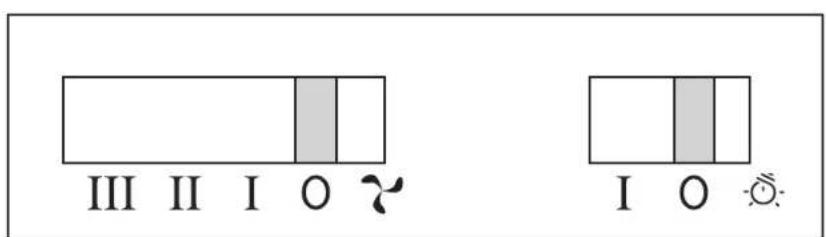

OFF/LOW/MEDIUM/HIGH switch - located on the left hand side of the control panel.

This unit features 3 speed settings; single line indicate low speed, double lines indicate the medium speed & triple lines indicate high speed.

To turn the unit off, set the speed switch to the 0 position (off).

LIGHT

On/Off switch - located on the right hand side of the control panel as indicated in the diagram above.

MAINTAINING YOUR RANGEHOOD

GENERAL MAINTENANCE

Ensure that the power to the unit is switched off prior to cleaning the unit. Surface should only be cleaned with warm soapy water and a soft non-abrasive cloth. In coastal environments and humid areas more frequent cleaning is required to maintain the finish.

FILTERS

These filters should be cleaned frequently, dependant on use (minimum monthly).

Aluminium filers are dishwasher safe or can be cleaned with hot soapy water. Ensure that filters are thoroughly dry before re-installing. Slight discolouration may occur when cleaned in the dishwasher.

LAMPS

Your range hood is fitted with GU10 halogen or LED lamps depending on the model (refer to table below). Before replacing, ensure that lamps are completely cool and the power to the unit has been switched off. Replacement lamps can be purchased from your nearest hardware store.

To remove the lamp, twist the lamp in an anti-clockwise direction.

MODEL LAMP TYPE

ARU52X and ARU75X 40W Halogen GU10 (X2)

ARU52X-L and ARU75X-L 3W LED GU10 (X2)

ARU52AX-L, ARU75AX-L & ARU90AX-L 3W LED GU10 (X2)

ARU52BX-L, ARU75BX-L & ARU90BX-L 3W LED GU10 (X2)

PROOF OF PURCHASE

ATTACH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE

NOTES

NOTES

CONTACT DETAILS

AUSTRALIA

ARISIT PTY LIMITED

40-44 Mark Anthony Drive

Dandenong South, VIC 3175

Australia

Ph 1300 815 589

FX [phone]

[e-mail]

NEW ZEALAND

ARISIT PTY LIMITED

PO Box 68-140

Newton, Auckland

1145

New Zealand

Ph [phone]

FX [phone]

[e-mail]

ARISTON IS COMMITTED TO OVGOING RESEARCH AND DEVELOPMENT. EVERY EFFORT HAS BEEN MADE TO ENSURE ALL INFORMATION IN THIS USER MANUAL IS CORRECT AT TIME OF GOING TO PRINT.

DIMENSIONS SHOULD BE USED AS A REFERENCE ONLY AND ACTUAL DIMENSIONS SHOULD BE TAKEN FROM THE PHYSICAL PRODUCT ONLY.
