KATVPLB90LA - Floor Aid Kogan - Free user manual and instructions

Brand	Kogan
Model	KATVPLB90LA
Product Type	Fixed TV Wall Mount
Compatible TV Sizes	37" - 90"
Panel Types	Flat and Curved
VESA Compatibility	Screw sizes M6 and M8; typical patterns up to 600x400 mm
Installation Surfaces	Solid concrete, masonry, or wood stud walls
Material	Steel
Included Components	Wall mount (x1), TV brackets (x2), screws (M6x14, M8x16, M6x30, M8x45), D8 washers (x4), spacers 5mm & 15mm (x4 each), wall anchors (x6), ST8x90 screws (x6)
Tools Required	Phillips screwdriver, drill, spirit level, stud finder, pencil
Power Supply	None (mechanical device)
Safety	Read entire manual; use professional installer; do not exceed rated weight; proper tools required
Maintenance	Check bracket security every 3 months; clean with dry cloth
Spare Parts	Not sold separately; contact Kogan.com for replacements
Indoor Use Only	Yes
Installation Difficulty	Professional installation recommended
Warranty	Contact Kogan.com for details

Frequently Asked Questions - KATVPLB90LA Kogan

What TV sizes are compatible with this mount?

This mount is designed for TVs from 37" to 90".

Can I install this mount on drywall?

Yes, but only into wood studs. Follow Step 1A: use a stud finder, drill pilot holes, and secure with the provided ST8x90 screws and washers. Do not use wall anchors for drywall.

What tools are needed for installation?

You will need a Phillips screwdriver, drill, spirit level, stud finder, and pencil.

Is professional installation required?

The manual recommends that this product should only be installed by a licensed professional due to safety considerations.

How do I determine the correct VESA pattern for my TV?

Measure the distance between the mounting holes on your TV vertically and horizontally. The mount accommodates standard VESA patterns and includes screws in M6 and M8 sizes with appropriate spacers.

Does this mount allow tilting or swiveling?

No, this is a fixed mount. It holds the TV flush against the wall after installation.

How often should I check the mount for security?

The manual advises checking that the bracket is secure and safe to use at least every 3 months.

What should I do if I lose a screw or component?

Contact Kogan.com for assistance. Spare parts are not sold separately, but they may be able to provide replacements.

Is this mount suitable for curved TVs?

Yes, the product is designed for both flat and curved panel TVs.

What is the maximum weight capacity of this mount?

The manual does not specify a maximum weight, but it warns not to exceed rated weights. For typical use with 37"-90" TVs, a maximum of around 70 kg (154 lbs) is reasonable. Always ensure your TV weight is within safe limits.

USER MANUAL KATVPLB90LA Kogan

Technical line drawing of a mechanical assembly with two vertical supports and a central rectangular component (no text or symbols)

FIXED CURVED & FLAT PANEL TV WALL MOUNT

FOR 37"-90" TVS

KATVPLB90LA

SAFETY & WARNINGS

Read the entire user guide before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, contact Kogan.com for assistance.

Caution

Use with products heavier than the rated weights indicated may result in instability causing possible injury.

• Mounts must be attached as specified in assembly instructions. Improper installation may result in damage or serious personal injury.
• Safety gear and proper tools must be used. This product should only be installed by a licensed professional.
• This product is designed to be installed on solid concrete walls, masonry walls or wood stud walls.
• Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
• Use the mounting screws provided and do not over tighten mounting screws.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
• Important: Ensure that you have received all parts according to the components list prior to installation. If any parts are missing or faulty, contact Kogan.com.
• Maintenance: Check that the bracket is secure and safe to use at regular intervals (at least every 3 months).

COMPONENTS

Line drawing of a rectangular electronic device with slots and a central button (no text or symbols)

A Wall Mount (x1)

B TV Bracket (x2)

M-A M6x14 Screw (x4)

M-B M8x16 Screw (x4)

M-C M6x30 Screw (x4)

M-D M8x45 Screw (x4)

M-E D8 Washer (x4)

M-F 015x08x5 Spacer (x4)

M-G 015x08x15 Spacer (x4)

W-A ST8x90 Screw (x6)

W-B Wall Anchor (x6)

W-C D8 Washer (x6)

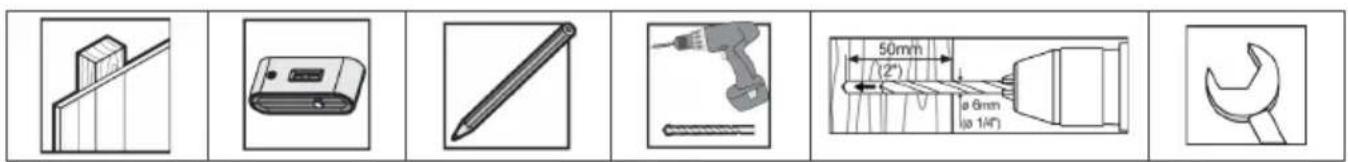

Tools Required for Installation (not supplied)

Phillips Head Screwdriver

Stud Finder

Pencil

Drill Wrench Spirit Level

ASSEMBLY

Step 1A: Dry Wall or Plasterboard

Using a pencil and spirit level, mark the desired position for the mount on your wall, using the wall mount (A) for the hole positions.

Use a stud finder first to check positions of wall studs and ensure the position is free from electrical wiring. Using a drill, create the pilot holes.

Attach the wall mount (A) to the wall using the x6 ST8x90 screws (W-A) and x6 D8 washers (W-C). Ensure a 50mm excess is left between the head of the screw and the wall surface. Do not use wall anchors.

Step 1B: Masonry or Concrete

Using a pencil and spirit level, mark the desired position for the mount on your wall, using the wall mount (A) for the hole positions. Using a drill, create the pilot holes.

Insert the x6 wall anchors (W-B) into the 6 drilled holes. Attach the wall mount (A) to the wall using the x6 ST8x90 screws (W-A) and D8 washers (W-C). Ensure a 55mm excess is left between the head of the screw and the wall surface.

Step 2:

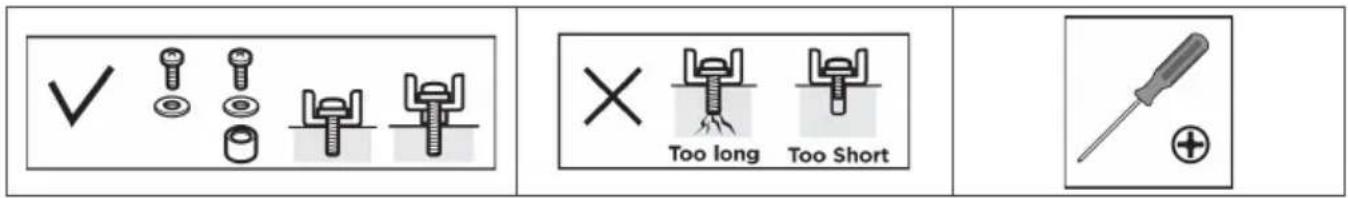

Align the brackets with your TV's VESA holes and secure using the supplied screws ("M-" set), Washer (M-E) and spacers (M-F, M-G) depending on the required length.

Step 3:

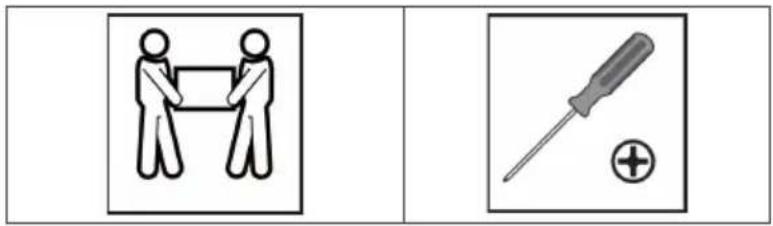

Hook the TV with brackets installed onto the wall mount. Two people should carry the TV to prevent damage.

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
