Product Type	Bottom Mount Refrigerator-Freezer
Brand	Kogan
Model	KAM529LBMFB (also KAM529LBMFA)
Total Capacity	529 litres
Dimensions (W x D x H)	705 mm x 750 mm x 1350 mm
Fridge Temperature Settings	2°C, 4°C, 8°C
Freezer Temperature Settings	-16°C, -20°C, -24°C
Defrost Type	Automatic (auto defrost)
Ice Maker	Automatic ice maker
Quick-Freeze Mode	Yes
Standby Mode	Yes
Door Open Alarm	Sounds after 120 seconds
Reversible Doors	Yes
Levelling Feet	Yes, adjustable
Fruit and Vegetable Drawer	Yes
Interior Light	Yes (LED type not specified)
Control Type	Electronic touch button display
Refrigerant	Flammable (R600a likely) – caution
Safety Features	Flammable refrigerant warning, grounded plug required, anti-tip instructions
Cleaning Recommendations	Soft cloth, mild soap, baking soda; avoid abrasives and organic solvents
Annual Maintenance	Dust removal from back of appliance

Frequently Asked Questions - KAM529LBMFB Kogan

How do I adjust the fridge temperature?

Press the Fridge Temperature button repeatedly to cycle through three settings: 2°C, 4°C, and 8°C. The corresponding indicator will light up.

How do I adjust the freezer temperature?

Press the Freezer Temperature button repeatedly to cycle through: -16°C, -20°C, and -24°C. The indicator shows the current setting.

Why is the alarm sounding?

The alarm sounds if a door is left open for 120 seconds or if there is an error. Press the Alarm/Power button or close the door to silence it.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the detailed instructions in the manual. You will need a Phillips screwdriver, putty knife, masking tape, and a 5/16" socket wrench. If unsure, consult a professional.

How do I activate quick-freeze mode?

Locate the quick-freeze switch at the bottom of the back wall of the fridge. Slide it to the left to turn on quick-freeze mode. This helps freeze large amounts of food quickly while preserving nutrients.

How do I clean the fridge?

Unplug the appliance. Use a soft cloth or sponge with two tablespoons of baking soda in warm water to clean the interior. Rinse and dry. For the exterior, use a damp soft cloth. Do not use abrasives, organic solvents, or boiling water.

How does the automatic ice maker work?

After the appliance runs normally for about 40 seconds, the ice maker will start producing ice automatically. Ensure the ice tray is correctly positioned.

What do error codes E1, E2, E5, E6, E7 mean?

E1: Fridge temperature sensor fault. E2: Freezer temperature sensor fault. E5: Freezer frost sensor fault. E6: Communication failure. E7: Ring temperature fault. If any appear, contact Kogan support even if the appliance still works.

How can I save energy with this fridge?

Place the fridge away from heat sources, ensure 10 cm clearance on sides and rear and 30 cm on top, keep doors closed as much as possible, and set temperatures no colder than necessary. Also, let warm food cool before storing.

What should I do if the fridge is not cooling properly?

Check if the power cord is plugged in, the voltage is correct, and there is no power outage. Ensure the temperature settings are not too high. If the compressor runs continuously, it may be due to high ambient temperature, too much food, or frequent door openings.

USER MANUAL KAM529LBMFB Kogan

Exterior view of a modern stainless steel refrigerator with two doors (no visible text or symbols)

529L BOTTOM MOUNT FRIDGE

KAM529LBMFA & KAM529LBMFB

Safety & Warnings 3

Overview 6

Before First Use 8

Installation 9

Operation 17

Cleaning & Care 20

Troubleshooting 24

Notes 26

SAFETY & WARNINGS

• Read all instructions carefully and retain this guide for future reference.

• This appliance is intended to be used in household environments and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments.
  o Farmhouses and by clients in hotels, motels and other residential type environments.

• Bed and breakfast type environments.
  o Catering and similar non-retail applications.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Important: Pay particular attention to messages that contain the words ‘DANGER’, ‘WARNING’ or ‘CAUTION’. These words are used to alert you to a potential hazard that can seriously injure you and others. The instructions will tell you how to reduce the chance of injury and let you know what can happen if the instructions are not followed.

Explanation of Terms/Symbols

	DangerThis symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.
	WarningThe signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
	CautionThe signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
	AttentionThe signal word indicates important information (e.g., damage to property), but not danger.

Refrigerant and cyclopentane foaming material used in this appliance are flammable. Do not expose the appliance to heat, sparks or open flames.

General Safety

• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by Kogan.com to avoid a hazard.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The appliance must be unplugged after use and before carrying out maintenance on the appliance.
• Warning: Keep ventilation openings clear of obstruction.
• Warning: Do not use mechanical devices or other means to accelerate the defrosting process.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by Kogan.com.

Installation

• Warning: When positioning the appliance, ensure the power cord is not trapped or damaged.
• Warning: Do not locate multiple portable outlets or portable power supplies at the rear of the appliance.
• Do not use extension cords or ungrounded (two prong) adapters.
• To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions in this guide.
• Do not step on the power cable.
• This appliance is not intended to be built in.

Electrical Safety

• Do not pull the power cord. Firmly hold the plug and pull it out from the electrical outlet.
• Do not use the power cord when it is damaged or worn.
• Do not share the electrical outlet with other appliances.

• Ensure the power plug is firmly connected to the electrical outlet.

• Ensure the grounding electrode of the electrical outlet is equipped with a reliable grounding line.

• Do not use electrical appliances on the top of the appliance.
• The gaps between the doors and between the doors and fridge body are small. Do not put your hands in these areas. Be gentle when closing the fridge doors.
• Do not touch foods or containers in the freezer, especially metal containers, with wet hands when it is running to avoid frostbite.
• Do not allow children to get into or climb on the fridge. Suffocation or injury from falling may occur.
• Do not place heavy objects on the top of the fridge as they may fall when closing or opening the doors, which can cause injury.
• Do not put flammable, explosive, volatile and highly corrosive items in the fridge to prevent damage to the appliance and fire.
• Do not place flammable items near the fridge to avoid fires.
• The fridge is intended for household use, such as for storing food. Do not use the fridge for other purposes, such as storing blood, drugs, biological products, etc.
• Do not store beverages or other liquid contained in bottles or enclosed containers in the freezer. Bottles or enclosed containers may crack.
• Do not change the lights in the fridge. If the light goes out, contact help.Kogan.com for support.

Responsible Disposal

• At the end of its working life, do not throw this appliance out with your household rubbish. Electrical and electronic products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately.
• Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling and recovery of the refrigerant and blowing agent. Contact your municipal authorities for advice on recycling facilities in your area.
• Warning: This fridge contains flammable refrigerants and insulation blowing gases, which must be removed before disposal.

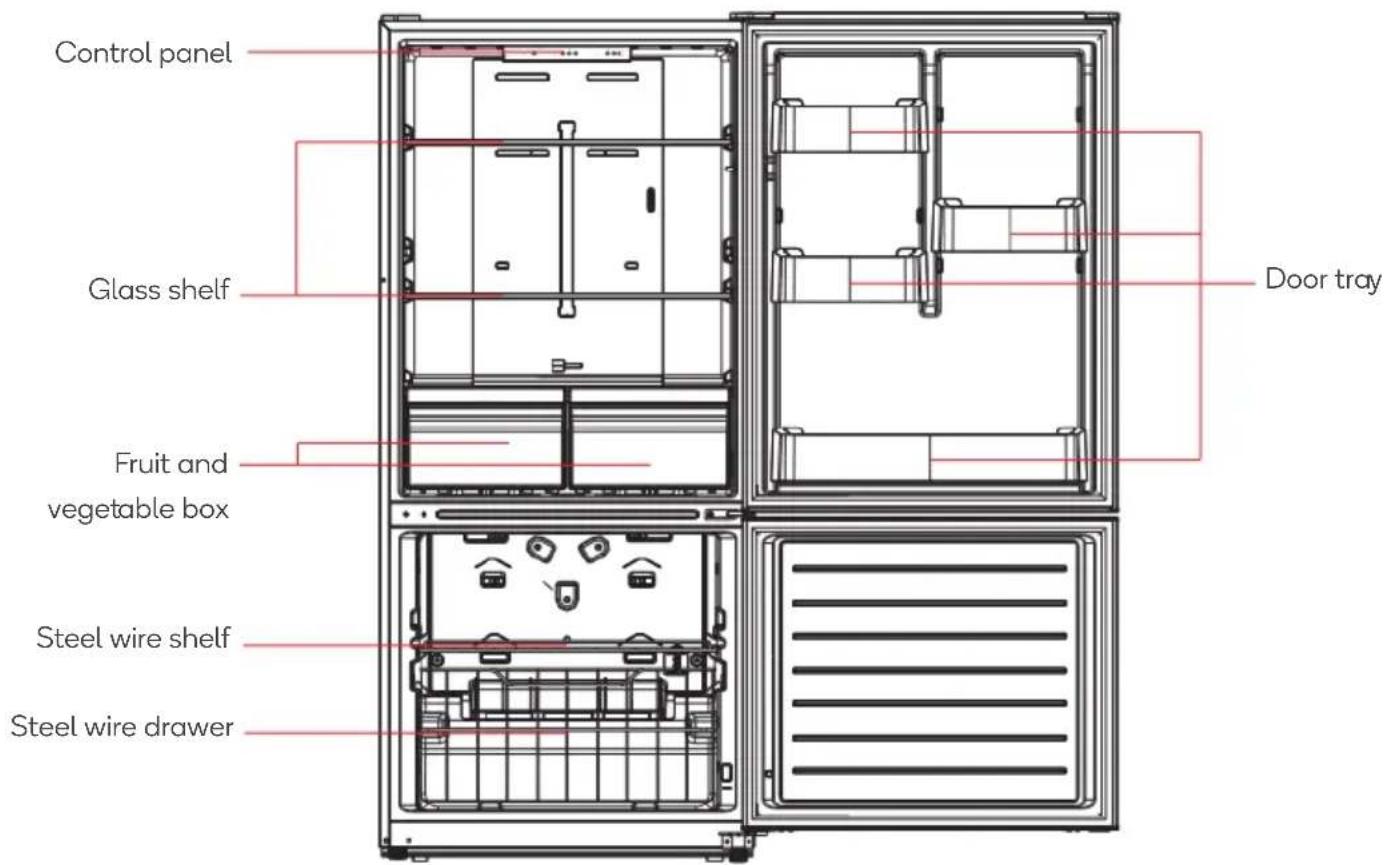

OVERVIEW

Note:

Some illustrations in this user guide may differ from your model.

Display Screen

A Alarm/power button
B Fridge temperature button
C Freezer temperature button

1 Indicator 1
2 Indicator 2
3 Indicator 3
4 Indicator 4
5 Indicator 5

BEFORE FIRST USE

• Ensure the fridge is unplugged from the electrical outlet when adjusting the fridge and its accessories.
• Remove the exterior and interior packaging, including bottom cushions, foam pads, tape, and protective film.
• Wipe the outside of the fridge thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth.
• Avoid placing the fridge in a narrow space or near any sources of heat, direct sunlight, or moisture.
• Do not place the fridge in a location where it can be splashed with water.
• Let air circulate freely around the fridge.
• Ensure that 10cm of free space is left on both sides, 10cm at the rear and 30cm at the top.
• Before connecting your fridge to an electrical outlet, check that the voltage stated on the rating label corresponds to the voltage in your home. A different voltage could damage the fridge.
• This fridge must be grounded. Direct any questions about grounding to a certified electrician.

INSTALLATION

Space Requirements

A 705mm
B 750mm
C 1350mm
D 1275mm

Note:

Ensure that 10cm of free space is left on both sides, 10cm at the rear and 30cm at the top, and that there is enough space for the drawers and doors to open.

Connecting the Fridge to Power

- Plug the power plug into an electrical outlet. Allow the fridge to sit for at least 2 hours before turning on the power.

- After turning on the power, allow the fridge to run empty for 24 hours so it can cool to the appropriate temperature.

Caution

The fridge should always be plugged in to its own individual electrical outlet, which has a voltage rating that matches the rating plate. When positioning the fridge, ensure the power cord is not trapped or damaged.

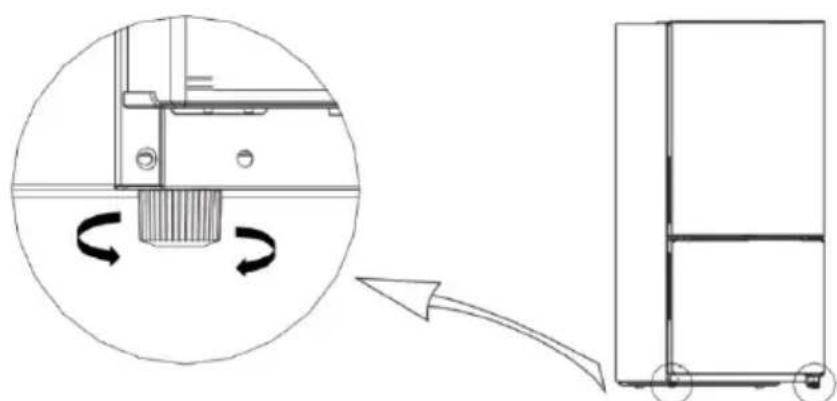

Leveling Feet

• To avoid vibration, the appliance must be levelled.

- If required, adjust the leveling feet to compensate for the uneven floor.

• The front should be slightly higher than the rear to aid in closing the door.

• Leveling feet can be turned easily by slightly tipping the fridge.

- Turn the leveling feet anti-clockwise to lower the fridge, and clockwise to raise it.

Technical diagram showing a mechanical assembly with a magnified inset and directional arrow (no text or symbols)

Door Reversal

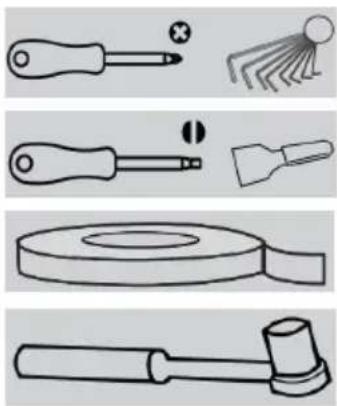

Tools required (not provided):

Illustration of four different types of tools: screwdriver, screwdriver with hammer, saw tool, ring with handle, and gavel (no text or symbols present)

Phillips head screwdriver

Putty knife/flat-blade screwdriver

Masking tape

5/16" socket wrench

Door reversal:

Note:

If you are not confident in performing the door reserving procedure, consult a qualified trade professional.

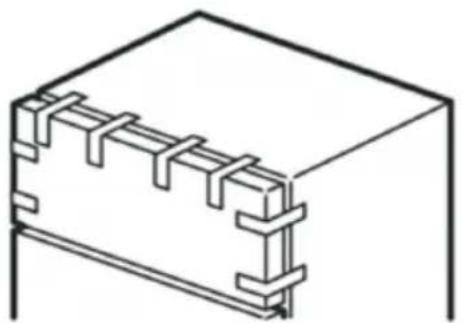

1. Unplug your refrigerator and remove all food from the door shelves. Tape the door shut with masking tape.

Isometric line drawing of a mechanical component with no text or symbols

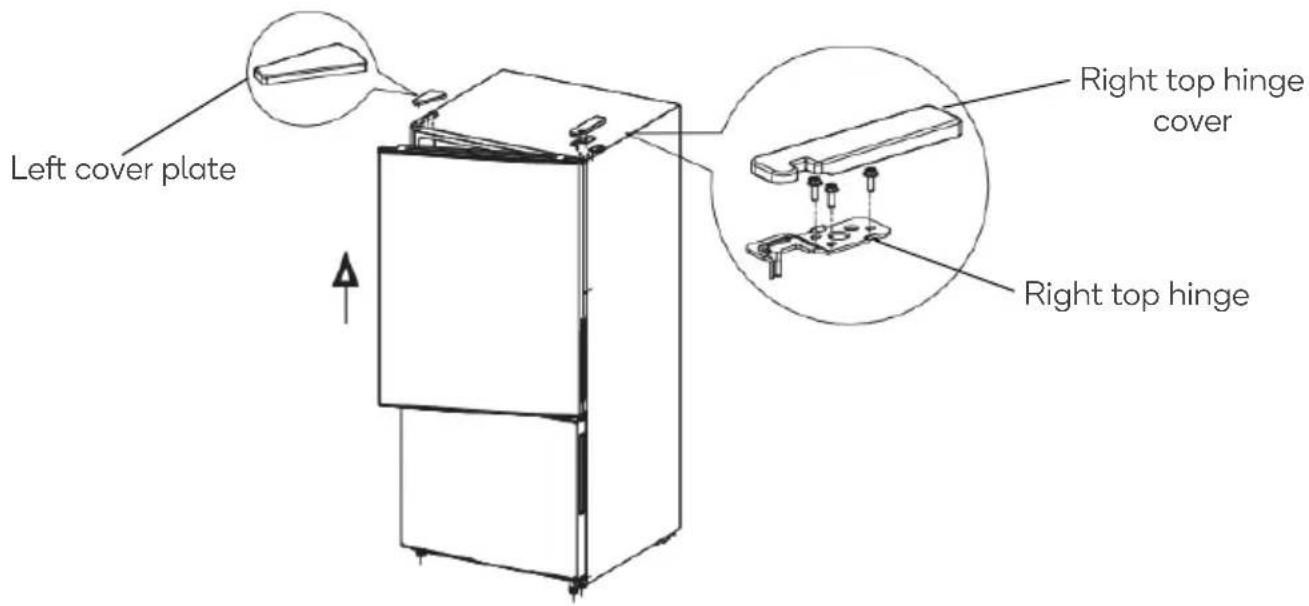

1. Remove the left cover plate and the right top hinge cover, then unscrew the screws, and remove the right top hinge. Keep the screws to reuse.

1. Lift the fridge door up and away from the fridge.
2. Unscrew the centre hinge screws. Remove the hinge, then lift the freezer door up and away from the fridge. Save the screws to reuse.

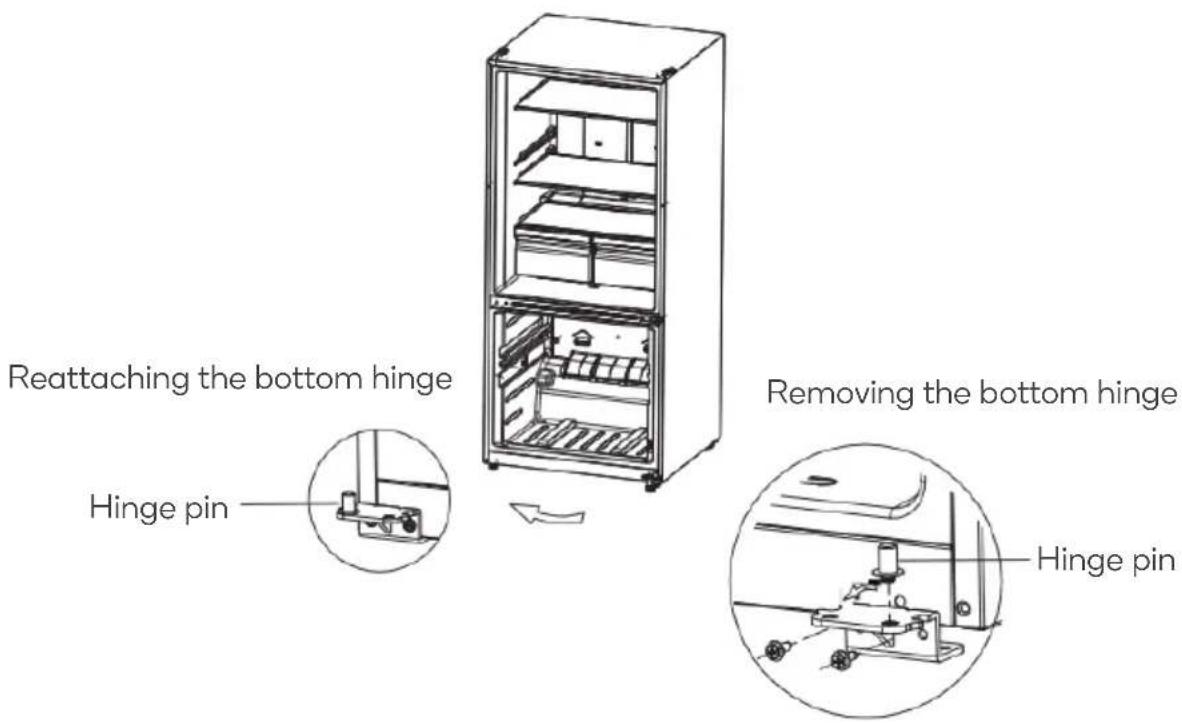

1. Unscrew the bottom hinge screws, then remove the bottom hinge from the bottom right side of the fridge.

2. Unscrew the hinge shaft from the right side of the bottom hinge and move it to the left side, then secure the bottom hinge to the bottom left side of the fridge, using the screws you removed previously.

1. Dismantle the sleeves from the top right of doors and hole cap from top left of doors and assemble them on the other side.

2. Remove the fridge door stopper and install it on the other side of the door. Remove the freezer door self-locking block and stopper and save them to reuse. Take out the left self-locking block and stopper from the accessory bag in the refrigerator and install on the left of the door.

1. Put the freezer door down on the bottom hinge vertically, then take out the centre hinge for the other side from the accessory bag. Assemble the centre hinge.

1. Put the fridge door down on the centre hinge vertically, then take out the top hinge and cover from accessory bag. Assemble the top hinge, hinge cover and hole cover.

Energy Saving Tips

- Do not place the fridge near stove tops, radiators, or other sources of heat. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption.

- Ensure there is sufficient ventilation at the base, sides, and back of the fridge.

- The arrangement of drawers, shelves and trays as shown in the Overview offers the most efficient use of energy and should be retained. To obtain a larger storage space (e.g., for large refrigerated/frozen goods), the middle drawers and shelves can be removed. The top and bottom drawers and shelves should be removed last if necessary. An evenly filled fridge/freezer contributes to optimal energy use.

- Allow warm food to cool before placing it in the fridge/freezer. Food that has already cooled down increases the energy efficiency.

- Allow frozen food to defrost in the fridge. The coldness of the frozen food reduces the energy consumption in the fridge and increases the energy efficiency.

- Open the doors as briefly as necessary to minimise how much cold air is lost. Opening the door briefly and closing it properly reduces energy consumption.

- Set the temperature no colder than necessary to optimise energy use.

- The door gaskets must be perfectly intact so that the doors close properly, and energy consumption is not increased unnecessarily.

OPERATION

Fridge Temperature

- Press the fridge temperature button to adjust the temperature in the fridge.

- As you cycle through the 3 fridge temperature settings, the corresponding indicator will illuminate.

- When first powered on, the fridge will be on the middle temperature setting.

Freezer Temperature

- Press the freezer temperature button to adjust the temperature in the freezer.

- As you cycle through the 3 freezer temperature settings, the corresponding indicator will illuminate.

- When first powered on, the freezer will be on the middle temperature setting.

Alarm

- The alarm may sound due to an error or if the fridge or freezer door is open for 120 seconds.

- Press the alarm/power button or close the door to turn the alarm off.

Automatic Ice Maker

The freezer will start making ice after 40 seconds of normal operation.

Standby Mode

- Press and hold the alarm/power button for 3 seconds to enter standby mode. The fridge, freezer and display will all turn off.

- Press and hold the alarm/power button for 3 seconds to return to normal operation.

Quick-freezing Mode

• The quick-freezing switch is located at the bottom of the back wall of the fridge.

- When the switch is positioned to the right, quick-freeze mode is turned off.

- When the switch is positioned to the left, quick-freeze mode is turned on.

Technical line drawing of two identical rectangular storage compartments with internal compartments and mounting brackets (no text or symbols)

Note:

Quick-freezing mode is designed to maintain the nutritional value of the food in the freezer by freezing food in a short time. If a large amount of food is frozen at one time, it is recommended to turn on the quick-freezing function before putting the food in.

Storing Food

Freezer:

• The freezer is used to freeze food, store frozen food and make ice cubes.
• Do not put fresh and frozen food next to each other. The frozen food may thaw.
• When freezing large amounts of fresh food (such as meat or fish), divide it into small pieces before putting it in the freezer to speed up freezing.

- Abide by the storage times recommended by food manufacturers on the packaging. If there is no information on the packaging, food should not be frozen for longer than three months from the date of purchase.

- When purchasing frozen food, make sure that it was frozen at a suitable temperature and that the packaging is not damaged.

- Frozen food should be kept in suitable individual packages to ensure that adjacent food cannot be contaminated.

- Consume thawed and defrosted foods immediately, do not refreeze them.

- In case of prolonged power failure or malfunction, remove the stored frozen food and check if it is still edible, then store them in a sufficiently cool place or in another appliance.

- To defrost food, remove it from the freezer and let it defrost at room temperature or in the fridge. To defrost food quickly, you can use the defrost function on your microwave, for example.

- If you only want to defrost part of a pack, remove the portion you need and immediately close the rest of the pack. In this way, you will avoid ‘freezer burn’ and will reduce ice formation on the remaining foods.

Fridge:

- To reduce moisture and subsequent ice build-up, never put liquid into the fridge in unsealed containers. Frost tends to concentrate in the coolest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.

- Never put warm foods in the fridge. These should first cool down at room temperature to ensure adequate air circulation.

- Foods or food containers should not touch the back wall of the fridge because they could freeze to the wall.

- Do not regularly open the door.

- Meat and fish (in packaging or plastic) can be placed in the fridge and consumed in 1–2 days.

- Fruit and vegetables can be placed in the fruit and vegetables box without packaging.

CLEANING & CARE

Caution

• Disconnect the fridge from the electrical outlet before undertaking any routine maintenance. Allow at least 5 minutes before restarting the fridge, as frequent starting may damage the compressor.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by Kogan.com.
• Do not try to repair, disassemble or modify the appliance by yourself. If repair is needed, contact Kogan.com.
• Check the door gasket regularly to make sure there is no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the fridge should be cleaned regularly to avoid odour.
• Use a soft cloth or sponge to clean the inside of the fridge, with two tablespoons of baking soda and warm water.
• Then rinse with water and wipe clean. After cleaning, open the door and let it air dry before turning on the power.
• For areas that are difficult to clean, such as narrow gaps or corners, it is recommended to wipe them regularly with a soft rag or brush, and when necessary, combined with auxiliary tools to ensure bacteria does not accumulate in these areas.
• Remove the dust on the back of the fridge at least once a year to avoid a fire hazard and to conserve energy.
• Wipe the outer surface of the fridge with a soft cloth dampened with soapy water and then wipe dry.
• Do not use hard brushes, steel balls, wire brushes, abrasives, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid, or alkaline items, which may damage the fridge.
• Boiling water and organic solvents such as benzene may deform or damage plastic parts.
• Do not rinse the fridge with water or other liquids during cleaning to avoid short circuiting.

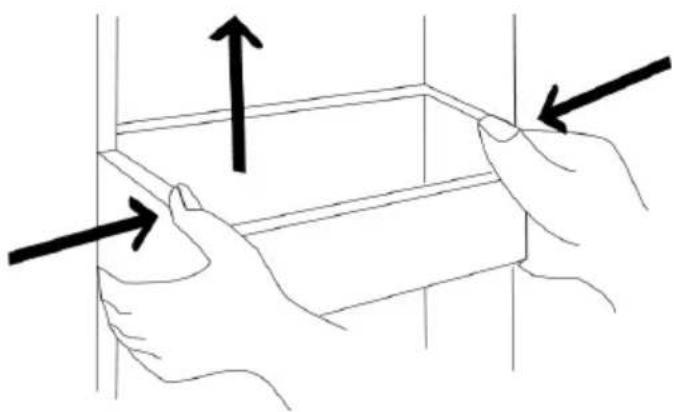

Cleaning the Door Shelves

- According to the arrows in the figure below, use both hands to squeeze the shelf and push it upward to take it out.

- After cleaning the shelf, reinstall it on the door in accordance with your height requirements.

Line drawing of two hands holding a rectangular object with arrows indicating upward and downward motion (no text or symbols)

Cleaning the Glass Shelves

Raise the shelf upward at the back to remove it.

Technical line drawing of an open electrical cabinet with two doors and directional arrows indicating movement (no text or symbols)

Cleaning the Fruit and Vegetable Box

1. Remove the contents of the box.
2. Hold the handle of the box and pull it out completely until it stops.
3. Lift the box up and remove it by pulling it out.

Technical line drawing of a mechanical assembly with directional arrows indicating movement (no text or symbols)

1. Push the wheels upward to detach them from the grooves. Clean the fruit and vegetable box, wheels or grooves as needed.

Technical line drawing of a mechanical component with three vertical slots and a central bracket, showing an upward arrow (no text or symbols)

Defrosting

Although this appliance automatically defrosts, a layer of frost may occur on the freezer's interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, it will need to be defrosted. To do so:

1. Remove existing food from the freezer and fridge.
2. Unplug the appliance from the electrical outlet and leave the doors open. Ventilate the room thoroughly to accelerate the defrosting process.
3. When defrosting is completed, clean your freezer as described above.

Note:

• Do not use sharp objects to remove frost from the freezer.
• Only after the interior is completely dry should the appliance be switched back on.

Out of Operation

Power failure: In the case of a power outage, even if it is in summer, foods inside the fridge can be kept for several hours. Reduce the number of times the door is opened and do not add any extra fresh food into the fridge.

Long-time non-use: The fridge should be unplugged and cleaned, and the doors left open to prevent odour.

Moving:

1. Remove all items from the fridge.
2. Disconnect the power plug and fix it to the power plug hook at the rear or on top of the fridge.
3. Tape the shelves and doors closed and tighten the leveling feet.
4. Keep the fridge upright and move it to the new location.

Note:

• Two people are required to move this fridge.
• The angle of the fridge during movement should be no more than 45^ircC .

Attention

The appliance should run continuously once it is started. Avoid switching the power off too often as this may impact the service life of the fridge.

TROUBLESHOOTING

If the solutions below are unsuccessful, contact help.Kogan.com for support.

Problem	Possible Cause and Solution
Failed operation	Check if the appliance is connected to power and if the plug is making proper contact.Check if the voltage is too low.Check if there is a power failure or partial circuits have tripped.
Odour	Odorous foods should be tightly wrapped.Check if there is any rotten food.Clean the inside of the fridge.
Long-time operation of the compressor	Long operation of the compressor is normal in summer when the ambient temperature is high. It is not recommended to have too much food in the fridge at one time as this can overwork the compressor.Food should be cooled before being put into the appliance.The doors are opened too frequently.
Light fails	Check if the fridge is connected to power.Check if the light is damaged. Do not attempt to repair the light yourself. Contact help.Kogan.com for support.
Doors cannot be properly closed	The door shelves are too full.There is too much food in the appliance.The fridge is tilted on an angle.
Loud noise	Ensure the floor is even and the fridge is level.Check that accessories are placed at their proper locations.
Door seal loose	Remove debris from the door seal.Heat the door seal and then cool it to restore to the correct position.
Water pan overflows	There is too much food, or the food stored contains too much water, resulting in heavy defrosting.The doors are not closed properly, resulting in defrosting.
Hot housing	Heat dissipation of the built-in condenser through the housing is normal.When housing becomes hot due to high ambient temperature, storage of too much food or the compressor shutting down, provide ventilation to facilitate heat dissipation.
Surface condensation	Condensation on the exterior surface and door seals of the is normal when the ambient humidity is too high. Wipe the moisture with a clean towel.
Abnormal noise	Buzz: The compressor may make a buzzing sound during operation, which is particularly loud upon starting and stopping. This is normal.Creak: Refrigerant flowing inside of the appliance may make a creaking sound, which is normal.

Error Codes

The following error codes on the display screen indicate a fault in the fridge or freezer. Even if the fridge and freezer are still operating correctly, contact help.Kogan.com for support.

Error Code	Indicator	Description
E1	Indicators 1 & 2 flashing.	Fridge temperature sensor fault.
E2	Indicators 1 & 5 flashing.	Freezer temperature sensor fault.
E5	Indicators 1 & 3 flashing.	Freezer frost sensor fault.
E6	Indicators 2 & 4 flashing.	Communication failure.
E7	Indicators 1 & 4 flashing.	Ring temperature fault.

Disposal

This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
