KA15KNICEMKSSA - Ice machine Kogan - Free user manual and instructions

Product Type	Ice Maker Machine
Brand	Kogan
Model	KA15KNICEMKSSA
Ice Making Capacity	15 kg per day
Ice Shape	Bullet ice
Ice Storage Capacity	1.5 kg
Water Reservoir Capacity	2.5 L
Dimensions (W x D x H)	30 x 40 x 35 cm
Weight	6.5 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	150 W
Refrigerant Type	R134a
Control Method	Electronic panel with buttons
Self-Cleaning Function	Yes
Noise Level	45 dB
Material	ABS plastic housing, stainless steel interior
Automatic Shut-off	Yes (bin full)
Low Water Indicator	Yes
Included Accessories	Ice basket, ice scoop
Warranty	1 year

Frequently Asked Questions - KA15KNICEMKSSA Kogan

How often should I clean my Kogan ice maker?

It is recommended to clean the ice maker every 2-3 weeks or after every 10 uses. Use a mixture of water and white vinegar to descale, then rinse thoroughly.

Why is my ice maker not producing ice?

Common reasons include: water reservoir empty, ambient temperature too high, or the machine needs descaling. Ensure the water level is above the minimum mark and the room temperature is between 10-32 °C.

How long does it take to make the first batch of ice?

The first cycle typically takes about 6-8 minutes, but subsequent cycles may be faster as the machine cools down.

Can I use the ice maker continuously?

Yes, but it is advisable to let the machine rest for 5 minutes after 12 hours of continuous use to prolong the compressor life.

What type of ice does this machine produce?

It produces bullet-shaped ice, which is clear and solid, ideal for drinks.

How do I clean the water reservoir?

Remove the reservoir, empty it, and wash with warm soapy water. Rinse thoroughly. For descaling, use a vinegar solution and run a cleaning cycle.

The ice cubes are too small - what can I do?

Small cubes may indicate a need to descale the machine or that the water level is low. Also, check if the ambient temperature is too high.

Can I use the ice maker without the basket?

No, the basket is required to collect ice. Without it, ice will melt and water may overflow.

What does the 'Add Water' indicator mean?

It indicates the water level is too low. Refill the reservoir with fresh water to the maximum line.

Is the Kogan ice maker portable?

Yes, it is a compact countertop unit that can be easily moved. It weighs only 6.5 kg and has a handle for carrying.

USER MANUAL KA15KNICEMKSSA Kogan

15KG ICE CUBE MAKER

(STAINLESS STEEL)

KA15KNICEMKSSA

SAFETY & WARNINGS

Read all instructions in this guide before using this product. Retain this guide for future reference. Do not skip, substitute or modify any steps or procedures in this guide, as doing so could result in personal injury or product damage.

To reduce potential fire risks, electric shock or injury, always observe the basic safety prevention measures during use, including but not limited to the following:

- This product is not intended for use by persons (including children over 8 years old) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product in a safe way by the person responsible for their safety, and understand the hazards involved.

- Do not allow children under 8 years old to operate or play with this appliance.

- Children under 8 years old must be kept away from the appliance during cleaning and maintenance.

- Close supervision is necessary when this appliance is used by or near children.

- If the power cord shows any signs of damage, cease use immediately and contact help.Kogan.com for support.

- This appliance must be connected to a grounded electrical outlet.

- Ensure no other appliance is plugged into the same electrical outlet.

- Ensure that the plug is fully inserted into the power outlet.

- The power cord of this appliance is equipped with a grounding plug for wall outlets to minimise the possibility of electric shock. Any questions concerning power and/or grounding should be directed toward a certified electrician.

- Improper use of the grounded plug can result in the risk of electrical shock.

- This icemaker must be positioned in such a way that the plug is accessible.

- This ice cube maker supports voltages between 220–240V with a frequency of 50Hz.

- Do not run the power cord over carpeting or other heat insulators.

- Do not cover the power cord.

- Keep the power cord away from high traffic areas.

- Do not allow the power cord to overhang where it can be pulled or otherwise be damaged or pose a hazard.

- Do not allow the power cord to be exposed to water, heat, or direct sunlight.

- Do not immerse any part of this appliance in water.

- Do not use an extension cord with this appliance.

- Unplug this appliance before cleaning, maintaining and when not in use.

- This appliance is designed for indoor, household use only.

- Do not use this appliance outdoors.

- Ensure there is 15cm of clearance on all sides of the ice maker for proper ventilation and it is placed on a flat, even surface.

- Do not use any other liquids to make the ice cubes other than water.

- Do not clean this appliance with any flammable liquids. The fumes may create a fire hazard or explosion.

- Do not turn the ice cube maker upside down. This can cause the compressor or refrigerating system to operate incorrectly.

- If the ice maker is brought in from outside during winter, do not use for a few hours, allowing the unit to warm up to the room temperature before operating.

- Never store or use gas and other flammable chemicals near the ice cube maker.

- This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments.

o farmhouses and by clients in hotels, motels and other residential type environments.

- bed and breakfast type environments.

o catering and similar non-retail applications.

Warning: Risk of fire/flammable materials used.

- This product must be disposed of in accordance with your local environmental authority as it uses flammable blowing gas and refrigerants. The internals of the ice cube maker should never exceed 45°C.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not damage the refrigerant circuit.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by Kogan.com.

- Do not use electrical appliances inside this appliance, unless recommended by Kogan.com.

- Do not store explosive substances such as aerosol cans with a flammable propellant in or near this appliance.

Important: The wires in this mains lead are coloured in accordance with the following code:

Green and yellow	Grounding
Blue	Neutral
Brown	Live

OVERVIEW

1 Water level detector
2 Secondary water reservoir
3 Water reservoir
4 Maximum water level
5 Filter
6 Control panel

7 Cover
8 Air outlet
9 Ice bucket
10 Drain plug
11 Ice scoop

1	Ice/Clean button	Press to start making ice.Hold to start cleaning.Press to stop making ice/cleaning.
2	Ring indicator	Solid red: Standby.Flashing red: Error.Solid white: The ice bucket is full.Flashing white: The ice maker is operational.
3	Add Water indicator	When illuminated, this means there is no water.
4	Ice Full indicator	When illuminated, this means the ice bucket is full.

Unpacking

Remove the packaging and ensure all components are included. If any components are missing, contact help.Kogan.com for assistance.

Cleaning

It is strongly recommended to clean the ice cube maker before first use. Unplug the ice cube maker before cleaning.

• Remove the ice basket.
• Open the drain plug. Clean the interior with a soft cloth soaked with warm water. Rinse with fresh water and drain.
• Clean the exterior of the ice maker with a soft damp cloth. Use a mild dishwashing soap if necessary.
• Dry the interior and exterior of the ice maker with a clean, soft cloth.

Placement

Place the ice cube maker on a flat surface away from direct sunlight and other heat sources (for example, stoves, radiators). Ensure there is at least a 15cm clearance around the ice cube maker away from walls and other obstructions.

Allow one hour for the refrigerant liquid to settle before plugging the power cord into a socket.

For subsequent uses, wait for at least 30 minutes to allow the fluids in the compressor to settle after the ice cube maker is moved or transported.

Notes:

• Ensure the ice cube maker is positioned in way that the plug is accessible and visible.
• If the ice cube maker is being brought from the outdoors during winter, allow for a few hours for the appliance to warm to room temperature before plugging in.

WARNING: Do not use any liquid other than drinking water in the ice cube maker.

1. Ensure that the drain plug is closed well.

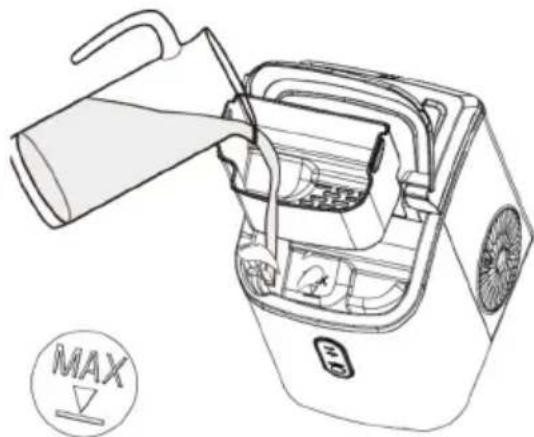

2. Open the cover and remove the ice bucket. Pour drinking water into the water reservoir. Ensure the water level is below the 'MAX' line marked inside the reservoir.

1. Replace the ice bucket and the cover.

2. Plug the power cord into an electrical outlet. The ring indicator will illuminate red and the ice maker will be in standby.

3. Press the Ice/Clean button to start making ice. The ring indicator will flash white while in operation.

4. When the ice bucket is full, the ice maker will stop operating and the 'Ice Full' indicator will illuminate.

5. Remove the cover and use the ice scoop to remove the ice from the ice bucket.

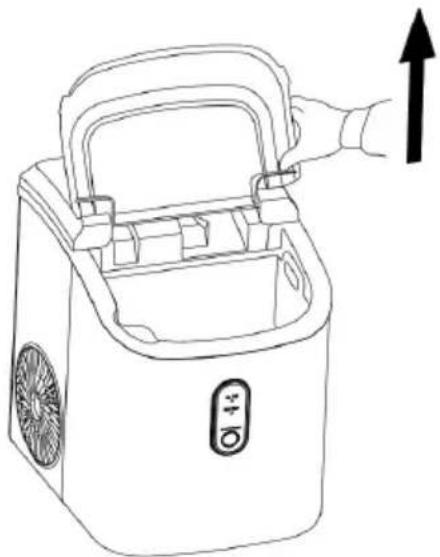

Open the back cover by gently pulling the front cover upwards.

Add water to the reservoir

When the 'Add Water' indicator is illuminated, this means there is no water in the reservoir.

1. Open the cover and remove the ice bucket.
2. Pour drinking water into the water reservoir. Ensure the water level is below the 'MAX' line marked inside the reservoir.
3. Replace the ice bucket and the cover.
4. The ice maker will automatically resume operation after 15-60 minutes. Press the Ice/Clean button to resume in 3 minutes.

Remove ice cubes

• When the 'Ice Full' indicator is illuminated, this means the ice bucket is full.
• Open the cover and use the ice scoop to remove the ice cubes.
• The ice maker will automatically resume operation when the ice bucket is emptied.

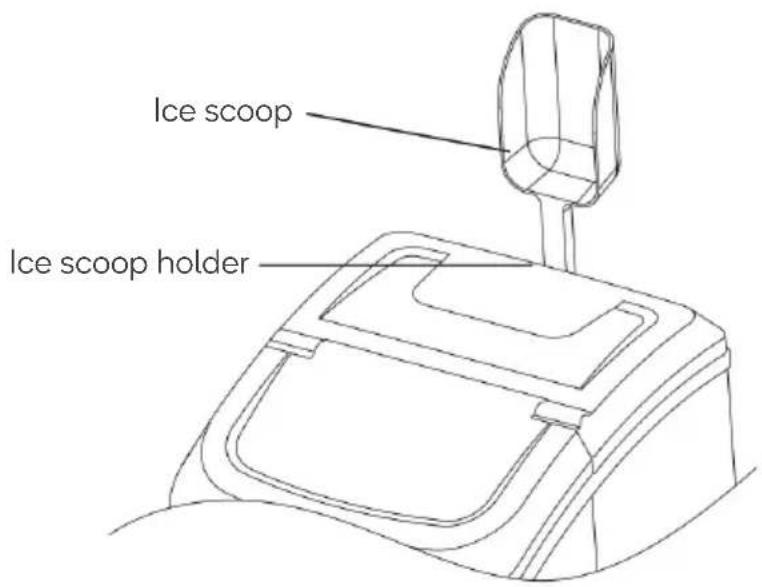

Ice scoop

Place the ice scoop in the ice scoop holder at the back of the cover.

CLEANING & CARE

It is highly recommended to clean the ice maker when it has not been used in a long time.

1. Unplug the power cord from the electrical outlet.
2. Move the ice maker so that it is over hangs over the edge of the bench. Remove the drain plug and drain the water into a sink or container.

1. Replace the drain plug and return the ice maker to the bench.
2. Remove the cover and the ice bucket and fill the reservoir with water up to the 'MAX' line.

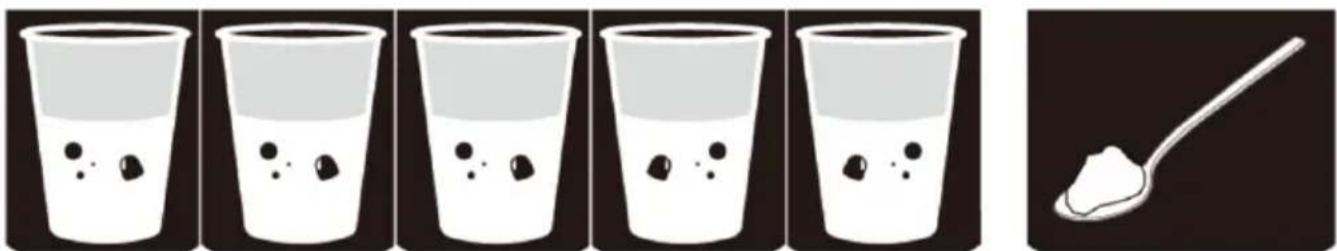

1. Optional: Combine a teaspoon of white vinegar and 5 cups of water to create a cleaning solution and pour it into the reservoir.

1. Plug the power cord into the electrical outlet. Replace the cover and the ice bucket and hold the Ice/Clean button for 5 seconds. The ring indicator will flash white and cleaning will start.

1. The ice maker will automatically stop cleaning after 15 minutes.

If you added a cleaning solution into the reservoir, press the Ice/Clean button after 5 minutes to stop cleaning. Unplug the power cord and then leave the solution in the ice maker for at least 12 hours before draining.

1. Move the ice maker so that it is over hangs over the edge of the bench. Remove the drain plug and drain the water into a sink or container.

1. Replace the drain plug and ensure that it is closed well.

1. If you added a cleaning solution in step 5, repeat this cleaning process 2 more times with water only to ensure the ice maker is thoroughly cleaned.

Note:

• If the ice cube maker will not be used for an extended period, remove the drain plug and ensure all water is drained out. Wipe the interior dry.
• Store the ice cube maker in a cool, dry place.
• Change water in the water reservoir every 24 hours to ensure it remains hygienic.

SPECIFICATIONS

Protection type

Power 220-240V/50Hz

Ice making current 1.1A

Refrigerant R600a / 16g

Vesicant C5H10

Dimension 287 x 220 x 322mm

TROUBLESHOOTING

Problem	Possible Cause	Solution
The ‘Ice Full’ indicator is illuminated but there is no ice.	There is a blockage in the water reservoir.	Remove the blockage.
	The ice maker is dirty.	Clean the ice maker.
The ring indicator is flashing red.	The ambient temperature or water temperature is too high.	Start the ice-making cycle in an environment with an ambient temperature less than 32°C and fill the water reservoir with some cold water.
	Refrigerant liquid leakage.	Press the Ice/Clean button twice to restart the ice making program.If the problem still occurs, contact help.Kogan.com for support.
	The motor is broken.
	The pipe in the cooling system is blocked.
Poor ice-making result.	The air outlet is blocked.	Ensure there is 15cm of clearance on all sides of the ice maker for proper ventilation.
	The water temperature is too high.	Fill the water reservoir with water between 7°C-32°C.
	Refrigeration system malfunction.	Contact help.Kogan.com for support.
Water leakage.	The drain plug is not in place.	Put the drain plug in place.
	The pipe joint is loose.	Contact help.Kogan.com for support.
	The seal has reached its service life.

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
