V190BVCBK - Wine cellar Vintec - Free user manual and instructions

Product Type	Wine Cellar
Brand	Vintec
Model	V190BVCBK
Capacity	190 bottles (standard 0.75L)
Dimensions (H x W x D)	1850 x 595 x 675 mm
Weight	89 kg
Power Supply	220-240 V, 50 Hz, 150 W
Temperature Range	5°C to 20°C
Temperature Zones	Dual zone (upper: 5-12°C, lower: 12-20°C)
Cooling Type	Compressor
Noise Level	< 42 dB
Door Type	Reversible, double-glazed UV-protected glass
Interior Lighting	LED (soft light)
Shelves	8 wooden shelves (removable)
Control Type	Touch control panel with digital display
Safety Features	Child lock, high/low temperature alarm, door ajar alarm
Installation Type	Freestanding or built-in (ventilation required)
Cleaning	Wipe with mild detergent and soft cloth; avoid abrasives
Repairability	User-replaceable carbon filter; accessible compressor; spare parts available via service center
Warranty	2 years (parts and labor)
Operating Ambient Temperature	10°C to 38°C
Energy Consumption	Approx. 0.8 kWh/24h

Frequently Asked Questions - V190BVCBK Vintec

What is the proper temperature for storing red and white wine?

For red wine, set the lower zone to 12-18°C. For white wine, set the upper zone to 8-12°C. The temperature can be adjusted via the control panel.

How do I change the door hinge side?

The door is reversible. Consult the manual for step-by-step instructions. Typically, you need to unscrew the hinges, swap the door, and reattach. Ensure the appliance is unplugged.

Why is my wine cellar not cooling properly?

Check if the ambient temperature is within 10-38°C. Ensure ventilation slots are not blocked. Clean the condenser coil if dusty. If the problem persists, contact service.

How often should I clean the carbon filter?

The carbon filter should be replaced every 6-12 months for optimal performance. It helps reduce odors and maintain humidity.

Can I install the wine cellar in a garage or outdoor area?

No, this wine cellar is designed for indoor use only. It requires an ambient temperature between 10°C and 38°C. Avoid direct sunlight and moisture.

What does the alarm sound mean?

The alarm indicates either the door is left open or the internal temperature is outside the set range. Check if the door is closed properly or adjust the temperature.

How do I activate the child lock?

Press and hold the 'Lock' button on the control panel for 3-5 seconds until the lock icon appears. To deactivate, repeat the process.

What is the maximum bottle capacity?

The V190BVCBK can hold up to 190 standard 0.75L wine bottles. Remove shelves to accommodate larger bottles or alternate shapes.

Why is there condensation on the glass door?

Condensation can occur in high humidity environments. Check that the door is sealed properly. Reduce humidity in the room or lower the temperature slightly.

How do I reset the temperature settings?

Press the 'Set' button to cycle through zones. Use the up/down arrows to adjust. To reset to default, unplug for 5 minutes then reconnect.

USER MANUAL V190BVCBK Vintec

Important information that may impact your Manufacturer's Warranty

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the Vintec manufacturer's warranty provided with your product. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Vintec manufacturer's warranty in the event that your product fault is due to failure to adhere this manual.

Warning

R600a WARNINGS

NOTE: This model uses 0.059Kg of R600a flammable refrigerant in its sealed system. The following must be observed for your safety:

R600a Refrigerant Warning

• This appliance contains a small quantity of R600a refrigerant which is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect.
• During transportation and installation, ensure that the tubing of the refrigerant circuit is not damaged.
  ●Leaking refrigerant can ignite and may damage the eyes.
• In the event any damage does occur, avoid exposure to open fires and any device which creates a spark. Disconnect the appliance from the mains power.
  ●Thoroughly ventilate the room in which the appliance is located for several minutes.
• Notify Customer Service for necessary action and advice.
  ●The room for installing the appliance must be at least 1 cubic metre per 8 grams of refrigerant. The refrigerant quantity contained in this appliance is listed above in grams; it is also noted on the Rating Plate of the appliance.

It is hazardous for anyone other than an Authorised Service Person to carry out servicing or repairs to this appliance. In Queensland the authorized person must hold a Gas Work Authorisation for hydrocarbon refrigerants, before carrying out servicing or repairs which involve the removal of covers.

-WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction..
-WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
-WARNING: Do not damage the refrigerant circuit.
-WARNING: Do not use electrical appliances inside the ood storage compartments of the ap-

pliance, unless they are of the type recommended by the manufacturer.

The environment and personal safety must be considered when disposing of this appliance. Please ensure the appliance is taken to a recycle center for safe recycling. DO NOT dispose of the appliance in land fill as the insulation and refrigerant gas contained in these appliances are flammable.

-WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the appliance.

●Always keep the keys in a separate place and out of reach of children.

- Before servicing or cleaning the appliance, unplug the appliance from the mains or disconnect the electrical power supply.

●The supply cord cannot be replaced. If the supply cord is damaged the appliance should be scrapped.

●Relevant for Australia: Supply cord fitted with a plug complies with AS/NZS 3112.

●Frost formation on the interior evaporator wall and upper parts is a natural phenomenon. Therefore, the appliance should be defrosted during normal cleaning or maintenance.

- Directions for replacing the illuminating lamps are to be included in the instruction.

- Please note that changes to the appliance construction will cancel all warranty and product liability.

* Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
* This appliance is intended to be used in household and similar applications such as.

- staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

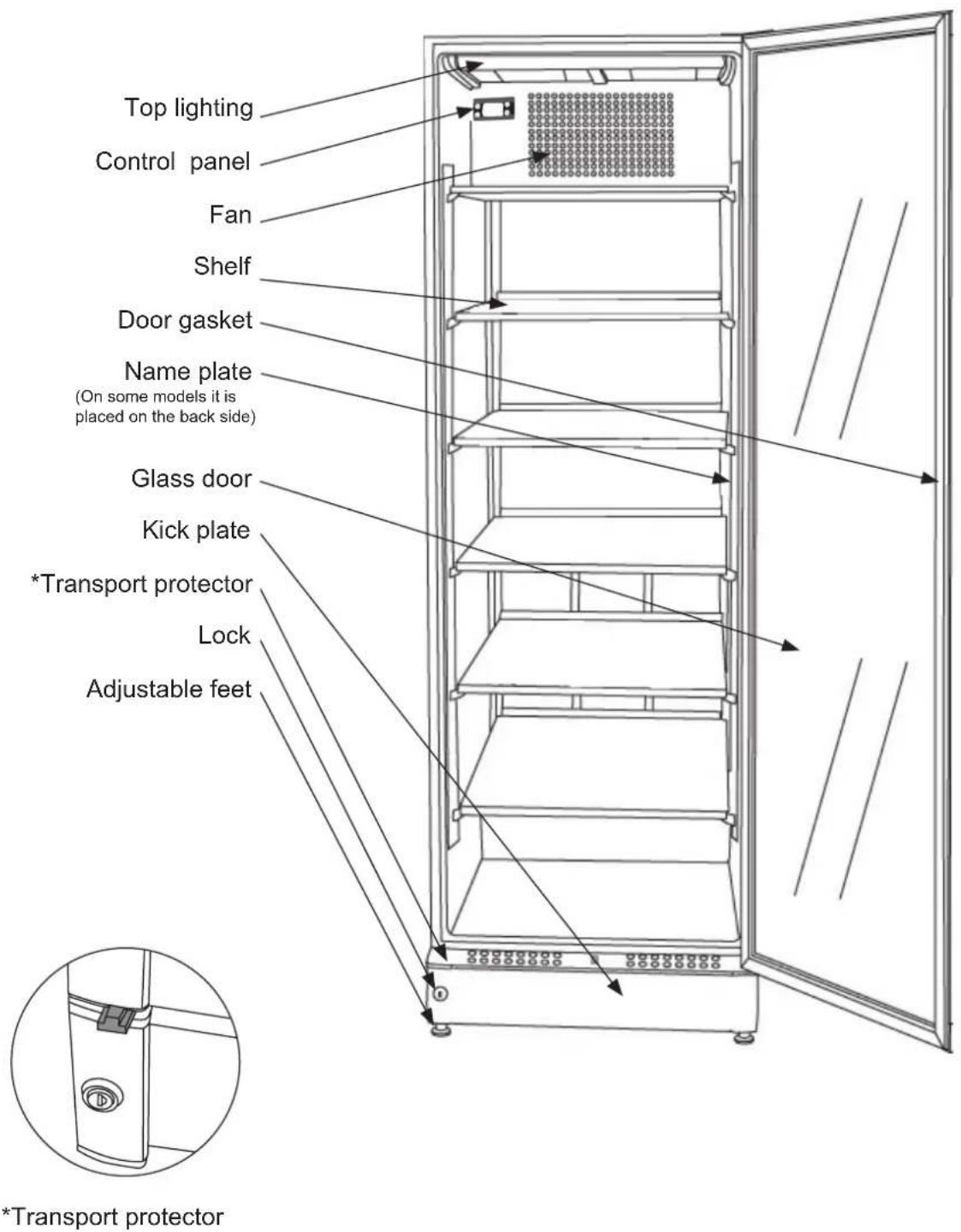

Get to know your wine cooler

Before use

Before operating your new appliance, please read the following instructions carefully as they contain important information on safety, installation, operation and maintenance.

Keep the instructions for future reference. On receipt, check to ensure that the appliance has not been damaged during transport.

Transport damage should be reported to the local distributor before the appliance is put to use.

Remove the transport protector before the appliance is put to use. (fig 1) Hang it on one of the shelves as it can be used to adjust the door.

If the appliance has to be moved, use the protector

Remove the packaging. Clean the inside of the cabinet using warm water with a mild detergent. Rinse with clean water and dry thoroughly (see cleaning instructions). Use a soft cloth.

If during transport the appliance has been laid down, or if it has been stored in cold surroundings (colder than +5°C), it must be allowed to stabilise in an upright position for at least an hour before being switched on.

Note: If the appliance is to be laid down, the door must face upwards and the appliance must be enclosed in the original packaging1

Line drawing of a door handle with a circular button labeled 'D' (no text or symbols beyond the label)

fig. 1

Technical data

This device complies with relevant EU directives including Low Voltage Directive 2006/95 EEC. and Electromagnetic Compatibility Directive 2004/108/EC

The rating plate provides various technical information as well as type and serial number.

CLASS 1 LED PRODUCT

Installation and start-up

Placement.

For safety and operational reasons, the appliance must not be installed outdoors.

The appliance should be placed on a level surface in a dry, well ventilated room (max. 75% relative air humidity). Never place the appliance close to sources of heat such as cookers or radiators, and avoid placing it in direct sunlight.

Ambient temperature.

The climate class is stated on the name-plate (see page 20). This specifies the optimum ambient temperature. Wine coolers with winter position, however, function at ambient temperatures as low as 5^ C.

Climate class	Optimum room temperature
SN +10 °C to +3	2 °C
N +16 °C to +32	°C
ST +16 °C to +38	°C
T +16 °C to +43	°C

Installation

The surface on which the appliance is to be placed must be level. Do not use a frame or similar.

The appliance can be installed as a free-standing unit against a wall, built into a kitchen element, or lined up with other appliances (fig 4)

Levelling the appliance

It is important that the appliance be absolutely level. It can be levelled in the following way (fig 2):

1. Level the appliance sideways by screwing the adjustable feet up or down using the accompanying spanner.
2. Check that the appliance is absolutely level.

If the appliance is to be placed on a soft surface, e.g. floorboards or a carpet, it is best to recheck whether the appliance is still level after a period of time as the underlying surface may give under the weight of the appliance.

Line drawing of a mechanical joint or bracket assembly (no text or symbols)

fig. 2

User Manual

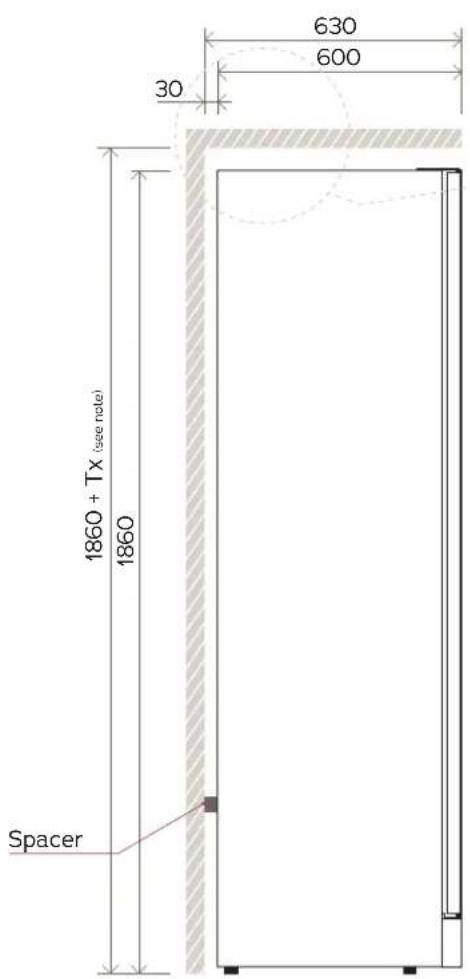

Ventilation and dimensions

FRONT VIEW

SIDE VIEW

NOTE: If a vertical vent space (Vx) of 100mm is provided, then a minimum top ventilation gap (Tx) of 50mm is sufficient, but otherwise minimum Tx of 100mm is required.

NOTE: Illustrations not to scale. All dimensions in millimetres.

* Minimum 10mm required whether proud-fit or flush-fit, however 30mm is recommended on the opening edge for easy finger grip access when installed flush-fit.

Installation of ventilation guard

Close the two ventilation guards placed on the rear of the appliance, to ensure sufficient air circulation

Line drawing of hands inserting a plastic clip into a door (no text or symbols)

fig.5

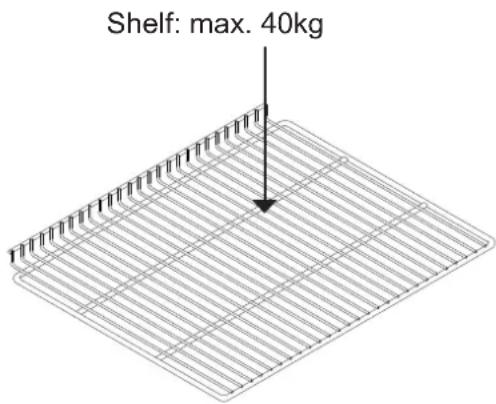

Operation and function.

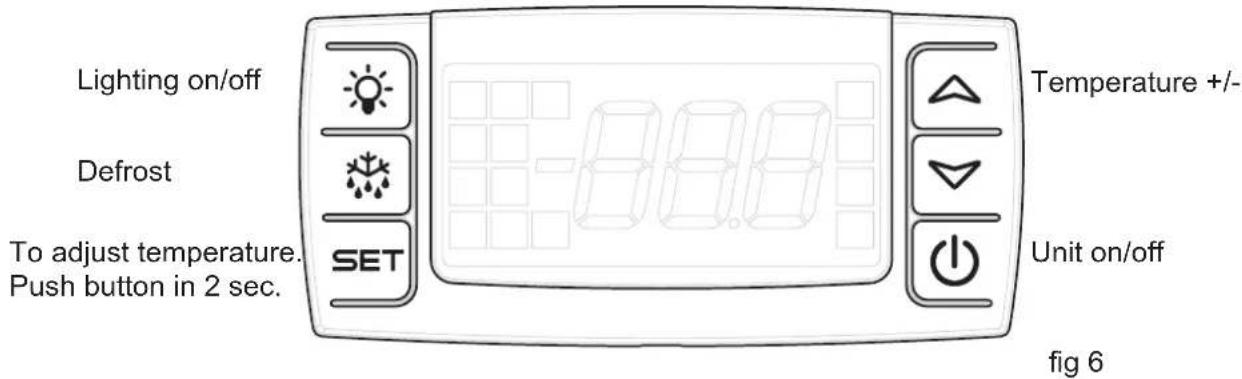

Electronic controls

The electronic controls ensure that the set temperature is maintained.

Following any power failure, the temperature settings are automatically recalled.

Manual defrosting

If there is a need for manual defrosting, push the Defrost botton for more than 2 second and a manual defrost will start.

After 30 min. the electronic control will return to normal mode

Temperature display

The display shows the actual temperature in the cabinet, and indicates that power is connected.

Temperature setting

Push the Set button on left side in 2 sec, afterwards you can change the temperature +/- with the buttons on right side.

Beware

Pushing the Unit On/Off button stops the compressor and the light is switched off. Pushing the Unit On/Off button re-activates the compressor, but the light remains turned off. The light is switched on by pressing the Light On/Off button.

Fault finding

Fault Possible cause	Remedy
The control lamp is not lit.	The appliance is switched off. Power failure; the fuse is blown; the appliance is not plugged in correctly.	Press the on/off switch. Check that power is connected. Reset the fuse.
Water collects on the shelves.	The defrost water drain is blocked.	Clean the defrost water channel and the drain hole on the rear wall of the cabinet.
Vibration or bothersome noise.	The appliance is not level. The appliance is resting against other elements.	Level the appliance using a spirit level. Move the appliance away from other elements or appliances it is in contact with.
Compressor runs continuously.	Temperature setting too low. High room temperature.	Raise the temperature setting. Ensure adequate ventilation.
Temperature in cabi-net too high.	Temperature setting too high. The cabinet has recently been filled with unchilled bottles.	Lower the temperature setting. Distribute items within the cabi-net to improve air circulation.
Ice formation on evaporator.	Door is open. Close the door

Defrosting, cleaning and maintenance

Automatic defrosting.

The appliance is defrosted automatically. Defrost water runs through a pipe and is collected in a tray above the compressor where the heat generated by the compressor causes it to evaporate.

Cleaning.

Switch off the appliance by pressing the on/off button before cleaning it inside.

The cabinet is best cleaned using warm water (max. 65°C) with a little mild detergent. Never use cleaning agents that scour. Use a soft cloth. Rinse with clean water and dry thoroughly. It is important to prevent water from entering the control panel.

The defrost water channel, in which condensation from the evaporator runs, is located on the rear wall of the cabinet and must be kept clean. Add a few drops of disinfectant, e.g. Rodalon, to the defrost water drain a couple of times a year, and clean the drain using a pipe cleaner or similar. Never use sharp or pointed implements.

The sealing strip around the door must be cleaned regularly to prevent discolouration and prolong service life. Use clean water. After cleaning the sealing strip, check that it continues to provide a tight seal.

Dust collecting on the compressor and in the compressor compartment is best removed using a vacuum cleaner.

Warranty, spare parts and service

Warranty disclaimer

Faults and damage caused directly or indirectly by incorrect operation, misuse, insufficient maintenance, incorrect building, installation or mains connection. Fire, accident, lightening, voltage variation or other electrical interference, including defective fuses or faults in mains installations.

Repairs performed by others than approved service centres and any other faults and damage that the manufacturer can substantiate are caused by reasons other than manufacturing or material faults are not covered by the warranty.

Please note that changes to the construction of the appliance or changes to the component equipment of the appliance will invalidate warranty and product liability, and the appliance cannot be used lawfully. The approval stated on rating plate will also be invalidated.

Transport damage discovered by the buyer is primarily a matter to be settled between the buyer and the distributor, i.e. the distributor must ensure that such complaints are resolved to the buyer's satisfaction.

Before calling for technical assistance, please check whether you are able to rectify the fault yourself. If your request for assistance is unwarranted, e.g. if the appliance has failed as a result of a blown fuse or incorrect operation, you will be charged the costs incurred by your call for technical assistance.

Disposal

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union.

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Safety instructions (See also Warning page 2)

1. There is a name plate inside the cabinet. The name plate provides various technical information and a safety notice with a yellow flame triangle label, name and chemical symbol of the refrigerant.
2. The refrigerator contains flammable refrigerant (R600a: iso-butane). Requirements to ensure gas safety and safe use of refrigerators:

- The refrigeration system behind and inside the refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.

- Do not use other electric appliances inside the refrigerator.

- Children should be supervised to ensure that the refrigerator should be used properly.

- Do not use the mechanical devices or other means to accelerate the defrosting process, unless they are of the type recommended by the manufacturer.

• Do not block the openings on the circumstances of the refrigerator.
• In case of having damaged the refrigerant circuit, do not use electric items or fire equipments nearby, and open all windows to provide good ventilation. Please also contact your local maintenance agent to follow up.
• The warning labels mentioned above should be kept throughout the life of the refrigerator. The user manual should be handed over to any person who would use or handle the refrigerator whenever the refrigerator would be transferred to another location and delivered to a recycling plant.

This document sets out the terms and conditions of the product warranties for Vintec/Transtherm Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should there be a manufacturing defect in your Appliance. This warranty is in addition to other rights you may have under the Australian Consumer Law.

1. In this warranty:

(a) 'ACL' or 'Australian Consumer Law' means Schedule 2 to the Competition and Consumer Act 2010;
(b) 'Appliance' means any Electrolux product purchased by you and accompanied by this document;

(c) 'ASC' means Electrolux's authorised serviced centres;

(d) 'Vintec/Transtherm' is the brand controlled by Electrolux Home Products Pty Ltd of 163 O'Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited (collectively "Electrolux") of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;
(e) 'Warranty Period' means the period specified in clause 3 of this warranty;
(f) 'you' means the purchaser of the Appliance not having purchased the Appliance for re-sale, and 'your' has a corresponding meaning.

1. Application: This warranty only applies to new Appliances, purchased and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) other rights and remedies under a law to which the Appliances or services relate, including any non-excludable statutory guarantees in Australia and New Zealand.
2. Warranty Period: Subject to these terms and conditions, this warranty continues for in Australia for a period of 24 months and in New Zealand for a period of 24 months, following the date of original purchase of the Appliance.
3. Repair or replace warranty: During the Warranty Period, Electrolux or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux may, in its absolute discretion, choose whether the remedy offered for a valid warranty claim is repair or replacement. Electrolux or its ASC may use refurbished parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux.
4. Travel and transportation costs: Subject to clause 7, Electrolux will bear the reasonable cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. Travel and transportation will be arranged by Electrolux as part of any valid warranty claim.
5. Proof of purchase is required before you can make a claim under this warranty.
6. Exclusions: You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. This warranty does not cover:

(a) light globes, batteries, filters or similar perishable parts;

(b) parts and Appliances not supplied by Electrolux;

(c) cosmetic damage which does not affect the operation of the Appliance;
(d) damage to the Appliance caused by:

(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by anyone other than an Electrolux authorised repairer or ASC;

(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with the Appliance;

In addition, Electrolux is not liable under this warranty if:

(a) the Appliance has been, or Electrolux reasonably believes that the Appliance has been, used for purposes other than those for which the Appliance was intended, including where the Appliance has been used for any non-domestic purpose;
(b) the Appliance is modified without authority from Electrolux in writing;
(c) the Appliance's serial number or warranty seal has been removed or defaced.

1. How to claim under this warranty: To enquire about claiming under this warranty, please follow these steps:

(a) carefully check the operating instructions, user manual and the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.

1. Australia: For Appliances and services provided by Electrolux in Australia: Electrolux goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. 'Acceptable quality' and 'major failure' have the same meaning as referred to in the ACL.

2. New Zealand: For Appliances and services provided by Electrolux in New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act. Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply.

3. Confidentiality: You accept that if you make a warranty claim, Electrolux and its agents including ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.

FOR SERVICEor to find the address of your nearest authorised service centre in AustraliaPLEASE CALL 1800 771 776For the cost of a local call (Australia only)	AUSTRALIAELECTROLUX HOME PRODUCTS163 O'Riordan Street, Mascot NSW 2020vintec.com.au	FOR ACCESSORIESPLEASE CALL 1800 666 778For the cost of a local call (Australia only)or visit www.vintecclub.com
FOR SERVICEor to find the address of your nearest authorised service centre in New ZealandPLEASE CALL 0800 550 020(New Zealand only)	NEW ZEALANDELECTROLUX (NZ) Limited3-5 Niall Burgess Road, Mount Wellingtonvintec.co.nz	FOR ACCESSORIESPLEASE CALL 0800 550 020(New Zealand onlyor visit www.vintecclub.com

Service and support

In the rare event that your Vintec cabinet does not perform to your satisfaction, contact our dedicated support team:

1800 771 776

[e-mail]

Pure architectural or architectural diagram with no text, numbers, or symbols

Vintec. We are part of the Electrolux Family. To add a touch of professional inspiration to your home, visit electrolux.com.au

Stay in touch and share your user experience by following us:

@vintecclub
