Product Type	Hot Dog Bun Cabinet
Model	BC-50
Brand	APW Wyott
Width	34 11/16" (881 mm)
Depth	18 5/8" (473 mm)
Height	6 3/8" (162 mm)
Weight	20 lbs (9 kg) approx.
Material	22 GA (.029") Stainless Steel
Number of Doors	3
Door Type	Clear Polycarbonate
Door Hardware	Magnetic Catch and Knobs
Feet	4 Rubber Feet
Intended Use	Holding Pre-packaged Foods Only
Power Supply	None (passive cabinet)
Maintenance	Weekly cleaning with mild soap and water
Cleaning Restrictions	No abrasive or chlorine cleaners, no vinegar
Safety	Keep clear of combustibles; commercial use only
Warranty	1 year parts and labor (portable)
Spare Parts Available	Doors, knobs, strike plates, magnetic catch, rubber feet
Repairability	Service by APW Wyott Authorized Service Agency

Frequently Asked Questions - BC-50 APW Wyott

What is the APW Wyott BC-50 used for?

The BC-50 is a hot dog bun cabinet designed for holding pre-packaged foods, such as hot dog buns, in a commercial setting.

What are the dimensions of the BC-50?

The dimensions are: width 34 11/16" (881 mm), depth 18 5/8" (473 mm), height 6 3/8" (162 mm).

Does the BC-50 require electricity?

No, the BC-50 is a passive cabinet with no electrical components. It does not heat or cool; it simply stores buns.

How do I clean the BC-50?

Clean weekly with mild soap and water. Use a soft cloth or sponge. Never use abrasive cleaners, chlorine, or vinegar. Dry thoroughly.

Can I use the BC-50 for potentially hazardous foods like raw meat?

No. The BC-50 is intended for pre-packaged foods only and not for un-cooked or unpreserved meats or sausages.

What is the warranty on the BC-50?

The BC-50 comes with a 1-year warranty covering parts and labor for the original owner. Portable units may need to be taken to an authorized service agency after the first day.

Where can I find replacement parts for the BC-50?

Replacement parts such as doors, knobs, strike plates, magnetic catches, and rubber feet are available through APW Wyott Authorized Service Agencies.

Is the BC-50 safe to use near customers?

Yes, but if the unit is accessible to the public, ensure cautions and operating instructions are posted clearly. Keep the unit clear of combustibles.

How much does the BC-50 weigh?

The approximate weight is 20 lbs (9 kg). It is considered portable equipment.

Can I stack the BC-50 with other units?

The manual does not specify stacking. It is recommended to place it on a stable surface. Consult the manual or contact APW Wyott for stacking guidelines.

USER MANUAL BC-50 APW Wyott

BC-20, BC-30, BC-50,

BC-75, BC-30D, BC-50D

BUN CABINET

INTENDED FOR OTHER THAN HOUSEHOLD USE

RETAIN THIS MANUAL FOR FUTURE REFERENCE UNIT MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES

IMPORTANT FOR FUTURE REFERENCE

Please complete this information and retain this manual for the life of the equipment. For Warranty Service and/or Parts, this information is required.

Model Number

Serial Number

Date Purchased

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the Installation, Operating and Maintenance Instructions thoroughly before installing or servicing this equipment.

This equipment has been engineered to provide you with year-round dependable service when used according to the instructions in this manual and standard commercial kitchen practices.

P/N 217499-75 9/05

Toll Free: [phone]

Website: www.apwwyott.com

E-mail: [e-mail]

APW WYOTT

P.O. Box 1829

Cheyenne, WY 82003

APW Wyatt takes pride in the design and quality of our products. When used as intended and with proper care and maintenance, you will experience years of reliable operation from this equipment. To ensure best results, it is important that you read and follow the instructions in this manual carefully.

Installation and start-up should be performed by a qualified installer who thoroughly read, understands and follows these instruction.

If you have questions concerning the installation, operation, maintenance or service of this product, write Technical Service Department APW/Wyott Foodservice Equipment Company, P.O. Box 1829, Cheyenne, WY 82003.

SAFETY PRECAUTIONS

Before installing and operating this equipment be sure everyone involved in its operation are fully trained and are aware of all precautions. Accidents and problems can result by a failure to follow fundamental rules and precautions.

The following words and symbols, found in this manual, alert you to hazards to the operator, service personnel or the equipment. The words are defined as follows:

DANGER: This symbol warns of imminent hazard which will result in serious injury or death.

WARNING: This symbol refers to a potential hazard or unsafe practice, which could result in serious injury or death.

CAUTION: This symbol refers to a potential hazard or unsafe practice, which may result in minor or moderate injury or product or property damage.

NOTICE: This symbol refers to information that needs special attention or must be fully understood even though not dangerous.

CAUTION: These models are designed, built, and sold for commercial use. If these models are positioned so the general public can use the equipment make sure that cautions, warnings, and operating instructions are clearly posted near each unit so that anyone using the equipment will use it correctly and not injure themselves or harm the equipment.

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the Installation, Operating and Maintenance Instructions thoroughly before installing or servicing this equipment.

WARNING: Maintenance and repair should be handled by a factory authorized agent. Before doing any maintenance and repair, contact APWWyott.

CONTENTS

Safety Precautions....2

Maintenance....3

Specifications....3

Equipment Preparation 4

General Troubleshooting 4

Parts Lists & Exploded Views....5

Warranty Procedure....6

Warranty 7

LOCATION OF DATA PLATE

The data plate for the unit is located on the back side of the unit.

IMMEDIATELY INSPECT FOR SHIPPING DAMAGE

All containers should be examined for damage before and during unloading. The freight carrier has assumed responsibility for its safe transit and delivery. If equipment is received damaged, either apparent or concealed, a claim must be made with the delivering carrier.

A) Apparent damage or loss must be noted on the freight bill at the time of delivery. It must then be signed by the carrier representative (Driver). If this is not done, the carrier may refuse the claim. The carrier can supply the necessary forms.

B) Concealed damage or loss if not apparent until after equipment is uncrated, a request for inspection must be made to the carrier within 15 days. The carrier should arrange an inspection. Be certain to hold all contents and packaging material.

Installation and start-up should be performed by a qualified installer who thoroughly read, understands and follows these instructions.

MAINTENANCE

Once a week, or more often if necessary, clean the unit thoroughly. Turn off the unit and allow it to cool.

STAINLESS STEEL: To remove normal dirt or product residue from stainless steel, use ordinary soap and water (with or without detergent) applied with a sponge or cloth. Dry thoroughly with a clean cloth. Never use vinegar or corrosive cleaner. Do not use chlorine based cleaners.

To remove grease and food splatter or condensed vapors that have hardened on the equipment, apply cleaners to a damp cloth or sponge and rub cleanser on the metal in the direction of the polished lines on the metal. Rubbing cleanser as gently as possible in the direction of the polished lines will not mar the finish of the stainless steel. NEVER RUB WITH A CIRCULAR MOTION. Soil and burned on deposits which do not respond to the above procedure can usually be removed by rubbing the surface with SCOTCH-BRITE scouring pads or STAINLESS scouring pads.

NEVER USE a wire brush, steel or abrasive scouring pads (except stainless), scraper, file or other steel tools. Surfaces which are marred collect dirt more rapidly and become more difficult to clean. Marring also increases the possibility of corrosive attack.

NEVER use any corrosive cleaner. Use only cleaners approved for stainless steel.

NEVER use cleaning solvents with a hydrocarbon base.

CAUTION: Do not use ordinary steel wool as any particles left on the surface will rust.

WARNING: This unit is intended for use with pre-packaged foods only.

SPECIFICATIONS

Units constructed of 22GA (.029) stainless steel. BC-20, 30 & 50 supplied with clear polycarbonate doors. BC-30D & 50D supplied with all 22GA (.029) stainless steel drawer.

DIMENSIONS
MODEL	WIDTH	DEPTH	HEIGHT
BC-20	17 3/16"	18 5/8"	6 3/8"
BC-30	22 11/16"	18 5/8"	6 3/8"
BC-50	34 11/16"	18 5/8"	6 3/8"
BC-30D	22 11/16"	18 5/8"	6 3/8"
BC-50D	34 11/16"	18 5/8"	6 3/8"

CAUTION: These models are designed, built, and sold for commercial use. If these models are positioned so the general public can use the equipment make sure that cautions, warnings, and operating instructions are clearly posted near each unit so that anyone using the equipment will use it correctly and not injure themselves or harm the equipment.

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the Installation, Operating and Maintenance Instructions thoroughly before installing or servicing this equipment.

EQUIPMENT PREPARATION

Clean the unit before using. Wipe with a hot, wet cloth to remove any shipping dust or protective oil.

1. All food service equipment should be operated by trained personnel.
2. Never hold food below 150°F or above 40°F.

WARNING: This unit is intended to hold pre-packaged foods only.

WARNING: This unit is not intended to hold potentially hazardous foods such as un-cooked or unpreserved meats and sausages.

GENERAL TROUBLESHOOTING

If portable equipment fails to operate in its intended manner on the first day of connection, or use, at APW WYOTT's option or its Authorized Service Agency, it will be serviced on-site or replaced.

From day two through the conclusion of this warranty, portable units must be taken or sent prepaid to the APWWYOTT Authorized Service Agency for in-warranty repairs. No mileage or travel charges are allowed on portable units after the first day of use. If customer wants on-site service they may receive same by paying the travel and mileage charges.

NOTICE: Service work should be performed only by a qualified technician. Contact the Authorized Service Agency for reliable service, dependable advise or other assistance and for genuine factory parts.

Warranty will be void and the manufacturer is relieved of all liability if:

(A) Service work is performed by other than an APWWYOTT Authorized Service Agency or
(B) Other than Genuine APWWYOTT replacement parts are installed.

A current listing of all authorized APW WYOTT authorized parts/service distributors is included with this product manual at the time of shipment. In the absence of this list you can call the APW WYOTT 24 hour Service Hot Line which gives access to the nearest Authorized APWWYOTT parts/service distributor. Call 1-800-733-2203.

PARTS LISTS & EXPLODED VIEWS

PARTS LIST BC-20

ITEM	PART NO.	QTY.	DESCRIPTION
1	217515-05	1	Cabinet Weldment BC-20
2	217515-70	1	Door
3	87020-00	1	Knob
4	217499-53	1	Strike Plate
5	81759-00	4	M/S Tr Hd Ph, 10-32
6	84176-00	4	Nut, 10-32
7	21191-00	4	Rubber Foot
8	87050-00	1	Magnetic Catch

PARTS LIST BC-30

ITEM	PART NO.	QTY.	DESCRIPTION
1	217499-05	1	Cabinet Weldment BC-30
2	217499-70	2	Door
3	87020-00	2	Knob
4	217499-53	2	Strike Plate
7	21191-00	4	Rubber Foot
8	87050-00	1	Magnetic Catch

PARTS LIST BC-50

ITEM	PART NO.	QTY.	DESCRIPTION
1	217498-05	1	Cabinet Weldment BC-50
2	217499-70	3	Door
3	87020-00	3	Knob
4	217499-53	3	Strike Plate
7	21191-00	4	Rubber Foot
8	87050-00	1	Magnetic Catch

PARTS LIST BC-75 DUAL ACCESS

ITEM	PART NO.	QTY.	DESCRIPTION
1	217746-10	1	Cabinet Weldment BC-75
2	217499-70	6	Door
3	87020-00	6	Knob
4	217499-53	6	Strike Plate

PARTS LIST BC-30D

ITEM	PART NO.	QTY.	DESCRIPTION
1	217508-40	1	Drawer BC-30D
2	21191-00	4	Rubber Foot
3	84176-00	4	Nut #10-32
4	81759-00	4	Screw, #10-32 Truss Head

PARTS LIST BC-50D

ITEM	PART NO.	QTY.	DESCRIPTION
1	217508-80	1	Drawer BC-50D
2	21191-00	4	Rubber Foot

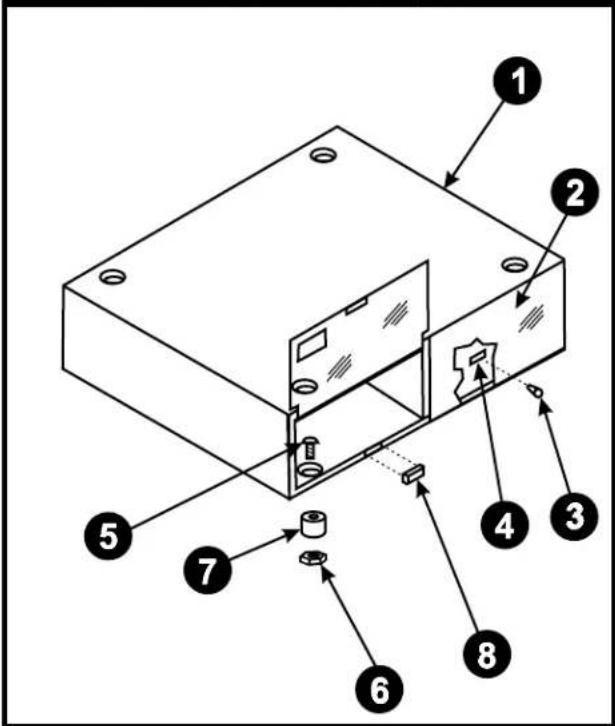

EXPLODED VIEW BC-20, 30 & 50

EXPLODED VIEW BC-30D & 50D

WARRANTY PROCEDURE

IF YOU NEED WARRANTY SERVICE FOR YOUR APWEQUIPMENT, FOLLOW THESE STEPS:

1. Secure the model and serial number from the data tag of your unit.
2. Non-portable equipment- The service agency will dispatch a technician to your location for repairs.
3. Portable equipment - If you request service at your location, you will be responsible for payment of travel and mileage charges. You can take the unit to the service agency to avoid these charges.
4. For the name of the closest authorized service/parts distributor consult the published list supplied by APWWyott or call the APWWyott Service Hot Line, 1-800-733-2203

Notes:

APW WYOTT EQUIPMENT LIMITED WARRANTY

APW Wyatt Foodservice Equipment Company warrants it's equipment against defects in materials and workmanship, subject to the following conditions:

This warranty applies to the original owner only and is not assignable.

Should any product fail to function in its intended manner under normal use within the limits defined in this warranty, at the option of APW Wyatt such product will be repaired or replaced by APW Wyatt or its Authorized Service Agency. APW Wyatt will only be responsible for charges incurred or service performed by its Authorized Service Agencies. The use of other than APW Wyatt Authorized Service Agencies will void this warranty and APW Wyatt will not be responsible for such work or any charges associated with same. The closest APW Wyatt Authorized Service Agent must be used.

This warranty covers products shipped into the 48 contiguous United States, Hawaii, metropolitan areas of Alaska and Canada. There will be no labor coverage for equipment located on any island not connected by roadway to the mainland.

Warranty coverage on products used outside the 48 contiguous United States, Hawaii, and metropolitan areas of Alaska and Canada may vary. Contact the international APW Wyatt distributor, dealer, or service agency for details.

Time Period

One year for parts and one year for labor, effective from the date of purchase by the original owner. The Authorized Service Agency may, at their option, require proof of purchase. Parts replaced under this warranty are warranted for the un-expired portion of the original product warranty only.

Exceptions

*Gas/Electric Cookline: Models GCB, GCRB, GF, GGM, GGT, CHP-H, EF, EG, EHP. Three (3) Year Warranty on all component parts, except switches and thermostats. (2 additional years on parts only. No labor on second or third year.)
*Broiler Briquettes, Rock Grates, Cooking Grates, Burner Shields, Fireboxes: 90 Day Material Only. No Labor.
*Heat Strips: Models FD, FDL, FDD, FDDL. Two (2) Year Warranty on element only. No labor second year.
*Glass Windows, Doors, Seals, Rubber Seals, Light Bulbs: 90 Day Material Only. No Labor.

In all cases, parts covered by extended warranty will be shipped FOB the factory after the first year.

Portable Carry In Products

Equipment weighing over 70 pounds or permanently installed will be serviced on-site as per the terms of this warranty. Equipment weighing 70 pounds or under, and which is not permanently installed, i.e. with cord and plug, is considered portable and is subject to the following warranty handling limitations. If portable equipment fails to operate in its intended manner on the first day of connection, or use, at APW Wyott's option or its Authorized Service Agency, it will be serviced on site or replaced

From day two through the conclusion of this warranty period, portable units must be taken to or sent prepaid to the APW Wyott Authorized Service Agency for in-warranty repairs. No mileage or travel charges are allowed on portable units after the first day of use. If the customer wants on-site service, they may receive same by paying the travel and mileage charges. Exceptions to this rule: (1) countertop warmers and cookers, which are covered under the Enhanced Warranty Program, and (2) toasters or rollergrills which have in store service.

Exclusions

The following conditions are not covered by warranty:

*Equipment failure relating to improper installation, improper utility connection or supply and problems due to ventilation.
*Equipment that has not been properly maintained, calibration of controls, adjustments, damage from improper cleaning and water damage to controls.
*Equipment that has not been used in an appropriate manner, or has been subject to misuse or misapplication, neglect, abuse, accident, alteration, negligence, damage during transit, delivery or installation, fire, flood, riot or act of god.
*Equipment that has the model number or serial number removed or altered.

If the equipment has been changed, altered, modified or repaired by other than an Authorized Service Agency during or after the warranty period, then the manufacturer shall not be liable for any damages to any person or to any property, which may result from the use of the equipment thereafter.

This warranty does not cover services performed at overtime or premium labor rates. Should service be required at times which normally involve overtime or premium labor rates, the owner shall be charged for the difference between normal service rates and such premium rates. APW Wyatt does not assume any liability for extended delays in replacing or repairing any items beyond its control.

In all cases, the use of other than APW Wyott Authorized OEM Replacement Parts will void this warranty.

This equipment is intended for commercial use only. Warranty is void if equipment is installed in other than commercial application.

Water Quality Requirements

Water supply intended for a unit that has in excess of 3.0 grains of hardness per gallon (GPG) must be treated or softened before being used. Water containing over 3.0 GPG will decrease the efficiency and reduce the operation life of the unit.

Note: Product failure caused by liming or sediment buildup is not covered under warranty.

"THE FOREGOING WARRANTY IS IN LIEU OF ANY AND ALL OTHER WARRANTIES EXPRESSED OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSES AND CONSTITUTES THE ENTIRE LIABILITY OF APW WYOTT. IN NO EVENT DOES THE LIMITED WARRANTY EXTEND BEYOND THE TERMS STATED HEREIN."
