CQE-CT-00192 - Unspecified Crystal Quest - Free user manual and instructions

Product Type	Water Filtration System
Brand	Crystal Quest
Model	CQE-CT-00192
Dimensions (Approx.)	10 x 4 x 4 inches
Weight	1.5 lbs
Power Source	None (gravity flow)
Flow Rate	Up to 0.5 GPM
Filtration Media	Activated carbon, KDF, sediment filter
Contaminants Reduced	Chlorine, sediment, taste, odor, heavy metals
Filter Life	6 months or 500 gallons
Installation Type	Countertop (no plumbing required)
Material	BPA-free plastic
Certifications	NSF/ANSI Standard 42
Maintenance	Replace filter cartridge every 6 months
Cleaning	Wipe exterior with damp cloth; do not use abrasive cleaners
Safety	BPA-free, lead-free materials
Spare Parts	Replacement filter cartridge CQE-CT-00192-R
Warranty	1 year limited warranty
Compatibility	Standard faucet aerator connection

Frequently Asked Questions - CQE-CT-00192 Crystal Quest

How do I install the Crystal Quest CQE-CT-00192 water filter?

Installation is simple: attach the diverter valve to your faucet aerator, then connect the filter unit. No tools or plumbing required. Ensure the faucet is turned off before installation.

How often should I replace the filter cartridge?

Replace the filter every 6 months or after 500 gallons of use, whichever comes first. A replacement indicator may not be present; mark your calendar as a reminder.

What contaminants does this filter remove?

The filter reduces chlorine, sediment, bad taste, odor, and some heavy metals like lead and mercury. It is certified to NSF Standard 42 for aesthetic effects.

Can I use this filter with hot water?

No, only use cold water. Hot water can damage the filter media and housing. Maximum water temperature is 100°F (38°C).

What is the flow rate of the CQE-CT-00192?

The typical flow rate is up to 0.5 gallons per minute (GPM), suitable for drinking and cooking needs.

Does the filter require electricity?

No, it is gravity-fed and requires no electrical power. It works solely on water pressure from your faucet.

How do I clean the filter housing?

Wipe the exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive materials. The interior does not require cleaning under normal use.

What spare parts are available for this model?

The main spare part is the replacement filter cartridge (model CQE-CT-00192-R). Also, replacement diverter valves and hoses are available from the manufacturer.

Is the filter BPA-free?

Yes, all plastic components are made from BPA-free materials to ensure safe drinking water.

What should I do if the water flow slows down?

Slow flow may indicate a clogged filter cartridge. Try replacing the cartridge. Also, check the diverter valve for debris and ensure the faucet is fully open.

USER MANUAL CQE-CT-00192 Crystal Quest

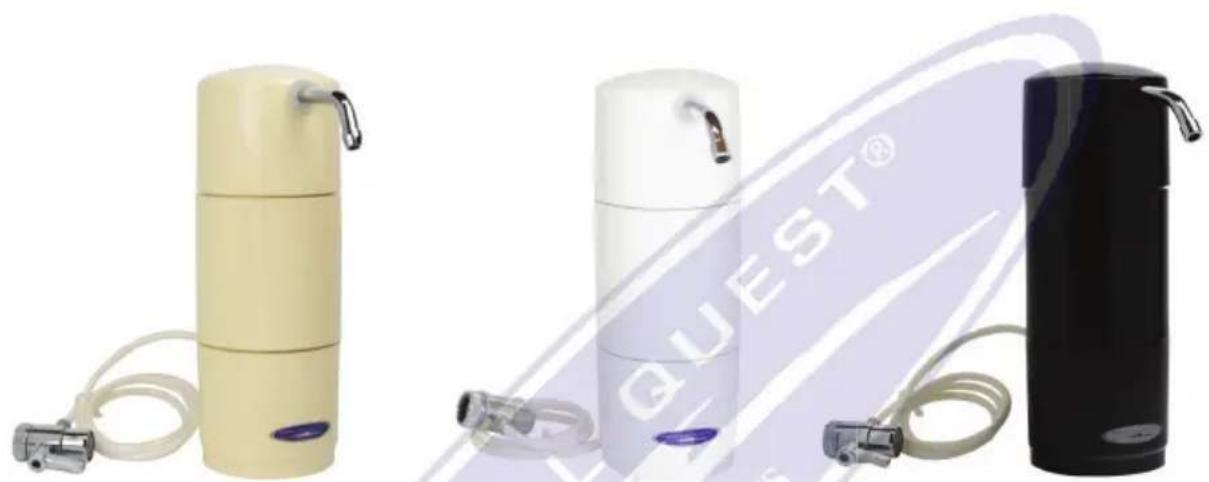

Crystal Quest® Classic Countertop Water Filter INSTALLATION AND OPERATION GUIDE

ONLINE WARRANTY INFORMATION CrystalQuest.com/warranty.html

Do not use non-Crystal Quest replacement cartridges. Do not use non-Crystal Quest parts or modify/tamper with unit.

OPERATING SPECIFICATIONS:

Pressure Range: 20-60 psi (pounds per sq. in.)

Operating Temperature: 40-85°F (4.4-29.4°C)

Max Flow Rate: .5 gallons per minute

• Filter must be protected against freezing which can cause cracking of the filter and water leakage.
• Please read all instructions and precautions before installing and using your Crystal Quest® Countertop Water Filter.
• Filter life varies depending on filter type, usage, and water conditions.
• Do not install on hot water line.
• For cold water use only.
• The system has a limited service life. Changes in taste, odor, or reduced flow of the water being filtered indicate that the unit should be replaced.
• The contaminants or other substances removed or reduced by these systems are not necessarily in your water. Ask your local water municipality for a copy of their water analysis.
• After prolonged periods of non-use (such as during a vacation), it is recommended that the system be flushed thoroughly. Let water run for 5-6 minutes before using.

WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

CONNECTING DIVERTER TO FAUCET

1. Remove aerator from faucet on which filter will be installed (Fig 1).
2. Determine the type of threads on your faucet: Outside threads : No adapters should be needed (Fig 1); proceed to Step 3. Inside threads: Select the correct adapter and washer (Fig 2) and screw into faucet. Tighten manually.

NOTE: Adapters are included which will fit most faucets.

To create a tight seal, you may need to use the gasket from your faucet's aerator in addition to the washers included with the adapters. If the adapters do not fit, consult your local plumbing or hardware supplier for assistance in obtaining the correctly threaded adapter.

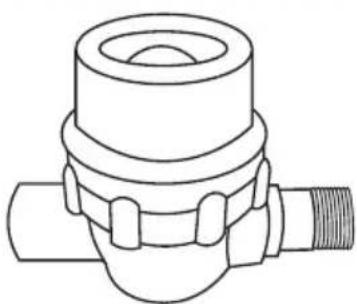

1. Screw the diverter valve onto the faucet, turning swivel collar to tighten. Make certain that gasket (already installed in diverter valve) is positioned securely between the diverter valve and the faucet (or adapter). Rotate diverter valve stem to desired position. Swivel collar may need to be re-tightened. Place assembly conveniently next to sink.
2. Turn on water at faucet handle then turn on diverter handle. This causes the water to flow through the filter. To stop water flow to filter, turn off water at faucet handle, then turn off diverter handle.

OPERATION

WATER APPEARANCE

• WHITE water. When a new water filter is installed or after cleaning, the water may appear milky or white for a while. It is harmless and will soon clear. White water is due to micro bubbles of air. On standing, the water will be come clear as the bubbles move upwards. Water in some areas of the country has a high level of lime or calcium. The Redox inside the unit changes these substances into harmless elements which react with air and temperature.
• BLACK water. When a new water filter is installed or after cleaning, very fine black particles may appear in the water. This is normal and the particles are harmless carbon. Flushing the system for a few minutes by turning the tap on and off rapidly several times will help to clear this.
• COLORED water (often RED). Water in some areas may be high in dissolved iron and this can pass through the filter. When the water is left to stand, dissolved iron gives a red or brown color as the iron oxidizes (rusts). In very severe cases you should contact Crystal Quest® for specialist advice. Ordinary particulate rust in the water will be removed by the system.

WATER APPEARANCE

Filtered and treated water tastes so much better than unfiltered water. But there are also some who cannot detect any change. Others find that the treated water tastes "different", but they will soon become accustomed to the taste of the filtered water. A major factor affecting taste may be the natural composition in a particular area. There can be considerable local differences in the mineral content of the water, for example.

• Fish odor or sour taste water. System is not flushed properly. Run the water for five minutes and shut off for five minutes. Do three to four times consecutively. Some areas might have hard water. In very severe cases you should contact Crystal Quest® to speak to one of our water specialists at 1-800-934-0051.
• Chlorine taste. The 'natural' taste of an area's water is often masked by the presence of chlorine used in the treatment process. If the chlorine taste consistently reappears, the unit should be replaced. If after prolonged standing or during infrequent use any strong objectionable taste occurs, flush the system by running water for 5 minutes.
• Bad taste and/or odor. The unit needs replacing.

SPF WASHABLE PRE-FILTRATION FILTER (SOLD SEPARATELY)

Small pre-filters designed to remove sediment and any other particulate greater than 4 microns in size before the water is fed through to the main countertop filter. The purpose is to reduce the burden on the main filter unit and increase its effectiveness and lifespan. The pre-filter consists of a stainless-steel screen filter which is sealed inside a small, clear, removable housing with an O-ring. Maintenance and installation are simple. The clear housing makes it easy to see when the filter needs to be washed and the filter can be installed directly into a 1/4 NPT threaded receptacle. To wash, simply unscrew the clear housing, wash the screen, and screw the housing back on. If maintained properly the pre-filter should last indefinitely. If you didn't purchase a pre-filter with your original order, please visit CrystalQuest.com or call 1-800-934-0051 to purchase.

ONE-YEAR LIMITED WARRANTY

CRYSTAL QUEST® warrants your CRYSTAL QUEST® Countertop Water Filter System for one year from the date of purchase against all defects in materials and workmanship when used in compliance with the manual. CRYSTAL QUEST® disclaims all implied warranties including, without limitation, warranties of merchantability and fitness for a particular purpose. If for any reason the product proves to be defective within one year from the date of purchase, please call for assistance. This warranty gives you specific legal rights and you may have other legal rights which vary from state to state. CRYSTAL QUEST® assumes no responsibility for incidental or consequential damages; for damages arising out of misuse of the product or the use of any unauthorized attachment. Some states do not allow the exclusion or limitation of implied warranties or incidental or consequential damages, so the above limitations or exclusions may not apply to you. Should service be required during or after the warranty period or should you have any questions regarding how to use your CRYSTAL QUEST® Countertop Water Filter System, contact our Technical Support Department at [e-mail], Monday through Friday, 9 AM to 5 PM Eastern Time.

KEEP THIS MANUAL FOR FUTURE REFERENCE AND UNIT MAINTENANCE

Online warranty information

http://crystalquest.com/warranty.htm

Product design is subject to change without notice.

For further assistance, contact your Crystal Quest dealer

or visit us at www.crystalquest.com

To view the latest edition of the Classic Countertop Water Filter Guide visit CrystalQuest.com

Please note all drawings, pictures, colors and sizes are approximate for illustrative purposes

only and may not exactly resemble the end product.
