Product Type	Articulated Wall Mount
Compatible Screen Sizes	32" to 65"
VESA Compatibility	200x200, 300x300, 400x400 mm
Weight Capacity	up to 35 kg (77 lbs)
Tilt Range	+5° to -15°
Swivel Range	±90°
Rotation	360°
Depth Adjustment	70 to 450 mm
Color	Black
Material	Steel
Mounting Pattern	Compatible with standard VESA patterns
Installation	Mounting hardware included
Product Dimensions (W x H x D)	450 x 350 x 70 mm
Net Weight	4.5 kg
Warranty	5 years
Cleaning	Wipe with a dry, soft cloth
Safety	Do not exceed maximum weight capacity
Spare Parts Availability	Available through authorized dealers
Reparability	Service manual available upon request

Frequently Asked Questions - SD-SA-DW-BK Atdec

What is the maximum weight capacity of the SD-SA-DW-BK mount?

The maximum weight capacity is 35 kg (77 lbs). Do not exceed this limit to ensure safety.

Is this mount compatible with my 55-inch TV?

Yes, it supports screens from 32 to 65 inches. Ensure your TV's VESA pattern is among 200x200, 300x300, or 400x400 mm.

Can the mount tilt and swivel?

Yes, it offers tilt adjustment from +5° to -15° and swivel of ±90° for optimal viewing angles.

Does the mount come with all necessary hardware?

Yes, the package includes mounting hardware for standard installations. Additional anchors may be needed for specific wall types.

How should I clean the wall mount?

Clean with a dry, soft cloth. Avoid abrasive cleaners or solvents to protect the finish.

What warranty does the SD-SA-DW-BK have?

Atdec offers a 5-year warranty against manufacturing defects. Retain your proof of purchase.

Can I mount this on drywall?

Yes, but you must use appropriate wall anchors (not included) rated for 35 kg minimum. For best results, mount onto wooden studs.

What VESA patterns are supported?

The mount supports VESA patterns 200x200, 300x300, and 400x400 millimeters.

How far from the wall does this mount extend?

The depth adjustment range is from 70 mm (retracted) to 450 mm (fully extended).

Does the mount allow 360° rotation?

Yes, it features 360° rotation for flexible landscape or portrait orientation.

USER MANUAL SD-SA-DW-BK Atdec

Simple line drawing of a 3D cube with an arrow pointing right (no text or symbols)

Bits Box

Mounting Fasteners

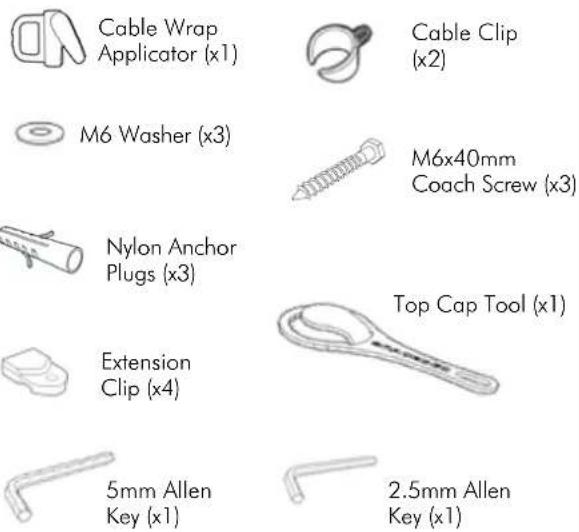

A Component Checklist

Check you have received all parts against the Component Checklist above.

B Direct Wall Mount

Refer to Ergonomic guidelines overleaf to determine best position to mount wall bracket.

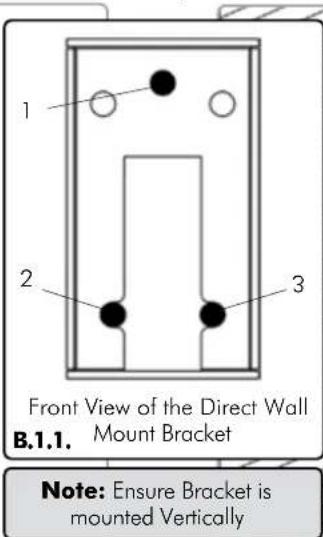

B.1. For Timber Stud Mounting - Use the Direct Wall Mount Bracket to mark out the location of the required three holes (see diagram B.1.1.). Drill 3x4mm holes deep enough to receive the M6 Coach Screws, insert the screws and secure the bracket to the wall (see diagram B.1.2.)

B.2. For Masonry Mounting - Use the Direct Wall Mount Bracket to mark the location of the required three holes (see diagram B.1.1.). Using an 8mm masonry drill bit, drill 3 holes 41mm deep. Insert the Nylon Anchors and then secure the Bracket to the wall using the M6 Coach Screws (see diagram B.2.1.).

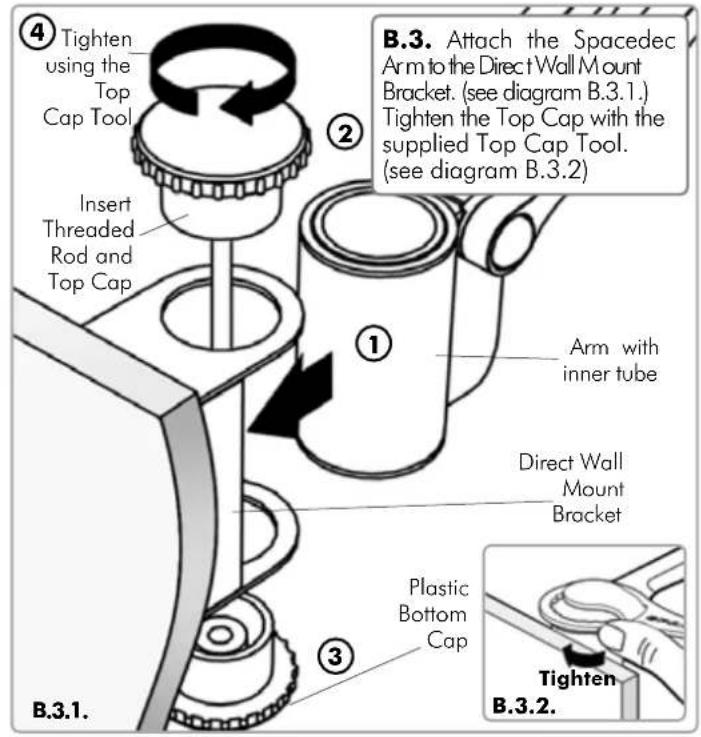

B Direct Wall Mount Continued.

© Attaching the Display

75mm x 75mm (3" x 3") mounting hole pattern

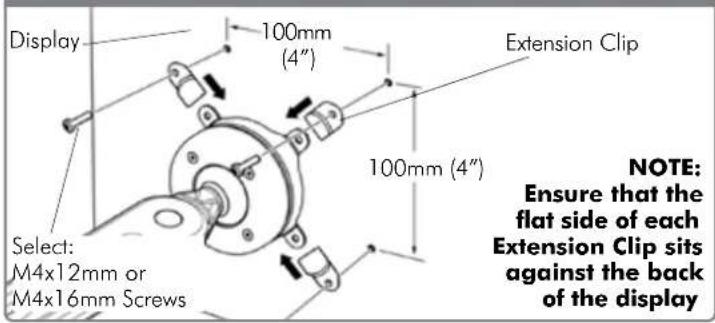

100mm x 100mm (4" x 4") mounting hole pattern

D Installing Cable Management

D.1. Push the two supplied Cable Clips into the holes on the underside of the arm as shown.
D.2. Feed the cables into the Cable Wrap Applicator.
D.3. Insert the Cable Wrap Applicator into the Cable Wrap as shown.
D.4. Squeeze the nose of the Applicator and place inside the Cable Wrap ensuring that the opening edges of the Cable Wrap face towards the nose of the applicator as shown in diagram.

Illustration of hands using a tool to tie a rope or cable (no text or symbols visible)

Illustration of hands tying a rope knot with a downward arrow indicating motion (no text or symbols)

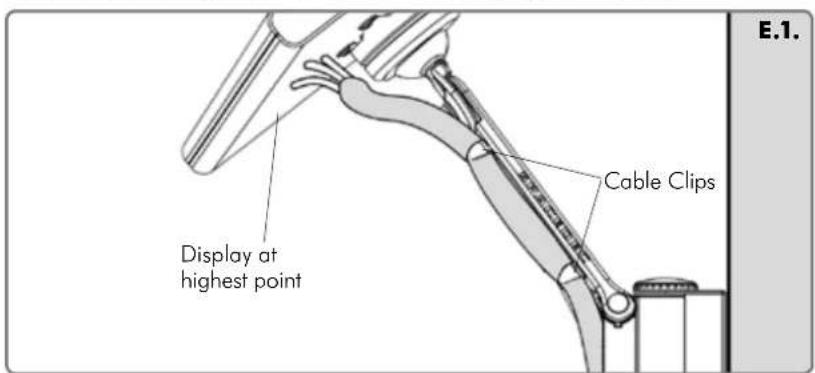

E Attaching the Cable Wrap to the Arm

E.1. Position the display at its highest possible position to ensure that there is sufficient cabling at the end of the arm so the cables are not stretched or pulled out when the display is moved.

BEFORE PROCEEDING TO THE NEXT STEP PLEASE NOTE:

Swing Arm Wall will only work when a display is properly installed.

DO NOT adjust tension screws or gas strut until your display has been attached.

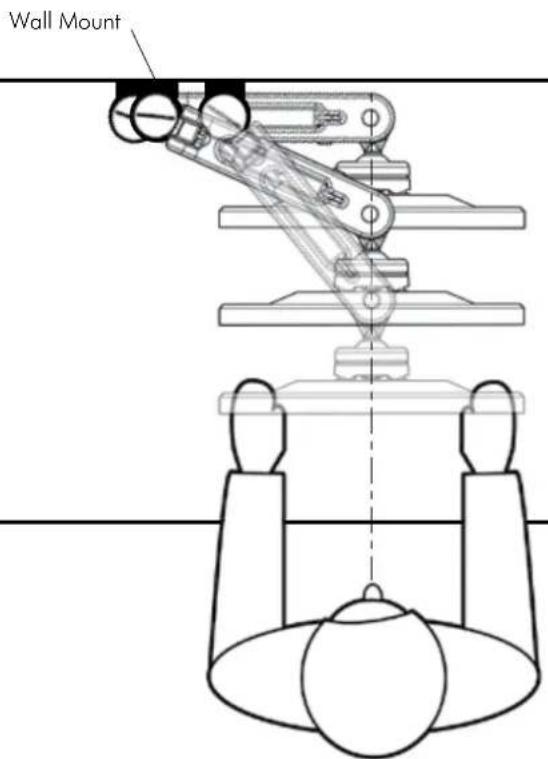

Recommended Mounting Position

- When mounting the Spacedec Acrobat Swing Arm Wall, ensure the correct focal distance can be achieved for ultimate visual comfort (Refer to Recommended Viewing Distance / Height below)

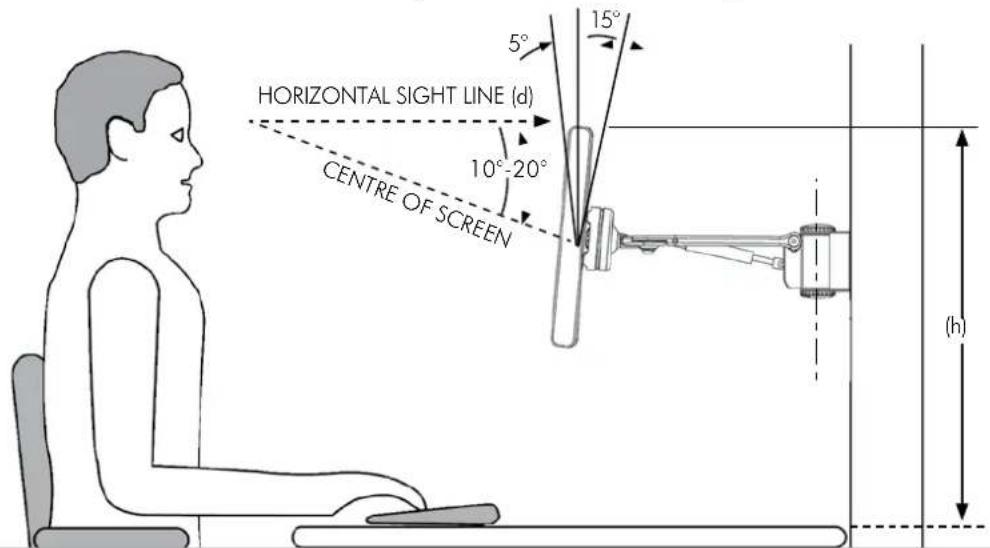

Recommended Viewing Distance / Height

- Ergonomists recommend that the optimal position of your screen should be slightly below eye level. When looking at the screen's centre the user should have a downward visual angle of approximately 10^ - 20^ . As a guide, the height (h) of your display should approximately be as follows:

- Tall Male (Max): 560mm (22") Tall Female (Max): 520mm (20 1/2")

- Short Male (Min): 368mm (14 ^1/2 ) Short Female (Min): 356mm (14")

- For visual comfort, a viewing distance (d) between 500mm (19/2") to 750mm (29/2") is recommended.

- Angular adjustments to reduce reflection on your monitor should range between 5° forward tilt to 15° backward tilt.

The Spacedec Acrobat Swing Arm Wall comes factory set to support 6kg displays. Adjust the arm to suit the weigh of your display as shown in the following steps:

G.1. Adjusting the Ball Joint Resistance

Depending on the weight of the display, it may be necessary to make adjustments to the Ball Joint Mechanism. If the display doesn't hold its position or is too resistant, adjust the four tension screws located around the Ball Joint (see diagram on the right) using the supplied 2.5mm Allen Key.

Check the display, and then adjust again if necessary.

NOTE: Be sure to adjust screws evenly.

G.2. Adjusting the Pivot Head Resistance

It is possible to control the amount of resistance in the Pivot Head to suit your display.

To increase the resistance of the Pivot Head to suit heavier displays, use the 5mm Allen Key supplied in the Desk Clamp Box to tighten the interscrew in a clockwise direction.

To decrease the resistance of the Pivot Head to suit lighter displays, loosen the interscrew in an anti-clockwise direction.

NOTE: It is recommended the Pivot Head be left at the factory setting for best performance.

G.3. Adjusting the Swing Arm/Gas Strut Resistance

G.3.1. Depending on the weight of the display, it may be necessary to adjust the arm. This can be done by using the 5mm Allen Key supplied in the Desk Clamp Box.

G.3.2. If the arm tends to automatically rise or fall when the display is attached, it will be necessary to make small adjustments to the gas strut. (see diagram on the right)

G.3.3. If the arm tends to rise, the gas strut position should be raised. If the arm tends to fall, the gas strut position should be lowered.
