PRJWM8 - Intercom Pyle - Free user manual and instructions

Product Type	Projector Ceiling Mount
Brand	Pyle
Model	PRJWM8
Compatible Devices	Projectors with at least three mounting holes
Mounting Type	Ceiling mount (solid brick or concrete block)
Adjustable Tilt	Yes (angle and tilt adjustable)
Cable Management	Yes (through inner rod, with decorative cover)
Package Contents	Package M (mount components), Package W (wall hardware: concrete anchors, washers, screws ST6.3x55)
Installation Surface	Solid brick or concrete block
Safety Warning	Do not exceed rated weight; use assistant; indoor use only
Maintenance	Check security every 3 months
Hardware Included	ST6.3x55 screws (x4), concrete anchors (x4), D8 washer (x4)
Additional Features	Decorative cover, pivot bracket, adapter bracket with channel foot

Frequently Asked Questions - PRJWM8 Pyle

What is the weight capacity of the Pyle PRJWM8 mount?

The manual does not specify an exact weight capacity but warns not to exceed the rated listed weight. Ensure your projector and hardware are within safe limits.

What tools are needed for installation?

You will need an Allen key (to loosen clamp plate screw) and a screwdriver (to tighten screws).

Can I install the mount on wood or drywall?

No, the manual specifies installation only on solid brick or concrete block walls.

Does the mount allow cable management?

Yes, the inner rod has a channel to run cables, and a decorative cover snaps over the opening for a clean look.

How many mounting holes does my projector need?

The adapter bracket uses three arms; your projector must have at least three mounting holes.

Can I adjust the tilt after installation?

Yes, the pivot bracket allows adjustment to the desired angle or tilt.

Is this mount suitable for outdoor use?

No, the manual states this product is intended for indoor use only.

How often should I inspect the mount?

Check that the bracket is secure and safe at regular intervals, at least every three months.

What is the warranty on the Pyle PRJWM8?

The manual does not mention warranty details. Contact your local distributor for warranty information.

Can I use this mount with a ceiling fan or light fixture?

No, this mount is designed specifically for projectors. Do not use for other equipment.

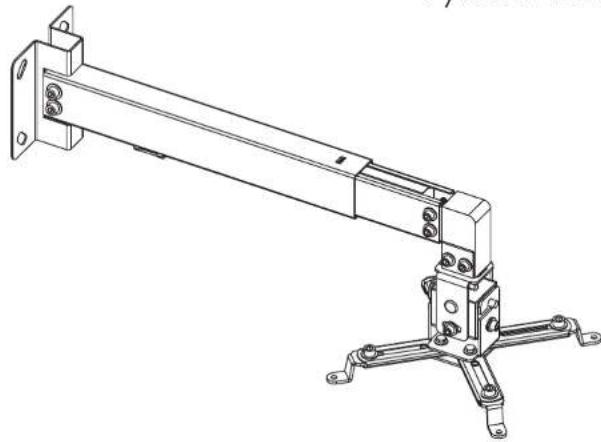

USER MANUAL PRJWM8 Pyle

Projector Wall Mount

PYLE®

PyleUSA.com

Technical line drawing of a mechanical support structure with mounting flanges and mounting feet (no text or symbols)

PRJWM8

CAU T ION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

NOTE: Read the entire instruction manual before you start installation and assembly.

WARNING

• Do not begin the installation until you have read and understood all the instructions and warnings contained in this installation sheet. If you have any questions regarding any of the instructions or warnings, please contact your local distributor.
• This mounting bracket was designed to be installed and utilised ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone with good mechanical ability who has basic building experience and fully understands this manual.
• Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
  • Always use an assistant or mechanical lifting equipment to safely lift and position the equipment.
• Tighten screws firmly, but do not over tighten. Over tightening can cause damage to the items, This greatly reduces their holding power.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

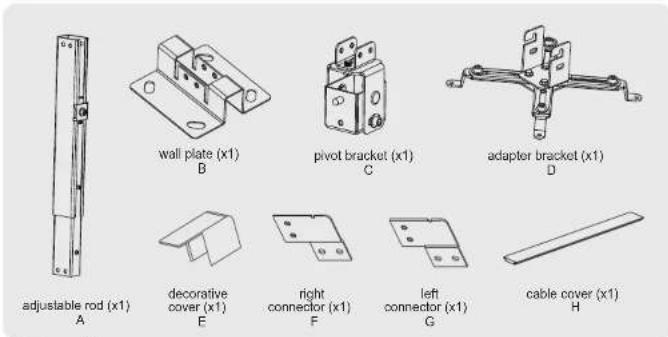

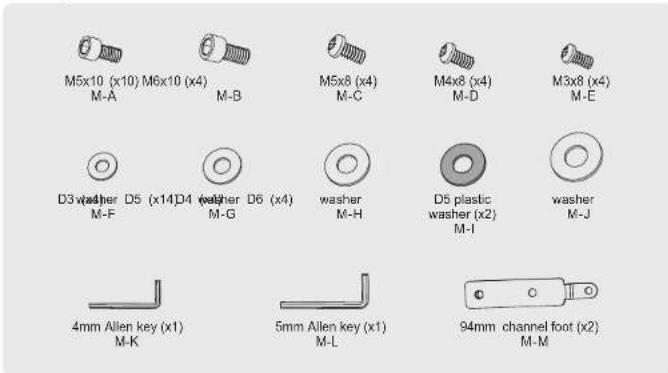

Component Checklist

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, telephone your local distributor for a replacement.

Package M

Package W

ST6.3x55 (x4) W-A

concrete anchor (x4) W-B

D8 washer (x4) W-C

1. Cable Management

Use an Allen Key to loosen the clamp plate screw in order to separate the inner rod from the outer rod.

• Loosen three screws with a proper screwdriver. Remove the bottom plate from the inner rod.
• Run the cable through the correct channel.

Insert the bottom plate into the inner rod and tighten the three screws.

1. Installing the Projector Ceiling Mount Assembly


Attach the adjustable rod to the wall plate with four screws and four washers.

Insert the pivot bracket into the end of inner rod and secure with four screws and four washers.

1. Installing the Decorative Cover


1. For Solid Brick and Concrete Block Mounting

WARNING

Installers must verify that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.

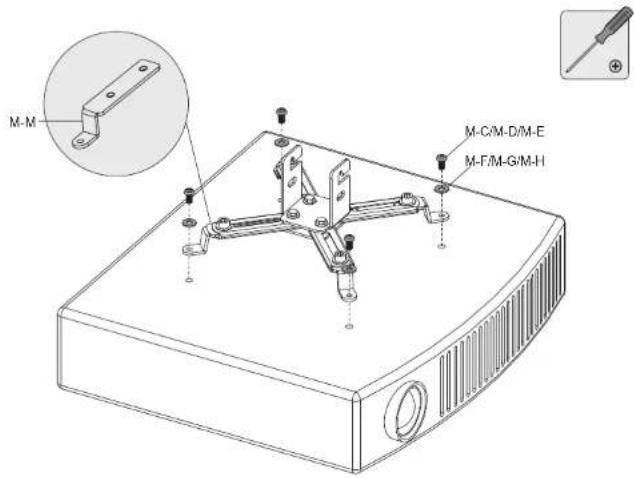

1. Installing the Adapter Bracket


• Place the projector bracket as close as possible to the projector's center of gravity.
• Position the holes of arms over mounting holes.
  •You can replace the channel foot according to mounting holes position.
  Note: If there are only three mounting holes using three arms of adapter bracket.
  Important: If the projector does not have at least three mounting holes, do not use this adapter bracket.

Tighten all screws but do not over tighten.

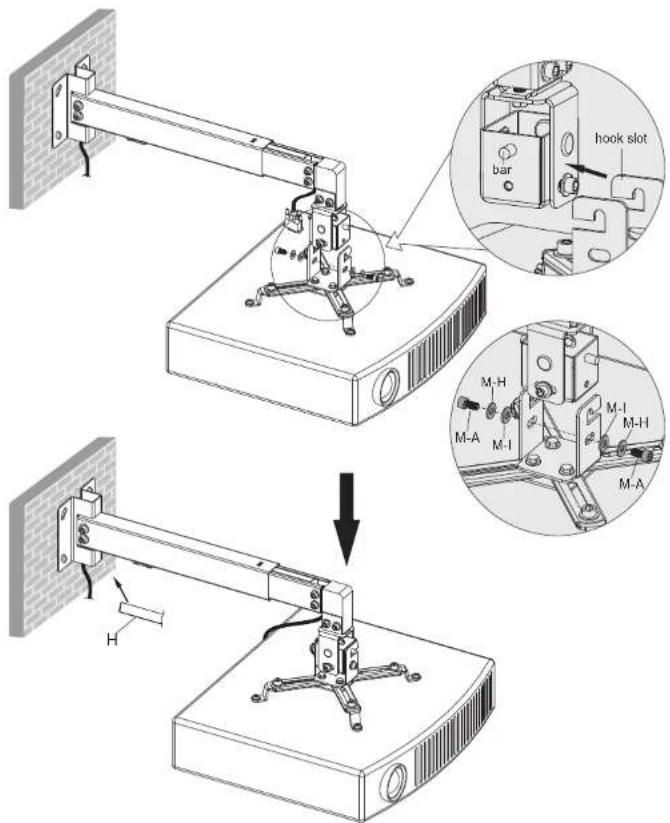

1. Installing the Projector


• Guide the hook slots of the adapter bracket onto the bars in pivot bracket and secure with two screws and two washers.
• Cut cable cover to fit onto outer rod opening. Snap cable cover into opening.
  Important: Make sure the projector is correctly hooked and the screws are locked safely before releasing the projector.

7. Adjustment

Adjust to the desired angle or tilt.

Maintenance

- Check that the bracket is secure and safe to use at regular intervals (at least every three months).

- Please contact your distributor if you have any questions.
