DVI-PROWALL-4X - Switch Avenview - Free user manual and instructions

Product Type	4 Display Videowall Processor with Audio Support and Rotation
Model	DVI-PROWALL-4X (also known as DVI-VIDEOWALL-4HD)
Brand	Avenview
Input Connectors	1x DVI-D (Dual Link), 1x USB Type A, 1x RJ45 (Ethernet)
Output Connectors	4x DVI-D, 1x L/R RCA Stereo Audio
Control Methods	IR Remote Control, Ethernet, USB (Virtual Com), Front Panel Buttons
Video Resolution Support	Up to 1920x1200@60Hz, 1600x1200@60Hz; supports PC resolutions up to WUXGA and HDTV up to 1080p
HDCP Compliance	Yes
Audio Support	Yes (when using HDMI source device)
Power Supply	12V DC, 5A (60W) - adapter included
Power Consumption	Approximately 60W (based on adapter rating)
Enclosure Material	Metal case
Operating Temperature	0°C to 50°C (based on manual recommendations)
Safety Certifications	FCC Part 15
Warranty	3 years (from original retail purchase)
Package Contents	1x DVI-PROWALL-4X unit, Installation Software CD, IR Remote, 12V 5A Power Adapter, Power Cord, Left and Right Rack Ear Sets, User Manual
ESD Protection	Human body model ±19kV air-gap discharge, ±12kV contact discharge
Video Bandwidth	DVI Single-link 4.95Gbps, HDMI 2.25G to 6.75Gbps
Input Signal Type	DVI/HDMI
Firmware Upgradable	Yes, via USB or Ethernet
Layouts Supported	1x1, 1x3, 1x4, 2x2, Mosaic, plus customizable via software

Frequently Asked Questions - DVI-PROWALL-4X Avenview

How do I set up the DVI-PROWALL-4X video wall processor?

Connect your source device (e.g., digital signage player) to the DVI/HDMI input. Connect up to four displays to the DVI/HDMI outputs. Then connect the 12V 5A power supply and turn on the unit. Install the control software from the included CD or website, and connect via USB or Ethernet for configuration.

What control methods are available?

You can control the processor via IR remote control, front panel buttons, USB virtual COM from a PC, or Ethernet (using IP control software). The software provides full layout and adjustment options.

What resolutions and layouts are supported?

The processor supports input and output resolutions from 640x480 up to 1920x1200@60Hz (WUXGA) and 1080p. Predefined layouts include 1x1, 1x3, 1x4, 2x2, and mosaic. Custom layouts can be configured via the software.

How do I perform EDID learning?

EDID learning is used if video/audio issues occur. Using the control software, you can force the unit to learn the EDID from one of the connected displays or from one of six built-in EDID profiles. This ensures compatibility across all displays.

Can I rotate the display orientation?

Yes, the DVI-PROWALL-4X supports rotation. The IR remote includes buttons for VW3x1 (+90°), VW3x1 (-90°), VW4x1 (+90°), and VW4x1 (-90°). The software also allows mixed portrait and landscape configurations.

What is the warranty period and coverage?

Avenview provides a 3-year warranty from the date of original retail purchase. It covers defects in materials and workmanship. Labor and parts are free during the warranty period. Proof of purchase and product registration are required. Damage from misuse, unauthorized repair, or accidents is not covered.

How do I update the firmware?

Firmware can be updated via USB or Ethernet connection using the control software. Download the latest firmware from Avenview's website and follow the instructions in the manual. Ensure the unit stays powered during the update to avoid corruption.

What cables are recommended for best performance?

For video input and output, use high-quality DVI or HDMI cables. For Ethernet control, use solid CAT6 cables with T568B termination for long distances. Shielded STP cables can reduce interference. The manual provides a performance guide for different cable types.

Can I use this processor with HDMI sources and DVI displays?

Yes, the inputs and outputs support both DVI and HDMI signals. Adapters may be needed for physical connections. Audio is only supported when using an HDMI source device. The processor handles signal conversion seamlessly.

How do I restore factory settings?

In the control software, go to the 'Factory Reset' option under the settings menu. Click the button to reset, wait about 10 seconds, and then restart the unit. This will erase all custom configurations and return to default.

USER MANUAL DVI-PROWALL-4X Avenview

4 Display Videowall Processor with Audio Support and Rotation

Product Application & Market Sectors

Corporate

House Of Worship

Military Resident

Education Indust

Medical Aviation

TABLE OF CONTENTS

I.1 IMPORTANT SAFEGUARDS....3

1.2 SAFETY INSTRUCTIONS....3

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)......4

1. INTRODUCTION AND FEATURES....5

2.1 PACKAGE CONTENTS....6

2.2 BEFORE INSTALLATION....7

2.2 CABLE SPECIFICATIONS....7

1. INSTALLATION (DVI-PROWALL-4X)

3.1 APPLICATION DIAGRAM....9

3.2. PANEL DESCRIPTION....10

3.2.1 FRONT PANEL (DVI-PROWALL-4X) 10

3.2.2 REAR PANEL (DVI-PROWALL-4X) 10

1. SUPPORTED RESOLUTION....11

2. OPERATION (DVI-PROWALL-4X) 12

3. EDID LEARNING....22

SECTION I: GETTING STARTED

I.1 IMPORTANT SAFEGUARDS

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

What the warranty does not cover

• Any product, on which the serial number has been defaced, modified or removed.
• Damage, deterioration or malfunction resulting from:
- Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
• Repair or attempted repair by anyone not authorized by us.
• Any damage of the product due to shipment.
- Removal or installation of the product.
- Causes external to the product, such as electric power fluctuation or failure.
• Use of supplies or parts not meeting our specifications.
• Normal wear and tear.
• Any other causes which does not relate to a product defect.
- Removal, installation, and set-up service charges.

1.2 SAFETY INSTRUCTIONS

The DVI-PROWALL-4X Display Videowall Processor has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the DVI-PROWALL-4X should be used with care. Read the following safety instructions to protect yourself from

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment.

Warning symbols		Description
		ONLY USE THE PROVIDED POWER CABLE OR POWER ADAPTER SUPPLIED. DO NOT TAMPER WITH THE ELECTRICAL PARTS. THIS MAY RESULT IN ELECTRICAL SHOCK OR BURN.
		DO NOT TAMPER WITH THE UNIT. DOING SO WILL VOID THE WARRANTY AND CONTINUED USE OF THE PRODUCT.
		THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC. PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A SURFACE, IT SHOULD BE IN A GROUNDED ENVIRONMENT.

2. INTRODUCTION

The DVI-PROWALL-4X aka (DVI-VIDEOWALL-4HD) 4-Display Video Wall Processor was designed to perform the dedicated function of a one input to 4 displays in different layouts. Enhanced with real time data/video Thru digital transmission processing chips for displaying content on your flat panel displays or projectors.

Bundled with its own control software the user can simply configure different layouts for any solution such as 1x1, 1x3, 1x4, 2x2 and mosaic. The DVI-PROWALL-4X can accept both DVI/HDMI source inputs/outputs, made with the embedded scaler that converts signals from either DVI/HDMI source to match the native resolution of monitors, flat panel displays, projectors connected to the 4 outputs connectors. Each output resolution can be selected fpr each display, also settings up to PC resolutions WUXGA (1920x1200).

The DVI-PROWALL-4X sends the input source video thru DVI/HDMI interface to the connected monitors/projectors based on the display layout and configured in the software. Recommended applications include retail digital signage, commercial applications and broadcasting/education/ surveillance systems etc.

FEATURES

• Four DVI/HDMI outputs from 640x480 to 1920x1080, 1920x1200;
• Supports HDMI/DVI input, from 640x480 to 1920x1080@60, 1920x1200@60, interlaced or progressive;
• Supports video resolution up to Full HD1080p;
  -Supports PC resolution up to WUXGA;
• HDCP compliant;
• Several image parameters and layouts can be saved in computers and can be loaded for later use
• Firmware upgradable for new features and technology enhancements:

PACKAGE CONTENTS

Before you start the installation of the converter, please check the package contents.

1	I x DVI-PROWALL-4X(DVI-VIDEOWALL-4HD)
3	Installation Software
4	IR REMOTE
5	I x Power Adapter (12V 5A)
6	Power Cord
7	I x Right and Left Ear Rack Sets
8	User's Manual

2.2 BEFORE INSTALLATION

• Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction.
• Don't place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high humidity.
• Use the DC power adapter with correct specifications and supplied with the unit. If improper power supply is used the unit may malfunction and cause a fire.
  • Do not twist or pull by force ends of the video cable. It can cause malfunction.

2.2 CABLE SPECIFICATIONS

Close-up of two black USB cables with gold connectors, no visible text or symbols on the cables themselves.

HDMI ^TM

HIGH DEFINITION MULTIMEDIA INTERFACE

To achieve best results with our DVI-PROWALL-4X we highly recommend a premium quality 26 or 24

3. INSTALLATION (DVI-PROWALL-4X)

I. Connect your source device such as digital signage player to DVI/HDMI Inputs on the DVI-PROWALL-4X.
2. Connect all 4 displays/screens to DVI/HDMI Outputs on the DVI-PROWALL-4X.
3. Connect the +12V 5A DC power supply to the DVI-PROWALL-4X.

GENERAL INSTRUCTIONS

I. Before you begin the software installation from the CD provided or latest CS from the website, please ensure the DVI-PROWALL-4X is connected to AC power and your PC via USB or connected to the same network as the DVI-PROWALL-4X
2. PC Requirements-Windows® XP/Windows Vista®/Windows® 7
3. Ensure your Laptop or desktop is plugged in to AC power during the update process. It is not recommended to use only battery power during the installation. Do not remove power at any time during the process as this could lead to incomplete results. See Section 5 Operation Method B Software control for more info.

(Portrait and Landscape mixed screens)

DVI-PROWALL-4X

Composite image showing a red sports car driving on a mountain road with winding roads and snow-capped peaks in the background (no visible text or symbols)

8 QUICK STYLE LAYOUTS

Druck Selection

IR REMOTE

3.2.1 FRONT PANEL (DVI-PROWALL-4X)

1. IR SENSOR: IR sensor for receiving the IR commands from IR remote	2. POWER STATUS: Power indicator LED
3. CONTROL BUTTONS: Menu/Up/Down/Switch Keys

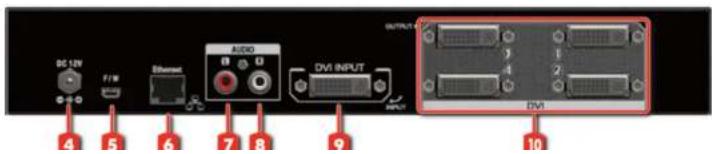

3.2.2 REAR PANEL (DVI-PROWALL-4X)

Input	Output
640x480	x480@60H640
720x480	720x480@60Hz
720x576	720x576@60Hz
800x600	800x600@60Hz
1024x768	1024x768@60Hz
1152x864	1280x720@60Hz
1280x720	1280x768@60Hz
1280x768	1280x960@60Hz
1280x800	1280x1024@60Hz
1280x960	1366x768@60Hz
1280x1024	1440x900@60Hz
1360x768	1680x1050@60Hz
1366x768	1920x1080@60Hz
1400x1050	1920x1200@60Hz
1440x240	1600x1200@60Hz
1440x288(576i)
1440x900
1600x900
1600x1200
1680x1050
1920x540(1080i)
1920x1080

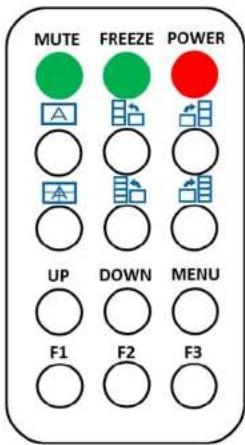

Method A: IR Remote Control

Button Function

POWER Power On/Off the video wall processor
FREEZE Pause the output's video and audio
MUTE	Mute the output audio
	Fast switch to Full Screen 1x1
	Fast switch to VW3x1 (+90°)
	Fast switch to VW3x1 (-90°)
	Fast switch to VW2x2
	Fast switch to VW4x1 (+90°)
	Fast switch to VW4x1 (-90°)
UP Up key
DOWN Down key
MENU Call OSD menu and confirm
F1 Reserved
F2 Reserved
F3 Reserved

Method B: Software Operation

System Requirement and Precautions

1. When power cycling or powering off the unit, please wait at least 5 to 10 seconds delay to allow power capacitors to discharge. Then power on device
2. The DVI-PROWALL-4X packaged software control program is compatible with Microsoft Windows 98, 2000, XP, 7 through the interface of USB virtual com control.
3. Before double clicking on the icon of the software, make sure you have secured the connection between your computer USB port and the DVI-PROWALL-4X.

Start the software control program

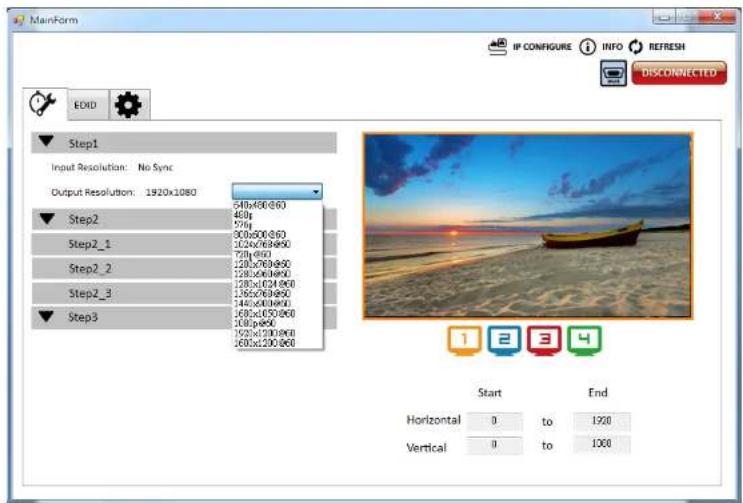

STEP 1: Click on the executable file, the following dialog box show on screen;
STEP 2: Please ensure under Microsoft Windows 7, run as administrator;
STEP 3: Please ensure your method of control either -
USB Mode: Use USB to connect the port on device and computer. Select correct virtual Com port and click the OK button.

Ethernet Mode: Enter the device IP address and click the OK button.

After the software control setting is accomplished, it will enter directly to control interface.

Control Interface

1. Connection Status:

Show the current information and status. USB control Mode selected icon will show

Ethernet control Mode selected icon will show

1. Quick Selection:

The user can select the screen resolution, screen management and split screen. Step1 select the Main window picture and proceed to set up the corresponding function or layout. The different colored frames represents the different displays/screen outputs. The H/V information shows the position of output on

(2) Step 2
Three modes available - set the output TV resolution, position, size and split screen. The details of different mode are described in step 2-1, 2-2 and 2-3.
* Notice Changing another mode, you need to revert to step 2 to make the desired selection
□ Quick Selection

Step2\_1

Quick Selection

Yellow boat on sandy beach under blue sky with distant horizon (no text or symbols)

H Start:

0

Width:

426

preview

V Start:

0

Height

720

Apply

(6) Step 3

☐ Zoom In/Out: You can increase/decrease a pixel from the edge of image by clicking button (the edge of image has four directions). After adjusting the image, the final image will be auto-scaled to fill the screen.
☐ Horizontal shift/ Vertical shift: You can arbitrarily move the image on each screen in horizontal direction or vertical direction. Move one pixel at a time.

□ Select the Output.
☐ Click button to learn display EDID.

(3) Learn EDID From File

☐ Click Load button to select the EDID file and write it into input.

(4) View EDID content

☐ Select the EDID input source (Input, Output or From File).
☐ Click button-to-read the EDID description and analysis.
☐ Click button to save the EDID as a file in the connected computer.

(2) Machine Name

You can set up your machine name in here. Please take a closer look at the length of string (Max Length:

(3) Change Graph

You can change the default graph on this machine.

☐ C lick button to select the graph.

☐ After loading the graph step, please click

button to write this graph into device.

(4) Factory Reset

☐ Click button to do factory default reset.

☐ This default reset process will take about 10 seconds.

□ After pop-up a dialog indicates complete, please restart this machine.

When power cycling or powering off the unit, please wait at least 5 to 10 seconds delay to allow power capacitors to discharge. Then power on device

5. IP Configure

Ethernet control within an esiting network (LAN) easily access the control software program. Click the

IP CONFIGURE button to setup network IP settings. Next read the Ethernet setting from device or manually set to device. After the IP configuration setup is completed, please restart the machine.

6. Info

Read the software and firmware version.

7. Refresh

This function not only can refresh the information settings but also can reconnect the device. Click the

REFRESH button to update the control method. After you click this button, pop-up dialog box appears "ReConnectForm", please select the method of connection you prefer.

6.

EDID LEARNING

The EDID learning function is only necessary whenever the user/installer encounter problems with video/audio from the DVI/HDMI output port. HDMI sources and displays may have various levels of capability in playing audio and displaying video. The source will output the most common standard audio format and video resolutions to the connected HDMI displays. Example a 720p stereo HDMI signal output is the best choice when having audio or video problems. The user can force the DVI-PROWALL-4X to learn the EDID from the standard or common HDMI display within the set of 4 to ensure all displays are compatible to display the HDMI signals normally.

EDID Learning as below:

Software Control: Please refer to the Operation Approach\ Method B: Software Control

There are six embedded default EDIDs formats in this device, please see below,

I. Full-HD(1080p@60)-24bit 2D & 2ch
2. Full-HD(1080p@60)-24bit 2D & 7.1ch
3. HD(1080i@60)(720p@60)-24bit 2D & 2ch
4. HD(1080l@60)(720p@60)-24bit 2D & 7.1ch
5. Full-HD(1080p@60)-30bit 2D & 2ch
6. Full-HD(1080p@60)-30bit 2D & 7.1ch

SECTION 7: SPECIFICATIONS

Model Name	DVI-PROWALL-4X
Technical
Role of usage	Video Wall Processor
HDCP compliance	Yes
Video bandwidth	DVI [Single-link 4.95Gbps] HDMI[2.25G to 6.75Gbps]
Video support	Up to 1920x1200@60 / 1600x1200@60
Video Format Support	HDMI/DVI
Video loop-out No
Audio support	Yes only when using HDMI source device
ESD protection	Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
PCB stack-up	8-layer board [impedance control — differential 100Ω; single 50Ω]
Input	1x DVI-D + 1x USB + 1xRJ45
Output	4x DVI-D + 1x L/R RCA Stereo
Control	IR remote control / Ethernet / USB (virtual com) / Front Panel
Input TMDS signal	1.2 Volts [peak-to-peak]
DVI connector DVI-D	[29-pin female, digital only]
USB connector	Type A
RJ-45 connector	WE/SS 8P8C
Enclosure	Metal case

NOTE: Incorrect placement of IR Blaster and IR Extender into the extender may result in the failure of the IR extenders.

Please check carefully before plugging in the IR extender to the respective IR sockets. It is clearly marked and IR 1: IR EXTENDER /IR 2: IR BLASTER

WARRANTY WILL NOT COVER THE DAMAGE

Data Link TIA/EIA-568-B
PIN	Color	Function
1	W-O	TX0-
2	O	TX0+
3	W-G	TX1-
4	BL	TX2-
5	W-DL	TX2+
6	G	TX1+
7	W-BR	TXC-
8	BR	TXC+

NOTE

The QUALITY and TRANSMISSION of the video signals depends on the characteristics and quality of the UTP cables. Higher resolutions and longer transmission distances require low skew cables (<25ns/up to 300m) for best performance.

Unshielded CAT6 with metal RJ-45 connectors is recommended.

NOTICE

1. All HDMI over UTP transmission distances are measured using Belden CAT6A (625MHz), 4-Pair, U/UTP-Unshielded, Riser-CMR, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors, Polyolefin Insulation, Patented Double-H spline, Ripcord, PVC Jacket using Quantum980 signal HDMI Video Generator Module Video Pattern Testing.
2. The transmission length is largely affected by the type of category cables, also the type of HDMI sources, and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 300m or 1000ft bulk cable) can transmit a lot longer signals than stranded UTP cables (usually in the form of patch cords). Shielded STP connectors are better suit than unshielded UTP connectors. A solid UTP CAT5e cable shows longer transmission length than stranded STP CAT6 cable. For long extension users, solid cables are your only choice.
3. EIA/TIA-568-B termination (T568B) for category cables is recommended for better performance.
4. To reduce the interference among the unshielded twisted pairs of wires in category cable, you can use shielded STP cables with shielded connector to improve EMI problems, which occurs in long transmission.
5. Because the quality of the category cables has the major effects in how long transmission distance will be made and how good is the received display, the actual transmission length is subject to your category cables. For resolution greater than 1080i or 1280x1024, a solid CAT6 cable is the only viable choice.

PERFORMANCE GUIDE FOR HDMI OVER CATEGORY CABLE TRANSMISSION

PERFORMANCE RATING		TYPE OF CATEGORY CABLE
WIRING	SHIELDING	CAT5e	CAT6	CAT6A/7
SOLID	UNSHIELDED (UTP)	★★★★	★★★★★	★★★★★
	SHIELDED (STP)	★★★	★★★★	★★★★
STRANDED	UNSHIELDED (UTP)	★	★★	★★
	SHIELDED (STP)	★★	★	★★
TERMINATION		PLEASE USE EIA/TIA-568-B TERMINATION (T568B) AT ANY TIME

Avenview Warranty Certificate

AVENVIEW CORP. ("Avenview") warrants Avenview-branded product(s) contained in the original packaging against defects in materials and workmanship when used normally in accordance with Avenview's enclosed manual guidelines for a period of THREE (3) YEARS from the date of original retail purchase - Warranty Period. Avenview's published guidelines include but are not limited to information contained in technical specifications, user manuals and service communications.

LABOR: During the Warranty Period of THREE (3) YEARS, Avenview will repair or replace the product(s) at no cost using new or used parts equivalent to novel performance and reliability if the product(s) is determined to have abide by Avenview's published guidelines. Cost of Labor applicable to product(s) after Warranty Period. For labor costs, please contact [e-mail].

PARTS: During the Warranty Period of of THREE (3) YEARS, Avenview will supply new or rebuilt replacements in exchange for defective parts of the product(s) at no cost if the product(s) is determined to have abide by Avenview's published guidelines. Cost of Parts applicable to product(s) after Warranty Period. For part(s) costs, please contact [e-mail].

To obtain Warranty: (a) proof of purchase in the form of a bill of sale or receipted invoice reflecting that the registered product(s) is within warranty period must be presented to obtain warranty service; (b) product(s) must be registered at time of purchase. Failure to do so will result in applicable parts and labor charges. Returning product(s) must be shipped in Avenview's original packaging or in packaging pertaining equal degree of protection to Avenview's. Both Avenview and purchaser are responsible for freight charges and brokerages when shipping the product(s) to the receiver.

NOT COVERED BY THIS WARRANTY

This warranty does not apply to any non-Avenview branded product(s); non-registered Avenview product(s). This warranty does not apply: (a) to cosmetic damage, including but not limited to scratches, dents and broken cords; (b) to damage caused by use with another product; (c) to damage caused by accident, abuse, misuse, liquid contact, fire, earthquake or other external cause; (d) to damage caused by operating the Avenview product(s) outside Avenview's manuals or guidelines; (e) to damage caused by service performed by anyone who is not a representative of Avenview or an Avenview authorized personnel; (f) to defects caused by normal wear and tear or otherwise due to the normal aging of the Avenview product(s), or (g) if any serial number has been removed or defaced from the Avenview product(s).

AVENVIEW IS NOT LIABLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE; LOSS OF ACTUAL OR ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON CONTRACTS); LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS; LOSS OF OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATION; LOSS OF, DAMAGE TO, COMPROMISE OR CORRUPTION OF DATA; OR ANY INDIRECT OR CONSEQUENTIAL LOSS OR DAMAGE REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER.

Some states do not allow the inclusion or limitation of incidental or consequential damages, or allow limitations on duration implements of the Warranty Period; therefore the above limitations or exclusions may not be applicable to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

275 Woodward Avenue, Kenmore, NY 14217 1.866.508.0269

Avenview

AV Connectivity, Distribution And Beyond...

TECHNICAL SUPPORT

CONTACT US

Phone: I [phone]

Email: [e-mail]

Illustration of a globe with a headset, symbolizing global communication or internet (no text or symbols present)

USA Head Office Avenview Corp. 275 Woodward Avenue Kenmore, NY 14217

USA Head Office

Office Avenview

Corp. 275 Woodward Avenue

Kenmore, NY 14217

Phone: [phone] ext223

Fax: +1.866.387-8764

Email: [e-mail]

Canada Office

Avenview

151 Esna Park Drive, Unit 11 & 12

Markham, Ontario, L3R 3B1

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Avenview Europe

Avenview Europe

Demkaweg 11

3555 HW Utrecht

Netherlands

Phone: [phone]

Unit 8, 6/f., Kwai Cheong Centre,

50 Kwai Cheong Road,

Kwai Chung, N.T.

Hong Kong

Phone: [phone]

Email: [e-mail]

Disclaimer

While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.

Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement.
