SPTVIVP - Video camera Speco Technologies - Free user manual and instructions

Product Type	Surge Protector for Analog Camera Video Signals and Power
Resolution Support	Up to 4K
Power Input Range	AC 40V / DC 56V Max
Response Time	Less than 1 ns
Max Surge Voltage	4 KV
Surge Life	300 Times at 100A Surge
Normal Resistance Across Coax	10,000 MΩ
Band Pass	0 to 1 GHz
Power Passing Capability	DC/AC 130V, 65 Vrms @10 A
Insertion Loss	Less than 0.2 dB
Return Loss	16 dB (75 Ω)
Equipment End Ports	1 x BNC Female, 1 x 2-pin Terminal Block
Cable End Ports	1 x BNC Female, 1 x 3-pin Terminal Block
Operating Temperature	14 to 185°F (-10 to 85°C)
Storage Temperature	-40 to 221°F (-40 to 105°C)
Humidity Range	Up to 95%
Maintenance	Clean with a dry cloth; ensure connections are secure
Safety Note	Cable must be connected to ground for protection
Compatibility	Analog cameras, monitors, CCTV systems

Frequently Asked Questions - SPTVIVP Speco Technologies

What is the SPTVIVP used for?

The SPTVIVP is a surge protector designed to protect analog camera video signals and power feeds from high voltage surges.

What is the maximum resolution supported?

It supports resolutions up to 4K.

What is the power input range?

The power input can be up to AC 40V or DC 56V.

How fast is the response time?

The response time is less than 1 nanosecond.

What are the port connections?

The equipment end has 1 BNC Female and 1 two-pin terminal block; the cable end has 1 BNC Female and 1 three-pin terminal block.

What is the maximum surge voltage it can handle?

It can handle up to 4 KV surge voltage.

How many surges can it withstand?

It can withstand up to 300 surges at 100A each.

What is the operating temperature range?

It operates from 14°F to 185°F (-10°C to 85°C).

Is grounding required?

Yes, the cable must be connected to ground for the unit to protect equipment effectively.

What is the insertion loss?

The insertion loss is less than 0.2 dB.

USER MANUAL SPTVIVP Speco Technologies

SPTVIVP is a surge protector designed to provide protection for analog camera video signals and power feeds from high voltage surges, supporting a power input of up to DC 40 to 56V.

Features

● Resolution up to 4K.
● Supports power input up to AC40V/ DC56V.
● Response time less than 1 ns.

Installation View

	RJ - 45 Jack
	PIN	Color	Function
	1	W-O	S2
	2	O	S1

User Manual

SPTVIVP


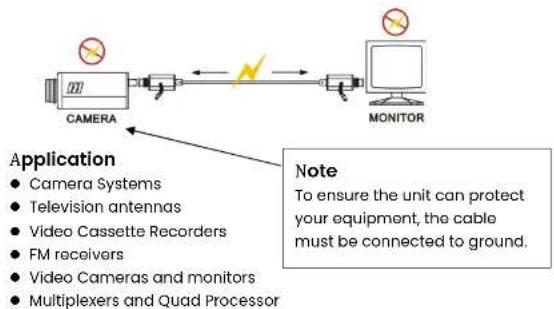

    note right of A: No protection required; note right of B: Note to ensure unit can protect equipment, cable must be connected to ground.

User Manual

SPTVIVP

Specifications

ITEM NO. SPTVIVP
Support
Response Time Less than 1ns
Max. Surge Voltage 4 KV
Surge Life 300 Times/ 100A Surge
Normal Resistance Across Coax 10,000 MΩ
Band Pass 0 to 1 GHz
Power Passing Capability DC / AC 130V	65 Vrms@10 A
Insertion Loss Less than 0.2dB
Return Loss (750) 16dB
Max. Power Input AC 40V, DC56V
Ports & Interfaces
Equipment End	1 x BNC Female, 1 x 2-pin Terminal Block
Cable End	1 x BNC Female, 1 x 3-pin Terminal Block
Ambient Temperature
Operation	14 to 185°F (-10 to 85°C)
Storage	-40 to 221°F (-40 to 105°C)
Humidity	95%
Physical Characteristics
