Product Type	Smartphone
Brand	ZTE
Model	Blade A520C
Dimensions	144 x 72 x 8 mm
Weight	150 g
Display Size	5.0 inches
Display Resolution	720 x 1280 pixels
Processor	Quad-core 1.3 GHz
RAM	2 GB
Internal Storage	16 GB (expandable via microSD)
Rear Camera	8 MP
Front Camera	5 MP
Battery Capacity	2400 mAh
Operating System	Android 7.0 (Nougat)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0, GPS, Micro USB 2.0, 3.5 mm headphone jack
Sensors	Accelerometer, Proximity, Ambient light
Network	GSM / HSPA / LTE
SIM Card	Single Nano-SIM
Maintenance	Clean screen with soft, dry cloth; avoid water and extreme temperatures
Safety Precautions	Use only approved chargers; do not disassemble; avoid exposure to liquids
Spare Parts & Repairability	Available through authorized service centers; battery and screen replaceable by professionals
General Information	Supports calling, messaging, internet browsing, photography, music playback, GPS navigation

Frequently Asked Questions - Blade A520C ZTE

How do I insert the SIM card and microSD card?

Remove the back cover and battery. Insert the Nano-SIM card and microSD card into their respective slots. Ensure the gold contacts face down. Replace the battery and back cover.

How can I take a screenshot?

Press and hold the Power button and Volume Down button simultaneously for about 2 seconds. The screenshot will be saved in the Gallery.

Why is my battery draining quickly?

Common causes include high screen brightness, active background apps, weak signal, and outdated software. Try reducing brightness, closing unused apps, and enabling battery saver mode.

How do I perform a factory reset?

Go to Settings > Backup & reset > Factory data reset. Confirm by tapping Reset phone. Note: This erases all data on the device.

Can I expand the storage?

Yes, the ZTE Blade A520C supports microSD cards up to 128 GB. Insert the card in the dedicated slot after removing the back cover.

How do I connect to Wi-Fi?

Open Settings > Wi-Fi. Toggle Wi-Fi on, select your network from the list, and enter the password. Tap Connect.

What should I do if the phone freezes?

Press and hold the Power button for 10-15 seconds until the device restarts. If the issue persists, consider a factory reset.

How do I clean the phone?

Use a soft, lint-free cloth slightly dampened with water to clean the screen and body. Avoid using harsh chemicals or abrasive materials.

Is the phone water resistant?

No, the ZTE Blade A520C is not water resistant. Keep it away from liquids and moisture to avoid damage.

How can I update the software?

Go to Settings > About phone > System updates. Tap Check for updates. If an update is available, follow the on-screen instructions.

USER MANUAL Blade A520C ZTE

ZTE BLADE A520C Upgrade Guide (Through an SD Card)

1. Cautions

The software version and pictures in this document are just for reference only. Please use ZTE handset support website provided version to download software.

1) Download the upgrade package.

- Open http://www.ztedevice.com.cn/support and download the upgrade package (update.zip) that matches your phone model. If the downloaded package is not update.zip, unzip the package to obtain update.zip.

- Ensure that your micro SD card is at least 4GB.

Note: Please refer to our current version download size.

2) Remove the SIM card, then back up the data and APPs in your phone before the upgrade.

3) Perform data backup.

Note: You should not remove the SD card during the backup process. To avoid data lost, it is not recommended to cancel the backup process.

4) Verify that the update.zip file in the root directory of the SD card matches the model of the phone. Do not modify the file name and extension name of the files in the upgrade package.

5) Verify that your phone has enough (at least 40%) power. Charge the phone if required. To avoid data lost or upgrade failure, it is not recommended to upgrade your phone through an SD card when the phone is being charged.

6) You should not perform any other operation on the phone during the upgrade process.

7) A normal upgrade should be completed in 3-5 minutes. If the phone does not reboot or show any response in 5 minutes, you should perform the upgrade process again. If the phone cannot be started, perform a forced upgrade. If the forced upgrade does not work, you should contact an after-sale service agent for support

2. Upgrade Description

There are two upgrade methods: normal upgrade and forced upgrade. If the phone cannot be started properly, for example, the phone cannot be started, or the phone does not enter standby state, perform a forced upgrade. If the phone can be started properly and the Settings menu can be selected, perform a normal upgrade.

3. Upgrade Steps

A. Normal upgrade (the primary upgrade method)

1) Download the upgrade package that matches the phone model from ZTE official website (http://www.ztedevice.com.cn/support/), extract update.zip from the package, and copy update.zip to the root directory of the SD card (the file name must be update.zip).

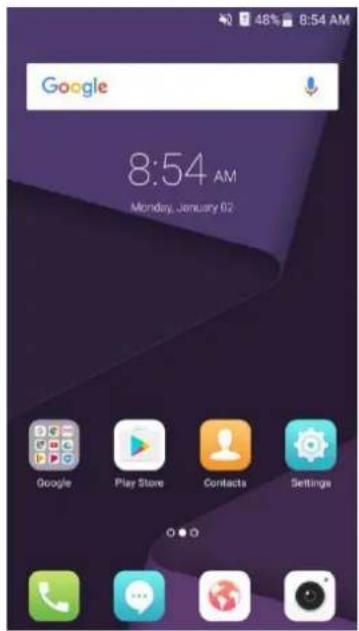

2) Select File Manager>SD Card, verify that the update.zip file in the root directory of the SD card is proper, see Figure 3-1:

Figure 3-1

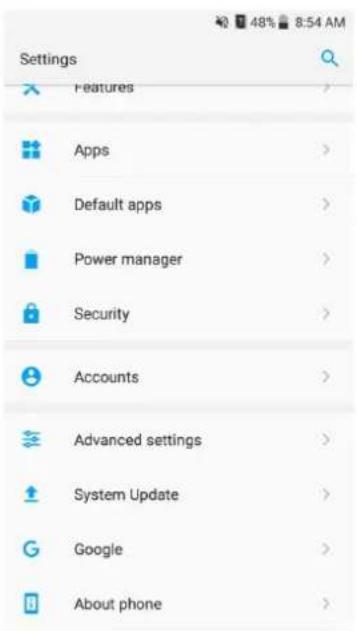

3) Tap and select Settings > System Updates, see Figure 3-2.

Figure 3-2

4) Tap and select System updates, then touch INSTALL, see Figure 3-3.

Figure 3-3

5) After 15 seconds the phone automatically to upgrade, See Figure 3-7

Figure 3-7

B. Forced upgrade (for the phones that cannot be started or the phones that cannot enter standby state)

1) For a powered-off phone, Press and hold the volume up key and power key until the phone enters Android recovery. In this mode, the volume key can be used to select a menu, the power key can be used to confirm it.

2) Press the Volume down key to select Apply update from SD card, and press the power key to confirm it. The root directory of the SD card is opened.

3) Press the Volume down key to select the update.zip file, and press the power key to confirm it. The phone starts the upgrade process.

4) The phone completes the upgrade process in about 5 minutes. the screen will be displayed: Install from SD card complete, select reboot system now and press the power key to confirm it.

4. (Optional) Restoring the Data

If you have backed up data before upgrading your phone, restore the data. Do not remove the SD card during the restoration process. To avoid data lost, it is not recommended to cancel the restoration process.
