BT7383 - Flat screen mount B-Tech - Free user manual and instructions

Product Type	Full Motion Desk Mount with Articulating Arm
Brand	B-Tech
Model	BT7383
Screen Size Compatibility	Up to 24 inches (61 cm)
Weight Capacity	9 kg (20 lbs)
VESA Patterns Supported	75 x 75 mm and 100 x 100 mm
Mounting Options	Desk clamp or grommet (both included)
Maximum Extension	560 mm (22 inches)
Tilt Adjustment	+/- 40 degrees
Swivel Points	360° at pole, 360° at pivot, 180° at interface
Height Adjustment	Via height adjustment collar
Cable Management	Integrated cable slots on arm underside
Included Tools	2.5 mm and 4 mm hex keys
Required Tools (not included)	Crosshead screwdriver
Safety Features	Weight limit warning, anti-tip design, locking collar
Materials	Steel / aluminum construction
Package Contents	Interface assembly, articulating arm, pole, clamps, foam pads, hardware, hex keys, cable ties
Maintenance	Periodic inspection of fixings; clean with soft cloth
Warranty	Refer to manufacturer
Repairability	Replaceable parts via customer service

Frequently Asked Questions - BT7383 B-Tech

What is the maximum screen size and weight this mount can hold?

The B-Tech BT7383 supports flat screens up to 24 inches (61 cm) and a maximum weight of 9 kg (20 lbs).

What VESA patterns are compatible?

This mount fits VESA patterns 75 x 75 mm and 100 x 100 mm.

Can this mount be installed on a desk with a grommet hole?

Yes, the mount includes both a desk clamp and a grommet plate for installation through a cable management hole.

How do I adjust the tilt of the screen?

Loosen or tighten the allen screw on the articulating arm to adjust tilt resistance. For finer tuning, remove the screen and tighten the M8 nyloc nut under the plastic cover.

What tools are needed for installation?

You need a crosshead screwdriver and the included 2.5 mm and 4 mm hex keys.

Is cable management supported?

Yes, the arms have cable slots on the underside. Ensure cables have enough slack to avoid pinching when moving the mount.

How do I secure the arm when removing the monitor?

Lift the articulating arm to its highest position to prevent it from springing upward, then remove the monitor safely.

What should I do if the screen does not stay at the desired tilt angle?

First adjust the allen screw. If still insufficient, remove the screen, remove the plastic nut cover, and tighten the M8 nyloc nut.

Are there any periodic maintenance requirements?

Periodically inspect all fixing screws and mounting points to ensure safety. Clean with a soft cloth.

Where can I find replacement parts or additional support?

Contact B-Tech via their website or regional offices listed in the manual. Common parts like screws and foam pads are available for order.

USER MANUAL BT7383 B-Tech

FULL MOTION DESK MOUNT

WITH ARTICULATING ARM

INSTALLATION GUIDE & PARTS LIST

This Pack Contains 1 Desk Mount

PLEASE KEEP THIS FOR FUTURE REFERENCE

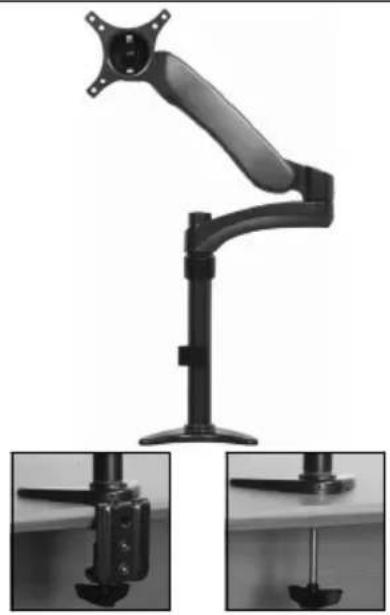

Mechanical arm device with dual views of a mechanical component (no text or symbols visible)

FEATURES

• Designed for screens up to 24" (61cm) / 9kg (20lbs)
• Fits screens with VESA mounting patterns: 75 x 75mm and 100 x 100mm
• Optional desk clamp and grommet included
  • Maximum extension is 560mm (22")
• Easy tilt adjustment +/-40° tilt
• Features three swivel points: 360° at pole, 360° at pivot and 180° at interface
• Simple installation with all mounting hardware included

CONTENTS

Installation Safety Notes....2
Parts List....4
Installation Instructions....6
Product Dimensions....15
B-Tech Contact Details....16

INSTALLATION TOOLS REQUIRED

Crosshead screwdriver

2.5mm Hex Key (Supplied)

4mm Hex Key (Supplied)

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This mount is intended for use only with the maximum weights indicated. Use with flat screens heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Some locations are not suitable for installation.

If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.

Fixing hardware

It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

The articulating arm may spring upward and may cause injury or damage to the equipment when the monitor is removed. Secure the arm by lifting the arm to highest position, to remove monitor safely.

CS

REF PART NAME QTY
1	INTERFACE ASSEMBLY 1
2	ARTICULATING ARM 1
3	ARM 1
4	HEIGHT ADJUSTMENT COLLAR	1
5	POLE ASSEMBLY 1
6	TOP CLAMP 1
7	CLAMP PLATE 2
8	BOTTOM CLAMP 1
9	SHORT HANDWHEEL 1
10 M6 x 15mm HEX SCREW 3
11 M5 x 5mm GRUB SCREW 2
12 M6 x 8mm HEX SCREW 5
13	M10 E-RING	1
14	M10 METAL WASHER	2
15	M10 NUT	1
16	GROMMET PLATE 1
17	LONG HANDWHEEL	1
18	CABLE CLIP	1
19	CIRCULAR FOAM PAD	2
20	RECTANGULAR FOAM PAD	2
22 ANGLED PLASTIC CAP		1
23	POLE END CAP	1
24	ROTATION PIN	1
25 M6 x 10mm SCREW		1
26	M6 METAL WASHER	1
27	CABLE TIE	5

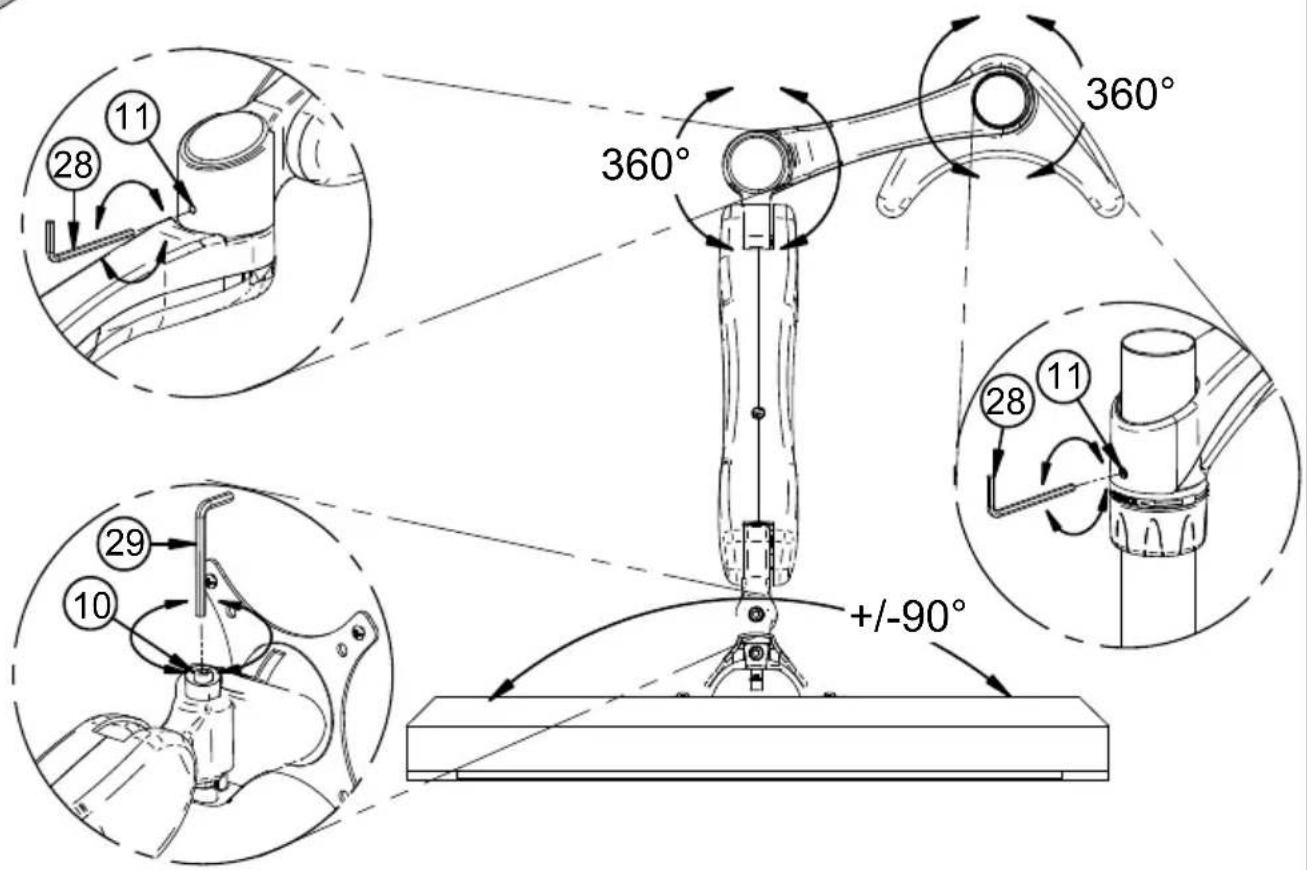

28 2.5mm HEX KEY (FOR PART 11)		1
29 4mm HEX KEY (FOR PARTS 10 & 12)		1
INTERFACE KIT
A	M4 x 12mm SCREW	4
B	M4 x 30mm SCREW	4
C	M5 x 12mm SCREW	4
D	M5 x 30mm SCREW	4
E	M5 x 20mm SPACER	4

INSTALLATION INSTRUCTIONS

Choose a preferred mounting method.

i. Clamp (page 6)
ii. Grommet (page 8)

1

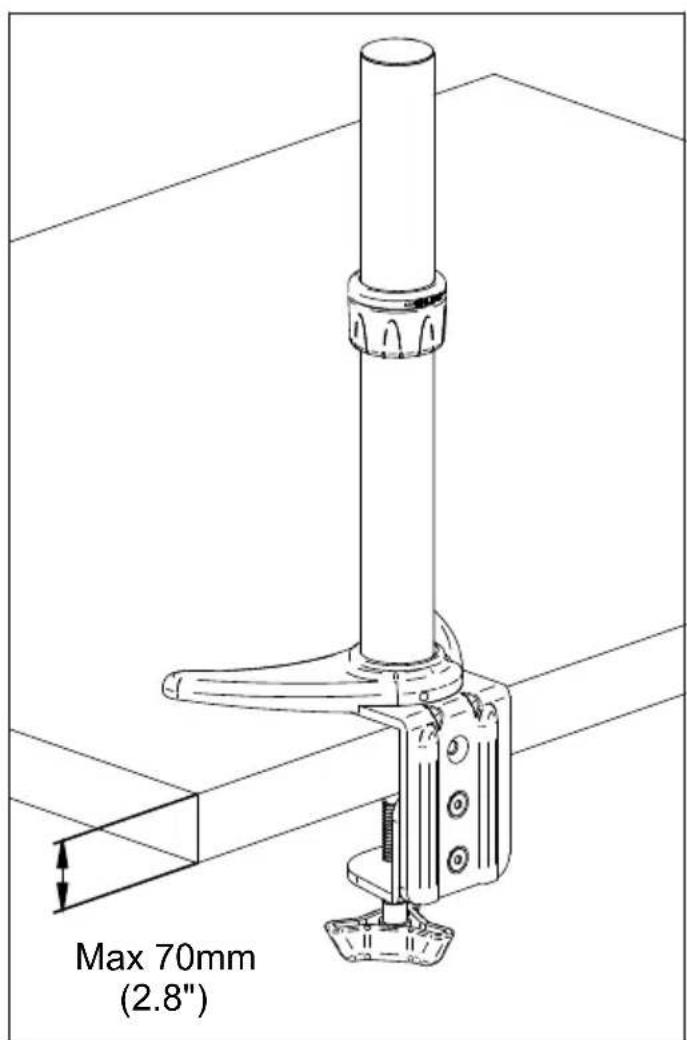

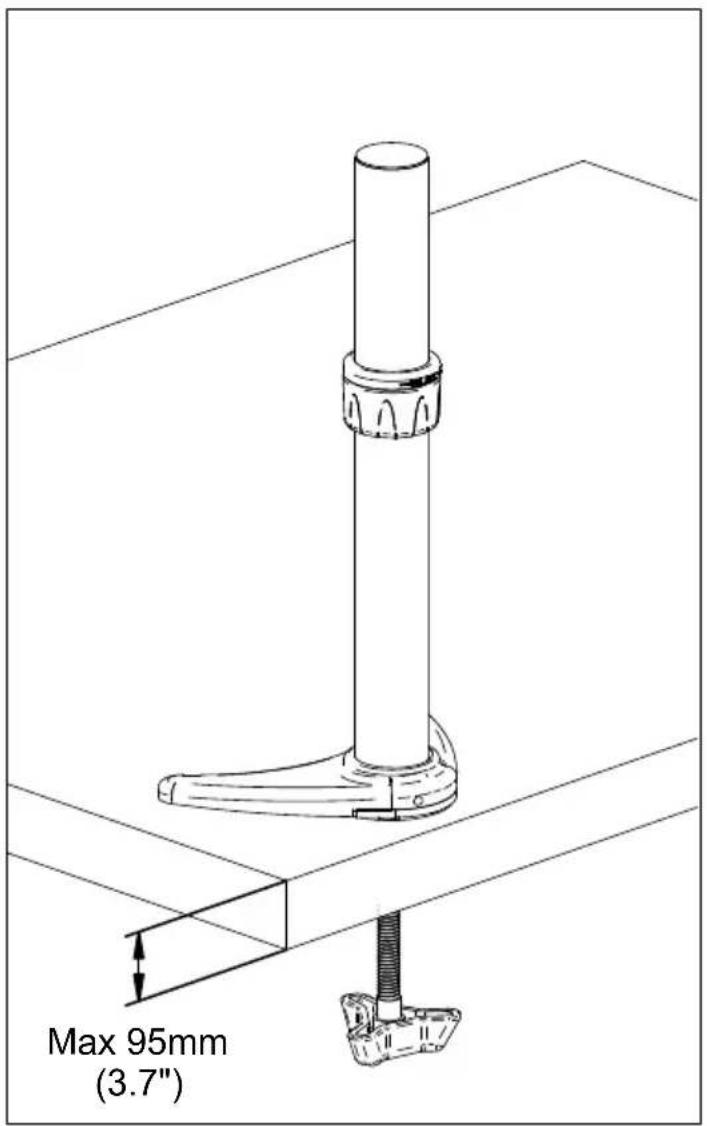

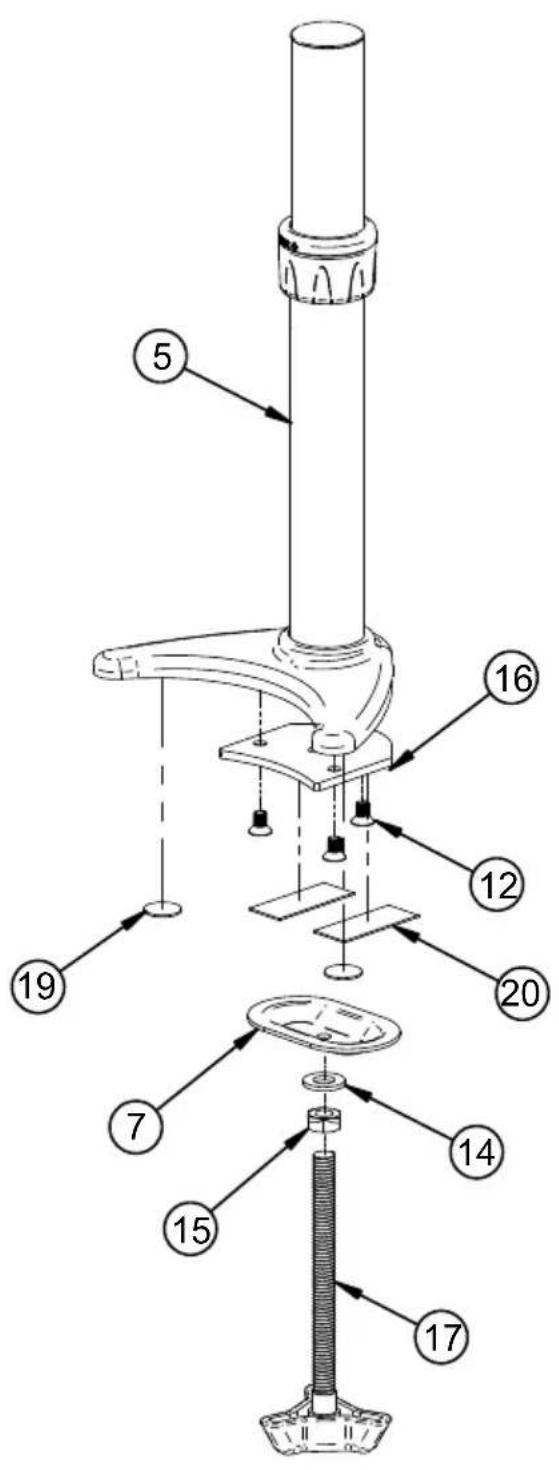

i. Desk clamp option.

6

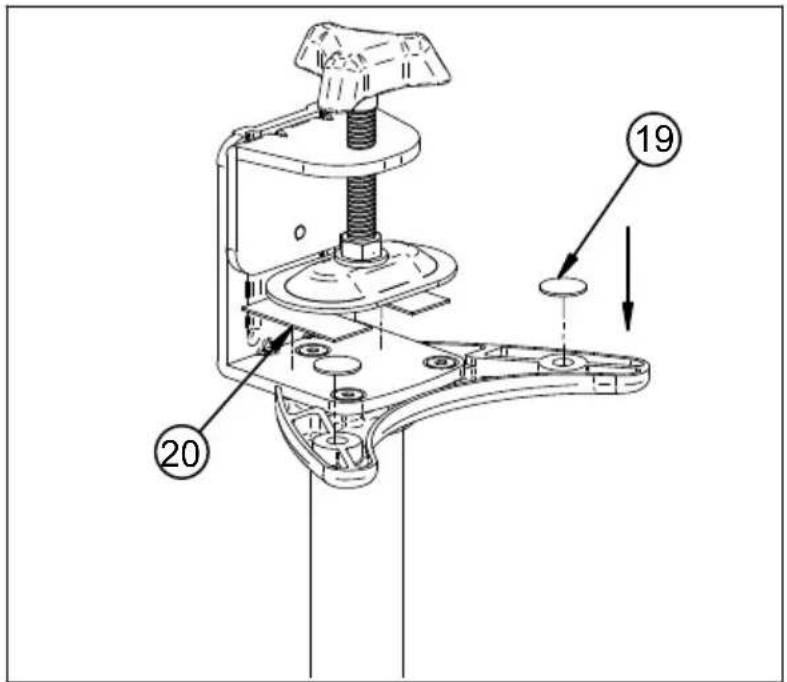

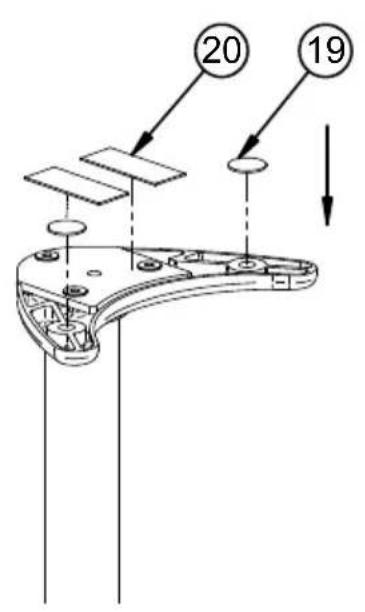

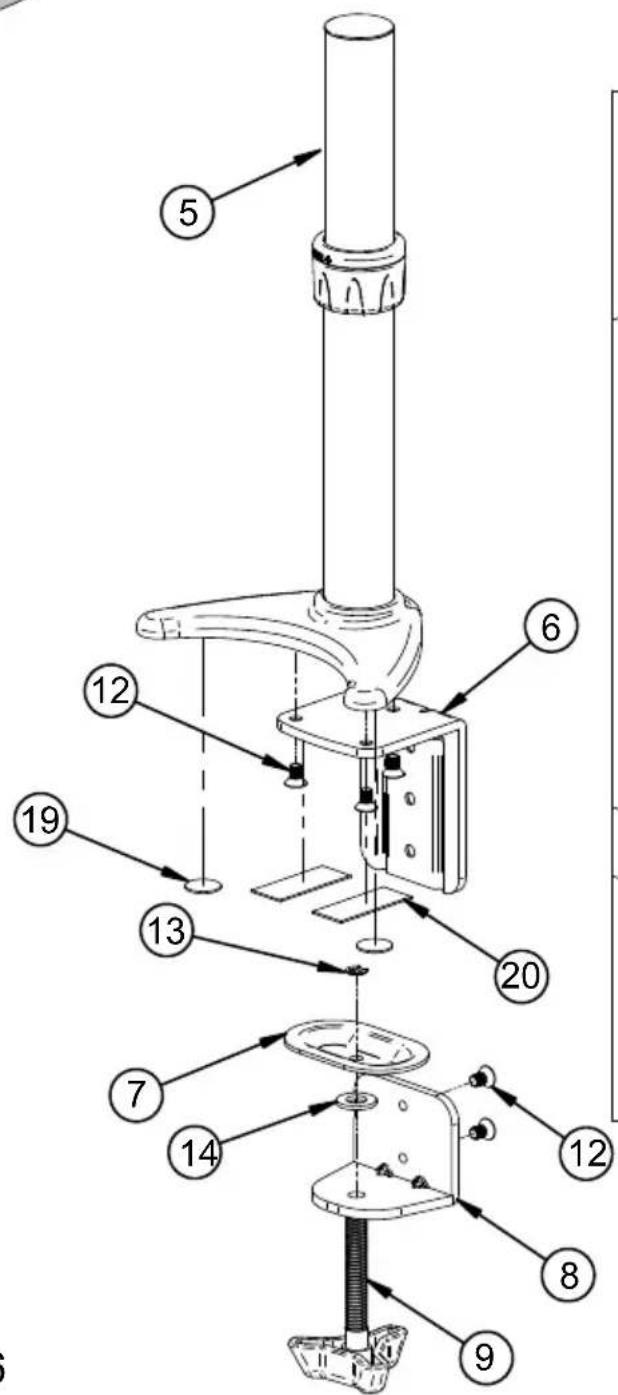

Attach the foam pads to the underside of the clamp base.

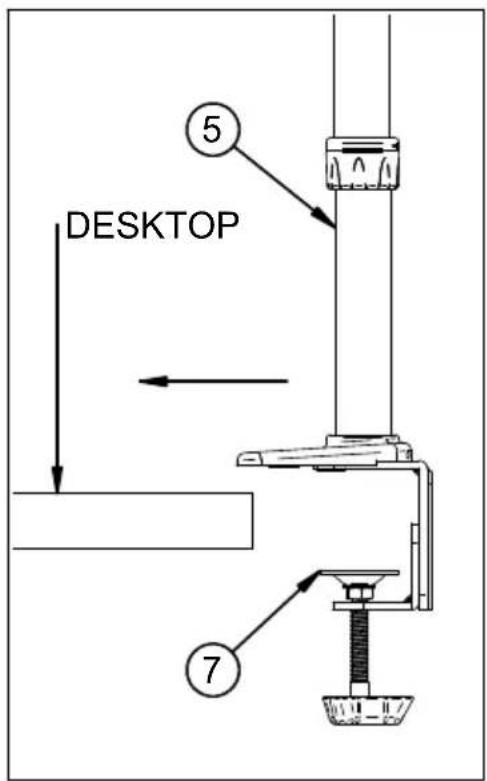

Place the mount over edge of the desk and tighten the short handwheel.

ii. Grommet Clamp

Close-up of a wooden plank with a circular hole on top (no text or symbols visible)

Remove the desk clamp and attach the grommet plate. Then attach the foam pads onto the grommet plate.

Place the mount over the cable management hole and screw the handwheel into the grommet plate, then tighten the nut to clamp the desk.

2

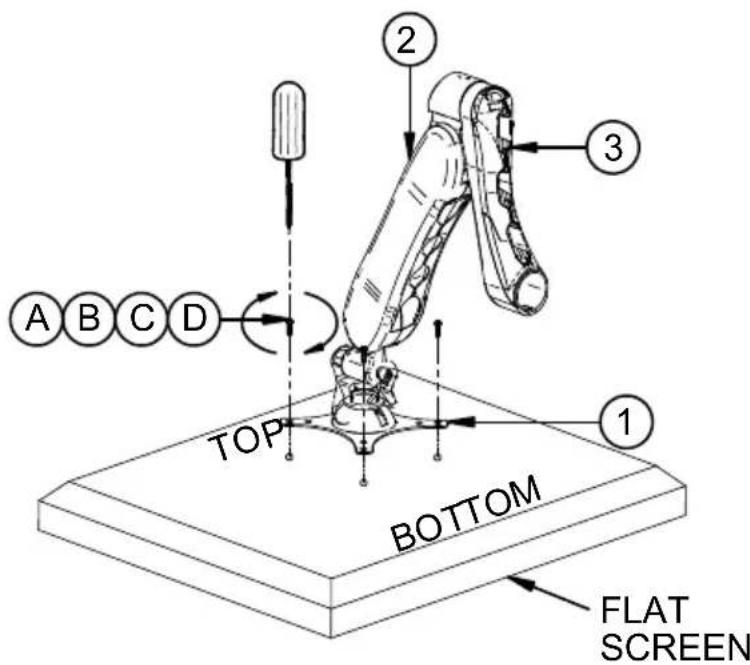

Attach the interface plate to the flat screen.

Technical line drawing of a robotic arm with labeled component E (no text or symbols beyond label)

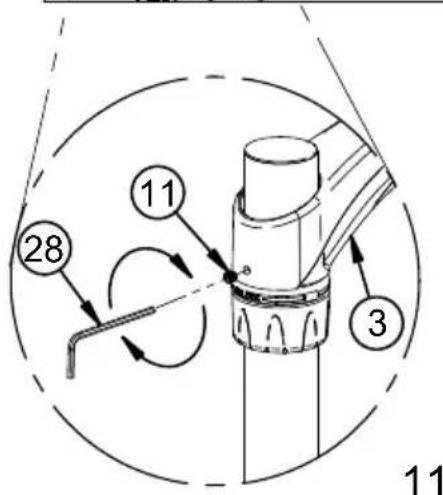

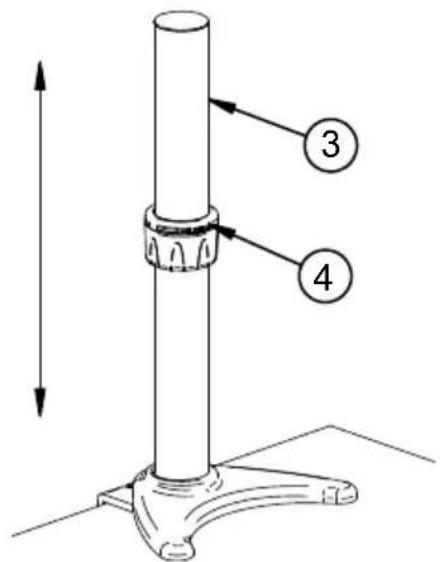

To lock the adjustment collar, hold the top of the collar and rotate the lower part of the adjustment collar.

3

LOCK COLLAR

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

4

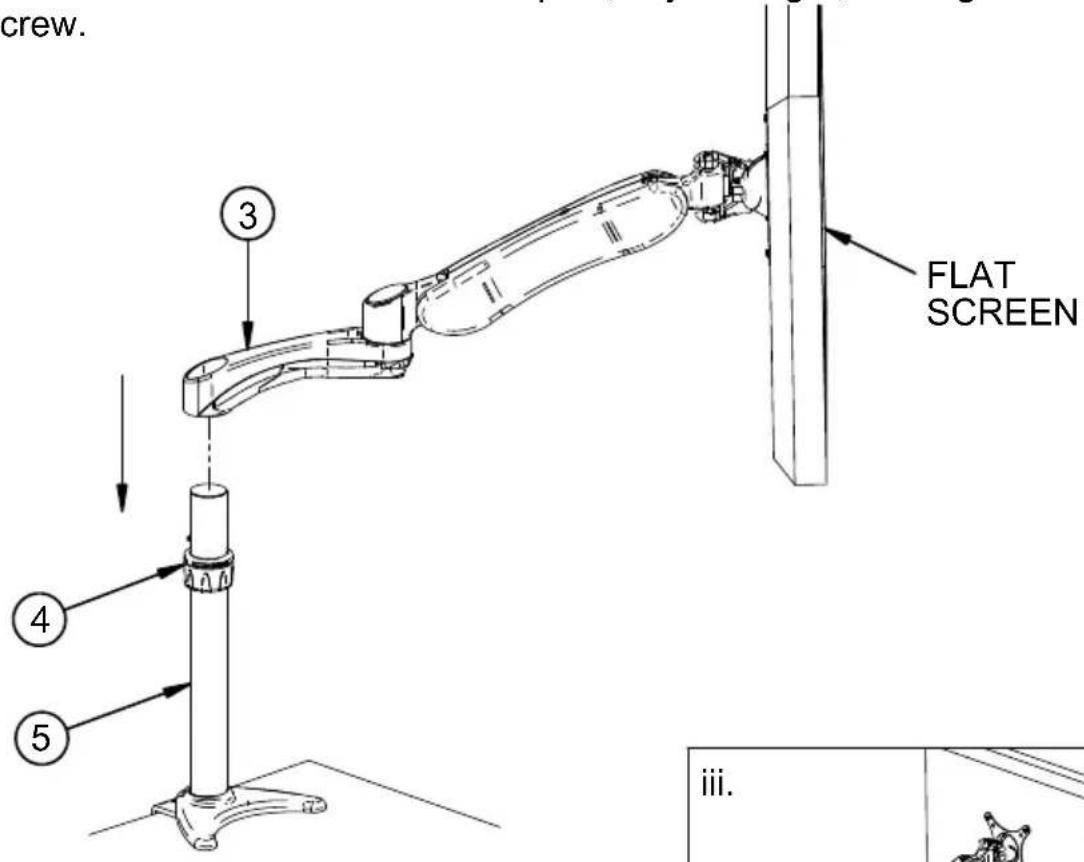

Slide the flat screen and arms onto the pole, adjust height, then tighten the grub screw.

i.

Technical line drawing of a mechanical arm mounted on a stand, with no visible text or symbols

5

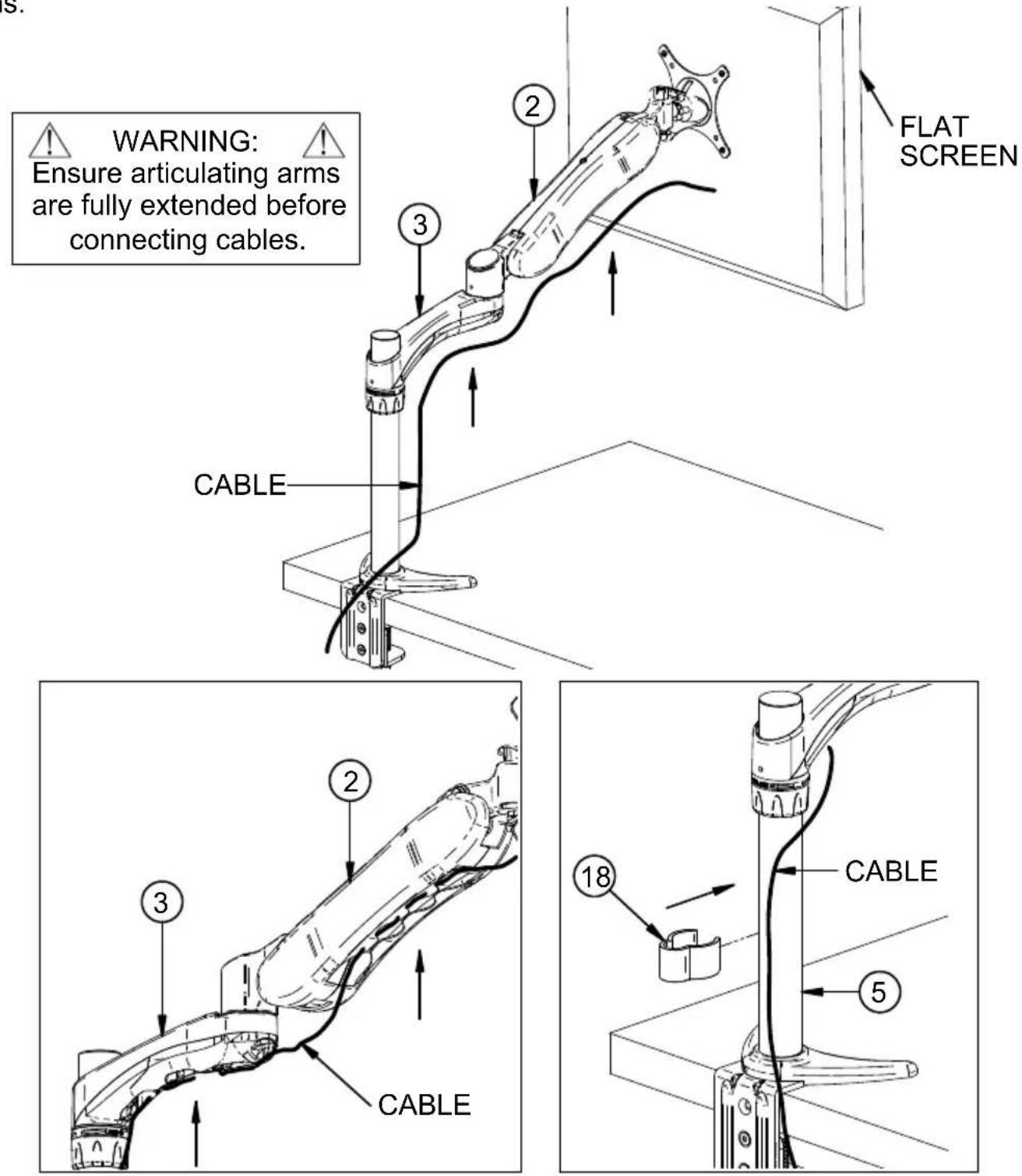

OPTIONAL : Cable Management.

Insert the cable into the cable management slots on the underside of the arms.

Ensure articulating arms are fully extended before connecting cables.

12

CAUTION: Ensure there is adequate cable slack for movement of the screen, and that cables will not be pinched when the mount is closed.

6

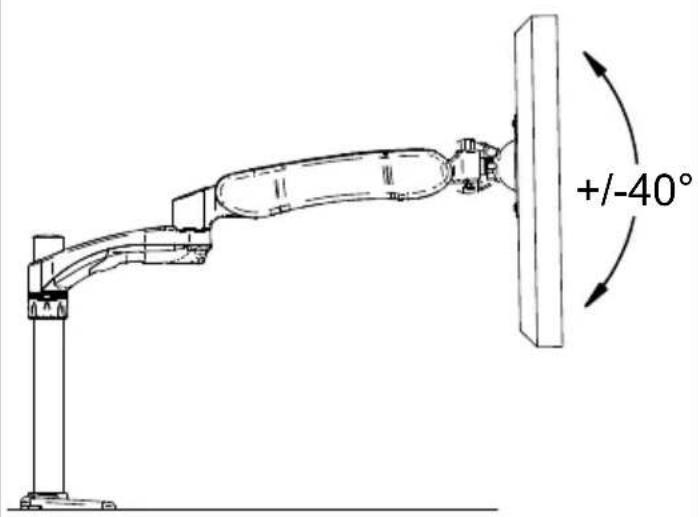

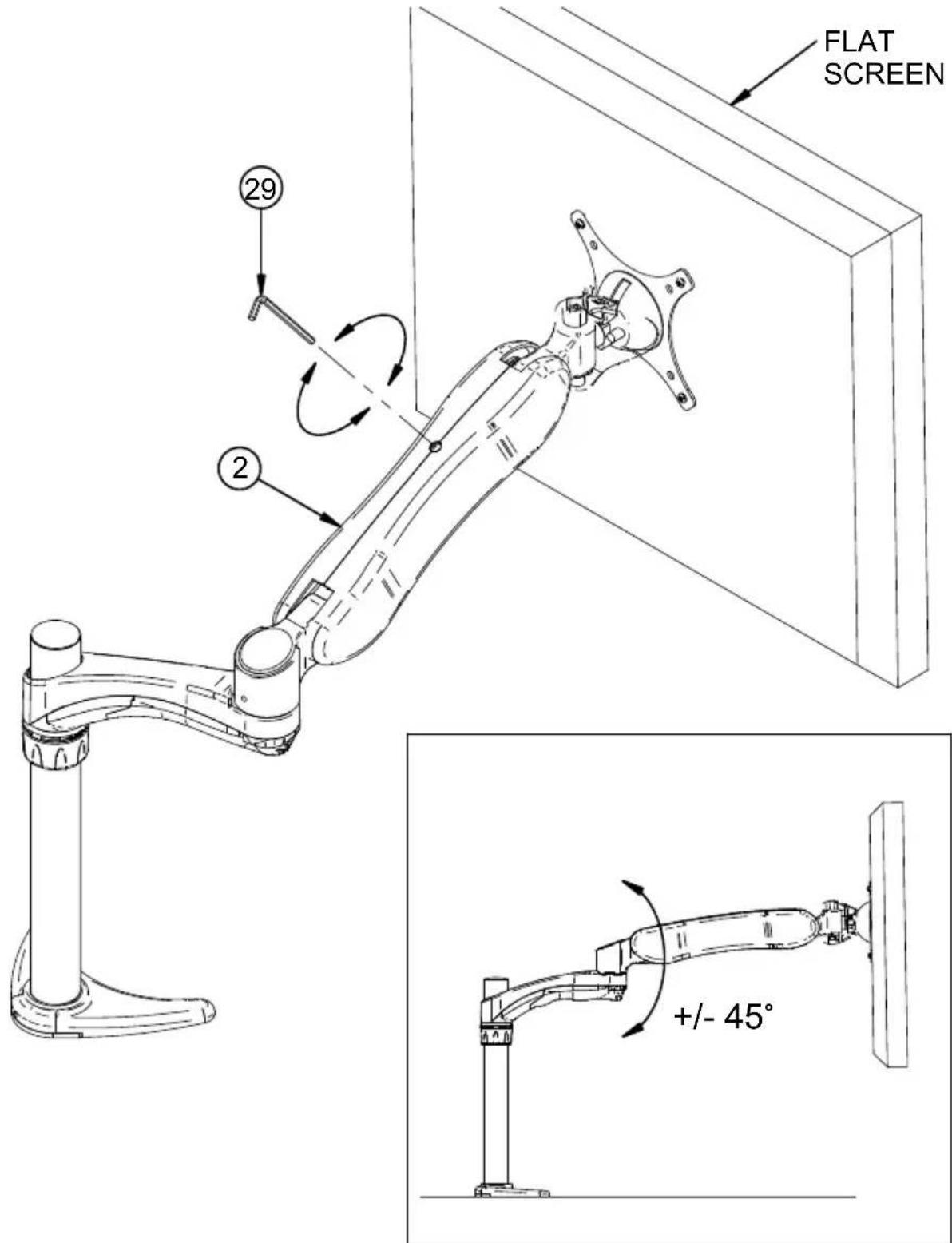

Tighten/loosen the allen screw on the articulating arm to adjust the resistance for tilt.

Tilt and swivel.

If this does not hold the screen at the required tilt, remove the flat screen from the interface.

Then remove plastic nut cover and tighten the M8 nyloc nut.

Mechanical assembly diagram showing a turning mechanism with arrows indicating motion (no text or labels)

BT7383

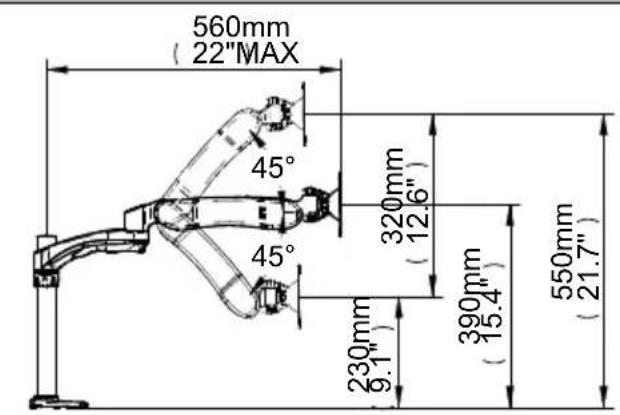

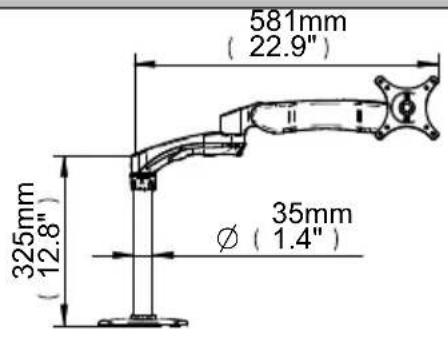

PRODUCT DIMENSIONS

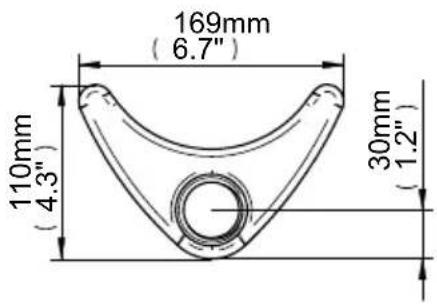

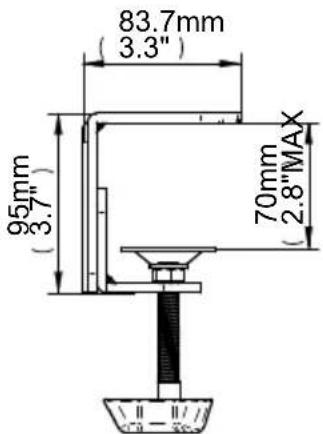

DESK CLAMP, GROMMET & BASE

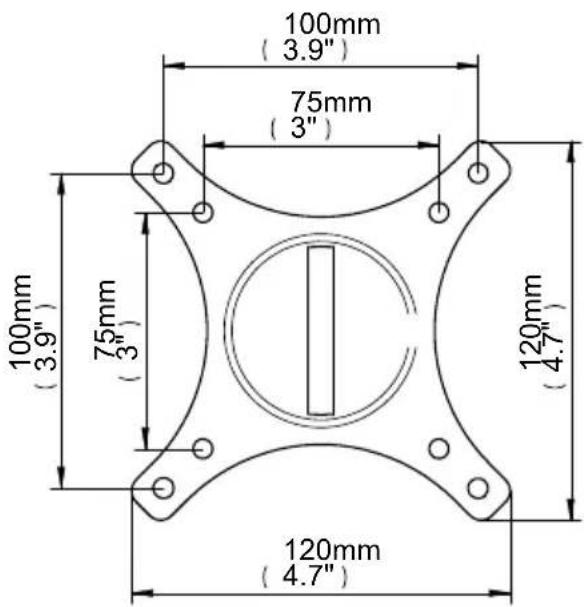

INTERFACE PLATE

BETTER BY DESIGN

www.btechavmounts.com
