USER MANUAL BT8505 B-Tech

This Pack Contains 1 Trolley

PLEASE KEEP THIS FOR FUTURE REFERENCE

Black-and-white photo of a modern vertical stand-mounted TV displaying a classical-style building (no visible text or symbols)

CAUTION!! GLASS

This item contains glass - Handle with care to avoid damage or injury

Community Design No. 001713280-0050

FEATURES

• Designed for flat screens up to 50" (127cm) / 40kg (88lbs)

• Fits screens with mounting patterns up to: H: 700mm (27.6") x V: 400mm (15.7") including all VESA fixings up to 600 x 400mm

• Easy tilt adjustment +15° / -5°

• Cable management
• 10mm (0.4") tempered safety glass base
  • Meets British Standard BS6206

50" (127cm)

CONTENTS

Installation Safety Notes....2
Parts List....4
Safety Instructions....6
Installation Instructions....7
Optional Accessories....14
Product Dimensions....15
B-Tech Contact Details....16

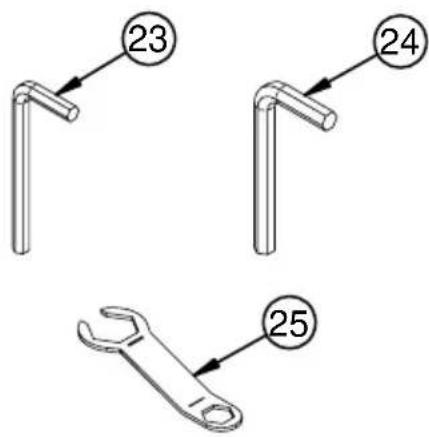

INSTALLATION TOOLS REQUIRED

Crosshead screwdriver

Hex Key's (Supplied)

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This trolley is intended for use only with the maximum weights indicated. Use with flat screen heavier than the maximum

indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter. Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Some locations are not suitable for installation.

If located in a public or frequently populated area ensure that the product is out of the immediate reach of people.

Fixing hardware

It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

CS

Suitable for loads up to 40kg (88lbs) 4

Suitable for loads
up to
40kg (88lbs)

23 24 25

FLAT SCREEN INTERFACE KIT (FOR ATTACHING MOUNT TO BACK OF FLAT SCREEN)

REF	PART NAME QTY
1	PLASTIC CAP 1
2	M8 HANDWHEEL 2
3 TILT PLATE ASSEMBLY 1
4	M6 HANDWHEEL 2
5	M6 WASHER 2
6	M8 NUT 2
7	M8 METAL WASHER	2
8	INTERFACE PLATE 1
9	INTERFACE ARM 2
10 M6 x 14mm SCREW 8
11	TROLLEY COLUMN	1
12 M8 x 30mm HEX SCREW		2
13	M8 METAL WASHER	2
14	PLASTIC COVER	1
15	GLASS BASE	1
16	WHEEL CONNECTOR	4
17	REAR WHEEL BAR	1
18	REAR WHEEL	2
19	M6 METAL WASHER 12
20 M6 x 8mm HEX SCREW 8
21	FRONT WHEEL	2
22 M6 x 15mm HEX SCREW		4
23 4mm HEX KEY (FOR PARTS 20 & 22)		1
24 5mm HEX KEY (FOR PART 12)		1
25	SPANNER	1

INTERFACE KIT

A	M4 x 15mm SCREW 4
B	M4 x 35mm SCREW 4
C	M5 x 15mm SCREW	4
D	M5 x 35mm SCREW	4
E	M6 x 15mm SCREW 4
F	M6 x 35mm SCREW	4
G	M8 x 15mm SCREW 4
H	M8 x 35mm SCREW	4
I	MULTIWASHER	4
J	SPACER	4

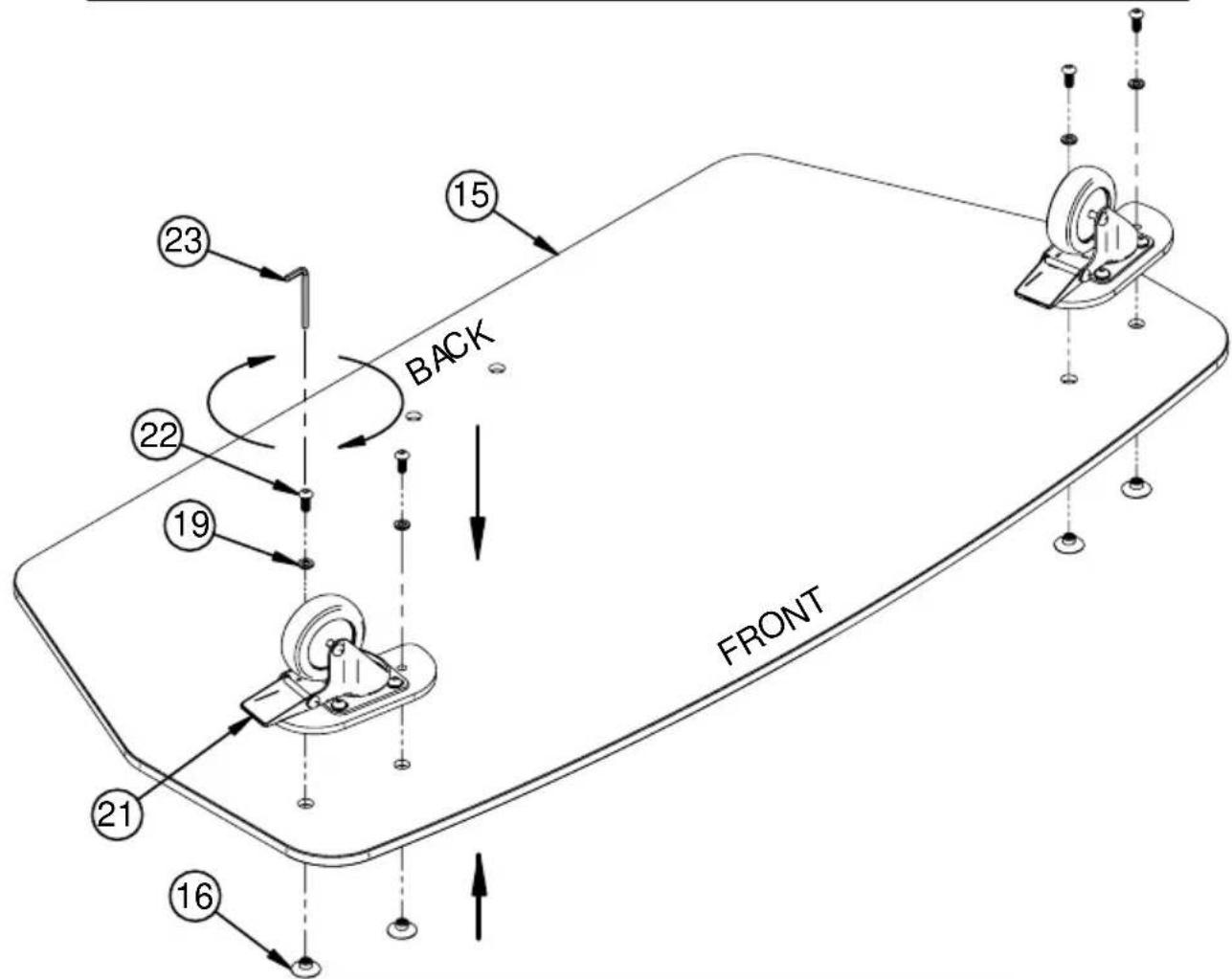

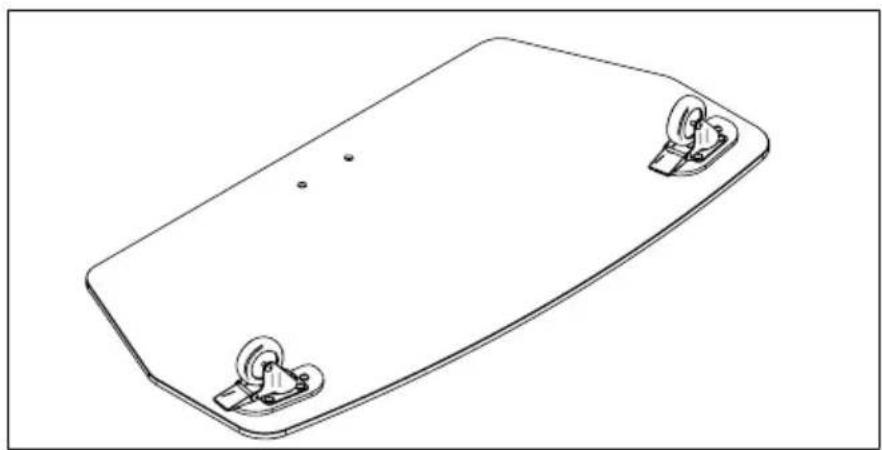

Fix the front wheels to the front of the glass base.

Attach wheels to opposite side of glass base from the sticker

15 BACK 23 22 19 21 16 FRONT

Line drawing of a flatboard with two side clips and a small circular component on the front (no text or symbols)

z

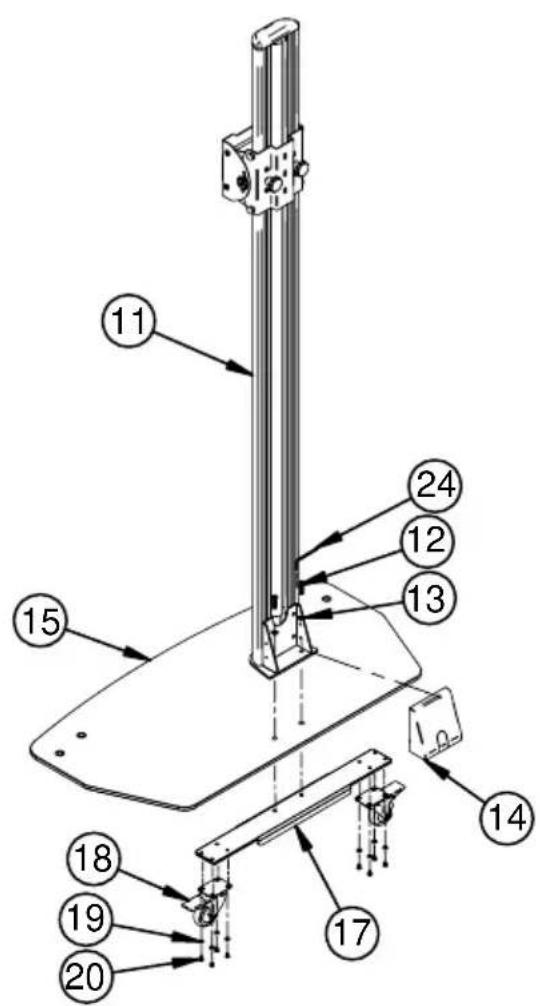

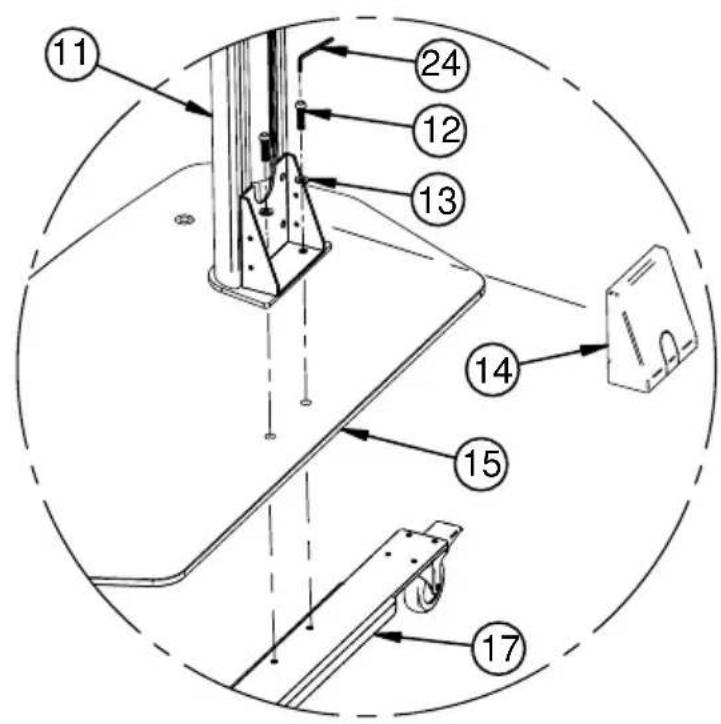

Attach the rear wheels and the trolley column to the glass base.

Technical diagram of a mechanical device with numbered components for identification

CAUTION:

This may require 2 people

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Technical line drawing of a mechanical pallet with wheels and a vertical support (no text or symbols)

8

3

Loosen the handwheels (parts 2) and move the tilt plate assembly (part 3) to your desired height. Re-tighten handwheels to fix in position.

Technical diagram of a vertical scale with numbered components and a magnified inset showing rotational or mechanical mechanism.

OPTIONAL : For horizontal fixings between 380mm and 140mm, remove interface arms and attach in the vacant position closer to the centre of the interface.

Technical diagram illustrating mechanical assembly steps with numbered components and directional arrows indicating motion or movement.

4

Attach the interface to the flat screen.

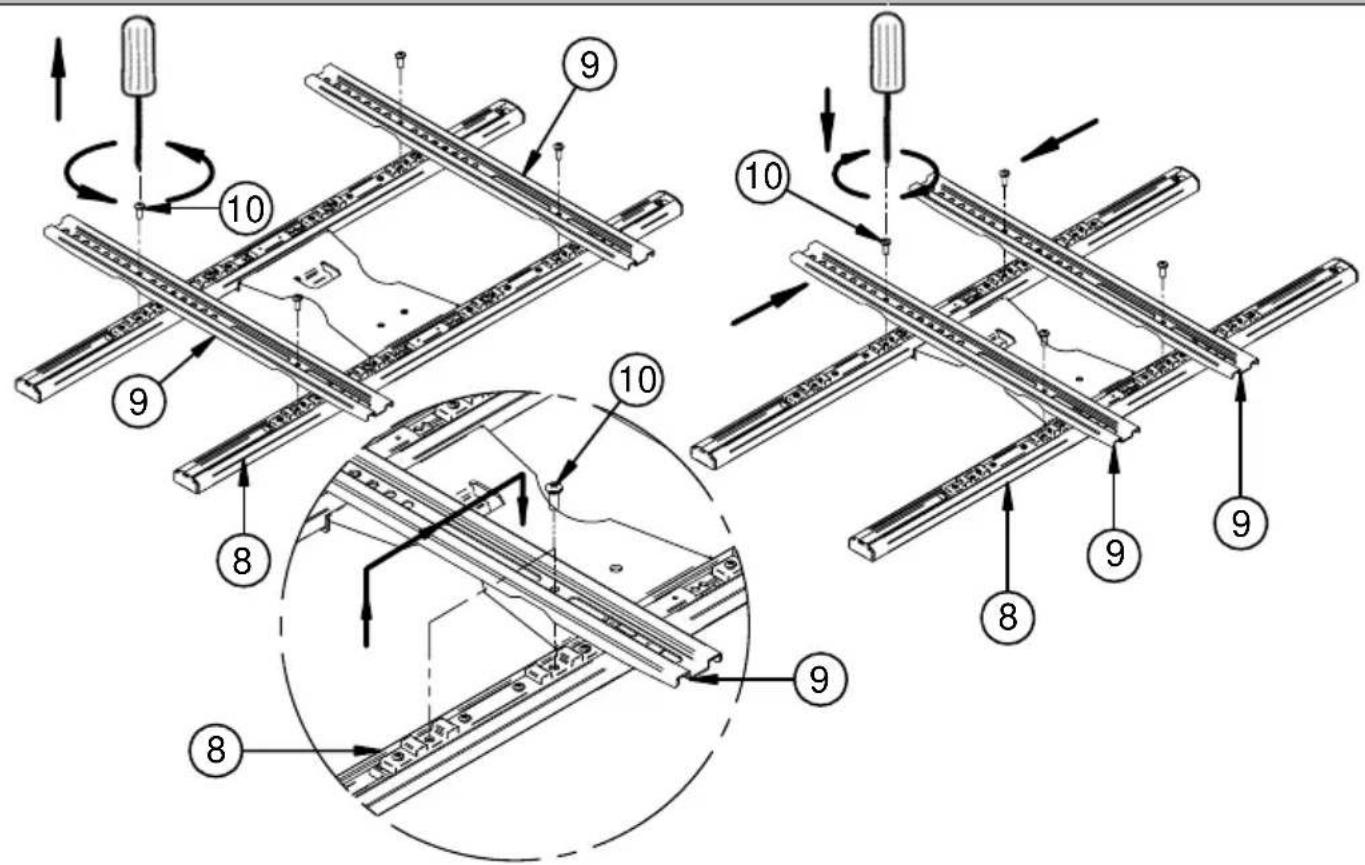

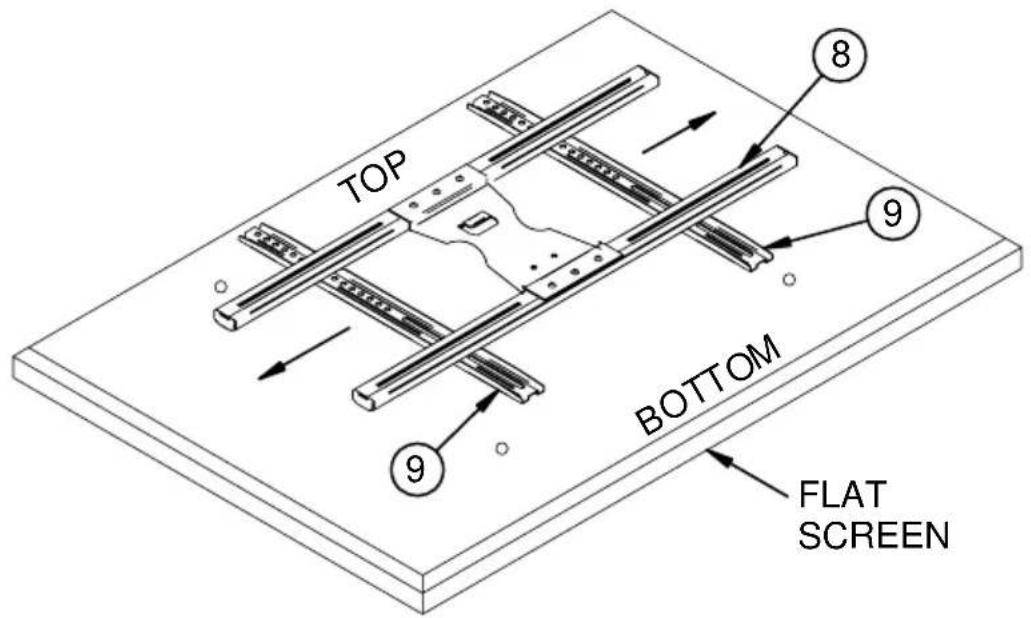

i. Adjust interface arms to suit the flat screen's fixing pattern.

TOP BOTTOM 8 9 9 FLAT SCREEN

10

ii. Attach the interface arms to the flat screen.

A B C D E F G H I TOP BOTTOM FLAT SCREEN

FOR SCREENS WITH RECESS FIXINGS

J

SCREW WASHER INTERFACE ARM SPACER FLAT SCREEN RECESS

5

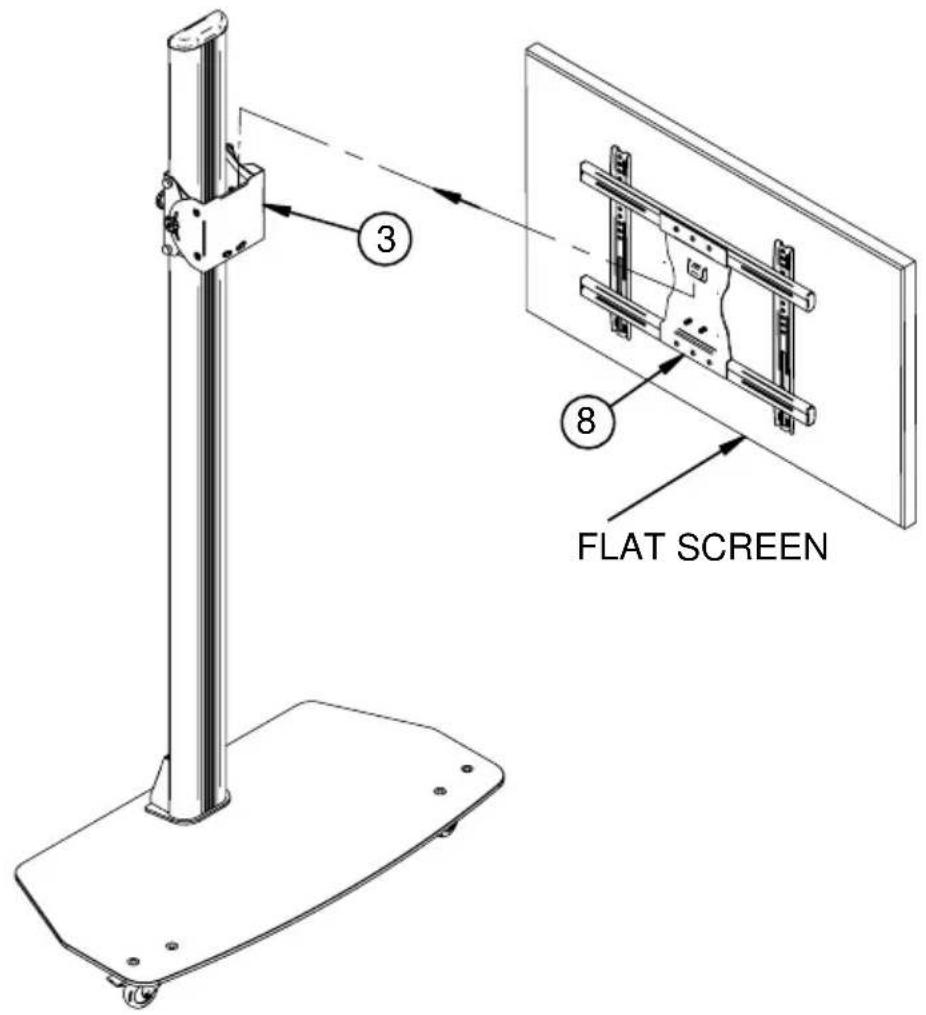

Attach flat screen.

WARNING: Lock wheels before hooking flat screen on.

i. Hook on flat screen.

3 8 FLAT SCREEN

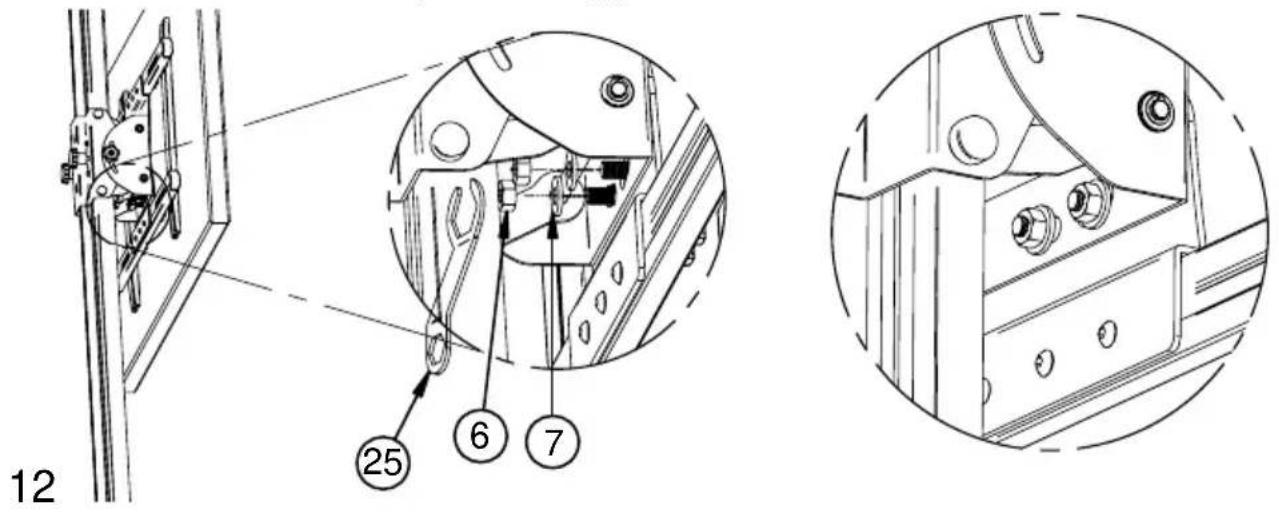

ii. Level screen then fix in place using parts 6 & 7.

12 25 6 7

6
Loosen the M6 handwheels (part 4) on both sides to adjust the tilt, then retighten to fix the position.

7

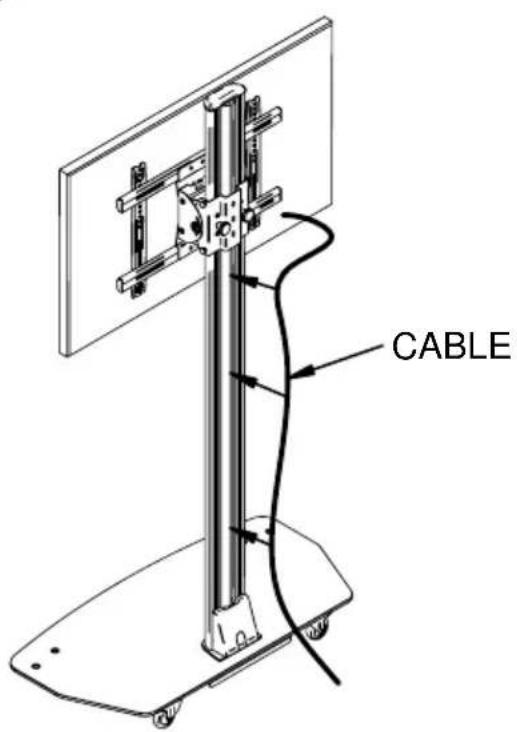

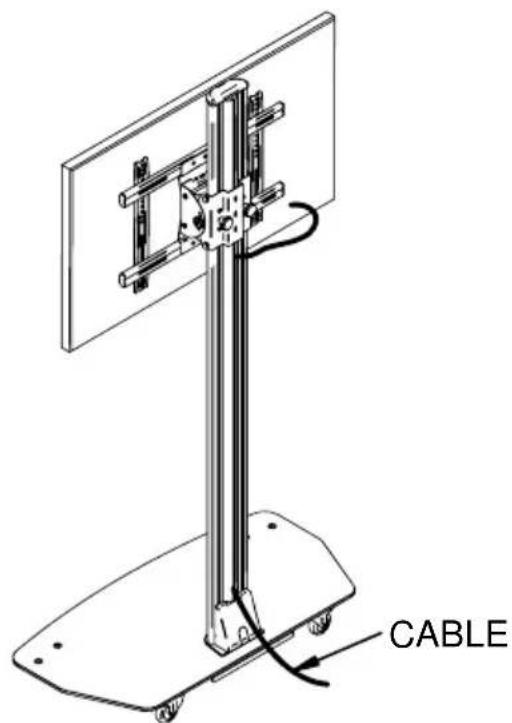

Optional - Cable Management

CABLE

CABLE

OPTIONAL ACCESSORIES

BT7165 (Glass Shelf)

Flat screen must be removed to attach the BT7165 Glass Shelf

BT7165 BT8505

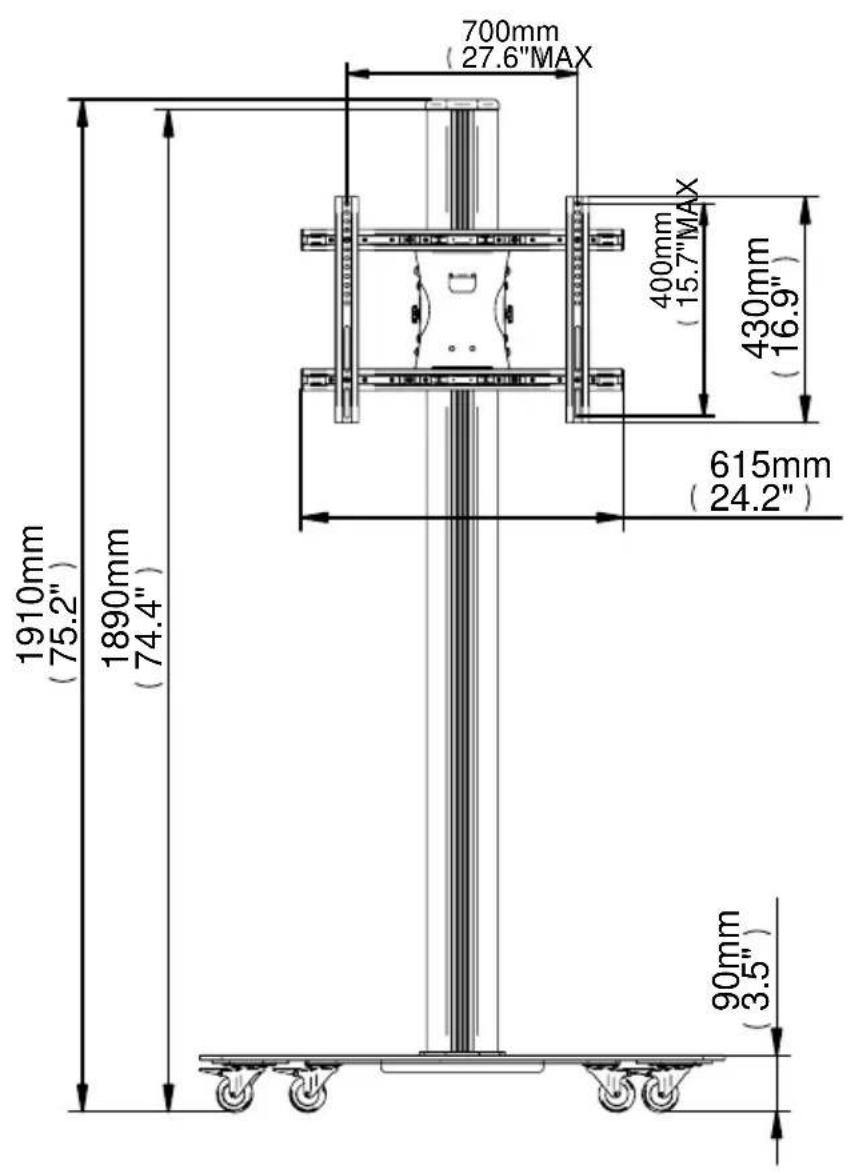

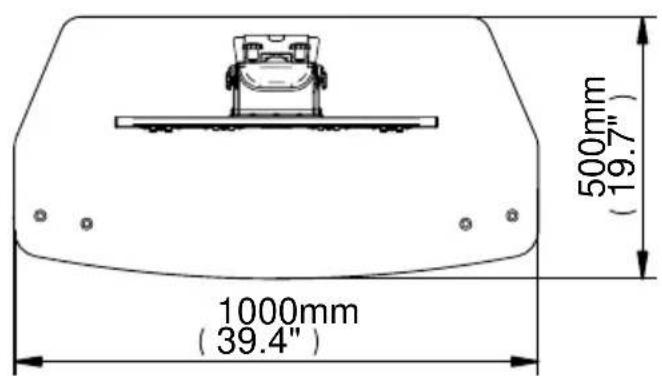

BT8505 PRODUCT DIMENSIONS

700mm (27.6"MAX) 400mm (15.7"MAX) 430mm (16.9") 615mm (24.2") 1910mm (75.2") 1890mm (74.4") 90mm (3.5")

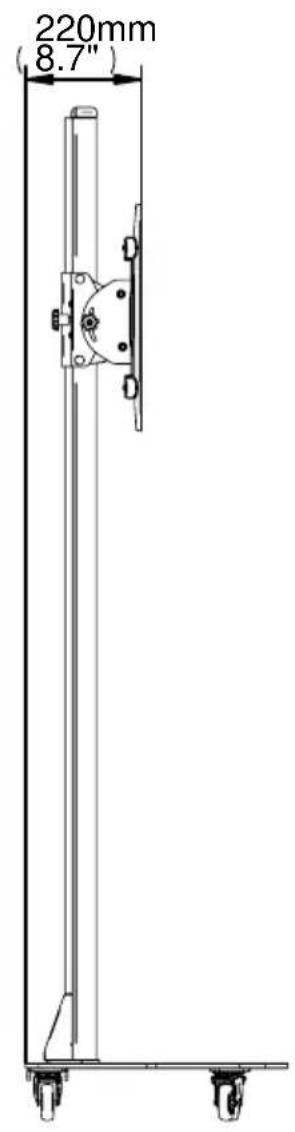

220mm 8.7"

500mm (19.7") 1000mm (39.4")

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
