User's Guid

Version 3.00

ANT24-Series

ANT70-Series

D-Link Antenna Kits

D-Link Antenna-kit Installation Guide

Step 1
Remove the default antenna.

Gray electronic device with two antennas and a red dashed circle highlighting the top-right corner (no visible text or symbols)

Step 2
Connect the extension cable/antenna onto the external connector on device.

Step 3 (If needed)

Close-up of a medical or electronic device with a coiled cable, connector, and display unit (no visible text or symbols)

Install the surge protector. (You can install with optional ANT24 series low loss cables)

Note:
When install the surge protector between cables,

Close-up of a black mechanical component with threaded ends and a central hub (no visible text or symbols)

wrap the connectors as well. The lightning protection adaptor for grounding the antenna.

Mechanical component with a red dashed circle highlighting a specific part, no visible text or symbols

With Surge protector adaptor on an outdoor serial is attached to the lightning protection system (ground) of the building. All devices downstream are then protected by the ground from lightning strikes. It can protect your sensitive WLAN equipments from high voltage surges caused by discharge and transients at the antennas. It will be integrated in the cabling system between the antenna and the coax-cable and must have direct ground contact.

D-Link Antenna-kit Installation Guide

Surge protector Installation guide for outdoor antenna-kit

Close-up of a hand holding a small mechanical component with a metallic fitting (no visible text or symbols)

Step 1 loosen the screw from the surge protector.

Option (1)

Close-up of a hand holding a tool interacting with a dark cylindrical object (no visible text or symbols)

Close-up of a mechanical component with a red dashed circle highlighting a small metallic part, and an inset image showing a cable being held (no text or symbols visible)

Option (2)

Close-up of a hand holding a black mechanical component with a green wire, no visible text or symbols

Step 2 get a normal conductive copper wire with 2 sides stripped long enough to be conductive, these wires can lead high voltage surges into the grounding.

Exterior view of a modern office building (no signage)

Close-up of a small mechanical component with a blue cylindrical part, mounted on a metal surface (no visible text or symbols)

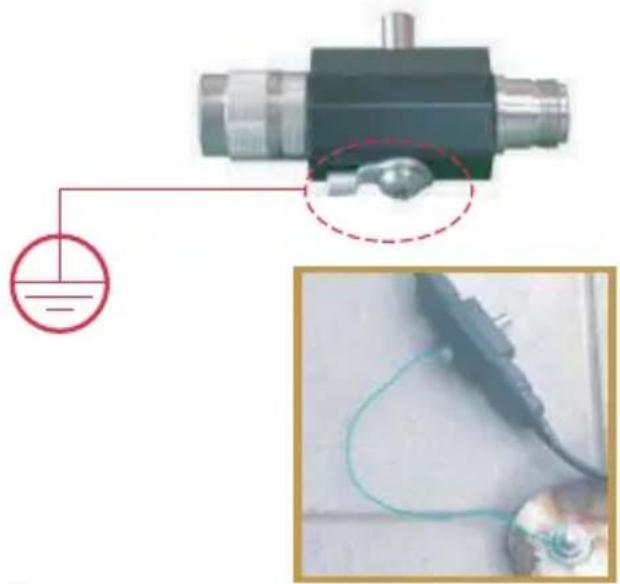

Ground

Step 3 find a conductive material nearby the antenna installation sites, connect another end of the wire into position, there are several options:

(1) Use a long screw to stick into the ground tightly, connect another wire onto.
(2) fix or solder another end of wire onto a steel material/ bar under steel construction, such as wall for buildings, railings or other conductive materials which set up from the ground.

Remark:

(1) for the ground screw you use, we suggest the longer (deeper into ground) the better performance it has.
(2) please use a copper wire with diameter at least from 2.0mm, the thicker the diameter, the higher voltage it can sustain.

Regulations

D-Link WLAN Antenna-Kit

Extended range differentiation for FCC/CE regulated regions

CE ETSI EN 300 328 regulated European Union (EU) regions

Based on ETSI EN 300 328, the system device and its antenna Emitted Isotropic Radiated Power (EIRP) are limited to operate within a 20dBm gain. The range extension provided by the antenna kit should comply with the restrictions set by the EU.

FCC regulated regions (US, Canada, etc.)

Using the same antenna-kit in FCC-regulated regions, the extended range may extend farther than CE-regulated antennas due to a higher output power allowance (FCC limits EIRP emissions to 36dBm).

The usage of high gain antennas must be properly set to comply with EU regulations, and additional consideration should be made to avoid potential health hazard. Consult a professional installer for every occasion of application.

Outdoor Installations

To fully benefit from D-Link's extensive range of quality outdoor antennas, please note that they should be installed by a professional and must comply with the Europe Union CE wireless radio frequency output power. Cable length will affect the antenna gain dramatically.

EIRP limitaton:

		2.4GHz~2.5GHz 5.15GHz~5.35GHz		5.47~5.725 5.75GHz~5.875GHz
ETSI	point to multi-point	20dBm ave.23dBm peak.	23dBm 30dBm		X
	point to point
FCC	point to multi-point 36dBm 36dBm		23dBm	X
	point to point	30+6(antenna gain) dBmthen above 30dBm, one dB outputpower reduced, then 3dB antenna gainincreased			30+23(antenna gain)then above 30dBm, one dB output powerreduced, then 3dB antenna gain increased

For outdoor use

EIRP = Effective, Isotropic Radiated Power

= Device Output Power + Antenna Gain - Cable Loss

Cable Loss

Model Cable Type Length Interface			Cable loss (dB) @ 2.4GHz	Cable loss(dB) @5GHz
ANT24-CB03N LMR400 3m N plug to N	jack 1 1.75
ANT24-CB06N LMR400 6m N plug to N	jack 1.85	2.7
ANT24-CB09N LMR400 9m N plug to N	jack	2.6	3.8

Note:

1. The loss value includes two connectors (around 0.3\~0.4dB @ 2.4GHz, 0.39\~0.52dB@5GHz).
2. The longer cable you use, the more attenuation it causes, therefore, the extended range might be shorten then a normal link with default cables.
3. To comply with EU regulation, please use longer cables which can cause enough attenuation value.
4. For more detail of connectors type, please refer to the appendix page.(P.30)

D-Link ANT24-0230 Indoor MIMO Antenna

Electrical specification

Frequency Range	2400~2500MHz
Impedance	50 Ohms
VSWR	1.92 Max.
Return Loss	-10 dB Maximum
Antenna Structure	Helis antenna
Peak Gain (w/o cable loss)	2dBi
Admitted power	1 W
Cable loss(1.5m)	2dB@2.45GHz
E-Plane	60 deg.
H-Plane	360 deg.

Environmental & Mechanical Characteristics

Cable	RG-174 Coaxial Cable
Cable length	1.5M
Cable color	Black, Yellow
Connector	SMA Plug Reverse
Antenna Material	ABS+PC
Operating Temp	-20°C~+65°C
Storage Temp	-30°C~+75°C
Color	Antenna:Black , silverBase:silver

Black D-Link wireless device with three antennas and a coiled cable (no text or symbols visible)

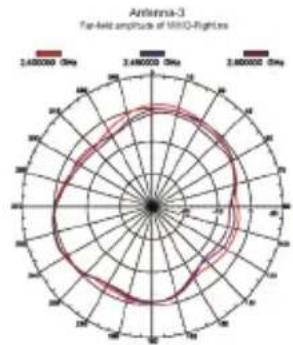

Horizontal coverage

60°

Vertical coverage

ANT24-0230 NOTEBOOK WIRELESS MEDIA PLAYER DESKTOP PC with XTREME N™ DESKTOP ADAPTER (DWA-552 or DWA-556)

Package Contents:

• Xtreme N™ 2.4GHz aNTENNA
• Wall Mounting Kit
• Quick installation Guide

D-Link ANT24-0401 Ceiling Mount Antenna

Electrical specification

Frequency band	2400-2500MHz
Antenna gain	2.5 - 3.7 dBi
VSWR	2.0 max
Polarization	Linear vertical
HPBW / H-plane	360
HPBW / E-plane	58°~75°
Impedence	50 Ohms
Dimensions	ø132x42 mm
Weight	110g without joint

Environmental & Mechanical Characteristics

Temperature -10°C to 55°C
Humidity 100% @ 25 C	*
Lightning protection DC ground
Radome color white
Radome material ABS
Weight 100gw
Dimensions 132 x 42 mm

Ceiling ① ② ③ ④ ⑤

Installation Note:

1. Carefully remove the antenna from the package.
2. Take out the Washer (1 pcs) from the package
3. Take out the Flange washer (1 pcs) as well.
4. Drill 2 holes through the ceiling board, one to fix the antenna main body with wacher, another for the antenna SMA connector linked onto extension cable which is included within the package.

Package Contents:

• ANT24-0401 Antenna
• Extension Cable (2M)
• Mounting Kit
• Quick Installation Guide

inc

incorrect placement

Abstract 3D geometric shape with curved lines and a top circular feature (no text or symbols)

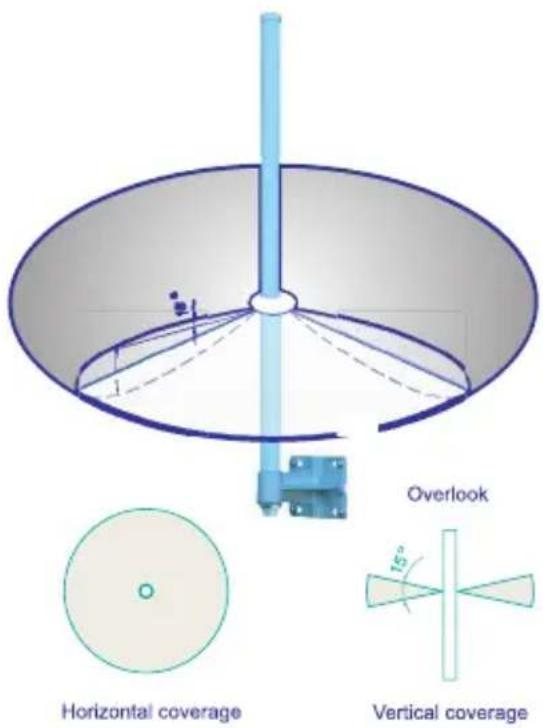

Horizontal coverage

Overlook

Vertical coverage

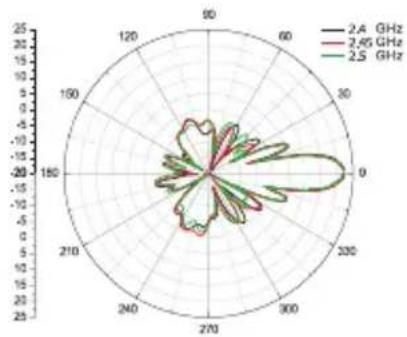

Vertical Pattern@2.45 GHz

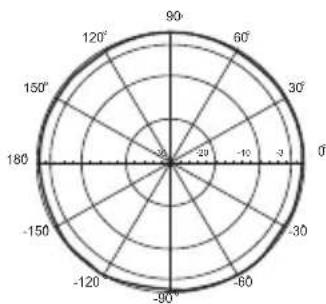

Horizontal Pattern @2.45 GHz

D-Link ANT24-0500Indoor/Outdoor Omni-Directional Antenna

Electrical specification

Frequency band	2400-2500MHz
Antenna gain	5.0 dBi
VSWR	2.0 max
Polarization	Linear vertical
HPBW / H-plane	360
HPBW / E-plane	32°
Impedence	50 Ohms
Dimensions LxWxH	19× 330mm
Weight	180g without joint

Environmental & Mechanical Characteristics

Survival wind speed 180 km/hr

Temperature -40 C to +80 C

Humidity 100% @ 25 C

Lightning protection DC ground

Radome color Gray-white

Radome material Fiberglass

Radiator material Micro striple line

Weight 0.8kgw

Dimensions 330 x 19 mm

Wall Mount

Pole Mount

Exterior view of a mechanical or electrical component with no visible text or symbols

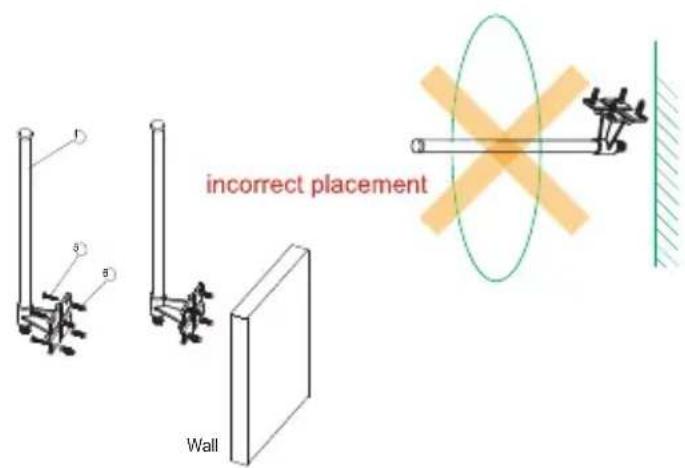

Installation Note:

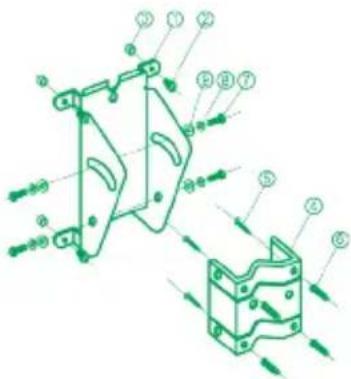

1. use L-type mounting to fix with antenna
2. use 4 plastic anchor with (4) screws to install the antenna onto the wall.
3. use band clamp (2pcs) to fix the antenna on the pole.

incorrect placement

Package Contents:

• ANT24-0500 Antenna
• Extension Cable (3m)
• Mounting Kit
• Quick Installation Guide

Diagram of a satellite dish antenna with a central vertical axis and base mount (no text or symbols)

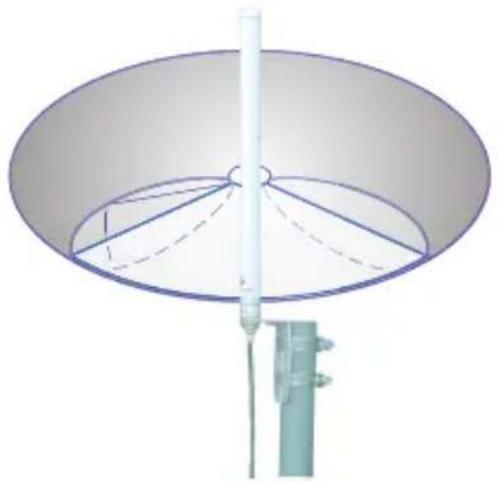

Horizontal coverage

Overlook

Vertical coverage

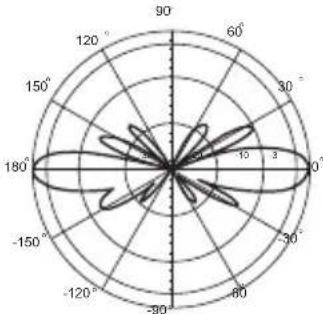

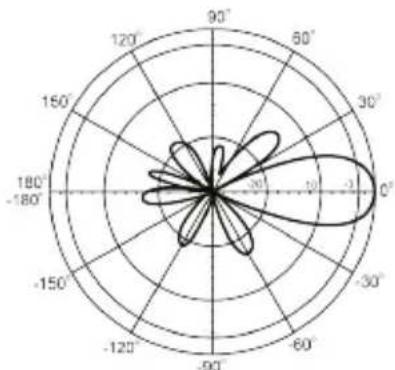

H-plane Co-polarization Pattern

V-plane Co-polarization Pattern

CAUTION:

Please always place the antenna vertically to the horizontal surface, not recommend to mount the antenna perpendicular to walls.

D-Link ANT24-0501 Indoor Omni-Directional Antenna

Electrical specification

Frequency Range 2400~2500MHz
Impedance 50Ω Normal
VSWR 1.92 Max
Return Loss -10 dB Maximum
Antenna Structure Helis antenna
Peak Gain ( w/o cable loss) 5dBi
Admitted Power 1 W
Cable loss( 1.5m) 2.1dB@2.45GHz
E-Plane 36 deg.
H-Plane 360 deg.

Physical Properties

Cable RG-178 50Ω
Cable length 1.5 M
Cable color Gray
Connector Reverse SMA plug
Antenna Material	ABS, ABS+PC
Operating Temp	-20°C ~ +65°C
Storage Temp	-30°C ~ +75°C
Color	Antenna: Metallic gray and silverBase: Metallic gray

Illustration of a desktop cleaning tool with a handle and base (no text or symbols)

Magnetic Attach 30Ω/Ω

Wall-mounting

Direct Attachment to APIRouter

Package Contents

-One ANT24-0501 2.4GHz indoor 5dBi omni-directional Antenna with 1.5M extension cable and RP-SMA Jack connector
-One RP-SMA/ RP-TNC adaptor
-One registration card and international office guide
-Mounting kit includes:
-Two Crews
-Two plastic fixings
-One sticker

Exterior view of a modern office building (no signage)

Horizontal coverage

36°

Vertical coverage

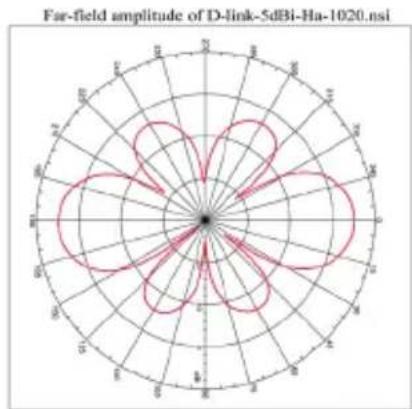

Far-field amplitude of D-link-5dBi-H-1020.nsi

Far-field amplitude of D-link-5dBi-v-1020.nsi

D-Link ANT24-0501C Indoor Omni-Directional Antenna

Electrical specification

Frequency Range 2400~2500MHz
Impedance 50Ω Normal
VSWR 1.92 Max
Peak Gain 5dBi
Admitted Power 1 W
E-Plane 36 deg.
H-Plane 360 deg.

Physical Properties

Connector Reverse SMA plug
Antenna Material ABS, ABS+PC
Operating Temp -20°C ~ +65°C
Storage Temp -30°C ~ +75°C
Color Antenna: Metallic gray and silver

Attach to APIRouter

Package Contents

-One ANT24-0501C 2.4GHz 5dBi indoor omni-directional antenna with a RP-SMA plug connector
-One RP SMA/ RP TNC adapter
-One registration card and company contact guide

Horizontal coverage Vertical coverage 36°

D-Link ANT24-0502

Indoor Omni-Directional Antenna

Electrical Specification

Frequency range	2400 MHz - 2500 MHz
Gain	5.0dBi
VSWR	2.0 : 1 Max
Polarization	Linear, vertical
HPBW/horizontal	360°
HPBW/vertical	40°
Downtilt	0°
Power handling	2 W (cw)
Impedance	50 Ohms
Connector	RP SMA Plug

Environmental & Mechanical Characteristics

Temperature	-10°C to +55°C
Humidity	95% @55°C
Radome color	Black
Radome material	ABS, UV resistant
Weight	20 g
Dimensions	φ 13.5 x 177 mm

φ5.5 177 156 φ13.5 80°

Black right-handled antenna with a long shaft and base, isolated on white background (no text or symbols)

H-plane Co-polarization Pattern

V-plane Co-polarization Pattern

D-Link DWL-50AT Indoor Omni-Directional Antenna

Electrical specification

Frequency band	2400-2500MHz
Antenna gain	5.0dBi Typical
VSWR	2.0:1 Max.
Polarization	Linear
HPBW / H-plane	360°
HPBW / E-plane	30 degree
Impedence	50 Ohms nominal
Dimensions HxWxD	197 mm(length)
Weight	29.5gw

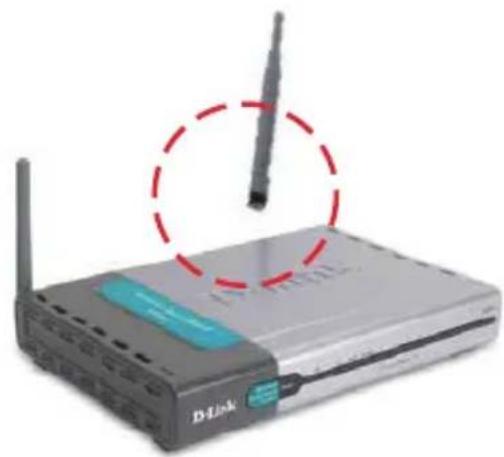

D-Link router with antenna and antenna, no visible text or symbols on the device itself

Installation:

1. Remove the original antenna from your wireless device.
2. Screw the DWL-50AT RP-SMA connector into your wireless device.
3. Adjust the antenna to the suitable direction for extending the wireless coverage area.

Close-up of a black cylindrical electronic component with a pointed tip and small protrusions (no visible text or symbols)

Simple geometric diagram showing a circle with a centered square (no text or symbols)

Horizontal coverage

30°

Vertical coverage

Far-field amplitude of C147-510017-A-V.nsi

Far-field amplitude of C147-510017-A-II.nsi

D-Link ANT24-0600 Indoor Directional Antenna

Electrical specification

Frequency Range 2400~2500MHz
Impedance 50Ω Normal
VSWR 1.92 Max
Return Loss -10 dB Maximum
Antenna Structure Pateh antenna
Peak Gain ( w/o cable loss) 6.0 dBi @ 2.45GHz ( typical)
Admitted Power 1 W
Cable loss( 1.5m) 2.1dB@2.45GHz
E-Plane 68°
H-Plane 80°

Physical Properties

Cable Filotex 50Ω
Antenna Cover ABS
Antenna Base PC
Operating Temp -20°C ~ +65°C
Storage Temp -30°C ~ +75°C
Color	White

OVERLOOK 60° HORIZONTAL COVERAGE

Desktop
Magnetic Attach

Black D-Link computer monitor with a stand (no visible text or symbols on the device body)

Wall Mounting

Close-up of a D-Link handheld device with metallic casing and black buttons (no visible text or symbols)

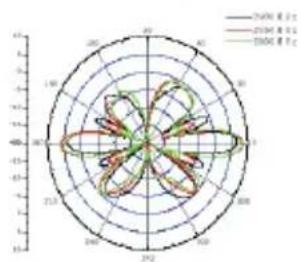

Far-field amplitude of D-Link 6dBi H04.nsi

Far-field amplitude of D-Link 6dBi V04.nsi

Package Contents

-One ANT24-0600 2.4GHz indoor 6dBi directional Antenna with 1.5 Filotex cable and RP-SMA Jack connector
-One RP-SMA/ RP-TNC adaptor
-One User's QIG
-Two Crews
-Two plastic fixings
-One sticker

D-Link ANT24-0700

Indoor Omni-Directional Antenna

Electrical specification

Frequency Range 2400~2500MHz
Impedance 50Ω Normal
VSWR 1.92 Max
Return Loss -10 dB Maximum
Antenna Structure Helis antenna
Peak Gain ( w/o cable loss) 7dBi
Admitted Power 1 W
Cable loss( 1.5m) 2.1dB@2.45GHz
E-Plane 24 deg.
H-Plane 360 deg.

Physical Properties

Cable RG-178 50Ω
Cable length 1.5 M
Cable color Gray
Connector Reverse SMA plug
Antenna Material ABS, ABS+PC
Operating Temp	-20°C ~ +65°C
Storage Temp	-30°C ~ +75°C
Color	Antenna: Metallic gray and silverBase: Metallic gray

Desktop

Magnetic Attach 300kΩ

Wall-mounting

Direct Attachment to APIRouter

Package Contents

-D-Link ANT24-0700 2.4GHz Omni-Directional Indoor Antenna
-SMA to TNC Adapter
-Magnetic Base with 1.5m Extension Cable
-Mounting Kit
-Installation Guide

Exterior view of a modern office building (no signage)

Horizontal coverage

z*

Vertical coverage

Far-field amplitude of D-link-7dBi-H1-1020.nsi

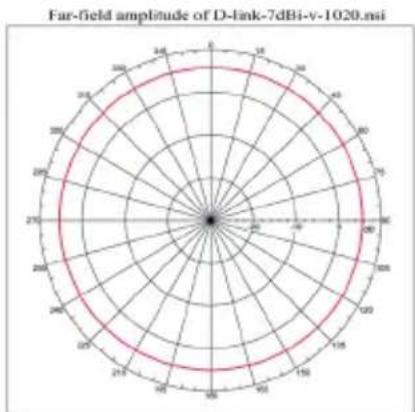

Far-field amplitude of D-link-7dBi-v-1020.nsi

D-Link ANT24-0700C Indoor Omni-Directional Antenna

Electrical specification

Frequency Range 2400~2500MHz
Impedance 50Ω Normal
VSWR 1.92 Max
Return Loss 10 dB Maximum
Antenna Structure Helis antenna
Peak Gain ( w/o cable loss) 7dBi
Admitted Power 1 W
Cable loss( 1.5m) 2.1dB@2.45GHz
E-Plane 24 deg.
H-Plane 360 deg.

Physical Properties

Cable RG-178 50Ω
Cable length 1.5 M
Cable color Gray
Connector Reverse SMA plug
Antenna Material	ABS, ABS+PC
Operating Temp	-20°C ~ +65°C
Storage Temp	-30°C ~ +75°C
Color	Antenna: Metallic gray and silverBase: Metallic gray

Attach to APIRouter

Package Contents

-One ANT24-0700C 2.4GHz 7dBi indoor omni-directional antenna with a RP-SMA plug connector
-One RP SMA/ RP TNC adapter
-One registration card and company contact guide

Horizontal coverage Vertical coverage

D-Link ANT24-0800 Indoor/Outdoor Omni-Directional Antenna

Electrical specification

Frequency band	2400-2500MHz
Antenna gain	8.0 dBi
VSWR	2.0 max
Polarization	Linear vertical
HPBW / H-plane	360°
HPBW / E-plane	15°
Impedence	50 Ohms
Dimensions LxWxH	19 × 520mm
Weight	340g without joint

Environmental & Mechanical Characteristics

Remove one default antenna from the wireless device and start to assemble!

Pole(max φ=50mm)

1. Antenna body
   2.M5-0.8 nut
   3.M5 Washer
   4.M5 U-Type Screw
   5.Screw
2. Anchor

Diagram of a circular device with radial blades and a vertical pole, labeled 'Overlook' (no text or symbols on the diagram itself)

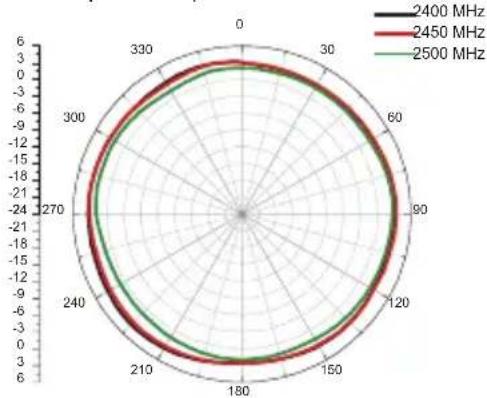

Horizontal coverage

Vertical coverage

Vertical

Horizontal

incorrect placement Wall

Package Contents:

• ANT24-0800 Antenna
• Extension Cable (50cm)
• Mounting Kit
• Surge Protector
• Water-proof tape
• Quick Installation Guide

CAUTION:

Please always place the antenna vertically to the horizontal surface, not recommend to mount the antenna perpendicular to the wall.

D-Link ANT24-0801Indoor/Outdoor Directional Panel Antenna

Electrical specification

Frequency 2400~2500MHz
Gain 8.5 dBi
VSWR 1.5:1 Max
Polarization Linear, vertical
HPBW / horizontal 65	*
HPBW / vertical	65*
Front to back ratio	15 dB
Power handling	50 W (cm)
Impedance	50 Ohms
Connector	N - female

Environmental & Mechanical Characteristics

Survival wind speed 216 km/hr

Temperature -40 C to +80 C

Humidity 95% @ 55 C

Lightning protection DC ground

Radome color Gray-white

Radome material ABS, UV resistant

Housing material AL6063

Weight 0.3 kgw

Dimensions 120 x 120 x 43 mm

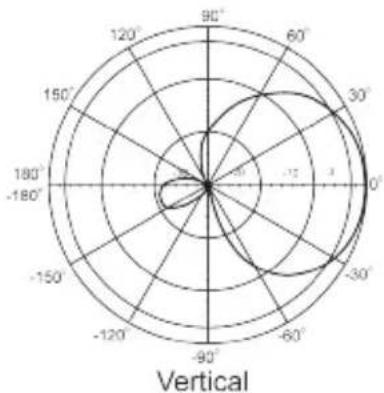

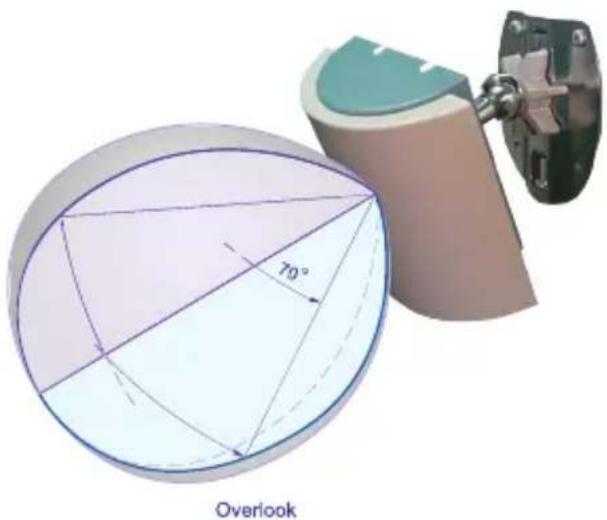

70° Overlook

70° Horizontal coverage

65° Vertical coverage

Remove one default antenna from the wireless device and start to assemble!
Wall mount

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or force.

Pole mount

Technical line drawing of a mechanical assembly with no visible text or symbols

Installation Note:

The following parts are needed for wall mounting:

1. plastic wall anchors (4) screws
2. wall screws
3. mounting base
4. locking wheel on the mounting base
5. adjustable pivot arm
6. locking wheel for pivot arm

Package Contents:

• ANT24-0801 Antenna
• Extension Cable (3m)
• Mounting Kit
• Surge Protector
• Water-proof tape
• Quick Installation Guide

D-Link ANT24-1200

Indoor Directional Panel Antenna

Electrical specification

Frequency range 2400 MHz - 2500 MHz
Gain 12 dBi
VSWR 1.5 : 1 Max
Polarization Linear, vertical
HPBW / horizontal 80	*
HPBW / vertical 23	*
Front to back ratio 15 dB
Downtilt 0	*
Power handling	20 W(cm)
Impedance	50 Ohms
Connector	SMA female

Environmental & Mechanical Characteristics

Survival wind speed 180 km/hr

Temperature -10 C to +55 C

Humidity 95% @ 55 C

Lightning protection DC ground

Radome color White

Radome material ABS, UV resistant

Weight 19 kgw

Dimensions 330 x 93 x 20.7 mm

Remove one default antenna from the wireless device and start to assemble!

Interior view of a modern building with large windows overlooking cityscape, featuring a black cylindrical object on the left (no visible text or symbols)

Simple line drawing of a vertical rectangular object with two labeled ends (labeled 0 and 1) and directional arrows, no text or symbols present.

Wall mount with plastic wall plug

Simple green line drawing of a vertical rectangular object with two small protrusions and a base, no text or symbols present.

Window suction mount with widow suction cup

Package Contents:

• ANT24-1200 Antenna
• Extension Cable (3m)
• Mounting Kit
• Quick Installation Guide

80° Overlook

80° Horizontal coverage

23° Vertical coverage

Vertical

Horizontal

D-Link ANT24-1201

Outdoor Directional Yagi Antenna

Electrical specification

Frequency range 2400 MHz - 2500 MHz
Gain 12 dBi
VSWR 1.5 : 1 Max
Polarization Linear, vertical
HPBW / horizontal 50	*
HPBW / vertical	50*
Front to back ratio	15 dB
Downtilt	0*
Power handling	10 W (cm)
Impedance	50 Ohms
Connector	N female
Cable	UL 198; 32cm

Environmental & Mechanical Characteristics

Survival wind speed 216 km/hr

Temperature -40 C to +80 C

Humidity 95% @ 25 C

Lightning protection DC ground

Radome color Gray-White

Radome material ABS, UV resistant fire retaedant

Weight 0.3 kgw

Dimensions 280 x 87x 48 mm

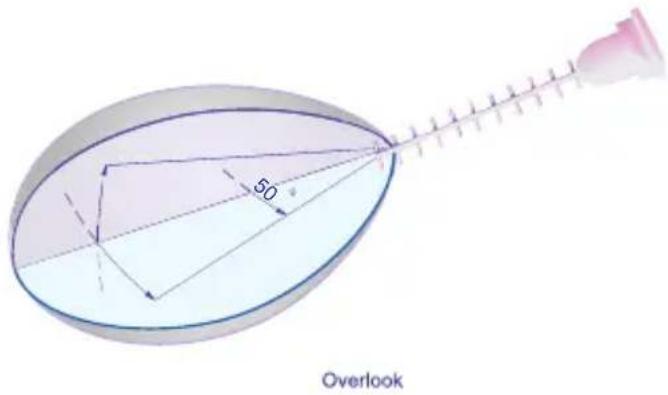

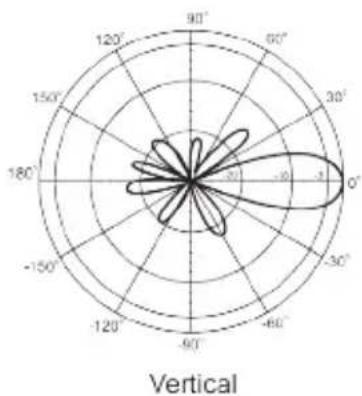

50° Overlook

50° Horizontal coverage

50° Vertical coverage

Remove one default antenna from the wireless device and start to assemble!

Wall Mount

① Ant body ② 3/4" screw ③ Pole mount clip

Pole Mount

① Ant body ② 2-1/2" hose clamp

Package Contents:

• ANT24-1201 antenna
• Extension cable (50cm)
• Mounting kit
• Surge protector
• Water-proof tape
• Quick installation guide

D-Link ANT24-1202 Outdoor Omni-Directional Antenna

Electrical specification

Frequency Range	2400MHz-2500MHz
Gain	12 dBi
VSWR	1.92 : 1 Max.
Polarization	Linear; vertical
HPBW / horizontal	360*
HPBW / vertical	6*
Power handling	10W(cw)
Impedance	50 Ohms
Connector	N female

Environmental & Mechanical Characteristics

Survival wind speed	216 km / hr
Temperature	-40°C to +80°C
Humidity	90%@25°C
Lightning protection	DC ground
Radome color	White
Radome material	Fiberglass
Weight	1.2 kgw
Dimensions	1718 x #48 (mm)

Wall mounting

Pole mounting

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating assembly steps.

Technical diagram showing mechanical assembly with numbered components and a magnified detail view

• It can be screwed tightly at any direction.

Package Contents:

• ANT24-1202 Antenna
• 50cm extension cable with N-type to RP-SMA
• Mounting Kit
• Waterproof tape
• Quick Installation Guide

Vertical coverage

Horizontal coverage

Vertical white LED with a small metallic connector, against a plain light background (no text or symbols visible)

Vertical

Horizontal

D-Link ANT24-1400

Outdoor Directional Panel Antenna

Electrical specification

Frequency range 2400 MHz - 2500 MHz
Gain 14 dBi
VSWR 1.5 : 1 Max
Polarization Linear, vertical
HPBW / horizontal 30	*
HPBW / vertical 30	*
Front to back ratio 15 dB
Downtilt	0*
Power handling	10 W (cm)
Impedance	50 Ohms
Connector	N female
Cable	ULA198

Environmental & Mechanical Characteristics

Survival wind speed 216 km/hr

Temperature -40 C to +80 C

Humidity 100% @ 25 C

Lightning protection DC ground

Radome color Gray-White

Radome material ABS, UV resistant

Weight 0.825 kgw

Dimensions 240 x 240x 69.5 mm

Remove one default antenna from the wireless device and start to assemble!

Wall mount

Technical diagram of a mechanical assembly with numbered components for identification

Package Contents:

• ANT24-1400 Antenna
• Extension Cable (50cm)
• Mounting Kit
• Surge protector
• Water-proof tape
• Quick Installation Guide

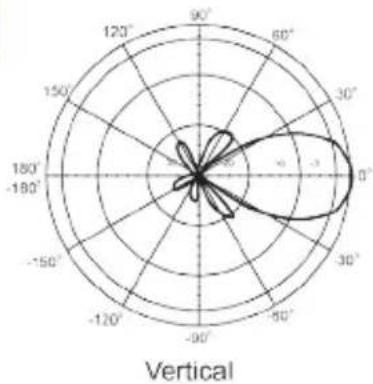

30° Overlook

30 Horizontal coverage

30° Vertical coverage

Pole mounting method 1.

Pole mounting method 2.

D-Link ANT24-1800

Outdoor Directional Panel Antenna

Electrical specification

Frequency range 2400 MHz - 2500 MHz
Gain 18 dBi
VSWR 1.5 : 1 Max
Polarization Linear, vertical
HPBW / horizontal 15	*
HPBW / vertical 15	*
Front to back ratio 26 dB
Downtilt	0*
Power handling	50 W (cm)
Impedance	50 Ohms
Connector	N female

Environmental & Mechanical Characteristics

Survival wind speed 216 km/hr
Temperature -40 C to +80 C	*
Humidity 100% @ 25 C	*
Lightning protection DC ground
Radome color White
Radome material ABS, UV resistant
Housing material Galvanized Iron, Fire retardant
Weight 1.6 kgw
Dimensions 360 x 360x 16 mm	^3

Remove one default antenna from the wireless device and start to assemble!

Wall mounting

① Mounting base - 1 PC

② M4*8 screw+W+S/W - 4 PCS

① Space keeper - 4 pcs

⑤ M-shape mounting - 1 pc

⑤ 3/4" screw - 4 pcs

⑥ Plastic wallplug - 4 pcs

⑦ M6*16 screw - 4 pcs

⑧ M6 S/W - 4 pcs

⑲ M6 W - 4 pcs

Pole mounting

① Mounting base - 1 PC

② M4*8 screw+W+S/W - 4 PCS

③ Space keeper - 4 pcs

④ M-shape mounting - 1 pc

⑤ Pole mount clip - 1 pc

⑤ M6*60 screw - 2 pcs

⑦ M6*16 screw - 4 pcs

⑧ M6 S/W - 4 pcs

② M6 W - 4 pcs

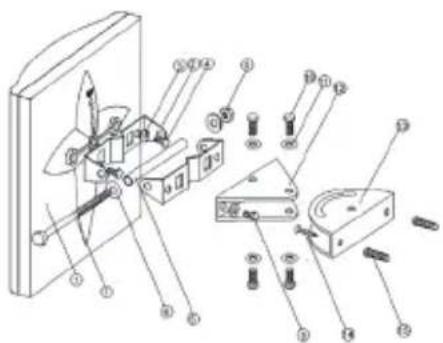

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

3D diagram of an elliptical structure with internal lines and angular annotations (no text or symbols)

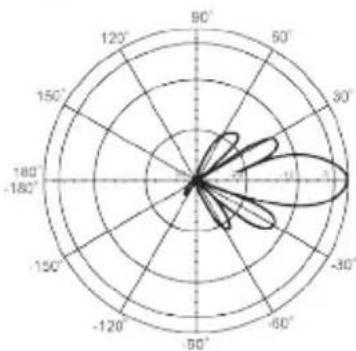

Horizaontal coverage

Overlook

Vertical coverage

Vertical

Horizontal

Package Contents:

• ANT24-1800 Antenna
• Extension Cable (50cm)
• Mounting Kit
• Surge protector
• Water-proof tape
• Quick Installation Guide

D-Link ANT24-2100

Outdoor Directional Antenna

Electrical specification

Frequency Range	2400MHz-2500MHz
Gain	21 dBi
VSWR	1.7 : 1 Max.
Polarization	Linear ; vertical
HPBW / horizontal	10^
HPBW / vertical	12^
Power handling	10W(cw)
Impedance	50 Ohms
Connector	N female

Environmental & Mechanical Characteristics

Survival wind speed	216 km/hr
Temperature	-40°C to +70°C
Humidity	90%@25°C
Lightning protection	DC ground
Radome color	Black
Radome material	ABS, UV resistant
Weight	3.7 kgw
Dimensions	L1056 x W600 x 480 (mm)

Exterior view of a curved metal grid antenna with a central rectangular component (no text or symbols visible)

Installation Note:

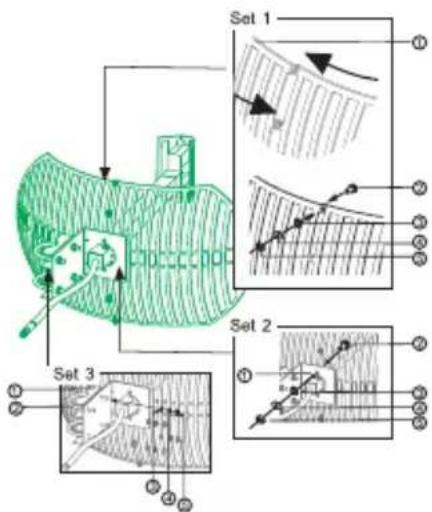

Feed Pipe installation

1. Feed Pipe
2. Reflector
3. Nut
   4 Screw

Antenna installation

Set 1

1. Antenna
2. M5 screw..... 4 pos
3. Spring washer..... 4 pcs
4. Washe.... 4 pos
5. Screw nute..... 4 pos

Set 2

1. L type adj mount..... 1 pos
2. M6 2 pos
3. Spring washer..... 2 pos
4. Washe.... 2 pos
5. Screw nute..... 2 pcs

Set 3

1. adj. mount.... 2 pcs
2. U-bolt..... 2 pcs
3. Spring washer..... 4 pos
4. Washe 4 pcs
5. Screw nute..... 4 pos

Package Contents:

• ANT24-2100 Antenna
• 50cm extension cable with N-type to RP-SMA
• Mounting Kit
• Waterproof tape
  -Quick Installation Guide

Please do not assemble the wrong direction.

Set 1 ① ② ③ ④ ⑤ Set 2 ① ② ③ ④ ⑤ Set 3

Vertical

Horizontal

D-Link ANT70-0800

Dual-Band Omni-Directional Antenna

Electrical specification

Frequency Range 2400 MHz - 2500 MHz 4900 MHz - 5470 MHz
Gain 8 dBi 8 dBi
VSWR 2.0 : 1 Max.
HPBW / horizontal 360°
HPBW / vertical 15°
Polarization Linear, vertical
Power handling 5 W (cw)
Impedance 50 Ohms
Connector N Jack

Environmental & Mechanical Characteristics

Survival wind speed 216 km/hr
Temperature - 40°C to +70°C
Humidity 95% @ 55°C
Radome color Gray
Radome material	ABS, UV resistant
Weight	350 g
Dimensions	80x78x870 mm

Overlook 15° Horizontal coverage Vertical coverage

Pole(max φ=50mm)

1. Antenna body
   2.M5-0.8 nut
   3.M5 Washer
   4.M5 U-Type Screw
   5.Screw
2. Anchor

① ⑤ ⑥ Wall

H-plane Co-polarization Pattern

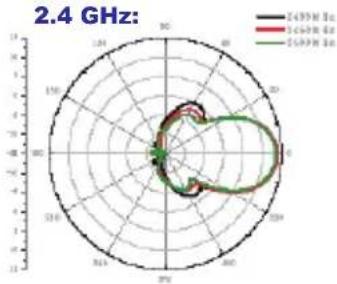

2.4 GHz:

5 GHz:

V-plane Co-polarization Pattern

Package Contents

-D-Link ANT70-0800 Antenna
-Extension Cable(50cm)
-Surge Protector
-Mounting Kit
-Water-proof tape
-Quick Installation Guide

2.4 GHz:

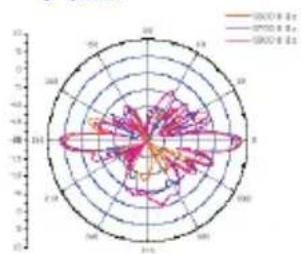

5 GHz:

D-Link ANT70-0801

Dual-Band Omni-Directional Antenna

Electrical specification

Frequency Range 2400 MHz - 2500 MHz 5400 MHz - 5875MHz
Gain 8 dBi 8 dBi
VSWR 2.0 : 1 Max.
HPBW / horizontal 360°
HPBW / vertical 15°
Polarization Linear, vertical
Power handling 5 W (cw)
Impedance 50 Ohms
Connector N Jack

Environmental & Mechanical Characteristics

Survival wind speed 216 km/hr
Temperature - 40°C to +70°C
Humidity 95% @ 55°C
Radome color	Gray
Radome material	ABS, UV resistant
Weight	350 g
Dimensions	80x78x870 mm

Pole(max φ=50mm)

1.Antenna body
2.M5-0.8 nut
3.M5 Washer
4.M5 U-Type Screw
5.Screw
6. Anchor

Package Contents

-D-Link ANT70-0801 Antenna
-Extension Cable(50cm)
-Surge Protector
-Mounting Kit
-Water-proof tape
-Quick Installation Guide

Diagram of two mechanical components labeled 'Wall' with numbered parts, no text or symbols present

Overlook Horizontal coverage Vertical coverage 15°

H-plane Co-polarization Pattern

2.4 GHz:

V-plane Co-polarization Pattern

2.4 GHz:

5 GHz:

Dual-Band Directional Panel Antenna

Electrical specification

Frequency Range 2400 MHz - 2500 MHz 4900 MHz - 5875MHz
Gain 8.5 dBi 10.5 dBi
VSWR 2.0 : 1 Max. 2.0 : 1 Max.
HPBW / horizontal 58° 45°
HPBW / vertical 55° 45°
Polarization Linear, vertical
Power handling 5 W (cw)
Front to back ratio 15dB
Downtilt 0°
Impedance 50 Ohms
Connector N Jack

Environmental & Mechanical Characteristics

Survival wind speed	216 km/hr
Temperature	-40°C to +80°C
Humidity	95% @ 55°C
Radome color	Gray
Radome material	ABS, UV resistant
Weight	150 g
Dimensions	114 x124 x 40 mm

Close-up of a white electronic device with a black cable and connector (no visible text or symbols)

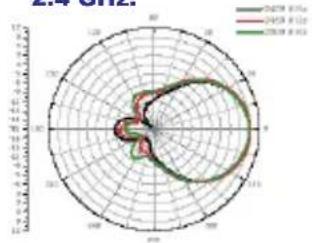

2.4 GHz:

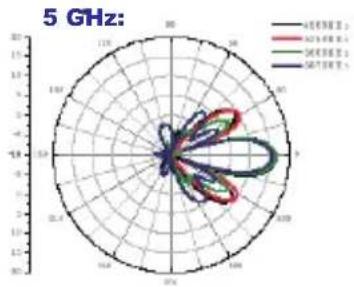

5 GHz:

Technical diagram of a mechanical assembly with numbered components and screw fasteners

H-plane Co-polarization Pattern
2.4 GHz:

5 GHz:

1. Taping Screw
2. Rotate Handle
3. Ball Joint

4. Rotating Handle

5. Insert the tapping screw ① to fix the whole set of universal joint on the wall

6. Rotate the mounting base of the antenna to connect antenna body and universal joint
7. Fix the mounting base by rotate the rotating handle ④
8. Adjust the ball joint ⑤ to the comminent angle Rotate the handle to fix the ball joint ⑥

Package Contents

-D-Link ANT70-1000 Antenna
-Extension Cable(50cm)
-Surge Protector
-Mounting Kit
-Water-proof tape
-Quick Installation Guide

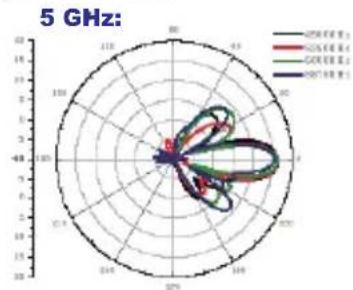

V-plane Co-polarization Pattern
2.4 GHz:

5 GHz:

D-Link ANT70-1800

Dual-Band Directional Panel Antenna

Electrical specification

Frequency Range 2400 MHz - 2500 MHz 4900 MHz - 5875
		MHz
Gain 14 dBi 18 dBi
VSWR 2.0 : 1 Max. 2.0 : 1 Max.
HPBW / horizontal 30° 15°
HPBW / vertical 30° 15°
Polarization Linear, vertical
Power handling 10 W (cw)
Front to back ratio 15dB
Downtilt 0°
Impedance 50 Ohms
Connector	N Jack

Environmental & Mechanical Characteristics

Survival wind speed	216 km/hr
Temperature	-40°C to +80°C
Humidity	95% @ 55°C
Radome color Light Gray
Radome material	ABS, UV resistant
Weight	400 g
Dimensions	200 x218 x 50 mm

Technical diagram of a mechanical assembly with numbered components for identification

1. Antenna Body

2. M-type Stand 2pcs

3. M8 Spring washer 2pcs

4. M8 x 12 screw 2pcs

5. Steel tube 1pcs

6. M8 washer 4pcs

7. M8 × 110 screw 1pcs

8. M8 nut 3pcs

9. M8 x 16 screw 2pcs

10. M6 x 12 screw 4pcs

11. M6 washer 4pcs

12. Triangle stand

13. Main stand

14. Screw 2pcs

15. Plastic conical anchor 2pcs

16. Hose Clamp 2-1/2"

Mechanical assembly diagram showing gear and rotating components (no text or labels)

Package Contents

-D-Link ANT70-1800 Antenna

-Extension Cable(50cm)

-Surge Protector

-Mounting Kit

-Water-proof tape

-Quick Installation Guide

Exterior view of a white rectangular device mounted on a cylindrical base with mounting brackets (no text or symbols visible)

2.4 GHz:

5 GHz:

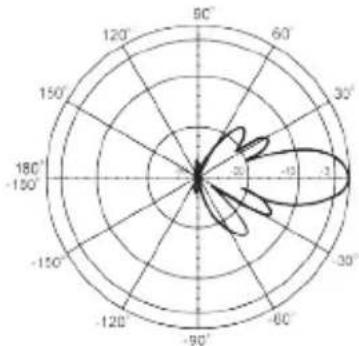

H-plane Co-polarization Pattern

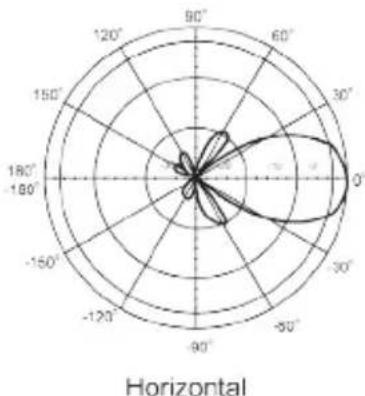

V-plane Co-polarization Pattern

Line-of-Sight (LOS)

Visual and RF Line-of-Sight (LOS) between the sending and receiving antennas is essential in achieving long range in wireless communication systems. There are two types of LOS that are generally used to describe an environment:

Visual LOS is the ability to see from one site to the other. It requires only a straight liner path between two points.

RF LOS requires not only visual LOS, but also a football-shaped path free of obstacles for data to optimally travel from one point to another.

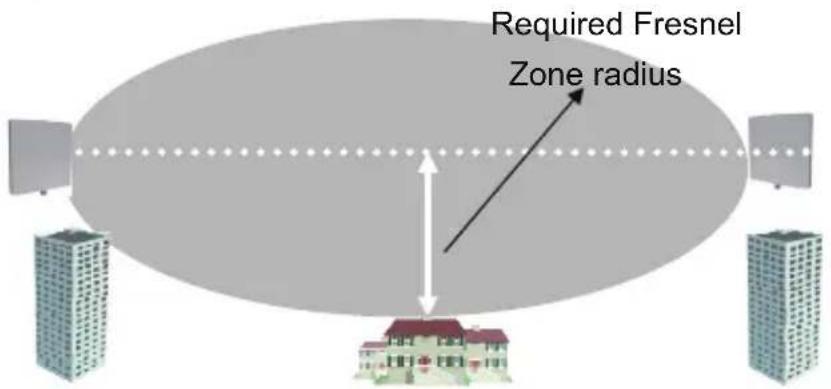

Fresnel Zone:

The Fresnel Zone can be thought of as a football-shaped tunnel between two sites that provides a path for RF signals.

Fresnel Zone Antenna 1 Antenna 2

In order to achieve the greatest range, the football-shaped path in which radio waves travel must be free of obstructions. Buildings, trees or any other obstacles in the path will decrease the communication range. If the antennas are mounted just barely off the ground, over half of the Fresnel zone ends up being obstructed by the earth resulting in significant reduction in range. To avoid this problem, the antenna should be mounted high enough off of the ground so that the earth does not interfere with the central radius of the Fresnel zone.

Fresnel Zone

Diagram of an elliptical antenna array with multiple beams and a base station, surrounded by palm trees and buildings (no text or symbols)

How far above the ground and other obstacles the antennas need to be is determined by the radius of the Fresnel zone. The radius of the Fresnal Zone depends upon the frequency and distance between the two radios. The following table provides approximate Fresnel zone radius:

In order to have LOS clearance, the combined antenna height should be equal to or at least 70% of the radius of the Fresnel zone.

Required Fresnel Zone radius

Fresnel Zone Radius:

Range Distance between antennas	Required Fresnel Zone Radius (2.4GHz Radius)	Required Fresnel Zone Radius (5GHz Radius)
300m 3.06m 2	12m
1.6Km 7.07m 4	9m
8Km 15.81m 1	0.95m
10Km 17.68m	12.25m
15Km 21.65m	15m

			###	###	###
Model Name ANT24-0230 ANT24-0401	ANT24-0500 ANT24-0501	ANT24-0501C	ANT24-0502 ANT24-0600
Frequency 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4MHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4 kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kHz 2.4kWh 2.4kWh 2.4kWh 2.4kWh 2.4kWh 2.4kWh 2.4kWh 2.4kWh 2.4kWh 2.4kWh 2.4kWh 2.4kWh 2.4kWh 2.4kWh 2.4kWh 2.4kWh 2.4kWh 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8 kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kHz 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9 kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kHz 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 2.8kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 2.9kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 100000000000000000000000000000000000000000000000000000000000000000000000kWh 2.9kWh 2.9kWh 2.9kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 3.0kWh 100000000000000000100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000kW 2.9kW 2.9kW 2.9kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 10000000000000000010000000000000000000000000000000000000000000000000000000000000000000000000000000kW 2.9kW 2.9kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 1000000000001000001000010000100001000010000100001000010000100001000010000100001000010000100001000010000100001000010000

	[1C42]	**	[50W]		[WWT]
Model Name	ANT24-0700	ANT24-0700C	ANT24-0800	ANT24-0801	ANT24-1200	ANT24-1201
Frequency 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz	2.4GHz
Signal directivity Omni-directional Omni-directional Omni-directional Directional Directional
Application range Indoor only Indoor only Indoor/ Outdoor Indoor/ Outdoor	Indoor only Outdoor
Gain (Without cable loss)	7dBi	7dBi	8dBi	8.5dBi	12dBi	12dBi
Approximate Range at 1 / 11/ 54Mbps( Works with Indoor AP )	550m/ 250m/60m	600m/ 300m/ 70m	700m/ 350m/ 100m	800m/ 500m/ 150m	1.5Km / 1.2Km/ 500m	---
Approximate Range at 1/ 11 /54Mbps(Works with Outdoor AP)	---	---	2Km / 1Km/ 400m	2.5Km / 1.5Km/ 600m	---	3Km / 2.5Km/ 1Km
Half Power Beam width	H360 V24	H360 V24	H360 V15	H70 V65	H80 V23	H50 V50
Pigtail cable length	150cm	150cm	NA	30cm	NA	30cm
Antenna fixed connector	RP-SMA plug	RP-SMA plug	N-jack	N-jack	SMA jack	N-jack
Surge protector for outdoors	---	---	Included	Included	---	Included
Default extension cable length	---	---	50cm	3M	3M	50cm
Default mounting configuration	Wall/ desktop/magnetic	Attach to AP/Router	Pole	Wall/ pole	Window/ wall	Wall/ pole
Optional accessories	---	---	---	---	---	---
Optional antenna cable kits	---	---	ANT24-CB series	ANT24-CB series	---	ANT24-CB series

Model Name ANT24-1202 ANT24-1400 ANT24-1800 ANT24-2100
Frequency 2.4GHz 2.4GHz 4.6GHz 2.4GHz
Signal directivity Omni-directional Directional Directional Directional
Application range Outdoor Outdoor Outdoor Outdoor
Gain (Without cable loss) 12dBi 14dBi 18dBi 21dBi
Approximate Range at 1/11/54Mbps(Works with Indoor AP)	--- --- --- ---
Approximate Range at 1/11/54Mbps(Works with Outdoor AP)	3Km / 1.8Km/ 450m 6Km	/4.5Km/ 1Km 8Km / 6Km/ 1.5Km	8Km / 6Km/ 1.5Km
Half Power Beam width	H360 V6	H30 V30	H15 V15	H10 V12
Pigtail cable length	30cm	30cm	---	31.5CM
Antenna fixed connector	N-jack	N-jack	N-jack	N-jack
Surge protector for outdoors	Included	Included	Included	Included
Default extension cable length	50cm	50cm	50cm	50cm
Default mounting configuration	Wall/ pole	Wall/ pole	Wall/ pole	Pole
Optional accessories	--- --- --- ---
Optional antenna cable kits	ANT24-CB series	ANT24-CB series	ANT24-CB series	ANT24-CB series

Model Name ANT70-0800 ANT70-0801 ANT70-1000 ANT70-1800
Frequency 2.4GHz/ 5GHz 2.4GHz/ 5GHz 2.4GHz/ 5GHz 2.4GHz/ 5GHz
Signal directivity Omni-Directional Omni-Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional Directional	2.4GHz: 8dBi5GHz: 8dBi	2.4GHz: 8dBi5GHz: 8dBi	2.4GHz: 8dBi5GHz: 10dBi	2.4GHz: 14Bi5GHz: 18dBi
Gain (Without cable loss)	2.4GHz: 8dBi5GHz: 8dBi	2.4GHz: 8dBi5GHz: 8dBi	2.4GHz: 8dBi5GHz: 10dBi	2.4GHz: 14Bi5GHz: 18dBi
Approximate Range at 1 / 11/ 54Mbps( Works with Indoor AP )	2.4GHz: 700m/ 350m/ 100m5GHz: 1K/ 500m/ 200m	2.4GHz: 700m/ 350m/ 100m5GHz: 1K/ 500m/ 200m	2.4GHz: 800m/ 400m/ 150m5GHz: 1.2K/ 600m/ 250m	---
Approximate Range at 1/ 11/54Mbps(Works with Outdoor AP)	2.4GHz: 800m/ 450m/ 150m5GHz: 1K/ 500m/ 200m	2.4GHz: 800m/ 450m/ 150m5GHz: 1K/ 500m/ 200m	2.4GHz: 1K/ 500m/ 200m5GHz: 1.5K/ 700m/ 300m	2.4GHz: 6K/ 4.5m/ 1Km5GHz: 8Km/ 5Km/ 1.5Km
Half Power Beam width	2.4GHz: H360 V155GHz: H360 V15	2.4GHz: H360 V155GHz: H360 V15	2.4GHz: H58 V555GHz: H45 V45	2.4GHz: H30 V305GHz: H15 V15
Pigtail cable length NA NA NA NA
Antenna fixed connector	N-jack	N-jack	N-jack	N-jack
Surge protector for outdoors	Included	Included	Included	Included
Default extension cable length	50cm	50cm	50cm	50cm
Default mounting configuration	Pole	Pole	Pole	Pole
Optional accessories	---	---	---	---
Optional antenna cable kits	ANT24-CB series	ANT24-CB series	ANT24-CB series	ANT24-CB series

NOTE:

*1. Extended range reference based on RF-Output Power 16dbm( Indoor AP), 23 ( outdoor AP) with default cable loss,

*2. The transmission distance range might depend on the two same spec antennas with default cable loss under free line-of-sight environment.

*3. Effective range based on EIRP( Effected Isotropic Radiation Power. = device output power + antenna gain - cable lost )

**BW: Beam Width. H : horizontal plane pattern, V : vertical plane pattern

The actual range will be effected by users' physical environment. The above figures are reference.

(Appendix)

CONNECTORS OUTLOOK

RP N-Jack

Two metallic connectors with internal components, one showing a yellow tip and the other a red ring (no text or symbols visible)

RP=TNC Plug

Close-up of a metallic cylindrical mechanical component with a black end cap and central hub (no visible text or symbols)

N Jack

Two metallic connectors with black caps and red ring, one with a yellow center (no text or symbols visible)

RP=SMA Plug RP-SMA Jack (D-Link AP/Router)

RP=N Plug

Two metallic coaxial connectors with internal gold contacts and a red circular housing (no text or symbols visible)

N Plug

Two metallic cylindrical connectors with internal components, one showing a yellow flame symbol (no text or labels visible)

Ver. 3.00

DFWWANT00C0030
