p S Thank you for buying this JVC colour television. To make sure you understand how to use your new TV, please read this manual thoroughly before you begin. LL _______ud

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: + Operate only from the power source specified + The main power button on the TV does not (AC 220 — 240 V, 50 Hz) on the unit. fully isolate the TV from the AC supply. Ifyou m + Avoid damaging the AC plug and power cord. are not going to use this TV foralong period & + When you are not using this unit for a long oftime, be sure to disconnect the AC plug from © period of time, it is recommended that you the AC socket. £ disconnect the power cord from the main outlet. Avoid improper installation and never position the unit 4 where good ventilation is unattainable. ï When installing this television, distance recommendations ps em must be maintained between the floor and wall, as well as installation in a tightly enclosed area or piece of furniture. J EE Adhere to the minimum distance guidelines shown for safe + T0em FR Moon 21 detsem

Failure to heed the following precautions may result in damage to the TV or

DO NOT block the TV’s ventilation openings or holes. & (Ifthe ventilation openings or holes are blocked by a newspaper or cloth, etc. the heat may not be able to get out.)

DO NOT place anything on top of the TV.

(such as cosmeties or medicines, flower vases, potted plants, cups, etc.)

DO NOT allow objects or liquid into the cabinet openings.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

DO NOT place any naked flame sources, such as lighted candles, on the TV.

The surface of the TV screen is easily damaged. Be very careful with it when handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully. Never use any cleaner or detergent on it.

In the event of a fault, unplug the unit and call a service technician, Do not attempt to repair it yourself or remove the rear cover.

AV-32/28T4SP / LCT1571-001B-U / English : 7 AV-32&28T4SP_Engbook Page 2 Wednesday, February 25, 2004 10:05 AM 7

L CONTENTS Setting up your TV... . Connecting the aerial and VCR 3

Connecting the power cord to the AC Putting the batteries into the Remote control... Initial settings ……… T-V LINK functions … TV buttons and functions. Turn the Main power on. Turn the TV on from standby mode Choose a TV channel Adjust the volume … Remote control buttons ‘and functions. Turn the TV on or off from standby mode … Choose a TV channel and watch images from external devices. Adjust the volume Information function . ZOOM functio! HYPER SOUN Return to TV channel instantly

Operating a JVC brand VCR or DVD Teletext function Basic operation . Using the List Mode . Hold... Sub-page

7 AV-328&28T4SP_Engbook Page 3 Wednesday, February 25, 2004 10:05 AM Setting up your TV Caution + Turn off all the equipment including the TV before connecting anything.

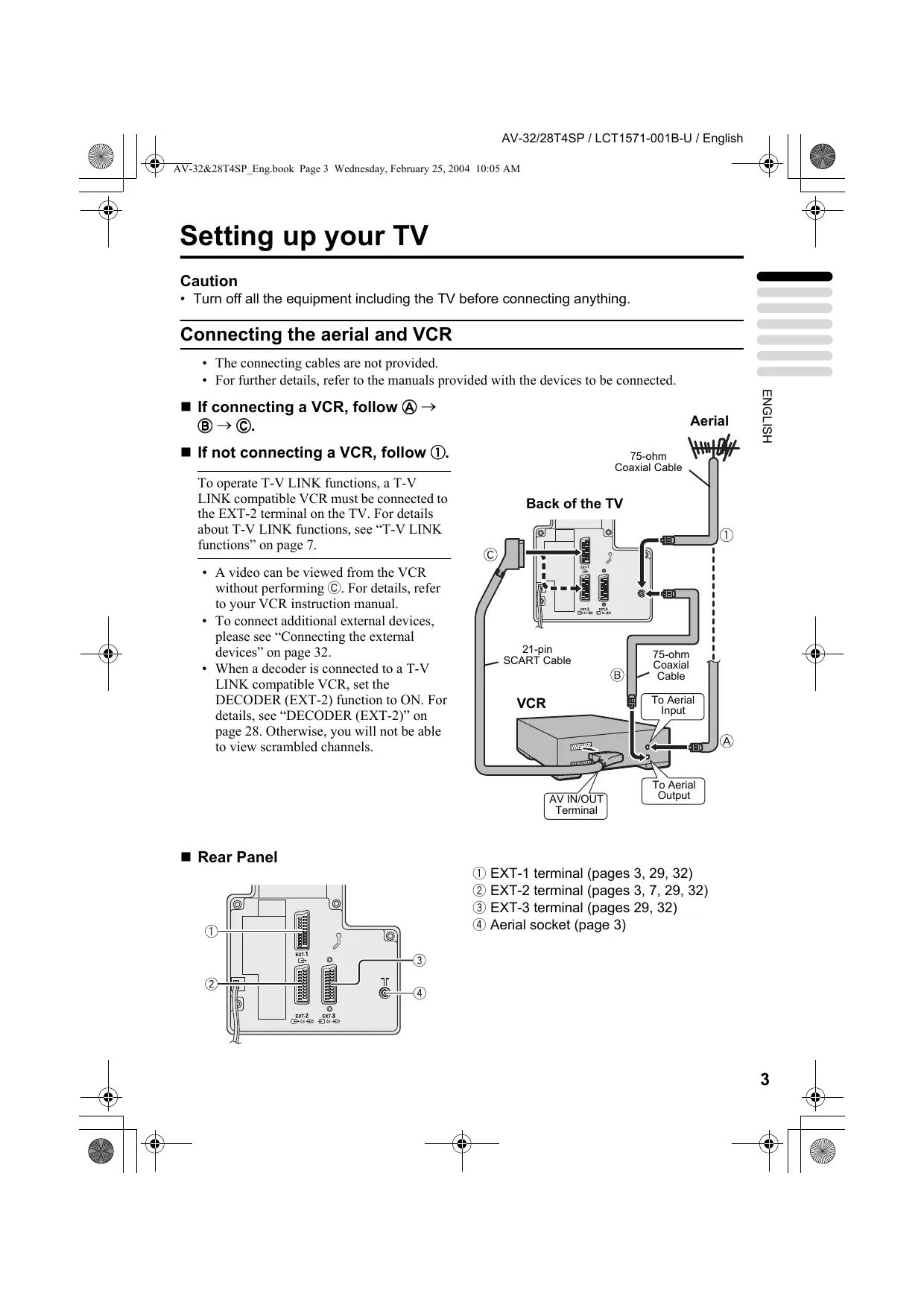

Connecting the aerial and VCR

+ The connecting cables are not provided. + For further details, refer to the manuals provided with the devices to be connected.

= If connecting a VCR, follow @ — . @-©. Aerial

= If not connecting a VCR, follow ®. 75-ohm Coaxial Cable

To operate T-V LINK functions, a T-V LINK compatible VCR must be connected to Back of the TV the EXT-2 terminal on the TV. For details about T-V LINK functions, see “T-V LINK functions” on page 7.

+ A video can be viewed from the VCR without performing ©). For details, refer to your VCR instruction manual.

To connect additional external devices, please see “Connecting the external devices” on page 32.

When a decoder is connected to a T-V LINK compatible VCR, set the DECODER (EXT-2) function to ON. For details, see “DECODER (EXT-2)” on page 28. Otherwise, you will not be able to view scrambled channels.

75-ohm Coaxial Cable

L < __— m Z a} [mt e] T À < 3

FE AV-32/28T4SP / LCT1571-001B-U / English 4 PAT | 7 AV-32&28T4SP_Engbook Page 4 Wednesday, February 25, 2004 10:05 AM 7

N &— Setting up your TV Connecting the power cordto Initial settings the AC outlet When the TV is first turned on, it enters the u initial setting mode, and the JVC logo is Caution displayed. Follow the instructions on the on- + Operate only from the power source specified screen display to make the initial settings. (AC 220 — 240 V, 50 Hz) on the unit. TV Putting the batteries into the vA Remote control Use two AA/RG dry cell batteries. 1 mess the Main power button on the Insert the batteries from the © end, making The P. L ligh 4 and the JVC sure the ® and © polarities are correct. he Power lamp lights red and the logo is displayed. RO) Ps Ps € L &— Power lamp Main power button +_The JVC logo appeares only once + Follow the warnings printed on the when your TV has been turned on. In batteries. this case, use the “LANGUAGE” and + Battery life is about six months to one “AUTO PROGRAM” functions to year, depending on your frequency of use. make the initial settings. For details, + The batteries we supply are only for see “SET UP menu” on page 24. setting up and testing your TV, please replace them as soon as necessary. 2 Press the OK button +_Ifthe remote control does not work The LANGUAGE menu appears. properly, replace the batteries. RE o NEDERLANDS Fatals SRE HAS Rose HE MT ARE ERNO HAE Be 7

3 Press the €/k and V/A buttons to choose ENGLISH. Then press the OK button English is set for the on-screen display description. The COUNTRY menu appears as a sub-menu of the AUTO PROGRAM function.

There are two COUNTRY menus. Pressing the yellow button changes the COUNTRY menu as follows:

couvre. © DEUTSCH SUETLERLAND FRANCE DARMARE, FTALIA SVERL PARA ÉsreRRereN NEDERLAND GORGE BÉLEZUN SUonE LOXEMDOURE PORTUGAL ES] sur ==

4 Press the @/R and V/A buttons to choose the country where you are now located

After the TV channels have been registered in the Programme numbers (PR), the EDIT menu appears

7 MOVE Bacs You can proceed to edit the Programme numbers (PR) using the EDIT/MANUAL function. For detail see “EDIT/MANUAL” on page 24. If you do not need to use the EDIT/ MANUAL function, go to the next step.

5 Press the blue button to start the AUTO PROGRAM function The AUTO PROGRAM menu appears and received TV channels are automatically registered in the Programme numbers (PR).

AUTO PROGRAM CH 24 10%

2e; + To cancel the AUTO PROGRAM function: Press the TV button.

TVUNK DOWNLOAD TV —+ VCR SE ES If you do not have a T-V LINK compatible VCR connected:

Press the TV button to exit the T-V LINK menu.

The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal:

Follow the operating procedure “Downloading the data to VCR” on

page 6 to transmit the Programme number (PR) data.

AV-32/28T4SP / LCT1571-001B-U / English : PS 7 : 7 AV-32&28T4SP_Engbook Page S Wednesday, February 25, 2004 10:05 AM 7

L < __— m Z a} [mt e] T À < 5

FE Setting up your TV Now, th: jal settings are complete, and you can watch the TV

+ When your TV can detect the TV channel name from the TV channel broadcast signal, it automatically registers the TV channel name (ID) to the Programme number (PR) in which the TV channel has been registered.

If a TV channel you want to view is not set to a Programme number (PR), manually set it using the MANUAL function. For details, see “EDIT/ MANUAL on page 24.

The TV channel is not registered in Programme number PR 0 (AV). When you want to register a TV channel to PR 0 (AV), manually set it using the MANUAL function. For details, see “EDIT/MANUAL” on page 24.

Downloading the data to VCR You can transmit to the latest Programme numbers (PR) data to the VCR with the T-V LINK function.

+ Only when the T-V LINK compatible VCR is connected to the EXT-2 terminal, this operation is enabled.

+ Only when the T-V LINK menu is being displayed, this operation is enabled.

DOWNLOAD TV + VER D 2 ET

2 Press the OK button The data transmission begins.

DOWNLOAD TV —+ VER TRANSFER The T-V LINK menu disappears once the data transmission ends.

When the T-V LINK menu is changed over to another menu: The TV has finished its menu. This new menu is operated from the VCR. See the VCR instruction manual for what to do next.

If “FEATURE NOT AVAILABLE” appears at the T-V LINK menu: Check the following three items. Then press the < button to retry data transmission.

+ Has the T-V LINK compatible VCR been connected to the EXT-2 terminal?

+ Has the VCR power been turned on?

+ Does the SCART cable that is connected to the EXT-2 terminal to T- V LINK compatible VCR have all proper connections?

AV-32/28T4SP / LCT1571-001B-U / English à À PS : 7 AV-32&28T4SP_Engbook Page 6 Wednesday, February 25, 2004 10:05 AM 7

PS 7 AV-328&28T4SP_Engbook Page 7 Wednesday, February 25, 2004 10:05 AM

Setting up your TV T-V LINK functions

When a T-V LINK compatible VCR is connected to the EXT-2 Terminal on the TV, it is easier to set up the VCR and to view videos. T-V LINK uses the following features:

To use T-V LINK functions:

A T-V LINK compatible VCR is necessary. The VCR must be connected to the EXT-2 terminal on the TV by a fully wired SCART cable.

A “T-V LINK compatible VCR” means a JVC VCR with the T-V LINK logo or a VCR with one of the following logos. However, these VCRS may support some or all of the features described below. For details, refer to your VCR instruction manual,

“Q-LINK” (a trademark of Panasonic Corporation)

“Data Logic” (a trademark of Metz Corporation)

“Easy Link” (a trademark of Phillips Corporation)

“Megalogic” (a trademark of Grundig Corporation)

“SMARTLINK" (a trademark of Sony Corporation)

= Pre-set Download Download the registered data on the TV channels from the TV to the VCR. The Preset Download function automatically begins when the initial setting is complete or whenever the AUTO PROGRAM or EDIT/ MANUAL operations are performed. + This function can be operated via VCR

AV-32/28T4SP / LCT1571-001B-U / English A ES K@

When “FEATURE NOT AVAILABLE” is SSSR

IF“FEATURE NOT AVAILABLE" is

displayed, the download was not performed

correctly. Before trying to download again,

ensure the following:

+ The VCR power is turned on.

+ The VCR is T-V LINK compatible.

+ The VCR is connected to the EXT-2 terminal.

+ The SCART cable is fully wired.

“What You See Is What You Record”

You can record to VCR the images that you are currently viewing on TV by a simple operation. For details, read the manual for your VCR. Operate via the VCR. “VCR IS RECORDING" is displayed.

In the following conditions, the VCR will stop recordi the TV is turned off, if the TV channel or input is switched, or if the menu is displayed on the TV:

When recording images from an external device connected to the TV.

When recording a TV channel after it has been unscrambled on a decoder.

When recording a TV channel by using the TV's output because that TV channel cannot be properly received on the VCR’s tuner.

When the VCR is not ready (for example, when there is no tape inserted), “NO RECORDING" is displayed.

+ Operation via the TV is not possible. Generally, the VCR cannot record a TV channel that cannot be received properly by the VCR'S tuner, even though you can view that TV channel on the TV. However, some VCRS can record a TV channel by using the TV”s output if that channel can be viewed on the TV, even though the TV channel cannot be received properly by the VCR'S tuner. For details, refer to your VCR instruction manual.

AV-32/28T4SP / LCT1571-001B-U / English æ | l4 IL ‘4 PT AV-32&28TASP_Eng.book Page 8 Wednesday, February 25, 2004 10:05 AM 7 k #

TV buttons and functions

Turn the Main power on

Press the Main power button on the TV.

The Power lamp lights red and your TV is in the standby mode.

To turn the Main power off: Press the Main power button again. The Power lamp goes off.

+ The main power button on the TV does not fully isolate the TV from the AC supply. If you are not going to use this TV for a long period of time, be sure to disconnect the AC plug from the AC socket.

Refer to the pages in parentheses for details. (D Remote control sensor

) Power lamp (pages 4, 8)

Main power button (pages 4, 8) Headphone jack (mini jack) (page 32) ) P V/A buttons/ —/+ buttons (page 8) 1 (Volume) button (page 8)

® EXT-4 terminal (pages 29, 32)

Turn the TV on from standby mode

Press the P V/A buttons to turn the TV on from standby mode

When the TV is turned on, the power lamp dims slightly.

Press the P V/A buttons to choose a programme number (PR) or an EXT terminal

1 Press the 21 (Volume) button The volume level indicator appears.

2 Press the —/+ buttons whil volume level indicator is

AV-32/28T4SP / LCT1571-001B-U / English 4 PAT | 7 AV-32&28T4SP_Engbook Page 9 Wednesday, February 25, 2004 10:05 AM 7

Remote control buttons and functions $

VCR/DVD/Teletext control button VCR © DVD switch © (text) button

Turn the TV on or off from standby mode

Press the O/1 (standby) button to turn

When the TV is turned on, the power lamp

+_ The power can be turned on by pressing the TV button, W/A buttons or number buttons. 7

Remote control buttons and functions

AV-32/28T4SP / LCT1571-001B-U / English PS 7 7 AV-328&28T4SP_Engbook Page 10 Wednesday, February 25, 2004 10:05 AM 7

Choose a TV channel and watch images from external devices

+ Ifthe picture is tilted, correct it. See “PICTURE TILT (Only for AV- 32T4SP)” on page 31.

= Use the number buttons: Enter the programme number (PR) of the channel using the number buttons. Example: + PRG — press 6 + PR 12 + press 1 and 2

= Use the V/A buttons: Press the w/A buttons to choose the programme number (PR) you want or an EXT terminal.

+ You can choose a video input signal from the S-VIDEO signal (Y/C signal) and regular video signal (composite signal). For details, see “S@) (S- VIDEO input)” on page 29.

If you do not have a clear picture or no colour appears, change the colour system manually. See “COLOUR SYSTEM” on page 19.

If you choose an EXT terminal with no input signal, the EXT terminal number becomes fixed on the screen.

+ This TV set has a function which can automatically change over the input according to a special signal output from an external device. (The EXT-4 terminal does not support this function.)

To return to a TV channel: Press the TV button, the W/A buttons or the number buttons.

To use the Programme number PR 0 (AV):

When the TV and VCR are connected only by the Acrial cable, choosing the Programme number PR 0 (AV) allows you to view images from the VCR. Set the VCR RF channel to the Programme number PR 0 (AV) manually. For details, see “EDIT MANUAL” on page 24.

Pressing the O CAV) button changes the choice as follows:

Programme numbers. PRTPR99

+ The VCR RF channel is sent as the RF signal from the VCR.

+ Also refer to your VCR instruction manual.

‘ WP Body_Eng.fm Page 11 Friday, February 27, 2004 1:07 PM AV-32/28T4SP / LCT1571-001B-U / English An

LA Remote control buttons and functions

Press the 4/k buttons to adjust the volume.

The Volume indicator appears and the volume changes as you press the 4/> buttons.

# Muting the sound Press the & (muting) button to turn off the sound. Pressing the & (muting) button again restores the previous volume level.

Information function

You can see the current time or the PR LIST.

From the PR LIST, you can choose a channel or EXT terminal.

Press the © (Information) button to display the information you want to see.

Pressing the © (Information) button changes the display as follows:

°E EECT No indication |

The current time of the teletext data is

Ifthe TV has not received a TV channel that

has teletext programmes since it was turned

on, the time display is blank. To view the

current time, choose a TV channel that has

teletext programmes.

+ An incorrect current time is sometimes displayed when watching videos.

The programme number (PR) and EXT terminal list is displayed.

Pressing the OK button after choosing the programme number (PR) or EXT terminal with the €/R/W/A buttons will display the chosen programme or EXT terminal.

+ For programme numbers (PR) for which the CHILD LOCK function is set, the À (CHILD LOCK) mark is displayed. For details see “CHILD LOCK” on page 22.

You can change the screen size according to the picture aspect ratio. Choose the optimum one from the following ZOOM modes.

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode to

16:9 ZOOM mode or FULL mode according to the WSS signal.

Ifa WSS signal is not included, the picture is displayed in accordance with the ZOOM mode set with the 4:3 AUTO ASPECT function.

+ For details of the 4:3 AUTO ASPECT function, see “4:3 AUTO ASPECT” on page 20.

When the AUTO (WSS) mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, press the ZOOM button and change to another ZOOM mode.

REGULAR: Use to view a normal picture (4:3 aspect ratio) as its original size is.

£ < —— m Z © [es ca] T À < 1 75

Remote control buttons and functions

This mode stretches the left and right sides of a normal picture (4:3 Aspect Ratio) to fill the screen, without making the picture appear unnatural.

+_ The top and bottom of the picture are

14:9 ZOOM: This mode zooms up the Wide Picture (14:9 Aspect Ratio) to the upper and lower limits of the screen.

This mode zooms up the Wide Picture (16:9 Aspect Ratio) to the full screen.

CX où /o 16:9 ZOOM SUBTITLE:

This mode zooms up the Wide Picture (16:9 Aspect Ratio) with subtitles to the full

Screen. Le} (°] _ LC] FULL: This mode uniformly stretches the left and

right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

Use for pictures with a 16:9 aspect ratio that have been squeezed into a normal picture (4:3 aspect ratio), you can restore their original dimensions.

= Choose the ZOOM mode

1 Press the ZOOM button to display the ZOOM menu

163 200 169 200M sugrme rs + The ZOOM button does not work in the twin pictures mode.

2 Press the W/A buttons to choose a ZOOM mode. Then press the OK button The picture expands and the chosen ZOOM mode is displayed in about 3 seconds.

+_The ZOOM mode may be automatically changed due to the control signal from an external device. When you want to return to the previous ZOOM mode, choose the ZOOM mode again.

# Adjusting the visible area of the

If subtitles or the top (or bottom) of the picture are cut off, adjust the visible area of the picture manually.

1 Press the ZOOM button The ZOOM menu appears.

2 Press the OK button to display the ZOOM mode indication Indicator is displayed.

3 While it is displayed, press the W/ buttons to adjust the visible area vertically

*_ You cannot adjust the visible area in REGULAR or FULL mode.

AV-32/28T4SP / LCT1571-001B-U / English PS 7 7 AV-32&28T4SP_Eng book Page 12 Wednesday, February 25, 2004 10:05 AM 7

Remote control buttons and functions

HYPER SOUND function

You can enjoy sounds with a wider ambience.

Press the © (hyper sound) button to turn the HYPER SOUND function on or off

+ The HYPER SOUND function does not work properly with mono sound.

The HYPER SOUND function can be also turned on or off by using the SOUND menu. For details, see “HYPER SOUND” on page 21.

The HYPER SOUND function works only for the audio signal output from TV channels. It cannot work for the audio signal input from EXT sources.

The HYPER SOUND function affects the audio signal output from the EXT-1 and EXT-2 terminals. If you want to output the normal audio signal from the EXT terminals, turn the HYPER SOUND function off.

Return to TV channel instantly

You can return to a TV channel instantiy.

Press the TV button The TV returns to the TV mode and a TV channel appears.

Operating a JVC brand VCR or DVD player

You can operate a JVC brand VCR or DVD player. Pressing the button having the same appearance as the original remote control button of a device makes the function work in the same way as the original remote control.

1 Set the VCR © DVD switch to the VCR or DVD position VCR: When you are operating the VCR, set the switch to the VCR position. DVD: When you are operating the DVD player, set the switch to the DVD position.

2 Press the VCR/DVD Control Button to control your VCR or DVD player + If your device is not made by JVC, these buttons cannot be used. Even if your device is made by JVC, some of these buttons or any one of the buttons may not wvork, depending on the device. You can use the V/A buttons to choose a TV channel. The VCR will receive or choose the chapter the DVD player plays back. Some DVD player models use the WA buttons for both operating of Fast forward/backward functions and choosing the chapter. In this case, the <>» buttons do not work.

AV-32/28T4SP / LCT1571-001B-U / English à À ‘ WP AV-32&28T4SP_Eng.book Page 13 Wednesday, February 25, 2004 10:05 AM

AV-32/28T4SP / LCT1571-001B-U / English 4 PAT | 7 AV-32&28T4SP_Eng book Page 14 Wednesday, February 25, 2004 10:05 AM 7

You can view three types of teletext broadcasts on the TV: FLOF (Fastext), TOP and WST.

1 Choose a TV channel with a teletext broadcast

4 Choose a teletext page by pressing the V/A buttons, number buttons or colour buttons

To return to the TV mode: Press the TV button or © (Text) button.

If you have trouble receiving teletext broadcasts, consult your local dealer or the teletext station.

The ZOOM function will not work in the TV and text mode or Text mode. No menu operations are possible when viewing a teletext programme. Language display depends on the country which was set on the COUNTRY menu. If characters on a Teletext programme do not appear properly, change the COUNTRY setting to other country”s. To change the COUNTRY setting, perform steps 1 and 2 of the “AUTO PROGRAM” procedure on page 24 and then press the OK button.

< D 2 Set the VCR © DVD switch to the © (Text) position

3 Press © (Text) button to display the teletext Pressing © (Text) button changes the mode as follows:

You can store the numbers of your favourite teletext pages in memory and call them up quickly using the colour buttons.

= To store the page numbers:

1 Press F.T/L button to go into the List mode

The page numbers you have stored are displayed at the bottom of the screen.

2 Press a colour button to choose a position. Then press the number buttons to enter the page number

3 Press and hold down the 9 (Store) button The four page numbers blink white to show that they are stored in memory.

AV-32/28T4SP / LCT1571-001B-U / English 4 PAT | 7 AV-32&28T4SP_Eng book Page 15 Wednesday, February 25, 2004 10:05 AM 7

N &— Teletext function = To call up a stored page: ed P pag Reveal 1 Press the F.T/L button to enter the - List mode Some teletext pages include hidden text (such as answers to a quiz). 2 Press a colour button having a You can display the hidden text. stored page Each time you press the Reveal) OC button, text is hidden or revealed z To exit the List mode: 142: 1+223 ü 2x3: x3= G Press the F.T/L button again. 2x3 Es Hold You can hold a teletext page onthe screen for SIZE along 2 you want. even wie several other You can double the height of the teletext teletext pages are being received. display. Press the ( (Hold) button Press the ©] (Size) button Hold indication —#æ [ T el TE] mare SIZE PLAT Le > To cancel the Hold function: Le D — Press © (Hold) button again. $ Il 1 E Sub-page Some teletext pages include sub-pages that Index are automatically displayed. - You can hold any sub-page, or view it at any You can return to the index page instantly. time. Press the © (Index) button 1 Press the ©) (Sub-page) button to Returns to page 100 or a previously specified operate the Sub-page function page. 2 Press the Number buttons to enter a sub-page number Example: + 3rd sub-page — press D, 0, 0 and 3. To cancel the Sub-page function: Press the (®) (Sub-page) button again. 15 7 D

AV-32/28T4SP / LCT1571-001B-U / Engji à

WP AV-32&28T4SP_Eng.book Page 16 Wednesday, February 25, 2004 10:05 AM Teletext function

You can search for a teletext page while watching TV.

1 Press the number button to enter a page number, or press a colour button The TV searches for a teletext page.

Press © (Cancel) button The TV programme appears.

Press © (Cancel) button to return

to a teletext page when the page

number is on the screen

+ The TV mode c: t be resumed even by pressing the Cancel) button. À TV programme is temporarily displayed instead of the teletext programme.

AV-32/28T4SP / LCT1571-001B-U / English 4 PAT | 7 AV-32&28T4SP_Eng book Page 17 Wednesday, February 25, 2004 10:05 AM 7

Using the TV’s menu $

This TV has a number of functions you can 4 Pressthe ®buttonstochoose SEE operate using menus. To fully utilize all your the setting of that function TV°s functions, you need to understand the g basic menu operating techniques fully * If you want to operate 2 function S Ê su which appears only with its name, A LE pu puton follow the descriptions of that function (mins) on the following pages. @® +_ The display appearing at the bottom of a menu shows you a button on the m remote control that you can use when & you operate a chosen function. ü os 2 Basic operation TV button OK button 1 Press the OK button to display the 5 Press the OK button to complete MENU (main menu) the setting The menu disappears. MN + When watching the television with the ° NTSC system, the menus are displayed es at about half of their normal vertical Er size. F7 S Los Le € D &— 2 Press the W/A buttons to choose a menu title, and press the OK button The menu appears. To return to the previous menu: Press the ® (information) button. To exit a menu instantly: Press the TV button. 3 Press the W/A buttons to choose a function + For details of the functions in the menus, see the following pages. 17 7 D

WP Body_Eng.fm Page 18 Wednesday, March 17, 2004 7:22 PM PICTURE menu

AV-32/28T4SP / LCT1571-001B-U / English An

LA FRE COLOUR © CPITURENODE 7] se a | cu mi You can adjust the picture colour. EotouR F <:lighter Sue roue _— » : decper SR 72 EE en D HUE UT You can adjust the picture tint. + While the PICTURE menu is displayed, <:reddish » : greenish

pressing the blue button will set the CONTRAST, BRIGHT, SHARP, COLOUR, HUE settings to their default settings.

+ You can change the HUE setting (picture hue) when the colour system is NTSC 3.58, or NTSC 4.43.

PICTURE MODE You can choose one of three PICTURE MODES to adjust the picture settings automatically.

BRIGHT: Heightens contrast and sharpness.

> STANDARD: Standardizes picture adjustment.

SOFT: Softens contrast and sharpness.

CONTRAST You can adjust the picture contrast. <: lower > : higher

BRIGHT You can adjust the picture brightness. <:darker » : brighter

SHARP You can adjust the picture sharpness. <softer D : sharper

You can select one of three COLOUR TEMP. modes (three tones of white) to adjust the white balance of the picture. Since white is the colour which is used as a reference for all the other colours, changing the COLOUR TEMP. mode affects the appearance of all the other colours on the screen.

A bluish white. Using this mode when watching bright pictures allows you to enjoy a more vivid and bright picture.

NORMAL: The normal white colour.

WARM: A reddish white. Using this mode when watching films allows you to enjoy colours that are characteristic of films.

‘ WP Body_Eng.fm Page 19 Wednesday, March 17, 2004 7:22 PM AV-32/28T4SP / LCT1571-001B-U / English À Ÿ

FEATURES Choose FEATURES and press the OK or D button to display the sub-menu.

This mode reduces any “noise” (interference or snowing) in the current picture. The function also adjusts the optimum sharpness of the picture (SHARP).

The AUTO VNR function is cancelled. If you set the mode to AUTO but feel that the Sharpness of the original picture has not been reproduced fully, change the mode to OFF. However, any noise remaining in the original picture may be emphasized.

This mode reduces any noise irrespective of state of the picture. If you set the mode to AUTO but feel that the sharpness of the original picture has not been reproduced, change the mode MIN. However, any noise remaining in the original picture may be emphasized a little. And this may reduce the sharpness of the picture a little.

This mode always reduces any noise as much as possible, irrespective of state of the picture. When you set the mode to AUTO but Still notice some noise, change the mode to MAX. However, this may reduce the sharpness of the picture.

# COLOUR SYSTEM The colour system is chosen automatically. However, if the picture is not clear or no colour appears, choose the colour system manually.

1 Choose COLOUR SYSTEM. Then press the OK or button The sub-menu of the COLOUR SYSTEM function appears.

NTSC 3.58 MHz system

NTSC 4.43 MHz system

This function detects a colour system from the input signal. You can only use this when you are viewing a picture from programme number PR 0 (AV), or an EXT terminal.

The AUTO function may not function properly if you have poor signal quality. Ifthe picture is abnormal in the AUTO function, choose another colour system manually.

When in the Programme numbers PR 0 (AV) to PR 99, you cannot choose NTSC 3.58 or NTSC 443.

£ < —— m Z © [es ca] T À < 19 75

AV-32/28T4SP / LCT1571-001B-U / English d d||e Y7 AV-32&28T4SP_Eng.book Page 20 Wednesday, February 25, 2004 10:05 AM N 4

# 4:3 AUTO ASPECT You can choose one of three ZOOM modes, REGULAR, PANORAMIC or 14:9 ZOOM, as the ZOOM mode for the normal picture (43 aspect ratio).

£ c < < SOUND menu LL _______ud sou» HYPER SOUND ° = — j i i Es = — You can enjoy sounds with a wider HYPER SOUNO de ambience. ON: LE This function is turned on. OFF: " STEREO Ie Il Th imtion is turned off. The menu ê When you are viewing a bilingual broadcast — _ - 2 programme, you can choose the sound from + The HYPER SOUND function does not Bilingual 1 (Sub 1) or Bilingual II (Sub 11). work properly with mono sound. When the stereo broadcasting is received * You can tumonoroffthe HYPER poorly, you can change from stereo to mono SOUND function with a single press. For sound so that you can hear the broadcast details, see “HYPER SOUND function’ more clearly and easily. on page 13. @: Stereo sound + The HYPER SOUND function works : $ only for the audio signal output from TV © : mono sound channels. It cannot work for the audio 1 : Bilingual I (sub 1) signal input from EXT sources. : Bilingual II (sub 11) + The HYPER SOUND function affects the : BEnguar (su audio signal output from the EXT-1 and = u EXT-2 terminals. If you want to output k < The sound mode you can choose diffèrs die normal audio sigral om the EXT £ depending on the TV programme. terminal, turn the HYPER SOUND + This function does not work in the EXT function off. modes. BASS You can adjust the low tone of the sound. <:weaker D : strong TREBLE You can adjust the high tone of the sound. <:weaker D : strong BALANCE You can adjust the volume balance between the left and right speaker. <:tumn the left speaker’ volume level up. D : turn the right speakers volume level up. 21 Ps h—

AV-32/28T4SP / LCT1571-001B-U / English e|4 + 4 KY7 AV-32&28T4SP_Eng.book Page 22 Wednesday, February 25, 2004 10:05 AM 7 ;

LS SLEEP TIMER You can set the TV to automatically turn off after a specified period of time.

7 2 Press the 4/k buttons to set the È period of time. Then press the OK button

You can set the period of time a maximum of 120 minutes (2 hours) in 10 minute increments.

One minute before the SLEEP TIMER function turns off the TV, ‘GOODNIGHT!” appears.

The SLEEP TIMER function cannot be used to turn off the TV’s main power.

When the SLEEP TIMER function is on, you can display the Sub-menu of the SLEEP TIMER function again to confirm and/or change the remaining period of time of the SLEEP TIMER function. Press the OK button to exit the menu after confirming and / or changing the remaining time.

To cancel the SLEEP TIMER function:

Press the 4 button to set a period of time to “OFF”.

BLUE BACK You can set the TV to automatically change to a blue screen and mute the sound if the signal is weak or absent, or when there is no input from an external device.

ON: This function is turned on.

OFF: This function is turned off.

CHILD LOCK When there is a TV channel you wish your children not to watch, you can use the

CHILD LOCK function to lock out the TV

channel. Even when a child chooses a

Programme number (PR) in which a locked

TV channel has been registered, the screen

will change to blue and displays À (CHILD LOCK) so the TV channel cannot be viewed.

Unless you enter a pre-set ID number by a

special operation, the lock cannot be released

and the child cannot view the TV channel 7 programmes.

= To set the CHILD LOCK function

1 Choose CHILD LOCK, then press the 0 button “SET ID NO.” (ID number setting screen) appears.

2 Set the ID number to your liking

1 Press the V/A buttons to choose a number.

2 Press the 4/k buttons to move the cursor.

3 Press the OK button

The Sub-menu of CHILD LOCK appears.

2 Press the © (Information) button to display “ID NO.” (ID NO. input screen)

CHLDLoK PR Bi cHcc a or ï L PE d ei à i ci $ où 2 ë a Er] on (o=e) ==

4 Press the W/A buttons to choose a TV channel Every time you press the W/A buttons, the Programme number (PR) changes, and the picture of the TV channel registered in the Programme number (PR) is displayed on the screen.

5 Press the blue button and set the

CHILD LOCK function. Then press the OK button

/ À (CHILD LOCK) appears and the TV D channel is locked. To reset the CHILD LOCK function: Press the blue button again. À (CHILD LOCK) disappears.

To disable easy resetting of the CHILD LOCK function, the menu disappears by choosing the CHILD LOCK function and pressing the OK button as in the ordinary menu operation.

= To view a locked TV channel

1 Choose a Programme number (PR) in which a TV channel locked with the Number buttons or PR LIST The screen changes to blue and the À (CHILD LOCK) appears. You cannot view the TV channel.

3 Press the Number buttons to enter the ID number The lock is temporarily released so you can view the TV channel.

If you have forgotten the ID number:

Perform step 1 of “To set the CHILD LOCK function”. After confirming the ID number, press the TV button to exit the menu.

+ Even if you reset the lock temporarily, it does not mean that the CHILD LOCK function set for the TV channel is cancelled, The next time anyone attempts to view the TV channel, it will be locked again.

When you would like to cancel the CHILD LOCK function, you must perform the operation “To set the CHILD LOCK function” again.

To disable easy choosing of a Programme number (PR) in which a locked TV channel has been registered, the Programme number (PR) has been set that it cannot be chosen by the W/A buttons or the operation buttons at the TV.

To disable easy resetting of the lock, “ID NO.” (ID NO. input screen) is set so that it cannot appear unless you press the ® (Information) button.

AV-32/28T4SP / LCT1571-001B-U / English à À An

‘ WP AV-32&28T4SP_Eng.book Page 23 Wednesday, February 25, 2004 10:05 AM NA L < __— m Z a} [mt e] T À < 23

FE AV-32/28T4SP / LCT1571-001B-U / English : 7 AV-32&28T4SP_Eng book Page 24 Wednesday, February 25, 2004 10:05 AM 7

seruP EDIT/MANUAL Qeueree-ns

? The EDIT/MANUAL functions are divided Honor of into two types: editing of the current FOTRE NL > Programme numbers (PR) (EDIT functions) and manual registration of a TV channel you want to view to the Programme number (PR) (MANUAL function). The details about these functions are as follows:

AUTO PROGRAM MOVE: The AUTO PROGRAM function TV This function changes a Programme number channel automatic registration which was (PR) of a TV channel. performed in the “Initial settings” (page 4) 1D: can be preformed again. This function registers a Channel name (ID) 1 Choose AUTO PROGRAM, then to a TV channel, press the OK or button INSERT: The COUNTRY menu appears as a sub- This function adds a new TV channel in the menu of the AUTO PROGRAM function. current Programme numbers (PR) list by There are two COUNTRY menus. using the CH/CC number. Pressing the yellow button changes the + You cannot use the INSERT function if COUNTRY menu as follows: you do not know a Channel number of a TV channel. Use the MANUAL function / 2 to register a TV channel in the < CCR HEUTTUs Programme number (PR). HAE SsFeRtreN DELETE: RER LAND NOÉ : AE CHE FLE This function deletes an unnecessary TV = re channel. 2 MANUAL:

This function manually registers a new TV channel in a Programme number (PR).

2 Press the 4/k and V/A buttons to . choose the country where you are Caution

now located + Using the MOVE, DELETE or INSERT function rewrites the current Programme 3 Perform steps 5 and 6 of the “Initial numbers (PR) list. DEEE the settings” (page 5) Programme number (PR) of some of the

TV channels will Pas e.

Using the MANUAL function for a TV channel for which the CHILD LOCK function has been set cancels the CHILD LOCK function for the TV channel.

Using the MANUAL function for a TV channel for which the DECODER (EXT-2) function has been set to ON returns the setting of the DECODER (EXT-2) function for the TV channel to OFF.

When a TV channel has already been registered in PR 99, using the INSERT function deletes the TV channel.

1 Choose EDIT/MANUAL, then press the OK or & button The EDIT menu appears.

2 Follow the operation description of a function you want to use and operate the function

3 Press the OK button to complete the settings The T-V LINK menu appears.

TU DOWNLOAD TV + VER

If you do not have a T-V LINK compatible VCR connected: Press the TV button to exit the menu.

The T-V LINK menu disappears.

If you have a T-V LINK compatible VCR connected to the EXT-2 terminal: Follow the operating procedure “Downloading the data to VCR? on page 6 to transmit the Programme number (PR) data.

+_ For Programme number PR 0, “AV” appears in the Programme numbers (PR) list. An EXT terminal number does not appear in the Programme numbers (PR) list. The CH/CC number is a number unique to the TV and corresponding to the Channel number of a TV channel. For the relationship of a Channel number and a CH/CC number, see “CH/CC numbers” on page 34.

1 Press the W/A buttons to choose a TV channel Every time you press the W/A buttons, the Programme number (PR) is changed over, and the picture of the TV channel registered in the Programme number (PR) appears on the screen.

2 Press the & button to start the MOVE function

3 Press the W/A buttons to choose a new Programme number (PR)

To cancel the MOVE function: Press the © (Information) button.

4 Press the < button to change the Programme number (PR) of a TV channel to a new Programme number (PR)

1 Press the W/A buttons to choose a TV channel Every time you press the W/A buttons, the Programme number (PR) is changed over, and the picture of the TV channel registered in the Programme number (PR) appears on the screen.

2 Press the yellow button to delete the TV channel The TV channel is deleted from the Programme numbers (PR) list.

AV-32/28T4SP / LCT1571-001B-U / English : à d : 7 AV-32&28T4SP_Eng book Page 25 Wednesday, February 25, 2004 10:05 AM $

7 AV-328&28T4SP_Engbook Page 26 Wednesday, February 25, 2004 10:05 AM SET UP menu

1 Press the V/A buttons to choose a TV channel Every time you press the W/A buttons, the Programme number (PR) is changed over, and the picture of the TV channel registered in the Programme number (PR) appears on the screen.

2 Press the red button to start the ID function

Er PR & cHcc Le CHEN 2 2 cn 2 5 DE ï cu 24 or ÉTAT + ë CES TVEBor Er Ke ARE

3 Press the V/A buttons to choose

the first character of a Channel name (ID) you want to attach to the TV channel

Enr PR Bi cuce Vs ET

ID LIST (channel name list)

ccc ID UST L' 26 1 BBC M 21 MEN 2 ch > MDR 5 CH 2 MY 4 CH 24 MTV $ cH 25 MTV2 8 CH 2 MTV Er] >

5 Press the W/A buttons to choose the Channel name (ID) To cancel the ID function: Press the © (Information) button.

6 Press the OK button to register a Channel name (ID) to a TV channel

+ You can register your unique Channel name (ID) to the TV channel. When step 3 is completed, do not go to step 4, but press the Æ/B buttons to move the cursor and the W/A buttons to choose a character for completing the Channel name (ID). Then press the OK button to register the Channel name (ID) to the TV channel.

Before performing INSERT or MANUAL operation

+ If you register the TV channel (SECAM- L system) from a French station, be sure to set the COUNTRY ing to FRANCE. If the COUNTRY setting is not set to FRANCE, perform steps 1 and 2 of the “AUTO PROGRAM” (page 24) procedure and set the COUNTRY setting to FRANCE before pressing the OK button.

A CH/CC number unique to this TV and corresponding to the Channel number of a TV channel is required. Find the corresponding CH/CC number from a table “CH/CC numbers” on page 34 based on the Channel number of the TV channel.

When the COUNTRY setting is not FRANCE, use a two-digit CH/CC number. When the COUNTRY setting is FRANCE, use a three-digit CH/CC number.

AV-32/28T4SP / LCT1571-001B-U / English An LA

AV-32/28T4SP / LCT1571-001B-U / English PS 7 7 AV-328&28T4SP_Engbook Page 27 Wednesday, February 25, 2004 10:05 AM 7

k SET UP menu M INSERT = MANUAL ed 1 Press the V/A buttons to choose a 1 Press the W/A buttons to choose a Programme number (PR) for which Programme number (PR) to which you will register a new TV channel you want to register a new TV channel 2 Press the green button and start the INSERT function 2 Press the blue button to activate m es the MANUAL function Z At the right side following the CH/CC e géo ge number, the SYSTEM (broadcasting g FT ge system) of the TV channel appears. a à MANUAL PR à 10 cHcc < us M ue CH cuee RE Fe î a À — 616 3 Press the W/A buttons to choose : LE “CC” or “CH” according to the CH/ NO CC number of the TV channel Sn a When the COUNTRY setting is To cancel the MANUAL function: FRANCE: Press the ® (Information) button. Choose “CH1”, “CH2”, “CCI” or “CC2”. To cancel the INSERT function: 3 Press the button to choose the < Press the @ (Information) button. SYSTEM (broadcasting system) for a TV channel you want to register 4 Press the Number buttons to enter TV channel (SECAM-L system) the remaining CH/CC number from a French station: The TV shifis to registration mode. Set the SYSTEM to “L”. If it is set to one When the registration is completed, the other than “L”, you cannot receive the TV picture of the TV channel appears on the channel of the SECAM-L system. screen. . Other TV channels: +_ The CH/CC number is a number If you do not know the correct indicating the broadcast frequency to broadcasting system, set the SYSTEM to the TV. Ifthe TV cannot detect the TV “B/G”. If“B/G” is not correct, it results in channel corresponding to the broadcast the fact that you will not hear the sound frequency indicated by the CH/CC normally when the TV detects a TV number, a picture in the no-signal state channel. In this case, retry to set the appears. SYSTEM again correctly so that no problem arises. 4 Press the green or red button to search for a TV channel Scanning stops when the TV finds a TV channel. Then the TV channel is displayed. 27 FE

5 Press the green or red button repeatedly until the TV channel you want appears

If the TV channel reception is poor: Press the blue or yellow button to fine- tune the TV channel.

If you cannot hear the normal sound even when the picture of the TV channel appears normally:

The SYSTEM setting is wrong. Press the > button and choose a SYSTEM that has normal sound.

6 Press the OK button and register the TV channel to a Programme number (PR)

The normal EDIT menu is resumed.

When connecting a Decoder with a T-V LINK compatible VCR connected to the EXT-2 terminal, use the DECODER (EXT- 2) function to unscramble the scrambled TV channels.

1 Turn on the Decoder power

2 Display the TV channel capable of being unscrambled with the Decoder on the TV Even if the Decoder is functioning, a scrambled picture appears at this time.

3 Display the SET UP menu and choose DECODER (EXT-2)

LANGUAGE The LANGUAGE setting which was performed in the “Initial settings” (page 4) can be changed.

LANGUAGE NEDERLANDS DANSK NORSK SVENSKA SUonT

4 Press the 4/k buttons to choose

ON An unscrambled picture appears. To cancel the DECODER (EXT-2) function:

Press the 4/B buttons to choose OFF.

2 Press the €/k and V/A buttons to choose a language. Then press the OK button

5 Press the OK button to complete the setting The T-V LINK menu appears.

TVUNK DOWNLOAD TV + VCR ER You can send the programme numbers data to a VCR with the T-V LINK function.

AV-32/28T4SP / LCT1571-001B-U / English PS 7 7 AV-32&28T4SP_Eng book Page 28 Wednesday, February 25, 2004 10:05 AM 7

AV-32/28T4SP / LCT1571-001B-U / English à À An

‘ WP AV-32&28T4SP_Eng.book Page 29 Wednesday, February 25, 2004 10:05 AM NA L L < < SET UP menu LL _______ud 6 Turn on the VCR, and then press 2 Follow the operation description of the OK button to transmit the data a function you want to use and to VCR operate the function The T-V LINKmenu disappears once the se: data transmission ends. You can enjoy high-quality picture of the 2 S-VIDEO signal (Y/C signal). 7 If you have another TV channel Signal ( signal) ñ j ID LIST: capable of being unscrambled with You can have a name corresponding to 2 a Decoder, repeat steps 2 through 6 the devices connected for each EXT e If for some reason the DECODER (EXT- terminal. 2 2) function has been set to “ON” but the DUBBING: . TV channel cannot be unscrambled, check You can choose a signal source to be the following: output from an EXT-2 terminal. + Has the Decoder been connected to them $S (S-VIDEO input) VCR propery according to the VER When connecting a device (such as S-VHS and Decoder Instruction Manuals * VCR) which enables an S-VIDEO signal (Y/ + Has the Decoder power been turned C signal) to be output, you can enjoy high- on? quality picture of the S-VIDEO signal (Y/C + Can the TV channel be unscrambled signal). with a Decoder? Preparation: +_Is it necessary to change the VCR k "A tua the Device 1 . settings in order to connect the t ni md It dd al nstruction £ Decoder? Confirm that the VCR is set Manual and Additional preparation? on À fe properly by rechecking the VER page 32 to connect the device to the TV fe Instruction Manual. properly. Second, follow the Device Instruction Manual to set the device so that an S-VIDEO signal (Y/C signal) can be output to the TV. EXT SETTING + Do not set S8) (S-VIDEO input) to the EXT terminal connected to a device 1 Choose EXT SETTING, then press which cannot output an S-VIDEO (Y/C the OK or R button signal). fit is set wrongly, a picture The EXT SETTING menu appears. cannot appear. EXT SETTING 1 Press the 4/k or W/A buttons to choose an EXT terminal ousenc Exrz EXT SEINE TS mt Ë ET j Sr — EI EES = 29 moiits 29 PSS FE

7 AV-328&28T4SP_Eng.book Page 30 Wednesday, February 25, 2004 10:05 AM AV-32/28T4SP / LCT1571-001B-U / English |

2 Press the yellow button and set the S®) (S-VIDEO input). Then press the OK button An S®) (S-VIDEO input) mark is displayed. You can view an S-VIDEO signal (Y/C signal) instead of the regular video signal (composite signal).

To cancel the $# (S-VIDEO input) setting:

Press the yellow button and turn off SE) (S- VIDEO input) mark. The regular video signal (composite signal) pictures are resumed.

MID LIST You can have a name corresponding to the devices connected for each EXT terminal. Giving a name to an EXT terminal makes the EXT terminal number appear on the screen, together with the name.

1 Press the 4/k or W/A buttons to choose an EXT terminal

2 Press the blue button to display the name list (ID LIST)

+ The EXT-1 terminal does not support S- VIDEO signal (Y/C signal) and you cannot set S@) (S-VIDEO input) in the EXT-1 terminal.

Setting S@ (S-VIDEO input) changes the head character from “E” to “S”. For example, “E2” is changed to “S2”.

Even a device which enables the S- VIDEO signal (Y/C signal) to be output may output a regular video signal (composite signal) depending on the device setting. If a picture cannot appear because S®) (S-VIDEO input) setting has been made, read the device Instruction Manual carefully again to check for the device settings.

FU wusr = DuSBING Hs ES f

3 Press the W/A buttons to choose a name. Then press the OK button The ID LIST disappears and the name is assigned to the EXT terminal,

+ You cannot assign an EXT terminal name not found in the name list (ID LIST).

To erase a name assigned to the EXT terminal: Choose a blank space.

4 Press the OK button to complete the setting

DUBBING You can choose a signal source to be output from an EXT-2 terminal.

You can choose any one of the output signal of the device connected to the EXT terminal and the picture and sound from a TV channel you are currently viewing to output it to the EXT-2 terminal.

1 Press the €/R buttons to choose the arrow from the menu

EXT SENS DUBEING EX f ETS KE

+ During dubbing, you cannot turn off the TV. Turning off the TV also turns off the output from the EXT-2 terminal.

When you choose an EXT terminal as an output, you can view a TV programme or a picture from the other EXT terminal while dubbing the picture from a device connected to the EXT terminal onto a VCR connected to the EXT-2 terminal.

The RGB signals from the TV games cannot be output. Teletext programmes cannot be output.

PICTURE TILT (Only for AV- 32T4SP)

2 Press the V/A buttons to choose an EXT terminal or TV. Then press the OK button The arrow in the menu represents a signal flow. The left side of the arrow denotes a signal source output from the EXT-2 terminal.

EXT-A/EXT-3/EXT-4: The output signal of the device connected to an EXT terminal passes through the TV and is output from the EXT-2 terminal.

The picture and sound of the TV channel you are currently viewing are output from ie EXT-2 terminal.

There are cases where the Earth’s magnetic force may make the picture tilt or make unnatural colours appear in the corner of the screen. If this happens, you can correct it.

1 Choose PICTURE TILT, then press the OK or button The sub-menu of the PICTURE TILT function appears.

2 Press the V/A buttons until the picture becomes level. Then press the OK button

AV-32/28T4SP / LCT1571-001B-U / English à À An ‘ WP AV-32&28T4SP_Eng.book Page 31 Wednesday, February 25, 2004 10:05 AM NA

£ < —— m Z © [es ca] T À < 31 75

AV-32/28T4SP / LCT1571-001B-U / English &| 4 à |@ 4 WP AV-32&28T4SP Eng.book Page 32 Wednesday, February 25, 2004 10:05 AM NA L <

Additional preparation

Connecting the external devices

Connect the devices to the TV, paying D VCR (composite signal) attention to the following connection 2) VCR (composite signal/S-VIDEO signal) diagram. @) T-V LINK compatible VCR (composite

Before connecting anything: @ signalsS-VIDEO Signal)

+ Read the manuals provided with the (5) DVD player (composite signal/S-VIDEO devices. Depending on the devices, the signal) connection method may differ from the © DVD player (composite signal/RGB figure. In addition, the device settings signal)

may be changed depending on the

2) TV game (composite signal/RGB signal) connection method to secure proper

3) TV game (composite signal)

operation. @ Headphones + Turn off all the devices including the TV. (0 Camcorder (composite signal/S-VIDEO + The “Specifications” on page 39 contains. Signal)

1) SCART cable 42 Audio cable 43 Video cable

the details of the EXT terminals. If you are connecting a device not listed in the following connection diagram, see the table to choose the best EXT terminal. Note that connecting cables are not supplied.

Back of the TV PS A2 5 Ÿ

Additional preparation

# Devices which can output the S- VIDEO signal (Y/C signal) such as an S-VHS VCR Connect the device to an EXT terminal other than the EXT-1 terminal.

You can choose a video input signal from the S-VIDEO signal (Y/C signal) and regular video signal (composite signal). For details of how to operate the device, see “SE (S- VIDEO input)” on page 29.

= T-V LINK compatible VCR Be sure to connect the T-V LINK compatible VCR to the EXT-2 terminal. If not, the T-V LINK function will not work properly.

+ When connecting a T-V LINK compatible VCR to the EXT-2 terminal, be sure to connect the Decoder to the VCR. Ifnot, the T-V LINK function may not work properly. After you have registered TV channels to the Programme numbers (PR), set the DECODER (EXT-2) function for the Programme number (PR) to ON in order to unscramble a scrambled TV channel. For details of operation, see “DECODER (EXT-2)” on page 28.

= Connecting headphones Connect the headphones with a stereo mini- jack (of 3.5 mm in diameter) to the headphone jack at the TV rear panel. +_No sound comes out from the TV speakers when the headphones are connected.

= Video/sound signal output from the EXT-2 terminal You can arbitrarily change over the output of the video/sound signal from the EXT-2 terminal. It is useful when you want to dub the video/sound from another device on the VCR connected to the EXT-2 terminal. For details on how to do this operation, see “DUBBING” on page 31.

# TV output from the EXT-1 terminal

The output of video/sound signal of a TV channel you are currently viewing is always output from the EXT-1 terminal.

+ Changing over a Programme number (PR) also changes over the TV output from the EXT-1 terminal.

+ The video/sound signal from an EXT terminal cannot be output.

+ Teletext programmes cannot be output.

AV-32/28T4SP / LCT1571-001B-U / English

AV-32&28T4SP_Eng.book Page 34 Wednesday, February 25, 2004 10:05 AM PS

: 7 CH/CC numbers When you want to use the INSERT function on page 27, find the CH/CC number corresponding to the Channel number of the TV channel from this table. 34

AV-32/28T4SP / LCT1571-001B-U / English |A di|@

4 WP AV-32&28T4SP Eng.book Page 35 Wednesday, February 25, 2004 10:05 AM NA CH/CC numbers

When two CH/CC numbers correspond to one Channel number, choose either one according to the current COUNTRY setting. When the COUNTRY setting is other than FRANCE, choose a two-digit CH/CC number. When the COUNTRY setting is FRANCE, choose a three-digit CH/ CC number.

Find the CH/CC number (CC110 to CC161) corresponding to the TV channel (SECAM-L system) from a French cable TV station, based on the broadcast frequency of the TV channel. When you do not know the broadcast frequency, please contact the cable TV station.

The CH/CC numbers of CH102-CH169 and CC110-CC161 correspond to the TV channels being broadcast by a SECAM-L system, The other CH/CC numbers correspond to the TV channels being broadcast by a method other than a SECAM-L system.

AV-32/28T4SP / LCT1571-001B-U / English PS > 7 AV-32&28T4SP_Eng book Page 36 Wednesday, February 25, 2004 10:05 AM 7

If a problem arises while you are using the TV, please read this “Troubleshooting” well before you request having the TV repaired. You may be able to fix it casily by yourself. For example, if the AC plug is disconnected from the AC outlet, or the TV aerial has problems, you may think there is a problem with the TV itself.

+ This Troubleshooting guide only covers problems whose cause are not easy to determine. If a question arise when you are operating a function, read the page(s) corresponding to the operation of the function well, not this Troubleshooting guide.

After you have followed the Troubleshooting description or the operating description of the functions concerned without any success, remove the AC plug from the AC outlet and request a repair of your TV. Do not attempt to repair the TV by yourself or remove the rear cover of the TV.

Flashing of the power lamp indicates a malfunction.

Unplug the mains plug and ask for your TV to be repaire.

If you cannot turn on the TV Ifthe TV or aerial receives interference «Is the AC plug connected to the AC from the other devices, stripes or noise outlet? may appear in the picture. Move such devices as an amplifier, personal computer, or a hair drier that can cause interference away from your TV, or try changing its location. If the aerial suffers

+ Have you chosen a TV channel whose reception is extremely bad? In this case, the BLUE BACK function will be interference from a radio tower or high- activated, the entire screen becomes blue, voltage wire, please contact your local and the sound is muted. In spite of this, if dealer.

you want to view the TV channel, follow If the TV receives interference from

the description “BLUE BACK” on signal reflecting from mountains or

page 22 to try to change the BLUE BACK building, double-pictures (ghosting) will function setting to OFF. occur. Try to change the aerial’s direction If the SYSTEM setting for a TV channel or replace the antenna with the one with is incorrect, it may prevent the sound better directionality.

from being issued. Follow the description Are your COLOUR SYSTEM settings for “EDIT/MANUAL” on page 24 to use the the TV channels correct? Follow the MANUAL function to try to change the description “COLOUR SYSTEM” on SYSTEM setting. page 19 to try to solve the trouble.

Has COLOUR or BRIGHT been controlled properly? Follow the description “BRIGHT” or “COLOUR” on page 18 to try to adjust them properly. Videotaping teletext is not recommended because it may not record correctly. When a white and bright still image (such as a white dress) is displayed on the screen, the white part may look as if it were coloured. It is a phenomenon unavoidable due to the nature of the picture tube itself, and not due to a TV failure. When the picture disappears from the screen, the unnatural colours will also disappear.

Poor picture + Ifnoise totally obscures the picture (snow), the acrial or aerial cable may have trouble. Check the following to try to solve the trouble: Has the TV and aerial been connected properly? Has the aerial cable been damaged? Is the acrial pointed to the right direction? Is the aerial itself faulty?

+ When viewing images from commercially available video software products, or videos from videotapes which have been recorded improperly, the top of the image may be distorted. This is due to the condition of the video signal, and not because of malfunction.

+ Have you adjusted BASS or TREBLE properly? If not, follow the description “BASS” or “TREBLE” on page 21 to try to adjust them properly.

When the TV channel reception is poor, it can be hard to hear the stereo or bilingual sound. In this case, follow the description “STEREO / 1 + II” on page 21 to hear the sound more easily by changing it to a mono sound.

= Operation disabled

+ Have the batteries of the remote control become exhausted? Follow the description “Putting the batteries into the Remote control” on page 4 and replace them with new batteries to try to solve the problem.

Have you attempted to use the remote control at the sides or rear of the TV or at a location more than seven meters apart from the TV location? Operate the remote control in the front of your TV or a location less than seven meters from your TV to try to solve the problem.

When you are viewing a teletext programme, you cannot operate the menus. Press the TV button to return the teletext programme to the ordinary TV programme to try operating the menus.

If the TV operation becomes disabled suddenly, press the Main power button on the TV and turn off the main power. Try to press the Main power button again to turn on the main power. If the TV returns to a normal state, it is not a failure.

When the SLEEP TIMER function operates, the TV is automatically turned off. If the TV is turned off suddenly, try to press the O/1 (Standby) button to turn on the TV once again. At this time, if the TV resumes a normal state, there is no problem.

When a WSS signal is included in the broadcast signal or the signal from an external device, or when the TV is receiving a control signal from an external device, the ZOOM mode will change automatically. When you want to return to the previous ZOOM mode, press the ZOOM button to choose the ZOOM mode again.

If you bring a magnetised device such as a speaker near to your TV, a picture may be warped or unnatural colours appear at the corners of the screen. In this case, keep the device apart from your TV. Ifthe speakers causes such phenomena, use the magnetic-shielded speakers instead.

A picture may be tilted due to the influence of the earth’s magnetism. In this case, use the “PICTURE TILT (Only for AV-32T4SP)” on page 31 to complete the tilt.

It takes a short period of time from the time an operation such as changing channels is performed until an image is displayed. This is not a malfunction. This is the time required for the image to stabilize before it can be displayed.

The TV may emit a crackling sound due 10 a sudden change in temperature. It does not matter if a picture or sound does not show any abnormality. If you hear crackling sounds frequentiy while you are viewing the TV, other causes may be assumed. For precautionary purposes, request your service technician to inspect it.

AV-32/28T4SP / LCT1571-001B-U / English PS > 7 AV-32&28T4SP_Eng book Page 37 Wednesday, February 25, 2004 10:05 AM 7

£ < —— m Z © [es ca] T À < 37 75

AV-32/28T4SP / LCT1571-001B-U / Engji à À

‘ WP AV-32&28T4SP_Eng.book Page 38 Wednesday, February 25, 2004 10:05 AM Troubleshooting

+ Touching the screen may cause you feel a slight electric shock due to its static electricity. It is an unavoidable phenomenon due to the construction of the picture tube. It is not a problem with the TV. You can rest assured that this static discharge does not have harmful influence over the human body.

AV-32/28T4SP / LCT1571-001B-U / English à

V-32428T4SP_Engbook Page 39 Wednesday, February 25, 2004 10:05 AM LA An LA:

7 — Specifications Item Model AV-32T4SP AV-28T4SP _— Broadcasting systems CCIR BG, 1, L Colour systems PAL, SECAM + The EXT terminals also support the NTSC 3.58/4.43 MHz system Channels and frequencies _|- E2-E12, E21-E69, 51-541, X, Y, Z, Z#1, Z+2, ITALY A-H, ITALY H#1, ITALY H+2, F2-F10, F21-F69 + French cable TV channel of broadcast frequencies 116 - 172 MHz and 220 - 469 MHz Sound-multipiex systems | A2 (E/G), NICAM (EG, I, L) system m Teletext systems FLOF (Fastext), TOP, WST (Word Standard System) ü Power requirements 220 - 240 V AC, 50 Hz ü Power consumption TO W, Standby: 2.7 W T0 W, Standby: 2.7 W + Picture tube size Viewable area 76 cm Viewable area 66 cm {measured diagonally) {measured diagonally) Audio output Rated Power output: 10 W + 10 W Speakers (3 cm x 6.5 cm) oval x 2 EXT-1 terminal Euroconnector (21-pin, SCART) + Video input, Audio L/R inputs and RGB inputs are available. + TV broadcast outputs (Video and Audio L/R) are available. EXT-2 terminal Euroconnector (21-pin, SCART) + Video input, S-VIDEO (Y/C) input, Audio L/R inputs and RGB inputs are available. + Video and Audio L/R outputs are available. + T-V LINK functions are available. EXT-3 terminal Euroconnector (21-pin, SCART) + Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available. EXT-4 terminal RCA connectors x 3 &— + Video input and Audio L/R inputs are available. Headphone jack Stereo minf-jack (3.5 mm in diameter) Dimensions (W x H x D) [948 mm x 562 mm x 550 mm 854 mm x 508 mm x 493 mm Weight 530 kg 390 kg Accessories Remote control unit x 1 (RM-C1502) AAIRG dry cell battery x 2 Design and specifications subject to change without notice. Pictures displayed on the screen using this TV°s ZOOM functions should not be shown for any commercial or demonstration purpose in public places (cafes, hotels, etc.) without the consent of the owners of copyright of the original picture sources, as this constitutes an infringement of copyright. 39 7

AV-32/28T4SP / LCT1571-001B-U / English d d||e Y7 AV-32&28T4SP_Eng.book Page 40 Wednesday, February 25, 2004 10:05 AM N 4

Ï_Cover.fm Page 4 Wednesday, February 25, 2004 10:07 AM PS
