USER MANUAL ZM176STX ZANUSSI

Front view of a microwave oven with control panel and buttons (no visible text or symbols)

INSTRUCTION BOOKLET ANWEISUNGSBUCH LIBRO DE INSTRUCCIONES

Important safety instructions 2 - 3

Oven & accessories 4

Control panel 5

Before operation 6

Setting the clock 6

What are microwaves? 7

Suitable ovenware 7

Tips & advice 8-10

Microwave power levels 11

Manual operation 11

Other convenient functions 12 - 13

Auto programmes operation 14

Auto programmes charts 15 - 17

Recipes for auto programmes AC-6 & AC-7 17 - 18

Cooking charts 19 - 21

Recipes 21 - 25

Care & cleaning 26

What to do if....27

Service & spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Guarantee conditions .28

Specifications 29

Important information 29

Installation 30-31

IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To avoid the danger of fire.

The microwave oven should not be left unattended during operation. Power levels that are too high, or cooking times that are too long, may overheat foods resulting in a fire.

The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency.

The AC power supply must be 230 V, 50 Hz, with a minimum 10 A distribution line fuse, or a minimum 10 A distribution circuit breaker.

It is recommended that a separate circuit serving only this appliance be provided.

Do not store or use the oven outdoors.

If food being heated begins to smoke, DO NOT OPEN THE DOOR. Turn off and unplug the oven and wait until the food has stopped smoking. Opening the door while food is smoking may cause a fire.

Only use microwave-safe containers and utensils. See Page 7.

Do not leave the oven unattended when using disposable plastic, paper or other combustible food containers.

Clean the waveguide cover, the oven cavity, the turntable and turntable support after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire.

Do not place flammable materials near the oven or ventilation openings. Do not block the ventilation openings.

Remove all metallic seals, wire twists, etc., from food and food packages. Arcing on metallic surfaces may cause a fire.

Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire.

To make popcorn, only use special microwave popcorn makers.

Do not store food or any other items inside the oven.

Check the settings after you start the oven to ensure the oven is operating as desired.

See the corresponding hints in operation manual and the cookery book section.

To avoid the possibility of injury

WARNING:

Do not operate the oven if it is damaged or malfunctioning. Check the following before use:

a) The door; make sure the door closes properly and ensure it is not misaligned or warped.
b) The hinges and safety door latches; check to make sure they are not broken or loose.
c) The door seals and sealing surfaces; ensure that they have not been damaged.
d) Inside the oven cavity or on the door; make sure there are no dents.
e) The power supply cord and plug; ensure that they are not damaged.

Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

Do not operate the oven with the door open or alter the door safety latches in any way.

Do not operate the oven if there is an object between the door seals and sealing surfaces.

Do not allow grease or dirt to build up on the door seals and adjacent parts. Follow the instructions for "Care and Cleaning" on page 26. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Individuals with PACEMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.

To avoid the possibility of electric shock

Under no circumstances should you remove the outer cabinet.

Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately and call an authorised ZANUSSI service agent.

Do not immerse the power supply cord or plug in water or any other liquid.

Do not allow the power supply cord to run over any hot or sharp surfaces, such as the hot air vent area at the top rear of the oven.

Do not attempt to replace the oven lamp yourself or allow anyone who is not authorised by ZANUSSI to do so. If the oven lamp fails, please consult your dealer or an authorised ZANUSSI service agent.

If the power supply cord of this appliance is damaged, it must be replaced with a special cord. The exchange must be made by an authorised ZANUSSI service agent.

To avoid the possibility of explosion and sudden boiling:

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build up of pressure even after the oven has been turned off. Take care when microwaving liquids. Use a wide-mouthed container to allow bubbles to escape.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.

To prevent sudden eruption of boiling liquid and possible scalding:

1. Stir liquid prior to heating/reheating.
2. It is advisable to insert a glass rod or similar utensil into the liquid whilst reheating.
3. Let liquid stand in the oven at the end of cooking time to prevent delayed eruptive boiling.

Do not cook eggs in their shells, and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode. Shell and slice hard boiled eggs before reheating them in the microwave oven.

Pierce the skin of such foods as potatoes, sausages and fruit before cooking, or they may explode.

To avoid the possibility of burns

Use pot holders or oven gloves when removing food from the oven to prevent burns.

Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns.

To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly.

Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature.

Always stand back from the oven door when opening it to avoid burns from escaping steam and heat.

Slice stuffed baked foods after heating to release steam and avoid burns.

Keep children away from the door to prevent them burning themselves.

To avoid misuse by children

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

Do not lean or swing on the oven door. Do not play with the oven or use it as a toy.

Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings; paying special attention to packaging (e.g. self-heating materials) designed to make food crisp, as they may be extra hot.

Other warnings

Never modify the oven in any way.

This oven is for home food preparation only and may only be used for cooking food. It is not suitable for commercial or laboratory use.

To promote trouble-free use of your oven and avoid damage.

Never operate the oven when it is empty.

When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and turntable support due to heat stress. The preheating time specified in the dishes instructions must not be exceeded.

Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Do not put cans in the oven.

Only use the turntable and the turntable support designed for this oven. Do not operate the oven without the turntable.

To prevent the turntable from breaking:

(a) Before cleaning the turntable with water, leave the turntable to cool.
(b) Do not put hot foods or hot utensils on a cold turntable.
(c) Do not put cold foods or cold utensils on a hot turntable.

Do not place anything on the outer cabinet during operation.

NOTE:

If you are unsure how to connect your oven, please consult an authorised, qualified electrician.

Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure.

Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction.

Zakussi 1 2 3 4 8 7 6 5 9 14 13 10 11 12 g surfaces ) support clip

1 Front trim
2 Oven lamp
3 Control panel
4 Door opening button
5 Waveguide cover
6 Oven cavity
7 Seal packing
8 Door seals and sealing surfaces
9 Fixing points (4 points)
10 Ventilation openings
11 Outer cover
12 Rear cabinet
13 Power supply cord support clip
14 Power supply cord

ACCESSORIES:

Check to make sure the following accessories are provided:

(15) Turntable (16) Turntable support
(17) 4 fixing screws (not shown).

- P lace the turntable support in the seal packing on the floor of the cavity.

- Then place the turntable on the turntable support.

- To avoid turntable damage, ensure dishes or containers are lifted clear of the turntable rim when removing them from the oven.

NOTE: When you order accessories, please mention two items: part name and model name to your dealer or authorised ZANUSSI service agent.

15 16

8:8:8 1 2 Kg Kg - + 4 AUTO + 7 0-1 6 +30 8

1 Digital Display

2 Indicators

The appropriate indicator will flash or light up, just above each symbol according to the instruction. When an indicator is flashing, press the appropriate button (having the same symbol) or carry out the necessary operation.

Stir

Turn over

Kg Weight

△ Microwave power level

Cooking in progress

3 TIMER/WEIGHT knob

Press to select one of the 12 automatic programmes.

6 S T ART/+30 button

7 STOP button

8 D OOR OPEN button

Plug in the oven.

1. The oven display will flash:

1. Touch the STOP button the display will show:

x1

To set the clock, see below.

Using the STOP button

Use the STOP button to:

1. Erase a mistake during programming.
2. Stop the oven temporarily during cooking.
3. Cancel a programme during cooking, touch twice.

SETTING THE CLOCK

There are two setting modes: 12 hour clock and 24 hour clock.

1. To set the 12 hour clock, hold the MICROWAVE POWER LEVEL button down for 3 seconds. will appear in the display.
2. To set the 24 hour clock, press the MICROWAVE POWER LEVEL button once more after Step 1, in the example below will appear in the display.

x1 and hold for 3 secs.

To set the clock, follow the example below.

Example:

To set the 24 hour clock to 23:35.

1. Choose the clock function. (12 hour clock)

Choose the 24 hour clock.

1. Set the hours. Rotate the TIMER/WEIGHT knob until the correct hour is displayed (23).

2. Press the MICROWAVE POWER LEVEL button to change from hours to minutes.

x1 and hold for 3 secs.

x1 x1

1. Set the minutes.

Rotate the TIMER/WEIGHT knob until the correct minute is displayed (35).

1. Press the MICROWAVE POWER

LEVEL button to start the clock.

→ - +

x1

Check the display.

NOTE:

1. You can rotate the TIMER/WEIGHT knob clockwise or counter-clockwise.
2. Press the STOP button if you make a mistake during programming.
3. If the electrical power supply to your microwave oven is interrupted, the display will intermittently

show 88:88 after the power is reinstated. If this occurs during cooking, the programme will be erased. The time of day will also be erased.

1. When you want to reset the time of day, follow the above example again.

Microwaves are generated in the microwave oven by a magnetron and cause the water molecules in the food to oscillate. Heat is generated by the friction which is caused, with the result that the food is thawed, heated or cooked.

SUITABLE OVENWARE

GLASS AND CERAMIC GLASS

Heat-resistant glass utensils are very suitable. The cooking process can be observed from all sides. They must not, however, contain any metal (e.g. lead crystal), nor have a metallic overlay (e.g. gold edge, cobalt blue finish).

CERAMICS

Generally very suitable. Ceramics must be glazed, since with unglazed ceramics moisture can get into the ceramic. Moisture causes the material to heat up and may make it shatter. If you are not certain whether your utensil is suitable for the microwave, carry out the utensil suitability test.

PORCELAIN

Very suitable. Ensure that the porcelain does not have a gold or silver overlay and that it does not contain any metal.

PLASTIC AND PAPER UTENSILS

Heat resistant plastic utensils which are suitable for use in the microwave can be used to thaw, heat and cook food. Follow the manufacturer's recommendations.

Heat-resistant paper made for use in a microwave oven is also suitable. Follow the manufacturer's recommendations.

KITCHEN PAPER

can be used to absorb any moisture which occurs in short heating methods, e.g. of bread or products in bread crumbs. Insert the paper between the food and the revolving plate. The surface of the food will stay crispy and dry. Covering greasy food with kitchen paper will catch splashes.

MICROWAVE CLING FILM

This, or heat-resistant film, is very suitable for covering or wrapping. Please follow the manufacturer's recommendations.

ROASTING BAGS

Can be used in a microwave oven. Metal clips are not suitable for fastening them since the roasting bag foil might melt. Fasten the roasting bag with string and pierce it several times with a fork. Non heat-resistant food wraps are not recommended for use in a microwave oven.

BROWNING DISH

A special microwave dish made from ceramic glass with a metal alloy base, which allows food to be browned.

When using the browning dish a suitable insulator, e.g. a porcelain plate, must be placed between the turntable and the browning dish. Be careful to adhere exactly to the pre-heating time given in the manufacturer's instructions. Excessive pre-heating can damage the turntable and the turntable stand or can trigger the safety-device which will switch off the oven.

METAL

Generally speaking, metal should not be used, since microwaves do not pass through metal and therefore cannot reach the food. There are, however, exceptions: small strips of aluminium foil may be used to cover certain parts of the food, so that these do not thaw too quickly or begin to cook (e.g. chicken wings). Small metal skewers and aluminium containers (e.g. of ready-cooked meals) can be used. They must, however, be small in relation to the food, e.g. aluminium containers must be at least ^2/3 to ^3/4 filled with food. It is recommended that you transfer the food into a dish suitable for use in the microwave. When using aluminium containers or other metal utensils there must be a gap of approx. 2 cms between them and the walls of the cooking area, otherwise the walls could be damaged by possible arcing.

NO UTENSIL SHOULD HAVE A METAL

OVERLAY - parts such as screws, bands or handles.

UTENSIL SUITABILITY TEST

If you are not sure whether your utensil is suitable for

use in your microwave oven, carry out the following test: Place the utensil into the oven. Place a glass container filled with 150 ml of

water on or next to the utensil. Switch on the oven at 800 W power for 1 to 2 minutes. If the utensil stays cool or just warm to the touch, it is suitable. Do not use this test on a plastic utensil. It could melt.

TIME SETTINGS

In general the thawing, heating and cooking times are significantly shorter than when using a conventional cooker or oven. For this reason you should adhere to the recommended times given in this book. It is better to set the times too short, rather than too long. Test the food after it has been cooked. It is better to have to cook something for a little longer than to overcook it.

INITIAL TEMPERATURES

Thawing, heating and cooking times are dependent upon the initial temperature of the food. Deep-frozen food and food stored in arefrigerator, for example, requires longer than food which has been stored at room temperature. For heating and cooking, normal storage temperatures are assumed (refrigerator temperature approx. 5°C, room temperature approx. 20°C). For thawing the temperature of the deep freeze is assumed to be -18°C.

COOKING TIMES

All the times given in this book are guidelines, which can be varied according to the initial temperature, weight and condition of the food (water or fat content etc.).

SALT, SPICES AND HERBS

Food cooked in your microwave retains its individual flavour better than it does when conventional preparation methods are used. For this reason you should use salt very sparingly and normally add it only after cooking. Salt absorbs liquid and dries out the outer layer of the food. Herbs and spices can be used as normal.

ADDITION OF WATER

Vegetables and other foods with a high water content can be cooked in their own juice or with the addition of a little water. This ensures that many vitamins and minerals are preserved.

FATTY FOODS

Food 'marbled' with fat or with layers of fat cook faster than lean meat. You should therefore cover these parts with some aluminium foil, and place the food fatty side downward.

FOOD IN SKINS OR SHELLS

Food such as sausages, chickens, chicken legs, baked potatoes, tomatoes, apples, egg yolks or such like should be pricked or pierced with a fork or small wooden skewer. This will enable the steam which forms to dissipate without splitting the skin or shell.

LARGE AND SMALL QUANTITIES

Microwave times are directly dependent upon the amount of food which you would like to thaw, heat or cook. This means that small portions cook more quickly than larger ones. As a rule of thumb:

TWICE THE AMOUNT = ALMOST TWICE THE TIME HALF THE AMOUNT = HALF THE TIME

DEEP AND SHALLOW CONTAINERS

Both containers have the same capacity, but the cooking time is longer for the deeper one. You should therefore choose as flat a container as possible with a large surface area. Only use deep containers for dishes where there is a danger of overcooking, e.g. for noodles, rice, milk etc.

ROUND AND OVAL CONTAINERS

Food cooks more evenly in round or oval containers than in containers with corners, since the microwave energy concentrates in the corners and the food in these areas could become overcooked.

COVERING

Covering the food retains the moisture within it and shortens the cooking time. Use a lid, microwave cling film or a cover. Foods which are to be crispy, e.g. roasts or chickens, should not be covered. As a general rule, whatever would be covered in a conventional oven should also be covered in a microwave oven. Whatever would be uncovered in a conventional oven can also be left uncovered in a microwave oven.

IRREGULAR SHAPED FOOD

Place the thicker, more compacted end of the food pointing towards the outside. Place vegetables (such as broccoli) with the stalks pointing outward.

STIRRING

You need to stir the food because the microwaves heat the outer areas first. Stirring the food balances the temperature and the food heats evenly.

ARRANGING

Arrange individual portions (pudding moulds, cups or baked potatoes) in a circle on the turntable. Leave space between the portions for the microwave energy to penetrate from all sides.

TURNING

Medium-sized items, such as hamburgers and steaks, should be turned over once during cooking, in order to shorten the cooking process. Large items, such as roasts and chickens, must be turned, since the upper side receives more microwave energy and could dry out if not turned.

STANDING TIME

Keeping to the standing time is one of the most important rules with microwaves. Almost all foods, which are thawed, heated or cooked in the microwave, require a certain amount of time to stand, during which temperature equalisation takes place and the moisture in the food is evenly distributed.

BROWNING AGENTS

After more than 15 minutes cooking time food

acquires a brownness, although this is not comparable to the deep brownness and crispness obtained through conventional cooking. In order to obtain an appetising brown colour you can use browning agents. For the most part they simultaneously act as seasoning agents. In the following table you will find some suggestions for substances you might use for browning and some of the uses to which you might put them.

BROWNING AGENT

Melted butter and dried paprika	Poultry	Coat the poultry with the butter/paprika mixture
Dried paprika	Oven baked dishes"Cheese toasties"	Dust with paprika
Soya sauce	Meat and poultry	Coat with the sauce
Barbecue and Worcestershire sauce, Gravy	Roasts, Rissoles, Small roasted items	Coat with the sauce
Rendered down bacon fat or dried onions	Oven baked dishes, toasted items, soups, stews	Sprinkle pieces of bacon or dried onions on top
Cocoa, chocolate flakes, brown icing, honey and marmalade	Cakes and desserts	Sprinkle pieces on top of cakes and desserts or use to glaze

DISH
METHOD

HEATING

• Ready-prepared meals in aluminium containers should be removed from the aluminium container and heated on a plate or in a dish.
• Remove the lids from firmly closed containers.
• Food should be covered with microwave cling film, a plate or cover (obtainable from stores), so that the surface does not dry out. Drinks need not be covered.
• When boiling liquids such as water, coffee, tea or milk, place a glass stirrer in the container.
• If possible, stir large quantities from time to time, to ensure that the temperature is evenly distributed.
• The times are for food at a room temperature of 20^ C . The heating time for food stored in a refrigerator should be increased slightly.
• After heating allow the food to stand for 1-2 minutes, so that the temperature inside the food can be evenly distributed (standing time).
• The times given are guidelines, which can be varied according to the initial temperature, weight, water content, fat content or the result which you wish to achieve.

THAWING

Your microwave is ideal for thawing. Thawing times are usually considerably shorter than in traditional methods of thawing.

Here are a few tips. Take the frozen item out of its packaging and place on a plate for thawing.

BOXES AND CONTAINERS

Boxes and containers suitable for microwaves are particularly good for thawing and heating food, since they can withstand temperatures in a deep freeze (down to approx. -40^ ) as well as being heat-resistant (up to approx. 220^ ). You can therefore use the same container to thaw, heat and even cook the food, without having to transfer it.

COVERING

Cover thin parts with small strips of aluminium foil before thawing. Thawed or warm parts should likewise be covered with aluminium strips during thawing. This stops the thin parts becoming too hot while thicker parts are still frozen.

CORRECT SETTING

It is better to choose a setting which is too low rather than one which is too high. By so doing you will ensure that the food thaws evenly.

If the microwave setting is too high, the surface of the food will already have begun to cook while the inside is still frozen.

TURNING/STIRRING

Almost all foods have to be turned or stirred from time to time. As early as possible, separate parts which are stuck together and rearrange them.

SMALL AMOUNTS

Thaw more quickly and evenly than larger ones. We recommend that you freeze portions which are as small as possible. By so doing you will be able to prepare whole menus quickly and easily.

FOODS REQUIRING CAREFUL HANDLING

Foods such as gateaux, cream, cheese and bread should only be partially thawed and then left to thaw completely at room temperature. By so doing you will avoid the outer areas becoming too hot while the inside is still frozen.

STANDING TIME

This is particularly important after thawing food, as the thawing process continues during this period. In the thawing table you will find the standing times for various foods. Thick, dense foods require a longer standing time than thinner foods or food of a porous nature. If the food has not thawed sufficiently, you may continue thawing it in the microwave oven or lengthen the standing time accordingly. At the end of the standing time you should process the food as soon as possible and not re-freeze it.

COOKING FRESH VEGETABLES

- When buying vegetables try to ensure that, as far as possible, they are of similar size. This is particularly important when you want to cook the vegetables whole (e.g. boiled potatoes).

- Wash the vegetables before preparing them, clean them and only then weigh the required quantity for the recipe and chop them up.

- Season them as you would normally, but as a rule only add salt after cooking.

- Add about 5 tbsps of water for 500 g of vegetables. Vegetables which are high in fibre require a little more water. You will find information about this in the table.

- Vegetables are usually cooked in a dish with a lid. Those with a high moisture content, e.g. onions or boiled potatoes, can be cooked in microwave cling film without adding water.

• After half the cooking time has elapsed vegetables should be stirred or turned over.

- After cooking allow the vegetables to stand for approx. 2 minutes, so that the temperature disperses evenly (standing time).

- The cooking times given are guidelines and depend upon the weight, initial temperature and condition of the type of vegetable in question. The fresher the vegetables, the shorter the cooking times.

COOKING MEAT, FISH AND POULTRY

- When buying food items, try to ensure that, as far as possible, they are of similar size. This will ensure that they are cooked properly.

- Before preparation wash meat, fish and poultry thoroughly under cold running water and pat them dry with kitchen paper. Then continue as normal.

- Beef should be well hung and have little gristle.

- Even though the pieces may be of a similar size, cooking results may vary. This is due, amongst other things, to the kind of food, variations in the fat and moisture content as well as the temperature before cooking.

- After the food has been cooking for 15 minutes it acquires a natural brownness, which may be enhanced by the use of a browning agent. If, in addition, you would like the surface to be crisp you should either use the browning dish or sear the food on your cooker and finish cooking it in your microwave. By doing this you will simultaneously obtain a brown base for making a sauce.

- Turn large pieces of meat, fish or poultry half way through the cooking time, so that they are cooked evenly from all sides.

- After cooking cover roasts with aluminium foil and allow them to stand for approx. 10 minutes (standing time). During this period the roast carries on cooking and the liquid is evenly distributed, so that when it is carved a minimum amount of juice is lost.

THAWING AND COOKING

Deep-frozen dishes can be thawed and cooked at the same time in one process in your microwave. You will find some examples in the table. Do take note, however, of the general advice given on "heating" and "thawing" food. Please refer to the manufacturer's instructions on the packaging when preparing deep-frozen dishes. These usually contain precise cooking times and offer advice on preparation.

Your oven has 5 power levels. To choose the power level for cooking, follow the advice given in the recipe section. Generally the following recommendations apply:

800 W used for fast cooking or reheating e.g. soup, casseroles, canned food, hot beverages, vegetables, fish, etc.

560 W used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as cheese sauce and sponge cakes. At this reduced setting, the sauce will not boil over and food will cook evenly without over cooking at the sides.

400 W for dense foods which require a long cooking time when cooked conventionally, eg. beef dishes, it is advisable to use this power setting to ensure the meat will be tender.

240 W to defrost, select this power setting, to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard.

80 W For gentle defrosting, eg. cream gateaux or pastry.

W = WATT.

To set the power, touch the MICROWAVE POWER LEVEL button until the desired level is displayed.

If MICROWAVE POWER LEVEL button is touched once, 8.00 will be displayed. If you miss your desired level, continue touching the MICROWAVE POWER LEVEL button until you reach the level again.

If the level is not selected, the level 800 W is automatically set.

MANUAL OPERATION

Your oven can be programmed for up to 90 minutes. (90.00) The input unit of cooking (defrosting) time varies from 10 seconds to five minutes. It depends on the total length of the cooking (defrosting) time as shown on the table.

Cooking time Increasing unit

0-5 minutes 10 seconds

5-10 minutes 30 seconds

10-30 minutes 1 minute

30-90 minutes 5 minutes

Example:

Suppose you want to heat soup for 2 minutes and 30 seconds on 560 W microwave power.

1. Enter the desired cooking time by rotating the TIMER/WEIGHT knob clockwise. (2 min. & 30 sec.)

2. Choose desired power by pressing the MICROWAVE POWER LEVEL button twice.

3. Press the START/+30 button to begin cooking.

- + 2.30

x2 560

1 +30 x1 Check the display. 2.30

NOTE:

1. When the door is opened during the cooking process, the cooking time on the digital display stops automatically. The cooking time starts to count down again when the door is closed and the START/+30 button is pressed.
2. If you wish to know the power level during cooking, press the MICROWAVE POWER LEVEL button. As long as your finger is touching the MICROWAVE POWER LEVEL button, the power level will be displayed.
3. You can rotate the TIMER/WEIGHT knob clockwise or counterclockwise. If you rotate the knob counterclockwise, the cooking time will decrease from 90 minutes by degrees.

1. MULTIPLE SEQUENCE COOKING

A maximum of 3 sequences can be input, consisting of manual cooking time and mode.

Example:

To cook: 5 minutes on 800 W power (Stage 1)

16 minutes on 240 W power (Stage 2)

STAGE 1

1. Enter the desired cooking time by rotating TIMER/WEIGHT knob.

2. Choose the desired power level by pressing the MICROWAVE POWER LEVEL button once.

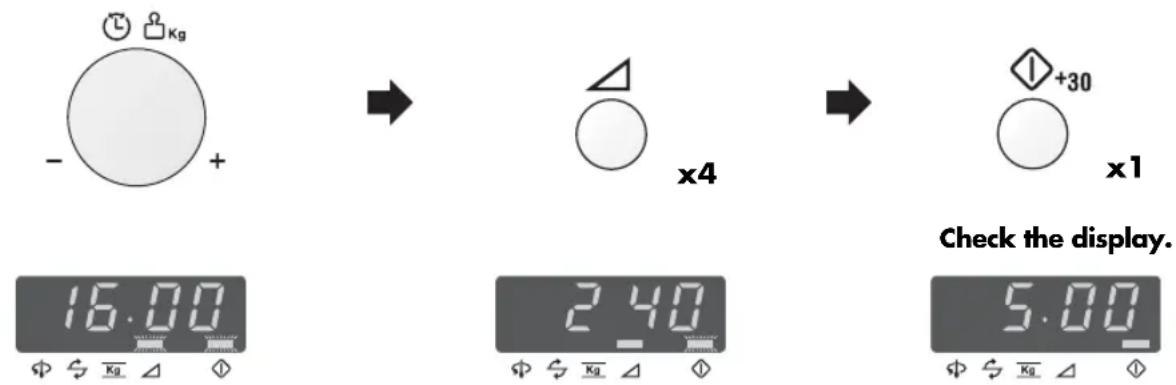

STAGE 2

1. Enter desired time by rotating TIMER/WEIGHT knob.

2. Choose the desired power level by pressing the MICROWAVE POWER LEVEL button four times.

3. Press the START/+30 button once to begin cooking.

(The oven will begin to cook for 5 minutes on 800 W, and then for 16 minutes on 240 W.)

2. ADD 30 SECONDS FUNCTION

The START/+30 button allows you to operate the two following functions:

a. Direct start

You can directly start cooking on 800 W microwave power level for 30 seconds by pressing the START/+30 button.

NOTE:

To avoid the misuse by children the START/+30 button can be used only within 3 minutes after preceding operation, i.e., closing the door, pressing the STOP button or cooking completion.

b. Extend the cooking time

You can extend the cooking time during manual cooking for multiples of 30 seconds if the button is pressed while the oven is in operation.

3. TO CHECK THE POWER LEVEL

To check the microwave power level during cooking press the MICROWAVE POWER LEVEL button.

x1

As long as your finger is touching the MICROWAVE POWER LEVEL button the power level will be displayed.

The oven continues to count down although the display shows the power level.

4. SAFETY LOCK FUNCTION

TO SET THE SAFETY LOCK FUNCTION

1. Press and hold the STOP key for 3 seconds.

x1 for 3 seconds x1 for 3 seconds

The display will show:

TO CANCEL THE SAFETY LOCK FUNCTION

1. Press and hold the STOP key for 3 seconds.

The display will show the time of day, if set.

NOTE: When the Safety Lock is set you cannot input any buttons except the STOP button.

The AUTO PROGRAMMES function automatically works out the correct cooking mode and cooking time. You can choose from 7 AUTO COOK menus and 5 AUTO DEFROST menus. What you need to know when using this automatic function:

1. Press the AUTO PROGRAMMES button once, the display will appear as shown.

The menu can be chosen by pressing the AUTO PROGRAMMES button until the desired menu number is displayed. See pages 15 - 17 "AUTO PROGRAMMES charts".

To select a defrost menu, press the AUTO

PROGRAMMES button at least 8 times. If you press the button 8 times, Rd - I will appear in the display. The menu will be changed automatically by holding down the AUTO PROGRAMMES button.

1. The weight or quantity of the food can be input by rotating the TIMER/WEIGHT knob until the desired weight is displayed.

- Enter the weight of the food only. Do not include the weight of the container.

- For food weighing more or less than weights given in the automatic chart, use manual programmes. For best results, follow the cooking charts on pages 19 - 21.

1. To start cooking press START/+30 button.

When action is required (e.g. to turn food over), the oven stops and the audible signals sound, remaining cooking time and any indicator will flash on the display. To continue cooking, press the START/+30 button.

1.

x1
AUTO PROGRAMMES button

AC - 1 Menu number

2.

TIMER/WEIGHT knob

3.

START/+30 button

The final temperature will vary according to the initial food temperature. Check food is piping hot after cooking. If necessary, you can extend the cooking time and change the power level.

Example:

To cook gratin weighing 1,0 kg using AUTO COOK AC-7.

1. Select the menu required by pressing the AUTO PROGRAMMES button seven times.

AUTO x7

1. Enter the weight by rotating the TIMER/WEIGHT knob clockwise.

1. Press the START/+30 button.

Check the display.

BUTTON	AUTO COOK NO.	WEIGHT (Increasing Unit) / UTENSILS	PROCEDURE
1	AC-1 CookFrozen Vegetables e.g. Brussel sprouts, green beans, peas, mixed vegetables, broccoli	0,1 - 0,6 kg (100 g)(initial temp -18°C) Bowl and lid	Add 1 tbsp water per 100 g and salt as desired. (For mushrooms no additional water is necessary).Cover with a lid.When audible signal sounds, stir and re-cover.After cooking, let stand for approx. 2 minutes.NOTE: If frozen vegetables are compacted together, cook manually.
2	AC-2 CookFresh Vegetables	0,1 - 0,6 kg (100 g)(initial temp 20°C) Bowl and lid	Cut into small pieces, eg. strips, cubes or slicesAdd 1 tbsp water per 100 g and salt as desired. (For mushrooms no additional water is necessary).Cover with a lid.When audible signal sounds, stir and re-cover.After cooking, let the food stand for approx 2 minutes.
3	AC-3 CookFrozen Ready Meals Stirrable type e.g. Noodles, Bolognese, Chinese Menus.	0,3 - 1,0 kg* (100 g)(initial temp -18°C) Bowl and lid* If the manufacturer instructs to add water, calculate the total amount for the programmes with additional liquid.	Transfer meal to suitable microwave-proof dish.Add some liquid if recommended by the manufacturer.Cover with a lid.Cook without cover if the manufacturer instructs.When audible signal sounds, stir and re-cover.After cooking, stir and let stand for approx. 2 minutes.
4	AC-4 CookFrozen Gratin e.g. macaroni gratin, lasagne, etc.	0,2 - 0,6 kg (100 g)(initial temp -18°C) Shallow, oval gratin dish and microwave cling film or original container and microwave cling film	Remove the frozen gratin from the package.If the container is not suitable for microwave ovens, transfer gratin to a suitable microwave proof dish.C over with microwave cling film.If the container is suitable for microwave ovens, remove original paper cover and cover with microwave cling film.After cooking, let stand for approx. 5 minutes.
5	AC-5 CookBoiled Potatoes Jacket Potatoes	0,1 - 0,8 kg (100 g)(initial temp 20°C) Bowl & lid	Boiled Potatoes: Peel the potatoes and cut them into similar sized pieces.Jacket Potatoes: Choose potatoes of similar size and wash them.Put the boiled or jacket potatoes into a bowl.Add the required amount of water (per 100 g), approx 2 tbsp and a little salt.Cover with a lid.When audible signal sounds, stir and re-cover.After cooking, let the potatoes stand for approx. 2 minutes.
6	AC-6 CookFish fillet with sauce	0,4 - 1,2 kg* (100 g)(initial temp fish 5°C,Sauce 20°C)Gratin dish & microwave cling film	• See recipes for Fish Fillet with Sauce on page 17.* T otal weight of all ingredients.
7	AC-7 CookGratin	0,5 - 1,5 kg* (100 g)(initial temp 20°C)Gratin dish	• See recipes for Gratin on page 18.* T otal weight of all ingredients.

BUTTON	AUTO DEFROST NO.	WEIGHT(Increasing Unit) / UTENSILS	PROCEDURE
_8	Ad-1 Defrost Steak and Chops	0,2 - 0,8 kg (100 g)(initial temp -18°C)(See note on page 17)	Place the food in a flan dish in the centre of the turntable.When the audible signal sounds, turn the food over, rearrange and separate. Shield thin parts and warm spots with small pieces of aluminium foil.A fter defrosting, wrap in aluminium foil for 10 - 15 minutes, until thoroughly defrosted.
x9	Ad-2 Defrost Minced Meat	0,2 - 0,8 kg (100 g)(initial temp -18°C)(See note on page 17)	Place the block of minced meat in a flan dish in the centre of the turntable.When the audible signal sounds, turn the food over. Remove the defrosted parts if possible.A fter defrosting cover with aluminium foil, stand for 5 - 10 minutes, until thoroughly defrosted.
..10	Ad-3 Defrost Poultry	0,9 - 1,5 kg (100 g)(initial temp -18°C)(See note on page 17)	Place the poultry in a flan dish in the centre of the turntable.When the audible signal sounds, turn over and shield thin parts and warm spots with small pieces of aluminium foil.A fter defrosting, rinse with cold water, cover with aluminium foil and stand for 15 - 30 minutes until thoroughly defrosted.Finally clean the poultry under running water.
x11	Ad-4 Defrost Cake	0,1 - 1,4 kg (100 g)(initial temp -18°C) Plate	Remove all packaging from the cake.Place directly on the turntable, or on a plate in the middle of the turntable.A fter defrosting, cut the cake into similar sized pieces keeping space between each piece and let stand for 10 - 30 minutes until evenly defrosted.
x12	Ad-5 Defrost Bread	0,1 - 1,0 kg (100 g)(initial temp -18°C) Flan dish(Only sliced bread is recommended for this programme.)	Distribute in a flan dish in the centre of the turntable. For 1,0 kg distribute directly on the turntable.When the audible signal sounds, turn over, rearrange and remove defrosted slices.A fter defrosting cover in aluminium foil and stand for 5 - 15 minutes, until thoroughly defrosted.

AUTO PROGRAMMES CHARTS

NOTES: Auto Defrost

1. Steaks and Chops should be frozen in one layer.

2. Minced meat should be frozen in a thin shape.

3. After turning over, shield the defrosted portions with small, flat pieces of aluminium foil.

4. The poultry should be processed immediately after defrosting.

5. Gateaux topped and coated with cream are very sensitive to microwave energy. For the best result, if the cream begins to soften rapidly, it is best to remove it from the oven immediately and stand for 10 - 30 minutes at room temperature.

RECIPES FOR AUTO PROGRAMMES AC-6 & AC-7

FISH FILLET WITH SAUCE (AC-6)

Fish fillet with piquant sauce

Ingredients

0,4 kg	,8 kg	1,2 kg
140 g	2	80 g	420 g canned tomatoes (drained)
40 g	8	0 g	120 g corn
4 g	8 g	12 g chilli sauce
12 g	2	4 g	36 g onion (finely chopped)
1 tsp	1	-2 tsp	2 tsp red wine vinegar
200 g	400 g	600 g fish fillet	mustard, thyme, cayenne pepper salt

FISH FILLET WITH SAUCE (AC-6)

Fish fillet with curry sauce

Ingredients

0,4 kg	,8 kg	1,2 kg
200 g	400 g	600 g	fish fillet
40 g	80 g	120 g	banana (sliced)
160 g	320 g	480 g	ready-made curry sauce

Preparation

1. Mix ingredients for the sauce.
2. Place the fish fillet in a round gratin dish with the thin ends toward the centre and sprinkle with salt.
3. Spread the sauce on the fish fillet.
4. Cover with microwave cling film and cook on AUTO COOK AC-6, "Fish Fillet with Sauce".
5. After cooking, let stand for approx. 2 minutes.

Preparation

1. Place the fish fillet in a round gratin dish with the thin ends toward the centre and sprinkle with salt.
2. Spread the banana and the ready-made curry sauce on the fish fillet.
3. Cover with microwave cling film and cook on AUTO COOK AC-6, "Fish Fillet with Sauce".
4. After cooking, let stand for approx. 2 minutes.

GRATIN (AC-7)

Spinach gratin

Ingredients

0,5 kg	1,0 kg	1,5 kg
5 g 10	g 15 g	butter or margarine (to grease the dish)
150 g 3	300 g 450	g leaf spinach ( defrosted, drained)
15 g 30	g 45 g	onion (finely chopped)
150 g 3	300 g 450	g boiled	salt, pepper & nutmeg potatoes (sliced)
35 g 75	g 110 g	cooked ham (diced)
50 g 100	g 150	g crème fraîche
1	2	3	e g g
40 g 75	g 115 g	grated cheese
			paprika powder

GRATIN (AC-7)

Potato-courgette-gratin

Ingredients

0,5 kg	1,0 kg	1,5 kg
200 g	400 g	600 g	g boiled potatoes (sliced)
115 g	230 g	345 g	g courgette (finely sliced)
75 g	150 g	225 g	g crème fraîche
1	2	3	e g g
1/2	1	2	clove of garlic (crushed)salt & pepper
40 g	80 g	120 g	feta cheese (diced)
10 g	20 g	30 g	sunflower kernelpaprika powder

Preparation

1. Mix together the leaf spinach with the onion and season with salt, pepper and nutmeg.
2. Grease the gratin dish. Place alternate layers of potato slices, diced ham and spinach in the dish. The top layer should be spinach.
3. Mix the eggs with crème fraîche, add salt and pepper and pour over the vegetables.
4. Cover the gratin with the grated cheese, sprinkle with paprika powder and cook on
   s AUTO COOK AC-7, "Gratin".
5. After cooking, let stand for 5-10 minutes.

Preparation

1. Grease the gratin dish and place alternate layers of potato slices and courgette in the dish.
2. Mix the eggs with crème fraîche, season with salt, pepper and garlic and pour over the vegetables.
3. Crumble the feta cheese and sprinkle over the gratin.
4. Finally sprinkle the gratin with sunflower kernel and paprika powder and cook on AUTO COOK AC-7, "Gratin".
5. After cooking, let stand for 5-10 minutes.

ABBREVIATIONS USED

tbsp = tablespoon	KG = kilogram	DF = deep frozen
tsp = teaspoon	g = gram	MW = microwave
l.p. = large pinch	l = litre	MWO = microwave oven
s.p. = small pinch	ml = millilitre	min = minutes
Cup = cupful	cm = centimetre	sec = seconds
Sach. = sachet	DFC = dry fat content	dm = diameter

TABLE: HEATING FOOD AND DRINK

Food / Drink Quantity Power Time Hints-g/ml- -Setting- -Min-
Coffee, 1 cup 150 800 W approx.1 do not cover
Milk, 1 cup 150 800 W approx.1 do not cover
Water, 1 cup 150 800 W 1		^1/_2-2	do not cover, bring to the boil
6 cups	900 800 W 10-12		do not cover, bring to the boil
1 bowl	1000 800 W 11	^1/_2-13	cover, bring to the boil
Platters(Vegetables, meat and trimmings)	400 800 W 3-6		sprinkle some water onto the sauce, cover stir half way through the heating time
Stew	200 800 W 1	^1/_2-2^1/_2	cover, stir after heating
Clear soup	200 800 W 1	^1/_2-2	cover, stir after heating
Cream soup	200 800 W 1	^1/_2-2^1/_2	cover, stir after heating
Vegetables	200 800 W 2-2	^1/_2	if necessary add some water, cover
	500 800 W 4-5		stir half way through the heating time
Garnishes	200 800 W 2-2	^1/_2	sprinkle with water, cover and stir from time to time.
	500 800 W 4-4	^1/_2
Meat, 1 slice*	200 800 W	3-4	thinly spread sauce over the top, cover
Fish fillet*	200 800 W 2-3		cover
Sausages 2	180 560 W approx.2 pierce the skin several times
Cake, 1 piece	100 400 W	^1/_2	place on a cake stand
Baby food, 1 glass	190 400 W	approx.1	remove the lid, after heating stir well and test the temperature
Melting butter or margarine*	50 800 W	^1/_2-1
Melting chocolate	100 400 W 2-3		stir from time to time
Dissolving six sheets of gelatine	10 400 W	^1/_2	dip into water, squeeze thoroughly and place in a soup bowl, stir from time to time
Glazing for a tart for ^1/_4 1 of liquid	10 400 W	5-6	mix the sugar in 250 ml of liquid, cover, stir well during and after heating

* Refrigerator temperature

TABLE: COOKING MEAT, FISH AND POULTRY

Fish and Poultry	Quantity -g-	Power -Setting-	Time -Min-	Hints	Standing time
Roasts (pork, veal, lamb)	500	800 W	8-10*	season to taste, place in a shallow flan dish	10
		400 W	10-12	turn over after *
	1000	800 W	19-21*		10
		400 W	11-14
	1500	800 W	33-36*		10
		400 W	13-17
Roast beef (medium)	1000	800 W	9-11*	season to taste, place in a quiche dish,	10
		400 W	5-7	turn over after *
Minced meat	1000	800 W	16-18	prepare the minced meat mixture (half pork/half beef) place in a shallow casserole dish	10
Fish fillet	200	800 W	3-4	season to taste, place on a plate, cover	3
Chicken	1200	800 W	21-24	season to taste, place in a casserole dish, turn half way through cooking time	3
Chicken legs	200	800 W	3-4	season to taste, place on a plate, cover	3

TABLE: THAWING
Food Quantity Power Thawing time Hints Standing time
-g--Setting--Min--Min-

Roast meat (e.g. pork, beef,lamb, veal)	1500	80 W 58-64		place on an upturned plate, turn	30-90
	1000	80 W 42-48		half way through thawing time	30-90
	500	80 W 19-23			30-90
Steaks, escalopes, cutlets, liver	200	80 W	4-5	turn half way through thawing time	30
Goulash	500	240 W	8-12	separate and stir half way through thawing time	10-15
Sausages, 8	600	240 W	6-9	place next to each other,	5-10
4	300	240 W	4-5	turn half way through thawing time	5-10
Duck, turkey	1500	80 W	48-52	place upon an upturned plate,turn half way through thawing time	30-90
Chicken	1200	80 W	39-43	place upon an upturned plate,turn half way through thawing time	30-90
	1000	80 W	33-37	place upon an upturned plate,turn half way through thawing time	30-90
Chicken legs	200	240 W	4-5	turn half way through thawing time	10-15
Whole fish	800	240 W	9-12	turn half way through thawing time	10-15
Fish fillet	400	240 W	7-10	turn half way through thawing time	5-10
Crabs	300	240 W	6-8	turn half way through thawing time	30
Rolls, 2	80	240 W	app.1	only partially thaw	-
Sliced bread for toasting	250	240 W	2-4	remove outer slices after each minute has passed	5
White loaf, whole	750	240 W	6-8	turn half way through thawing time (centre still frozen)	30
Cakes, per piece	100-150	80 W	2-5	place on a cake stand	5
Cream cake, per piece	150	80 W	3-4	place on a cake stand	10
Whole gateau, ∅ 25cm		80 W	18-20	place on a cake stand	30-60
Butter	250	240 W	2-4	only partially thaw	15
Fruit such as strawberries	250	240 W	4-5	spread them out evenly	5
raspberries, cherries, plums				turn half way through thawing time

TABLE: THAWING AND COOKING

Food	Quantity -g-	Power Cooking time		Added water +bsps/ml-	Hints -Min-	Standing time
		-Setting-	-Min-
Fish fillet	300	800 W	10-12	-	cover	1-2
Trout, 1 fish	250	800 W	5-7	-	cover	1-2
One-plate meal	400	800 W	9-11	-	cover, stir after 6 minutes	2
Leaf spinach	300	800 W	6-8	-	cover, stir once or twice during cooking	2
Broccoli	300	800 W	7-9	3-5tbsps	cover, stir half way through cooking time	2
Peas	300	800 W	7-9	3-5tbsps	cover, stir half way through cooking time	2
Kohlrabi	300	800 W	7-9	3-5tbsps	cover, stir half way through cooking time	2
Mixed vegetables	500	800 W	11-13	3-5tbsps	cover, stir half way through cooking time	2
Brussels sprouts	300	800 W	7-9	3-5tbsps	cover, stir half way through cooking time	2
Red cabbage	450	800 W	10-12	3-5tbsps	cover, stir half way through cooking time	2

TABLE: COOKING FRESH VEGETABLES

Vegetable	Quantity -g-	Power -Setting	Time -Min-	Hints	Added Water
Leaf Spinach 300	800 W 5-7	wash dry well, cover, stir once or twice during cooking -
Cauliflower	800	800 W	15-17	1 whole head, cover, divide into florets, stir	5-6tbsps
	500	800 W 10-12	during cooking		4-5 tbsps
Broccoli	500	800 W	9-11	divide into florets, cover, stir occasionally during cooking	4-5tbsps
Mushrooms	500	800 W	8-10	whole heads, cover, stir occasionally during cooking	-
Chinese leaves	300	800 W	9-11	cut into strips, cover, stir occasionally during cooking	4-5tbsps
Peas	500	800 W	9-11	cover, stir occasionally during cooking	4-5tbsps
Fennel	500	800 W	9-11	cut into quarters, cover, stir occasionally during cooking	4-5tbsps
Onions	250	800 W	5-7	whole, cook in microwave cling film	-
Kohlrabi	500	800 W	10-12	dice, cover, stir occasionally during cooking	50ml
Carrots	500	800 W	10-12	cut into rings, cover, stir occasionally during cooking	4-5tbsps
	300	800 W 7-9
Green peppers	500	800 W	7-9	cut into strips, stir once or twice during cooking	4-5tbsps
Boiled potatoes (skins on)	500	800 W	9-11	cover, stir occasionally during cooking	4-5tbsps
Leeks	500	800 W	9-11	cut into rings, cover, stir occasionally during cooking	4-5tbsps
Red cabbage	500	800 W	15-17	cut into strips, stir once or twice during cooking	50ml
Brussels sprouts	500	800 W	9-11	whole sprouts, cover, stir occasionally during cooking	50ml
Boiled Potatoes (salted)	500	800 W	9-11	cut into large pieces of a similar size, add a little salt, cover, stir occasionally during cooking	150ml
Celery	500	800 W	9-11	dice finely, cover, stir occasionally during cooking	50ml
White cabbage	500	800 W	15-17	cut into strips, cover, stir occasionally during cooking	50ml
Courgettes	500	800 W	9-11	slice, cover, stir occasionally during cooking	4-5tbsps

RECIPES

ADAPTING RECIPES FOR THE

MICROWAVE OVEN

If you would like to adapt your favourite recipes for the microwave, you should take note of the following:

Shorten cooking times by a third to a half. Follow the example of the recipes in this book.

Foods which have a high moisture content such as meat, fish, poultry, vegetables, fruit, stews and soups can be prepared in your microwave without any difficulty. Foods which have little moisture, such as platters of food, should have the surface moistened prior to heating or cooking.

The amount of liquid to be added to raw foods, which are to be braised, should be reduced to about two thirds of the quantity in the original recipe. If necessary, add more liquid during cooking.

The amount of fat to be added can be reduced considerably. A small amount of butter, margarine or oil is sufficient to flavour food. For this reason your microwave is excellent for preparing low-fat foods as part of a diet.

HOW TO USE RECIPES

• All the recipes in this book are calculated on the basis of 4 servings - unless otherwise stated.
• Recommendations relating to suitable utensils and the total cooking times are given at the beginning of every recipe.
• As a rule the quantities shown are assumed to be wholly consumable, unless specifically indicated otherwise.
• When eggs are given in the recipes they are assumed to have weight of approx. 55 g (grade M).

Germany

CAMEMBERT TOAST

Total cooking time: approx. 1 ^1 /2-2 ^1 /2 minutes

Utensil:

Ingredients

4 slices of bread for toasting

2 tbsp butter or margarine (20 g)

150 g camembert

4 tsp cranberry jelly cayenne pepper

Netherlands

MUSHROOM SOUP

Total cooking time: approx. 13-17 Minutes

Utensil: Bowl with Lid (2 | Capacity)

Ingredients

200 g mushrooms, sliced

1 onion (50 g), finely chopped

300 ml meat stock

300 ml cream

2^1/_2 tbsps flour (25 g)

2 ^1 / _2 tbsps butter or margarine (25 g) salt & pepper

1 egg

150 g crème fraîche

1. Toast the bread and spread with butter.
2. Cut the Camembert into slices and arrange on top of the toast. Put the cranberry jelly in the middle of the cheese and sprinkle with cayenne pepper.
3. Place the toast on a plate and heat for 1 ^1 /2-2 ^1 /2 min. 800 W

Tip: You can vary this recipe according to your taste. For example, you can use fresh mushrooms and grated cheese or cooked ham, asparagus and Emmental cheese.

1. Place the vegetables and the stock in the bowl, cover and cook.
   8-9 min. 800 W

2. Blend all the ingredients in the mixer.

3. Mix the flour and butter to a dough and smooth into the soup. Season with salt and pepper, cover and cook. Stir after cooking.

4-6 min. 800 W

1. Mix the egg yolk with the cream, gradually stir into the soup. Heat for a short time, but do not let it boil!

1-2 min. 800 W

Allow the soup to stand for about 5 minutes after cooking.

Switzerland

ZÜRICH VEAL IN CREAM

Total cooking time: approx. 11-15 minutes

Utensil: dish with lid (2 l capacity)

Ingredients

600 g veal fillet

1 tbsp butter or margarine

1 onion (50 g), finely chopped

100 ml white wine

seasoned gravy browning, for approx. 12 I gravy

300 ml cream

1 tbsp parsley, chopped

France

SOLE FILLETS

Total cooking time: approx. 13-16 minutes

Utensil: shallow, oval oven dish with microwave cling film (approx. 26 cm long)

Ingredients

400 g sole fillets

1 lemon, whole

2 tomatoes (150 g)

1 tsp butter or margarine for greasing

1 tbsp vegetable oil

1 tbsp parsley, chopped salt & pepper

4 tbsps white wine (30 ml)

2 tbsps butter or margarine (20 g)

Greece

BRAISED LAMB WITH GREEN BEANS

Total cooking time: approx. 20-24 minutes

Utensil: shallow oval soufflé mould with lid

(about 26 cm long)

Ingredients

1-2 tomatoes (100 g)

400 g lamb, boned

1 tsp butter or margarine for greasing the bowl

1 onion (50 g), finely chopped

1 clove garlic, crushed salt & pepper sugar

250 g tinned green beans

1. Cut the fillet into finger-width strips.

2. Grease the dish all over with the butter. Put the onion and the meat into the dish, cover and cook. Stir once during cooking.

7-10 min. 800 W

1. Add the white wine, gravy browning and cream, stir, cover and continue cooking. Stir occasionally.

4-5 min. 800 W

1. Test the veal, stir the mixture once more and allow to stand for approx. 5 minutes. Serve garnished with parsley.

2. Wash the sole fillets and pat them dry. Remove any bones.

3. Cut the lemon and the tomatoes into thin slices.

4. Grease the oven dish with butter. Place the fish fillets inside and drizzle the vegetable oil over them.

5. Sprinkle parsley over the fish, place the tomato slices on top and season. Place the lemon slices on top of the tomatoes and pour the white wine over them.

6. Place small pats of butter on top of the lemon, cover and cook.

13-16 min. 800 W

After cooking allow the fish fillets to stand for approx. 2 minutes.

Tip: This recipe can also be used for Haddock, Halibut, Mullet, Plaice or Cod.

1. Skin and remove the stalks of the tomatoes, then purée in a blender or food processor.

2. Cut the lamb into large chunks. Grease the bowl with butter. Add meat, onions and garlic, season, cover and cook.

9-11 min. 800 W

1. Add beans and puréed tomatoes to the meat, cover and continue cooking.

11-13 min. 560 W

After cooking, leave the lamb to stand for approximately 5 minutes.

Tip: If you prefer to use fresh beans, these should be pre-cooked.

Italy

LASAGNE

Total cooking time 22-26 minutes

Utensils: Bowl with lid (2 l capacity) shallow square soufflé mould with lid (approx 20 x 20 x 6 cm)

Ingredients

300 g tinned tomatoes

50 g ham, finely cubed

1 onion (50 g), finely chopped

1 clove of garlic, crushed

250 g minced meat (beef)

2 tbsp mashed tomato (30 g) salt & pepper oregano, thyme, basil, nutmeg

50 g grated Parmesan cheese

1 tsp mixed chopped herbs

1 tsp olive oil

1 tsp vegetable oil to grease the mould

125 g lasagne verde

1 tbsp grated Parmesan cheese

1 tbsp butter or margarine

France

RATATOUILLE

Total cooking time 19-21 minutes

Utensils: Bowl with lid (2 l capacity)

Ingredients

5 tbsp olive oil (50 ml)

1 clove garlic, crushed

1 onion (50 g), sliced

1 small aubergine (250 g), cut into cubes

1 courgette (200 g), into cubes

1 pepper (200 g), cut into large cubes

1 small fennel (75 g) cut into large cubes

1 bouquet garni

200 g tinned artichoke hearts, cut into quarters salt & pepper

1. Cut the tomatoes into slices, mix with the ham and onion, garlic, minced meat and mashed tomato. Season and cook with the lid on.

7-9 min. 800 W

1. Mix the cream with the milk, Parmesan cheese, herbs, oil, and spices.

2. Grease the soufflé mould and cover the bottom of the mould with about 1/3 of the pasta. Put half of the minced meat mixture on the pasta and pour on some sauce. Put an additional 1/3 of the pasta on top followed by another layer of the minced meat mixture and some sauce, finishing with the remaining pasta on top. Finally, cover the pasta with lots of sauce and sprinkle with Parmesan cheese. Place butter flakes on top and cook with the lid on.

15-17 min. 560 W

After cooking, let the lasagne stand for approximately 5-10 minutes.

1. Place the olive oil and garlic clove in the bowl. Add the prepared vegetables, except the artichoke hearts, and season with pepper. Add the bouquet garni, cover and cook, stirring once.

19-21 min. 800 W

For the last 5 minutes, add the artichoke hearts and heat.

1. Season the ratatouille to taste with salt and pepper. Remove the bouquet garni before serving. After cooking, leave the ratatouille to stand for around 2 minutes.

Tip: Ratatouille can be served hot with meat dishes. Served cold, it also makes an excellent starter.

A bouquet garni consists of: one stalk of parsley, a bunch of herbs suitable for seasoning soup, one stalk of lovage, one stalk of thyme, several bay leaves.

Spain

BAKED POTATOES

Total cooking time 12-16 minutes

Utensils: Bowl with lid (2 | capacity) China plate

Ingredients

4 medium sized potatoes (400 g)

100 ml water

60 g ham, cut into fine cubes

^1/_2 onion (25 g) finely cubed

75-100 ml milk

2 tbsp grated Parmesan cheese (20 g) salt & pepper

2 tbsp grated Emmental cheese

Denmark

FRUIT JELLY WITH VANILLA SAUCE

Total cooking time 10-13 minutes

Utensils: Dish with lid (2 l capacity) (1 l capacity)

Ingredients

150 g redcurrants, washed and stalks removed

150 g strawberries, washed and haulms removed

150 g raspberries, washed and haulms removed

250ml white wine

100 g sugar

50 ml lemon juice

8 g elatin leaves

300 ml milk inside of 12 vanilla pod

30 g sugar

15 g food thickener

1. Place the potatoes in a dish, add the water, cover and cook. Rearrange halfway through cooking.

8-10 min. 800 W

Leave to cool.

1. Cut the potatoes lengthwise and carefully remove the potato from the skin. Mix the potato with the ham, onion, milk and Parmesan cheese to an even consistency. Season with salt and pepper.

2. Fill the potato skins with potato mixture and sprinkle with Emmental cheese. Place potatoes on a plate and cook.

4-6 min. 800 W

After cooking, leave to stand for approximately 2 minutes.

1. Put some of the fruit to one side for decoration. Purée the rest of the fruit with the white wine, put it into a dish, cover and heat.

7-9 min. 800 W

Fold in the sugar and the lemon juice.

1. Soak the gelatin in cold water for approx. 10 minutes, then take it out and squeeze dry. Stir the gelatin in with the hot purée until it has dissolved. Place the jelly in the refrigerator and leave to set.

2. To make the vanilla sauce; put the milk into the other dish. Slit the vanilla pod and remove the inside. Stir this in with the milk, together with the sugar and the food thickener, cover and cook, stirring during cooking and again at the end.

3-4 min. 800 W

1. Turn out the jelly onto a plate and decorate with the whole fruit. Add the vanilla sauce.

Tip: You can also use defrosted frozen fruits.

CAUTION: DO NOT USE COMMERCIAL OVEN CLEANERS, STEAM CLEANERS, ABRASIVE, HARSH CLEANERS, ANY THAT CONTAIN SODIUM HYDROXIDE OR SCOURING PADS ON ANY PART OF YOUR MICROWAVE OVEN.

Oven exterior

The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel.

Oven controls

Open the door before cleaning to de-activate the oven controls. Care should be taken when cleaning the oven control. Using a cloth dampened with water only, gently wipe the panel until it becomes clean. Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner.

Oven Interior

1. For cleaning, wipe any splatters or spills with a soft damp cloth or sponge after each use while the oven is still warm. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Do not remove the waveguide cover.
2. Make sure that mild soap or water does not penetrate the small vents in the walls which may cause damage to the oven.
3. Do not use spray type cleaners on the oven interior.

Turntable and turntable support

Remove the turntable and turntable support from the oven. Wash the turntable and turntable support in mild soapy water. Dry with a soft cloth. Both the turntable and the turntable support are dishwasher safe.

Door

To remove all trace of dirt, regularly clean both sides of the door, the door seals and sealing surfaces with a soft, damp cloth.

NOTE: A steam cleaner should not be used.

SYMPTOM	POSSIBLE SYMPTOMS/REMEDIES
... the microwave appliance is not working properly?	Check that- the fuses in the fuse box are working,- there has not been a power outage.- If the fuses continue to blow, please contact a qualified electrician.
... the microwave mode is not working?	Check that- the door is properly closed,- the door seals and their surfaces are clean,- the START-button has been pressed.
... the turntable is not turning?	Check that- the turntable support is correctly connected to the drive,- t he ovenware does not extend beyond the turntable,- f ood does not extend beyond the edge of the turntable preventing it from rotating.- there is nothing in the well beneath the turntable.
... the microwave will not switch off?	- Isolate the appliance from the fuse box.- Call an authorised ZANUSSI service agent.
... the interior light is not working?	- Call an authorised ZANUSSI service agent. The interior light bulb can be exchanged only by a trained ZANUSSI service agent.
... the food is taking longer to heat through and cook than before?	- Set a longer cooking time (double quantity = nearly double time) or- if the food is colder than usual, rotate or turn from time to time or- set a higher power setting.

NOTE: If you cook the food over the standard time with only 800 W, the power of the oven will lower automatically to avoid overheating. (The microwave power level will be reduced to 560 W). After pausing for 90 seconds, 800 W power can be reset.

Cooking Mode	Standard time	Reduced Power
Microwave 800 W	20 minutes	Microwave 560 W

If you wish to purchase spare parts or require an engineer, contact your local authorised service agent.

The telephone number can be obtained from the operator.

GUARANTEE CONDITIONS

Standard Guarantee conditions

We, Zanussi, undertake that if within 24 months of the date of the purchase this Zanussi appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.
• A II service work under this guarantee must be undertaken by an authorised Zanussi service agent.
• Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights.
  Home visits are made between 8.30am and 5.30pm Monday to Friday.
  Visits may be available outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside your country of residence.
• Appliances found to be in use within commercial or similar environment, plus those which are subject to rental agreements.
• Products of Zanussi manufacture which are not marketed by Zanussi.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exist in the new country of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Y our new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household. The electrical supply complies with the specification given in the rating label.
• The product is installed taking into account regulations in your new country.

Before you move, please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis [phone] Germany Nürnberg [phone] Italy Pordenone [phone] Sweden Stockholm [phone] UK Slough [phone]

AC Line Voltage	: 230 V, 50 Hz, single phase
Distribution line fuse/circuit breaker	: Minimum 10 A
AC Power required: Microwave	: 1.2 kW
Output power: Microwave	: 800 W (IEC 60705)
Microwave Frequency:	: 2450 MHz
Outside Dimensions: ZM175ST	: 492 mm (W) x 370 mm (H) x 316 mm (D)
	ZM176ST: 592 mm (W) x 370 mm (H) x 316 mm (D)
Cavity Dimensions	: 285 mm (W) x 202 mm (H) x 298 mm (D) *
Oven Capacity	: 17 litres *
Turntable	: ø 272 mm, glass
Weight	: approx. 15.5 kg
Oven lamp	: 25 W/240 - 250 V

* Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less.

This oven complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AS PART OF CONTINUOUS IMPROVEMENT

IMPORTANT INFORMATION

Ecologically responsible disposal of packaging materials and old appliances

Packaging materials

Zanussi microwave ovens require effective packaging to protect them during transportation.

Only the minimum packaging necessary is used.

Packaging materials (e.g. foil or styrofoam) can place children at risk.

Danger of suffocation. Keep packaging material away from children.

All packaging materials used are environment friendly and can be recycled. The cardboard is made from recycled paper and the wooden parts are untreated. Plastic items are marked as follows:

«PE» polyethylene eg packaging film

«PS» polystyrene eg packaging (CFC-free)

«PP» polypropylene eg packaging straps

By using and re-using the packaging, raw materials are saved and waste volume is reduced.

Packaging should be taken to your nearest recycling centre.

Contact your local council for information.

Disposal of old appliances

Old appliances should be made safe before disposal by removing the plug, and cutting off and disposing of the power cable.

It should then be taken to the nearest recycling centre. Check with your local Council or Environmental Health Office to see if there are facilities in your area for recycling the appliance.

INSTALLING THE APPLIANCE

1. Remove all packaging and check carefully for any signs of damage.

2. This oven is designed to fit into a 360mm high cupboard as standard.

When fitting into a 350mm high cupboard:- Unscrew and remove the 4 feet from the bottom of the oven. There are 3 tall feet and 1 short foot. Replace the 3 tall feet with those provided in the accessory pack. Do not replace the short foot.

1. If fitting the microwave oven above a conventional oven (position A) then use the mylar sheet provided.

a. Cut the Mylar sheet to fit the internal width of the unit.

b. Peel back the protective cover on the tape and fix to the rear of the shelf so that it covers the service gap. (See diagram).

Mylar sheet Internal width Service gap Conventional oven

1. Fit the appliance into the kitchen cupboard slowly, and without force, until the front frame of the oven seals against the front opening of the cupboard.

2. Ensure the appliance is stable and not leaning. Ensure that a 5mm gap is kept between the cupboard door above and the top of the frame (see diagram).

= 5 mm

1. Fix the oven in position with the screws provided.

The fixing points are located on the top and bottom corners of the oven (see diagram, item 9, on page 4)

Pure 3D rendering of a rectangular object with a lid and base, no text or symbols visible

1. It is important to ensure that the installation of this product conforms to the instructions in this operation manual and the hob or conventional oven manufacturer's installation instructions.

SAFE USE OF THE APPLIANCE

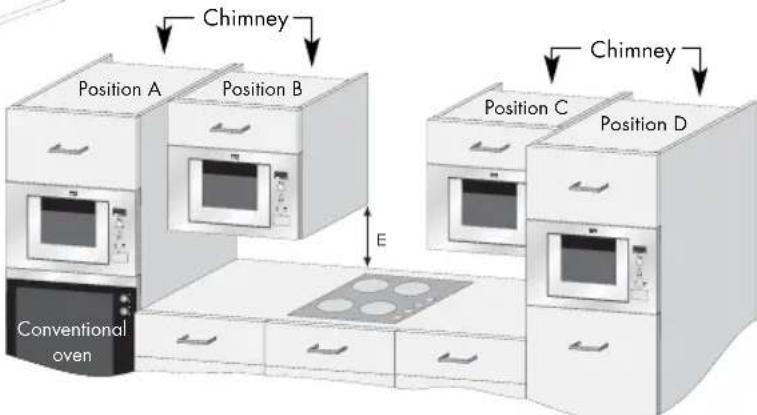

If fitting the microwave in position B or C:

- The cupboard must be a minimum of 500 mm (E) above the worktop and must not be installed directly above a hob.

- This appliance has been tested and approved for use near domestic gas, electric and induction hobs only.

- Sufficient space between hob and microwave should be allowed to prevent overheating of microwave oven, surrounding cupboard and accessories.

- Do not operate the hob without pans when the microwave oven is operating.

- Care should be taken when attending to the microwave oven while the hob is on.

Chimney Position A Position B E Conventional oven Position C Position D

POSITION	NICHE SIZEW D H	CHIMNEY(min)	Gap Between Cupboard & Ceiling
A	560 × 550 × 360	50	50
B + C	460 × 300 × 350	18	50
	460 × 300 × 360	18	50
	560 × 300 × 350	18	50
	560 × 300 × 360	18	50
D	460 × 500 × 350	18	50
	460 × 500 × 360	18	50
	560 × 500 × 350	18	50
	560 × 500 × 360	18	50

Measurements in (mm)

CONNECTING THE APPLIANCE TO THE POWER SUPPLY

- The electrical outlet should be readily accessible so that the unit can be unplugged easily in an emergency.

- The socket should not be positioned behind the cupboard.

- The best position is above the cupboard, see (A). When not connecting the power supply cord to position (A) it should be removed from the support clip (see diagram, item 13, on page 4) and routed under the oven.

- Connect the appliance to a single phase 230 V/50 Hz alternating current via a correctly installed earth socket. The socket must be fused with a ≥10 A fuse.

Illustration of a microwave oven with control panel and display unit (no text or symbols)

- The power supply cord may only be replaced by an electrician.

- Before installing, tie a piece of string to the power supply cord to facilitate connection to point (A) when the appliance is being installed.

- When inserting the appliance into the high-sided cupboard, DO NOT crush the power supply cord.

- Do not immerse the power supply cord or plug in water or any other liquid.

ELECTRICAL CONNECTIONS

WARNING: THIS APPLIANCE MUST BE EARTHED The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, you must call your local Zanussi service agent.

Illustration of a microwave oven with control panel and display (no text or symbols)

From the Electrolux Group. The World's No.1 choice.

The Electrolux group is the world's largest producer of powered appliances for the kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
