USER MANUAL RDXV60 TOSHIBA
Carefully read the Model No. and Serial No. located at the back of the unit and enter the information below. Retain this information for future reference.
Model No. ____ Serial No. ____
Introduction
Precautions
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The important note is located on the rear of the cabinet.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
The symbol for CLASS II (Double Insulation)
Laser Safety
This unit employs a laser. Only qualified service personnel should remove the cover or attempt to service this unit, due to the possibility of eye injury.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.
LOCATION: INSIDE, NEAR THE DECK MECHANISM.
Power Supply
The power supply is connected and the unit is live when the mains cable is plugged into a 220 - 240 V\~, 50 Hz AC outlet. To operate the unit, press [I/∅ ON/STANDBY].
WARNING: LIVE PARTS INSIDE.
DO NOT REMOVE ANY SCREWS.
Caution
- Do not attempt to open the cabinet. There are no parts inside you can service. Refer all servicing to qualified service personnel.
- Slots and openings in the cabinet at the sides and underneath are provided for ventilation. To ensure reliable operation and to protect the unit from overheating, these openings must not be blocked or covered. Avoid installation in enclosed spaces such as bookcases unless suitable ventilation is provided.
- Keep the unit away from radiators and other heat sources.
-
Avoid use near strong magnetic fields.
-
Do not push objects of any kind into the unit through the cabinet slots or openings as they could touch electrically live parts or short circuit parts resulting in a fire or electric shock.
- To prevent fire or shock hazard, do not expose this apparatus to dripping or splashing, no objects filled with liquids, such as vases, should be placed on the apparatus.
- Do not stand the unit vertically. Use the unit in a horizontal (flat) position only.
- Before attempting to operate the unit, make sure that the timer recording mode is off.
- This product is in Stand-by mode when turned off while the mains cable is connected. The front panel display will not light up. This is a Power Saving Mode (ECO) for standby.
- Do not place any combustible objects on the device (candles, etc.).
- Before moving the unit, be sure to remove any media and unplug the mains cable from the AC outlet.
- Disconnect the mains plug to shut off the unit, if you suspect a fault has developed, or if it will not be used for an extended period.
- The mains plug shall remain readily operable.
- Read the instruction manual, and QSG to ensure correct and safe installation and interconnection of the unit in multimedia systems.
- Keep a distance of 20 cm around the ventilation openings of the apparatus.
A NOTE ABOUT RECYCLING
This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.
This product consists of materials which can be recycled and reused if disassembled by a specialised company.
Following information is only for EU-member states: The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Following information is only valid EU-member States: Disposal of batteries and/or accumulators
The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste. If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol. By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative
consequences for the environment and human health. For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.
Make your contribution to the environment!!!
- Exhausted batteries do not belong in the dustbin.
- You can dispose of them at a collection point for exhausted batteries or special waste.
- Contact your council for details.
Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.
Connection to Power
Before Switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate.
Mains Cord
This appliance may be fitted with a non-rewireable plug. If it is necessary to change the fuse in a nonrewireable plug the fuse cover must be refitted. Do not use the plug if the fuse cover is lost or damaged. If a replacement fuse cover cannot be found, the plug must be changed with another carrying the same value fuse.
It is important that the colour of the replacement fuse cover corresponds with the rating marking on the base of the plug. If the plug has to be changed because it is not suitable for your socket, or becomes damaged, it should be cut off and an appropriate plug fitted following the wiring instructions below. The plug removed must be disposed of safely as insertion into a 13A socket is likely to cause an electrical hazard. For your own safety read the following instructions carefully before attempting to connect this unit to mains. The wires in this mains lead are coloured in accordance with the following code:
BLUE=NEUTRAL, BROWN=LIVE
Important
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. No connection is to be made to the earth terminal of the plug If a 13 Amp (BS 1363) Plug is used, a 5 Amp Fuse must be fitted, or if any other type of Plug is used a 3 or 5 Amp Fuse must be fitted, either in the Plug or Adaptor, or on the Distribution Board.
Mains Supply: 220 - 240 V\~ 50 Hz - AC only
Do not make any connection to the larger pin marked with the letter "E" or by the symbol or coloured green or green and yellow.
For safety and optimum performance of this unit:
• Install the unit in a horizontal and stable position.
- Keep the unit away from electronic equipment such as an amplifier, TV, etc. to prevent warping, damage, fire and malfunction.
- Do not place anything directly on top of the unit.
- Shield the unit from direct sunlight and keep away from sources of intense heat. Avoid dusty or humid locations. Avoid locations with insufficient ventilation for suitable heat dissipation. Do not block the ventilation holes on the sides of the unit. Avoid locations subject to strong vibration or strong magnetic fields.
Avoid the Hazards of Electrical Shock and Fire
- Do not handle the mains cable with wet hands.
- Do not pull on the mains cable to disconnect it from the AC outlet. Grasp it by the plug.
- If, by accident, water is spilled on the unit, unplug the mains cable immediately and take the unit to an authorised service centre for servicing.
Moisture Condensation Warning
Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, after heating a cold room, or under conditions of high humidity. Do not use the unit for at least 2 hours to allow the inside to dry.
About Copyright
Unauthorised copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorised by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision. Reverse engineering or disassembly is prohibited.
Notice for the Progressive Scan Outputs
Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 480 or 576 progressive scan output, it is recommended that the user switch the connection to the 'standard definition' output. If there are questions regarding your TV set compatibility with this 480p or 576p product, please contact our customer service centre.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
"Dolby® Digital Stereo Creator enables consumers to create stereo DVD-Videos with stunning Dolby Digital sound tracks at home. The technology, when utilised instead of PCM recording, also saves recordable disc space, allowing for higher video resolution or extended recording time on each DVD. DVDs mastered using Dolby Digital Stereo Creator will play back on all DVD-Video players."
Note: This is true when the players are compatible with actual recordable DVD discs.
Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks and DTS Digital Out and the DTS logos are trademarks of DTS, Inc. Product includes software.
© DTS, Inc. All Rights Reserved.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
DivX®, DivX Certified® and associated logos are registered trademarks of DivX, Inc. and are used under license.
DVB is a registered trademark of the DVB Project
EU Conformity Statement
CE
"This product is marked with "CE" and complies therefore with the applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC and ErP Directive 2009/125/EC(2005/32/EC)."
Responsible for CE-marking is TOSHIBA INFORMATION SYSTEMS (U.K.) LTD, Toshiba Court, Weybridge Business Park, Addlestone Road, Weybridge, Surrey, KT15 2UL, United Kingdom
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, L. L. C. SEE HTTP://WWW.MPEGLA.COM
Maintenance
CLEANING THE UNIT
Use a soft cloth slightly moistened with a mild detergent solution. Do not use solutions containing alcohol, spirits, ammonia or abrasives.
CLEANING DISCS
If a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the centre out. Do not wipe in a circular motion. Do not use solvents such as benzine, thinners, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analogue records.
DISC HANDLING
Handle the discs so that fingerprints and dust do not adhere to the disc surfaces.
Always store the disc in its protective case when it is not in use.
HDD HANDLING
- HDD is a precision apparatus that is susceptible to vibration, strong impact or dirt. Depending on the installation environment or handling, the unit may become partially damaged or in the worst case, recording or replaying may not be available. Especially while the HDD is in motion, do not subject it to vibration or strong impact or pull out the power plug. And if a power failure occurs, the content of the recording / replaying programme may be lost.
- HDD rotates at high speed when in operation. Be sure that rotation has stopped and then move the unit without subjecting it to strong impact or vibration.
SERVICING
If the unit becomes inoperative, do not try to correct the problem by yourself. There are no user serviceable parts inside. Turn the unit off, unplug the mains cable, and consult your dealer or an authorised service centre.
CLEANING THE DISC LENS
If the unit does not perform correctly even though you have referred to "Troubleshooting" and the relevant sections in the Owner's Manual, the laser optical pickup unit may be dirty. Consult your dealer or an authorised service centre for inspection and cleaning of the laser optical pickup unit.
AUTO HEAD CLEANING
• Automatically cleans video heads as you insert or remove a cassette, so you can see a clear picture.
- Playback picture may become blurred or interrupted while the TV programme reception is clear. Dirt accumulated on the video heads after a long period of use, or the usage of rental or worn tapes can cause this problem. If a streaky or snowy picture appears during playback, the video heads in the unit may need to be cleaned.
1 Please visit your local Audio / Video store and purchase a good quality VCR Video Head Cleaner.
2 If a Video Head Cleaner does not solve the problem, please consult your dealer or an authorised service centre.
Note
- Remember to read the instructions along with the video head cleaner before use.
- Clean video heads only when problems occur.
Accessories Supplied
- Remote control with 2 R6 (1.5 V) batteries
- RF cable
- Owner's Manual
- Quick Setup Guide
- Helpline Sheet
Features
The following features are available with this unit.
Recording
HDD DVD VCR
• Recording up to 36 programmes (HDD/DVD)
• One-touch timer recording:
(HDD/DVD) [→ Page 32]
(VCR) [→ Page 74]
• Automatic chapter mark setting: [→ Page 31]
• Automatic Playlist making
• 320 GB hard disc
• P D C : [→Page 34]
• Alternate recording: [→ Page 34]
• Automatic finalising: [→ Page 45]
• Automatic title menu making: [→ Page 45]
HDD DVD
HDD
DVD
Dubbing
HDD DVD
• High speed dubbing: [→ Page 41]
• Auto recording mode dubbing: [→ Page 41]
HDD DVD VCR
• DV dubbing:
(HDD/DVD) [→ Pages 39-40]
(VCR) [→ Page 75]
Playback
HDD DVD
• Theatre surround sound: [→ Page 19]
- Quick search: [→ Pages 54-55]
• Variable skip: [→ Page 51]
• Variable replay: [→ Page 51]
- Playback from Original or a Playlist: [→ Page 46]
• Virtual Surround System: [→ Page 57]
- Playing back data files recorded in a USB device: [→Page 48]
HDD
- Chasing playback during recording and simultaneous playback and recording: [→ Page 53]
- Pausing a TV broadcast to resume later (Pause TV): [→ Page 53]
DVD
- Playing back MP3 / JPEG / DivX® files: [→ Pages 47-49]
VCR
- Quick search: [→ Pages 75-76]
Editing
HDD DVD
- Adding or deleting chapter marks manually: [→ Page 61]
- Creating titles to a Playlist: [→ Page 63]
- Deleting titles: [→ Page 59]
- Deleting a scene of a title: [→ Page 64]
- Editing title name: [→ Page 60]
• Combining titles: [→ Page 63]
• Dividing titles: [→ Page 62] - Protecting titles: [→ Page 62]
DVD
- Adding or deleting chapter marks at once (video mode DVD-RW only): [→ Page 61]
• Hiding chapters: [→ Page 62]
Compatibility
DVD
- Playing back discs recorded in video mode in any regular DVD player: [→ Page 45]
Others
HDD DVD
- Progressive scan system: [→ Pages 17, 71]
- HDMI (High-Definition Multimedia Interface): [→ Pages 18, 72]
EN
Table of Contents
Introduction ...... 2
Precautions 2
Features 5
Guide to the Owner's Manual....7

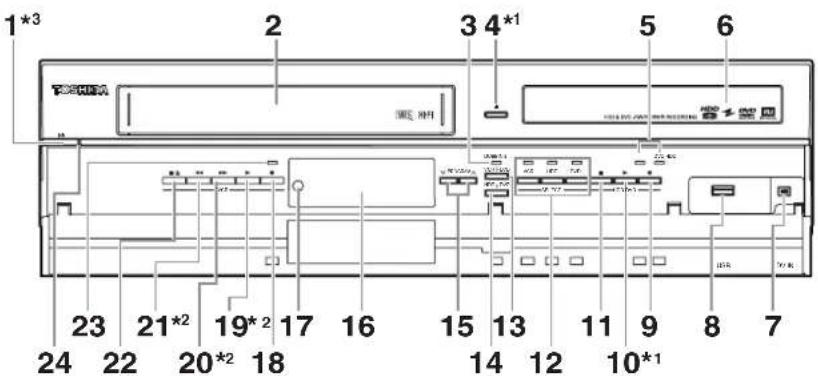

Functional Overview.... 10
Installing Batteries in the Remote Control.... 12

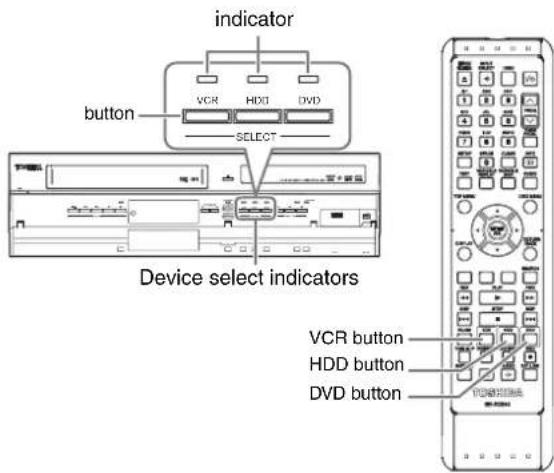

Switching HDD / DVD / VCR mode 12
Guide to On-Screen Displays.... 13
Front Panel Display Guide.... 16
Connections 17
Connecting to a TV.... 17
Connecting to External Equipment.... 19
Digital Audio for Better Sound Quality.... 19
Basic Setup / TV View Operation ...... 20
Initial Setting....20
Channel Setting....20
TV View Operation 23
Recording.... 28
Information on DVD Recording.... 28
Formatting a Disc 30
Selecting the Audio Mode 31
Basic Recording and One-touch Timer Recording (OTR) 32
Timer Recording....33
Timer Recording (EPG).... 36
Series Link Timer Recording 37
Satellite Link 37
Settings for External Equipment.... 38
Information on DV Dubbing 39
DVC to HDD / DVD Dubbing.... 40
Information on Dubbing 40
Setting a Disc to Protect.... 44
Finalising Discs 45
Playback.... 46
Basic Playback 46
PBC Function for Video CDs.... 50
Special Playback 51
Search 54
Repeat / Random / Programme Playback / Slide Show ... 55
Selecting the Format of Audio and Video.... 56
Editing 58
Guide to a Title List 58
Editing Discs 59
Deleting Selected Titles 60
Deleting All Titles in HDD....64
Function Setup 65
General Setting 67
VCR Functions.... 74
Playback....74
Basic Recording and One-touch
Timer Recording (OTR) 74
Search....75
Other Operations....76
Hi-Fi Stereo Sound System 76
Others 77
Troubleshooting....77
Troubleshooting for Error Messages 80
Language Code 82
Specifications....83
Symbols Used in the Owner's Manual
To show what recording mode or media type applies to each function, the following symbols appear at the beginning of each operating item.
| Symbol Description | |
 | Available to (internal) HDD |
 | Available to DVD-videos |
 | Available to DVD-RW discs in video mode |
 | Available to DVD-RW discs in VR mode |
 | Available to DVD-R discs in video mode |
 | Available to DVD+RW discs |
 | Available to DVD+R discs |
 | Available to audio CDs |
 | Available to video CDs |
 | Available to CD-RW/-R discs and USB device with MP3 files |
 | Available to CD-RW/-R discs and USB device with JPEG files |
| DivX® | Available to DVD-RW/-R, DVD+RW/+R, CD-RW/-R discs and USB device with DivX® files (DivX® files in USB device are not guaranteed.) |
 | Available to VHS tapesUse only cassettes marked VHS (VHS |
| DivX® | Available to DVD-RW/-R, DVD+RW/+R, CD-RW/-R discs and USB device with DivX® files(DivX® files in USB device are not guaranteed.) |
Symbols for Tuner Setting and Recording
The following is the description for the symbols for tuner setting used in this manual.
ANALOG : \$settings only for the analogue mode
DVB : Settings only for the DVB mode
| Media for Recording / Playing | ||||||||
| Media Type | DVD-RW DVD-R DVD+RW DVD+R HDD | |||||||
| Logo | DVRW | DVR4.7 | RDWD+ReWritable | RDWD+R | HDD | |||
| Format | Can be formatted in VR or video mode | Automatically formatted in video mode | Automatically formatted in +VR mode | Automatically formatted in +VR mode | - | |||
| Icon Maximum Record Time | Video Mode VR Mode | DVR480 min (12 cm) 144 min (8 cm) | DVR480 min (12 cm) 144 min (8 cm) | DVR480 min (12 cm) 144 min (8 cm) | 545 hrs (with SLP mode) | |||
| 480 min (12 cm) 144 min (8 cm) | 480 min (12 cm) 144 min (8 cm) | |||||||
| Recordable/Playable Versions | 1x-6x Ver. 1.1/1.2 Ver. 1.1/1.2 CPRM compatible | 1x-16x Ver. 2.0/2.1 | 1x-4x 1x-16x - | |||||
| Compatibility | Playable on most DVD players. Finalisation necessary. (Title menu will be created) | Playable only on VR mode compatible unit. Finalisation recommended. | Playable on most DVD players. Finalisation necessary. (Title menu will be created) | Playable on DVD+RW compatible players. Finalisation recommended. (Title menu will be created) | Playable on most DVD players. Finalisation recommended. (Title menu will be created) | - | ||
| Available Features | Recording Features | |||||||
| Record TV Programmes | ✓ | ✓ | ✓ | ✓ | ||||
| Reuse by Deleting the Current Contents | ✓ | ✓ | ✓ | ✓ | ||||
| Record 16:9 Size Pictures | ✓ | ✓ | ✓ | ✓ | ||||
| Record Copy-once Programmes | ✓* | ✓ | ||||||
| Create Chapters at Fixed Intervals (auto chapter) | ✓ | ✓ | ✓ | ✓ | ||||
| Editing Features | Playlist | Original | Playlist | |||||
| Scene Delete | ✓ | ✓ | ✓ | |||||
| Edit Title Name | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Create Chapters Wherever You Like (chapter mark) | ✓ | ✓ | ✓ | ✓ | ✓ | |||
| Divide a Title | ✓ | ✓ | ✓ | |||||
| Combine Titles | ✓ | ✓ | ||||||
| Hide Chapters | ✓ | ✓ | ||||||
| Delete a Title | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Deleting Selected Titles | ✓ | |||||||
| Create a Playlist | ✓ | |||||||
| Protect a Title | ✓ | |||||||
√: Available
* CPRM compatible disc only.
Grey: Not available
DVD players with capable of playing DVD-RW recorded in VR mode.
| Discs for Playing | |||||
| Disc Type | DVD-VIDEO | CD-DA | Video CD | CD-RW | CD-R |
| Logo | |||||
| Icon | |||||
Discs for Playing
| Files for Playing | |||
| Type of title | MP3 | JPEG | DivX ^® |
| Icon | MP3 | JPEG | DivX ^® |
| Media | CD-RW/-RUSB device | CD-RW/-RUSB device | CD-RW/-RDVD-RW/-RDVD+RW/+RUSB device (not guaranteed) |
DVD is a trademark of DVD Format/Logo Licensing Corporation.
- ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.
- ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.
- DivX Certified® to play DivX® video, including premium content.
- Media containing the DivX® files with the DivX® GMC (Global Motion Compensation) playback feature, which is DivX® supplemental function, cannot be played back on this unit.
Unplayable Discs
The following discs will not play back on this unit.
- CD-ROM
- Compact Disc-Interactive (CD-I)
• Video Single Disc (VSD) - DVD-ROM
- DVD-audio
- Unfinalised disc
• DVD or CD contains Windows Media™ Audio files
• DVD-RW/-R recorded in non compatible recording format - Blu-ray Disc
• HD DVD
On the following disc, the sound may not be heard.
- Super audio CD - Only the sound on the CD layer can be heard. The sound on the high-density super audio CD layer cannot be heard.
Colour Systems
This unit uses the PAL system. However, it is also possible to play back DVDs using other colour systems, such as NTSC.
Region Codes
This unit has been designed to play DVD with region 2. If these region symbols do not appear on your DVD, you cannot play back the DVD in this unit. The number inside the globe refers to region of the world.
Following discs are recommended for good recording quality and are proven to be compatible with this unit. However, depending on the media condition the unit may not read the disc properly.
Verbatim DVD+R 8x, DVD+RW 4x, DVD-R 8x, DVD-RW 2x JVC DVD-RW 4x
Maxell DVD+R 4x/8x/16x, DVD-R 8x/16x
SONY DVD+R 4x/8x/16x, DVD+RW 4x
TDK DVD+R 4x/8x/16x
Performance of any other discs are not guaranteed.
- Toshiba is not liable for any damage or loss caused directly or indirectly by the malfunction of this unit, including, without limitation, any one of the following:
- Failure to record contents intended to be recorded by the consumer.
- Failure to edit contents as intended by the consumer.
- When a DVD-RW/-R, DVD+RW/+R disc created on this unit is used (e.g., insertion, playback, recording or editing) in another DVD player, recorder or personal computer drive.
- When a DVD-RW/-R, DVD+RW/+R disc that is used in the manner described in the immediately preceding bullet point is used again in this unit.
-
When a DVD-RW/-R, DVD+RW/+R disc that was recorded in another DVD recorder, or in a personal computer drive is used in this unit.
-
Some functions may not work with personal computer discs.
- Discs recorded in this unit may not operate as expected on other DVD players, recorders or personal computer drives.
Because of problems and errors that can occur during the creation of DVD and CD software and/or the manufacture of DVD and CD discs, Toshiba cannot guarantee that product will play every feature of every DVD bearing the DVD logo and/or every CD bearing the CD logo. As one of the creators of DVD technology, Toshiba DVD players are manufactured using the highest standards of quality, and as a result, such incompatibilities are rare.
Functional Overview
Front Panel
(★2) You can turn on the unit by pressing these buttons only when a videotape is in this unit.
(*3) Press to turn on the unit, or to turn the unit into the standby mode. (To completely shut down the unit, you must unplug the AC power cord.)
1 I/ON/STANDBY button* 3
2 Cassette compartment
3 DUBBING indicator
4 ▲OPEN/CLOSE button* 1 (DVD)
5 REC indicators (HDD/DVD)
6 Disc tray
7 DV IN jack (AV3)
8 USB input jack
9 ●REC button (HDD/DVD)
10 PLAY ▶ button* 1 (HDD/DVD)
11 STOP ■ button (HDD/DVD)
12 Device select buttons / indicators (HDD/DVD/VCR)
13 DUBBING VCR > DVD button
14 DUBBING HDD > DVD button
15 PROGRAM ∧ / ∨ buttons
16 Display ("Off" in standby)
17 Infrared sensor window
18 ●REC button (VCR)
19 PLAY ▶ button* 2 (VCR)
20 FWD ▶▶ button* 2 (VCR)
21 REV ◀ button*2 (VCR)
22 STOP/EJECT ■ / ▲ button (VCR)
23 REC indicator (VCR)
24 Power indicator
Button names described in the Owner's Manual
The instructions in this manual are described mainly with the operations using the remote control. Some operations can be carried out using the buttons on the front panel.
Rear Panel
2 HDMI OUT jack (HDD/DVD/VCR)
3 DIGITAL AUDIO OUT (COAXIAL) jack (HDD/DVD/VCR)
4 AUDIO OUT (L/R) jacks (HDD/DVD/VCR)
5 COMPONENT VIDEO OUT jacks (HDD/DVD/VCR)
6 AV2 (DECODER) socket (HDD/DVD/VCR)
7 AV1 (TV) socket (HDD/DVD/VCR)
8 ANTENNA IN
9 ANTENNA OUT
Note
- Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
- After turning off the unit, leave the mains cable plugged for about one minute. Otherwise it may cause data loss or the unit may not work properly.
- This unit does not have an RF modulator.
10 EN
Remote Control
2 INPUT SELECT ➕ button
3 Number buttons
4 SETUP button
5 TEXT button
6 VARIABLE REPLAY button (HDD/DVD)
7 TOP MENU button (HDD/DVD)
8 Direction ▲/▼/◄/► buttons
9 DISPLAY button
10 RED/GREEN/YELLOW/BLUE button SEARCH (BLUE) button (VCR)
11 REV ◀ button
12 PLAY ▶ button
19 AD (Audio Description) button
20 HDMI button
21 I/ON/STANDBY button
22 PROG. ∧ / ∨ buttons
23 TIMER PROG. button
24 INFO i+ button
25 CLEAR button
26 GUIDE button
27 VARIABLE SKIP button (HDD/DVD)
28 DISC MENU button (HDD/DVD)
29 ENTER/OK button
30 RETURN/BACK button
31 FWD ▶ button
32 STOP ■ button
33 SKIP ▶▶I button (HDD/DVD)
34 HDD button
35 DVD button
36 REC ● button
37 REC MODE button
38 SAT.LINK button (HDD)
39 AUDIO 🎨 button
Button names described in the Owner's Manual
The instructions in this manual are described mainly with the operations using the remote control. Some operations can be carried out using the buttons on the front panel.
Note
- If you turn off this unit, [OPEN/CLOSE ▲] on the remote control is not available. Be sure to use [▲ OPEN/CLOSE] or [STOP/EJECT ■ / ▲] on the unit.
Installing Batteries in the Remote Control
Install 2 R6 (1.5 V) batteries (supplied) into the remote control, carefully match with the polarity indicated inside the battery compartment.
Caution
- Incorrect use of batteries can result in hazards such as leakage and bursting.
- Do not mix new and old batteries together.
- Do not use different kinds of batteries together.
- Make sure that the plus (+) and minus (−) ends of each battery match the indications inside the battery compartment.
- Remove batteries if the equipment will not be used for a month or more.
- When disposing used batteries, please comply with governmental regulations or the public instructions for environmental protection that apply in your country or area.
- Do not recharge, short-circuit, heat, burn or disassemble batteries.
About the Remote Control
- Make sure there is no obstacle between the remote control and the remote control sensor on the unit.
- Use within the operating range and angle as shown.
Line of sight: approximately 7 m
Either side of centre: approximately 7 m within 30 degrees
- Remote control operation may become unreliable if the remote control sensor of the unit is being exposed by the strong sunlight or fluorescent light.
- Remote controls for different devices can interfere with each other. Be careful when using remote controls for other equipment located close to the unit.
- Replace the batteries when the operating range of the remote control reduces.
Switching HDD / DVD / VCR mode
You must select which component you want to operate first. Press [HDD], [DVD] or [VCR] on the remote control or the front panel.
Press [HDD] on the remote control or the front panel. (Verify that the HDD indicator is lit in blue.)
DVD
Press [DVD] on the remote control or the front panel. (Verify that the DVD indicator is lit in green.)
VCR
Press [VCR] on the remote control or the front panel. (Verify that the VCR indicator is lit in orange.)
Guide to On-Screen Displays
DISPLAY Menu
HDD DVD
With a disc inserted into the unit, press [DISPLAY] to display the on-screen display. The on-screen display shows information about what is recorded on the disc.
1 Indicates a disc type and format mode. (DVD mode only)
2 Indicates a type of titles for HDD and VR mode DVD-RW disc.
3 Indicates a channel number, station name (analogue channel only) or selected external input mode.
4 Indicates a media, recording mode and possible recording time left.
5 Indicates the current title number/total number of titles, the current chapter number/total number of chapters, and time lapse of the current title playback/total duration of the title.
6 Each icon means:
7 Indicates an operation status.
8 Indicates the component in use.
- For some descriptions on this manual, only one disc type is indicated as an example.
Press [DISPLAY] repeatedly while the display menu is displayed to display the following information.
