USER MANUAL DVR20DTKB TOSHIBA

TOSHIBA WQ 1071 WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ WQ

For Customer Use:

Carefully read the Model No. and Serial No. located at the back of the unit and enter the information below. Retain this information for future reference.

Model No. ____ Serial No. ____

Introduction

Precautions

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The important note is located on the rear of the cabinet.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The symbol for CLASS II (Double Insulation)

Laser Safety

This unit employs a laser. Only qualified service personnel should remove the cover or attempt to service this unit, due to the possibility of eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

Power Supply

The power supply is connected and the unit is live when the mains cable is plugged into a 220 - 240 V\~, 50 Hz AC outlet. To operate the unit, press [I/∅ ON/STANDBY].

WARNING: LIVE PARTS INSIDE.

DO NOT REMOVE ANY SCREWS.

Caution

1. Do not attempt to open the cabinet. There are no parts inside you can service. Refer all servicing to qualified service personnel.
2. Slots and openings in the cabinet at the sides and underneath are provided for ventilation. To ensure reliable operation and to protect the unit from overheating, these openings must not be blocked or covered. Avoid installation in enclosed spaces such as bookcases unless suitable ventilation is provided.
3. Keep the unit away from radiators and other heat sources.

4. Avoid use near strong magnetic fields.

5. Do not push objects of any kind into the unit through the cabinet slots or openings as they could touch electrically live parts or short circuit parts resulting in a fire or electric shock.

6. To prevent fire or shock hazard, do not expose this apparatus to dripping or splashing, no objects filled with liquids, such as vases, should be placed on the apparatus.
7. Do not stand the unit vertically. Use the unit in a horizontal (flat) position only.
8. Before attempting to operate the unit, make sure that the timer recording mode is off.
9. This product is in Stand-by mode when turned off while the mains cable is connected. The front panel display will not light up. This is a Power Saving Mode (ECO) for standby.
10. Do not place any combustible objects on the device (candles, etc.).
11. Before moving the unit, be sure to remove any media and unplug the mains cable from the AC outlet.
12. Disconnect the mains plug to shut off the unit, if you suspect a fault has developed, or if it will not be used for an extended period.
13. The mains plug shall remain readily operable.
14. Read the instruction manual, and QSG to ensure correct and safe installation and interconnection of the unit in multimedia systems.
15. Keep a distance of 20 cm around the ventilation openings of the apparatus.

A NOTE ABOUT RECYCLING

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

This product consists of materials which can be recycled and reused if disassembled by a specialised company.

Following information is only for EU-member states: The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by

inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Following information is only valid EU-member States: Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste. If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol. By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative

consequences for the environment and human health. For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Make your contribution to the environment!!!

• Exhausted batteries do not belong in the dustbin.
• You can dispose of them at a collection point for exhausted batteries or special waste.
• Contact your council for details.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

Connection to Power

Before Switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate.

Mains Cord

This appliance may be fitted with a non-rewireable plug. If it is necessary to change the fuse in a nonrewireable plug the fuse cover must be refitted. Do not use the plug if the fuse cover is lost or damaged. If a replacement fuse cover cannot be found, the plug must be changed with another carrying the same value fuse.

It is important that the colour of the replacement fuse cover corresponds with the rating marking on the base of the plug. If the plug has to be changed because it is not suitable for your socket, or becomes damaged, it should be cut off and an appropriate plug fitted following the wiring instructions below. The plug removed must be disposed of safely as insertion into a 13A socket is likely to cause an electrical hazard.

For your own safety read the following instructions carefully before attempting to connect this unit to mains. The wires in this mains lead are coloured in accordance with the following code:

BLUE=NEUTRAL, BROWN=LIVE

Important

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. No connection is to be made to the earth terminal of the plug If a 13 Amp (BS 1363) Plug is used, a 5 Amp Fuse must be fitted, or if any other type of Plug is used a 3 or 5 Amp Fuse must be fitted, either in the Plug or Adaptor, or on the Distribution Board.

Mains Supply: 220 - 240 V\~ 50 Hz - AC only

Do not make any connection to the larger pin marked with the letter "E" or by the symbol or coloured green or green and yellow.

FUSE BROWN (Live) BLUE (Neutral) CORD GRIP OUTER SHEATH OF THE WIRE

Installation Location

For safety and optimum performance of this unit:

• Install the unit in a horizontal and stable position.
- Keep the unit away from electronic equipment such as an amplifier, TV, etc. to prevent warping, damage, fire and malfunction.
- Do not place anything directly on top of the unit.
- Shield the unit from direct sunlight and keep away from sources of intense heat. Avoid dusty or humid locations. Avoid locations with insufficient ventilation for suitable heat dissipation. Do not block the ventilation holes on the sides of the unit. Avoid locations subject to strong vibration or strong magnetic fields.

Avoid the Hazards of Electrical Shock and Fire

• Do not handle the mains cable with wet hands.
• Do not pull on the mains cable to disconnect it from the AC outlet. Grasp it by the plug.
• If, by accident, water is spilled on the unit, unplug the mains cable immediately and take the unit to an authorised service centre for servicing.

Moisture Condensation Warning

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, after heating a cold room, or under conditions of high humidity. Do not use the unit for at least 2 hours to allow the inside to dry.

About Copyright

Unauthorised copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorised by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorised by

Macrovision. Reverse engineering or disassembly is prohibited.

Notice for the Progressive Scan Outputs

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 480 or 576 progressive scan output, it is recommended that the user switch the connection to the 'standard definition' output. If there are questions regarding your TV set compatibility with this 480p or 576p product, please contact our customer service centre.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

"Dolby" Digital Recording enables consumers to record high-quality video with stereo sound on recordable DVD discs. The technology, when utilised instead of PCM recording, also saves recordable disc space, allowing for higher video resolution or extended recording time on each DVD. DVDs created using Dolby Digital Recording will play back on all DVD-Video players." Note: This is true when the players are compatible with actual recordable DVD discs.

Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks and DTS Digital Out and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DivX ^® , DivX Certified ^® and associated logos are registered trademarks of DivX, Inc. and are used under license.

DVB is a registered trademark of the DVB Project

EU Conformity Statement

"This product is marked with "CE" and complies therefore with the applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC and ErP Directive 2009/125/EC(2005/32/EC)."

Responsible for CE-marking is TOSHIBA INFORMATION SYSTEMS (U.K.) LTD, Toshiba Court, Weybridge Business Park, Addlestone Road, Weybridge, Surrey, KT15 2UL, United Kingdom

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, L. L. C. SEE HTTP://WWW.MPEGLA.COM

Maintenance

CLEANING THE UNIT

Use a soft cloth slightly moistened with a mild detergent solution. Do not use solutions containing alcohol, spirits, ammonia or abrasives.

CLEANING DISCS

If a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the centre out. Do not wipe in a circular motion. Do not use solvents such as benzine, thinners, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analogue records.

DISC HANDLING

Handle the discs so that fingerprints and dust do not adhere to the disc surfaces.

Always store the disc in its protective case when it is not in use.

SERVICING

If the unit becomes inoperative, do not try to correct the problem by yourself. There are no user serviceable parts inside. Turn the unit off, unplug the mains cable, and consult your dealer or an authorised service centre.

CLEANING THE DISC LENS

If the unit does not perform correctly even though you have referred to "Troubleshooting" and the relevant sections in the Owner's Manual, the laser optical pickup unit may be dirty. Consult your dealer or an authorised service centre for inspection and cleaning of the laser optical pickup unit.

AUTO HEAD CLEANING

• Automatically cleans video heads as you insert or remove a cassette, so you can see a clear picture.
- Playback picture may become blurred or interrupted while the TV programme reception is clear. Dirt accumulated on the video heads after a long period of use, or the usage of rental or worn tapes can cause this problem. If a streaky or snowy picture appears during playback, the video heads in the unit may need to be cleaned.
1Please visit your local Audio / Video store and purchase a good quality VCR Video Head Cleaner.
2If a Video Head Cleaner does not solve the problem, please consult your dealer or an authorised service centre.

Note

• Remember to read the instructions along with the video head cleaner before use.
• Clean video heads only when problems occur.

Accessories Supplied

• Remote control with 2 R6 (1.5 V) batteries
• RF cable
• Owner's Manual
• Quick Setup Guide
• Helpline Sheet

Features

The following features are available with this unit.

Recording

DVD VCR

• Recording up to 12 programmes
• One-touch timer recording:

(DVD) [→ Page 32]

(VCR) [→Page 71]

• Automatic chapter mark setting: [→ Page 31]
• Automatic Playlist making (VR mode DVD-RW discs only)
- Automatic finalising (video mode DVD-RW/-R, DVD+R discs only): [→ Page 42]
- Automatic title menu making (video, +VR mode only): [→Page 42]

Dubbing

DVD VCR

• DV dubbing:
(DVD) [→ Pages 39-40]
(VCR) [→Page 71]
- Dubbing mode: [→ Page 41]

Playback

DVD

• Theatre surround sound: [→ Page 19]
- Quick search: [→ Pages 51-52]
- Playback from Original or a Playlist (VR mode DVD-RW discs only): [→ Page 43]
• Virtual Surround System: [→ Page 54]
- Playing back data files recorded in a USB device: [→Page 45]
- Chasing playback during recording and simultaneous playback and recording: [→ Page 50]
- Playing back MP3 / JPEG / DivX® files: [→ Pages 44-46]

VCR

- Quick search: [→ Pages 71-72]

Editing

DVD

• Adding or deleting chapter marks manually: [→ Page 57]
• Creating titles to a Playlist (VR mode DVD-RW discs only): [→Page 59]
• Deleting titles: [→ Page 56]
• Deleting a scene of a title (VR mode DVD-RW discs only): [→ Page 60]
• Editing title name: [→ Page 57]
• Combining titles (VR mode DVD-RW discs only): [→ Page 59]
• Dividing titles (VR mode DVD-RW, DVD+RW discs only): [▶ Page 59]
• Protecting titles (VR mode DVD-RW discs only): [→ Page 58]
• Adding or deleting chapter marks at once (video mode DVD-RW discs only): [→ Page 58]
• Hiding chapters (+VR mode only): [→ Page 58]

Compatibility

DVD

- Playing back discs recorded in video mode in any regular DVD player: [→ Page 42]

Others

DVD

• Progressive scan system: [→ Pages 17, 67]
• HDMI (High-Definition Multimedia Interface): [→ Pages 18, 68]

Table of Contents

Introduction ...... 2

Precautions 2

Features 5

Guide to the Owner's Manual....7

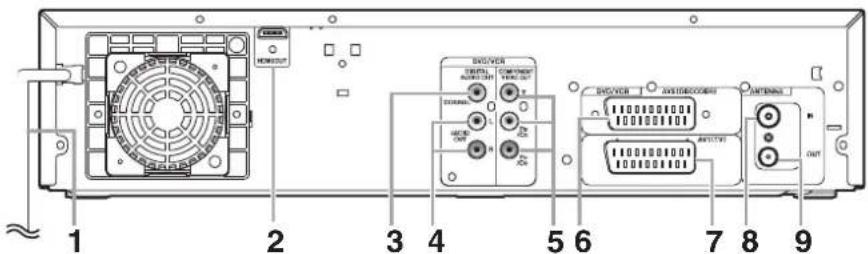

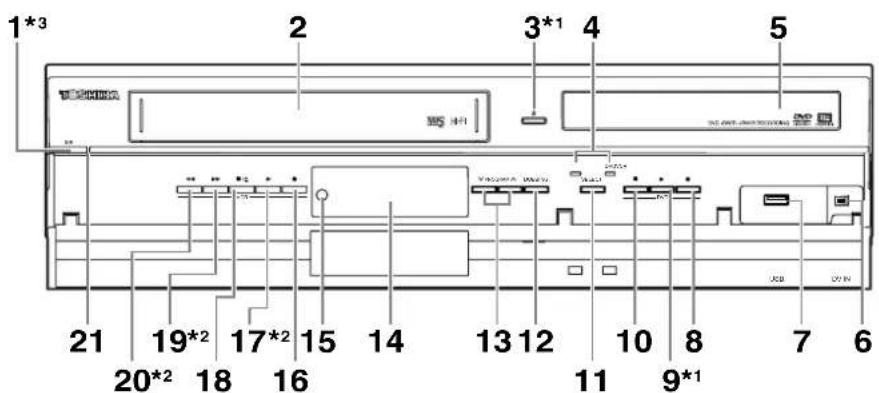

Functional Overview.... 10

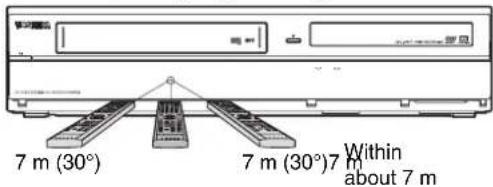

Installing Batteries in the Remote Control.... 12

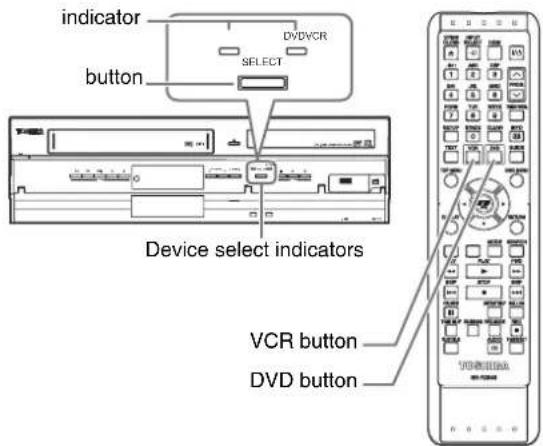

Switching DVD / VCR mode 12

Guide to On-Screen Displays.... 13

Front Panel Display Guide.... 16

Connections 17

Connecting to a TV....17

Connecting to External Equipment.... 19

Digital Audio for Better Sound Quality.... 19

Basic Setup / TV View Operation ...... 20

Initial Setting....20

Channel Setting....20

TV View Operation 23

Recording.... 28

Information on DVD Recording....28

Formatting a Disc 30

Selecting the Audio Mode 31

Basic Recording and One-touch Timer Recording (OTR) 32

Timer Recording.... 33

Timer Recording (EPG).... 36

Series Link Timer Recording 37

Satellite Link 37

Settings for External Equipment.... 38

Information on DV Dubbing 39

DVC to DVD Dubbing 40

Dubbing Mode 41

Setting a Disc to Protect.... 42

Finalising Discs 42

Playback.... 43

Basic Playback 43

PBC Function for Video CDs.... 47

Special Playback 48

Search 51

Repeat / Random / Programme Playback / Slide Show ... 52

Selecting the Format of Audio and Video.... 53

Editing 55

Guide to a Title List 55

Editing Discs 56

Function Setup 61

General Setting 63

VCR Functions....70

Playback....70

Basic Recording and One-touch Timer Recording (OTR) 70

Search....71

Other Operations....72

Hi-Fi Stereo Sound System 72

Others 73

Troubleshooting....73

Troubleshooting for Error Messages 76

Language Code 78

Specifications....79

Guide to the Owner's Manual

Symbols Used in the Owner's Manual

To show what recording mode or media type applies to each function, the following symbols appear at the beginning of each operating item.

Symbol Description
	Available to DVD-videos
	Available to DVD-RW discs in video mode
	Available to DVD-RW discs in VR mode
	Available to DVD-R discs in video mode
	Available to DVD+RW discs
	Available to DVD+R discs
	Available to audio CDs
	Available to video CDs
	Available to CD-RW/-R discs and USB device with MP3 files
	Available to CD-RW/-R discs and USB device with JPEG files
	Available to DVD-RW/-R, DVD+RW/+R, CD-RW/-R discs and USB device with DivX®files (DivX®files in USB device are not guaranteed.)
	Available to VHS tapesUse only cassettes marked VHS (VHS)

Symbols for Tuner Setting and Recording

The following is the description for the symbols for tuner setting used in this manual.

ANALOG : Settings only for the analogue mode

DVB : Settings only for the DVB mode

		Discs for Recording / Playing
Disc Type		DVD-RW DVD-R DVD+RW DVD+R
Logo					DV+	DV+Revintable
Format		Can be formatted in VR or video mode			Automatically formatted in video mode	Automatically formatted in +VR mode
Icon Maximum Record Time		Video Mode VR Mode			480 min (12 cm) 144 min (8 cm)	480 min (12 cm) 144 min (8 cm)
		480 min (12 cm) 144 min (8 cm)	480 min (12 cm) 144 min (8 cm)
Recordable/Playable Versions		1x-6xVer. 1.1/1.2Ver. 1.1/1.2 CPRM compatible			1x-16xVer. 2.0/2.1	1x-4x 1x-16x
Compatibility		Playable on most DVD players. Finalisation necessary. (Title menu will be created)	Playable only on VR mode compatible unit. Finalisation recommended.		Playable on most DVD players. Finalisation necessary. (Title menu will be created)	Playable on DVD+RW compatible players. Finalisation recommended. (Title menu will be created)
Available Features	Recording Features
	Record TV Programmes	√			√
	Reuse by Deleting the Current Contents	√	√			√
	Record 16:9 Size Pictures	√	√		√
	Record Copy-once Programmes		√*
	Create Chapters at Fixed Intervals (auto chapter)	√			√
	Editing Features		Playlist Original
	Scene Delete		√	√
	Edit Title Name	√	√	√	√	√
	Create Chapters Wherever You Like (chapter mark)		√	√		√
	Divide a Title		√			√
	Combine Titles		√
	Hide Chapters					√
	Delete a Title	√	√	√	√	√
	Create a Playlist			√
	Protect a Title			√

√: Available
* CPRM compatible disc only.
Grey: Not available

DVD players with a receivable of playing DVD-RW recorded in VR mode.

	Discs for Playing
Disc Type	DVD-VIDEO	CD-DA	Video CD	CD-RW	CD-R
Logo
Icon

Discs for Playing

	Files for Playing
Type of title	MP3	JPEG	DivX®
Icon	MP3	JPEG	DivX®
Media	CD-RW/-RUSB device	CD-RW/-RUSB device	CD-RW/-RDVD-RW/-RDVD+RW/+RUSB device (not guaranteed)

DVD is a trademark of DVD Format/Logo Licensing Corporation.

• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.
• ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.
• DivX Certified® to play DivX® video, including premium content.
• Media containing the DivX® files with the DivX® GMC (Global Motion Compensation) playback feature, which is DivX® supplemental function, cannot be played back on this unit.

Unplayable Discs

The following discs will not play back on this unit.

• CD-ROM
• Compact Disc-Interactive (CD-I)
  • Video Single Disc (VSD)
• DVD-ROM
• DVD-audio
• Unfinalised disc
  • DVD or CD contains Windows Media™ Audio files
  • DVD-RW/-R recorded in non compatible recording format
• Blu-ray Disc
  • HD DVD

On the following disc, the sound may not be heard.

- Super audio CD - Only the sound on the CD layer can be heard. The sound on the high-density super audio CD layer cannot be heard.

Colour Systems

This unit uses the PAL system. However, it is also possible to play back DVDs using other colour systems, such as NTSC.

Region Codes

This unit has been designed to play DVD with region 2. If these region symbols do not appear on your DVD, you cannot play back the DVD in this unit. The number inside the globe refers to region of the world.

Following discs are recommended for good recording quality and are proven to be compatible with this unit. However, depending on the media condition the unit may not read the disc properly.

Verbatim DVD+R 8x, DVD+RW 4x, DVD-R 8x, DVD-RW 2x JVC DVD-RW 4x

Maxell DVD+R 4x/8x/16x, DVD-R 8x/16x

SONY DVD+R 4x/8x/16x, DVD+RW 4x

TDK DVD+R 4x/8x/16x

Performance of any other discs are not guaranteed.

- Toshiba is not liable for any damage or loss caused directly or indirectly by the malfunction of this unit, including, without limitation, any one of the following:

• Failure to record contents intended to be recorded by the consumer.
• Failure to edit contents as intended by the consumer.
• When a DVD-RW/-R, DVD+RW/+R disc created on this unit is used (e.g., insertion, playback, recording or editing) in another DVD player, recorder or personal computer drive.
• When a DVD-RW/-R, DVD+RW/+R disc that is used in the manner described in the immediately preceding bullet point is used again in this unit.

• When a DVD-RW/-R, DVD+RW/+R disc that was recorded in another DVD recorder, or in a personal computer drive is used in this unit.

• Some functions may not work with personal computer discs.

• Discs recorded in this unit may not operate as expected on other DVD players, recorders or personal computer drives.

Because of problems and errors that can occur during the creation of DVD and CD software and/or the manufacture of DVD and CD discs, Toshiba cannot guarantee that product will play every feature of every DVD bearing the DVD logo and/or every CD bearing the CD logo. As one of the creators of DVD technology, Toshiba DVD players are manufactured using the highest standards of quality, and as a result, such incompatibilities are rare.

Functional Overview

Front Panel

1*3 2 3*1 4 5 21 19*2 17*2 15 14 13 12 10 8 7 6 20*2 18 16 11 9*1

(*1) You can also turn on the unit by pressing these buttons.
(*2) You can turn on the unit by pressing these buttons only when a videotape is in this unit.
(*3) Press to turn on the unit, or to turn the unit into the standby mode. (To completely shut down the unit, you must unplug the AC power cord.)

1 I/ON/STANDBY button* 3

2 Cassette compartment

3 ▲OPEN/CLOSE button* 1 (DVD)

4 VCR/DVD indicators

5 Disc tray

6 DV IN jack (AV3)

7 USB input jack

8 ●REC button (DVD)

9 P L A Y ▶1(OMD)*

10 STOP ■ button (DVD)

11 SELECT button

12 DUBBING button

13 PROGRAM ∧ / ∨ buttons

14 Display ("Off" in standby)

15 Infrared sensor window

16 ●REC button (VCR)

17 PLAY ▶ button*2 (VCR)

18 STOP/EJECT ■ / ▲ button (VCR)

19 FWD ▶ button* 2 (VCR)

20 REV ◀ button*2 (VCR)

21 Power indicator

Button names described in the Owner's Manual

The instructions in this manual are described mainly with the operations using the remote control. Some operations can be carried out using the buttons on the front panel.

Rear Panel

1 2 3 4 5 6 7 8 9

1 Mains cable
2 HDMI OUT jack
3 DIGITAL AUDIO OUT (COAXIAL) jack
4 AUDIO OUT (L/R) jacks
5 COMPONENT VIDEO OUT jacks
6 AV2 (DECODER) socket
7 AV1 (TV) socket
8 ANTENNA IN
9 ANTENNA OUT

Note

• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
• After turning off the unit, leave the mains cable plugged for about one minute. Otherwise it may cause data loss or the unit may not work properly.
• This unit does not have an RF modulator.

10 EN

Remote Control

OPEN/ CLOSE INPUT SELECT HDMI 19 20 .0/: ABC DEF 1 2 3 GHI JKL MNO PROG. 4 5 6 PQRS TUVWXYZ TIMER PROG. 7 8 9 SETUP SPACE CLEAR INFO 0 4 TEXT VCR DVD GUIDE 25 26 TOP MENU DISC MENU 27 8 ENTER /OK DISPLAY RETURN /BACK 28 9 29 10 SEARCH REV PLAY FWD 11 SKIP STOP SKIP 12 13 14 PAUSE INSTANT SKIP SAT. LINK 15 TIME SLIP DUBBING REC MODE REC 16 SUBTITLE AUDIO TIMER SET 17 AD 18 TOSHIBA SE-R0342

1 OPEN/CLOSE ▲ button

2 INPUT SELECT ➕ button

3 Number buttons

4 SETUP button

5 TEXT button

6 VCR button

7 TOP MENU button (DVD)

8 Direction ▲/▼/◄/► buttons

9 DISPLAY button

10 RED/GREEN/YELLOW/BLUE button SEARCH (BLUE) button (VCR)

11 REV ◀ button

12 PLAY ▶ button

13 SKIP ◀◀ button (DVD)

14 PAUSE II button

15 TIME SLIP button (DVD)

16 DUBBING button

17 SUBTITLE button

18 AD (Audio Description) button

19 HDMI button

20 I/ON/STANDBY button

21 PROG. ∧ / ∨ buttons

22 TIMER PROG. button

23 INFO i+ button

24 CLEAR button

25 GUIDE button

26 DVD button

27 DISC MENU button (DVD)

28 ENTER/OK button

29 RETURN/BACK button

30 FWD ▶ button

31 STOP ■ button

32 SKIP ▶▶| button (DVD)

33 INSTANT SKIP button (DVD)

34 SAT.LINK button

35 REC ● button

36 REC MODE button

37 TIMER SET button

38 AUDIO 🎨 button

Button names described in the Owner's Manual

The instructions in this manual are described mainly with the operations using the remote control. Some operations can be carried out using the buttons on the front panel.

Note

- If you turn off this unit, [OPEN/CLOSE ▲] on the remote control is not available. Be sure to use [▲ OPEN/CLOSE] or [STOP/EJECT ■ / ▲] on the unit.

Installing Batteries in the Remote Control

Install 2 R6 (1.5 V) batteries (supplied) into the remote control, carefully match with the polarity indicated inside the battery compartment.

Caution

• Incorrect use of batteries can result in hazards such as leakage and bursting.
• Do not mix new and old batteries together.
• Do not use different kinds of batteries together.
• Make sure that the plus (+) and minus (−) ends of each battery match the indications inside the battery compartment.
• Remove batteries if the equipment will not be used for a month or more.
• When disposing used batteries, please comply with governmental regulations or the public instructions for environmental protection that apply in your country or area.
• Do not recharge, short-circuit, heat, burn or disassemble batteries.

About the Remote Control

• Make sure there is no obstacle between the remote control and the remote control sensor on the unit.
• Use within the operating range and angle as shown.

7 m (30°) 7 m (30°)7 m Within about 7 m

• The maximum operable range as follows:

Line of sight: approximately 7 m

Either side of centre: approximately 7 m within 30 degrees

- Remote control operation may become unreliable if the remote control sensor of the unit is being exposed by the strong sunlight or fluorescent light.

- Remote controls for different devices can interfere with each other. Be careful when using remote controls for other equipment located close to the unit.

- Replace the batteries when the operating range of the remote control reduces.

Switching DVD / VCR mode

You must select which component you want to operate first. Press [DVD] or [VCR] on the remote control or the front panel.

indicator button DVDVCR SELECT Device select indicators VCR button DVD button

DVD

Press [DVD] on the remote control.

VCR

Press [VCR] on the remote control.

Note

- You can also press [SELECT] on the front panel to switch between DVD and VCR mode.

Guide to On-Screen Displays

DISPLAY Menu

DVD

Press [DVD] first.

With a disc inserted into the unit, press [DISPLAY] to display the on-screen display. The on-screen display shows information about what is recorded on the disc.

5 T 1/ 5 C 5 0:01:00 / 1:23:45 8 6 Q X Y Z W N I Q R V E G 1 -R W VR ORG 2 3 1 BBC1 7 ▶ 4 SP 1:53

This is an example screen for explanation. Displayed items vary depending on the actual mode.

1 Indicates a disc type and format mode.

2 Indicates a type of titles for VR mode DVD-RW disc.

3 Indicates a channel number, station name (analogue channel only) or selected external input mode.

4 Indicates a recording mode and possible recording time left.

5 Indicates the current title number/total number of titles, the current chapter number/total number of chapters, and time lapse of the current title playback/total duration of the title.

6 Each icon means:

7 Indicates an operation status.

8 Indicates the component in use.

: DVD
: USB device

Note

- For some descriptions on this manual, only one disc type is indicated as an example.

Press [DISPLAY] repeatedly while the display menu is displayed to display the following information.
