P-LLBT-100 - Tripod Proaim - Free user manual and instructions

USER MANUAL P-LLBT-100 Proaim

Three-legged tripod-mounted camera with metallic frame and black tripod legs (no text or symbols visible)

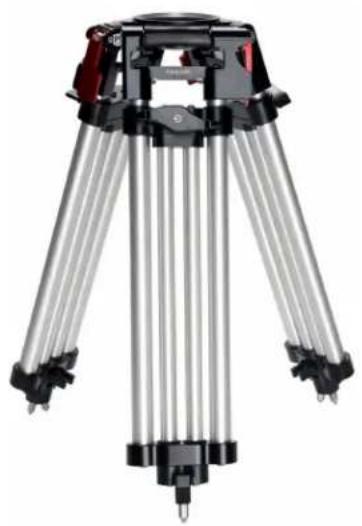

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

Metal tripod-mounted camera with adjustable legs and mounting feet (no text or symbols visible)

Black cylindrical mechanical device with four mounting feet, no visible text or symbols

Spanner Size: 13mm
Aluminum Spreader
HD 100mm Bowl Baby Camera Tripod Stand with Lever Friction

All rights reserved.

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.

Aluminum Spreader Setup

- Extend the Spreader on the floor and loosen all three knobs.

NOTE: The Spreader attaches to the spiked legs of the spreader to provide precise customization of the tripod's length and stability.

• After loosening the knobs, extend the Spreader per your requirement.
- You can lock the position using the locking knobs present on each arm.

NOTE: The arms of the Spreader can easily telescope out from 41cm/16" to 66cm/26" radius, offering a broader footprint to create a secure and steady base for the tripod.

Hand holding a black tripod-mounted device with three legs and a handle, against a white background (no text or symbols visible)

Hand holding a black tripod-mounted device with four legs (no text or symbols visible)

3D mechanical linkage component with a hand holding a cable (no text or symbols visible)

Hand interacting with a black tripod-mounted device (no text or symbols visible)

Three-legged metal frame with adjustable arms and connectors (no text or symbols visible)

Extendable adjustment via the provided locking knobs of Spreader

Two identical black mechanical linkage systems with articulated joints, shown against a white background (no text or symbols)

100mm Bowl Baby Camera Tripod Stand Setup

- Loosen all three adjustment knobs to set the desired height of the Stand.

NOTE: One-stage telescopic design with friction knob extends up to 6 inches to capture low-angle shots, and conversely, it can be easily extended up to 34 inches for greater elevation.

• After setting the height, tighten the knobs to secure the Stand, as shown in the image.

NOTE: Locking pins on each leg secures the adjusted height, preventing them from retracting under load.

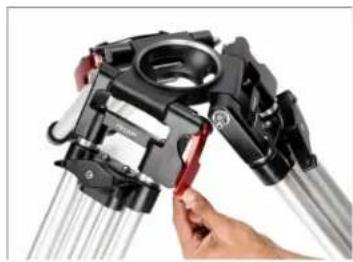

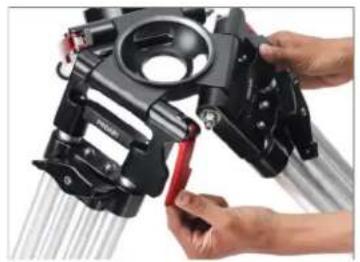

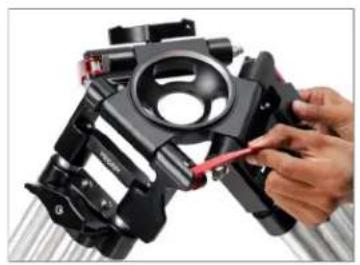

- Unlock the red knob to adjust the Tripod's legs according to your requirement.

• After adjusting the Tripod legs, re-lock the knob, as shown in the image.

- Mount the Tripod on the aluminum Spreader by equally aligning them.

• After mounting the Tripod, properly secure it using the rubber gripper.

Close-up of a hand adjusting a metallic camera rig with a black and red component (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with vertical rods (no text or symbols visible)

Close-up of a tripod-mounted camera with adjustable arms and mounting feet (no text or symbols visible)

Close-up of hands using a red tool to adjust or install a black mechanical component (no visible text or symbols)

Close-up of a hand holding a metallic tripod-mounted device with black clamps (no text or symbols visible)

Close-up of hands assembling a black mechanical device with a red clip, no visible text or symbols

Close-up of a robotic arm gripping a mechanical component, with a hand adjusting the part (no visible text or symbols)

Hand holding a tripod-mounted camera with adjustable arms and legs (no text or symbols visible)

Close-up of a person adjusting a camera frame with a black tripod and attached cable (no text or symbols visible)

Close-up of a person adjusting a mechanical linkage device with a magnified inset showing the detail (no text or symbols visible)

Mechanical tripod device with black frame and metallic legs, no visible text or symbols

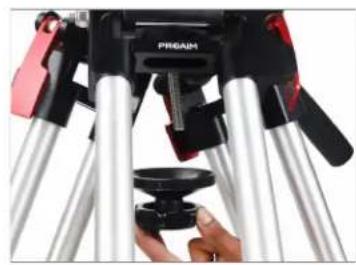

• Loosen the locking knob of the 100mm bowl fluid head (Not Included) and remove it.
• Now, mount the fluid head on the Tripod Stand.

- Tighten the locking knob to secure the fluid head.

• Press the red locking lever of the fluid head (Not Included) to unlock it.
  • After unlocking the yellow locking lever, remove the top plate of the fluid head

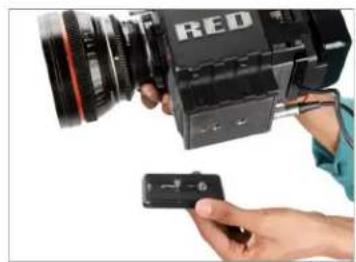

- Attach it to the Camera (Not Included) by matching the threads.

- Secure the top plate and the Camera (Not Included) using a screwdriver.

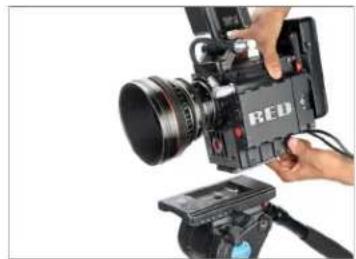

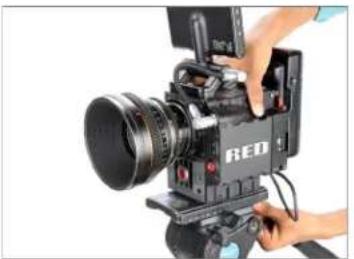

- Now, mount the Camera (Not Included) on the fluid head and properly lock it as shown in the image.

NOTE: The assembly of the whole setup is quick and tool-less, saving you valuable production time.

- Tripod Stand works efficiently with compatible devices such as Sliders, Jibs, and Geared Heads with its 100mm bowl base.

Close-up of hands using a camera to adjust a small mechanical component (no visible text or symbols)

Close-up of a camera setup with a circular head-mounted component and a tripod-mounted camera mounted on a tripod (no visible text or symbols)

Close-up of a tripod-mounted camera with a hand adjusting the base (no visible text or symbols)

Close-up of a camera setup with tripod legs and a camera body, no visible text or symbols

Close-up of a person adjusting a black camera mount with a red clip (no visible text or symbols)

Close-up of hands adjusting a black camera module with a cable (no visible text or symbols)

Close-up of a person holding a black REO camera and a small electronic device (no visible text or symbols)

Person operating a professional video camera with attached cable (no visible text or symbols)

Close-up of a professional video camera with a red LED lens and control module (no visible text or symbols)

Person operating a REO video camera with extended lens (no visible text or symbols)

Close-up of a professional video camera with a hand adjusting the lens (no visible text or symbols)

Professional video camera mounted on a tripod, no visible text or symbols

YOUR PROAIM HD 100MM BOWL BABY CAMERA TRIPOD STAND W LEVER-FRICTION AND ALUMINUM SPREADER ALL DRESSED UP AND READY TO GO!

Professional tripod-mounted video camera with extended boom and mounted camera (no visible text or symbols)

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn't cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

Contact Us: In case of any kind of dissatisfaction, please Contact us immediately and we promise our utmost support and care until you use our product.
