Product Type	Sway Mitchell Dampening Head
Brand	Proaim
Model	LV-SCFH-01
Compatibility	Mitchell mount systems and gimbals
Primary Function	Provides dampened 2-axis motion for smooth camera movements
Adjustment Mechanism	Reliable adjustment knob for precise damping control
Construction Material	Aluminum frame with steel components
Included Accessories	Hard case, castle nut wrench
Package Contents	Sway Mitchell Dampening Head, Camera Mount Plate, Castle Ring, Castle Nut, Hard Case, Manual
Load Capacity	Professional cinema cameras (est. 15-25 kg)
Weight (Head only)	Approx. 2.5 kg
Dimensions	Approx. 20 x 20 x 15 cm
Mounting Type	Mitchell mount
Warranty	1 year from date of purchase
Intended Use	Professional filmmaking, camera car mounts, stabilizers
Care Instructions	Keep dry, clean with soft cloth, avoid impact
Safety Features	Locking lever for secure gimbal attachment
Repairability	Parts replaceable; contact Proaim support

Frequently Asked Questions - LV-SCFH-01 Proaim

What is the Proaim LV-SCFH-01 used for?

The Proaim LV-SCFH-01 is a Sway Mitchell Dampening Head designed to provide smooth 2-axis damping for professional cinema cameras, often used in vehicle mounts or stabilized rigs.

What comes in the box?

The package includes the Sway Mitchell Dampening Head, Camera Mount Plate, Castle Ring, Castle Nut, Castle Nut Wrench, Hard Case, and user manual.

How do I attach the dampening head to a gimbal?

First, attach the Sway Mitchell Dampening Head to the Mitchell Ronin Mount, then slide the gimbal onto the mount and lock it using the provided locking lever on the gimbal.

Is the head compatible with standard tripods?

The head uses a Mitchell mount, so it requires a tripod or base with a Mitchell receiver. Standard tripod threads are not directly compatible.

How do I adjust the damping?

Use the reliable adjustment knob on the head to precisely set the amount of 2-axis damping needed for your shot.

What is the load capacity?

While not officially specified, the head is built for professional cinema cameras and can typically support loads up to 15-25 kg depending on the setup.

Does it come with a warranty?

Yes, Proaim offers a 1-year warranty from the date of purchase covering defects in materials and workmanship. Warranty does not cover transportation costs or misuse.

How do I clean and maintain the head?

Use a soft, dry cloth to clean the surfaces. Avoid exposure to moisture or dust. Do not use harsh chemicals. Regularly check for loose screws or parts.

Can I use the head without a hard case?

Yes, the hard case is for storage and transport only. The head can be used independently, but the case protects it during travel.

What should I do if a part is missing or damaged?

Contact Proaim support immediately. They promise utmost support and care until you are satisfied. Warranty repairs require inspection by the company.

USER MANUAL LV-SCFH-01 Proaim

Mechanical component with threaded shaft and mounting base (no visible text or symbols)

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

Mechanical assembly component with black and gold-colored parts, no visible text or symbols

Proaim Sway Control Friction Levelling Head

Blue and silver aluminum frame case with metal clamps and a central lock (no visible text or symbols)

Hard Case

All rights reserved.

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.

Mitchell Dampening Head Setup

• Firstly, remove Castle Ring from Sway Mitchell Dampening Head.
• Attach the Sway Mitchell Dampening Head with the Camera Mount Plate and tighten the Castle Ring from the top using the Castle Nut Wrench.
• Loosen the Mitchell Ronin Mount and remove the Castle nut.
• Now, attach the castle nut to the bottom part of the Sway Mitchell Dampening Head, as shown in the image.

Close-up of a hand holding a black mechanical component, no visible text or symbols

Person holding a small mechanical component, no visible text or symbols

Close-up of a robotic arm gripping a small mechanical component, with no visible text or symbols.

Close-up of hands holding a black mechanical device with a curved arm and control panel (no visible text or symbols)

Two hands holding mechanical parts, one with a circular flange and the other a black housing (no text or symbols visible)

Hand holding a black mechanical component with a circular head and mounting holes (no visible text or symbols)

Smooth Camera Moves

- After attaching the Mitchell Ronin Mount with the Sway Mitchell Dampening Head, tighten the attachment through the Castle Ring.

Close-up of a robotic arm with a hand adjusting the mechanical component (no visible text or symbols)

Close-up of a hand holding a black mechanical device with no visible text or symbols

- Slide the Gimbal (Not Included) onto the Mitchell Ronin Mount.

Close-up of a hand holding a black mechanical device with a camera lens (no visible text or symbols)

Close-up of a hand holding a black mechanical device with a cylindrical component (no visible text or symbols)

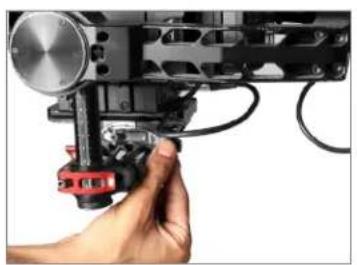

- Lock the assembly with the locking lever provided on the Gimbal (Not Included).

NOTE: Additionally, a reliable adjustment knob aids in precisely setting the exact amount of 2-axis damping you need for your shot.

Close-up of a hand holding a mechanical device with a red clamp and cylindrical component (no visible text or symbols)

Close-up of a professional video camera with articulated arm and camera lens (no visible text or symbols)

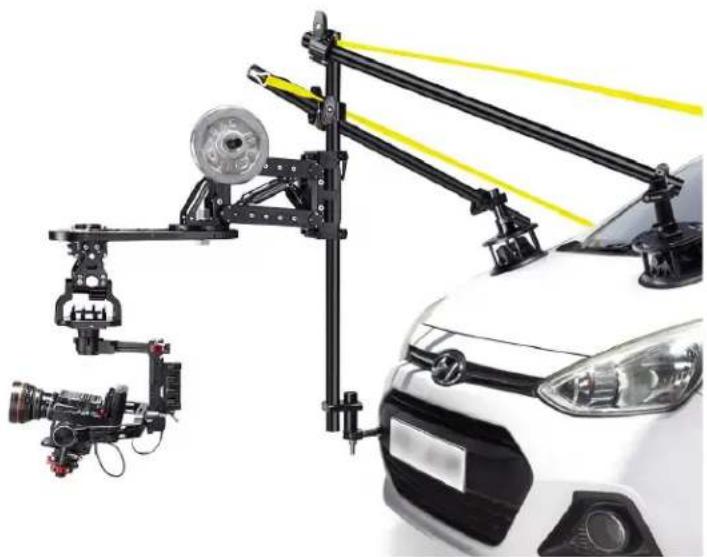

YOUR PROAIM SWAY MITCHELL DAMPENING HEAD ALL DRESSED UP AND READY TO GO!

White car with mounted camera and yellow laser beam system, no visible text or symbols

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn't cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

Contact Us: In case of any kind of dissatisfaction, please Contact us immediately and we promise our utmost support and care until you use our product.
