USER MANUAL BG-EXD-150C BZBGear
Operation Controls and Functions 8
IR Pin Definition 10
Connection Diagrams 11
Tech Support 12
Warranty 12
Mission Statement 12
Copyright 12
Statement
Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference.
SafetyPrecaution
- To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation.
- The housing of this product is made of organic materials. Do not expose to any liquid, gas, or solids which may corrode the shell.
- Do not expose the product to rain or moisture.
- To prevent the risk of electric shock, do not open the case. Installation and maintenance should only be carried out by qualified technicians.
- Do not use the product beyond the specified temperature, humidity, or power supply specifications.
- This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy.
- Installation and use of this product must strictly comply with local electrical safety standards.
Introduction
The BG-EXD-150C is a 4K60 DisplayPort (DP) range extender that can transmit DP video, bi-directional IR and RS-232 control signals, and also USB KVM signals. It can transmit up to distances of 328ft/100m for a 4K60 signal and 492ft/150m for a 1080P signal using a single CAT6 cable.
The BG-EXD-150C converts the DP signal into a standard HDBaseT signal and sends it via a LAN cable. Users can effortlessly control the signal source device or the display device using a remote thanks to the bi-directional IR signal pass-through feature. It supports video resolutions of up to 4K2K@60Hz YUV 4:4:4 and also offers a bi-directional POC function.
Furthermore, with support for DisplayPort 1.2, this extender facilitates the transmission of visually lossless 4K Ultra HD resolutions, making it ideal for striking digital signage or detailed content in medical settings. The extender is also compatible with lossless audio formats, including Dolby TrueHD and DTS-HD, enriching video content with powerful multi-channel sound, thus elevating the viewer's experience. The USB KVM connectivity ensures full control of a DisplayPort PC from a local console, which can be kept in a secure or temperature-controlled environment, all while seamlessly delivering consistent video content to the display.
Features
- DisplayPort 1.2a and HDCP 2.2 compliant
• 21.6Gbps video bandwidth
• Video resolution up to 4K2K@60Hz YUV 4:4:4 - Signal transmission distance up to 328ft/100m for 4K60 signals or 492ft/150m for 1080P signals via a single CAT6 cable
- LPCM 2.0 (96KHz), Dolby Digital Plus 5.1CH and DTS-HD Master 7.1CH
- Smart compression for visually lossless transmissions
- Control a remote DisplayPort PC via keyboard and mouse with the KVM function
- Bi-directional Power Over Cable (POC), IR, RS-232 and USB KVM signal pass-through
- Advanced EDID management
- Compact design for easy and flexible installation
PackingList
• 1x BG-EXD-150C Transmitter
• 1x BG-EXD-150C Receiver
• 1x 24V / 1A Locking Power Supply
• 1x IR Blaster Cable (1.5m)
• 1x IR Receiver Cable (1.5m)
- 2x 3-pin 3.81mm phoenix connectors
- 4x Mounting ears
- 8x KM3*4 Machine Screws
• 1x 1.5m USB 2.0 Cable (A to B) - 1x User Manual
Specifications
| TechnicalSpecifications | |
| DP Compliance | DP 1.2a |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | Up to 21.6Gbps |
| Video Resolution | Up to 4K@60Hz YUV 4:4:4 |
| USB Compliance | USB 1.1 |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| Audio Formats | LPCM 2.0 (96KHz), Dolby Digital Plus 5.1CH and DTS-HD Master 7.1CH |
| IR Level | 5Vp-p/12Vp-p |
| IR Bandwidth | 20K - 60KHz |
| Transmission Distance | 1080P@60Hz - 492ft /150m, 4K@60Hz - 328ft / 100m |
| ESD Protection | Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connections | |
| Transmitter | Input: 1 x DP IN [20-pin female]Output:1 x HDBT OUT [RJ45, 8-pin female]Control: 1 x IR IN [3.5mm Stereo Mini-jack]1 x IR OUT [3.5mm Stereo Mini-jack]1 x RS-232 [3 pin-3.81mm Phoenix jack]1 x PC [USB-A]1 x Service [Micro USB] |
| Receiver | Input: 1 x HDBT IN [RJ45, 8-pin female]Output: 1 x DP OUT [20-pin female]Control: 1 x IR IN [3.5mm Stereo Mini-jack]1 x IR OUT [3.5mm Stereo Mini-jack]1 x RS-232 [3 pin-3.81mm Phoenix jack]2 x USB 1.1 [USB-A]1 x Service [Micro-USB] |
| Mechanical | |
| Housing | Enclosure - Metal Composite |
| Color | Black |
| Dimensions (L x W x H) | 140mm x 65mm x 18mm |
| Weight | 0.5Lbs (8oz) |
| Power Supply | DC 24V/1A (US/EU standard, CE/FCC/UL certified)Bi-directional POC |
| Power Consumption | Total power consumption: 13.2w |
| Operating Temperature | 32° - 104°F / 0° - 40°C |
| Storage Temperature | -4° - 140°F / -20° - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Resolution | 8K30 | 4K60 | 4K24 | 1080P60 |
| Cable Length | 9.8ft / 3m | 16ft / 5m | 32ft / 10m | 66ft / 20m |
NOTE: The use of “Premium High Speed” HDMI 2.1 cables is highly recommended.
OperationControlsandFunctions

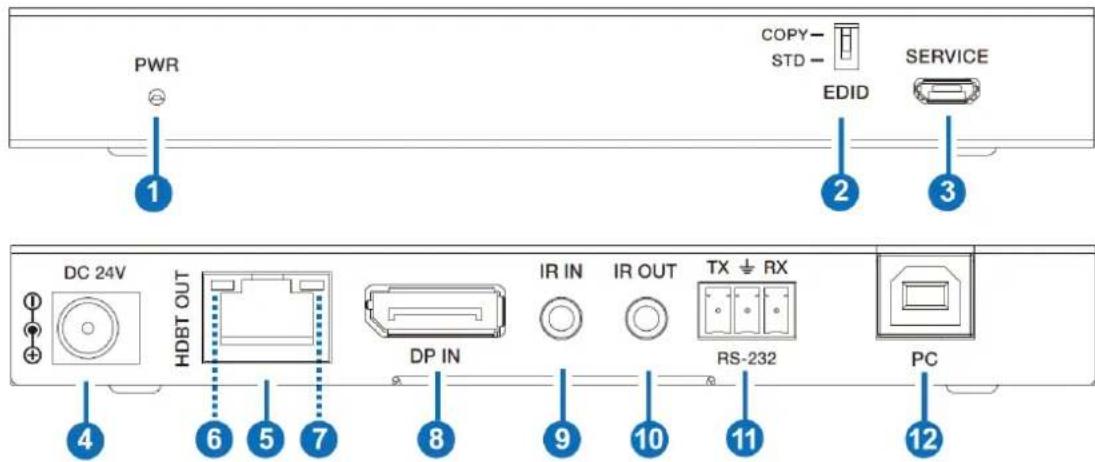

Transmitter
| 1 | PWR LED | The red LED is on when the Transmitter is powered on. |
| 2 | EDID DIP switch | Used for EDID setting (COPY by default). COPY:Copy the EI of the DP OUT port of Receiver. STD:Default 1080P 2CH |
| 3 | SERVICE | Micro USB port, used to update MCU firmware. |
| 4 | DC 24V | DC 24V/1A power input port.Note:TheextendersupportsPOCfunctionalitywhichmeans thateitherTransmitterorReceiverisconnectedto24V/1A powersupply,theotherdoesnotneedapowersupply. |
| 5 | HDBT OUT | HDBT output port, connected to the HDBT IN port of the Receiver with CAT6 cable. |
| 6 | Link Signal Indicator (Green) | Solid: Transmitter and Receiver are in good connection statusFlashing: Transmitter and Receiver are in poor connection status.Dark: Transmitter and Receiver are not connected. |
| 7 | Data Signal Indicator (Yellow) | Solid: DP signal with HDCP.Flashing: DP signal without HDCP.Dark: No DP signal. |
| 8 | DP IN | DP signal input port, connected to DP source device such a computer host. |
| 9 | IR IN | Connected to IR receiver cable. The IR receive signal will en to the IR OUT port of the Receiver. |
| 10 | IR OUT | Connected to IR blaster cable. The IR emit signal is from th IN port of the Receiver. |
| 11 | RS-232 | 3-pin phoenix connector, connected to a PC or control syste for RS-232 command transmission. |
| 12 | PC | USB-B port, connected to PC. |

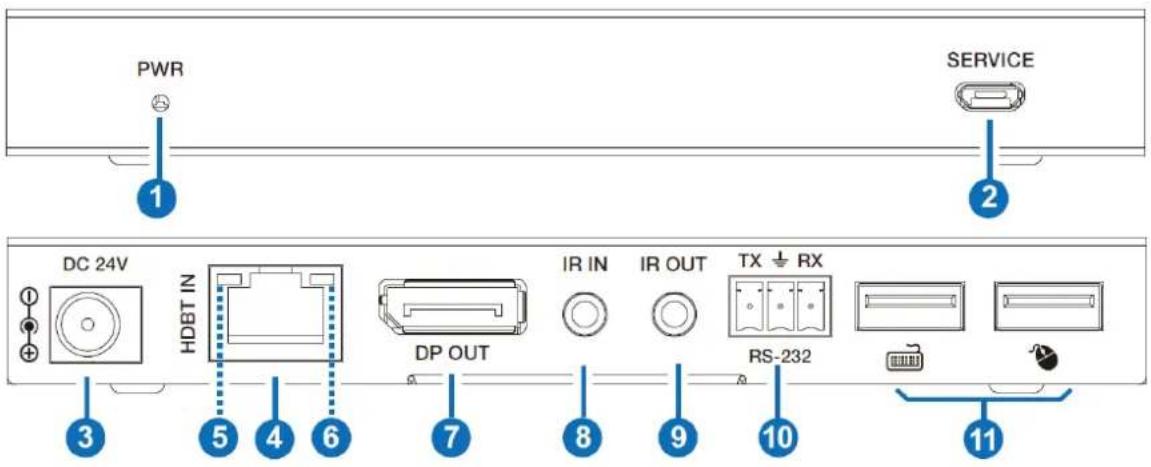

Receiver
| 1 | PWR LED | The power LED is on when the Receiver is powered on. |
| 2 | SERVICE | Micro USB port, used to update MCU firmware. |
| 3 | DC 24V | DC 24V/1A power input port.Note:TheextendersupportsPOCfunctionalitywhichmeans thateitherTransmitterorReceiverisconnectedto24V/1A powersupply,theotherdoesnotneedapowersupply. |
| 4 | HDBT IN | HDBT input port, connected to the HDBT OUT port of th Transmitter with CAT6 cable. |
| 5 | Link Signal Indicator (Green) | Solid:Transmitter and Receiver are in good connection status.Flashing:Transmitter and Receiver are in poor connection status.Dark:Transmitter and Receiver are not connected. |
| 6 | Data Signal Indicator (Yellow) | Solid:DP signal with HDCP.Flashing:DP signal without HDCP.Dark:No DP signal. |
| 7 | DP OUT | DP signal output port, connected to DP display device such as TV or monitor. |
| 8 | IR IN | Connected to the IR receiver cable. The IR receive signal will emit to the IR OUT port of the Transmitter. |
| 9 | IR OUT | Connected to the IR blaster cable. The IR emit signal is from the IR IN port of the Transmitter. |
| 10 | RS-232 | 3-pin phoenix connector, connected to a PC or control system for RS-232 command transmission. |
| 11 | USB-A | Two USB-A ports, connected to a keyboard or mouse. |
IRPinDefinition
ConnectionDiagrams

