USER MANUAL W10 PRO Hip Street

Thank you for purchasing a Hipstreet product and we hope you enjoy using it.

Please visit our website at www.hipstreet.com

IMPORTANT SAFETY PRECAUTIONS

• Always follow these basic safety precautions when using the unit. This will reduce the risk of product damage and personal injury.

- Do not disassemble, repair or modify the unit by yourself. Refer servicing to qualified personnel.

- Do not dispose of the unit in extreme heat to avoid explosion.

- Keep the unit away from direct sunlight or heat source.

- Do not expose the unit to rain or moisture to avoid any malfunction.

- Do not use the unit in a rather dry environment to avoid static.

- Never apply heavy impact on the unit like dropping it or placing it on a magnet.

- Clean only with a dry cloth. Make sure the unit is turned off before cleaning. Do not use liquid cleanser.

GETTING STARTED

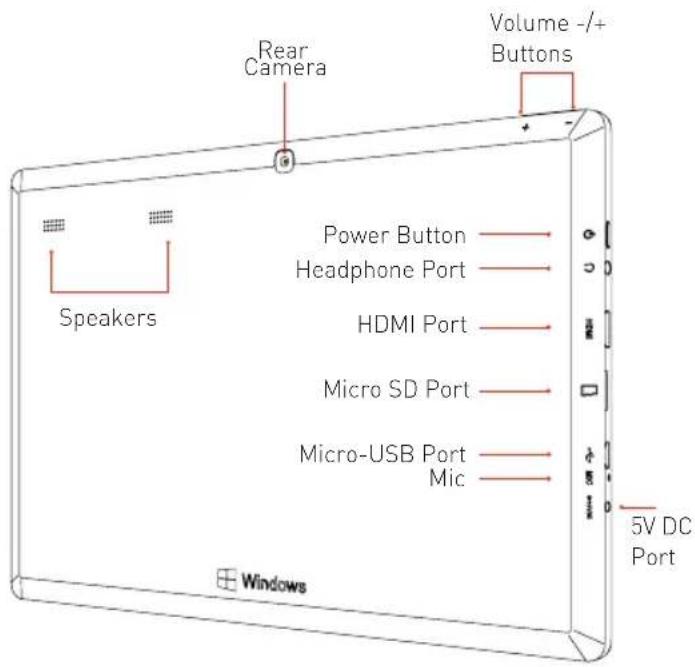

Device Layout:

Front Camera Touch screen Windows Button

Rear Camera Volume -/+ Buttons Speakers Power Button ———— Headphone Port ———— HDMI Port ———— Micro SD Port ———— Micro-USB Port ———— Mic ———— Windows 5V DC Port

GETTING STARTED

*Case material is of Polyurethane

Keyboard Layout:

Line drawing of a laptop with a keyboard and open lid, showing internal components (no text or symbols)

Line drawing of a laptop with keyboard and open tray (no text or symbols)

Line drawing of a laptop keyboard and open notebook with a paper case, no text or symbols present

Line drawing of a laptop with a folded paper airplane and a numbered label (4) on the side, no text or symbols present.

OVERVIEW

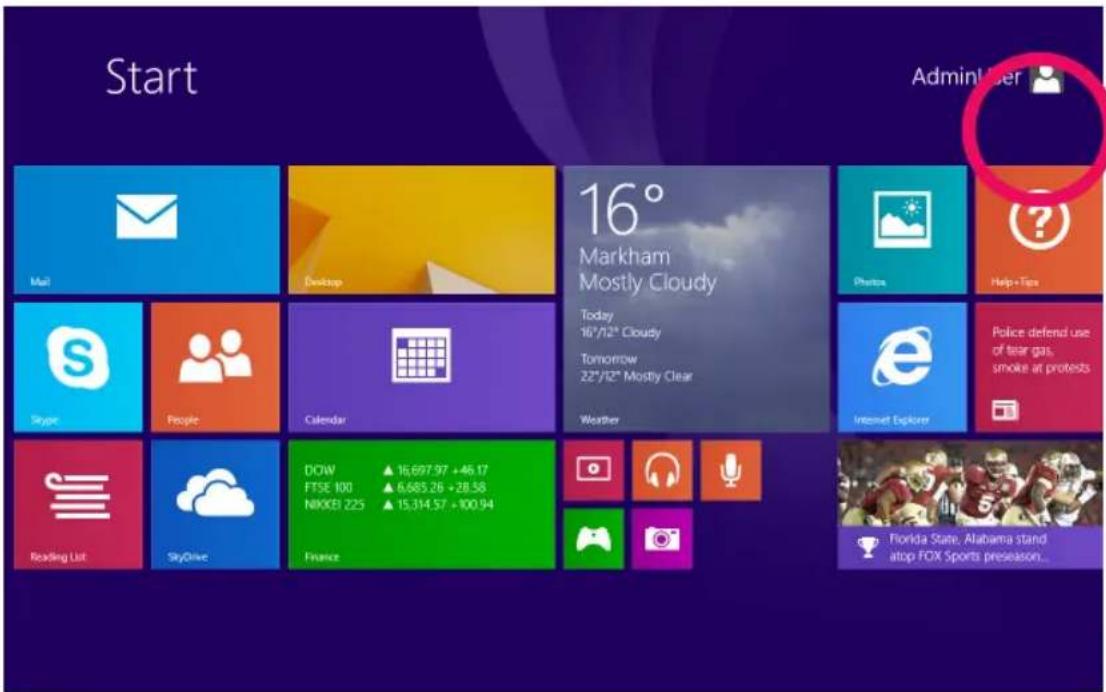

Start screen:

The Start screen is the first thing you see when you login to Windows. It is the main (home) area where you can access apps, check real-time information, and search for files. This interface is optimized for touch screens. You can get to the Start screen by pressing the Windows button on the tablet, or tapping the Start icon in Charms Bar.

Icon showing a hand cursor clicking a button on a Windows screen (no text or symbols)

OVERVIEW

Start AdminUser Mail Desktop 16° Markham Mostly Cloudy Today 16°/12° Cloudy Tomorrow 22°/12° Mostly Clear Weather Phantos Help + Tips S People Calendar e Police defend of tear gas, smoke at protests Reading List SkyDrive DOW FTSE 100 NIKKEI 225 Finance ▲ 16,697.97 +46.17 ▲ 6,685.26 +28.58 ▲ 15,314.57 +100.94 Florida State, Alabama stand atop FOX Sports preseason...

Each tile on the Start screen is a shortcut to an app, web site or anything else you find important. To open an app, simply tap the associated tile.

OVERVIEW

Start AdminUser Mail Desktop 16° Markham Mostly Cloudy Today 16°/12° Cloudy Tomorrow 22°/12° Mostly Clear Weather Phatics Help+ Tips Skype People Calendar e Police defend use of tear gas, smoke at protests Internet Explorer Reading List SkyDrive DOW ▲ 16.697.97 +46.17 FTSE 100 ▲ 6.685.26 +28.58 NIKKEL 225 ▲ 15.314.57 +100.94 Finance Florida State, Alabama stand atop FOX Sports preseason...

To open an app that is not pinned to the Start screen, swipe up from the middle of screen to open application view, and then tap the icon.

OVERVIEW

Apps by name Alarms Internet Explorer Scan Windows Accessories Sticky Notes Windows Speech Recognition Calculator Mail SkyDrive Calculator Windows Fax and Scan Windows System Calendar Maps Skype Character Map Windows Journal Command Prompt Camera Music Sound Recorder Math Input Panel Windows Media Player Control Panel Desktop News Sports Notepad WordPad Default Programs Finance PC settings Store Paint XPS Viewer File Explorer Food & Drink People Travel Remote Desktop Connection Windows Ease of Access Help and Support Games Photos Video Snipping Tool Magnifier Run Health & Fitness Reader Weather Sound Recorder Narrator Task Manager Help+Tips Reading List Steps Recorder On-Screen Keyboard This PC

OVERVIEW

Help+Tips Start and apps> Get around> Basic actions> Your account and files> Settings> What's new>

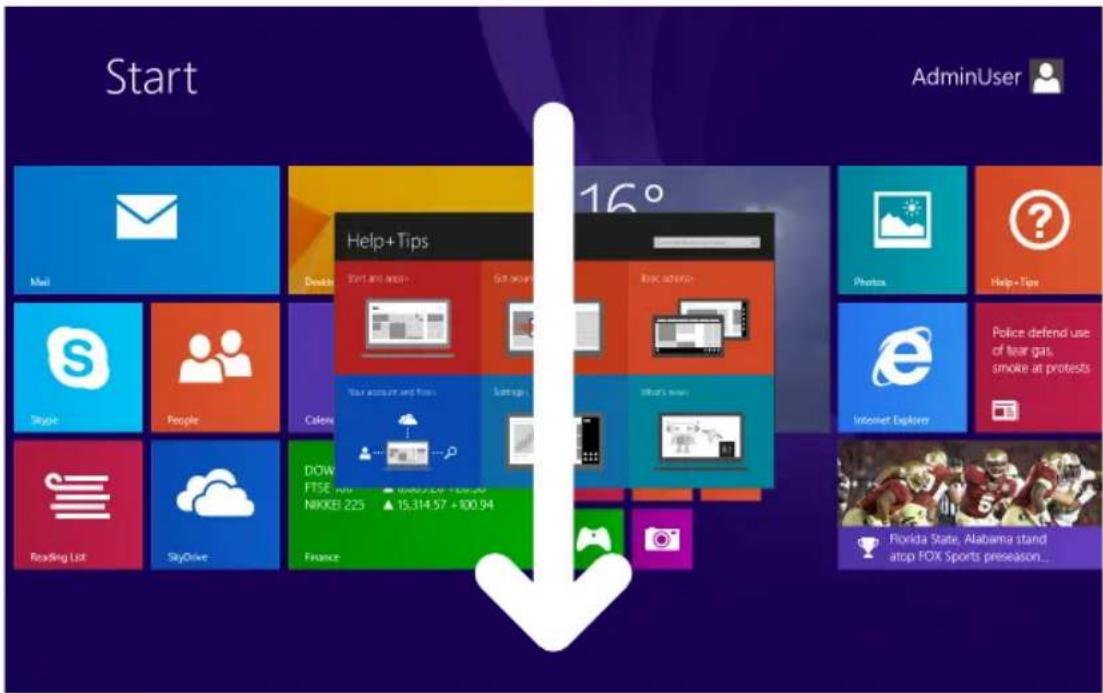

To close an app, swipe Down from the Top of the screen.

OVERVIEW

Start AdminUser Mail Help+ Tips 16° Drada Start and again Get back Basic answers Skype People Caleres Your analytics and Film Settings What's own Reading List SkyDrive DOW FTSE: NIKKEI 225 ▲ 15.314.57 +100.94 Finance

OVERVIEW

You can personalize this screen by pinning your favorite Windows apps, and arranging them any way you want.

1. To pin an app on the Start screen, touch and hold an app in application view, then tap Pin to Start at bottom-left corner of the screen.
2. A new tile will be created on the Start screen associated with the app you just selected.
   3 (a+b). You can hold a tile and drag it anywhere on the Start screen.

OVERVIEW

Apps by name Alarms Internet Explorer Scan Windows Accessories Sticky Notes Windows Speech Recognition Calculator Mail SkyDrive Calculator Windows Fax and Scan Windows System Calendar Maps Skype Character Map Windows Journal Command Prompt Camera Music Sound Recorder Math Input Panel Windows Media Player Control Panel Desktop News Sports Notepad WordPad Default Programs Finance PC settings Store Paint XPS Viewer File Explorer Food & Drink People Travel Remote Desktop Connection Windows Ease of Access Help and Support Games Photos Video Snipping Tool Magnifier Run Health & Fitness Reader Weather Sound Recorder Narrator Task Manager Help+ Tips Reading List Steps Recorder On-Screen Keyboard This PC Pin to Start Customers

OVERVIEW

Start AdminUser Phatics Help+ Tips New to the Store Plight of the Zombie $4.59 ★★★★ 2 Maps Employees benefit from natural light: study PC settings Internet Explorer Turmoil, tear gas give way to hope in Ferguson Purzy: Will anything change under Manfred? Weird facts about famous landmarks

2

OVERVIEW

Start AdminUser Name group Mail Slyser People Reading List SkyDrive Calendar NIKKEI 225 Finance 16° Markham Mostly Cloudy Today 16°/12" Cloudy Tomorrow 22°/12" Mostly Clear Weather ▲ 16,697.97 + 46.57 ▲ R,885.26 + 28.58 ▲ 15,314.57 + 100.94 Urpin from Start Unrealball Review Florida State, Alabiena stand atop FOX Sports merchandise...

3(a)

OVERVIEW

Start AdminUser Name group 16° Markham Mostly Cloudy Today 16°/12" Cloudy Tomorrow 22°/12" Mostly Clear Whether Playbox Help+Top Police defend use of fear gas, smoke at protest Internet Explorer Florida State, Alabama stand atop FOX Sports prizeason... Customize

3(b)

OVERVIEW

Charms Bar:

The Charms Bar lets you perform searches, access settings, share files, and so on. You can open the Charms Bar by swiping Left from the Right side of the screen.

Start AdminUser Mail Desktop 16° Markham Rain Today 16°/12° Cloudy Tomorrow 22°/12° Mostly Clear Weather Photos Help+T Skype People Calendar Internet Explorer Read DCW FTSE 100 NIKKEI 225 ▲ 16,705.68 +53.88 ▲ 6,685.26 +28.58 ▲ 15,314.57 +100.94 3:20 Thursday August 14

OVERVIEW

SEARCH:

You can search through anything on your Windows operating system.

SHARE:

Lets you share things with other people, such as photos, and documents.

START:

Take you back to the Start screen.

DEVICES:

You can view and manage wireless devices.

SETTINGS:

Quick access to common system settings (volume, brightness, internet connection).

GESTURES

Your Windows Tablet supports the use of touch gestures, and here are the basic actions you can do using the touch screen.

Illustration of a hand pressing a button on a tablet screen (no text or symbols)

Open/Make Selections from an app: Tap

Diagram showing finger pressing a heart gesture on a tablet screen, with bidirectional arrows indicating movement or interaction.

Zoom out: Move 2 fingers farther apart

Hand icon pointing at a finger with bidirectional arrows, no text or symbols present

Scroll through items: Swipe left or right

Illustration of a hand pressing a button on a tablet screen with an arrow (no text or symbols)

Switch between apps: Swipe right from the left side of the screen

Hand icon pointing at a finger with bidirectional arrows on a tablet screen (no text or symbols)

Move an object: Touch & hold, then drag

Illustration of a hand pressing a finger with two arrows indicating finger movement (no text or symbols)

Zoom in: Move 2 fingers closer together

Hand icon pointing at a screen with arrows indicating left and right movement (no text or symbols)

View between apps: Swipe right, then left from the left side of the screen

Hand pressing a finger on a tablet screen with a downward arrow (no text or symbols)

Close an app: Slide down from the top edge of the screen

WI-Fi SET-UP

Your Windows Tablet provides a simple interface for connecting to wireless internet. You can easily connect to any wireless routers as long as you know the Wireless Name (SSID) and password of the network you're connecting to.

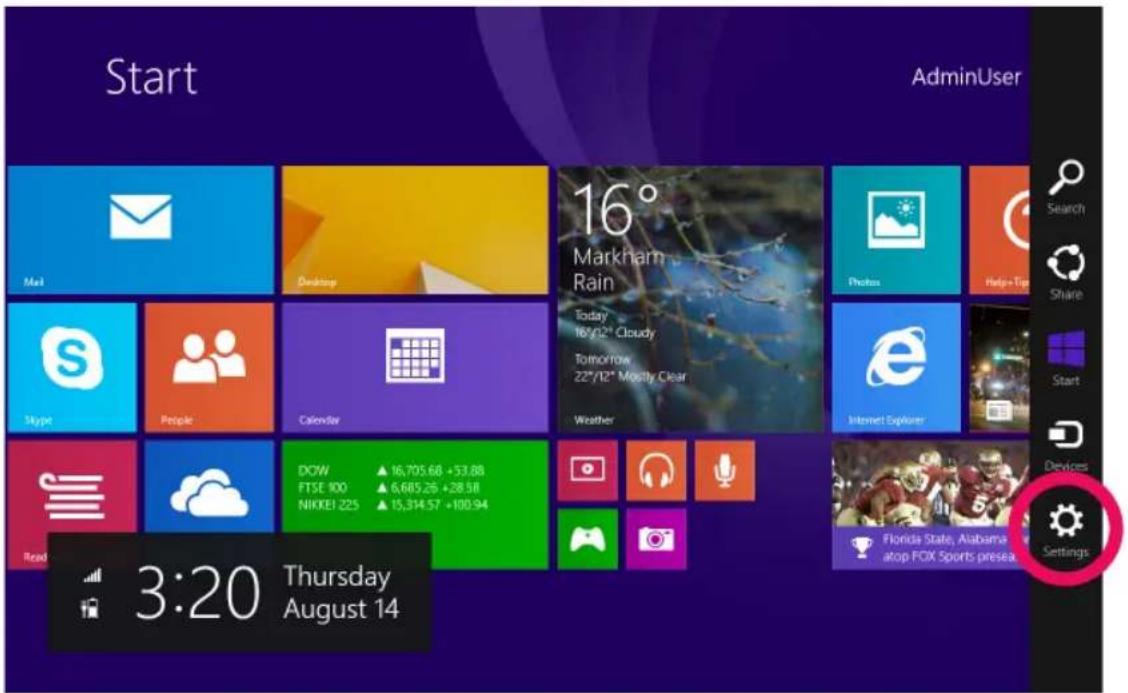

1. Tap the Settings in Charms Bar.
2. Tap the network icon.

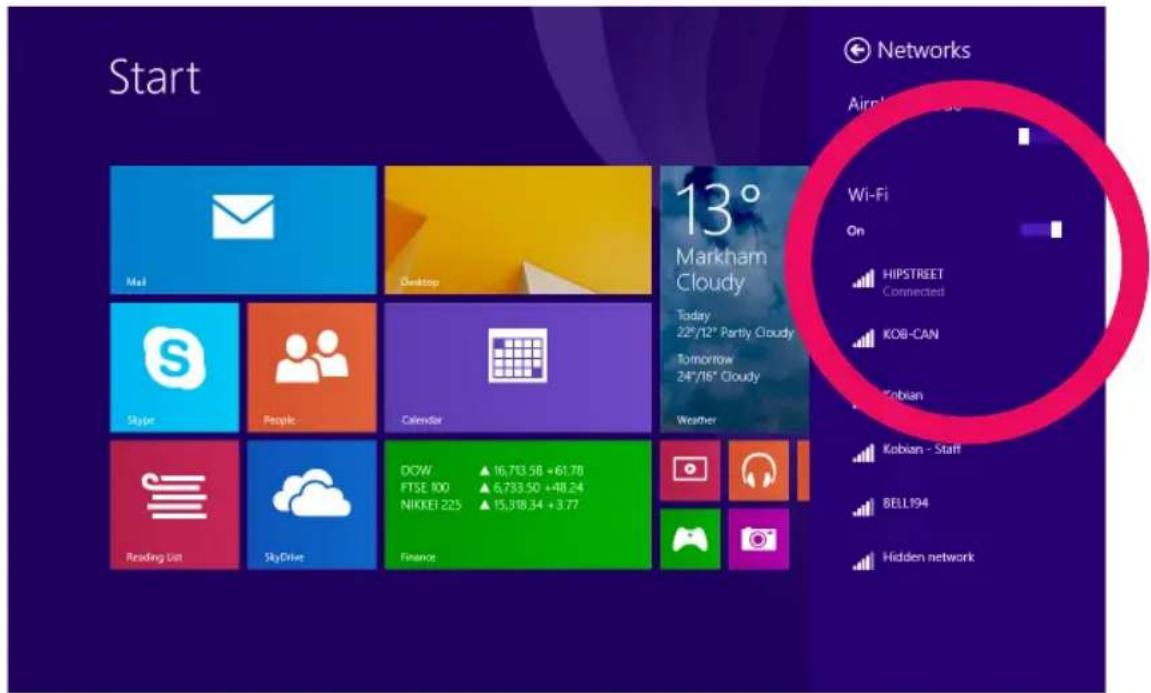

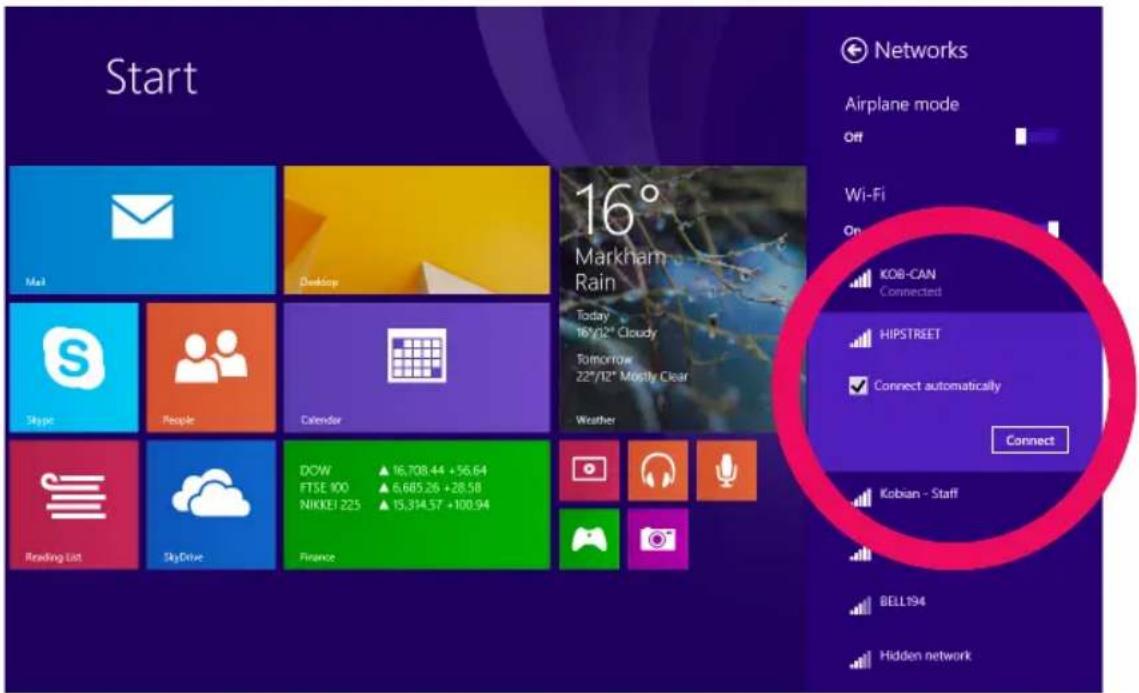

3. Select your wireless network from the list, and then tap Connect.

WI-FI SET-UP

Start AdminUser Mail Desktop 16° Markham Rain Today 16°/02" Cloudy Tomorrow 22°/12" Mostly Clear Weather Photos Help+ Tips Search S Type People Calendar Internet Explorer Start Read DOW FTSE 100 NIKKEI 225 ▲ 16,705.68 +53.88 ▲ 6,685.26 +28.58 ▲ 15,314.57 +100.94 Florida State, Alabama atop FOX Sports preseal. Settings 3:20 Thursday August 14

WI-Fi SET-UP

Start Mail Desktop 16° Markham Rain Today 16°/12° Cloudy Tomorrow 22°/12° Mostly Clear Weather Reading List SkyDrive DCW FTSE 100 NIKKEI 225 Finance 16,705.68 +53.88 6,685.26 +28.58 15,314.57 +100.94 KOIB-CAN 32 Screen Notifications Power Keyboard Change PC settings

WI-FI SETUP

Start Mail Skype Reading List People SkyDrive Desktop Calendar 16° Markham Rain Today 16°/12° Cloudy Tomorrow 22°/12° Mostly Clear Weather DOW FTSE 100 NIKKEI 225 Finance ▲ 16,708.44 +56.64 ▲ 6,685.26 +28.58 ▲ 15,314.57 +100.94 Networks Airplane mode Off Wi-Fi On KOB-CAN Connected HIPSTREET Connect automatically Connect Kobian - Staff BELL194 Hidden network

WI-Fi SET-UP

Start Mail Desktop 16° Markham Rain Today 16°/12" Cloudy Tomorrow 22°/12" Mostly Clear Weather Enter the network security key You can also connect by pushing the button on the router. Next Cancel HIPSTREET Reading List SkyDrive Finance

WI-FI SETUP

Start Mail Desktop 16° Markham Rain Today 16°/12° Cloudy Tomorrow 22°/12° Mostly Clear Weather Readings List People Calendar DCW FTSE 100 NIKKEI 225 ▲ 16,708.44 + 56.64 ▲ 6,685.26 + 28.58 ▲ 15,314.57 + 100.94 Finance

WI-Fi SET-UP

Start Mail Desktop 13° Markham Cloudy Today 22°/12° Partly Cloudy Tomorrow 24°/16° Cloudy Weather Wi-Fi On HIPSTREET Connected KOB-CAN Kobian - Staff BELL194 Hidden network

CAMERA

Your Windows Tablet comes with a built-in camera with the app preinstalled and ready to use. To open the camera app, tap the associated tile on the Start screen.

Start AdminUser Mail Desktop 16° Markham Mostly Cloudy Today 16°/12° Cloudy Tomorrow 22°/12° Mostly Clear Weather Photos Help+Tips S People Calendar e Police defend use of tear gas, smoke at protests Reading List SkyDrive DCW ▲ 16,697.97 +46.17 FTSE 100 ▲ 6,689.26 +28.58 NIKKEI 225 ▲ 15,314.57 +100.94 Finance Florida State, Alabama stand atop FOX Sports preseason...

CAMERA

Portrait of a smiling woman with long dark hair, hand on chin, with a large upward arrow and two video camera icons in the corner (no text or symbols on main subject)

To open the camera option, swipe up from the bottom of the screen.

CAMERA

Change camera Timer Exposure Spot adjust

WINDOWS STORE

The Windows Store is the place where you can download apps for your Windows Tablet.

You will need a Microsoft account to use this service. Please refer to Windows Help and Support for more detail.

WINDOWS STORE

Tap the Store tile on the Start screen, then browse and install your favorite apps.

Start AdminUser Photon Help+ Tips Internet Explorer News Sports Stop Food & Drink Travel

MORE HELP

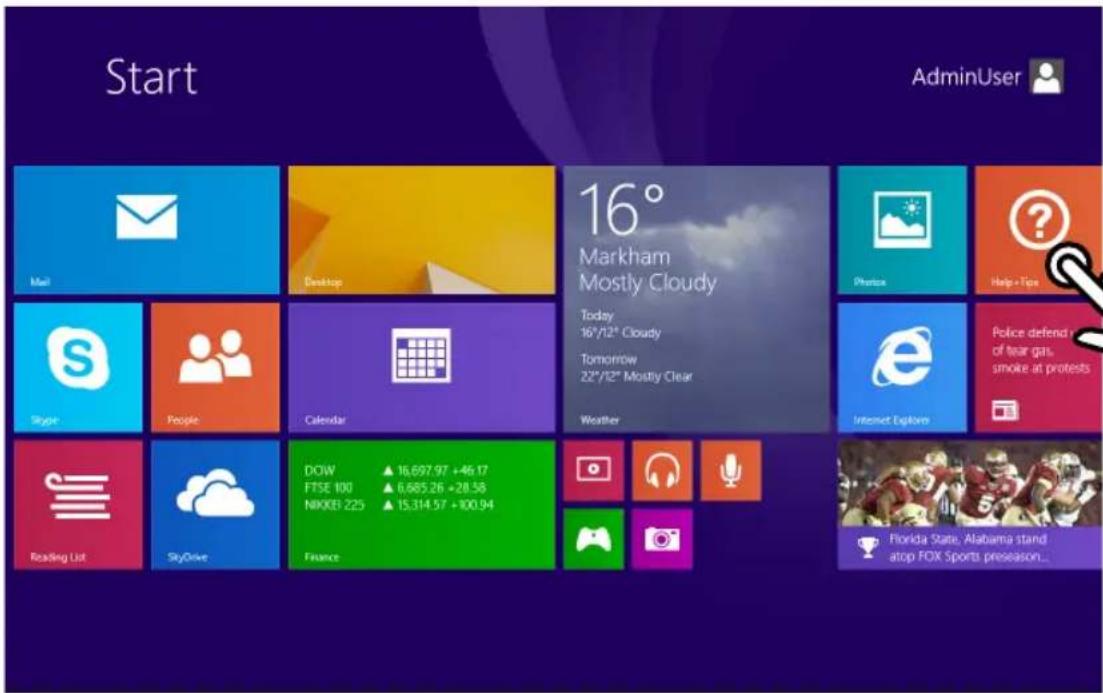

For more instructions on how to use Windows 8.1, open the Help+Tips app from the Start screen.

Start AdminUser Mail Desktop 16° Markham Mostly Cloudy Today 16°/12° Cloudy Tomorrow 22°/12° Mostly Clear Weather Photon Help+Tips S People Calendar e Police defend use of tear gas, smoke at protests Reading List SkyDrive DCW ▲ 16,697.97 + 46.17 ▲ 6,683.26 + 28.58 ▲ 15,314.57 + 100.94 NIKKEI 225 Finance

MORE HELP

Help+Tips Start and apps> Get around> Basic actions> Your account and files> Settings> What's new>

FCC WARNING

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE 1: This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

This device complies with Canadian ICES-003 and RSS-210

PRODUCT AND BATTERY DISPOSAL

This product contains a built-in lithium battery and should not be disposed of in normal household waste. The battery in this device is not intended to be removed by the individual or end user. For disposal and recycling, please contact your local waste management authorities.

The recycling and processing of electronic waste will make a significant contribution towards helping protect the environment.

The cell within this product uses Lithium Ion technology.

The cell within this product uses Lithium Ion technology. The cell has a voltage rating of 3.7 V and a capacity of 7900mAh, with an energy rating of 29.2Wh (Watt hours)

Warning: To reduce the risk of fire and burns; do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.

CONTACT US

If you encounter any difficulties with this product, please visit our website at www.hipstreet.com and review our support section or call us. Our representatives are ready to help you with any questions about your product. We can guide you through connections, first-time use, or any of the features. Just give us a call or send us an email.

North America 1-888-456-2426

UK 0800-051-8330

Netherlands 0800-404-0006

Germany 0800-180-7686

Monday through Friday: 8:30am - 5:00pm

Email: [e-mail]

We want you to start enjoying your product right away!
