Product Type	SFP/ISFP Transceiver Module
Brand	AirLive
Model	ISFP-1.25G (ISFP-LX-1.25G-20KM)
Fiber Mode	Single Mode dual fiber LX
Wavelength	1310nm
Data Rate	1.25 Gb/s
Maximum Distance	20 km
Connector Type	Duplex LC
DDM Function	Yes
Operating Temperature	-40°C to +85°C
Compliance	IEEE 802.3z (Gigabit Ethernet)
Application	Serial optical data communication, Gigabit Ethernet
Installation	Slide into SFP slot until it clicks
Disposal	Recycle responsibly per EU WEEE directive
Manual Version	Ver. 1.0, Aug. 9, 2021

Frequently Asked Questions - ISFP-1.25G AIRLIVE

What is the AirLive ISFP-1.25G?

The AirLive ISFP-1.25G is a Small Form-factor Pluggable (SFP) transceiver module designed for serial optical data communication, operating at 1.25 Gb/s over single-mode fiber.

What is the maximum distance supported?

The ISFP-1.25G (model ISFP-LX-1.25G-20KM) supports up to 20 km over single-mode fiber.

What wavelength does the module use?

It operates at a nominal wavelength of 1310nm.

How do I install the module into a switch?

Ensure your switch has an SFP slot. Slide the module straight into the slot until it clicks into place. If it does not click, push it further. Then connect the fiber cable.

Does the module support DDM (Digital Diagnostic Monitoring)?

Yes, the ISFP-1.25G supports DDM function, allowing real-time monitoring of parameters like temperature, voltage, and optical power.

What is the operating temperature range?

The industrial temperature range is -40°C to +85°C.

Is the module hot-swappable?

Yes, SFP modules are designed for hot-swapping but ensure proper ESD precautions.

What fiber optic cable type is required?

Use single-mode fiber with duplex LC connectors for this module.

How should I dispose of the module?

Do not dispose with household waste. Follow local regulations for electronic waste recycling or return to the retailer.

Where can I find the detailed datasheet?

Detailed specifications are available online at www.airlive.com.

USER MANUAL ISFP-1.25G AIRLIVE

I/SFP-MiniGBIC Transceiver

User Manual

LX, SX, SR, LR

Aug. 9, 2021

Ver. 1.0

Copyright & Disclaimer

No part of this publication may be reproduced in any form or by any means, whether electronic, mechanical, photocopying, or recording without the written consent of AirLive Technology Corp.

AirLive Technology Corp has made the best effort to ensure the accuracy of the information in this user's guide. However, we are not liable for the inaccuracies or errors in this guide. Please use with caution. All information is subject to change without notice

All Trademarks are properties of their respective holders.

Disposal

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

C€

Table of Contents

1. Overview.... 2

1.1 Adding to Module to a Switch.... 3
1.2 Specifications .... 4

1

Overview

ISFP-LR-10G-10KM ISFP-LX-1.25G-20KM ISFP-SR-10G-300M SFP-LR-10G-10KM
SFP-LX-1.25G.20KM SFP-LX-2.5G-20KM SFP-SR-10G-300M SFP-SX-1.25G-500M

The AirLive ISFP and SPF modules are high performance and cost-effective modules for serial optical data communication applications specified for single and multi-mode ranging in speed from 1.25 Gb/s, 2.5 Gb/s to 10Gb/s. Depending on the model they are either Single mode or Multi Mode which operates at a nominal wavelength of 1310nm or 850nm. The module is a duplex LC connector transceiver designed for use in Gigabit Ethernet applications and to provide IEEE802.3z compliant link from applications and IEEE802.ae for 10Gigabit Ethernet connections.

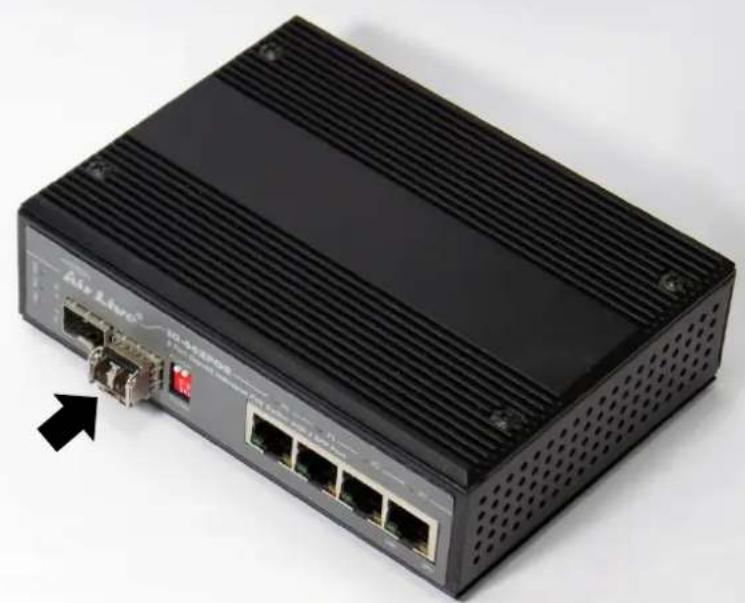

1.1 Adding to Module to a Switch

First time adding, make sure your switch has a SPF slot into which the SPF module can be placed. Slide the module straight into the SPF slot unit it clicks into place. When it does not click it means the module was not pushed inside far enough. Ones the module is inside the switch your fiber cable can be connected and its ready for use.

1.2 Specifications

Model	ISFP-LR-10G-10KM	ISFP-LX-1.25G-20KM	ISFP-SR-10G-300M	SFP-LR-10G-10KM
Mode	Single Mode dual fiber LR	Single Mode dual fiber LX	Multi Mode dual fiber SR	Single Mode dual fiber LR
Wavelength	1310nm	1310nm	850nm	1310nm
Speed	10G	1.25G	10G	10G
Distance	10KM	20KM	300M	10KM
DDM Function	Yes	Yes	Yes	Yes
Operating Temperature	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C	0°C to +70°C
Model	SFP-LX-1.25G.20KM	SFP-LX-2.5G-20KM	SFP-SR-10G-300M	SFP-SX-1.25G-500M
Mode	Single Mode dual fiber LX	Single Mode dual fiber LX	Multi Mode dual fiber SR	Multi Mode dual fiber SX
Wavelength	1310nm	1310nm	850nm	850nm
Speed	1.25G	2.5G	10G	1.25G
Distance	20KM	20KM	300M	500M
DDM Function	Yes	Yes	Yes	Yes
Operating Temperature	0°C to +70°C	0°C to +70°C	0°C to +70°C	0°C to +70°C

For more detailed specifications please see the datasheet of each seperated module.

The datasheets can be found online on www.airlive.com

** Specifications are subject to change and improvement without notice.
